TECHNICAL GUIDE

AFFINITY MODELS: PS8*UH

GAS-FIRED HIGH EFFICIENCY SINGLE STAGE UPFLOW/HORIZONTAL FURNACES

STANDARD & Low NOx 80% AFUE

NATURAL GAS 40 - 130 MBH INPUT

EFFICIENCY RATING CERTIFIED

ISO 9001

Certified Quality

Management System

Due to continuous product improvement, specifications are subject to change without notice.

Visit us on the web at www.york.com for the most up-to-date technical information.

Additional rating information can be found at www.gamanet.org.

278432-YTG-A-0407

DESCRIPTION

These high efficiency, compact units employ induced combustion, reliable hot surface ignition and high heat transfer aluminized tubular heat exchangers. The units are factory shipped for installation in upflow or horizontal applications.

These furnaces are designed for residential installation in a basement, closet, alcove, attic, recreation room or garage and are also ideal for commercial applications. All units are factory assembled, wired and tested to assure safe dependable and economical installation and operation.

These units are Category I listed and may be common vented with another gas appliance as allowed by the National Fuel Gas Code.

WARRANTY

20-year limited warranty on the heat exchanger. 10-year heat exchanger warranty on commercial applica-

tions. 5-year limited parts warranty.

FEATURES

• Compact, easy to install, ideal height 40" cabinet.

• Blower-off delay for cooling SEER improvement.

• Easy to connect power/control wiring.

• Built-in, high level self diagnostics with fault code display.

• Low unit amp requirement for easy replacement application.

• Integrated control module for reliable, economical operation.

• Electronic Hot Surface Ignition saves fuel cost with increased dependability and reliability.

• Induced combustion system with inshot main burners for quiet, efficient operation.

• 100% shut off main gas valve for extra safety.

• Multi-speed PSC, large, quiet direct-drive blower motor to match cooling requirements.

• 24V, 40 VA control transformer and blower relay supplied for add-on cooling.

• Hi-tech tubular aluminized steel primary heat exchanger.

• Timed on, adjustable off blower capability for maximum comfort.

• Solid removable bottom panel allows easy application.

• Easy access from front of unit for cleaning, maintenance or service.

• Insulated blower compartment for quiet operation.

• Independent door removal for greater durability and ease of access.

• Low NOx models have been designed to meet specific code requirements.

• All models are propane convertible.

FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE

Page 2

278432-YTG-A-0407

FRONT

3/4

26-3/4

BOTTOM IMAGE

RETURN END

13-3/4

GAS INLET 1-1/4 x 2-1/2

T’STAT WIRING 7/8” K.O.

30-1/8

LEFT SIDE

1-1/2

4” Diameter

1-1/4

(VENT CONNECTIONS)

POWER WIRING 7/8” HOLE

2-1/2

ACCESS WIRING 7/8” K.O.

8-3/4

4” Diameter

32-1/2

24-3/4

TOP IMAGE

SUPPLY END

5-3/8

5/8

RIGHT SIDE

5/8

14-3/4

23-1/2

2-1/4

1-1/8

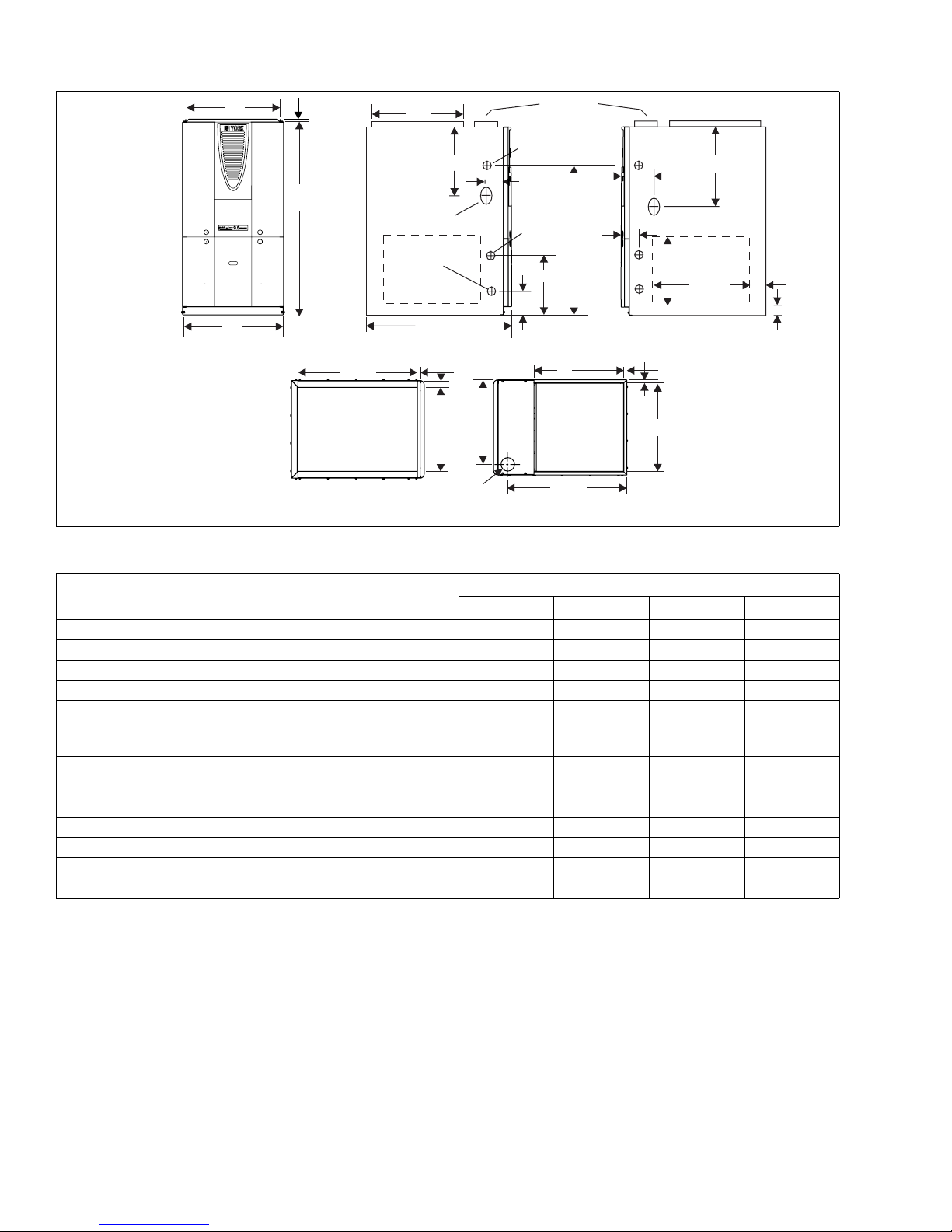

CABINET AND DUCT DIMENSIONS

Models CFM

Cabinet

Size

ABCD

PS8A12(N,L)040UH11 1200 A 14 1/2 13 1/4 11 1/2 10 1/8 PS8A12(N,L)060UH11 1200 A 14 1/2 13 1/4 11 1/2 10 1/8 PS8A12(N,L)080UH11 1200 A 14 1/2 13 1/4 11 1/2 10 1/8 PS8B16(N,L)080UH11 1600 B 17 1/2 16 1/4 14 1/2 11 5/8 PS8C16(N,L)080UH11 1600 C 21 19 3/4 18 13 3/8

PS8C22N080UH11 PS8C20L080UH11

2200 C 21 19 3/4 18 13 3/8

PS8B12(N,L)100UH11 1200 B 17 1/2 16 1/4 14 1/2 11 5/8 PS8B16(N,L)100UH11 1600 B 17 1/2 16 1/4 14 1/2 11 5/8 PS8C16(N,L)100UH11 1600 C 21 19 3/4 18 13 3/8 PS8C20(N,L)100UH11 2000 C 21 19 3/4 18 13 3/8

PS8C16N115UH11 1600 C 21 19 3/4 18 13 3/8 PS8C20(N,L)115UH11 2000 C 21 19 3/4 18 13 3/8 PS8D20(N,L)130UH11 2000 D 24 1/2 23 1/4 21 1/2 15 1/8

Cabinet Dimension

2 Unitary Products Group

Page 3

RATINGS & PHYSICAL / ELECTRICAL DATA - UPFLOW MODELS

278432-YTG-A-0407

Models

PS8A12(N,L)040UH11 40 32 1200 14-1/2 9.0 80.0 25-55 PS8A12(N,L)060UH11 60 48 1200 14-1/2 9.0 80.0 25-55 PS8A12(N,L)080UH11 80 64 1200 14-1/2 9.0 80.0 35-65 PS8B16(N,L)080UH11 80 64 1600 17-1/2 12.0 80.0 25-55

PS8C22N080UH11

PS8C20L080UH11 PS8B12(N,L)100UH11 100 80 1200 17-1/2 12.0 80.0 40-70 PS8B16(N,L)100UH11 100 80 1600 17-1/2 12.0 80.0 35-65 PS8C20(N,L)100UH11 100 80 2000 21 14.0 80.0 25-55

PS8C16N115UH11 115 92 1600 21 12.0 80.0 35-65

PS8C20(N,L)115UH11 115 92 2000 21 14.0 80.0 30-60

PS8D20(N,L)130UH11 130 104 2000 24-1/2 14.0 80.0 35-65

Models

PS8A12(N,L)040UH11 155 1/2 7.1 10 x 8 20 14 105 PS8A12(N,L)060UH11 155 1/2 7.1 10 x 8 20 14 110 PS8A12(N,L)080UH11 170 1/2 7.1 10 x 8 20 14 117 PS8B16(N,L)080UH11 155 3/4 11.5 11 x 8 20 14 126

PS8C22N080UH11

PS8C20L080UH11 PS8B12(N,L)100UH11 170 1/2 7.1 10 x 8 20 14 128 PS8B16(N,L)100UH11 165 3/4 11.5 11 x 8 20 14 134 PS8C20(N,L)100UH11 155 1.0 14.0 11 x 11 20 12 145

PS8C16N115UH11 170 3/4 11.5 10 x 10 20 14 145

PS8C20(N,L)115UH11 170 1.0 14.0 11 x 11 20 12 147

PS8D20(N,L)130UH11 165 1.0 14.0 11 x 11 20 12 158

Annual Fuel Utilization Efficiency (AFUE) numbers are determined in accordance with DOE Test procedures. Wire size and over current protection must comply with the National Electrical Code (NFPA-70-latest edition) and all local codes. The furnace shall be installed so that the electrical components are protected from water.

Input Output

MBH MBH CFM In. % °F

80 64 2200 21 14.0 80.0 25-55

Max. Outlet

Air Temp

°F Hp Amps In. LBS

165 1.0 14.0 11 x 11 20 12 140

Nominal

Airflow

Blower Blower Size

Cabinet Width

Total Unit Amps

Max

Over-Current

Protect

AFUE Air Temp. Rise

Min. wire Size

(awg) @ 75 ft

one way

Operation

Weight

Unitary Products Group 3

Page 4

278432-YTG-A-0407

BLOWER PERFORMANCE CFM - UPFLOW (WITHOUT FILTER) - BOTTOM RETURN

Bottom Airflow Data (SCFM)

Models Speed

High 1610 1540 1460 1360 1290 1200 1110 1020 900 760

PS8A12(N,L)040UH11

PS8A12(N,L)060UH11

PS8A12(N,L)080UH11

PS8B16(N,L)080UH11

PS8C22N080UH11 PS8C20L080UH11

PS8B12(N,L)100UH11

PS8B16(N,L)100UH11

PS8C20(N,L)100UH11

PS8C16N115UH11

PS8C20(N,L)115UH11

PS8D20(N,L)130UH11

NOTES:

1. Airflow expressed in standard cubic feet per minute (CFM).

2. Motor voltage at 115 V.

Medium High 1430 1390 1330 1250 1190 1110 1030 940 840 710

Medium Low 1200 1180 1140 1100 1050 1000 930 850 750 620

Low 980 980 960 920 890 840 790 720 620 530

High 1570 1490 1420 1340 1250 1180 1090 990 870 700

Medium High 1410 1360 1310 1250 1190 1090 1020 920 810 650

Medium Low 1200 1180 1150 1100 1050 990 920 830 700 580

Low 960 960 950 930 900 840 800 720 610 500

High 1590 1520 1460 1380 1300 1240 1150 1050 930 800

Medium High 1400 1360 1310 1260 1200 1140 1070 960 860 740

Medium Low 1180 1160 1130 1090 1040 990 920 840 750 640

Low 940 940 940 920 880 840 790 710 630 530

High 1850 1820 1790 1750 1690 1630 1570 1500 1430 1330

Medium 1470 1450 1440 1430 1390 1360 1310 1270 1220 1150

Low 1260 1260 1260 1260 1250 1200 1150 1110 1070 1010

High 2490 2410 2320 2230 2130 2030 1900 1790 1630 1470

Medium High 2120 2060 2000 1970 1840 1730 1680 1570 1460 1260

Medium Low 1720 1700 1670 1620 157 0 1500 1430 1310 1160 1000

Low 1410 1390 1360 1330 1280 1220 1170 1060 930 840

High 1700 1620 1560 1480 1390 1300 1210 1110 970 820

Medium High 1430 1400 1350 1300 1230 1160 1080 980 870 710

Medium Low 1180 1170 1160 1130 1080 1030 1000 860 750 510

Low 950 950 930 920 880 840 790 720 620 530

High 1880 1850 1770 1720 1650 1560 1490 1420 1320 1210

Medium 1470 1460 1420 1390 1360 1300 1250 1190 1110 1000

Low 1250 1240 1220 1190 1150 1130 1070 1030 970 880

High 2590 2500 2400 2280 2180 2080 1970 1840 1720 1560

Medium High 2180 2120 2040 1980 1900 1810 1720 1600 1480 1320

Medium Low 1750 1720 1680 1640 158 0 1520 1440 1350 1220 1060

Low 1450 1420 1380 1330 1300 1240 1160 1070 970 860

High 2020 1930 1820 1730 1640 1540 1400 1250 1090 920

Medium 1750 1710 1650 1590 1490 1390 1290 1160 1010 810

Low 1540 1500 1460 1410 1350 1260 1180 1060 910 750

High 2500 2400 2320 2220 2110 2000 1870 1750 1610 1450

Medium High 2130 2070 1990 1920 1840 1760 1660 1570 1460 1320

Medium Low 1700 1680 1650 1620 156 0 1500 1410 1320 1210 1070

Low 1420 1390 1360 1330 1290 1240 1150 1060 950 840

High 2640 2550 2440 2340 2230 2110 2010 1870 1750 1580

Medium High 2120 2070 2010 1950 1890 1810 1730 1610 1490 1320

Medium Low 1690 1660 1640 1600 155 0 1490 1410 1330 1240 1100

Low 1370 1360 1340 1310 1270 1230 1150 1070 990 850

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

Ext. Static Pressure (in. H2O)

4 Unitary Products Group

Page 5

BLOWER PERFORMANCE CFM - UPFLOW (WITHOUT FILTER) - LEFT SIDE RETURN

Left Side Airflow Data (SCFM)

Models Speed

0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0

High 1810 1730 1660 1570 1480 1390 1300 1200 1090 930

PS8A12(N,L)040UH11

PS8A12(N,L)060UH11

PS8A12(N,L)080UH11

PS8B16(N,L)080UH11

PS8C22N080UH11

PS8C20L080UH11

PS8B12(N,L)100UH11

PS8B16(N,L)100UH11

PS8C20(N,L)100UH11

PS8C16N115UH11

PS8C20(N,L)115UH11

PS8D20(N,L)130UH11

NOTES:

1. Airflow expressed in standard cubic feet per minute (CFM).

2. Return air is through side opposite motor (left side).

3. Motor voltage at 115 V.

4. Airflow through across motor side (right side) may be slightly less than the data shown above.

Medium High 1390 1390 1350 1320 1270 1210 1150 1080 970 79 0

Medium Low 1120 1120 1120 1110 1080 1080 1020 930 830 690

Low 880 910 920 920 910 870 820 740 650 510

High 1770 1690 1630 1560 1490 1390 1290 1190 1050 920

Medium High 1400 1380 1350 1320 1280 1230 1160 1060 930 78 0

Medium Low 1120 1130 1150 1130 1120 1080 1000 950 790 630

Low 880 900 900 900 880 850 790 730 660 530

High 1790 1720 1670 1590 1530 1450 1350 1260 1140 1000

Medium High 1420 1370 1350 1320 1280 1230 1170 1090 990 84 0

Medium Low 1080 1120 1 110 1100 1080 1040 1000 920 820 690

Low N/A 900 900 890 870 850 800 730 670 560

High 2000 1960 1930 1900 1800 1760 1710 1640 1550 1460

Medium 1440 1440 1430 1420 1400 1380 1340 1300 1220 1150

Low 1220 1230 1230 1230 1200 1190 1170 1160 1110 1050

High 2710 2640 2560 2480 2360 2260 2160 2010 1860 1650

Medium High 2110 2110 2070 2030 1980 1910 1850 1710 1570 1300

Medium Low 1690 1690 1650 1610 1540 1480 1410 1280 1170 1030

Low 1350 1330 1310 1290 1260 1220 1150 1050 970 860

High 1780 1710 1640 1560 1490 1390 1290 1180 1030 820

Medium High 1430 1410 1370 1340 1280 1220 1140 1040 890 73 0

Medium Low 1140 1170 1150 1120 1080 1040 970 890 760 630

Low 920 940 950 940 920 890 850 770 660 560

High 1950 1890 1840 1790 1730 1660 1570 1480 1390 1300

Medium 1440 1420 1400 1390 1350 1320 1270 1210 1150 1060

Low 1230 1210 1190 1180 1150 1 130 1090 1050 990 920

High 2770 2670 2610 2540 2450 2340 2210 2070 1890 1730

Medium High 2120 2060 2030 2000 1950 1880 1810 1720 1580 1370

Medium Low 1690 1660 1630 1610 1560 1490 1420 1350 1240 1070

Low 1390 1370 1330 1290 1250 1200 1120 1010 910 850

High 2160 2070 1990 1900 1800 1690 1580 1430 1260 1000

Medium 1760 1720 1690 1630 1560 1480 1390 1250 1080 890

Low 1510 1490 1470 1440 1380 1300 1210 1110 950 780

High 2740 2650 2560 2480 2380 2280 2170 1990 1840 1650

Medium High 2120 2090 2040 2000 1940 1870 1780 1680 1550 1370

Medium Low 1690 1670 1650 1610 1560 1510 1440 1310 1160 1030

Low 1390 1360 1330 1300 1250 1190 1100 1020 940 840

High 2680 2600 2520 2410 2300 2180 2050 1910 1730 1550

Medium High 2140 2110 2070 1990 1930 1850 1770 1670 1530 1370

Medium Low 1660 1640 1620 1570 1530 1470 1400 1310 1220 1090

Low 1370 1350 1320 1290 1240 1190 1140 1040 930 860

Ext. Static Pres sure (in. H2O)

278432-YTG-A-0407

Unitary Products Group 5

Page 6

278432-YTG-A-0407

HORIZONTAL SIDEWALL VENTING

For applications where vertical venting is not possible, the only approved method of horizontal venting is the use of an auxiliary power vent. Approved power venters are Fields Controls Model SWG-4Y or Tjernlund Model GPAK-JT. Follow all application and installation details provided by the manufacturer of the power vent. This unit may be horizontally vented using 4” (10.2 cm) diameter pipe with a minimum length of 4.5 feet (1.37 m) and a maximum length of 34.5 feet (10.82 m) with up to 4 elbows.

FILTER PERFORMANCE

The airflow capacity data published in the “Blower Performance” table listed above represents blower performance WITHOUT filters. To determine the approximate blower performance of the system, apply the filter drop value for the filter being used or select an appropriate value from the “Filter Performance” table shown below.

NOTE: The filter pressure drop values i n the “Filter Performance” table shown below are typical values for the type of filter listed and should only be used as a guideline. Actual pressure drop ratings for each filter type vary between filter manufacturer.

RECOMMENDED FILTER SIZES

CFM

1200 A 16 x 25 14 x 25 1200 B 16 x 25 16 x 25 1600 B 16 x 25 16 x 25 1600 C 16 x 25 20 x 25 2000 C (2) 16 x 25 20 x 25 2200 C (2) 16 x 25 20 x 25 2000 D (2) 16 x 25 22 x 25

NOTES:

1. Air velocity through throwaway type filters may not exceed 300 feet per minute. All velocities over this require the use of high velocity filters.

2. Air flows above 1800 CFM require either return from two sides or one side plus bottom.

Cabinet

Size

FILTE R PERFORMANCE - PRESSURE DROP INCHES W.C. AND (KPA)

Airflow Range

CFM

0 - 750 230 0.01 0.01 0.15

751 - 1000 330 0.05 0.05 0.20 1001 - 1250 330 0.10 0.10 0.20 1251 - 1500 330 0.10 0.10 0.25 1501 - 1750 380 0.15 0.14 0.30 1751 - 2000 380 0.19 0.18 0.30

2001 & Above 463 0.19 0.18 0.30

Minimum

Opening Size

Disposable Washable Fiber Pleated

In W.C. In W.C. In W.C.

Filter Type

Side

(in)

Bottom

(in)

UNIT CLEARANCES TO COMBUSTIBLES (ALL DIMENSIONS IN INCHES, AND ALL SURFACES IDENTIFIED WITH THE UNIT IN AN UPFLOW CONFIGURATION)

Application Top Front Rear

Upflow 1 6 0 0 3 6 Combustible Yes Yes Yes No

Upflow B-Vent 1 3 0 0 0 1 Combustible Yes Yes Yes No

Horizontal

Horizontal B-Vent

1 Line contact only permitted between lines formed by the intersection of the rear panel and si de panel (top in horizontal postion) of the furance jacket

and building joists, studs or framing.

1 6 0 0 3 6 Combustible No Yes Yes 1 3 0 0 0 1 Combustible No Yes Yes

Left

Side

Right

Side

Flue

Floor/

Bottom

Closet Alcove Attic

Line

Contact

Yes

6 Unitary Products Group

Page 7

HP2 Single Stage H/P - E*RD, E*BD, ERHS, HPX13 - w/Single Stage Furnace, 2 Stage Cooling Ready - PS8/9, (F,L)*8/9S, XYG80-U, XYG80-U*L, XYG90-U

W/031-01975- Series Demand Control

Step 1 of Thermostat User Configuration Menu

must be set to Heat Pump 1

Step 9 of Thermostat User Configuration Menu

must be set to Pump OFF

*PP32H70124

Reversing Valve–Energized in Cool

Malfunction Light

X/L

Malfunction Light

W1/66

First Stage Heat Out

Fan

First Stage Heat

24-Volt Hot

Second Stage Heat

First Stage Cool

24-Volt Common

First Stage Heat/Cool

Y/Y2

Single/Second Stage Cool

Single Stage Heat/Cool

N/A N/A

24-Volt Common

24-Volt Hot

Emergency Heat

Single Stage Heat

Reversing Valve–Energized in Cool

*DP21H40124

*DN21H00124

*BN21H00124

THERMOSTAT THERMOSTAT THERMOSTAT

SINGLE STAGE

HEAT PUMP

*DN22U00124 *BP21H50124

PSC-2 STAGE COOLING

READY

FURNACE CONTROL

278432-YTG-A-0407

For additional connection diagrams for all UPG equipment refer to “Low Voltage System Wiring” document available online at www.upgnet.com in the Product Catalog Section.

24V HUMIDIFIER

24-Volt Hot

Single Stage Heat

Fan

SINGLE STAGE

AIR CONDITIONING

24-Volt Common

Single Stage Cool

Y/Y2

24-Volt Common

FURNACE CONTROL

Single/Second Stage Cool

PSC-2 STAGE COOLING READY

First Stage Cool

Optional w/Batteries

*BN11C01124

*DP11C40124

*DN11C00124

*BN11C00124 *BP11C50124 *PP11C70224

THERMOSTAT THERMOSTAT THERMOSTAT

First Stage Cool

24-Volt Hot (Cool XFMR)

24-Volt Hot (Heat XFMR)

24-Volt Common

First Stage Cool

24-Volt Hot (Cool XFMR)

24-Volt Hot (Heat XFMR)

First Stage Cool

24-Volt Hot (Cool XFMR)

24-Volt Hot (Heat XFMR)

Fan

HM1

First Stage Heat

Humidistat

Fan

First Stage Heat

on thermostat not necessary

Fan

Selection of GAS/ELEC switch

First Stage Heat

System Type - must be set to 0

Thermostat Installer Setup Number 1 -

Thermostat Installer Setup Number 15 -

Compressor Protection - must be set to 5

AC2 1 Stage A/C w/Single Stage Furnace, 2 Stage Cooling Ready - PS8/9, (F,L)*8/9S, XYG80-U, XYG90-U

Thermostat Chart

Unitary Products Group 7

Page 8

APPLYING FILTER PRESSURE DROP TO DETERMINE SYSTEM AIRFLOW

To determine the approximate airflow of the unit with a filter in place, follow the steps below:

1. Select the filter type.

2. Select the number of return air openings or calculate the return opening size in square inches to determine the proper filter pressure drop.

3. Determine the External System Static Pressure (ESP) without the filter.

4. Select a filter pressure drop from the table based upon the number of return air openings or return air opening size and add to the ESP from Step 3 to determine the total system static.

5. If total system static matches a ESP value in the airflow table (i.e. 0.20 w.c. (50 Pa), 0.60 w.c. (150 Pa), etc,) the system airflow corresponds to the intersection of the ESP column and Model/Blower Speed row.

6. If the total system static falls between ESP values in the table (i.e. 0.58 w.c. (144 Pa), 0.75 w.c. (187 Pa), etc.), the static pressure may be rounded to the nearest value in the table determining the airflow using Step 5 or calculate the airflow by using the following example.

Example: For a 60,000 BTUH (17.58 kW) furnace with a bottom return opening and operating on high-speed blower, it is found that total system static is 0.58” w.c. To determine the system airflow, complete the following steps:

Obtain the airflow values at 0.50 w.c. (125 Pa) & 0.60 w.c. (150 Pa) ESP.

Airflow @ 0.50”: 1250 CFM (35.4 m Airflow @ 0.60”: 1180 CFM (33.4 m Subtract the airflow @ 0.50 w.c. (125 Pa) from the airflow @

0.60 w.c. (150 Pa) to obtain airflow difference.

1180 - 1250 = -70 CFM (-12 m3/min) Subtract the total system static from 0.50 w.c. (125 Pa) and

divide this difference by the difference in ESP values in the table, 0.60 w.c. (150 Pa) - 0.50 w.c. (125 Pa), to obtain a percentage.

(0.58 - 0.50) / (0.60 - 0.50) = 0.8 Multiply percentage by airflow difference to obtain airflow

reduction. (0.8) X (-70) = -56 Subtract airflow reduction value to airflow @ 0.50 w.c. (125

Pa) to obtain actual airflow @ 0.58 in. w.c. (144 Pa) ESP. 1250 - 56 = 1194

/min)

ACCESSORIES

PROPANE (LP) CONVERSION KIT -

1NP0347 - All Models This accessory conversion kit may be used to convert natural

gas (N) units for propane (LP) operation. Conversions must be made by qualified distributor or dealer personnel.

SIDE RETURN FILTER -

1SR0302 - All Models 1SR0200 - All Models

BOTTOM RETURN FILTER -

1BR0114 or 1BR0214 - For 14-1/2” cabinets 1BR0117 or 1BR0217 - For 17-1/2” cabinets 1BR0121 or 1BR0221 - For 21” cabinets 1BR0124 or 1BR0224 - For 24-1/2” cabinets

INTERNAL FILTER WITH FIBER FILTER -

1HF0801 - All Models

HIGH ALTITUDE PRESSURE SWITCHES -

For installation where the altitude is less than 8,000 feet it is not required that the pressure switch be changed. For altitudes above 8,000 feet see kits below. Conversion must be made by qualified distributor or dealer personnel.

1PS0301 - 040, 060 MBH 1PS0302 - 080 MBH 1PS0311 - 100, 115, 130 MBH

ROOM THERMOSTATS - A wide selection of compatible thermosets are available to provide optimum performance and features for any installation.

1H/1C, manual change-over electronic non-programmable thermostat.

1H/1C, auto/manual changeover, electronic programmable, deluxe 7-day, thermostat.

1H/1C, auto/manual changeover, electronic programmable. * For the most current accessory information, refer to the

price book or consult factory.

Unitary 5005 Norman Products York OK Group Drive 73069
