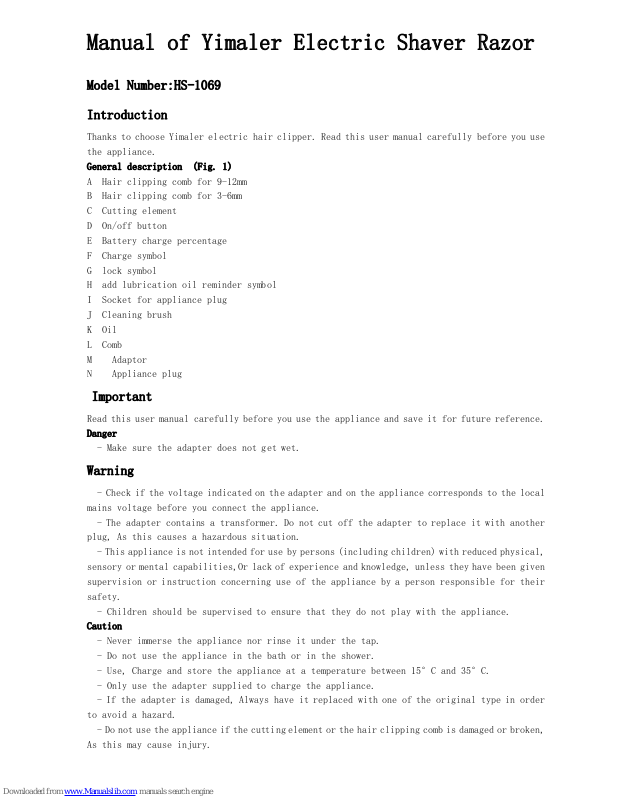

Manual of Yimaler Electric Shaver Razor
Model Number:HS-1069
Introduction
Thanks to choose Yimaler electric hair clipper. Read this user manual carefully before you use
the appliance.
General description (Fig. 1)
A Hair clipping comb for 9-12mm
B Hair clipping comb for 3-6mm
C Cutting element
D On/off button
E Battery charge percentage
F Charge symbol
G lock symbol
H add lubrication oil reminder symbol
I Socket for appliance plug
J Cleaning brush
K Oil
L Comb
M Adaptor
N Appliance plug
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Danger
- Make sure the adapter does not get wet.
Warning
- Check if the voltage indicated on the adapter and on the appliance corresponds to the local
mains voltage before you connect the appliance.
- The adapter contains a transformer. Do not cut off the adapter to replace it with another
plug, As this causes a hazardous situation.
- This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities,Or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
- Children should be supervised to ensure that they do not play with the appliance.
Caution
- Never immerse the appliance nor rinse it under the tap.
- Do not use the appliance in the bath or in the shower.
- Use, Charge and store the appliance at a temperature between 15°C and 35°C.
- Only use the adapter supplied to charge the appliance.
- If the adapter is damaged, Always have it replaced with one of the original type in order
to avoid a hazard.
- Do not use the appliance if the cutting element or the hair clipping comb is damaged or broken,
As this may cause injury.
- This appliance is only intended for clipping human scalp hair. Do not use it for any other
purpose.
The display
- When the appliance is charging, the battery charge percentage and the battery symbol
goes on to indicate that the appliance is charging.(Fig. 2)
- The remaining battery capacity is indicated by the battery charge percentage shown
on the display.
Battery fully charged
When the battery is fully charged, the battery charge percentage lights indicated
shown 100
Battery low
When the battery is almost empty, The battery symbol starts to flash.(Fig. 3)
add lubrication reminder
We advise you to clean the appliance after every use.
When the add lubrication reminder symbol flashes to remind you Must add the
lubrication on the knife.(Fig. 4)
locking function symbol
The locking function prevents the product accidentally closing during use.
Enable locking function
Press the on / off button 3 seconds to enter the lock mode, And then the lock symbol
will light up on the screen. (Fig. 5)
Unlock the appliance
Press the on / off button for 3 seconds.
The symbol of the lock appliance is extinguished,And now it can be used to close the
appliance.
Charging
The suitable voltage for the appliance charger is 110V-240V~ 50Hz/60Hz
Do not charge the appliance for more than 24 hours
Charging takes approx 2 hours.
When the appliance is fully charged,It has an operating time of 200 minutes.
1 Make sure the appliance is switched off.
2 Put the adapter in the wall socket.The battery charge percentage and the battery symbol goes
on to indicate that the appliance is charging.(Fig. 6)
Optimising the lifetime of the rechargeable batteries.
Discharge the rechargeable batteries completely twice a year by letting the motor run until it
stops.Then fully recharge the batteries.
Using the appliance
Clipping with hair clipping comb
Note: Make sure your hair is clean and dry.Do not use the appliance on freshly washed hair.
1 Comb your hair with a styling comb in the direction of hair growth. (Fig. 7)
2 Slide the hair clipping comb into the guiding grooves of the appliance (‘click’).(Fig. 8)
Make sure that the arms of the comb have been properly slid into the grooves on both sides.
The corresponding hair length is visible on the inside of the comb.
The appliance can cut hair to 4 different lengths(3、6、9、12mm).
3 switch on/off button to switch on the appliance.(Fig. 9)
4 Place the hair clipping comb on the scalp and move,The appliance through the hair slowly.
Tips
Start clipping at the highest length setting of the hair clipping comb and reduce the length
setting gradually.
Write down the length settings you have used to create a certain hairstyle as a reminder for
future clipping sessions.
To clip in the most effective way, Move the appliance against the direction of hair growth.
Since hair grows in different directions, You need to move the appliance in different directions
as well(upward, Downward or across).(Fig. 10)
Make overlapping passes over the head to ensure that the appliance catches all the hairs that
need to be cut.
Make sure that the flat part of the hair clipping comb is fully in contact with the scalp to
obtain an even clipping result.
To achieve a good result with curly, Sparse or long hair ,You can use a styling comb to guide
the hair towards the appliance.
Regularly remove cut hair from the hair clipping comb. If a lot of hair has accumulated in the
comb,Remove it from the appliance and blow and/or shake the hair out of it.
Clipping without hair clipping comb
You can use the appliance without hair clipping comb to clip your hair very close to the skin
(1.0-1.9mm) or to contour the neckline and the area around the ears.
1 Pull the comb off the appliance.(Fig. 11)
2 You can adjust the button up or down, And use you thumb push the button to the corresponding
length (1.0mm, 1.3mm, 1.6mm, 1.9mm). (Fig 12)
3 Comb the hair ends over the ears before you start to contour the hairline.
4 Tilt the appliance in such a way that only one edge of the cutting element touches the hair
ends.(Fig. 13)
5 Only cut the hair ends. The hairline has to be close to the ear.
6 To contour the neckline and the sideburns, Turn the appliance and make downward strokes.(Fig.
14)
7 Move the appliance slowly and smoothly. Follow the natural hairline.
Cleaning
Never use compressed air, Scouring pads, abrasive cleaning agents or aggressive liquids such
as alcohol,petrol or acetone to clean the appliance.
Only clean the appliance and the adapter with the cleaning brush supplied.
Do not use any sharp objects to clean the appliance.
Clean the appliance after every use.
1 Make sure the appliance is switched off and disconnected from the mains.
2 Pull he comb off the appliance.(Fig. 11)
3 Push upwards the middle part of the cutting unit with your thumb until it opens and then
pull it off the appliance.(Fig. 15)
4 Clean the cutting unit with the cleaning brush supplied.(Fig. 16)
5 Clean the inside of the appliance with the cleaning brush supplied.(Fig. 17)
Note: Must add the lubrication on the knife before use.(Fig. 18)
Replacement
The cutting unit, the adapter and the hair clipping comb are replaceable.
Replacing the cutting unit
Replace the cutting unit if it is damaged or worn. Only replace the cutting unit with an original
Yimaler cutting unit.
1 Pull the comb off the appliance,Push the middle part of the cutting unit upwards with your
thumb until it opens,And then pull it off the appliance.(Fig. 11 15)
2 Place the lug of the new cutting unit in the slot and push the cutting unit onto the appliance
(‘click’).(Fig. 19)
Environment
- Do not throw away the appliance with the normal household waste at the end of its life, but
hand it in at an official collection point for recycling. By doing this, you help to preserve
the environment.(Fig. 20)
The built-in rechargeable batteries contain substances that may pollute the environment.Always
remove the batteries before you discard and hand in the appliance at an official collection point.
Dispose of the batteries at an official collection point for batteries. If you have trouble
removing the batteries, you can also take the appliance to a Yimaler service centre. The staff
ofthis centre will remove the batteries for you andwill dispose of them in an environmentally
safe way.(Fig. 21)
-Removing the rechargeable batteries
Only remove the rechargeable batteries when you discard the appliance.Make sure the batteries
are completely empty when you remove them.
Do not connect the appliance to the mains again after you have removed the rechargeable batteries.
1 Disconnect the appliance from the mains and let the appliance run until the motor stops.
2 Remove the hair clipping comb and the cutting unit.
3 Remove the 2 screws at the appliance with a screwdriver.(Fig. 22)
4 Pull the back panel off the appliance.(Fig. 23)
5 Remove the 6 screws on the inside of the appliance with a screwdriver.(Fig. 24)
6 Separate the power unit from the front panel. (Fig. 25)
7 Cut the wires close to the batteries and then remove the batteries.
Guarantee and service
If you need service or information or if you have a problem, please call or contact the SURKER
Consumer Care Centre in your country . If there is no Consumer Care Centre in your country, go
to your local Yimaler dealer.
