Chapter 1. Getting to know your computer

Top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Front camera

Wireless LAN antenna

Multi-touch screen

Note: For details, see “Touch screen operation” on page 16.

Use the camera for video communication or taking photos.

Connects to a wireless LAN adapter to send and receive wireless radio signals.

Functions as the visual display as well as touchpad input.

Chapter 1. Getting to know your computer



Screen orientation

You can rotate the display panel to your preferred orientation. The orientation of the display automatically changes (alternating between portrait and landscape modes) depending on how you hold it.

Chapter 1. Getting to know your computer

4 5321 6 7

Left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Combo audio jack

Notes:

• The combo audio jack does not support conventional microphones.

• The recording function might not be supported if third-party headphones or headsets are connected,

due to different industry standards.

Built-in microphone

AC power adapter jack

Micro USB port

Micro HDMI port

(

Power indicator

)

Symbol Indicator

Power

Micro SD card slot

Note: For details, see “Using a micro SD card (not supplied)” on page 4.

Connects to headsets.

Captures sound which can be used for video conferencing, voice narration, or audio recording.

Connects to the AC power adapter.

Connects to USB devices.

Connects to devices with micro HDMI input such as a TV or an external display.

Indicator

status

On (solid red) The tablet is charging.

On (solid amber)

Off The tablet is disconnected from the AC adapter.

Accepts a micro SD card (not supplied).

The tablet is connected to the AC adapter and is fully charged.

Meaning

Chapter 1. Getting to know your computer



Using a micro SD card (not supplied)

Your computer supports micro Secure Digital (SD) cards.

Notes:

• Insert only one card into the slot at a time.

• This card reader does not support SDIO devices (e.g., SDIO Bluetooth, etc.).

Inserting a card

Slide the card in until it clicks into place.

Removing a card

1 Push the card in until you hear a click. 2 Gently pull the memory card out of the slot.

Note: Before removing the memory card, disable it by using the Windows safely remove hardware and eject

media utility to avoid data corruption.

Chapter 1. Getting to know your computer

Bottom view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Tablet-keyboard dock

latch

Note: For details, see “Combination of tablet and keyboard dock” on page 10.

Keyboard dock connector

Attaches the tablet to the dock keeping the tablet secured in place.

Connects the tablet to the keyboard dock.

Chapter 1. Getting to know your computer

Rear view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

1 2 3 4

Rear camera

Volume down button

Volume up button

Power button

Speakers

(

Use the camera for video communication or taking photos.

Decreases the volume level.

Increases the volume level.

When the computer is off, press and hold this button to turn on the computer.

Provide audio output.

Chapter 1. Getting to know your computer

21 1

Keyboard dock top view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Tablet-keyboard dock

latch

Note: For details, see “Combination of tablet and keyboard dock” on page 10.

Keyboard dock connector

System status indicators

Symbol Indicator

Power

Caps lock

Attaches the tablet to the dock keeping the tablet secured in place.

Connects the tablet to the keyboard dock.

Indicator

status

On (solid white) The computer is powered on.

•

Off

On (solid white)

Off Uppercase input mode is disabled.

The computer is in sleep mode, or the display is off.

• The computer is powered off.

• The tablet is detached from the keyboard dock.

Uppercase input mode is enabled. (All typed letters are uppercase by default.)

Meaning

Chapter 1. Getting to know your computer



2 2

Tablet release button

Note: For details, see “Combination of tablet and keyboard dock” on page 10.

Keyboard

(

Touchpad

)

Press and hold the button to release the tablet and detach it from the keyboard dock.

Function key combinations

Through the use of the function keys, you can change operational features instantly. To use this

function, press and hold Fn ; then press one of the function keys .

The following describes the features of each function key.

Fn + Esc: Mutes/unmutes the sound. Fn + :

Fn + Delete: Enables/disables the touchpad. Fn + Backspace: Enables/disables Airplane mode. Fn + PgUp: Activates the home key function. Fn + PgDn: Activates the end key function. Fn + : Increases the display brightness. Fn + : Decreases the display brightness. Fn + : Decreases the volume level. Fn + : Increases the volume level.

Closes the currently active window.

Chapter 1. Getting to know your computer

Keyboard dock left-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

USB port

Connects to USB devices.

Keyboard dock right-side view - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

USB port

Connects to USB devices.

Chapter 1. Getting to know your computer



Combination of tablet and keyboard dock

The Lenovo ideapad MIIX 300-10IBY is not only a tablet. It can be combined with a keyboard dock and used as a notebook computer.

Attaching the tablet

Align the connector of the keyboard dock with the tablet and then attach the tablet in the direction shown by the arrow.

Chapter 1. Getting to know your computer

Detaching the tablet

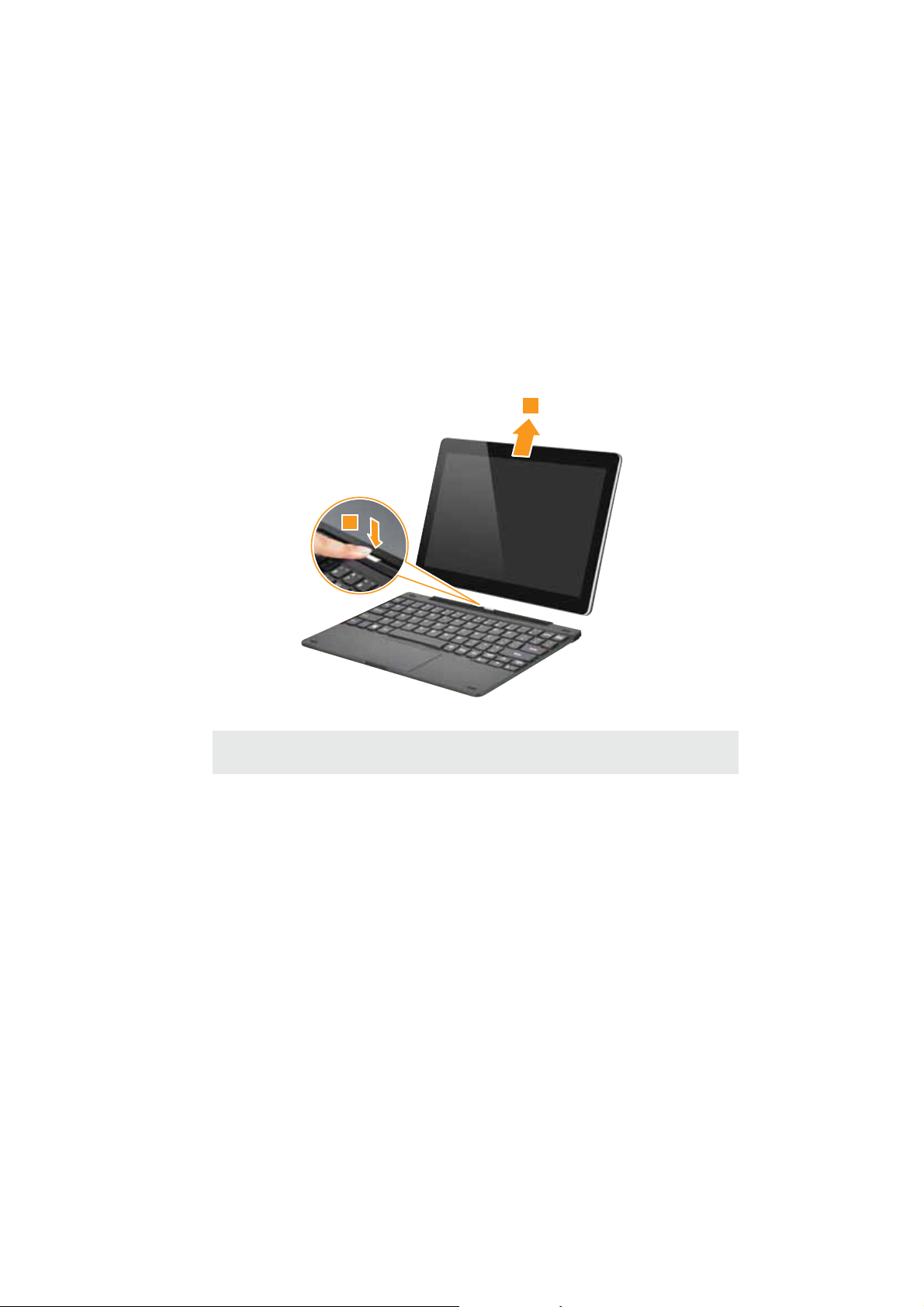

Press and hold the tablet release button , while carefully detaching the tablet in the direction

shown by the arrow .

Notes:

• Be careful not to damage the connector when attaching or detaching the tablet.

• The illustrations above are for reference only, please refer to the actual product.

Chapter 2. Starting to use Windows 8.1

Configuring the operating system for the first time - - - - - - - - - - - - - - - - -

You may need to configure the operating system when it is first used. The configuration process may include the procedures below:

• Accepting the end user license agreement

• Configuring the Internet connection

• Registering the operating system

• Creating a user account

Operating system interfaces - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Windows 8.1 comes with two main User Interfaces: the Start screen and the desktop. To switch from the Start screen to the desktop, do one of the following:

• Select the desktop tile on the Start screen.

• Press the Windows key + D (located on the keyboard).

To switch from the desktop to the Start screen, do one of the following:

• Select Start from the charms.

• Move the cursor to the lower-left corner, then select the Start button.

Start screen Desktop

Chapter 2. Starting to use Windows 8.1

The charms - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Charms are navigation buttons that let you control your Windows® 8.1 experience. Charms include: Search, Share, Start, Devices, and Settings. The Charms Bar is the menu that contains the charms. The five charms provide new and faster ways to perform many basic tasks, and are always available regardless of which app you are currently in. To display the charms, do one of the following:

• Move the pointer to the upper-right or lower-right corner until the charms bar is displayed.

• Use one finger to swipe in from the right edge of the screen until the charms bar is displayed.

• Press the Windows key + C (located on the keyboard).

Search charm

The Search charm is a powerful new way to find what you are looking for, including settings, files, Web images, Web videos, etc.

Chapter 2. Starting to use Windows 8.1

Share charm

The Share charm enables you to send links, photos, and more to your friends and social networks without leaving the app you are in.

Start charm

The Start charm is a way to go to the Start screen.

Devices charm

The Devices charm allows you to connect or send files to connected external devices, including the devices to play, print, and project.

Settings charm

The Settings charm enables you to perform basic tasks, such as setting the volume or shutting down the computer. Also, you can get to the Control Panel through the Settings charm when using the desktop screen.

Chapter 2. Starting to use Windows 8.1



Putting the computer to sleep or shutting it down - - - - - - - - - - - - - - - - - - - -

When you have finished working with your computer, you can put it to sleep or shut it down.

Putting your computer to sleep

If you will be away from your computer briefly, put the computer to sleep. When the computer is in sleep mode, you can quickly wake it to resume use, bypassing the startup process. To put the computer to sleep, do one of the following:

• Press the Power button.

• Open the charms, and then select Settings Power Sleep.

To wake the computer, do one of the following:

• Press any key on the keyboard.

• Press the Power button.

Shutting down the computer

If you are not going to use your computer for a long time, shut it down. To shut down the computer, do one of the following:

• Open the charms, and then select Settings Power Shut down.

• Press and hold or right-click the Start button in the lower-left corner and select Shut down or

sign out Shut down.

Chapter 2. Starting to use Windows 8.1



Touch screen operation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

The display panel can accept inputs like a tablet, using the multi-touch screen, or like a traditional notebook computer, using the keyboard and touchpad.

Multi-touch gestures

You can touch the screen with one or more fingertips to perform a variety of tasks.

Frequently used gestures Tasks performed

Tap

Tap once on an item.

Performs an action, such as starting an app, opening a link, or performing a command. Similar to left-clicking with a mouse.

Press and hold

Press your finger down and leave it there for a moment.

Enables you to see detailed information before selecting an action. Can also open a menu with more options. Similar to rightclicking with a mouse.

(continued)

Frequently used gestures Tasks performed

Zoom

Move two fingers together or apart while touching the screen.

Rotate

Place two or more fingers on an item and then turn your hand.

Chapter 2. Starting to use Windows 8.1

Zooms in and out on visual apps, such as pictures and maps. Can also jump to the beginning or end of a list.

Rotates an object (Note: Not all items can be rotated, depending upon the app.).

Slide

Drag your finger across the screen.

Pans or scrolls through lists and pages. Can also move an object or be used to draw or write, depending upon the app. Similar to pressing and holding to pan and to scrolling with a mouse.

Chapter 2. Starting to use Windows 8.1

(continued)

Frequently used gestures Tasks performed

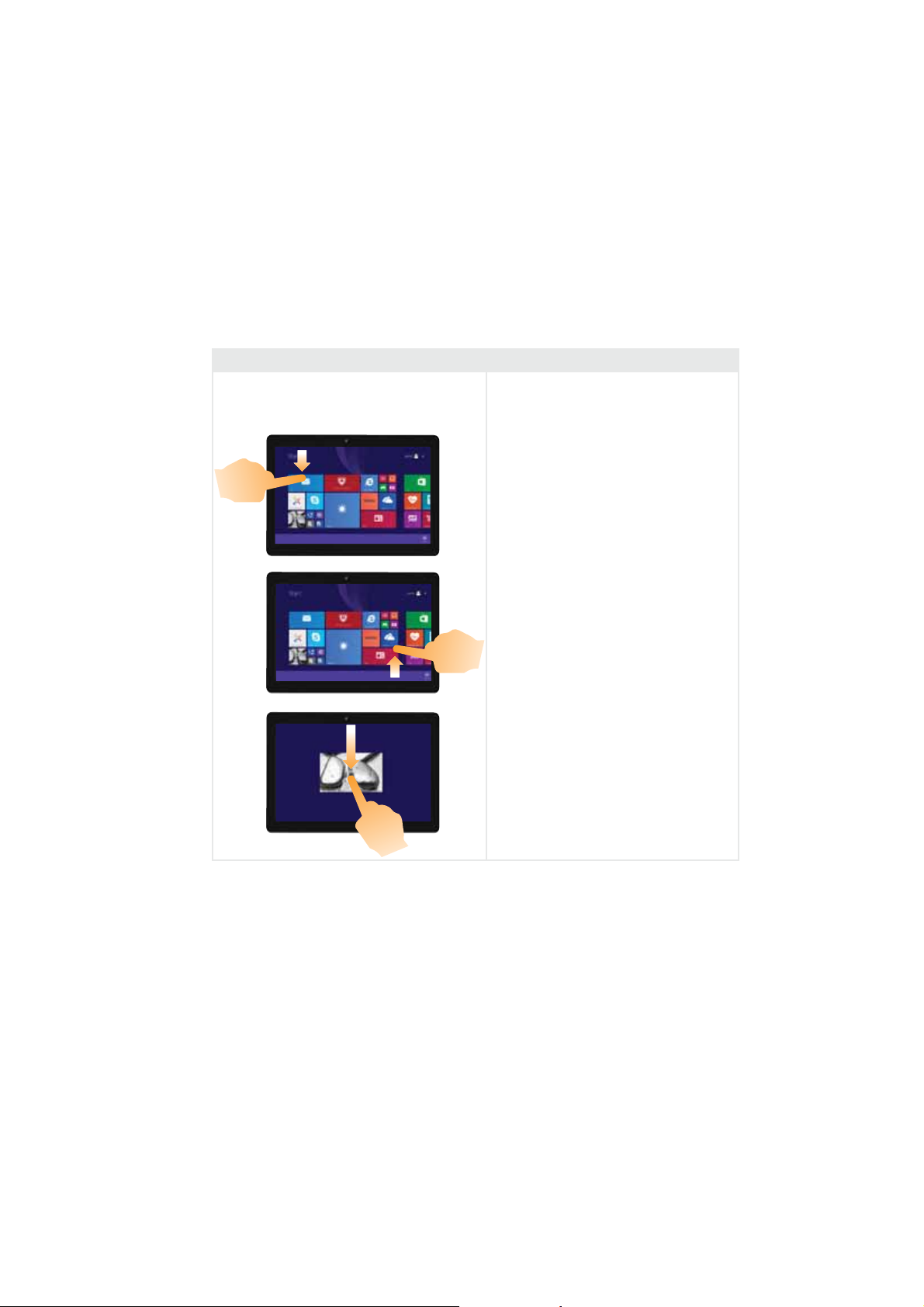

Swipe

Start from any edge of the screen, then swipe inwards toward the center.

Swiping down from the top edge or up from the bottom edge displays a task bar on the bottom of the screen with app commands, including save, edit, and delete.

If you have an app currently open, you can also:

• Swipe from the top edge to halfway

down the screen without lifting your finger to dock that app on the left or right side of the screen. This enables you to keep two apps open simultaneously in a split-screen format.

• Swipe from the top edge straight down

to the bottom edge of the screen continuously without lifting your finger to close the currently open app.

(continued)

Chapter 2. Starting to use Windows 8.1

Frequently used gestures Tasks performed

Swiping in from the left edge can:

• Bring in and open an app currently

running in the background.

If there is more than one currently open app, you can:

• Swipe in from the left to bring in an app

and, without lifting your finger, push that app quickly back off the left edge of the screen. This displays a list of the apps currently running in the background.

Swiping in from the right edge of the screen displays the charms.

Chapter 2. Starting to use Windows 8.1

Connecting to a wireless network - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Enabling wireless connection

To confirm that Airplane mode is disabled, go to the desktop and check the notification area.

If you see the icon displayed on the lower right, then Airplane mode is on. Otherwise, wireless function is enabled.

Note: Airplane mode is disabled by default.

If Airplane mode is on, do one of the following to enable the wireless function:

•Press Fn + Backspace to disable Airplane mode (located on the keyboard).

• Open the charms, select Settings to open the Network configuration page, and then toggle the Airplane mode switch to Off.

Connecting to a wireless network

After wireless has been enabled, the computer will scan for available wireless networks and display them in the wireless network list. To connect to a wireless network, click the network name in the list, and then click Connect.

Note: Some networks require a network security key or passphrase for connection. To connect to one of

those networks, ask the network administrator or the Internet Service Provider (ISP) for the security key or passphrase.

Chapter 2. Starting to use Windows 8.1

Help and support - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

If you have any problems using the operating system, see the Windows Help and Support file. To open the Windows Help and Support file, do one of the following:

• Select the Settings charm. Select Help.

You can read the Windows Help and Support file on your computer. You can also get online help and support by clicking the link listed under More to explore.

Note: Windows 8.1 also provides an app, Help+Tips. You can find it on the Start screen, to learn more about

new features of Windows 8.1.

Chapter 3. Recovery system



Introduction

Push-button reset is a built-in recovery tool that enables users to restore their operating system to its original state. This preserves their data and important customizations, without the need to back up their data in advance. The following Push-button reset features are available to users from multiple locations within Win dow s:

Refreshing the computer

Fixes software problems by reinstalling the factory default configuration. This preserves the user’s data, important settings, and any Windows Store apps previously purchased from the Windows Store.

Resetting the computer

Prepares the computer for recycling or transfer of ownership. This reinstalls the factory default configuration and returns all user data and applications to the state of their original Out-of-Box Experience (OOBE).

Using Push-button reset

Push-button reset can be launched using one of the following methods:

• Power button + Volume up button:

- Shut down the computer and wait at least five seconds.

- Press and hold the volume up button and then press the Power button, until the Novo Menu appears on the screen.

• Windows PC settings:

- Windows PC settings Update and recovery Recovery Advanced startup select Restart now.

For more instructions, see the Windows Help and Support file on your computer.

When I purchased my computer, it included a copy of Windows. How can I determine whether the copy of Windows is preinstalled by Lenovo?

On the outside of the sales package of your computer, you should find a label containing configuration information for your computer. Check the printed string next to OS. If it contains

Windows or WIN, the copy of Windows was preinstalled by Lenovo.

What is the Recovery Partition?

If your computer is preinstalled with any version of Windows 8 (8.1), the storage device of your computer contains a Recovery Partition. This partition contains the image file of the preinstalled Windows operating system. In cases of system failure, you can use the Lenovo OneKey Recovery system or the Windows Reset feature to restore the operating system to its factory status.

Note: The Recovery Partition is not assigned a drive letter and cannot be accessed through Windows File

Explorer.

~

Chapter 3. Recovery system

I uninstalled a preinstalled software, but there is no significant increase in the free drive space.

The copy of Windows running on your computer may be WIMBoot-enabled. For computers with WIMBoot-enabled Windows, the majority of files needed for preinstalled software are installed on the Recovery Partition and won’t be deleted through normal uninstallation.

What happens if I attempt to delete or modify the Recovery Partition?

Attention:

• Do not delete or modify the Recovery Partition on a WIMBoot-enabled computer.

If the Recovery Partition is deleted or modified, you may not be able to restore Windows to the factory status. For computer models on which WIMBoot is enabled, deleting the Recovery Partition may cause Windows to fail to start.

How can I determine whether the Windows running on my computer is WIMBoot enabled?

WIMBoot technology is normally enabled on copies of Windows 8.1 Update running on SSD (or eMMC) -only computer models. To check your computer,

1 On the charms bar, click the Search charm. 2 Make sure Settings or Everywhere is selected as the search scope and type Disk

Management in the search box.

3 Click the search result and the Disk Management program starts.

If Wim Boot is labeled on the Windows partition (as illustrated), WIMBoot is enabled on your copy of Windows.

Chapter 4. Troubleshooting



Frequently asked questions - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

This section lists frequently asked questions by category.

Finding information

What safety precautions should I follow when using my computer?

The Lenovo Safety and General Information Guide which came with your computer contains safety precautions for using your computer. Read and follow all precautions during use.

Where can I find the hardware specifications for my computer?

You can find hardware specifications for your computer on the printed flyers which came with your computer.

Where can I find warranty information?

For detailed warranty information on this machine, please visit below website to check out: support.lenovo.com/warrantystatus

Drivers

Where can I find drivers for the various hardware devices of my computer?

You can download the latest device drivers from the Lenovo consumer support website.

Getting help

How can I contact the customer support center?

See “Chapter 3. Getting help and service” in the Lenovo Safety and General Information Guide.

Chapter 4. Troubleshooting

Troubleshooting - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

If you do not find your problem here, see Chapter 1. The following section only describes problems that might negate the need to refer to the more comprehensive information in Chapter 1.

Display problems

When I turn on the computer, nothing appears on the screen.

• If the screen is blank, make sure that:

- The AC power adapter is connected to the computer and the power cord is plugged into a working electrical outlet.

- The computer power is on. Press and hold the Power button for about three seconds for confirmation.

- Press and hold the Power button for about ten seconds to force shut down the computer. Then press the Power button for about three seconds to restart.

• If these items are set correctly and the screen remains blank,

have the computer serviced.

The screen goes blank while the computer is on.

• Your power management is enabled. Do one of the following

to resume from sleep mode:

- Press any key on the keyboard.

-Press the Power button.

Sleep problems

The critical low-battery error message appears, and the computer immediately turns off.

The computer enters sleep mode immediately after Power-on.

Note: If the battery is charged and the temperature is within range, do the following:

$ Press the Power button for about three seconds to turn on the computer. % Press and hold the Power button for about ten seconds to force shut down. & Press the Power button for about three seconds again to restart. Then reset the computer with the

Push-button reset recovery system.

If the problem persists, have the computer serviced.

• The battery power is getting low. Connect the AC power

adapter to the computer.

• Make sure that:

- The battery is charged.

- The operating temperature is within the acceptable range. See “Chapter 2. Use and care Information” in the Lenovo Safety and General Information Guide.

Chapter 4. Troubleshooting

The computer does not return from sleep mode and the computer does not work.

• If the computer does not return from sleep mode, it might be

because the battery is depleted.

• If your computer is in sleep mode, connect the AC power

adapter to the computer. Then press the Power button.

• If your computer is powered-off, connect the AC power

adapter to the computer. Then press the Power button to resume operation.

Note: If the system still does not return from sleep mode, your system has stopped responding, and you

cannot turn off the computer; force shut down the computer (Unsaved data may be lost). To force shut down the computer, press and hold the Power button for about ten seconds or more. If the computer still does not turn off, remove the AC power adapter.

Display panel problems

The screen is blank. • Do the following:

- If you are using the AC power adapter or the battery, press Fn + (located on the keyboard) to make the screen brighter.

- Press the Power button to confirm if the computer is in sleep mode.

- If the problem persists, follow the solution in the next problem “The screen is unreadable or distorted.”

The screen is unreadable or distorted.

Incorrect characters appear on the screen.

• Make sure that the screen resolution and color quality are

correctly set.

• Is the operating system or programs installed correctly?

If they are installed and configured correctly, do the following:

$ Press the Power button for about three seconds to turn on

the computer.

% Press and hold the Power button for about ten seconds to

force shut down.

& Press the Power button for about three seconds again to

restart. Then reset the computer with the Push-button reset recovery system.

If the problem persists, have the computer serviced.

Sound problems

No sound can be heard from the speakers even when the volume is turned up.

• Make sure that:

- The Mute function is off.

- The combo audio jack is not being used.

- Speakers are selected as the playback device.

Battery problems

Chapter 4. Troubleshooting

Your computer shuts down before the battery status icon shows it is empty.

-orYour computer operates after the battery status icon shows it is empty.

A startup problem

The Microsoft® Windows operating system does not start.

Recovery System problems

Failure to restore system partition to factory default.

Yifang Digital Technology MIIX300 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
