SECURITY INFORMATION
Please remember to obey relevant rules and regulations
whenever use your phone. This will prevent bad effect from
you and the environment.
General security
Don’t make or receive handheld calls
while driving. And never text while
driving.
Don’t use at petrol stations.
Keep your phone at least 15 mm away
from your ear or body while making
calls.
Your phone may produce a bright or
flashing light.
Small parts may cause a choking.
3
EN
Don’t dispose of your phone in fire.
Your phone can produce a loud sound.
Avoid contact with anything magnetic.
Keep away from pacemakers and other
electronic medical devices.
Avoid extreme temperatures.
Switch off when asked to in hospitals
and medical facilities.
Avoid contact with liquids. Keep your
phone dry.
Switch off when told to in aircrafts and
airports.
4
Don’t take your phone apart.
Switch off when near explosive
materials or liquids.
Only use approved accessories.
Don’t rely on your phone for emergency
communications.
Warning electrical hazard!
To avoid serious injury do not touch
charger pins.
Unplug the charger when not in use.
To unplug a charger or an accessory,
hold and pull the plug, not the cord.
The power adaptor is the switch off
device of the equipment. The wall power
socket should be located near the
equipment and easily accessible.
5
EN
Look at the adapter regularly, specifically at the
plug and the layer to detect any damages. If the
adapter is damaged, you can’t use it until it’s fixed.
Plug in the adapter to a power outlet which is
easily accessible. Always unplug the adapter after
using it.
Use only the adapter provided with the device.
Do not expose your device to direct sunlight, like
on your car’s dashboard, for example.
In case of overheating do not use the device.
Be careful when using the device while walking.
Do not subject the device to severe impact or drop
it from high position, it could cause damages or
malfunctions.
Do not disassemble, modify or fix the device by
yourself.
To clean the device use a clean and soft rag.
Do not use any chemical product or detergent.
6
INTRODUCING YOUR MOBILE PHONE
Learn about your mobile phone’s layout, keys, display and
icons.
Unpacking
Check the product box for the following items:
Mobile phone
Battery
Travel adapter (charger)
User manual
The supplied accessories perform best for your phone.
7
EN
Phone layout
From the front view of your phone you will observe the
following elements:
From the back view of your phone you will observe the
following elements:
8
Keys
The following table offers you a quick description about the
phone’s keys:
Key
Function
Function
Perform the action indicated in the
bottom of the screen.
Navigation
In standby mode, you can access the
user-defined functions, in menu mode,
scroll through menu options.
Central
Button
In standby mode, press and hold the
button to turn on the flashlight, in menu
mode, select the highlighted menu
option or confirm an action.
Call
Open the list of recent calls or make a
call to the displayed number. You can
answer an incoming call.
Hang up
Ends a call or reject an incoming call.
Hold down for 3 seconds to turn on / off
the phone.
1……0
Enter numbers, text and / or special
characters.
9
EN
Screen
The screen of your mobile phone is designed as follows:
Icons
Learn about the icons that are displayed on the top of the
screen, indicating the status of the phone:
10
PREPARING YOUR MOBILE PHONE
Get started setting up your mobile phone for its first use.
Install the SIM card and battery
When you subscribe to a cellular service, you will receive a
Subscriber Identity Module (SIM) card, with subscription
details, such as your personal identification number (PIN) and
optional services.
To install the SIM card and battery,
1. Remove the battery cover.
11
EN

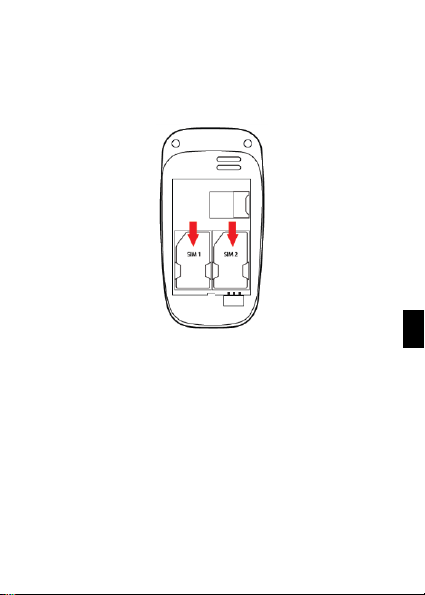

2. Insert the SIM card.
Your phone has 2 SIM card slots to allow you use 2 SIM
cards and switch between them.
Place the SIM card in the phone with the gold-colored
contacts facing down.
Without inserting a SIM card, you can use your phone’s
non-network services and some menus.
12
3. Insert the battery.
4. Replace the battery cover
Insert a memory card (optional)
To store additional multimedia files, you must insert a
memory card.
Your phone accepts memory cards up to 32 GB (depending
on memory card manufacturer and type).
Formatting the memory card on a PC may cause
incompatibility with your phone. Format the memory
card only on the phone.
13
EN
1. Remove the battery cover.
2. Insert a memory holder with the label side facing up.
14
USING BASIC FUNCTIONS
Learn how to perform basic operations of your mobile phone.
Turn your phone on and off
To turn your phone on,
1. Long press the power button [ ].
2. Type in your PIN number and press OK (if it is needed).
To shut down your phone, go to step 1 above.
Access menus and applications
To get access to the Menu and Applications,
To access your phone’s menus,
1. In Idle mode, press the left soft key < Menu > to access
Menu mode.
2. Use the Navigation key to scroll to a menu or option.
3. Press < Select>, < OK>, or the Confirm key to confirm the
highlighted option.
4. Press <Back> to move up one level; Press [ ] to return
to Idle mode.
15
EN
Use basic call functions
Learn to make or answer calls in this section
Make a call:
1. In Idle mode, enter an area code and a phone number.
2. Press [ ] to dial the number.
3. To end the call, press [ ].
Answer a call:
1. When a call comes in, press [ ].
2. To end the call, press [ ].
Send and view messages
In this section, learn to send and view text (SMS).
To send a text message:
1. In Menu mode, select Messages → Create new message
→ Message.
2. Enter a destination number and scroll down.
3. Enter your message text.
4. Press < Options> → Send to send the message.
16
Add contacts
Learn the basics of using the phonebook feature.
Add a new contact:
1. In Idle mode, enter a phone number and press <Options>.
2. Select Save → a memory location (phone, SIM1, or SIM2)
→ New.
3. Select a number type (if necessary).
4. Enter contact information.
5. Press < Options > → Save to add the contact to memory.
Find a contact
1. In Menu mode, select Phonebook.
2. Enter the first few letters of the name you want to find.
3. Select the contact’s name from the search list.
Once you have found a contact, you can call the contact by
pressing [ ]
Listen to music
Learn how to listen to music via the music player or FM radio.
Listen to the FM radio:
1. Plug the supplied headset into the phone’s multifunction
17
EN
jack.
2. In Menu mode, select FM radio.
3. Press the Confirm key to start the radio.
4. Control the FM radio using the following keys:
Key
Function
NAVIGATION
In standby mode, you can access
the user-defined functions, In Menu
mode, scroll through menu options.
Listen to music files:
After transferring music files to the “My Music” folder of your
phone or memory card,
1. In Menu mode, select Multimedia → Audio Player.
2. Select a music category → a music file.
3. Control playback using the following keys:
Key
Function
NAVIGATION
In standby mode, you can access
the user-defined functions, In Menu
mode, scroll through menu options.
18
Using the flashlight
To turn on or off the flashlight, press and keep pressing the
center button for about 3 seconds.
Browse the web
Learn to access your favorite web pages.
Browse web pages:
1. In Menu mode, select Browser → Home → a SIM card (if
necessary) to launch your service provider’s homepage.
2. Navigate web pages using the following keys:
Key
Function
NAVIGATION
In standby mode, you can access
the user-defined functions, In Menu
mode, scroll through menu options.
19
EN
USING THE CAMERA
Learn the basics to capture and view photos.
Capture photos
1. In Menu mode, select Camera to turn on the camera.
2. Aim the lens at the subject and make any adjustments.
3. Press the Confirm key to take a photo.
The photo is saved automatically.
4. Press < Back> to take another photo (step 2).
View taken photos
Press the left soft key then choose Photos to access to the
photos gallery quickly.
Camera options
Entering in the Camera options you will be able to configure
the following options:
Camera settings:
Select a shutter sound every time you take a picture.
Change the exposure value to adjust the photo brightness.
20
Change the Anti-flicker value to eliminate the fluorescent
effect on the photos.
Adjust the contrast to differentiate dark and light areas.
Modify the delay timer to take self-photos.
Change the continuous shot number to take a series of
photos.
Image settings:
You can change the image size.
You can adjust the image quality.
White balance:
Chose a color scheme according to the ambient.
Scene mode:
Allow you to select the night mode (extra light) or let the
phone to choose the best mode.
Effect settings:
Add a color effect to the photos taken.
Storage:
Let you choose where to store the photos taken.
21
EN
CONNECTING TO INTERNET
Learn the basics to configure your phone and connect to
Internet.
Add a new connection
1. In Menu mode, select Settings → Connectivity → Data
account.
2. Press < Options > then Add Data account.
3. Set the parameters according to your carrier.
The basic parameters are:
Account name
APN
Username
Password
SIM selection (if necessary)
Some carriers use Proxy Servers, refer to your carrier
configuration for more information.
4. Once the needed parameters are set, press < OK > and
confirm the new connection pressing < Yes >.
To use the connection as default, press < Options > then
Change default.
22
To add another connection, repeat all the steps.
Configure the browser
Once the connection is added, you need to configure the
Internet browser:
1. In Menu mode, select Services → Internet service →
Settings → Data account, select the SIM card (if necessary)
and choose the connection created in the previous step.
Switch between carriers
(SIM cards)
If you use multiple SIM cards and want to switch to another
one, follow this steps:
1. Configure the connection for both SIM cards (refer to “Add
a new connection”).
2. In Menu mode, select Services → Internet service →
Settings → Select profile and choose SIM1 or SIM2
according your necessities.
Is possible to select Always ask, then the browser will ask
which SIM you want to use before start the Internet session.
23
EN
Recommendations:
Do not disassemble, open or tear up the device or the
batteries.
Do not expose the product or the battery to heat or fire.
Avoid storage the device directly to the sunlight.
Do not short-circuit a battery. Do not stock batteries in a
drawer where it could short-circuit between each other or
get in contact by any other metallic objects.
Do not cause mechanical shocks to batteries.
In case of the leak, do not let the liquid get in contact with
your eyes or skin. If that happens wash with clear water
the affected zone and seek medical advice.
Follow the marks plus (+) and minus (-) on the battery and
the device and ensure that the use is correct.
Do not use any accessories or batteries that are not made
to be used with the device.
Monitor the use of batteries by children.
Consult a doctor immediately in case of ingestion of an
element or a battery.
Always buy the battery recommended by the manufacturer
of the device.
24
Always maintain the product and the battery clean and
dry.
Wipe the terminals of the product or the battery, if it
became dirty, with a clean and dry rag.
It is necessary to charge the battery before its use. Always
use the charger and read the manufacturer instructions or
the manual of the device for the instructions regarding
charging.
Do not leave a battery charged when it’s not going to be
used.
After long periods of storage, it may be necessary to
charge and discharge the battery several times in order to
achieve maximum performance.
Always keep the original documentation of the device, you
might need it later for future reference.
If it’s possible, take out the battery of the device when it’s
not used.
Do not store your device in extremely hot or cold places
like inside of a car during the summer. It might damage
the device and cause explosion of the battery. It’s
recommended to use the device in a range of
temperatures between 5°C and 35°C.
25
EN
SAR
RADIO WAVES
Proof of compliance whit international standards (ICNIRP) or
with European Directive 1999/5/EC (R&TTE) is required of all
mobile phone models before they can be put on the market.
The protection of the health and safety for the user any other
person is an essential requirement of these standards or this
directive.
THIS DEVICE MEETS INTERNATIONAL GUIDELINES FOR
EXPOSURE TO RADIO WAVES
Your mobile device is a radio transmitter and receiver. It is
designed not to exceed the limits for exposure to radio waves
(radio frequency electromagnetic fields) recommended by
international guidelines. The guidelines were developed by
an independent scientific organization (ICNIRP) and include
a substantial safety margin designed to assure the safety of
all persons, regardless of age and health.
The radio wave exposure guidelines use a unit of
measurement known as the Specific Absorption Rate, or
SAR. The SAR limit for mobile devices is 2 W/kg.
Tests for SAR are conducted using standard operating
positions with the device transmitting at its highest certified
power level in all tested frequency bands.
Body-worn SAR testing has been carried out at a separation
26
distance of 1.0 cm. to meet RF exposure guidelines during
body-worn operation, the device should be positioned at least
this distance away from the body. If you are not using an
approved accessory ensure that whatever product is used is
free of any metal and that it positions the phone the indicated
distance away from the body.
For more information you can go to www.sayyezz.com
Additional information about electromagnetic fields and public
health are available on the following site.
http://www.who.int/peh-emf.
Your telephone is equipped whit a built-in antenna. For
optimal operation, you should avoid touching it or degrading
it.
As mobile devices offer a range of functions, they can be
used in positions other that against your ear. In such
circumstances the device will be compliant whit the
guidelines when used with headset or USB data cable. If you
are using another accessory ensure that whatever product is
used is free of any metal and that it positions the phone at
least 1.0 cm away from the body.
Notes:
- Due to the used enclosure material, the mobile phone shall
only be connected to a USB Interface of version 2.0 or
higher. The connection to so called power USB is prohibited.
- The adapter shall be installed near the equipment and shall
be easily accessible.
- Do not use the mobile phone in the environment at too high
27
EN
or too low temperature, never expose the mobile phone
under strong sunshine or too wet environment. The suitable
temperature for the phone and accessories is -10℃-55℃.
- When charging, please place the phone in an environment
that has a normal room temperature and good ventilation. It
is recommended to charge the phone in an environment with
a temperature that ranges from 5℃~25℃. Please ensure to
use only the charger offered by the manufacturer. Using
unauthorized charger may cause danger and violate the
authorization of the phone and the guarantee article.
- CAUTION: RISK OF EXPLOSION IF BATTERY IS
REPLACED WITH AN INCORRECT TYPE. DISPOSE USED
BATTERIES ACCORDING TO THE INSTRUCTIONS
- Excessive sound pressure from earphones and
headphones can cause hearing loss.
For more information you can go to www.sayyezz.com
Additional information about electromagnetic fields and public
health are available on the following site.
http://www.who.int/peh-emf.
Your telephone is equipped whit a built-in antenna. For
optimal operation, you should avoid touching it or degrading
it. As mobile devices offer a range of functions, they can be
used in positions other that against your ear. In such
circumstances the device will be compliant whit the
guidelines when used with headset or USB data cable. If you
are using another accessory ensure that whatever product is
used is free of any metal and that it positions the phone at
least 1.5 cm away from the body.
28
FCC
Please take time to read this important section.
FCC Caution
Any Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
Before a new model phone is a available for sale to the
public, it must be tested and certified to the FCC that it does
not exceed the exposure limit established by the FCC, Tests
for each phone are performed in positions and locations (e.g.
at the ear and worn on the body) as required by the FCC.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
29
EN
with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician
for help.
Loading...
