NARROW ROW

RESIDUE MANAGER

OPERATOR’S MANUAL

PART IDENTIFICATION

YETTER MANUFACTURING CO.
FOUNDED 1930

Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website: www.yetterco.com
E-mail: [e-mail]

FOREWORD

You’ve just joined an exclusive but rapidly
growing club.

For our part, we want to welcome you to the
group and thank you for buying a Yetter product.

We hope your new Yetter products will help you
achieve both goals-increase your productivity and
increase your efficiency so that you may generate
more profit.

This operator’s manual has been designed into
four major sections: Foreword, Safety
Precautions, Installation Instructions and Parts
Breakdown.

This SAFETY ALERT SYMBOL

indicates important safety messages in

the manual. When you see this

symbol, be alert to the possibility of

PERSONAL INJURY and carefully

read the message that follows.

The word NOTE is used to convey information
that is out of context with the manual text. It
contains special information such as
specifications, techniques and reference
information of a supplementary nature.

The word IMPORTANT is used in the text when
immediate damage will occur to the machine due
to improper technique or operation. Important will

apply to the same information as specified by
note only of an immediate and urgent nature.

It is the responsibility of the user to read the
operator’s manual and comply with the safe and
correct operating procedure and to lubricate and
maintain the product according to the
maintenance schedule in the operator’s manual.

The user is responsible for inspecting his
machine and for having parts repaired or
replaced when continued use of the product
would cause damage or excessive wear to the
other parts.

It is the user’s responsibility to deliver his
machine to the Yetter dealer who sold him the
product for service or replacement of defective
parts, which are covered by the warranty policy.

If you are unable to understand or follow the
instructions provided in this publication, consult
your local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111
800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: [e-mail]

WARRANTY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This
warranty being expressly limited to replacement at the factory of such parts or products as shall appear to
be defective after inspection. This warranty does not obligate the Company to bear cost of labor in
replacement of parts. It is the policy of the Company to make improvements without incurring obligations to
add them to any unit already sold. No warranty is made or authorized to be made, other than herein set
forth. This warranty is in effect for one year after purchase.

DEALER: ________________________________________

Yetter Manufacturing warrants its own products only and cannot be responsible for damages to
equipment on which mounted.

2

SAFETY

A brief description of signal words that may be used in this manual:

CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices.

WARNING: Denotes a specific potential hazard.

DANGER: Denotes the most serious specific potential hazard.

SAFETY PRECAUTIONS

You can make your farm a safer place to live and work if you observe the safety precautions given. Study
these precautions carefully and insist that those working with you and for you follow them.

Finally, remember this: an accident is usually caused by someone’s carelessness, neglect or oversight.

WARNING

Never clean, lubricate or adjust a machine that is in motion. Always lower or block the implement before
performing service.

If the machine must be serviced in the raised position, jack or block it up to prevent it from accidentally
falling and injuring someone.

Do not allow riders on the tractor or implement.

Use speeds and caution dictated by the terrain being traversed. Do not operate on any slope steep enough
to cause tipping or loss of control.

Be sure all personnel are clear of the immediate area before operating.

Read and understand the operator’s manual and require all other persons who will operate the equipment
to do the same.

Be familiar with all tractor and implement controls and be prepared to stop engine and implements quickly in
an emergency.

CAUTION

Consult your implement and tractor operator’s manual for correct and safe operating practices.

Beware of towed implement width and allow safe clearance.

FAILURE TO HEED MAY RESULT IN PERSONAL INJURY OR DEATH.

3

TABLE OF CONTENTS

Forward…..……………………………………………………………..……2
Warranty……………………………….………………………………..……2
Safety Information………………………………………………………….. 3
Optional Equipment……………………………………………………. …..4
Bolt Torque………………………………………………………………….. 5
Installation Instructions………………………………………………… …..6-8
Operation……………………………...…………………………………….. 9
Maintenance……………………………………………………………. …. 10-15
Parts Identification………………………………..………….…….….. ….. 16-19

OPTIONAL EQUIPMENT

2967-186 FLOATER WHEEL

L.H. ASSEMBLY SHOWN

(2) REQUIRED PER ROW

4

BOLT TORQUE

Mounting bolts and hardware

Before operating the Residue Manager for the first time, check to be sure that all
hardware is tight. Check all hardware again after approximately 50 hours of operation
and at the beginning of each planting season.

All hardware used on the Residue Manager is Grade 5 unless otherwise noted. Grade 5
cap screws are marked with three radial lines on the head. If hardware must be replaced,
be sure to replace it with hardware of equal size, strength and thread type. Refer to the
torque values chart when tightening hardware.

Important: Over tightening hardware can cause as much damage as when
under tightening. Tightening hardware beyond the recommended range can
reduce its shock load capacity.

The chart below is a guide for proper torque. Use it unless a specified torque is called out
elsewhere in the manual.
Torque is the force you apply to the wrench handle or the cheater bar, times the length of the
handle or bar.
Use a torque wrench whenever possible.

The following table shows torque in ft. lbs. for coarse thread hardware.

Lubricate all bearings and moving parts as assembled and make certain that they work freely.

WARNING: Never work around the toolbar/implement while in a raised position without using
safety lockups.

CAUTION: The Residue Managers are very heavy and sharp. Pay extra attention to lifting
techniques while handling and or maneuvering the opener during assembly. Failure to do so may
lead to personal injury.

5

INSTALLATION INSTRUCTIONS

2967 – RESIDUE MANAGER

STEP 1.

as right hand wheel assemblies. This is determined by which side of the wheel support and in
which hole the wheel assembly is installed.

STEP 2.

hub/bearing assembly. Insert the D-bolt through the 1.50 O.D. x 21/32” I.D. x 3/16” thick flat
washer, then through the hub/assembly. Use 4) 5/16-“ x 1-1/2” carriage bolts and 5/16-18 lock
nuts per wheel.

NOTE: Assemble one wheel as a right hand wheel rotation and one wheel as a left

hand wheel rotation.

IMPORTANT. The 2527-530 washer must be installed or the wheel and hub assembly will
fall off during use.

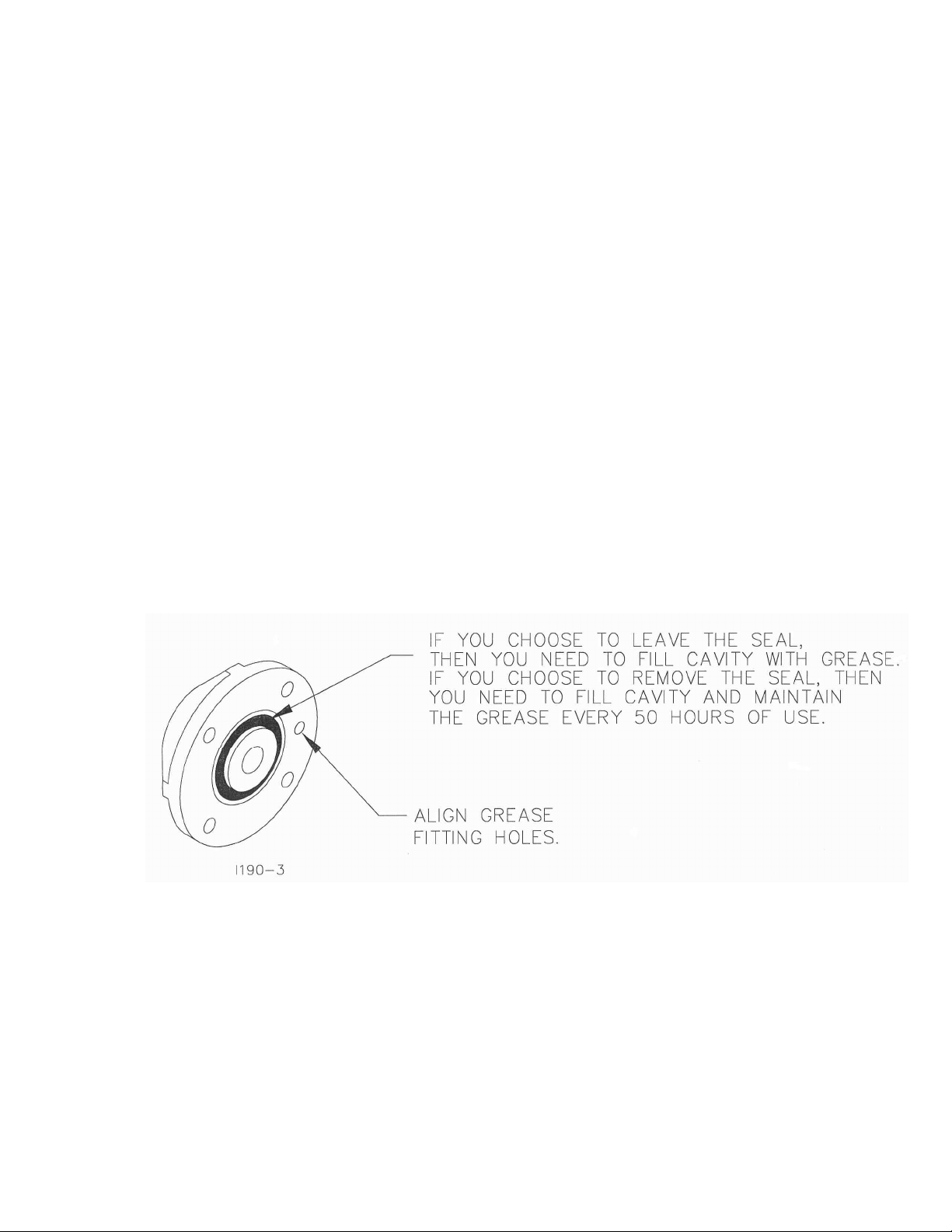

NOTE:

can flow freely. Remove the seal from the exposed side of the bearing if you choose to grease the bearing,
otherwise the bearing is sealed.

STEP 3. Fill the hub and bearing assembly with general-purpose grease.

Build half of the row cleaner wheel assemblies as left hand wheel assemblies and half

Assemble the residue manager wheel to the 2965-352 – hub cap and the 2965-128

Be certain to align the grease zerk with the slot in the wheel and the hub cap so that the grease

6

INSTALLATION INSTRUCTIONS

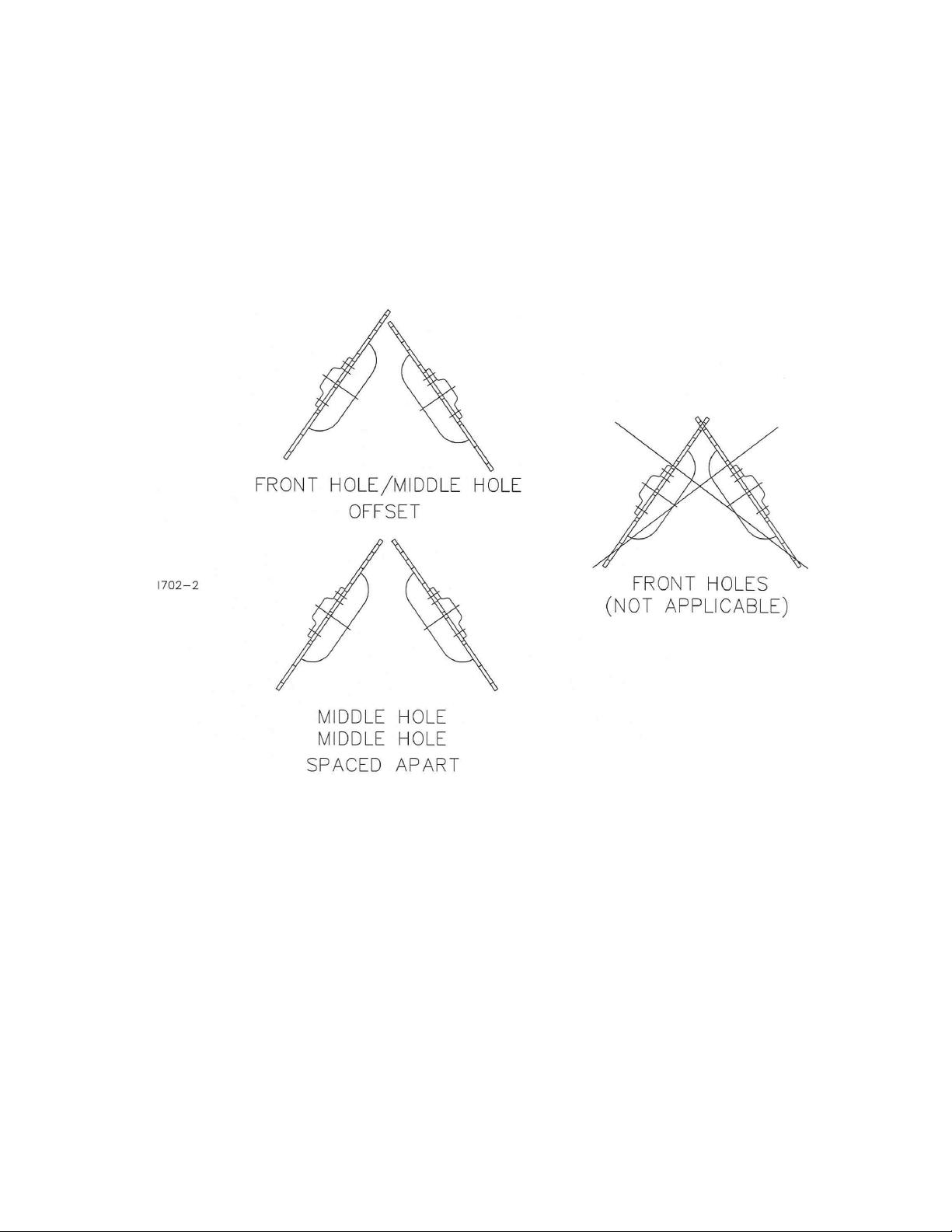

STEP 4. Choose the mounting hole in which to attach the R.M. wheels. Attach the R.M.

wheels/hub/shield assemblies to the 2967-262 stem adjustment bracket using 5/8” D­bolts, lock washers and hex nuts. Adjust the bearing shield to top dead center, rotate
slightly forward. Torque to 150 ft./lbs.

7

INSTALLATION INSTRUCTIONS

STEP 5.

Figure 1). The front set of holes is to mount these models on planter units with light duty or heavy duty cast
lower parallel arms. If the front set of holes is used, assemble two ½” x 3-1/2” bolts and spacers (2967-195
bracket assembly) to the upper and lower rear holes on the mounting bracket using ½” lock nuts. NOTE:
Do not over-tighten. The rear set of holes is for planter units with heavy-duty welded and cast “long” lower
parallel arms.

The universal model that fits on JD 7200/1700 series planters can be mounted two ways (See

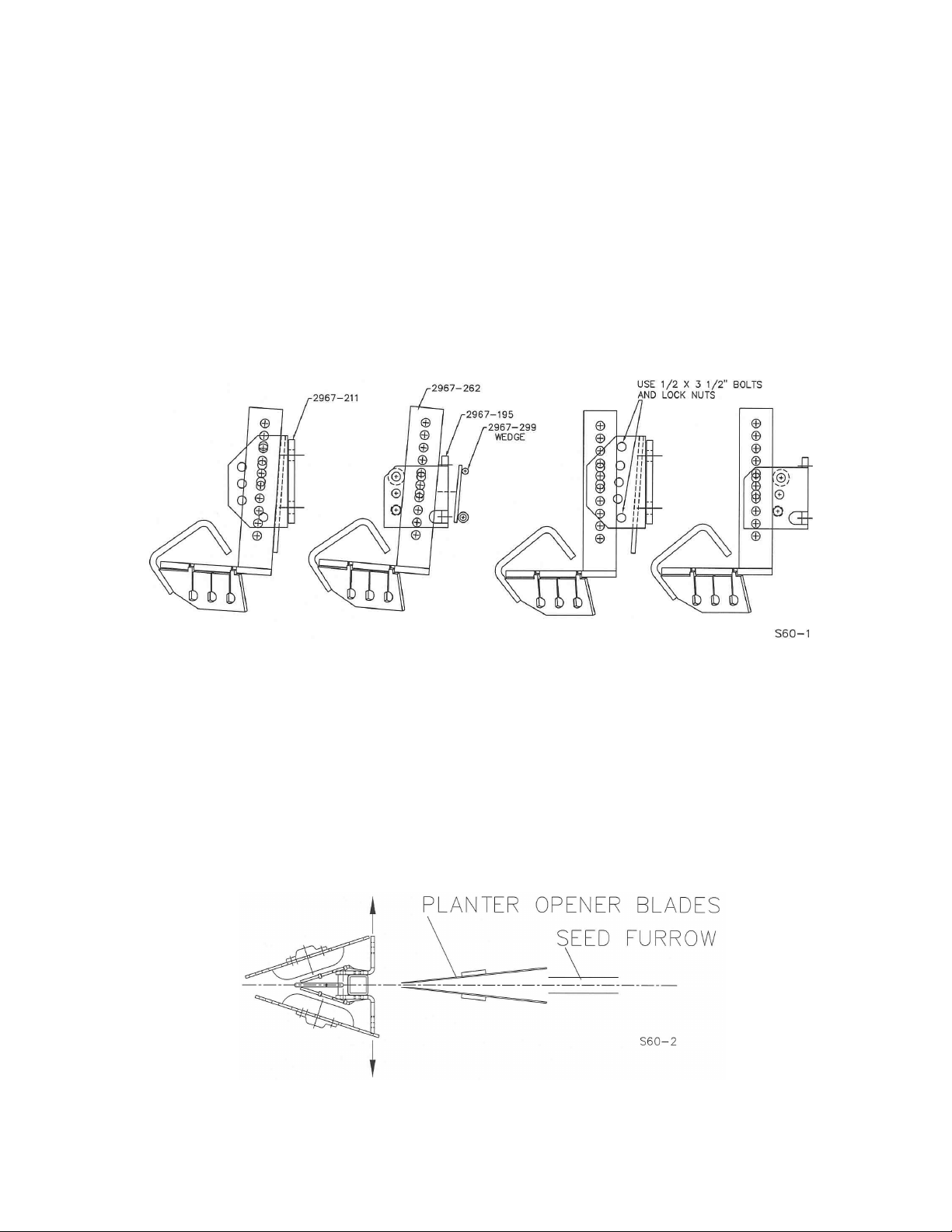

MOUNTING ARRANGEMENTS FOR JOHN DEERE 7200/1700 SERIES

FOR HEAVY DUTY “WELDED” FOR LIGHT DUTY OR HEAVY DUTY CAST
AND CAST “LONG” LOWER PARALLEL ARMS
LOWER PARALLEL ARMS ALSO: JD 7000, KINZE & WHITE 6100

FIGURE 1

STEP 6.

bracket has slotted holes in the faceplate to move the residue manager wheels side to side; to be able to
center the wheels on the seed furrow. Fully tighten mounting bolts. Torque to 85 ft./lbs.

Align the residue manager wheels to the planter opener blades. The residue manager mount

8

OPERATION

The 2967 Residue Manager is designed to work in heavy residue situations especially where minimum soil
movement is required. Depending on conditions and objectives, the 2967 Residue Manager can be set
shallow with the teeth only engaged in the residue so as to clear heavy residue with minimal soil
disturbance. Residue Managers are not recommended when surface application pre-plant herbicide is
used prior to planting.

ROW CLEANER DO’S AND DON’TS

1. DO NOT move soil; Residue Managers are designed to move crop residue only.

2. DO NOT operate planter at slow speeds, ground speed affects how aggressive the
spoke wheels are; operate at sufficient speed (4-6 mph) to maintain good residue
flow.

3. DO NOT expect 100% of crop residue to be cleared, it is not necessary and would
necessitate engaging the soil. The width of path cleared depends on ground
conditions, depth setting and ground speed.

4. DO expect to see wheels occasionally quit turning, indicates ideal (shallow) setting
which is not moving soil.

5.

DO adjust toolbar frame height 20”-22” and drawbar correctly. Very important to
ensure planter opener will follow ground contours properly.

Regularly inspect the residue manager for loose or worn bolts.
Repair and replace as needed.

IMPORTANT: For proper operation, the planter frame must operate level (for, aft and side
to side) and at the correct height, typically 20”-22”.

9

MAINTENANCE

BEARING ASSEMBLY AND LUBRICATION

Practice Safety

Understand and practice safe service procedures before doing work. Follow ALL the
operating, maintenance and safety information in the equipment operator manual. Clear
the area of bystanders, especially small children, when performing any maintenance or
adjustments. Keep work area clean and dry. Use adequate lighting for the job. Use only
tools, jacks and hoists of sufficient capacity for the job.

Never lubricate, service, or adjust machine while it is moving. Keep hands, feet, and
clothing from power-driven moving and rotating parts. Disengage all power and operate
controls to relieve pressure. Lower equipment to the ground and stop the engine. Remove
the key. Wait for all moving parts to stop before servicing, adjusting, repairing or
unplugging.

Securely support any machine elements with blocks or safety stands that must be raised
for service work.
Keep all parts in good condition and properly installed. Fix damaged equipment
immediately. Replace worn or broken parts. Remove any buildup of grease, oil, or debris.
Make sure all guards are in place and properly secured when maintenance work is
completed.

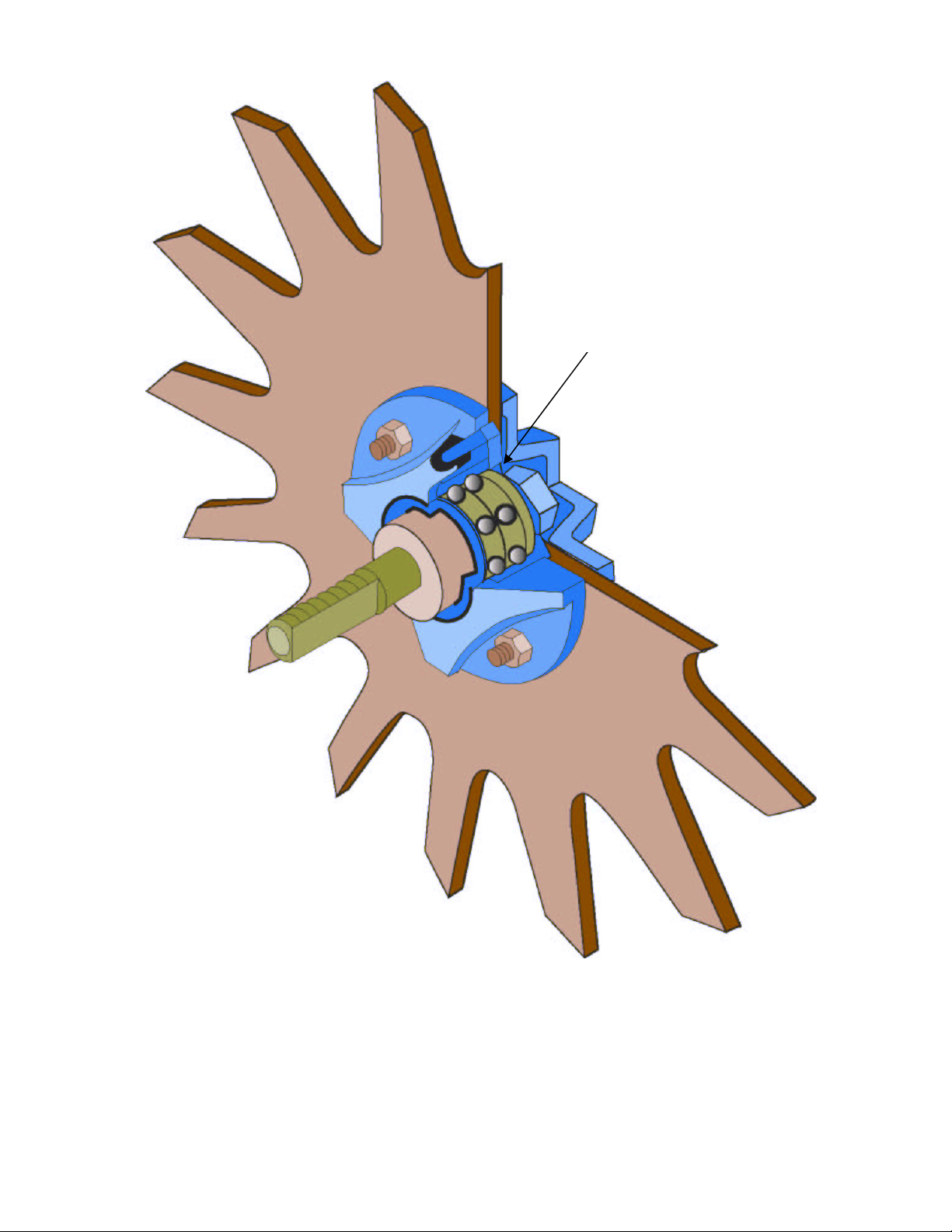

Assembly

10

MAINTENANCE

NOTE: Be certain to align the grease fitting with the slot in the wheel and the hubcap

so that the grease can flow freely.

IMPORTANT: THE 2527-530 WASHER MUST BE INSTALLED OR THE WHEEL AND
HUB ASSEMBLY WILL FALL OFF DURING USE.

11

MAINTENANCE

Grease must fill this

Hubcap cavity.

12

MAINTENANCE

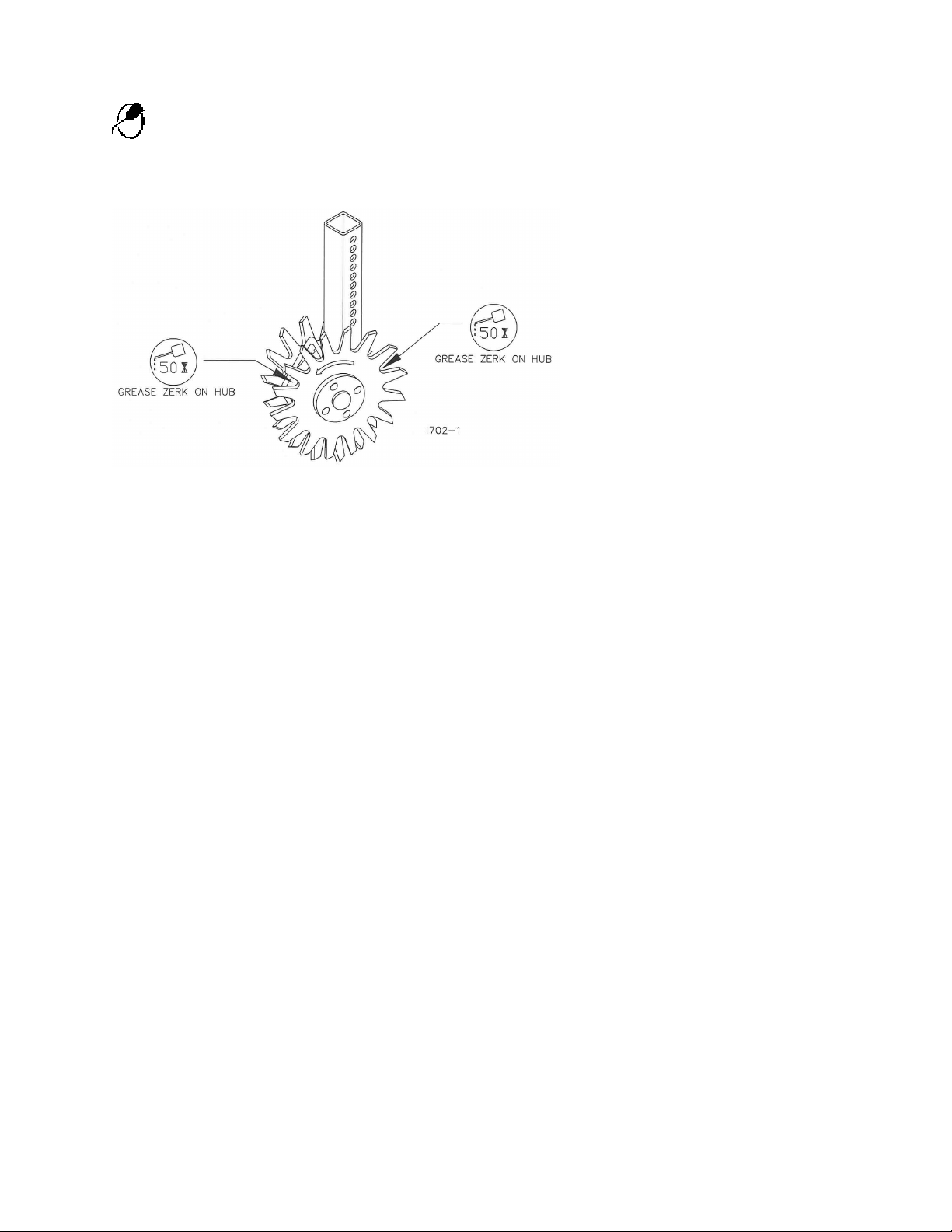

Lubrication

CAUTION: To help prevent serious injury or death to you or others caused by
unexpected movement, service machine on a level surface. Lower machine to
ground or sufficiently lock or block raised machine before servicing. If machine is
connected to tractor, engage parking brake and place transmission in "PARK",
shut off engine and remove key. If machine is detached from tractor, block wheels
and use shop stands to prevent movement.

CAUTION: Do not clean, lubricate, or adjust machine while in motion.

Use grease based on NLGI consistency numbers and the expected air temperature range
during the service interval.
Use a multi-purpose lithium, water resistant, moderate speed, and NLGI grade #2
grease. Other greases may be used if they meet the following NLGI Performance

Classification: GC-LB

IMPORTANT: Some types of grease thickener are not compatible with others.
Consult your grease supplier before mixing different types of grease.

Alternative Lubricants

Conditions in certain geographical areas may require special lubricants and lubrication
practices which do not appear in the operator's manual. If there are any questions,
consult Yetter Manufacturing Co. to obtain latest information and recommendation.

PART #

2967-404 13” TAPER TOOTH R.M. WHEEL 1.12 OZ
2967-602 13” SHARK TOOTH R.M. WHEEL 1.12 OZ
2967-186 FLOATER WHEEL KIT W/R.M. WHEEL 2.08 OZ
2967-596 HEAVY DUTY OR BEVEL R.M. WHEEL W/

FLOATER WHEEL KIT

DESCRIPTION

OUNCES OF GREASE

2.40 OZ

Storing Lubricants

Your machine can operate at top efficiency only if clean lubricants are used.

Use clean containers to handle all lubricants.

Store them in an area protected from dust, moisture and other contaminants.

13

MAINTENANCE

Lubrication Symbols

Lubricate with grease at hourly interval indicated on symbol.

Lubrication Intervals

IMPORTANT: The recommended service intervals are based on normal conditions;
severe or unusual conditions may require more frequent lubrication.

Perform each lubrication and service procedure at the beginning and end of each season.

Clean grease fittings before using grease gun, to avoid injecting dirt and grit into the
bearing. Replace any lost or broken fittings immediately. If a fitting fails to take grease,
remove and clean thoroughly, replace fitting if necessary. Also check for failure of
adjoining parts.

BEARING REPLACEMENT INSTALLATION

1. If you wish to be able to grease the bearings in the hubs, remove the seal from one

side of the bearings as illustrated before assembly. Otherwise the bearings may
be left “sealed for life”.

2. When assembling the spoke wheels, bearing assembly and hubcap, be sure to

align the grease transfer hole in the spoke wheel with the groove in the hubcap
and hole in the hub to allow grease passage.

3. Install/assemble the wheels, hubs and caps. IMPORTANT: THE 2527-530

WASHER MUST BE INSTALLED OR THE WHEEL AND HUB ASSEMBLY WILL
FALL OFF DURING USE.

4. Grease the wheel/hub/bearing assembly.

14

MAINTENANCE

Storing the Equipment

Store the machine in an area away from human activity

Store machine in RAISED position.

Install service locks on all wheel cylinders.

At the end of the season, the machine should be thoroughly inspected and prepared for
storage. Repair or replace any worn or damaged components to prevent down time at the
start of the next season. Store machine under cover with all parts in operating condition.

• Clean machine thoroughly to remove all dirt, debris and crop residue, which would

hold moisture and cause rusting.

• Inspect machine for worn or broken parts. See your Yetter Farm Equipment dealer

during the off-season so that parts or service can be acquired when machine is not
needed in the field.

• Lubricate bearings as outlined in the Lubrication section

• Paint all parts which are chipped or worn and require repainting.

• Store machine in a clean, dry place with the planting unit out of the sun.

• If the machine cannot be stored inside, cover with a waterproof tarpaulin and tie

securely in place.

• Do not allow children to play on or around the machine

15

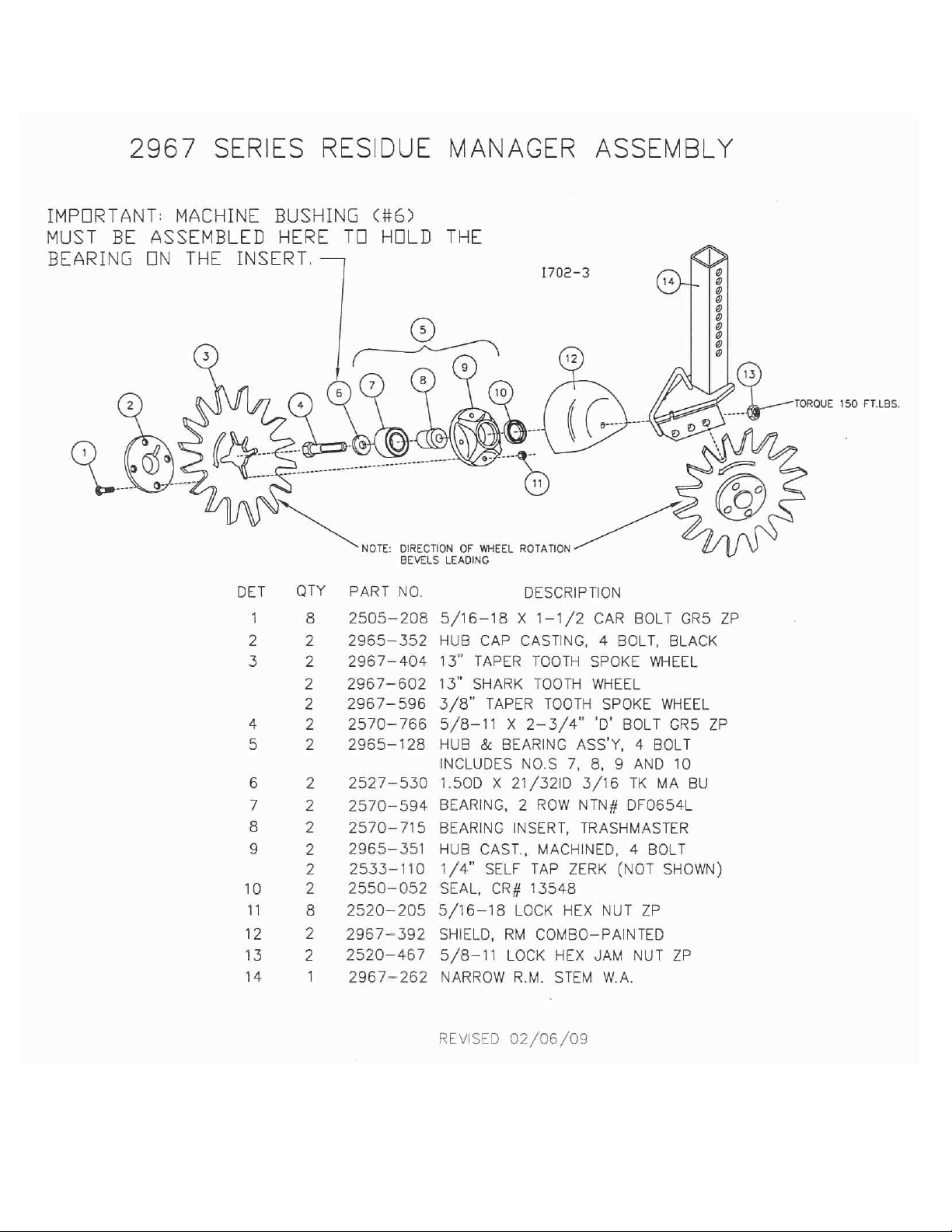

PARTS IDENTIFICATION

16

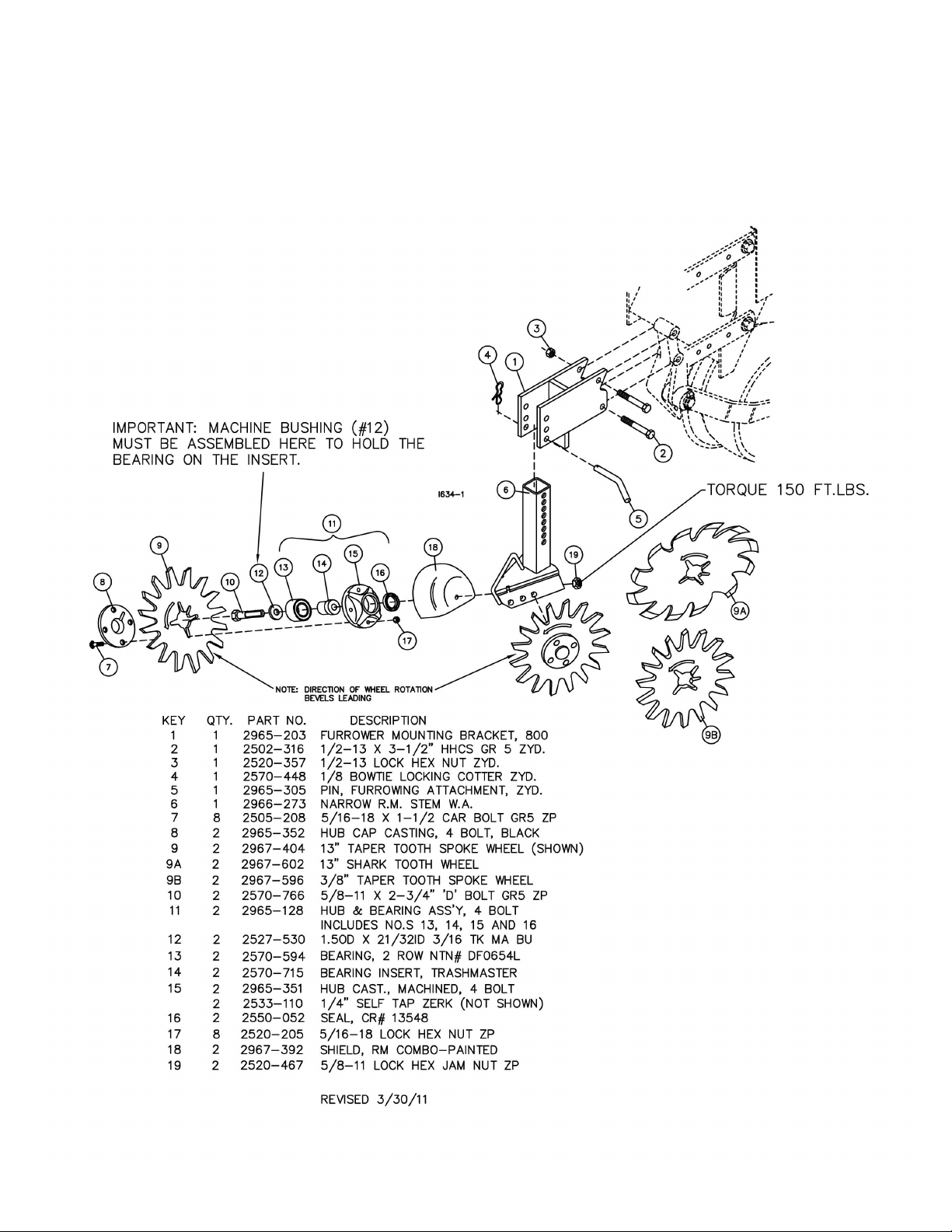

PARTS IDENTIFICATION

2967-036

CASE 800/900/950/955/1200

WILL NOT FIT 1ST YEAR IH PRODUCTION 800 (1981)

17

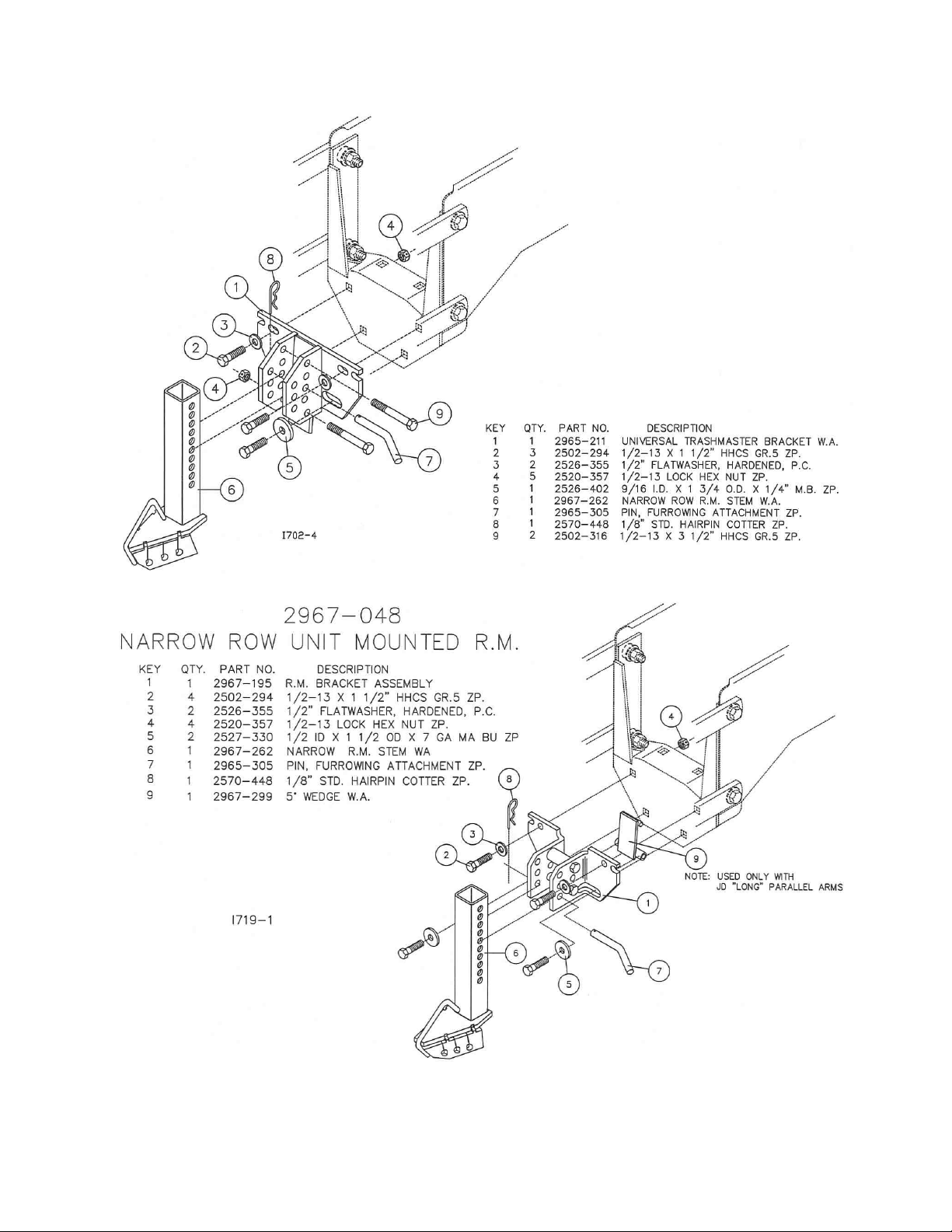

PARTS IDENTIFICATION

2967

-

045

FITS YETTER, JD 7000, 7200, 1700 SERIES

KINZE, NEW IDEA, WHITE 6100

18

PARTS IDENTIFICATION

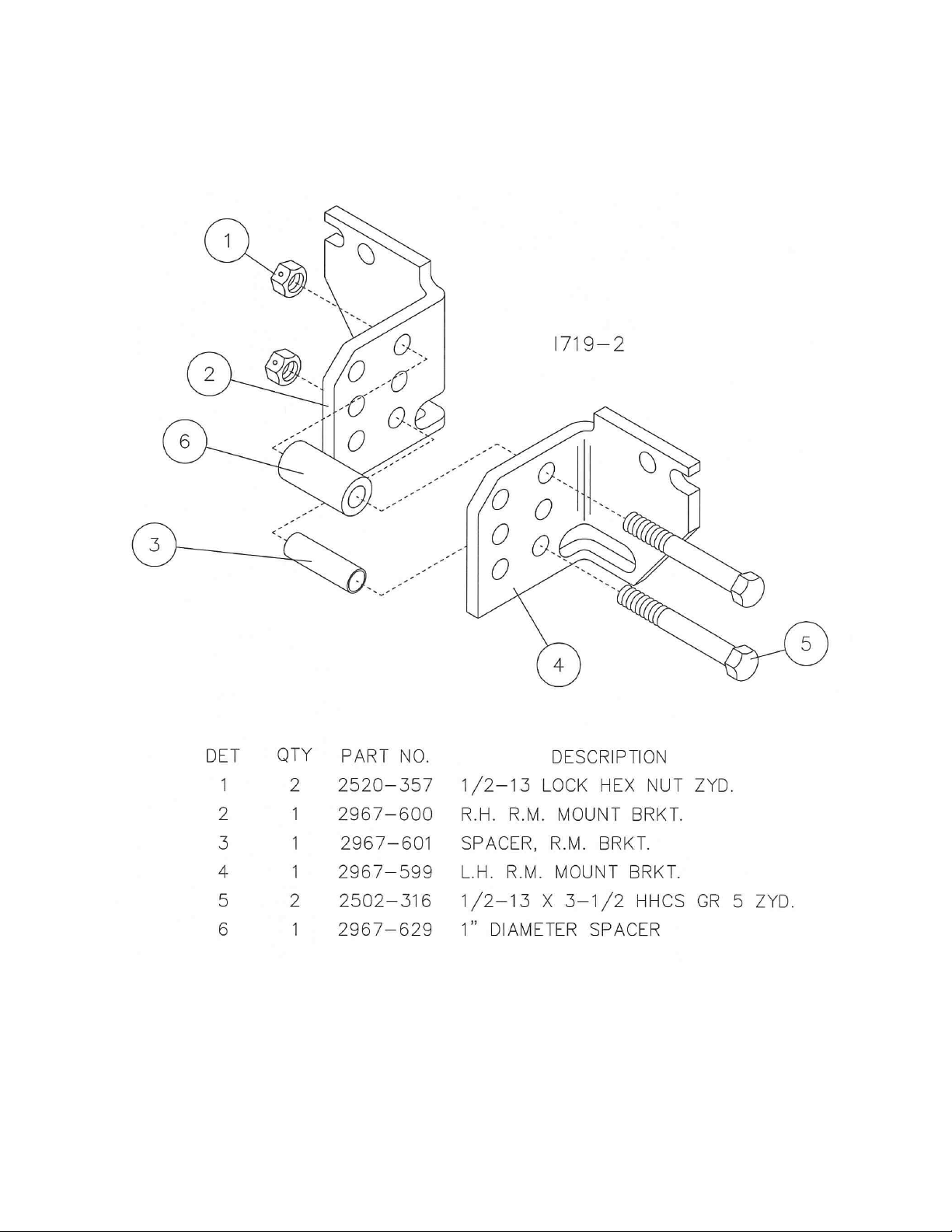

2967-195 – RESIDUE MANAGER BRACKET ASSEMBLY

19

Our name

Is getting known

Just a few years ago, Yetter products were sold primarily to the
Midwest only. Then we embarked on a program of expansion and
moved into the East, the South, the West and now north into Canada.
We’re even getting orders from as far away as Australia and Africa.

So, when you buy Yetter products . . .you’re buying a name that’s
recognized. A name that’s known and respected. A name that’s
become a part of American agriculture and has become synonymous
with quality and satisfaction in the field of conservation tillage.

Thank you.

YETTER MANUFACTURING CO.

Colchester, IL 62326-0358 • 309/776-4111

Toll Free 800/447-5777

Fax [phone]
Website: WWW.YETTERCO.COM
E-MAIL: [e-mail]

2565-694_REV_B • 03/11

20
