Yetter 2960-130 User Manual

2960-130

UNIT MOUNTED DOUBLE

ARM CONSERVATION

YETTER MANUFACTURING CO.
FOUNDED 1930

Colchester, IL 62326-0358
Toll free: 800/447-5777
309/776-3222 (Fax)
Website: www.yetterco.com
E-mail: [e-mail]

COULTER

FOREWORD

You’ve just joined an exclusive but rapidly
growing club.

For our part, we want to welcome you to the
group and thank you for buying a Yetter Product.

We hope your new Yetter products will help you
achieve both increased productivity and
increased efficiency so that you may generate
more profit. This operator’s manual has been
designed into six major sections.

Foreword, Safety Precautions, assembly
instructions, Operation, parts identification and
troubleshooting.

Throughout the manual references may be
made to left side and right side. These terms
are used as viewed from the operator’s seat
facing the front of the tractor.

This SAFETY ALERT SYMBOL indicates

important safety messages in the

manual. When you see this symbol, be
alert to the possibility of PERSONAL INJURY
and carefully read the message that follows.

The word NOTE is used to convey information
that is out of context with the manual text. It
contains special information such as
specifications, techniques, reference information
and other information of a supplementary
nature.

The word IMPORTANT is used in the text when
immediate damage will occur to the machine
due to improper technique or operation.
Important will apply to the same information as
specified by note only of an immediate and
urgent nature.

It is the responsibility of the user to read the
operator’s manual and comply with the safe and
correct operating procedure and to lubricate and
maintain the product according to the
maintenance schedule in the operator’s manual.

The user is responsible for inspecting his

machine and for having parts repaired

or replaced when continued use of the
product would cause damage or excessive wear
to the other parts.

It is the user’s responsibility to deliver his
machine to the Yetter dealer who sold him the
product for service or replacement of defective
parts that are covered by the warranty policy.

If you are unable to understand or follow the
instructions provided in the publication, consult
you local Yetter dealer or contact:

YETTER MANUFACTURING CO.

309/776-4111
800/447-5777

309/776-3222 (FAX)

Website: www.yetterco.com

E-mail: [e-mail]

WARRANTY POLICY

Yetter Manufacturing warrants all products manufactured and sold by it against defects in material. This
warranty being expressly limited to replacement at the factory of such parts or products as will appear to
be defective after inspection. This warranty does not obligate the Company to bear cost of labor in
replacement of parts. It is the policy of the company to make improvements without incurring obligations
to add them to any unit already sold. No warranty is made or authorized to be made, other than herein
set forth. This warranty is in effect for one year after purchase.

Yetter Manufacturing warrants its own products only and cannot be responsible for
damage to equipment on which mounted.

2

SAFETY

A brief description of signal words that may be used in this manual.

CAUTION: Used as a general reminder of good safety practices or to direct attention to unsafe practices.

WARNING: Denotes a specific potential hazard.

DANGER: Denotes the most serious specific potential hazard.

SAFETY PRECAUTIONS

You can make your farm a safer place to live and work if you observe the safety precautions given. Study
these precautions carefully and insist that they be followed by those working with you and for you.

Finally, remember this: an accident is usually caused by someone’s carelessness, neglect or oversight.

WARNING

Never clean, lubricate or adjust a machine that is in motion. Always install the transport lock pins and
bracket when transporting for any length of time or on public roadways.

If required to service unit in raised position, be sure to install all transport lock pins and locking bracket.

Be sure the implement is securely locked in the 3-point quick hitch before operating.

Do not allow children to operate this equipment.

Do not allow riders on the tractor or implement.

Use speeds and caution dictated by the terrain being traversed. Do not operate on any slope steep enough
to cause tipping or loss of control.

Be sure all personnel are clear of the immediate area before operating.

Read and understand the operator’s manual and require all other persons who will operate the equipment
to do the same.

In operating on public roadways, where legal, be certain all lighting is operating properly and observe all
traffic laws. Ensure slow moving vehicle emblem on tractor is visible.

Maximum towing speed is 20 mph when conditions permit.

Beware of increased stopping distances and control effort when operating with implements attached.

Be familiar with all tractor and implement controls and be prepared to stop engine and implements quickly in
an emergency.

CAUTION

Consult your implement and tractor’s operator’s manual for correct and safe operating practices.

Beware of towed implement width and allow safe clearance.

FAILURE TO HEED MAY RESULT IN PERSONAL INJURY OR DEATH.

3

TABLE OF CONTENTS

Cover Page………………………………………………………………….. 1
Foreword…………………………………………………………………….. 2
Safety Symbols

and Meanings …

……………………………………………………2-3

Table of Contents…………………………………………………………… 4
Torque Specifications.……………………………………………………… 4

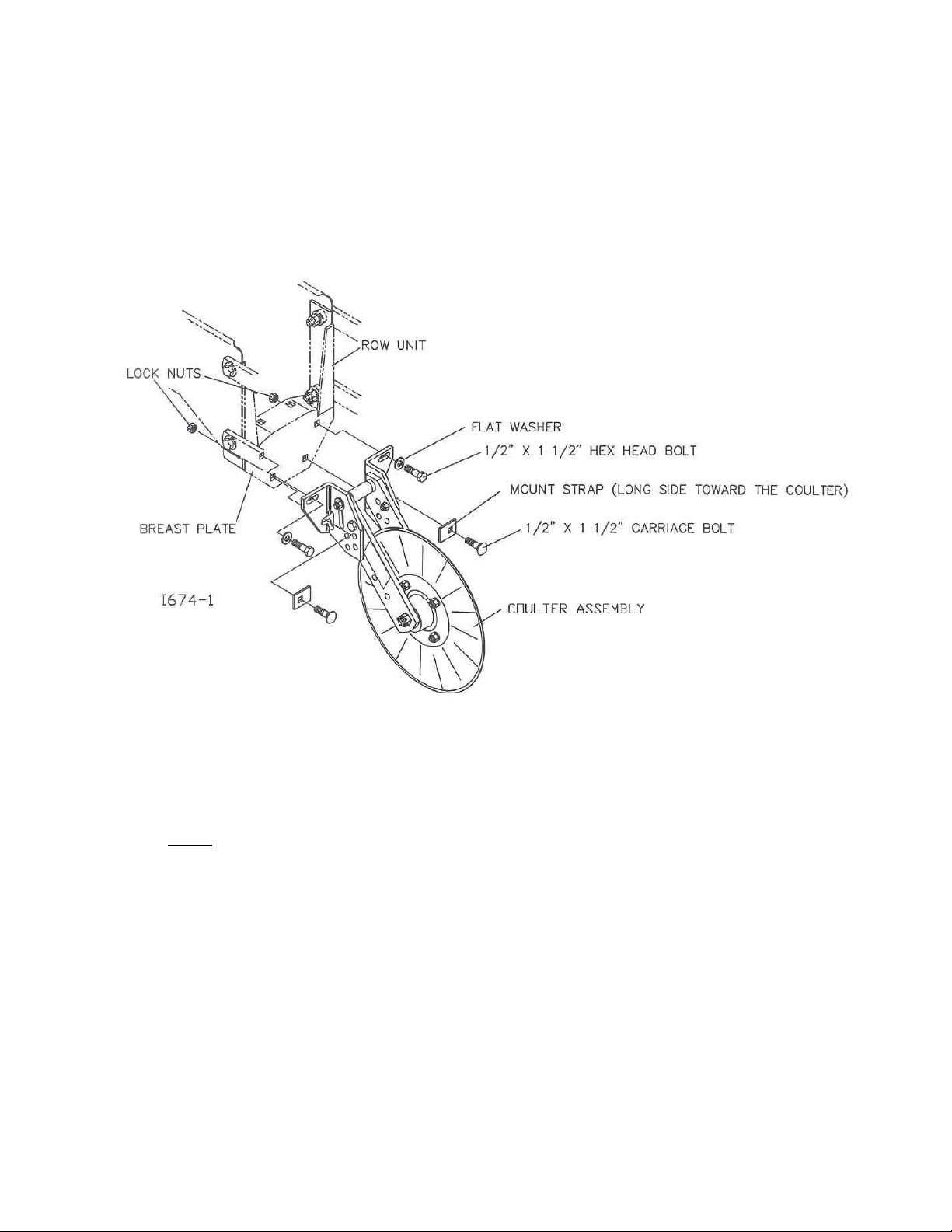

Assembly Instructions.…………………………………………………….5-6
Operation……………………………………….…………………………..7-8

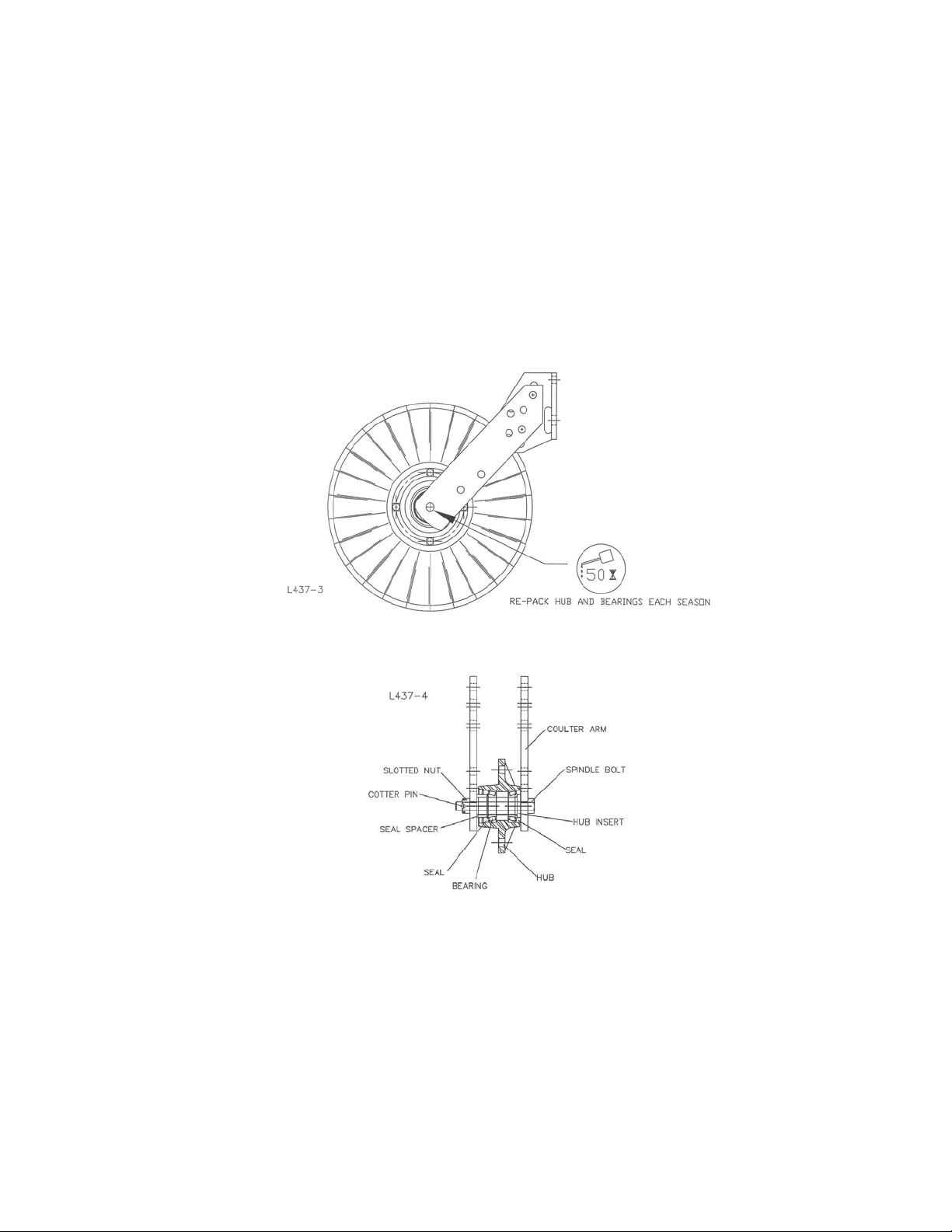

Maintenance…………………………………………………………………..8
Parts Identification………………………...…………………………….……9
Trouble Shooting…………………………………………………………10-11

BOLT TORQUE

READ THESE INSTRUCTIONS FIRST:

1. Improperly tightened bolts will result in damage, breakage, expense, and down time.

2. Always replace bolts with the specified grade and type.

3. Torque properly before first use of the machine and every 2-4 hours of use until you are sure bolts are staying
tight.

4. The chart below is a guide for proper torque. Use it unless a specified torque is called out elsewhere in the
manual.

5. Toque is the force you apply to the wrench handle or the cheater bar, times the length of the handle or bar.

6. Use a torque wrench whenever possible.

The following table shows torque in foot pounds.
