Yerasov AM-5 User Manual

American Modern AM-5

Floor guitar preamp

PHONE RETURN

MIDDLE

SEND OUTPUT

BASS

VOLUME

VOLUME

PRES.

American Modern

User manual

TREBLE

INPUT

?Keep away from high humidity.
?After exposure to cold, keep the device at room temperature

for at least 30 minutes before switching on.

?Avoid dropping, keep away from dirt and water.

American Modern AM-5 is a floor-based guitar preamp,

created with a revolutionary FETube technology, based on FET
transistors used to emulate the tube preamp work. Replicating
popular amps' sound it can boast with “tube-like” dynamics
allowing to convey all the nuances of playing style.

AM-5 emulates the legendary American recto-hi-gain,

which is way back appreciated and admired by lots of
players who love thick, heavily overdriven sound with
saturated lows. The preamp is equipped with two separately
controlled channels, an effect loop and headphones output
with a built-in speaker simulator.

1

6 8 10 12 14

5

7

9

11

PHONE RETURN

4

3

2

VOLUME

VOLUME

SEND OUTPUT

PRES.

American Modern

BASS

MIDDLE

16

15

13

TREBLE

17

18

19

1

21

INPUT

20

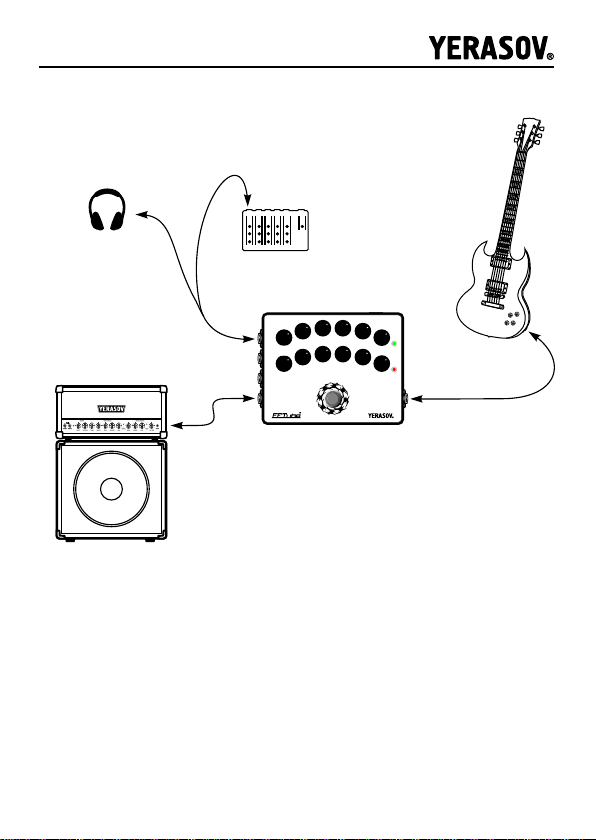

1 - OUTPUT - output jack

2 - RETURN -

input designed to connect with the output of the

external signal processor

3 - SEND ­4 - PHONE -

an output designed to run an external signal processor

phones out with speaker simulation

5 - PRESENCE - presence control knob
6 - VOLUME [PHONE] - phones volume control knob

7 / 8 - VOLUME - clean/drive volume control knobs
9 / 10 - BASS - clean/drive bass control knobs
11 / 12 - MIDDLE - clean/drive middle control knobs
13 / 14 - TREBLE - clean/drive treble control knobs
15 - DC 9V - AC adaptor jack
16 / 17 - GAIN - clean/drive gain control knobs

18 - clean channel check indicator
19 - drive channel check indicator
20 - INPUT - input jack

21 - channels switch

2
