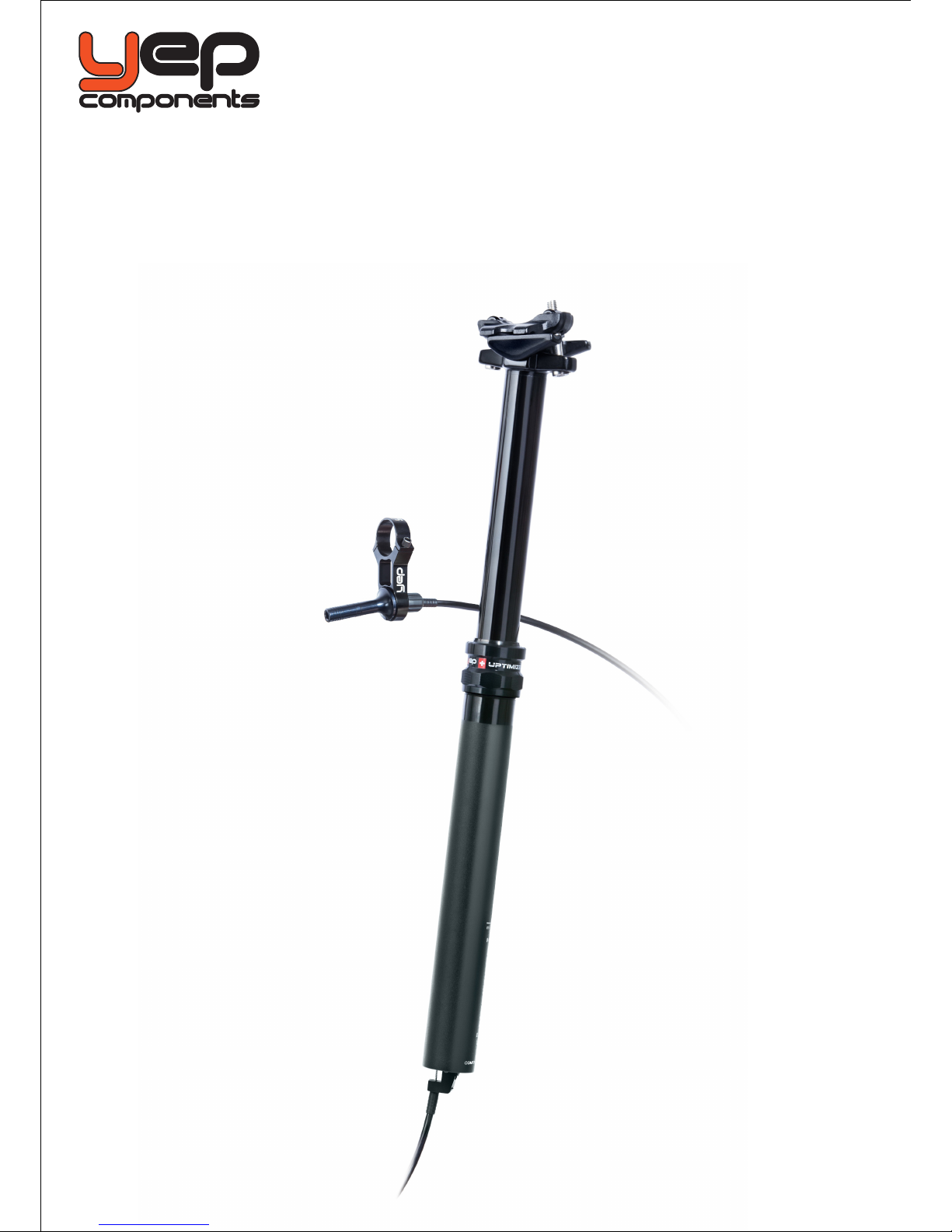

owners service manual
Uptimizer HC
step 1
•
Use bicycle frame to hold post while loosening collar
screw
•
Use an adjustable spanner set at 35mm
step 2
•
Lay seat post on a table in the full extended
position
•
Remove seat clamps!
!
note: during this procedure is not necessary to
release air from the system
step 3
•
Use internal snap-ring pliers to remove the
bottom lock ring
step 4
•
Apply pressure to the head in order to extract
the actuator assembly

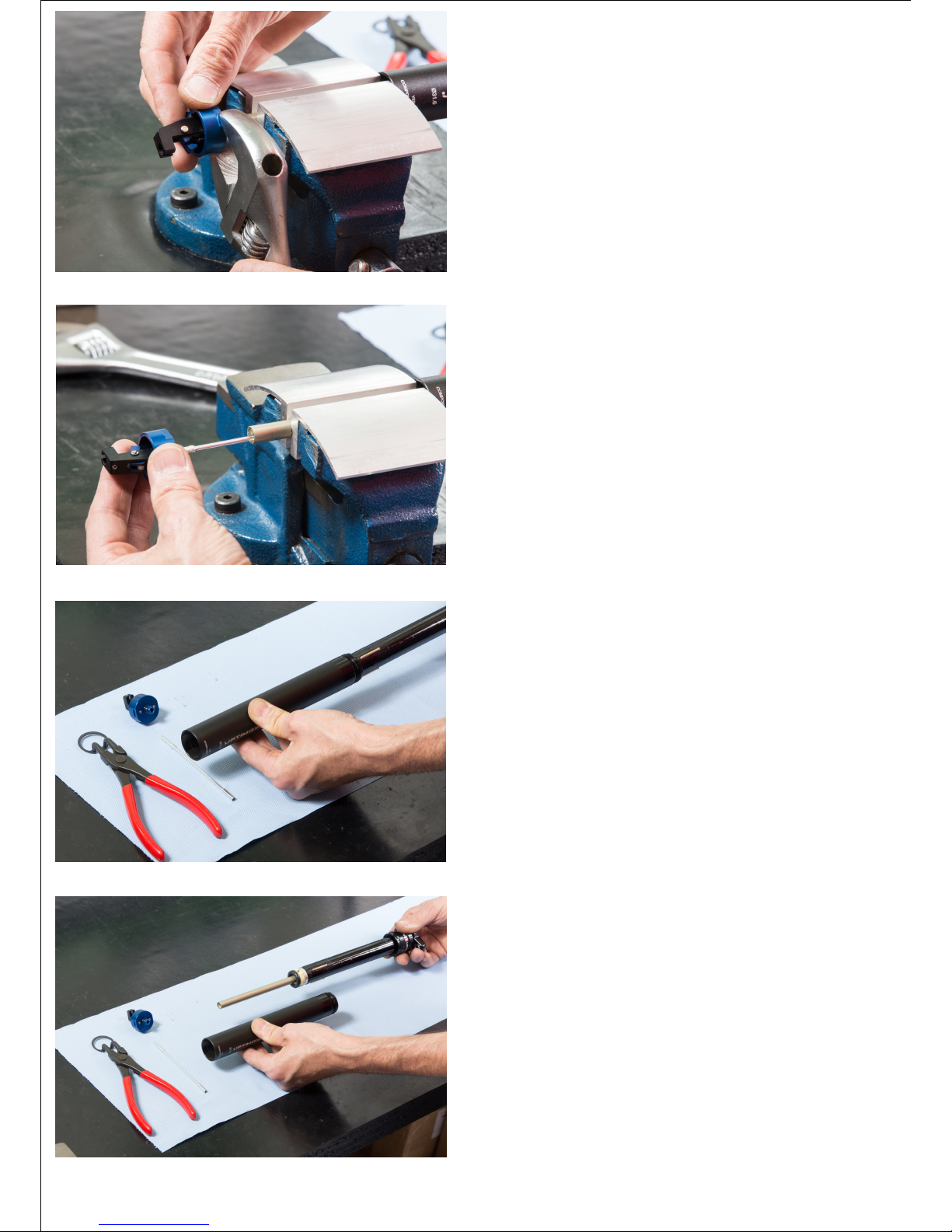

step 5
•
Use vise inserts to protect the shaft
•
Use an adjustable spanner set at 26mm to unscrew!
the actuator assembly
step 6
•
Extract the actuator push rod
step 7
•
Take the stanchion out from the lower tube
