I. INTRODUCTION

1. This Cabinet

YY-0420/0430 is a server cabinet configured on redundant power supply

which takes using as a Server/Raid system. And more, the excellent

thermal solution, compatibility of full size AT, Baby AT, ATX motherboard

and Xeon CPU makes it strongly supports the most complicated server

tasks.

2. Component Checklist

If assembling this chassis by yourself, it is important to prepare all the

chassis components before starting. This will save a great deal of time

by not having to hunt down components. The following checklist provides

a guideline as to the necessary components for a chassis.

Standard Components

Chassis YY-0420/0430

Power Supply Redundant or ATX PSII Single P’su

Cables LED, Power/Reset, and audio speaker cable

Speaker 2.25” Audio speaker

User’s Manuals Hardware Reference Guide and Power Supply

User’s Manual

Optional Components (you may purchase from YEONG

YANG)

Cooling Fan 9cm cooling fan, 1pce

- 3 -

Cooling Fan 12cm cooling fan, supports up to 3pcs

Power Supply Redundant or ATX PSII Single P’su

HDD Frame w/9cm cooling fan Occupy 3*5.25” device for 5*

HDD use

SCA2, ATA or SATA RAID module

with back plane

EMI Filter EMI filter for tail gates

3. Features

The followings are highlight to this cabinet ‘s many features. For additional

features and details, please contact with us directly or visit our updated

web site with this cabinet package.

 Processor: Available for Intel PentiumIVand Xeon CPU
 Motherboard: Supports Full size AT and ATX/ATX extended form

factor.

 Raid Solution: Supply flexible and expandable configurations of

Server/Raid system.

 Device Bays: Supports up to 8 drive bay
 Thermal Solution: Provides up to 1 set of 9cm and 3 sets of 12cm

cooling fans

 Front Panel Control: Snap in front bezel for quick accessibility, with

Power switch, Reset switch, Power LED, Power error LED, HDD LEDs

and Key lock.

 Security: Security by 100 key combinations.

4. Safety and Warning

Observe the following safety instructions any time you are connecting or

- 4 -

disconnecting devices to this cabinet.

 WARNING: An electrical outlet that is not correctly wired could place

hazardous voltage on metal parts of the system or the devices that

attach to the system. It is the responsibility of the customer to ensure

that the outlet is correctly wired and grounded to prevent an electrical

shock.

Before installing or removing signal cables, ensure that the power cables

for the system unit and all attached devices are unplugged.

When adding or removing any additional devices to or from the system,

ensure that the power cables for those devices are unplugged before the

signal cables are connected. If possible, disconnect all power cables from

the existing system before you add a device.

Use one hand, when possible, to connect or disconnect signal cables to

prevent a possible shock from touching two surfaces with different

electrical potentials.

To prevent electrical shock hazard, disconnect to power cable from the

electrical outlet before relocating the system.

 WARNING: This product is equipped with a three-wire power cable

and plug for the user’s safety. Use the power cable in conjunction

with a properly grounded electrical outlet to avoid electrical shock.

5. Tools Required

A few items are needed to install or remove the components in this

chassis.

- 5 -

n Phillips (cross) screwdriver

n Standard (flat) screwdriver

n Anti-static wrist strap

6. Preparation

1. Unpack your chassis, do not connect the power cord.

 IMPORTANT: Most chassis use an AT power supply that has a fixed

ON and OFF switch located on the front. This chassis uses an ATX

power supply that is normally OFF until an electrical signal is given to

the power supply through a momentary switch located on the front of

the chassis. There is always a standby power in the power supply in

order for ATX power supply features to work, and therefore removing

the power cord is necessary to prevent electrical shocks when working

on the chassis components.

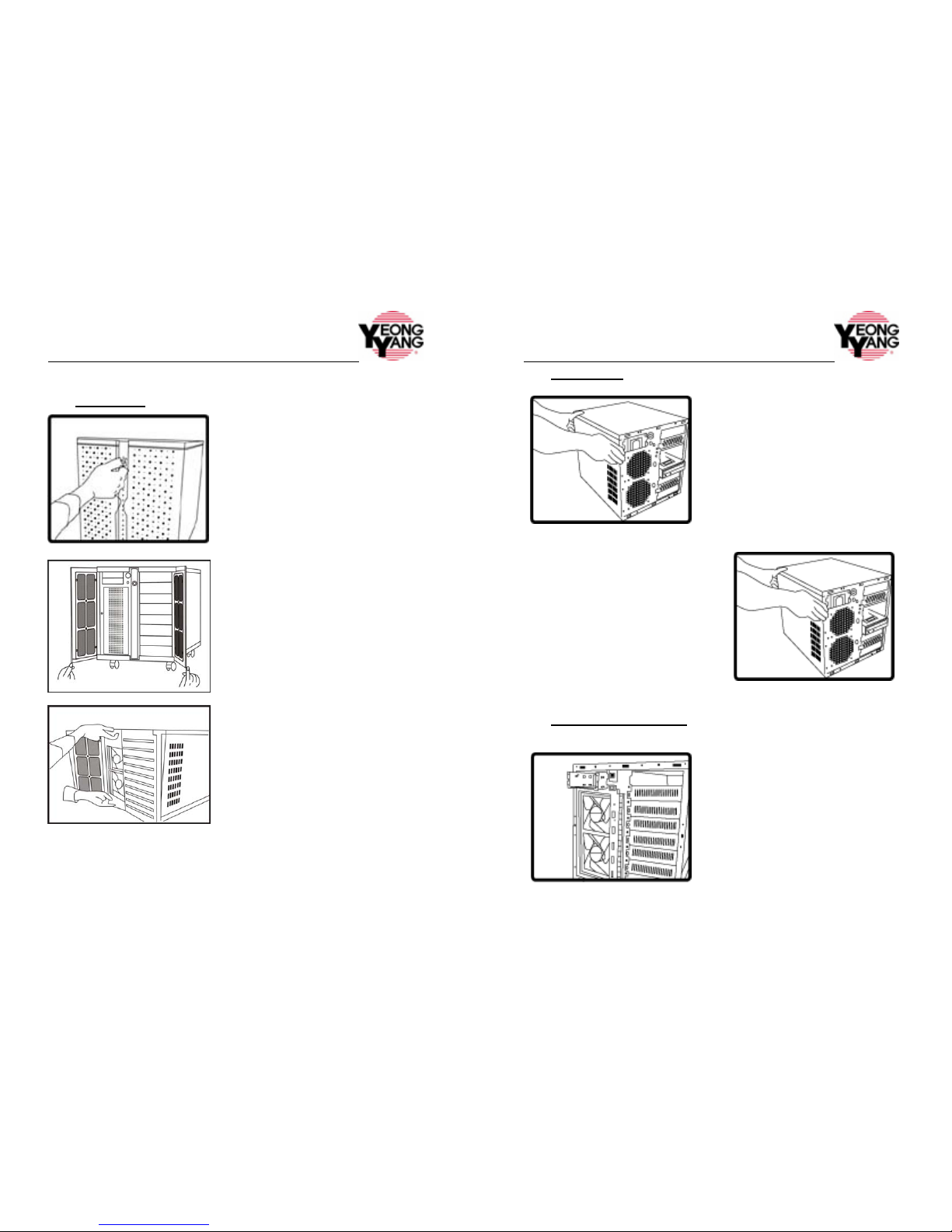

2. Unlock the padlock if one is used. This chassis is equipped with a

lockable front door to prevent unauthorized access. Open the side

panel.

3. Set the power supply input voltage to either 115V for 110-120V areas or

130V for 120-140V.

L CAUTION: The voltage must be set correctly or damage may occur.

4. Connect the included power cords to the chassis power supply.

5. Connect the chassis to a grounded (three pronged) AC power source

such as an UPS or power strip (preferably with surge protection).

 WARNING: This chassis is designed for connection to a grounded

- 6 -

outlet. To reduce the risk of electrical shock or damage to your

chassis, do not bypass the grounding plug.
