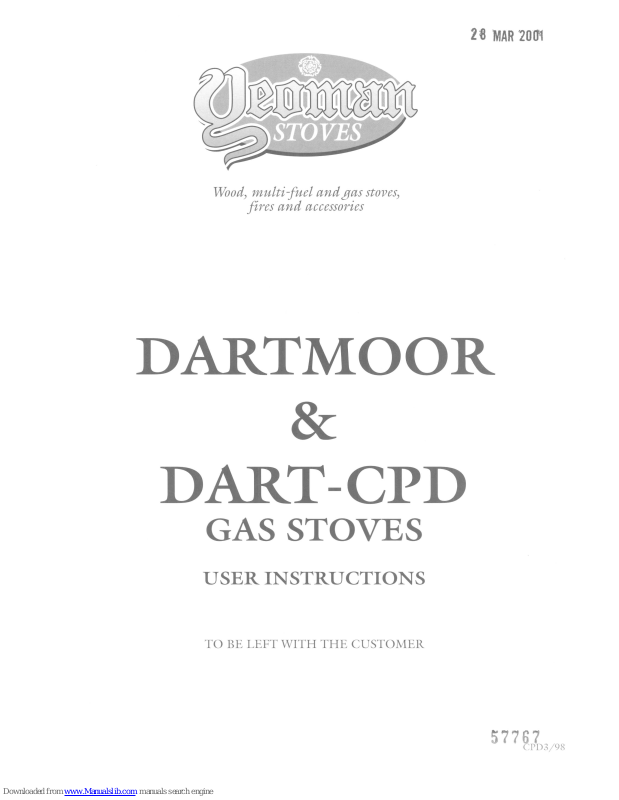

Yeoman DART-CPD, DARTMOOR User Instructions

28 MAR10m

Wood) multi-juel and gas stoves)

fires and accessories

DARTMOOR

&

DART-CPD

GAS STOVES

USER INSTRUCTIONS

DART/DARTMOOR-CPD

THIS PRODUCT IS FOR USE IN THE G.B. AND I.E. ONLY

The DART/DARTMOOR stove has been individually designed to add traditional charm
and character to your home. Providing a highly efficient heat source, the
DART/DARTMOOR has the look and charm of a 'real' stove coupled with the
convenience of clean burning gas.

The stove is designed to run both off natural or LPG gas however each individual
appliance is only capable of running off the type of gas specified at the time of purchase.

It is important to note that once a type of gas has been specified the stove cannot run off
any other type. The type of gas which your stove is capable of burning is stated on the
data information panel (See Paragraph 3).

Important Notes

a) These instructions have been compiled in accordance with BS 5258 Part 13: 1986.

Ensure that the stove corresponds to the type of gas it is to be used with. This can be
confirmed by checking the data badge located on the rear face of the appliance.

Prior to installation it is essential that the chimney should be swept and its condition
and suitability for use with the appliance checked.

Remember at all times this product is concerned with high temperatures, and
appropriate care should always be taken.

Bear in mind that the heat given off by the appliance may afIect articles placed close to
it. Curtains should not be positioned above the appliance at a distance less than 12"
(30 centimetres) from the top.

The appliance was not designed to be used as a dryer. It is therefore not
recommended that the appliance is used in such a manner.

Under no circumstances should the appliance be operated with the front removed or
the door glass damaged.

A combustible shelf may be fitted over the appliance provided that in the case of a

150mm or less deep shelf, there is at least 610mm clearance above the top of the fire

(measured from its highest point).

Please remember that parts of the appliance will get hot during and after use.

If young children, the elderly, or infirm are likely to be near the stove,

ensure a suitable fire guard (BS 6539 or BS 6778) is erected

The appliance is fitted with a thermostatic switch (TTB) which senses any excess
temperature due to a flue blockage. In the event of a partial or total blockage the gas
supply will be automatically cut. Should this occur turn the control knob to the off
position and wait approximately 10 minutes for the switch to automatically reset.

57767

On repeated operation of the thermostatic switch the stove should be turned off and
under no circumstances re-lit until specialist advice has been obtained from your
dealer.

Whilst the appliance is called a 'stove' the DART/DARTMOOR is not designed to be
used in any way as a cooker. The stove should not be used for any other purpose
than as a room heater and decorative stove.

This appliance is designed solely for use in the United Kingdom and Republic of
Ireland.

The installation must be in accordance with the Gas Safety Installation

&

Use
Regulations 1994 amend revised 1997 and with these instructions, and all the relevant
parts of the Local and National Building Regulations, and the recommendations of
the relevant British Standards Codes of Practice.

b) It is required by law that any appliance using natural or LPG gas is installed by

a competent person (e.g. CORGI registered), in conjunction with these
instructions and the requirements as laid down in the relevant Regulations and
British Standards:

- The Gas Safety (Installation and Use) Regulations 1994 revised 1997

- The Building Regulations (issued by the Department of the Environment)

- The Building Standards (Scotland)(Consolidation) Regulations

APPLIANCE TO BE INSTALLED IN

ACCORDANCE TO NATIONAL REGULATIONS

Installation must only be undertaken by a competent person e.g. CORGI
REGISTERED and in conjunction with the installation instructions.

Installers will be supplied with comprehensive fitting instructions in a separate booklet.

This will be left by the fitter once installation has been undertaken.

To comply with the Building Regulations issued by the Department of the Environment,
the following points should be noted when choosing a hearth :-

i) The hearth must be made of non combustible material of thickness 12mm minimum.
ii) The hearth must protrude at least 150mm in front of the stove coals and 150mm

each side.

iii) The hearth must not be capable of inadvertent covering by a carpet or rug. This

should be achieved by either:

a) the hearth being 50mm (2") above the level of the room floor.
b) a fender or kerb around the edge of the hearth to a height of at least 50mm (2")

above the t1oor.

The DART/DARTMOOR is suitable for both Class 1 and 2 flues (the Building
Regulations 1984)

The appliance is also suitable for pre-cast flues, pre-cast chimney block, pre-cast flue block
and ridge tile vent

It is the responsi bility of the installer to ensure that the flue to be connected is suitable for
the conditions experienced when burning natural or LPG gas.

Ideally it is recommended that a minimum height of 610mm from the stove should be
established before any significant change in the direction of the flue. Horizontal or
negative gradients in the flue pipe should be avoided.

It is recommended that the flue has a minimum height of 3 meters. Prior to installation
the installer should ensure that the flue is free from obstruction and ideally a chimney
should be swept and subsequently smoke tested. Ensure that any dampers are fixed in a
permanently open position, and that the chimney/flue is, in the professional opinion of
the installer, of an overall suitability for the purpose intended.

The DART/DARTMOOR has no requirement for additional ventilation in the room in

accordance with BS 5871 part

H.

FIREGUARD WARNING
THE WINDOW AND FRAME ON THIS APPLIANCE ACTS ASA

FIREGUARD CONFORMING TO BS:1945 - 1971 AND SATISFIES THE
HEATING APPLIANCE (FIREGUARDS) REGULATIONS 1991.

NO PART OF THE WINDOW OR FRAME SHOULD BE PERMANENTLY
REMOVED

IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN OR
THE INFIRM

4 ARRANGING THE LAYOUT OF THE COALS

Yeoman Stoves accept no responsibility for any injury sustained whilst handling hot

ceramics.

57767

IT IS VERY IMPORTANT TO READ THESE INSTRUCTIONS

THOROUGHLY BEFORE LIGHTING THE STOVE

The knob for ignition and power control is located on the lower right hand side of the
stove.

If the Flame Supervision Devise Actuating Flame (the Pilot Light) is extinguished either
by intention or not, no attempt should be made to relight until 3 minutes have elapsed.

(i) Igniting the permanent pilot light

1 Depress control knob fully.
2 Whilst depressed, turn knob sharply 90 degrees anticlockwise to 'PILOT' setting

Repeat until pilot light is visibly lit, this may take several atempts.

2 With control knob at 'PILOT' setting, turn in an anti clockwise direction to 'LOW'

setting.

Important: Immediately after lighting, the stove must be left on a maximum setting for

five minutes in order to warm up the chimney.

2 Output can be increased, by turning the control knob progressively in a clockwise

direction until the desired level is achieved, up to a maximum as shown by the

'HIGH' symbol on the control panel.

1 From any heat setting, depress control knob fully and turn clockwise to 'PILOT'

position.

(v) Extinguishing the stove fully

1 From any heat setting or the permanent pilot, depress control knob fully and turn

clockwise to 'OFF' position.

57767

The DART/DARTMOOR in both natural gas and propane incorporates a number of
safety mechanisms.

Since 1st January 1996, under new European standard EN5613, all stoves are required to
have a 'Flame Supervision Device' (FSD). If the pilot should become accidentally
extinguished, there exists a potential for a build up of unburned gas. In this situation the
FSD will automatically cut off the gas supply to the pilot and main burner.

57767

Ensure that the stm'e is turned off before cleaning and do not attempt to clean the
appliance if the unit is still hot.

The coals used in the appliance arc manufactured from high quality ceramic fIbre, and

should only

be arranged as shown on the

coal layout

diagram.

After continued use there may be a build up of soot on the coals which will require
removal. Any fcmll of deposit on the coals will affect the performance of the appliance and
should be removed using a soft brush.

Care should also be taken to ensure that deposits from the chimney do not fall into the
appliance. If this does occur cleaning should be undertaken promptly, and the cause
im'estigated before further use.

There should be no need for the purchaser to alter the layout of the coals and it is
recommended that such a practice should be avoided if at all possible. Follow the
instructions for coal layout in sections of the Installation Instructions book.

Should however any coals become broken during the cleaning process it is essential that
replacements are purchased, as there is an optimum number of coals for a satisfactory
functioning of the sto\'e and the flame picture.

To remm'e the door undo the four brass nuts and washers, Carc should be taken when

rc-tightening the nuts not to over-tighten them.

It is essential that the appliancc is regularly serviccd and maintained by a qualifIed person,
and the chimney or Huc system checked annually.

If the appliance is heavily used it is advisable to undertake more rcgular servicing,
howcvcr under normal circumstanccs annual servicing should be suflicient.

57767

GUARANTEE

1. All Yeoman stoves are guaranteed for one year against faulty components from the
date of purchase.

a) That the installation is carried out by a suitably qualified person (e.g. C.O.R.G.I

registered installer).

b) That the fireplace* and flue system or chimney conforms to the relevant building

regulations and British standards.

c) That our instructions for installation, servicing and cleaning are followed. This

guarantee does not cover mishandling.

d) That any part or parts replaced under the guarantee are returned to us postage

paid for inspection, via your Yeoman stockist.

e) That our liability is limited to the free replacement part or parts affected. No

claims for any other work will be considered unless agreed by Yeoman stoves

management.
f) This guarantee does not cover normal ware and tear.
g) This guarantee does not cover glass replacement.

3) Yeoman stoves are guaranteed via the stockist from whom they were purchased, and
not directly by Yeoman. In the event of any guarantee claims, you should therefore

contact the stockist from where you purchased the stove.

YEOMAN STOVES LTD

Hill Barton Business Park • 5idmouth Road
Clyst 5t Mary • Exeter • Devon • EX5 IBP

Tel [phone] Fax [phone]

http:jjwww.yeoman-stoves.co.ukj
