YELLOW JACKET

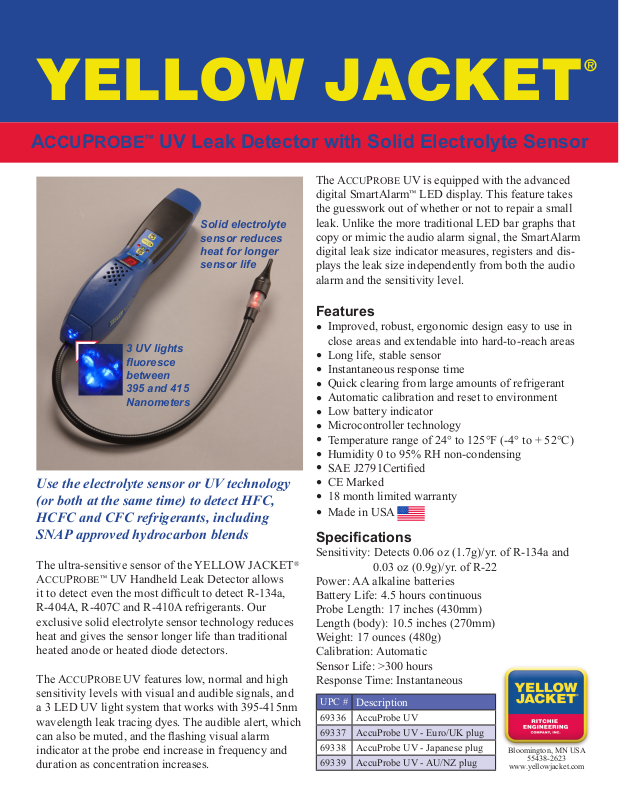

ACCUPROBE™ UV Leak Detector with Solid Electrolyte Sensor
The ACCUPROBE UV is equipped with the advanced
digital SmartAlarm™ LED display. This feature takes
the guesswork out of whether or not to repair a small
Solid electrolyte
sensor reduces
heat for longer
sensor life
3 UV lights
uoresce
between
395 and 415
Nanometers
Use the electrolyte sensor or UV technology
(or both at the same time) to detect HFC,
HCFC and CFC refrigerants, including
SNAP approved hydrocarbon blends
The ultra-sensitive sensor of the YELLOW JACKET
ACCUPROBE™ UV Handheld Leak Detector allows
it to detect even the most difcult to detect R-134a,
R-404A, R-407C and R-410A refrigerants. Our
exclusive solid electrolyte sensor technology reduces
heat and gives the sensor longer life than traditional
heated anode or heated diode detectors.
The ACCUPROBE UV features low, normal and high
sensitivity levels with visual and audible signals, and
a 3 LED UV light system that works with 395-415nm
wavelength leak tracing dyes. The audible alert, which
can also be muted, and the ashing visual alarm
indicator at the probe end increase in frequency and
duration as concentration increases.
leak. Unlike the more traditional LED bar graphs that
copy or mimic the audio alarm signal, the SmartAlarm
digital leak size indicator measures, registers and displays the leak size independently from both the audio
alarm and the sensitivity level.
Features
●
Improved, robust, ergonomic design easy to use in
close areas and extendable into hard-to-reach areas
●
Long life, stable sensor
●
Instantaneous response time
●
Quick clearing from large amounts of refrigerant
●
Automatic calibration and reset to environment
●
Low battery indicator
●
Microcontroller technology
●
Temperature range of 24° to 125°F (-4° to + 52°C)
●
Humidity 0 to 95% RH non-condensing
●
SAE J2791Certied
●
CE Marked
●
18 month limited warranty
●
Made in USA
Specications
Sensitivity: Detects 0.06 oz (1.7g)/yr. of R-134a and
®
0.03 oz (0.9g)/yr. of R-22
Power: AA alkaline batteries
Battery Life: 4.5 hours continuous
Probe Length: 17 inches (430mm)
Length (body): 10.5 inches (270mm)
Weight: 17 ounces (480g)
Calibration: Automatic
Sensor Life: >300 hours
Response Time: Instantaneous
UPC #
69336 AccuProbe UV
69337 AccuProbe UV - Euro/UK plug
69338 AccuProbe UV - Japanese plug
69339 AccuProbe UV - AU/NZ plug
Description
Bloomington, MN USA
55438-2623
www.yellowjacket.com
®
