Yedoo Dragstr, Rodstr, Friday User Manual

ALLOY

DRAGSTR
RODSTR
FRIDAY

User manual

3

EN 6
CZ 12
DE 18
RU 24
SK 30

Contents

Yedoo

Dragstr 20″/ 20″
Maximal load:
150 kg

Friday 16″/ 16″
Maximal load:
150 kg

Rodstr 20″/ 16″
Maximal load:
150 kg

Visit our website www.yedoo.eu
for more language versions.

Yedoo Dragstr

5 mm4 mm 6 mm

+

i

2

54

5 mm5 mm 4 mm4 mm 6 mm6 mm

++

Yedoo FridayYedoo Rodstr

7

Installation manual

2. 3.1.

The installation is the same for all
three models (Dragster, Roadster,
Friday), it diers only in minor details
(seeadditional pictures). When
tightening the connections do not
exceed the specified tightening torque.

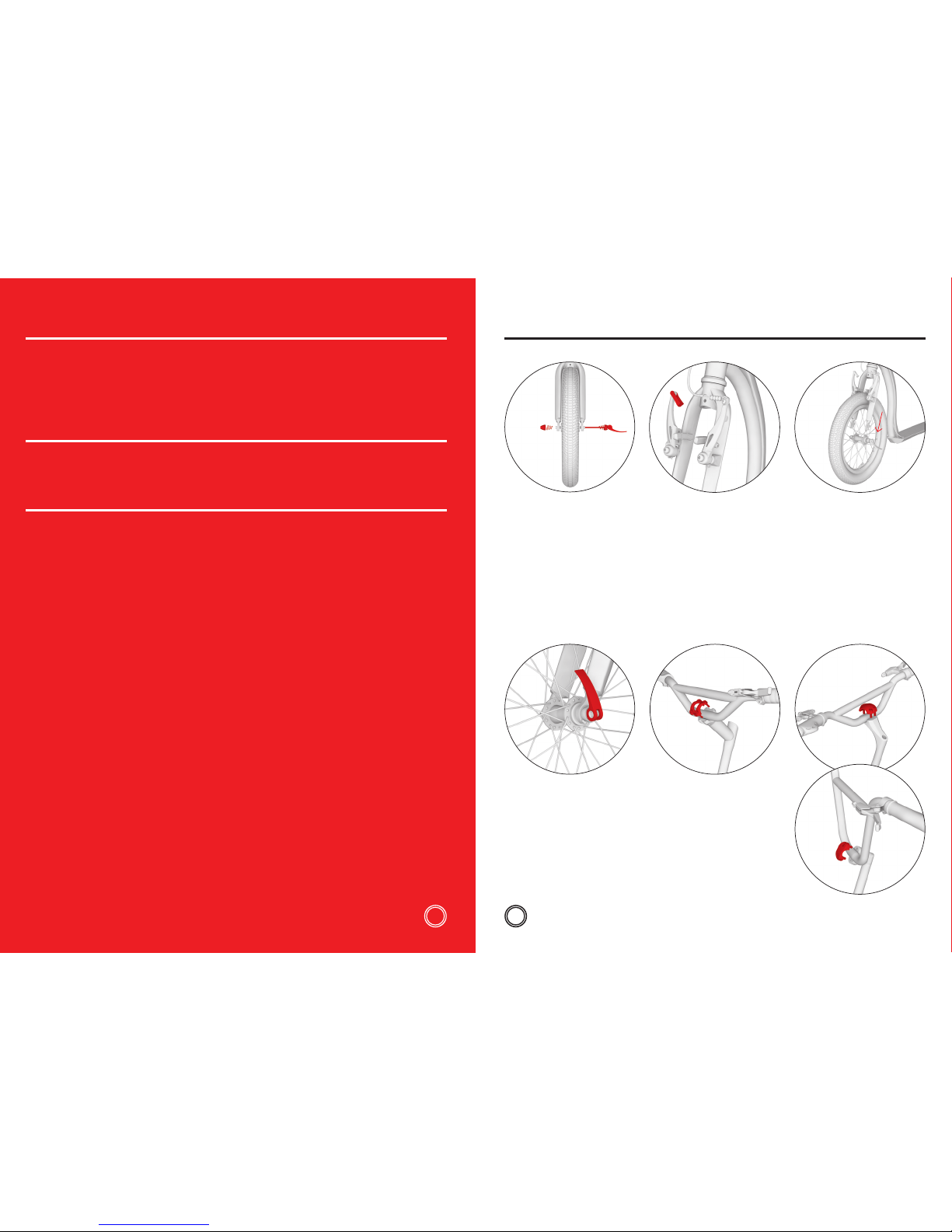

Installing the front wheel

Insert the quick release into the wheel,
so on the both sides of the wheel the
narrow ends of the springs face the
center of the wheel.

Firstly, check the front fork of the
scooter if it is in the right direction
(V-brakes shoulders should point
forwards), then release the brake wire
from the guide.

Insert the wheel into the front fork
so it is exactly in the middle. Caution:
The tyre tread should face forward in the
riding direction (see arrow on the side of
the casing).

5.4.

Tighten the adjustment nut of the quick
release so you will feel a noticeable
resistance just before you close it
completely. Close the quick release lever
in a position so it does not touch the fork
and simultaneously it cannot be opened
accidentally while riding.

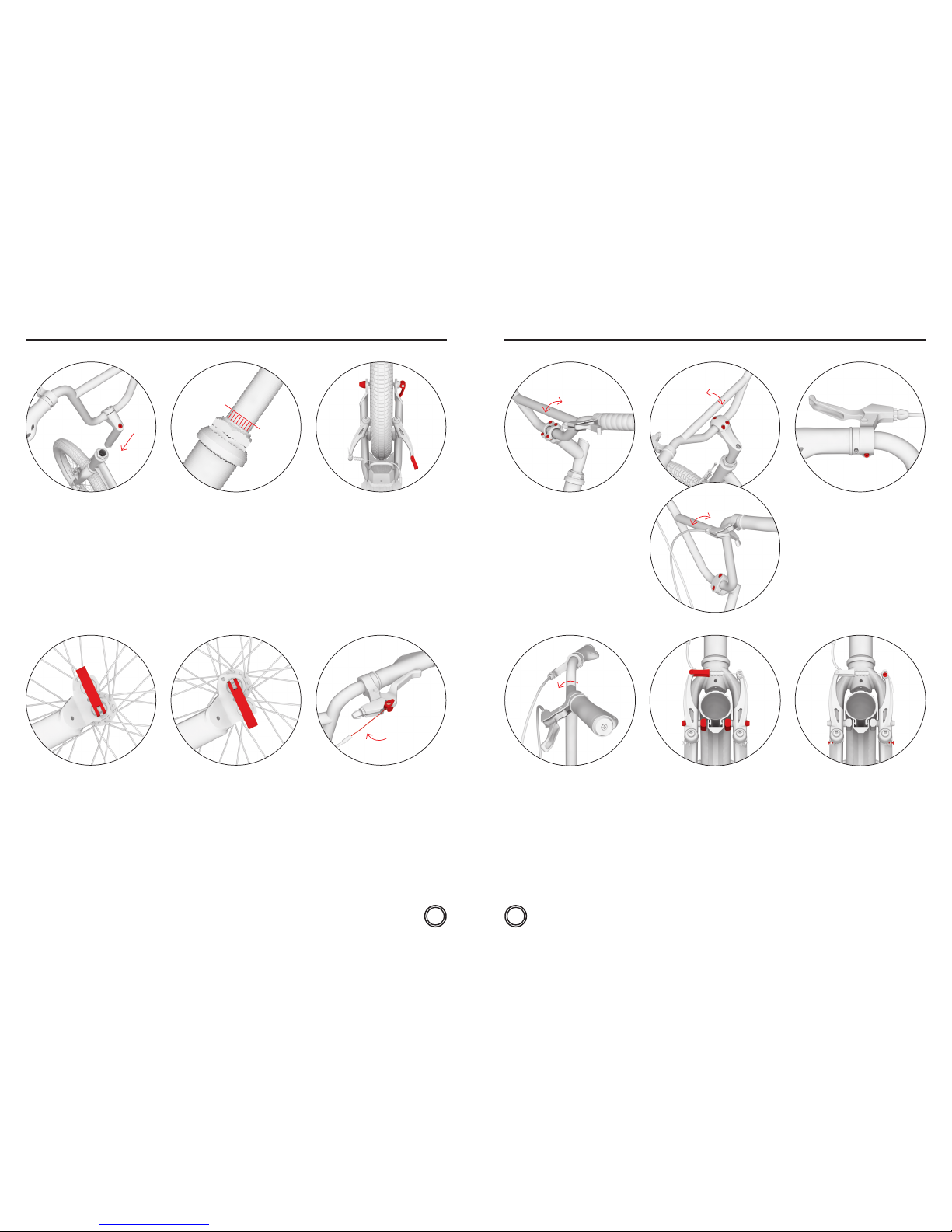

Handlebars installation

Install the handlebar on the stem.
Tighten the screws only slightly so you
can adjust the angle of the handlebars
later on.

Rodstr

Dragstr

5–6 Nm

6–8 Nm

Friday

6–8 Nm

Introduction

We recommend to entrust the installation, adjustment and
regular maintenance to a specialised bicycle shop. Improper
intervention can lead to damage of the scooter or to an accident
with serious health consequences.

If you are technically capable, do not worry and let’s assemble
this scooter with us.

Send your questions, comments and suggestions for
improvement of our products to our e-mail box: [e-mail].

More information from the
world of scooters and the list
of distributors can be found at
www.yedoo.eu.

EN EN

6

98

6.a 7.a

8.

7.b 7.c

6.b

Insert the stem into the frame tube of
the scooter and adjust the handlebar
height, do not put it above the marked
line, see pic. 6.b. Make sure that the
handlebars are straight and then tighten
the screw on the stem.

The highest possible height of the
handlebars is marked with vertical
grooves, at the maximum height the
grooves should be visible only partly.

Installing the rear wheel dier from the

front wheel installation.

Release the brake wire from the guide
(1), Put the wheel in one of the two fork
dropouts (see 7.b, 7.c.) then center the
wheel and tighten the quick release (2).

Installing the brake wires

Squeeze the brake lever to the maximum
and insert the end of the brake wire into
the round lug (1). Insert the wire into
the groove and tighten the set screw (2)
and the nut (3). Repeat the process with
the other brake. The rear brake wire is
usually mounted to the right brake lever
and the front brake wire to the left.

Two-position rear fork enables to adjust
the height of the footrest above the
ground. Use the bottom position for
riding in a terrain. Close the quick
release lever. It should point upwards.

The upper fork position, which reduces
the height of the footrest, is designed
to ride on a smooth, flat surface. Riding
will be less physically demanding.
Theclosed quick release lever should
point downwards.

1

1

2

3

2

9. 10.a

Adjusting the handlebars

Adjust the angle of the handlebar
according to the needs and height of the
rider and tighten the screws. The larger
the angle of the handlebar is the more
space for the rider is available. It is also
suitable for sporty riding style.

Adjusting the angle of the brake levers

On both brake levers loosen the screw
on the sleeve.

For the best results, stand on the
footrest, grab the handlebars and stretch
your fingers so they extend the straight
line of your hands. Set the brake levers
in this position and tighten the two
mounting screws, see 10.a.

10.b

For both the front and the rear wheel

thebrake adjustment is the same.

Insert the brake wire back into the guide
(1) and check the brake pads during
braking if their entire surface fit tightly
to the side of the rim. If not, adjust the
screw (2), which attaches the brake pads
to the shoulders of V-brakes. Brake pads
must not touch the tyre.

Check the brake pads if they moved
away from the rim suiciently (1–2mm)
when the brake lever is released.
Thedistance of the brake pads can be
adjusted by tightening or losing the
brake wire anchor bolt (1). If the brake
pads come across in contact with the
rim while the wheel spins, adjust the
spacing of the brake arms symetrically
with tensioning bolts (2).

Rodstr

Dragstr

11. 12.

1

1

2

2 2

2

Friday

20–22 Nm

5–6 Nm

5–6 Nm

6–8 Nm

6–8 Nm

Installation manual

EN EN

Max

1110

13.a 14.13.b

Adjusting the bowden cables

Adjust the position of the cables and
make sure they do not exceed over the
frame of the scooter (especially in the
rear fork area).

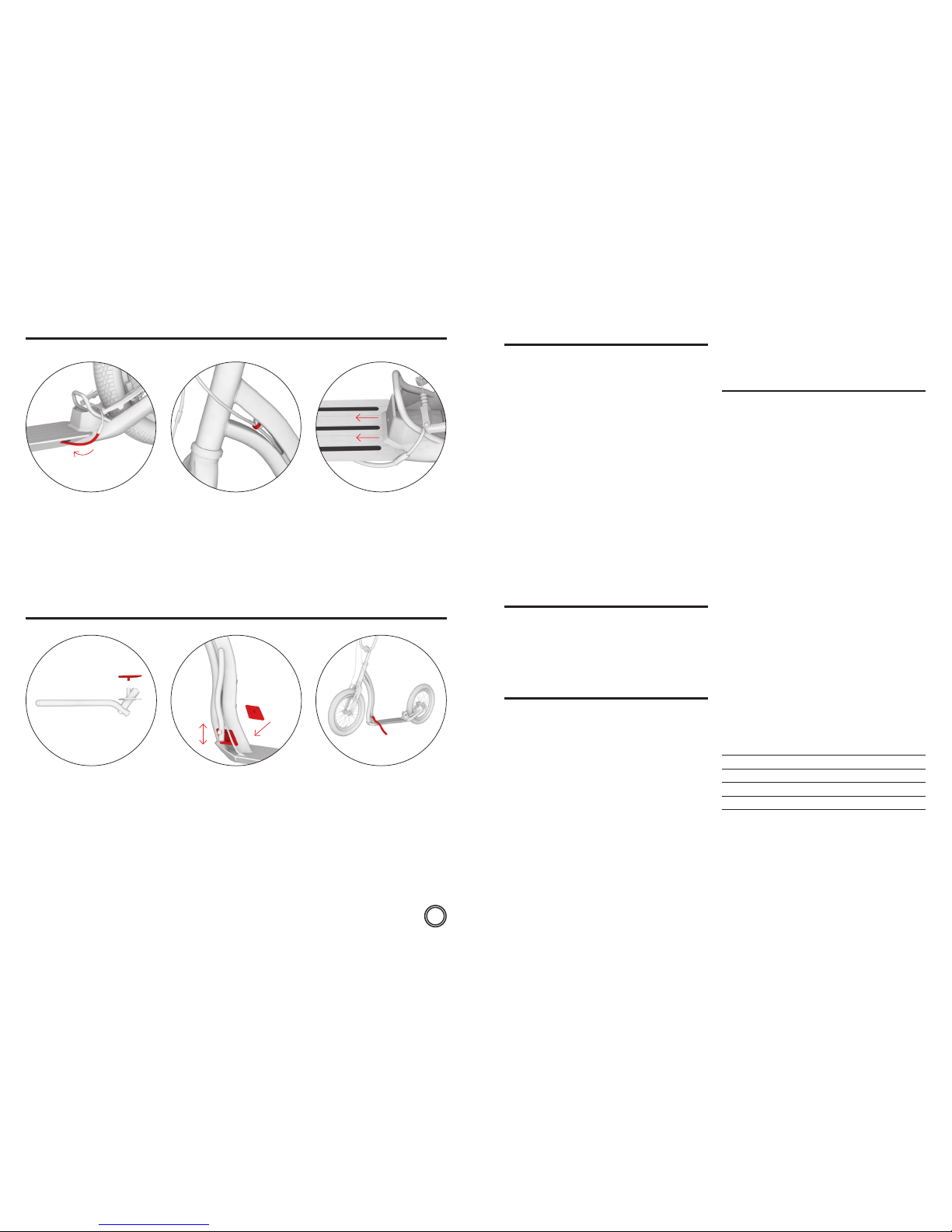

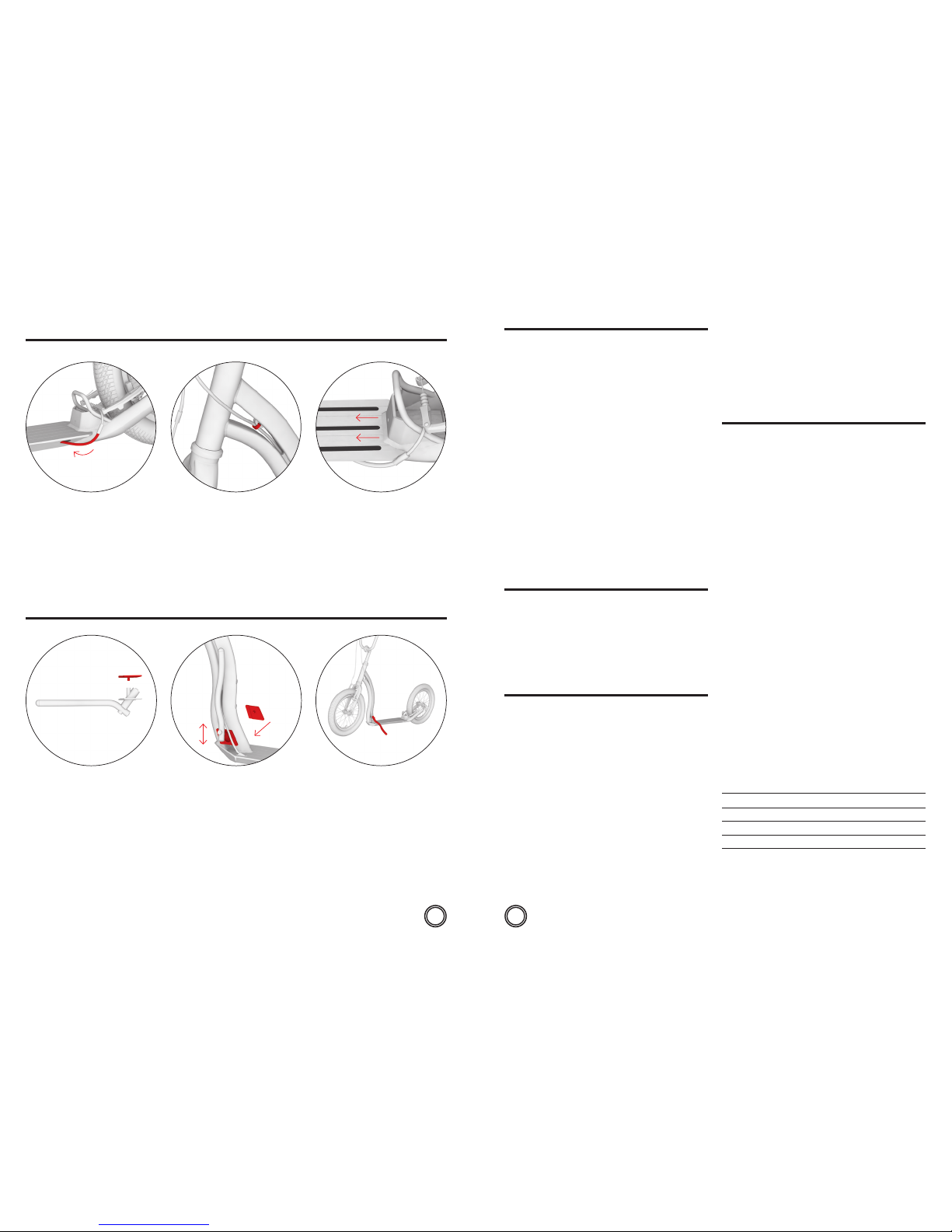

Anti-slip tapes

Use the spare anti-slip tapes to enhance
the anti-slip eect of the footrest. Easily
stick them into the empty slots of the
footrest. Caution: Clean and degrease
the footrest thoroughly before the
installation.

Attach the footrest to the socket in front
of the frame.

1. 2. 3.

Assembling the stand

The stand is not included. You can
purchase it together with other Yedoo
accessories at your local dealer.
See www.yedoo.eu.

Mount the stand in the area where the
front profile of the frame is spread out.
For the best stability for a given model
choose the right height for the stand
to mount. The stand should not exceed
the frame of the scooter in the location
designated for riding.

The maximum capacity of the stand is
about 15 kg. Do not stand on the parked
scooter.

Installation manual

EN EN

Safety recommendations

The scooter in the basic equipment was designed for riding in
daylight in areas designated for sport and recreation, ideally on
a smooth, dry surface.

For riding on roads and in the dark you must equipped the
scooter with additional safety devices (lights, reflectors etc.)
in compliance with applicable regulations in your country.
Observe traic rules, principles of safe riding and wear
personal protective equipment (helmet, bike gloves, knee and
elbow pads, boots, etc.).

Before each ride check your brakes and overall technical
condition of the scooter. Inflate the tires to the recommended
maximum pressure value (see the side of the tire). Do not
exceed its capacity. The scooter is designed only for one rider.
Do not overload the scooter thus it is not intended for jumps or
an acrobatic ride.

All components decreasing the speed (brake pads, rims, tires,
etc.) get hot while in use. Do not touch any of the parts until
they have cooled down!

Riding instructions

Keep both hands on handlebars while riding. While you use
one leg for taking o, use your second leg for standing on the
footrest. Alternate your legs regularly. Press the brake levers on
the handlebars to apply the brakes. Caution: Sudden braking
may cause a fall.

Maintenance

Proper maintenance will improve safety and extend the life of
your scooter. Therefore, tighten the screw connections, check
the condition of the quick release, tire pressure and lubricate
moving parts (bearings in the wheels and handlebars, brake
lever pins, brake pads, brake wires, etc.) regularly.

Make sure that the applied lubricant has not get on the rims
and brake pads. Grease reduces their eect! If that happens,
degrease soiled areas with for example technical gasoline.
Check the height of the tread of the tires regularly and replace
the tires with new ones with the same parameters if necessary.
Properly mark the scooter, which is not ready for use.

Check the condition of self-locking nuts regularly, if they get
loose spontaneously, replace them with new ones). Regularly
check the wheel spokes, uneven tension of the wires can cause
cracking or decentralization of the wheels.

The product complies with the relevant EU standards
(EN14619) and it also received certificates of quality and safety
by a leading Czech testing institute (Strojírenský zkušební
ústav,s.p.) as well as by an internationally recognized TÜV SÜD
Czech s.r.o.

The manufacturer and importer in the EU is INTREA – PIKO, Ltd.,
Sasanková 2657/2, 106 00 Prague 10, Czech Republic,
www.yedoo.eu.

Exercise of rights arising
from defective performance

General provisions

Content, scope and duration of the purchaser’s rights arising
from defective performance is governed by the applicable laws
of the Czech Republic, in particular the relevant regulations
of the Civil Code (Act No. 89/2012 Coll.) And the Consumer
Protection Act (Act No. 634/1992 Coll.). The rights of the
purchaser within these regulations are not aected by this
document or the information contained in it.

Period for exercise of rights arising from defective
performance

The purchaser can apply the right from defects in newly bought
scooter Yedoo (hereinafter goods) within a period of 24 months
from the day of receipt. If the buyer defines the defect of the
goods legitimately, the period for exercising rights arising from
defective performance is suspended for the time during which
the buyer cannot use the goods.

Specifications of application of rights arising from the
defective performance

Rights arising from the defective performance are applied to
the dealer where the goods were purchased (see details below).
We recommend to submit this document, proof of purchase
and a complete scooter free from any impurities when applying
the rights from defects.

The seller will issue a written confirmation of the exercise of rights
arising from defective performance or a confirmation of repair.

Specification of rights of defective performance

When assembling the scooter the instructions given in the
installation manual must be followed. The scooter must be used
exclusively for the purpose for which it was made. The scooter
must be stored and maintained according to the provided
manufacturer’s instructions. The manufacturer’s liability does
not apply to defects caused exclusively by improper installation
or use of scooters in conflict with the user manual.

Model of the scooter:

Serial number of the frame:

Date of sale:

Vendor:

Stamp and signature:

1312

Více informací ze světa
koloběžek a seznam distributorů
najdete na www.yedoo.cz

CZ CZ

Montážní návod

2.

5.

3.1.

4.

Postup montáže je pro všechny tři
modely koloběžek (Dragstr, Rodstr,
Friday) stejný, liší se jen v detailech,
viz doplňující obrázky.
Při utahování spojů nepřekračujte
uvedený moment utažení.

Montáž předního kola

Do kola vložte rychloupínák tak,
aby na každé straně byla jedna pružinka
se zúžením směřujícím ke středu kola.

Dotáhněte seřizovací matici
rychloupínáku tak, abyste těsně před
dovřením rychloupínací páčky cítili
znatelný odpor. Páčku zavřete v takové
pozici, aby se nedotýkala vidlice
a zároveň nemohlo dojít k jejímu
náhodnému otevření během jízdy.

Instalace řídítek

Řídítka nainstalujte na představec.
Šrouby utáhněte jen lehce, abyste
později mohli upravit náklon řídítek.

Nejprve zkontrolujte, zda je přední
vidlice koloběžky natočená ve
správném směru (ramena V-brzdy
směřují dopředu), pak uvolněte
brzdové lanko z vodítka.

Kolo vsaďte do přední vidlice tak,
aby bylo přesně uprostřed. Pozor:
Vzorek pneumatiky by měl směřovat
dopředu po směru jízdy, viz směrová
šipka na boku pláště.

Rodstr

Dragstr

5–6 Nm

6–8 Nm

Friday

6–8 Nm

12

Úvod

Montáž, seřízení a pravidelnou údržbu doporučujeme svěřit
odbornému cykloservisu. Neodborné zásahy mohou vést
k poškození koloběžky či nehodě s vážnými zdravotními následky.

Pokud jste ale technicky zdatní, ničeho se nebojte a s chutí
sedomontáže pusťte s námi.

Dotazy, připomínky a náměty na zlepšení našich výrobků
námprosím posílejte na e-mail: [e-mail].
