How to Connect 3CX to NeoGate TA
FXO Gateway
Version: 1.0
Date: 2014.12.29
Yeastar Information Technology Co. Ltd
How to Connect 3CX to NeoGate TA FXO Gateway
2/12
Contents
1. Introduction ..................................................................................................................... 3
2. Preparation ...................................................................................................................... 3
3. Connect 3CX to NeoGate TA810 ..................................................................................... 4
3.1 Create a SIP Trunk on 3CX .......................................................................................... 4
3.2 Configuration on TA810 ............................................................................................... 7
4. IP to Port .......................................................................................................................... 8
5. Port to IP ........................................................................................................................ 11
How to Connect 3CX to NeoGate TA FXO Gateway
3/12
1. Introduction
This application note shows how to connect 3CX phone system to NeoGate TA
FXO gateway via SIP trunking. This guide has been tested with NeoGate TA810
and 3CX phone system v12.0.35528.640.
Target
：
After connecting NeoGate TA810 and 3CX phone system, physical trunk PSTN
will be extended on 3CX phone system.
The following features can be achieved:
1. Make outbound calls from 3CX via the PSTN trunks of NeoGate TA810.
2. Receive calls from PSTN trunks of NeoGate TA810 at 3CX.
Description
：
IP address of 3CX phone system: 192.168.10.156
IP address of NeoGate TA810: 192.168.10.125
A PSTN line from provider is connected to TA810’s FXO port1.
PSTN number:05955503301

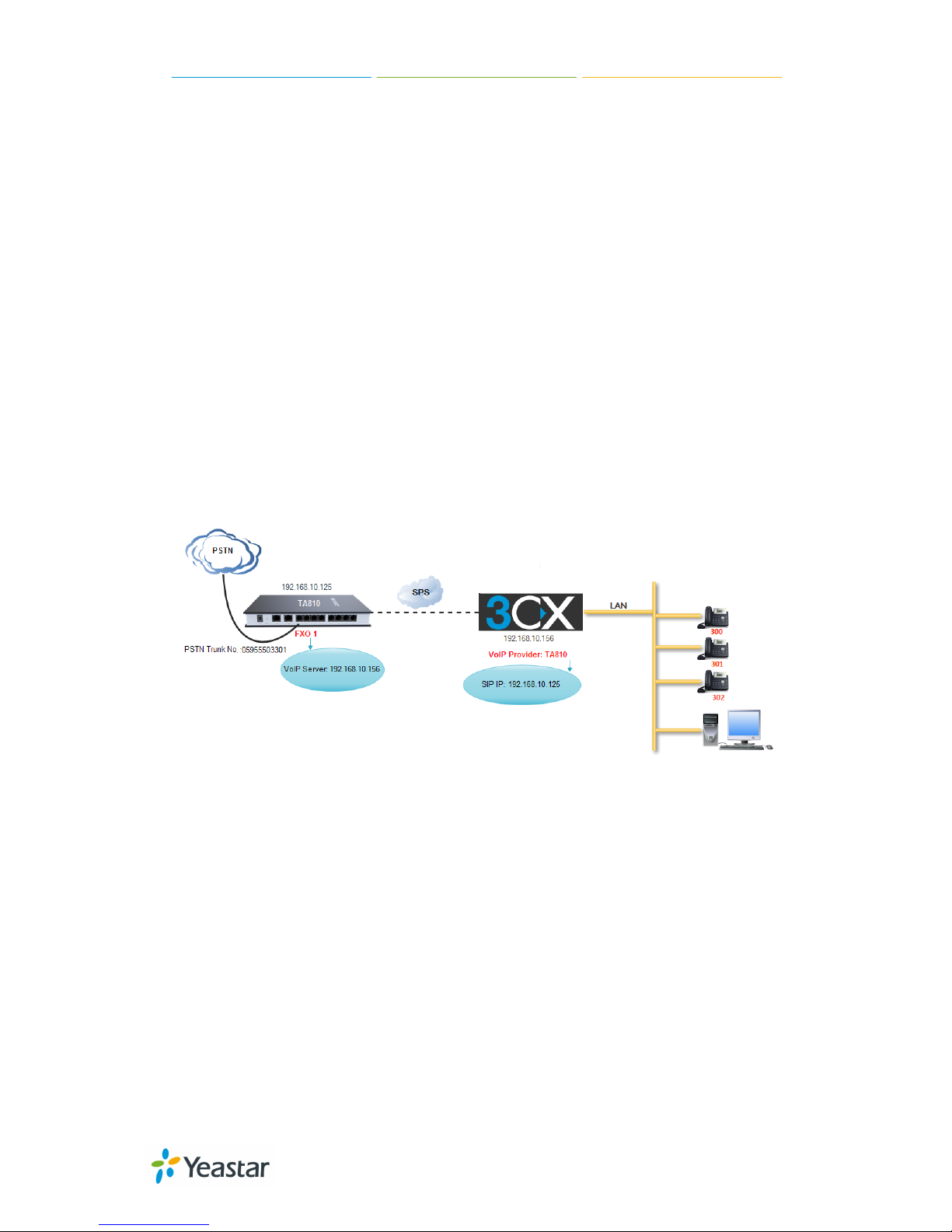

Figure 1 Connect 3CX Phone System and NeoGate TA810
2. Preparation
NeoGate TA810 attempts to contact a DHCP server in your network to obtain
valid network settings (e.g., the IP address, subnet mask, default gateway
address and DNS address) by default.
How to Connect 3CX to NeoGate TA FXO Gateway
4/12
Before connecting NeoGate TA810 to 3CX, you need to set a static IP address
from the same LAN with the 3CX.
Steps to set static IP for NeoGate TA810:
1. Download a DeviceFound tool from Yeastar website: FindTA.rar
2. Run the DeviceFound.exe software.
3. The detected NeoGate TA devices in the local network will appear in the
window.
4. Find the TA device’s IP address by the device’s MAC address or the SN.
5. Log in TA810 and go to System→Network Preferences→LAN Settings, disable
DHCP and configure the LAN network, save and apply the changes, reboot
NeoGate TA810 to take effect.
Figure 2 Configure LAN Settings on NeoGate TA810
3. Connect 3CX to NeoGate TA810
3.1 Create a SIP Trunk on 3CX
1) Click "Add VoIP Provider", configure the VoIP Provider Wizard, then Click
"Next".
Loading...
