DECT IP Multi-Cell System Introduction

The DECT IP multi-cell system is used for connecting multiple DECT base stations to a VoIP PBX. It supports the roaming & handover feature, and provides a wider DECT signal coverage, and more handsets and simultaneous calls than the single-cell.

Topics

Components of the DECT IP Multi-Cell System Deployments of the DECT IP Multi-Cell System Related Documentations

Components of the DECT IP Multi-Cell System

The following illustration shows the components of the DECT IP multi-cell system and the way the system is embedded in the IP phone environment:

Components Description

Management unit for a group of base stations. At least one DECT manager must be used for

W80B DECT Manager

(sometimes just

referred to as DM)

W80B Base Stations

each installation.

• Manages base stations synchronization within the clusters.

• Enables the account registration and centrally stores the account configuration.

• Enables centralized configuration and deployment.

Up to 30 base stations can be supported by one DECT manager.

• Provide cell site DECT features.

• Provide media processing from handsets directly towards PBX.

• Provide connection channels for the handsets, the number depends on various factors such as the approved bandwidth and the device role.

Administrator’s Guide for DECT Multi-Cell System

Components Description

Up to 100 handsets can be supported by one DECT manager. Up to 100 DECT calls can be made

Handsets (Mobile Devices)

PBX

simultaneously for VoIP call. Subscribers can accept or initiate calls in all base stations with their handsets (Roaming), and can also switch handsets DECT connection between the base stations during a call (Handover). A handover is only possible if base stations are synchronized.

IP PBX or Provider with VoIP (SIP) connections.

• Establishes the connection to a public phone network.

• Enables the centralized management of phone connections, remote phone book, and voice mail.

Deployments of the DECT IP Multi-Cell System

The DECT IP multi-cell system can be deployed in the multi-story office building, supermarket, store, warehouse, hotel, and so on.

Device Small System Medium System

W80B DECT Manager

W80B Base Stations

Handsets (Mobile Devices)

DECT manager and base station on the same device.

Up to 10 Base station functionality can be activated on the DECT manager device.

Up to 50 Up to 100 per DECT manager

At least one

Up to 30 per DECT manager

DECT IP Multi-Cell System Introduction

First Steps

This chapter provides the information you need to prepare to configure your multi-cell system at the DECT manager.

Topics

Preparing to Use the Multi-Cell System Assigning the Device Role Registering the First Handset to the W80B Device Finding the IP Address of the W80B Configuring the System via Web User Interface

Preparing to Use the Multi-Cell System

Administrator’s Guide for DECT Multi-Cell System

Assigning the Device Role

All W80B devices are configured as the role of "base station" out of box. To set up the DECT multi-cell system, at least one device must be configured as DM.

The W80B device supports the following three roles:

l Base: The device only works as a base station. You can configure the IP address of the DM via the web user interface

or RPS.

l DM: The device only works as a DECT manager. l DM-Base: The device works as a DECT manager and a base station. Only in this mode can you register a handset to

the DECT manager.

The following table describes how to change the role of the device using the device key on the front side.

Action LAN LED ROLE LED DECT LED Description

Long press the device

key for about 10

seconds.

Press the device key

once briefly.

Press the device key

twice briefly.

Press the device key

three times briefly.

Press the device key

four or more times

briefly.

Slowly flashing

green(1s)

Slowly flashing

green(1s)

Green Orange Green

Green Orange Off

Green Green Green

Fast flashing green

(0.5s)

Fast flashing green

(0.5s)

Slowly flashing

green(1s)

Fast flashing

green(0.5s)

The device is in the switching mode.

The device is switched to the DM-

Base role.

Note: The device will reboot after 3

seconds to make the change take effect.

The device is switched to the DM role.

Note: The device will reboot after 3 seconds to make the change take effect.

The device is switched to the Base role.

Note: The device will reboot after 3 seconds to make the change take effect.

The device returns to the switching mode after the three LEDs fast flash green three times.

Note: In the Base role, you can press the device key on the W80B three times quickly in one second to switch to the DM-Base role.

When you change the role of the device, the time interval between each button press should be less than 3 seconds. The device will return to the original role after 30 seconds of inactivity in the switching mode. The device will not reboot if you switch back to the current role.

Registering the First Handset to the W80B Device

You can quickly register a handset to a W80B device to check the IP address of the DM at the beginning of the system deployment.

Before You Begin

First Steps

l The W80B device role is DM-Base, and no handsets have been registered to the device. l Long press the device key on the W80B till the DECT LED indicator flashes to set the device to the registration

mode. You can only register one handset to the W80B using this method.

Procedure

1. When the handset prompts "Unregistered!" on its LCD screen, do one of the following:

l Press the Reg soft key on the handset to register quickly. l Press OK > Register Handset and then select the desired base to register the handset.

You need to enter the base PIN (default: 0000) after a base is found.

After the handset is registered successfully, the handset prompts “Handset Subscribed” on its LCD screen.

Tip: If the handset LCD screen does not prompt “Unregistered!”, press the OK key to enter the main menu and select Set- tings > Registration > Register Handset to register the handset.

Related Topics

Assigning the Device Role Registering Handsets via Web User Interface

Finding the IP Address of the W80B

After registering a handset to the W80B device, you can fast check the IP address of the device for accessing the web user interface.

Procedure

1. Press the OK key to enter the main menu, and then select Status > DM.

On the DDphone, press the OK key or navigate to Menu > Status > DM Status. The LCD screen displays the IP address of the W80B device.

Note: If the IP address of the device is assigned dynamically via your local network's DHCP server, you can also find the cur-

rent IP address on the DHCP server in the list of registered DHCP clients. The MAC address can be found on the rear of the device.

Configuring the System via Web User Interface

System settings are made via the web user interface of the W80B and cannot be changed using the handsets.

This applies in particular for:

l De-registering the handset at the phone system. l Renaming the handset. l All settings for the VoIP account used by a handset for calls. l Rebooting or restarting the base station. l Configuration of the remote phone book.

Handset-specific settings are changed on your handset individually. For example, language, wallpaper, ring tones, and volume.

Topics

Accessing Web User Interface Navigating the Web User Interface Logging out of the Web User Interface

Administrator’s Guide for DECT Multi-Cell System

Accessing Web User Interface

You can configure and manage features of the multi-cell system via the web user interface.

When configuring via the web user interface, you require a user name and password for access. For a user - who has only limited access to some settings, the default user name and password are “user” (case-sensitive). For an administrator - who has unlimited access to call features of the web user interface, the default user name and password are “admin” (case-sensitive).

Procedure

1. Open a web browser on your computer, enter the IP address into the address bar (for example, "https://192.168.0.10" or "192.168.0.10"), and then press the Enter.

2. Enter the user name and password on the login page and click Login.

Navigating the Web User Interface

When you log into the web user interface successfully, the device status is displayed on the first page of the web user interface.

The following figure is an example when you navigate to Settings > Preference:

Logging out of the Web User Interface

By default, the device will automatically log out of the web user interface after five minutes of inactivity. You can also manually log out of the web user interface.

Procedure

1. Click Logout at the top right of each web page.

Initialization Instructions

This chapter provides basic initialization instructions of devices.

Topics

Initialization Process Overview Verifying Startup

Initialization Process Overview

The initialization process of the device is responsible for network connectivity and operation of the device in your local network. Once you connect your device to the network and to an electrical supply, the device begins its initialization process.

Topics

Loading the ROM File Configuring the VLAN Querying the DHCP (Dynamic Host Configuration Protocol) Server Contacting the Provisioning Server Updating Firmware Downloading the Resource Files

Loading the ROM File

The ROM file resides in the flash memory of the device. The device comes from the factory with a ROM file preloaded. During initialization, the device runs a bootstrap loader that loads and executes the ROM file.

Configuring the VLAN

If you connect the device to a switch, the switch notifies the device of the VLAN information defined on the switch (if using LLDP or CDP). The device can then proceed with the DHCP request for its network settings (if using DHCP).

Querying the DHCP (Dynamic Host Configuration Protocol) Server

The device is capable of querying a DHCP server.

After establishing network connectivity, the device can obtain the following network parameters from the DHCP server during initialization:

l IP Address l Subnet Mask l Default Gateway l Primary DNS (Domain Name Server) l Secondary DNS

By default, the devices obtain these parameters from a DHCPv4. You can configure network parameters of the device manually if any of them are not supplied by the DHCP server.

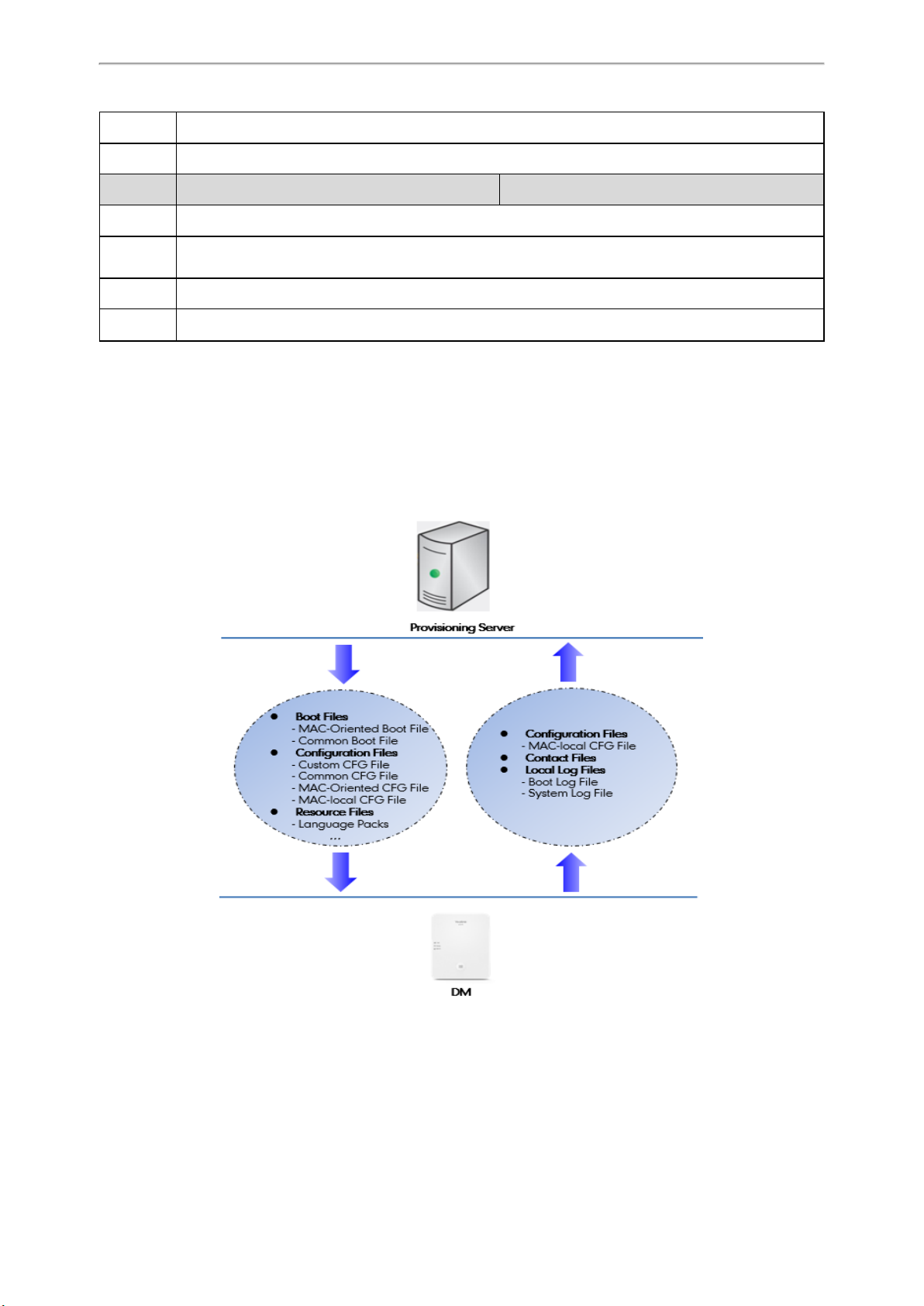

Contacting the Provisioning Server

If you configure the device to obtain configurations from the provisioning server, it will be connected to the provisioning server, and then download the boot file and configuration file(s) during startup. The device will be able to resolve and update configurations written in the configuration file(s). If the device does not obtain configurations from the provisioning server, it will use the configurations stored in the flash memory.

Administrator’s Guide for DECT Multi-Cell System

Updating Firmware

If you define the access URL of firmware in the configuration file, the device will download the firmware from the provisioning server. If the MD5 value of the downloaded firmware file differs from that stored in the flash memory, the device will perform a firmware update.

You can manually upgrade the firmware if the device does not download the firmware from the provisioning server.

Downloading the Resource Files

In addition to the configuration file(s), the device may require resource files before it provides service. These resource files are optional, but if you deploy some particular features, these files are required.

Verifying Startup

After connected to the power and available network, the LAN LED indicator glows green. In the DM-Base mode, the ROLE LED indicator glows orange and the DECT LED indicator glows green.

Setting up the Base Stations

When the W80B device role is Base, the device must be registered to the DM for normal use.

In the multicast network, the DM automatically recognizes the base stations within the network. In the non-multicast network, the DM recognizes the base stations only when the IP address of DM is configured to the base stations via the web user interface or RPS.

After recognized, the base stations need to be registered, activated, and synchronized.

Topics

Base Mode Base Station Pre-registration DM IP Base Station Settings Base Station Synchronization

Base Mode

You can assign a role for the device via the web user interface or auto provisioning.

Topics

Base Mode Configuration LED Indicators on the W80B

Base Mode Configuration

The following table lists the parameter you can use to configure the base mode.

Parameter static.station.mode <y0000000000xx>.cfg

Description It configures the role of the W80B device.

0-DM-Base, the device can work as a DECT manager and base station.

Permitted Values

Default 1

Web UI Status > Base Mode > Base Mode

1-Base, the device works as a base station only.

2-DM, the device works as a DECT manager only.

LED Indicators on the W80B

LAN LED: indicates the LAN connection status.

LAN LED Description

Green Successful connection to LAN

Slowly flashing green (1s) No connection to LAN or no IP address available/ assigned

Off Power off

ROLE LED: indicates the device role.

Administrator’s Guide for DECT Multi-Cell System

ROLE LED Description

Orange Device role: DM or DM-Base.

Green Device role: Base.

Slowly flashing orange (1s) Active calls in the system

DECT LED: indicates the connection status to the DM.

DECT LED Description

Green Successful connection to DM, status: Active and synced

Off Successful connection to DM, status: Active, Deactive, or Offline

Slowly flashing green (1s) Active calls on the base station

You can register handsets while the device role is DM-Base. The LED indicators are shown below:

LAN LED ROLE LED DECT LED Description

Green Orange

Green Orange Green Handset registered

LED indicators (some common status)

LAN LED ROLE LED DECT LED Description

Slowly flashing

green (1s)

Slowly flashing

green (1s)

Green Green Green Synchronized, status: Active and synced

Green Green Off

Green Green

Green Off Device role: Base, no connection to LAN

Orange Off Device role: DM or DM-Base, no connection to LAN

Slowly flashing

green(1s)

Slowly flashing

green(1s)

Handset registering

Not synchronized, status: Active, Deactive, or Off-

line

Successful connection to DM, active calls on the base station

Green Orange Green First-level base station connected

Green Orange Off No connected base on the DM

Green

Slowly flashing Slowly flashing

Device role: DM-Base, active calls on the device

Setting up the Base Stations

LAN LED ROLE LED DECT LED Description

orange (1s) green (1s)

Green

Fast flashing green

(0.5s)

Green Orange Orange Device role: DM-Base, test mode

Slowly flashing

orange (1s)

Fast flashing green

(0.5s)

Green Active calls in the system

Fast flashing green

(0.5s)

Firmware update in progress

Base Station Pre-registration

In the multicast network, you can pre-register all base stations at the DM. After that, the base stations will be automatically registered at the DM once being detected in the network.

If the detected base station has not been pre-registered at the DM, you need to manually register the base stations via the web user interface.

Topics

Base Station Pre-registration Configuration Manually Registering Base Stations to the DM

Base Station Pre-registration Configuration

The following table lists the parameters you can use to pre-register the base station.

Parameter station.allowed.X.mac

Description It sets the MAC address of the pre-registration base station.

Permitted Values

Default Blank

Parameter station.allowed.X.name

Description It sets the name of the pre-registration base station.

Permitted Values

Default Blank

Parameter station.allowed.X.sync.cluster

Description It sets the sync cluster of the pre-registration base station.

Permitted Values

String within 32 characters

Integer from 1 to 10

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Default Blank

Parameter station.allowed.X.sync.level

Description It sets the sync level of the pre-registration base station.

[1]

<y0000000000xx>.cfg

Permitted Values

Default Blank

[1]

X is the pre-registration ID. X=1-30.

Integer from 1 to 10

Manually Registering Base Stations to the DM

You are allowed to manually register the base stations to the DM in the base station standby list.

Procedure

1. Access the web user interface of the device.

2. Navigate to Base Station > Base Station Registration.

3. Click next to the base station.

4. Complete the corresponding information of the base station, and click OK.

The base station is successfully registered to the DM.

Related Topic

Accessing Web User Interface

DM IP

In the non-multicast network, the DM can detect and connect the base station only when you have configured the IP address of the DM on the base station.

Note: You can configure the IP address of the DM for all base stations using RPS. Otherwise, you need to switch the W80B

device to the DM-Base role first and then register a handset to the device to find the device's IP address. After accessing the web user interface, switch the W80B to the Base role and configure the IP address of the DM.

Topic

DM IP Configuration

The following table lists the parameter you can use to configure the DM IP.

Parameter features.dect_management.ip_address <y0000000000xx>.cfg

Description

Permitted Values

Default Blank

Web UI Status > Base Mode > DM IP

It configures the IP address of the DM.

Note: It works only if "static.station.mode" is set to 1 (Base).

String within 64 characters

Base Station Settings

You can modify all settings of the registered base stations at the DECT manager.

Topics

Base Station Settings Configuration Managing the Connected Base Stations

Base Station Settings Configuration

The following table lists the parameters you can use to modify the base station settings.

Setting up the Base Stations

Parameter station.X.name

Description It sets the name of the base station.

Permitted Values

Default Base station X

Web UI Base Station > Base Station Settings > Edit > Name / Location

Parameter station.X.sync.cluster

Description It sets the sync cluster to which the base station belongs.

Permitted Values

Default 1

Web UI Base Station > Base Station Settings > Edit > Cluster

Parameter station.X.sync.level

Description It sets the sync level of the base station.

Permitted Values

String within 32 characters

Integer from 1 to 10

[1]

<y0000000000xx>.cfg

Default 1

Web UI Base Station > Base Station Settings > Edit > Sync Level

Parameter station.X.sync.type

Description It sets the sync type of the base station.

Permitted Values

Default 2

Parameter station.X.active

0-Disabled

2-Over the air synchronization

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Description It triggers the active base station feature to on or off.

Permitted Values

0-OFF

1-ON

Default 1

Web UI Base Station > Base Station Settings > Edit > Active Base Station

Parameter

static.station.X.network.type

[1]

Description It configures the type of network.

Permitted Values

0-DHCP

2-Static IP

Default 0

Web UI Base Station > Base Station Settings > Edit > IP Address Type

Parameter

static.station.X.network.ip

[1]

It configures the IPv4 address.

Description

Note: It works only if "static.station.X.network.type" is set to 2 (Static IP).

Permitted Values

String within 64 characters

Default Blank

<y0000000000xx>.cfg

Web UI Base Station > Base Station Settings > Edit > IP Address

Parameter

static.station.X.network.mask

[1]

It configures the IPv4 subnet mask.

Description

Note: It works only if "static.station.X.network.type" is set to 2 (Static IP).

Permitted Values

String within 64 characters

Default Blank

Web UI Base Station > Base Station Settings > Edit > Subnet Mask

Parameter

static.station.X.network.gateway

[1]

It configures the IPv4 default gateway.

Description

Note: It works only if "static.station.X.network.type" is set to 2 (Static IP).

Permitted Values

String within 64 characters

Default Blank

Web UI Base Station > Base Station Settings > Edit > Default Gateway

[1]

X is the registration location ID. X=1-30.

<y0000000000xx>.cfg

Managing the Connected Base Stations

You can edit the data for a base station or manage a base station that is already registered to the DM.

You can customize the following information of the connected base stations:

Item Description

Setting up the Base Stations

Base Station

Name of the base station. When added to the list, Base Station X (X ranges from 1to 30) is used as the name.

Radio Fixed Part Number. The base station identity allocated by the DECT system.

RPN

Note: This cannot be edited.

Cluster Number of the cluster to which the base station belongs.

Sync Level Sync level within the sync hierarchy.

Synchronization status of the base station.

• Offline: not available.

Status

• Deactive: available but not activated.

• Active: activated but not synchronized.

• Active and synced: activated and synchronized. Activates or deactivates the base station.

Active

Note: A base station must be active to manage calls of the connected handsets. If it is deactivated,

it will no longer connect handsets but it still stays in the list of connected base stations.

Procedure

1. You can do the following:

l Select ON or OFF to activate or deactivate the base station.

Note: Please ensure that the base station you want to deactivate is not with sync level 1. Check your sync settings

before deactivating the base station. Otherwise, your system may no longer work properly.

l Click , and enter a descriptive name, assign the cluster, and set the sync level for the base station. l Click and select OK to reboot the base station.

All existing connections managed by the base station are terminated.

l Click and select OK to delete the base station. l Click Reboot All to reboot all connected base stations.

Base Station Synchronization

Base station synchronization is the prerequisite for the functioning of the multi-cell system, inter-cell handover, and overload balancing. Overload balancing means that a handset can roam to another available base when the current base is fully loaded and cannot accept further handset connections.

Base stations can be synchronized "over the air", meaning that they are synchronized via DECT.

Note: Synchronization always refers to a cluster. In case you set up several clusters that are not synchronized with one

another, these will be no possibility of a handover or overload balancing between them.

Topic

Synchronization Planning

Administrator’s Guide for DECT Multi-Cell System

Synchronization Planning

Base stations in the multi-cell system must synchronize with one another to ensure a smooth transition of the handsets from cell to cell (handover). No handover and no overload balancing are possible between cells that are not synchronized.

The synchronization within a cluster takes place in a master/slave procedure. It means that one base station (sync master) defines the synchronization cycle for one or more additional base stations (sync slaves). A base station can synchronize with each base station on a higher sync level. The sync level concept allows base stations to automatically select the best suitable base station (having a lower sync level number) to receive synchronization signal from.

During configuration, assign one sync level to each base. Sync level 1 is the highest level, which is the level of the sync master and appears only once in each cluster. A base station always synchronizes itself with a base station that has a better sync level. If it sees several base stations with a better sync level, it synchronizes itself with the base station that provides the best signal quality. If it does not see any base station with a higher sync level, it cannot synchronize.

To ensure the synchronization, you should plan the level 1 base station in the center as much as possible, and place the next sync level's base stations around the center.

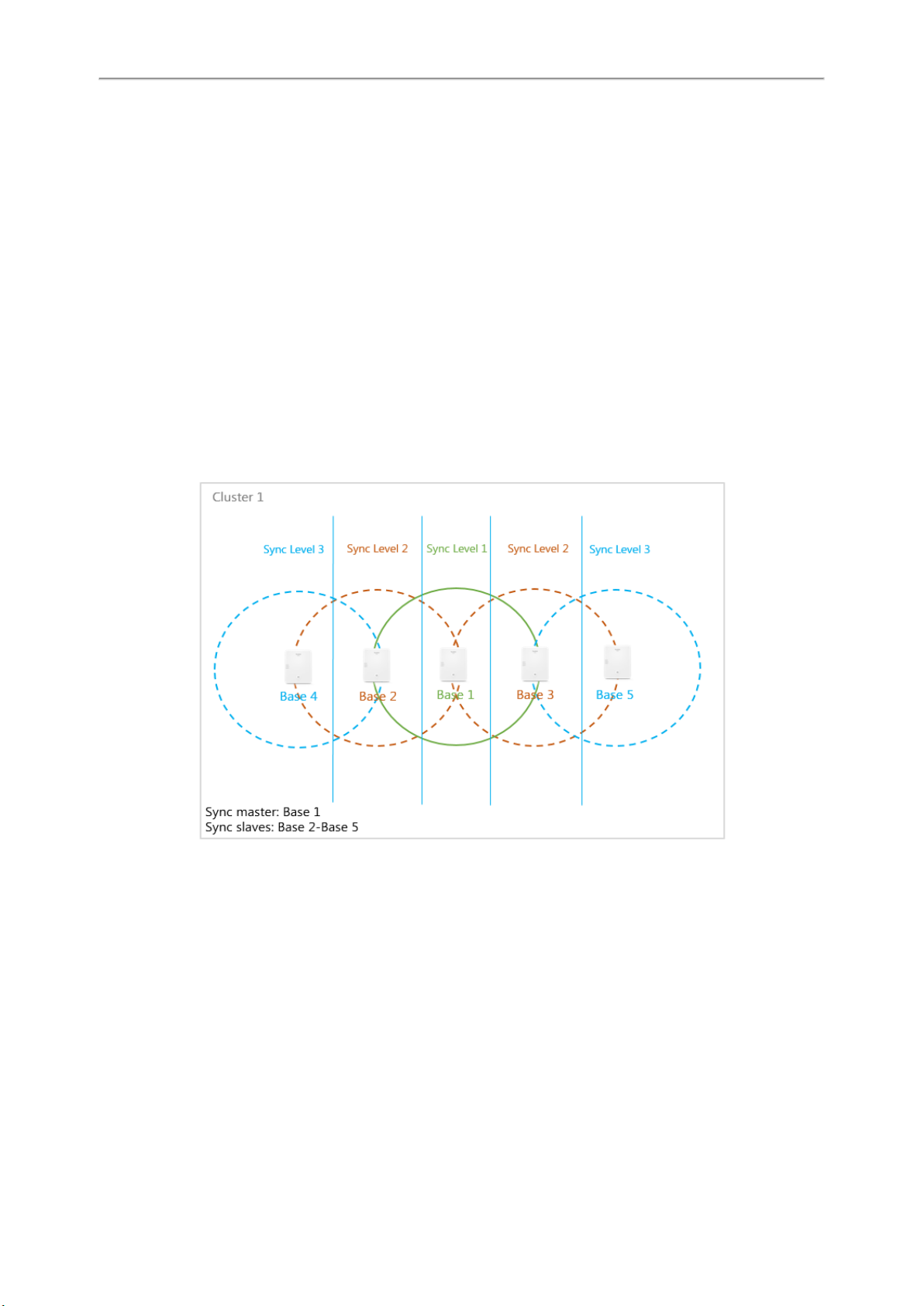

The following is an example of a synchronization scenario:

Managing the Handsets

You can use the web user interface to register all handsets or delete them from the multi-cell system.

Topics

Registering Handsets via Web User Interface De-registering a Handset

Registering Handsets via Web User Interface

Procedure

1. Access the web user interface of the DM.

2. Navigate to Handset & Account > Handset Registration.

3. Click Add Handset.

4. Click Start Register Handset to set the DM to the registration mode.

5. On the handset, do one of the following:

l Press the Reg soft key on the handset to register quickly. l Press OK > Register Handset and then select the desired base to register the handset. l Press OK > Settings > Registration > Register Handset and then select the desired base to register the handset.

On the DDphone, navigate to Menu > Settings >Registration > Register Handset.

After registration, the handset prompts “Handset Subscribed”.

Note: The default base PIN is 0000.

Related Topic

Accessing Web User Interface

IPUI Registration

You can register handsets in batches by the IPUI code.

Topics

Obtaining the IPUI Code of the Handset Notes on Configuring IPUI IPUI Code Configuration

Obtaining the IPUI Code of the Handset

IPUI is a random code that includes 10 characters mixed with numbers and letters.

There are three ways to obtain the IPUI code:

l Handset UI: on the W56H/W53H handset, navigate to OK > Status > Handset > IPUI Code; on the CP930W, nav-

igate to Menu > Status > Phone Status > IPUI Code; on the DDphone, navigate to Menu > Status > Dongle Status > IPUI Code.

l Giftbox: Obtain it from the sticker label on the handset's giftbox. l Shipping system: Check it in the shipping system.

Administrator’s Guide for DECT Multi-Cell System

Notes on Configuring IPUI

A few notes you should know when registering handsets using IPUI code:

l The registration status will not be disabled automatically if you enable it by "handset.X.reg.enable". l If you duplicate the IPUI code during the configuration, only the IPUI with the smaller handset number takes effect. l If you configure another IPUI code for another handset but the handset number is the same as an existing one, the

existing IPUI will be overwritten.

l If you configure the IPUI code for the registered handset, the handset will be unregistered. l When the handset is deleted, the handset and its IPUI code will be deleted at the same time. l You cannot directly modify the IPUI code via the web user interface. The IPUI code can only be modified via auto

provisioning, or re-entered after deleted via the web user interface.

IPUI Code Configuration

The following table lists the parameters you can use to import the IPUI code.

Parameter handset.X.reg.enable

[1]

<y0000000000xx>.cfg

It enables or disables the registration status for handset X.

Description

Note: The value of X corresponds to that of "account.X.user_name". When the IPUI code is invalid or not

configured, the registration status cannot be enabled by this parameter.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Handset & Account > Handset Registration > Add Handset > Start Register Handset

Parameter handset.X.ipui

[1]

<y0000000000xx>.cfg

It configures the IPUI code of handset X.

Description

Note: The IPUI code is not case sensitive.

Permitted Values

String within 10 characters (only contain numbers and letters)

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset > IPUI

[1]

X is the handset ID. X=1-100.

Related Topics

Obtaining the IPUI Code of the Handset

Handset Registration Center

The registration center allows you to register groups of handsets in one registration process. During this time, the system will automatically register the handset and assign the corresponding account according to the IPUI code.

You can find the following information from the registration center:

l Total Handsets: Shows how many handsets are registered in the current system. l Registered Handsets: Shows how many handsets are registered through the registration center this time l Current Time: Shows the current system time. It is updated in real time.

Managing the Handsets

Topics

Registering Handsets Time-Controlled Registering Handsets at Once Manually Closing the Registration

Registering Handsets Time-Controlled

A registration process is started automatically according to the time you set.

Procedure

1. Access the web user interface of the DM.

2. Navigate to Handset & Account > Registration Center.

3. In the Registration Start Time field, enter the time when the next registration process should be started.

Valid value: at least 1 minute later than the current time but no more than 24 days.

3. In the Registration Duration field, enter the duration that the DM should stay in registration mode. Default: 3 minutes.

4. Click Confirm.

Related Topic

Manually Closing the Registration

Registering Handsets at Once

Procedure

1. Access the web user interface of the DM.

2. Navigate to Handset & Account > Registration Center.

3. In the Registration Duration field, enter the duration that the DM should stay in registration mode.

Default: 3 minutes.

4. Click Start Now.

The DM starts registration at once.

Related Topic

Manually Closing the Registration

When the time is up, the system will automatically disable the registration status. You can also manually close the registration.

Procedure

Administrator’s Guide for DECT Multi-Cell System

1. Click Close. The screen prompts you whether to close the registration.

2. Click OK.

Related Topic

Registering Handsets Time-Controlled

De-registering a Handset

You can only delete a handset from the multi-cell system via the web user interface.

Procedure

1. Access the web user interface of the DM.

2. Navigate to Handset & Account > Handset Registration.

3. Click .

4. Click OK to delete a handset.

All registration information for the handset is deleted.

Account Settings

This chapter shows you how to register accounts and configure account settings on Yealink devices.

Topics

Account Registration Outbound Proxy in Dialog Server Redundancy SIP Server Name Resolution Static DNS Cache Number of Active Handsets Per Base

Account Registration

Any handset must get assigned an individual SIP account. After registering the handset to the system, the handset can be assigned an account for receiving and sending VoIP connection.

Topics

Supported Accounts SIP Server Template Configuration Accounts Registration Configuration Registration Settings Configuration

Supported Accounts

The number of registered accounts must meet the following:

Registered Accounts on W80B

(the device role is DM-Base)

50 100 Only one

Registered Accounts on W80B

(the device role is DM)

Assigned Account per Handset

SIP Server Template Configuration

You can use up to ten different SIP servers in the system. You can pre-configure up to 10 SIP server templates for choose when registering SIP accounts.

The following table lists the parameters you can use to configure the SIP server template.

Parameter template.X.name

Description It sets the name of the SIP server template.

Permitted Values

String within 64 characters

[1]

<y0000000000xx>.cfg

Default Blank

Web UI Handset & Account > SIP Server Settings > Edit > Template Name

Parameter template.X.sip_server.Y.address

[1][2]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Description It configures the IP address or domain name of the SIP server Y in which the account is registered.

Permitted Values

String within 64 characters

Default Blank

Web UI

Parameter template.X.sip_server.Y.port

Handset & Account > SIP Server Settings > Edit > SIP Server Y

[1][2]

Description It configures the port of SIP server Y.

Permitted Values

Integer from 0 to 65535

Default 5060

Web UI

Parameter template.X.sip_server.Y.transport_type

Handset & Account > SIP Server Settings > Edit > SIP Server Y

[1][2]

Description It configures the type of transport protocol.

0-UDP

1-TCP

Permitted Values

2-TLS

3-DNS-NAPTR, if no server port is given, the device performs the DNS NAPTR and SRV queries for the ser-

vice type and port.

[2]

> Server Host

<y0000000000xx>.cfg

[2]

> Port

<y0000000000xx>.cfg

Default 0

Web UI

Handset & Account > SIP Server Settings > Edit > SIP Server Y

Parameter template.X.sip_server.Y.expires

[1][2]

[2]

> Transport

<y0000000000xx>.cfg

Description It configures the registration expiration time (in seconds) of SIP server Y.

Permitted Values

Integer from 30 to 2147483647

Default 3600

Web UI

Parameter

Handset & Account > SIP Server Settings > Edit > SIP Server Y

template.X.sip_server.Y.retry_counts

[1][2]

[2]

> Server Expires

<y0000000000xx>.cfg

It configures the retry times for the device to resend requests when the SIP server Y is unavailable or there

Description

is no response from the SIP server Y.

The handset moves to the next available server after three failed attempts.

Permitted Values

Integer from 0 to 20

Default 3

Web UI

Handset & Account > SIP Server Settings > Edit > SIP Server Y

[2]

> Server Retry Counts

Account Settings

Parameter

template.X.outbound.enable

[1]

<y0000000000xx>.cfg

Description It enables or disables the device to send requests to the outbound proxy server.

Permitted Values

0-Disabled

1-Enabled

Default 0

Web UI Handset & Account > SIP Server Settings > Edit > Enable Outbound Proxy Server

Parameter

template.X.outbound.Y.address

[1][2]

<y0000000000xx>.cfg

It configures the IP address or domain name of the outbound proxy server Y.

Description

Note: It works only if “template.X.outbound.enable” is set to 1 (Enabled).

Permitted Values

String within 64 characters

Default Blank

Web UI

Parameter

Base Station > SIP Server Settings > Edit > Outbound Proxy Server Y

template.X.outbound.Y.port

[1][2]

[2]

<y0000000000xx>.cfg

It configures the port of the outbound proxy server Y.

Description

Note: It works only if “template.X.outbound.enable” is set to 1 (Enabled).

Permitted Values

Integer from 0 to 65535

Default 5060

Web UI

Parameter

Description

Permitted Values

Handset & Account > SIP Server Settings > Edit > Outbound Proxy Server Y

template.X.outbound.fallback_interval

[1]

<y0000000000xx>.cfg

It configures the time interval (in seconds) for the device to detect whether the working outbound proxy server is available by sending the registration request after the fallback server takes over call control.

Integer from 30 to 2147483647

Default 3600

Web UI Handset & Account > SIP Server Settings > Edit > Proxy Fallback Interval

[1]

X is the template ID. X=1-10.

[2]

Y is the server ID. Y=1-2.

Accounts Registration Configuration

The following table lists the parameters you can use to register accounts.

Parameter

account.X.enable

Description It defines the activation status of the account.

[1]

<MAC>.cfg

[2]

> Port

Permitted Values

0-Disabled 1-Enabled

Administrator’s Guide for DECT Multi-Cell System

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Line Active

Parameter

account.X.label

[1]

<MAC>.cfg

Description It configures the display label of the account.

Permitted Values

String within 99 characters

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Label

Parameter

account.X.display_name

[1]

<MAC>.cfg

Description It configures the display name of the account.

Permitted Values

String within 99 characters

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Display Name

Parameter

account.X.auth_name

[1]

<MAC>.cfg

Description It configures the user name for authentication registration.

Permitted Values

String within 99 characters

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Register Name

Parameter

account.X.user_name

[1]

<MAC>.cfg

Description It configures the user name of the account.

Permitted Values

String within 99 characters

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Username

Parameter

account.X.password

[1]

<MAC>.cfg

Description It configures password of the account.

Permitted Values

String within 99 characters

Default Blank

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Password

Parameter

account.X.sip_server.template

[1]

<MAC>.cfg

Description It configures which SIP server template to use for registering an account.

Permitted Values

Integer from 1 to 10

Account Settings

Default 1

Web UI Handset & Account > Handset Registration > Add Handset/Edit > SIP Server

Parameter

account.X.reg_fail_retry_interval

[1]

<MAC>.cfg

It configures the re-registration period (in seconds) after the account registration fails.

Description

Note: It works only if "account.X.reg_failed_retry_min_time" and "account.X.reg_failed_retry_max_time"

are set to 0.

Permitted Values

Integer from 0 to 1800

Default 30

Web UI Handset & Account > Handset Registration > Add Handset/Edit > SIP Registration Retry Timer (0~1800s)

Parameter

account.X.reg_failed_retry_min_time

[1]

<MAC>.cfg

It configures the base time to wait (in seconds) for the phone to retry to re-register after the account registration fails.

Description

how long to wait. The algorithm is defined in RFC 5626. We recommend that you set this value to an integer between 10 to 120 if needed. If the values of this parameter and the parameter "account.X.reg_ failed_retry_max_time" are set to 0, the interval configured by "account.X.reg_fail_retry_interval" will be used.

Note: It is used in conjunction with the parameter "account.X.reg_failed_retry_max_time" to determine

Permitted Values

Integer greater than or equal to 0

Default 0

Parameter

account.X.reg_failed_retry_max_time

It configures the maximum time to wait (in seconds) for the phone to retry to re-register after the account registration fails.

Note: It is used in conjunction with the parameter "account.X.reg_failed_retry_min_time" to determine

Description

how long to wait. The algorithm is defined in RFC 5626. We recommend that you set this value to an integer between 60 to 1800 if needed. If the values of this parameter and the parameter "account.X.reg_ failed_retry_min_time" are set to 0, the interval configured by "account.X.reg_fail_retry_interval" will be used.

Permitted Values

Integer greater than or equal to 0

Default 60

[1]

X is the account ID. X=1-100.

[1]

<MAC>.cfg

[2]

Y is the server ID. Y=1-2.

Registration Settings Configuration

The following table lists the parameters you can use to change the registration settings.

Parameter

account.X.enable_user_equal_phone

Description It enables or disables the phone to add “user=phone” to the SIP header of the INVITE message.

Permitted

0-Disabled

[1]

<MAC>.cfg

Administrator’s Guide for DECT Multi-Cell System

Values 1-Enabled

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Send user=phone

Parameter

account.X.register_mac

[1]

<MAC>.cfg

Description It enables or disables the phone to add MAC address to the SIP header of the REGISTER message.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > SIP Send MAC

Parameter

account.X.register_line

[1]

<MAC>.cfg

It enables or disables the phone to add a line number to the SIP header of the REGISTER message.

Description

0-99 stand for line1-line100.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > SIP Send Line

Parameter

account.X.unregister_on_reboot

[1]

<MAC>.cfg

Description It enables or disables the phone to unregister first before re-registering account X after a reboot.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Unregister When Reboot

Parameter

account.X.sip_server_type

[1]

<MAC>.cfg

Description It configures the type of SIP server.

0-Default

Permitted Values

2-BroadSoft (It works only if “bw.enable" is set to 1(Enabled))

8-Genesys

10-Genesys Advanced

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > SIP Server Type

Parameter

sip.reg_surge_prevention

[2]

<y0000000000xx>.cfg

Description It configures the waiting time (in seconds) for account register after startup.

Permitted Values

Integer from 0 to 60

Default 0

Account Settings

Web UI Network > Advanced > Registration Random > Registration Random (0~60s)

Parameter

Description It enables or disables the phone to subscribe to the registration state change notifications.

account.X.subscribe_register

[1]

<MAC>.cfg

Permitted Values

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Subscribe Register

Parameter phone_setting.disable_account_without_username.enable <y0000000000xx>.cfg

Description It enables or disables the phone to disable the account whose username is empty.

Permitted Values

Default 0

Parameter

Description It configures the renewal time (in seconds) away from the registration lease.

Permitted Values

Default -1

Parameter

Description It configures the renewal time (in seconds) away from the subscription lease.

Permitted Values

0-Disabled 1-Enabled

account.X.register_expires_overlap

Positive integer and -1

account.X.subscribe_expires_overlap

Positive integer and -1

[1]

<MAC>.cfg

Default -1

[1]

X is the account ID. X=1-100.

[2]

If you change this parameter, the phone will reboot to make the change take effect.

Outbound Proxy in Dialog

An outbound proxy server can receive all initiating request messages and route them to the designated destination. If the device is configured to use an outbound proxy server within a dialog, all SIP request messages from the device will be sent to the outbound proxy server as a mandatory requirement.

Note: To use this feature, make sure the outbound server has been correctly configured on the device. For more inform-

ation on how to configure the outbound server, refer to Server Redundancy.

Topic

Outbound Proxy in Dialog Configuration

The following table lists the parameter you can use to configure the outbound proxy in dialog.

Administrator’s Guide for DECT Multi-Cell System

Parameter sip.use_out_bound_in_dialog <y0000000000xx>.cfg

It enables or disables the phone to send all SIP requests to the outbound proxy server mandatorily in a dia-

Description

log.

Note: It works only if "template.X.outbound.enable" is set to 1 (Enabled). 0-Disabled, only the new SIP request messages from the phone will be sent to the outbound proxy server

Permitted Values

in a dialog.

1-Enabled, all the SIP request messages from the phone will be sent to the outbound proxy server in a dialog.

Default 0

Web UI Features > General Information > Use Outbound Proxy In Dialog

Server Redundancy

Server redundancy is often required in VoIP deployments to ensure continuity of phone service, for example, take the call server offline for maintenance, the server fails, or the connection between the device and the server fails.

Two types of redundancy are possible. In some cases, a combination of the two may be deployed:

l Failover: In this mode, the full phone system functionality is preserved by having a second equivalent capability call

server take over from the one that has gone down/off-line. This mode of operation should be done using the DNS mechanism from the primary to the secondary server. Therefore, if you want to use this mode, the server must be configured with a domain name.

l Fallback: In this mode, a second less featured call server with SIP capability takes over call control to provide the

basic calling capability, but without some advanced features (for example, shared line and MWI) offered by the working server. The phones support configuration of two servers per SIP registration for the fallback purpose.

Note: For concurrent registration mode, it has a certain limitation when using some advanced features, and for successive

registration mode, the phone service may have a brief interrupt while the server fails. So we recommend that you use the failover mode for server redundancy because this mode can ensure the continuity of the phone service and you can use all the call features while the server fails.

Phone Configuration for Redundancy Implementation

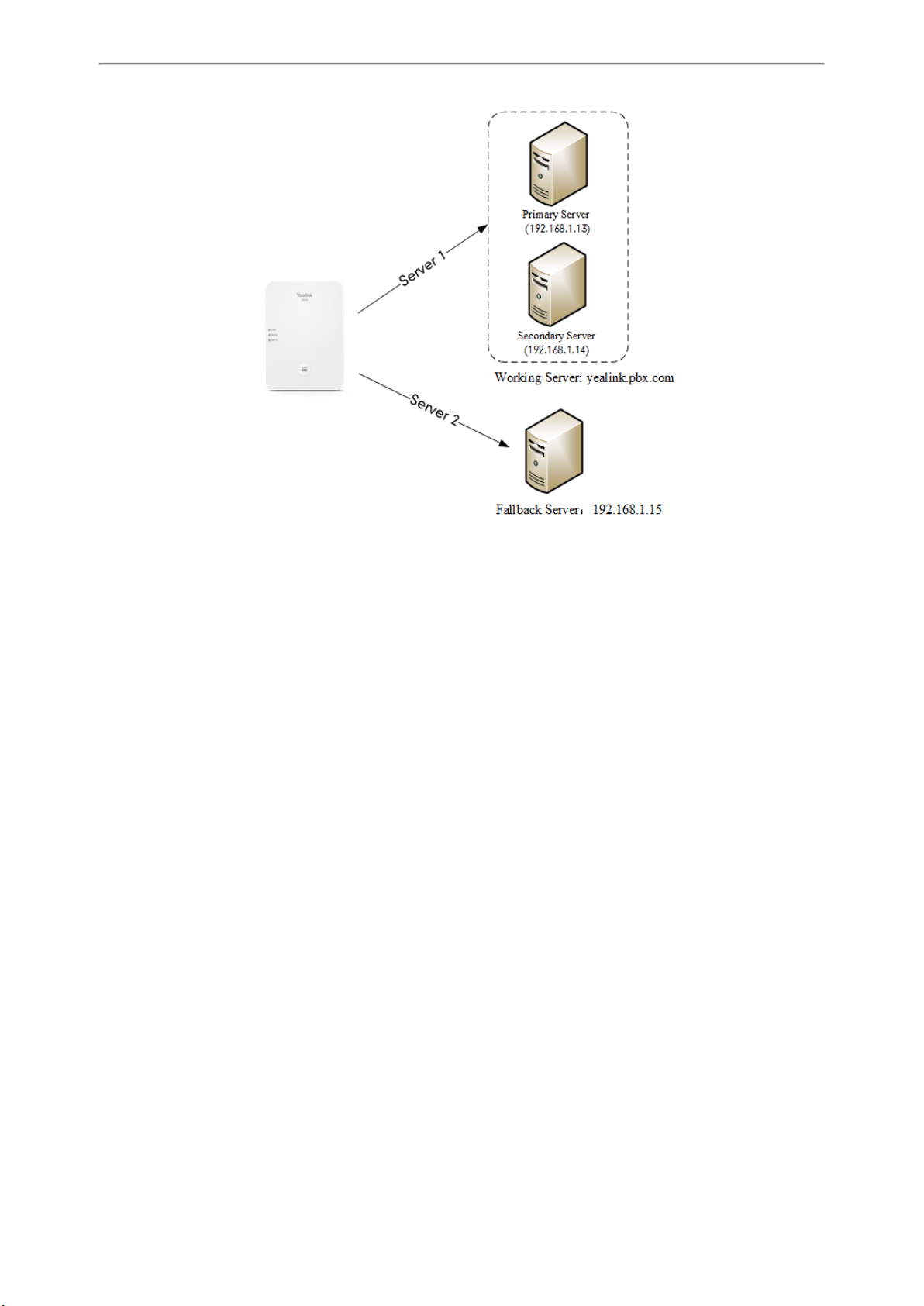

To assist in explaining the redundancy behavior, an illustrative example of how an IP phone may be configured is shown below. In the example, server redundancy for fallback and failover purposes is deployed. Two separate servers (a working server and a fallback server) are configured for per line registration.

Account Settings

l Working Server: Server 1 is configured with the domain name of the working server. For example yealink.pbx.com.

DNS mechanism is used such that the working server is resolved to multiple servers with different IP addresses for failover purpose. The working server is deployed in redundant pairs, designated as primary and secondary servers. The primary server (for example, 192.168.1.13) has the highest priority server in a cluster of servers resolved by the DNS server. The secondary server (for example, 192.168.1.14) backs up a primary server when the primary server fails and offers the same functionality as the primary server.

l Fallback Server: Server 2 is configured with the IP address of the fallback server. For example 192.168.1.15. A fall-

back server offers less functionality than the working server.

Yealink devices support Failover and Fallback server redundancy types. In some cases, you can deploy a combination of the two server redundancy types.

Topics

Behaviors When Working Server Connection Fails Registration Method of the Failover/Fallback Mode Fallback Server Redundancy Configuration Failover Server Redundancy Configuration

Behaviors When Working Server Connection Fails

For Outgoing Call

When you initiate a call, the phone will go through the following steps to connect the call:

1. Sends the INVITE request to the primary server.

2. If the primary server does not respond correctly to the INVITE (that is, the primary server responds to the INVITE

with 503 message or the request for responding with 100 Trying message times out (64*T1 seconds, defined in RFC

3261)), then tries to make the call using the secondary server.

3. If the secondary server is also unavailable, the phone will try the fallback server until it either succeeds in making a call or exhausts all servers at which point the call will fail.

Administrator’s Guide for DECT Multi-Cell System

At the start of a call, server availability is determined by SIP signaling failure. SIP signaling failure depends on the SIP protocol being used as described below:

l If TCP is used, then the signaling fails if the connection or the send fails. l If UDP is used, then the signaling fails if ICMP is detected or if the signal times out. If the signaling has been

attempted through all servers in the list (this list contains all the server addresses resolved by the DNS server) and this is the last server, then the signaling fails after the complete UDP timeout defined in RFC 3261. If it is not the last server in the list, the maximum number of retries depends on the configured retry counts (configured by "template.X.sip_server.Y.retry_counts").

Registration Method of the Failover/Fallback Mode

Registration method of the failover mode:

The IP phone must always register to the primary server first except in failover conditions. If this is unsuccessful, the phone will re-register as many times as configured until the registration is successful. When the primary server registration is unavailable, the secondary server will serve as the working server. As soon as the primary server registration succeeds, it returns to be the working server.

Registration methods of the fallback mode include (not applicable to outbound proxy servers):

l Concurrent registration (default): The IP phone registers to SIP server 1 and SIP server 2 (working server and fall-

back server) at the same time. Note that although the IP phone registers to two SIP servers, only one server works at the same time. If it fails, a fallback server can take over the basic calling capability, but without some advanced features (for example, shared lines and MWI) offered by the working server.

l Successive registration: The IP phone only registers to one server at a time. The IP phone first registers to the work-

ing server. In a failure situation, the phone registers to the fallback server, and the fallback server can take over all calling capabilities.

Fallback Server Redundancy Configuration

The following table lists the parameters you can use to configure fallback server redundancy.

Parameter

account.X.fallback.redundancy_type

It configures the registration mode in fallback mode.

Description

Note: It is not applicable to outbound proxy servers.

Permitted Values

0-Concurrent registration

1-Successive registration

Default 0

Parameter

account.X.fallback.timeout

It configures the time interval (in seconds) for the phone to detect whether the working server is available

Description

by sending the registration request after the fallback server takes over call control.

Note: It is not applicable to outbound proxy servers.

Permitted Values

Integer from 10 to 2147483647

Default 120

[1]

X is the account ID. X=1-100.

[1]

<MAC>.cfg

Failover Server Redundancy Configuration

The following table lists the parameters you can use to configure failover server redundancy.

Account Settings

Parameter

Description

account.X.sip_server.Y.register_on_enable

It enables or disables the phone to send registration requests to the secondary server when encountering a failover.

[1][2]

<MAC>.cfg

0-Disabled, the phone will not attempt to register to the secondary server, since the phone assumes that

Permitted Values

the primary and secondary servers share registration information. So the phone will directly send the requests to the secondary server.

1-Enabled, the phone will register to the secondary server first, and then send the requests to it.

Default 0

Parameter sip.skip_redundant_failover_addr <y0000000000xx>.cfg

Description

Permitted Values

It enables or disables the phone only to send requests to the servers with different IP addresses when encountering a failover.

0-Disabled 1-Enabled

Default 1

Parameter

account.X.sip_server.Y.only_signal_with_registered

[1][2]

<MAC>.cfg

It enables or disables the phone to only send requests to the registered server when encountering a failover.

Description

Note: It works only if “account.X.sip_server.Y.register_on_enable” is set to 1 (Enabled) and “account.X.sip_

server.Y.failback_mode” is set to 1, 2 or 3.

Permitted Values

0-Disabled 1-Enabled

Default 0

Parameter

Description

Permitted Values

Default 3

Parameter

Description

Permitted Values

account.X.sip_server.Y.invite_retry_counts

[1][2]

<MAC>.cfg

It configures the number of retries attempted before sending requests to the next available server when encountering a failover.

Integer from 1 to 10

account.X.sip_server.Y.failback_mode

[1][2]

<MAC>.cfg

It configures the mode for the phone to retry the primary server in failover.

Note: It works only if "template.X.sip_server.Y.address" is set to the domain name of the SIP server. 0-newRequests: all requests are sent to the primary server first, regardless of the last server that was used.

1-DNSTTL: the phone will send requests to the last registered server first. If the time defined by DNSTTL

on the registered server expires, the phone will retry to send requests to the primary server.

2-Registration: the phone will send requests to the last registered server first. If the registration expires, the phone will retry to send requests to the primary server.

3-duration: the phone will send requests to the last registered server first. If the time defined by the “account.X.sip_server.Y.failback_timeout” parameter expires, the phone will retry to send requests to the primary server.

Default 0

Parameter

account.X.sip_server.Y.failback_timeout

[1][2]

<MAC>.cfg

Administrator’s Guide for DECT Multi-Cell System

It configures the timeout (in seconds) for the phone to retry to send requests to the primary server after failing over to the current working server.

Description

Permitted Values

Default 3600

Parameter

Description

Permitted Values

Default 0

[2]

Y is the server ID. Y=1-2.

If you set the parameter to 0, the phone will not send requests to the primary server until a failover event occurs with the current working server.

If you set the parameter between 1 and 59, the timeout will be 60 seconds.

Note: It works only if “account.X.sip_server.Y.failback_mode” is set to 3 (duration).

0, Integer from 60 to 65535

account.X.sip_server.Y.failback_subscribe.enable

It enables or disables the phone to retry to re-subscribe after registering to the secondary server with different IP addresses when encountering a failover.

Note: It works only if "account.X.sip_server.Y.failback_mode" is set to 1, 2 or 3. 0-Disabled

1-Enabled, the phone will immediately re-subscribe to the secondary server, for ensuring the normal use

of the features associated with the subscription (for example, BLF, SCA).

SIP Server Name Resolution

[1][2]

<MAC>.cfg

If a domain name is configured for a server, the IP address(es) associated with that domain name will be resolved through DNS as specified by RFC 3263. The DNS query involves NAPTR, SRV and A queries, which allows the IP phone to adapt to various deployment environments. The IP phone performs NAPTR query for the NAPTR pointer and transport protocol (UDP, TCP, and TLS), the SRV query on the record returned from the NAPTR for the target domain name and the port number, and the A query for the IP addresses.

If an explicit port (except 0) is specified, A query will be performed only. If a server port is set to 0 and the transport type is set to DNS-NAPTR, NAPTR and SRV queries will be tried before falling to A query. If no port is found through the DNS query, 5060 will be used.

Topic

SIP Server Name Resolution Configuration

The following table lists the parameters you can use to configure the SIP server name resolution.

Parameter

Description It configures the type of transport protocol.

Permitted Values

template.X.sip_server.Y.transport_type

0-UDP

1-TCP

2-TLS

[1][2]

<y0000000000xx>.cfg

3-DNS-NAPTR, if no server port is given, the device performs the DNS NAPTR and SRV queries for the ser-

Default 0

Web UI

Parameter

vice type and port.

Handset & Account > SIP Server Settings > Edit > SIP Server Y

account.X.naptr_build

[4]

<MAC>.cfg

[2]

> Transport

Account Settings

Description

It configures the way of SRV query for the phone to be performed when no result is returned from the

NAPTR query.

Permitted Values

0-SRV query using UDP only

1-SRV query using UDP, TCP, and TLS.

Default 0

Parameter sip.dns_transport_type <y0000000000xx>.cfg

Description It configures the transport protocol the phone uses to perform a DNS query.

Permitted Values

0-UDP

1-TCP

Default 0

Parameter

Description

Permitted Values

static.network.dns.query_timeout

It configures the interval (in seconds) at which the phone retries to resolve a domain name when the DNS server does not respond.

Integer from 0 to 65535

[3]

<y0000000000xx>.cfg

Default 3

Parameter

static.network.dns.retry_times

[3]

<y0000000000xx>.cfg

Description It configures the retry times when the DNS server does not respond.

Permitted Values

Integer from 0 to 65535

Default 2

[1]

X is the template ID. X=1-10.

[2]

Y is the server ID. Y=1-2.

[3]

If you change this parameter, the phone will reboot to make the change take effect.

[4]

X is the account ID. X=1-100.

Static DNS Cache

Failover redundancy can only be utilized when the configured domain name of the server is resolved to multiple IP addresses. If the IP phone is not configured with a DNS server, or the DNS query returns no result from a DNS server, you can statically configure a set of DNS NAPTR/SRV/A records into the IP phone. The phone will attempt to resolve the domain name of the SIP server with static DNS cache.

Administrator’s Guide for DECT Multi-Cell System

Support for negative caching of DNS queries as described in RFC 2308 is also provided to allow faster failover when prior DNS queries have returned no results from the DNS server.

Topics

Behave with a Configured DNS Server Static DNS Cache Configuration

Behave with a Configured DNS Server

When the phone is configured with a DNS server, it will behave as follows to resolve the domain name of the server:

l The phone performs a DNS query to resolve the domain name from the DNS server. l If the DNS query returns no results for the domain name, or the returned record cannot be contacted, the values in

the static DNS cache (if configured) are used when their configured time intervals are not elapsed.

l If the configured time interval is elapsed, the phone will attempt to perform a DNS query again. l If the DNS query returns a result, the phone will use the returned record from the DNS server and ignore the stat-

ically configured cache values.

When the phone is not configured with a DNS server, it will behave as follows:

l The phone attempts to resolve the domain name within the static DNS cache. l The phone will always use the results returned from the static DNS cache.

Static DNS Cache Configuration

The following table lists the parameters you can use to configure static DNS cache.

[2]

[1]

<MAC>.cfg

<y0000000000xx>.cfg

Parameter

Description

account.X.dns_cache_type

It configures whether the phone uses the DNS cache for domain name resolution of the SIP server and caches the additional DNS records.

0-Perform real-time DNS query rather than using DNS cache.

Permitted Values

1-Use DNS cache, but do not record the additional records.

2-Use DNS cache and cache the additional DNS records.

Default 1

Parameter

Description

Permitted Values

account.X.static_cache_pri

It configures whether preferentially to use the static DNS cache for domain name resolution of the SIP server.

0-Use domain name resolution from server preferentially

1-Use static DNS cache preferentially

Default 0

Parameter

dns_cache_naptr.X.name

Description It configures the domain name to which NAPTR record X refers.

Permitted Values

Domain name

Default Blank

Parameter

dns_cache_naptr.X.order

[2]

Description It configures the order of NAPTR record X.

<y0000000000xx>.cfg

NAPTR record with the lower order is more preferred.

Account Settings

Permitted Values

Integer from 0 to 65535

Default 0

Parameter

dns_cache_naptr.X.preference

[2]

<y0000000000xx>.cfg

It configures the preference of NAPTR record X.

Description

NAPTR record with lower preference is more preferred.

Permitted Values

Integer from 0 to 65535

Default 0

Parameter

dns_cache_naptr.X.replace

[2]

<y0000000000xx>.cfg

Description It configures a domain name to be used for the next SRV query in NAPTR record X.

Permitted Values

Domain name

Default Blank

Parameter

dns_cache_naptr.X.service

[2]

<y0000000000xx>.cfg

Description It configures the transport protocol available for the SIP server in NAPTR record X.

SIP+D2U-SIP over UDP

Permitted Values

SIP+D2T-SIP over TCP

SIPS+D2T-SIPS over TLS

Default Blank

Parameter

Description

Permitted Values

dns_cache_naptr.X.ttl

It configures the time interval (in seconds) that NAPTR record X may be cached before the record should be consulted again.

Integer from 30 to 2147483647

[2]

Default 300

Parameter

dns_cache_srv.X.name

[2]

Description It configures the domain name in SRVrecord X.

Permitted Values

Domain name

Default Blank

Parameter

dns_cache_srv.X.port

[2]

Description It configures the port to be used in SRV record X.

Permitted Values

Integer from 0 to 65535

Default 0

Parameter

dns_cache_srv.X.priority

[2]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Description

It configures the priority for the target host in SRV record X.

Lower priority is more preferred.

Permitted Values

Integer from 0 to 65535

Default 0

Parameter

dns_cache_srv.X.target

[2]

<y0000000000xx>.cfg

Description It configures the domain name of the target host for an A query in SRV record X.

Permitted Values

Domain name

Default Blank

Parameter

dns_cache_srv.X.weight

[2]

<y0000000000xx>.cfg

It configures the weight of the target host in SRVrecord X.

Description

When priorities are equal, weight is used to differentiate the preference. Higher weight is more preferred.

Permitted Values

Integer from 0 to 65535

Default 0

Parameter

Description

Permitted Values

dns_cache_srv.X.ttl

It configures the time interval (in seconds) that SRV record X may be cached before the record should be consulted again.

Integer from 30 to 2147483647

[2]

<y0000000000xx>.cfg

Default 300

Parameter

dns_cache_a.X.name

[2]

<y0000000000xx>.cfg

Description It configures the domain name in A record X.

Permitted Values

Domain name

Default Blank

Parameter

dns_cache_a.X.ip

[2]

<y0000000000xx>.cfg

Description It configures the IP address that the domain name in A record X maps to.

Permitted Values

IP address

Default Blank

Parameter

Description

Permitted Values

dns_cache_a.X.ttl

It configures the time interval (in seconds) that A record X may be cached before the record should be consulted again.

Integer from 30 to 2147483647

[2]

<y0000000000xx>.cfg

Default 300

Parameter

static.network.dns.ttl_enable

[3]

<y0000000000xx>.cfg

Description It enables or disables the phone to use TTL (Time To Live) in the A record.

Account Settings

Permitted Values

Default 1

Parameter static.network.dns.last_cache_expired <y0000000000xx>.cfg

Description

Permitted Values

Default 3600

Parameter static.network.dns.last_cache_expired.enable <y0000000000xx>.cfg

Description

Permitted Values

Default 0

[1]

X is the account ID. X=1-100.

0-Disabled 1-Enabled

It configures the validity period of the expired DNS cache.

Note: It works only if "static.network.dns.last_cache_expired.enable" is set to 1(Enabled). Integer from 0 to 65535

0-the expired DNS cache can only be used once. After using, the phone will perform a DNS query again.

1 to 65535-the phone will use the expired DNS cache during the specified period. After that, the phone

will perform a DNS query again.

It enables or disables the phone to use the DNS cache (even if the cache has expired) when the DNS server fails to resolve the domain name.

0-Disabled 1-Enabled

[2]

X is the record ID. X=1-12.

[3]

If you change this parameter, the phone will reboot to make the change take effect.

Number of Simultaneous Outgoing Calls

Number of simultaneous outgoing calls allows you to configure the max number of simultaneous outgoing calls for a specific account on a base.

The number of active handsets affects this feature.

Related Topics

Number of Active Handsets Per Base Number of Simultaneous Outgoing Calls Configuration

Number of Simultaneous Outgoing Calls Configuration

The following table lists the parameter you can use to configure the number of simultaneous outgoing calls.

Parameter

Description

Permitted Values

account.X.simultaneous_outgoing.num

It configures the max number of simultaneous outgoing calls for a specific account on a base station. Note: You should set the value of this parameter lower than or equal to “base.active_handset.number”.

Integer from 1 to 8

[1]

<MAC>.cfg

Default 8

[1]

X is the account ID. X=1-100.

Administrator’s Guide for DECT Multi-Cell System

Number of Active Handsets Per Base

You can limit the max number of active handsets per W80B base station. The active handsets are free to communicate, access menu, configure features and so on. Operation is restricted on the inactive handsets, and the idle screen of the handset prompts "Path Busy".

The number of active handsets will also affect the number of simultaneous active calls on the base station.

Call Supported

Wide-band Calls 4 4 8

Narrow-band Calls 8 8 8

Related Topics

Number of Active Handsets Per Base Configuration

Number of Active Handsets Per Base

Maximum Number of Sim-

ultaneous Active Calls

Maximum Number of Sim-

ultaneous Calls

Number of Active Handsets Per Base Configuration

The following table lists the parameter you can use to configure the number of active handsets per base.

Parameter

Description It configures the maximum number of active handsets per base in the DECT multi-cell system.

Permitted Values

Default 8

Web UI Features > General Information > Number Of Active Handset Per Base

base.active_handset.number

4, 8

[1]

<y0000000000xx>.cfg

[1]

If you change this parameter, the phone will reboot to make the change take effect.

Network Configurations

You can make custom network configurations.

Topics

IPv4 Network Settings DHCP Option for IPv4 VLAN Real-Time Transport Protocol (RTP) Ports Network Address Translation (NAT) VPN Quality of Service (QoS)

802.1x Authentication

TR-069 Device Management

IPv4 Network Settings

You can configure the devices to operate in IPv4 mode.

Network Configurations

After establishing network connectivity, the devices obtain the IPv4 network settings from a Dynamic Host Configuration Protocol (DHCPv4) server.

You can also configure IPv4 network settings manually.

Note: Yealink devices comply with the DHCPv4 specifications documented in RFC 2131, and ICMPv6 specifications doc-

umented in RFC 4443.

Topics

IPv4 Configuration

The following table lists the parameters you can use to configure IPv4.

[1]

<y0000000000xx>.cfg

Parameter

Description It configures the Internet port type for IPv4.

Permitted Values

Default 0

Web UI Network > Basic > IPv4 Config > Configuration Type

Parameter

static.network.internet_port.type

0-DHCP

2-Static IP

static.network.internet_port.ip

Description

Permitted Values

Default Blank

It configures the IPv4 address.

Note: It works only if "static.network.internet_port.type" is set to 2 (Static IP).

IPv4 Address

Administrator’s Guide for DECT Multi-Cell System

Web UI Network > Basic > IPv4 Config > Configuration Type (Static IP) > IP Address

Parameter

static.network.internet_port.mask

[1]

<y0000000000xx>.cfg

It configures the IPv4 subnet mask.

Description

Note: It works only if "static.network.internet_port.type" is set to 2 (Static IP).

Permitted Values

Subnet Mask

Default Blank

Web UI Network > Basic > IPv4 Config > Configuration Type (Static IP) > Subnet Mask

Parameter

static.network.internet_port.gateway

[1]

<y0000000000xx>.cfg

It configures the IPv4 default gateway.

Description

Note: It works only if "static.network.internet_port.type" is set to 2 (Static IP).

Permitted Values

IPv4 Address

Default Blank

Phone UI

Parameter

Settings > Advanced Settings (default password: admin) > Network > WAN Port > IPv4 > Type (Static IP) > Gateway

static.network.static_dns_enable

[1]

<y0000000000xx>.cfg

It triggers the static DNS feature to on or off.

Description

Note: It works only if “static.network.internet_port.type” is set to 0 (DHCP).

Permitted Values

0-Off, the phone will use the IPv4 DNS obtained from DHCP.

1-On, the phone will use manually configured static IPv4 DNS.

Default 0

Web UI Network > Basic > IPv4 Config > Static DNS

Parameter

static.network.primary_dns

[1]

It configures the primary IPv4 DNS server.

Description

Note: In the DHCP environment, you need to make sure “static.network.static_dns_enable" is set to 1

(On).

Permitted Values

IPv4 Address

Default Blank

Web UI

Parameter

Network > Basic > IPv4 Config > Configuration Type (Static IP)/Configuration Type (DHCP) > Primary DNS

static.network.secondary_dns

[1]

It configures the secondary IPv4 DNS server.

Description

Note: In the DHCP environment, you need to make sure “static.network.static_dns_enable" is set to 1

(On).

Permitted Values

IPv4 Address

<y0000000000xx>.cfg

Default Blank

Network Configurations

Web UI

[1]

If you change this parameter, the phone will reboot to make the change take effect.

Network > Basic > IPv4 Config > Configuration Type (Static IP)/Configuration Type (DHCP) > Secondary DNS

DHCP Option for IPv4

The phone can obtain IPv4-related parameters in an IPv4 network via the DHCP option.

Note: For more information on DHCP options, refer to RFC 2131 or RFC 2132.

Topics

Supported DHCP Option for IPv4 DHCP Option 66, Option 43 and Custom Option DHCP Option 42 Option 2 DHCP Option 12 DHCP Option 60

Supported DHCP Option for IPv4

The following table lists common DHCP options for IPv4 supported by Yealink phones.

Parameters

DHCP

Option

Description

Subnet Mask 1 Specify the client’s subnet mask.

Time Offset 2

Router 3 Specify a list of IP addresses for routers on the client’s subnet.

Time Server 4 Specify a list of time servers available to the client.

Domain Name Server 6 Specify a list of domain name servers available to the client.

Host Name 12 Specify the name of the client.

Domain Server 15

Network Time Protocol Servers

Vendor-Specific Information

Vendor Class Identifier 60 Identify the vendor type.

TFTP Server Name 66

Specify the offset of the client's subnet in seconds from Coordinated Universal Time (UTC).

Specify the domain name that the client should use when resolving hostnames via DNS.

42 Specify a list of NTP servers available to the client by IP address.

43 Identify the vendor-specific information.

Identify a TFTP server when the 'sname' field in the DHCP header has been used for DHCP options.

DHCP Option 66, Option 43 and Custom Option

During the startup, the phone automatically detects the DHCP option for obtaining the provisioning server address. The priority is as follows: custom option > option 66 (identify the TFTP server) > option 43.

The phone can obtain the Auto Configuration Server (ACS) address by detecting option 43 during startup.

Administrator’s Guide for DECT Multi-Cell System

Note: If you fail to configure the DHCP options for discovering the provisioning server on the DHCP server, enable the

phone to automatically discover the provisioning server address. One possibility is that connecting to the secondary DHCP server that responds to DHCP INFORM queries with a requested provisioning server address. For more information, refer to

RFC 3925.

Related Topic

DHCP Provision Configuration

DHCP Option 42 Option 2

Yealink phones support using the NTP server address offered by DHCP.

DHCP option 42 is used to specify a list of NTP servers available to the client by IP address. NTP servers should be listed in order of preference.

DHCP option 2 is used to specify the offset of the client’s subnet in seconds from Coordinated Universal Time (UTC).

Related Topic

NTP Settings

DHCP Option 12

You can specify a hostname for the phone when using DHCP. The DHCP client uses option 12 to send a predefined hostname to the DHCP registration server.

See RFC 1035 for character set restrictions.

Topic

DHCP Option 12 Hostname Configuration

The following table lists the parameter you can use to configure DHCP option 12 hostname.

Parameter

Description It specifies a hostname for the phone when using DHCP.

Permitted Values

Default SIP-W80B

Web UI Features > General Information > DHCP Hostname

[1]

If you change this parameter, the phone will reboot to make the change take effect.

static.network.dhcp_host_name

String within 99 characters

[1]

<y0000000000xx>.cfg

DHCP Option 60

DHCP option 60 is used to indicate the vendor type. Servers can use option 43 to return the vendor-specific information to the client.

You can set the DHCP option 60 type.

Topic

DHCP Option 60 Configuration

The following table lists the parameters you can use to configure DHCP option 60.

Parameter static.network.dhcp.option60type <y0000000000xx>.cfg

Description It configures the DHCP option 60 type.

Network Configurations

Permitted Values

Default 0

Parameter static.auto_provision.dhcp_option.option60_value <y0000000000xx>.cfg

Description It configures the vendor class identifier string to use in the DHCP interaction.

Permitted Values

Default yealink

Web UI Settings > Auto Provision > IPv4 DHCP Option Value

0-ASCII, vendor-identifying information is in ASCII format.

1-Binary, vendor-identifying information is in the format defined in RFC 3925.

String within 99 characters

VLAN

The purpose of VLAN configurations on the phone is to insert a tag with VLAN information to the packets generated by the phone. When VLAN is properly configured for the ports (Internet port and PC port) on the phone, the phone will tag all packets from these ports with the VLAN ID. The switch receives and forwards the tagged packets to the corresponding VLAN according to the VLAN ID in the tag as described in IEEE Std 802.3.

In addition to manual configuration, the phone also supports the automatic discovery of VLAN via LLDP, CDP or DHCP. The assignment takes effect in this order: assignment via LLDP/CDP, manual configuration, then assignment via DHCP.

Topics

LLDP Configuration CDP Configuration Manual VLAN Configuration DHCP VLAN Configuration VLAN Setting Configuration

LLDP Configuration

LLDP (Linker Layer Discovery Protocol) is a vendor-neutral Link Layer protocol, which allows the phones to advertise its identity and capabilities on the local network.

When LLDP feature is enabled on the phones, the phones periodically advertise their own information to the directly connected LLDP-enabled switch. The phones can also receive LLDP packets from the connected switch and obtain their VLAN IDs.

The following table lists the parameters you can use to configure LLDP.

Parameter

Description It enables or disables the LLDP feature.

Permitted Values

static.network.lldp.enable

0-Disabled

1-Enabled, the phone attempts to determine its VLAN ID through LLDP.

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Default 1

Web UI Network > Advanced > LLDP > Active

Parameter

static.network.lldp.packet_interval

[1]

<y0000000000xx>.cfg

Description

Permitted Values

Default 60

Web UI Network > Advanced > LLDP > Packet Interval (1~3600s)

[1]

If you change this parameter, the phone will reboot to make the change take effect.

It configures the interval (in seconds) that how often the phone sends the LLDP request.

Note: It works only if “static.network.lldp.enable” is set to 1 (Enabled).

Integer from 1 to 3600

CDP Configuration

CDP (Cisco Discovery Protocol) allows the phones to receive and/or transmit device-related information from/to directly connected devices on the local network.

When CDP feature is enabled on the phones, the phones periodically advertise their own information to the directly connected CDP-enabled switch. The phones can also receive LLDP packets from the connected switch and obtain their VLAN IDs.

The following table lists the parameters you can use to configure CDP.

Parameter

Description It enables or disables the CDP feature.

Permitted Values

static.network.cdp.enable

0-Disabled

1-Enabled, the phone attempts to determine its VLAN ID through CDP.

[1]

<y0000000000xx>.cfg

Default 1

Web UI Network > Advanced > CDP > Active

Parameter

Description

Permitted Values

Default 60

Web UI Network > Advanced > CDP > Packet Interval (1~3600s)

[1]

If you change this parameter, the phone will reboot to make the change take effect.

static.network.cdp.packet_interval

It configures the interval (in seconds) that how often the phone sends the CDP request.

Note: It works only if “static.network.cdp.enable” is set to 1 (Enabled).

Integer from 1 to 3600

[1]

<y0000000000xx>.cfg

Manual VLAN Configuration

You can configure VLAN for the Internet port manually. Before configuring VLAN on the phones, you need to obtain the VLAN ID from your network administrator.

The following table lists the parameters you can use to configure VLAN manually.

Network Configurations

Parameter

static.network.vlan.internet_port_enable

[1]

<y0000000000xx>.cfg

Description It enables or disables the VLAN for the Internet port.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Network > Advanced > VLAN > WAN Port > Active

Parameter

static.network.vlan.internet_port_vid

[1]

<y0000000000xx>.cfg

It configures the VLAN ID for the Internet port.

Description

Note: It works only if “static.network.vlan.internet_port_enable” is set to 1 (Enabled).

Permitted Values

Integer from 1 to 4094

Default 1

Web UI Network > Advanced > VLAN > WAN Port > VID (1-4094)

Parameter

static.network.vlan.internet_port_priority

[1]

<y0000000000xx>.cfg

It configures the VLAN priority for the Internet port.

Description

7 is the highest priority, 0 is the lowest priority.

Note: It works only if “static.network.vlan.internet_port_enable” is set to 1 (Enabled).

Permitted Values

Integer from 0 to 7

Default 0

Web UI Network > Advanced > VLAN > WAN Port > Priority

[1]

If you change this parameter, the phone will reboot to make the change take effect.

DHCP VLAN Configuration

When the VLAN discovery method is set to DHCP, the phone examines the DHCP option for a valid VLAN ID. You can customize the DHCP option used to request the VLAN ID.

The following table lists the parameters you can use to configure DHCP VLAN discovery.

Parameter

static.network.vlan.dhcp_enable

Description It enables or disables the DHCP VLAN discovery feature.

Permitted Values

0-Disabled 1-Enabled

Default 1

Web UI Network > Advanced > VLAN > DHCP VLAN > Active

Parameter

static.network.vlan.dhcp_option

It configures the DHCP option from which the phone will obtain the VLAN settings.

Description

Multiple DHCP options (at most five) are separated by commas.

Permitted

Integer from 1 to 255

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Values

Default 132

Web UI Network > Advanced > VLAN > DHCP VLAN > Option (1-255)

[1]

If you change this parameter, the phone will reboot to make the change take effect.

VLAN Setting Configuration

The following table lists the parameter you can use to configure the VLAN setting.

Parameter

Description

Permitted Values

Default 0

[1]

If you change this parameter, the phone will reboot to make the change take effect.

static.network.vlan.vlan_change.enable

It enables or disables the phone to obtain VLAN ID using lower preference of VLAN assignment method, or to close the VLAN feature when the phone cannot obtain VLAN ID.

The priority of each method is LLDP/CDP > Manual > DHCP VLAN.

0-Disabled

1-Enabled, the phone attempts to use the lower priority method when failing to obtain the VLAN ID using

higher priority method. If all the methods are attempted, the phone will disable VLAN feature.

[1]

<y0000000000xx>.cfg

Real-Time Transport Protocol (RTP) Ports

Since the phone supports conferencing and multiple RTP streams, it can use several ports concurrently. You can specify the phone’s RTP port range.

The UDP port used for RTP streams is traditionally an even-numbered port. If the port 11780 is used to send and receive RTP for the first voice session, additional calls would then use ports 11782, 11784, 11786, and so on. The phone is compatible with RFC 1889 - RTP: A Transport Protocol for Real-Time Applications - and the updated RFC 3550.

Topic

RTP Ports Configuration

The following table lists the parameters you can use to configure RTP ports.

Parameter

Description It configures the minimum local RTP port.

Permitted Values

Default 11780

Web UI Network > Advanced > Local RTP Port > Min RTP Port (1024~65535)

Parameter

Description It configures the maximum local RTP port.

Permitted Values

static.network.port.min_rtpport

Integer from 1024to 65535

static.network.port.max_rtpport

Integer from 1024to 65535

[1]

<y0000000000xx>.cfg

Network Configurations

Default 12780

Web UI Network > Advanced > Local RTP Port > Max RTP Port (1024~65535)

Parameter features.rtp_symmetric.enable <y0000000000xx>.cfg

Description It configures the symmetrical RTP feature.

0-Disabled

Permitted Values

Default 0

[1]

If you change this parameter, the phone will reboot to make the change take effect.

1-reject RTP packets arriving from a non-negotiated IP address

2-reject RTP packets arriving from a non-negotiated port

3-reject RTP packets arriving from a non-negotiated IP address or a non-negotiated port

Network Address Translation (NAT)

NAT enables phones with private unregistered addresses to communicate with devices with globally unique registered addresses.

Topics

NAT Traversal Configuration Keep Alive Configuration Rport Configuration SIP Port and TLS Port Configuration

NAT Traversal Configuration

The phones can traverse NAT gateways to establish and maintain connections with external devices.

Yealink phones support three NAT traversal techniques: manual NAT, STUN and ICE. If you enable manual NAT and STUN, the phone will use the manually-configured external IP address for NAT traversal. The TURN protocol is used as part of the ICE approach to NAT traversal.

The following table lists the parameters you can use to configure NAT traversal.

Parameter

Description

Permitted Values

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > NAT

Parameter

Description It enables or disables the manual NAT feature.

account.X.nat.nat_traversal

It enables or disables the NAT traversal for a specific account.

Note: If it is set to 1 (STUN), it works only if “static.sip.nat_stun.enable” is set to 1 (Enabled); if it is set to 2 (Manual NAT), it works only if “static.network.static_nat.enable” is set to 1 (Enabled).

0-Disabled

1-STUN

2-Manual NAT

static.network.static_nat.enable

[1]

[2]

<MAC>.cfg

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Network > NAT > Manual NAT > Active

Parameter static.network.static_nat.addr <y0000000000xx>.cfg

It configures the IP address to be advertised in SIP signaling.

Description

It should match the external IP address used by the NAT device.

Note: It works only if “static.network.static_nat.enable” is set to 1 (Enabled).

Permitted Values

IP Address

Default Blank

Web UI Network > NAT > Manual NAT > IP Address

Parameter static.sip.nat_stun.enable <y0000000000xx>.cfg

Description It enables or disables the STUN (Simple Traversal of UDP over NATs) feature.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Network > NAT > STUN > Active

Parameter static.sip.nat_stun.server <y0000000000xx>.cfg

It configures the IP address or domain name of the STUN server.

Description

Note: It works only if “static.sip.nat_stun.enable” is set to 1 (Enabled).

Permitted Values

String

Default Blank

Web UI Network > NAT > STUN > STUN Server

Parameter static.sip.nat_stun.port <y0000000000xx>.cfg

It configures the port of the STUN server.

Description

Note: It works only if “static.sip.nat_stun.enable” is set to 1 (Enabled).

Permitted Values

Integer from 1024to 65535

Default 3478

Web UI Network > NAT > STUN > STUN Port (1024~65535)

Parameter

static.ice.enable

[2]

<y0000000000xx>.cfg

Description It enables or disables the ICE (Interactive Connectivity Establishment) feature.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Network > NAT > ICE > Active

Network Configurations

Parameter

static.sip.nat_turn.enable

[2]

<y0000000000xx>.cfg

Description It enables or disables the TURN (Traversal Using Relays around NAT) feature.

Permitted Values

0-Disabled 1-Enabled

Default 0

Web UI Network > NAT > TURN > Active

Parameter

static.sip.nat_turn.server

[2]

<y0000000000xx>.cfg

It configures the IP address or the domain name of the TURN server.

Description

Note: It works only if “static.sip.nat_turn.enable” is set to 1 (Enabled).

Permitted Values

IP Address or Domain Name

Default Blank

Web UI Network > NAT > TURN > TURN Server

Parameter

static.sip.nat_turn.port

[2]

<y0000000000xx>.cfg

It configures the port of the TURN server.

Description

Note: It works only if “static.sip.nat_turn.enable” is set to 1 (Enabled).

Permitted Values

Integer from 1024to 65535

Default 3478

Web UI Network > NAT > TURN > TURN Port (1024~65535)

Parameter

static.sip.nat_turn.username

[2]

It configures the user name to authenticate to the TURN server.

Description

Note: It works only if “static.sip.nat_turn.enable” is set to 1 (Enabled).

Permitted Values

String

Default Blank

Web UI Network > NAT > TURN > User Name (Username)

Parameter

static.sip.nat_turn.password

[2]

It configures the password to authenticate to the TURN server.

Description

Note: It works only if “static.sip.nat_turn.enable” is set to 1 (Enabled).

Permitted Values

String

Default Blank

Web UI Network > NAT > TURN > Password

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Parameter features.media_transmit.enable <y0000000000xx>.cfg

It enables or disables the media stream to be forward forcibly on the DECT manager (DM) during a STUN/ICE call.

Description

Note: It works only if "static.station.mode" is set to 2 (DM). The value configured by the parameter

“account.X.media_transmit.enable” takes precedence over that configured by this parameter.

Permitted Values

0-Disabled

1-Enabled

Default 0

You need to enable this feature when there are some network differences between the DM and base station. For example:

1. You assigned a static NAT address to the DM only and did NAT mapping on the firewall or gateway.

Case Scenario

2. LLDP/VLAN is enabled on the DM but not on the base station, and the router only limits LLDP/VLAN

access to the external network.

3. The base stations are connected to the DM, but the DM and the far-site device establish a connection through a VPN.

4. For security, the DM's IP address is added in the whitelist but the base's IP address is not added in the whitelist.

Parameter

account.X.media_transmit.enable

[1]

<MAC>.cfg

It enables or disables the media stream to be forward forcibly on the DECT manager (DM) during a STUN/ICE call.

Description

Note: It works only if "static.station.mode" is set to 2 (DM). The value configured by this parameter takes

precedence over that configured by the parameter “features.media_transmit.enable”.

Permitted Values

0-Disabled

1-Enabled

Default Blank

[1]

X is the account ID. X=1-100.

[2]

If you change this parameter, the phone will reboot to make the change take effect.

Keep Alive Configuration

Yealink phones can send keep-alive packets to the NAT device for keeping the communication port open.

The following table lists the parameters you can use to configure keep alive.

Parameter

account.X.nat.udp_update_enable

Description It sets the type of keep-alive packets sent by phone.

0-Disabled

Permitted Values

1-Default (the phone sends the corresponding packets according to the transport protocol)

2-Options (the phone sends SIP OPTIONS packets to the server)

[1]

<MAC>.cfg

Default 1

3-Notify (the phone sends SIP NOTIFY packets to the server)

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Keep Alive Type

Parameter

account.X.nat.udp_update_time

[1]

<MAC>.cfg

Network Configurations

Description

Permitted Values

Default 30

Web UI Handset & Account > Handset Registration > Add Handset/Edit > Keep Alive Interval (Seconds)

[1]

X is the account ID. X=1-100.

It configures the interval (in seconds) at which the phone sends a keep-alive package.

Note: It works only if “account.X.nat.udp_update_enable” is set to 1, 2 or 3.

Integer from 15 to 2147483647

Rport Configuration

Rport allows a client to request that the server sends the response back to the source IP address and port from which the request originated. It helps the phone traverse symmetric NATs.

Rport feature depends on support from a SIP server. For more information, refer to RFC 3581.

The following table lists the parameter you can use to configure rport.

Parameter

Description It enables or disables the phone to add the "rport" parameter in the Via header.

Permitted Values

account.X.nat.rport

0-Disabled

1-Enabled, the INVITE Contact header uses the port in the "rport" parameter but does not use the source

IP address in the "received" parameter in the Via header of server's response.

2-Enable Direct Process, the INVITE Contact header uses the port in the "rport" parameter and uses the source IP address in the "received" parameter in the Via header of server's response.

[1]

<MAC>.cfg

Default 0

Web UI Handset & Account > Handset Registration > Add Handset/Edit > RPort

[1]

X is the account ID. X=1-100.

SIP Port and TLS Port Configuration

You can configure the SIP and TLS source ports on the phone. Otherwise, the phone uses default values (5060 for UDP/TCP and 5061 for TLS).

If NAT is disabled, the port number shows in the Via and Contact SIP headers of SIP messages. If NAT is enabled, the phone uses the NAT port number (and NAT IP address) in the Via and Contact SIP headers of SIP messages, but still using the configured source port.

The following table lists the parameters you can use to configure SIP port and TLS port.

Parameter sip.listen_port <y0000000000xx>.cfg

Description

Permitted Values

It specifies the local SIP port.

If it is set to 0, the phone will automatically listen to the local SIP port.

0, Integer from 1024to 65535

Administrator’s Guide for DECT Multi-Cell System

Default 5060

Parameter sip.tls_listen_port <y0000000000xx>.cfg

Description

Permitted Values

Default 5061

It specifies the local TLS listen port.

If it is set to 0, the phone will not listen to the TLS service.

0, Integer from 1024to 65535

VPN

Yealink phones use OpenVPN to achieve VPN feature. To prevent disclosure of private information, tunnel endpoints must authenticate each other before a secure VPN tunnel is established. After you configure VPN feature on the IP phone, the phone will act as a VPN client and use the certificates to authenticate with the VPN server.

Topics

VPN Related Files VPN Configuration

VPN Related Files

To use VPN, you should collect the VPN-related files into one archive file in .tar format and then upload this tar file. The VPN-related files include certificates (ca.crt and client.crt), key (client.key) and the configuration file (vpn.cnf) of the VPN client.

The following table lists the unified directories of the OpenVPN certificates and key in the configuration file (vpn.cnf) for Yealink phones:

VPN Files Description Unified Directories

ca.crt CA certificate /config/openvpn/keys/ca.crt

client.crt Client certificate /config/openvpn/keys/client.crt

client.key Private key of the client /config/openvpn/keys/client.key

VPN Configuration

The following table lists the parameters you can use to configure the VPN.

Parameter

Description It enables or disables the OpenVPN feature.

Permitted Values

Default 0

Web UI Network > Advanced > VPN > Active

Parameter static.openvpn.url <y0000000000xx>.cfg

Description

static.network.vpn_enable

0-Disabled

1-Enabled

It configures the access URL of the *.tar file for OpenVPN.

Example:

[1]

<y0000000000xx>.cfg

static.openvpn.url = http://192.168.10.25/OpenVPN.tar

Network Configurations

Permitted Values

Default Blank

Web UI Network > Advanced > VPN > Upload VPN Config

[1]

If you change this parameter, the phone will reboot to make the change take effect.

URL within 511 characters

Quality of Service (QoS)

VoIP is extremely bandwidth and delay-sensitive. QoS is a major issue in VoIP implementations, regarding how to guarantee that packet traffic is not delayed or dropped due to interference from other lower priority traffic. VoIP can guarantee high-quality QoS only if the voice and the SIP packets are given priority over other kinds of network traffic. The phones support the DiffServ model of QoS.

Voice QoS

In order to make VoIP transmissions intelligible to receivers, voice packets should not be dropped, excessively delayed, or made to suffer varying delay. DiffServ model can guarantee high-quality voice transmission when the voice packets are configured to a higher DSCP value.

SIP QoS

The SIP protocol is used for creating, modifying, and terminating two-party or multi-party sessions. To ensure good voice quality, SIP packets emanated from the phones should be configured with a high transmission priority.

DSCPs for voice and SIP packets can be specified respectively.

Note: For voice and SIP packets, the phone obtains DSCP info from the network policy if LLDP feature is enabled, which

takes precedence over manual settings. For more information on LLDP, refer to LLDP Configuration.

Topic

Voice and SIP QoS Configuration

The following table lists the parameters you can use to configure voice QoS and SIP QoS.

Parameter

Description

Permitted Values

Default 46

Web UI Network > Advanced > QoS > Voice QoS (0~63)

Parameter

Description

Permitted

static.network.qos.audiotos

It configures the DSCP (Differentiated Services Code Point) for voice packets.

The default DSCP value for RTP packets is 46 (Expedited Forwarding).

Integer from 0 to 63

static.network.qos.signaltos

It configures the DSCP (Differentiated Services Code Point) for SIP packets.

The default DSCP value for SIP packets is 26(Assured Forwarding).

Integer from 0 to 63

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Values

Default 26

Web UI Network > Advanced > QoS > SIP QoS (0~63)

[1]

If you change this parameter, the phone will reboot to make the change take effect.

TR-069 Device Management

TR-069 is a technical specification defined by the Broadband Forum, which defines a mechanism that encompasses secure auto-configuration of a CPE (Customer-Premises Equipment), and incorporates other CPE management functions into a common framework. TR-069 uses common transport mechanisms (HTTP and HTTPS) for communication between CPE and ACS (Auto Configuration Servers). The HTTP(S) messages contain XML-RPC methods defined in the standard for configuration and management of the CPE.

Topics

Supported RPC Methods TR-069 Configuration

Supported RPC Methods

The following table provides a description of RPC methods supported by the phones.

RPC Method Description

GetRPCMethods This method is used to discover the set of methods supported by the CPE.

SetParameterValues This method is used to modify the value of one or more CPE parameters.

GetParameterValues This method is used to obtain the value of one or more CPE parameters.

GetParameterNames This method is used to discover the parameters accessible on a particular CPE.

GetParameterAttributes This method is used to read the attributes associated with one or more CPE parameters.

SetParameterAttributes This method is used to modify attributes associated with one or more CPE parameters.

Reboot This method causes the CPE to reboot.

This method is used to cause the CPE to download a specified file from the designated location.

Download

File types supported by the phones are:

l Firmware Image l Configuration File

This method is used to cause the CPE to upload a specified file to the designated location.

Upload

ScheduleInform

File types supported by the phones are:

l Configuration File l Log File

This method is used to request the CPE to schedule a one-time Inform method call (separate from its periodic Inform method calls) sometime in the future.

FactoryReset This method resets the CPE to its factory default state.

TransferComplete

This method informs the ACS of the completion (either successful or unsuccessful) of a file

Network Configurations

RPC Method Description

transfer initiated by an earlier Download or Upload method call.

AddObject This method is used to add a new instance of an object defined on the CPE.

DeleteObject This method is used to remove a particular instance of an object.

TR-069 Configuration

The following table lists the parameters you can use to configure TR-069.

Parameter static.managementserver.enable <y0000000000xx>.cfg

Description It enables or disables the TR-069 feature.

Permitted Values

Default 0

Web UI Settings > TR069 > Enable TR069

Parameter static.managementserver.username <y0000000000xx>.cfg

Description

Permitted Values

Default Blank

Web UI Settings > TR069 > ACS Username

Parameter static.managementserver.password <y0000000000xx>.cfg

Description

Permitted Values

Default Blank

0-Disabled

1-Enabled

It configures the TR-069 ACS server user name used to authenticate the phone.

Leave it blank if no authentication is required.

String within 128 characters

It configures the TR-069 ACS server password used to authenticate the phone.

Leave it blank if no authentication is required.

String within 64 characters

Web UI Settings > TR069 > ACS Password

Parameter static.managementserver.url <y0000000000xx>.cfg

Description It configures the access URL of the TR-069 ACS server.

Permitted Values

Default Blank

Web UI Settings > TR069 > ACS URL

Parameter static.managementserver.connection_request_username <y0000000000xx>.cfg

Description It configures the user name used to authenticate the connection requests from the ACS server.

Permitted

URL within 511 characters

String within 128 characters

Administrator’s Guide for DECT Multi-Cell System

Values

Default Blank

Web UI Settings > TR069 > Connection Request Username

Parameter static.managementserver.connection_request_password <y0000000000xx>.cfg

Description It configures the password used to authenticate the connection requests from the ACS server.

Permitted Values

String within 64 characters

Default Blank

Web UI Settings > TR069 > Connection Request Password

Parameter static.managementserver.periodic_inform_enable <y0000000000xx>.cfg

Description It enables or disables the phone to periodically report its configuration information to the ACSserver.

Permitted Values

0-Disabled

1-Enabled

Default 1

Web UI Settings > TR069 > Enable Periodic Inform

Parameter static.managementserver.periodic_inform_interval <y0000000000xx>.cfg

It configures the interval (in seconds) at which the phone reports its configuration to the ACS server.

Description

Note: It works only if “static.managementserver.periodic_inform_enable” is set to 1 (Enabled).

Permitted Values

Integer from 5 to 4294967295

Default 60

Web UI Settings > TR069 > Periodic Inform Interval (seconds)

802.1x Authentication

Yealink phones support the following protocols for 802.1x authentication:

l EAP-MD5 l EAP-TLS (requires Device and CA certificates, requires no password) l EAP-PEAP/MSCHAPv2 (requires CA certificates) l EAP-TTLS/EAP-MSCHAPv2 (requires CA certificates) l EAP-PEAP/GTC (requires CA certificates) l EAP-TTLS/EAP-GTC (requires CA certificates) l EAP-FAST (supports EAP In-Band provisioning, requires CA certificates if the provisioning method is Authenticated

Provisioning)

Topic

802.1x Authentication Configuration

The following table lists the parameters you can use to configure 802.1x authentication.

Network Configurations

Parameter

static.network.802_1x.mode

[1]

Description It configures the 802.1x authentication method.

0-EAP-None, no authentication

1-EAP-MD5

2-EAP-TLS

Permitted Values

3-EAP-MSCHAPv2

4-EAP-TTLS/EAP-MSCHAPv2

5-EAP-PEAP/GTC

6-EAP-TTLS/EAP-GTC

7-EAP-FAST

Default 0

Web UI Network > Advanced > 802.1x > 802.1x Mode

Parameter

static.network.802_1x.eap_fast_provision_mode

It configures the EAP In-Band provisioning method for EAP-FAST.

Description

Note: It works only if “static.network.802_1x.mode” is set to 7 (EAP-FAST). 0-Unauthenticated Provisioning, EAP In-Band provisioning is enabled by server unauthenticated PAC

Permitted Values

(Protected Access Credential) provisioning using the anonymous Diffie-Hellman key exchange.

1-Authenticated Provisioning, EAP In-Band provisioning is enabled by server authenticated PAC provisioning using certificate-based server authentication.

<y0000000000xx>.cfg

[1]

<y0000000000xx>.cfg

Default 0

Web UI Network > Advanced > 802.1x > Provisioning Mode

Parameter

static.network.802_1x.anonymous_identity

[1]

<y0000000000xx>.cfg

It configures the anonymous identity (user name) for 802.1X authentication.

Description

It is used for constructing a secure tunnel for 802.1X authentication.

Note: It works only if “static.network.802_1x.mode” is set to 2, 3, 4, 5, 6 or 7.

Permitted Values

String within 512 characters

Default Blank

Web UI Network > Advanced > 802.1x > Anonymous Identity

Parameter

static.network.802_1x.identity

[1]

<y0000000000xx>.cfg

Description It configures the identity (user name) for 802.1x authentication.

Permitted Values

String within 32 characters

Default Blank

Web UI Network > Advanced > 802.1x > Identity

Parameter

static.network.802_1x.md5_password

[1]

<y0000000000xx>.cfg

Administrator’s Guide for DECT Multi-Cell System

Description

It configures the password for 802.1x authentication.

Note: It is required for all methods except EAP-TLS.

Permitted Values

String within 32 characters

Default Blank

Web UI Network > Advanced > 802.1x > MD5 Password

Parameter static.network.802_1x.root_cert_url <y0000000000xx>.cfg

It configures the URL for uploading the 802.1x CA certificate.

The format of the certificate must be *.pem, *.crt, *.cer or *.der.

Description

Note: It works only if “static.network.802_1x.mode” is set to 2, 3, 4, 5, 6 or 7. If the authentication method

is EAP-FAST, you also need to set “static.network.802_1x.eap_fast_provision_mode” to 1 (Authenticated Provisioning).

Permitted Values

URL within 511 characters

Default Blank

Web UI Network > Advanced > 802.1x > CA Certificates

Parameter static.network.802_1x.client_cert_url <y0000000000xx>.cfg

It configures the URL for uploading the 802.1x client certificate.

Description

The format of the certificate must be *.pem.

Note: It works only if “static.network.802_1x.mode” is set to 2 (EAP-TLS).

Permitted Values

URL within 511 characters

Default Blank

Web UI Network > Advanced > 802.1x > Device Certificates

[1]

If you change this parameter, the phone will reboot to make the change take effect.

Web Statistics

Web statistics is the measurement, collection, analysis and reporting of system data for purposes of understanding and optimizing the multi-cell system. When an abnormality occurs in the system, you can preliminarily check and locate the problem through the Statistics page.

Topics

Base Station Group All Calls Base Stations Calls Handsets Calls Abnormal Calls Upgrade Information DECT Signal

Base Station Group

The module of base station group shows the synchronization information among base stations. It can display the information of up to 30 base stations.

Topics

Base Station Statistics Cluster Graph Statistics Viewing Base Station Group Statistics

Base Station Statistics

The properties are shown below:

Item Description

Base Station Name of the base station.

RPN Radio Fixed Part Number. The base station identity allocated by the DECT system.

IP IP address of the base station.

MAC MAC address of the base station.

Sync Level Sync level within the sync hierarchy.

Synchronization status of the base station.

Base Status

• Offline: not available.

• Deactive: available but not activated.

• Active: activated but not synchronized.

• Active and synced: activated and synchronized.

• Upgrading: firmware upgrading.

Administrator’s Guide for DECT Multi-Cell System

Item Description

RPN and signal value of the synchronous base.

RSSI

For example, "RPN3 (-76dBm)" indicates that the current base is synchronized with the base that is numbered RPN3 and the signal value is -76dBm.

Note: RSSI refreshes automatically every 20 seconds.

Interference Number of interferences detected by base.

Fre: frequency band where the base on a higher sync level is located.

Slot: slot where the base on a higher sync level is located.

For example, "8/6 (Good)" indicates that the frequency band of the base on a higher sync level is

Fre/Slot

8, the slot is 6, and the synchronization with the base is Good.

Note: The synchronization with the base on a higher sync level includes Good, Normal, Weak, Unknown, and "-", where Unknown is displayed when the information is not updated, and "-"

is displayed when the base is offline.

Signal Num The number of signals that is greater or equal to -88dbm (RSSI > =-0x48) detected by base.

Network Drop The number of network disconnections.

The latest startup time of the base.

Start Time

Note: It will not be reset even if you manually clear the statistical data.

Due to the different base statuses, the following items are specially explained:

l Async、Network Drop: Corresponding values are displayed for any base status. l Signal Num、Start Time: A value is displayed only when the base status is Active or Active and synced, and "—" is

displayed for other base statuses.

l RSSI、Fre/Slot: A value is displayed only when the base status is Active and synced, and "—" is displayed for other

base statuses.

l For the base with sync level 1, the following items always display "-": RSSI, Async, and Fre/Slot.

Cluster Graph Statistics

The tree map is described as follows:

(1) Cables

Different cables are used between the bases to indicate the synchronized base signal.

Solid blue line ( ): -85dBm <= RSSI <= -28dBm

Red dotted line ( ): -99dBm < RSSI <= -86dBm

Gray dotted line ( ): No data available

Note

When the base status is not Active and synced, the base does not display the synchronized RSSI value. Both are connected with a gray dotted line. If the previous base on a higher sync level cannot be found (such as the base was deleted), there is no connection line, it is displayed individually and placed under the base with sync level 1.

Web Statistics

(2) Circles

Different circles are used to indicate different base status.

White hollow circle ( ): Active and synced

Red solid circle ( ): Offline, Active, Upgrading

Gray solid circle ( ): Deactive

Hovering the mouse over the corresponding base will display the base details in the floating window, as shown below:

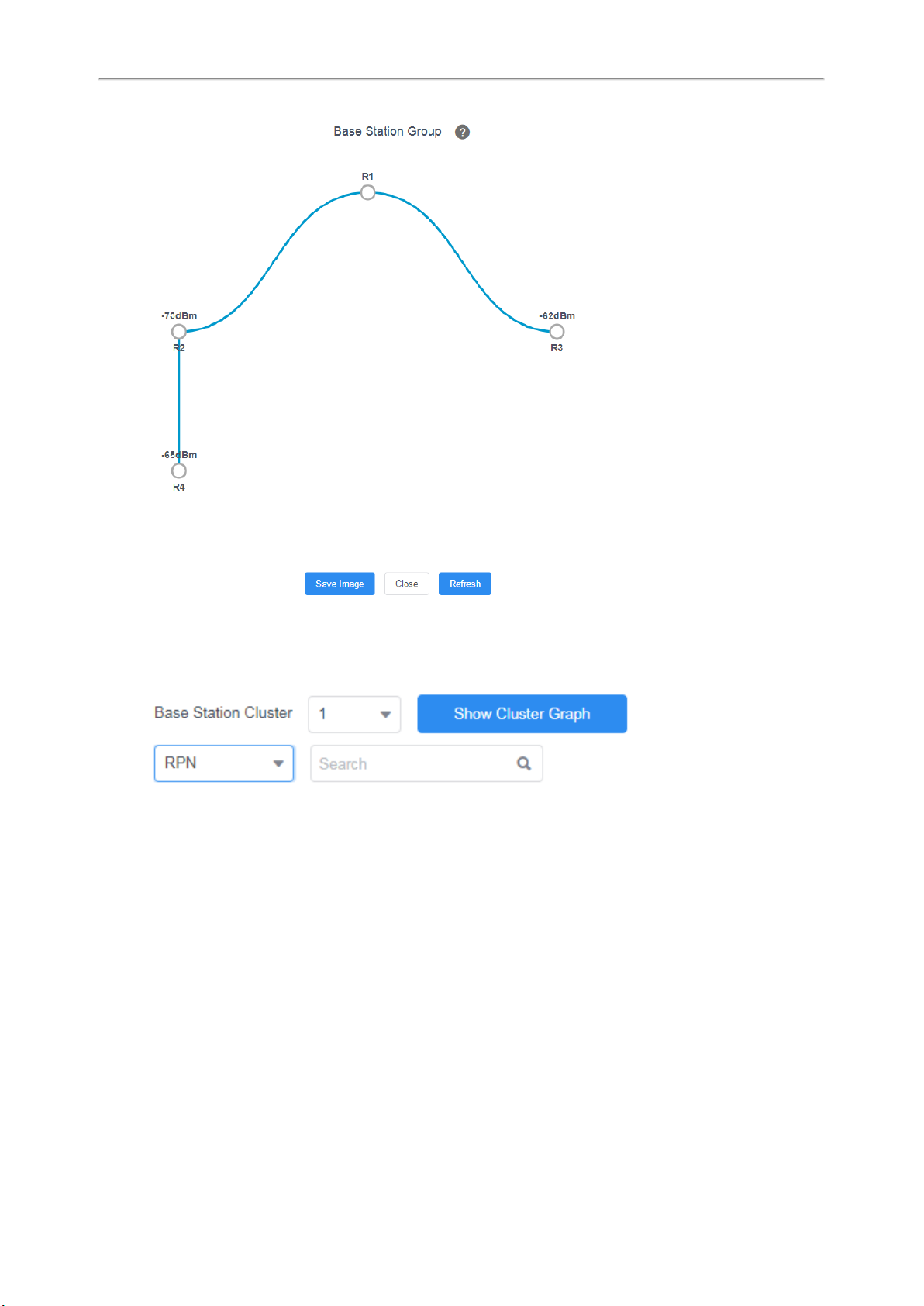

Viewing Base Station Group Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Status > Base Station Group.

3. You can do the following:

l Select the desired cluster from the Base Station Cluster drop-down menu, and click Show Cluster Graph to

view the synchronization information of the base.

Administrator’s Guide for DECT Multi-Cell System

To save the tree map, click Save Image. The picture is stored in PNG format by default.

l Select the desired cluster from the Base Station Cluster drop-down menu, select the search type and enter the

search criteria to perform a search.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Related Topics

Base Station Statistics Cluster Graph Statistics

All Calls

The module of all calls shows the call information of all handsets in the system. Up to 100 call records can be displayed, and the oldest one will be automatically deleted if the max limit has been reached.

Topics

All Calls Statistics Viewing All Calls Statistics

All Calls Statistics

The properties are shown below:

Item Description

Call Time Time when the call was established.

Duration Call duration.

Call Type Call type, including Placed Calls, Received Calls, and Missed Calls.

Local identity of the call. Local User is the local account, and Handset is the local handset number.

Local User (Handset)

For example, 5707 (H7) indicates that the local account is 5707 and the handset number is H7.

Remote User Far-site information of the call.

Web Statistics

Call performance during a call, including Transfer, Conference, and Forward.

Operation

Note: Only when a network conference is performed during a call will it be recorded as Con- ference.

Viewing All Calls Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > All Calls.

3. Select the desired call type from the Call Type drop-down menu.

4. You can do the following:

Click to customize the properties displayed in the statistics table.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Administrator’s Guide for DECT Multi-Cell System

Related Topics

All Calls Statistics

Base Stations Calls

The module of base station calls shows the call information on each base station in the system. Up to 100 call records can be displayed, and the oldest one will be automatically deleted if the max limit has been reached.

Topics

Base Stations Calls Statistics Viewing Base Stations Calls Statistics

Base Stations Calls Statistics

The following shows base stations calls information:

Item Description

Base Station Name of the base station.

IP IP address of the base station.

MAC MAC address of the base station.

Active Number of active handsets on the base station.

Max Active

Busy

Handover In Number of incoming handovers

Handover Out

Call Drops

Maximum number of active handsets that have appeared on the base station.

Note: The maximum number of active handsets in narrowband is 8and in wideband is 4.

Number of busy-state the base station has entered. The busy-state indicates that the number of active handsets under the base station reaches the limit (narrowband: 8; wideband: 4).

Number of outgoing handovers

Note: If a call is established on a base, the outgoing handovers are all recorded by this base. For example, if H1 establishes a call on Base1, roams to Base2 during the call, and then roams to Base3, the number of outgoing handovers on Base1 is 2, and the number of incoming handovers on Base1, Base2, and Base3 is 1.

Number of lost connections, for example, interrupted calls

Format: number of lost connections / total number of calls

For example, "1/4 (25%)" indicates that the total number of calls is 4, and the call is interrupted once.

Number of silent calls on the base.

No Audio

Format: number of silent calls / total number of calls

For example, "1/4 (25%)" indicates that the total number of calls is 4, and the silent call occurs once.

Item Description

Note: The number of silent times during a call is counted as one, and only the silent that occurs

when the handset is not roaming during the call can be counted.

Note

The last line is the sum of all base call statistics.

Viewing Base Stations Calls Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > Base Stations Calls.

3. Select the desired call type from the Call Type drop-down menu.

Web Statistics

4. You can do the following:

Click to customize the properties displayed in the statistics table.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Related Topics

Base Stations Calls Statistics

Handsets Calls

The module of handsets calls shows the call information on each handset in the system. It can display the information of up to 100 handsets.

Topics

Handsets Calls Statistics Viewing Handsets Calls Statistics

Handsets Calls Statistics

The following shows all handsets call information:

Administrator’s Guide for DECT Multi-Cell System

Field Description

Handset

Handset name The registered handsets are displayed in ascending order.

Account Account number of the handset.

Abnormal Calls / Total

All abnormal calls / total calls of the handset.

Average Call Average call duration of all calls on the handset.

Max Call Maximum call duration for all calls on the handset.

Min Call

Minimum call duration for all calls on the handset, including the number of calls with a duration of 0, such as Missed Call, Outgoing Rejection, and Incoming Call Rejection.

Note

The last line is the sum of all handset call statistics. Handsets that have not yet established a call are not counted.

Viewing Handsets Calls Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > Handsets Calls.

3. You can do the following:

l Select the search type and enter the search criteria to perform a search.

Click to customize the properties displayed in the statistics table.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Related Topics

Handsets Calls Statistics

Web Statistics

Abnormal Calls

The module of abnormal calls shows the abnormal call information in the system. Up to 30 call records can be displayed, and the oldest one will be automatically deleted if the max limit has been reached.

Topics

Abnormal Calls Statistics Viewing Abnormal Calls Statistics

Abnormal Calls Statistics

The following shows all abnormal calls information:

Item Description

Call Time Time when the call was established.

Handset Handset which has an abnormal call.

Account Account number for the current handset.

Call Type Call type, including Placed Calls, Received Calls, and Missed Calls.

Duration Call duration.

Base Handover Base received a handover during the call.

Codec SIP codec used for the call negotiation.

Remote User Far-site information of the call.

Status Final state of the call.

Reason Reason why the abnormality occurs during the call.

Packet Loss Rate

Packet loss rate of the call.

Note: This function is not supported for the time being, it is displayed as "—".

Viewing Abnormal Calls Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > Abnormal Calls.

3. Select the desired call type from the Call Type drop-down menu.

Administrator’s Guide for DECT Multi-Cell System

4. You can do the following:

l Select the search type and enter the search criteria to perform a search.

Click to customize the properties displayed in the statistics table.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Related Topics

Abnormal Calls Statistics

Upgrade Information

The module of upgrade information shows the information about handset upgrade, including upgrading via web user interface, auto provisioning, or the handset. Up to 6 records will be displayed and the oldest will be automatically deleted.

Topics

Upgrade Information Statistics Viewing Upgrade Information Statistics

Upgrade Information Statistics

The following shows all the upgrade information:

Field Description

Upgrade Time Start time of the upgrade.

Upgrade mode, including Normal and Grayscale Upgrade.

Upgrade Method

Note: When upgrading via the web user interface, you can choose to upgrade in normal or gray-

scale mode, and the default upgrade mode for the handset upgrade is the grayscale mode.

Duration How long the upgrade process lasts.

Devices

Type of the device that is upgraded at this time, including W53H, W56H, T41S + DD10K, and CP930W.

Field Description

Total Total number of handsets to be upgraded this time.

Successed Number of handsets successfully upgraded this time.

Failed Number of handsets that failed to upgrade this time.

No Upgrade Number of handsets that are not upgraded this time.

Handset that failed to upgrade.

If there are more than 3, the first 3 will be displayed, and the following will be displayed as an ellipsis. Such as "H1, H2, H3 ...", when you hover your mouse to this place, all the information of

Description

the handsets that failed to upgrade will be displayed.

If all handsets are successfully upgraded, it displays nothing.

Note: It will not be recorded if the handset is not upgraded due to the same firmware version.

Web Statistics

You may need to know the following statistical rules for the same version upgrade:

l If all handsets involved in this upgrade are the same as the upgraded version, there is no upgrade record. l If some of the handsets involved in this upgrade are the same as the upgraded version, records of no upgrade

caused by the same version will be recorded in the No Upgrade field.

Viewing Upgrade Information Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > Upgrade Information.

3. You can do the following:

l Select the search type and enter the search criteria to perform a search.

Click to customize the properties displayed in the statistics table.

l Click Reset to clear and restart the statistics. l Click Refresh to refresh the current statistics.

Related Topics

Administrator’s Guide for DECT Multi-Cell System

Upgrade Information Statistics

DECT Signal

The module of DECT signal shows signal interference around each base station in the system.

Topics

DECT Signal Statistics Viewing DECT Signal Statistics

DECT Signal Statistics

The following shows some special values:

dBm RSSI Description

0 FF The position of the base or the position of the handset under the base.

The meaning of each color in the statistical table is as follows.

RSSI dBm RSSI

[-73,-27] [70,D8]

[-88,-73) [48,70)

[-97,-88) [30,48)

[-99,-97)&0 [0,30)&FF

Note

The data presented in the statistics table includes the signal data transmitted by the base of the same system and the calls under the base. The frequency bands in different regions of different versions are different. The frequency bands here start from 0. The actual number of frequency bands is based on actual conditions. For example, the frequency band used by Korea is Freq6Freq8, but Freq0- Freq2 are displayed instead.

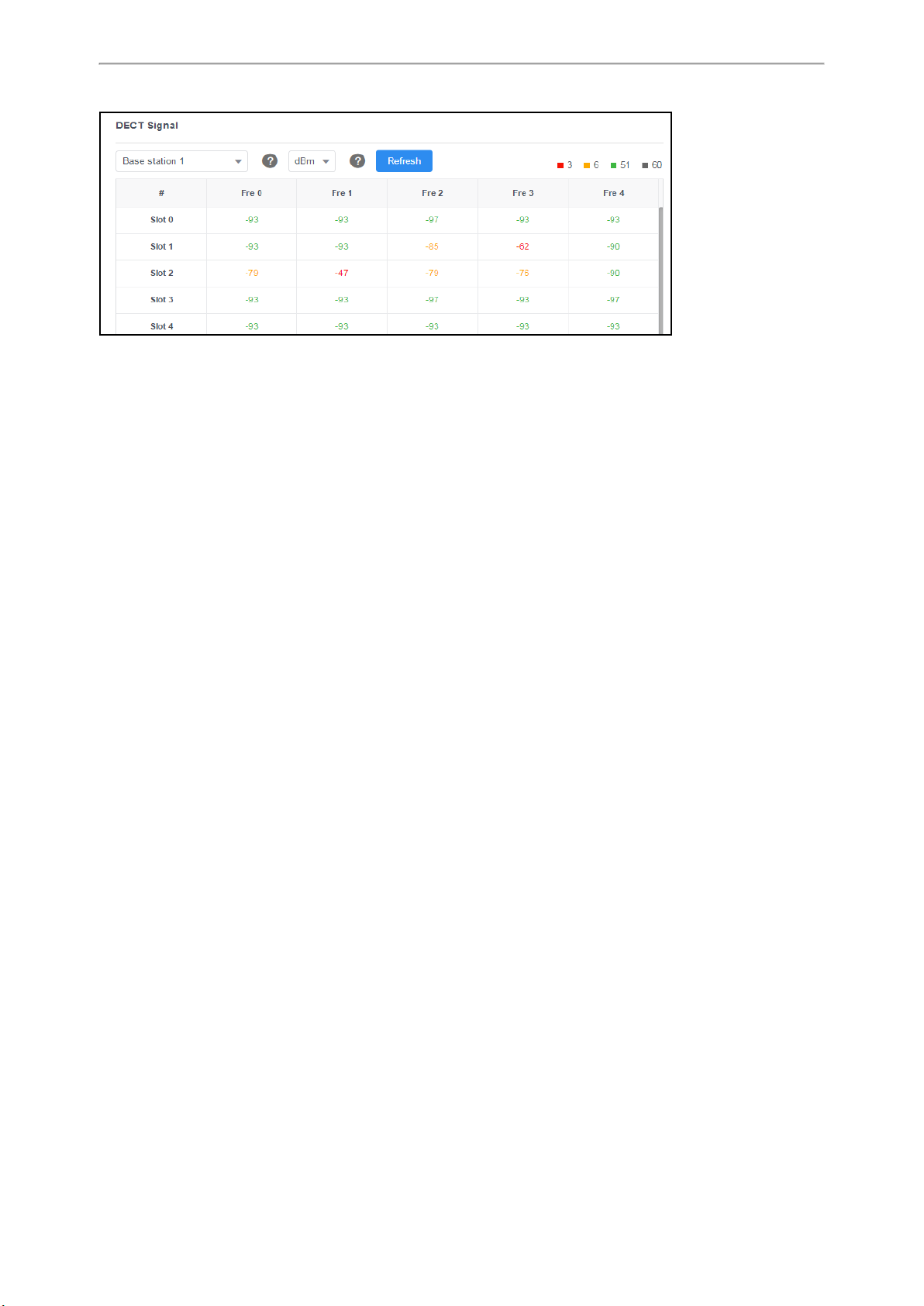

Viewing DECT Signal Statistics

Procedure

1. Access the web user interface of the DM.

2. Navigate to Statistics > DECT Signal.

3. Select the desired base station.

4. Select the desired unit.

5. Click Refresh to refresh the current statistics.

Related Topics

DECT Signal Statistics

Web Statistics

Phone Provisioning

You can provision multiple phones with the same settings for large-scale deployments.

For more information, refer to Yealink SIP IP Phones Auto Provisioning Guide.

Topics

Boot Files, Configuration Files, and Resource Files Provisioning Methods Setting Up a Provisioning Server Keeping User’s Personalized Settings after Auto Provisioning

Boot Files, Configuration Files, and Resource Files

You can use boot files, configuration files, and resource files to configure phone features and apply feature settings to phones. You can create or edit these files using a text editor such as Notepad++.

You can ask the distributor or Yealink FAE for template files. You can also obtain the template files online: http://sup-

port.yealink.com/documentFront/forwardToDocumentFrontDisplayPage.

Topics

Boot Files Configuration Files Resource Files Files Download Process

Boot Files

Yealink phones support boot files. The boot files maximize the flexibility to allow you to customize features and settings for multiple phones.

With the boot file, you can specify which configuration files should be downloaded. It is effective for you to provision the phones in different deployment scenarios:

l For all phones l For a group of phones l For a single phone

Yealink phones support two types of boot files: common boot file and MAC-Oriented boot file. You can use the default boot template file “y000000000000.boot” to create MAC-Oriented boot file by making a copy and renaming it.

Note: You can select whether to use the boot file or not according to your deployment scenario. If you do not want to use

the boot file, please go to Configuration Files.

Topics

Common Boot File MAC-Oriented Boot File Boot File Attributes Customizing a Boot File

Common Boot File

Common boot file, named y000000000000.boot, is effective for all phones. You can use a common boot file to apply common feature settings to all of the phones rather than a single phone.

Administrator’s Guide for DECT Multi-Cell System

MAC-Oriented Boot File

MAC-Oriented boot file, named <MAC>.boot. It will only be effective for a specific IP phone. In this way, you have high permission to control each phone by making changes on a per-phone basis.

You can create a MAC-Oriented boot file for each phone by making a copy and renaming the boot template file (y000000000000.boot). For example, if your phone MAC address is 00156574B150, rename the template file as 00156574b150.boot (lowercase).

Tip: MAC address, a unique 12-digit serial number is assigned to each phone. You can obtain it from the bar code on the

back of the base.

Boot File Attributes

The following table lists the attributes you need to know in the boot template file.

Attributes Description

#!version:1.0.0.1 It must be placed in the first line. Do not edit and delete.

Each “include” statement can specify a location of a configuration file. The configuration file format must be *.cfg.

The locations in the angle brackets or double quotation marks support two forms:

include:config <xxx.cfg>

include:config "xxx.cfg"

l Relative path (relative to the boot file):

For example, sip.cfg, HTTP Directory/sip.cfg

l Absolute path (or URL):

For example, http://10.2.5.258/HTTP Directory/sip.cfg

The location must point to a specific CFG file. Enable or disable the overwrite mode.

1-(Enabled) - If the value of a parameter in configuration files is left blank, or if a non-static parameter in configuration files is deleted or commented out, the factory default value takes effect.

overwrite_mode

0-(Disabled) - If the value of a parameter in configuration files is left blank, deleted or commented out, the pre-configured value is kept.

Note: Overwrite mode can only be used in boot files. If a boot file is used but “overwrite_mode” is not configured, the overwrite mode is enabled by default.

Tip: The line beginning with “#” is considered to be a comment. You can use “#” to make any comment on the boot file.

Customizing a Boot File

Procedure

1. Open a boot template file.

2. To add a configuration file, add include:config < > or include:config “” to the file. Each starts on a separate line.

3. Specify a configuration file for downloading.

For example: include:config <configure/sip.cfg > include:config “http://10.2.5.206/configure/account.cfg” include:config “http://10.2.5.206/configure/dialplan.cfg”

Phone Provisioning

4. Specify the overwrite mode. For example: overwrite_mode = 1

5. Save the boot file and place it on the provisioning server.

Related Topic

Boot File Attributes

Configuration Files

Yealink supports two configuration template files: Common CFG file and MAC-Oriented CFG file.

These configuration files contain two kinds of parameters:

l Static: The parameters start with a prefix “static.”, for example, static.auto_provision.custom.protect. l Non-static: The parameters do not start with a prefix “static.”, for example, local_time.date_format.

You can deploy and maintain a mass of Yealink phones automatically through configuration files stored in a provisioning server.

Note: For protecting against unauthorized access, you can encrypt configuration files. For more information on encrypting

configuration files, refer to Encrypting and Decrypting Files.

Topics

Common CFG File MAC-Oriented CFG File MAC-local CFG File Configuration File Customization Configuration File Attributes

Common CFG File

Common CFG file, named <y0000000000xx>.cfg, contains parameters that affect the basic operation of the IP phone, such as language and volume. It will be effective for all phones in the same model. The common CFG file has a fixed name for each phone model.

The name of the common CFG file for W80B device is y000000000103.cfg.

MAC-Oriented CFG File

MAC-Oriented CFG file, which is named after the MAC address of the IP phone. For example, if the MAC address of an IP phone is 00156574B150, the name of MAC-Oriented CFG file is 00156574b150.cfg (lowercase). It contains parameters unique to a particular phone, such as account registration. It will only be effective for a MAC-specific IP phone.

MAC-local CFG File

MAC-local CFG file, which is named after the MAC address of the IP phone. For example, if the MAC address of an IP phone is 00156574B150, the name of the MAC-local CFG file is 00156574b150-local.cfg (lowercase). It contains changes associated with a non-static parameter that you make via the web user interface or handset user interface (for example, changes for time and date formats).

This file generates only if you enable the provisioning priority mechanism. It is stored locally on the IP phone and you can upload it to the provisioning server each time the file updates. This file enables the users to keep their personalized configuration settings, even though the IP phone performs auto provisioning.

Note: The non-static changes that you made before enabling the provisioning priority mechanism are not saved in the gen-

erated MAC-local file, but the previous settings still take effect on the phone. The static changes are never be saved to the

Administrator’s Guide for DECT Multi-Cell System

<MAC>-local.cfg file.

The provisioning priority mechanism is enabled by the parameter “static.auto_provision.custom.protect”.

Configuration File Customization

You can create some new CFG files by making a copy and renaming the configuration template file (for example, sip.cfg, account.cfg). You can rearrange the parameters in the configuration template file and create your own configuration files with parameters you want. This flexibility is especially useful when you want to apply specific settings to a group of phones.

Topic

Customizing a Configuration File

1. Copy and rename a configuration template file. For example, sip.cfg.

2. Rearrange the parameters in the sip.cfg, and set the valid values for them.

For example:

account.1.anonymous_call = 1

3. Save the configuration file and place it on the provisioning server.

Related Topic

Configuration File Attributes

The following table lists the attributes you need to know in the configuration template file.

Attributes Description

#!version:1.0.0.1 It must be placed in the first line. Do not edit and delete.

Specify the parameters and values to apply specific settings to the phones.

Configuration Parameter=Valid Value

(for example, account.1.dnd.enable = 1)

l Separate each configuration parameter and value with an equal sign l Set only one configuration parameter per line l Put the configuration parameter and value on the same line and do not break

the line

Tip: The line beginning with “#” is considered to be a comment. You can use “#” to make any comment on the boot file.

Resource Files

Resource files are optional, but if the particular feature is being employed, these files are required. You need to place resource files on the provisioning server. The phones request the resource files in addition to the configuration files during auto provisioning.

Tip: If you want to specify the desired phone to use the resource file, the access URL of the resource file should be spe-

cified in the MAC-Oriented CFG file. During auto provisioning, the phones will request the resource files in addition to the configuration files.

Topic

Supported Resource Files

Phone Provisioning

Supported Resource Files

Yealink supplies some template of resource files for you, so you can directly edit the files as required.

The following table lists the resource files Yealink supplies:

Template File File Name Description Reference in Section

AutoDST Template AutoDST.xml Add or modify time zone and DST settings. DST Settings

Language Packs

Replace Rule Template

Dial Now Template DialNow.xml Customize dial now rules for the dial plan.

Super Search Template

Local Contact File contact.xml Add or modify multiple local contacts.

Remote Phone Book Template

For example,

1.English.js

DialPlan.xml Customize replace rules for the dial plan.

super_ search.xml

Department.xml

Menu.xml

Customize the translation of the existing language on the web user interface.

Customize the search source list.

Add or modify multiple remote contacts.

Language for Web Display Customization

Replace Rule File Customization

Dial Now File Customization

Search Source File Customization

Local Contact File Customization

Remote Phone Book File Customization

Files Download Process

When you provision the phones, the phones will request to download the boot files, configuration files and resource files from the provisioning server according to the following flowchart:

Administrator’s Guide for DECT Multi-Cell System

The parameters in the newly downloaded configuration files will override the same parameters in files downloaded earlier.

Provisioning Methods

Yealink provides two ways to provision your phones:

l Manual Provisioning: provisioning via the handset user interface or web user interface. l Central Provisioning: provisioning through configuration files stored in a central provisioning server.

The method you use depends on how many phones need to be deployed and what features and settings to be configured. Manual provisioning on the web or handset user interface does not contain all of the phone settings available with the centralized method. You can use the web user interface method in conjunction with a central provisioning method and handset user interface method. We recommend using centralized provisioning as your primary provisioning method when provisioning multiple phones.

Topics

Provisioning Methods Priority Web User Interface Phone User Interface Central Provisioning

Provisioning Methods Priority

There is a priority for configuration among the provisioning methods - settings you make using a higher priority provisioning method override settings made using a lower priority provisioning method.

The precedence order for configuration parameter changes is as follows (highest to lowest):

Phone Provisioning

Note: The provisioning priority mechanism takes effect only if “static.auto_provision.custom.protect” is set to 1. For more

information on this parameter, refer to Keeping User’s Personalized Settings Configuration.

Static parameters have no priority. They take effect no matter what method (web user interface or phone user interface or configuration files) you are using for provisioning.

Static parameters are the parameters that start with a prefix “static.”, for example, the parameters associated with auto provisioning/network/syslog, TR069 settings and internal settings (the temporary configurations to be used for program running).

Web User Interface

You can configure the phones via the web user interface, a web-based interface that is especially useful for remote configuration.

Because features and configurations vary by phone models and firmware versions, options available on each page of the web user interface can vary as well. Note that the features configured via the web user interface are limited. Therefore, you can use the web user interface in conjunction with a central provisioning method and phone user interface.

Note: When you manually configure a phone via the web user interface or handset user interface, the changes associated

with non-static parameters you make will be stored in the MAC-local CFG file. For more information on the MAC-local CFG file, refer to MAC-local CFG File.

Topics

Quick Login Configuration Web Server Type Configuration

Quick Login Configuration

You can access the web user interface quickly using the request URI. It will locate you in the Status web page after accessing the web user interface. It is helpful to quickly log into the web user interface without entering the username and password on the login page.

Note: Accessing the web user interface by request URI may be restricted by the web explorer (for example, Internet

Explorer).

For security purposes, we recommend that you use this feature in a secure network environment.

The following table lists the parameters you can use to configure quick login.

Parameter wui.quick_login <y0000000000xx>.cfg

Description

Permitted Values

It enables or disables the quick login feature.

Note: It works only if “static.wui.https_enable” is set to 1 (Enabled). 0-Disabled

1-Enabled, you can quickly log into the web user interface using a request URI (for example, https://IP/ap-

Administrator’s Guide for DECT Multi-Cell System

i/auth/login?@admin:admin).

Default 0

Parameter wui.secure_domain_list <y0000000000xx>.cfg

It configures the valid domain name to access the web user interface of the phone.

Multiple domain names are separated by semicolons.

Example:

Description

wui.secure_domain_list = test.abc.com

You are only allowed to use test.abc.com or IP address to access the web user interface of the phone.

Note: To use a domain name to access the web user interface of the phone, make sure your DNS server can resolve the domain name to the IP address of the phone.

String

Permitted Values

If it is left blank, you are only allowed to use the IP address to access the web user interface of the phone.

If it is set to “any”, you can use IP address or any domain name to access the web user interface of the phone.

Default any

Web Server Type Configuration

Yealink phones support both HTTP and HTTPS protocols for accessing the web user interface. You can configure the web server type. Web server type determines the access protocol of the web user interface. If you disable to access the web user interface using the HTTP/HTTPS protocol, both you and the user cannot access the web user interface.

The following table lists the parameters you can use to configure the web server type.

Parameter

static.wui.http_enable

Description It enables or disables to access the web user interface of the phone over a non-secure tunnel (HTTP).

Permitted Values

0-Disabled 1-Enabled

Default 1

Web UI Network > Advanced > Web Server > HTTP

Parameter

Description

Permitted Values

static.network.port.http

It configures the port used to access the web user interface of the phone over a non-secure tunnel (HTTP).

Integer from 1 to 65535

[1]

<y0000000000xx>.cfg

Default 80

Web UI Network > Advanced > Web Server > HTTP Port (1~65535)

Parameter

static.wui.https_enable

[1]

<y0000000000xx>.cfg

Description It enables or disables to access the web user interface of the phone over a secure tunnel (HTTPS).

Permitted Values

0-Disabled 1-Enabled

Phone Provisioning

Default 1

Web UI Network > Advanced > Web Server > HTTPS

Parameter

Description It configures the port used to access the web user interface of the phone over a secure tunnel (HTTPS).

static.network.port.https

[1]

<y0000000000xx>.cfg

Permitted Values

Default 443

Web UI Network > Advanced > Web Server > HTTPS Port (1~65535)

[1]

If you change this parameter, the phone will reboot to make the change take effect.

Integer from 1 to 65535

Central Provisioning

Central provisioning enables you to provision multiple phones from a provisioning server that you set up, and maintain a set of boot files, configuration files and resource files for all phones in the central provisioning server.

The following figure shows how the phone interoperates with provisioning server when you use the centralized provisioning method:

Yealink phones can obtain the provisioning server address during startup. Then the phones first download boot files and configuration files from the provisioning server and then resolve and update the configurations written in configuration files. This entire process is called auto provisioning. For more information on auto provisioning, refer to

Yealink SIP IP Phones Auto Provisioning Guide.

Administrator’s Guide for DECT Multi-Cell System

The phones can be configured to upload log files (log files provide a history of phone events), call log files and contact files to the provisioning server. You can also configure a directory for each of these three files respectively.

Topics

Auto Provisioning Settings Configuration

The following table lists the parameters you can use to configure settings for auto provisioning.

Parameter static.auto_provision.attempt_expired_time <y0000000000xx>.cfg

It configures the timeout (in seconds) to transfer a file via auto provisioning.

Description

Permitted Values

Default 5

Web UI Settings > Auto Provision > Attempt Expired Time(s)

Parameter

Note: It has a higher priority than the value defined by the parameter “static.network.attempt_expired_

time”.

Integer from 1 to 300

static.network.attempt_expired_time

[1]

<y0000000000xx>.cfg

It configures the timeout (in seconds) to transfer a file for HTTP/HTTPS connection.

Description

Note: It has a lower priority than the value defined by the parameter “static.auto_provision.attempt_

expired_time”.

Permitted Values

Integer from 1 to 20

Default 10

Parameter static.auto_provision.attempt_before_failed <y0000000000xx>.cfg

Description

Permitted Values

It configures the maximum number of attempts to transfer a file before the transfer fails during auto provisioning.

Integer from 1 to 10

Default 3

Parameter static.auto_provision.retry_delay_after_file_transfer_failed <y0000000000xx>.cfg

Description

Permitted Values

It configures the time (in seconds) to wait after a file transfer fails before retrying the transfer via auto provisioning.

Integer from 0 to 300

Default 5

Parameter

static.auto_provision.reboot_force.enable

[1]

<y0000000000xx>.cfg

Description

It enables or disables the phone to reboot after auto provisioning, even if there is no specific configuration requiring a reboot.

Note: It works only for the current auto provisioning process. If you want the phone to reboot after every auto provisioning process, the parameter must be always contained in the configuration file and set to 1.

If the phone reboots repeatedly after it is set to 1, you can try to set “static.auto_provision.power_on" to 0

(Off).

Phone Provisioning

Permitted Values

Default Blank

Parameter static.auto_provision.power_on <y0000000000xx>.cfg

Description It triggers the power on feature to on or off.

Permitted Values

Default 1

Web UI Settings > Auto Provision > Power On

Parameter static.auto_provision.repeat.enable <y0000000000xx>.cfg

Description It triggers the repeatedly feature to on or off.

Permitted Values

Default 0

Web UI Settings > Auto Provision > Repeatedly

Parameter static.auto_provision.repeat.minutes <y0000000000xx>.cfg

0-Disabled 1-Enabled

0-Off

1-On, the phone performs auto provisioning when powered on.

0-Off

1-On

Description

Permitted Values

Default 1440

Web UI Settings > Auto Provision > Interval(Minutes)

Parameter static.auto_provision.weekly.enable <y0000000000xx>.cfg

Description It triggers the weekly feature to on or off.

Permitted Values

Default 0

Web UI Settings > Auto Provision > Weekly

Parameter static.auto_provision.weekly_upgrade_interval <y0000000000xx>.cfg

Description

It configures the interval (in minutes) for the phone to perform auto provisioning repeatedly.

Note: It works only if “static.auto_provision.repeat.enable” is set to 1 (On).

Integer from 1 to 43200

0-Off

1-On, the phone performs an auto provisioning process weekly.

It configures the time interval (in weeks) for the phone to perform auto provisioning.

If it is set to 0, the phone performs auto provisioning at the specific day(s) configured by the parameter “static.auto_provision.weekly.dayofweek” every week.

If it is set to other values (for example, 3), the phone performs auto provisioning at a random day between the specific day(s) configured by the parameter “static.auto_provision.weekly.dayofweek” every three weeks.

Administrator’s Guide for DECT Multi-Cell System

Note: It works only if “static.auto_provision.weekly.enable” is set to 1 (On).

Permitted Values

Default 0

Web UI Settings > Auto Provision > Weekly Upgrade Interval(0~12week)

Parameter static.auto_provision.inactivity_time_expire <y0000000000xx>.cfg

Description

Permitted Values

Default 0

Integer from 0 to 12

It configures the delay time (in minutes) to perform auto provisioning when the phone is inactive at regular week.

If it is set to 0, the phone performs auto provisioning at random between a starting time configured by the parameter “static.auto_provision.weekly.begin_time” and an ending time configured by the parameter “static.auto_provision.weekly.end_time”.

If it is set to other values (for example, 60), the phone performs auto provisioning only when it has been inactivated for 60 minutes (1 hour) between the starting time and ending time.

Note: The phone may perform auto provisioning when you are using the phone during office hour. It works only if “static.auto_provision.weekly.enable” is set to 1(On). The operations on the handset will not change the inactive status; only the functional operations related base station, such as calling, will change the inactive status.

Integer from 0 to 120

Web UI Settings > Auto Provision > Inactivity Time Expire(0~120min)

Parameter static.auto_provision.weekly.dayofweek <y0000000000xx>.cfg

It configures the days of the week for the phone to perform auto provisioning weekly.

Example:

static.auto_provision.weekly.dayofweek = 01

Description

Permitted Values

If “static.auto_provision.weekly_upgrade_interval” is set to 0, it means the phone performs auto provisioning every Sunday and Monday.

If “static.auto_provision.weekly_upgrade_interval” is set to other value (for example, 3), it means the phone performs auto provisioning by randomly selecting a day from Sunday and Monday every three weeks.

Note: It works only if “static.auto_provision.weekly.enable” is set to 1 (On). 0,1,2,3,4,5,6 or a combination of these digits

0-Sunday

1-Monday

2-Tuesday

3-Wednesday

4-Thursday

5-Friday

6-Saturday

Default 0123456

Web UI Settings > Auto Provision > Day of Week

Phone Provisioning

Parameter

Description

Permitted Values

Default 00:00

Web UI Settings > Auto Provision > Time

Parameter static.auto_provision.flexible.enable <y0000000000xx>.cfg

Description

Permitted Values

Default 0

static.auto_provision.weekly.begin_time

<y0000000000xx>.cfg

static.auto_provision.weekly.end_time It configures the starting/ending time of the day for the phone to perform auto provisioning weekly.

Note: It works only if “static.auto_provision.weekly.enable” is set to 1 (On).

Time from 00:00 to 23:59

It triggers the flexible feature to on or off.

Note: The day within the period is based upon the phone's MAC address and does not change with a reboot, whereas the time within the start and end is calculated again with every reboot. The timer starts again after each auto provisioning.

0-Off

1-On, the phone performs auto provisioning at random between a starting time configured by the para-

meter "static.auto_provision.flexible.begin_time" and an ending time configured by the parameter "static.auto_provision.flexible.end_time" on a random day within the period configured by the parameter "static.auto_provision.flexible.interval".

Web UI Settings > Auto Provision > Flexible Auto Provision

Parameter static.auto_provision.flexible.interval <y0000000000xx>.cfg

It configures the interval (in days) for the phone to perform auto provisioning.

The auto provisioning occurs on a random day within this period based on the phone's MAC address.

Description

Permitted Values

Default 30

Web UI Settings > Auto Provision > Flexible Interval Days

Parameter static.auto_provision.flexible.begin_time <y0000000000xx>.cfg

Description

Permitted Values

The phone performs auto provisioning on a random day (for example, 18) based on the phone's MAC address.

Note: It works only if “static.auto_provision.flexible.enable” is set to 1 (On).

Integer from 1 to 1000

It configures the starting time of the day for the phone to perform auto provisioning at random.

Note: It works only if “static.auto_provision.flexible.enable” is set to 1 (On).

Time from 00:00 to 23:59

Administrator’s Guide for DECT Multi-Cell System

Default 02:00

Web UI Settings > Auto Provision > Flexible Time

Parameter static.auto_provision.flexible.end_time <y0000000000xx>.cfg

It configures the ending time of the day for the phone to perform auto provisioning at random.

If it is left blank or set to a specific value equal to starting time configured by the parameter “static.auto_ provision.weekly.begin_time”, the phone performs auto provisioning at the starting time.

If it is set to a specific value greater than starting time configured by the parameter “static.auto_pro-

Description

vision.weekly.begin_time”, the phone performs auto provisioning at random between the starting time and ending time.

If it is set to a specific value less than starting time configured by the parameter “static.auto_provision.weekly.begin_time”, the phone performs auto provisioning at random between the starting time on that day and ending time in the next day.

Note: It works only if “static.auto_provision.flexible.enable” is set to 1 (On).

Permitted Values

Time from 00:00 to 23:59

Default Blank

Web UI Settings > Auto Provision > Flexible Time

Parameter static.auto_provision.dns_resolv_nosys <y0000000000xx>.cfg

Description

Permitted Values

It enables or disables the phone to resolve the access URL of the provisioning server using download libraries mechanism.

0-Disabled, the phone resolves the access URL of the provisioning server using the system mechanism. 1-Enabled

Default 1

Parameter static.auto_provision.dns_resolv_nretry <y0000000000xx>.cfg

It configures the retry times when the phone fails to resolve the access URL of the provisioning server.

Description

Note: For each different DNS server, it works only if “static.auto_provision.dns_resolv_nosys" is set to 1

(Enabled).

Permitted Values

Integer from 1 to 10

Default 2

Parameter static.auto_provision.dns_resolv_timeout <y0000000000xx>.cfg

It configures the timeout (in seconds) for the phone to retry to resolve the access URL of the provisioning server.

Description

Note: For each different DNS server, it works only if “static.auto_provision.dns_resolv_nosys" is set to 1

(Enabled).

Permitted Values

Integer from 1 to 60

Default 5

[1]

If you change this parameter, the phone will reboot to make the change take effect.

Yearlink Dect IP User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Table of Contents

DECT IP Multi-Cell System Introduction

Components of the DECT IP Multi-Cell System

Deployments of the DECT IP Multi-Cell System

Related Documentations

First Steps

Preparing to Use the Multi-Cell System

Assigning the Device Role

Registering the First Handset to the W80B Device

Finding the IP Address of the W80B

Configuring the System via Web User Interface

Accessing Web User Interface

Navigating the Web User Interface

Logging out of the Web User Interface

Initialization Instructions

Initialization Process Overview

Loading the ROM File

Configuring the VLAN

Querying the DHCP (Dynamic Host Configuration Protocol) Server

Contacting the Provisioning Server

Updating Firmware

Downloading the Resource Files

Verifying Startup

Setting up the Base Stations

Base Mode

Base Mode Configuration

LED Indicators on the W80B

Base Station Pre-registration

Base Station Pre-registration Configuration

Manually Registering Base Stations to the DM

DM IP

DM IP Configuration

Base Station Settings

Base Station Settings Configuration

Managing the Connected Base Stations

Base Station Synchronization

Synchronization Planning

Managing the Handsets

Registering Handsets via Web User Interface

IPUI Registration

Obtaining the IPUI Code of the Handset

Notes on Configuring IPUI

IPUI Code Configuration

Handset Registration Center

Registering Handsets Time-Controlled

Manually Closing the Registration

Registering Handsets at Once

De-registering a Handset

Account Settings

Account Registration

Supported Accounts

SIP Server Template Configuration

Accounts Registration Configuration

Registration Settings Configuration

Outbound Proxy in Dialog

Outbound Proxy in Dialog Configuration

Server Redundancy

Behaviors When Working Server Connection Fails

Registration Method of the Failover/Fallback Mode

Fallback Server Redundancy Configuration

Failover Server Redundancy Configuration

SIP Server Name Resolution

SIP Server Name Resolution Configuration

Static DNS Cache

Behave with a Configured DNS Server

Static DNS Cache Configuration

Number of Simultaneous Outgoing Calls

Number of Simultaneous Outgoing Calls Configuration

Number of Active Handsets Per Base

Number of Active Handsets Per Base Configuration

Network Configurations

IPv4 Network Settings

IPv4 Configuration

DHCP Option for IPv4

Supported DHCP Option for IPv4

DHCP Option 66, Option 43 and Custom Option
