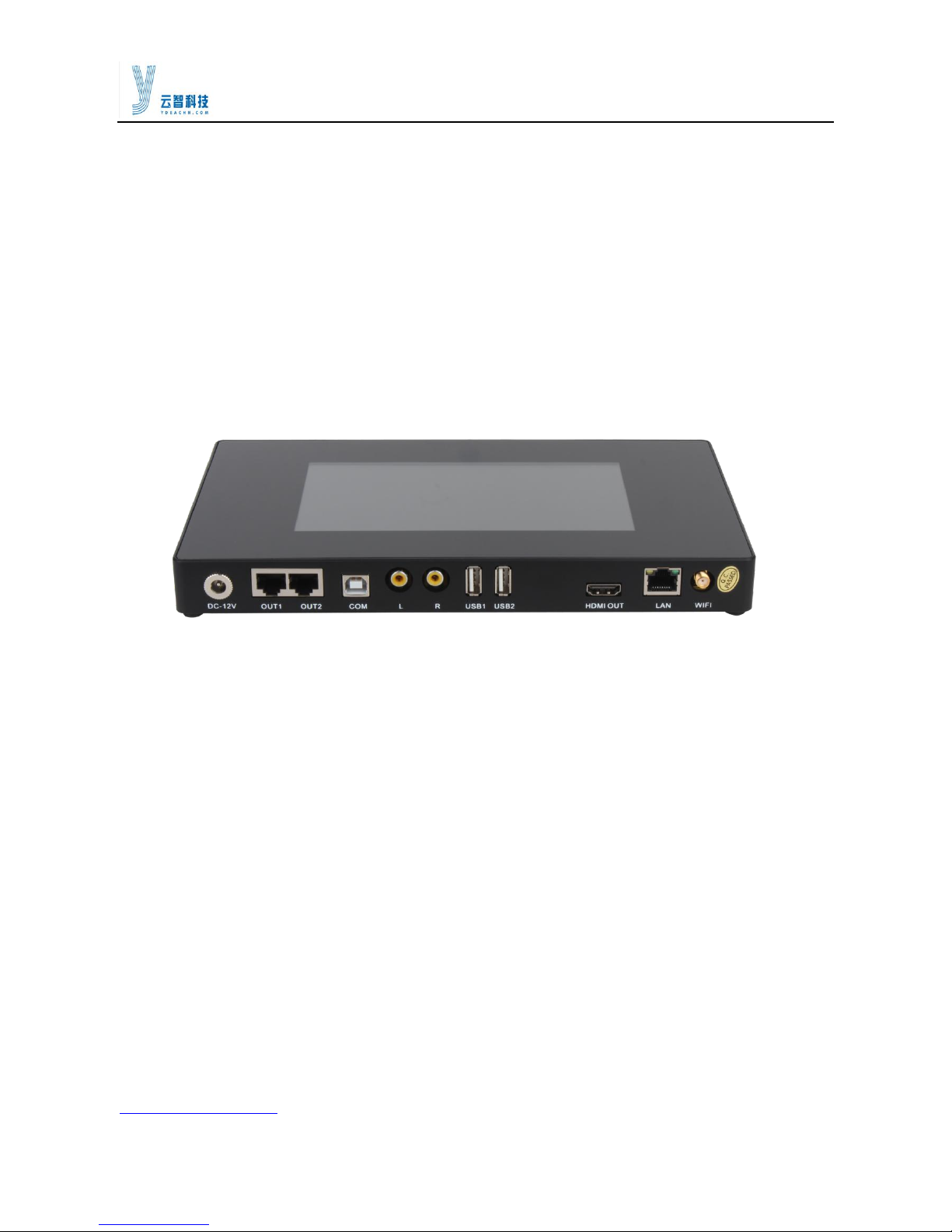

Media Player Mdea User Manual
• Version: V03
• Date: 2015-05-19
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
CONTENTS
CONTENTS ................................................................................................................................................................. 2
1 System Overview........................................................................................................................................................ 2
2 System Features ......................................................................................................................................................... 3
3 Technical Specifications: ............................................................................................................................................ 4
4 System Solutions ........................................................................................................................................................ 5
5 Software Application.................................................................................................................................................. 5
5.1 Control Software ............................................................................................................................................. 5
5.2 Studio software .............................................................................................................................................15
5.3 Client software ..............................................................................................................................................33
5.4Cluster Software ............................................................................................................................................54
1 System Overview
Mdea is YDEA TECH for the advertising market, introduced a new low-cost integration of
innovative LED display information release system, mainly for advertising network publishing,
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
building lighting display.
Mdea integrated networking publishing systems, stand-alone player system, LED control system in
one, comes with a network interface (RJ45), WiFi, external 3G card, real-time publish information
and video playback via network synchronization; comes with media player function, can be used as
PC host uses to achieve a single player; built-in video processing and LED controller, compatible
with LED synchronous asynchronous systems, and competitively priced. With this system, you can
help customers simplify the system structure, reduce control costs.
It solved the structure of complex systems, more external devices, single function, control cost is too
high, difficult system management, service problems.
2 System Features
integration with asynchronous
Mdea own video processing and LED controller, compatible with LED synchronous asynchronous
systems.
simple system architecture
Mdea integrated networking publishing systems, LED control systems, stand-alone player system in
one of the LED media playback device, to achieve a highly integrated architecture.
centralized network management
Mdea own network interface (RJ45), WiFi, external 3G card, you can publish information in real
time over the network synchronization and video playback.
standalone media player
Mdea own media player, you can use as a PC host to achieve a single player, integrated hardware
codec module can support 1080p HD video decoding and playback; content can be played after the
store will make a good play on the hard disk and U disk.
control lower cost
Mdea competitively priced, less peripheral devices that can help customers achieve lower costs.
better safety performance
Mdea based on a common platform, stable performance does not crash, software upgrades easy to
maintain, easy to use client, eliminating the need for a lot of training.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
3 Technical Specifications:
Hardware Configuration
CPU
Cortex-A7
GPU
Mali400, Speed 400MHz
RAM
DDR3 1GB
ROM Flash
8GB
Multi-media
Viewer
BMP, JPEG, M-JPEG, GIF, PNG
Video
Format
MEPG1/2/4,H.263/H.264,RMVB,WMV/VC-1,MVC,AVS,MJPEG.
Audio
Format
MP3,WMA,WAV,OGG,FLAC,ALAC,APE,AMR,AAC,AC-3
Interface Configuration
LAN
10M/100M Ethernet network, RJ-45 Interface
HDMI
1 x HDMI1.3 Output(1080p/60hz)
WIFI
802.11b/g/n
3G
Build in HuaWei 3G module
Audio
2 x Standard audio interface
USB
2 x USB, Support OTG、HOST and DEVICE, 2*USB-A（Support a mouse,
keyboard, 3G network card）
COM
Uses standard USB-B (USB to serial)
LCD
Support Capacitive touch module
LED Video
2 x RJ45, Support 1024*600*24bit*60Hz
Software Configuration
Operating system
Andriod 4.2.2
Control Software
In the system
Player software
In the system
Electrical Specifications
Power
Switching Power Supply ( 12V )
Temperature
0℃～60℃
Consumption
≦5W
Size (L× W)
206 mm × 100 mm (L× W)
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor

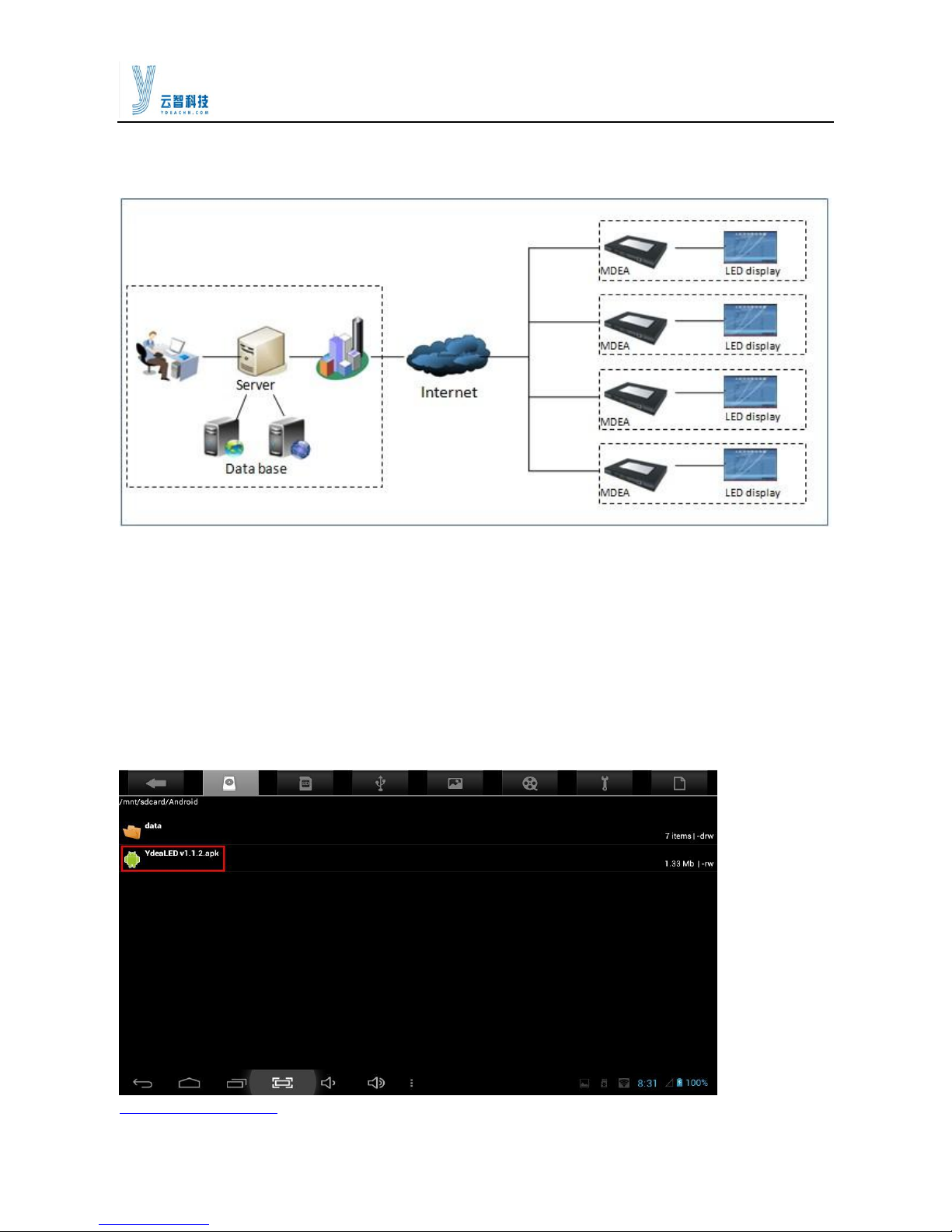

4 System Solutions
5 Software Application
5.1 Control Software
5.1.1 Software Installation
1) In the APP File Manager, find the installation package (YdeaLED v 1.1.2.apk), double click the
install package.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
2) In the pop-up interface, click on the [Install].
3) The installation is complete, in the pop-up interface, click on the [Done].
5.1.2 Software Uninstall
1) Click [System settings]-[Apps], click the YdeaLED icon, click the [Uninstall] button.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor

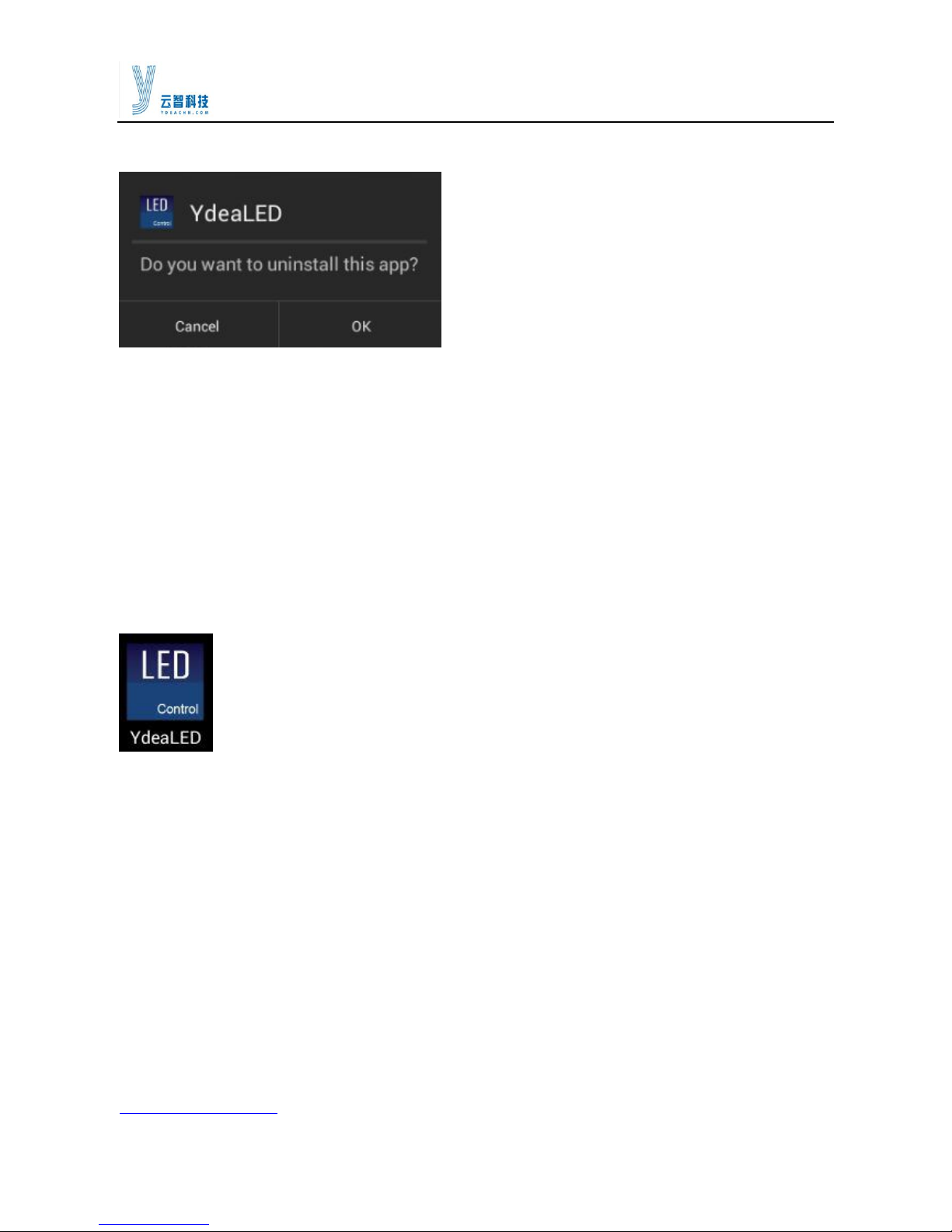

2) In the pop-up interface, click [OK] to complete the uninstall.
5.1.3 Software Control Instructions
Note:
1) According to the actual use of Mdea, the control software settings is divided into three modes,
which is C3.0A mode, C3.0B mode, Micro mode.
2) C3.0A mode and C3.0B mode is suitable for situations when Mdea.do not connected to the
distributor. C3.0A mode and C3.0B mode is selected different protocols, other settings are the
same.
3) Micro mode is suitable for situations when Mdea connected to the distributor.
C3.0 A mode and C3.0B mode
1) click the YdeaLED icon, open the control software.
2) Click button in the top right corner on the screen, then click [Function] in the pull-down menu.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor

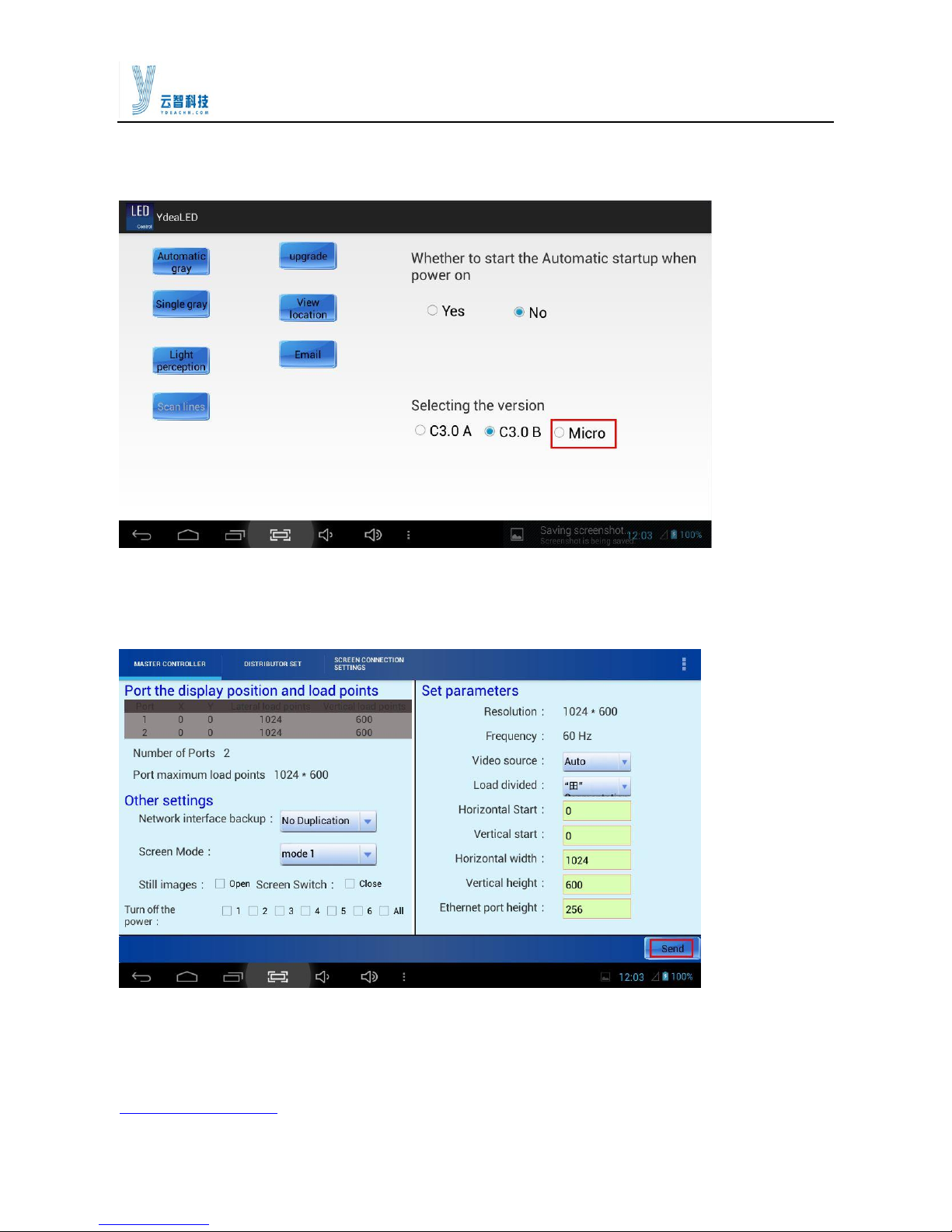

3) On the menu of [Selecting the version] you can find three versions.Here you need to select
C3.0A mode or C3.0B mode. After setting, click [Back] button.on the bottom of the screen.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
4) Enter the MASTER CONTROLLER interface of the software, which do not need to make any
settings, just click [Send] on the bottom.
Setting Description:
[Video source]: The video source is set to [Auto].
[Load Divided]: A tape-shaped partition dividing fixed field.
[Horizontal Start]: large-screen display setting area start X-axis position, in the upper left corner
coordinates of the display starting point for the calculation of lateral body of the screen to display the
original point of the starting position is 0 by default.
[Vertical start]: large-screen display setting area Y-axis starting position, the starting point to
calculate longitudinal crystal display screen to the upper left corner of the display coordinates of the
starting point for the original default position is 0.
[Horizontal width]: set the actual width Mdea load, the default is 1024.
[Vertical height]: set the actual height Mdea load, the default is 600.
[Net port height]: Setting master first image data output port maximum height.
[Network interface backup]: to set the replication relationship between host ports.
[Screen Mode]: Set a specific type of the display, the function for expansion. Reserved.
[Screen Switch]: Off, black screen, nothing is displayed; open the screen to normal playback. The
default setting is on.
[Still images]: open, active window to freeze the picture of the current screen; off, normal playback
screen. The default setting is OFF.
[Power Off]: used to control display power switch, this feature not yet open.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
5) Click the [SCREEN CONNECTION SETTINGS] on the top of the screen. You need to set
Screen connection in the interface.
[Port]: Mdea has two output ports, labeled "OUT1" and "OUT2", using which port to output, and
you Should select [port1] or [ port2] in this interface. In the bottom of the port, select [Simple
Screen].
[Screen turn]: The program support screen rotation, this menu is useful. The default is 0.
[Number]: Width: Number of receiving card used horizontally; height: Number of receiving card
vertical use.
[Size]: Width: a cassette receiving points in the horizontal direction of the display; Height: a
receiving cassette display dots in the vertical direction.
[Connection]: to display the actual signal lines, select the corresponding connections can be. After
all the parameters are set, click on the bottom right corner of the [send].
6) At this point in C3.0A mode and C3.0B mode, all the settings have been completed. Display can
be normal lighting.The next interface of [SCREEN CONNECTION SETTINGS] do not have to
make any settings.
Micro mode
1）Click button in the top right corner on the screen, then click [Function] in the pull-down menu.On
the menu of [Selecting the version] you can find three versions.Here you need to select Micro. After
setting, click [Back] button.on the bottom of the screen.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
2) Enter the MASTER CONTROLLER interface of the software, which do not need to make any
settings, just click [Send] on the bottom. （See description of all the menu in"C3.0A mode and C3.0B
mode").
3) The distributor set:
Click [DISTRIBUTOR SET] on the top of the screen, enter the interface.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
[Port of master controller]: Mdea has two output ports, labeled "OUT1" and "OUT2", using
which port to output, and you Should select [port1] or [ port2] in this interface.
[Load Mode]: There are four load mode. Which mode to use in the receiving card program has
been fixed. Read the receiver card program "readme file" and select the corresponding load
mode.
[amount of internet access port]: 8 number of network ports by default, not be modified.
[supporting content per port]: The content is a single-port receiving card carried by the display
horizontally points.
[distributor ammount]: Number: Number 1 by default, not be modified.
After setting, click [send] on the bottom right corner.
4) Screen connection settings:

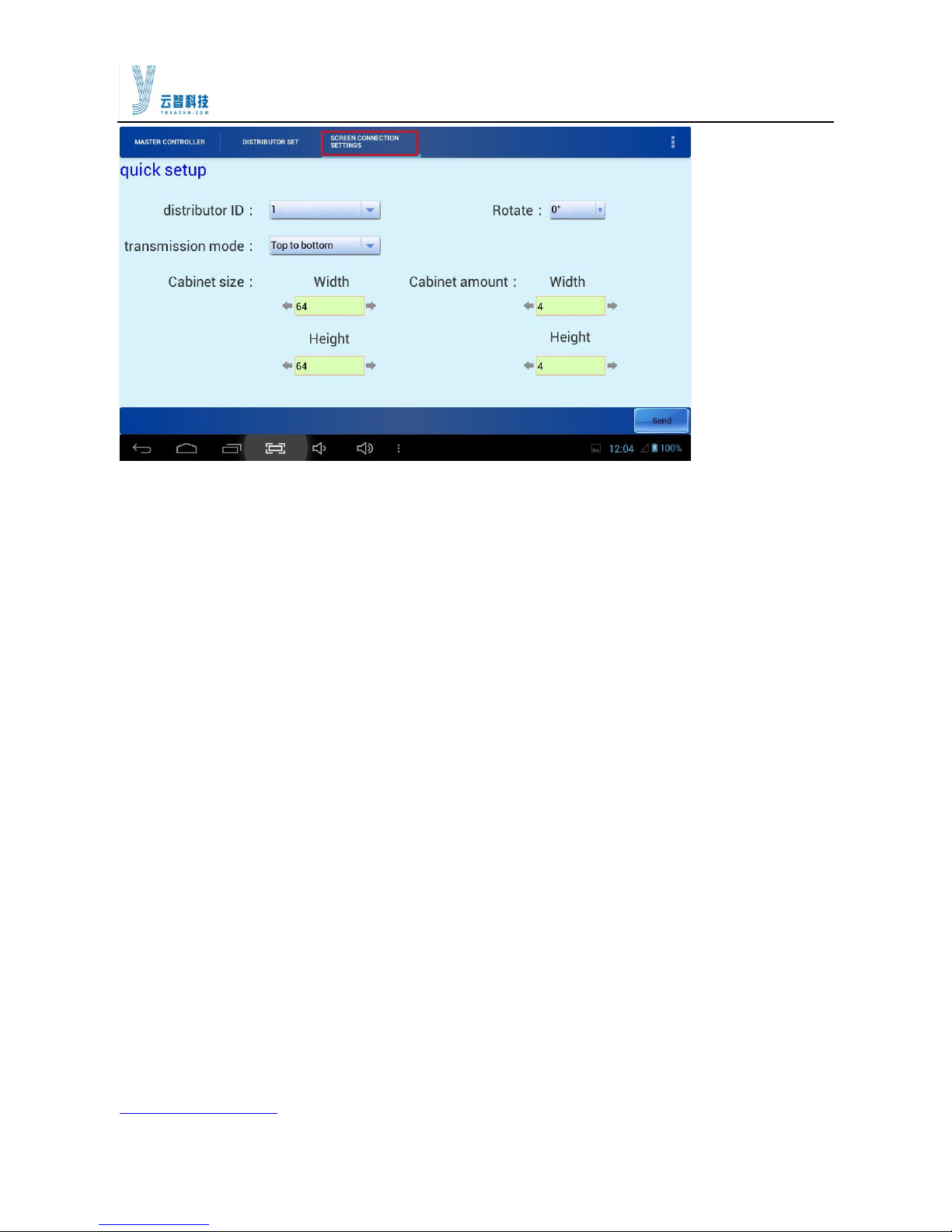

Click [SCREEN CONNECTION SETTINGS] on the top of the screen, enter the interface.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
[distributor ID]: The default is 1, do not need to set.
[rotate]: The default is 0, do not need to set.
[transmission mode]: from the display front, according to the network cable of the actual trend,
select the corresponding transmission.
[Cabinet size]:Width: a cassette receiving points in the horizontal direction of the display;
Height: a receiving cassette display dots in the vertical direction.
[Cabinet amount]:Width: Number of receiving card used horizontally; Height: Number of
receiving card vertical use.
After setting, just click [send] on the bottom.
Other settings
In C3.0A mode, C3.0B mode and Micro mode, click the icon on the top right corner of the
screen to enter the [function] interface, there are ability to view the location, a single gray,
gray-automatic, you can set the LED display Upon completion of the test. Set whether boot or
not.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor

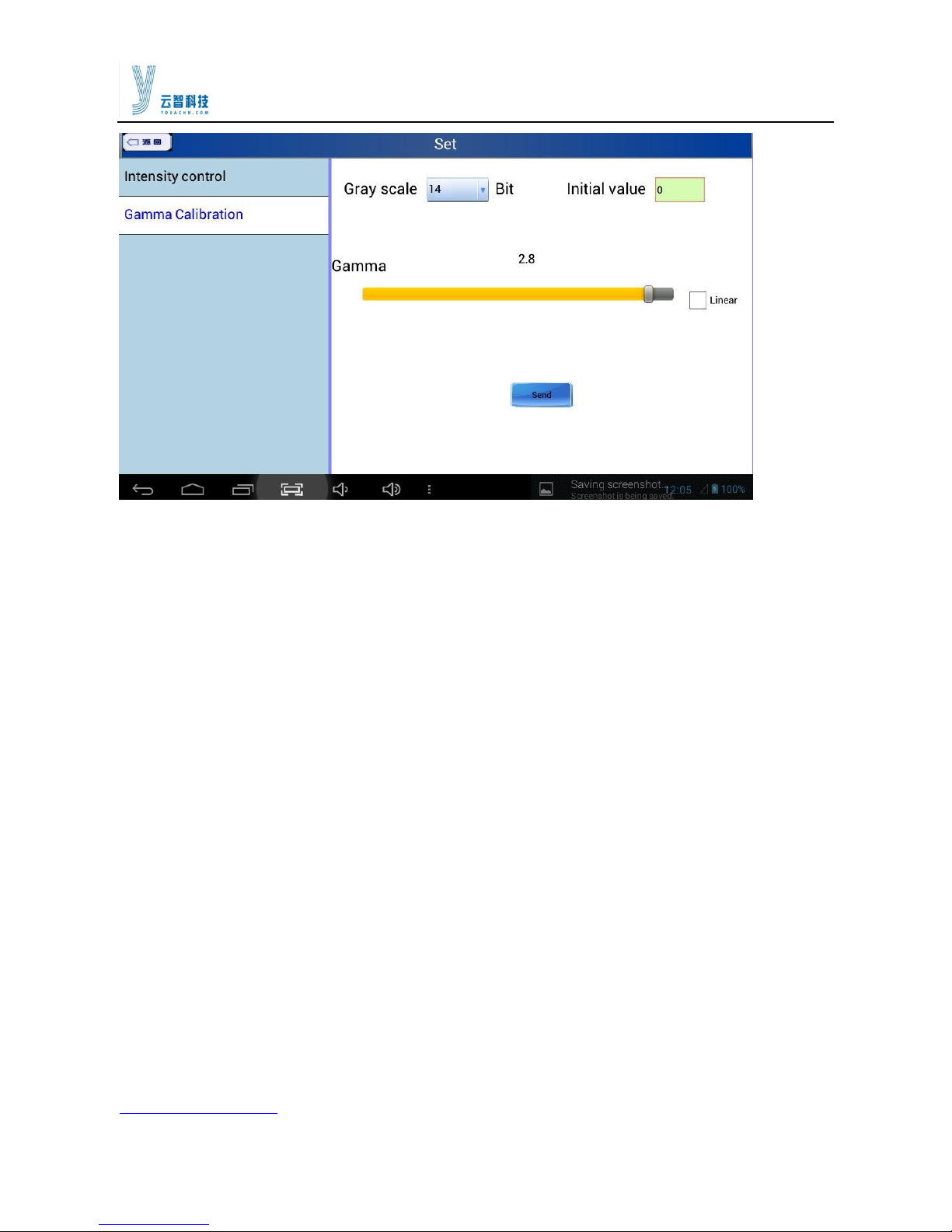

Click the icon to the top right corner of the screen, enter the setup interface, you can set the
brightness and grayscale settings.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
5.2 Studio software
5.2.1 Software Installation

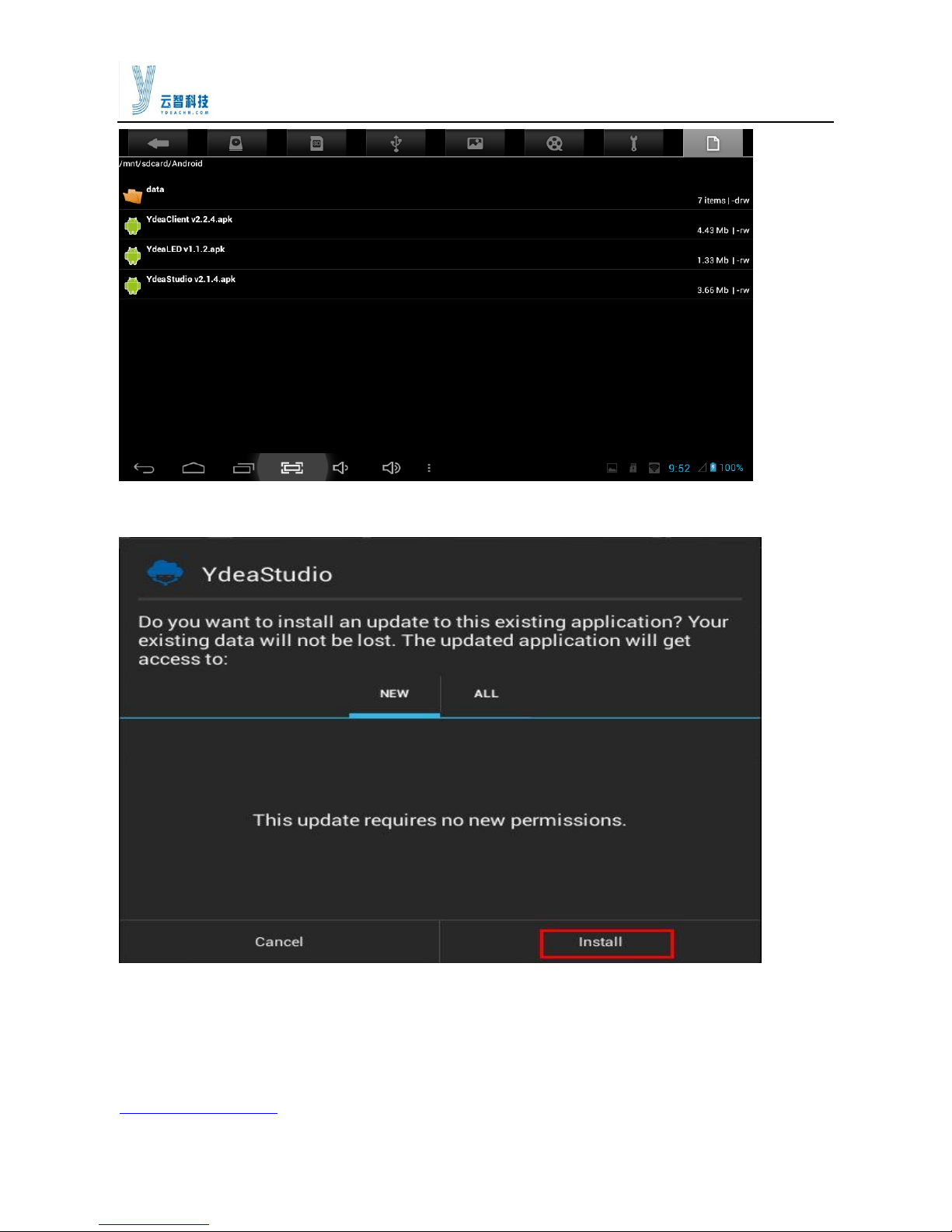

1) In the APP of File Manager, find the installation package (YdeaStudio v2.1.4.apk), double click
the install package.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
2) In the pop-up interface, click on the [Install].
3) The installation is complete, in the pop-up interface, click on the [Done].
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
5.2.2 Software Uninstall

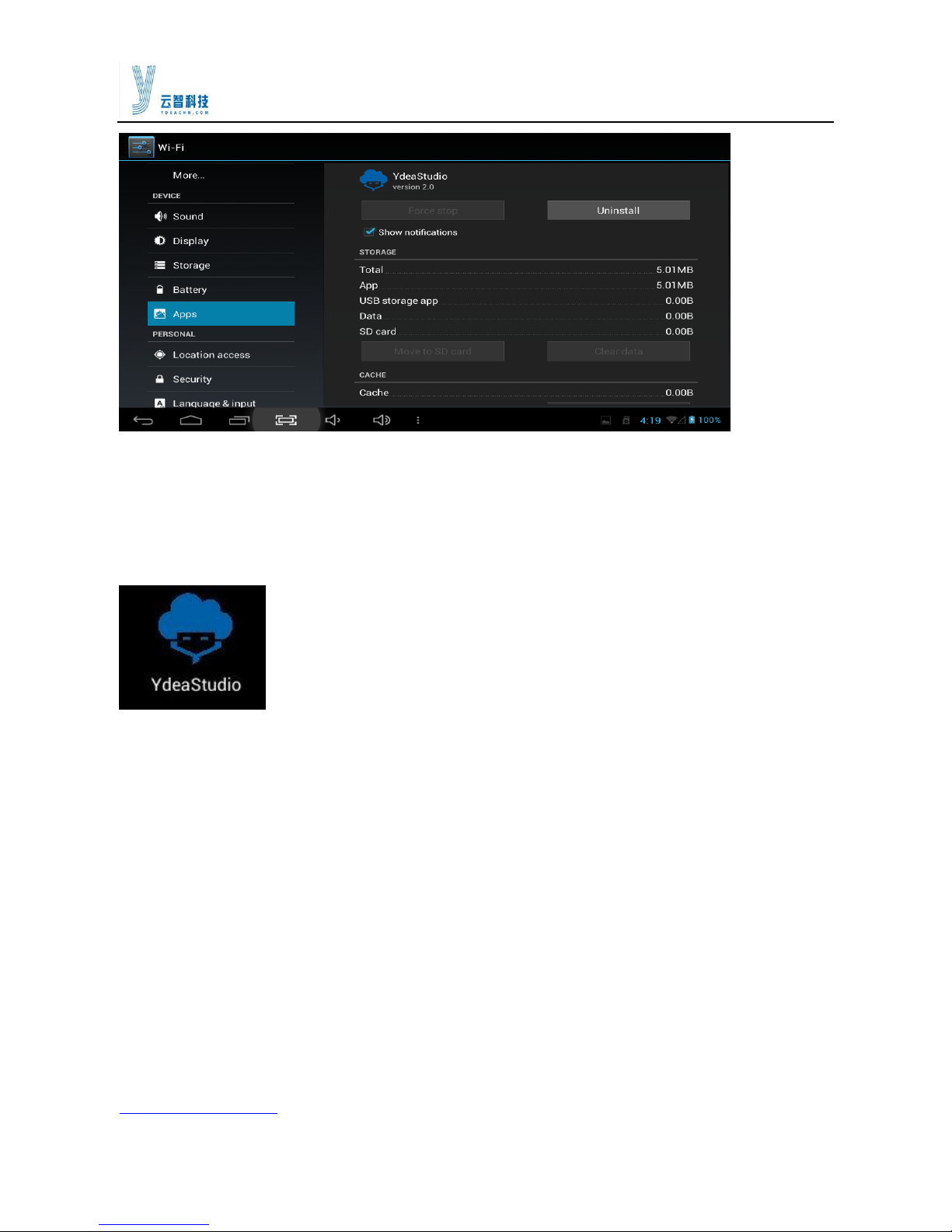

1) Click [System settings]-[Apps], click the YdeaLED icon, click the [Uninstall] button.
2) In the pop-up interface, click [Uninstall] to complete the uninstall.
Service Hotline: 400-666-9216
http://www.ydeachn.com/
Address: Bao'an District of Shenzhen City white pine Road of Founder Technology Park A1 building 4 floor
5.2.3 Software Configuration and Description
一：Login
1 open the software
Click the icon on the desktop, enter the player interface.
2. Login settings:
2.1 according to demand free to set username and password of the Mdea. Convenient mobile client
to control.
2.2 If the username and password has been set, you can directly click below icon, select the
corresponding user name.
2.3 After setting the username and password,click [Next].
Loading...
