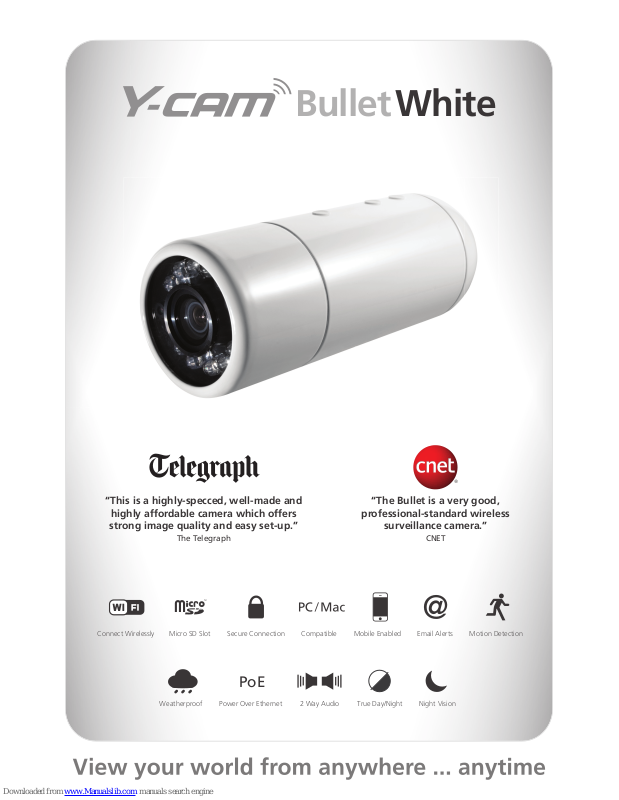

Y-cam BulletWhite Specifications

Bullet White

Connect Wirelessly Micro SD Slot Secure Connection Compatible Mobile Enabled Email Alerts Motion Detection

Night Vision

Power Over Ethernet

PoE

Weatherproof

True Day/Night

2 Way Audio

“This is a highly-specced, well-made and

highly affordable camera which offers

strong image quality and easy set-up.”

The Telegraph

“The Bullet is a very good,

professional-standard wireless

surveillance camera.”

CNET

Mac & the Mac logo are trademarks of Apple Computer, Inc., registered in the U.S. & other countries. Microsoft, Windows, & the Windows logo are either registered trademarks or trademarks of Microsoft Corporation in the U.S. & other countries. Other
trademarks are the property of their respective holders. * 2 way audio is only available via Windows PC. Features & specifications subject to change without notice. Actual product may vary from photos shown. Reproduction in whole or in part is prohibited.

Special Features of this Model

www.y-cam.com | [phone] | [e-mail]

©

™

Bullet

Product Code - YCBL03

EAN Number - 5060158900145

Camera

Image device - 1/4" CMOS
Pixels - 310,000
White Balance, Exposure, Gain - Auto
Viewing angle - Horizontal: 50°, Vertical: 40°
Focal length - f=4.3mm
Aperture - F2.0
Min illumination - 1.0 Lux (0 Lux in night vision mode)
Infrared LED - 12
Night Vision Distance - 15m
IR Cut Filter - Yes
Image compression - MPEG-4, MJPEG
Max frame rate - 30fps @ 640x480
Audio compression - AMR (4.75-12.2Kbps), G.726 (40/32/24/16Kbps)
Built-in microphone - Electret Condenser Microphone

Network

Authentication - 2 levels, up to 64 users, 16 simultaneous
Network protocols - TCP,UDP,IP,ARP,ICMP,DHCP,DNS,HTTP,FTP,SMTP,NTP,PPPoE,UPnP,DDNS
Stream type - HTTP, RTSP/RTP/RTCP, 3GPP, ASF
Network connection - Ethernet (10BASE-T/100BASE-TX)
Power over Ethernet (PoE) - 802.3af

Wireless LAN

Wireless technology - IEEE802.11b/g
Frequency - 2.412-2.462GHz
Transmission speed - Auto Switch up to 54Mbps
Security - WEP (64/128 bit), WPA-PSK (AES/TKIP), WPA2-PSK (AES/TKIP)

External Ports

Audio Output (2 way audio) - Yes
SD slot - microSD card (16Mb - 8Gb)
Digital I/O - 1 input, 1 output

General

Power requirements - DC 12V
Power consumption - 4.5W
Operating temperature - -5 to +45°C (+22 to +113°F)
Storage temperature - -20 to +60°C (-4 to +140°F)
Operating humidity - 20-80%RH (Non-condensing)
Storage humidity - 20-95%RH (Non-condensing)
Dimensions (D x H) - 70mm x 190mm
Weight - 700g (Main Body)
Supplied accessories - AC Adaptor (x1), Quick Start Guide (x1), CD-ROM inc. Setup Software &
User Manual (x1), Stand (x1), Network Cable (x1), Sun Shield (x1), Breakout Box (x1), Wi-Fi Aerial (x1)

Minimum PC System Requirements

Operating system - Windows 2000/XP/Vista/Windows 7
Processor - Intel Pentium III, 1GHz
Memory - 256Mb RAM

Minimum Mac System Requirements

Operating system - Mac OSX 10.4 (Tiger)
Processor - 800MHz - PowerPC G4 or Intel
Memory - 128Mb RAM (256Mb recommended)

Viewing System Requirements

Web Browser Setup/Viewing - Microsoft Internet Explorer version 5.5 or later, Mozilla Firefox,
Google Chrome, Safari & most other browsers.
Mobile Phone Viewing - 3GPP player, VLC, Real Player, QuickTime and most other VLC players.
Y-cam mobile live images feed can be viewed via most internet enabled devices.

Other Requirements

Broadband connection with at least 128kb/s upload recommended for Internet viewing.
The Y-cam Bullet is designed for indoor or outdoor use and is weatherproof to IP66 standard.

Specifications & Requirements

Infrared Night Vision

The Y-cam Bullet utilises 12 infrared LEDs to provide high
levels of “invisible” light in dark environments. The intelligent
photosensitive components can automatically turn on the LEDs
in low light conditions or the user can select “moonlight view”
which superimposes frames together to increase brightness.

Standard Y-cam Features

Secure Wireless connectivity

Freedom to place the camera where required. With wireless
wi-fi built-in (802.11b/g) connect to your camera from your
wireless enabled computer, meaning there’s no need for wires
running around your property. Y-cam also supports WEP, WPA,
WPA2 for total connection security, and utilises secure password
authentication allowing you to be sure your cameras are only
accessed by authorised users.

Mobile Viewing

With support for MJPEG and 3GPP the camera provides a live
view for multiple platforms, including mobile devices such as the
iPhone and Blackberry. The Y-cam’s live stream can be viewed
using any mobile phone that can play VLC-compatible streams,
such as Quicktime and RealPlayer.

Motion Detection

If the Y-cam detects movement in its field of vision, it can
automatically send an e-mail alert notifying the owner that
motion has been detected, with an attached image of the
scene. Unlike conventional activity detection, the Y-cam uses
vector information to detect motion, therefore achieving better
reliability against false alarms.

Email and FTP alerts

The Y-cam comes with useful alarm tools that will keep you
notified if any motion is detected. It has built-in functions that
can automatically send an email to you, or upload the video or
images straight to a FTP server, meaning that your data will be
safely stored offsite.

PC and Mac Compatible

The Y-cam Bullet is compatible with both PC and Apple
Macintosh computers across multiple web browsers. Mac users
can view live video with audio (using QuickTime), control the
motion detection settings within a browser (using Adobe Flash),
take snapshots from the live feed, and also record footage locally
(using QuickTime Pro).

Record direct to microSD

Using the on-camera microSD card slot, the Y-cam Bullet no
longer needs to be connected to a network or the internet to store
streaming video or motion alerts. Use the camera anywhere, even
remote locations, & store video straight to microSD card, which is
then viewable in your mobile phone, via connection to a TV or PC,
or view footage directly from the camera over WiFi.

Easy to install, simple to operate, the high-performance Y-cam Bullet
camera operates independently, without the need to be connected to a
computer, in full colour and infrared nightvision. View and hear, in real
time, from anywhere in the world, via any internet-enabled computer or
phone. If any motion is detected, the camera can instantly email you a
snapshot, or record the video to a microSD card.

The Y-cam Bullet also includes professional features designed for
industrial and business applications – fully weatherproofed, IR-cut filter
for true/day night operation, 2-way audio, PoE, WiFi and includes a sun
visor for maximum clarity of vision.

The Y-cam Bullet is also available in Black (YCBLB3)

Compatible Systems

Weatherproof

The Bullet is the first true outdoor camera from Y-cam - its fully
waterproof, has shielded cables and seals to ensure smooth
operation, and is IP66-rated.

Professional Connectors

The Y-cam Bullet comes complete with Power over Ethernet
allowing you to transmit data and power over a single cable, a
Digital I/O for systems integration, and 2-way audio* capability
(provided by a built-in microphone and audio out connector)
allowing you to remotely talk to anyone at your cameras site.

PoE

I/O

True Day/Night Picture

Using an Infrared Cut Filter, the Bullet produces true day and
night quality images. Infrared light is filtered during day time
operation to produce true colour representation of the image.
During night time operation the filter is removed to allow the
camera to make full use of its night vision capabilities.
