YB3 Mk3 Manual
!
Manual for YB3 Mk3 Devices (devices sold after October 2014)
!
!
Firmware Versions 3.0.34 and above
!
Last update: 9th October 2014
!
!
!
!
!
Device Manual
!
Using the Device, the Basics! 3!
Orientation, Set-up and Key Features! 3!
User Interface! 3!
Orientation! 4!
Charging and Switching On! 4!
Sending a basic alert! 5!
Features and Facilities! 6!
Operating Modes! 6!
Tracking Menu! 6!
Alerts Menu! 7!
Settings Menu! 8!
Bluetooth Menu! 9!
Messages Menu! 10!
Waypoints Menu! 11!
Advanced Menu! 11!
Deactivation / Turning Off! 12!
Device Maintenance! 13!
Replacing the Battery! 13!
Cleaning! 13!
Fault Finding and Support! 13!
Troubleshooting! 13!
Helpdesk and Support Details! 13!

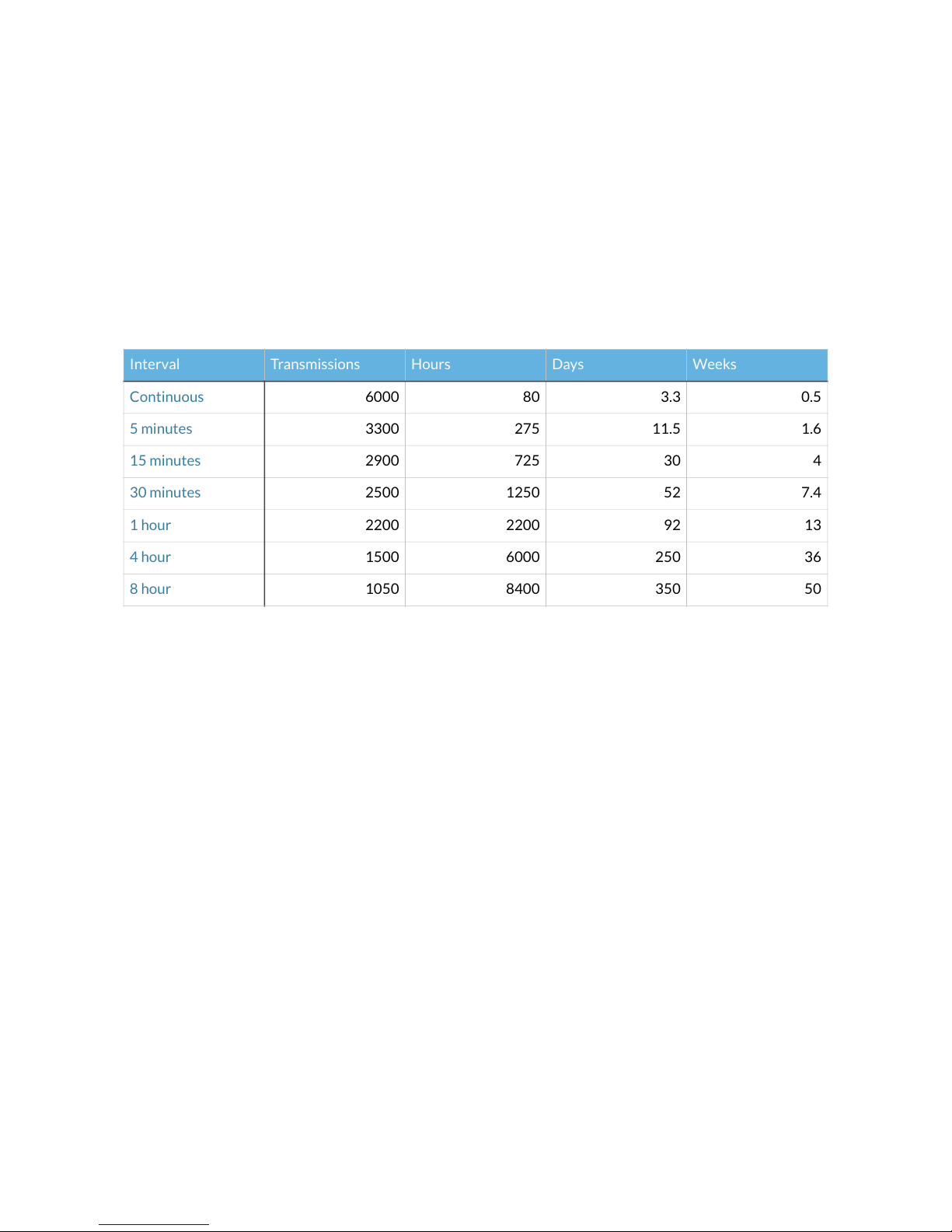

Battery Life Expectations! 14!
Battery Life Expectations! 14!
Warranty & Notices! 15
2
Device Manual
Using the Device, the Basics
!
This section outlines your device’s capabilities and describes how to utilise them when in the field.
!
Orientation, Set-up and Key Features
!
User Interface
!
The user interface consists of a mono display and 6 buttons. One alert button, and five navigation
buttons. The device is designed to be used in conjunction with either the YBlog system (for
individual/consumer use) or the more comprehensive ‘Core’ management system (for corporate use).
!
!
3
Device Manual
The behaviour of many features of your device, including the alert features, is configured by changing
settings in the management system.
!
Orientation
!
Your unit is equipped with both Iridium & GPS antennas located at the top of your casing. For the best
results it is important to be mindful of the orientation of your device when in use. To ensure good
satellite signal, the antennae should be clear of obstructions and have a clear view of the sky.
!
Examples of obstructions include a heavily wooded area or inside a vehicle or building. Environments
such as these offer very little, if any, view of the sky. In these instances, it would be best to reposition
your device so that it can have a clear view of the sky, such as in a clearing, on the dashboard or
rear window of a car or on a windowsill.
!
Once switched ON, your device will try to obtain a GPS signal. The time taken to obtain a signal will
vary from few minutes when the device has never been used or not been used for a while to few
seconds when the device is regularly used.
!
Charging and Switching On
!
The device has an internal rechargeable battery which must be charged before use. Before the first
use we recommend the device is left on charge for a minimum of 8 hours.
!
Your Device can be charged from any USB compatible charging device, although we recommend you
use the provided charger whenever possible.
!
To charge the unit:
!
•
Connect the charger to a wall outlet
•
Attach the USB cable to the charger
•
Unscrew the cap from the bottom to reveal the USB port
•
Plug the USB cable into the USB port on the bottom of the dev ice
!
When charging the light on the front of the keypad will be red. The red light will flash for 5 minutes
when the unit has finished charging, and will then go off.
4
Device Manual
!
The estimated charging time to fully charge the device is 7 to 8 hours from completely discharged.
The device can be used whilst charging, however, the charging cycle will complete more quickly if the
device is deactivated. The device can be used with a partially charged battery.
!
NOTE: If left plugged in, the battery will automatically cycle between around 90% and 100%. This is in order
to protect the health of the Lithium Ion battery inside, and maintain the life of the devices.
!
Your device is now ready for use. You can turn it on by pressing and holding the OK button for 5
seconds.
!
Sending a basic alert
!
The alert button is located under the flap at the bottom of the unit. To trigger an alert, lift the flap and
hold down the alert button for 5 seconds. The screen will display ‘Sending Alert’ and the device will
try to transmit an alert message.
!
If you are in an alert situation, ensure that you give your alert the best possible chance of sending by
considering the orientation of the device. Ensure it has a good view of the sky, or as good a view as is
possible in your situation. The better the view of the sky, the more likely it is that your alert
will be received.
!
!
5
