YBA P1000 Schematic

P1000 AMP (stereo and mono) SERVICE MANUAL
Rev 1.0

For more information on YBA products, please visit www.yba.fr
For support on YBA products service or spare parts, please contact [e-mail]

1

CONTENTS

1. Schematic of the amplifier PCB

2. Layout of the amplifier PCB

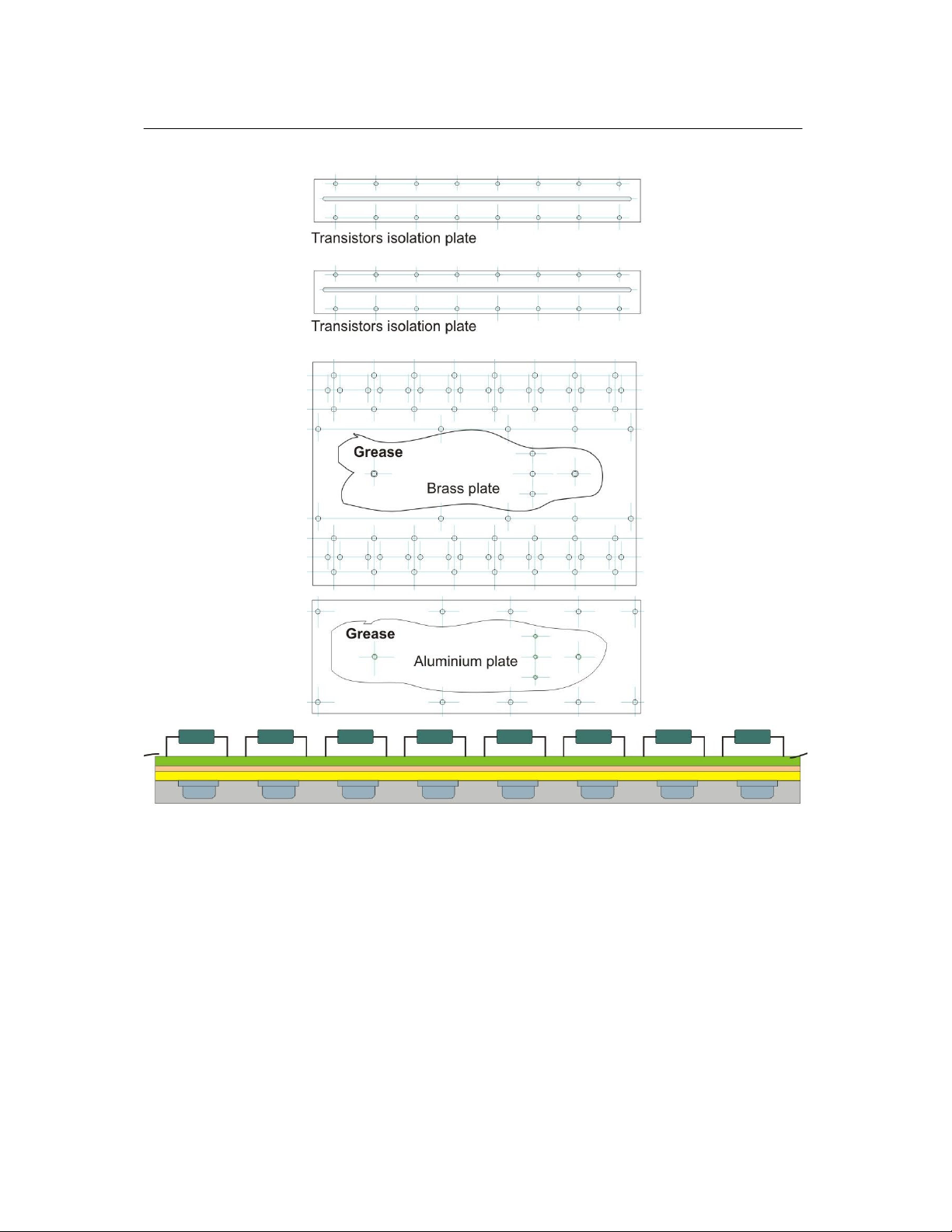

3. Assembly of the amplifier PCB

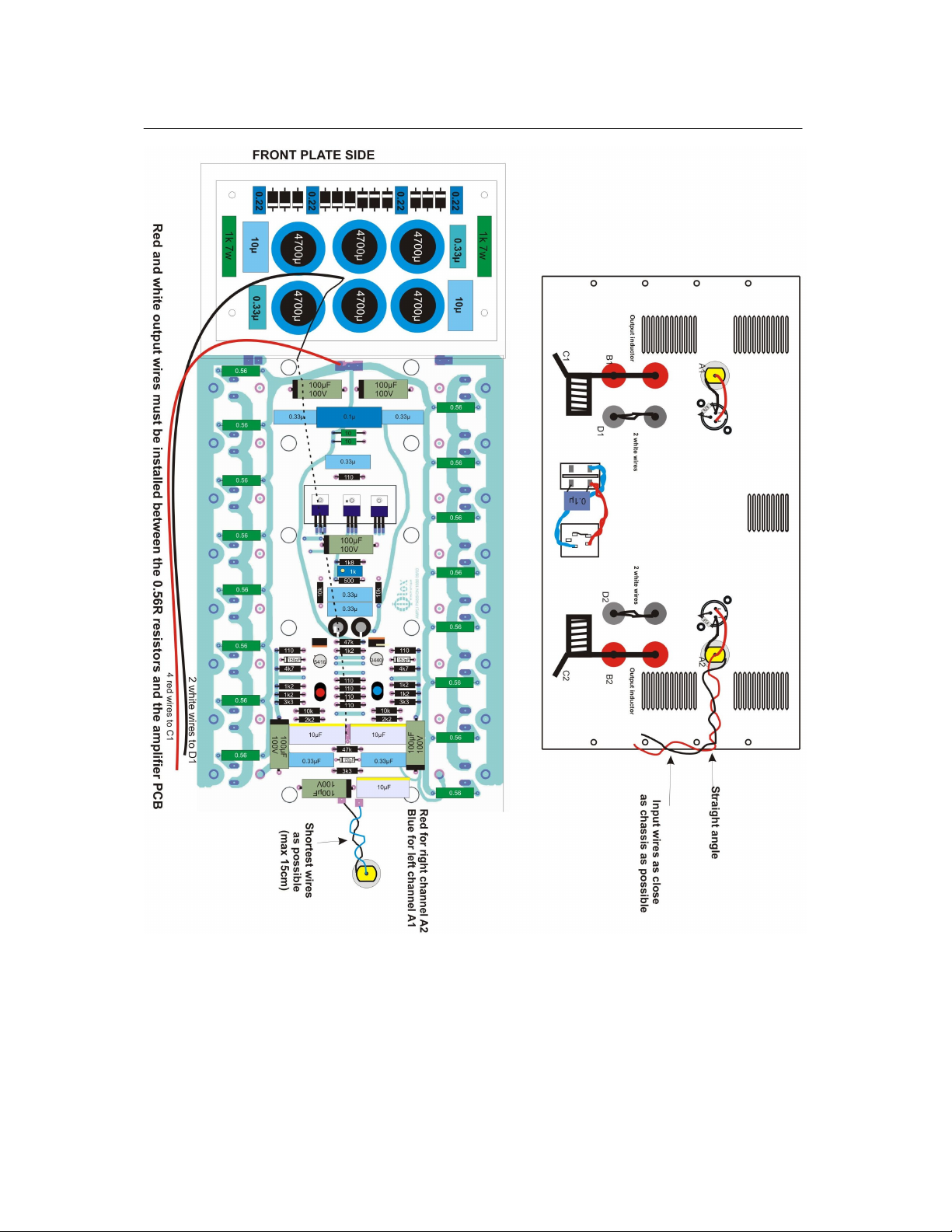

4. AMP1000 Stereo assembly

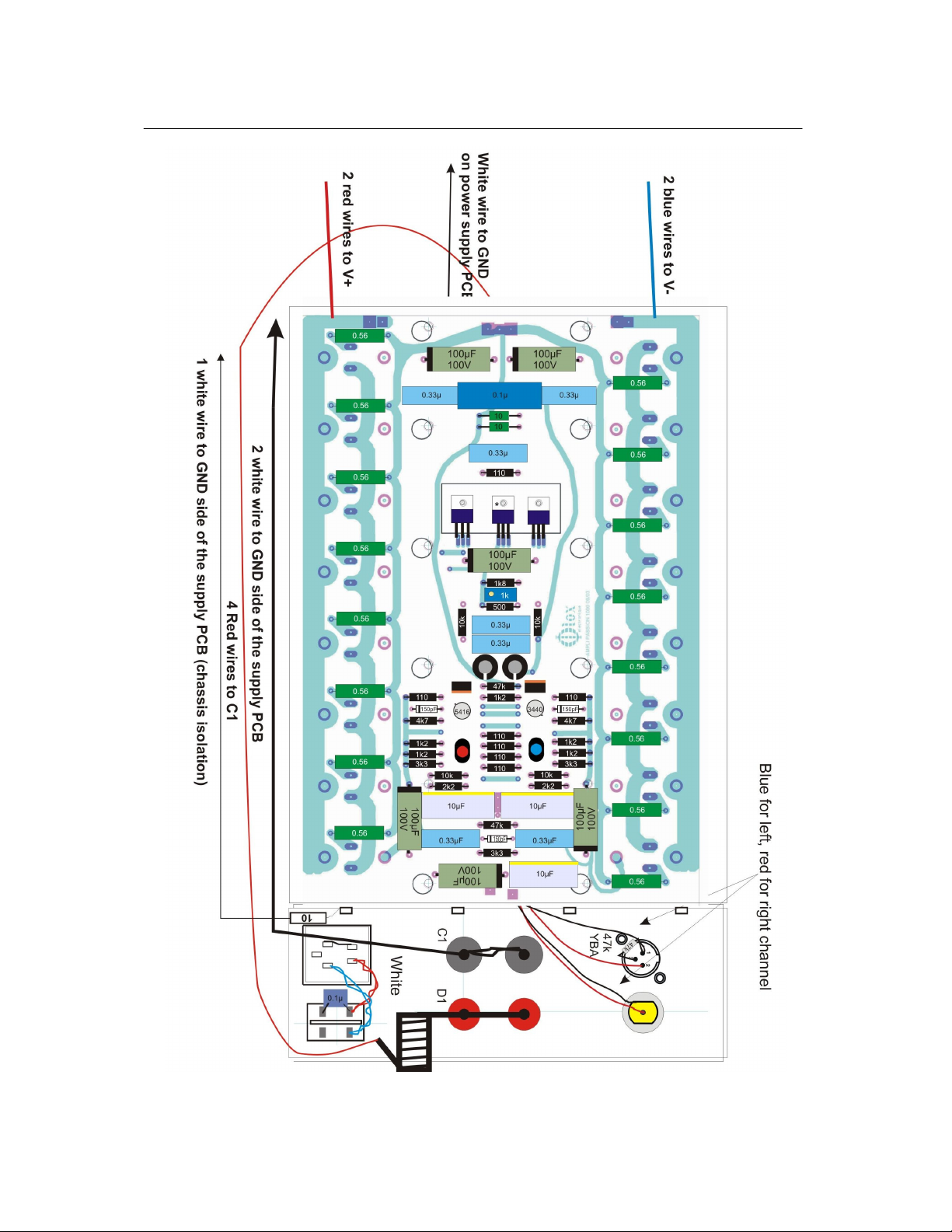

5. AMP1000 Mono assembly

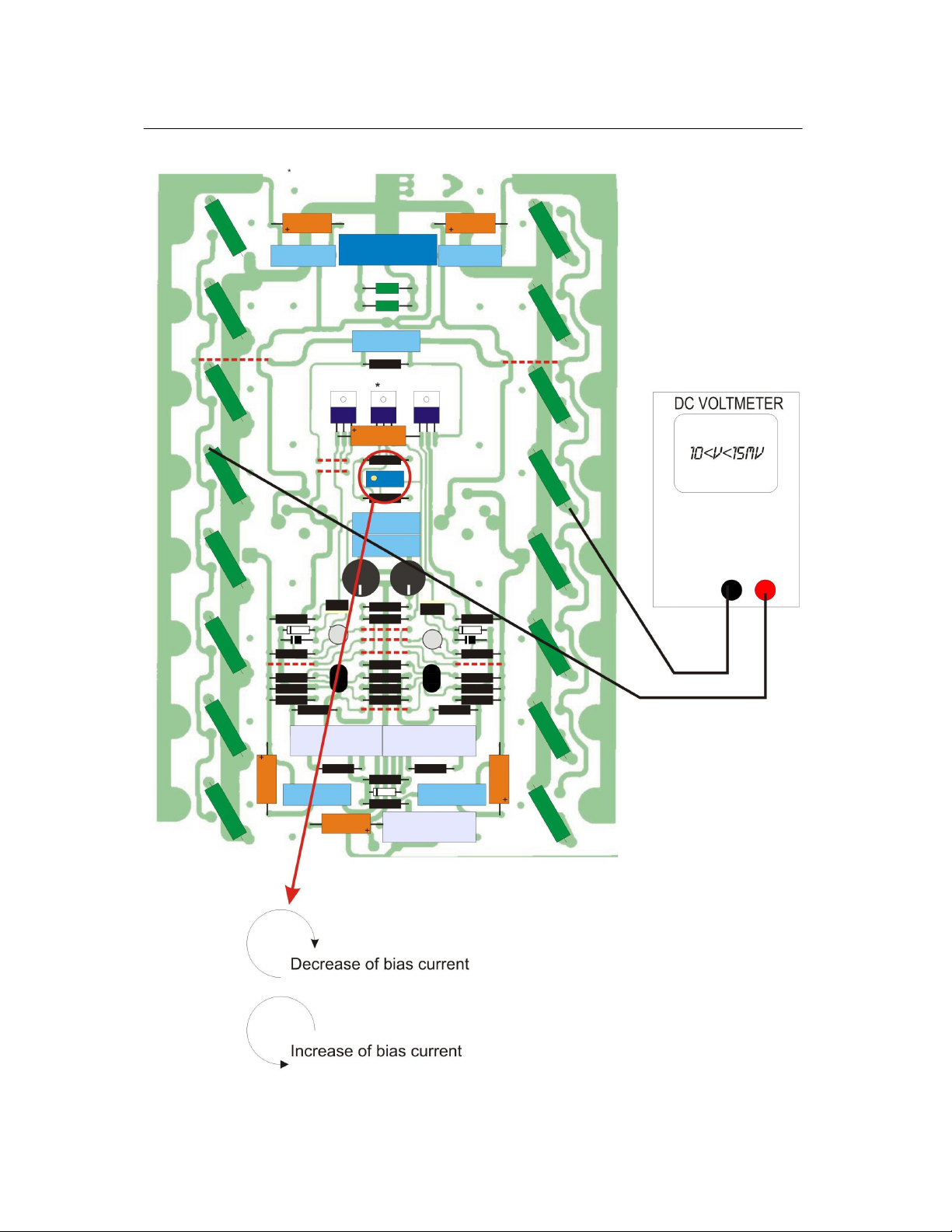

6. Bias setting

7. Known issues

p.3

p.4

p.6

p.8

p.9

p.10

p.11

2

I. Schematic of the amplifier PCB

3

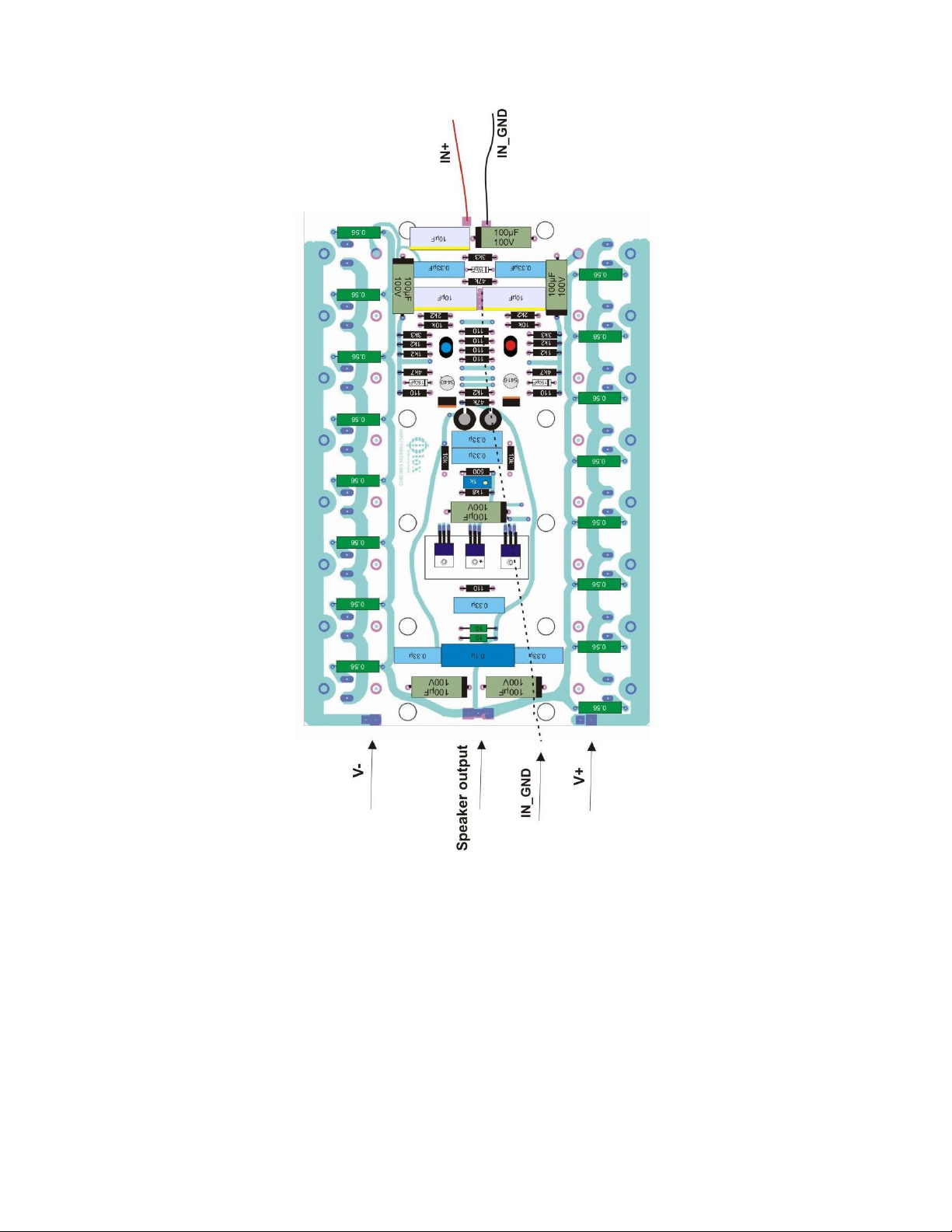

II. Layout of the amplifier PCB

Part list :

Capacitor 150pF (x3)
R SETA 0.56W (x16)
R SETA 10W (x2)

4
