DV CAMERA APW-10
USER MANUAL
i
Table of Contents
About this manual.............................................................v
Copyright...........................................................................v
Precautions ......................................................................vi
Before You Start ...............................................................ix
1 Introducing the video camera ................... 1
1.1 System requirements...............................................1
1.2 Features..................................................................1
1.3 Unpacking the video camera..................................2
1.4 About the video camera..........................................3
1.4.1 Front view...................................................3
1.4.2 Top view .....................................................3
1.4.3 Bottom view ...............................................3
1.4.4 Right and Left views .................................4
1.4.5 Back view....................................................4
1.4.6 About the LEDs..........................................7
2 Getting started............................................ 8
2.1 Inserting an SD card..............................................8
2.2 Inserting the batteries.............................................9
2.3 Turning on/off the video camera .........................12
2.4 Connecting to TV with a USB/AV Cable .............12
2.5 Connecting to PC with a USB/AV Cable .............13
2.6 Changing modes...................................................14
2.7 Before you start ....................................................14
ii
2.7.1
Setting the date and time........................14

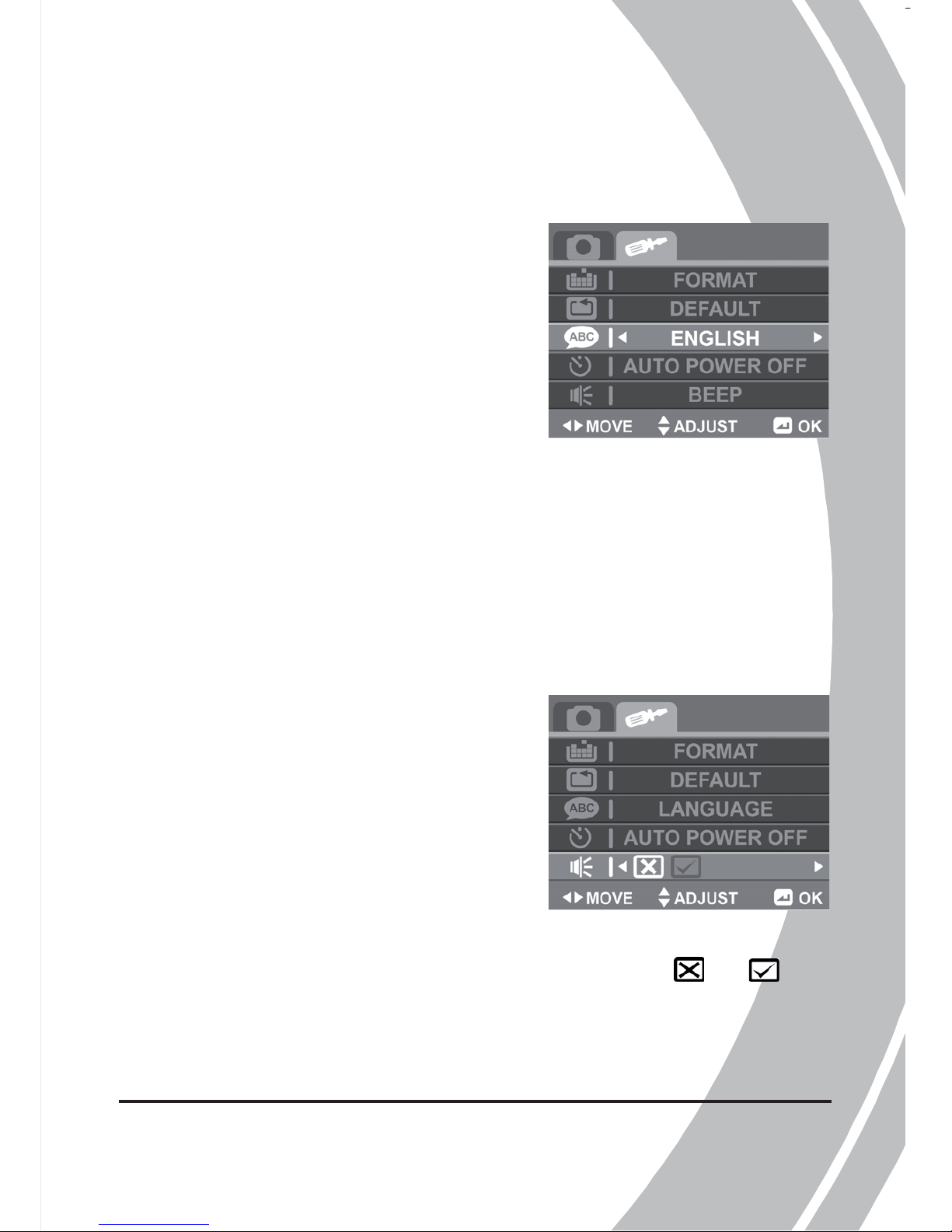

2.7.2 Setting the language................................15
2.7.3 Setting the beep........................................15
3 Using the Video Camera.......................... 16

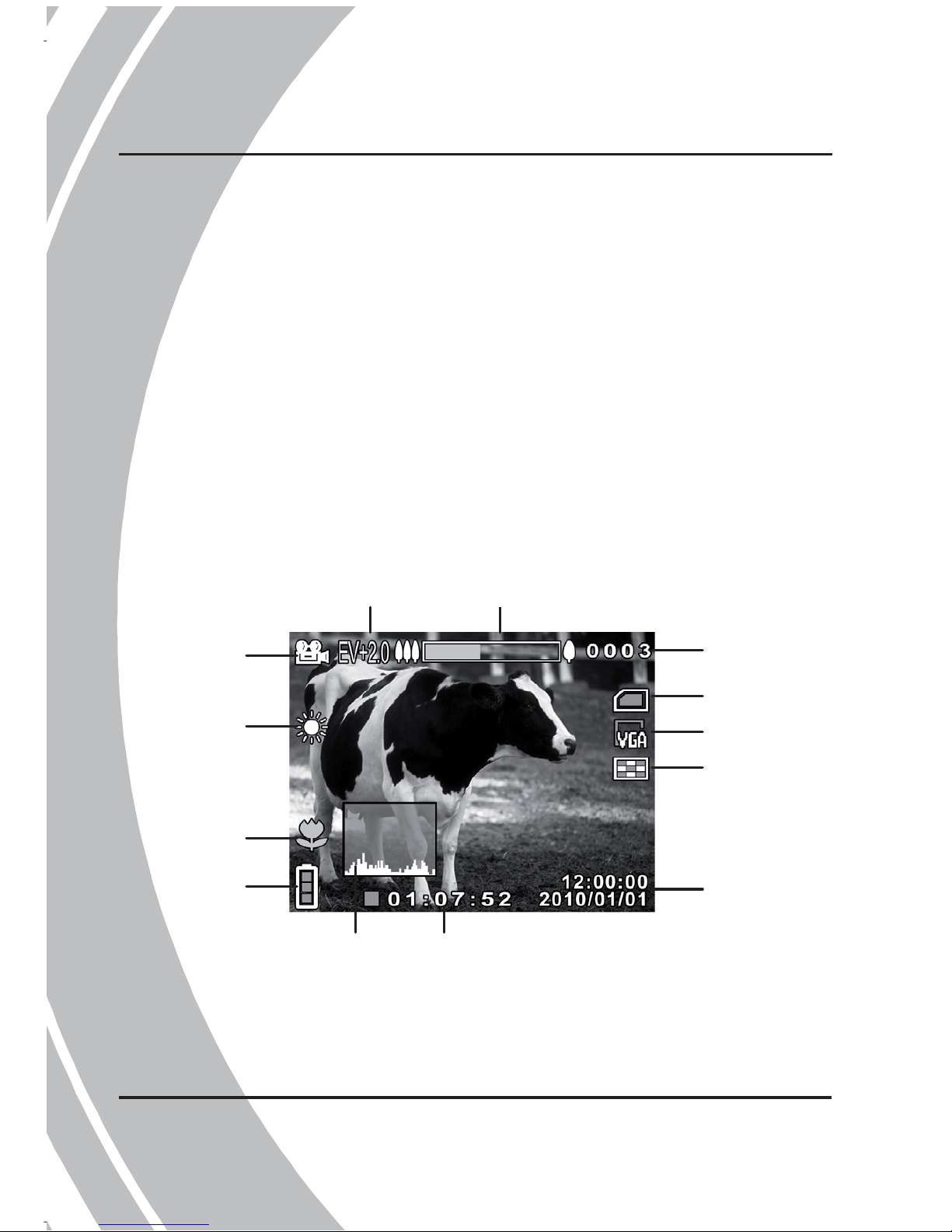

3.1 Recording Videos..................................................16

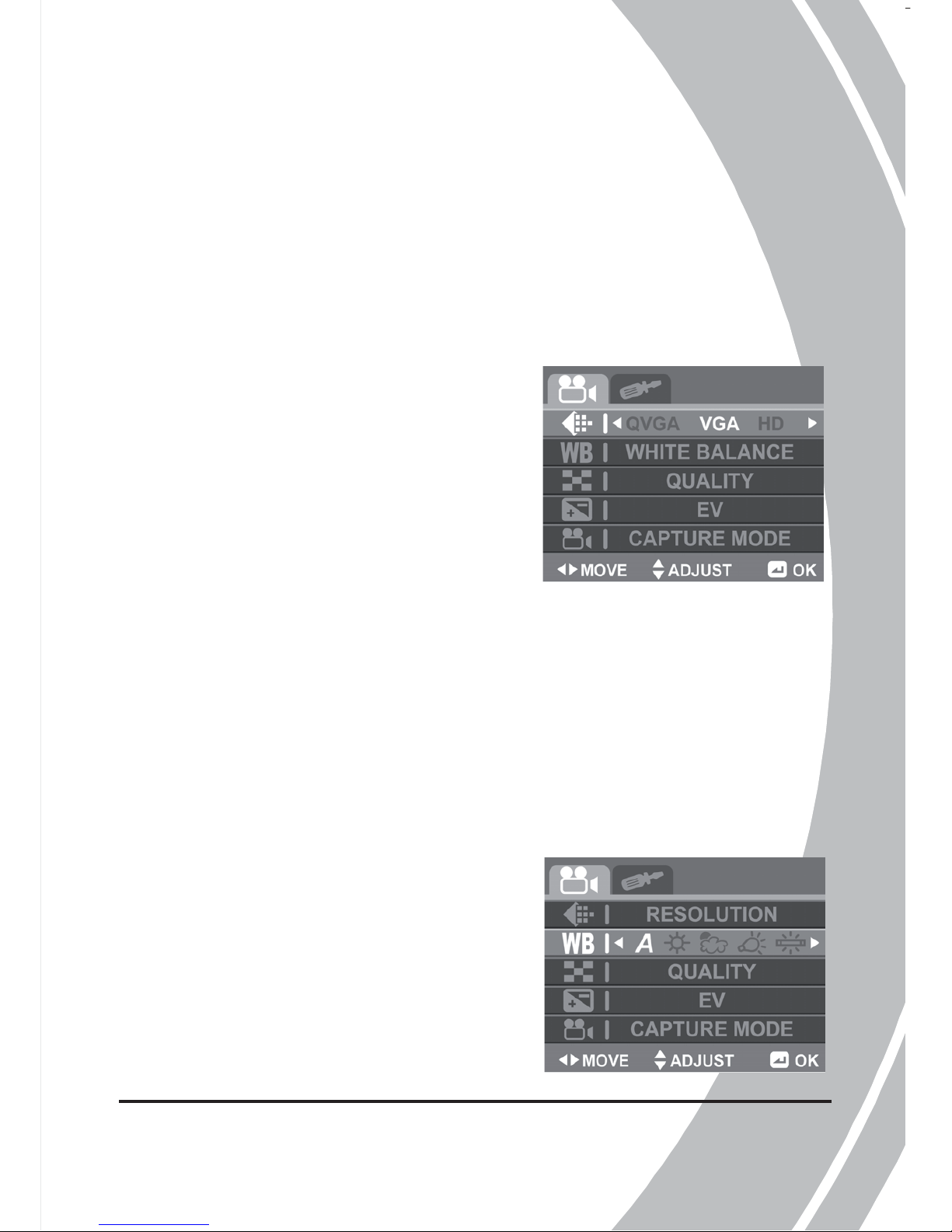

3.2 Video Menu ..........................................................18
3.2.1 Resolution.................................................19
3.2.2 White Balance...........................................19
3.2.3 Quality.......................................................20
3.2.4 EV ..............................................................20
3.2.5 Capture Mode ..........................................21
3.3 Playing Videos ......................................................22
3.4 Video Playback Menu...........................................24
3.4.1 Delete.........................................................25
3.4.2 Protect .......................................................26
3.4.3 Copy to Card............................................27
3.5 Voice Mode ...........................................................28
3.5.1 Recording voice files ...............................28
3.5.2 Playing voice files....................................29
3.6 Shooting Photos ...................................................30
3.7 Photo Menu..........................................................33
3.7.1 Size.............................................................34
3.7.2 Quality.......................................................34
3.7.3 White Balance...........................................35
3.7.4 EV ..............................................................36
iii
3.7.5
Effect..........................................................36
3.7.6 Night Mode ..............................................37
3.7.7 Burst Mode ...............................................37
3.7.8 Face Detect................................................38
3.7.9 Date Stamp ...............................................38
3.8 Viewing Photos.....................................................39
3.9 Photo Playback Menu ..........................................41
3.9.1 Delete.........................................................42
3.9.2 Protect .......................................................43
3.9.3 Autoplay ...................................................44
3.9.4 Copy to Card............................................44
3.9.5 DPOF.........................................................45

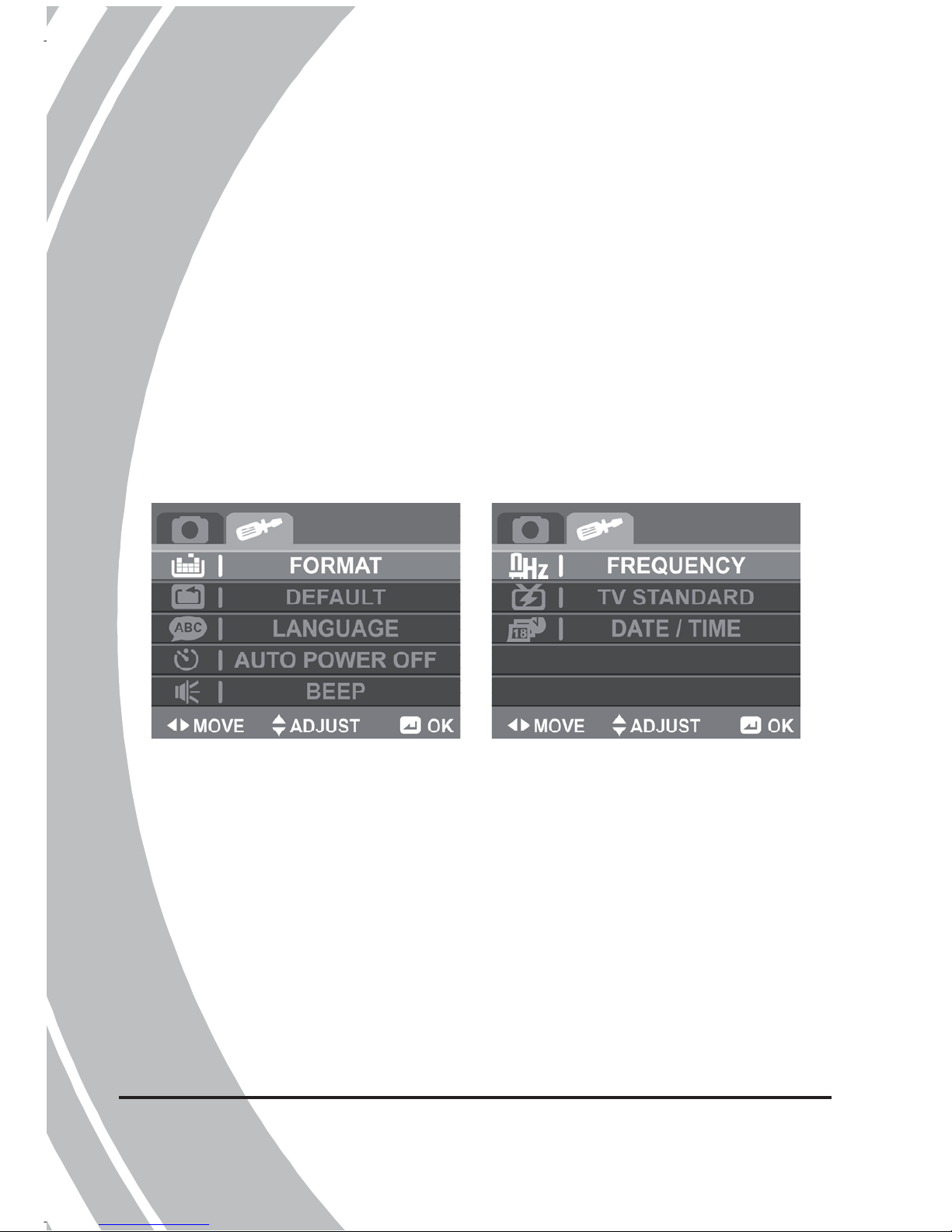

3.10 System Menu ........................................................46
3.10.1 Format .......................................................47
3.10.2 Default.......................................................47
3.10.3 Language ..................................................48

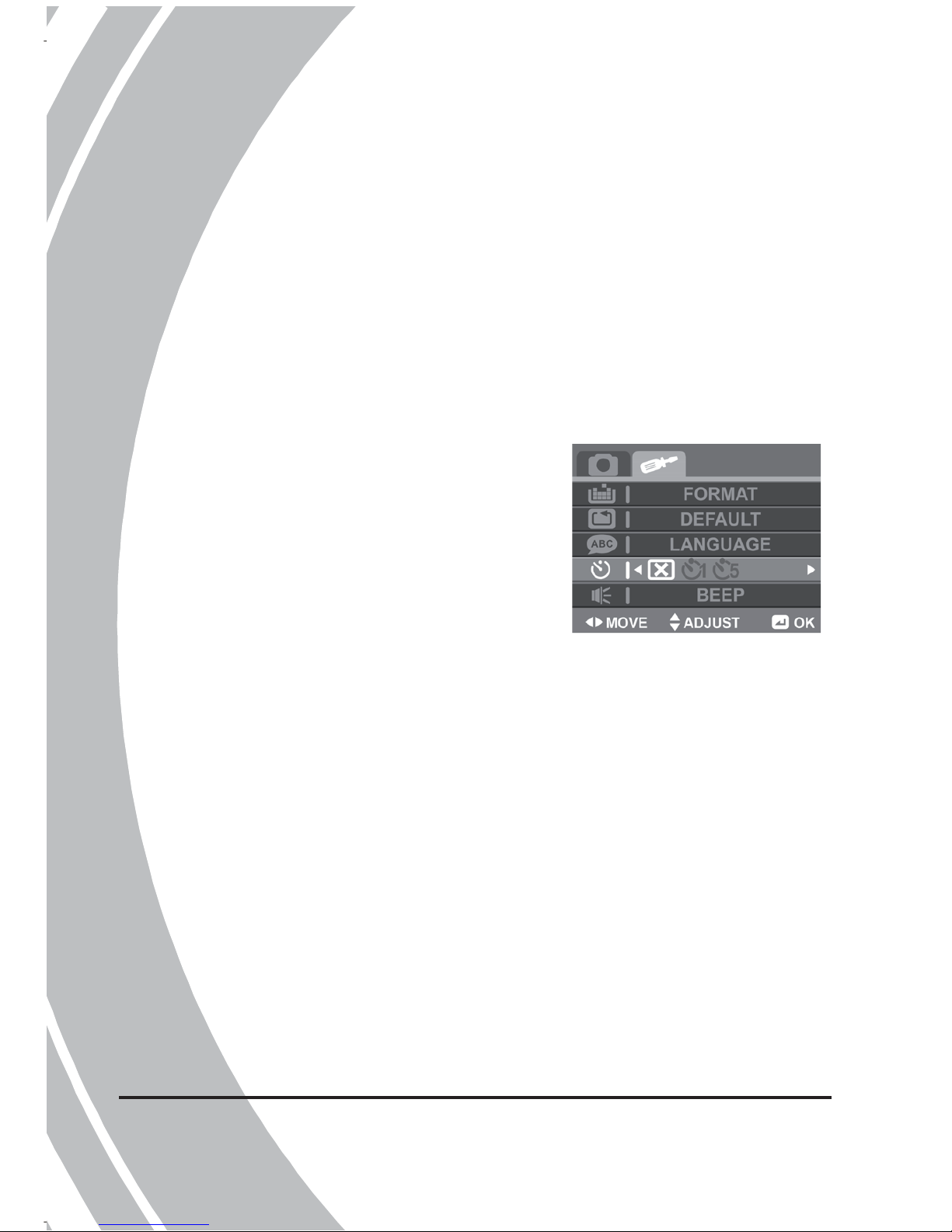

3.10.4 Auto Power Off........................................48
3.10.5 Beep ...........................................................48
3.10.6 Frequency .................................................48
3.10.7 TV Standard..............................................49
3.10.8 Date / Time ..............................................49

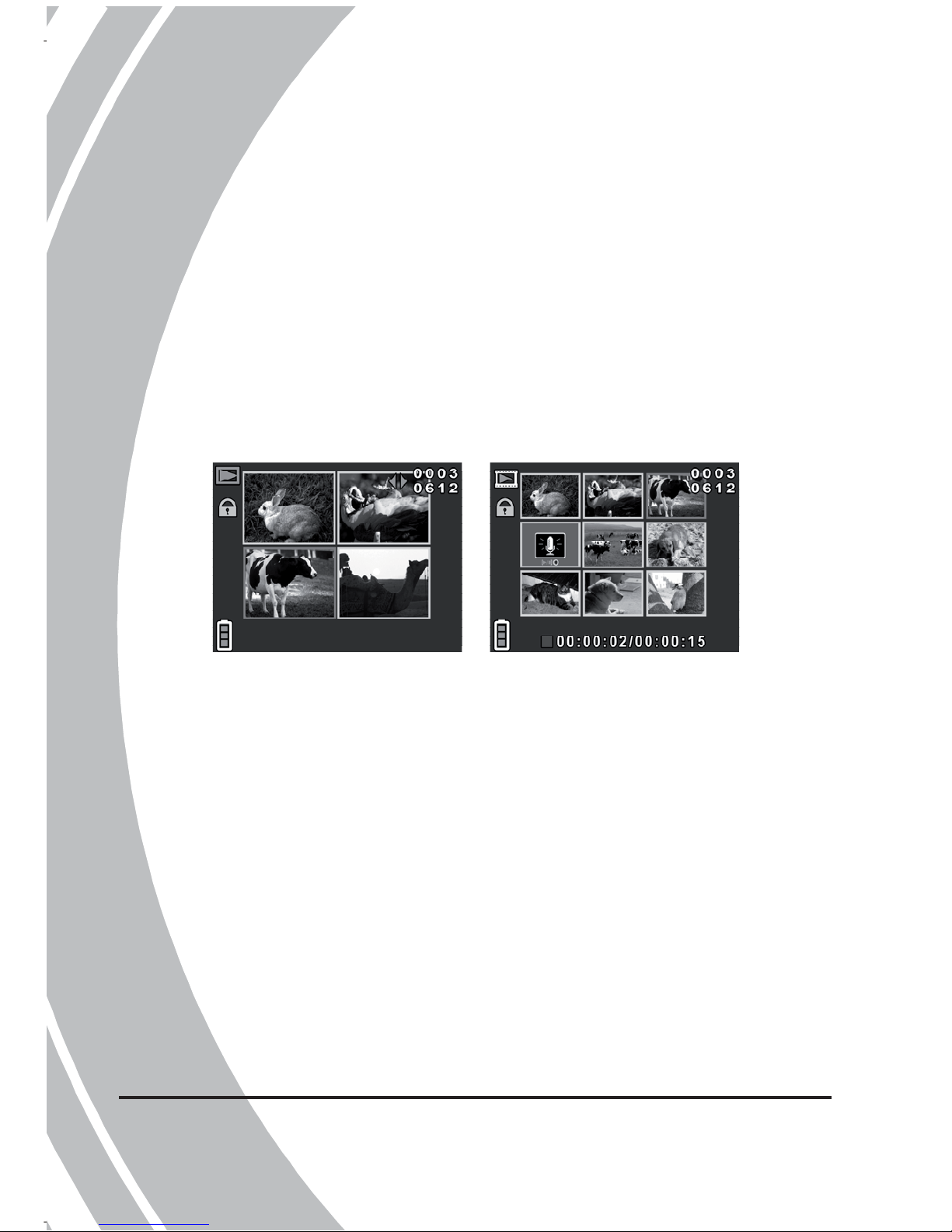

3.11 Thumbnail mode ..................................................50
3.12 USB mode.............................................................51
3.12.1 Using the PC Cam feature ......................51
3.12.2 Using the Mass Storage feature .............51
3.12.3 Using the DPS (Direct Print Standard)
iv
feature ..................................................................51
3.13 Diving mode..........................................................52

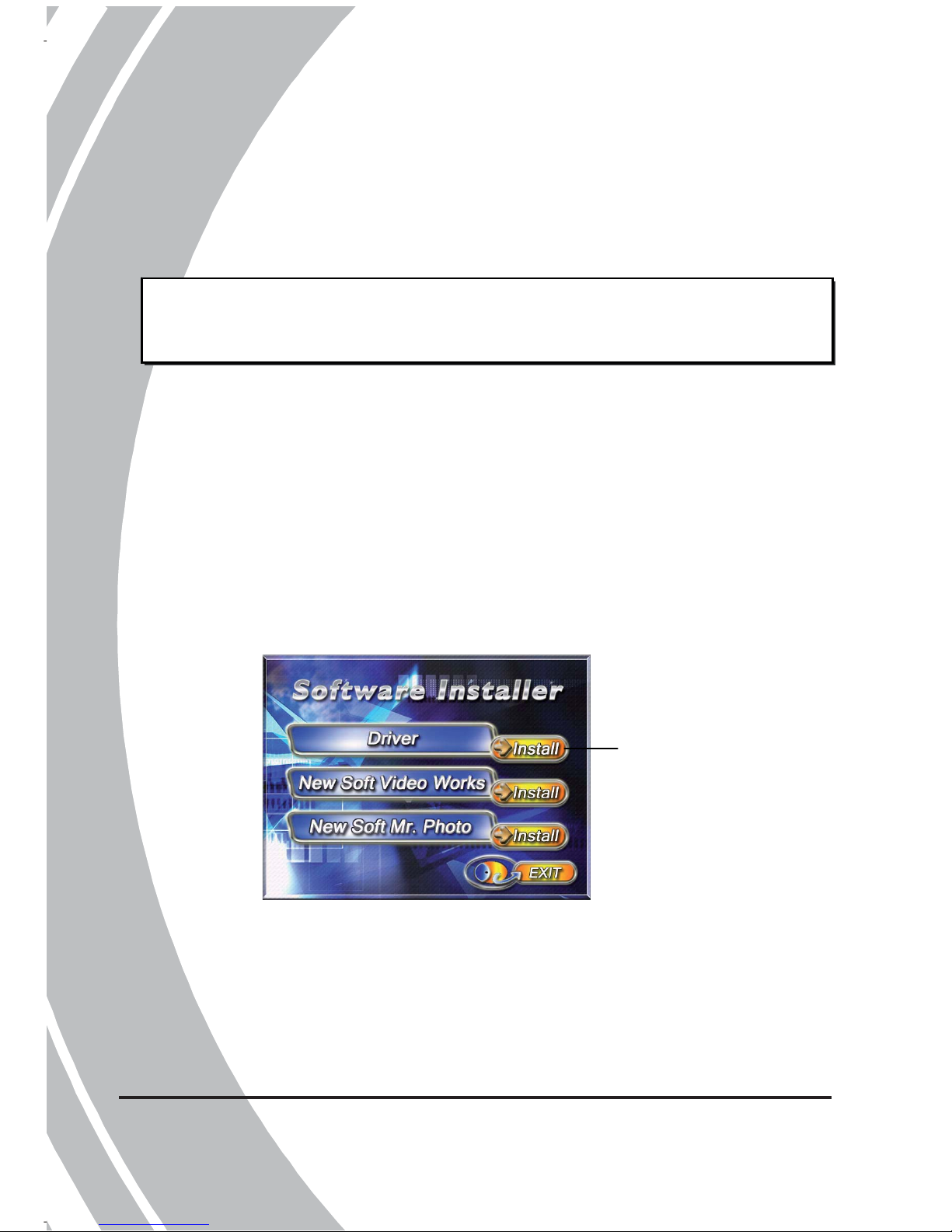

4 Installing software and drivers ............... 53
4.1 Drivers ..................................................................53
4.1.1 Mass Storage.............................................53
4.1.2 PC Camera................................................54
4.2 Presto! Video Works .............................................55
4.3 Presto! Mr. Photo.................................................56
Specification....................................................................57
Troubleshooting ..............................................................60
v
Preface
Congratulations on your purchase of this advanced video camera.
Ensure that you read this manual carefully and keep it in a safe
place for future reference.
About this manual
Every effort has been made to ensure that the contents of this
manual are correct and up to date. However, no guarantee is made
regarding the accuracy of the contents. If the contents of this
manual do not tally with the camera, please take the camera as a
criterion, and our company reserves the right to change the
contents or technical rules without notice in advance. Also, the
manufacturer reserves the right to change the technical specification
in advance without notice.
If the accessories do not tally with the actual package, please take
the actual package as a criterion.
Copyright
© Copyright 2010.
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system or translated
into any language or computer language, in any form or by any
means, electronic, mechanical, magnetic, optical, manual or
otherwise, without the prior written permission of the
manufacturer.
vi
Precautions
General precautions
x Do not use or store the product in dusty, dirty, or sandy areas,
as its components may be damaged.
x Do not store the product in a hot environment. High
temperatures can shorten the life of electronic devices, damage
batteries and warp or melt certain plastics.
x Do not store the product in cold areas. When the product
warms up to its normal temperature, moisture can form inside,
which may damage the electronic circuits.
x Do not attempt to open the casing or attempt your own repairs.
High-voltage internal components create the risk of electric
shock when exposed.
x Do not drop or knock the product. Rough handling may
damage the internal components.
x Do not use harsh chemicals, cleaning solvents or strong
detergents to clean the product. Wipe the product with a
slightly damp soft cloth.
x Do not fire the flash while it is too close to the subject's eyes.
Intense light from the flash can cause eye damage if it is fired
too close to the eyes. When using the flash, the camera should
be at least one meter from the eyes of the subject.
x Do not open the battery cover while an image is being
recorded. Doing so will not only make storage of the current
image impossible, it can also corrupt other image data already
stored in file.
x If the product or any of its accessories are not working
properly, take them to your nearest qualified service center.
The personnel there will assist you and if necessary, arrange
for the product to be repaired.
x Test for proper operation before using the camera.
vii
Notes on the LCD Screen
Be very careful to ensure the fluid contained in the LCD screen does
not escape if the screen becomes cracked or damaged. If this occurs,
follow these steps:
x If the fluids make contact with skin, wipe it with a clean cloth
then rinse with a large amount of water.
x If the fluid makes contact with eyes, wash eyes with clean
water for at least 15 minutes and go to the hospital as soon as
possible.
x If the fluid is swallowed, first rinse mouth with water, then
drink a large amount of water and induce vomiting. Go to the
hospital as soon as possible.
Waterproof
Waterproof performance
x The camera’s waterproof performance is equivalent to the
IPX8 standard.
x The supplied accessories are not waterproof.
When using the camera
x The waterproof properties of the camera apply to fresh water
and saltwater only; they do not apply to cleaning substances,
chemicals, or water from spas, etc. Any such liquids should be
wiped off immediately.
x Do not immerse in water at a depth greater than 3.0 m (10 ft).
x Do not subject the camera to highly pressurized water.
x Do not immerse in water for longer than 60 minutes. After 60
minutes of use in water, allow the camera to dry for at least 10
minutes.
x Do not immerse in water warmer than 40°C (104°F).
x Do not open or close the battery/card compartment cover
when the camera is wet or underwater.
viii
x Do not open or close the battery/card compartment cover with
wet hands.
x Do not open the battery/card compartment cover next to
water or a pool.
x The camera is not dust-proof.
x Do not bump or knock the camera underwater, otherwise the
battery/card compartment cover may open.
After using the camera
x Be sure to wipe any dirt or sand off the waterproof sealing
material or its contraction surface. Dirt or sand may scratch the
material or the surface, making the camera less resistant to
water.
x To wash sand, dirt or dust off the camera, rinse it under
running tap water or soak it in a bowl of fresh water for 2 or 3
minutes.
x Do not use any soapy water, mild detergents, alcohol or
similar liquids to clean the camera. They may make the camera
less resistant to water.
The waterproof of sealing material is replaceable at cost. The
material should be replaced once a year to maintain the camera
water resistance.
Operation conditions
x This camera is designed for use in temperatures ranging from
0°C to 40°C (32°F to 104°F).
x Do not use or keep the camera in the following areas:
- In areas subject to direct sunlight
- In areas subject to high humidity or dust
- Near air conditioners, heaters, or other areas subject to
temperature extremes
- Inside of a closed vehicle, especially one parked in the sun.
- In areas subject to strong vibration
i
x
Power supply
x Use only the type of battery that came with your camera.
Using any other type of battery may damage the equipment
and invalidate the warranty.
x Ensure the battery is inserted correctly. Inserting the battery
incorrectly can cause damage to the product and possibly start
a fire.
x Remove the battery to avoid the fluid leakage if the camera is
not going to be used for a long time.
x If the battery is crushed or damaged, remove it immediately to
avoid the battery fluid leakage and abnormal expansion.
Before You Start
Taking test shots
Before taking pictures with this DV camera in any important
occasion (such as a wedding ceremony or an overseas trip), do test
the DV camera beforehand to ensure that it functions properly. Any
additional loss caused by the malfunction of this product (such as
costs of photography or any loss of benefit generated by the
photography) is not the responsibility of the manufacturer and no
compensation will be given for it.
Copyright information
Take care to observe "No Photography" notices in certain locations.
In these cases, you cannot record any live performance,
improvisation or exhibits, even for personal purposes. Any transfer
of pictures or memory card data must be conducted under the
constraints of copyright law.
1
1 Introducing the video camera
Read this section to learn about the features and functions of the
video camera. This chapter also covers system requirements,
package contents, and descriptions of the hardware components.
1.1 System requirements
The video camera requires a PC with the following specifications:
x Windows® 2000/XP SP2/Vista/
Windows 7 operating system (All 32-bit only)
x Intel® Pentium IV 2.8GHz/AMD Athlon 64 or higher
x At least 512 MB of RAM or higher
x Graphic card with DirectX 9 support (DirectX 10 recommended)
x Standard USB 1.1 port or higher
x At least 800 MB of available disk space
1.2 Features
The video camera offers a variety of features and functions including:
x Full HD 720p (30fps)
x HD digital video camera
x Voice recorder
x USB mass storage
x Waterproof IPX8
x Digital camera – (max. 16 Megapixels)
x Face detection
x DPS (Direct Print Service) support
z Note:
A USB 1.1 port will enable you to transfer files to and from
your host PC, but transfer speeds will be much faster with a
USB 2.0
p
ort.
2
1.3 Unpacking the video camera
The following items should be present in the package. If any item is
missing or appears damaged, contact your dealer immediately.
Video camera Pouch USB/AV cable
CD ROM User’s M
anual
3
1.4 About the video camera
Refer to the following illustrations to familiarize yourself with the
buttons and controls of this video camera.
1.4.1 Front view
LED light
Lens
Microphone
1.4.2 Top view
Speaker
Power button
Record button
1.4.3 Bottom view
Tripod socket
USB
SD card slot
Battery compartment
4
1.4.4 Right and Left views
Strap hole
Macro button
1.4.5 Back view
LCD screen
Zoom button
Playback button
Mode button
Menu button
Power LED
4-way Navigation
button
5
See the table below for a description of each button’s function.
Name Button
Function
Power
Button
Press and hold to turn the
power on or off.
Record
Button
In Video mode:
x Press to start recording a
video. Press again to stop.
In Photo mode:
x Press to take a picture.
Zoom
Button
In Video and Photo modes:
x Press the T/W Button to
zoom out/in.
In Video Playback and Photo
Playback modes:
x Press the T Button to enter
the Thumbnail mode.
x Press the T/W Button to
toggle four or nine
thumbnail view.
In Photo Playback mode:
x Press the W Button to enter
the Zoom mode.
While playing video:
x Press to adjust the volume.
6
Name Button Function
Mode
Button
Press to switch to different
modes: Video, Video (in
Diving), Photo, or Photo (in
Diving).
4-way
Navigation
Button
In OSD menus:
x Use the 4-way Navigation
Button to select items in the
menu and press the middle
button to confirm.
In Video and Photo modes:
x Press the Down Navigation
Button to toggle the display
mode.
In Photo mode:
x Press the Up Navigation
Button to toggle the flash
mode.
x Press the Right Navigation
Button to view the latest
taken photo.
x Press the Left Navigation
Button to toggle the
self-timer.
7
Name Button Function
Playback
Button
Press to switch to Playback
mode.
Menu
Button
Press to display the menu for
the current mode.
1.4.6 About the LED
The following table describes the camera LED:
LED Color Definition
Green Power-on
Green Blinking Low battery
Power
Red Blinking
Protect/Unlock All
Format/Delete/Recording/
USB Mass Storage operation
8
2 Getting started
Read this section to learn how to start using the video camera. This
section covers basic functions such as switching on, inserting the
batteries and memory card, and configuring preliminary settings.
See later chapters for advanced functions.
2.1 Inserting an SD card
An SD card can be installed in the video camera to provide
additional storage space for still images, video clips, or other files.
1. Push the tab upwards to open the bottom cover lock then
push right to open the bottom cover.
2. Insert the memory card. We recommend using a memory
card with a capacity of 1 GB or higher.
9
3. Close the bottom cover.
4. Push the tab downwards to secure the bottom cover lock.
2.2 Inserting the batteries
This video camera is designed to use two AAA alkaline batteries.
.
z Note:
Install the batteries exactly as described here. Installing the
batteries incorrectly could cause damage to the video camera
and possibly start a fire.
10
1. Push the tab upwards to open the bottom cover lock then
push right to open the bottom cover.
2. Push left to open the battery cover.
3. Insert the batteries. Ensure that the + and – symbols on the
batteries line up with the + and – symbols on your video
camera.
11
4. Close and push right to secure the battery cover.
5. Close the bottom cover.
6. Push the tab downwards to secure the bottom cover lock.
