Electric Log Splitter
Operator’s Manual
Save This Manual for Future Reference
MODEL NUMBER
YS0552
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
main label. You should record
both of them in a safe place for
future use.
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
FOR YOUR SAFETY
TM
Tame the Great Outdoors
Introduction 1
Specications 2
Symbols 3
Safety 3
Contents Supplied 5
Know Your Machine 5
Assembly 6
Operation 7
Freeing a Jammed Log 9
Replacing Hydraulic Oil 10
Sharpening the Wedge 10
Troubleshooting 11
Wiring Diagram 11
Plumbing Diagram 11
Parts Diagram 12
Parts List 13
TABLE OF CONTENTS
Your new YARDMAX™ electric log splitter offers quality
construction, and is easy and safe to operate. With
proper use and care, it is designed to give you many years
of dependable service.
Prepare to experience the durability to take on any job
— with the ease, portability, and convenience of clean,
electric splitting!
Discover the YARDMAX Advantage
At YARDMAX, we understand that land ownership
definitely has its privileges, but it also comes with a
great deal of responsibility. When duty calls and you
need to respond, will you have what it takes to tame the
great outdoors?
When looking for outdoor power equipment (OPE) to get
the job done right, at the right price, YARDMAX delivers
the perfect combination of performance and practicality.
YARDMAX has a solution that’s right for you.
Your new
Log Splitter
will more than satisfy your
expectations. It has been manufactured under stringent
quality standards to meet superior performance criteria.
You will nd it easy and safe to operate, and with proper
care, it will give you many years of dependable service.
MAX Performance, MAX Value, MAX Support —
that’s YARDMAX
Backed by decades of proven manufacturing expertise
Enhanced design features come standard
Engineered for the best user experience
Quality metal parts are used instead of plastic
A robust warranty supports all products
Budget-friendly prices make it practical
Up for the job? YARDMAX is.
√
√
√
√
√
√
Carefully read through this entire operator’s manual
before using your new Log Splitter. Pay attention to
all cautions and warnings.
MODEL AND SERIAL NUMBERS
Record the model and serial number as well as date
and place of purchase for future reference. Have this
information available when ordering parts or optional
accessories and when making technical or warranty
inquiries.
DISCLAIMER
YARDMAX reserves the right to discontinue, change,
and improve its products at any time without notice
or obligation to the purchaser. The descriptions and
specications contained in this manual were in effect at
printing. Equipment described within this manual may be
optional. Some illustrations may not be applicable to your
unit.
ENVIRONMENTAL
Recycle unwanted materials instead of disposing of
them as waste. All tools, hoses, and packaging should
be resorted, taken to the local recycling center and
disposed of in an environmentally safe way.

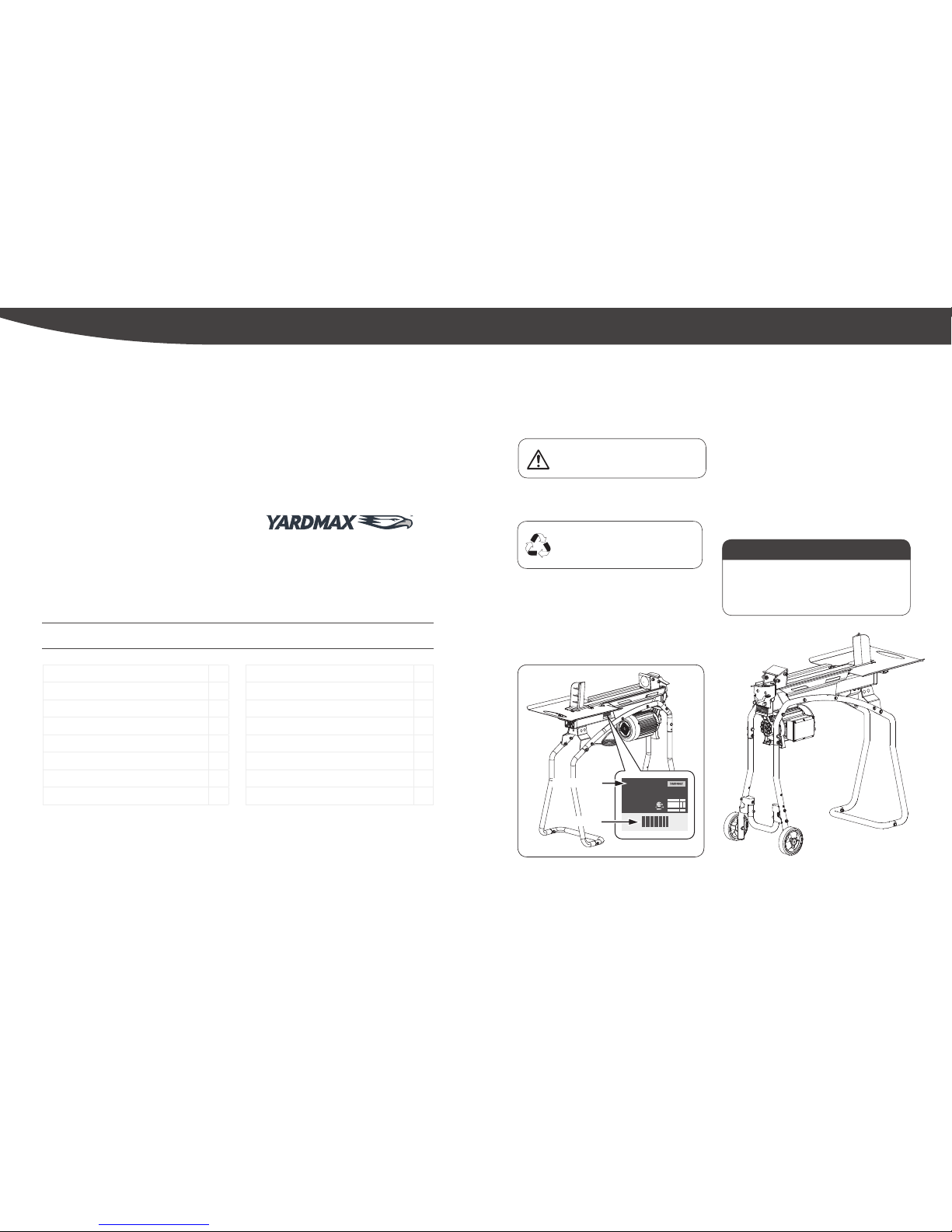

Hydraulic Log Splitter
YS0552
5 ton
20 1/2” long,
10” diameter
120V~ 60Hz,
15A, 1 3/4HP
108 lbs
Manufacture Date:
11~201~10
2015 2016 2017
1 2 3 4 5 6
7 8 9 1011 12
21~30
Force:
Log Capacity:
Motor:
Weight:
Made in P.R.C
100010616
Model Number
Serial Number
SUPPORT
Have questions about your YARDMAX equipment?
Call us at 844-YARDMAX, email us at
support@yardmax.com, or contact us via your
favorite social media site.
1 2
Electric Log Splitter
»
Operator’s Manual
Specications
||
Introduction
SPECIFICATIONS
Item No. YS0552
Motor 120V~ 60Hz 15A, 1.75HP
Log Capacity
Diameter 10 in
Length 20.5 in
Splitting Force 5 ton
Hydraulic Pressure 3,000 PSI
Hydraulic Oil Capacity 3.7 qt
Overall Size
Length 37.4 in
Width 18.1 in
Height 39.5 in
Weight 108 lbs
SYMBOLS
The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use.
Read these instructions carefully.
Wear eye protection.
Wear hearing protection.
Wear protective gloves.
Wear safety footwear.
Do not remove or tamper with the
protection and safety devices.
Properly dispose of waste oil!
Risk of injury.
Do not reach into the machine
without protection!
Warning! Stay clear of moving parts!
Disconnect the main plug prior to
the repair, cleaning, and maintenance of
the splitter!
Keep children and bystanders off
and away.
SAFETY
KNOW YOUR LOG SPLITTER
Read this manual and all labels to understand your YARDMAX log
splitter and its limitations and potential hazards.
DRUGS, ALCOHOL, AND MEDICATION
Do not operate your log splitter while under the influence of
drugs, alcohol, or any medication that could affect your ability to
use it properly.
AVOID DANGEROUS CONDITIONS
Secure your log splitter on level ground. Keep your work area
clean and well lighted. Cluttered areas may cause injuries. Do not
use your log splitter in wet or damp areas or expose it to rain. Do
not use it in areas where fumes from paint, solvents, or ammable
liquids pose a potential hazard.
INSPECT YOUR LOG SPLITTER
Inspect your log splitter before turning it on. Keep guards in
place and in working order. Regularly check to see that keys
and adjusting wrenches are removed from the tool area before
turning it on. Replace damaged, missing, or failed parts before
using it.
DRESS PROPERLY
Do not wear loose clothing, gloves, or jewelry (rings, watches) that
can be caught in moving parts. Wear protective nonconductive
gloves and nonskid footwear. Pull long hair back or wear a hat to
prevent hair from getting caught in the machine.
PROTECT YOUR EYES
Always wear safety glasses. Log splitters can throw foreign
objects into the eyes, causing permanent eye damage. Everyday
glasses do not have impact-resistant lenses and should not
replace safety glasses. Z87 rated glasses are recommended.
PROTECT YOUR BODY
Always stand behind the log splitter and be alert. Logs can
become a projectile under force of the ram in any direction.
KEEP VISITORS AND CHILDREN AWAY
Only one person at a time should operate the log splitter.
Bystanders should keep a safe distance from the work area,
standing behind the operator. Never have another person help
you free a jammed log.
EXTENSION CORDS
Improper use of extension cords can result in overheating. Your
extension cord should be no longer than 30 feet and a minimum
of 12 gauge with a 3-prong grounded plug.
AVOID ELECTRICAL SHOCK
Never open the pushbutton box on the motor. For any service
please contact YARDMAX or an authorized service center. Make
sure your fingers do not touch the plug’s metal prongs when
plugging or unplugging the log splitter.
INSPECT YOUR LOG
Make sure there are no nails or foreign objects in logs to be split.
The ends of the logs must be cut square. Branches must be cut
off ush with the trunk. Knots can make a log split differently and
could cause the log to become a projectile.
DON'T OVERREACH
Do not operate your log splitter on a slippery surface. Never
stand on the log splitter.
AVOID INJURY FROM ACCIDENTS
Always pay attention to the movement of the log ram. Do not load
the log until the log ram has stopped.
PROTECT YOUR HANDS
Keep your hands out of the way of all moving parts. Keep your
hands away from splits and cracks that open in the log; they may
close suddenly and crush or cut off your hands. Do not remove
jammed logs with your hands.
DO NOT FORCE TOOL
Your log splitter will do a better and safer job at its design
rate. Never try to split logs larger than those indicated in the
specifications table. This could be dangerous and may damage
the machine. Do not use your log splitter for anything other than
splitting logs.
NEVER LEAVE TOOL UNATTENDED
Do not leave your log splitter until it has come to a complete stop.
DISCONNECT POWER
Unplug your log splitter when not in use and before making
adjustments, changing parts, cleaning, or servicing. Consult the
technical manual before servicing.
PROTECT THE ENVIRONMENT
Take used oil to an authorized collection point. Do not pour into
drains, soil, or water.
MAINTAIN YOUR LOG SPLITTER WITH CARE
Keep your log splitter and its parts clean.
CHILDPROOF YOUR WORKSHOP
Store your log splitter away from children and others not
qualied to use it.
WARNING! Stay of clear of all moving parts!
3 4
Electric Log Splitter
»
Operator’s Manual
|
Symbols Safety
|

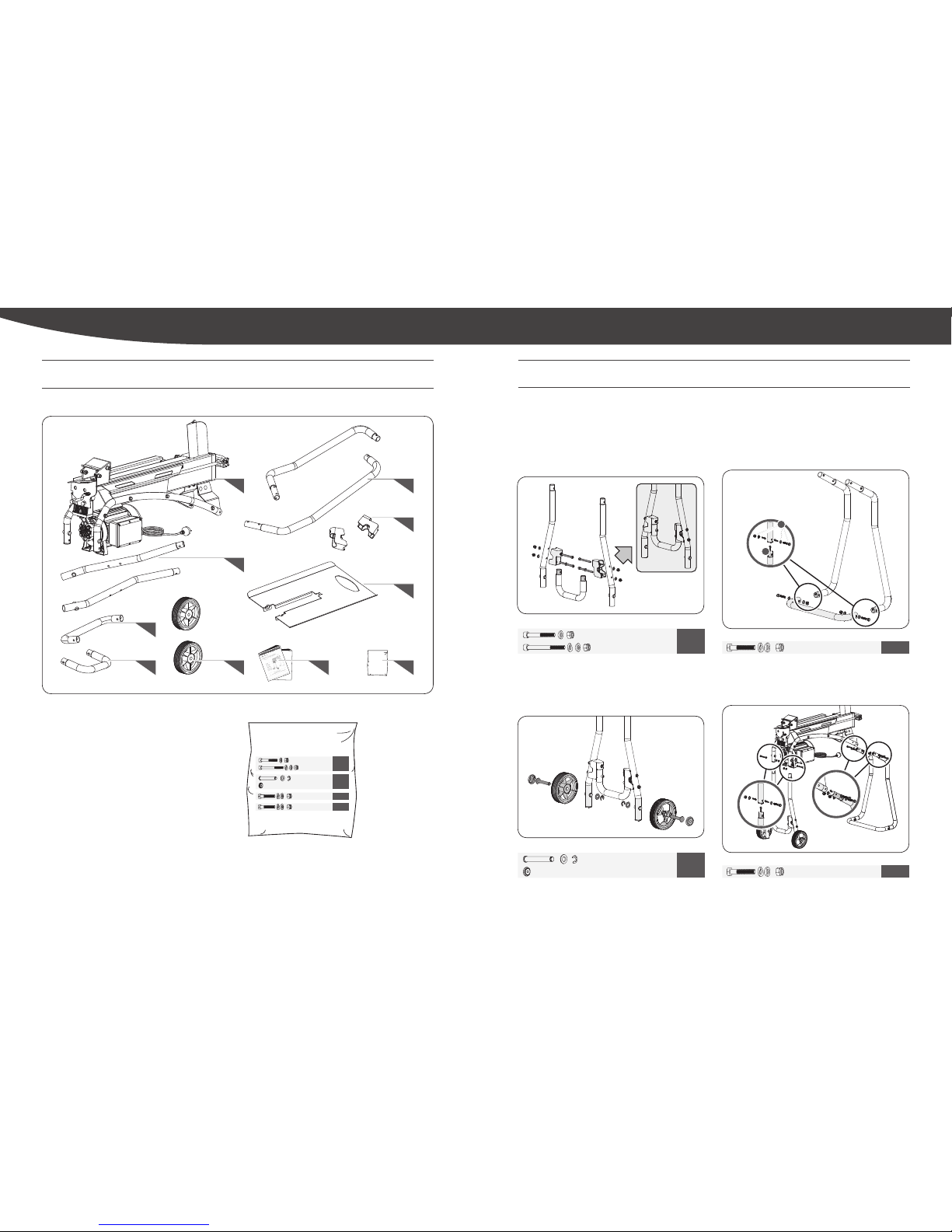

Your YARDMAX log splitter comes partially assembled and contains the following:
1. Log Splitter Frame
2. Rear Support Legs (1 Pair)
3. Front U-Shaped Connecting Pipe
4. Rear U-Shaped Connecting Pipe
5. Wheel (1 Pair)
6. Front Support Legs (1 Pair)
7. Support Brackets (1 Pair)
8. Log Tray Table
9. Operator’s Manual
CONTENTS SUPPLIED
To assemble your YARDMAX log splitter, you will need a 6mm hex hand socket or allen wrench, 13mm wrench, and pliers.
RECOMMENDED TOOLS
ASSEMBLY
4
3
1
5
2
9 10
7
6
8
1. Line up the holes in the rear support legs with the holes in the
gray support brackets and rear U-shaped connecting pipe.
From the inside, insert the 95mm bolts through the top holes
and the 110mm bolts through the bottom holes, then secure
with arc washers and nuts. (See Figure 1)
2. Insert the axles through the wheels and attach the wheel
covers. Insert the wheels and axles into the holes at the base
of the rear leg assembly. Use pliers to attach the C-clip over the
end of the axle. (See Figure 2)
3. Insert the bottom ends of the front support legs into the front
U-shaped connecting pipe and line up the holes. Insert 55mm
bolts each with an arc washer through the outside holes, then
secure with arc washers and nuts. (See Figure 3)
4. Insert the up end of the support legs into the support frame
tube and line up the holes, then secure with 55mm bolts, arc
washers, and nuts. (See Figure 4)
M8 X 85 X 2
A
M8 X 100 X 2
M8 X 85 X 2
A
M8 X 100 X 2
X 2
B
Wheel Cap X 2
M8 X 45 X 2
C
M8 X 45 X 4
D
X 2
B
Wheel Cap X 2
Figure 1
Figure 3
Figure 4
Figure 2
M8 X 45 X 2
C
M8 X 45 X 4
D
1
2
10. Hardware Bag
5 6
Electric Log Splitter
»
Operator’s Manual
Assembly
||
Contents Supplied & Operation
