Save This Manual for Future Reference
Power Trackbarrow
with Hydraulic Assist
Operator’s Manual
MODEL NUMBER
YD8105
SERIAL NUMBER
PURCHASE DATE
Both model number and serial
number may be found on the
(See
main label.
You should record both of them
in a safe place for future use.
Page 2, Figure 1
)
READ AND UNDERSTAND THE ENTIRE MANUAL BEFORE OPERATING MACHINE
FOR YOUR SAFETY
Tame the Great Outdoors
®
Your new YARDMAX® power trackbarrow offers quality
construction, and is easy and safe to operate. With
proper use and care, it is designed to give you many years
of dependable service.
Take on any job with ease, portability, and convenience
while experiencing the durability of your new power
trackbarrow!
Discover the YARDMAX Advantage
At YARDMAX, we understand that land ownership
definitely has its privileges, but it also comes with a
great deal of responsibility. When duty calls and you
need to respond, will you have what it takes to tame the
great outdoors?
MAX Performance, MAX Value, MAX Support —
that’s YARDMAX
Backed by decades of proven manufacturing expertise
√
Enhanced design features come standard
√
Engineered for the best user experience
√
Quality metal parts are used instead of plastic
√
A robust warranty supports all products
√
Budget-friendly prices make it practical
√
When looking for outdoor power equipment (OPE) to get
the job done right, at the right price, YARDMAX delivers
the perfect combination of performance and practicality.
YARDMAX has a solution that’s right for you.
TABLE OF CONTENTS
Introduction 1
Specications 3
Symbols 4
Up for the job? YARDMAX is.
Know Your Machine 11
Operation 13
Maintenance 15
Safety 5

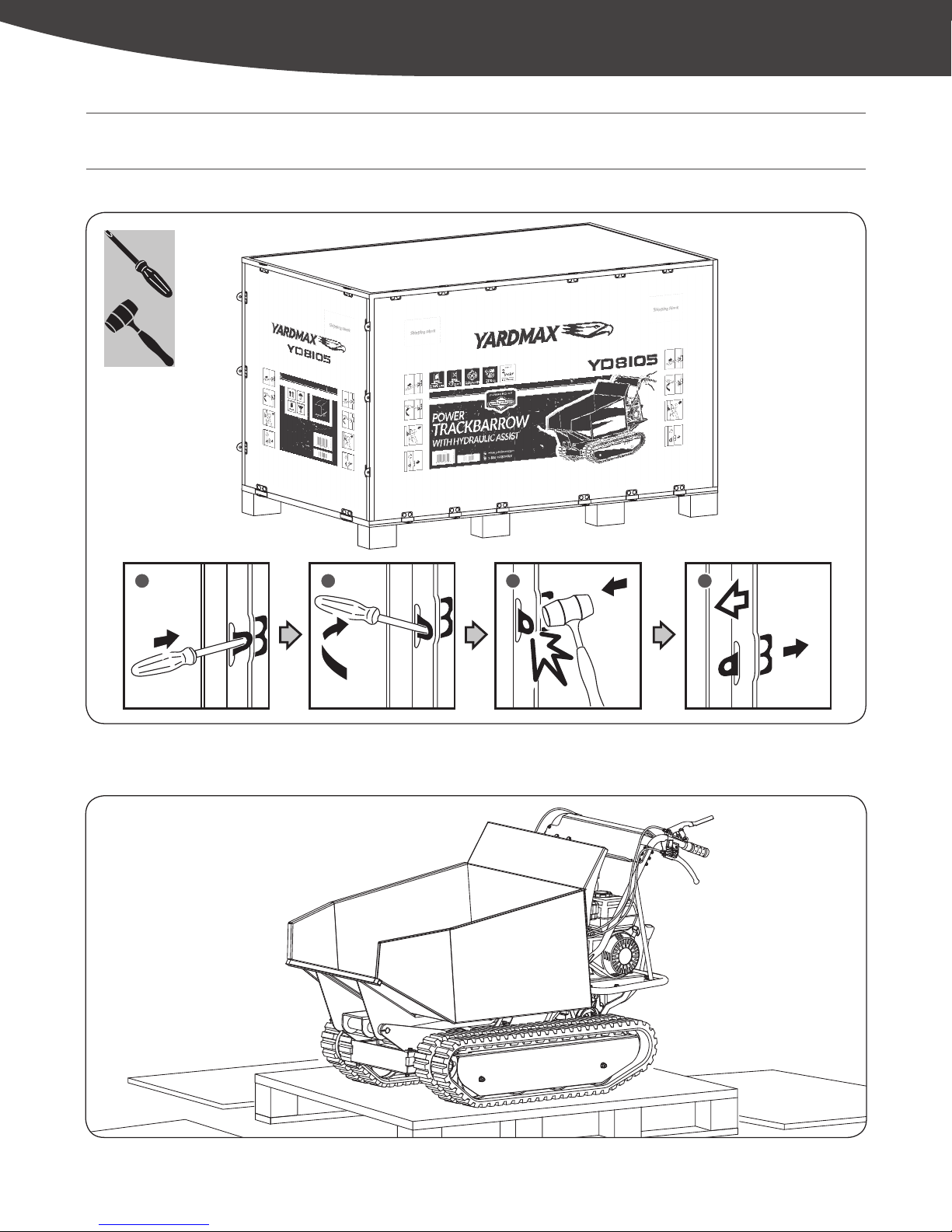

Unpacking the Container 7
Contents Supplied 8
Assembly of Optional Accessories 9
1
Introduction
|
Storage 20
Troubleshooting 21
Parts Diagram 22
Parts List 24
YD8105PM04 - 1804
Carefully read through this entire operator's manual
before using your new unit. Pay attention to all
cautions and warnings.
This machine is a gasoline engine driven power
trackbarrow. It is a durable, versatile and efficient
machine, and it is both easy and safe to operate. With
proper use and care, it should give you many years of
dependable service.
Power Trackbarrow
»
Operator’s Manual
MODEL AND SERIAL NUMBERS
For future reference, record both the model number
(see
Figure 1, Illustration a
Figure 1, Illustration b
) and the serial number (see
), as well as date and place of
purchase. Have this information available when ordering
parts, optional accessories and when making technical or
warranty inquiries.
Illustration a
ENGINE MANUAL
The
Engine Manufacturer
is responsible for all enginerelated issues regarding performance, power rating,
specifications, warranty and service. Please refer to
the
Engine Manufacturer’s
owner/operator’s manual,
packed separately with your unit, for more information.
EMISSION CONTROL SYSTEM
This equipment or its engine may include exhaust and
evaporative emission control system components
required to meet U.S. Environmental Protection Agency
(EPA) and/or California Air Resources Board (CARB)
regulations. Tampering with emission controls and
components by unauthorized personnel may result
in severe fines or penalties. Emission controls and
components can only be adjusted by an authorized
engine manufacturer's service center.
CALIFORNIA PROPOSITION 65 WARNING
Engine exhaust, some of its constituents and certain
product components contain or emit chemicals known to
the state of California to cause cancer and birth defects
or other reproductive harm. For more information, go to
www.P65Warnings.ca.gov.
ENVIRONMENTAL
Recycle unwanted materials instead of disposing of
them as waste. All tools, hoses, and packaging should
be taken to the local recycling center and disposed of
in an environmentally safe way.
Model Number
Serial Number
YD8105
Power Trackbarrow with Hydraulic Assist
208 cc
Engine Displacement:
3 Forward / 1 Reverse
Speeds:
7"
Track Width:
7.9 cu ft
Hopper Capacity:
37.5" × 27" × 18.5"
Box Dimensions:
1100 lbs
Capacity:
563 lbs
Product Weight:
Manufactured in China
8105100010117
Manufacture Date:
11~201~10
1 2 3 4 5 6
7 8 9 10 11 12
2016 2017 2018
21~30
Illustration b
Figure 1
DISCLAIMER
YARDMAX reserves the right to discontinue, change,
and improve its products at any time without notice
or obligation to the purchaser. The descriptions and
specications contained in this manual were in effect at
printing. Equipment described within this manual may be
optional. Some illustrations may not be applicable to your
unit.
YD8105PM04 - 1804
Introduction
2
|
SUPPORT
Have questions about your YARDMAX equipment?
Call us at 844-YARDMAX, email us at
support@yardmax.com, or contact us via your
favorite social media site.
SPECIFICATIONS
Model Number YD8105
Engine Briggs & Stratton
Displacement 208 cc
Start Type Recoil
Load Capacity 1100 lbs
Hopper Capacity 7.9 cu ft
Speeds 3 Forward / 1 Reverse
Track Width 7”
Box Dimensions (L x W x H) 37.5” x 27” x 18.5”
Hydraulic Yes
Zero Turn Radius Yes
Pump Flow 2.47 gal/min
Product Weight 522.5 lbs
3
Introduction & Specications
|
YD8105PM04 - 1804
Power Trackbarrow
»
Operator’s Manual
SYMBOLS
The rating plate on your machine may show symbols. These represent important information about the product or instructions on its use.
Read these instructions carefully.
Wear eye protection.
Wear hearing protection.
Wear protective gloves.
Wear safety footwear.
Do not remove or tamper with the
protection and safety devices.
No smoking, sparks, or ames.
Do not touch parts that are hot from
operation. Serious burns may result.
Keep your hands clear from all rotating
parts.
Never start or run the engine inside a
closed area.
Do not operate on slopes with angle over
20° or tip loading at an inclined position.
Be aware, objects may be thrown while
in use.
The exhaust fumes are dangerous,
containing carbon monoxide. Staying
in the environment can lead to
unconsciousness and death.
Always turn off the engine before starting
maintenance.
Keep children and bystanders off and
away.
YD8105PM04 - 1804
Symbols & Safety
4
|
SAFETY
GENERAL SAFETY RULES
UNDERSTAND YOUR MACHINE
Read this manual and labels afxed to the machine to understand
its limitations and potential hazards.
Be thoroughly familiar with the controls and their proper
operation. Know how to stop the machine and disengage the
controls quickly.
Make sure to read and understand all the instructions and safety
precautions as outlined in the
packed separately with your unit. Do not attempt to operate the
machine until you fully understand how to properly operate and
maintain the engine and konw how to avoid accidental injuries
and/or property damage.
If the unit is to be used by someone other than original purchaser,
or is to be loaned, rented, or sold, always provide this manual
and any needed safety training before operation. The user can
prevent and is responsible for accidents or injuries that may occur
to themselves, to other people, or to property.
Do not force the machine beyond its limits. Use the correct
machine for your application.
PERSONAL SAFETY
Do not permit children to operate this machine at any time.
Keep children, pets, and other people not using the unit away
from the work area. Be alert and shut off the unit if anyone enters
work area. Keep children under the watchful care of a responsible
adult.
Do not operate the machine while under the inuence of drugs,
alcohol, or any medication that could affect your ability to use it
properly.
Dress properly: Wear long, heavy pants, work boots, and work
gloves. Do not wear loose clothing, short pants, or jewelry of any
kind. Secure long hair so it is above shoulder level. Keep your
hair, clothing, and gloves away from moving parts. Loose clothes,
jewelry, or long hair can be caught in moving parts.
Protect eyes, face, and head from objects that may be thrown
from the unit. Always wear safety goggles or safety glasses with
side shields when operating.
Wear appropriate hearing protection.
Always keep hands and feet away from all moving parts during
operation. Moving parts can cut or crush body parts.
Always keep hands and feet away from all pinch points.
Do not touch parts that might be hot from operation. Allow parts
to cool before attempting to maintain, adjust, or service.
5
Safety
|
Engine Manufacturer’s
Stay alert, watch what you are doing, and use common sense
when operating the machine.
Do not overreach. Do not operate the machine while barefoot
or when wearing sandals or similar lightweight footwear. Wear
protective footwear that will protect your feet and improve
your footing on slippery surfaces. Keep proper footing and
balance at all times. This enables better control of the machine in
unexpected situations.
manual
INSPECT YOUR MACHINE
Check your machine before starting it. Keep guards in place and
in working order. Make sure all nuts, bolts, etc., are securely
tightened.
Never operate the machine when it is in need of repair or is in
poor mechanical condition. Replace damaged, missing, or failed
parts before using it. Check for fuel leaks. Keep the machine in
safe working condition.
Do not use the machine if the engine’s switch does not turn off
the engine when running. Any gasoline powered machine that
can’t be controlled with the engine switch is dangerous and must
be replaced.
Regularly check to see that keys and adjusting wrenches are
removed from the machine area before starting it. A wrench or
a key that is left attached to a rotating part of the machine may
result in personal injury.
Avoid accidental starting. Be sure the engine’s switch is off before
transporting the machine or performing any maintenance or
service on the unit. Transporting or performing maintenance or
service on a machine with its switch on invites accidents.
If the machine should start to vibrate abnormally, stop the
engine (motor) and check immediately for the cause. Vibration is
generally a warning sign of trouble.
ENGINE SAFETY
This machine is equipped with an internal combustion engine. Do
not use on, or near, forest-covered or brush-covered land unless
the exhaust system is equipped with a spark arrester meeting
applicable local, state, or federal laws.
In the state of California, a spark arrester is required by law.
Other states have similar laws. A spark arrester, if used, must be
maintained in effective working order by the operator.
Never start or run the engine inside a closed area. The exhaust
fumes are dangerous, containing carbon monoxide, an odorless
and deadly gas. Operate this unit only in a well-ventilated
outdoor area.
YD8105PM04 - 1804
Power Trackbarrow
»
Operator’s Manual
Do not tamper with the engine in an effort to get it to run at
higher speeds. The maximum engine speed is preset by the
manufacturer and is within safety limits. See engine manual.
Keep a Class B fire extinguisher on hand when operating this
machine in dry areas as a precautionary measure.
FUEL SAFETY
Fuel is highly flammable, and its vapors can explode if ignited.
Take precautions when using to reduce the chance of serious
personal injury.
When refilling or draining the fuel tank, use an approved fuel
storage container while in a clean, well-ventilated outdoor area.
While adding fuel or operating the unit, do not smoke, and stay
away from sparks, open ames, or other sources of ignition near
the area of operation. Never ll the fuel tank indoors.
To avoid sparking or arcing, keep grounded conductive objects
– such as tools – away from exposed, live electrical parts and
connections. These events could ignite fumes or vapors.
Always stop the engine and allow it to cool before lling the fuel
tank. Never remove the cap of the fuel tank or add fuel while the
engine is running or when the engine is hot. Do not operate the
machine with known leaks in the fuel system.
Loosen the fuel tank cap slowly to relieve any pressure in the tank.
Never overll the fuel tank. Because engine heat can cause fuel to
expand, never ll the tank to more than 1/2” below the bottom of
the ller neck. This will provide space for fuel expansion.
Replace all fuel tank and container caps securely and wipe up
spilled fuel. Never operate the unit without the fuel cap securely
in place.
Avoid creating a source of ignition for spilled fuel. If fuel is spilled,
do not attempt to start the engine. Instead, move the machine
away from the area of spillage and avoid creating any source of
ignition until fuel vapors have dissipated.
When fuel is spilled on yourself or your clothes, wash your skin
and change clothes immediately.
Store fuel in containers specifically designed and approved for
fuel storage.
Store fuel in a cool, well-ventilated area, safely away from sparks,
open ames, or other sources of ignition.
Never store fuel – or a machine with fuel in the tank – inside a
building where fumes may reach a spark, open ame, or any other
source of ignition (such as a water heater, furnace, or clothes
dryer). Allow the engine to cool before storing in any enclosure.
SPECIFIC SAFETY RULES
Thoroughly inspect the area to be worked. Keep the working area
clean and free of debris to prevent tripping. Operate on at, level
ground.
Never place any part of your body where it would be in danger if
movement should occur during assembly, installation, operation,
maintenance, repair, or relocation.
Keep all bystanders, children, and pets at least 75 feet (23m)
away. If you are approached, stop the unit immediately.
Do not mount anything on the hopper and never carry
passengers.
Never park the machine in a place with unstable ground that
could give way, particularly when it is full.
Disengage clutch lever before starting the engine.
Start the engine carefully according to instructions and with feet
away from the moving parts.
Never leave the operating position when the engine is running.
Always hold the unit with both hands when operating. Keep a
firm grip on the handlebars. Be aware that the machine may
unexpectedly bounce upward or jump forward if the machine
should strike buried obstacles such as large rocks or roots.
Walk, never run with the machine.
Do not overload the machine capacity. Always drive at a safe
YD8105PM04 - 1804
speed, and adjust the speed to the slope of the land, the surface
conditions of the road, and the weight of the load.
Use extreme caution when in reverse or pulling the machine
towards you.
Exercise extreme caution when operating on or crossing gravel
drives, walks, or roads. Stay alert for hidden hazards or trafc.
On soft ground, drive at the first forward/reverse gear. Do not
rapidly accelerate, turn sharply or stop.
Pay the utmost attention when working on frozen ground, as the
machine may tend to skid.
Do not operate the machine in confined areas where there
may be a risk of crushing the operator between the machine
and another object.
Never operate the machine on slopes where angle is over 20°.
When operating on a slope, whether moving forward or in
reverse, always make certain that the weight is evenly balanced.
Always operate the machine straight up or down slopes, never
drive sideways or across the slope. Do not shift gears on slopes.
When dumping the contents of the hopper, the center of gravity
will change continuously and the ground conditions will be
essential for the stability of the machine. Use extra caution and
control when dumping the hopper on unstable ground, such as
wet clay or soil.
Safety
6
|
UNPACKING THE CONTAINER
Use the screwdriver and hammer to open all the side locks. (See
1 2 3 4
Figure 1a
)
Remove all the plywood plates (
7
Unpacking the Container
|
Figure 1b
Figure 1a
), and remove all the loose parts on the bottom pallets.
Figure 1b
YD8105PM04 - 1804
Power Trackbarrow
Premium 4-Cycle
NET CONTENTS
35 OZ (1.05 L)
CONTENTS SUPPLIED
Your YARDMAX power trackbarrow comes fully assembled, and the package contains the following:
1
»
Operator’s Manual
2
3
1. Machine
2. Engine Oil
4
3. Operator’s Manual & Engine Manual
4. Tools for Spark Plug Assembly
YD8105PM04 - 1804
Contents Supplied
8
|
Loading...
