Yard-Man 106D User Manual

Operator’s Manual
20" Self Starter
Mulching Push Lawn
M
ODEL
Mower
106D
IMPORTANT: Read safety rules and instructions carefully before operating equipment.
Warning:
covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). If a spark arrester is used, it should be maintained in effective working order by the operator. In the State of California the above is required by law (Section 4442 of the California Public Resources Code). Other states may have similar laws. Federal laws apply on federal lands. A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P.O. Box 361131 Cleveland, Ohio 44136-0019.
This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
FORM NO.
769-00008A.fm
(3/2003)
TABLE OF CONTENTS
Content Page
Important Safe Operation Practices .................................................................. 3
Slope Gauge ..................................................................................................... 6
Assembling Your Lawn Mower .......................................................................... 7
Know Your Lawn Mower.................................................................................... 8
Operating Your Lawn Mower ............................................................................. 9
Making Adjustments .......................................................................................... 11
Maintaining Your Lawn Mower .......................................................................... 12
Off-Season Storage .......................................................................................... 13
Troubleshooting ................................................................................................ 14
Parts List ........................................................................................................... 16
FINDING MODEL NUMBER
This Operator’s Manual is an important part of your new Lawn Mower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.
Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on the model plate is very important if you need help from our Customer Support Department or an authorized dealer.
You can locate the model number by standing behind the unit in the operating position and looking down at the cutting deck. A sample model plate is explained below. For future reference, please copy the model number and the serial number of the equipment in the space below.
(Model Number)
www.yardman.com
(Serial Number)
MTD LLC P. O. BOX CLEVELAND,OH 330-220-4683 800-800-7310
361131
44136
Copy the model number here:
Copy the serial number here:
ENGINE INFORMATION
The engine manufacturer is responsible for all engine-related issues with regards to performance, power-rating, specifications, warranty and service. Please refer to the engine manufacturer’s Owner’s/Operator’s Manual packed separately with your unit for more information.
CALLING CUSTOMER SUPPORT
If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.
Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative. Please have your unit’s model number and serial number ready when you call. See previous section to locate this information. You will be asked to enter the serial number in order to process your call .
For more details about your unit, visit our website at www.yardman.com
2
SECTION 1: IMPORTANT SAFE OPERATION PRACTICES
WARNING:
This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. Failure to comply with these instructions may result in personal injury. When you see this symbolHEED ITS WARNING.
WARNING:
Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to State of California to cause cancer and birth defects or other reproductive harm.
DANGER:
any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This machine is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instruc­tions could result in serious injury or death.
This machine was built to be operated according to the rules for safe operation in this manual. As with
General Operation
1. Read this operators manual carefully in its entirety before attempting to assemble this machine. Read, understand, and follow all instructions on the machine and in the manual(s) before operation. Be completely familiar with the controls and the proper use of this machine before operating it. Keep this manual in a safe place for future and regular reference and for ordering replacement parts.
2. This machine is a precision piece of power equipment, not a plaything. Therefore, exercise extreme caution at all times. Your unit has been designed to perform one job: to mow grass. Do not use it for any other purpose.
3. Never allow children under 14 years old to operate this machine. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent. Only responsible individuals who are familiar with these safe operation rules should use this machine.
4. Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones, toys and other foreign objects which could be tripped over or picked up and thrown by the blade. Thrown objects can cause serious personal injury. Plan your mowing pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. Also, avoid discharging material against a wall or obstruction which may cause discharged material to ricochet back toward the operator.
5. To help avoid blade contact or a thrown object injury, stay in the operator zone behind the handles and keep bystanders, helpers, children and pets at least 75 feet from the machine while it is in operation. Stop machine if anyone enters the area.
6. Always wear safety glasses or safety goggles during operation and while performing an adjustment or repair to protect your eyes. Thrown objects which ricochet can cause serious injury to the eyes.
7. Wear sturdy, rough-soled work shoes and close-fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are recommended. Never operate this machine in bare feet, sandals, slippery or light weight (e.g. canvas) shoes.
8. Do not put hands or feet near rotating parts or under the cutting deck. Contact with the blade can amputate hands and feet.
9. A missing or damaged discharge cover can cause blade contact or thrown object injuries.
10. Many injuries occur as a result of the mower being pulled over the foot during a fall caused by slipping or tripping. Do not hold on to the mower if you are falling; release the handle immediately.
11. Never pull the mower back toward you while you are walking. If you must back the mower away from a wall or obstruction first look down and behind to avoid tripping and then follow these steps:
a. Step back from the mower to fully extend your
arms. b. Be sure you are well balanced with sure footing. c. Pull the mower back slowly, no more than half way
toward you. d. Repeat these steps as needed.
12. Do not operate the mower while under the influence of alcohol or drugs.
13. Do not engage the self-propelled mechanism on units so equipped while starting engine.
14. The blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the safety device inoperative and may result in personal injury through contact with the rotating blade. The blade control handle must operate easily in both directions and automatically return to the disengaged position when released.
15. Never operate the mower in wet grass. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your footing, release the blade control handle immediately and the blade will stop rotating within three seconds.
16. Mow in daylight or good artificial light. Walk, never run.
17. Stop the blade when crossing gravel drives, walkways or roads.
18. If the equipment should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of trouble.
19. Shut the engine off and wait until the blade comes to a complete stop before removing the grass catcher or unclogging the chute. The cutting blade continues to rotate for a few seconds after the engine is shut off. Never place any part of the body in the blade area until you are sure the blade has stopped rotating.
20. Never operate mower without proper trail shield, discharge cover, grass catcher, blade control handle or
3
other safety protective devices in place and working. Never operate mower with damaged safety devices. Failure to do so, can result in personal injury.
21. Muffler and engine become hot and can cause a burn. Do not touch.
22. Only use parts and accessories made for this machine by the original equipment manufacturer (O.E.M). Failure to do so can result in personal injury.
23. If situations occur which are not covered in this manual, use care and good judgment. Contact your dealer for assistance. Telephone 1-800-800-7310 for the name of your nearest dealer.
Slope Operation
Slopes are a major factor related to slip and fall accidents which can result in severe injury. Operation on slopes requires extra caution. If you feel uneasy on a slope, do not mow it. Before operating this unit on a slope or hilly area, use the slope gauge on page 6 to measure slopes. If the slope is greater than 15 degrees, do not mow it.
Do:
1. Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction on slopes.
2. Watch for holes, ruts, rocks, hidden objects, or bumps which can cause you to slip or trip. Tall grass can hide obstacles.
3. Always be sure of your footing. A slip and fall can cause serious personal injury. If you feel you are losing your balance, release the blade control handle immediately, and the blade will stop rotating within 3 seconds.
Do Not:
1. Do not mow near drop-offs, ditches or embankments, you could lose your footing or balance.
2. Do not mow slopes greater than 15 degrees as shown on the slope gauge.
3. Do not mow on wet grass. Unstable footing could cause slipping.
Children
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the mower and the mowing activity. They do not understand the dangers. Never assume that children will remain where you last saw them.
1. Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
2. Be alert and turn mower off if a child enters the area.
3. Before and while moving backwards, look behind and down for small children.
4. Use extreme care when approaching blind corners, doorways, shrubs, trees, or other objects that may obscure your vision of a child who may run into the mower.
5. Keep children away from hot or running engines. They can suffer burns from a hot muffler.
6. Never allow children under 14 years old to operate a
power mower. Children 14 years old and over should read and understand the operation instructions and safety rules in this manual and should be trained and supervised by a parent.
Service
Safe Handling Of Gasoline:
1. To avoid personal injury or property damage use extreme care in handling gasoline. Gasoline is extremely flammable and the vapors are explosive. Serious personal injury can occur when gasoline is spilled on yourself or your clothes which can ignite.
2. Wash your skin and change clothes immediately.
3. Use only an approved gasoline container.
4. Never fill containers inside a vehicle or on a truck or trailer bed with a plastic liner. Always place containers on the ground away from your vehicle before filling.
5. If possible, remove gas-powered equipment from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.
6. Keep the nozzle in contact with the rim of the fuel tank or container opening at all times until fueling is complete. Do not use a nozzle lock-open device.
7. Extinguish all cigarettes, cigars, pipes and other sources of ignition.
8. Never fuel machine indoors because flammable vapors will accumulate in the area.
9. Never remove gas cap or add fuel while the engine is hot or running. Allow engine to cool at least two minutes before refueling.
10. Never over fill fuel tank. Fill tank to no more than ½ inch below bottom of filler neck to provide space for fuel expansion.
11. Replace gasoline cap and tighten securely.
12. If gasoline is spilled, wipe it off the engine and equipment. Move unit to another area. Wait 5 minutes before starting the engine.
13. Never store the machine or fuel container inside where there is an open flame, spark or pilot light as on a water heater, space heater, furnace, clothes dryer or other gas appliances.
14. To reduce fire hazard, keep mower free of grass, leaves, or other debris build-up. Clean up oil or fuel spillage and remove any fuel soaked debris.
15. Allow a mower to cool at least 5 minutes before storing.
General Service:
1. Never run an engine indoors or in a poorly ventilated area. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
2. Before cleaning, repairing, or inspecting, make certain the blade and all moving parts have stopped. Disconnect the spark plug wire and ground against the engine to prevent unintended starting.
3. Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually inspect blade for damage (e.g., bent, cracked, worn) Replace blade with the original equipment manufactures (O.E.M.) blade only, listed in this manual. Use of parts which do not
4
meet the original equipment specifications may lead to
1
2
3
4
improper performance and compromise safety!
4. Mower blades are sharp and can cut. Wrap the blade or wear gloves, and use extra caution when servicing them.
5. Keep all nuts, bolts, and screws tight to be sure the equipment is in safe working condition.
6. Never tamper with safety devices. Check their proper operation regularly.
7. After striking a foreign object, stop the engine, disconnect the spark plug wire and ground against the engine. Thoroughly inspect the mower for any damage. Repair the damage before starting and operating the mower.
8. Never attempt to make a wheel or cutting height adjustment while the engine is running.
9. Grass catcher components, discharge cover, and trail shield are subject to wear and damage which could expose moving parts or allow objects to be thrown. For
replace immediately with original equipment manufacturers (O.E.M.) parts only, listed in this manual. Use of parts which do not meet the original equipment specifications may lead to improper performance and compromise safety!
10. Do not change the engine governor setting or overspeed the engine. The governor controls the maximum safe operating speed of the engine.
11. Maintain or replace safety and instruction labels, as necessary.
12. Observe proper disposal laws and regulations. Improper disposal of fluids and materials can harm the environment.
13. ALWAYS de-energize self starter prior to performing any maintenance or service to the engine and or mower. Follow instructions both in manual and on the engine and or machine to de-energize starter.
safety protection, frequently check components and
Your Responsibility
Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in this manual and on the machine.
TO REDUCE THE RISK OF INJURY, DO NOT OPERATE UNLESS DISCHARGE COVER OR GRASS CATCHER IS IN ITS PROPER PLACE. IF DAMAGED, REPLACE IMMEDIATELY.
TO START
FOR SERVICE & REPAIR
TO DE-ENERGIZE
STARTER
Prime Engine
Remove Spark Plug Wire
1
2 3 4
Turn Key To Run Position
Turn Key To Run Position
Push and Hold Starter Button
Push and Hold Starter Button
Pull Blade Control Bar to Handle
Pull Blade Control Bar to Handle
If Mower Does Not Start, Repeat
Steps 1-4 And Pull Rope To Start
5
Release Blade
5
CE MOD
A
L
P
For Customer Assistance
Visit Our Website
www.mtdproducts.com
Control Bar
AVOID SERIOUS INJURY OR DEATH
ATE HERE
L
L P
E
For Customer Assistance Call:
1-330- 220-4MTD 1-800-800-7310
Have your model number ready when you call
WARNING
BLADE ROTATES WHEN SELF-STARTER IS ENERGIZED. DE-ENERGIZE SELF-STARTER BEFORE SERVICING MOWER.
KEEP HANDS AND FEET AWAY FROM ROTATING PARTS.
REMOVE OBJECTS THAT CAN BE THROWN BY THE BLADE IN ANY DIRECTION. WEAR SAFETY GLASSES.
DO NOT MOW WHEN CHILDREN OR OTHERS ARE AROUND.
USE EXTRA CAUTION ON SLOPES. DO NOT MOW SLOPES GREATER THAN 15. MOW ACROSS NEVER UP AND DOWN. NEVER PULL MOWER CLOSE TO YOUR FEET. LOOK DOWN AND BEHIND BEFORE AND WHILE MOVING BACKWARDS.
READ OPERATOR'S MANUAL . KEEP SAFETY DEVICES (BLADE CONTROL, TRAILING SHIELD, DISCHARGE COVER, ETC.) IN PLACE AND WORKING. IF DAMAGED, REPLACE IMMEDIATELY.
STARTER
BUTTON
5
SECTION 2: SLOPE GAUGE
E
P
O
L
S
°
5
1
A
G
N
I
T
N
E
S
E
R
P
E
R
,
E
N
I
L
D
E
T
T
A POWER POLE
O
15°
WARNING
D
N
O
D
L
O
F
A CORNER OF A BUILDING
OR A FENCE POST
USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.
SIGHT AND HOLD THIS LEVEL WITH A VERTICAL TREE
6
riding mower could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is
extremely difficult to maintain your footing and you could slip, resulting in serious injury.
Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A
Operate RIDING mowers up and down slopes, never across the face of slopes.
Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.
SECTION 3: ASSEMBLING YOUR LAWN MOWER
To Remove Unit From Carton
Remove staples, break glue on top flaps, or cut tape
at carton end and peel along top flap to open carton.
Remove loose parts included with your unit (i.e.,
operators manual, etc.).
Cut along corners and lay carton down flat.
Remove packing material.
Roll or slide unit out of carton.
IMPORTANT:
GASOLINE. Make sure to service engine with gasoline and oil as instructed in the separate engine manual before operating your mower.
NOTE:
observed from the operating position.
This unit is shipped WITHOUT
Reference to right or left side of the mower is
Tools Required
Pair of pliers (not necessary, but helpful)
Disconnect Spark Plug Wire
Disconnect spark plug wire from the spark plug and
attach rubber boot to a bolt on the engine to ground. Leave safety key in locked position.
Remove the hairpin clips from the outer holes in the weld pins on the handle mounting brackets.
Using a pair of pliers, squeeze one leg of the lower handle against the handle mounting bracket. Insert the hairpin clip into the inner hole on the weld pin. See Figure 2. Repeat on other side.
Hairpin Clip in Inner Hole
Weld Pin
Figure 2
Lower
Handle
Handle Mounting Bracket
Attaching Starter Rope
The rope guide is attached to the right side of the upper handle. Loosen the wing nut which secures the rope guide. For location of the wing nut, see Figure 3.
Insert starter rope into rope guide
Wing Nut
Attaching Handle
Pull up and back on the upper handle to raise the handle into the operating position. Make certain the lower handle is seated securely into the handle mounting brackets. Tighten the hand knobs on each side of the handle (carriage bolts and saddle washers must be seated properly into the handle as shown). See Figure 1.
NOTE:
higher height position. If you wish to lower the height of the handle, refer to the instructions for handle height adjustment on page 11.
Upper Handle
Your mower is shipped with the handle in the
Carriage Bolt
Saddle
Washer
Lower Handle
Hand Knob
Saddle Washer
Rope Guide
Figure 3
With the spark plug wire disconnected and grounded, hold the blade control handle against the upper handle, and pull the starter rope out of the engine. Release the blade control handle. Slip the starter rope into the rope guide. Tighten the wing nut. See Figure 3.
Make certain all nuts and bolts are tightened securely.
Attach cables to the lower handle with the two cable ties already on the lower handle, insert pegs on cable ties into the holes on the lower handle. Pull cable ties tight and cut off the extra. See Figure 4.
Cable Tie
Lower Handle
Figure 1
Figure 4
7
Converting to Side Discharge
Your mower has been shipped as a mulcher. To convert it to a side-discharge mower, lift the mulching plug. Slide the two hooks on the side­discharge deflector under the hinge pin on the mulching plug assembly. Lower the mulching plug. See Figure 5
SECTION 4: KNOW YOUR LAWN MOWER
Compare Figure 6 with your equipment to get familiar with the mower controls before operating it.
Blade Control Handle
The blade control handle is located on the upper handle of the mower. The blade control handle and starter control button must be depressed in order to operate the unit. Release the blade control handle to stop the engine and blade and to energize the self starter.
WARNING:
safety device. Never attempt to bypass its operations. Doing so, may result in personal injury through contact with the rotating blade. The blade rotates whenever the engine is running and when the self starter is de­energized.
The blade control handle is a
Start Control Button
The start control button is located on the upper left side of the handle. See Figure 6. The start control button must be depressed fully while pulling the blade control handle toward upper handle for the engine to start. The starter control button will automatically return to the off/ up position once the blade control handle is released.
NOTE:
the engine with either the self starter or recoil starting system.
Cutting Height Adjustment Lever
This lever, located at each wheel, lets you adjust cutting height of the grass. Remember to put all four levers at the same height to avoid uneven cut.
Mulching Plug
Hinge Pin
Side Chute Deflector
Figure 5
The starter button must be depressed to start
Recoil Starter
The recoil starter handle is attached to the upper handle See Figure 6. The recoil starter is used to start the engine when the self starter is in the de-energized mode.
Safety Key
The safety key is located on the engine. See Figure 6. The safety key is a safety device used to activate and deactivate the self starter system. The self starter system will not work without the key in its proper position. See engine manual for further information pertaining to the safety key.
NOTE:
start the mower for both systems, either the self starter or recoil starter.
The safety key must be in the run position to
Mulching Plug
The mulching plug is used only for mulching purposes. This process recirculates the clippings back to the lawn. Do not operate the mower if the mulching plug is not firmly situated on the unit.
Blade Control Handle
Recoil Starter
Safety Key
Start Control Button
Cutting Height
Adjustment Lever
Mulching
Plug

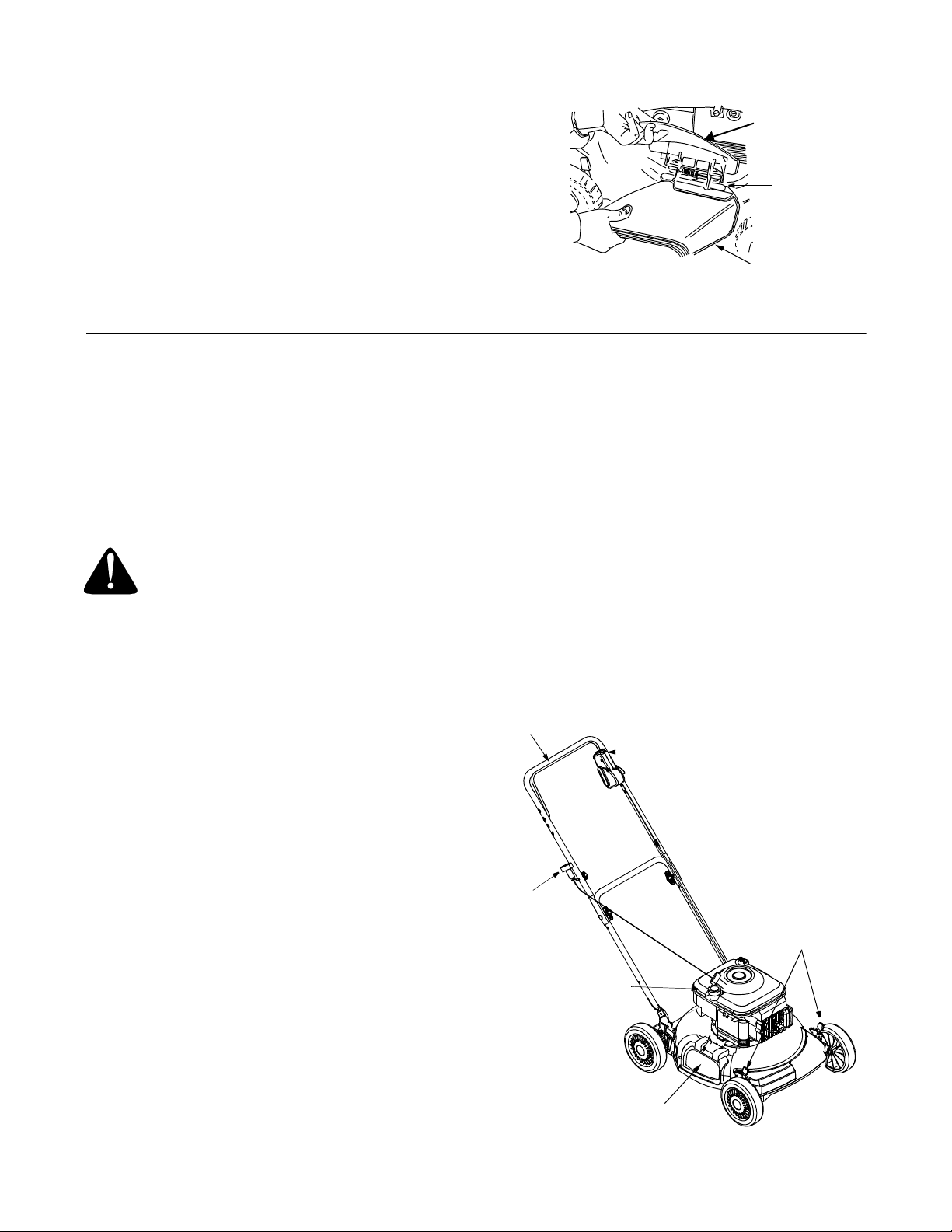

Figure 6
8
SECTION 5: OPERATING YOUR LAWN MOWER
WARNING:
from the chute area on cutting deck. The blade will be rotating whenever the engine is running.
Be sure no one other than the operator is standing near the lawn mower while starting the engine or operating the mower.
Never run engine indoors or in enclosed, poorly ventilated areas. Engine exhaust contains carbon monoxide, an odorless and deadly gas.
Keep hands and feet away
Gas and Oil Fill-Up
Service the mower engine with gasoline and oil following instructions in the engine manual. If your mower was shipped with oil in the engine, fill up the required amount of gasoline only. Always make sure there is adequate oil in the engine before starting the engine. Fill up as necessary.
WARNING:
with engine running or until the engine has been allowed to cool for at least two minutes after running.
Never fill fuel tank indoors,
Adjusting Cutting Height
Your mower was shipped at the highest cutting height. For best results in mowing, keep the cutting height position high until it is determined which height is best for your lawn.
Refer to height adjustments section of this manual on page 11 for instruction on how to adjust the cutting height and the handle height.
5. Open shut off valve (if equipped) 1/4 turn.
6. Push spark plug wire firmly on spark plug.
7. Turn safety key 1/4 turn clockwise to RUN position.
8. Firmly push primer bulb 3 times.
9. While standing in the operating position, depress the starter control button fully with the thumb of your right hand.
10. Using your left hand, pull the control handle all the way toward the upper handle. See Figure 7.
11. Release the button.
12. Grasp the recoil rope starter handle with your right hand and slowly pull towards you until you feel a slight resistance, then pull firmly until your arm is fully extended.
13. If engine does not start by the second pull, repeat steps 8, 9, 10,11 and 12.
Second Time Starting Engine
NOTE:
already in the energized mode.
Blade Control Handle
Follow these instructions if the self starter is
WARNING:
the de-energized mode, even if the key is in the locked position and/or removed from the engine. ALWAYS de-energize starter prior to performing any maintenance or service to the engine and/or mower. Follow instructions on the engine and/or machine to de-energize starter.
NEVER assume starter is in
Starter Control Button
Before Starting
Attach spark plug wire to spark plug. Make certain the metal cap on the end of the spark plug wire (inside the rubber boot) is fastened securely over the metal tip on the spark plug.
First Time Starting Engine
NOTE:
very first time. The mower is shipped with the safety key in the locked position and the self starter in the de­energized mode, follow instructions as follows.
1. Place lawn mower on a level surface outdoors.
2. Remove clear plastic packaging under fuel cap.
3. Check oil level.
4. Add fuel.
Use recoil starter rope to start engine for the
Figure 7
1. Check oil level and add fuel, if necessary.
2. Open shut off valve (if equipped) 1/4 turn.
3. Turn safety key 1/4 turn clockwise to RUN position.
4. Firmly push primer bulb 3 times (For a cold engine only!).
5. While standing at upper handle, depress the starter control button with the thumb of your right hand.
6. Using your left hand, pull the blade control handle all the way toward the upper handle. See Figure 7. Starter will de-energize and engine will start. (NOTE: If engine does not start, release the blade
control handle and follow steps 8, 9, 10,11 and 12 in the “First Time Starting Engine” instructions.)
9
NOTE:
Trouble Shooting Guide for helpful information.
If any problems are encountered, refer to the
To Stop Engine And Blade
1. Release safety blade control handle (the start control button will automatically return to the off/up position), engine and blade will stop within a few seconds.
NOTE:
sound is the self starter being reactivated/energized for the next start.
2. Turn safety key 1/4 turn counterclockwise to LOCK
Engine may stop with a ratcheting sound. This
position. Remove key and store in a safe place.
WARNING:
rotate for three seconds after the blade control lever is released.
The blade will continue to
DO NOT attempt any maintenance or repairs to the self starter.
NEVER assume starter is de-energize, even if key is in LOCK AND REMOVE position and/or removed from engine.
BEFORE removing grass or other debris from under mower deck; BEFORE changing oil, air filter or spark plug; BEFORE removing blade for servicing; BEFORE performing any other service to engine or mower; BEFORE transporting mower­ALWAYS DE-ENERGIZE SELF STARTER.
ALWAYS lock and remove safety key and store in a safe place until next use. The safety key is designed and intended to be removed from engine when not in use. Removing key will prevent unsupervised or unexpected starting of mower by children or unsuspecting adults. The safety key must be in the locked position before it can be removed.
To De-Energize Self Starter
Remove spark plug wire from spark plug.
Turn safety key to RUN position (1/4 turn
clockwise).
While standing in the operating position, depress the starter control button fully with the thumb of your right hand.
Using your left hand, pull the control handle all the way toward the upper handle. (Release button and wait until engine and starter stop rotating.)
Release safety blade control handle (the start control button will automatically return to the off/up position.)
Remove safety key.
NOTE:
equipment starting controls, but will not spark if spark plug wire was removed from spark plug as described above. Once engine has stopped cranking, self starter is de-energized.
ALWAYS disconnect spark plug, de-energize starter, lock and remove safety key BEFORE performing ANY service to the engine or mower.
Engine will crank over upon actuating
WARNING:
instructions are not followed, amputation or severe laceration can result.
Self Starting System: If these
Using Your Rotary Mower
Be sure that lawn is clear of stones, sticks, wire, or other objects which could damage lawn mower or engine. Such objects could be accidently thrown by the mower in any direction and cause serious personal injury to the operator and others.
For best results, do not cut wet grass because it tends to stick to the underside of the mower, preventing proper discharge of grass clippings, and could cause you to slip and fall. New grass, thick grass or wet grass may require a narrower cut. Speed of the mower should be adjusted to the condition of the lawn.
For a healthier lawn, always cut off one-third or less of the total length of grass. Lawn should be mowed in the fall season as long as there is growth.
WARNING:
stop the engine. Remove wire from spark plug and de-energize, thoroughly inspect the mower for any damage, and repair the damage before restarting and operating the mower. Extensive vibration of the mower during operation is an indication of damage. The unit should be promptly inspected and repaired.
If you strike a foreign object,
10
SECTION 6: MAKING ADJUSTMENTS
WARNING:
spark plug wire and DE-ENERGIZE starter before performing any adjustments or repairs. DO NOT attempt any maintenance or service to the engine and/or mower equipped with the safety key in the unlocked and/or energized mode.
WARNING:
energized, even if the key is in the locked position and/or removed from the engine. ALWAYS de-energize self starter prior to performing any maintenance or service to the engine and/or mower. Follow instructions on the engine and/or machine to de-energize starter.
Be sure to disconnect the
NEVER assume starter is de-
Handle Height
Your mower is shipped with the handle in the higher height position.To lower the handle height for your convenience, proceed as follows.
Lower
Handle
Notch
Reassemble the upper handle.
Place the hairpin clips in the inner holes in the weld
pins. Reattach the starter rope.
Carburetor
WARNING:
the engine while the engine is running (e.g. carburetor), keep clear of all moving parts and heated surfaces (e.g. muffler).
Minor carburetor adjustments may be required to compensate for differences in fuel, temperature, altitude and load. To adjust carburetor, refer to the engine manual.
NOTE:
rough. Make sure air cleaner is clean and attached to the carburetor before adjusting carburetor.
A dirty air cleaner will cause an engine to run
If any adjustments are made to
Cutting Height
An adjusting plate and thumb lever at each wheel position provides cutting height adjustment. Each adjusting plate has nine height positions. Height of cut will be changed when the thumb lever is moved from one hole to another.
Simply depress the lever towards wheel and move wheel and lever assembly to desired position. All wheels must be placed in the same relative position. See Figure 9.
Figure 8
Remove the starter rope from the rope guide.
Remove the upper handle by removing the hand
knobs and carriage bolts. Lay the upper handle out of the way, being careful not to bend or kink cables.
Remove the hairpin clips from the weld pins on the handle brackets. Press outward on the legs of the lower handle, and remove it from the mower.
Turn the lower handle around so the notches on the bottom of the lower handle are facing forward as shown in Figure 8. Reassemble, placing the bottom holes in the handle over the weld pins in the handle mounting bracket.
Height
Adjustment
Lever
Figure 9
11
SECTION 7: MAINTAINING YOUR LAWN MOWER
WARNING:
spark plug wire and DE-ENERGIZE starter before performing any repairs or maintenance. DO NOT attempt any maintenance or service to the engine and/or mower equipped with the safety key in the unlocked and/or energized mode.
WARNING:
energized, even if the key is in the locked position and/or removed from the engine. ALWAYS de-energize self starter prior to performing any maintenance or service to the engine and/or mower. Follow instructions on the engine and/or machine to de-energize starter.
Be sure to disconnect the
NEVER assume starter is de-
Lubrication
Blade Control
Lubricate the pivot points on the blade control handle and the brake cable at least once a season with light oil. See Figure 10. The blade control must operate freely in both directions.
Wheels
Lubricate the wheel bearings (if so equipped) at least once a season with light oil (or engine oil). Also, if the wheels are removed for any reason, lubricate the surface of the axle bolt and the inner surface of the wheel with light oil. See Figure 10.
Engine
Follow engine manual for lubrication instructions.
NOTE:
keep engine spark plug side up.
When tipping the unit, empty fuel tank and
Cutting Blade
WARNING:
blade for sharpening or replacement, protect hands by using heavy gloves or a rag to grasp the cutting blade.
To remove blade:
Remove the bolt and blade bell support which hold the blade and adapter to the engine crankshaft. See Figure 11. Remove the blade and the adapter from the crankshaft.
WARNING:
adapter for cracks, especially if you strike a foreign object. Replace when necessary.
When sharpening the blade, follow the original angle of grind as a guide. It is extremely important that each cutting edge receives an equal amount of grinding to prevent an unbalanced blade. An unbalanced blade will cause excessive vibration when rotating at high speeds, may damage the mower and/or cause personal injury.
The blade can be tested by balancing it on a round shaft screwdriver. Remove metal from the heavy side until it balances evenly. It is recommended that the blade always be removed from the adapter for the best test of balance
When removing the cutting
Periodically inspect the blade
Lubricate
Lubricate Bearings
Figure 10
WARNING:
ground the spark plug wire before performing any repairs or maintenance.
Be sure to disconnect and
Blade Adapter
Blade Bell Support
Hex Bolt
Figure 11
Before reinstalling the blade and the blade adapter to the unit, lubricate the engine crankshaft and the inner surface of the blade adapter with light oil (or engine oil).Also lubricate the bolt holes and bolts.
To Reinstall Blade:
Be sure to install the blade with the side of the blade marked “Bottom” (or with part number) facing the ground when the mower is in the operating position.
Make sure the blade is aligned with and seated onto the blade adapter flanges.
12
Place blade bell support on blade. Make sure the notches on the blade bell support are aligned with the small holes in the blade. See Figure 11.
Replace hex bolt. Tighten to recommended torque.
Blade Torque: 450 in. lbs. min., 600 in. lbs. max.
To ensure safe operation of mower, check all nuts and bolts periodically for correct torque.
Cutting Deck
The underside of the mower deck should be cleaned after each use to prevent a build-up of grass clippings, leaves, dirt or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and may prevent proper mulching.
The deck may be cleaned by tilting the mower and scraping clean with a suitable tool (make certain the spark plug wire is disconnected).
NOTE:
washers or garden hose to clean your unit. They may cause damage to electric components, spindles, pulleys, bearings or the engine. The use of water will shorten life and reduce serviceability.
We do not recommend the use of pressure
Engine
Refer to the engine manual for all engine maintenance instructions.
Maintain engine oil as instructed in the engine manual.
Service air cleaner every 25 hours of operation under normal conditions. Clean every few hours under extremely dusty conditions. Poor engine performance and flooding usually indicates that the air cleaner should be serviced. To service the air cleaner, refer to the engine manual.
The spark plug should be cleaned and the gap reset once a season. Spark plug replacement is recommended at the start of each mowing season; check engine manual for correct plug type and gap specifications.
Clean engine regularly with a cloth or brush. Keep the cooling system (blower housing area) cleaned to permit proper air circulation which is essential to engine performance and life. Make sure to remove all grass, dirt and combustible debris from muffler area.
SECTION 8: OFF-SEASON STORAGE
The following steps should be taken to prepare lawn mower for storage.
WARNING:
spark plug wire and DE-ENERGIZE starter before performing any repairs or maintenance. DO NOT attempt any maintenance or service to the engine and/or mower equipped with the safety key in the unlocked and/or energized mode.
WARNING:
energized, even if the key is in the locked position and/or removed from the engine. ALWAYS de-energize self starter prior to performing any maintenance or service to the engine and/or mower. Follow instructions on the engine and/or machine to de-energize starter.
WARNING:
fuel container indoors where there is an open flame, spark or pilot light such as on water heater, furnace, clothes dryer or other gas appliance.
Be sure to disconnect the
NEVER assume starter is de-
Never store the machine or
Clean and lubricate mower thoroughly as described in the lubrication instructions.
NOTE:
washers or garden hose to clean your unit. They may cause damage to electric components, spindles, pulleys, bearings or the engine. The use of water will result in shortened life and reduce serviceability.
Refer to engine manual for correct engine storage
Coat mowers cutting blade with chassis grease to
Store mower in a dry, clean area. Do not store next
NOTE:
an unventilated or metal storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the lawn mower, especially cables and all moving parts, before storing it for the off-season.
We do not recommend the use of pressure
instructions.
prevent rusting.
to corrosive materials, such as fertilizer.
When storing any type of power equipment in
13
SECTION 9: TROUBLE SHOOTING GUIDE
Trouble Possible Cause(s) Corrective Action
Engine fails to start 1. Blade control handle disengaged.
2. Start control button not depressed.
3. Spark plug wire disconnected.
4. Safety key not in run position.
5. Fuel tank empty, or stale fuel.
6. Blocked fuel line.
7. Faulty spark plug.
8. Engine flooded.
9. Self starter already de-energized.
Engine runs erratic 1. Spark plug wire loose.
2. Blocked fuel line or stale fuel.
3. Vent in gas cap plugged.
4. Water or dirt in fuel system.
5. Dirty air cleaner.
6. Carburetor out of adjustment.
Engine overheats 1. Engine oil level low.
2. Air flow restricted.
3. Carburetor not adjusted properly.
Occasional skip (hesitates) at high speed
Idles poorly 1. Spark plug fouled, faulty or gap too
Excessive vibration 1. Cutting blade loose or unbalanced.
Mower will not mulch grass
Uneven cut 1. Wheels not positioned correctly.
1. Spark plug gap too close. 1. Adjust gap to .030”.
wide.
2. Carburetor improperly adjusted.
3. Dirty air cleaner.
2. Bent cutting blade.
1. Wet grass.
2. Excessively high grass.
3. Dull blade.
2. Dull blade.
1. Engage blade control handle.
2. Depress starter control button.
3. Connect wire to spark plug.
4. Place safety key in run position.
5. Fill tank with clean, fresh gasoline.
6. Clean fuel line.
7. Clean, adjust gap or replace.
8. Wait a few minutes to restart. Do not prime.
9. Use recoil starter to start engine
1. Connect and tighten spark plug wire.
2. Clean fuel line; fill tank with fresh gasoline.
3. Clear vent.
4. Drain fuel tank. Refill with fresh fuel.
5. Clean air cleaner.
6. Adjust carburetor.
1. Fill crankcase with proper oil.
2. Remove blower housing and clean.
3. Adjust carburetor.
1. Reset gap to.030 or replace spark plug.
2. Adjust carburetor.
3. Clean air cleaner.
1. Tighten blade and adapter. Balance blade.
2. Replace blade.
1. Wait until later to cut.
2. Mow once at a high cutting height, then mow again at desired height or make a narrower cutting swath (1/2 width).
3. Sharpen or replace blade.
1. Place all four wheels in same height position.
2. Sharpen or replace blade.
14
NOTES
15
SECTION 10: PARTS LIST MODEL 106D
16
55
57
1
54
6
10
7
8
48
51
46
49
11
46
9
50
47
56
53
52
13
8
15
25
24
17
23
22
19
20
21
26
37
27
28
29
45
36
30
25
12
38
24
33
23
34
22
32
20
19
33
31
38
26
35
18
40
39
27
21
41
16
43
44
42
Model 106D
Ref. No. Part No. Description
1.
6
7.
8.
9.
10.
11.
12.
13.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
647-0070 Control Handle Assembly
731-2623 Bail Cover (Not shown)
749-1406A Upper Handle
710-1205 Rope Guide
710-1174 Carriage Bolt
749-0928A Lower Handle
720-0279 Wing Nut
720-0284 Hand Knob
714-0104 Hairpin Clip
746-1142 Control Cable 56.75
726-0240 Cable Tie
17098 Hinge Clip
731-04019 Trail Shield
682-0139 Cutting Deck Assembly: 20
736-0105 Bell Washer
720-0426 Knob: Height Adjustment
732-0404 Lever: Spring
734-2004A Wheel Assembly
736-0504 Wave Washer
738-0102 Axle Bolt
731-1426 Hubcap: Radial Spoke, Yellow
738-0507B Shoulder Bolt
15262B Pivot Bar
682-3024 Handle Bracket Assembly RH
682-3025 Handle Bracket Assembly LH*
738-0585 Stake Bolt
732-0731 Torsion Spring
14578 Height Adjust. Assembly RH
14579 Height Adjust. Assembly LH*
Ref. No. Part No. Description
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
- 737-0476 Bottle of Oil
782-7006 Mounting Bracket
736-0270 Bell Washer
710-0599 Hex Washer Hd. TT Screw
710-0654A TT Sems Screw
731-1409 Chute Deflector
682-7002 Mulching Plug Assembly
712-0431 Hex Lock Nut
15261A Height Adjustment Plate
731-1933 Cover: Front End
748-0376C Blade Adapter
753-0588 Blade Adapter Kit (for service)
742-0740 20 Mulching Blade
736-0524A Blade Bell Support
710-1044 Hex Bolt
747-0710 Hinge Pin
736-0451 Saddle Washer
710-0501 Hex Hd. Cap Screw
710-1256 Hi-Low Scr. 1/4-20
712-0324 Hex Lock Nut 1/4-20 Gr. 8
731-2532 Control Cover LH
731-2533 Control Cover RH
782-0156 Lever
731-1172 Torsion Spring
732-1171 Compression Spring
720-0428 Button
716-0209 Retention Spring
715-0168 Pin
* Not shown in Illustration on previous page
NOTE: For painted parts, please refer to the list of color codes below. Please add the applicable color code, wherever needed, to the part number to order a replacement part. For instance, if a part numbered 700-xxxx is painted Yard-Man Green, the part number to order would be 700-xxxx-0665.
Yard-Man Green: 0665
Yard-Man Yellow: 0674
Powder Black: 0637
17
18
19
MANUFACTURERS LIMITED WARRANTY FOR:
The limited warranty set forth below is given by MTD LLC with respect to new merchandise purchased and used in the United States, its possessions and territories.
MTD LLC warrants this product against defects for a period of two (2) years commencing on the date of original purchase and will, at its option, repair or replace, free of charge, any part found to be defective in materials or workmanship. This limited warranty shall only apply if this product has been operated and maintained in accordance with the Operator’s Manual furnished with the product, and has not been subject to misuse, abuse, commercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water, or damage because of other peril or natural disaster. Damage resulting from the installation or use of any accessory or attachment not approved by MTD LLC for use with the product(s) covered by this manual will void your warranty as to any resulting damage.
Normal wear parts or components thereof are subject to separate terms as follows: All normal wear parts or component failures will be covered on the product for a period of 90 days regardless of cause. After 90 days, but within the two year period, normal wear part failures will be covered ONLY IF caused by defects in materials or workmanship of OTHER component parts. Normal wear parts and components include, but are not limited to: batteries, belts, blades, blade adapters, grass bags, rider deck wheels, seats, snow thrower skid shoes, shave plates, auger spiral rubber, and tires.
HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE, through your local authorized service dealer. To locate the dealer in your area, check your Yellow Pages, or contact MTD LLC at P.O. Box 361131, Cleveland, Ohio 44136-0019, or call 1-800-800-7310 or log on to our Web site at www.mtdproducts.com.
This limited warranty does not provide coverage in the following cases:
a. The engine or component parts thereof. These items
carry a separate manufacturers warranty. Refer to applicable manufacturers warranty for terms and conditions.
b. Log splitter pumps, valves, and cylinders have a sepa
rate one year warranty.
c. Routine maintenance items such as lubricants, filters,
blade sharpening, tune-ups, brake adjustments, clutch adjustments, deck adjustments, and normal deterioration of the exterior finish due to use or exposure.
d. MTD LLC does not extend any warranty for products
sold or exported outside of the United States, its possessions and territories, except those sold through MTD LLCs authorized channels of export distribution.
e. Parts that are not genuine MTD parts are not covered
by this warranty.
f. Service completed by someone other than an
authorized service dealer is not covered by this warranty.
g. Transportation charges and service calls are not
covered.
No implied warranty, including any implied warranty of merchantability of fitness for a particular purpose, applies after the applicable period of express written warranty above as to the parts as identified. No other express warranty, whether written or oral, except as mentioned above, given by any person or entity, including a dealer or retailer, with respect to any product, shall bind MTD LLC. During the period of the warranty, the exclusive remedy is repair or replacement of the product as set forth above.
The provisions as set forth in this warranty provide the sole and exclusive remedy arising from the sale. MTD LLC shall not be liable for incidental or consequential loss or damage including, without limitation, expenses incurred for substitute or replacement lawn care services or for rental expenses to temporarily replace a warranted product.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.
In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration
of safety features of the product shall void this warranty.
You assume the risk and liability for loss, damage, or injury to you and your property and/or to others and their property arising out of the misuse or inability to use the product.
This limited warranty shall not extend to anyone other than the original purchaser or to the person for whom it was purchased as a gift.
HOW STATE LAW RELATES TO THIS WARRANTY: This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
MTD LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019; Phone: 1-800-800-7310
Loading...
