IMPORTANT MANUAL Do Not Throw Away

OWNER'S MANUAL

MODEL NUMBER:

961940001

SNOW THROWER

Always Wear Eye Protection During Operation

WARNING:

Read the Owner's Manual and fol low all Warnings and Safety In struc tions. Fail ure to do so can result in serious injury.

199907 Rev. 1 01.12.06 BY

Printed in U.S.A.

IMPORTANT

Safe Operation Practices for Walk-Behind Snow Throwers

This snow thrower is capable of amputating hands and feet and throwing objects.

Failure to observe the following safety instructions could result in serious injury.

Look for this symbol to point out im por tant safety precautions. It means CAUTION!!! BE COME ALERT!!! YOUR SAFE TY IS IN VOLVED.

WARNING: Always disconnect spark plug wire and place it where it can not con tact plug in order to pre vent ac ci den tal start ing when setting up, trans port ing, ad just ing or making re pairs.

WARNING: This snow thrower is for use on sidewalks, driveways and other ground level surfaces. Caution should be exercised while using on sloping surfaces. Do not use snow thrower on surfaces above ground level such as roofs of residences, garages, porch es or other such structures or buildings.

Training

1. Read, understand and follow all instructions on the machine and in the manual(s) before operating this unit. Be thoroughly familiar with the controls and the proper use of the equipment. Know how to stop the unit and disengage the controls quickly.

2. Never allow children to operate the equipment. Never allow adults to operate the equipment without proper instruction.

3. Keep the area of operation clear of all persons, particularly small children.

4. Exercise caution to avoid slipping or falling, especially when operating the snow thrower in reverse.

Preparation

1. Thoroughly inspect the area where the equipment is to be used and remove all doormats, sleds, boards, wires, and other foreign objects.

2. Disengage all clutches and shift into neutral before starting the engine (motor).

3. Do not operate the equipment without wearing adequate winter garments. Avoid loose ﬁ tting clothing that can get caught in moving parts. Wear footwear that will improve footing on slippery surfaces.

4. Handle fuel with care; it is highly ﬂ ammable (a) Use an approved fuel container. (b) Never add fuel to a running engine or hot en-

gine.

fuel tank indoors.

(d) Never ﬁ ll containers inside a vehicle or on a truck or

trailer bed with a plastic liner. Always place containers on the ground, away from your vehicle, before ﬁ lling.

(e) When practical, remove gas-powered equipment

from the truck or trailer and refuel it on the ground. If this is not possible, then refuel such equipment on a trailer with a portable container, rather than from a gasoline dispenser nozzle.

WARNING: Snow throwers have ex posed rotating parts, which can cause severe injury from contact, or from material thrown from the discharge chute. Keep the area of operation clear of all persons, small children and pets at all times including startup.

CAUTION: Mufﬂ er and other engine parts become extremely hot during operation and remain hot after engine has stopped. To avoid severe burns on contact, stay away from these areas.

WARNING: Engine exhaust, some of its con stit u ents, and certain vehicle com po nents contain or emit chem icals known to the State of Cal i for nia to cause can cer and birth defects or oth er re pro duc tive harm.

(f) Keep the nozzle in contact with the rim of the fuel

tank or container opening at all times, until refueling is complete. Do not use a nozzle lock-open device.

(g) Replace gasoline cap securely and wipe up spilled

fuel.

(h) If fuel is spilled on clothing, change clothing im-

mediately.

5. Use extension cords and receptacles as speciﬁ ed by the manufacturer for all units with electric drive motors or electric starting motors.

6. Adjust the collector housing height to clear gravel or crushed rock surface.

7. Never attempt to make any adjustments while the engine (motor) is running (except when speciﬁ cally recommended by manufacturer).

8. Always wear safety glasses or eye shields during operation or while performing an adjustment or repair to protect eyes from foreign objects that may be thrown from the machine.

Operation

1. Do not put hands or feet near or under rotating parts. Keep clear of the discharge opening at all times.

2. Exercise extreme caution when operating on or crossing gravel drives, walks, or roads. Stay alert for hidden hazards or trafﬁ c.

3. After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, disconnect the cord on electric motors, thoroughly inspect the snow thrower for any damage, and repair the damage before restarting and operating the snow thrower.

4. If the unit should start to vibrate abnormally, stop the engine (motor) and check immediately for the cause. Vibration is generally a warning of trouble.

5. Stop the engine (motor) whenever you leave the operating position, before unclogging the collector/impeller housing or discharge chute, and when making any

repairs, adjustments or inspections.

6. When cleaning, repairing or inspecting the snow thrower, stop the engine and make certain the collector/impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the plug to prevent someone from accidentally starting the engine.

7. Do not run the engine indoors, except when starting the engine and for transporting the snow thrower in or out of the building. Open the outside doors; exhaust fumes are dangerous.

8. Exercise extreme caution when operating on slopes.

9. Never operate the snow thrower without proper guards, and other safety protective devices in place and working.

10. Never direct the discharge toward people or areas where property damage can occur. Keep children and others away.

11. Do not overload the machine capacity by attempting to clear snow at too fast a rate.

12. Never operate the machine at high transport speeds on slippery surfaces. Look behind and use care when operating in reverse.

13. Disengage power to the collector/impeller when snow thrower is transported or not in use.

14. Use only attachments and accessories approved by the manufacturer of the snow thrower (such as wheel weights, counterweights, or cabs).

15. Never operate the snow thrower without good visibility or light. Always be sure of your footing, and keep a ﬁ rm hold on the handles. Walk; never run.

16. Never touch a hot engine or mufﬂ er.

Clearing a Clogged Discharge Chute

Hand contact with the rotating impeller inside the discharge chute is the most common cause of injury associated with snow throwers. Never use your hand to clean out the discharge chute. To clear the chute:

1. SHUT THE ENGINE OFF!

2. Wait 10 seconds to be sure the impeller blades have stopped rotating.

3. Always use a clean-out tool, not your hands.

Maintenance and Storage

1. Check shear bolts and other bolts at frequent intervals for proper tightness to be sure the equipment is in safe working condition.

2. Never store the machine with fuel in the fuel tank inside a building where ignition sources are present such as hot water heaters, space heaters, or clothes dryers. Allow the engine to cool before storing in any enclosure.

3. Always refer to operator’s manual for important details if the snow thrower is to be stored for an extended period.

4. Maintain or replace safety and instruction labels, as necessary.

5. Run the machine a few minutes after throwing snow to prevent freeze-up of the collector/impeller.

CONGRATULATIONS on your purchase of a new snow thrower. It has been designed, engineered and man u fac tured to give best possible dependability and per for mance.

Should you experience any problem you cannot easily remedy, please contact your nearest authorized service center. We have competent, well-trained tech ni cians and the proper tools to service or repair this unit.

Please read and retain this manual. The instructions will enable you to assemble and maintain your snow thrower prop er ly. Always observe the “SAFETY RULES”.

SERIAL NUMBER: ___________________________

DATE OF PURCHASE: _______________________

THE MODEL AND SERIAL NUMBERS WILL BE FOUND ON A DECAL ATTACHED TO THE REAR OF THE SNOW THROWER HOUSING.

YOU SHOULD RECORD BOTH SERIAL NUMBER AND DATE OF PURCHASE AND KEEP IN A SAFE PLACE FOR FUTURE REFERENCE.

TABLE OF CONTENTS

PRODUCT SPECIFICATIONS

Gasoline Capacity 4.0 Quarts (4,54 Liters) and Type: Unleaded Regular only

Oil Type SAE 5W-30 or 10W-30 (API SG–SL): (0° to +40°F)

SAE 0W-30 (below 0°F)

Oil Capacity: 26 Ounces (0,74 Liters)

Spark Plug: Champion RJ19LM Gap: 0.030" (0,762 mm)

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your snow thrower.

• Follow the instructions under “Maintenance” and “Stor age” sec tions of this own er’s manual.

SAFETY RULES ........................................................ 2-3

PRODUCT SPECIFICATIONS...................................... 3

CUSTOMER RESPONSIBILITIES................................ 3

ASSEMBLY / PRE-OPERATION............................... 5-7

OPERATION ............................................................ 8-14

MAINTENANCE..................................................... 14-15

MAINTENANCE SCHEDULE ..................................... 14

SERVICE AND AD JUST MENTS ........................... 16-18

STORAGE................................................................... 18

TROU BLE SHOOT ING................................................ 19

REPAIR PARTS .....................................................20-31

WARRANTY................................................................ 32

PARTS PACKED SEPARATELY IN CARTON

ASSEMBLY / PRE-OPERATION

Read these instructions and this manual in its entirety before you attempt to assemble or operate your new snow thrower. Reading the entire manual will familiarize you with the unit, which will assist you in assembly, operation and maintenance of the product.

Your new snow thrower has been as sem bled at the factory with the ex cep tion of those parts left unassembled for shipping purposes. All parts such as nuts, washers, bolts, etc., necessary to com plete the as sem bly have been placed in the parts bag. To ensure safe and proper operation of your snow thrower, all parts and hard ware you assemble must be tightened se cure ly. Use the correct tools as nec es sary to ensure proper tightness.

REMOVE SNOW THROWER FROM CAR TON

1. Remove all accessible loose parts and parts boxes from carton.

2. Cut down all four corners of carton and lay panels ﬂ at.

3. Remove the two (2) screws securing the auger housing to the pallet.

4. Remove all packing materials ex cept plastic tie holding speed control rod to lower handle.

5. Remove the two (2) plastic ties securing the upper handle to the pallet.

6. Remove snow thrower from carton and check carton thor ough ly for ad di tion al loose parts.

SPEED CONTROL ROD

PLASTIC TIE

UPPER HANDLE

HANDLE KNOB

LOWER HANDLE

FIG. 1

HOW TO SET UP YOUR SNOW THROWER

TOOL BOX (See Fig. 10)

A toolbox is provided on your snow thrower. The toolbox is located on top of the belt cover. Store the extra shear bolts, nuts and multi-wrench provided in parts bag in the toolbox.

NOTE: The multi-wrench may be used for assembly of the chute rotator head to snow thrower and making ad just ments to the skid plates.

UNFOLD UPPER HANDLE

1. Raise upper handle to the operating position and tight en handle knobs securely.

INSTALL SPEED CONTROL ROD (See Figs. 1 and 2)

1. Remove plastic tie securing rod to lower handle.

2. Insert rod into speed control bracket and secure with retainer spring.

SPEED CONTROL BRACKET

SPEED CON TROL ROD

RETAINER SPRING

SPEED

CONTROL

LEVER

FIG. 2

ASSEMBLY / PRE-OPERATION

INSTALL TRACTION DRIVE CONTROL ROD (See Figs. 3 and 4)

The traction drive control rod has the long loop on the end of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into pivot bracket with loop opening down as shown.

2. With top end of rod positioned under left side of control panel, push rod down and insert top end of rod into hole in drive control bracket. Secure with retainer spring.

TRACTION DRIVE

CONTROL ROD

RUBBER

SLEEVE

INSTALL AUGER CONTROL ROD (See Figs. 5 and 6)

The auger control rod has the short loop on the end of the spring as shown.

1. Slide rubber sleeve up rod and hook end of spring into control arm with loop opening up as shown.

2. With top end of rod positioned under right side of control panel, push down on rod and insert end of rod into hole in auger control bracket. Secure with retainer spring.

AUGER CONTROL ROD

RUBBER SLEEVE

CONTROL ARM

PIVOT BRACKET

FIG. 3

TRACTION DRIVE CON TROL LEVER

DRIVE CONTROL BRACKET

LOOP OPEN ING DOWN

RETAINER

SPRING

TRACTION DRIVE CON TROL ROD

LOOP

OPENING

FIG. 5

AUGER CONTROL ROD

RETAINER SPRING

AUGER

CONTROL

LEVER

AUGER CONTROL BRACKET

FIG. 4

FIG. 6

ASSEMBLY / PRE-OPERATION

INSTALL DISCHARGE CHUTE / CHUTE ROTATER HEAD (See Fig. 7)

NOTE: The multi-wrench provided in your parts bag may

be used to install the chute rotater head.

1. Place discharge chute assembly on top of chute base with discharge opening toward front of snow thrower.

2. Position chute rotater head over chute bracket. If nec es sary, rotate chute assembly to align square and pin on un der side of chute rotater head with holes in chute brack et.

3. With chute rotater head and chute bracket aligned, po si tion chute rotater head on pin and threaded stud of mounting bracket.

4. Install 3/8 washer and locknut on threaded stud and tighten securely.

CHUTE ROTATER HEAD

3/8 LOCKNUT

3/8 WASHER

DE FLEC TOR

NYLON WASHER

CABLE EYELET

1/4-20 LOCK NUT

REMOTE CABLE BRACKET

WASHER

5/16-18 LOCKNUT

FLAT

FIG. 8

SPRINGCHUTE

HOOK BE TWEEN

ON CHUTE

ROTATER HEAD

1/4-20

SHOULDER

BOLT

HEX NUTS

5/16-18

CARRIAGE

BOLT

THREADED

STUD

ROTATER HEAD CHUTE BRACKET

ALIGN BEFORE

TIGHTENING LOCKNUT

FIG. 7

MOUNT ING

BRACKET

INSTALL CHUTE DEFLECTOR REMOTE CONTROL (See Figs. 8 and 9)

1. Install remote cable bracket to discharge chute with 5/16-18 carriage bolt, ﬂ at washer and 5/16-18 locknut as shown. Tighten securely.

2. Install remote cable eyelet to chute deﬂ ector with 1/4-20 shoulder bolt, nylon washer and 1/4-20 locknut as shown. Tighten securely.

3. Install spring hooks between hex nuts on chute rotater head and into hole in chute deﬂ ector as shown.

CHUTE DEFLECTOR CONTROL LEVER

FIG. 9

CHECK TIRE PRESSURE

The tires on your snow thrower were overinﬂ ated at the factory for shipping purposes. Correct and equal tire pres sure is important for best snow throwing performance.

• Reduce tire pressure to 14–17 PSI.

OPERATION

KNOW YOUR SNOW THROWER

READ THIS OWNER'S MANUAL AND ALL SAFETY RULES BEFORE OPERATING YOUR SNOW THROWER. Compare the illustrations with your snow thrower to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your snow thrower or in literature supplied with the product. Learn and understand their meaning.

DANGER

OR WARNING

IGNITION KEY.

INSERT TO START

AND RUN,

PULL OUT TO STOP.

FORWARD

REVERSE

PRIMER

READ AND FOLLOW ALL SAFETY INFORMATION

AND INSTRUCTIONS BEFORE USE OF THIS PRODUCT.

KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

SNOW

DISCHARGE

DISENGAGED

ENGAGED

TRACTION

DRIVE CONTROL

OPERATION

SPARK

SAFETY IGNITION KEY

CHOKE CON TROL

THROTTLE / ENGINE CONTROL

RECOIL (AUXILIARY) STARTER HANDLE

NOTE: ITEMS ABOVE

LOCATION ON THE

ENGINE. ACTUAL

LOCATION MAY VARY

WITH THE ENGINE

PLUG

PRIM ER

ARE SHOWN IN THEIR TYPICAL

ON YOUR UNIT.

POWER CORD PLUG

ELECTRIC START BUTTON

ENGINE OIL CAP

OIL DRAIN PLUG

FUEL SHUT-OFF VALVE

WITH DIPSTICK

GAS O LINE

FILLER

DISCHARGE

CHUTE

CLEANOUT TOOL

CAP

DE FLEC TOR

AUGER CONTROL LEVER

CHUTE

DRIVE SPEED CON TROL LEVER

DISCHARGE

CHUTE

CONTROL

LEVER

TRACTION

DRIVE

CONTROL

LEVER

LH TURN

TRIGGER

DEFLECTOR

REMOTE

CONTROL

LEVER

LIGHT

HANDLE

KNOB

MUF FLER

TOOLBOX

AU GERS

FIG. 10

MEETS A.N.S.I. SAFETY REQUIREMENTS

Our snow throwers conform to the standards of the American National Standards Institute.

Toolbox - used to store spare shear bolts, locknuts and wrench.

Safety ignition key - must be inserted for the engine to start and run. Remove when snow thrower is not in use.

Electric start button - used for starting the engine. Recoil (auxiliary) starter handle - used for start ing the en gine. Drift cutter - used to cut through deep snowdrifts. Primer - pumps additional fuel from the carburetor to the

cylinder for use when starting a cold engine.

Choke control - used for starting a cold engine. LH and RH turn triggers - used to steer the snow thrower.

Throttle/engine control - used to se lect either FAST or

SLOW engine speed and to STOP the engine. Traction drive control lever - used to engage power-pro-

pelled for ward or reverse motion of snow thrower. Auger control lever - used to engage auger motion (throw

snow). Discharge chute control lever - used to change the di-

rec tion the snow is thrown. Skid plate - used to adjust height of scraper bar from the

ground. Deﬂ ector remote control lever - used to change the

dis tance the snow is thrown.

DRIFT

CUTTER

SKID PLATE

OPERATION

The operation of any snow thrower can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields while operating

your snow thrower or performing any ad just ments or repairs. We recommend standard safe ty glasses or a wide vision safety mask worn over spectacles.

HOW TO USE YOUR SNOW THROWER

Know how to operate all controls before adding fuel or

attempting to start the engine.

STOPPING

TRACTION DRIVE

• Release traction drive control lever to stop the forward

or reverse movement of the snow thrower.

AUGER

• Release the auger control lever to stop throwing snow. ENGINE

1. Move throttle control to “STOP” position.

2. Remove (do not turn) safety ignition key to prevent

unauthorized use.

NOTE: Never use choke to stop engine. TO USE FUEL SHUT-OFF VALVE (See Fig. 11)

The fuel shut-off valve is located beneath the fuel tank on the engine. Always op er ate the snow thrower with the fuel shut-off valve in the OPEN position.

TO USE CHOKE CON TROL (See Fig. 13)

The choke con trol is located on the en gine. Use the choke control when ev er you are starting a cold en gine. Do not use to start a warm en gine.

• To engage choke, turn knob clockwise. Slowly turn knob counterclockwise to disengage.

FULLOFF

FIG. 13

TO CONTROL SNOW DISCHARGE (See Fig. 14)

If the discharge chute or au ger become clogged, shut-off en gine and wait for all moving parts to stop. Use the clean-out tool, NOT YOUR HANDS, to un clog the chute and/or auger.

OFF

OPEN

FIG. 11

TO USE THROTTLE CONTROL (See Fig. 12)

The throttle control is located on the engine. Always op er ate the snow thrower with the engine at full throttle. Full throttle offers the best snow thrower performance.

FAST

SLOW

FIG. 12

The DIRECTION in which snow is to be thrown is controlled by the discharge chute control lever.

• To change the discharge chute position, press down ward on discharge chute control lever and move lever left or right until chute is in desired position. Be sure lever springs back and locks into desired position.

DISCHARGE CHUTE

CONTROL LEVER

CHUTE DEFLECTOR

REMOTE CONTROL LEVER

FIG. 14

The DISTANCE that snow is thrown is controlled by the position of the chute deﬂ ector. Set the deﬂ ector low to throw snow a short distance; set the deﬂ ector higher to throw snow farther.

• Press downward on chute deﬂ ector control lever and move lever forward to lower the deﬂ ector and decrease the distance. Move lever back to raise the deﬂ ector and increase the distance. Be sure lever springs back

and locks into desired position.

OPERATION

TO THROW SNOW (See Fig. 15)

The auger rotation is controlled by the auger control lever located on the right side handle.

• Squeeze auger control lever to handle to engage the auger and throw snow.

• Release the auger control lever to stop throwing snow.

AUGER CONTROL LEVER

FIG. 15

USING THE CLEAN-OUT TOOL (See Fig. 16)

In certain snow conditions, the discharge chute may become clogged with ice and snow. Use the clean-out tool to dislodge this blockage.

When cleaning, repairing, or in spect ing, make certain all controls are disengaged and the auger/impeller and all moving parts have stopped. Disconnect the spark plug wire and keep the wire away from the spark plug to prevent accidental starting.

• Release the auger control lever and shut off the engine.

• Remove the clean-out tool from it's mounting clip. Grasp the tool ﬁ rmly by the handle and push and twist the tool into the discharge chute to dislodge the blockage.

After the packed snow has been dislodged, return the cleanout tool to it's mounting clip by pushing it into the clip.

• Make sure the discharge chute is pointed in a safe direction (no vehicles, buildings, people, or other objects are in the direction of discharge) before restarting the engine.

• Restart the engine, then squeeze the auger control lever to the handle to clear snow from the auger housing and the discharge chute.

TO MOVE FORWARD AND BACKWARD (See Fig. 17)

SELF-PROPELLING, forward and reverse movement of the snow thrower, is controlled by the traction drive control lever located on the left side handle.

• Squeeze traction drive control lever to handle to en gage the drive system.

• Release traction drive control lever to stop the forward or reverse movement of the snow thrower.

SPEED and DIRECTION are controlled by the drive speed control lever.

• Press downward on the speed control lever and move lever to de sired po si tion BE FORE engaging the trac tion drive control lever. Be sure lever springs back and locks into desired position.

CAUTION: Do not move speed con trol le ver when traction drive control lever is en gaged. Damage to the snow thrower can result.

• Slower speeds are for heavier snow and faster speeds are for light snow and transporting the snow thrower. It is recommended that you use a slower speed until you are familiar with the operation of the snow thrower.

NOTE: When both traction drive and auger control levers are engaged, the traction drive control lever will lock the auger control lever in the engaged position. This will allow you to release your right hand from the handle and adjust the discharge chute direction without interrupting the snow throwing process.

TRACTION DRIVE CONTROL LEVER

DRIVE SPEED CONTROL LEVER

DISCHARGE CHUTE

CLEAN-OUT TOOL

MOUNTING CLIP

FIG. 16

FIG. 17

POWER STEERING OPERATION (See Fig. 18)

Steering triggers are used to assist in steering your snow thrower. The triggers are located on the underside of each handle. When a trigger is squeezed, it disengages the drive wheel on that side of snow thrower and allows it to turn in that direction.

• To turn left – squeeze left side trigger.

• To turn right – squeeze right side trigger.

LH TURN TRIGGER

RH TURN TRIGGER

FIG. 18

OPERATION

TO ADJUST SKID PLATES (See Fig. 19) NOTE: The wrench provided in your parts bag may be used

to adjust the skid plates. Skid plates are located on each side of the auger housing

and adjust the clearance between the scraper bar and the ground surface. Adjust skid plates evenly to proper height for current surface conditions. For removal of snow in normal con di tions, such as a paved driveway or side walk, place skid plates in the highest position (lowest scraper clear ance) to give a 1/8" clearance between the scraper bar and the ground. Use a middle position if the surface to be cleared is uneven.

NOTE: It is not recommended to operate the snow thrower over gravel or rocky surfaces. Objects such as gravel, rocks or other debris, can easily be picked up and thrown by the impeller, which can cause serious personal injury, property dam age or damage to the snow thrower.

• If snow thrower must be operated over gravel surface, use extra caution and be sure skid plates are adjusted to lowest (highest scraper clear ance) position.

1. Shut off engine and wait for all moving parts to stop.

2. Adjust skid plates by loosening the rear 1/2" hex nut only, then moving skid plate to desired position. Be sure both plates are adjusted evenly. Tighten securely.

HIGH POSITION (LOW GROUND CLEARANCE)

AUGER

HOUSING

SKID PLATE

1/2" HEX NUT

LOW POSITION (HIGH GROUND CLEAR ANCE)

SCRAPER BAR

FIG. 19

The scraper bar is not adjustable, but is reversible. After con sid er able use it may become worn. When it has worn almost to the edge of the housing, it can be reversed, providing additional service before requiring replacement. Replace a dam aged or worn scrap er bar.

TO USE DRIFT CUTTERS (See Fig. 20)

Use the drift cutters to cut through deep snowdrifts that are higher than the front of the snow thrower.

• Loosen upper adjustment nut enough to allow drift cutter to be raised to highest position and tighten nut securely. Repeat for opposite side of snow thrower.

• When not using drift cutters, loosen adjustment nut, lower to storage position and tighten nut securely.

BEFORE STARTING THE ENGINE

CHECK ENGINE OIL LEVEL (See Fig. 21)

The engine on your snow thrower has been shipped, from the factory, already ﬁ lled with oil.

1. Check engine oil with snow thrower on level ground.

2. Remove oil ﬁ ll cap/dipstick and wipe clean, reinsert the dipstick and screw tight, wait for a few seconds, remove and read oil level. If necessary, add oil until “FULL” mark on dipstick is reached. Do not overﬁ ll.

• To change engine oil, see “TO CHANGE ENGINE OIL” in the Main te nance sec tion of this manual.

ADD GASOLINE (See Fig. 21)

• Fill fuel tank to bottom of tank ﬁ ller neck. Do not overﬁ ll. Use fresh, clean, regular unleaded gasoline with a minimum of 87 octane. Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

WARNING: Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open ﬂ ame.

CAUTION: Alcohol blended fuels (called gas o hol or using ethanol or methanol) can attract moisture which leads to separation and for ma tion of acids dur ing storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied be fore stor age of 30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next season. See Storage In struc tions for ad di tion al information. Never use engine or car bu re tor cleaner products in the fuel tank or per ma nent damage may occur.

ENGINE OIL

FILL CAP /

DIPSTICK

SAFETY IG NI TION KEY

THROT TLECHOKE CONTROL

PRIM ER

AUGER HOUSING

STORAGE POSITION

FIG. 20

DRIFT

CUTTER

ADJUST-

MENT NUT

RECOIL STARTER HANDLE

NOTE: ALL ITEMS ARE SHOWN IN THEIR TYPICAL LOCATION.

ACTUAL LOCATION MAY VARY WITH ENGINE ON YOUR UNIT.

FIG. 21

STARTER BUTTON

POWER CORD PLUG

GAS O LINE

FILLER CAP

FUEL SHUT-

OFF VALVE

OPERATION

TO START ENGINE

• Be sure fuel shut-off valve is in the OPEN position. Your snow thrower engine is equipped with both a 120 Volt

A.C. electric starter and a recoil starter. The electric starter is equipped with a three-wire power cord and plug and is designed to operate on 120 Volt A.C. household current.

• Be sure your house is a 120 Volt A.C. three-wire ground ed system. If you are uncertain, consult a li censed electrician.

WARNING: Do not use the electric start er if your house is not a 120 Volt A.C. three-wire grounded system. Se ri ous per son al injury or damage to your snow thrower could result.

COLD START - ELECTRIC STARTER

1. Insert safety ignition key (packed separately in parts bag) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place throttle control in FAST position.

3. Rotate choke control to FULL position.

4. Connect the power cord to the engine.

5. Plug the other end of the power cord into a three-hole grounded 120 Volt A.C. receptacle.

NOTE: Do not use primer when start ing en gine with the electric starter.

6. Push starter button until engine starts.

IMPORTANT: Do not crank engine more than ﬁ ve con tin u ous seconds between each time you try to start. Wait 5 to 10 seconds between each attempt.

7. When the engine starts, release the starter button and slowly move the choke control to the OFF position.

8. Disconnect the power cord from the receptacle ﬁ rst, then from the engine.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - ELECTRIC STARTER Follow the steps above, keeping the choke control in the

OFF position. COLD START - RECOIL STARTER

1. Insert safety ignition key (packed separately in parts bag) into ignition slot until it clicks. DO NOT turn the key. Keep the extra safety ignition key in a safe place.

2. Place throttle control in FAST position.

3. Rotate choke control to FULL position.

4. Push the primer four (4) times if the temperature is below 15°F, or two (2) times if temperature is between 15° and 50°F. If temperature is above 50°F, priming is not nec es sary.

NOTE: Over priming may cause ﬂ ooding, preventing the engine from starting. If you do ﬂ ood the engine, wait a few minutes be fore at tempt ing to start and DO NOT push the primer.

5. Pull recoil starter handle quickly. Do not allow starter rope to snap back.

6. When the engine starts, release the recoil starter han dle and slowly move the choke control to the OFF position.

Allow the engine to warm up for a few minutes. Engine will not develop full power until it has reached normal operating temperature.

WARM START - RECOIL STARTER Follow the steps above, keeping the choke in the OFF

position. DO NOT push the primer.

BEFORE STOPPING

Run the engine for a few minutes to help dry off any moisture on the engine.

To avoid possible freeze-up of the starter, proceed as follows:

ELECTRIC STARTER

1. Connect the power cord to the engine.

2. Plug the other end of the power cord into a three-hole grounded 120 Volt A.C. receptacle.

3. While the engine is running, push starter button and spin the starter for several seconds.

NOTE: The unusual sound made while starter is spinning will not harm the engine or starter.

4. Disconnect the power cord from the receptacle ﬁ rst, then from the engine.

RECOIL STARTER

1. While the engine is running, pull the recoil starter handle with rapid, full arm strokes three or four times.

NOTE: The unusual sound made while pulling the recoil starter handle will not harm the engine or starter.

IF RECOIL STARTER HAS FROZEN

If the recoil starter has frozen and will not turn the engine, proceed as follows:

1. Grasp the recoil starter handle and slowly pull as much rope out of the starter as possible.

2. Release the recoil starter handle and let it snap back against the starter.

If the engine still fails to start, repeat the above steps or use the electric starter.

SNOW THROWING TIPS

• Always operate the snow thrower with the engine at full throttle. Full throttle offers the best performance.

• Go slower in deep, freezing or heavy wet snow. Use the drive speed control, NOT the throttle, to adjust speed.

• It is easier and more efﬁ cient to remove snow im me di ate ly after it falls.

• The best time to remove snow is the early morning. At this time the snow is usually dry and has not been exposed to the direct sun and warming tem per a tures.

• Slightly overlap each successive path to ensure all snow will be removed.

• Throw snow downwind whenever possible.

• Ad just the skid plates to proper height for current snow con di tions. See “TO ADJUST SKID PLATES” in this section of this manual.

• For extremely heavy snow, re duce the width of snow removal by over lap ping previous path and moving slowly.

• Keep engine clean and clear of snow during use. This will help air ﬂ ow and extend engine life.

• After snow-throwing is completed, allow engine to run for a few minutes to melt snow and ice off the engine.

• Clean the entire snow thrower thoroughly after each use and wipe dry so it is ready for next use.

MAINTENANCE

WARNING: Do not operate snow thrower if weather conditions im pair visibility. Throwing snow dur ing a heavy, windy snowstorm can blind you and be hazardous to the safe operation of the snow thrower.

GENERAL REC OM MEN DA TIONS

The warranty on this snow thrower does not cover items that have been sub ject ed to operator abuse or negligence. To receive full value from the warranty, operator must maintain snow thrower as in struct ed in this manual. Some ad just ments will need to be made periodically to properly maintain your snow thrower. All adjustments in the Service and Ad just ments section of this manual should be checked at least once each season.

• Once a year, you should replace the spark plug and check belts for wear. A new spark plug will help your engine run better and last longer.

• Follow the maintenance schedule in this manual.

NOTE: Use only Original Equipment Manufacturer (OEM) parts to service this unit. Failure to do so can cause the unit to malfunction and pose a risk of injury to the operator.

BEFORE EACH USE

1. Check engine oil level.

2. Check for loose fasteners.

3. Check controls to be sure they are functioning properly.

LUBRICATION

Keep your snow thrower well lubricated (See “LU BRI CA TION CHART”).

SNOW THROWER

Always observe the safety rules when performing any main te nance.

LUBRICATION CHART

➀ SAE 30 Motor Oil

See “ENGINE” in

➁

Maintenance section

➀ Pivot points

TIRES

• Maintain proper air pressure in both tires (14–17 PSI).

• Keep tires free of gasoline and oil, which can harm rubber.

➁

Engine

oil

MAINTENANCE

NOTE: To seal tire punctures and prevent ﬂ at tires due to

slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and cor ro sion.

V-BELTS

Check V-belts for deterioration and wear after every 50 hours of operation and replace if necessary. The belts are not ad just able. Replace belts if they begin to slip from wear. (See “TO REMOVE BELT COVER” in the Service and Adjustments section of this manual).

The V-belts on your snow thrower are of special con struc tion and should be replaced by original equipment man u fac tur er (OEM) belts avail able from your nearest dealer. Using other than OEM belts can cause personal injury or damage to the snow thrower.

AUGER GEAR CASE

• The gear case was ﬁ lled with lubricant to the proper level at the factory. The only time the lubricant needs attention is if service has been performed on the gear case.

• If lubricant is required, use only Ronex ED #1 grease.

TRACTION DRIVE SYSTEM

DO NOT lubricate the drive components inside the snow thrower. The sprockets, hex shafts, drive disc and friction wheel require no lubrication. The bearings and bushings are lifetime lubricated and require no maintenance.

CAUTION: Any lubricating of the above com po nents can cause contamination of the friction wheel and damage to the drive system of your snow thrower.

ENGINE

See engine manual.

LUBRICATION

Use only high quality detergent oil rated with API service classiﬁ cation SG–SL. Select the oil's SAE viscosity grade according to your expected operating temperature.

Check the crankcase oil level before starting the engine and after each ﬁ ve (5) hours of continuous use. Tighten oil ﬁ ll cap / dipstick securely each time you check the oil level.

TO CHANGE ENGINE OIL Determine temperature range anticipated before next oil

change. All oil must meet API service classiﬁ cation SG–SL.

• Be sure snow thrower is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container. NOTE: The left side wheel may be removed from snow

thrower for easier access to the oil drain plug and place ment of a suitable container. The unit tilted, resting on the frame with the left wheel removed, will help drain any oil trapped inside the engine. (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

1. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

2. Clean area around drain plug.

3. Remove drain plug and drain oil in a suitable container.

4. Install drain plug and tighten securely.

5. Wipe off any spilled oil from snow thrower and engine.

6. Install left wheel (if removed for draining oil). Be sure to install klick pin into proper hole in wheel axle (See “TO REMOVE WHEELS” in the Service and Adjustments section of this manual).

7. Remove oil ﬁ ll cap/dipstick. Be careful not to allow dirt to enter the engine.

8. Reﬁ ll engine with oil through oil dipstick tube. Pour slowly. Do not overﬁ ll. For approximate capacity see “PRODUCT SPECIFICATIONS” section of this man u al.

9. Use gauge on oil ﬁ ll cap/dipstick for checking level. Be sure dipstick cap is tightened securely for accurate reading. Keep oil at “FULL” line on dipstick.

10. Wipe off any spilled oil.

MUFFLER

Inspect and replace corroded mufﬂ er as it could cre ate a ﬁ re haz ard and/or dam age.

SPARK PLUG

Replace spark plug at the beginning of each season or after every 100 hours of operation, whichever occurs ﬁ rst. Spark plug type and gap setting are shown in the “PROD UCT SPEC I FI CA TIONS” section of this manual.

NOTE: Although multi-viscosity oils (5W30, 10W30 etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above 32°F. Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the snow thrower is not used for 25 hours in one year.

CLEANING

IMPORTANT: For best performance, keep snow thrower

housing free of any dirt or trash. Clean the outside of your snow thrower after each use.

WARNING: Disconnect spark plug wire from spark plug and place wire where it can not come in contact with plug.

• Keep ﬁ nished surfaces/wheels free of gasoline, oil, etc.

• We do not recommend using a garden hose to clean your snow thrower unless the electrical system, mufﬂ er and carburetor are covered to keep water out. Water in engine can result in shortened engine life.

SERVICE AND ADJUSTMENTS

WARNING: To avoid serious injury, before performing any service or ad just ments:

1. Be sure throttle is in STOP position.

2. Remove safety ignition key.

3. Make sure the augers and all mov ing parts have completely stopped.

4. Disconnect spark plug wire from spark plug and place wire where it can not contact plug.

SNOW THROWER

TO ADJUST SNOW THROWER HEIGHT

See “TO ADJUST SKID PLATES” and “SCRAPER BAR” in the Operation section of this manual.

CHUTE DEFLECTOR

The chute deﬂ ector, attached to the top of the discharge chute, is provided to direct discharging snow away from the operator. If the deﬂ ector becomes damaged, it should be re placed.

WARNING: To avoid serious injury, nev er operate your snow thrower with the deﬂ ector removed or damaged.

• To change direction and/or distance snow is dis charged, see “TO CONTROL SNOW DISCHARGE” in the Op er a tion section of this manual.

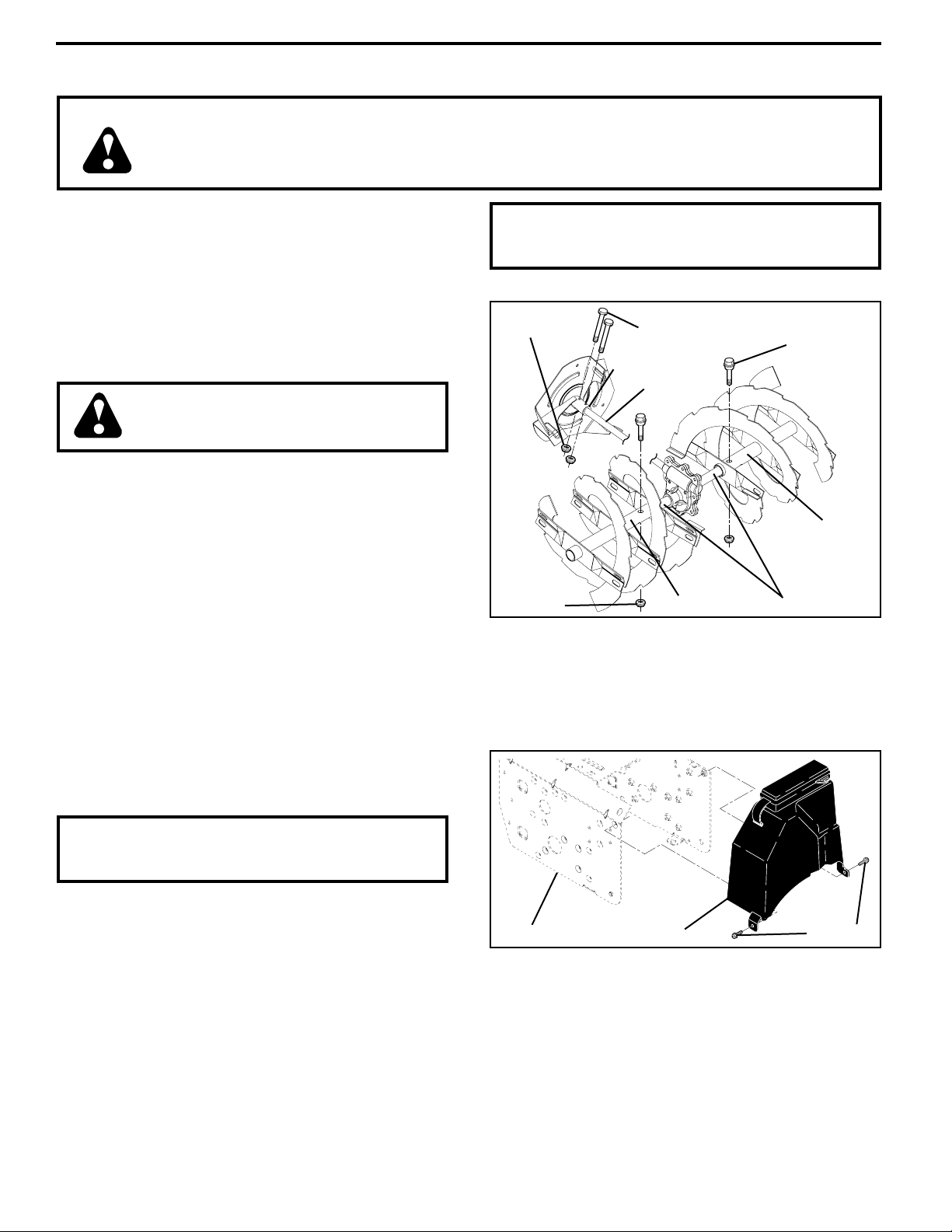

SHEAR BOLTS (See Fig. 22)

AUGER SHEAR BOLTS Both right and left-hand augers are secured to the auger

shaft with a shoulder/shear bolt and hex nut. Should a foreign object or ice become lodged in the augers, the shear bolts are designed to break, preventing damage to any other com po nents. If one or both augers do not turn when auger control lever is engaged, check to see if one or both of the bolts have sheared. To replace the shear bolts:

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

3. Align hole in auger hub with hole in auger shaft and install a new 1/4-20 x 2" shoulder/shear bolt. Install 1/4-20 lock nut and tighten securely.

CAUTION: Do not substitute. Use only original equip ment capscrew/shear bolts as sup plied with your snow thrower.

4. Connect spark plug wire to spark plug.

1/4-20 LOCKNUT

1/4-20 LOCK NUT

1/4-20 x 1-5/8 CAPSCREW / SHEAR BOLT

IMPELLER HUB

IMPELLER

SHAFT

AUGER HUB

FIG. 22

1/4-20 x 2

SHOULDER /

SHEAR BOLT

AUGER

HUB

AUGER SHAFT

TO REMOVE BELT COVER (See Fig. 23)

1. Remove the two screws securing belt cover to frame.

2. Remove belt cover.

• Replace belt cover by installing cover and screws and tighten securely.

CAUTION: Do not sub sti tute. Use only original equip ment shear bolts as sup plied with your snow thrower.

4. Connect spark plug wire to spark plug. IMPELLER SHEAR BOLTS The impeller is secured to the impeller shaft with two (2)

capscrew/shear bolts and hex nuts. Should a foreign object or ice become lodged in the impeller, the capscrews are de signed to break, preventing damage to any other com po nents. If impeller does not turn when auger control lever is engaged, check to see if the capscrews have sheared. To replace the capscrew/shear bolts:

1. Disengage all controls and move throttle control to STOP position. Wait for all moving parts to stop.

2. Disconnect spark plug wire from spark plug and place wire where it cannot come in contact with plug.

3. Align holes in impeller hub with holes in impeller shaft and install two (2) new 1/4-20 x 1-5/8" capscrew/shear bolts. Install 1/4-20 locknuts and tighten securely.

BELT COVER SCREWSFRAME

FIG. 23

TO REPLACE BELTS (See Fig. 24)

The auger and traction drive belts are not adjustable. If the belts are damaged or begin to slip from wear, they should be replaced. It is recommended that the belt(s) be replaced by a qualiﬁ ed service center.

NOTE: It is recommended that both the auger and traction drive belt be replaced at the same time.

SERVICE AND ADJUSTMENTS

WARNING: Belt replacement requires separation of the snow thrower. While separating the auger housing from the frame assembly, it is important that an assistant stand in the operating po si tion and hold the snow thrower han dles. Serious personal injury and/or damage to the unit could occur if the snow thrower should fall during the belt chang ing process.

FRAME ASSEMBLY

HANDLES

AUGER

HOUS ING

1. REMOVE GASOLINE FROM FUEL TANK - Drain gasoline from fuel tank into a suitable container, out doors, away from ﬁ re or ﬂ ame. Wipe up any spilled gasoline.

2. REMOVE DISCHARGE CHUTE - Loosen locknut se cur ing chute rotator head to mounting bracket only enough to allow chute rotator head to be raised and dis charge chute to be removed from snow thrower.

3. REMOVE BELT COVER - See “TO REMOVE BELT COVER” in this section of this manual.

4. REMOVE ENGINE PULLEY - Remove bolt, lock wash er and ﬂ at washer securing pulley to engine crankshaft. Remove outside (auger) pulley only from crank shaft.

5. SEPARATE SNOW THROWER - With your assistant standing in the operating position holding the handles, re move the two (2) bolts and lock washers holding auger housing and frame together.

WARNING: As the last bolt is removed, have your assistant carefully lower the han dles down to the ground.

6. REMOVE AUGER BELT from around pulley.

7. RELIEVE TENSION ON TRACTION DRIVE BELT IDLER and remove traction drive belt from around pulleys.

HINT: Insert a 3/8" drive ratchet (in the “ON” position) into the square hole in idler arm and rotate ratchet clockwise to relieve tension.

8. With tension relieved on idler, install new traction drive belt around pulleys and inside belt keepers.

9. Place auger belt around and inside the groove of auger pulley only.

10. While your assistant slowly raises handles to rejoin the auger hous ing and frame assembly, pull up on the auger belt and squeeze sides together above pulley so belt is fully seated in groove of pulley.

11. Bring snow thrower completely together and check carefully for proper routing of belts. If auger belt has become dislodged from the pulley (by catching the idler arm bracket while bringing snow thrower together), separate the snow thrower and re peat step 10. Belt must be fully seated in pulley groove when bring ing the snow thrower together.

12. Install the two (2) hex bolts and lock washers and tighten securely.

13. INSTALL ENGINE PULLEY - Place belt in pulley groove and slide pulley on crankshaft. Install ﬂ at washer, lockwasher and bolt and tighten securely (30-35 ft. lbs. torque). Make sure belt is inside belt keeper.

14. INSTALL BELT COVER and two (2) screws. Tighten securely.

15. INSTALL DISCHARGE CHUTE – See “INSTALL DIS CHARGE CHUTE / CHUTE ROTATER HEAD” in the As sem bly / Pre-Operation section of this manual.

BELT KEEPER

TRACTION DRIVE BELT

IDLER ARM

SQUARE

HOLE

FRAME

ENGINE PULLEY

CLUTCHING IDLER ARM BRACKET

AUGER PULLEY

AUGER HOUSING

FIG. 24

FLAT WASHER

LOCKWASHER

BOLT

AUGER

BOLT

WASHER

TO REMOVE WHEELS (See Fig. 25)

• Remove the klik pin and remove wheel from axle.

IMPORTANT: When installing wheel, be sure to use the axle hole closest to the end of the shaft –

do not

use the hole in the wheel hub (if equipped). Inner hole in axle and hole in wheel hub are not used for your model snow thrower.

NOTE: To seal punctures or prevent ﬂ at tires due to slow leaks, tire sealant may be purchased from your local parts dealer. Tire sealant also prevents tire dry rot and cor ro sion.

KLIK PIN (INSTALL IN OUTER HOLE OF AXLE ONLY)

WHEEL

FIG. 25

OUTER HOLE

WHEEL HUB

BELT

LOCK

AXLE

SERVICE AND ADJUSTMENTS

ENGINE

See engine manual.

CARBURETOR

Your carburetor is not adjustable. Engine performance should not be affected at altitudes up to 7,000 feet (2,134 meters). If your engine does not operate properly due to suspected carburetor problems, take your snow thrower to a qualiﬁ ed service center.

STORAGE

Immediately prepare your unit for storage at the end of the season or if the unit will not be used for 30 days or more.

WARNING: Never store the snow thrower with gaso line in the tank in side a build ing where fumes may reach an open ﬂ ame, spark or pilot light as on a fur nace, water heater, clothes dryer or gas ap pli ance. Allow the engine to cool be fore storing in any enclosure.

SNOW THROWER

When snow thrower is to be stored for a period of time, clean it thor oughly, re move all dirt, grease, leaves, etc. Store in a clean, dry area.

1. Clean entire snow thrower (See “CLEANING” in the Main te nance section of this manual).

2. Inspect and replace belts, if necessary (See “TO RE PLACE BELTS” in the Service and Adjustments sec tion of this manual).

3. Lubricate as shown in the Main te nance sec tion of this man u al.

4. Be sure that all nuts, bolts, screws, and pins are securely fas tened. Inspect moving parts for damage, breakage and wear. Replace if nec es sary.

5. Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE

See engine manual.

FUEL SYS TEM IMPORTANT: It is important to prevent gum deposits from

forming in essential fuel system parts such as carburetor, fuel hose, or tank during storage. Also, alcohol blended fuels (called gasohol or using ethanol or methanol) can attract moisture which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage.

ENGINE SPEED

Never tamper with the engine governor, which is factory set for proper engine speed. Overspeeding the engine above the factory high speed setting can be dangerous and will void the warranty. If you think the engine-governed high speed needs adjusting, contact a qualiﬁ ed service center, which has proper equipment and experience to make any necessary ad just ments.

• Empty the fuel tank by starting the engine and letting it run until the fuel lines and car bu re tor are empty.

• Never use engine or carburetor cleaner prod ucts in the fuel tank or permanent damage may occur.

• Use fresh fuel next season.

NOTE: Fuel stabilizer is an acceptable alternative in min i miz ing the formation of fuel gum deposits during stor age. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stabilizer container. Run engine at least 10 min utes after adding stabilizer to allow the stabilizer to reach the carburetor. Do not drain the gas tank and carburetor if using fuel stabilizer.

ENGINE OIL

Drain oil (with engine warm) and replace with clean engine oil. (See “ENGINE” in the Maintenance section of this man ual).

CYLINDER

1. Remove spark plug.

2. Pour one ounce (29 ml) of oil through spark plug hole into cylinder.

3. Pull recoil starter handle slowly a few times to dis trib ute oil.

4. Replace with new spark plug.

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust. Rust and/or dirt in your gasoline will cause problems.

• If possible, store your snow thrower indoors and cover it to protect it from dust and dirt.

• Cover your snow thrower with a suitable pro tec tive cover that does not retain moisture. Do not use plastic. Plastic cannot breathe, which allows con den sa tion to form and will cause your snow thrower to rust.

IMPORTANT: Never cover snow thrower while engine/ exhaust area is still warm.

TROUBLESHOOTING

See appropriate section in manual unless directed to a qualiﬁ ed service centre.

PROBLEM CAUSE CORRECTION

Does not start 1. Fuel shut-off valve (if so 1. Turn fuel shut-off valve to OPEN position.

equipped) in OFF position.

2. Safety ignition key 2. Insert safety ignition key. is not inserted.

3. Out of fuel. 3. Fill fuel tank.

4. Throttle in STOP position. 4. Move throttle to FAST position.

5. Choke in OFF position. 5. Move to FULL position.

6. Primer not depressed. 6. Prime as instructed in the Operation section of this manual.

7. Engine is ﬂ ooded. 7. Wait a few minutes before restarting, DO NOT prime.

8. Spark plug wire is 8. Connect wire to spark plug. disconnected.

9. Bad spark plug. 9. Replace spark plug.

10. Stale fuel. 10. Drain fuel tank and carburetor, reﬁ ll tank with fresh gasoline.

11. Water in fuel. 11. Drain fuel tank and carburetor, reﬁ ll tank with fresh gas o line.

Loss of power 1. Spark plug wire loose. 1. Reconnect spark plug wire.

2. Throwing too much snow. 2. Reduce speed and width of swath.

3. Fuel tank cap is covered 3. Remove ice and snow on and around fuel tank cap. with ice or snow.

4. Dirty or clogged mufﬂ er. 4. Clean or replace mufﬂ er.

Engine idles or 1. Choke is in FULL position. 1. Move choke to OFF position. runs roughly 2. Blockage in fuel line. 2. Clean fuel line.

3. Stale fuel. 3. Drain tank and reﬁ ll with fresh, clean fuel.

4. Water in fuel. 4. Drain fuel tank and carburetor, reﬁ ll tank with fresh gasoline.

5. Carburetor is in need of 5. Contact a qualiﬁ ed service centre. adjustment or overhaul.

Excessive 1. Loose parts or damaged 1. Tighten all fasteners. Replace damaged parts. vibration augers or impeller. If vibration remains, contact a qualiﬁ ed service centre.

Recoil starter 1. Frozen recoil starter. 1. See “IF RECOIL STARTER HAS FROZEN” is hard to pull in the Operation section of this manual.

Loss of traction 1. Drive belt is worn. 1. Check / replace drive belt. drive / slowing 2. Drive belt is off of pulley. 2. Check / reinstall drive belt. of drive speed 3. Friction drive wheel is worn. 3. Contact a qualiﬁ ed service centre.

Loss of snow 1. Auger belt is off of pulley. 1. Check / reinstall auger belt. discharge or 2. Auger belt is worn. 2. Check / replace auger belt. slowing of 3. Clogged discharge chute. 3. Clean snow chute. snow discharge 4. Augers / impeller jammed. 4. Remove debris or foreign object from augers / impeller.

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we ﬁ nd to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine or components parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products.

3. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original purchase.

4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac cor dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

5. Exclusions: Excluded from this Warranty are belts, shear pins, normal wear, normal adjustments, stan dard hard ware and normal maintenance.

6. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc. Outdoor Products Customer Service Dept. 1030 Stevens Creek Road Augusta, GA 30907 USA

giving the complete mfg. ID#, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED WAR RAN TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WARRANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you speciﬁ c legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as deﬁ ned in the Magnuson-Moss Act of 1975.

In Canada contact: Electrolux Consumer Outdoor Products

5855 Terry Fox Way Mississauga, Ontario L5V 3E4

Yard Machines 961940001 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
