YARD

Operator's Manual

21" Rear & Side

Discharge Mulching

Mower

Model Series

430

IMPORTANT: Read safety rules and instructions carefully before operating equipment.

Warning: This unit is equipped with an internal combustion engine and should not be used on or near any unimproved forest-

covered, brush-covered or grass-covered land unless the engine's exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any), If a spark arrester is used, it should be maintained in effective working order by the operator, In the State of California the above is required by law (Section 4442 of the California Public Resources Code), Other states may have similar laws, Federal laws apply on federal lands, A spark arrester for the muffler is available through your nearest engine authorized service dealer or contact the service department, P,O, Box 368022 Cleveland, Ohio 44136-9722,

MTD PRODUCTS INC. P.O. BOX 368022 CLEVELAND, OHIO 44136-9722

PRINTED IN U.S.A.

FORM NO. 770-10179A

(10/99)

Page 2

TABLEOFCONTENTS

Content Page

Important Safe Operation Practices ................................................................... 3

Slope Gauge ...................................................................................................... 6

Assembling Your Lawn Mower ........................................................................... 7

Know Your Lawn Mower .................................................................................... 10

Operating Your Lawm Mower ............................................................................ 11

Making Adjustments .......................................................................................... 12

Maintaining Your Lawn Mower ........................................................................... 14

Off-Season Storage ........................................................................................... 15

Troubleshooting ................................................................................................. 16

Parts List............................................................................................................ 18

FINDINGMODELNUMBER

This Operator's Manual is an important part of your new lawn mower. It will help you assemble, prepare and maintain the unit for best performance. Please read and understand what it says.

Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. The information on

the model plate is very important if you need help from our Customer Support Department or an authorized dealer.

You can locate the model number by standing at the operating position and looking down at the rear of the mower deck. A sample model plate is explained below. For future reference, please copy the

model number and the serial number of the equipment in the space below.

(Model Number)

t_=Mj_T/DTD)f_fC MTD PRODUCTS INC

(Serial Number)

LEVELAND, OHIO 44136

Copy the model number here:

Copy the serial number here:

CALLINGCUSTOMERSUPPORT

If you have difficulty assembling this product or have any questions regarding the controls, operation or maintenance of this unit, please call the Customer Support Department.

Call 1- (330) 220-4MTD (4683) or 1- (800)-800-7310 to reach a Customer Support representative. Please have your unit's model number and serial number ready when you call. See previous section to locate this information. You will be asked to enter the serial number in order to process your call.

Page 3

SECTION1: IMPORTANTSAFEOPERATIONPRACTICES

This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your lawn mower. Failure to comply with these instructions may result in personal injury. When you see this symbol, heed its warning.

WARNING: The Engine Exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.

DANGER: Your lawn mower was built to be operated according to the rules for safe operation inthis manual. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. This lawn mower is capable of amputating hands and feet and throwing objects. Failure to observe the following safety instructions could result in serious injury or death.

GENERALOPERATION

Read this operator's manual carefully in its entirety before attempting to assemble this machine. Read,

understand, and follow all instructions on the machine and in the manual(s) before operation. Be

completely familiar with the controls and the proper

use of this machine before operating it. Keep this manual in a safe place for future and regular o

reference and for ordering replacement parts.

Your rotary mower is a precision piece of power equipment, not a plaything. Therefore, exercise o

extreme caution at all times. Your unit has been designed to perform one job: to mow grass. Do not

use it for any other purpose. Never allow children under 14 years old to operate o

a power mower. Children 14 years old and over should only operate mower under close parental

supervision. Only responsible individuals who are familiar with these rules of safe operation should be

allowed to use your mower.

Keep the area of operation clear of all persons, particularly small children and pets. Stop engine

when they are in the vicinity of your mower to help

prevent blade contact or thrown object injury.

Although the area of operation should be completely cleared of foreign objects, an object may o

have been overlooked and could be accidentally

thrown by the mower in any direction and cause o serious personal injury to the operator or any others

allowed in the area. o Wear sturdy, rough-soled work shoes and close-

fitting slacks and shirts. Shirts and pants that cover the arms and legs and steel-toed shoes are

recommended. Do not wear loose fitting clothes or

jewelry. They can be caught in moving parts. Never operate a unit in bare feet, sandals, slippery or light

weight (e.g. canvas) shoes, o Always wear safety glasses or safety goggles

during operation or while performing an adjustment or repair, to protect eyes from foreign objects that

may be thrown from the machine in any direction.

Thoroughly inspect the area where the equipment is to be used. Remove all stones, sticks, wire, bones,

toys and other foreign objects which could be

picked up and thrown by the mower in any direction and cause serious personal injury to the operator or any others allowed in the area. Plan your mowing

pattern to avoid discharge of material toward roads, sidewalks, bystanders and the like. To help avoid a

thrown objects injury, keep children, bystanders and helpers at least 75 feet from the mower while it

is in operation. Do not put hands or feet near or under rotating

parts. Keep clear of discharge opening at all times as the rotating blade can cause injury.

Many injuries occur as a result of the mower being pulled over the foot during a fall. Do not hang on to

the mower if you are falling; release the handle immediately.

Never pull the mower toward you while you are walking. Ifyou must back the mower away from a

wall or obstruction first look down and behind, and then follow these steps:

a. Step back from the mower to fully extend your

arms.

b. Be sure you are well balanced with sure

footing.

c. Pull the mower back slowly, no more than half

way toward you.

d. Repeat these steps as needed.

Do not operate the mower while under the influence of alcohol or drugs.

Do not engage the self-propelled mechanism on units so equipped while starting engine.

The blade control handle is a safety device. Never attempt to bypass its operation. Doing so makes the

safety device inoperative and may result in personal injury through contact with the rotating blade. The

blade control handle must operate easily in both directions and automatically return to the

disengaged position when released. Never operate the mower in wet grass. Always be

sure of your footing. A slip and fall can cause serious personal injury. Keep a firm hold on the

handle and walk, never run. Ifyou feel you are losing your footing, RELEASE THE BLADE

CONTROL HANDLE IMMEDIATELY and the blade will stop rotating within three seconds.

Page 4

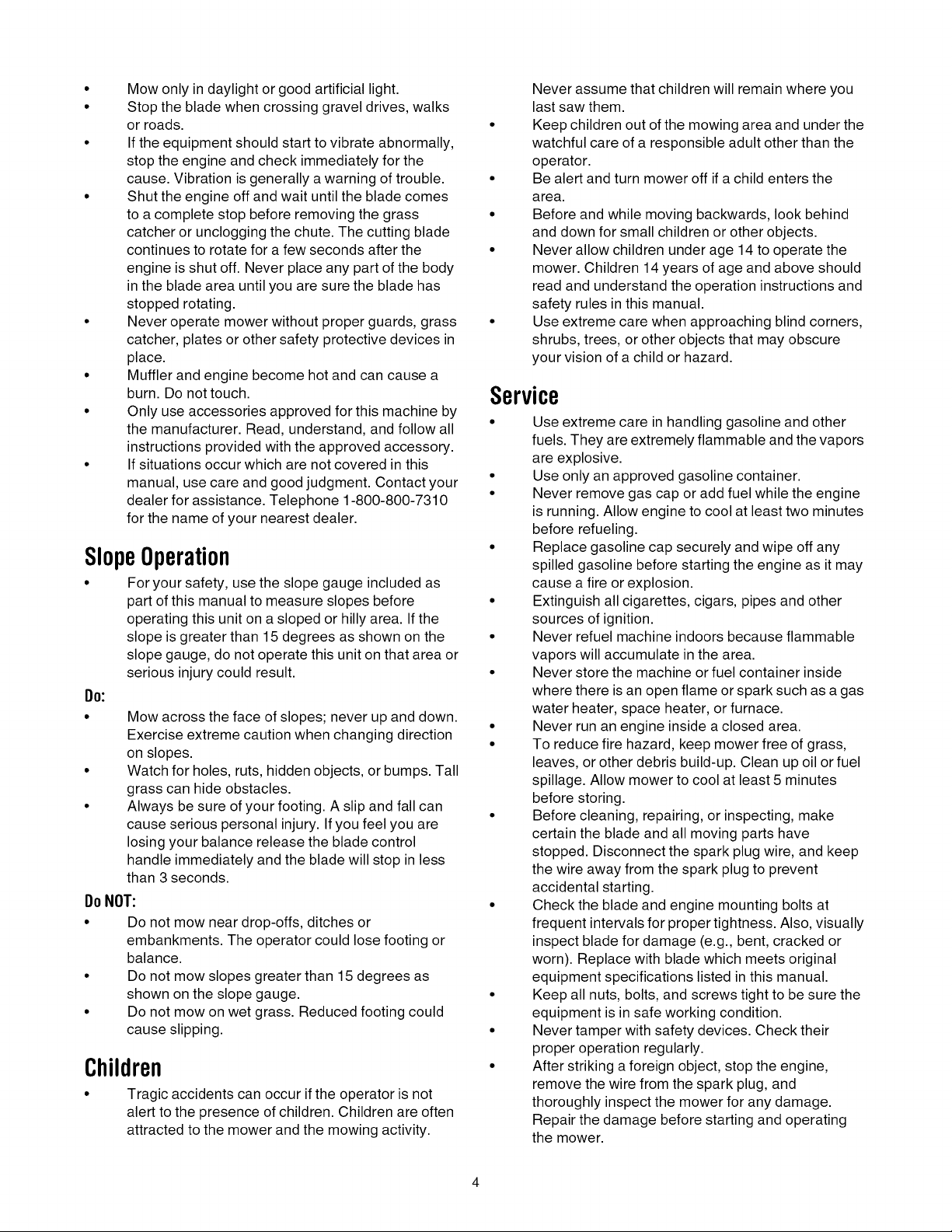

Mowonlyindaylightorgoodartificiallight. Stopthebladewhencrossinggraveldrives,walks

orroads.

Iftheequipmentshouldstarttovibrateabnormally,

stoptheengineandcheckimmediatelyforthe cause.Vibrationisgenerallyawarningoftrouble.

Shuttheengineoffandwaituntilthebladecomes toacompletestopbeforeremovingthegrass catcheroruncloggingthechute.Thecuttingblade

continuestorotateforafewsecondsafterthe engineisshutoff.Neverplaceanypartofthebody

inthebladeareauntilyouaresurethebladehas stoppedrotating.

Neveroperatemowerwithoutproperguards,grass catcher,platesorothersafetyprotectivedevicesin

place.

Mufflerandenginebecomehotandcancausea

burn.Donottouch.

Onlyuseaccessoriesapprovedforthismachineby themanufacturer.Read,understand,andfollowall

instructionsprovidedwiththeapprovedaccessory.

Ifsituationsoccurwhicharenotcoveredinthis

manual,usecareandgoodjudgment.Contactyour dealerforassistance.Telephone1-800-800-7310

forthenameofyournearestdealer.

SlopeOperation

• For your safety, use the slope gauge included as part of this manual to measure slopes before

operating this unit on a sloped or hilly area. If the slope is greater than 15 degrees as shown on the

slope gauge, do not operate this unit on that area or serious injury could result.

Do:

Mow across the face of slopes; never up and down. Exercise extreme caution when changing direction

on slopes. Watch for holes, ruts, hidden objects, or bumps. Tall

grass can hide obstacles. Always be sure of your footing. A slip and fall can

cause serious personal injury. If you feel you are

losing your balance release the blade control handle immediately and the blade will stop in less

than 3 seconds.

DoNOT:

• Do not mow near drop-offs, ditches or

embankments. The operator could lose footing or

balance.

• Do not mow slopes greater than 15 degrees as

shown on the slope gauge.

• Do not mow on wet grass. Reduced footing could

cause slipping.

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often

attracted to the mower and the mowing activity.

Never assume that children will remain where you last saw them.

Keep children out of the mowing area and under the watchful care of a responsible adult other than the

operator. Be alert and turn mower off if a child enters the

area. Before and while moving backwards, look behind

and down for small children or other objects. Never allow children under age 14 to operate the

mower. Children 14 years of age and above should read and understand the operation instructions and

safety rules in this manual. Use extreme care when approaching blind corners, shrubs, trees, or other objects that may obscure

your vision of a child or hazard.

Service

Use extreme care in handling gasoline and other fuels. They are extremely flammable and the vapors

are explosive. Use only an approved gasoline container. Never remove gas cap or add fuel while the engine

is running. Allow engine to cool at least two minutes before refueling.

Replace gasoline cap securely and wipe off any spilled gasoline before starting the engine as it may

cause a fire or explosion. Extinguish all cigarettes, cigars, pipes and other

sources of ignition. Never refuel machine indoors because flammable

vapors will accumulate in the area. Never store the machine or fuel container inside

where there is an open flame or spark such as a gas water heater, space heater, or furnace.

Never run an engine inside a closed area. To reduce fire hazard, keep mower free of grass,

leaves, or other debris build-up. Clean up oil or fuel spillage. Allow mower to cool at least 5 minutes

before storing. Before cleaning, repairing, or inspecting, make

certain the blade and all moving parts have stopped. Disconnect the spark plug wire, and keep

the wire away from the spark plug to prevent accidental starting.

Check the blade and engine mounting bolts at frequent intervals for proper tightness. Also, visually

inspect blade for damage (e.g., bent, cracked or worn). Replace with blade which meets original

equipment specifications listed in this manual. Keep all nuts, bolts, and screws tight to be sure the

equipment is in safe working condition. Never tamper with safety devices. Check their

proper operation regularly. After striking a foreign object, stop the engine,

remove the wire from the spark plug, and thoroughly inspect the mower for any damage.

Repair the damage before starting and operating the mower.

Page 5

Neverattempttomakeawheelorcuttingheight

adjustmentwhiletheengineisrunning.

Grasscatchercomponentsaresubjecttowear,

damageanddeterioration,whichcouldexpose

movingpartsorallowobjectstobethrown.For

safetyprotection,frequentlycheckcomponentsand

Mowerbladesaresharpandcancut.Wrapthe blade(s)orweargloves,anduseextracaution whenservicingthem.

Donotchangetheenginegovernorsettingor overspeedtheengine.Excessiveenginespeeds

aredangerous.

replacewithmanufacturer'srecommendedparts,

whennecessary.

YourResponsibility

• Restrict the use of this power machine to persons who read, understand and follow the warnings and instructions in

this manual and on the machine.

/ WARNING

oDANGER

SandFEETAWAY!

READ OPERATOR'S MANUAL. KEEP SAFETY DEVICES (BLADE CONTROL,

TRAILING SHIELD DISCHARGE COVER, ETC. IN PLACE AND WORKING.

Page 6

USE THIS PAGE AS A GUIDE TO DETERMINE SLOPES WHERE YOU MAY NOT OPERATE SAFELY.

23-

15 °

o o

23-

WARNING _,

Do not mow on inclines with a slope in excess of 15 degrees (a rise of approximately 2-1/2 feet every 10 feet). A riding mower could overturn and cause serious injury. If operating a walk-behind mower on such a slope, it is extremely difficult to maintain your footing and you could slip, resulting in serious injury. Operate RIDING mowers up and down slopes, never across the face of slopes. Operate WALK-BEHIND mowers across the face of slopes, never up and down slopes.

Page 7

SECTION3: ASSEMBLINGYOURLAWNMOWER

ToRemoveUnitFromCarton

• Remove staples, break glue on top flaps, orcut tape

at carton end and peel along top flap to open carton.

• Remove loose parts if included with unit (i.e.,

operator's manual, etc.).

• Cut along corners and lay carton down flat.

• Remove packing material.

• Roll or slide unit out of carton. Check carton

thoroughly for loose parts.

NOTE: Parts included for assembly of grass catcher are listed on page 8.

ToolsRequired

1. Pair of Pliers

2. Phillips Screwdriver f

3. 7/16" or Adjustable Wrench t

t For models with hardtop grass bags only

NOTE: This owner's guide covers various models of mowers. Follow only those instructions which pertain to your unit.

DisconnectSparkPlugWire

• Before setting up your lawn mower, disconnect the

spark plug wire from the spark plug, and ground it against the engine. See Figure 1.

IMPORTANT:This unit is shipped without gasoline or oil in the engine. Be certain to service engine with gasoline

and oil before operating your mower.

NOTE: Reference to right or left hand side of the mower is observed from the operating position.

SettingUpYourLawnMower

• Remove any packing material which may be between the upper and lower handles for shipping

purposes.

• Pull up and back on the upper handle to raise the

handle into the operating position. Make certain the lower handle is seated securely into the handle

mounting brackets. Tighten the hand knobs on each side of the handle (carriage bolts must be seated properly into the handle). See Figure 2.

hten

hand knob

Tighten

hand knob

NOTE: On engines with a rubber boot, attach rubber boot to a bolt on the engine to ground.

SparkPlugWire

WithRubber Boot

Plug Wire

Briggs & Stratton

L....

Spark Plug

All Engines

With Rubber

Boot

Figure I

Engines

Retaining

Post

SparkPlugWire

Tecumseh

Engines

Figure 2

NOTE: Your mower is shipped with the handle in the

higher height position. If you wish to lower the height of the handle, refer to the Adjustment Section at this time.

Remove the hairpin clips from the outer hole in the weld pins on the handle mounting brackets. Using a pair of pliers, squeeze one leg of the lower handle against the handle mounting bracket. Insert the

hairpin clip into the inner hole on the weld pin.

Repeat on the other side. See Figure 3.

\ \ Handle Mounting

__ Bracket

\ _, \\_\\_lnsert hairpin

\\ _(_ _ clip here

Hairpin \ \\ _1/_

clip_ \o&_-_

_-_ _ _ _Weld

_ Pin

Figure 3

Page 8

• The rope guide is attached to the right side of upper handle. Loosen the wing nut which secures the rope guide. See Figure 4.

• With spark plug wire disconnected and grounded, hold the blade control handle against the upper handle, and pull the starter rope out of the engine. Release blade control handle. Slip the rope into the rope guide. Tighten the wing nut. See Figure 4.

• Tighten all nuts and bolts securely.

• Attach the cables to the lower handle with the two cable ties already on the lower handle. Pull tight the

cable ties and cut off the extra

Slip rope,into

Wing Nut

Hardtop GrassBag Parts for Hardtop Grass Bag:

1. Front Frame

2. Rear Frame (packed inside hardtop cover)

3. Bag

4. Hardtop Cover

5. Mounting Bracket

6. Phillips Screw

7. Hex Lock Nut

Slit

rope g._a_R

Guide '_

Figure 4

AssemblingGrassCatcher

NOTE: Make certain bag is turned right side out before

assembling (warning label will be on the outside).

SoftGrassBag

Parts for Soft Grass Bag:

1. Front Frame & Rear Frame

2. Bag

Assemble soft grass bag as follows:

• Join the rear frame and front frame assembly as shown in Figure 5A.

• Place bag over frame (black plastic side is the bottom of bag). Slip the openings in the side of the plastic channel on bag over the hooks on the grass

catcher frame.

• Secure bag to frame by working the plastic channels on bag over frame as shown in Figure 5B. All of the plastic channels except center top of bag attach from the outside of bag. Center top of bag attaches from the inside of bag.

Rear

Figure 6

Assemble hard top grass bag as follows:

• Insert one end of the rear frame into the slit in the cloth channel on the edge of the grass bag (slits are

approximately 6 inches from the end of the bag). See Figure 6. Feed all the material on one side of the frame before working it around frame. Make

certain the other end of rear frame comes out the slit in the other side.

• Slide the ends of the front frame assembly into the ends of the rear frame as shown in Figure 7. The

handle in front frame assembly goes away from the black plastic bottom of the bag. Push the two frames together until the cross piece on the front

frame contacts the rear frame.

Front Frame

channe

over frame I

Front

Frame

Assembly

Figure 5

Plastic

Channels

Figure 7

Slip the openings inthe side of the plastic channel on bag over hooks on the grass catcher frame. See

Figure 7 inset.

Page 9

• Securefrontofbagtofrontframebyworkingthe fiveplasticchannelsonbottom,sidesandtopof

bagoverframe.SeeFigure7inset.

• Holdthebagandframesothebaghangsfromthe frame(isnotbunchedaroundtheframe).

• Slidethehandleonthegrasscatcherframedown

intotheslotinthehardtopcover.SeeFigure8.

remove the mulching plug from the mower even when

you are not mulching the grass.

• To remove the mulching baffle, lift the rear discharge door on the mower. Remove the

mulching baffle. See Figure 11.

Slot In Hardtop

Cover

Grass Catcher

Handle

Figure 8

Press the rear frame into the two tabs at the back of

the hardtop cover.

Press the cross bar on the front frame into the channel on the front of the hardtop cover.

Place the mounting bracket under the front of the handle, with the tabs on the bracket facing up. Insert phillips head screw down through the hardtop cover and mounting bracket. Secure with hex lock nut. See Figure 9.

Phillips Head Screw

Mulchin( Baffle

Figure 10

IMPORTANT:Make sure cables are routed to the outside

of the handle so they are not in the way when attaching the

grass catcher.

Lift the rear discharge door on the mower. Place the hooks on the grass catcher into the slots in the handle bracket assemblies. See Figure 11.

Release the rear discharge door. To remove the grass catcher, lift the rear discharge door on the mower. Lift the grass catcher

up, out of the slots inthe handle bracket assemblies. Release the rear discharge door. See

Figure 11.

WARNING: Never operate the mower

unless the hooks on the grass catcher are firmly seated in the slots on the handle bracket assemblies, and the rear discharge door rests firmly against the top of the grass catcher.

Deck

Bracket

Lock Nut

Figure 9

AttachingGrassCatcherToMower

NOTE: The mulching baffle, if so equipped, is already

in place on the mower for shipping purposes. Your lawn mower may be equipped with both a mulching baffle and a mulching plug. While the mulching baffle is located at the rear of the mower, the mulching plug is located on the right side of the cutting deck. Do not

Figure 11

Rear

Discharge

Door

_ Handle

Bracket

Assembly

Page 10

ConvertingToSideDischarge

If your unit is equipped with a side discharge chute, you can convert to a side discharge mower as follows:

• Lift the rear discharge door and install the mulching baffle. See Figure 11.

• On the side of the mower, lift the mulching plug. See Figure 12.

• Slide the two hooks of the side discharge chute under the hinge pin on the mulching plug assembly as shown below. Lower the side mulching plug.

• Do not remove the side mulching plug at any time, even when you are not mulching.

SECTION4: KNOWYOURLAWNMOWER

Hinge Pin

(Slide hooks under the two

sides of hinge pin)

Figure 12

Hook

Mulching Plug

Deflector

Compare the illustration in Figure 13 with your lawn mower to familiarize yourself with the location of various controls and adjustments.

_ WARNING: The operation of any lawn mower can result in foreign objects being thrown into the

eyes, which can result in severe eye damage. Always wear safety glasses or eye shields. We

recommend wide vision safety mask for over spectacles or standard safety glasses.

Upper

Handle BladeControl Handle

Throttle Control

equipped)

Grass Catcher

Rope Guide

Rear Spark

Discharge Plug

Door

Lower

Handle

Side Discharge

Chute

Cutting Height Adjustment Lever

Plug

Figure 13

Page 11

BladeControlHandle

,_ WARNING: This control mechanism is a

The blade control handle is located on the upper handle of the mower.The blade control handle must be

depressed in order to operate the unit. Release the blade control handle to stop the engine and the blade.

RecoilStarter The recoil starter handle is attached to the handle and

is used to start the engine.

GrassCatcher

The grass catcher, located at the rear of the mower, is used to bag the grass clippings for disposal at another site. Once the bag is full, it has to be removed from the mower and emptied before any further mowing.

MulchingPlug

Both the mulching baffle and the mulching plug are used only for mulching purposes. Instead of collecting the grass clippings in a grass catcher, some mower models have the option of recirculating the clippings back to the lawn. This is called mulching.

safety device. Never attempt to bypass its operations.

ThrottleControl

Your unit is equipped with one of three throttle controls described below. Follow instructions which pertain to your unit.

1. The throttle control is located on the left side of the upper handle. It is used to regulate the engine

speed.

2. The throttle control is located on the engine. It is used to regulate the engine speed.

3. Your engine is equipped with a constant speed throttle, which is set at full throttle for best

performance.

WARNING: The throttle control cannot be

used to stop the engine. If the throttle control is located on the engine, do not adjust itwith the engine running.

CuttingHeightAdjustmentLever

This lever, located at each wheel, lets you adjust

cutting height of the grass. Remember to put all four

levers at the same height to avoid uneven cut.

SECTION5: OPERATINGYOURLAWNMOWER

_, WARNING: Keep hands and feet away

NOTE: For shipping purposes your mower is set with

the wheels in a low cutting height position. For best results, raise the cutting position until # is determined

which height is best for your lawn. Refer to instructions

for cutting height adjustment on page 12.

from the chute area on cutting deck. The blade will be rotating whenever the engine

is running.

GasandOilFill-Up

Service the engine with gasoline and oil as instructed in the separate engine manual packed with your mower. Follow instructions carefully.

WARNING: Never fill fuel tank indoors,

with engine running or until the engine

has been allowed to cool for at least two minutes after running.

BeforeStarting

• Attach spark plug wire to spark plug. If unit is equipped with a rubber boot over the spark plug wire, ensure that the metal cap on the end of the spark plug wire (inside the rubber boot) is fastened securely over the metal tip on the spark plug.

ToStartEngineandEngageBlade

• Move throttle control lever (if equipped) to the fast (rabbit) position.

• Ifengine is equipped with a primer, prime engine as instructed in the separate engine manual packed

with your unit.

• Standing behind the unit, depress the blade control handle and hold it against the upper handle.

• Grasp starter handle and pull rope out slowly until

engine reaches start of compression cycle (rope will pull slightly harder at this point). Let the rope

rewind slowly.

• Pull rope with a rapid, continuous, full arm stroke. Keep a firm grip on starter handle. Return it slowly

to the rope guide.

NOTE: If any problems are encountered, refer to the

Trouble Shooting Guide.

ToStopEngineandBlade

• Release the blade control handle to stop the engine

and blade.

,_ WARNING: The blade continues to rotate

for a few seconds after engine is shut off.

Page 12

• Disconnect the spark plug wire and ground it against the engine to prevent accidental starting while equipment is unattended.

• This mower is designed to be operated at full throttle to give you the best cut and do the most effective job of bagging the cut grass.

UsingYourRotaryMower

_ WARNING: Never operate your unit without

• Be sure that lawn is clear of stones, sticks, wire, or

• For best results, do not cut wet grass because it

• Blade speed should be adjusted to the condition of

• For a healthy lawn, never cut more than one-

either the rear deflector or entire grass catcher assembly in place.

other objects which could damage lawn mower or engine. Such objects could be accidentally thrown by the mower in any direction and cause serious personal injury to the operator and others.

tends to stick to the underside of the mower,

preventing proper discharge of grass clippings, and could cause you to slip and fall. New grass, thick grass or wet grass may require a narrower cut.

the lawn.

third of the total length of the grass at any one

cutting. Lawn should be cut in the fall as long as

there is growth.

WARNING: If you strike a foreign object,

stop the engine. Remove wire from spark plug, thoroughly inspect the mower for any damage, and repair the damage before restarting and operating the

mower. Extensive vibration of the mower

during operation is an indication of damage. The unit should be promptly

inspected and repaired.

UsingtheMulcher

• For effective mulching, do not cut wet grass because it tends to stick to the underside of the

deck, preventing proper mulching of grass clippings. New or thick grass may require a

narrower cut. The ground speed should be adjusted to the condition of the lawn. If mowing has been delayed and the grass has been allowed to grow in excess of 4", mulching is not

recommended. Mow using the grass bag (if so equipped) to reduce the grass height to 3-1/4"

maximum before mulching.

SECTION6: MAKINGADJUSTMENTS

adjustment to lawn mower without first WARNING: Do not at any time make any stopping engine and disconnecting spark

plug wire.

CuttingHeight

An adjusting plate and thumb lever at each wheel position provides cutting height adjustment. Each adjusting plate has nine height positions. Height of cut will be changed when the thumb lever is moved from

one hole to another.

Simply depress the lever towards wheel and move wheel and lever assembly to desired position. All wheels must be placed in the same relative position. See Figure 14.

• dl'ustment

Figure 14

Height

Lever

HandleHeight

Your mower is shipped with the handle in the higher

height position.To lower the handle height for your

convenience, proceed as follows.

Lower _4,

Handle

Figure 15

• Remove the starter rope from the rope guide.

• Remove the upper handle by removing the hand knobs and carriage bolts. Lay the upper handle out

of the way, being careful not to bend or kink the cables.

• Remove the hairpin clips from the weld pins on the handle brackets. Press outward on the legs of the lower handle, and remove itfrom the mower.

• Turn the lower handle around so the notches on the

bottom of the lower handle are facing forward as

Notch

Page 13

shown in Figure 15. Reassemble, placing the bottom holes inthe handle over the weld pins in the handle mounting bracket. Reassemble the upper handle. Place the hairpin clips in the inner holes in the weld pins and attach the starter rope as instructed in the Set-Up Instructions.

ThrottleControl

If your lawn mower engine is equipped with a throttle control that needs adjustment or if it has been replaced, proceed as follows. Note that engines with fixed throttle cannot be adjusted. Three types of engines are illustrated in Figure 16. Follow the illustration that is applicable to your mower.

• Remove the screw that secures the cable clamp. Remove the cable clamp from the cable.

NOTE: If you have a Tecumseh engine, simply loosen

the screw shown in Figure 16 so the cable will move freely beneath the clamp. It is not necessary to remove the screw and clamp completely.

• Push the throttle control lever on the handle all the

way forward as far as it will go, then back it off one

"click." Make certain the throttle control lever remains in this position.

• Push the control lever on the engine as far toward

the rear of the engine as it will go. Secure the cable

in this position with the cable clamp and screw.

Carburetor

Briggs & Stratton Quantum Engines

Tecumseh Engines

Cable Clamp

Control Lever

On Enginq

WARNING: If any adjustments are made to the engine while the engine is running (e.g. carburetor), keep clear of all moving parts. Be careful of heated surfaces and

muffler.

Minor carburetor adjustments may be required to compensate for differences in fuel, temperature, altitude and load. To adjust carburetor, refer to the

separate engine manual packed with your mower.

NOTE: A dirty air cleaner will cause an engine to run

rough. Be certain air cleaner is clean and attached to

the carburetor before adjusting carburetor.

Screw

Briggs & Stratton Sprint and

Classic Engines

Figure 16

Control Lever

On Engine

Page 14

SECTION7: MAINTAININGYOURLAWNMOWER

Lubrication

(Refer to Lubrication Chart in Figure 17.)

_. WARNING: Always stop engine and

BladeControl

• Lubricate the pivot points on the blade control

Rear& Side DischargeDoors

• The torsion springs and pivot points should be

Wheels

• The wheels require no lubrication. However, if the

Engine

• Follow engine manual for instruction and schedule

NOTE: When tipping the unit, empty the fuel tank and

keep engine spark plug side up.

disconnect spark plug wire before cleaning, lubricating or doing any kind of

work on lawn mower.

Lube

/ Lube

Lube

Figure 17: Lubrication Chart

handle and the brake cable at least once a season with light oil. The blade control must operate freely

in both directions.

lubricated periodically with light oil to prevent any rust or binding. Door must work freely.

wheels are removed for any reason, lubricate the surface of the axle bolt and the inner surface of the

wheel with light oil. Engine oil may also be used.

of lubrication.

BladeCare

• Periodically inspect the blade adapter for cracks,

especially if you strike a foreign object. Replace when necessary.

blade for sharpening or replacement,

WARNING: When removing the cutting protect hands by using heavy gloves or a

rag to grasp the cutting blade.

Remove the bolt and blade support or bell washer which hold the blade and adapter to the engine crankshaft. See Figure 18. Remove the blade and adapter from the crankshaft.

Blade Adapter

Blade

.,_ Hex Bolt

Figure 18

When sharpening the blade, follow the original angle of grind as a guide. It is extremely important that each cutting edge receives an equal amount of grinding to prevent an unbalanced blade.

NOTE: An unbalanced blade will cause excessive

vibration when rotating at high speeds and may cause damage to the mower and/or personal injury.

The blade can be tested by balancing it on a round shaft screwdriver. See Figure 19. Remove metal from the heavy side until it balances evenly. It is

recommended that the blade always be removed from the adapter for the best test of balance.

1. Insert screw driver through hole

2. Bladeshould be parallel to ground

Screw

Driver _, Blade

t O&(_ O . --

Figure 19

Blade

Bell

Support

Ground

Page 15

• Before reassembling the blade and the blade adapter to the unit, lubricate the engine crankshaft and the inner surface of the blade adapter with light oil (or engine oil). Also lubricate the bolt holes, bolts

and inner surface of the nuts.

• Install the blade adapter on the crankshaft with the "star" away from the engine. Refer to Figure 18. Place the blade with the side marked bottom (or with part number) facing away from the adapter.

• Align the blade bell support over the blade with the

tabs in the holes of the blade and insert the hex

bolt. Tighten the hex bolt to the torque listed in the "Blade Mounting Torque" section below.

BladeMountingTorque

Center Bolt: 450 in. Ibs. min., 600 in. Ibs. max. IMPORTANT:Toensure safe operation, all nuts and

bolts must be checked periodically for correct tightness.

• The deck may be cleaned by tilting the mower and scraping clean with a suitable tool (make certain the spark plug wire is disconnected).

Engine

• Refer to the separate engine manual.

ReplacingRearFlap

• To remove rear flap, cut off the flat end of the wire

rod which secures itto the deck. See Figure 20.

• Attach the new flap and new rod to deck, bending the ends of the new rod over to secure to deck.

Rear Discharge

DeckCare

NOTE: We do not recommend the use of pressure

washers or garden hose to clean your unit. These may cause damage to electric components spindles, pulleys, bearings or the engine. The use of water will shorten life of the mower and reduce its serviceability.

The underside of the mower deck should be cleaned after each use to prevent a buildup of

grass clippings, leaves, dirt or other matter. If this debris is allowed to accumulate, it will invite rust and corrosion, and may cause an uneven discharge of grass clippings at the next cutting.

SECTION8: OFF-SEASONSTORAGE

The following steps should be taken to prepare lawn mower for storage.

• Clean and lubricate mower thoroughly as described

in the lubrication instructions.

• Refer to engine manual for correct engine storage

instructions.

• Coat mower's cutting blade with chassis grease to

prevent rusting.

Handle Bracket

\\,

• Store mower in a dry, clean area. Do not store next to corrosive materials, such as fertilizer.

NOTE: When storing any type of power equipment in an unventilated or metal storage shed, care should be taken to rust-proof the equipment. Using a light oil or silicone, coat the equipment, especially cables and all moving parts.

Door

Figure 20

Handle Bracket

Rear Flap

Page 16

SECTION9: TROUBLESHOOTINGGUIDE

Trouble

Engine fails to start

Engine runs 1. erratic 2.

Engine 1. overheats 2.

Occasional skip 1. (hesitates) at 2. high speed Idles poorly 1.

Excessive 1. vibration

Mower will not 1. mulch grass

Uneven cut 1.

Possible Cause(s)

Blade control handle disengaged.

Spark plug wire disconnected.

Dirty aircleaner.

Primer button not depressed.

Throttle control lever not in correct starting position (if so equipped).

Fuel tank empty or stale fuel.

Blocked fuel line.

Faulty spark plug.

Engine flooded. Unit running in START position.

Spark plug wire loose.

Blocked fuel line or stale fuel.

Carburetor out of adjustment. Engine oil level low. Dirty aircleaner.

Air flow restricted.

Carburetor not adjusted properly. Spark plug gap too close.

Carburetor idle mixture adjustment improperly set.

Spark plug fouled, faulty or gap

too wide.

Carburetor not adjusted. Cutting blade loose or

unbalanced.

Bent cutting blade. Engine speed too low (not applicable in mowers with fixed

throttle)

Wet grass.

Excessively high grass.

Wheels positioned incorrectly. 1.

Dull blade. 2.

Corrective Actions

1. Engage blade control handle.

2. Connect wire to spark plug.

3. Refer to the engine manual packed with your unit.

4. Refer to the engine manual packed with your unit.

5. Move throttle lever to FAST or START position.

6. Clean fuel line.

7. Clean, adjust gap or replace.

8. Refer tothe engine manual.

9. Wait for a while and crank the engine.

1. Move throttle lever to FAST position.

2. Connect and tighten spark plug wire. Check spark plug for fouling.

3. Clean fuel line; fill tank with clean, fresh gasoline.

4. Refer to the engine manual packed with your unit.

1. Fill crankcase with proper oil.

2. Refer to the engine manual packed with your unit.

3. Stop engine and disconnect spark plug wire. Remove blower housing and clean.

4. Refer to the engine manual..

1. Adjust gap to .030".

2. Refer to the engine manual packed with your unit.

1. Reset gap to .030" or replace spark plug.

2. Refer to the engine manual.

1. Tighten blade and adapter. Balance blade.

2. See an authorized service dealer.

1. Set throttle between 3/4 and full throttle.

Wait until later to cut.

Mow once at a high cutting height, then mow again at

desired height ..

Place all four wheels in same height position. Sharpen or replace blade.

NOTE: For repairs beyond the minor adjustments above, contact your local authorized service dealer.

Page 17

SECTION10: SHROUDCHART

Shroud Color

751B281439 Dark Red 751B281440 Black

751B281443 Bright Red

Hardware: 710-1256

Shroud Color

731-1585B Black

Hardware: 710-1274

Shroud Color

731-1395A Red 731-1396A Black

731-1397A Grey

Hardware: 710-1256

Shroud Color

731-1586B Black 731-1612A Red

Hardware: 7510042823

Shroud

731-1402A 731-1694

731-1695 731-1934A

Hardware: 710-1256

Shroud Color

7510143208 Black

Hardware: 7510042823

Yellow

Black Silver Charcoal

Color

Shroud t Color7511681311 Black

7511681911 /Red 7511682011 /Grey

Shroud Color

751B281451 Dark Red

Hardware: 710-1256

Shroud Color

751B281476 Black 751B281777 Yellow

Hardware: 710-1237

Page 18

SECTION11:PARTSLISTFORMODELS430 THROUGH439

25 /

80 ............_'__

Hardware for wheel 734-1978

31_

47_ 50

Page 19

Models430 through439

Ref. Pa_ No. No.

1 747-0824

647-0004 2 710-1205 3 720-0279 4 710-1174 6 720-0314 7 710-1270 8 736-0501 9 712-0324

10 746-0876 11 749-0705 12 720-0295 13 749-0928 14 726-0240 15 764-0310 16 746-0550

746-0551 746-0555

17 746-0847

746-0843 18 764-0311 19 764-0309

764-0457A

20 714-0104 21 732-0678 22 732-0677 23 782-7000 24 751B213146

7510007775

25 746-0875 26 811-00185 28 710-1237

710-0871

29 735-0639 30 732-0700 31 731-1236 32 753-0588 33 710-1044 34 736-0524A 36 742-0741 39 736-0356 40 712-0798 41 15261A 42 15262B 43 14832

t Ifequipped

N/I Notillustrated

Description Ref.

No.

Control Handle Ass'y. (Std.) 44 Control Handle Ass'y. (Deluxe)t 45 Rope Guide 46

Handle Knob 1/4-20 Thd. 47 Curved Hd. Bolt 5/16-18 x 2" Lg. 48

Hand Knob 49 Oval C-Sunk Mach. Scr.t N/I

Spr. Wash..66" I.D.t 50 Hex L-Nut 1/4-20 Thd. N/I

Throttle Levert 51

Upper Handle 52 Foam Grip 53

Lower Handle 54 Cable Tie 55 Rear Catcher Frame 56 Control Cable - 39" 57 Control Cable - 43" 58 Control Cable - 55" 59

Throttle Control Wire - 42"t Throttle Control Wire-55"t

Front Catcher Frame Grass Bag (for hard top) 61

Grass Bag (soft top w/logo) Int. Cotter Pin 5/16" Dia. 62

Door Spring - R.H. 63 Door Spring - L.H. 64 Rear Discharge Door 65 Cable Clamp (B&S)t 66

Cable Clamp (Tec.)t 67 Throttle Bodyt 68 Thrott. Box (Incl. # 7,8, 9, 10,25)t 69

Hex Washer Scr. #10-32 x 62" 70

(B&S)t 71

Hex Slot Scr. #10-32:.38 Lg. 72

(Tec.)t 76

Spark Plug Boott N/I

Wire Rod N/I

Rear Flap 79

Blade Adapter (Kit includes 32-34)

Hex Bolt 3/8-24 x 1.5" Lg. 80

Blade Bell Support 81

21" Mulching Blade 82

Bell-Wash..39" I.D. x 1.38" N/I

Hex Nut 3/8-16 Thd.* N/I

Height Adj. Plate N/I

Pivot Bar N/I

Front Spring Lever Ass'y. w/Knob N/I

Part No.

738-0507B 736-0105 738-0102 720-0190 732-0417A

14578 14579 14765

14766 782-5002 710-0654A 782-5003 710-1017 710-0896 682-0516A 682-0515A 782-0047A 734-1841 734-1987 734-1978 741-0484 731-1876 731-1322A 736-0270 682-7000 731-1409 710-0599 782-5007A 782-5004 710-0286 712-0324 782-9011 710-0192 720-0275 736-0504 731-0981A 731-0982A 738-0102 738-0213 750-0535 710-1248 746-0883 751B224437 751B225250 751B281279 751B224591 710-1268

Description

Shld. Bolt .5" Dia. x .357"

Bell-Wash..38" I.D. x .88" O.D. Front Axle Bolt

Spring Lever Knob

Rear Spring Lever

Height Adj. Assy. Comp. - RH

Height Adj. Assy. Comp. - LH

Pivot Bar R.H.

Pivot Bar L.H. Front Baffle

Hex L-Wash.Scr. 3/8-16 x 1" Lg. Rear Baffle

Torx Mach AB-Tap Scr. 1/4 x.62"

HexlndWash. Scr. 1/4-14:.625 Handle Brkt. Ass'y.iRH

Handle Brkt. Ass'y.iLH Cutting Deck Wheel w/o Bearings Grey Bar Wheel w/Bearings Grey Link Wheel w/Bearings Black Link

Bearings

Hard Top Cover w/Icon

Hard Top Cover w/o Icon

Bell-Washer 1/4" I.D.

Hinged Mulching Plug Chute Deflector: Side Discharge

Hex Hd Self-Tp Scr. 1/4-20 x .5" L.

Mulching Baffle Plug

Mulching Baffle - R.R.

Pan Hd. Mach. Scr. 1/4-20:.5" Lg.

Hx. Nylon L-Nut - 1/4-20 Thread

Mounting Bracket Truss Scr. #10-24 x .38" Lg.

Knob Wave Washer

Hub Cap - Rad. Spoke - Grey

Hub Cap - Rad. Spoke - Beige

Rear Axle Bolt

Rear Axle Bolt Spacer

Weld Pin Throttle Housing w/o Lever

Muffler Guard -(B&S Quantum) Muffler Guard -(B&S Classic) Finger Guard - (B&S Classic)

Muffler Guard - (Sprint) #10-16:3/8 Screw

Page 20

MANUFACTURER'S LIMITED WARRANTY FOR:

YARD

The limited warranty set forth below is given by MTD

PRODUCTS INC ("MTD") with respect to new merchandise purchased and used in the United States, its possessions

and territories.

MTD warrants this product against defects in material and workmanship for a period of two (2) years commencing on

the date of original purchase and will, at its option, repair or

replace, free of charge, any part found to be defective in material or workmanship. This limited warranty shall only apply if this product has been operated and maintained in

accordance with the Operator's Manual furnished with the product, and has not been subject to misuse, abuse, com-

mercial use, neglect, accident, improper maintenance, alteration, vandalism, theft, fire, water or damage because of other peril or natural disaster. Damage resulting from the

installation or use of any accessory or attachment not approved by MTD Products Inc. for use with the product(s)

covered by this manual will void your warranty as to any resulting damages.

Normal wear parts or components thereof are subject to separate terms as follows: All normal wear part or compo- nent failures will be covered on the product for a period of

90 days regardless of cause. After 90 days, but within the

two year period, normal wear part failures will be covered

ONLY IF caused by defects in material or workmanship of OTHER component parts. Normal wear parts and compo- nents include, but are not limited to, belts, blades, blade

adapters, grass bags, rider deck wheels, seats, snow

thrower skid shoes, shave plates and tires. Batteries are

covered by a 90-day limited replacement warranty.

HOW TO OBTAIN SERVICE: Warranty service is available, WITH PROOF OF PURCHASE THROUGH YOUR LOCAL

AUTHORIZED SERVICE DEALER. To locate the dealer in

your area, please check for a listing in the Yellow Pages or

contact the Customer Service Department of MTD PROD- UCTS INC by calling 1-800-800-7310 or writing to RO. Box 368022, Cleveland, Ohio 44136-9722.

This limited warranty does not provide coverage in the

following cases:

a. The engine or component parts thereof. These items

carry a separate manufacturer's warranty. Please refer to the applicable manufacturer's warranty on these

items.

b. Log splitter pumps, valves and cylinders have a sepa-

rate one year warranty.

c. Routine maintenance items such as lubricants, filters,

blade sharpening and tune-ups, or adjustments such as brake adjustments, clutch adjustments or deck

adjustments; and normal deterioration of the exterior finish due to use or exposure.

d. MTD does not extend any warranty for products sold

or exported outside of the United States of America, its possessions and territories, except those sold

through MTD's authorized channels of export distribu- tion.

No implied warranty, including any implied warranty of merchantability or fitness for a particular purpose,

applies after the applicable period of express written warranty above as to the parts as identified. No other

express warranty or guaranty, whether written or oral, except as mentioned above, given by any person or

entity, including a dealer or retailer, with respect to any

product shall bind MTD. During the period of the War- ranty, the exclusive remedy is repair or replacement of

the product as set forth above. (Some states do not

allow limitations on how long an implied warranty lasts, so

the above limitation may not apply to you.)

The provisions as set forth in this Warranty provide the

sole and exclusive remedy arising from the sales. MTD shall not be liable for incidental or consequential loss

or damages including, without limitation, expenses

incurred for substitute or replacement lawn care ser-

vices, for transportation or for related expenses, or for

rental expenses to temporarily replace a warranted

product. (Some states do not allow the exclusion or limita-

tion of incidental or consequential damages, so the above

exclusion or limitation may not apply to you.)

In no event shall recovery of any kind be greater than the amount of the purchase price of the product sold. Alteration

of the safety features of the product shall void this War- ranty. You assume the risk and liability for loss, damage, or

injury to you and your property and/or to others and their property arising out of the use or misuse or inability to use

the product.

This limited warranty shall not extend to anyone other than the original purchaser, original lessee or the person for

whom it was purchased as a gift.

How State Law Relates to this Warranty: This limited

warranty gives you specific legal rights, and you may also

have other rights which vary from state to state.
