OPERATOR’S MANUAL
Model YF1601
CAUTION!
Before using our petrol lawn mower, please read this manual carefully to
understand the proper use of your unit.
Keep this manual handy.
PETROL LAWN MOWER
1
TABLE OF CONTENTS
DESCRIPTION OF PRODUCT PARTS 2
TECHNICAL SPECIFICATIONS 4
INTENDED USE 4
SAFETY INFORMATION 5
ASSEMBLY 8
ADJUSTMENT 14
OPERATION 15
STORING AND MAINTENANCE 19
TROUBLESHOOTING 24
YF1601 Operating Manual
2
DESCRIPTION OF PRODUCT PARTS
As shown in Fig 1
1. Throttle lever
2. Upper handle
3. Starter handle
4. Rope guide
5. Ejector ap
6. Grass bag
7. Rear wheel
8. Height adjusting handle
9. Dipstick
10. Front wheel
11. Deck
12. Spark plug cap
13. Fuel ller cap
14. Cord clip
15. Lower handle
16. Fixing knob
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Fig. 1
3
DESCRIPTION OF PRODUCT PARTS
Check the delivery parts
As shown in Fig 2
Carefully remove the machine from its packaging and check as the following parts are
complete:
Fig. 2
B
A
C
D
J
E
I
F
G
H
A. Main mower deck (with upper handle) 1pc
B. Grass bag assembly 1pc
C. Star xing knob with M8 nut 4pcs
D. Cup head square neck bolts M8X45 2pcs
E. spark plug spanner 1set
F. Lower handle with rope guide 1pc
G. Lower handle 1pc
H. Cable clip 1pc
I. Manual 1pc
J. Arc-head blot M8X35
WARNING: If any parts are damaged or missing, do not operate this tool until the
missing parts are replaced. Failure to heed this warning could result in serious
personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
WARNING! This item requires a two person lift to remove from the packaging.
Make sure that you have sufcient space to put the lawn mower down. Keep your
feet apart so that you have a stable position, bend at the knees and keep your
back straight.
4
TECHNICAL SPECIFICATIONS
Engine type Single cylinder 4-stroke
Engine displacement 130 cc
Engine max.power 2.1kw/3600rpm
Engine speed 3100rpm
Cutting width 410mm
Grass bag capacity 45L
Ignition TCI
Fuel tank capacity 900ml
Oil tank capacity 400ml
Spark plug type K7RTC/Torch
Net weight 21 KG
INTENDED USE
This Petrol lawn mower has been designed for cutting lawn areas in private house and
hobby gardens.
The machine is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse. The user/operator and not the manufacturer will be liable for any
damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications . our warranty will be voided if the machine is used in commercial ,
trade or industrial businesses or for equivalent purposes.
5
SAFETY INFORMATION
IMPORTANT
Please read these instructions fully before assembling and operating.
Description of Symbols
Symbols are used in this manual to attract your attention to possible risks. The safety
symbols and the explications which accompany them must be perfectly understood.
The warning themselves do not prevent the risks and can not be a substitute for proper
methods of avoiding accidents.
Warning symbols on the machine
WARING- To reduce the risk of injury ,user must read instruction manual.
This symbol, before a safety comment, indicates a precaution, a warning or a
danger. Ignoring this warning can lead to an accident for yourself or for others.
To limit the risk of injury, re, or electrocution always apply the recommendations
indicated.
Keep bystanders away
Beware of sharp blades –remove spark plug lead before maintenance.
Never refuel while the engine is running.
Risk of injury, do not open or remove safety shields while engine is running.
The engine must be lled sufcient oil and fuel before starting it. Wearing ear
protection, eye protection when operating.
6
SAFETY INFORMATION
Hot surfaces will burn ngers or palms
Warning! The lawnmower exhaust gas contains toxic substances. Do not run the
engine in closed or poorly ventilated areas.

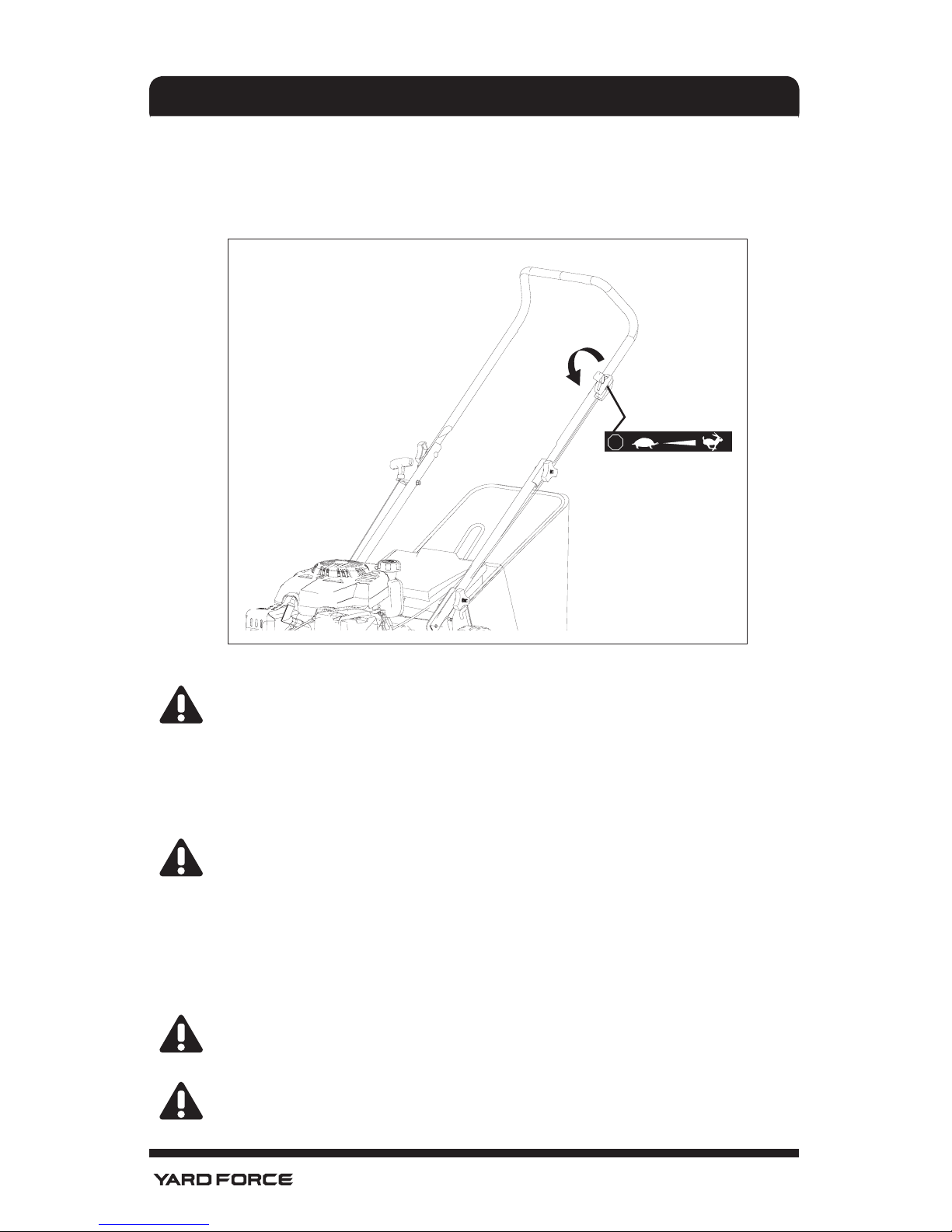

Move the throttle lever to the rabbit position before starting engine.
Move the throttle lever to the stop position to stop engine.
The data of noise level in 75 dBA.
Safety instructions
Training
1. Read the instructions carefully. Be familiar with the controls and the proper use of the
equipment;
2. Never allow children or people unfamiliar with these instructions to use the
lawnmower. Local regulations can restrict the age of the operator;
3. Never mow while people, especially children, or pets are nearby;
4. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
Preparation
1. While mowing, always wear substantial footwear and long trousers. Do not operate
the equipment when barefoot or wearing open sandals;
2. Thoroughly inspect the area where the equipment is to be used and remove all
objects which can be thrown by the machine;
3. Warning - petrol is highly ammable.
- Store fuel in containers specically designed for this purpose;
- Refuel outdoors only and do not smoke while refueling;
- Add fuel before starting the engine. Never remove the cap of the fuel tank or add
petrol while the engine is running or when the engine is hot;
- If petrol is spilled, do not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition until petrol vapors
have dissipated;
7
- Replace all fuel tank and container caps securely;
4. Replace faulty silencers;
5. Before using, always visually inspect to see that the blades, blade bolts and cutter
assembly are not worn or damaged. Replace worn or damaged blades and bolts in
sets to preserve balance;
6. On multi-bladed machines, take care as rotating one blade can cause other blades to
rotate.
Operation
1. Do not operate the engine in a conned space where dangerous carbon monoxide
fumes can collect;
2. Mow only in daylight or in good articial light;
3. Avoid operating the equipment in wet grass, where feasible;
4. Always be sure of your footing on slopes;
5. Walk, never run;
6. For wheeled rotary machines, mow across the face of slopes, never up and down;
7. Exercise extreme caution when changing direction on slopes;
8. Do not mow excessively steep slopes;
9. Use extreme caution when reversing or pulling the lawnmower towards you;
10. Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing
surfaces other than grass, and when transporting the lawnmower to and from the
area to be mowed;
11. Never operate the lawnmower with defective guards, or without safety devices, for
example deectors and/or grass catchers, in place;
12. Do not change the engine governor settings or over speed the engine;
13. Disengage all blade and drive clutches before starting the engine;
14. Start the engine or switch on the motor carefully according to instructions and with
feet well away from the blade(s);
15. Do not tilt the lawnmower when starting the engine or switching on the motor, except
if the lawnmower has to be tilted for starting. In this case, do not tilt it more than
absolutely necessary and lift only the part which is away from the operator;
16. Do not start the engine when standing in front of the discharge chute;
17. Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times;
18. Never pick up or carry a lawnmower while the engine is running;
19. Stop the engine and disconnect the spark plug wire , make sure that all moving parts
have come to a complete stop and, where a key is tted remove the key:
- Before clearing blockages or unclogging chute;
- Before checking, cleaning or working on the lawnmower;
SAFETY INFORMATION
8
- After striking a foreign object. Inspect the lawnmower for damage and make
repairs before restarting and operating the lawnmower;
- If lawnmower starts to vibrate abnormally (check immediately);
20. Stop the engine and disconnect the spark plug wire, make sure that all moving parts
have come to a complete stop and, where a key is tted remove the key:
- Whenever you leave the lawnmower;
- Before refueling;
21. Reduce the throttle setting during engine shut down and, if the engine is provided
with a shut-off valve, turn the fuel off at the conclusion of mowing;
22. Go slow when using a trailing seat.
Maintenanceand storage
1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition;
2. Never store the equipment with petrol in the tank inside a building where fumes can
reach an open ame or spark;
3. Allow the engine to cool before storing in any enclosure;
4. To reduce the re hazard, keep the engine, silencer and petrol storage area free of
grass, leaves, or excessive grease;
5. Check the grass catcher frequently for wear or deterioration;
6. Replace worn or damaged parts for safety;
7. If the fuel tank has to be drained, this should be done outdoors.
SAFETY INFORMATION
Assembling the handle
As shown in Fig 3&5
Step 1: Fasten the lower handle onto the unit by using one arc-head blot (j) and one star
knob on each side.
ASSEMBLY
Fig. 3
9
ASSEMBLY
NOTE :Make sure the rope guide is on the right handle, when you stand behind
the mower.
Step 2: Unfold the upper handle and x it into place by tighting the star knobs and cup
head square neck bolts (D).
Fig. 4
Step 3: Hold the starter handle and gently pull it out to just over the rope guide ,then hook
it into the rope guide.
Fig. 5
10
ASSEMBLY
Tidy the connection cord
As shown in Fig6
Fix the connection cord to the handle with the cord clip(supplied).
Fig. 6
Attaching the grass bag onto the mower
As shown in Fig7
Step 1: Attach the grass catcher to the frame by xing all plastic hooks.
Step 2: Lift the ejector ap with one hand and hook in the grass bag.
Step 3: Release the ejector ap to secure the grass bag in position.
Fig. 7
11
ASSEMBLY
Checking the engine oil level and filling with engine oil
As shown in Fig8 -10
CAUTION! The following procedures and adjustments must be performed before
the engine is started.
Do not attempt to make any of these adjustments while the engine is running.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol.
The engine must be lled with the correct grade of oil and petrol before starting
the engine.
NOTE! Running the engine with a low oil level will cause engine damage. It is
recommend that high detergent, premium quality 4-stroke engine oil used. Using
non-detergent oil can shorten the engine’s service life and using 2-stroke oil will
damage the engine.
CAUTION! Always use high quality detergent oil classied SAE30 oil (or
equivalent e.g SAE 10W/30, often termed as 4 Stroke lawn mower oil). Never use
additives with recommended oil. To prolong the life of your engine it is important
that the oil is changed after the rst 5 hours of use.
NOTE! To Check the engine oil level ,stop engine and place the mower on a level
surface.
Fig. 8
Dipstick
1. Remove the oil ller dipstick and wipe oil from it with a clean cloth.
2. Insert the dipstick into the oil ller neck, but do not screw it in.
3. Then remove the dipstick and check the oil level, the oil level must be between the
Min and Max marks on the dipstick. If near the lower level ,ll to upper lever with the
12
ASSEMBLY
recommended oil (SAE30 ). Do not overll. Wipe away any spilt oil.
4. Fix the dipstick in place by screwing it with quarter turn.
Fig. 9
Min Max
Fig. 10
Filling with engine fuel
As shown in Fig 11
CAUTION! Always use clean, fresh unleaded petrol. Purchase fuel in quantities
that can be used within 30 days. Never mix oil with petrol.
CAUTION! Do not ll into the base of neck to allow for fuel expansion. Do not
overll the fuel tank.
CAUTION! WARNING! Petrol is highly ammable and extreme precaution must
be taken when handling or working with it. Keep out of reach of children.
CAUTION! To prevent engine damage the engine is shipped without oil or petrol.
The engine must be lled with the correct grade of oil and petrol before starting
the engine.
13
ASSEMBLY
WARNING! Refuel in a well-ventilated area with the engine stopped. Do not
smoke or allow ame or sparks in the area where the engine is refueled or where
petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of
vapour
1. Clean the area around the petrol ller cap check the fuel level.
2. Rell the tank if the fuel level is low.
3. Refuel carefully to avoid overlling or spilling fuel. There should be no fuel in the ller
neck.
4. Clean up any overow or splashes of petrol before starting the engine.
5. Tighten the ller cap after lling, nger tight on.
Fig. 11
Fuel ller cap
14
ADJUSTMENT
Setting the cutting height
As shown in Fig 12
CAUTION ! Adjust the cutting height only when the engine is switch off the spark
plug boot has been pulled.
The cutting height is centrally adjusted with cutting height adjusting handle. Different
cutting heights can be selected.
Pull the adjusting handle out and select the desired cutting height. The handle snap into
the desired position.
From position 1 to position 7.The cutting height range from 20mm to 70mm.
Fig. 12
1
2
70mm 20mm
15
OPERATION
Start and stop the engine
WARNING! The blade begins to rotate as soon as the engine is started.
NOTE! Do not operate the machine in enclosed or poorly ventilated areas as the
exhaust gas contains toxic substance.
Keep hands , feet ,hair and clothing away from all the moving parts of the
machine. the exhaust and otherparts of the machine will become hot during use.
Make sure that the blade is securely fastened before starting the engine.
NOTE! To start the engine , make sure that the spark plug boot is located on the
plug and the machine is lled with sufcient oil and petrol.
To start the engine
As shown in Fig 13&14
1. Press the primer 3~5 times.
Fig. 13
16
OPERATION
2. Move the throttle lever to the rabbit position.
3. Stand behind the mower. Pull the starter handle out approximate 10-15cm until you
feel a resistance and then start the engine with a sharp pull .
Fig. 14
1
2
4. Once the engine is running, release the starter rope back to the rope guide gently.
NOTE! When mowing, you can also nish your job by moving the throttle lever to
the low speed position, to saving your petrol consumption, depend on the growth
trend of lawn you are cutting.
STOP
17
OPERATION
To stop the engine
As shown in Fig 15
Move the throttle lever to the stop position.
Fig. 15
To clean a flooded engine
NOTE! If the engine won’t start after you have operated the starterseveral times,
the engine may be ood with excess fuel . Use following procedure to clear and
start a ooded engine.
1. Move the throttle lever to the stop position to stop engine.
2. Remove the spark plug, dry it, and then reinstall it.
NOTE!Install the spark plug carefully by hand, to avoid cross-threading. After
the plug is seated tighten 1/8 to 1/4 turn with socket spanner of spark plug to
compress the washer.
3. Move the throttle lever to the rabbit position.
4. Operate the starter as described above.
Mowing
WARNING! Always observe the strictest safety procedures when using the
lawnmower. Carefully read the safety instructions of this manual before using the
lawnmower.
WARNING! Never open the ejector ap when the grass bag has been detached
(to be emptied)and the engine is still running. The rotating blade can cause
serious injuries!
STOP
18
OPERATION
1. Select your required cutting height.
2. Start the engine and allow it run. See “to start the engine”.
3. Hold the upper handle and push along it to start moving.
Working advices
1. Walk, never run, be very careful when mowing uneven or rough ground.
2. Mow across slopes, never up and down.
3. Be careful when changing the direction of the mower on a slope.
4. Do not mow excessively steep slopes.
5. The best result will be achieved if the grass is dry. Wet grass will tend to clog the
blade and the grass collection system.
6. Grass grows at different rates at different time of the year. Never use the lowest
cutting height for the rst cut of the season or in drought conditions.
7. Only about one thirds of the grass height should be cut.
8. Do not remove grass debris in the mower casing or on the blade by hand or with your
feet. Instead use suitable tools such as a brush or broom.
Emptying the grass bag
As soon as grass clippings start to trail the lawn mower, it is time to empty the grass bag.
NOTE! Before taking off the grass bag, switch off the engine and wait until the
blade has come to a stop.
1. To take off the grass bag, use one hand to lift up ejector ap and the other to grab
onto the carry handle. The ejector ap automatically falls down after removing the
grass bag and closes off the rear chute opening.
2. Empty the grass debris in the grass bag, and ret grass bag.
NOTE! If any grass residue is caught in the discharge chute, clean it using a
brush. Do not removegrass debris in the mower casing or on the blade by hand or
with your feet. Instead use suitable tools such as a brush or broom.To ensure that
the cut grass can be collected into grass bag, the discharge opening and inside
the mower casing must be cleared of any blockage.
19
STORING AND MAINTENANCE
WARNING! Before performing any maintenance or cleaning work, switch
Off the engine and wait until the blade has come to a stop.
Cleaning
General cleaning
The lawn mower should be cleaned thoroughly every time after it has been used.
Always clean your lawnmower immediately after use.
Do not allow grass cuttings and other debris to become dry and hard on any of the mower
surfaces.
Dried grass remnants and dirt may impair the mowing operation.
Check that the grass chute is free of any residual grass. Remove any such residue.
Check the underside of the lawn mower and the blade mount. For this purpose, tilt the
lawn mower onto its rear side(lift the deck based on its rear wheels)
NOTE :Before placing the lawn mower on its side , fully drain the fuel tank using a
petrol extraction pump.
Do not tilt the lawn mower by more than 90 degrees.
Maintenance of the spark plug
As shown in Fig 16
1. Once the engine has cooled , pull off the spark plug with a twist.
2. Remove the spark plug using a spark plug wrench
3. Clean the spark plug with a wire brush(not supplied ).
4. Using a feeler gauge set the gap to 0.8mm.
5. Install the spark plug carefully by hand , to avoid cross-threading .
6. After the spark plug is seated , tighten with the spanner to compress the washer.
Fig. 16
0.8 mm
20
STORING AND MAINTENANCE
Maintenance of the air filter
As shown in Fig 17& 18
Soiled air lters reduce the engine output by supply too little air to the carburetor. if the air
contains a lot of dust , the air lter should be checked more frequently .
WARNING! Never run the engine without the air lter element installed.
1. Unclip and remove the cover.
2. Remove the lter.
3. To loosen debris, gently tap the lter on a hard surface. the lter is excessively dirty,
replace with a new one.
Note! Never clean the air lter with petrol or inammable solvents. Clean the air
lter only with compressed air or by tapping it.
4. Install the lter.
5. Close the cover and clip it .
Fig. 17
Fig. 18
21
STORING AND MAINTENANCE
Changing the engine oil
Tilt the lawnmower towards the oil llercap , have a container ready to catch the oil and
remove the dipstick . once the oil has been emptied , replace the dipstick and wipe clean
any spillages.
Rell with SAE30 oil. When the dipstick is rested on the ller pipe (i.e. not turn in pace ),
the oil level must be between the min and max marks on the dipstick.
See “Checking the engine oil level and lling with engine oil ”
Start the engine and allow it to run briey.
Stop the engine ,wait one minute and check the oil level . top up if necessary .
NOTE! See more in engine manual.
Replacing the blade
For safety reasons you should only ever have your blade sharpened , balanced and
mounted by an authorized service workshop. For optimum results it is recommended that
the blade should be inspected once a year.
WARNING! Before you remove the grass collection bag, stop the engine and wait
until the blade stops completely.
WARNING! You will need garden gloves (not provided) and a spanner wrench(not
provided) to remove the blade.
NOTE! Don’t invert the mower. Tip it slightly towards the rear side and reach
under the deck
WARNING! Always handle the blade with care, sharp edges could cause injury
USE GLOVES. Renew your metal blade after 50Hrs mowing or 2yrs whichever is
sooner regardless of condition.
WARNING! If the blade is cracked or damaged replace it with a new one.
WARNING! Don’t hold the blade by hand directly.
NOTE! Maintain the sharpness of the blade when cutting grass. If the blade
has worn excessively and become pitted and blunt, it should be replaced
or sharpened. The sharpness of the blade will affect the performance of the
lawnmower.
22
STORING AND MAINTENANCE
For safety reasons we recommend that the blade only be changed by someone qualied
and authorized to do so.
Hold the blade and unscrew the blade bolt counterclockwise using a spanner wrench.
Remove the washer and the blade.
Fit a new blade or re-sharpen the blade, locate the blade on the two studs on the blade
an and then x the washer and bolts. Make sure the blade is correctly located, and then
rmly tighten the bolt with 45~50N·m. Do not over tighten.
Fig. 19
Storing the lawnmower for short periods
The lawnmower can be stored for short periods of time (less than 15 days) without
performing any storage maintenance. Before placing the lawnmower into storage always
carry out the following:
1. Allow the engine to fully cool.
2. Ensure the grass bag is empty.
3. Clean all debris from under the mower deck.
4. Store the lawnmower on at and level surface with the mower upright.
5. Store in a safe place which is not accessible by children or people who are not
familiar with operation.
23
STORING AND MAINTENANCE
Storing the lawnmower for extended periods
If the lawnmower is to be place into storage for more than 15 days, storage maintenance
must be performed on the lawnmower. If the following steps are not carried out, when you
next operate the lawnmower it may not start correctly and may need to be serviced.
CAUTION! Do not empty the petrol tank in enclosed areas, near re or when
smoking. Petrol fumes can cause explosions and re.
1. Empty the petrol tank with a petrol suction pump if available.
2. Start the engine and let it run until any remaining petrol has been used up.
3. Change the oil at the end of every season. To do so, remove the used engine oil from
a warm engine and rell with fresh oil
4. Clean the cooling ns of the cylinder and the housing
5. Be sure to clean the entire machine to protect the paint.
6. Store the machine in a well-ventilated place.
Maintenance schedule
Performing routine maintenance correctly on your lawnmower will ensure you get years of
trouble free use.
Please keep this manual safe for future reference.
It is recommended that the following maintenance schedule is adhered to. This will ensure
the lawn-mower operated correctly and is safe to use.
12hours of use 24hours of use 36hours of use
Air lter clean Clean replace
Spark plug check clean replace
Engine oil Check Replace check
The Engine oil should be changed after the rst 8 hours.
Transport
Empty the petrol tank.
Always let the engine run until it has used up the remainder of petrol in the tank .
Empty the engine oil from the warm engine .
Remove the spark plug boot from the spark plug.
Use the original packaging to ship whenever possible.
24
TROUBLESHOOTING
WARNING! Before performing any maintenance or cleaning work, switch off the
engine and wait until the blade has come to a stop.
CAUTION! Improper repairs can result in the product functioning unsafely. This
endangers yourself and your environment.
Faults which cannot be rectied with the aid of following table may be rectied by a
specialist company only (customer service center).
Please be aware that any improper repairs will also invalidate the warranty and additional
costs may be incurred.
Use only genuine spare parts. Only these spare parts are designed and suitable for the
product. The use of other spare parts not only voids the warranty, you can also endanger
yourself and your environment.
Fault/malfunction Cause Remedy
Loud while running,
machine vibrates
heavily
Screws are loose Check screws
Blade fasteners are loose Check blade fasteners
Blade is unbalanced Replace blade
Engine does not
start
Throttle lever at wrong
position
Set it
Spark plug is defective Replace spark plug
Does the cutting blade is
worn or damaged
Replace it by the customer
service center
Fuel tank is empty Rell with fuel
Engine may be ooded Remove plug and dry
Engine runs unsteadily
Air lter is soiled Clean the air lter
Spark plug is soiled Clean the spark plug
Uneven mowing
results
Blade is blunt Sharpen the blade
Cutting height is too low Set correct height
Grass bag is not
lled sufciently
Blade is worn Replace the blade
Grass bag is clogged Empty the grass bag
Cutting height is inappropriate
Correct the cutting height
The lawn / grass is wet Allow the lawn to dry
The discharge channel/
housing blocked
Clean the discharge channel/
housing
Underside of the mower
deck have been clogged
Clean the underside of the
mower deck
Loading...
