Yard force ROBOMOWER SA800PRO Original Instructions

Model SA800PRO
Hotline: +49(0)2154 8253 251006 Fax : +49(0)2154 8253 251007 Mail: yardforce@merotec-service.de www.yardforce.de
Merotec GmbH Hanns-Martin-Schleyer-Str. 18a 47877 Willich / Deutschland
ROBOMOWER
Original Instructions
GB
2 3
8
9
6
7
11
10
5
1
2 3
4a
12
15
18
16
17
13 14
19
4b
Read this manual carefully prior to assembling and operating the Robomower. It is dangerous to operate this product without being familiar with these instructions. Keep this manual in a safe place and have it ready for future reference.
A
4 5
Congratulations on the purchase of your new device. During production, this equipment has been checked for quality and subject to a nal inspection. The functionality of your equipment is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect and it represents no cause for concern.
The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise yourself with all of the operating and safety instructions. Use the product only as described and for the applications specied. Keep this manual in a safe place and in the event that
the product is passed on, hand over all documents to the third party. The Robomower is exclusively designed for mowing lawns. It is only intended for private use and is not suitable for commercial use.
SA800PRO Original Instruction
Introduction 05
Intended purpose 05
General description 05
Technical Data 07
Safety precautions 08
Assembly instructions 28

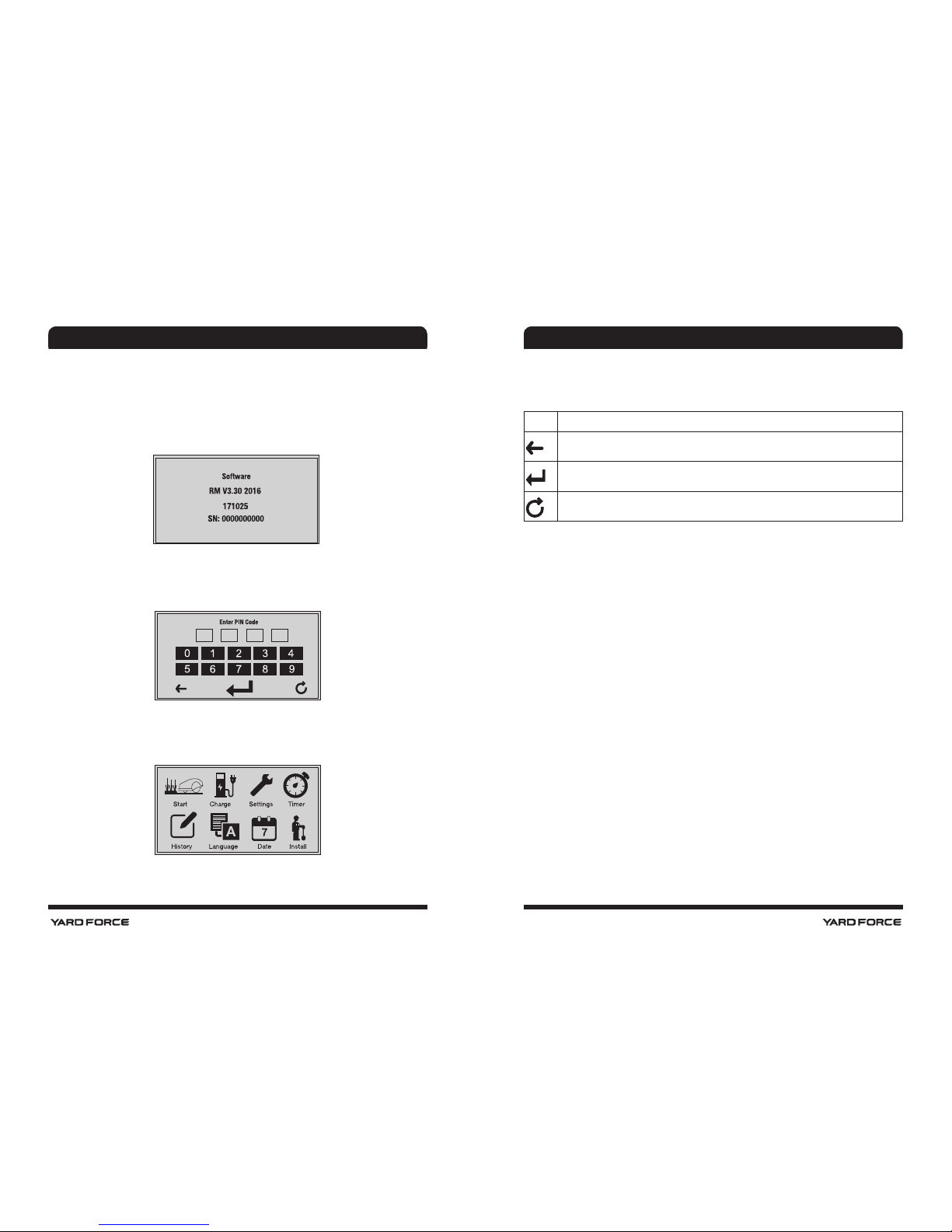

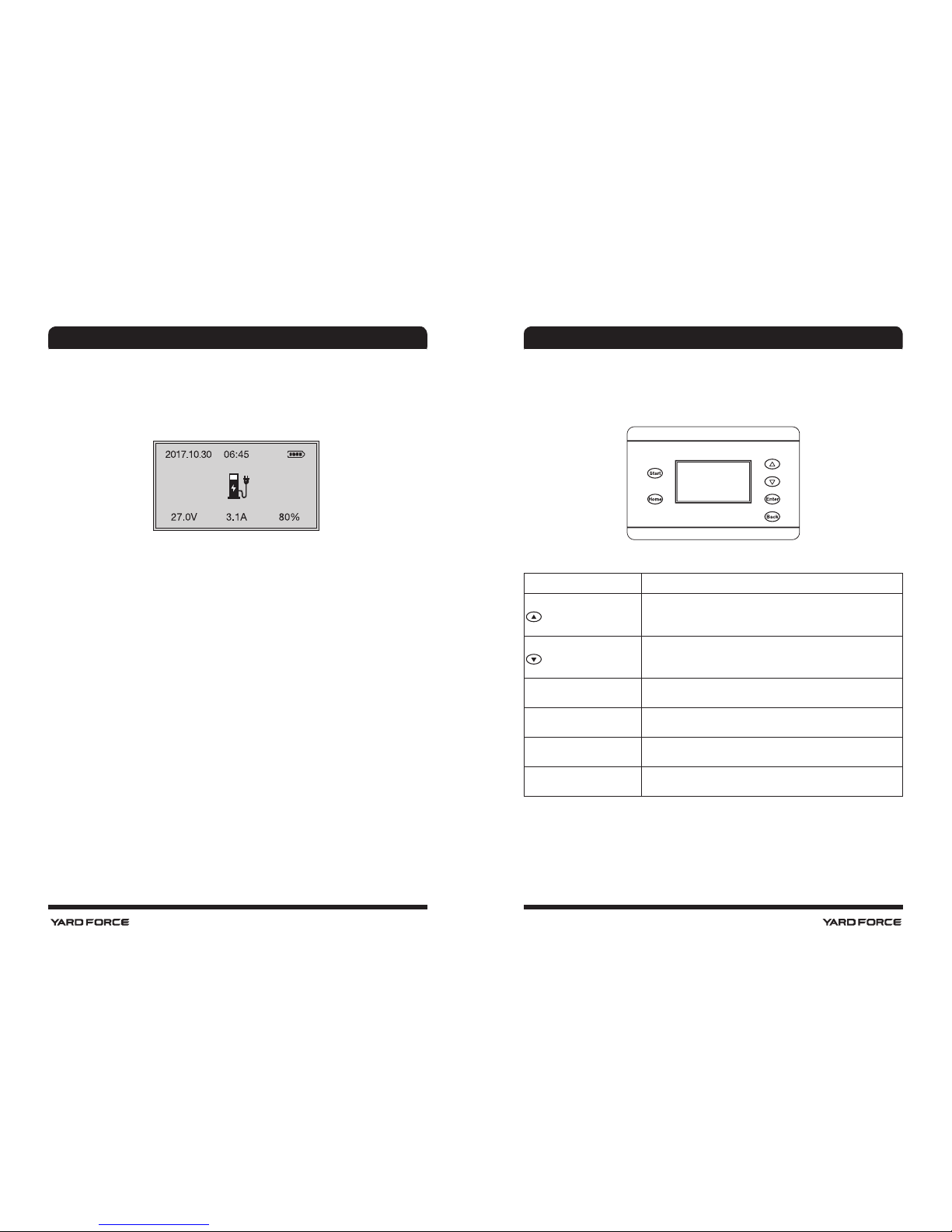

Operation 42

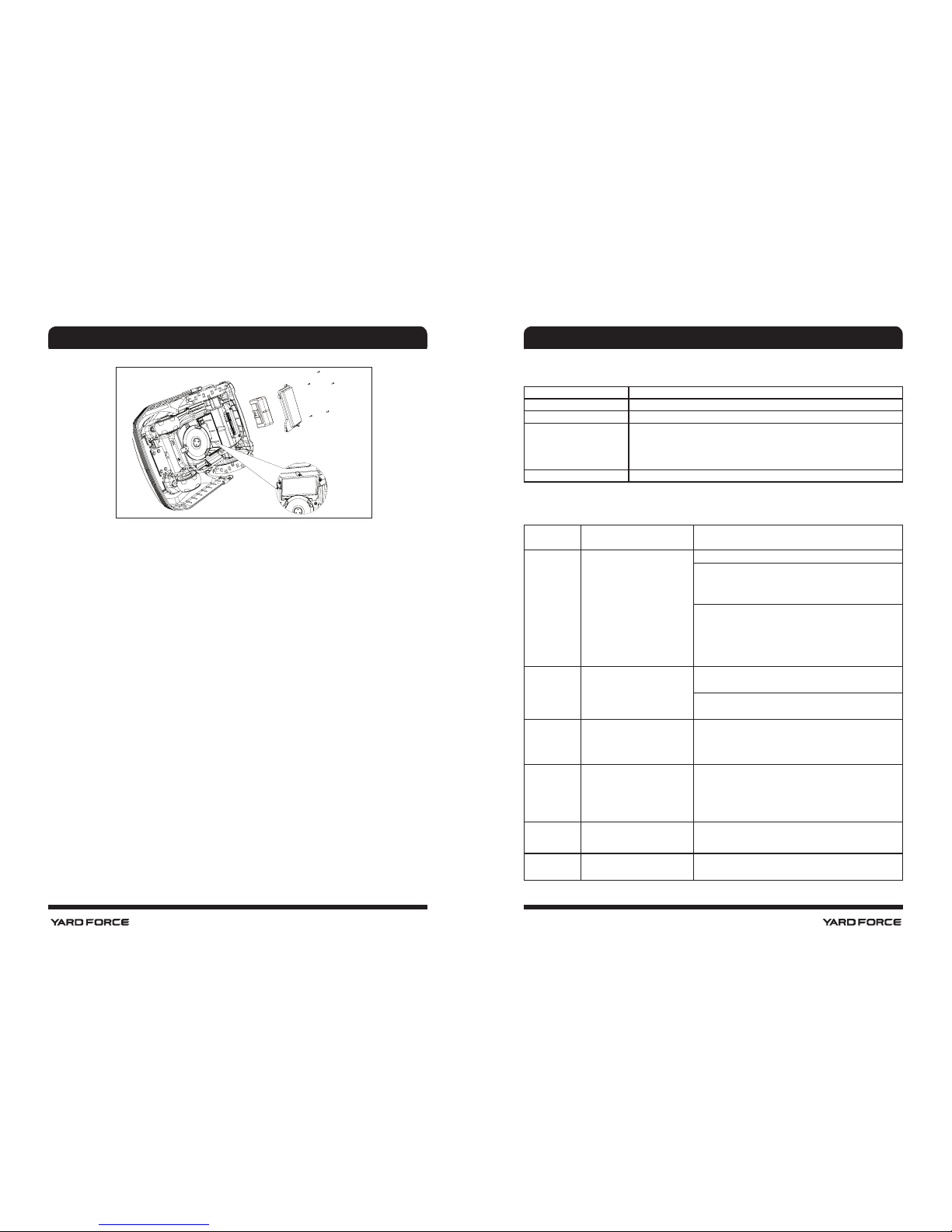

Cleaning/maintenance 56
Troubleshooting 61
Declaration of conformity 65
Any other use that is not specically approved in these instructions can result in damage to the Robomower and could be a serious danger to the user. This appliance MUST NOT be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. The owner or operator is responsible for any accidents or harm to other people and their property. The manufacturer cannot be held liable for damage caused by incorrect operation of the Robomower or use not in line with its intended purpose.
Scope of delivery
Carefully unpack the mower and check that all the subsequently listed parts are present:
• Robomower
• Charging station
• Transformer
• Extension cord
• Boundary wire
• Boundary wire connector B (blue)
• Fixing pegs
• Spare blades
• Measurement ruler (on the color box)
• Cement resistor
• Manual
CONTENT
INTRODUCTION
INTENDED PURPOSE
GENERAL DESCRIPTION
6 7
Overview
The illustration of the principal functioning parts can be found on the front and back foldout pages.
1 Robomower x 1 2 STOP button 3 Display and keypad 4a: Charging contacts (Robomower) 4b: Charging contacts (charging station) 5 Charging station x 1 6 Blade (3 per each) 7 Blade holder 8 Front wheel 9 Rear wheel 10 Carrying handle with safety switch 11 Main power switch 12 Control panel 13 Transformer x 1 14 Extension cord x 1 15 Fixing peg x 200 16 Measurement ruler (on the color box) x 2 17 Boundary wire connector x 3 18 Boundary wire x 1 (150m) 19 Cement resistance x 1
Functional description
This Robomower is an autonomous robot used to cut lawn grass. It will remain within an area designated by a boundary wire, start work following a programmed schedule and return to its charging station as needed. The three sharp blades ensure clean cuts with minimal damage to the plant, leaving behind tiny snippets as natural fertilizer.
Max cutting area 800 m
2
Battery
862601-INR186500-29E Lithium-Ion battery, 28V/2.9Ah, 81Wh
Power supply
FY3201500 Input 100-240V AC, 50/60 Hz
Output 32 V DC, CC1.5A Typical mow time on one charge 80 min Rated voltage 28 V DC Rated power
50 W
No load cutting speed
3500 min
-1
Cutting width 18 cm Blade model / part number 846210 Cutting height adjustment 5 Settings Cutting height, min-max 20 mm-60 mm Number of blades Three (Pivoting) Charging time 90 min Recommended time per day* Please see note 1 below 300 m
2
4 hours 600 m
2
6 hours 800 m
2
8 hours
Degree of protection:
Robomower IPX4 Charging station IPX4 Power supply IP 67 Robomower weight
8.5 Kg Charging Station weight 2 Kg Robomower size, L x W x H 570 X 390 X 260 mm Package size, L x B x H 780 X 510 X 330 mm Gross weight 18 kg
Measured sound power level
Measured sound pressure 46.6 dB(A) , K=3.0 dB(A) Guaranteed sound power level L
WA
= 67 dB(A) (K=0.35 dB(A))
The sound values have been determined according to noise test code given in EN 50636-2­107, using the basic standards EN ISO 11203 :2009 and EN ISO 3744:2010. The noise gures quoted are emission levels and are not necessarily safe working levels. Factors that inuence the actual level of exposure of work-force include the characteristics of the work room, the other sources of noise, i.e. the number of machines and other adjacent processes and the length of time for which an operator is exposed to the noise. Also the permissible exposure level can vary from country. This information, however, will enable the user of the machine to make a better evaluation of the hazard and risk.
*
Note 1: The recommended time per day stated in this specication is just for reference. It
depends on the condition of blades, the type of the grass being cut, the growth condition, humidity and whether lawn area is at. A more complex lawn with trees, ower beds, paths and slopes may require a longer work time.
GENERAL DESCRIPTION TECHNICAL DATA
8 9
This section covers the basic safety instructions when working with this machine.
General notes on safety
This machine can cause serious injury if it is not properly used. Please read these operating instructions carefully and familiarise yourself with all the control elements before operating this machine. Keep these operating instructions in a readily accessible place so that this information is always at your disposal. Please note that despite all measures to integrate safety measures into the construction, the safety devices and supplemental safety measures, a resiudual risk remains when using this machine.
Symbols used in the manual
Warning symbols with information on damage and injury prevention.
Warning symbol with information on the danger of electric shock.
Symbols on the machine
Caution! These instructions must be read.
Danger of injury due to ung-out material! Keep bystanders well away from the machine.
WARNING - Do not ride on the machine. CAUTION - Do not touch rotating blade.
WARNING – Remove the disabling device before working on or lifting the machine.
WARNING – Keep your hands and feet away from the rotating blades. Never place your hands or feet close to or under the body when Robomower is in operation.
Return any discarded batteries to your local dealer, collector or recycle point. It is not permitted to dispose of this product as normal household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Guaranteed sound power level value is 67dB.
67
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
10 11
Warning Symbols on the charger
Warning!
Before use, refer to the corresponding paragraph in the manual.
Double insulation
Pole orientation
Waste electrical products should not be disposed of with household waste. Recycle where facilities exist. Check your local authority or retailer for recycling advice.
CE conformity mark
Warning Symbols on the battery pack
Batteries contain Li-Ion and should not be disposed with general household waste. Contact your local authority for disposal advice.
Do not throw into water.
Do not throw on to re.
Do not subject the battery to strong sunlight over long periods and do not leave it in high temperatures.(max.45
O
C).
Waste electrical products should not be disposed of with household waste. Recycle where facilities exist. Check your local authority or retailer for recycling advice.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
12 13
Additional safety instructions for Robomowers
Do not store anything heavy on the top of the Robomower or charging station both during storage and when use.
Never use the device if the main power switch (11) is damaged or does not work properly. Never bypass the main power switch. Set the main power switch to OFF for storage or when the device is not in use. Use the original packaging when transporting the Robomower, especially for long distances. If you need to move the Robomower from or within the working area, rst press the STOP button (2) to stop the device.
Secondly, ensure that the main power switch (11) is switched OFF before you lift up your Robomower.
Thirdly, close the top cover and carry the Robomower by the carrying handle (10) at the rear under the mower, keeping the blade disc away from your body as shown.
Note: The carrying handle (10) includes two safety switches. Lifting the device by the carrying handle will trigger the switches, deactivating the Robomower.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS

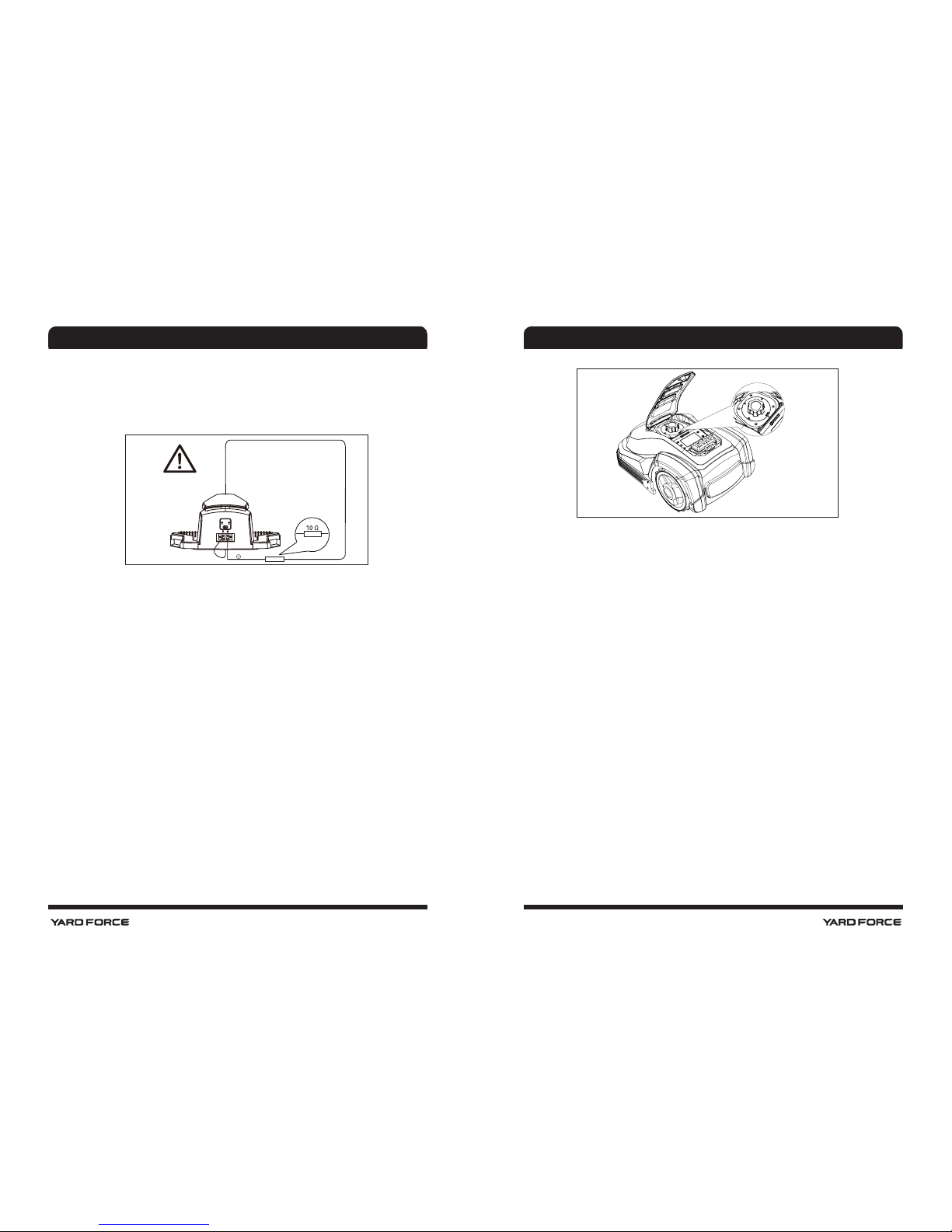

Main Power switch
14 15

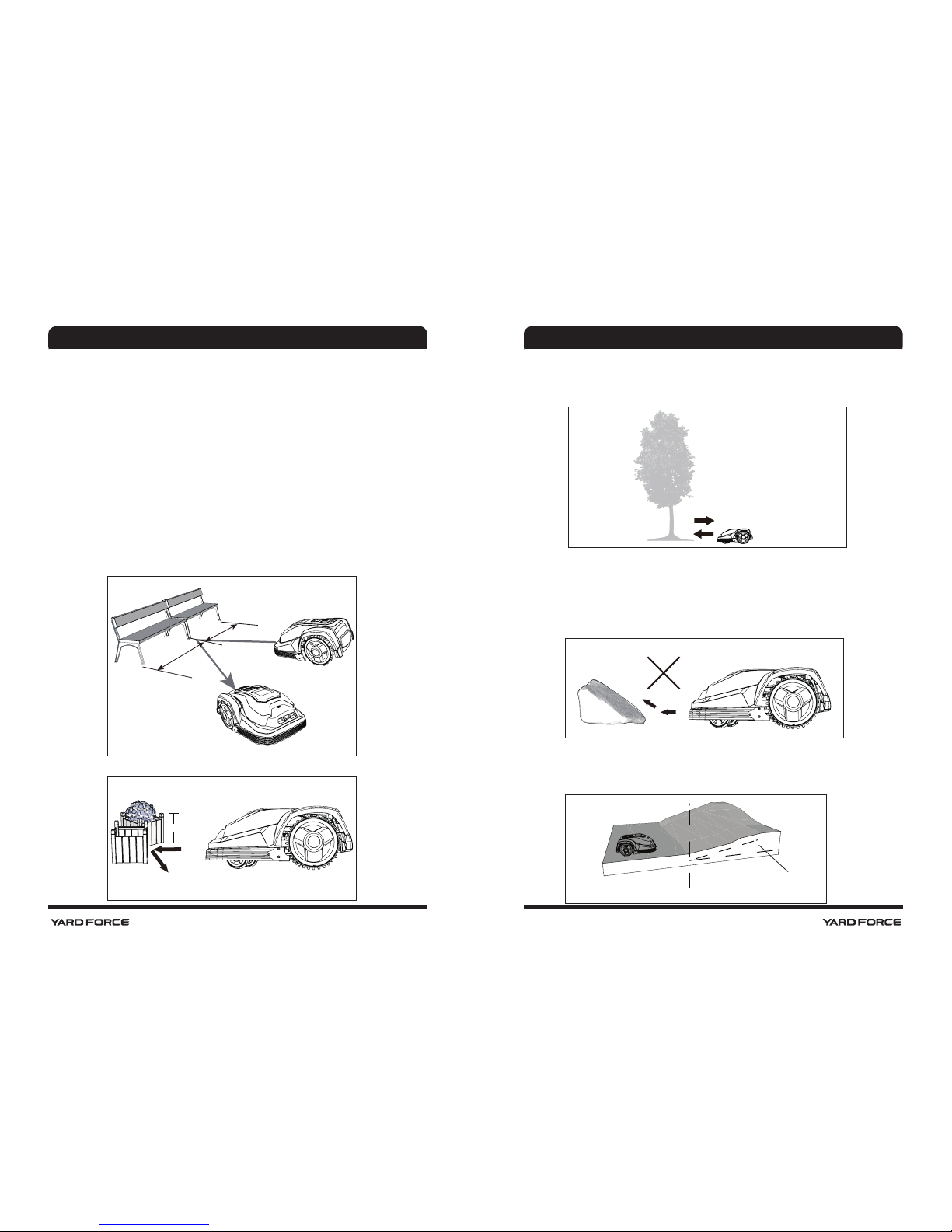

Lightning Protection
In order to prevent lightning damage to the machine, do not place the charging station under tall trees.
Operating the machine:
WARNING! This machine can cause serious injuries. Follow instructions below to reduce risk of accident and injury.
IMPORTANT
READ CAREFULLY BEFORE USE
KEEP FOR FUTURE REFERENCE
Preparation:
• Read the instructions carefully and make sure you understand them fully. Be familiar with the controls and the proper use of the machine.
• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions use the machine.
• Local regulations may restrict the age of the operator. Children should be supervised to ensure that they do not play with the appliance.
• The operator or user is responsible for accidents or hazards occurring to other people or their property.

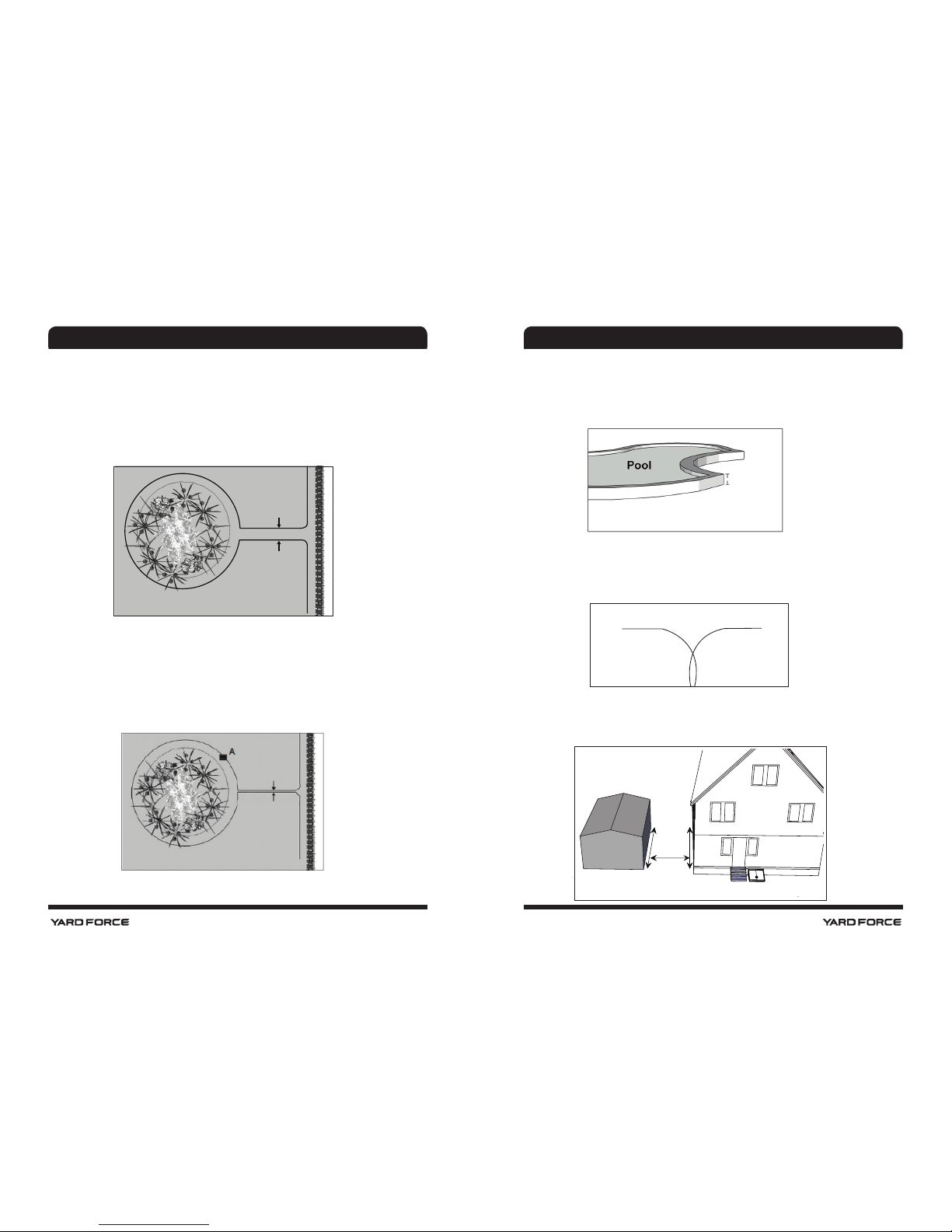

• Ensure the correct installation of the perimeter boundary system as instructed.
• Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, and other debris which could cause damage to the machine or be unsafe.
• Periodically visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or damaged blades and bolts in sets to preserve balance.
• On multi-spindle machines, take care as rotating one blade can cause other blades to rotate.
• Never leave the machine to operate unattended, especially while other people such as children and pets are in the area.
• Never use the machine to level out uneven patches.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
16 17
• If the blades no longer cut correctly or if the motor is overloaded, check all the parts of your equipment and replace the worn parts. If a more extensive repair is required, contact the customer service centre.
Use:
• Never operate the machine with defective guards or without safety devices, for example deectors and/or grass catchers, in place.
• Do not put hands or feet near or under rotating parts.
• Never pick up or carry the machine while the motor is running.
• Turn OFF / Power OFF the machine
– before clearing any blockages.
– before checking, cleaning or maintaining the machine.
• Start Robomower according to the instructions.When the main power switch (11) is in the ON position, make sure you keep your hands and feet away from the rotating blades.
• Never lift the Robomower or carry it around with the mains switch is in the ON position.
• Do not let persons use the mower who do not know how it works or behaves.
• Do not put anything on top of the Robomower or its charging station.
• Do not use the Robomower with defective blade discs, body, defective blades, screws, nuts etc.
• Avoid operating the machine in wet grass. Doing so can cause additional wear and tear and will increase the amount of cleaning required.
Work interruptions:
• After the machine has been turned off, the cutting cylinder will continue to rotate for a few seconds. Keep hands and feet well away.
• Only remove blockages when the machine is standing completely still. Ensure that the grass ejector opening (if any) is clean.
• Switch off the power when the machine is transported, lifted or tilted.
• Never leave the machine unattended. Children should be supervised to ensure that they do not play with the appliance.
CAUTION!
The following below outlines measures to avoid damage and harm to both the Robomower and people using it.
Taking care of your machine:
• Switch off the power when the machine is to be carried across uneven surfaces, for example steps.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
18 19
• Inspect the machine before each use. Never operate the machine if safety devices (e.g. impact protector, parts of the cutting facility or bolts) are missing, worn out or damaged. Check the power cable and starting lever (if any) for damage. To avoid imbalance, all tools and bolts must be changed as complete sets.
• Only use spare parts and accessories that have been supplied or recommended by the manufacturer. The use of alien parts results in the immediate loss of all guarantee claims.
• Ensure that all nuts, bolts and screws are rmly tightened and that the machine is in a safe working condition.
• Never try to repair the machine yourself, unless you have been trained accordingly. All work that has not been listed in these instructions must only be carried out by authorised servicing agencies.
• Treat the machine with the greatest care. Always keep the tool clean. Follow the maintenance instructions.
• Never overload the machine. Always work within the specied capacity range. Do not use low-power machines for heavy-duty work. Do not operate the machine for purposes for which it is not intended.
Electrical safety:
CAUTION!
The following states how to avoid accidents and injuries due to electric shock:
• Before each use, carry out a visual inspection of the power and extension cord for any signs of damage or ageing. Damaged mains power cables increase the risk of electric shock.
• Connect the machine to a power socket with a residual-current circuit breaker that has a rated current of no more than 30 mA.
• Always keep the extension cable well away from the cutting tools. Should the power cable become damaged during work, instantly disconnect the power cable from the mains. DO NOT TOUCH THE POWER CABLE BEFORE IT HAS BEEN DISCONNECTED FROM THE MAINS! Risk of electric shock.
• The supply cord cannot be replaced. If the cord is damaged the appliance should be scrapped.
• Keep extension cable away from blades and other moving parts. They may damage the cable and result in contact with live parts.
• Check that the mains voltage is the same as indicated on the rating plate.

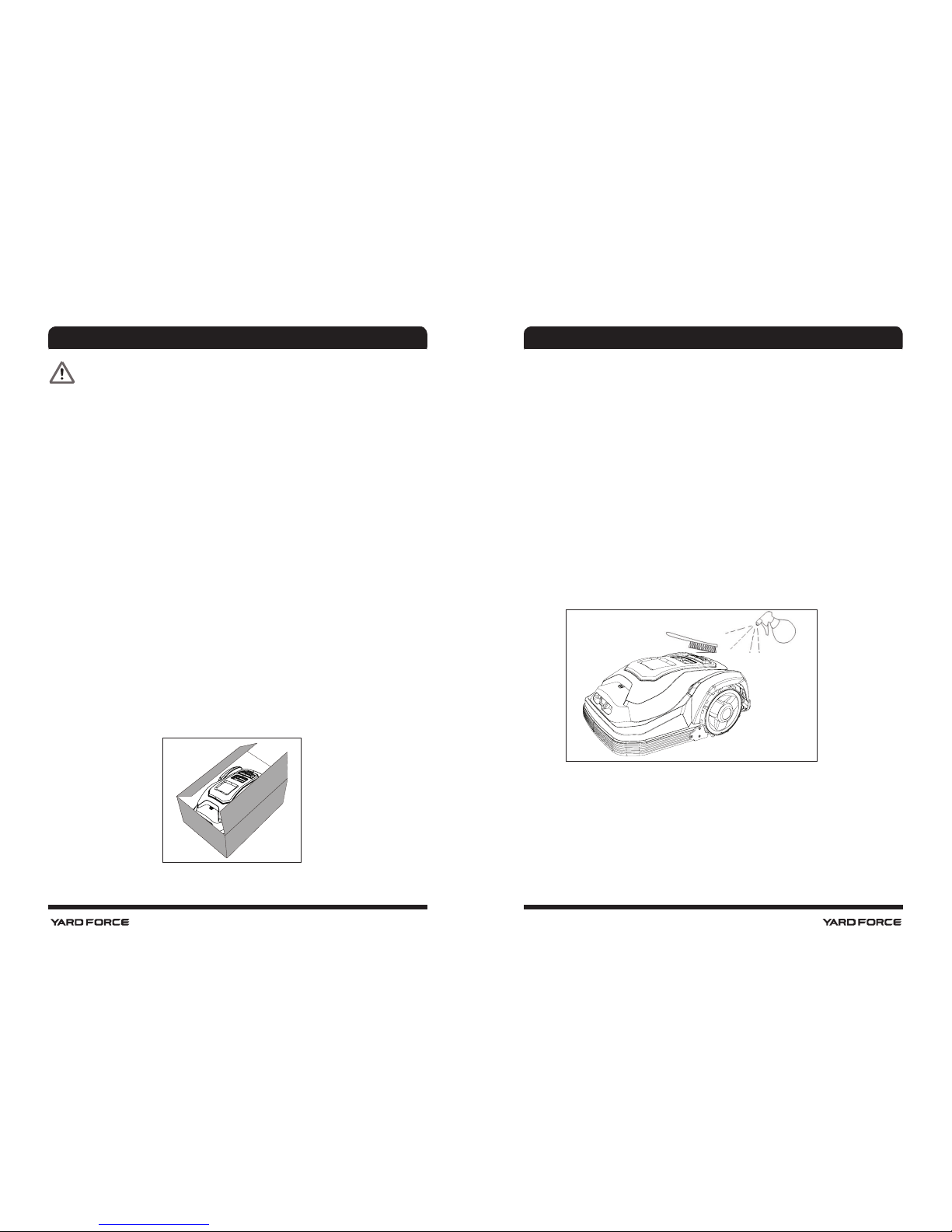

Maintenance and storage
• Keep all nuts, bolts and screws tight to be sure the machine is in a safe working condition.
• Replace worn or damaged parts for safety.
• Ensure that only the recommended replacement cutting blades are tted.
SAFETY PRECAUTIONS SAFETY PRECAUTIONS
