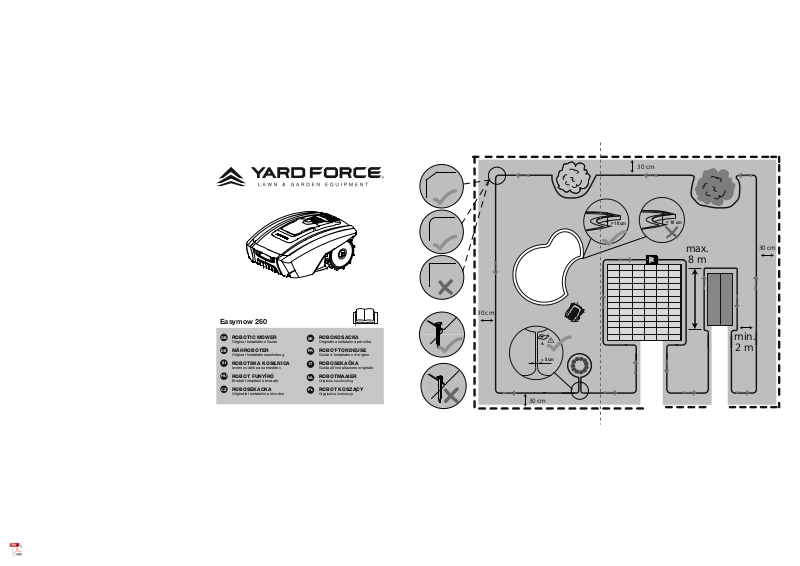

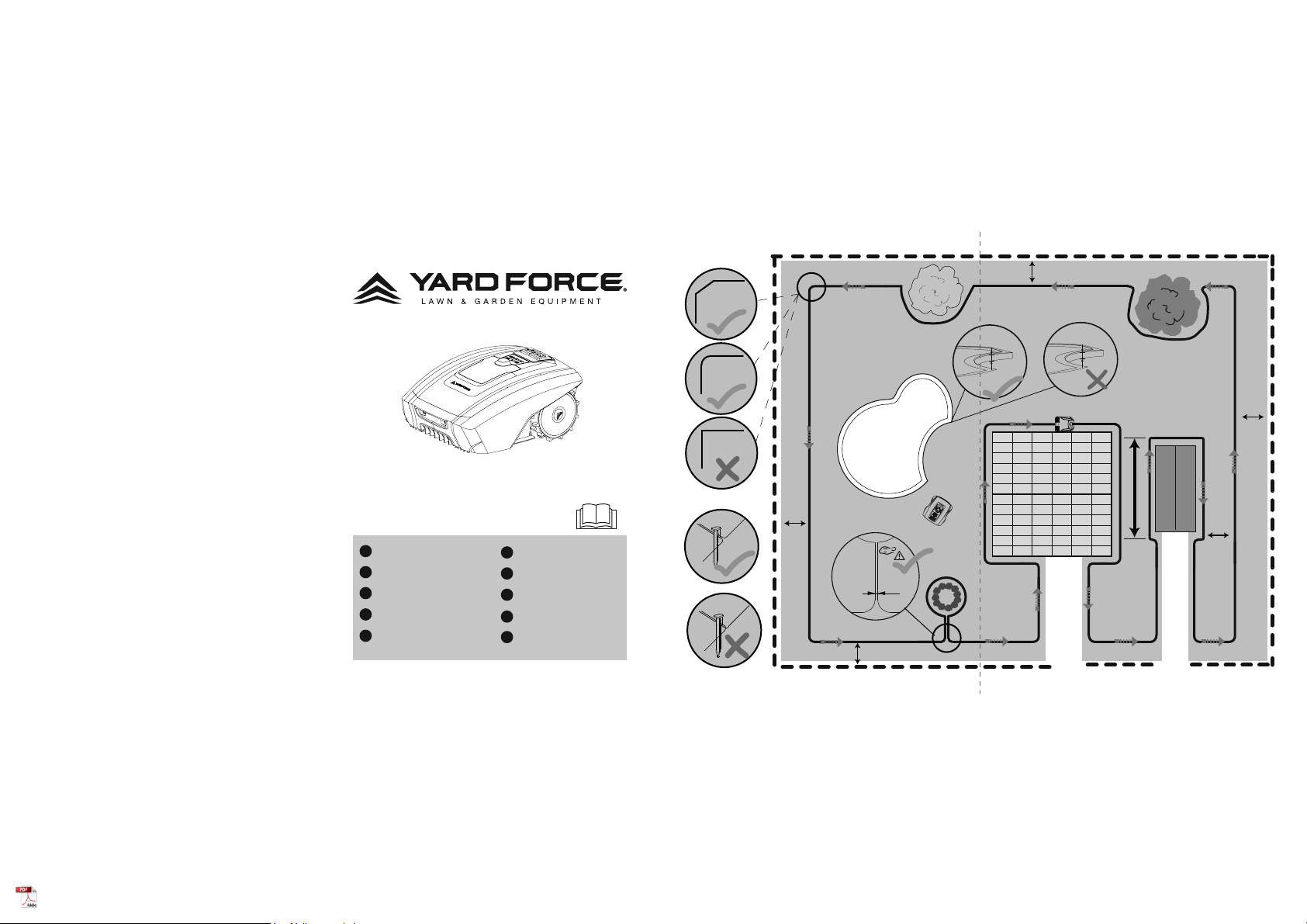

Page 1
30 cm
Easymow 260
ROBOTIC MOWER
GB
Original Installation Guide
MÄHROBOTER
DE
Original Installationsanleitung
SI
ROBOTSKA KOSILNICA
Izvirni vodnik za namestitev
HU
ROBOT FUNYÍRÓ
Eredeti telepítési útmutató
CZ
ROBOSEKACKA
Originální instalační průvodce
ROBOKOSACKA
SK
Originálna inštalačná príručka
ROBOT-TONDEUSE
FR
Guide d’installation d’origine
ROBOSEKAČKA
IT
Guida all’installazione originale
ROBOTMAAIER
NL
Originele handleiding
ROBOT KOSZćCY
PL
Oryginalna instrukcja
30 cm
30 cm
> 10 cm
< 10 cm
max.
30 cm
8 m
A
<
5 cm
min.
2 m
Page 2
GB
CONTENT
Description of the product .............................................1
Installation ..................................................................... 2
Operation ...................................................................10
Technical data ..............................................................13
Maintenance and storage .............................................14
Troubleshooting ............................................................16

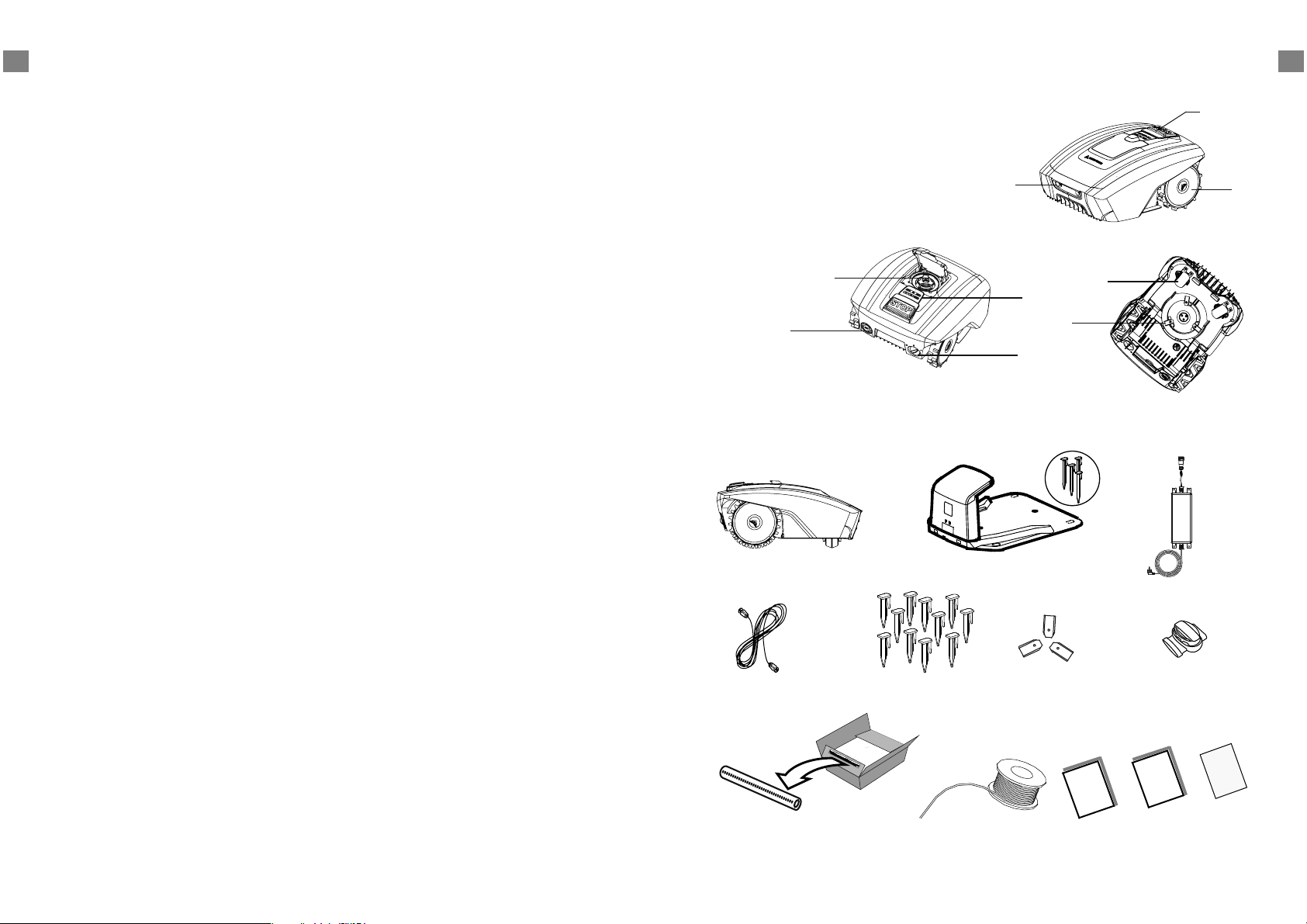

Description of product
1. STOP button
2. Charging port
3. Rear wheel
4. Height adjustment dial
5. Control panel
6. USB interface
7. On/Off switch
8. Front wheel
9. Cutting blade
4
6
Scope of delivery
GB
1
2
8
5
9
7
3
Robotic Mower
Extension cord
Measurement ruler Boundary wire
Wire pegs
Docking station
1
Spare blades
Switching Power Supply
Connectors
Installation
Original
instrcution
guide
Manuals
Warranty
Page 3
GB GB
Installation
Installation Guide
This chapter explains how to install the Robotic Mower. Please read this completely before you
start the installation.
Introduction
We recommend creating a drawing of your lawn, including all obstacles and how these should be
protected. This makes it easier to find a good position for the docking station and how to correctly
place the boundary wire around your garden perimeter protecting bushes, flower beds etc. You
will also need some tools, like a hammer and wire cutters, pliers or scissors.

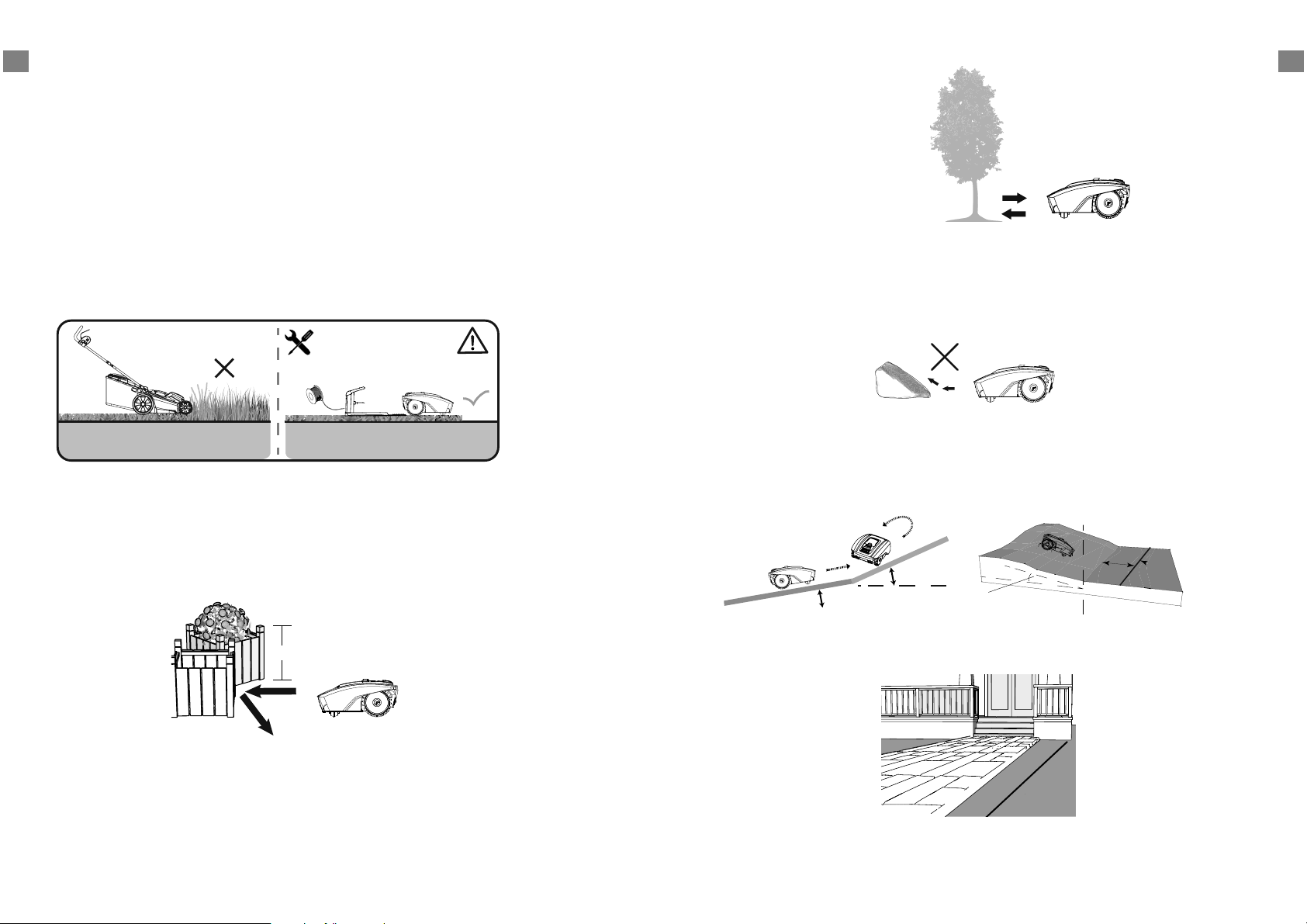

Pre Cut your lawn
Your lawn needs to be prepared correctly, prior to installing the robot lawnmower.
Pre cut your lawn to a height of 45 mm.
> 45 mm
< 45 mm
<45mm
Cutting limitations
The Robotic Mower is equipped with collision sensors. These detect all rigid and solid obstacles
that are higher than 100 mm, such as walls, fences and garden furniture.
When the sensors report an obstacle, the Robotic Mower stops, backs up and then mows in a
different direction. As a long-term solution, it is recommended to lay the boundary wire accordingly
using the ruler to protect obstacles and the device. Lay the boundary wire so that the Robotic
Mower is not more than 20 m away from the boundary wire at any point in the mowing area.
Stones
We recommend clearing the lawn of small (less than 100 mm high) rocks and stones and any
stones with a round or sloped edge. The Robotic Mower might try and climb such rocks instead
of recognising them as a barrier. A Robotic Mower getting stuck on such a stone requires user
intervention to restart mowing. Contact with stones can result in damage to the blades.
Slopes
The Robotic Mower can navigate slopes up to a maximum of 30% incline or decline.
The boundary wire should never be perpendicular to an incline of more than 10%. Also, leave
strip of at least 2 m between a slope of 10% or steeper and the boundary wire. Otherwise, the
higher speed going down the slope may cause the Robotic Mower to go over the boundary wire,
especially on wet and slippery ground.
min.
2
m
>30%
<30%
>10%
100 mm
Trees
The Robotic Mower treats trees as common obstacles, but if the roots of the tree are exposed and
lower than 100mm, this area should be excluded using boundary wire in order to protect the tree
root, cutting blades or rear wheels from damage.
2 3
Paths, Driveways and Roads
If an elevated driveway crosses your lawn, better keep it outside the boundary wire.
Please allow a safety distance of 40 cm between driveway and boundary wire.
40 cm
If the driveway and lawn are at the same level, feel free to use the boundary wire to create a
corridor. This allows your Robotic Mower to cross the driveway and reach the opposite lawn.
Page 4
GB GB
> +/- 5°
> +/- 5°

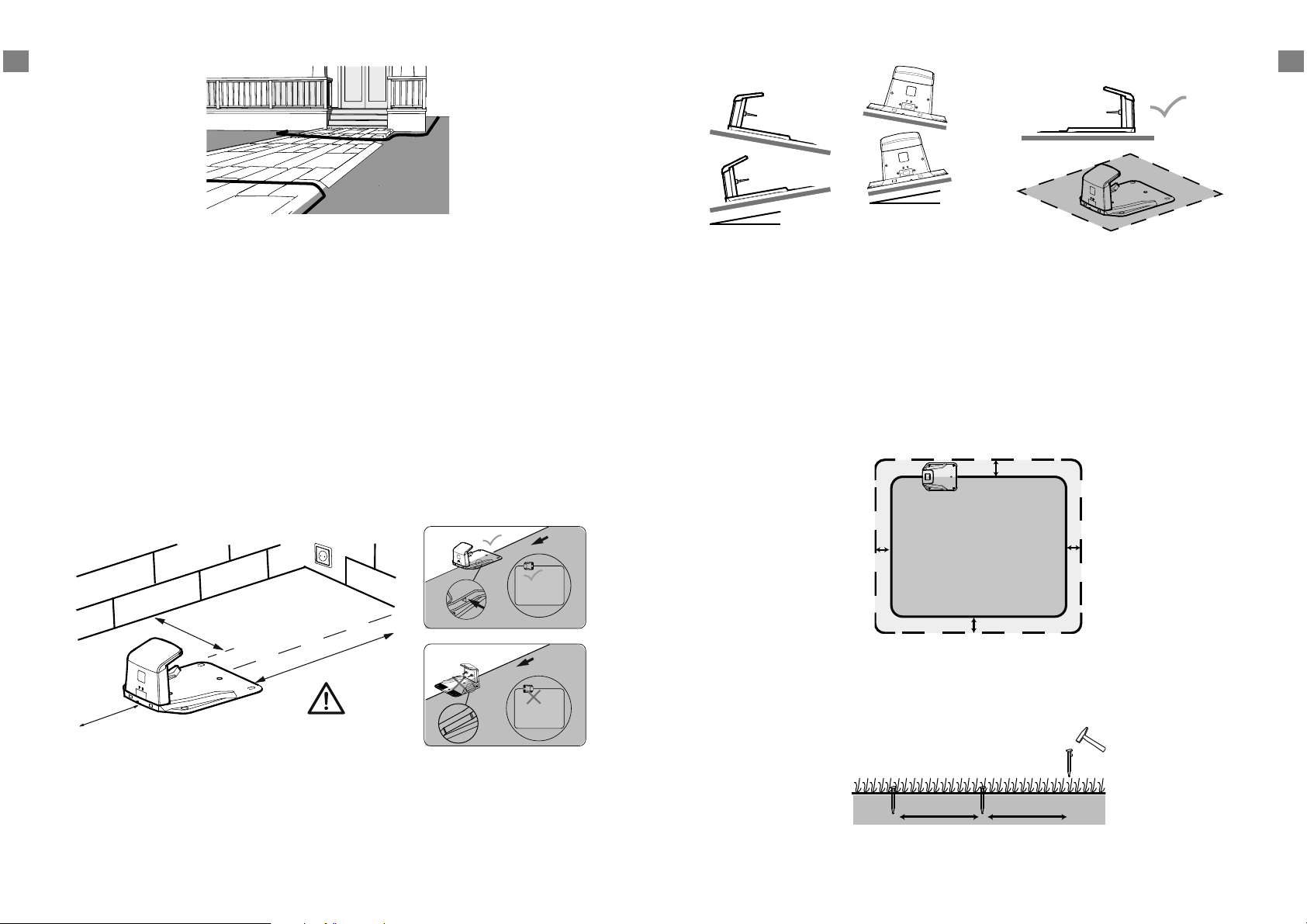

Uneven lawn surfaces
Uneven lawn areas may cause the blades to touch the ground. We recommend leveling the lawn
before using your Robotic Mower or excluding uneven areas with the boundary wire.
Placing the docking station
Locate the best position for your docking station. Be aware that it needs a permanent connection
to the mains, so take into account the location of the nearest power outlet.
If your lawn has a soft or uneven surface, we recommend fortifying the area around the docking
station with a grass protection mesh. Otherwise, the repeated stress of the rear wheels can
damage the turf.
Once the position of the docking station is confirmed and mains electrical connection is laid out,
please do not connect to main power yet. Finish all boundary layout work before connecting the
docking station to the power supply.
Pegging your boundary wire
To ensure the Robotic Mower can return to the docking station smoothly, leave 1.5m of straight
wire to the front of the docking station and 30cm to the side facing the cutting area. Use a shaded
location for the docking station, as a lower temperature while charging is beneficial to the battery.
Important: Place the docking station on an even, flat surface away from ponds, pools or stairs.
We recommend suitable protection from the elements, for example a robot port or garage.
Do not place the docking station too close to a slope, such as at the top of a hill or the bottom of
a furrow. Avoid left and right inclination in excess of 5 degrees.
We strongly recommend mowing the lawn to 45 mm or less before laying out the boundary
wire. Burying the boundary wire is entirely optional. Still, the closer to the ground you lay out the
boundary wire, the lower the chance of tripping over it or damaging it when mowing the lawn.
Use the included ruler to ensure the required 30 cm distance between wire and obstacles.
30 cm
>0.5 m
>0.3 m
30 cm
The recommended distance between two pegs is about 80 cm in straight lines, and less in tight
> 1.5 m
curves. Note that the pegs' hook and wire slit always faces the outside of the boundary. Within a
short time the cable will be covered with grass. Since the voltage is only 20 V, there is no risk of
electric shock. Make sure that the hook of the peg and the opening for the cable always face the
demarcated.
80 cm
When first planting the pegs, do not drive them fully into the ground. Use a light hammer to drive
them in a little bit. Also locate the fixing pegs and lay each one on the lawn at approximately the
4 5
30 cm
30 cm
80 cm
Page 5
GB GB
correct distance from lawn edges (30 cm) and obstacles.

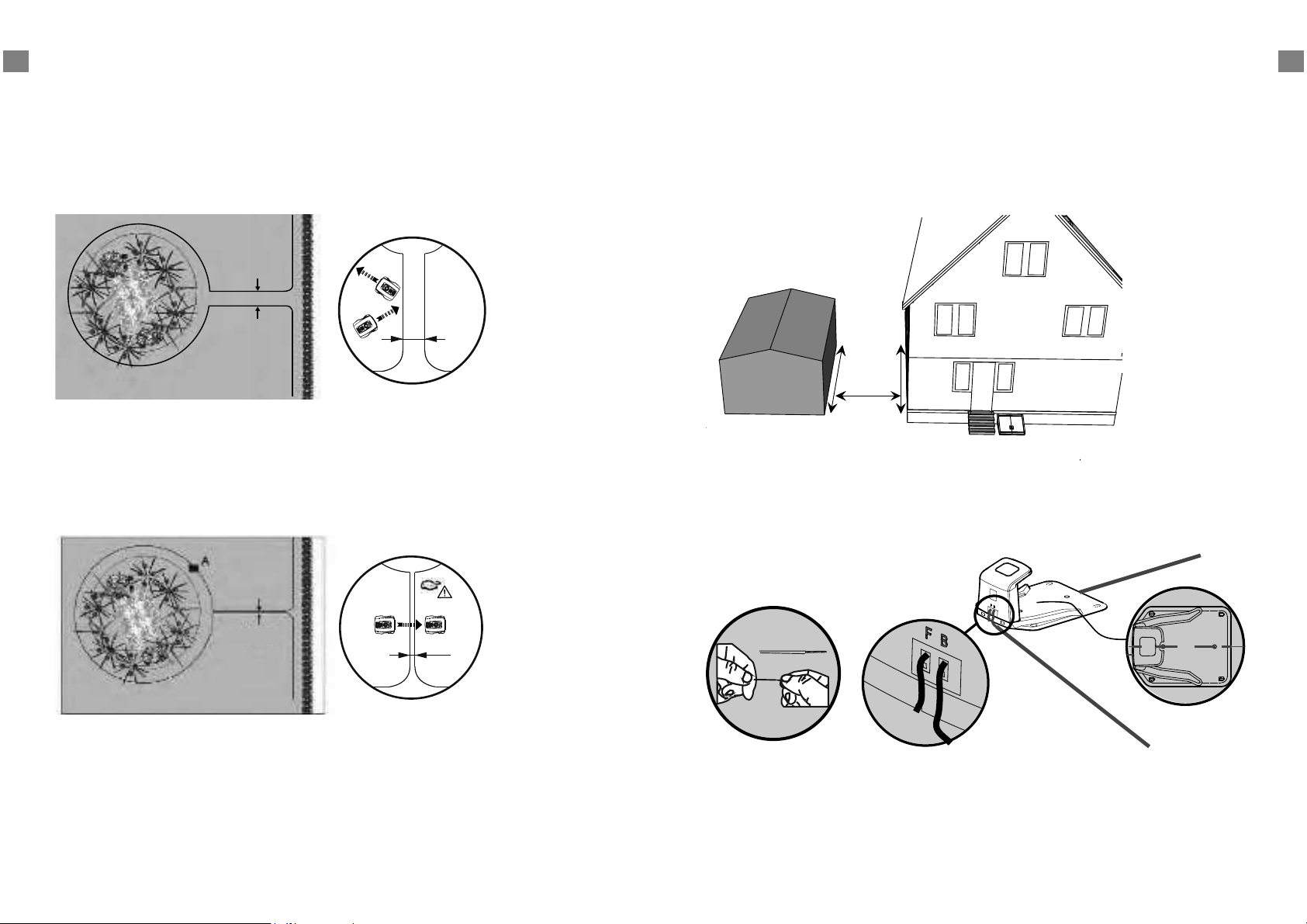

Flowerbeds
Use the boundary wire to exclude any flowerbeds from the cutting area. There are two options for
the two lengths of boundary wire running between the flowerbed and the outer boundary:
1) Keep the distance between the parallel wires above 5 cm. This way, the Robotic Mower will
recognise the boundary wire as an ordinary obstacle. When cutting, it will "bounce" off it as usual.
When following the boundary wire back to the docking station, it will take the detour around the
flower bed.
cause severe damage to the electronic parts.
Therefore, it is imperative to exclude any pools from the cutting area. For added safety, we
recommend placing a fence around the pool.
Inventory and garage
If you have created a boundary corridor inside your working area, the corridor should be at least 2
m wide and a max length of 8 m.
If a corridor is too narrow or too long, the Robotic Mower might not be able to navigate it from one
end to the other.
> 5 cm
2) Alternatively, keep the distance between the two parallel wires below 5 cm. Do not cross the
wires - see below. This way, the Robotic Mower will not recognise the wires and travel across
them unhindered. This option requires placing an obstacle on the boundary wire around the
flowerbed. Place the obstacle, e. g. a large rock or pole, near position A indicated on the below
illustration. The obstacle must be surrounded by a flat area of about 1 m x 1 m, without any
slopes. This obstacle will allow the machine to exit the circle.
< 5 cm
> 5 cm
A
<5 cm
< 8 m
> 2 m
Connect the docking station to the boundary wire
Run the boundary wire underneath the front of the docking station and connect the end of the
wire to the left (black) connector marked 'F' (front). After you have placed the wire around the
garden then place the other end into right (red) connector marked "B" (back).
OO
Ponds and Pools
While the Robotic Mower is protected against rain and spray water, being submerged is likely to
6 7
Page 6
GB GB

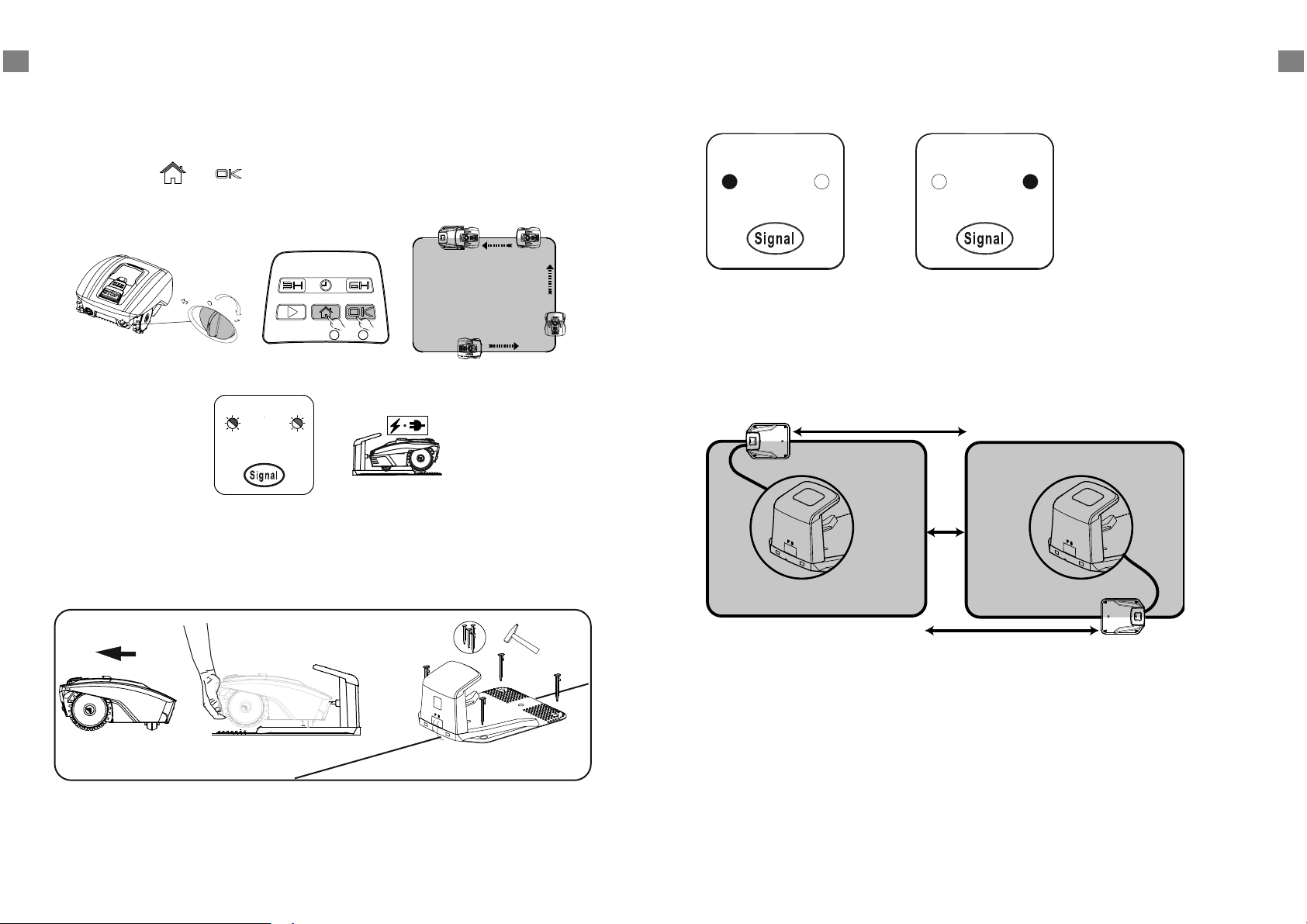

Insert the mains plug into a properly installed socket. Once the blue LED confirms all is OK, test
the Robotic Mower's function. Check the LED regularly to ensure fixing the boundary wire has not
affected the connection and signal shows S1 on the charging satation. Then place the Robotic
Mower in the working area, a few metres beside the docking station. Set the main power switch to
Signal selection
Note: the default signal is S1, no need to change the signal when there isn’t a influence signal
form the neighbors.
"ON".
Press the buttons
and , a few seconds later, the Robotic Mower should automatically
return to the docking station by locating and following the boundary wire in anti-clockwise
direction. If Robotic Mower fails to dock correctly, move the docking station to a more suitable
position.
2
1
Once the device has docked, the symbol will start flashing. This indicates that the battery is
charging correctly.
S1 S2
After initial installation, the Robotic Mower will remain in the docking station until the battery is
fully charged.
Successful docking and charging indicates that you have found a suitable position for the docking
station. You should now drive fixing pegs into ground fully.
Take care not to damage or kink the surplus wire stored under the docking station.
S1 S2 S1 S2
If your neighbour is using the samer, will need to keep a distance of 0.5m between you and your
neighbour's boundary wires to prevent the two devices interfering with each other. Ensure to
position your docking station at least 10m away from your neighbour's boundary wires and that
both products are using different signals. Please refer to section "Signal setting" in order to select
signal S1 or S2 for your installation.

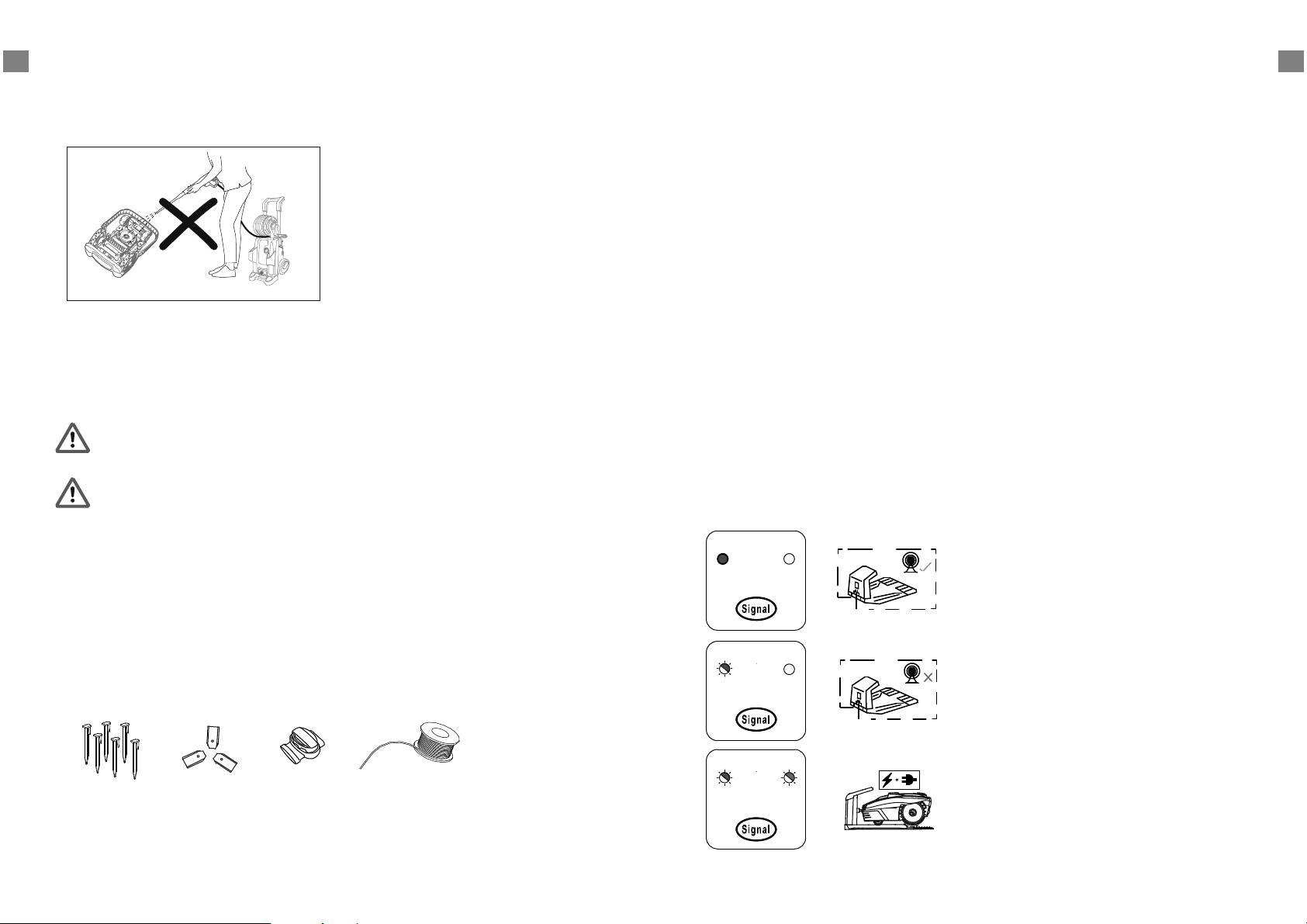

1. Press the “signal” button on the charging station, the indicator will be switched to S2.
2. Turn on your robot mower, push the mower into the charging station, after 5 seconds, the
mower will be switched S2 automatically.
>10 m
S1
>0.5 m
>10 m
S2
Note: if your mower can not be switched to the right signal after stay in the charging station, signal
switch could be set manually.
1. Press and hold the button ”6H” and then switch on the mower for 5s, after 5 times beep,
signal is switched from S1 to S2.
2. Press and hold the button “3H” and then switch on the mower for 5s, after a long beep,
signal is switched from S2 to S1.
8 9
Page 7
GB GB

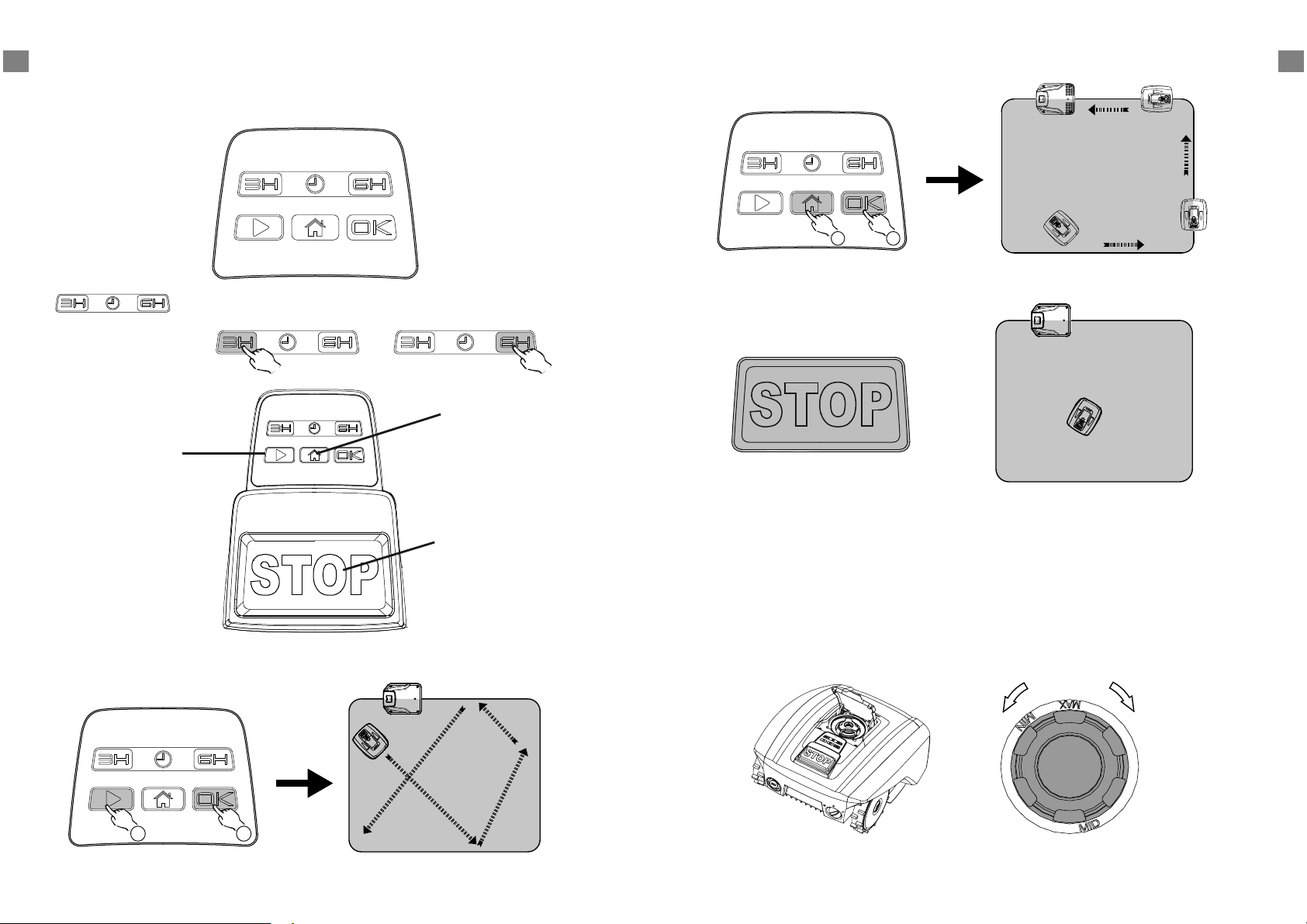

Operation
Return to Docking station
Control panel
Working time
select button:
Select working time.
Start button:
Frist press the Start
button and then press
the OK button, robotic
Mower will start to
work.
Start mowing
Home button:
First press the Home
button and the press
the OK button, robotic
Mower will return to
docking station.
STOP button:
Press this buttion.
Robotic Mower will stop
immediately.
1
2
Emergency Stop
Press STOP button to halt the mower at any time.
Cutting height adjustment
The cutting height can be adjusted by rotating the height adjustment dial located on the top of
the machine. Cutting height range from 20 mm - 55 mm.
NOTE!
We recommend using an ordinary lawn mower or trimmer to cut the lawn below 45 mm
before using the Robotic Mower. This will ensure you get the optimum performance.
1
2
10 11
Page 8
GB GB
Technical Data
Model EasyMow 260
Max cutting area 260 m
Battery pack 20 V/2000 mAh
Switch power supply
Power supply model* FY2401500S1/FY2401500S2/FY2401500S3
Mowing time on one charge 60 min
Rated voltage 20 V
Rated power 42 W
No load speed 3500 min
Cutting width 16 cm
Cutting height Approx 20-55 mm
Charging time 100 min
Blade model 846210
Weight 8.2 kg
Frequency Band 0-148.5 kHz
Magnetic Field Strength
Max sound pressure level L
Max sound power level L
Degree of protection:
Robotic Mower IP24
Switching power supply IP67, Plug IP44
Spare parts
Spare Blades 3 Pcs
Boundary pegs 100 Pcs
Boundary wire 80 m
Connectors 3 Pcs
*
WARNING: For the purposes of recharging the battery, only use the detachable supply unit
provided with this appliance.
Input: 100-240 V~, 50/60 Hz, 42 W
Output: 24V
60 dBμA/m
=55.8 dB, K=3 dB
pA
=66.8 dB, K=3 dB
wA
2
, CC1.5 A
-1
Maintenance and storage
Maintenance work that has not been described in these instructions must be carried out by a
servicing agency authorised by the manufacturer. Only use original parts.
Maintenance
Check and clean your Robotic Mower regularly and replace worn parts if necessary. Preferably
use a dry brush, a damp cloth or a sharpened wooden piece.
Never use flushing water.
Following these maintenance instructions can extend your Robotic Mower's service life.
Battery Life
The Robotic Mower has a maintenance free Li-ion battery, with an estimated life of more than 2
years (depending on treatment and usage).
Winter Storage
During winter, keep your mower, docking station and power supply in a dry place.
We recommend a shed, garage or preferably store it indoors.
Prepare your device for winter storage as follows:
1. Fully recharge the battery.
2. Set the mains power switch to "OFF".
3. Thoroughly clean your Robotic Mower.
4. Unplug the power supply from the mains outlet.
5. Disconnect the power supply from the docking station.
6. Disconnect the boundary wire from the docking station. Lift up the docking station and clean.
The boundary wire can remain outside. However, it is imperative to protect the wire against
corrosion. We recommend a water-free grease or suitable sealing tape.
If available, repack the product in the original packaging.
Alternatively, our service centre offers a winter service for your device. This will include a check-up
of all parts and - if available - a software upgrade.
Preparing for spring
After winter storage, please clean the charging contacts on both the Robotic Mower and the
docking station.
Use a fine abrasion paper or a brass brush; this will help to achieve the best charging efficiency
and avoid any charging interference.
Cleaning the mower body
As your Robotic Mower is battery powered you need take care when cleaning. Remove rough dirt
with a soft brush. Use a manual water spray with mild household detergent for intensive cleaning.
Wipe off any residue after cleaning with a moist rag.
Disposal
To help the environment, please dispose of the product properly when it has reached the end of
its useful life and not in the household waste. Information on collection points and their opening
hours can be obtained from your local authority.
Li-ion Environmental damage through incorrect disposal of the batteries / rechargeable batteries.
Remove the battery pack from the product before disposal. Batteries /rechargeable batteries may
not be disposed of with the usual domestic waste. They may contain toxic heavy metals and are
subject to hazardous waste treatment rules and regulations. Please dispose of batteries according
to the relevant local requirements.
12 13
Page 9
GB GB
Cleaning the underside
Ensure the main power switch is in OFF position. Wearing protective gloves, turn the Robotic
Mower onto its side to expose its underside. Clean the blade disc and frame using a soft brush or
damp cloth. Rotate the blade disc to make sure that it can move freely, check that the blades can
turn on their pivots and that there is no grass is obstructing them.
Troubleshooting
Robotic Mower cannot dock with docking station
• Check that the boundary wire in front and underneath the charger is in a straight line.
• Check that the docking station's position is suitable as explained in this manual.
Robotic Mower runs in circles while mowing or while following
boundary wire back to docking station.
• Verify that no power cable runs parallel and in close proximity the boundary wire. If necessary,
0
O
F
F
1
O
N
Clean the contact pins and the charging strips
Using wire wool, metal cleaner or very fine grade emery paper, clean the contact pins and the
charging strips on your mower and docking station. Remove any debris, leaves, or grass clippings
around the contact pins and charging strips to ensure efficient charging.
Reversing or replacing the blades
reposition the boundary wire.
• Check if a front wheel is stuck.
• If a neighbor has a similar Robotic Mower, the signals may interfere. Try setting your docking
station and Robotic Mower are set to the alternative boundary signal.
• Driving motor may be damaged, please contact customer support/
The Robotic Mower is noisy.
• Inspect the blade fixing screws; tighten if necessary.
• Inspect the blades for damage; replace if necessary.
• Grass may be too high. Try increasing the cutting height, or mow the lawn with an ordinary
lawnmower first.
• Cutting motor failure, please call after sales service.
WARNING!
Ensure the Robotic Mower is completely shut off before cleaning, adjusting or replacing
the blades. Always wear protective gloves.
WARNING!
To ensure maximum cutting efficiency and safety, always use recommended replacement
blades and blade mounting parts when replacing.
Your Robotic Mower has three blades, fixed to the blades disk.
Unless damaged by hard obstacles, these blades can last for up to five months of everyday use.
Weekly inspection of the blades and the fixing screws is advised. Note that the blades are doubleedged. When the first side becomes blunt, loosen the fixing screw and the blade upside down and
re-fix. Check that the blade can move freely.
A set of spare blades is included with the Robotic Mower. More blades can be purchased via
customer support.
To ensure you get the best performance from your machine, always replace all three blades at the
same time. Only use spare parts recommended by manufacturer.
Spare parts list
In case you need spare parts or any support with your device, please call our after sales centre.
Software Update
Should your machine need a software update, contact our customer service team for more
information.
Mower remains at or returns to docking station when pressing START
button
• Check if the mower has already completed the programmed working time for that day.
• Battery is low, let give the Robotic Mower time to charge and try again.
LED signal indicator on docking station
S1 S2
S1 S2
S1 S2
S1/S2 indicator lights on.
Broundary wire signal in good condition
S1/S2 indicator flashes.
Broundary wire broken, no signal.
S1/S2 indicator Flashing alternately.
Mower is charging in the docking station.
14 15
Page 10
GB GB
Related to before/during/after charging
Problem Possible cause Corrective action
No light on charge base
S1/S2 indicator flashes Boundary wire broken, no signal
Robot not charging
Incorrect wire conection Check wire connections " F and B"
AC Power has not switched ON Switch on AC power
Repair broken cable with provided
connectors
Machine not correctly docked in
charge base
Machine not correctly docked in
charge base
Charger pins corroded Clean the charger pins
Check machine is fully docked in
charge base
Check charge base is on flat
surface
Problem Possible cause Corrective action
Mower runs in circles
Mower powered off
and later powered on,
and it does not mow as
scheduled time
Power cable runs parallel/close to
wire
Front wheel is stuck Clean front wheel area
Signal interfere with robot in
neighborhood
Driving motor failure Please call after sales service
Connection issue or broken/cut
boundary wire
After repower or manual
interruption, mower needs to
input work commanding again
Reposition of boundary wire
Change to alternative boundary
signal (S1/S2)
Repair/check connections on
charge base and boundary wire
being broken/cut
Press “Start + OK“ or “Home +
OK”, this will let mower return to
normal status
Related to mowing
Problem Possible cause Corrective action
No Power to machine
Machine fails to START
Mower outside the
boundary wire
Parts of the lawn are
uncut
Mower gets stuck in Lawn
area
Excessive vibration/noisy
ON/OFF key has not been
activated /turned correctly
Robot mower has Low charge Place machine in the charge base
Time setting not activated
Grass build up under deck Clean under deck with brush
Battery Power Low Place machine in charge base
Grass too long Mow the lawn to 45mm
Cutting height is too Low
Battery temperature too cold /hot
Boundary wire cut Repair broken boundary wire
Boundary wire is on a slope
Mower needs more cutting time
Grass too long Mow the lawn to 45mm
Obstacles on lawn Remove obstacles from the lawn
Boundary wire not correct laid
Wire in front of docking station
incorrect installed
Blade loose Tighten screw bolt
Blades damaged jammed Replace damaged blades
Grass maybe to high
Cutting motor failure Please call after sales service
Recheck - Turn ON/OFF key knob
to 1
Select time schedule 3-/ 6hrs -
and OK buttons
press
Mow the lawn to 45mm and raise
cutting height
Working condition is between 5
o
and 45
C
Modify boundary wire and leave
bigger distance on slope
Increase scheduled cutting time to
6hrs
Modify boundary wire to zone out
obstacles
2m of straight cable to front of
dockking station needed
Increase cutting height, reduce
later step by step or mow the lawn
with ordinary lawnmower first
16 17
Loading...
