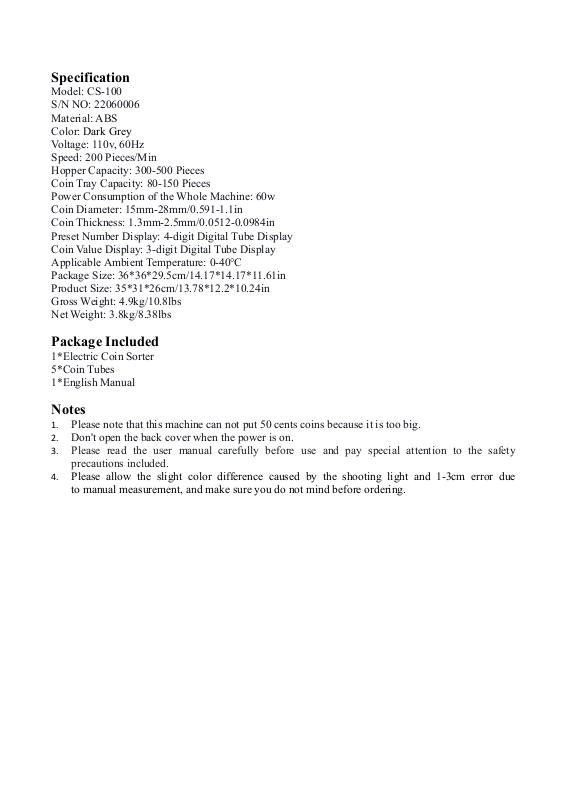

Specification
Model: CS-100
S/N NO: 22060006
Material: ABS
Color: Dark Grey
Voltage: 110v, 60Hz
Speed: 200 Pieces/Min
Hopper Capacity: 300-500 Pieces
Coin Tray Capacity: 80-150 Pieces
Power Consumption of the Whole Machine: 60w
Coin Diameter: 15mm-28mm/0.591-1.1in
Coin Thickness: 1.3mm-2.5mm/0.0512-0.0984in
Preset Number Display: 4-digit Digital Tube Display
Coin Value Display: 3-digit Digital Tube Display
Applicable Ambient Temperature: 0-40℃
Package Size: 36*36*29.5cm/14.17*14.17*11.61in
Product Size: 35*31*26cm/13.78*12.2*10.24in
Gross Weight: 4.9kg/10.8lbs
Net Weight: 3.8kg/8.38lbs
Package Included
1*Electric Coin Sorter
5*Coin Tubes
1*English Manual
Notes
Please note that this machine can not put 50 cents coins because it is too big.
1.
Don't open the back cover when the power is on.
2.
Please read the user manual carefully before use and pay special attention to the safety
3.
precautions included.
Please allow the slight color difference caused by the shooting light and 1-3cm error due
4.
to manual measurement, and make sure you do not mind before ordering.
