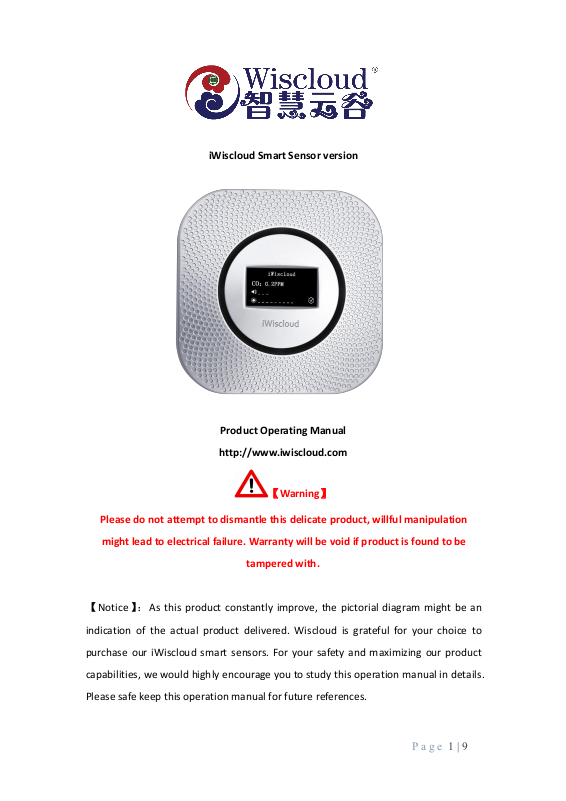

Yantai Wiscloud Cloud Computing WIS S CH User Manual

P a g e 1 | 9

iWiscloud Smart Sensor version

Product Operating Manual

http://www.iwiscloud.com

【Warning】

Please do not attempt to dismantle this delicate product, willful manipulation

might lead to electrical failure. Warranty will be void if product is found to be

tampered with.

【Notice 】： As this product constantly improve, the pictorial diagram might be an

indication of the actual product delivered. Wiscloud is grateful for your choice to

purchase our iWiscloud smart sensors. For your safety and maximizing our product

capabilities, we would highly encourage you to study this operation manual in details.

Please safe keep this operation manual for future references.

P a g e 2 | 9

1. Product Introduction

This product had been designed and manufactured in accordance to strict

International safety standards and achieved CE certifications.

Side view

Back view

1.1. Product specifications

Smart Sensor

Model No.

Detection range

Accuracy

Oxygen

Wis-S-O

2

0 – 25%

±0.3%

Formaldehyde

Wis-S-CH

0 – 0.3mg/m

3

±0.002mg/m

3

PM2.5

Wis-S-PM2.5

0 – 500µg/m

3

±2µg/m

3

Carbon Monoxide

Wis-S-CO

0 – 600ppm

±0.3ppm

Carbon Dioxide

Wis-S-CO

2

350 – 6000ppm

±3ppm

P a g e 3 | 9

Humidity/Temperatu
re

Wis-S-TH

20-90%RH / 0-50°C

±2%RH / ±1°C
Other features

Luminosity, Sound level detection

Operating voltage

AC 100-200V / 50-60Hz

Energy consumption

1 – 2 W

Display panel

LED display or Without display panel

Dimension

Square (100mm*100mm*30mm) or Round (XX*XX*30mm)

1.2. Deployment

iWiscloud smart sensor can be deployed individually or paired together with other
iWiscloud smart home solution suite. If Wiscloud control center is deployed together,
user can do remote monitoring and alert via the Internet cloud.

1.3. Proposed deployed locations

Home, Office, Luxury Hotel, Industrial buildings, Precise engineering / clean rooms or
high-tech farms. Anywhere that you may require to monitor & alert or obtain precise
information of the environment.

1.4. Exterior design

Our smart sensors (square or circular) shaped exterior shells are made up from
Acrylonitrile-Butadiene-Styrene (ABS) plastic. It is strong, stable, durable, safe and
resistant to heat and corrosion. The hive inspired air vents enhances aerodynamic
flow and increases reading accuracy.

1.5. Color Options

Black, Silver, Pure White

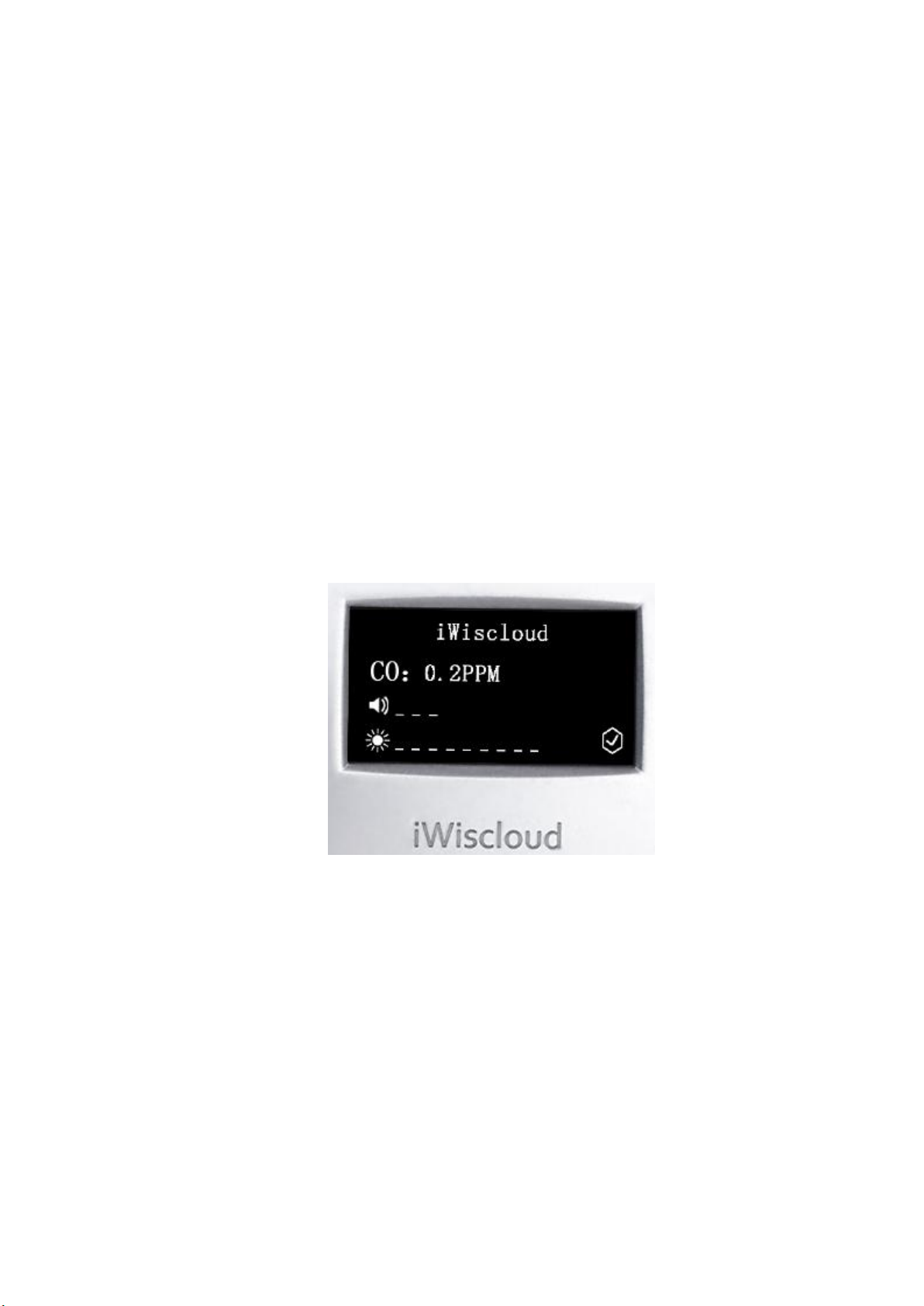

1.6. Display Panel Standby

1. When the smart sensor detects continuous 5 minutes of low light (dark or

darkness), it automatically goes into display panel standby mode. The display

panel will emerge again when it detects visible light.

2. While in standby mode, if the smart sensor detects a quantitative change in

noise or sensatory value, the display panel will also emerge.

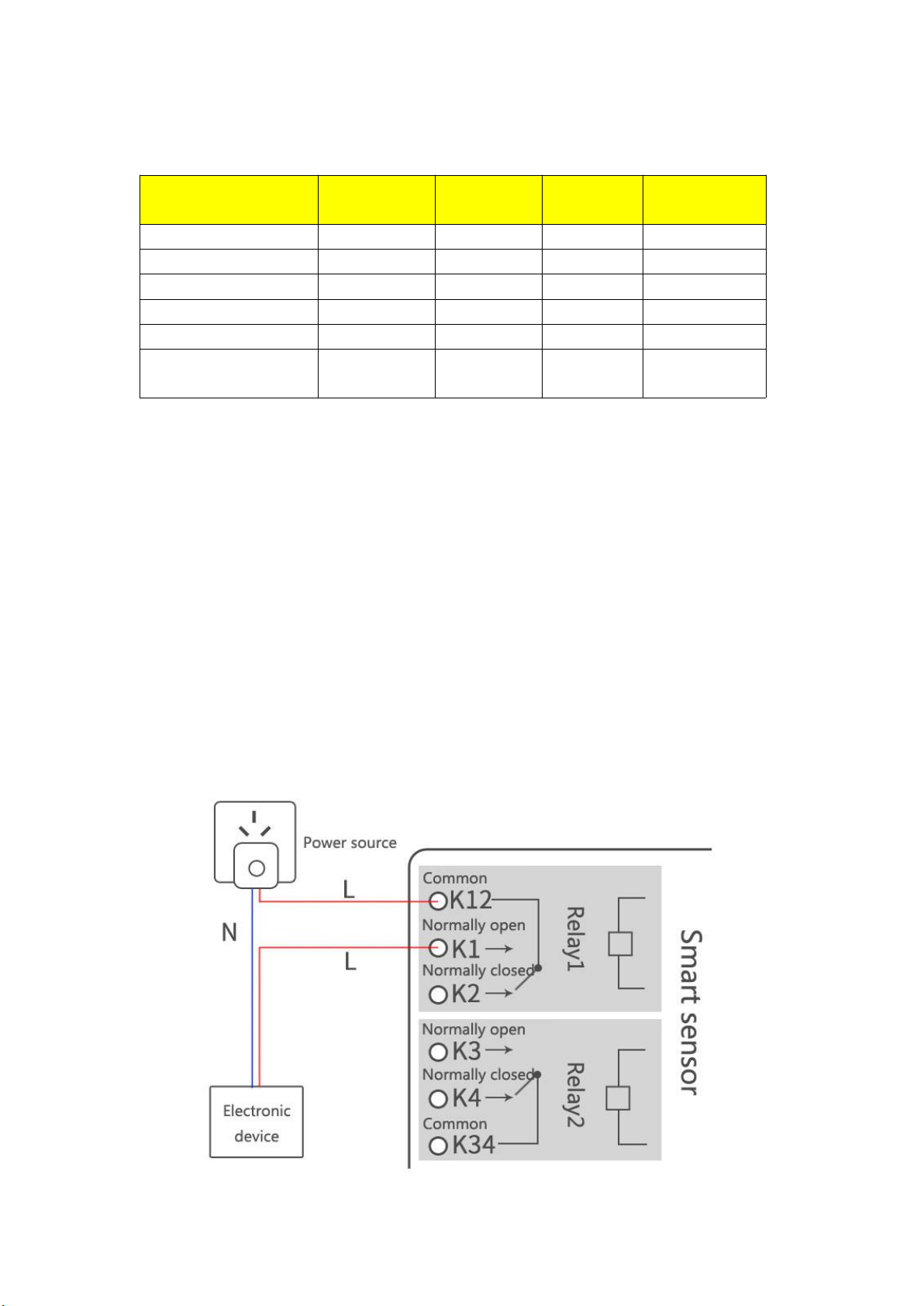

1.7. Product Feature Expansion

1. Each smart sensor carries one RS-485 port interface, used commonly for

industrial communication.
