Yanmar b50-1 Parts Catalog

1,1,,772151-03110,,"LABEL ASSY",1,,,,,,,M,,,,,,,,,,,
1-1,1,,772151-03160,,"LABEL C ASSY",1,,,,,,,,,,,,,,,,,,,,I
2,2,,172151-03360,,"LABEL, SPECIFICATION",1,,,,,,,,,,,,,,,,,,
2-1,2,,172151-03361,,"LABEL,
SPECIFICATION",1,,,,,,S,,72142365,M10501,,,,,,,,,,,I
3,2,,172151-03370,,"LABEL, OIL/WATER",1,,,,,,,,,,,,,,,,,,
4,2,,172143-03220,,LABEL,1,,,,,,,,,,,,,,,,,,
5,2,,172138-03750,,"LABEL, GREASE",1,,,,,,,,,,,,,,,,,,
6,2,,172151-03150,,LABEL,2,,,,,,,,,,,,,,,,,,
7,2,,172143-03180,,LABEL,1,,,,,,,,,,,,,,,,,,
8,2,,172151-03180,,LABEL,1,,,,,,,,,,,,,,,,,,
9,2,,172147-03210,,LABEL,1,,,,,,,,,,,,,,,,,,
10,2,,172151-03190,,LABEL,1,,,,,,,,,,,,,,,,,,
11,2,,172142-03280,,LABEL,1,,,,,,,,,,,,,,,,,,
12,2,,172151-03200,,LABEL,1,,,,,,,,,,,,,,,,,,
13,2,,172151-03210,,LABEL,1,,,,,,,,,,,,,,,,,,
14,2,,172151-03220,,LABEL,1,,,,,,,,,,,,,,,,,,
15,2,,172151-03230,,LABEL,1,,,,,,,,,,,,,,,,,,
16,2,,172151-03240,,LABEL,1,,,,,,,,,,,,,,,,,,
17,2,,933112-52500,,"LABEL, FUEL",1,,,,,,,M,,,,,,,,,,,
17-1,2,,933112-50700,,"LABEL, OIL FEED",1,,,,,,,,,,,,,,,,,,,,I
18,2,,172151-03250,,LABEL,1,,,,,,,,,,,,,,,,,,
19,2,,172151-03450,,"LABEL, BOOM",2,,,,,,,,,,,,,,,,,,
19-1,2,,172151-03451,,"LABEL, BOOM",2,,,,,,N,,72143022,M01564,,,,,,,,,,,I
20,2,,933112-45300,,"LABEL, DANGER (A)",1,,,,,,,,,,,,,,,,,,
21,2,,172151-03280,,LABEL,1,,,,,,,,,,,,,,,,,,
22,2,,172137-03290,,"LABEL, NO.1 MARK",1,,,,,,,,,,,,,,,,,,
22-1,2,,172141-03620,,LABEL,1,,,,,,N,,72141400,M10568,,,,,,,,,,,I
23,2,,172151-03290,,LABEL,1,,,,,,,,,,,,,,,,,,
24,2,,172143-03240,,LABEL,1,,,,,,,,,,,,,,,,,,
25,2,,172137-03300,,"LABEL, TURNING LOCK",1,,,,,,,,,,,,,,,,,,
26,2,,172151-03300,,LABEL,1,,,,,,,,,,,,,,,,,,
27,2,,172143-03250,,"LABEL,ADJUST CRAWLER",1,,,,,,,1,,,,,,,,,,,
28,2,,933112-54300,,"LABEL, AIR CLEANER",1,,,,,,,,,,,,,,,,,,
29,2,,172141-03360,,"LABEL, START SWITCH",1,,,,,,,,,,,,,,,,,,
30,2,,172143-03210,,LABEL,2,,,,,,,,,,,,,,,,,,
31,2,,172137-03780,,"LABEL, THROTTLE",1,,,,,,,,,,,,,,,,,,
32,2,,933112-52500,,"LABEL, FUEL",1,,,,,,,,,,,,,,,,,,
33,2,,172143-03260,,"LABEL, OPERATION",1,,,,,,,,,,,,,,,,,,
34,2,,933112-55800,,"LABEL, RADIATER",1,,,,,,,,,,,,,,,,,,
35,2,,172135-03220,,"LABEL, CAB.DOOR",1,,,,,,,,,,,,,,,,,,
36,2,,933112-45400,,"LABEL, DANGER (B)",1,,,,,,,,,,,,,,,,,,
37,2,,933112-55900,,"LABEL, ANTI-FREEZING",1,,,,,,,,,,,,,,,,,,
38,2,,172141-03210,,"LABEL, SELECT",1,,,,,,,,,,,,,,,,,,
39,2,,121470-44540,,"LABEL, SUB-TANK",1,,,,,,,M,,,,,,,,,,,
39-1,2,,933112-55700,,"LABEL, SUB-TANK",1,,,,,,,,,,,,,,,,,,,,I
40,2,,22857-300050,,"SCREW 3X 5",4,,,,,,,,,,,,,,,,,,
41,2,,933112-45500,,"LABEL, CAUTION",1,,,,,,,,,,,,,,,,,,

1,1,,772151-03170,,"LABEL SET(B50EP",1,,,,,,,,,,,,,,,,,,
2,2,,172151-03380,,"LABEL, SPECIFICATION",1,,,,,,,,,,,,,,,,,,
2-1,2,,172151-03381,,"LABEL,
SPECIFICATION",1,,,,,,S,,72142365,M10501,,,,,,,,,,,I
3,2,,172151-03320,,"LABEL, OIL & WATER",1,,,,,,,,,,,,,,,,,,
4,2,,172141-03420,,"LABEL, GREASING",1,,,,,,,,,,,,,,,,,,
5,2,,172122-03740,,"LABEL, GREASE",1,,,,,,,,,,,,,,,,,,
6,2,,172151-03150,,LABEL,2,,,,,,,,,,,,,,,,,,
7,2,,172141-03440,,LABEL,1,,,,,,,,,,,,,,,,,,
8,2,,172151-03180,,LABEL,1,,,,,,,,,,,,,,,,,,
9,2,,172147-03210,,LABEL,1,,,,,,,,,,,,,,,,,,
10,2,,172151-03190,,LABEL,1,,,,,,,,,,,,,,,,,,
11,2,,172142-03530,,LABEL,1,,,,,,,,,,,,,,,,,,
12,2,,172151-03200,,LABEL,1,,,,,,,,,,,,,,,,,,
13,2,,172151-03210,,LABEL,1,,,,,,,,,,,,,,,,,,
14,2,,172151-03220,,LABEL,1,,,,,,,,,,,,,,,,,,
15,2,,172151-03230,,LABEL,1,,,,,,,,,,,,,,,,,,
16,2,,172151-03240,,LABEL,1,,,,,,,,,,,,,,,,,,
17,2,,933112-50300,,"LABEL, OIL FEED",1,,,,,,,,,,,,,,,,,,
18,2,,172151-03250,,LABEL,1,,,,,,,,,,,,,,,,,,
19,2,,172151-03450,,"LABEL, BOOM",2,,,,,,,,,,,,,,,,,,
19-1,2,,172151-03451,,"LABEL, BOOM",2,,,,,,N,,72143022,M01564,,,,,,,,,,,I
20,2,,172141-03460,,"LABEL, (D)",1,,,,,,,,,,,,,,,,,,
21,2,,172151-03280,,LABEL,1,,,,,,,,,,,,,,,,,,
22,2,,172137-03290,,"LABEL, NO.1 MARK",1,,,,,,,,,,,,,,,,,,
22-1,2,,172141-03620,,LABEL,1,,,,,,N,,72141400,M10568,,,,,,,,,,,I
23,2,,172151-03290,,LABEL,1,,,,,,,,,,,,,,,,,,
24,2,,172519-03770,,LABEL,1,,,,,,,,,,,,,,,,,,
25,2,,172137-03300,,"LABEL, TURNING LOCK",1,,,,,,,,,,,,,,,,,,
26,2,,172151-03300,,LABEL,1,,,,,,,,,,,,,,,,,,
27,2,,172141-03500,,"LABEL,ADJUST CRAWLER",1,,,,,,,1,,,,,,,,,,,
28,2,,172125-03950,,"LABEL, AIR CLEANER",1,,,,,,,,,,,,,,,,,,
29,2,,172141-03360,,"LABEL, START SWITCH",1,,,,,,,,,,,,,,,,,,
30,2,,172141-03490,,"LABEL, PROTECTOR",2,,,,,,,,,,,,,,,,,,
31,2,,172137-03780,,"LABEL, THROTTLE",1,,,,,,,,,,,,,,,,,,
32,2,,933112-52100,,"LABEL, FUEL",1,,,,,,,,,,,,,,,,,,
33,2,,172143-03260,,"LABEL, OPERATION",1,,,,,,,,,,,,,,,,,,
34,2,,121120-44800,,"LABEL, RADIATOR",1,,,,,,,,,,,,,,,,,,
35,2,,172135-03220,,"LABEL, CAB.DOOR",1,,,,,,,,,,,,,,,,,,
36,2,,172122-03912,,LABEL,1,,,,,,,,,,,,,,,,,,
37,2,,124764-44920,,"LABEL, ANTI-FREEZING",1,,,,,,,,,,,,,,,,,,
38,2,,172141-03210,,"LABEL, SELECT",1,,,,,,,,,,,,,,,,,,
39,2,,124764-44810,,"LABEL, SUB-TANK",1,,,,,,,,,,,,,,,,,,
40,2,,22857-300050,,"SCREW 3X 5",4,,,,,,,,,,,,,,,,,,
41,2,,194340-65580,,LABEL,1,,,,,,,,,,,,,,,,,,
42,2,,22857-300050,,"SCREW 3X 5",4,,,,,,,,,,,,,,,,,,

1,1,,772151-05110,,"TOOL SET",1,,,,,,,,,,,,,,,,,,
2,2,,172112-38111,,"PIN, COTTER",2,,,,,,,,,,,,,,,,,,
3,2,,104200-92350,,"DRIVER, SCREW",1,,,,,,,,,,,,,,,,,,
4,2,,171301-92750,,"WRENCH, L.O. FILTER",1,,,,,,,,,,,,,,,,,,
5,2,,22417-800630,,"COTTER PIN 8.0X63",4,,,,,,,,,,,,,,,,,,
6,2,,28110-080100,,"WRENCH 8X10",1,,,,,,,,,,,,,,,,,,
7,2,,28110-120140,,"WRENCH 12X14",1,,,,,,,,,,,,,,,,,,
8,2,,28110-170190,,"WRENCH 17X19",1,,,,,,,,,,,,,,,,,,
9,2,,28110-220240,,"WRENCH 22X24",1,,,,,,,,,,,,,,,,,,
10,2,,28110-270300,,"WRENCH 27X30",1,,,,,,,,,,,,,,,,,,
11,2,,28110-320360,,"WRENCH 32X36",1,,,,,,,,,,,,,,,,,,
12,2,,28150-080000,,"BAR WRENCH 8",1,,,,,,,,,,,,,,,,,,
13,2,,28150-140000,,"BAR WRENCH 14",1,,,,,,,,,,,,,,,,,,
14,2,,28227-271400,,"BOX WRENCH 27X140",1,,,,,,,,,,,,,,,,,,
15,2,,28230-120250,,"TURNING HANDLE",1,,,,,,,,,,,,,,,,,,
16,2,,933110-90000,,"BAG, TOOL",1,,,,,,,,,,,,,,,,,,
17,2,,933110-90600,,"WRENCH 24, SOCKET",1,,,,,,,,,,,,,,,,,,
18,2,,933171-00470,,"PLIER (200)",1,,,,,,,,,,,,,,,,,,
19,1,,172119-68600,,BUCK,1,,,,,,,1,,,,,,,,,,,
20,1,,22117-080000,,"WASHER 8",2,,,,,,,1,,,,,,,,,,,
21,1,,26116-080202,,"BOLT M 8X 20 PLATED",2,,,,,,,1,,,,,,,,,,,
22,1,,26716-080002,,"NUT M 8",2,,,,,,,1,,,,,,,,,,,

1,1,,172151-11301,,"PIPE, EXHAUST",1,,,,,,,,,,,,,,,,,,
2,1,,172151-11311,,"FLANGE, MUFFLER",1,,,,,,,,,,,,,,,,,,
3,1,,129400-13200,,"GASKET, SILENCER",1,,,,,,,,,,,,,,,,,,
3-1,1,,129400-13201,,"GASKET, (NON-ASB.)",1,,,,,,N,,TE-90034,MXXX,,,,,,,,,,,I
4,1,,121120-13580,,CLAMP,1,,,,,,,,,,,,,,,,,,
5,1,,22217-080000,,"SPRING WASHER 8",4,,,,,,,,,,,,,,,,,,
6,1,,26106-100652,,"BOLT M10X 65 PLATED",1,,,,,,,,,,,,,,,,,,
7,1,,26706-100002,,"NUT M10",1,,,,,,,,,,,,,,,,,,
8,1,,26716-080002,,"NUT M 8",4,,,,,,,,,,,,,,,,,,
9,1,,172151-11530,,"HOSE, AIR INTAKE",1,,,,,,,,,,,,,,,,,,
10,1,,172151-11520,,"HOSE, AIR INTAKE",1,,,,,,,,,,,,,,,,,,
11,1,,121855-12060,,"SILENCER,INLET",1,,,,,,,,,,,,,,,,,,
12,1,,23000-070000,,"CLAMP 70",4,,,,,,,,,,,,,,,,,,

1,1,,172151-12150,,"LEVER W/BUSH, ACCEL",1,,,,,,,,,,,,,,,,,,
3,2,,172141-12220,,"BUSH 30X10",2,,,,,,,,,,,,,,,,,,
4,1,,172147-12100,,SUPPORT,1,,,,,,,,,,,,,,,,,,
5,1,,172151-12130,,"WIRE, ACCELERATOR",1,,,,,,,,,,,,,,,,,,
6,1,,172141-12160,,BRACKET,1,,,,,,,,,,,,,,,,,,
7,1,,172141-12232,,SPRING,1,,,,,,,,,,,,,,,,,,
8,1,,172141-12240,,SPRING,1,,,,,,,,,,,,,,,,,,
9,1,,172141-12250,,PLATE,1,,,,,,,,,,,,,,,,,,
10,1,,172151-12180,,PLATE,1,,,,,,,,,,,,,,,,,,
11,1,,172137-12270,,"JOINT, CABLE",1,,,,,,,,,,,,,,,,,,
12,1,,172113-12521,,"PIN, CABLE",1,,,,,,,,,,,,,,,,,,
13,1,,172141-41340,,BOOTS,1,,,,,,,,,,,,,,,,,,
14,1,,172122-46630,,"KNOB(D), LEVER",1,,,,,,,,,,,,,,,,,,
15,1,,1C6281-52310,,"PIN 6,COME-OFF SNAP",2,,,,,,,,,,,,,,,,,,
16,1,,1A1040-56900,,"PIN 6X 17",1,,,,,,,,,,,,,,,,,,
17,1,,22137-060000,,"WASHER 6, POLISHED",1,,,,,,,,,,,,,,,,,,
18,1,,22217-080000,,"SPRING WASHER 8",2,,,,,,,,,,,,,,,,,,
19,1,,22217-100000,,"SPRING WASHER 10",2,,,,,,,,,,,,,,,,,,
20,1,,24190-160001,,"BALL 1/2",1,,,,,,,,,,,,,,,,,,
21,1,,26013-100302,,"BOLT M10X 30",1,,,,,,,,,,,,,,,,,,
22,1,,26116-080202,,"BOLT M 8X 20 PLATED",2,,,,,,,,,,,,,,,,,,
23,1,,26116-100202,,"BOLT M10X 20 PLATED",2,,,,,,,,,,,,,,,,,,

1,1,,172147-13100,,SUPPORT,4,,,,,,,,,,,,,,,,,,
2,1,,172131-37170,,"BOLT M12X 30",16,,,,,,,,,,,,,,,,,,
3,1,,172151-13150,,BRACKET,1,,,,,,,,,,,,,,,,,,
4,1,,172147-13150,,"WASHER 32X 12.5",4,,,,,,,,,,,,,,,,,,
5,1,,172124-13210,,"BRACKET,ENG(L)",1,,,,,,,,,,,,,,,,,,
6,1,,172151-13100,,BRACKET,1,,,,,,,,,,,,,,,,,,
7,1,,172124-13230,,"STOPPER, ENGINE",3,,,,,,,,,,,,,,,,,,
8,1,,172116-13260,,"ABSORBER, SHOCK",4,,,,,,,,,,,,,,,,,,
9,1,,22217-120000,,"WASHER 12,SPRING",8,,,,,,,,,,,,,,,,,,
10,1,,22217-120000,,"WASHER 12,SPRING",24,,,,,,,,,,,,,,,,,,
11,1,,26013-100252,,"BOLT W/WASHER M10X25",6,,,,,,,,,,,,,,,,,,
12,1,,172147-13130,,"BOLT M 12X 25",8,,,,,,,,,,,,,,,,,,
13,1,,26716-120002,,"NUT M12",8,,,,,,,,,,,,,,,,,,
14,1,,172151-13140,,WASHER,8,,,,,,,,,,,,,,,,,,

1,1,,172147-13300,,MOUNT,1,,,,,,,,,,,,,,,,,,
2,1,,172151-13300,,"STAY, RADIATOR(L)",1,,,,,,,,,,,,,,,,,,
3,1,,172147-13310,,MOUNT,1,,,,,,,,,,,,,,,,,,
4,1,,172151-13310,,"STAY, RADIATOR(R)",1,,,,,,,,,,,,,,,,,,
5,1,,172151-13350,,HOSE(A),1,,,,,,,,,,,,,,,,,,
6,1,,172151-13360,,HOSE(B),1,,,,,,,,,,,,,,,,,,
7,1,,172151-13370,,PIPE,1,,,,,,,,,,,,,,,,,,
8,1,,172151-13380,,PIPE,1,,,,,,,,,,,,,,,,,,
9,1,,172122-13410,,"HOSE(B), WATER DRAIN",1,,,,,,,,,,,,,,,,,,
10,1,,172124-13500,,"MOUNT, RADIATOR",4,,,,,,,,,,,,,,,,,,
11,1,,129432-44500,,RADIATOR,1,,,,,,,,,,,,,,,,,,
12,2,,124450-44590,,"CAP, RADIATOR",1,,,,,,,,,,,,,,,,,,
13,1,,171064-44510,,"SUB-TANK ASSY",1,,,,,,,,,,,,,,,,,,
14,2,,171064-44520,,"BODY, SUB-TANK",1,,,,,,,,,,,,,,,,,,
15,2,,121450-44531,,CAP,1,,,,,,,,,,,,,,,,,,
16,2,,124450-44560,,CLAMP,1,,,,,,,,,,,,,,,,,,
17,2,,121470-44581,,GASKET,1,,,,,,,,,,,,,,,,,,
18,2,,23065-070225,,"PIPE 7X 225",1,,,,,,,,,,,,,,,,,,
19,1,,121470-44540,,"LABEL, SUB-TANK",1,,,,,,,,,,,,,,,,,,
20,1,,124450-44550,,"CLAMP, SUB-TANK",1,,,,,,,,,,,,,,,,,,
21,1,,121256-44600,,"BRACKET, SUB-TANK",1,,,,,,,,,,,,,,,,,,
22,1,,121450-49110,,"COCK ASSY, 3-WAY",1,,,,,,,,,,,,,,,,,,
24,2,,121250-49121,,PLUG,1,,,,,,,,,,,,,,,,,,
25,2,,24311-000160,,"O-RING 1A P-16.0",1,,,,,,,,,,,,,,,,,,
26,1,,124766-59050,,"CLAMP 12",4,,,,,,,,,,,,,,,,,,
27,1,,22157-100000,,"WASHER 10",4,,,,,,,,,,,,,,,,,,
28,1,,22217-080000,,"SPRING WASHER 8",8,,,,,,,,,,,,,,,,,,
29,1,,22217-080000,,"SPRING WASHER 8",4,,,,,,,,,,,,,,,,,,
30,1,,22217-080000,,"SPRING WASHER 8",2,,,,,,,,,,,,,,,,,,
31,1,,22217-080000,,"SPRING WASHER 8",2,,,,,,,,,,,,,,,,,,
32,1,,23010-038000,,"CLAMP 38",4,,,,,,,,,,,,,,,,,,
33,1,,26013-100252,,"BOLT W/WASHER M10X25",4,,,,,,,,,,,,,,,,,,
34,1,,26116-080162,,"BOLT M 8X 16 PLATED",2,,,,,,,,,,,,,,,,,,
35,1,,26116-080202,,"BOLT M 8X 20 PLATED",4,,,,,,,,,,,,,,,,,,
36,1,,26116-080202,,"BOLT M 8X 20 PLATED",2,,,,,,,,,,,,,,,,,,
37,1,,26716-080002,,"NUT M 8",8,,,,,,,,,,,,,,,,,,
38,1,,933152-09280,,"BAND 170",2,,,,,,,,,,,,,,,,,,
39,1,,172151-74800,,"COOLER ASSY, OIL",1,,,,,,,,,,,,,,,,,,
40,1,,172151-74810,,"STAY(L), COOLER",1,,,,,,,,,,,,,,,,,,
41,1,,172151-74820,,"STAY(R), COOLER",1,,,,,,,,,,,,,,,,,,
42,1,,22137-080000,,"WASHER 8, POLISHED",4,,,,,,,,,,,,,,,,,,
43,1,,22217-080000,,"SPRING WASHER 8",4,,,,,,,,,,,,,,,,,,
44,1,,26013-100252,,"BOLT W/WASHER M10X25",4,,,,,,,,,,,,,,,,,,
45,1,,26116-080202,,"BOLT M 8X 20 PLATED",4,,,,,,,,,,,,,,,,,,
46,1,,121250-44590,,CLAMP,2,,,,,,,,,,,,,,,,,,

1,1,,772151-14100,,"FUEL TANK ASSY",1,,,,,,,,,,,,,,,,,,
2,2,,104200-11920,,COCK,1,,,,,,,,,,,,,,,,,,
4,2,,172151-14190,,"GAUGE, FUEL OIL",1,,,,,,,,,,,,,,,,,,
5,2,,172141-14260,,FLOAT,1,,,,,,,,,,,,,,,,,,
6,2,,172122-14300,,"CAP, FUEL TANK",1,,,,,,,,,,,,,,,,,,
7,3,,105430-55070,,GASKET,1,,,,,,,,,,,,,,,,,,
8,2,,172124-17100,,"GAUGE UNIT, FUEL",1,,,,,,,,,,,,,,,,,,
9,2,,101504-55101,,"STRAINER,FUEL INLET",1,,,,,,,,,,,,,,,,,,
10,2,,22190-050000,,"SEAL WASHER 5(BOLT)",5,,,,,,,,,,,,,,,,,,
11,2,,23010-014000,,"CLAMP 14",2,,,,,,,,,,,,,,,,,,
12,2,,26557-050122,,"SCREW M 5X 12",5,,,,,,,,,,,,,,,,,,
13,1,,22137-140000,,"WASHER 14,POLISHED",2,,,,,,,,,,,,,,,,,,
14,1,,22217-140000,,"SPRING WASHER 14",4,,,,,,,,,,,,,,,,,,
15,1,,26116-140402,,"BOLT M14X 40 PLATED",2,,,,,,,,,,,,,,,,,,
16,1,,26116-140302,,"BOLT M14X 30 PLATED",2,,,,,,,,,,,,,,,,,,
17,1,,172312-14600,,"HOSE L=2900, FUEL",1,,,,,,,,,,,,,,,,,,
18,1,,172141-14610,,"HOSE, FUEL",1,,,,,,,,,,,,,,,,,,
19,1,,172312-14630,,HOSE,1,,,,,,,,,,,,,,,,,,
20,1,,172126-16540,,"CLAMP 10X70",1,,,,,,,,,,,,,,,,,,
21,1,,129335-55700,,"SEPARATOR, WATER",1,,,,,,,,,,,,,,,,,,
22,2,,104200-55321,,"VALVE, TAPER",1,,,,,,,,,,,,,,,,,,
23,2,,104200-55330,,"SPRING, TAPER VALVE",1,,,,,,,,,,,,,,,,,,
24,2,,104200-55341,,"HANDLE, COCK",1,,,,,,,,,,,,,,,,,,
25,2,,124064-55510,,"BOWL, FUEL STRAINER",1,,,,,,,,,,,,,,,,,,
26,2,,102103-55520,,O-RING,1,,,,,,,,,,,,,,,,,,
27,2,,110250-55610,,"RING, RETAINING",1,,,,,,,,,,,,,,,,,,
28,2,,121257-55720,,"SPRING, SCREEN",1,,,,,,,,,,,,,,,,,,
29,2,,121257-55731,,FLOAT,1,,,,,,,,,,,,,,,,,,
31,2,,101720-55750,,"PLUG 6",2,,,,,,,,,,,,,,,,,,
32,2,,104200-55750,,"SCREW M 4",1,,,,,,,,,,,,,,,,,,
33,2,,171081-55910,,SCREEN,1,,,,,,,,,,,,,,,,,,
34,2,,23418-060000,,"GASKET 6, NYLON",2,,,,,,,,,,,,,,,,,,
35,2,,24311-240100,,"O-RING 1A P-10A",1,,,,,,,,,,,,,,,,,,
36,1,,124766-59050,,"CLAMP 12",6,,,,,,,,,,,,,,,,,,
37,1,,22217-080000,,"SPRING WASHER 8",1,,,,,,,,,,,,,,,,,,
38,1,,22217-100000,,"SPRING WASHER 10",1,,,,,,,,,,,,,,,,,,
39,1,,26116-080702,,"BOLT M 8X 70 PLATED",1,,,,,,,,,,,,,,,,,,
40,1,,26116-100162,,"BOLT M10X 16 PLATED",1,,,,,,,,,,,,,,,,,,
41,1,,29311-325000,,"GROMMET 32X5.0",1,,,,,,,,,,,,,,,,,,
42,1,,933168-55770,,"BAND 146",2,,,,,,,,,,,,,,,,,,

1,1,,172116-16100,,BATTERY,1,,,,,,,,,,,,,,,,,,
2,1,,172151-16100,,"CORD(+), BATTERY",1,,,,,,,,,,,,,,,,,,
3,1,,172142-16110,,"CORD(-), BATTERY",1,,,,,,,,,,,,,,,,,,
4,1,,22217-080000,,"SPRING WASHER 8",1,,,,,,,,,,,,,,,,,,
5,1,,22217-100000,,"SPRING WASHER 10",1,,,,,,,,,,,,,,,,,,
6,1,,26716-080002,,"NUT M 8",1,,,,,,,,,,,,,,,,,,
7,1,,26716-100002,,"NUT M10",1,,,,,,,,,,,,,,,,,,
8,1,,172116-16310,,"RETAINER, BATTERY",1,,,,,,,,,,,,,,,,,,
9,1,,22157-080000,,"WASHER 8",2,,,,,,,,,,,,,,,,,,
10,1,,26716-080002,,"NUT M 8",4,,,,,,,,,,,,,,,,,,
11,1,,933171-15710,,"ROD(B), BATTERY FIX",2,,,,,,,,,,,,,,,,,,
12,1,,124550-77030,,"COVER, TERMINAL",1,,,,,,,,,,,,,,,,,,
13,1,,172142-16200,,COVER,1,,,,,,W,,72142364,M10501,,,,,,,,,,,I

1,1,,172151-16500,,"HARNESS(A), WIRE",1,,,,,,,,,,,,,,,,,,
2,1,,172151-16510,,"HARNESS(B), WIRE",1,,,,,,,,,,,,,,,,,,
3,1,,172151-16520,,"HARNESS(C), WIRE",1,,,,,,,,,,,,,,,,,,
4,1,,172151-16530,,"WIRE, LEAD",1,,,,,,,,,,,,,,,,,,
5,1,,172126-16540,,"CLAMP 10X70",4,,,,,,,,,,,,,,,,,,
6,1,,172137-16560,,BAND,5,,,,,,,,,,,,,,,,,,
7,1,,172122-16570,,"LINK, FUSIBLE",1,,,,,,,,,,,,,,,,,,
8,1,,1A1380-58050,,"GROMMET 16X20X4.5",1,,,,,,,,,,,,,,,,,,
9,1,,22137-120000,,"WASHER 12,POLISHED",2,,,,,,,,,,,,,,,,,,
10,1,,22217-050000,,"SPRING WASHER 5",1,,,,,,,,,,,,,,,,,,
11,1,,22217-100000,,"SPRING WASHER 10",2,,,,,,,,,,,,,,,,,,
12,1,,22217-120000,,"WASHER 12,SPRING",2,,,,,,,,,,,,,,,,,,
13,1,,26116-100162,,"BOLT M10X 16 PLATED",2,,,,,,,,,,,,,,,,,,
14,1,,26116-120202,,"BOLT M12X 20 PLATED",1,,,,,,,,,,,,,,,,,,
15,1,,26716-050002,,"NUT M 5",1,,,,,,,,,,,,,,,,,,
16,1,,29321-255050,,"GROMMET, RUBBER",2,,,,,,,,,,,,,,,,,,
17,1,,933171-15801,,"WIRE, EARTH",1,,,,,,,,,,,,,,,,,,
18,1,,172137-16000,,WIRE,1,,,,,,,,,,,,,,,,,,
19,1,,172151-16560,,"HARNESS (E), WIRE",1,,,,,,,,,,,,,,,,,,
20,1,,172151-16570,,"HARNESS F, WIRE",1,,,,,,,,,,,,,,,,,,
21,1,,172116-16560,,"LEAD WIRE(B",1,,,,,,,,,,,,,,,,,,
22,1,,172122-16590,,"BAND 200F",5,,,,,,,,,,,,,,,,,,
23,1,,172122-79890,,"CLAMP 350",1,,,,,,,,,,,,,,,,,,
24,1,,22857-400120,,"SCREW 4X12",5,,,,,,,,,,,,,,,,,,
25,1,,933168-55770,,"BAND 146",1,,,,,,,,,,,,,,,,,,
26,1,,172151-17100,,"LAMP, CHECKER",1,,,,,,,,,,,,,,,,,,
27,1,,172141-17150,,BUZZER,1,,,,,,,,,,,,,,,,,,
28,1,,172141-17160,,"BOX, FUSE",1,,,,,,,,,,,,,,,,,,
29,2,,29411-050000,,"FUSE ( 5A),CARTRIDGE",1,,,,,,,,,,,,,,,,,,
30,2,,29411-100000,,"FUSE (10A),CARTRIDGE",2,,,,,,,,,,,,,,,,,,
31,2,,29411-150000,,"FUSE (15A),CARTRIDGE",2,,,,,,,,,,,,,,,,,,
32,1,,172141-17171,,"BOX, PILOT",1,,,,,,,,,,,,,,,,,,
33,2,,933113-05120,,"BULB 12V 1.7W",3,,,,,,,,,,,,,,,,,,
34,1,,172141-17190,,"SWITCH, WORK LAMP",1,,,,,,,,,,,,,,,,,,
35,2,,172141-17230,,"BULB 24V- 6W",1,,,,,,,,,,,,,,,,,,
36,1,,172147-17200,,"METER, HOUR",1,,,,,,,,,,,,,,,,,,
38,2,,172147-17220,,"CAP, HOUR METER",1,,,,,,,,,,,,,,,,,,
39,2,,172147-17230,,NUT,2,,,,,,,,,,,,,,,,,,
40,2,,172147-17240,,SLEEVE,2,,,,,,,,,,,,,,,,,,
41,2,,172147-17250,,"WIRE,LEAD",1,,,,,,,,,,,,,,,,,,
42,2,,22217-050000,,"SPRING WASHER 5",2,,,,,,,,,,,,,,,,,,
43,1,,172116-17361,,"METER, FUEL LEVEL",1,,,,,,,,,,,,,,,,,,
44,2,,933113-10110,,"BULB 12V 3.4W",1,,,,,,,,,,,,,,,,,,
45,1,,129432-77100,,RELAY,1,,,,,,,,,,,,,,,,,,
46,1,,22137-060000,,"WASHER 6, POLISHED",2,,,,,,,,,,,,,,,,,,
47,1,,22217-060000,,"SPRING WASHER 6",1,,,,,,,,,,,,,,,,,,
48,1,,1A1380-62480,,"BOLT 6X12,SLIT",2,,,,,,,,,,,,,,,,,,
49,1,,26022-050162,,"SCREW M 5X 16",2,,,,,,,,,,,,,,,,,,
50,1,,26022-060122,,"SCREW M 6X 12",2,,,,,,,,,,,,,,,,,,
51,1,,26022-060202,,"SCREW M 6X 20",2,,,,,,,,,,,,,,,,,,
52,1,,26116-060122,,"BOLT M 6X 12",1,,,,,,,,,,,,,,,,,,
53,1,,933110-00100,,"SWITCH ASSY, STARTER",1,,,,,,,,,,,,,,,,,,
55,2,,933110-00301,,"KEY ASSY",1,,,,,,,,,,,,,,,,,,
56,1,,933110-05300,,HORN,1,,,,,,,,,,,,,,,,,,
57,1,,933113-15900,,"COVER, SWITCH TERMI.",1,,,,,,,,,,,,,,,,,,
58,1,,22857-400100,,"SCREW 4X10",2,,,,,,,,,,,,,,,,,,
59,1,,26013-080162,,"BOLT W/WASHER M8X16",2,,,,,,,,,,,,,,,,,,
60,1,,933113-03000,,"SWITCH, LIGHTING",1,,,,,,,,,,,,,,,,,,
61,1,,933113-05150,,"LAMP, ROOM",1,,,,,,,,,,,,,,,,,,
62,2,,933113-05160,,"BULB (12V5W)",1,,,,,,,,,,,,,,,,,,
63,1,,933113-05220,,"LAMP, HEAD",2,,,,,,,,,,,,,,,,,,
64,2,,933113-05230,,"BULB (12V20W)",2,,,,,,,,,,,,,,,,,,
65,1,,194440-51620,,"CLAMP, WIRE HARNESS",1,,,,,,,,,,,,,,,,,,

66,1,,172151-63200,,PANEL,1,,,,,,,,,,,,,,,,,,
67,1,,22217-080000,,"SPRING WASHER 8",1,,,,,,,,,,,,,,,,,,
68,1,,26116-080122,,"BOLT M 8X 12 PLATED",1,,,,,,,,,,,,,,,,,,
69,1,,26116-120252,,"BOLT M12X 25 PLATED",1,,,,,,,,,,,,,,,,,,
70,1,,26013-080202,,"BOLT W/WASHER M8X20",4,,,,,,,,,,,,,,,,,,
71,1,,172135-16540,,"ARM 550, WIPER",1,,,,,,,,,,,,,,,,,,
72,1,,172734-17070,,"BLADE 450, WIPER",1,,,,,,,,,,,,,,,,,,
73,1,,26013-060122,,"BOLT M 6X 12",3,,,,,,,,,,,,,,,,,,
74,1,,26022-060162,,"SCREW M 6X 16",1,,,,,,,,,,,,,,,,,,
75,1,,933113-03100,,"SWITCH, WIPER",1,,,,,,,,,,,,,,,,,,
76,1,,933113-16200,,"MOTER 520 A, WIPER",1,,,,,,,,,,,,,,,,,,
77,1,,172151-16550,,"HARNESS(D), WIRE",1,,,,,,,,,,,,,,,,,,
78,1,,172142-16580,,"HARNESS,WIRE(CABIN T",1,,,,,,,,,,,,,,,,,,
79,1,,933168-55770,,"BAND 146",1,,,,,,,,,,,,,,,,,,
80,1,,172151-17300,,COVER,1,,,,,,,,,,,,,,,,,,
81,1,,194464-52190,,"SWITCH, SAFETY START",1,,,,,,,,,,,,,,,,,,
82,1,,22137-180000,,"WASHER 18",1,,,,,,,,,,,,,,,,,,
83,1,,26776-180002,,"NUT M18,LOCK",1,,,,,,,,,,,,,,,,,,
84,1,,172312-17250,,ASHTRAY,1,,,,,,,,,,,,,,,,,,
85,1,,22867-400100,,"SCREW 4X10",3,,,,,,,,,,,,,,,,,,
86,1,,933113-15000,,"CIGAR LIGHTER ASSY",1,,,,,,,,,,,,,,,,,,
87,1,,124550-77030,,"COVER, TERMINAL",1,,,,,,,,,,,,,,,,,,
88,1,,26716-080002,,"NUT M 8",1,,,,,,,,,,,,,,,,,,
89,1,,22217-080000,,"SPRING WASHER 8",1,,,,,,,,,,,,,,,,,,

1,1,,172141-17200,,"LAMP, WORK",1,,,,,,,,,,,,,,,,,,
1-1,1,,172141-17201,,"LAMP, WORK",1,,,,,,N,,72165269,M11937,,,,,,,,,
2,2,,172141-17210,,"BULB 12V-60W",1,,,,,,,,,,,,,,,,,,
2-1,2,,172141-17211,,"BULB 12V55W",1,,,,,,S,1,72151159,M11937,,,,,,,,,,,I
3,1,,172137-17400,,"STAY, BOOM LIGHT",1,,,,,,,,,,,,,,,,,,
3-1,1,,172137-17401,,COVER,1,,,,,,N,,72149155,M10501,,,,,,,,,
4,1,,22217-120000,,"WASHER 12,SPRING",1,,,,,,Z,,72149155,M10501,,,,,,,,,
5,1,,26116-120252,,"BOLT M12X 25 PLATED",1,,,,,,,,,,,,,,,,,,
5-1,1,,26013-120302,,"BOLT W/WASHER M12X30",1,,,,,,S,,72149155,M10501,,,,,,,,,
6,1,,933152-03700,,"WASHER, SIDE CLUTCH",1,,,,,,W,,72149155,M10501,,,,,,,,,

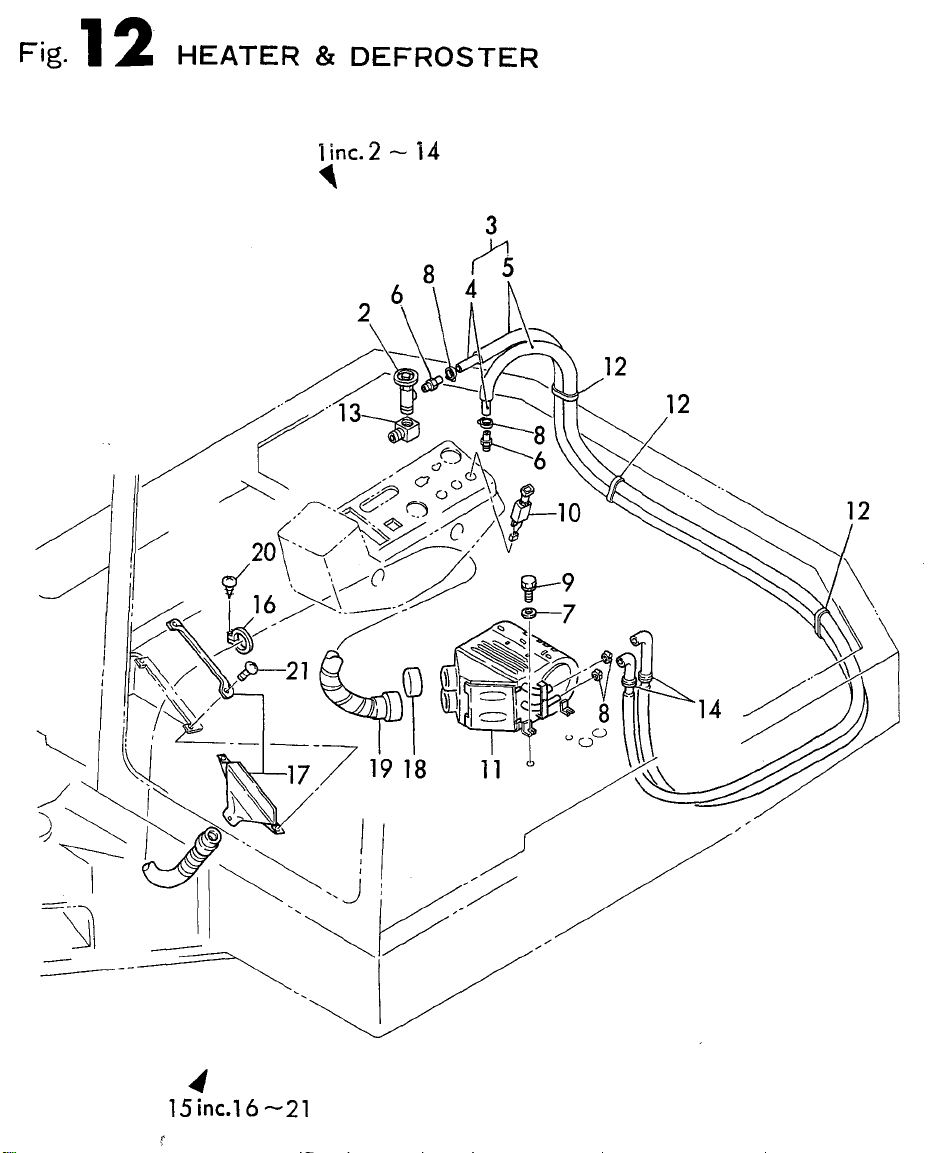

1,1,,772151-17610,,"HEATER ASSY",1,,,,,,,,,,,,,,,,,,
2,2,,172124-17630,,"VALVE, MINIATURE",1,,,,,,,,,,,,,,,,,,
3,2,,172151-17600,,"HOSE, HEATER",2,,,,,,,,,,,,,,,,,,
4,3,,172151-17610,,"HOSE, HEATER",4,,,,,,,,,,,,,,,,,,
5,3,,172151-17620,,"TUBE, HEATER",4,,,,,,,,,,,,,,,,,,
6,2,,172124-17640,,"JOINT 3/8",2,,,,,,,,,,,,,,,,,,
7,2,,22137-100000,,"WASHER 10,POLISHED",4,,,,,,,,,,,,,,,,,,
8,2,,23000-022000,,"CLAMP 22",4,,,,,,,,,,,,,,,,,,
9,2,,26013-100252,,"BOLT W/WASHER M10X25",4,,,,,,,,,,,,,,,,,,
10,2,,933113-03200,,"SWITCH, HEATER",1,,,,,,,,,,,,,,,,,,
11,2,,933113-15700,,"HEATER ASSY",1,,,,,,,,,,,,,,,,,,
12,2,,933152-09280,,"BAND 170",3,,,,,,,,,,,,,,,,,,
13,2,,933166-24240,,"ELBOW, SWIVEL JOINT",1,,,,,,,,,,,,,,,,,,
14,2,,933171-15680,,"GROMMET 40X13",2,,,,,,,,,,,,,,,,,,
15,1,,772151-17710,,"DEFROSTER ASSY",1,,,,,,,,,,,,,,,,,,
16,2,,172122-16590,,"BAND 200F",1,,,,,,,,,,,,,,,,,,
17,2,,172120-17710,,"NOZZLE, DEFROSTER",1,,,,,,,,,,,,,,,,,,
18,2,,172122-17730,,"COVER, DEFROSTER",1,,,,,,,,,,,,,,,,,,
19,2,,172151-17740,,"HOSE, DEFROSTER",1,,,,,,,,,,,,,,,,,,
20,2,,22857-400120,,"SCREW 4X12",1,,,,,,,,,,,,,,,,,,
21,2,,26557-050102,,"SCREW M 5X 10",2,,,,,,,,,,,,,,,,,,
