Yanmar 0CS10-G55700 PARTS CATALOG

PARTS CATALOG

Go to Discount-Equipment.com to order your parts

www.discount-equipment.com

0CS10-G55700

Last update Jun., 2013

count-Equipment.com is your online resource for quality parts & equipment.

Dis

Florida: 561-964-4949 Outside Florida TOLL FREE: 877-690-3101

Need parts?

Click on this link: http://www.discount-equipment.com/category/5443-parts/ and
choose one of the options to help get the right parts and equipment you are looking
for. Please have the machine model and serial number available in order to help us
get you the correct parts. If you don’t find the part on the website or on one of the
online manuals, please fill out the request form and one of our experienced staff
members will get back to you with a quote for the right part that your machine needs.

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,

Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto,

Power Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack,

Lull, Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic,

Dynapac, MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti,

Morrison, Contec, Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S.

Curtis, Gehl Pavers, Heli, Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin,

Rice, CH&E, General Equipment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent,

Stanley, Tamco, Toku, Hatz, Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air,

APT, Wylie, Ingersoll Rand / Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith

Surface Prep,Small Line, Wanco, Yanmar

Go to Discount-Equipment.com to order your parts

Directions for the Parts Catalog.

Go to Discount-Equipment.com to order your parts

1.The parts stipulated in this Parts Catalog are not necessarily standard equipped parts.

2.Parts may change without prior notice.

3.The following is an example of the Parts Catalog format.

1

Ref. No.

0CF10-G21601

1

29. FUEL INJECTION PUMP(W/BOOST)

(A)=4JH-DT

2

LEV.REF. PARTS NO. DESCRIPTION

(A=E00185) (B=E00200)

4

(A=E00156) (B=E00156) (C=E00156) (D=E00156) (E=E00156)

Remarks
(1) BOOST COMPEMSATOR TYPE. OPTIONAL

PART, TO E00155,(4

SCREW M 6X 1626022-06016223 99999
SCREW M 6X 1626022-06016223-1 K44444

CAMSHAFT129470-5104024 11111
BEARING, ROLLER122710-5105025 22222
RETAINER129470-5106026 11111

JH-DT, 4JH-DTZ

(B)=4JH-DTZ
(C)=4JH-DTZP

The Ref. No. listed may not be in accordance with the illustration Ref. No.

(Ex.) Illustration No. List Ref No.
1 1 (Before change)

For interchangeable symbols N, R and K, illustrations for new parts may be abbreviated.

2

Lev. (Level)

Level indication
The numbers below indicate the level of relativity towards the main part.
1 ----- Main parts (Assembly parts)
2 ----- Sub component included in ” 1 ”.
3 ----- Sub component included in ” 2 “.
Note) Parts that are not for sale are partially illustrated but not listed.

(D)=4JH-DTZA
(E)=4JH-DTZY
(F)=

Q'TY

(After change)

1- 1

3

5

RI

(F)(D)(C)(B)(A) (E)

1FUEL INJECTION PUMP729595-5139011 11111
1FUEL INJECTION PUMP729595-5139111-1 N11111

3

Interchangeability Mark

When a part change takes place, one of the following interchangeability symbols is indicated beside the part.

Contents noteInterchangeabilitySymbol

N

Q

R

S

W

Z

F

K

4

Effective Machine No.

Old

Yes

No

No

Yes

Yes

Yes

No

No

New Part is interchangeable for Old Part but Old Part is not interchangeable

NewOld

for New Part.
New Part is not interchangeable for Old Part but Old Part is interchangeable

New

for New Part.

NewOld

New/ Old Parts are both interchangeable.

NewOld

New/ Old Parts are both not interchangeable.

Part newly added.
Part discontinued.
Not interchangeable by a single part but interchangeable together with related

parts.
Changes only for used parts quantities.

When a part changes, the effective Machine No. will be indicated in the (A)-(F) column.

Product Symbol Product No. Product Symbol Product No.

C Clutch No. Compressor No.

.oNevirDD

E Engine No.

F

M

Machine No.
Machine No.

(Agricultural Equip.)

Note 1) A date may follow the symbol. (Ex.) 1996.01
Note 2) ” XXXXX ” and ” ZZZZZ ” are for parts that could not be predicted or for engine models that could
not be identified.
Note 3) (A=E00185) is the E (Engine Serial Number) for the column (A) model (in this case 4JH-DT) after
the parts design change.

5

Remarks Mark

Figures or alphabets (symbols) are entered in the remarks column.
The comments (remarks) on parts that are indicated at the bottom of the illustration are the same symbols as
those stated above.

Go to Discount-Equipment.com to order your parts

Go to Discount-Equipment.com to order your parts

VEHICLE VIO80(US,AS,NZ)

LABEL 1.
SAFETY LABEL 2.
MUFFLER 3.
AIR CLEANER(AS,NZ) 4.
AIR CLEANER(US) 5.
ACCELERATOR 6.
ENGINE MOUNT 7.
RADIATOR 8.
RADIATOR MOUNT 9.
SUB-TANK 10.
FUEL TANK 11.
FUEL LINE 12.
ELECTRIC PART(ENGINE) 13.
ELECTRIC PART(CONTROL VALVE PLATE) 14.

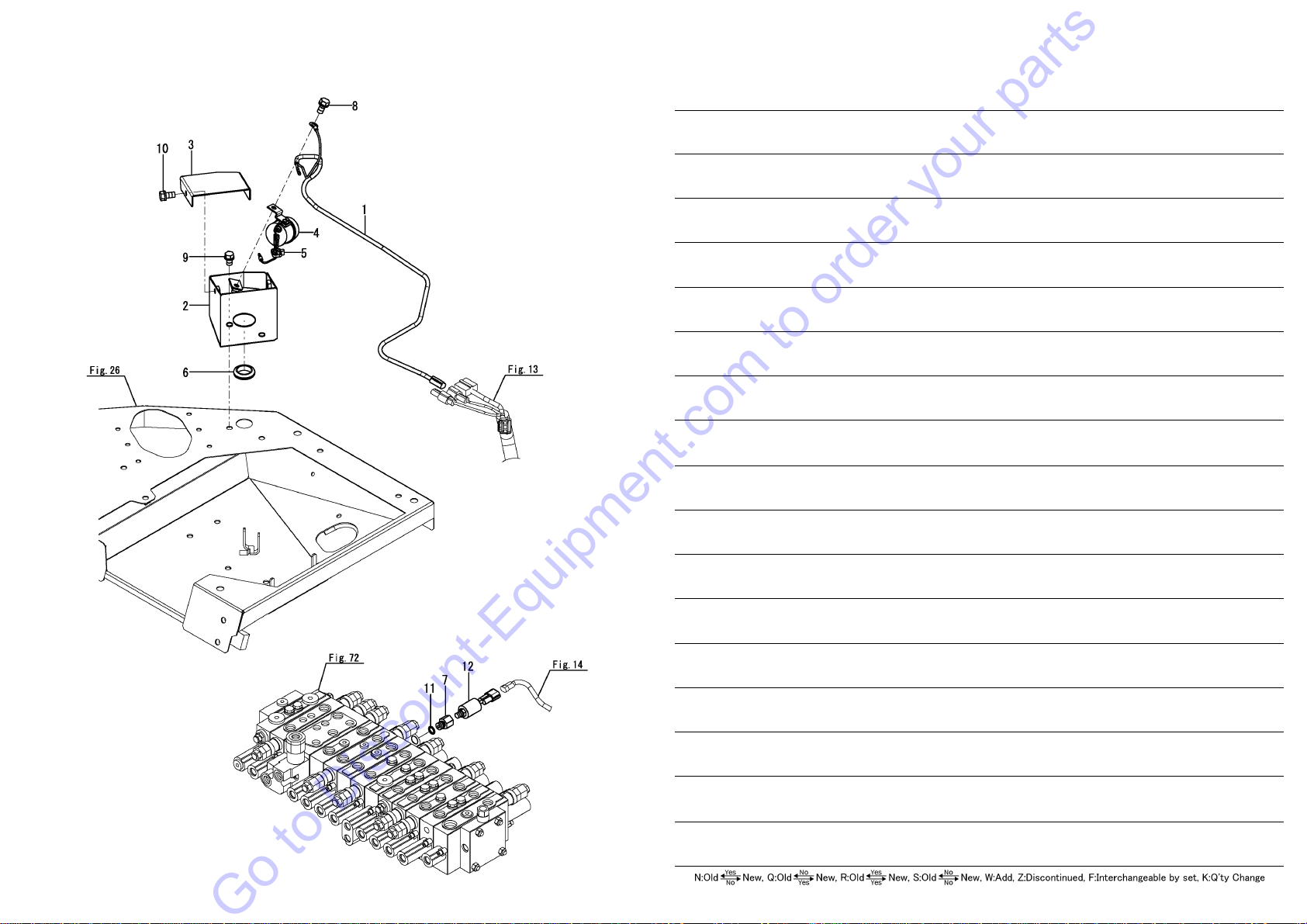

ELECTRIC PART(BATTERY) 15.
ELECTRIC PART(STARTING SWITCH) 16.
ELECTRIC PART(AIR CONDITIONER) 17.
ELECTRIC PART(SWITCH BOX : QUICK COUPLER) 18.
ELECTRIC PART(SEAT MOUNT) 19.
ELECTRIC PART(WORK LAMP) 20.
ELECTRIC PART(INDICATOR BOX) 21.
TRAVEL ALARM 22.
AIR CONDITIONER(CABIN RELATED) 23.
AIR CONDITIONER(PIPING) 24.
AIR CONDITIONER(ENGINE RELATED) 25.
AIR CONDITIONER(CONDENSER RELATED) 26.
SPROCKET & ROLLER 27.
IDLER & ADJUST 28.
CRAWLER 29.

CONTENTS

Fig.No. GROUP NAME Fig.No. GROUP NAME

MODEL : VIO80(US,AS,NZ)

PC NO : 0CS10-G55700

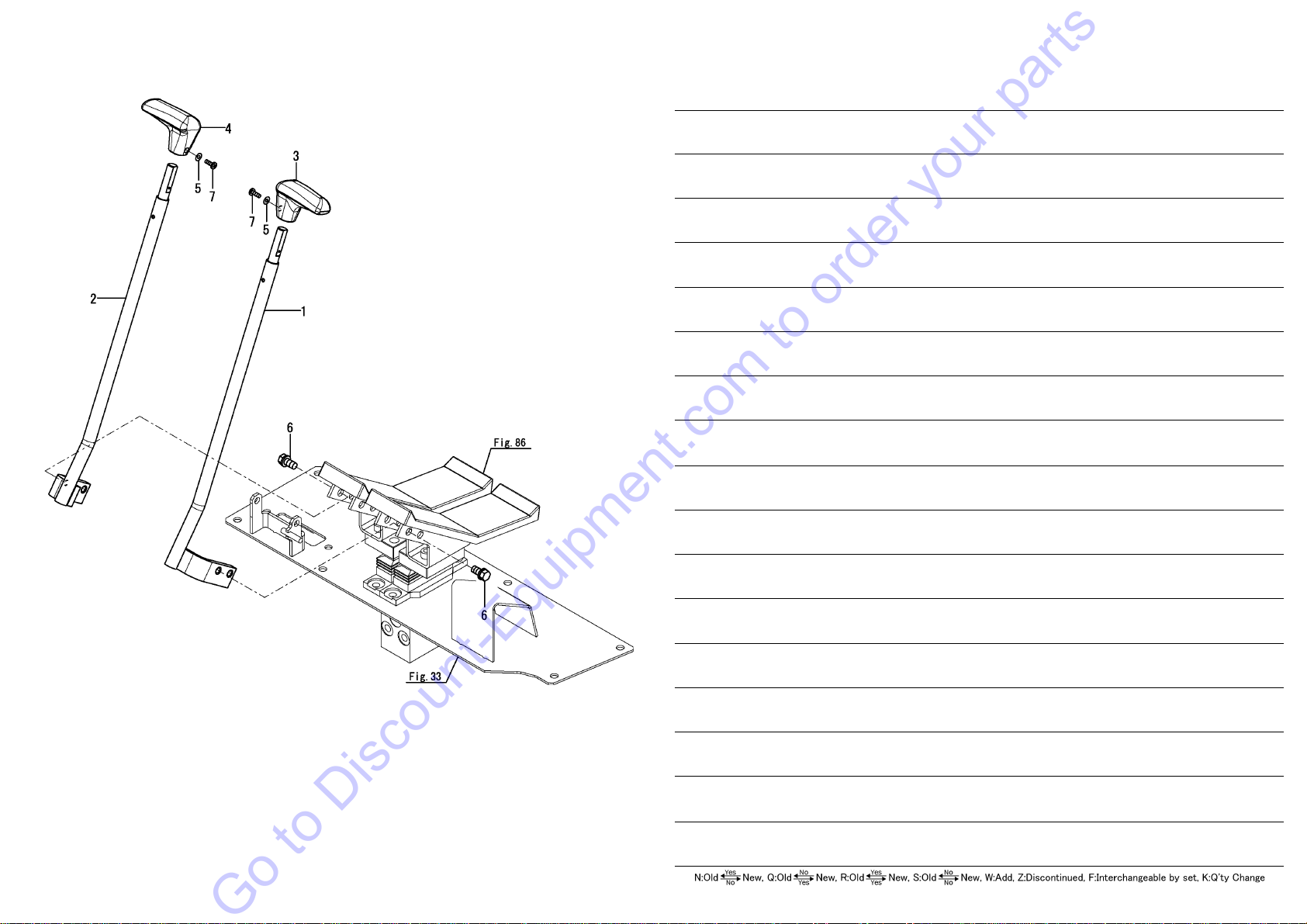

CONTROL EQUIPMENT(LOCK LEVER & LEVER STAND) 30.
CONTROL EQUIPMENT(TRAVEL) 31.
CONTROL EQUIPMENT(BLADE) 32.
CONTROL EQUIPMENT(SWING) 33.
ARM REST 34.

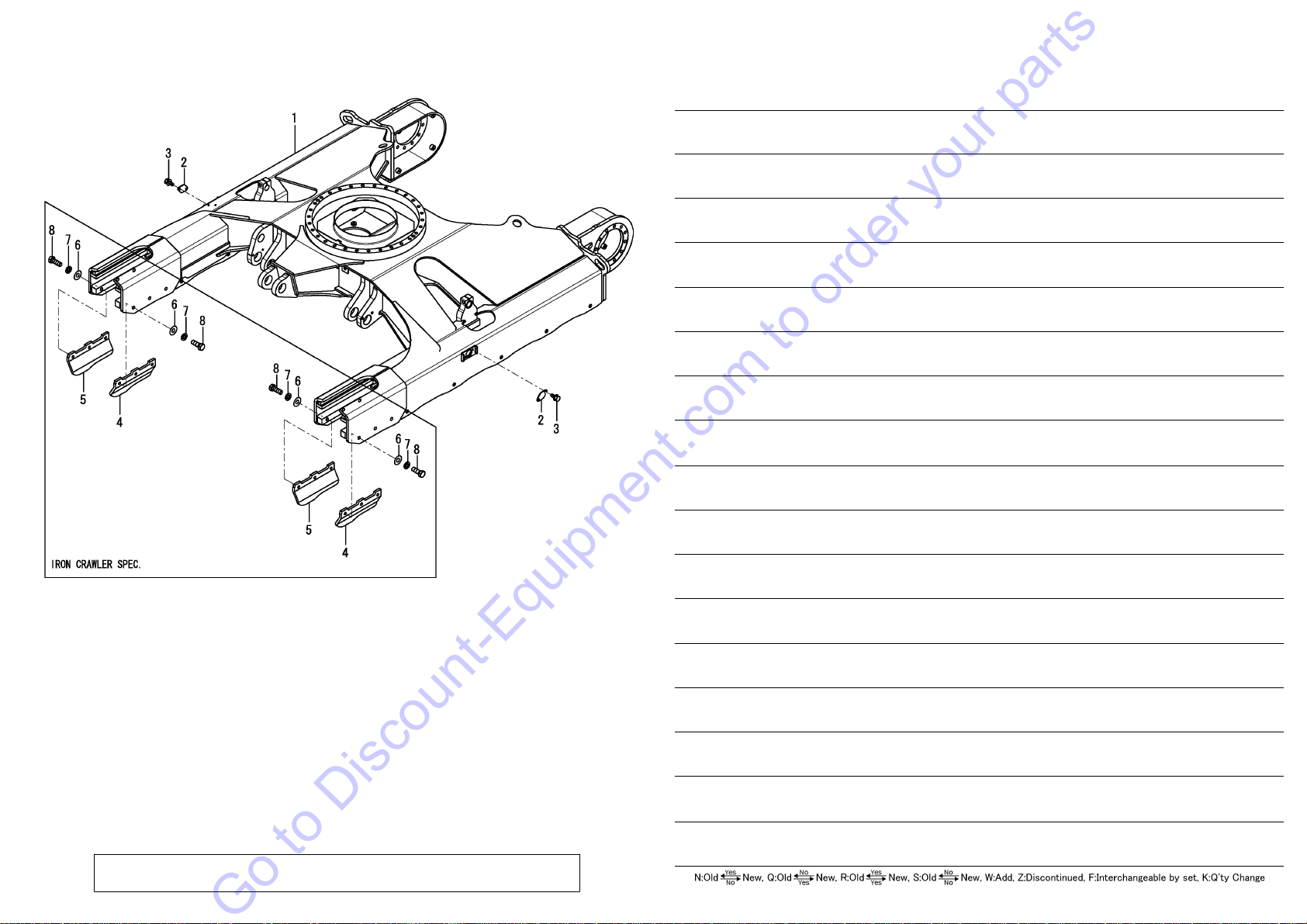

TRAVEL FRAME 35.
TURNING FRAME & TURNING BEARING) 36.

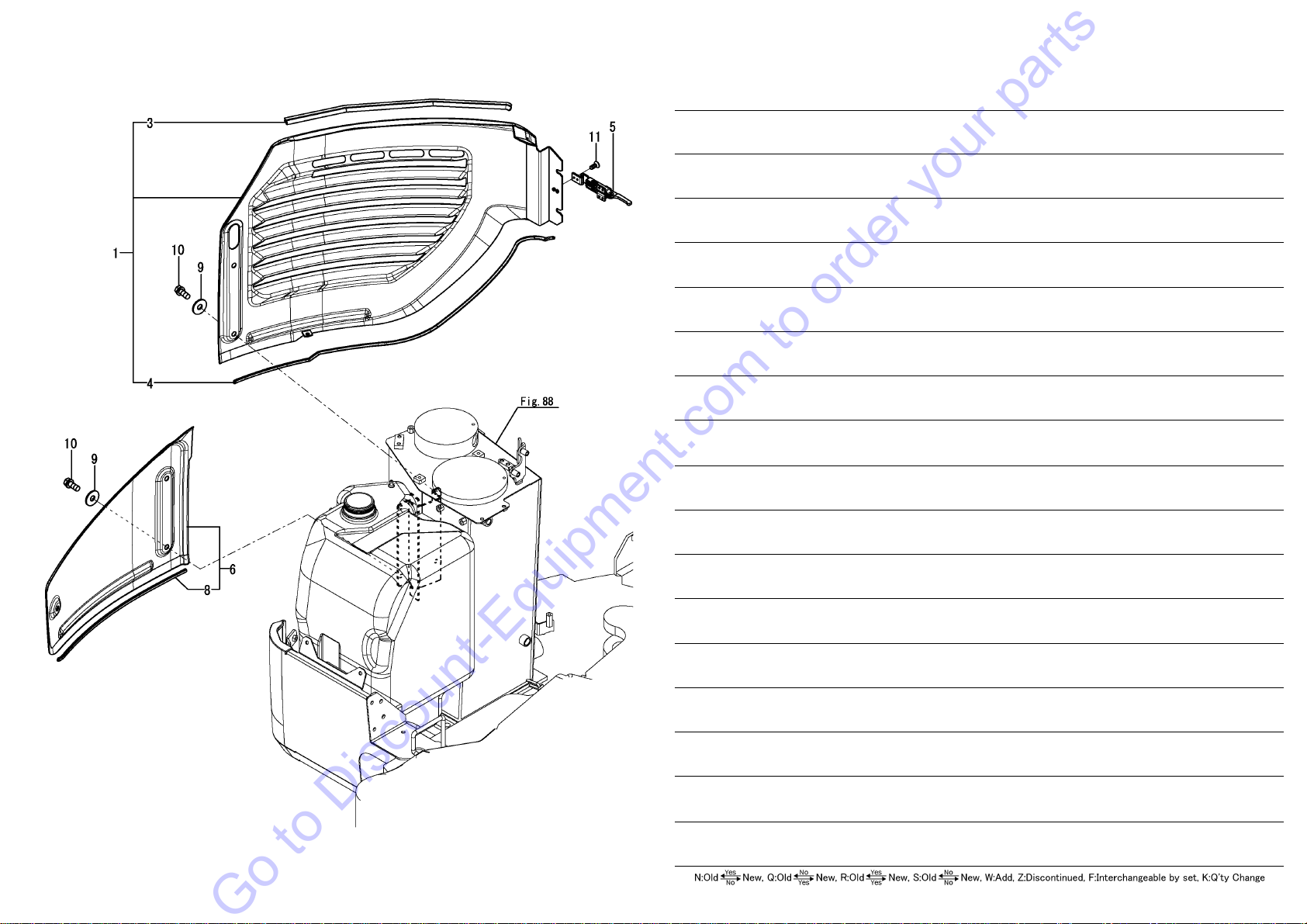

COVER(FUEL TANK SIDE) 37.
COVER(CENTER) 38.

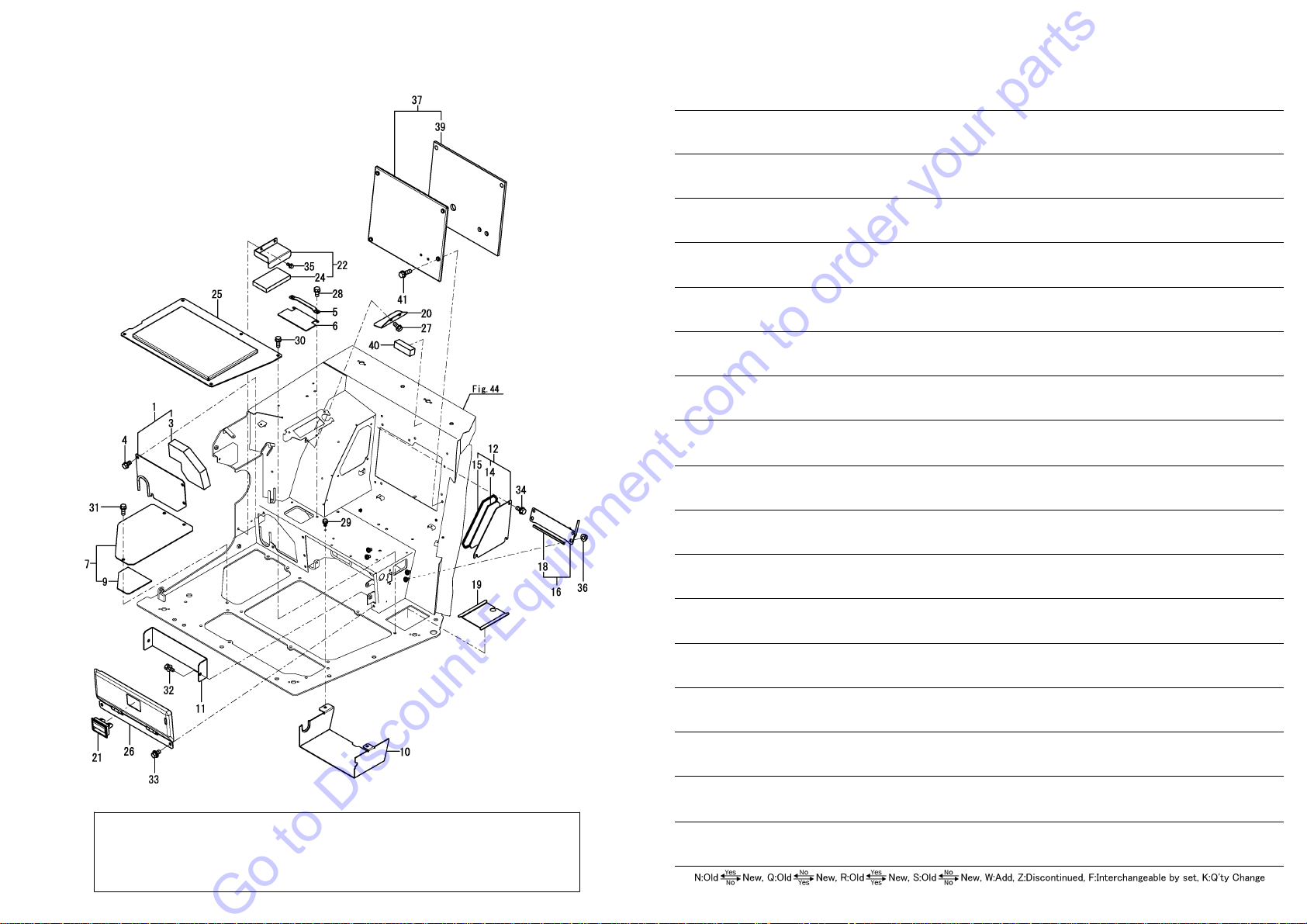

COVER(SEAT MOUNT) 39.

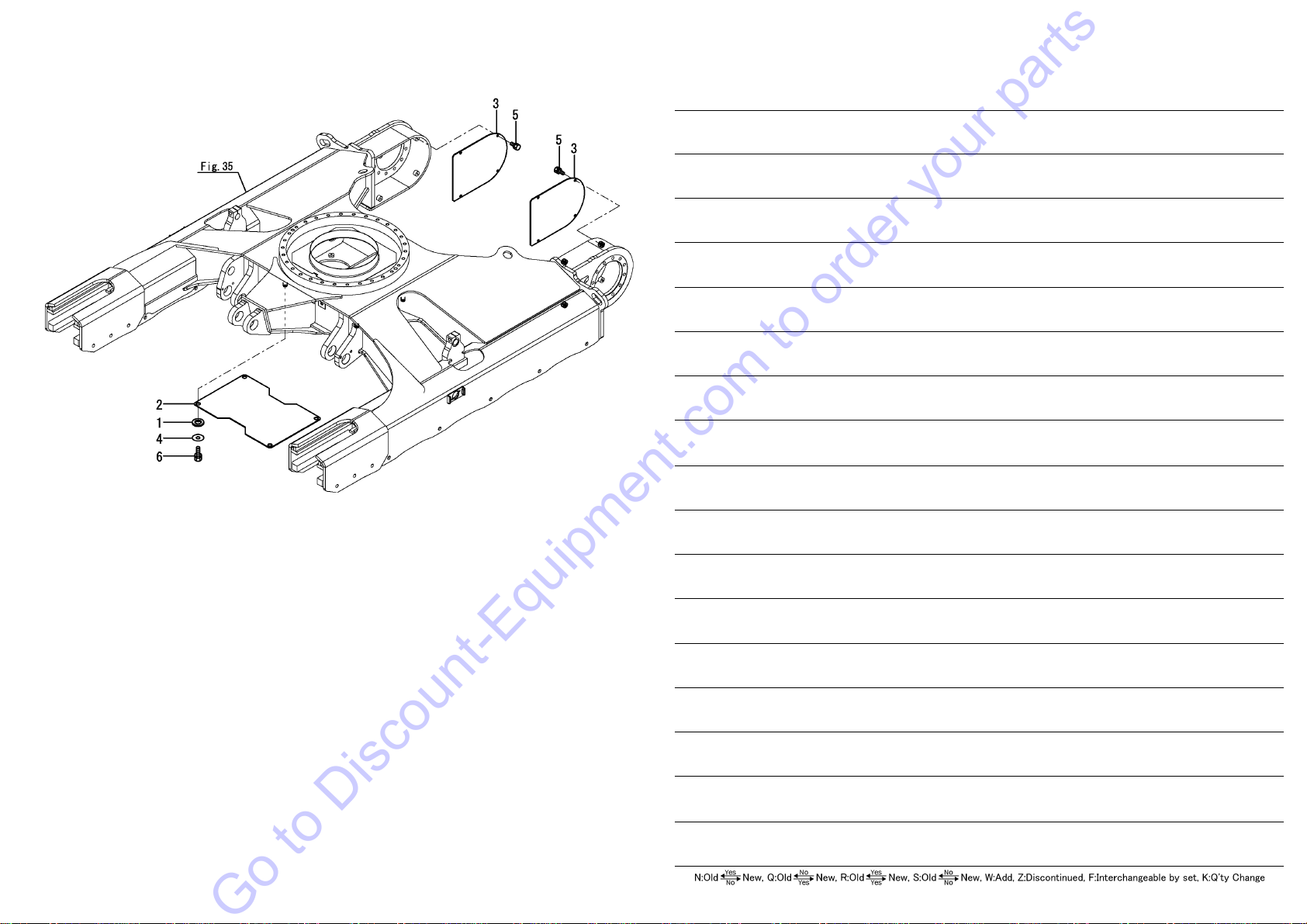

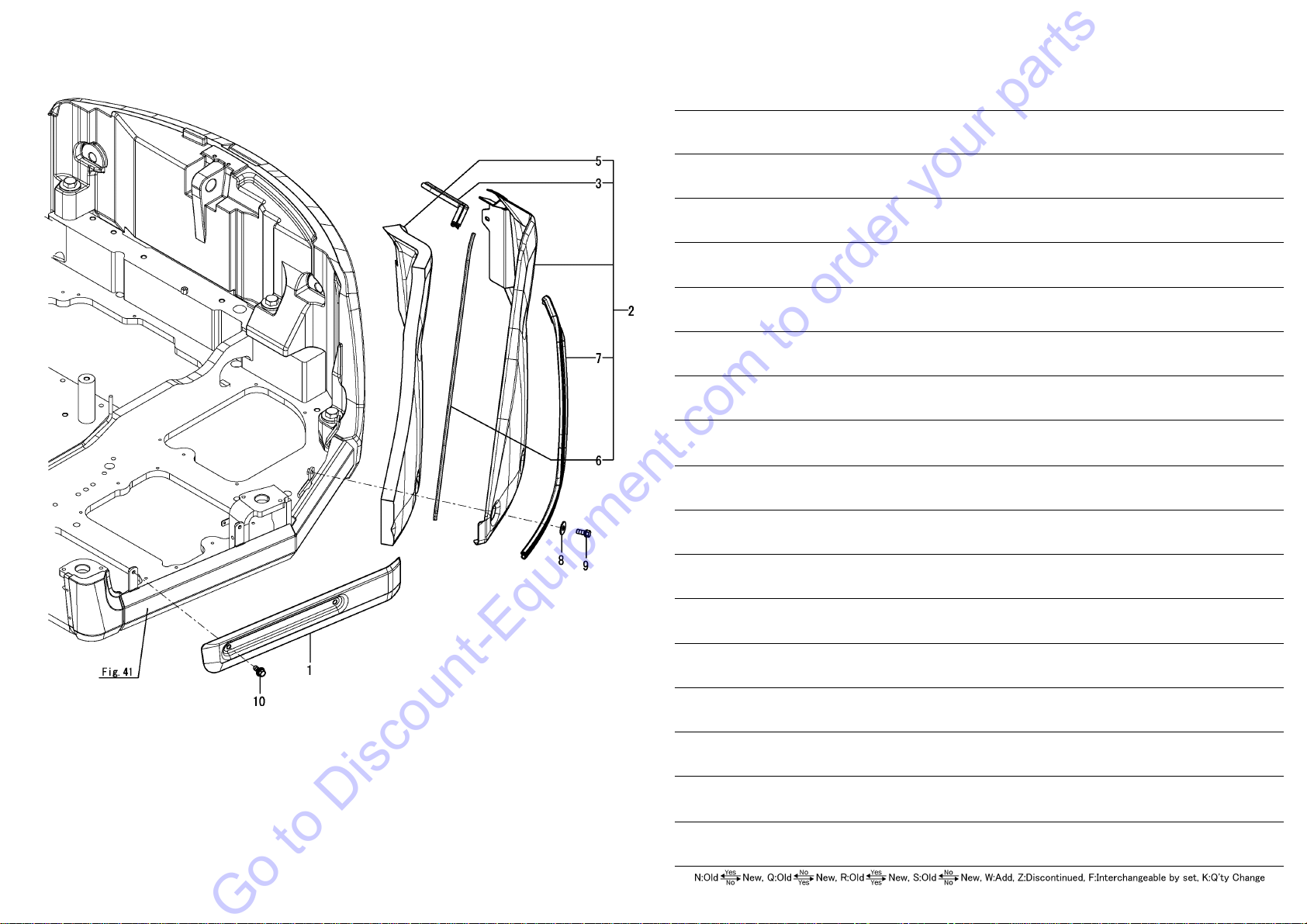

COVER(TRAVEL FRAME) 40.

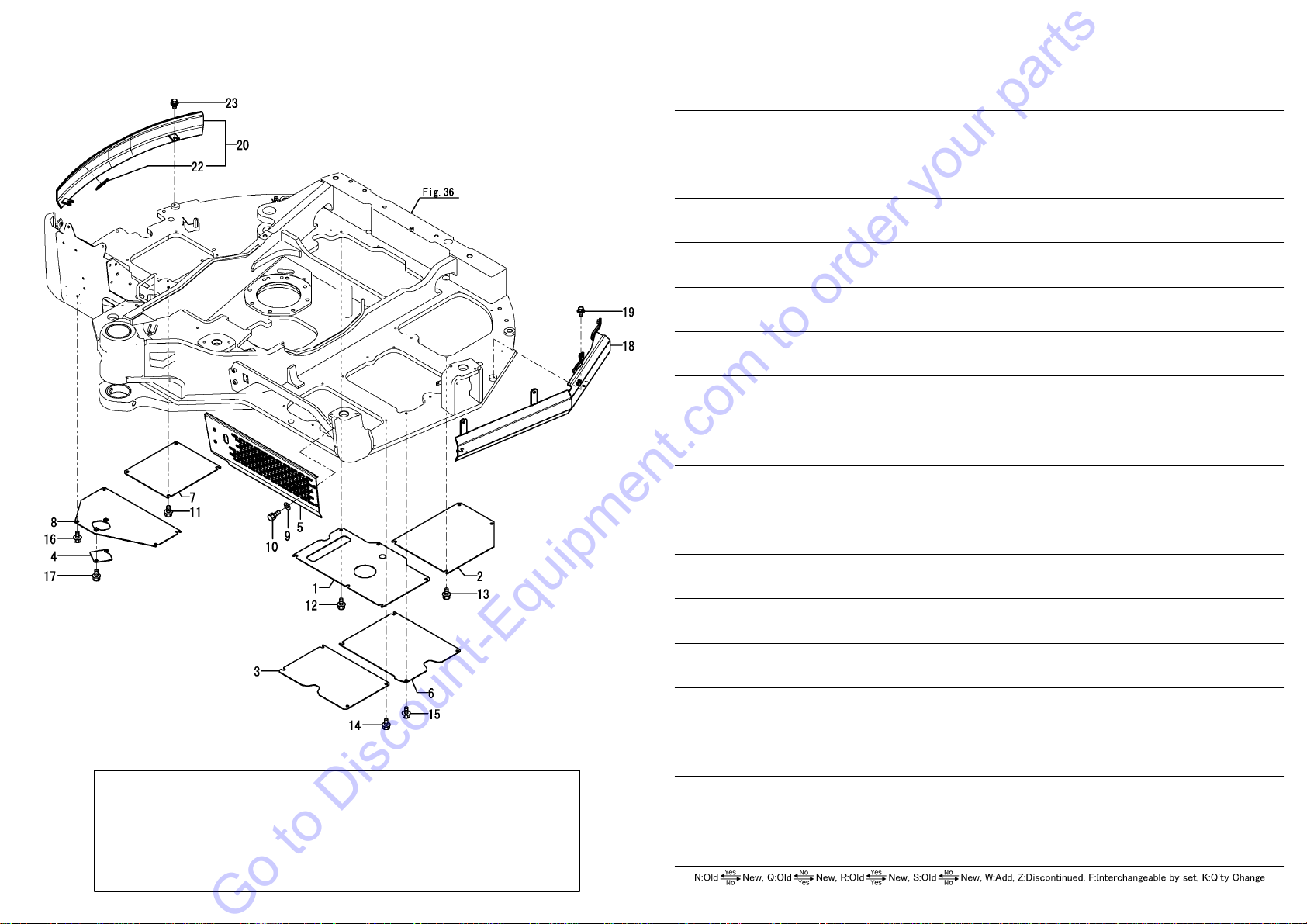

COVER(TURNING FRAME) 41.

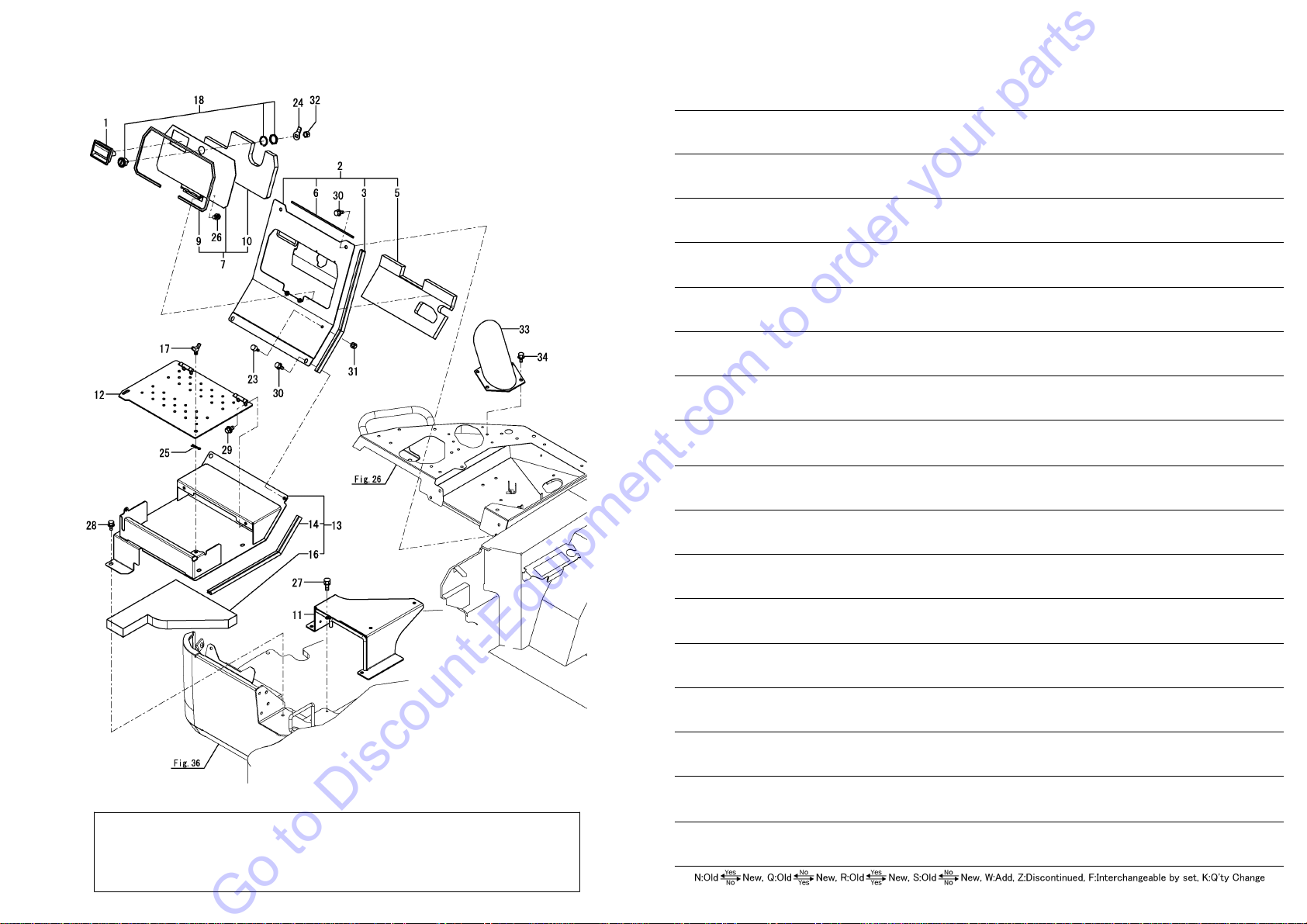

FLOOR MAT & INSTRUMENT PANEL 42.
SEAT 43.
SEAT MOUNT 44.

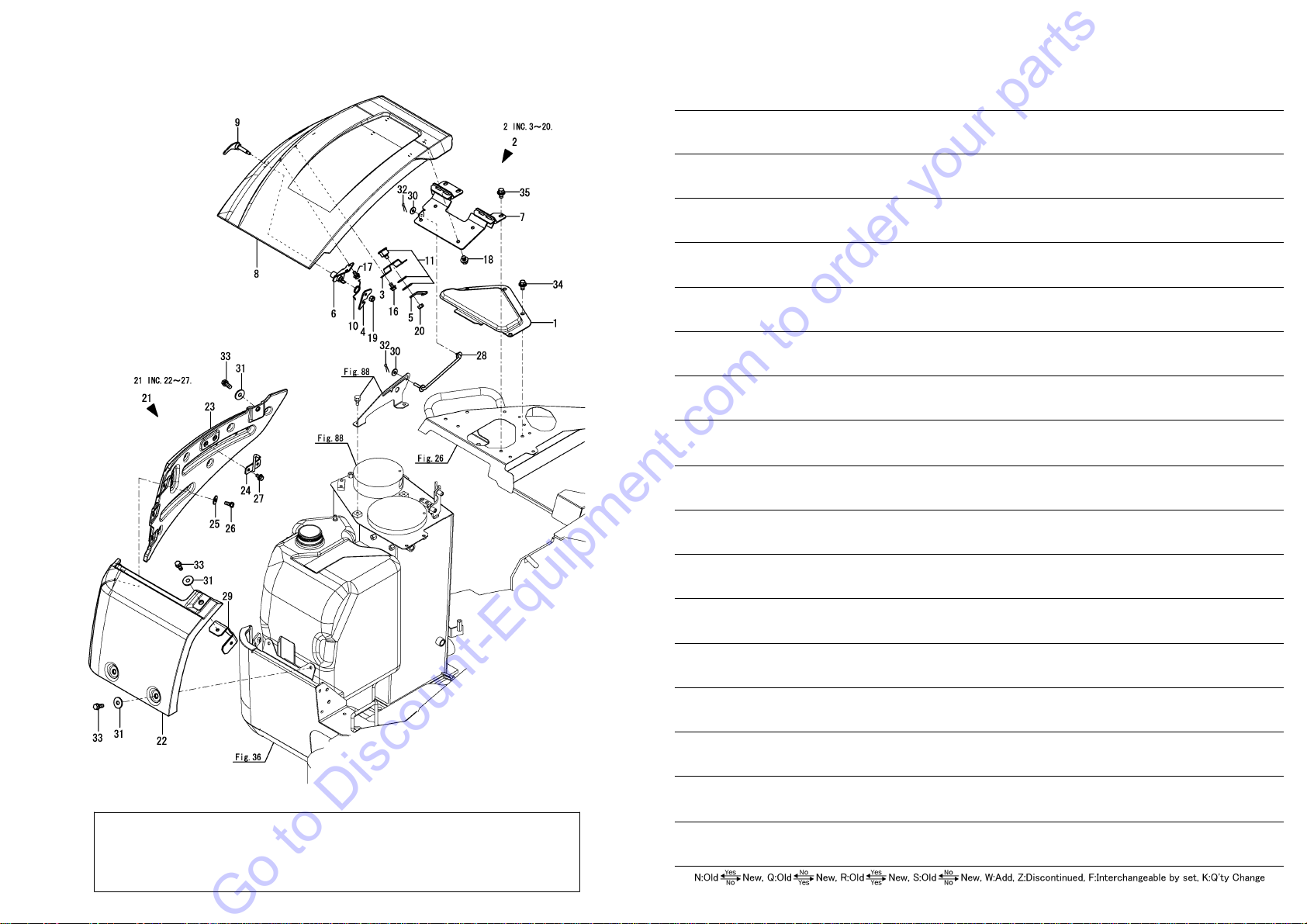

BONNET(BODY) 45.
BONNET(REAR) 46.
BONNET(SIDE : LEFT) 47.
BONNET(SIDE : RIGHT) 48.
CABIN MOUNT 49.

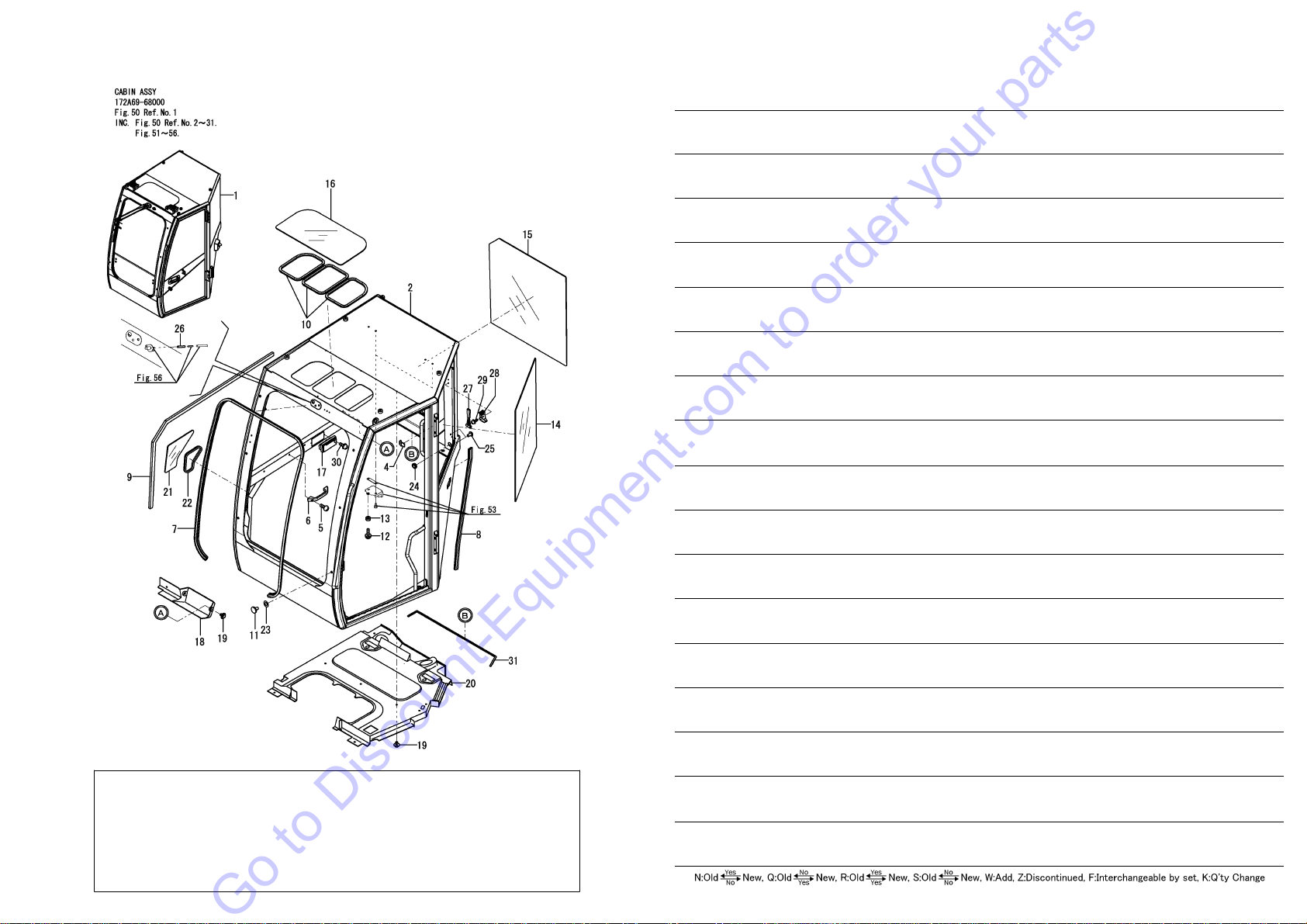

CABIN(BODY) 50.

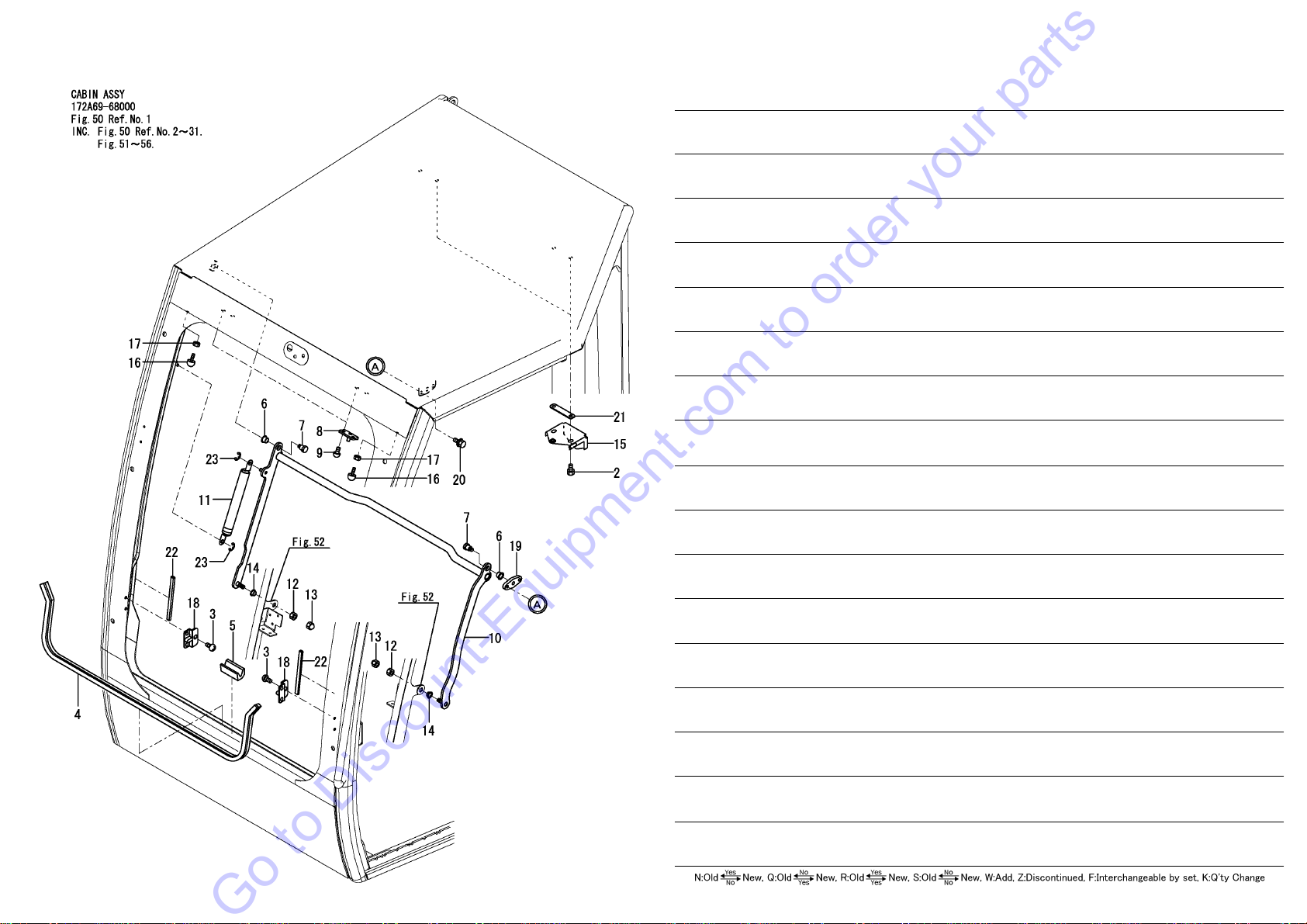

CABIN(DOOR) 51.
CABIN(FRONT WINDOW : 1) 52.
CABIN(FRONT WINDOW : 2) 53.

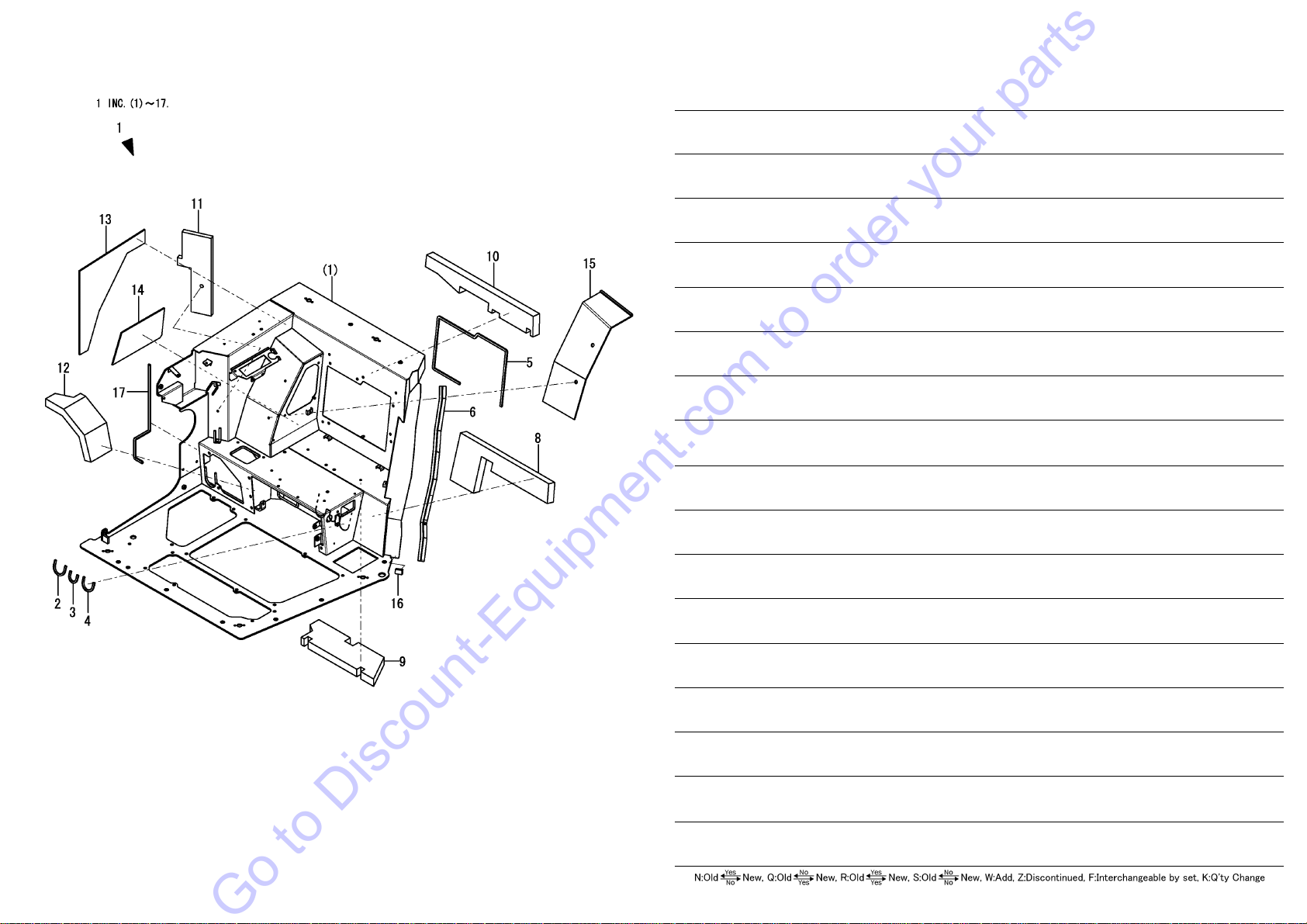

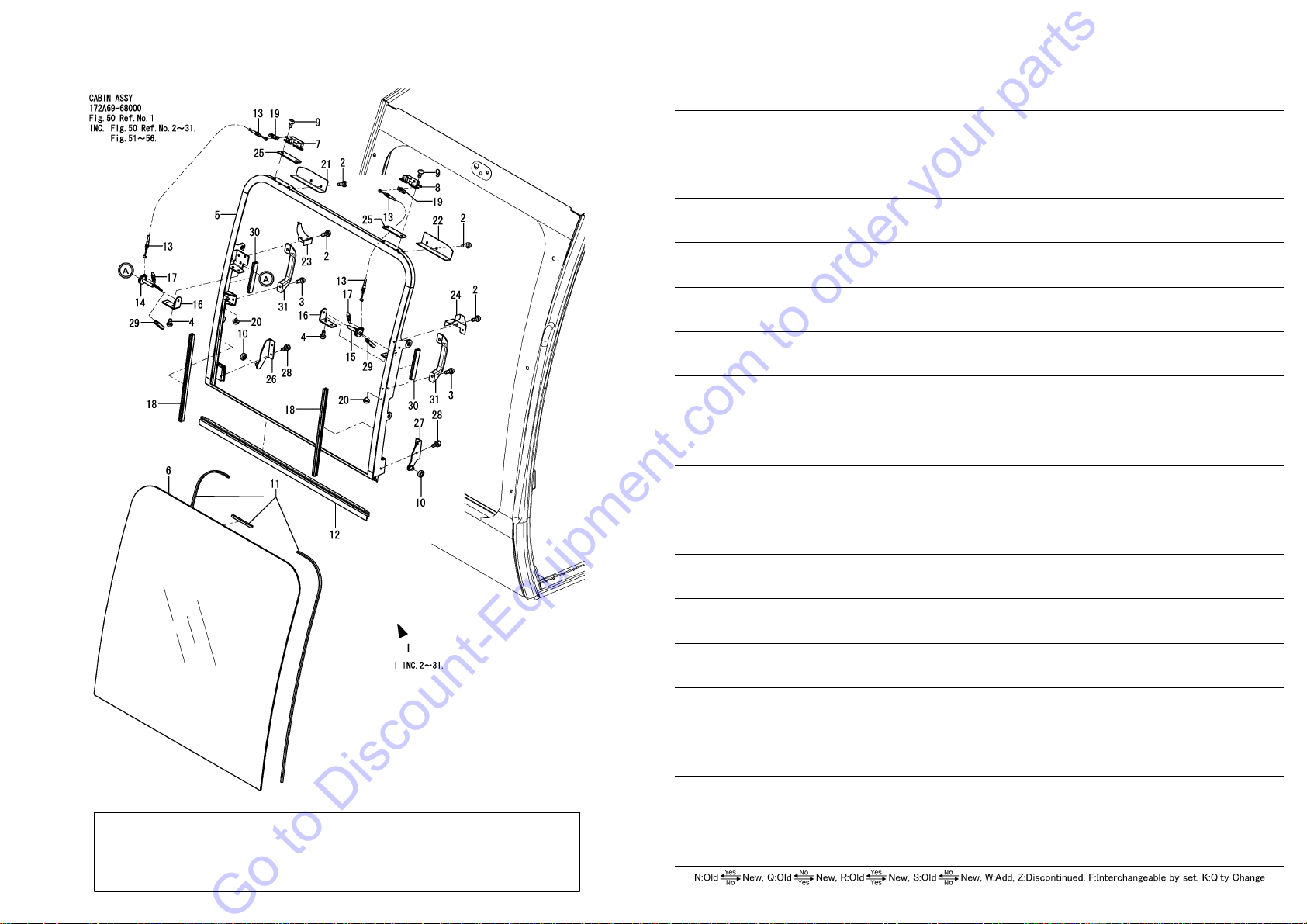

CABIN(WINDOW SASH & LOWER GLASS) 54.
CABIN(ELECTRIC) 55.
CABIN(WASHER TANK) 56.
CABIN(REAVIEW MIRROR & ACCESSORY) 57.
SIDE MIRROR 58.

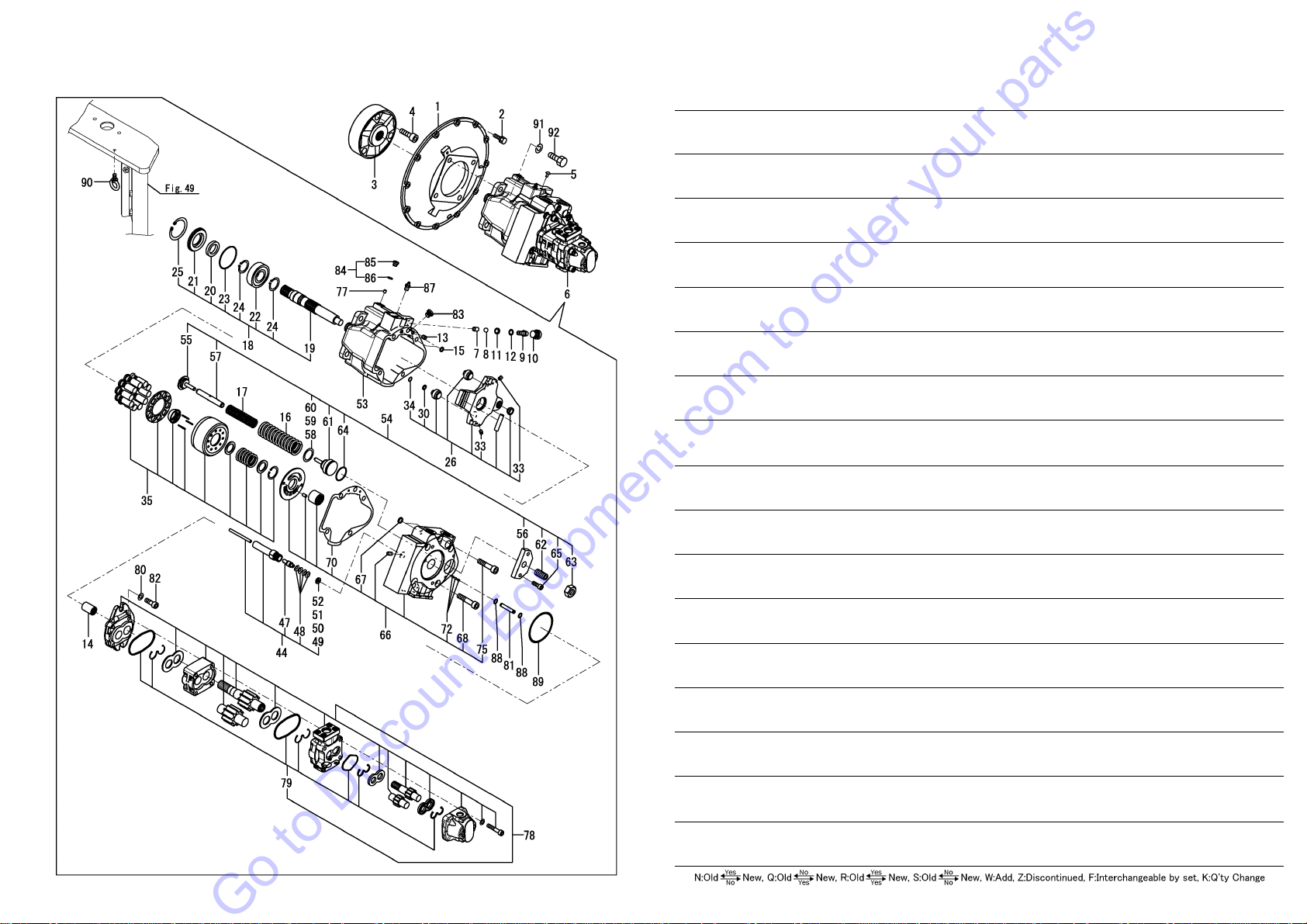

HYD.OIL PUMP & JOINT 59.

CONTENTS

Fig.No. GROUP NAME Fig.No. GROUP NAME

CONTROL VALVE PLATE 60.
BOOM CYLINDER 61.
ARM CYLINDER 62.

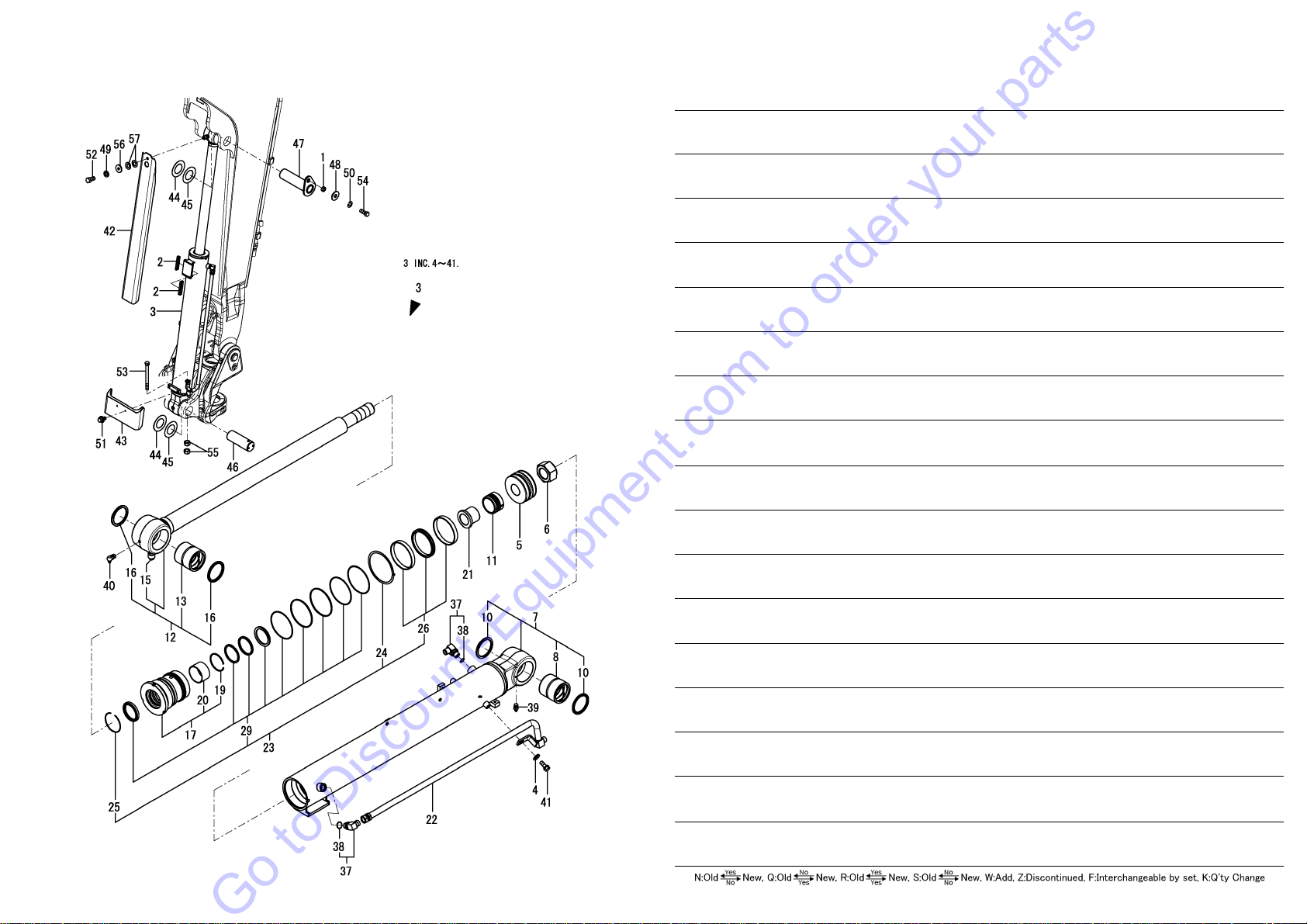

BUCKET CYLINDER 63.
SWING CYLINDER 64.
BLADE CYLINDER 65.
HITCH CYLINDER 66.

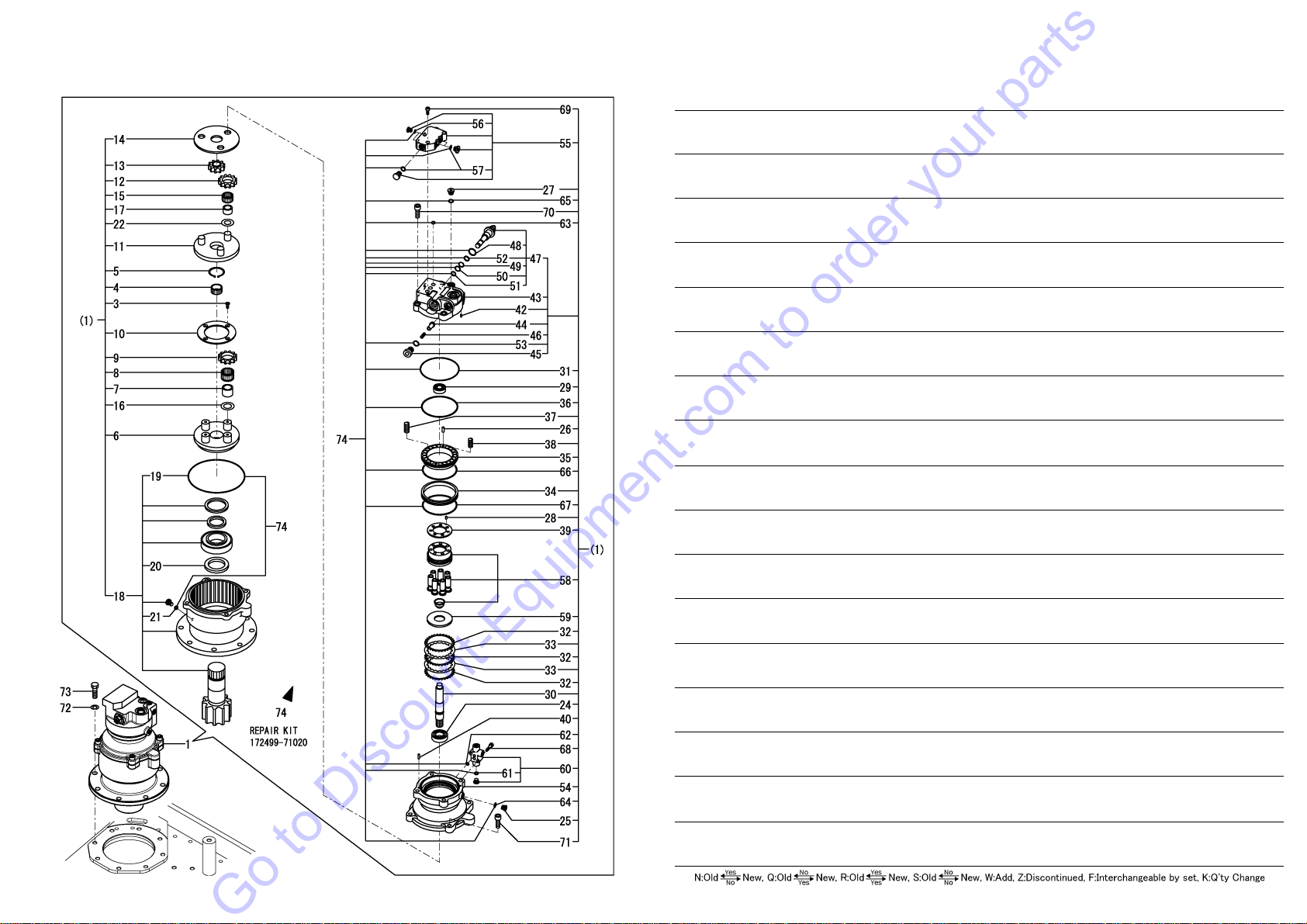

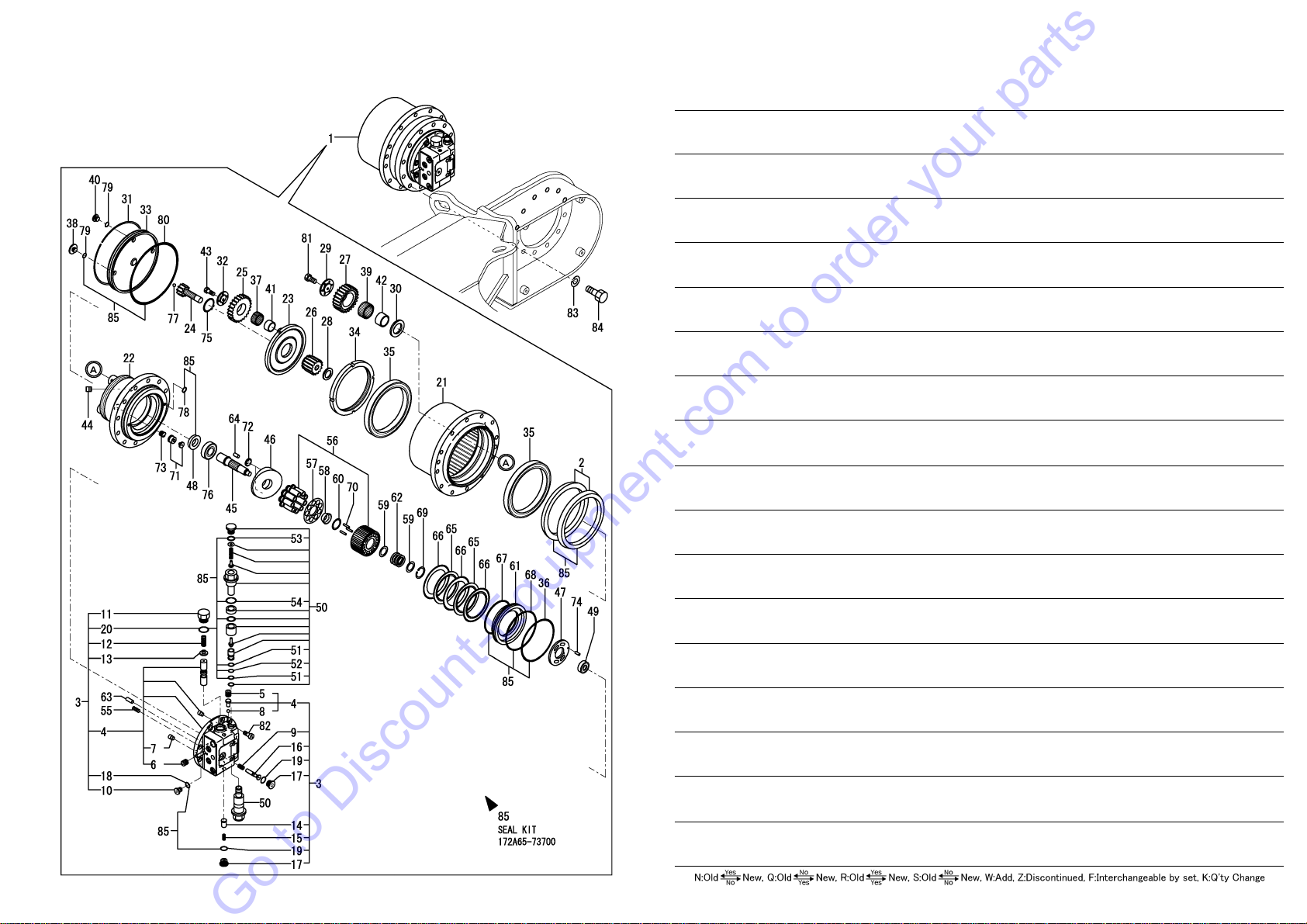

TRAVEL MOTOR 67.
TURNING MOTOR 68.

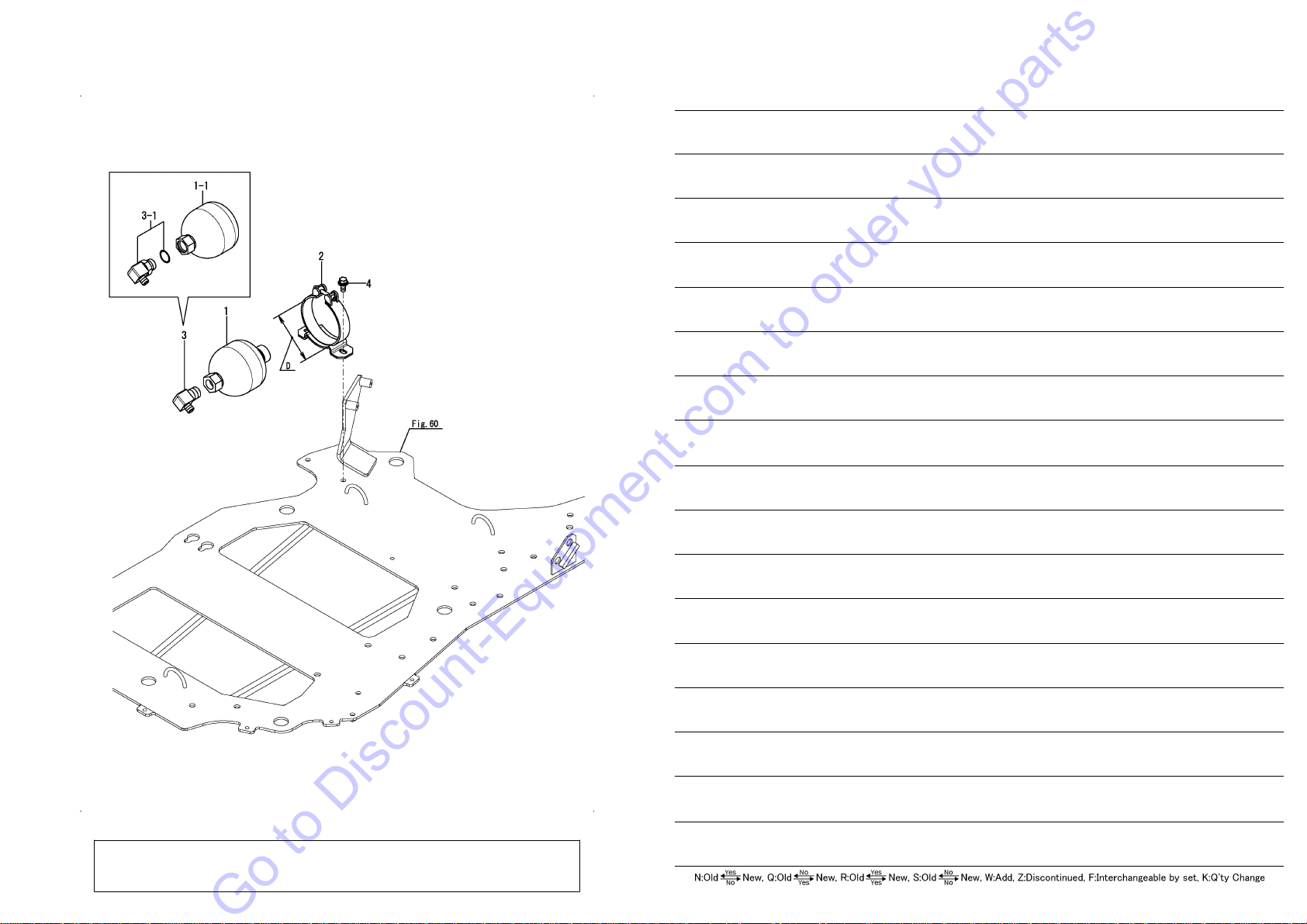

ACCUMULATOR 69.
LINE FILTER 70.
SWIVEL JOINT(Y SPEC.)TO M92121 71.
(71A)SWIVEL JOINT(N SPEC.)FROM M92122 119.
(71B)SWIVEL JOINT KIT(N SPEC.)FROM M92122 120.

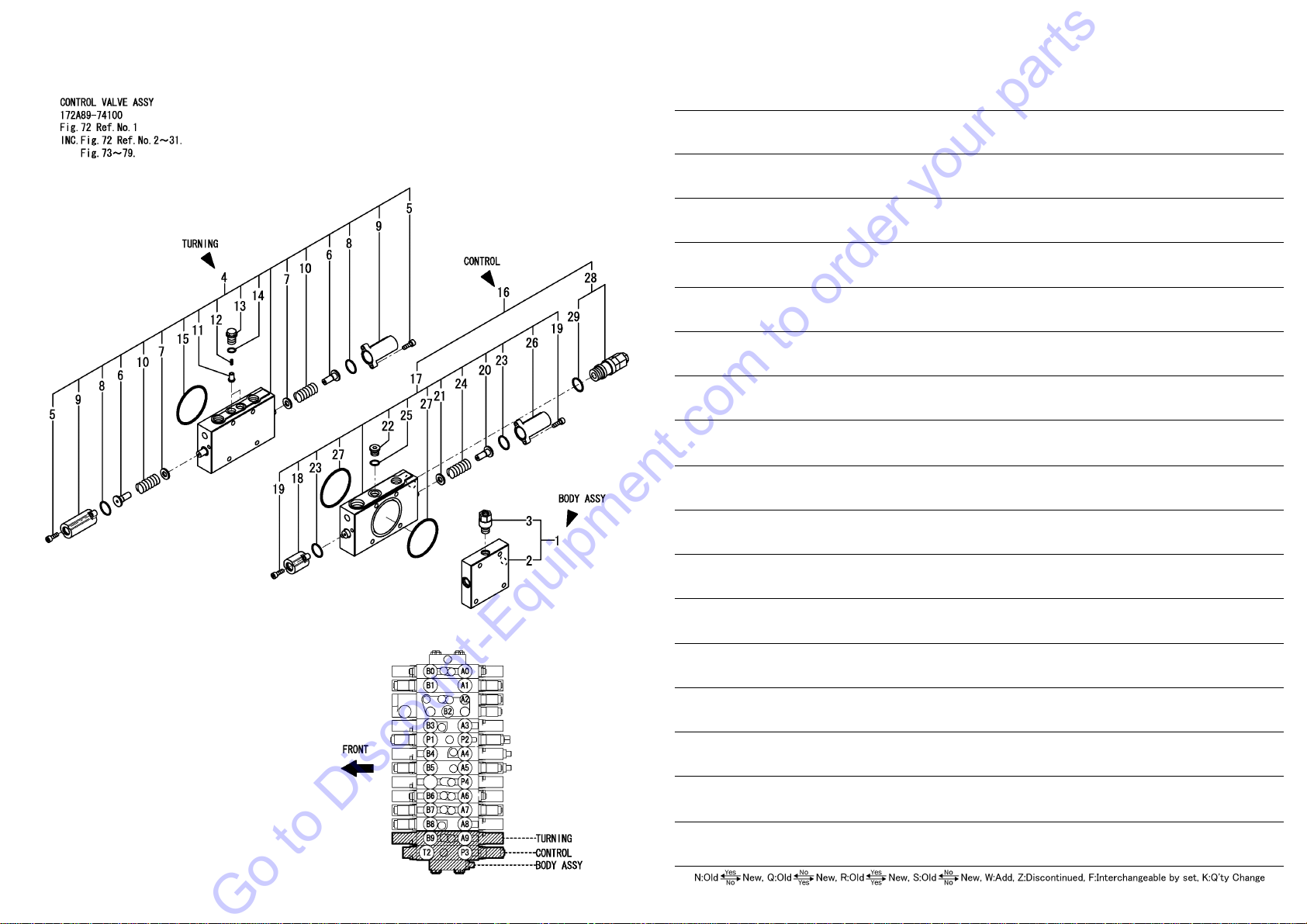

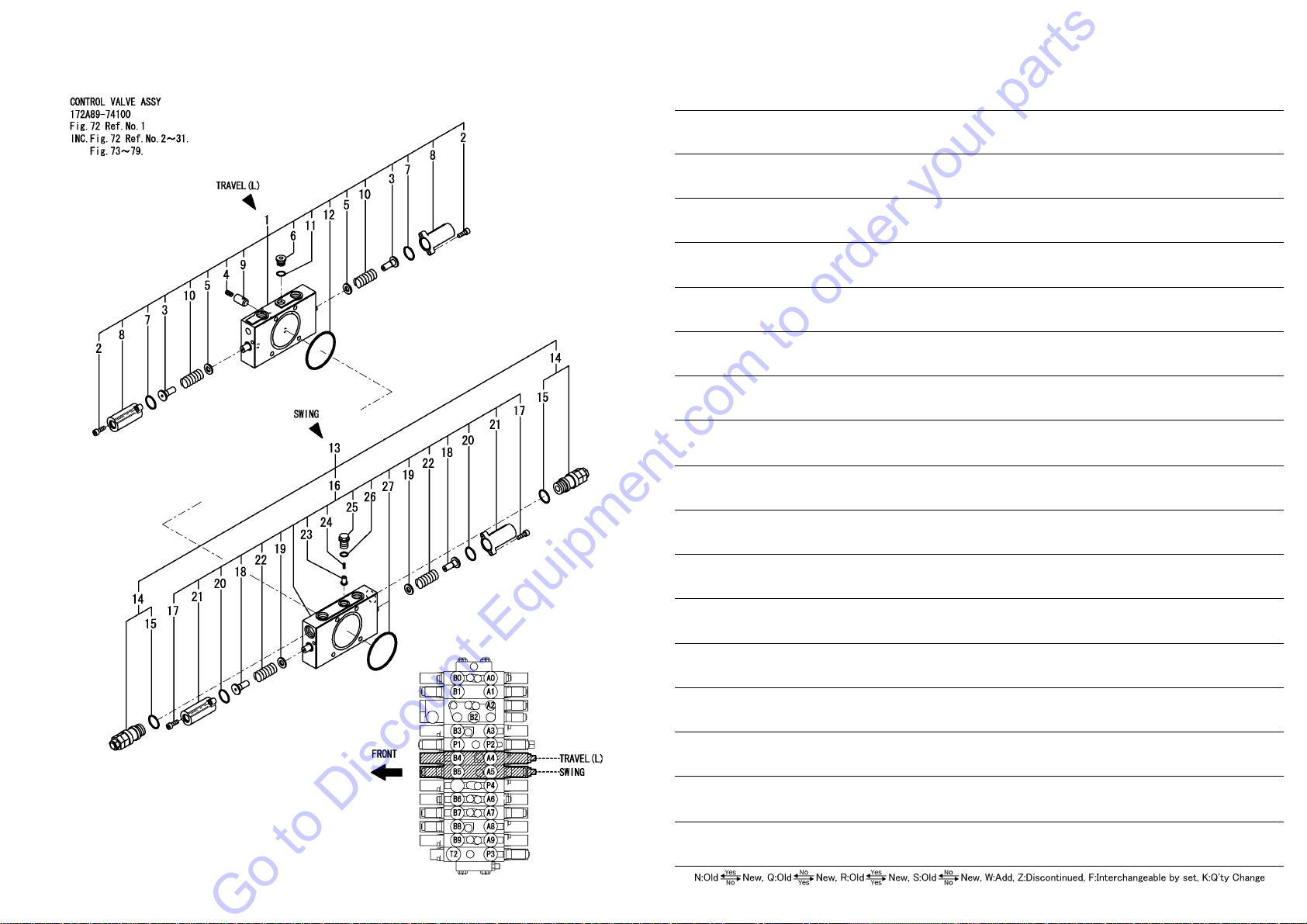

CONTROL VALVE(1/8) 72.
CONTROL VALVE(2/8) 73.
CONTROL VALVE(3/8) 74.
CONTROL VALVE(4/8) 75.
CONTROL VALVE(5/8) 76.
CONTROL VALVE(6/8) 77.
CONTROL VALVE(7/8) 78.
CONTROL VALVE(8/8) 79.
2-WAY VALVE 80.
BLADE VALVE 81.
SOLENOID VALVE(P.T.O.) 82.
SOLENOID VALVE(PILOT) 83.
SOLENOID VALVE(QUICK COUPLER) 84.
REMOTE CONTROL VALVE(OPERATION) 85.
REMOTE CONTROL VALVE(TRAVEL) 86.

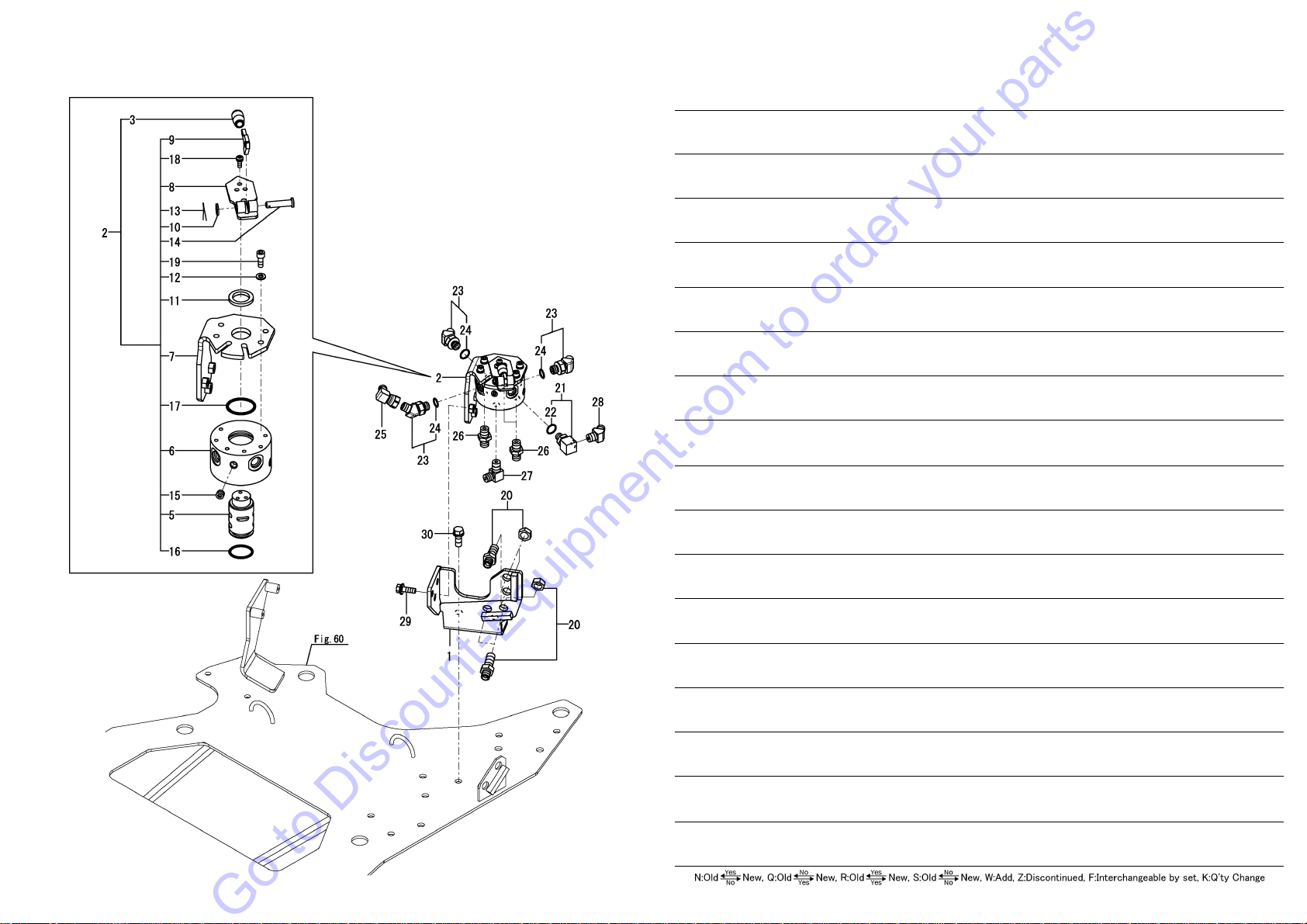

REMOTE CONTROL VALVE(SWING) 87.

HYD.OIL TANK 88.
HOLD VALVE(BOOM) 89.
HOLD VALVE(ARM) 90.
HYD.OIL PIPING(PUMP - CONTROL VALVE - OIL COOLER) 91.
HYD.OIL PIPING(TANK - PUMP, SWING CYLINDER) 92.
HYD.OIL PIPING(CONTROL VALVE - TURNING MOTOR) 93.
HYD.OIL PIPING(CONTROL VALVE : FITTING) 94.
HYD.OIL PIPING(CONTROL VALVE - BOOM, TURNING MOTOR, TANK) 95.
HYD.OIL PIPING(CONTROL VALVE - SWIVEL JOINT) 96.
HYD.OIL PIPING(TRACK FRAME) 97.
HYD.OIL PIPING(BOOM) 98.
HYD.OIL.PIPING(P.T.O. : FRAME END) 99.
HYD.OIL PIPING(P.T.O. : ARM END) 100.
HYD.OIL PIPING(QUICK COUPLER) 101.
HYD.OIL PIPING(HOLD VALVE) 102.
CONTROL PIPING(CONTROL VALVE - SOLENOID VALVE) 103.
CONTROL PIPING(CONTROL VALVE - 2-WAY VAVLE) 104.
CONTROL PIPING(2-WAY VALVE - REMOTE CONTROL VALVE) 105.
CONTROL PIPING(TRAVEL, SWING PEDAL) 106.
CONTROL PIPING(P.T.O.) 107.
GREASING 108.
BOOM BRACKET 109.
BOOM 110.
ARM 111.
BUCKET ARM & LINK 112.
QUICK CUPLER 113.
BUCKET 114.
BLADE 115.
CA LABEL KIT(OPTIONAL) 116.
ADDITIONAL WEIGHT(OPTIONAL) 117.

MODEL : VIO80(US,AS,NZ)

PC NO : 0CS10-G55700

CONTENTS

Fig.No. GROUP NAME Fig.No. GROUP NAME

HOLD VALVE(OPTIONAL) 118.

MODEL : VIO80(US,AS,NZ)

PC NO : 0CS10-G55700

0CS10-G55700

Fig.1. LABEL

Remarks
(1)RUBBER CRAWLER SPEC.
Installation pasition change.
* PLEASE REFER TO FIG.NO.116 FOR THE
FRENCH LABEL KIT FOR CANADA.

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001)

(A=M92001) (B=M92001) (C=M92001)

++ CONTINUE ++

1. LABEL

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

LABEL KIT,EX 172A89-03010 1 1 1 1 1
LABEL KIT,EX 172A89-03011 1 1-1 S 1 1

LABEL,TYPE 172A89-03140 2 2 2 2 2
LABEL, REAR EMBLEM 172A69-03160 2 3 1 1 1
LABEL, BRAND 172A21-03220 2 4 2 2 2

LABEL,YANMAR 627 172A65-03230 2 4-1 S 1 1 1

LABEL,SPEC US 172A89-03100 2 6 1 1 1
LAVEL,OIL & WATER US 172A89-03110 2 7 1 1 1
LABEL,FUSE US 172A89-03120 2 8 1 1 1
LABEL,GREASING US 172A69-03130 2 9 1 1 1
LABEL, SUPPORT 172472-03141 2 10 1 1 1
LABEL,WARNING 172A65-03150 2 11 1 1 1
LABEL 172958-03160 2 12 1 1 1
LABEL 172A07-03160 2 13 1 1 1
LABAEL FL,US 172A69-03170 2 14 1 1 1
LABEL, SUB TANK 172A38-03201 2 15 1 1 1
LABEL, ANTI-FREEZING 172A38-03211 2 16 1 1 1
LABEL,ACCELERATOR 172A69-03220 2 17 1 1 1
LABEL, OPERATION 172472-03230 2 18 1 1 1
LABEL, LOCK 172458-03240 2 19 1 1 1
TAG ASSY, CAUTION 172437-03252 2 20 1 1 1
LABEL, FINGER 172472-03261 2 21 1 1 1
LABEL,PTO SELECT 172A69-03270 2 22 1 1 1
LABEL, LOCK 172183-03280 2 23 1 1 1
LABEL, HYD.OIL 172463-03290 2 24 1 1 1
LABEL, RESEVOIR 172437-03322 2 25 1 1 1
LABEL, RADIATOR 172462-03320 2 26 1 1 1
LABEL, LOCK PIN 172472-03330 2 27 1 1 1
LABEL, CYLINDER 172437-03352 2 28 2 2 2
LABEL,BATTERY COVER 172A69-03350 2 29 1 1 1
LABEL, BATTERY 172437-03361 2 30 1 1 1
LABEL, SWING AREA 172437-03381 2 31 1 1 1
LABEL, RADIATOR 172437-03391 2 32 1 1 1
LABEL, ENGINE COVER 172437-03402 2 33 2 2 2
LABEL, ENGINE ROOM 172A36-03411 2 34 2 2 2
LABEL, MUFFLER 172437-03422 2 35 2 2 2
LABEL, FUEL 172437-03501 2 36 1 1 1
LABEL, HOOK 172437-03511 2 37 3 3 3
LABEL, 2-WAY US 172437-03601 2 38 1 1 1
LABEL 172437-03610 2 39 1 1 1
LABEL 172437-03620 2 40 1 1 1
LABEL, START SWITCH 172A64-03700 2 41 1 1 1
LABEL, GREASE 172156-03740 2 42 1 1 1
LABEL, BOOM US 172187-03941 2 43 2 2 2
LABEL, AIR CLEANER 172125-03951 2 44 1 1 1
LABEL, FUEL CAUTION 114110-07760 2 45 1 1 1
LABEL, CABIN FRONT 172A69-03300 2 46 1 1 1
LABEL, CABIN SIDE 172A69-03310 2 47 1 1 1

(D)=
(E)=
(F)=

Q'TY

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

R I

1 LABEL,ADJUST CRAWLER 172463-03281 2 5 1 1 1

0CS10-G55700

Fig.1. LABEL

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

1. LABEL

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

LABEL,OPERATION 172A69-03200 2 48 1 1 1
LABEL, PINUS 172472-03241 2 49 1 1 1
LABEL, OPERATION 172472-03250 2 50 1 1 1

LABEL, SANDUS 172472-03271 2 51 1 1 1
LABEL, WARNING HITCH 172472-03281 2 52 1 1 1
LABEL, MANUAL 172437-03302 2 53 1 1 1

LABEL, SLOPE 172437-03312 2 54 1 1 1
LABEL, TRANSPORT 172437-03343 2 55 1 1 1
LABEL,LIFT Q 172A89-03360 2 56 1 1 1
LABEL, NEUTRAL 172437-03372 2 57 1 1 1
LABEL, STEERING 172437-03432 2 58 1 1 1
LABEL, ROPS 172437-03441 2 59 1 1 1
LABEL, SEAT BELT 172437-03451 2 60 1 1 1
LABEL, LEVER LOCK 172437-03471 2 61 1 1 1
LABEL, WINDOW US 172437-03551 2 62 1 1 1
EMBLEM ASSY,L3 Y 172A89-03500 1 68 W 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

Remarks
(1)RUBBER CRAWLER SPEC.
Installation pasition change.
* PLEASE REFER TO FIG.NO.116 FOR THE
FRENCH LABEL KIT FOR CANADA.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.2. SAFETY LABEL

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

2. SAFETY LABEL

LABEL, SUPPORT US 172472-03141 1 1 1 1 1
LABEL, SUB-TANK US 172A38-03201 1 2 1 1 1
LABEL,ANTI-FREEZING 172A38-03211 1 3 1 1 1

TAG ASSY, CAUTION 172437-03252 1 4 1 1 1
LABEL, FINGER US 172472-03261 1 5 1 1 1
LABEL, HYD.OIL TANK 172437-03322 1 6 1 1 1

LABEL,LOCK PIN(US 172472-03330 1 7 1 1 1
LABEL, GREASE CYL. 172437-03352 1 8 2 2 2
LABEL,BATTERY COVER 172A69-03350 1 9 1 1 1
LABEL, BATTERY US 172437-03361 1 10 1 1 1
LABEL,SWING AREA US 172437-03381 1 11 1 1 1
LABEL, RADIATOR US 172437-03391 1 12 1 1 1
LABEL, ENG,COVER US 172437-03402 1 13 2 2 2
LABEL, ENG ROOM 172A36-03411 1 14 2 2 2
LABEL, MUFFLER US 172437-03422 1 15 2 2 2
LABEL, 2-WAY US 172437-03601 1 16 1 1 1
LABEL, BOOM US 172187-03941 1 17 2 2 2
LABEL, AIR CLEANER 172125-03951 1 18 1 1 1
LABEL, PIN US 172472-03241 1 19 1 1 1
LABEL, SAND US 172472-03271 1 20 1 1 1
LABEL, WARNING HITCH 172472-03281 1 21 1 1 1
LABEL, MANUAL US 172437-03302 1 22 1 1 1
LABEL,SLOPE US 172437-03312 1 23 1 1 1
LABEL, TRANSPORT US 172437-03343 1 24 1 1 1
LABEL,LIFT Q 172A89-03360 1 25 1 1 1
LABEL, NEUTRAL US 172437-03372 1 26 1 1 1
LABEL, STEERING US 172437-03432 1 27 1 1 1
LABEL, ROPS US 172437-03441 1 28 1 1 1
LABEL, SEAT BELT US 172437-03451 1 29 1 1 1
LABEL, LEVER LOCK US 172437-03471 1 30 1 1 1
LABEL, WINDOW US 172437-03551 1 31 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.3. MUFFLER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

3. MUFFLER

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

PIPE CMP,EXHAUST 172A89-11300 1 1 1 1 1
CLAMP 172187-11400 1 2 1 1 1
WASHER 10 22117-100000 1 3 1 1 1

SPRING WASHER 10 22217-100000 1 4 1 1 1
BOLT M10X 65 PLATED 26106-100652 1 5 1 1 1
NUT M10 26706-100002 1 6 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.4. AIR CLEANER(AS,NZ)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

4. AIR CLEANER(AS,NZ)

CLEANER ASSY, AIR 172A21-11500 1 1 1 1
VALVE, UNLOADER 119808-12540 2 3 1 1
ELEMENT 129062-12560 2 4 1 1

ELEMENT, INNER 119005-12571 2 5 1 1
COVER ASSY 129062-12570 2 6 1 1
LABEL, MARKING 129612-12650 2 7 1 1

HOSE,AIR INTAK 172A89-11540 1 8 1 1
HOSE B ASSY 172A89-11510 1 9 1 1

CLAMP 350 172122-79890 1 11 2 2
CLAMP 70 23000-070000 1 12 1 1
CLAMP 80 23000-080000 1 13 2 2
BOLT W/WASHER M10X20 26013-100202 1 14 2 2
BOLT M 8X 20 26014-080202 1 15 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 BRACKET,CLEANER 172A69-11530 1 10 1 1

2 LABEL, AIR CLEANER 172125-03951 1 16A 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.16A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.5. AIR CLEANER(US)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

5. AIR CLEANER(US)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

172455-11500 1 1 1

AIR CLEANER ASS
VALVE, UNLOADER 119808-12540 2 3 1
ELEMENT 129062-12560 2 4 1

COVER ASSY 129062-12570 2 5 1
HOSE,AIR INTAK 172A89-11540 1 6 1
HOSE B ASSY 172A89-11510 1 7 1

CLAMP 350 172122-79890 1 9 2
CLAMP 70 23000-070000 1 10 1

CLAMP 80 23000-080000 1 11 2
BOLT W/WASHER M10X20 26013-100202 1 12 2
BOLT M 8X 20 26014-080202 1 13 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 BRACKET,CLEANER 172A69-11530 1 8 1

2 LABEL, AIR CLEANER 172125-03951 1 14A 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.14A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.6. ACCELERATOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

6. ACCELERATOR

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

172A69-12100 1 1 1 1 1

VOLUME, ACCEL ASS
NUT M9P0.75 172A69-12160 2 3 1 1 1
WASHER 172A69-12170 2 4 1 1 1

WATER PROOF RING 172A69-12180 2 5 1 1 1
O RING 172A69-12190 2 6 1 1 1
KNOB ASSY,ACCEL 172A69-12120 1 7 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.7. ENGINE MOUNT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

7. ENGINE MOUNT

BOLT 10X35,11T 172A21-13100 1 1 12 12 12
BRACKET RR 172A69-13100 1 2 1 1 1
BRACKET RL 172A69-13110 1 3 1 1 1

BRACKET F 172A69-13120 1 4 2 2 2
STOPPER 172A69-13150 1 5 2 2 2
OIL SAUCER 172A89-13150 1 6 1 1 1

WASHER 172162-13170 1 7 2 2 2
MOUNT,ENGINE 172162-13180 1 8 8 8 8
BOLT M16X150 172162-13190 1 9 4 4 4
PLATE ASSY,BASE 172A89-13200 1 10 1 1 1
WASHER 172165-13220 1 11 8 8 8
HOSE, FUEL GAUGE 172137-14282 1 12 1 1 1
CLAMP(B) 172112-16650 1 13 2 2 2
SEAT, SPRING 172137-46042 1 14 12 12 12
WASHER 6 22117-060000 1 15 2 2 2
WASHER 6 22157-060000 1 16 2 2 2
SPRING WASHER 10 22217-100000 1 17 12 12 12
SPRING WASHER 12 22217-120000 1 18 8 8 8
SPRING WASHER 16 22217-160000 1 19 4 4 4
SPRING WASHER 16 22217-160000 1 20 4 4 4
BOLT M 6X 16 26013-060162 1 21 2 2 2
BOLT M10X 16 26013-100162 1 22 2 2 2
BOLT M12X 35 26076-120352 1 23 8 8 8
BOLT M16X 35 PLATED 26116-160352 1 24 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.8. RADIATOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MXXXXX) (B=MXXXXX) (C=MXXXXX)

8. RADIATOR

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

COCK ASSY, 2-WAY 172444-13210 1 1 1 1 1
BODY 172444-13220 2 2 1 1 1
PLUG 121250-49121 2 3 1 1 1

O-RING 24311-000160 2 4 1 1 1
PLATE ASSY, COCK 172A69-13230 1 5 1 1 1
RADIATOR ASSY 172A89-13300 1 6 1 1 1

CAP 129107-44590 3 8 1 1 1
OIL COOLER 172A89-13320 2 9 1 1 1

SUPPORT ASSY 172A89-13330 2 10 1 1 1
SUPPORT ASSY 172A89-13340 2 11 1 1 1
BRACKET 172A89-13350 2 12 2 2 2
BOLT M8 172A89-13360 2 13 6 6 6
BOLT M6 172A89-13370 2 14 8 8 8
SHROUD ASSY 172A89-13500 1 15 1 1 1
EV A,SHROUD 172A89-13550 2 17 1 1 1
EV B,SHROUD 172A89-13560 2 18 1 1 1
RUBBER, SEAL 172458-61500 2 19 1 1 1
RUBBER, SEAL 172458-61510 2 20 2 2 2
CW-T,A 172A89-13570 1 21 1 1 1
CW-T,B 172A89-13580 1 22 1 1 1
COVER A,SHROUD 172A89-13800 1 23 1 1 1
COVER B,SHROUD 172A89-13810 1 24 1 1 1
COVER C ASSY,SHROUD 172A89-13820 1 25 1 1 1
ABSORBER, SHOCK 184015-44680 1 26 4 4 4
CLIP 124766-59050 1 27 4 4 4
HOSE 184015-59130 1 28 1 1 1
PIPE ASSY, FUEL 184014-59450 1 32 1 1 1
CLAMP, HOSE 23001-048000 1 36 4 4 4
BOLT 26013-080162 1 37 2 2 2
BOLT 26013-080162 1 38 4 4 4
BOLT 26013-080162 1 39 1 1 1
BOLT 26013-080162 1 40 1 1 1
BOLT 26013-080162 1 41 1 1 1
BOLT 26014-080162 1 41-1 N 1 1 1

BOLT 26013-100302 1 42 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 RADIATOR SUB ASSY 172A89-13310 2 7 1 1 1

2 LABEL, ANTI-FREEZING 172A38-03211 1 43A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.43A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.9. RADIATOR MOUNT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

9. RADIATOR MOUNT

BRACKET ASSY,RAD 172A89-13400 1 1 1 1 1
SEAL A,DUCT 172499-13750 2 3 1 1 1
DUCT ASSY,RADIATOR 172A89-13600 1 4 1 1 1

RUBBER 350 172638-06720 2 5 1 1 1
EV A,DUCT 172A89-13680 2 7 1 1 1
EV B,DUCT 172A89-13690 2 8 1 1 1

EV C,DUCT 172A89-13700 2 9 1 1 1
SEAL 510 172A89-13730 2 10 1 1 1
SEAL 1130 172A69-61650 2 11 1 1 1

SEAL 710 172A69-13670 2 13 1 1 1
STAY A,RAD 172A89-13830 1 15 1 1 1
STAY B,RAD 172A89-13840 1 16 1 1 1
BRACKET ASSY,RAD U 172A89-13860 1 17 1 1 1
HOLDER 198220-61480 1 18 1 1 1
WING BOLT,M10X20 172142-62301 1 19 1 1 1
PLATE, CLAMP 172146-78150 1 20 1 1 1
COTTER PIN 3.2X20 22417-320200 1 21 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 22 4 4 4
BOLT W/WASHER M10X20 26013-100202 1 23 4 4 4
BOLT W/WASHER M10X20 26013-100202 1 24 2 2 2
BOLT M10X 20 26014-100202 1 25 4 4 4
BOLT M10X 20 26014-100202 1 26 1 1 1
BOLT 10X25 W/PLW+SPW 26014-100252 1 27 4 4 4
BOLT 10X25 W/PLW+SPW 26014-100252 1 28 4 4 4
SCREW M 5X 10 26023-050102 1 29 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 COVER ASSY,DUCT 172A89-13750 1 12 1 1 1

2 LABEL,BATTERY COVER 172A69-03350 1 30A 1 1 1
2 LABEL, BATTERY US 172437-03361 1 30B 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.30A & 30B.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.10. SUB-TANK

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

10. SUB-TANK

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

CAP 121450-44531 2 3 1 1 1
CLAMP 124450-44560 2 4 1 1 1
GASKET 121470-44581 2 5 1 1 1
HOSE 7X 225 23065-070225 2 6 1 1 1
CLAMP, SUB-TANK 124450-44550 1 7 1 1 1
BRACKET, SUB-TANK 121256-44600-3 1 8 1 1 1
SCREW M 8X 16 26022-080162 1 9 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 SUB-TANK ASSY 171064-44510 1 1 1 1 1

2 LABEL, SUB-TANK US 172A38-03201 1 10A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.10A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.11. FUEL TANK

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

11. FUEL TANK

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

FUEL OIL TANK ASSY 772A69-14100 1 1 1 1 1
PIPE, WATER DRAIN 172137-13400 2 2 1 1 1
FO TANK ASSY 172A69-14110 2 3 1 1 1

CAP ASSY,FILLER 198200-04031 3 4 1 1 1
GASKET,FILLER CAP 198200-04040 4 5 1 1 1
NET ASSY,FUEL INLET 172A69-14130 3 9 1 1 1

FLOAT 172447-14160 3 12 1 1 1
HOSE, FUEL GAUGE 172458-14203 3 13 1 1 1
BLOCK ASSY, DRAIN 172A69-14211 3 14 1 1 1
PLATE, R1/2 172A69-14240 3 15 2 2 2
CLAMP 13 23000-013000 3 16 2 2 2
PLUG PT 1/2 23876-040000 3 17 2 2 2
O-RING 1A P-32.0 24311-000320 3 18 1 1 1
O-RING 1A P-32.0 24311-000320 3 19 2 2 2
BOLT W/WASHER M8X20 26013-080202 3 20 4 4 4
BOLT M 8X 30 26013-080302 3 21 4 4 4
HOSE, FUEL GAUGE 172186-14150 2 22 1 1 1
SUPPORT,RIB FO 172A69-14170 2 23 1 1 1
GASKET 172162-14200 2 24 1 1 1
GAUGE UNIT, FUEL 172A78-14220 2 25 1 1 1
VALVE,FUEL DRAIN 172A69-14230 2 26 1 1 1
JOINT 172444-14270 2 27 1 1 1
HOSE 172187-14510 2 28 1 1 1
CLIP,HOSE 106990-44660 2 29 1 1 1
CLAMP 12 124766-59050 2 30 2 2 2
CLAMP 13,HOSE 23080-013000 2 31 1 1 1
BOLT W/WASHER M8X16 26013-080162 2 32 1 1 1
SCREW M 5X 12 26022-050122 2 33 5 5 5
WASHER 10 194145-04810 1 34 2 2 2
BRACKET ASSY, F 172A69-14310 1 35 1 1 1
RUBBER, PLATE A 172A69-14350 2 37 1 1 1
RUBBER PLATE,D 172A69-14370 1 38 2 2 2
RUBBER SPONGE 172A89-14380 1 39 2 2 2
BRACKET ASSY, UP 172A69-14410 1 40 1 1 1
RUBBER, PLATE B 172A69-14430 2 42 1 1 1
BRACKET ASSY, L 172A69-14450 1 43 1 1 1
RUBBER, PLATE A 172A69-14350 2 44 1 1 1
BOLT M10X 30 26013-100302 1 46 2 2 2
BOLT M10X 30 26013-100302 1 47 2 2 2
BOLT M10X 30 26013-100302 1 48 2 2 2
BOLT M10X 20 26014-100202 1 49 2 2 2
U-NUT M10 26367-100002 1 50 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.12. FUEL LINE

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M90514) (B=M90514) (C=M90514)

(A=M90528) (B=M90528) (C=M90528)

(A=M90528) (B=M90528) (C=M90528)

12. FUEL LINE

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

HOSE ASSY 172186-13810 1 1 1 1 1
RUBBER PLATE 172A69-14290 1 5 1 1 1
BK ASSY,GREASE CAN 172A69-14510 1 6 1 1 1

RUBBER PLATE 172446-14250 2 7 2 2 2
HOSE ASSY(2080 172A89-14610 1 9 1 1 1
HOSE ASSY,550 172A89-14630 1 13 1 1 1

HOSE ASSY(2400 172A69-14640 1 17 1 1 1
COLLAR 9.2X13.8X11 194630-15520 1 21 1 1 1
BAND 172137-16560 1 22 1 1 1
STAY A 172460-16700 1 23 1 1 1
PUMP, FUEL FEED 129612-52100 1 24 1 1 1
BRACKET, GREASE PUMP 172122-55061 1 25 2 2 2
SEPARATOR ASSY,WATER 184016-55700 1 26 1 1 1
SEPARATOR ASSY,WATER 184016-55701 1 26-1 N 1 1 1

RING, RETAINING 129100-55690 2 27 1 1 1
ELEMENT 119802-55710 2 28 1 1 1
O-RING 1A P-16.0 24311-000160 2 29 1 1 1

O-RING 1A G-65.0 24321-000650 2 30 1 1 1
BAND 194202-56460 1 31 2 2 2
CLAMP 12 124766-59050 1 32 2 2 2
CLAMP 12 124766-59050 1 33 2 2 2
CLAMP 12 124766-59050 1 34 2 2 2
CLAMP 12 124766-59050 1 35 2 2 2
GROMMET 172422-78760 1 36 1 1 1
WASHER 8, POLISHED 22137-080000 1 37 1 1 1
WASHER, 8 22217-080000 1 38 1 1 1
PIPE 5X500,VINYL 23061-050500 1 39 1 1 1
BOLT M 6X 12 26013-060122 1 40 4 4 4
BOLT M10X 16 26013-100162 1 41 1 1 1
BOLT M 6X 16 26014-060162 1 42 2 2 2
BOLT M10X16 26014-100162 1 43 2 2 2
BOLT M10X 16 26013-100162 1 43-1 N 2 2 2

BOLT M 8X 80 PLATED 26116-080802 1 44 1 1 1
BAND 194202-56460 1 45 1 1 1
WASHER 10,POLISHED 22137-100000 1 46 W 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.13. ELECTRIC PART(ENGINE)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

13. ELECTRIC PART(ENGINE)

CORD ASSY BATTERY 172A69-16100 1 1 1 1 1
HARNESS,A ASSY 172A89-16500 1 5 1 1 1
FUSE,SLOW BLOW 60A 172A65-16550 2 7 1 1 1

DIODE 172648-16600 2 8 2 2 2
FUSE,SLOW BLOW 60A 172A69-16710 2 9 2 2 2
BLOW 79A,SLOW CMP 198153-51700 2 11 1 1 1

CLAMP 10X70 172126-16540 1 14 1 1 1
CLAMP 10X70 172126-16540 1 15 1 1 1
HARNESS C 172A65-16540 1 16 1 1 1
BAND 172137-16560 1 17 2 2 2
CODE, ENGINE EARTH 172187-16600 1 18 1 1 1
COLLAR 172A69-16680 1 19 1 1 1
BRACKET,SWP 2P-M 172A69-16700 1 20 1 1 1
NUT 6 26716-060002 1 21 1 1 1
SUPPORT ASSY,A 172A89-16750 1 22 1 1 1
CLAMP,HARNESS 172A89-16770 1 23 1 1 1
STAY,HARNESS 172A89-16790 1 24 1 1 1
SUPPORT,HARNESS B 172A89-16800 1 25 1 1 1
BAND 194202-56460 1 26 3 3 3
RELAY 129927-77900 1 27 1 1 1
BRACKET, CONNECTOR 129927-77910 1 28 1 1 1
BAND CLAMP 1E8775-84120 1 29 1 1 1
WASHER 6, POLISHED 22137-060000 1 30 2 2 2
SPRING WASHER 6 22217-060000 1 31 1 1 1
BOLT M 6X 16 26013-060162 1 32 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 33 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 34 2 2 2
BOLT W/WASHER M8X16 26013-080162 1 35 1 1 1
BOLT M 8X 85 26013-080852 1 36 1 1 1
BOLT M10X 16 26013-100162 1 37 2 2 2
BOLT M10X 16 26013-100162 1 38 1 1 1
BOLT W/WASHER M10X20 26013-100202 1 39 2 2 2
BOLT M10X16 26014-100162 1 40 2 2 2
BOLT M10X16 26014-100162 1 41 1 1 1
SCREW, M6X12 26023-060122 1 42 2 2 2
NUT M 8 26051-080002 1 43 1 1 1
BOLT M 8X 16 26014-080162 1 44 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.14. ELECTRIC PART(CONTROL VALVE PLATE)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

14. ELECTRIC PART(CONTROL VALVE PLATE)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

HARNESS,D ASSY 172A69-16551 1 1 1 1 1
BAND 194202-56460 1 5 1 1 1
HORN 194151-57100 1 6 1 1 1

BAND CLAMP 1E8775-84120 1 7 1 1 1
BOLT M 6X 12 26013-060122 1 8 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.15. ELECTRIC PART(BATTERY)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

15. ELECTRIC PART(BATTERY)

CODE, BATTERY - 172187-16110 1 1 1 1 1
RETAINER, BATTERY 172112-16201 1 2 1 1 1
ROD 172164-16370 1 3 2 2 2

BATTERY 130E41R 1E8080-83320 1 4 1 1 1
WASHER 8 22157-080000 1 5 2 2 2
BOLT M10X 16 26013-100162 1 6 1 1 1

NUT M 8 26716-080002 1 7 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.16. ELECTRIC PART(STARTING SWITCH)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

16. ELECTRIC PART(STARTING SWITCH)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SWITCH, START 172187-17100 1 1 1 1 1
CODE 172187-17070 3 3 1 1 1
COVER M5 172187-17080 3 4 3 3 3

COVER M4 172187-17090 3 5 2 2 2
KEY ASSY 933110-00301 2 7 1 1 1
PRESSER SWITCH,ASSY 172478-17201 1 10 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.17. ELECTRIC PART(AIR CONDITIONER)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

17. ELECTRIC PART(AIR CONDITIONER)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

RELAY CA,TYPE C 198461-52950 1 1 2 2 2
BOLT M 6X 16 26014-060162 1 2 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.18. ELECTRIC PART(SWITCH BOX : QUICK COUPLER)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

18. ELECTRIC PART(SWITCH BOX : QUICK COUPLER)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SWITCH BOX(EX 172958-17110 1 1 1 1 1
LABEL,SWITCH 172472-03290 2 2 1 1 1
LABEL,COVER 172472-03300 2 3 1 1 1

SWITCH ASSY(GENERA 172958-17140 3 7 1 1 1
SWITCH ASSY(COTROLER 172958-17150 3 8 1 1 1
INDICATER LAMP(CP 172958-17160 3 9 1 1 1

TAPPING SCREWS 172958-17170 3 10 6 6 6
TAPPING SCREWS 172958-17180 3 11 2 2 2
PAC KING 172958-17190 3 12 1 1 1
BRACKET 172958-17200 3 13 1 1 1
CASE, UPPER 172958-17210 3 14 1 1 1
CODE CP 4P 172958-17220 3 15 1 1 1
SPRING PIN 3X28 22351-030028 3 16 1 1 1
QH BRACKET ASSY 172A89-17150 1 17 1 1 1
SCREW 172137-46210 1 18 2 2 2
PLUG 172187-64900 1 19 1 1 1
BAND CLAMP 1E8775-84120 1 20 1 1 1
BOLT W/WASHER M10X20 26013-100202 1 21 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.19. ELECTRIC PART(SEAT MOUNT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

19. ELECTRIC PART(SEAT MOUNT)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

BAND 300 172126-11510 1 1 2 2 2
RUBBER 100 172456-13470 1 2 1 1 1
HARNESS,B ASSY(EX 172A89-16550 1 3 1 1 1

PULLER 172175-17120 2 7 1 1 1
COVER 172187-17220 2 8 1 1 1
FUSE, 5A 29420-050000 2 12 2 2 2

FUSE, 10A 29420-100000 2 13 5 5 5
FUSE B30 29420-300000 2 14 3 3 3
BAND 172137-16560 1 15 1 1 1
BOX A ASSY,CONTROLER 172A89-17090 1 16 1 1 1
EV,CONTROLER BOX A 172A69-17140 2 18 1 1 1
SEAL,MULTI COVER 172487-61460 2 19 1 1 1
PLATE ASSY,SWITCH 172A89-17180 1 20 1 1 1
SOCKET ASSY 172A64-17250 1 21 1 1 1
SWITCH, ENGINE STOP 172A69-17260 1 22 1 1 1
COLLER 172A65-17480 1 23 4 4 4
SWITCH, SAFETY START 194464-52190 1 24 1 1 1
RELAY CA,TYPE C 198461-52950 1 25 8 8 8
BAND 194202-56460 1 26 1 1 1
SPONGE 172445-68650 1 27 1 1 1
BRACKET, CONNECTOR 129927-77910 1 28 1 1 1
TIMER 124970-77920 1 29 1 1 1
RELAY 129927-77920 1 30 1 1 1
WASHER 6, POLISHED 22137-060000 1 31 4 4 4
WASHER 8 22157-080000 1 32 2 2 2
BOLT M 6X 40 26013-060402 1 33 4 4 4
BOLT W/WASHER M8X16 26013-080162 1 34 3 3 3
BOLT M 8X 25 26013-080252 1 35 2 2 2
BOLT M 6X 16 26014-060162 1 36 2 2 2
BOLT M 6X 16 26014-060162 1 37 2 2 2
NUT M 8 26051-080002 1 38 1 1 1
BOLT M 8X 16 PLATED 26106-080162 1 39 1 1 1
BOLT M 8X 16 PLATED 26106-080162 1 40 2 2 2
NUT M18,LOCK 26776-180002 1 41 1 1 1
COVER B ASSY,BOX 172A89-17500 1 42 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 43 3 3 3
BAND 300 172126-11510 1 44 1 1 1
BAND CLAMP 1E8775-84120 1 45 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.20. ELECTRIC PART(WORK LAMP)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

20. ELECTRIC PART(WORK LAMP)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

BAND CLAMP 1E8775-84120 1 1 1 1 1
HARNESS,BOOM 172A89-16440 1 2 1 1 1
BAND 172137-16560 1 3 1 1 1

LAMP COMP.,WORKING 172162-17400 1 4 1 1 1
BULB 12V55W 172141-17211 2 5 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.21. ELECTRIC PART(INDICATOR BOX)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

21. ELECTRIC PART(INDICATOR BOX)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

LAMP ASSY ASSY 172A65-17150 1 1 1 1 1
SWITCH ASSY 172A69-17200 1 2 1 1 1
SWITCH ASSY 172A69-17201 1 2-1 N 1 1 1

PANEL PLUG 172538-17100 2 3 1 1 1
SWITCH, TRAVLE 172A69-17210 2 4 1 1 1
SWITCH, TRAVLE 172A69-17211 2 4-1 N 1 1 1

SWITCH, WIPER 172A69-17220 2 5 1 1 1
SWITCH, WIPER 172A69-17221 2 5-1 N 1 1 1

SWITCH, LIGHT 172A69-17230 2 6 1 1 1
SWITCH, LIGHT 172A69-17231 2 6-1 N 1 1 1

SWITCH, AUTO DECEL 172A69-17240 2 7 1 1 1
SWITCH, ECO 172A69-17250 2 8 1 1 1

PAN EL 172A69-17270 2 9 1 1 1
MONITOR ASSY 172A77-17250 1 10 1 1 1
SCREW 5X12 22857-500121 1 11 3 3 3

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.22. TRAVEL ALARM

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

22. TRAVEL ALARM

HARNESS,TRAVEL 172A89-16420 1 1 1 1 1
COVER CMP,BUZZER(49) 172A89-16810 1 2 1 1 1
COVER,BUZZER (49) 172A89-16870 1 3 1 1 1

BUZZER, BACK 172511-17351 1 4 1 1 1
BAND 194202-56460 1 5 1 1 1
GROMMET 172137-66230 1 6 1 1 1

CONNECTOR 172156-76110 1 7 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 8 1 1 1
BOLT M10X 16 26013-100162 1 9 2 2 2
BOLT W/WASHER M8X16 26013-080162 1 10 2 2 2
PACKING, 11.0 41851-000110 1 11 1 1 1
PRESSER SWITCH,ASSY 172478-17201 1 12 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.23. AIR CONDITIONER(CABIN RELATED)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

23. AIR CONDITIONER(CABIN RELATED)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

HARNESS B,AIR 172A89-16600 1 1 1 1 1
GRILLE 172458-17700 1 2 2 2 2
COVER ASSY,AC A 172A69-18200 1 3 1 1 1

SEAL,DUCT 172A69-18210 2 4 1 1 1
SEAL, DUCT SIDE 1A7470-87320 2 6 1 1 1
COVER ASSY,AC B 172A69-18230 1 7 1 1 1

SEAL 172446-49280 2 9 1 1 1
SEAL, DUCT SIDE 1A7470-87320 2 10 1 1 1
BRACKET ASSY,AC 172A69-18650 1 11 1 1 1
INTAKE PLATE (49) 172A69-18680 1 12 1 1 1
DUCT ASSY,AC 172A69-18700 1 13 1 1 1
SEAL A,DUCT 172A69-18760 2 15 1 1 1
SEAL B,DUCT 172A69-18770 2 16 1 1 1
EV,DUCT 172A69-18780 2 17 1 1 1
SEAL C,DUCT 172A69-18790 2 18 1 1 1
DUCT C ASSY,AC 172A69-18730 1 19 1 1 1
SEAL,DUCT C 172A69-18750 2 21 2 2 2
COVER ASSY,DUCT 172A69-18820 1 22 1 1 1
LEVER,DUMPER 172A69-18860 1 23 1 1 1
DUMPER ASSY 172A69-18940 1 24 1 1 1
SEAL 65 172A69-18800 2 25 2 2 2
EV B,DUMPER 172A69-18990 2 27 1 1 1
CABLE,HEATER V 172A69-19700 1 29 1 1 1
CABLE,AC DAMPER 172A89-19710 1 30 1 1 1
CABLE,AC DOOR 172A69-19720 1 31 1 1 1
CONTROL ASSY 172A69-19730 1 32 1 1 1
CLAMP,CABLE 172A69-19890 1 33 1 1 1
BRACKET ASSY,ACU(49 172A89-19100 1 34 1 1 1
SEAL 560 172458-64140 2 36 1 1 1
CLIP 172187-63160 1 37 2 2 2
CLIP 1A6260-64200 1 38 4 4 4
AIR-CON GRILL CMP 1A7030-87411 1 39 2 2 2
WASHER 6, POLISHED 22137-060000 1 40 1 1 1
WASHER 10,POLISHED 22137-100000 1 41 2 2 2
BOLT W/WASHER 10X 85 26013-100852 1 42 2 2 2
BOLT M 6X 10 26013-060102 1 43 2 2 2
BOLT M 8X 16 26014-080162 1 44 4 4 4
BOLT M 8X 16 26014-080162 1 45 3 3 3
BOLT M 8X 16 26014-080162 1 46 5 5 5
BOLT M 8X 16 26014-080162 1 47 3 3 3
BOLT 10X25 W/PLW+SPW 26014-100252 1 48 3 3 3
SCREW, M4X10 26023-040102 1 49 1 1 1
NUT M 6 26051-060002 1 50 1 1 1
SCREW, M4X12 26587-040122 1 51 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.24. AIR CONDITIONER(PIPING)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

24. AIR CONDITIONER(PIPING)

BAND 300 172126-11510 1 1 4 4 4
BAND 300 172126-11510 1 2 1 1 1
HOSE ASY,HEATER 1650 172A69-17870 1 3 1 1 1

HOSE ASY,HEATER 1550 172A69-17890 1 6 1 1 1
SPONGE HOSE,120X53 172A69-18900 1 9 2 2 2
UNIT ASSY,AC 172A69-19010 1 10 1 1 1

HOSE,COMP-COND 172A89-19800 1 11 1 1 1
HOSE,COND-R/D 172A69-19810 1 12 1 1 1
HOSE,UNIT-R/D 172A89-19820 1 13 1 1 1
HOSE,UNIT-COMP 172A89-19830 1 14 1 1 1
HOSE,DRAIN 172A69-19860 1 15 1 1 1
CONNECTOR,TUBE 172A69-19880 1 16 1 1 1
RECEIVER DRYER 1E8545-80210 1 17 1 1 1
JOINT (RECEIVER 1E8545-80250 1 18 1 1 1
PIPE, JOINT 1A7030-88660 1 19 2 2 2
SPACER 10.4X9.5 172491-61490 1 20 6 6 6
WASHER 8 22157-080000 1 21 6 6 6
CLAMP 18 23080-018000 1 22 4 4 4
BOLT M 8X 25 26013-080252 1 23 6 6 6
BOLT M 6X 25 26014-060252 1 24 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.25. AIR CONDITIONER(ENGINE RELATED)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

25. AIR CONDITIONER(ENGINE RELATED)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

BAND 300 172126-11510 1 1 6 6 6
BAND 172137-16560 1 2 2 2 2
BAND 172137-16560 1 3 1 1 1

VALVE ASSY, HEATER 172425-17630 1 4 Z 1 1 1

ELBOW,R3/8-56 172499-17650 1 5 1 1 1
CONNECTOR 172A65-17650 1 6 1 1 1
JOINT 3/8 172124-17640 1 6-1 S 1 1 1

HOSE ASY,HEATER 1050 172A89-17810 1 7 1 1 1
HOSE ASY,HEATER 900 172A89-17840 1 10 1 1 1
HOSE ASY,HEATER 1050 172A69-17840 1 10-1 S 1 1 1

COMPRESSOR ASSY 172A69-18100 1 13 1 1 1
BRACKET A ASSY 172A89-18110 1 14 1 1 1
PULLEY ASSY,TENSION 172A69-18150 1 15 1 1 1
PULLEY,TENSION 172A69-18160 2 16 1 1 1
CIRCLIP 35 22252-000350 2 17 1 1 1
BALL BEARING 24104-062020 2 18 1 1 1
GUARD,BELT 172A89-18150 1 19 1 1 1
V BELT HM60 172A69-18190 1 20 1 1 1
ADJUST BAR 172A69-18290 1 21 1 1 1
BRACKET B ASSY 172A69-18350 1 22 1 1 1
BRACKET(PULLY ASSY 172A69-18370 1 23 1 1 1
PLATE 172A69-18401 1 24 1 1 1
NUT 172187-18410 1 25 1 1 1
COLLAR,COMPRESSOR 172A69-18430 1 26 1 1 1
JOINT 129122-44480 1 27 1 1 1
SPACER 129466-96240 1 28 1 1 1
WASHER 8, POLISHED 22137-080000 1 29 2 2 2
WASHER 10,POLISHED 22137-100000 1 30 1 1 1
CLAMP 18 23080-018000 1 31 4 4 4
BOLT W/WASHER M8X20 26013-080202 1 32 2 2 2
BOLT M 8X 25 26013-080252 1 33 2 2 2
BOLT M 8X 25 26013-080252 1 34 1 1 1
BOLT M 6X 25 26014-060252 1 35 2 2 2
BOLT M 8X 20 26014-080202 1 36 2 2 2
BOLT M 8X 25 26014-080252 1 37 2 2 2
BOLT M 8X 25 26014-080252 1 38 2 2 2
BOLT M 8X 35 26014-080352 1 39 1 1 1
BOLT M10X 20 PLATED 26106-100202 1 40 1 1 1
BOLT M10X 35 PLATED 26106-100352 1 41 1 1 1
BOLT 8X50 26450-080502 1 42 2 2 2
BAND 194202-56460 1 43 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.26. AIR CONDITIONER(CONDENSER RELATED)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

26. AIR CONDITIONER(CONDENSER RELATED)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

BAND 300 172126-11510 1 1 2 2 2
BAND 300 172126-11510 1 2 1 1 1
MOUNT 172447-13550 1 3 4 4 4

HARNESS A ASSY,AC 172A69-16570 1 4 1 1 1
DIODE 172648-16600 2 6 1 1 1
BRACKET 172162-18040 1 9 1 1 1

COVER,AC COND (49) 172A89-18440 1 10 1 1 1
SEAL ,A 172A89-19690 2 12 1 1 1
RUBBER,SEAL 510 172458-61490 2 13 1 1 1
COVER ,AC HOSE (49) 172A89-18580 1 14 1 1 1
SPONGE HOSE,120X53 172A69-18900 1 15 1 1 1
STAY L ASSY,AC COND 172A69-19541 1 16 1 1 1
STAY R,AC COND 172A69-19581 1 17 1 1 1
BRACKET,AC COND (49) 172A69-19590 1 18 2 2 2
COVER B,AC COND (49) 172A89-19610 1 19 1 1 1
COND ,SEAL ASSY 172A89-19670 1 20 1 1 1
SEAL ,CONDENCER 172A89-19680 2 22 1 1 1
WASHER 10,POLISHED 22137-100000 1 23 3 3 3
BOLT W/WASHER M8X16 26013-080162 1 24 2 2 2
BOLT 10X70 W/SP.WSHR 26013-100702 1 25 3 3 3
BOLT M 6X 25 26014-060252 1 26 1 1 1
BOLT M 6X 25 26014-060252 1 27 1 1 1
BOLT W/WASHER 6X 30 26014-060302 1 28 2 2 2
BOLT M 8X 16 26014-080162 1 29 2 2 2
BOLT M10X 20 26014-100202 1 30 4 4 4
BOLT M10X 20 26014-100202 1 31 6 6 6
BOLT M10X 20 26014-100202 1 32 1 1 1
NUT M 6 26051-060002 1 33 4 4 4
NUT M 8 26051-080002 1 34 8 8 8

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.27. SPROCKET & ROLLER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

27. SPROCKET & ROLLER

SPROCKET,19 172A89-29100 1 1 2 2 2
BOLT 14X35 172455-29140 1 2 24 24 24
WASHER 14X35 172455-29150 1 3 24 24 24

ROLLER ASSY, LOWER 172478-37302 1 4 10 10 10
BUSH 40X40 172478-37400 3 7 20 20 20
SHAFT ASSY 172478-37342 2 8 10 10 10

SEAL,COVER B 172478-37372 2 9 10 10 10
FLOATING SEAL 172478-37380 2 10 20 20 20
CIRCLIP 38 22242-000380 2 11 10 10 10
O-RING 1A P-34.0 24311-000340 2 12 10 10 10
PLUG PT1/8 933171-13691 2 13 10 10 10
WASHER, SPRING 20 22217-200000 1 14 20 20 20
BOLT, 20 X 40 26076-200409 1 15 20 20 20
ROLLER ASSY, CARRIER 172A89-37500 1 16 2 2 2
COLLAR 35X50X3 172730-31630 2 17 2 2 2
SEAL 45 85 8.5 19 172164-37120 2 18 2 2 2
CAP,SEALING 72 172A89-37530 2 21 2 2 2
PLUG PT1/8 194630-42120 2 22 2 2 2
CIRCLIP 35 22242-000350 2 23 2 2 2
CIRCLIP 72 22252-000720 2 24 2 2 2
BALL BEARING 24101-062074 2 25 4 4 4
SPRING WASHER 16 22217-160000 1 26 2 2 2
BOLT M16X 85 PLATED 26116-160852 1 27 2 2 2
NUT M16 26716-160002 1 28 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.28. IDLER & ADJUST

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

28. IDLER & ADJUST

IDLER & ADJUST (49) 772478-37120-1 1 1 2 2 2
IDLER ASSY (GRAY:49) 772478-37101-2 2 2 2 2 2
IDLER ,375 (GRAY:49) 172478-37101-2 3 3 2 2 2

BUSH, 44 172478-37121 4 5 4 4 4
SEAL COVER A,IDLER 172478-37141 3 6 2 2 2
SEAL COVER B,IDLER 172478-37151 3 7 2 2 2

FLOATING SEAL 172455-37160 3 8 4 4 4
SHAFT 172455-37170 3 9 2 2 2
SP PIN 10AWX70 172455-37180 3 10 2 2 2
CIRCLIP 40 22242-000400 3 11 2 2 2
O-RING 1A P-38.0 24311-000380 3 12 4 4 4
PLUG PT1/8 933171-13691 3 13 2 2 2
ADJUST, CRAWLER (49) 172187-37700-3 2 14 2 2 2
PLATE,ADJUSTER 172162-37810 2 15 2 2 2
SPRING WASHER 14 22217-140000 2 16 8 8 8
BOLT M14X 60 PLATED 26116-140602 2 17 8 8 8
CYLINDER, ADJUSTER 772162-37770 1 18 2 2 2
O-RING 55.0 198072-17440 2 19 2 2 2
RING 55,BACKUP 172478-37710 2 20 2 2 2
DKB 55 69 8 11 172478-37720 2 21 2 2 2
TUBE ASSY, ADJUSTING 172162-37770 2 22 2 2 2
PISTON 172162-37800 2 23 2 2 2
VALVE ASSY, NIPPLE 172122-37844 2 24 2 2 2
O-RING 1B P-14.0 24315-000140 3 25 2 2 2
NIPPLE PT1/8,GREASE 24761-020000 3 26 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.29. CRAWLER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

29. CRAWLER

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SHOE ASSY,TRACK 450L 172A89-38100 1 1 1 1 1
LINK ASSY 172A89-38120 2 2 1 1 1
LINK, TRACK L 172A89-38180 3 3 39 39 39

LINK, TRACK R 172A89-38190 3 4 39 39 39
BUSH, TRUCK 172A89-38220 3 5 38 38 38
PIN, TRUCK 172A89-38230 3 6 38 38 38

BUSH, MASTER 172A89-38240 3 7 1 1 1
PIN,MASTER 172A89-38250 3 8 1 1 1
COLLAR 172A89-38260 3 9 2 2 2
SEAL 172A89-38280 3 10 76 76 76
SHOE,TRUCK 450 L(49) 172A89-38130 2 11 39 39 39
NUT,SHOE 172A89-38160 2 12 156 156 156
BOLT,SHOE 172A89-38170 2 13 156 156 156
SHOE ASSY,TRACK 450R 172A89-38110 1 14 1 1 1
LINK ASSY 172A89-38120 2 15 1 1 1
LINK, TRACK L 172A89-38180 3 16 39 39 39
LINK, TRACK R 172A89-38190 3 17 39 39 39
BUSH, TRUCK 172A89-38220 3 18 38 38 38
PIN, TRUCK 172A89-38230 3 19 38 38 38
BUSH, MASTER 172A89-38240 3 20 1 1 1
PIN,MASTER 172A89-38250 3 21 1 1 1
COLLAR 172A89-38260 3 22 2 2 2
SEAL 172A89-38280 3 23 76 76 76
SHOE,TRUCK 450 R(49) 172A89-38140 2 24 39 39 39
NUT,SHOE 172A89-38160 2 25 156 156 156
BOLT,SHOE 172A89-38170 2 26 156 156 156
BUBBER CRAWLER 172488-38600 1 27 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.30. CONTROL EQUIPMENT(LOCK LEVER & LEVER STAND)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

30. CONTROL EQUIPMENT(LOCK LEVER & LEVER STAND)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

GRIP,RED ROUND 1D4070-23580 1 1 1 1 1
GRIP,RED 172A77-46050 1 1-1 S 1 1 1

LEVER STAND ASSY,L 172A69-46101 1 2 1 1 1
BUSH 2015 172141-41370 2 3 2 2 2
BUSH 25X15 24550-025150 2 5 2 2 2

O-RING 27X5.7 172124-46200 1 6 2 2 2
ROCK GUIDE (49) 172A69-46210 1 7 1 1 1
ROD,ASSY SPRING (49) 172A69-46220 1 8 1 1 1
LEVER ASSY,LOCK (49) 172A69-46250 1 9 1 1 1

SPRING 2.3X15X60 172A69-46270 1 10 1 1 1
SPRING,GAS 172455-46890 1 11 1 1 1
BUSH 172165-47550 1 12 1 1 1
SHIM 42X25.5X0.5 172165-47980 1 13 2 2 2
WASHER 25.5X42 172165-47990 1 14 1 1 1
WASHER 8, POLISHED 22137-080000 1 15 2 2 2
CIRCLIP 25S 22242-000250 1 16 1 1 1
CIRCLIP E- 7 22272-000070 1 17 1 1 1
SPRING PIN 3.5X40 22351-035040 1 18 1 1 1
SPRING PIN 6X40 22351-060040 1 19 1 1 1
COTTER PIN 2.0X20 22417-200200 1 20 2 2 2
O-RING 1A P-34.0 24311-000340 1 21 2 2 2
NIPPLE PT1/8,GREASE 24761-020000 1 22 2 2 2
BOLT M10X 20 26014-100202 1 24 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 LEVER ASSY,LOCK 172A69-46251 1 9-1 F 1 1 1

Remarks
(1)B=REF.NO.9 M10 SCREW,
NO.9-1 NO SCREW.
INTERCHANGEABLE BY SIMULTANEOUS
REPLACEMENT WITH RE.NO.1-1.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.31. CONTROL EQUIPMENT(TRAVEL)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

31. CONTROL EQUIPMENT(TRAVEL)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

LEVER L ASSY,TRACK 172A69-45211 1 1 1 1 1
LEVER R ASSY,TRACK 172A69-45251 1 2 1 1 1
GRIP L, DRIVE 172187-45870 1 3 1 1 1

GRIP R, DRIVE 172187-45880 1 4 1 1 1
WASHER 4 22117-040000 1 5 2 2 2
BOLT W/WASHER M10X20 26013-100202 1 6 4 4 4

SCREW, M4X12 26587-040122 1 7 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.32. CONTROL EQUIPMENT(BLADE)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

32. CONTROL EQUIPMENT(BLADE)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

GRIP(BLACK 172964-12140 1 1 1 1 1
LEVER ASSY,BLADE(49) 172A69-45850 1 2 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 3 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.33. CONTROL EQUIPMENT(SWING)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

33. CONTROL EQUIPMENT(SWING)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

PEDAL,SWING (49) 172A69-45350 1 1 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 2 2 2 2
SHAFT, PEDAL COVER 172187-45651 1 3 1 1 1

COVER,PEDAL(GRAY:49) 172187-45720-2 1 4 1 1 1
COVER PAD 172187-45760 1 5 1 1 1
PLATE,PEDAL EX (49) 172A69-45800 1 6 1 1 1

WASHER 10,POLISHED 22137-100000 1 7 1 1 1
COTTER PIN 2.5X20 22417-250200 1 8 1 1 1
BOLT W/WASHER M10X25 26013-100252 1 9 6 6 6

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.34. ARM REST

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

34. ARM REST

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

ARM REST 172441-44320 1 1 2 2 2
PLATE,GUIDE R ASSY 172A46-46632 1 2 1 1 1
PLATE,ARMREST L/R 172A46-46703 1 3 2 2 2

PLATE,GUIDE L ASSY 172A46-46732 1 4 1 1 1
BOLT 8X 16 172519-63240 1 5 4 4 4
WASHER 8 22157-080000 1 6 2 2 2

BOLT W/WASHER M8X20 26013-080202 1 7 2 2 2
BOLT M 8X 16 26014-080162 1 8 4 4 4

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.35. TRAVEL FRAME

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

35. TRAVEL FRAME

FRAME ASSY 172A89-50100 1 1 1 1 1
FRAME ASSY, LOWER 172B11-50100 1 1-1 N 1 1 1

COVER, FRAME 172458-50480-2 1 2 2 2 2
BOLT 26106-100122 1 3 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 PLATE, GUARD 172187-50801-3 1 4 2 2 2
1 PLATE, GUARD 172187-50811-3 1 5 2 2 2
1 WASHER 22137-160000 1 6 12 12 12

1 WASHER, SPRING 22217-160000 1 7 12 12 12
1 BOLT 26116-160402 1 8 12 12 12

Remarks
(1)IRON CRAWLER SPEC.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.36. TURNING FRAME & TURNING BEARING)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

36. TURNING FRAME & TURNING BEARING)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

WEIGHT,COUNTER (49) 172A89-53310 1 1 1 1 1
WASHER 24.5X65X8 172187-53321 1 2 4 4 4
BOLT 24X140 172455-53331 1 3 4 4 4

GROMMET 30 172456-53700 1 4 2 2 2
FRAME,TURNING (49) 172A89-54100 1 5 1 1 1
BUSH 100X100 172A89-54500 2 7 1 1 1

BUSH 100X40 172187-54760 2 8 1 1 1
BEARING ASSY,SWING 172A89-57600 1 9 1 1 1
SEAL 172A89-57620 2 11 2 2 2
BOLT 10.9 16X90 172A69-57650 1 12 30 30 30
PIN 16X40,STRAIGHT 172162-57660 1 13 4 4 4
BOLT 10.9 16X85 172A69-57660 1 14 28 28 28

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.37. COVER(FUEL TANK SIDE)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

37. COVER(FUEL TANK SIDE)

COVER ASSY,FO (2J) 172A89-61600 1 1 1 1 1
COVER ASSY,FO 172A89-61600-Y 1 1-1 S 1 1 1

SEAL 172A69-61650 2 3 1 1 1
STAY ASSY 172A69-61660 1 4 1 1 1
GRIP ASSY 172A69-61830 1 5 1 1 1

GRIP ASSY 172A69-61830-Y 1 5-1 S 1 1 1

STEP ASSY 172A69-62050 1 6 1 1 1
WASHER 22157-100000 1 7 2 2 2
BOLT 26013-100252 1 8 2 2 2
BOLT 26014-100252 1 9 3 3 3
BOLT 26014-100252 1 10 3 3 3
BOLT 26014-100252 1 11 3 3 3

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.38. COVER(CENTER)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

38. COVER(CENTER)

HANDLE, LOCK 172187-61421 1 1 1 1 1
COVER ASSY,CENTER 172A89-61680 1 2 1 1 1
COVER ASSY,CENTER 172A89-61680-Y 1 2-1 S 1 1 1

SEAL 172A69-13690 2 3 1 1 1
EV A,COVER 172A89-61720 2 5 1 1 1
SEAL 340 172A89-61730 2 6 1 1 1

SEAL 172A69-61780 2 9 1 1 1
EV A,COVER 172A89-61790 2 10 1 1 1
BRACKET ,COVER (49) 172A89-61800 1 11 1 1 1
COVER ASSY,TOOL BOX 172A89-61880 1 12 1 1 1
BASE ,TOOL BOX (49) 172A89-61900 1 13 1 1 1
SEAL 172A69-13690 2 14 1 1 1
EV A,TOOL BOX 172A89-61980 2 16 1 1 1
BOLT, WING 172142-62301 1 17 1 1 1
KEY ASSY, CYLINDER 172164-66170 1 18 1 1 1
RUBBER, STOPPER 172176-67150 1 23 1 1 1
PLATE, LOCK 172162-69470 1 24 1 1 1
PIN, SNAP 22372-100000 1 25 1 1 1
BOLT 26013-080122 1 26 2 2 2
BOLT 26014-100202 1 27 3 3 3
BOLT 26014-100202 1 28 3 3 3
BOLT 26014-100202 1 29 2 2 2
BOLT 26014-100202 1 30 4 4 4
NUT 26051-080002 1 31 1 1 1
NUT 26347-100002 1 32 1 1 1
COVER ASSY 172455-65701 1 33 1 1 1
BOLT 26014-080162 1 34 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 COVER ASSY,ENG 172A89-61740 1 7 1 1 1
1 COVER ASSY,ENG 172A89-61740-Y 1 7-1 S 1 1 1

2 LABEL, ENGINE COVER 172437-03402 1 35A 1 1 1
2 LABEL, ENGINE ROOM 172A36-03411 1 35B 1 1 1

2 LABEL, MUFFLER 172437-03422 1 35C 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.35A,35B & 35C.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.39. COVER(SEAT MOUNT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

39. COVER(SEAT MOUNT)

COVER ,A/C HOSE (49) 172A69-61240 1 1 1 1 1
EV,HOSE COVER 172A69-61280 2 3 1 1 1
BOLT M10X 16 PLATED 26106-100162 1 4 4 4 4

BRACKET,RUBBER PLATE 172A69-61010 1 5 1 1 1
RUBBER PLATE 172A69-61020 1 6 1 1 1
PLATE A ASSY 172A89-61010 1 7 1 1 1

RUBBER, PLATE A 172A89-61020 2 9 1 1 1
PLATE ASSY,MANUAL 172A89-61030 1 10 1 1 1
COVER,TRAY 172A89-61060 1 11 1 1 1
COVER ASSY,SEAT MT 172A89-61130 1 12 1 1 1
GLASSWOOL,COVER 172A69-61150 2 14 1 1 1
SEAL,COVER SEAT MT 172A89-61220 2 15 1 1 1
COVER ASSY,P HOSE 172A89-61150 1 16 1 1 1
TRIM 195 172434-61180 2 18 1 1 1
COVER,MULTI (49) 172A89-61180 1 19 1 1 1
COVER,HARNESS 172A69-61330 1 20 1 1 1
HANDLE, LOCK 172187-61421 1 21 1 1 1
COVER ,FLOOR MAT(49) 172A89-61420 1 22 1 1 1
EV,COVER 172A89-61440 2 24 1 1 1
STEP ASSY (49) 172A69-62210 1 25 1 1 1
COVER ASSY,FL P (49) 172A69-64760 1 26 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 27 2 2 2
BOLT W/WASHER M8X16 26013-080162 1 28 2 2 2
BOLT M10X 16 26013-100162 1 29 2 2 2
BOLT W/WASHER M10X25 26013-100252 1 30 5 5 5
BOLT W/WASHER M10X25 26013-100252 1 31 3 3 3
BOLT M10X 20 26014-100202 1 32 2 2 2
BOLT M10X 20 26014-100202 1 33 2 2 2
BOLT M 8X 16 PLATED 26106-080162 1 34 3 3 3
BOLT M 8X 16 PLATED 26106-080162 1 35 2 2 2
NUT M10 26366-100002 1 36 4 4 4
COVER ASSY,SEAT (49) 172A89-61080 1 37 1 1 1
EV,COVER SEAT MT 172A69-61120 2 39 1 1 1
CUSHION,SEAT 172A69-64990 1 40 1 1 1
BOLT M 8X 25 PLATED 26106-080252 1 41 4 4 4
LABEL, 2-WAY US 172437-03601 1 42A 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.42A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.40. COVER(TRAVEL FRAME)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

40. COVER(TRAVEL FRAME)

RUBBER 172162-61500 1 1 4 4 4
COVER,UNDER(GRAY:49) 172187-61500-3 1 2 1 1 1
COVER,TRAVEL (49) 172A89-61540 1 3 2 2 2

WASHER 12 22157-120000 1 4 4 4 4
BOLT W/WASHER M10X20 26013-100202 1 5 8 8 8
BOLT W/WASHER M12X30 26013-120302 1 6 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.41. COVER(TURNING FRAME)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

41. COVER(TURNING FRAME)

COVER, OIL SUMP 172A69-61500 1 1 1 1 1
COVER,PUMP (49) 172A89-61510 1 2 1 1 1
COVER 172A69-61520 1 3 1 1 1

COVER, A C/V 172A89-61520 1 3-1 N 1 1 1

COVER,FO DRAIN (49) 172A89-61530 1 4 1 1 1
COVER,FRAME FL (49) 172A89-61550 1 5 1 1 1
COVER 172A69-61560 1 6 1 1 1

COVER,RESERVER (49) 172A89-61570 1 7 1 1 1
COVER ASSY,FO (49) 172A89-61580 1 8 1 1 1
WASHER 22137-100000 1 9 4 4 4
BOLT 26013-100162 1 10 4 4 4
BOLT 26106-100162 1 11 4 4 4
BOLT 26106-100162 1 12 6 6 6
BOLT 26106-100162 1 13 4 4 4
BOLT 26106-100162 1 14 4 4 4

BOLT 26106-100162 1 15 4 4 4
BOLT 26106-100162 1 16 4 4 4
BOLT 26106-100162 1 17 2 2 2

BOLT 26014-100252 1 19 2 2 2

RUBBER, PLATE 172A89-61470 2 22 1 1 1
BOLT 26014-100252 1 23 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 FRAME,GUARD L (49) 172A89-61350 1 18 1 1 1

2 FRAME,GUARD R (49) 172A89-61500 1 20 1 1 1

3 LABEL, SUPPORT 172472-03141 1 24A 1 1 1
3 LABEL, CYLINDER 172437-03352 1 24B 1 1 1
3 LABEL, CYLINDER 172437-03352 1 25A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.24A & 24B.
(2)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.25A.
(3)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.42. FLOOR MAT & INSTRUMENT PANEL

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

42. FLOOR MAT & INSTRUMENT PANEL

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

FLOOR MAT A 172A69-62150 1 1 1 1 1
FLOOR MAT B 172A69-62160 1 2 1 1 1
INPANE 172A67-63140 1 3 1 1 1

CLIP 172187-63160 1 4 4 4 4
BOLT 8X 16 172519-63240 1 5 1 1 1
PLUGE 28X302 Q 172958-64500 1 6 1 1 1

LEVER,BOX L 172A67-63110 1 7 1 1 1
LEVER,BOX R 172A67-63120 1 8 1 1 1
CLIP 172187-63160 1 9 1 1 1
BOLT 8X 16 172519-63240 1 10 3 3 3
BOLT 8X 16 172519-63240 1 11 2 2 2
CLIP 172122-17190 1 12 2 2 2
SIDE COVER A 172A67-63160 1 13 1 1 1
SIDE COVER B 172A67-63170 1 14 1 1 1
CLIP 1A6260-64200 1 15 3 3 3

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.43. SEAT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

43. SEAT

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SLIDE ASSY,SEAT 172A69-64100 1 1 1 1 1
PLATE,STOPPER 172A69-64740 1 2 1 1 1
FRAME ASSY,SLIDE 172A69-64811 1 3 1 1 1

BOLT W/WASHER M10X25 26013-100252 1 4 2 2 2
BOLT, M8X16 26450-080162 1 5 8 8 8
CLIP 172444-17660 1 6 2 2 2

SEAT ASSY 172467-64101 1 7 1 1
CUSHION, BACK REST 172467-64110 2 8 1 1
CUSHION 172467-64120 2 9 1 1
STOPPER 172467-64130 2 10 1 1
RAIL SET 172467-64140 2 11 1 1
SEAT BELT 172467-64150 2 12 1 1
COVER CAP 172467-64160 2 13 2 2
BOLT 172467-64170 2 14 2 2
TUBE 172467-64180 2 15 2 2
NUT 172467-64190 2 16 2 2
PLATE,SEAT EX (49) 172A69-64130 1 17 1 1 1
BOLT W/WASHER M8X16 26013-080162 1 18 4 4
BOLT M10X 16 26013-100162 1 19 4 4 4

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.44. SEAT MOUNT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

44. SEAT MOUNT

MOUNT ASSY,SEAT (49) 172A89-64200 1 1 1 1 1
SEAL 125 172444-17620 2 2 1 1 1
MOLDING 172458-18850 2 3 1 1 1

SEAL,135 172538-19700 2 4 1 1 1
SEAL,LEVER STAND 172458-46790 2 5 1 1 1
SEAL,COVER A 172162-61330 2 6 1 1 1

EV A,SEAT MT 172A89-64610 2 8 1 1 1
EV B,SEAT MT 172A89-64620 2 9 1 1 1
EV C,SEAT MT 172A69-64630 2 10 1 1 1
EV D,SEAT MT 172A69-64640 2 11 1 1 1
EV E,SEAT MT 172A89-64650 2 12 1 1 1
GLASSWOOL A,SEAT MT 172A69-64680 2 13 1 1 1
GLASSWOOL B,SEAT MT 172A69-64690 2 14 1 1 1
GLASSWOOL C,SEAT MT 172A89-64700 2 15 1 1 1
SEAL,SEAT MT 172A69-64720 2 16 1 1 1
RUBBER 580 172187-66140 2 17 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.45. BONNET(BODY)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

45. BONNET(BODY)

BON B UPPER ASSY,BLK 172A69-62410 1 2 1 1 1
ROCK PLATE 172A46-61960 2 3 1 1 1
PLATE,LOCK 172A69-62280 2 4 1 1 1
STAY,KEY 172A69-62291 2 5 1 1 1
HOOK ASSY 172A69-62310 2 6 1 1 1
PLATE ASSY,HINGE 172A69-62340 2 7 1 1 1
BON B UPPER,BLACK 172A69-62420 2 8 1 1 1
LEVER ASSY 172A69-62510 2 9 1 1 1
TORSION SPRING,STOPR 172156-65690 2 10 1 1 1
KEY ASSY, CYLINDER 172164-66170 2 11 1 1 1
BOLT M 8X 16 26014-080162 2 16 2 2 2
BOLT M 8X 16 26014-080162 2 17 2 2 2
BOLT M10X16 26014-100162 2 18 4 4 4
U-NUT M 8 26347-080002 2 19 1 1 1
U-NUT M10 26347-100002 2 20 1 1 1
BON B LOWER ASSY,BLK 172A69-62430 1 21 1 1 1
BON B FRONT,BLACK 172A69-62440 2 22 1 1 1
BON B REAR,BLACK 172A69-62450 2 23 1 1 1
ROD ASSY,CATCH 172A69-62470 2 24 1 1 1
WASHER 8 22157-080000 2 25 3 3 3
BOLT W/WASHER M8X20 26013-080202 2 26 3 3 3
BOLT M 8X 16 26014-080162 2 27 2 2 2
ROD ASSY,STOPPER 172A69-62650 1 28 1 1 1
STAY ASSY,BON B 172A69-65530 1 29 1 1 1
WASHER 8 22157-080000 1 30 2 2 2
WASHER 10 22157-100000 1 31 4 4 4
COTTER PIN 2.0X20 22417-200200 1 32 2 2 2
BOLT W/WASHER M10X25 26013-100252 1 33 4 4 4
BOLT M10X 20 26014-100202 1 34 4 4 4
BOLT M10X 20 26014-100202 1 35 3 3 3

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 COVER,UPPER (49) 172A69-62130 1 1 1 1 1

2 LABEL, RADIATOR US 172437-03391 1 36A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.36A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.46. BONNET(REAR)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

46. BONNET(REAR)

WASHER 1A1380-62160 1 1 1 1 1
SHAFT 172458-65050 1 2 1 1 1
COVER, LOCK 172458-65060 1 3 1 1 1

BONNET KIT, Y 172A69-08400 1 4-1 S 1 1 1

EMBLEM ASSY,L3 Y 172A89-03500 2 4A W 1 1 1

EV R,BONNET A 172A89-65160 3 6 1 1 1
EV L,BONNET A 172A89-65170 3 7 1 1 1
RUBBER, SEAL 172A69-65180 3 8 1 1 1
RUBBER, SEAL 172A69-65190 3 9 1 1 1
ROD ASSY, STOPPER 172444-65190 1 10 1 1 1
LEVER ASSY, LOCK 172187-65210 1 11 1 1 1
BRACKET ASSY,LOCK 172A89-65230 1 12 1 1 1
PLATE, CATCH 172187-65270 1 13 1 1 1
PLATE, LOCK 172458-65271 1 14 1 1 1
SPRING, CATCH 172734-65270 1 15 1 1 1
CATCHER 172124-65480 1 16 1 1 1
KEY ASSY, CYLINDER 172164-66170 1 17 1 1 1
WASHER 22137-080000 1 22 1 1 1
WASHER 22157-100000 1 23 3 3 3
PIN, COTTER 22417-200200 1 24 2 2 2
PIN, COTTER 22417-200200 1 25 2 2 2
BOLT 26013-100252 1 26 3 3 3
BOLT 26014-100252 1 27 2 2 2
BOLT 26014-100252 1 28 2 2 2
NUT 26347-100002 1 29 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 BONNET A ASSY (2J) 172A89-65100 1 4 1 1 1

1 BONNET ASSY 172A69-65400 2 4B W 1 1 1

2 LABEL, SWING AREA 172437-03381 1 30A 1 1 1
2 LABEL, ENGINE COVER 172437-03402 1 30B 1 1 1
2 LABEL, ENGINE ROOM 172A36-03411 1 30C 1 1 1
2 LABEL, MUFFLER 172437-03422 1 30D 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.30A,30B,30C & 30D.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.47. BONNET(SIDE : LEFT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

47. BONNET(SIDE : LEFT)

COVER, FRAME 172A69-61490 1 1 1 1 1
COVER, FRAME 172A69-61490-Y 1 1-1 S 1 1 1

BONNET L ASSY (2J) 172A89-65600 1 2 1 1 1
BONNET L ASSY 172A89-65600-Y 1 2-1 S 1 1 1

SEAL 172162-15310 2 3 1 1 1
EV,BONNET L 172A89-65630 2 5 1 1 1
TRIM 172A69-65670 2 6 1 1 1
RUBBER,SEAL D 172171-65820 2 7 1 1 1
WASHER 22157-100000 1 8 3 3 3
BOLT 26013-100252 1 9 3 3 3
BOLT 26014-100252 1 10 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.48. BONNET(SIDE : RIGHT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

48. BONNET(SIDE : RIGHT)

BONNET R ASSY (2J) 172A89-65800 1 1 1 1 1
BONNET R ASSY 172A89-65800-Y 1 1-1 S 1 1 1

RUBBER,SEAL 670 172A89-65850 2 3 1 1 1
TRIM,1160 172A89-65860 2 4 1 1 1
LOCK GRIP,BONNET 172A69-65871 1 5 1 1 1

BONNET ASSY 172A69-65900 1 6 1 1 1
BONNET ASSY 172A69-65900-Y 1 6-1 S 1 1 1

TRIM 172A69-65920 2 8 1 1 1
WASHER 22157-100000 1 9 5 5 5
BOLT 26013-100252 1 10 5 5 5
SCREW 26577-050122 1 11 6 6 6

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.49. CABIN MOUNT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

49. CABIN MOUNT

BK ASSY,BONNET A 172A89-65200 1 1 1 1 1
STAY ASSY,BONNET L 172A89-65660 1 2 1 1 1
BRACKET ASSY,BR 172A89-65950 1 3 1 1 1

BRACKET ASSY,CAB M 172A89-67100 1 4 1 1 1
SOUND SHIELD,105 172A89-67450 2 6 1 1 1
GUIDE ASSY,C HOSE 172A89-67360 1 7 1 1 1

GUIDE ASSY,E HOSE 172A89-67390 1 8 1 1 1
BOLT 172460-73320 1 9 6 6 6
WASHER 10 22157-100000 1 10 3 3 3
SPRING WASHER 16 22217-160000 1 11 6 6 6
BOLT W/WASHER M10X20 26013-100202 1 12 4 4 4
BOLT W/WASHER M10X25 26013-100252 1 13 3 3 3
BOLT 10X25 W/PLW+SPW 26014-100252 1 14 2 2 2
BOLT 10X25 W/PLW+SPW 26014-100252 1 15 1 1 1
MOUNT ASSY,60HS 172A69-64160 1 16 3 3 3
MOUNT ASSY,70HS 172A69-64170 1 17 2 2 2
WASHER 16,POLISHED 22137-160000 1 18 6 6 6
WASHER, 20 22137-200000 1 19 1 1 1
SPRING WASHER 16 22217-160000 1 20 6 6 6
BOLT M10X 35 26013-100352 1 21 10 10 10
BOLT 10.9 16X40 26076-160402 1 22 6 6 6
NUT M20 26716-200002 1 23 9 9 9
WASHER 21X40X6 933172-14120 1 24 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.50. CABIN(BODY)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MXXXXX) (B=MXXXXX) (C=MXXXXX)

50. CABIN(BODY)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

CAB ASSY 172A69-68000 1 1 1 1 1

CLIP 172538-67250 2 4 1 1 1
SCREW,M6X16 BK 172538-67720 2 5 2 2 2

GRIP 172538-68910 2 6 1 1 1
RUBBER,TRIM 172A69-69560 2 7 1 1 1
RUBBUR,P 172A69-69570 2 8 1 1 1
SEAL PACKIN 172A69-69580 2 9 1 1 1
RUBBER,TRIM 172A69-69590 2 10 1 1 1
CLIP 172A69-69600 2 11 10 10 10
STOPPER RUBBER 172A69-69610 2 12 2 2 2
NUT,M8 BK 172A69-69620 2 13 2 2 2
GLASS,DOOR REAR 172A69-69630 2 14 1 1 1

POLYCARBONATE 172A69-69650 2 16 1 1 1

172A69-69660 2 17 1 1 1

ASHTRA
INTERIOR,WIPER MOTOR 172A69-69680 2 18 1 1 1
FASTENER 172A69-69690 2 19 11 11 11

INTERIOR,ROOF 172A69-69720 2 20 1 1 1
INTERIOR,ROOF 172A69-69721 2 20-1 N 1 1 1

GLASS 172A69-69730 2 21 1 1 1
GERNISYU 172A69-69740 2 22 1 1 1
RUBBER,PACKIN 172A69-69750 2 23 10 10 10
GROMMET 172A69-69760 2 24 1 1 1
BOLT,CAP 172A69-69770 2 25 2 2 2
HOSE,WASHER 172A69-69780 2 26 1 1 1
HAMMER 172A69-69790 2 27 1 1 1
BRACKET,HAMMER 172A69-69800 2 28 1 1 1
SCREW, M5X16 26023-050162 2 29 2 2 2
SCREW, M5X16 26023-050162 2 30 2 2 2
SEAL PACKIN 172A69-69670 2 31 W 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 FRAME,CAB CMP 172A69-68010 2 2 1 1 1

2 GLASS,REAR 172A69-69640 2 15 1 1 1

3 LABEL, MANUAL US 172437-03302 1 32A 1 1 1
3 LABEL, LEVER LOCK US 172437-03471 1 32B 1 1 1
3 LABEL,LIFT Q 172A89-03360 1 33A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.32A & 32B.
(2)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.33A.
(3)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.51. CABIN(DOOR)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

51. CABIN(DOOR)

DOOR ASSY 172A69-68050 2 1 1 1 1
NUT,FLANGE M10 BK 172538-67680 3 2 4 4 4
SCREW,M6X16 BK 172538-67720 3 3 11 11 11

SCREW,M5X12 BK 172538-67780 3 4 1 1 1
FRAME,DOOR 172A69-68060 3 5 1 1 1
GLASS,DOOR TOP 172A69-68070 3 6 1 1 1

GLASS,DOOR BOTTOM 172A69-68080 3 7 1 1 1
COVER 172A69-68090 3 8 1 1 1
STEERING,ASSY 172A69-68100 3 9 1 1 1
BOLT,U 172A69-68110 3 10 1 1 1
PLATE 172A69-68120 3 11 1 1 1
WASHER 172A69-68130 3 12 1 1 1
LINK,A 172A69-68140 3 13 1 1 1
LINK,B 172A69-68150 3 14 1 1 1
LINK,C 172A69-68160 3 15 1 1 1
PLATE 172A69-68170 3 16 1 1 1
PLATE 172A69-68180 3 17 1 1 1
SPACER 172A69-68190 3 18 1 1 1
NAT,M10 BK 172A69-68200 3 19 1 1 1
WASHER,PLATE 172A69-68210 3 20 1 1 1
RUBBER 172A69-68220 3 21 1 1 1
RUBBER 172A69-68230 3 22 2 2 2
KEY CYLINDER ASSY 172538-68730 3 23 1 1 1
LOCK ASSY LH 172538-68780 3 24 1 1 1
INNER HANDLE 172538-68890 3 25 1 1 1
HOLDER,LINK 172538-68960 3 26 4 4 4
BOLT,M10X25 172538-67630 2 28 4 4 4
SCREW,M6X16 BK 172538-67660 2 29 2 2 2
SCREW,M6X16 BK 172538-67660 2 30 2 2 2
SCREW,M6X16 BK 172538-67660 2 31 4 4 4
SCREW,M8 TWOSDLOCK 172A69-69060 2 32 2 2 2
STRIKER 172A69-69260 2 33 1 1 1
CATCH ASSY 172A69-69270 2 34 1 1 1
COVER,R 172A69-69290 2 35 1 1 1
COVER,F 172A69-69300 2 36 1 1 1
LEVER,ASSY 172A69-69310 2 37 1 1 1
PIN 172A69-69330 2 38 1 1 1
WIRE 172A69-69340 2 39 1 1 1
STOPPER RUBBER 172A69-69350 2 40 1 1 1
COVER 172A69-69360 2 41 1 1 1
COVER,LEVER 172A69-69370 2 42 1 1 1
COVER 172A69-69380 2 43 1 1 1
BRACKET 172A69-69390 2 44 1 1 1
PLATE 172A69-69400 2 45 1 1 1
CIRCLIP E- 4 22272-000040 2 46 1 1 1
BOLT M 8X 20 26014-080202 2 47 2 2 2
SCREW M 6X 16 26023-060162 2 48 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.52. CABIN(FRONT WINDOW : 1)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

52. CABIN(FRONT WINDOW : 1)

FRONT,WINDOW ASSY 172A69-68250 2 1 1 1 1
SCREW,M5X14 BK 172538-67650 3 2 8 8 8
SCREW,M6X16 BK 172538-67720 3 3 4 4 4

SCREW,M6X16 BK 172538-67720 3 4 4 4 4
SLIDE FRONT,FRAME 172A69-68260 3 5 1 1 1

SNATCH LOCK,R 172A69-68280 3 7 1 1 1
SNATCH LOCK,L 172A69-68290 3 8 1 1 1
HEXAGON HOLE BLTM8 172A69-68300 3 9 4 4 4
ROLLER 172A69-68310 3 10 2 2 2
DAM RUBBER 172A69-68320 3 11 1 1 1
RUBBER SEAL 172A69-68330 3 12 1 1 1
WIRE 172A69-68340 3 13 2 2 2
LEVER,R 172A69-68350 3 14 1 1 1
LEVER,L 172A69-68360 3 15 1 1 1
BRACKET LEVER 172A69-68370 3 16 2 2 2
COIL SPRING 172A69-68380 3 17 2 2 2
LANCHANNEL 172A69-68390 3 18 2 2 2
HOLDER LINK 172A69-68400 3 19 2 2 2
STOPPER,RUBBER 172A69-68410 3 20 2 2 2
COVER,LATCH R 172A69-68420 3 21 1 1 1
COVER,LATCH L 172A69-68430 3 22 1 1 1
COVER,R 172A69-68440 3 23 1 1 1
COVER,L 172A69-68450 3 24 1 1 1
PLATE,LATCH 172A69-68460 3 25 2 2 2
BRACKET,ROLLER R 172A69-68470 3 26 1 1 1
BRACKET,ROLLER L 172A69-68480 3 27 1 1 1
BOLT,M8X18 BK 172A69-68490 3 28 4 4 4
COVER,LEVER 172A69-68500 3 29 2 2 2
GRNISHOO 172A69-68510 3 30 2 2 2
GRIP 172538-68910 3 31 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 GLASS,FRONT TOP 172A69-68270 3 6 1 1 1

2 LABEL, WINDOW US 172437-03551 1 32A 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.32A.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.53. CABIN(FRONT WINDOW : 2)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

53. CABIN(FRONT WINDOW : 2)

BOLT,M8X20 BK 172538-66380 2 2 4 4 4
SCREW,M6X16 BK 172538-67720 2 3 4 4 4
RUBBER,TRIM 172A69-69010 2 4 1 1 1

RUBBER,STOP 172A69-69020 2 5 2 2 2
BEARING 172A69-69030 2 6 2 2 2
BOLT,LINK 172A69-69040 2 7 2 2 2

STRIKER,FRONT 172A69-69050 2 8 2 2 2
SCREW,M8 TWOSDLOCK 172A69-69060 2 9 4 4 4
LINK ASSY 172A69-69070 2 10 1 1 1
GAS SPRING 172A69-69080 2 11 1 1 1
NUT,M10 BK 172A69-69090 2 12 2 2 2
BAG NUT,M10 BK 172A69-69100 2 13 2 2 2
BEARING 172A69-69110 2 14 2 2 2
STRIKER,REAR 172A69-69130 2 15 2 2 2
STOPPER,RUBBER 172A69-69140 2 16 2 2 2
NUT,M5 BK 172A69-69150 2 17 2 2 2
PLATE,LATCH 172A69-69160 2 18 2 2 2
SEAT,SCREW 172A69-69170 2 19 1 1 1
BOLT,M8X16 BK 172A69-69180 2 20 2 2 2
SPACER 172A69-69190 2 21 2 2 2
GURNISYU 172A69-69200 2 22 2 2 2
CIRCLIP E- 7 22272-000070 2 23 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.54. CABIN(WINDOW SASH & LOWER GLASS)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

54. CABIN(WINDOW SASH & LOWER GLASS)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SASH ASSY 172A69-68550 2 1 1 1 1
GLASS FRONT 172A69-68560 3 2 1 1 1

LOCK,ASSY 172A69-68580 3 4 2 2 2
LOWER GLASS,ASSY 172A69-68600 2 5 1 1 1
RETAINER 172538-67550 3 6 4 4 4

GLASS,FRONT LOWER 172A69-68610 3 7 1 1 1
LATCH,R ASSY LOWRE 172A69-68620 3 8 1 1 1
LATCH,L ASSY LOWRE 172A69-68630 3 9 1 1 1
PAC KIN 172A69-68640 3 10 2 2 2
SCREW,M5X14 BK 172A69-68650 3 11 4 4 4
WASHER,TWOSD LOCK 172A69-68660 3 12 4 4 4

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 GLASS REAR 172A69-68570 3 3 1 1 1

2 LABEL, PIN US 172472-03241 1 13A 1 1 1
2 LABEL, SAND US 172472-03271 1 13B 1 1 1
2 LABEL, WARNING HITCH 172472-03281 1 13C 1 1 1
2 LABEL,SLOPE US 172437-03312 1 13D 1 1 1
2 LABEL, TRANSPORT US 172437-03343 1 13E 1 1 1
2 LABEL, NEUTRAL US 172437-03372 1 13F 1 1 1
2 LABEL, STEERING US 172437-03432 1 13G 1 1 1
2 LABEL, ROPS US 172437-03441 1 13H 1 1 1
2 LABEL, SEAT BELT US 172437-03451 1 13I 1 1 1

Remarks
(1)PLEASE USE THIS PART WITH FOLLOW­ ING LABEL AT THE SAME TIME.
REF.NO.13A,13B,13C,13D,13E,13F,13G
13H & 13I.
(2)LABEL IS NOT ILLUSTRATED.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.55. CABIN(ELECTRIC)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MXXXXX) (B=MXXXXX) (C=MXXXXX)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

55. CABIN(ELECTRIC)

ROD ASSY, ANTENNA 172538-66640 2 2 1 1 1
SCREW 172538-67660 2 3 2 2 2
SCREW 172538-67720 2 4 2 2 2

LAMP ASSY, ROOM 172538-68540 2 5 1 1 1
MOTOR, WIPER 172A69-68710 2 6 1 1 1
ARM, WIPER 172A69-68720 2 7 1 1 1

BLADE, WIPER 172A69-68730 2 8 1 1 1
LAMP, WORK 172A69-68740 2 9 2 2 2
BULB 172458-17420 3 10 4 4 4
BRACKET, WIPER 172A69-68750 2 11 1 1 1
PLATE, WIPER ARM 172A69-68760 2 11 A W 1 1 1

GROMMET 172A69-68770 2 12 1 1 1
HARNESS, MAIN 172A69-68780 2 13 1 1 1
HARNESS, MAIN 172A89-68780 2 13-1 N 1 1 1

PLATE, LOCK 172A69-68790 2 14 2 2 2
BRACKET 172A69-68800 2 15 2 2 2
CLIP 172A69-68820 2 16 2 2 2
BOLT 172A69-69470 2 17 2 2 2
BOLT 26014-100202 2 18 2 2 2
SCREW 26023-050162 2 19 2 2 2
SCREW 26023-060162 2 20 3 3 3

BOLT 172A69-69470 2 23 2 2 2
SPEAKER 172A69-69480 2 24 2 2 2

SPEAKER 172A69-69481 2 24-1 S 2 2 2

SPEAKER 172A69-69490 2 25 2 2 2
GRILLE, SPEAKER 172A69-69491 2 25-1 S 2 2 2

SCREW 172A69-69500 2 26 8 8 8

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 BRACKET, RADIO 172A69-69460 2 22 1 1 1
1 BRACKET, RADIO 172A69-69461 2 22-1 S 1 1 1

Remarks
(1)Ref.No.22 L=91mm, No.22-1 L=96mm.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.56. CABIN(WASHER TANK)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

56. CABIN(WASHER TANK)

WASHER TANK,ASSY 172A69-68900 2 1 1 1 1
CHECK VALVE 172538-66480 3 2 1 1 1
PAC KING 172538-66530 3 3 1 1 1

SCREW,M4X16 BK 172538-67640 3 4 2 2 2
WASHER TANK 172A69-68910 3 5 1 1 1
BRACKET,WIND WASHER 172A69-68920 3 6 1 1 1

CAP,PACKING 172A69-68930 3 7 1 1 1
WASHER,NOZZLE 172A69-68940 3 8 1 1 1
PLATE 172A69-68960 3 9 1 1 1
SCREW M 6X 16 26023-060162 3 10 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.57. CABIN(REAVIEW MIRROR & ACCESSORY)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

57. CABIN(REAVIEW MIRROR & ACCESSORY)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

REARVIEW MIRROR 172A25-68500 1 1 1 1 1
BRACKET ,MIRROR (49) 172A69-68850 1 2 1 1 1
BOLT W/WASHER M10X25 26013-100252 1 3 2 2 2

RUBBER PLATE 172446-62910 1 4 1 1 1
COVER,WASHER TANK 172A69-68950 1 5 1 1 1
WASHER 8 22157-080000 1 6 2 2 2

BOLT W/WASHER M8X16 26013-080162 1 7 2 2 2
SOCKET ASSY 172A64-17250 1 8 1 1
CIGA BOX ASSY (49) 172A69-69910 1 9 1 1
COVER,CIGA BOX (49) 172A69-69930 1 10 1 1
BOLT M 6X 12 26014-060122 1 11 4 4
BOLT M 8X 16 26014-080162 1 12 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.58. SIDE MIRROR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M10509) (B=M10509) (C=M10509)

(A=M92001) (B=M92001) (C=M92001)

58. SIDE MIRROR

MIRROR ASSY 1W3855-50160 1 1 1 1 1
MIRROR, REARVIEW 172A25-68500 1 2 1 1 1
MIRROR ASSY, SIDE 172A69-69810 1 3 1 1 1

MIRROR ASSY, SIDE 172A69-69810-Y 1 3-1 S 1 1 1

RUBBER, CLAMP 172A69-69880 1 4 2 2 2
SHEET, NON SLIP 172A69-69881 1 4-1 N 2 2 2

CLAMP 172142-76940-2 1 5 2 2 2
CLAMP 172142-76940-Y 1 5-1 S 2 2 2

BOLT 26013-100552 1 6 2 2 2
WASHER 22137-100000 1 7 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.59. HYD.OIL PUMP & JOINT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

59. HYD.OIL PUMP & JOINT

COVER, FLYWHEEL 172187-71100 1 1 1 1 1
BOLT 26013-100302 1 2 12 12 12
COUPLING 172499-71200 1 3 1 1 1

BOLT 172187-71210 1 4 3 3 3
CLIP, TREE 172122-17190 1 5 1 1 1
PUMP ASSY 172A89-73100 1 6 1 1 1

PUMP ASSY 172A89-73101 1 6-1 N 1 1 1

BUSH 172499-70600 2 7 1 1 1
BALL, STEEL 172499-70610 2 8 1 1 1
PLUG 172499-70620 2 9 1 1 1
PLUG 172499-70630 2 10 1 1 1
PAC KING 172499-70640 2 11 1 1 1
SHIM 172499-70650 2 12 1 1 1
PLUG 172499-70660 2 13 1 1 1
COUPLING 172499-70680 2 14 1 1 1

RING 172499-70690 2 15 2 2 2
SPRING 172499-70701 2 16 1 1 1
SPRING 172499-70711 2 17 1 1 1
SPRING 172A89-73190 2 17-1 N 1 1 1

SHAFT ASSY 172499-71300 2 18 1 1 1
SHAFT 172499-71450 3 19 1 1 1
SEAL, OIL 172187-73240 3 20 1 1 1
CASE, SEAL 172187-73220 3 21 1 1 1
BEARING 172187-73230 3 22 1 1 1
O-RING 172187-73250 3 23 1 1 1
RING 22242-000350 3 24 2 2 2
RING 22252-000800 3 25 1 1 1
PLATE ASSY, SWASH 172499-71310 2 26 1 1 1
RING 172499-71500 3 30 1 1 1
PLUG 172141-74720 3 33 2 2 2
O-RING 24315-000110 3 34 1 1 1
ROTARY GROUP 172499-71320 2 35 1 1 1
PISTON, CONTROL 172499-71350 2 44 1 1 1
PISTON 172499-71690 3 47 1 1 1
SPRING 172499-71700 3 48 4 4 4
PIECE, DISTANCE 172499-71710 3 49 1 1 1
PIECE, DISTANCE 172499-71720 3 50 1 1 1
PIECE, DISTANCE 172499-71730 3 51 1 1 1
PIECE, DISTANCE 172499-71740 3 52 1 1 1
HOUSING 172499-71370 2 53 1 1 1
SPRING SEAT ASSY 172A69-73130 2 54 1 1 1
SPRING SEAT 172499-71600 3 55 1 1 1
COVER 172499-71620 3 56 1 1 1
GUIDE 172499-71630 3 57 1 1 1
SHIM 172499-71640 3 58 1 1 1
SHIM 172499-71650 3 59 1 1 1
SHIM 172499-71660 3 60 1 1 1
SPRING SEAT 172A69-73140 3 61 1 1 1
SCREW, ADJUST 172187-75720 3 62 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

++ CONTINUE ++

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.59. HYD.OIL PUMP & JOINT

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

59. HYD.OIL PUMP & JOINT

NUT 172187-75750 3 63 1 1 1
O-RING 24311-000440 3 64 1 1 1
BOLT 26450-100302 3 65 2 2 2

COVER ASY 172A89-73130 2 66 1 1 1
RING 172499-70690 3 67 2 2 2
BOLT 172499-71490 3 68 4 4 4

PAC KING 172499-71590 3 70 1 1 1
ORIFICE 172147-73530 3 72 3 3 3
BOLT 172187-75630 3 75 1 1 1
ORIFICE 172147-73150 2 77 1 1 1
GEAR PUNP 172A89-73150 2 78 1 1 1
KIT,SEAL 172A89-73160 3 79 1 1 1
PLAIN WASHER 172A89-73170 2 80 2 2 2
SLEEVE 172A89-73180 2 81 1 1 1
SOCKET BOLT M12X 35 172651-73430 2 82 2 2 2
PLUG 172649-73680 2 83 1 1 1
PLUG 172142-74590 2 84 1 1 1
PLUG 172142-74650 3 85 1 1 1
O-RING 24315-000080 3 86 1 1 1
PLUG, AIR VENT 172456-75430 2 87 1 1 1
O-RING 24315-000070 2 88 2 2 2
O-RING 1B G-105.0 24325-001050 2 89 1 1 1
BOLT, EYE 26617-100002 2 90 1 1 1
WASHER, SPRING 22217-160000 1 91 4 4 4
BOLT 26116-160452 1 92 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.60. CONTROL VALVE PLATE

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

60. CONTROL VALVE PLATE

COLLAR 172A69-71550 1 1 7 7 7
GROMMET17X50 172A69-71560 1 2 7 7 7
PLATE ASSY,VALVE 172A69-71600 1 3 1 1 1

JOINT 172151-76050 1 4 1 1 1
JOINT 172A89-76150 1 5 1 1 1
NUT,LOCK 172A89-76160 2 6 1 1 1

BLOCK MOUNT ASSY 172A69-76680 1 7 1 1 1
PLUG PT1/4,SCREW 23871-020000 2 8 1 1 1
BLOCK MOUNT ASSY,DR 172A69-76720 1 9 1 1 1
PLUG PT1/4,SCREW 23871-020000 2 10 1 1 1
WASHER 10 22157-100000 1 11 7 7 7
BOLT W/WASHER M10X25 26013-100252 1 12 2 2 2
BOLT W/WASHER M10X25 26013-100252 1 13 2 2 2
BOLT M10X 45 26013-100452 1 14 7 7 7

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.61. BOOM CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

61. BOOM CYLINDER

SPACER 172155-45790 1 1 1 1 1
GUIDE, SLIDE 172162-61770 1 2 2 2 2
CYLINDER ,BOOM (2J) 172A89-72100 1 3 1 1 1

CYLINDER ,BOOM 172A89-72100-N 1 3-1 S 1 1 1

WASHER 194145-04810 2 4 1 1 1
PISTON 172020-10290 2 5 1 1 1
NUT 172020-10370 2 6 1 1 1

TUBE ASSY,BOOM K(2J) 172A89-72110 2 7 1 1 1
TUBE ASSY,BOOM K 172A89-72110-N 2 7-1 S 1 1 1

BUSH, PIN 172020-10220 3 8 1 1 1
SEAL, DUST 172162-82350 3 10 2 2 2
PLUNGER, CUSHION 172478-72190 2 11 1 1 1
ROD ASSY, BOOM 172A21-72200 2 12 1 1 1
BUSH, PIN 172020-10220 3 13 1 1 1
SEAT, SCREW 172478-72010 4 15 1 1 1
SEAL, DUST 172162-82350 3 16 2 2 2
HEAD ASSY 115 65 172A89-72200 2 17 1 1 1
SPRING RING 72 172499-72490 3 19 1 1 1
BUSH 24550-065400 3 20 1 1 1
COLLAR, CUSHION 172478-72250 2 21 1 1 1
PIPING , BOOM (2J) 172A89-72250 2 22 1 1 1
PIPING , BOOM 172A89-72250-N 2 22-1 S 1 1 1

SEAL SET, CYL.115X65 172A89-72900 2 23 1 1 1
WASHER, LOCK 172020-10360 3 24 1 1 1
RING, SPRING 172020-10380 3 25 1 1 1
SEAL SET, PISTON 172020-11620 3 26 1 1 1
HEAD SEAL SET,115X65 172A89-72910 3 29 1 1 1
CONNECTOR ASSY 172141-76900 2 37 2 2 2
O-RING 24315-000180 3 38 2 2 2
NIPPLE, GREASE 24761-020000 2 39 1 1 1
NIPPLE, GREASE 24761-050000 2 40 1 1 1
BOLT 26013-100252 2 41 1 1 1
COVER, SLIDE 172187-72910-2 1 42 1 1 1
COVER, SLIDE 172187-72910-N 1 42-1 S 1 1 1

COVER, HOSE BOOM(2J) 172A89-72960 1 43 1 1 1
COVER, HOSE BOOM 172A89-72960-N 1 43-1 S 1 1 1

SHIM 172176-81700 1 44 2 2 2
SHIM 172176-81710 1 45 2 2 2
PIN, 70X200 172187-81801 1 46 1 1 1

PIN ASSY 172A89-81810 1 47 1 1 1
WASHER 22157-140000 1 48 1 1 1
WASHER, SPRING 22217-100000 1 49 1 1 1
WASHER, SPRING 22217-140000 1 50 1 1 1
BOLT 26014-100202 1 51 2 2 2
BOLT 26116-100202 1 52 1 1 1
BOLT 26116-121402 1 53 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

++ CONTINUE ++

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.61. BOOM CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

61. BOOM CYLINDER

BOLT 26116-140352 1 54 1 1 1
NUT 26716-120002 1 55 2 2 2
WASHER, BRAKE ARM 933147-03400 1 56 1 1 1

SPRING 933168-14170 1 57 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.62. ARM CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

62. ARM CYLINDER

CYLINDER ,ARM (2J) 172A89-72300 1 1 1 1 1
CYLINDER ,ARM 172A89-72300-N 1 1-1 S 1 1 1

BALL, STEEL 172124-70030 2 2 1 1 1
TUBE KIT,CYLINDER(2J 172A89-72310 2 3 1 1 1
TUBE KIT,CYLINDER 172A89-72310-N 2 3-1 S 1 1 1

BUSH, PIN 172A69-72480 3 5 1 1 1
ROD KIT, PISTON 172A89-72330 2 6 1 1 1

BUSH, PIN 172A69-72490 3 8 1 1 1
HEAD, CYLINDER 172A89-72350 2 9 1 1 1
BUSH 172A89-72360 2 10 1 1 1
RING,SNAP 172A89-72370 2 11 1 1 1
REPAIR KIT,CYLINDER 172A89-72380 2 12 1 1 1
HOLDER 172A89-72440 2 20 1 1 1
SEAL, CUSHION 172A69-72450 2 21 1 1 1
SEAL, CUSHION 172A89-72450 2 22 2 2 2
RING, SNAP 172A69-72460 2 23 1 1 1
COLLOR 172A89-72460 2 24 1 1 1
STOPPER 172A69-72470 2 25 2 2 2
BEARING, CUSHION 172A89-72470 2 26 1 1 1
PISTON 172A89-72480 2 27 1 1 1
BEARING, CUSHION 172A89-72490 2 28 1 1 1
REPAIR KIT,CYLINDER 172A89-72750 2 29 1 1 1
SCREW, SETTING 172162-72930 2 32 1 1 1
SEAL, DUST 172162-72950 2 33 4 4 4
NIPPLE, GREASE 24761-050000 2 34 1 1 1
CONNECTOR ASSY 172141-76900 1 35 1 1 1
O-RING 24315-000180 2 36 1 1 1
CONNECTOR 172112-77361 1 37 1 1 1
O-RING 41851-000180 1 38 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.63. BUCKET CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

63. BUCKET CYLINDER

CYLINDER ,BUCKET(2J) 172A89-72500 1 1 1 1 1
CYLINDER ,BUCKET 172A89-72500-N 1 1-1 S 1 1 1

CYLINDER ASSY,BUCKET 172A89-72501-Y 1 1-2 N 1 1 1

WASHER 194145-04810 2 2 1 1 1
NUT 172020-10810 2 3 1 1 1
TUBE ASSY,BUCKET(2J) 172A89-72510 2 4 1 1 1

TUBE ASSY,BUCKET 172A89-72510-N 2 4-1 S 1 1 1

SEAL, DUST 172448-54120 3 5 2 2 2
BUSH 172151-72591 3 7 1 1 1
TUBE ASSY,BUCKET(2J) 172A89-72560 2 8 1 1 1
TUBE ASSY,BUCKET 172A89-72560-N 2 8-1 S 1 1 1

TUBE ASSY,BUCKET 172A89-72561-Y 2 8-2 N 1 1 1

PISTON 95 172978-72590 2 9 1 1 1
ROD ASSY,BUCKET 172A89-72600 2 10 1 1 1
SEAL, DUST 172020-10620 3 11 2 2 2

BUSH, PIN 172020-11030 3 12 1 1 1
HEAD ASSY 95 60 172A89-72650 2 14 1 1 1
BUSH, ROD 172445-72480 3 15 1 1 1
RING 22207-065320 3 17 1 1 1
SEAL SET, CYL. 95X60 172A89-72700 2 18 1 1 1
RING, SPRING 172445-72450 3 19 1 1 1
SEAL SET 95,PISTON 172978-72620 3 20 1 1 1
SEAL SET, HEAD 95X60 172A89-72710 3 23 1 1 1

WASHER,LOCK 95-114 172499-72981 3 31 1 1 1
CONNECTOR ASSY 172141-76900 2 32 2 2 2
O-RING 24315-000180 3 33 2 2 2
NIPPLE, GREASE 24761-020000 2 34 1 1 1
NIPPLE, GREASE 24761-050000 2 35 1 1 1
BOLT 26013-100252 2 36 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.64. SWING CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

64. SWING CYLINDER

CYLINDER ,SWING (49) 172A69-72700 1 1 1 1 1
PLUNGER 64A,CUSHION 172020-10730 2 2 1 1 1
U-NUT M42 X 3 172020-10810 2 3 1 1 1

COLLAR, CUSHION 172020-10860 2 4 1 1 1
HEAD CMP 120 60 172020-11300 2 5 1 1 1
ROD BUSH 60 35 172445-72480 3 7 1 1 1

PISTON 120 172020-11320 2 8 1 1 1
RING 44-1.6 172020-11340 2 9 1 1 1
KIT,CYL SEAL120X60 172020-11690 2 10 1 1 1
ROCK WASHER 120 172020-11350 3 11 1 1 1
SET,HEAD SEAL 120X60 172020-11700 3 12 1 1 1
SET,PISTON SEAL 120 172020-11710 3 19 1 1 1
RING 77 172445-72450 3 24 1 1 1
COLLAR 172423-72520 2 25 1 1 1
SPACER 172423-72530 2 26 1 1 1
STOPPER 172423-72540 2 27 2 2 2
TUBE ASSY,SWING (49) 172A69-72710 2 28 1 1 1
SEAL 60 X 75 X 5 172020-10620 3 29 2 2 2
BUSH 60 63 A 172020-11230 3 30 1 1 1
ROD ASSY,SWING 172A69-72750 2 32 1 1 1
SEAL 60 X 75 X 5 172020-10620 3 33 2 2 2
BUSH 60 60 B 172020-11280 3 34 1 1 1
JOINT 90-3/8 ASSY 172142-76181 2 36 1 1 1
O-RING 1B P-14.0 24315-000140 3 37 1 1 1
NIPPLE C,GREASE 24761-050000 2 38 1 1 1
SHIM 60X110X0.8 172175-81700 1 39 4 4 4
SHIM 172175-81710 1 40 4 4 4
WASHER 172187-81970 1 41 1 1 1
PIN 60X144 172187-82370 1 42 1 1 1
PIN 60X155 172A69-82370 1 43 1 1 1
PLATE,LOCK (GRAY:49) 172162-94280-3 1 44 1 1 1
SPRING WASHER 14 22217-140000 1 45 1 1 1
BOLT W/WASHER M12X30 26013-120302 1 46 2 2 2
BOLT M14X 35 PLATED 26116-140352 1 47 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.65. BLADE CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92134) (B=M92134) (C=M92134)

65. BLADE CYLINDER

CYLINDER ASSY, BLADE 172A69-72800 1 1 1 1 1
HEAD ASSY 172020-11500 2 2 1 1 1
BUSH 24550-065400 3 4 1 1 1

PISTON 172020-11520 2 5 1 1 1
NUT 172020-11540 2 6 1 1 1
SEAL SET, CYLINDER 172020-11720 2 7 1 1 1

RING, SPRING 172020-10380 3 8 1 1 1
WASHER, LOCK 172020-11530 3 9 1 1 1
SEAL SET, HEAD 172020-11730 3 10 1 1 1
SEAL SET, PISTON 172020-11740 3 17 1 1 1
TUBE ASSY, BLADE 172A69-72810 2 20 1 1 1
SEAL, DUST 172020-10620 3 21 2 2 2
BUSH, PIN 172020-11450 3 22 1 1 1
ROD ASSY, BLADE 172A69-72850 2 24 1 1 1
SEAL, DUST 172020-10620 3 25 2 2 2
BUSH, PIN 172020-11450 3 26 1 1 1
JOINT ASSY 172142-76181 2 28 1 1 1
O-RING 24315-000140 3 29 1 1 1
CONNECTOR ASSY 172141-76900 2 30 1 1 1
O-RING 24315-000180 3 31 1 1 1
COVER ASSY, BLADE 172A69-72900 1 32 1 1 1
COVER ASSY,BLADE CY 172B11-72900 1 32-1 N 1 1 1

BOLT 26014-100202 1 33 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.66. HITCH CYLINDER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92001) (B=M92001) (C=M92001)

(A=M92001) (B=M92001) (C=M92001)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=M92001) (B=M92001) (C=M92001)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

66. HITCH CYLINDER

CYLINDER,HITCH (2J) 172978-72800-2 1 1 1 1 1
CYLINDER,HITCH 172978-72800-N 1 1-1 S 1 1 1

NUT 172141-72250 2 2 1 1 1
WASHER, LOCK 172142-72260 2 3 1 1 1
PISTON 80 172175-72480 2 4 1 1 1

TUBE, HITCH 172978-72810-2 2 5 1 1 1
TUBE, HITCH 172978-72810-N 2 5-1 S 1 1 1

BUSH 45-55-22 172978-72890 3 7 2 2 2
HEAD 80 45 172978-72860 2 8 1 1 1
BUSH 24550-045250 3 10 1 1 1
ROD ASSY,HITCH 172978-72880 2 11 1 1 1
BUSH 45 60 172151-71630 3 12 1 1 1
HEAD SEAL SET 80X45 172978-72920 2 14 1 1 1
SEAL SET, PISTON 172142-72951 2 19 1 1 1
O-RING 172958-72950 2 22 1 1 1
O-RING 172958-72960 2 23 1 1 1
CHECK VALVE (2J) 172958-72982-2 2 24 1 1 1

VALVE ASSY,OPERATE 172958-72983-N 2 24-2 S 1 1 1

PLUG 23871-005000 2 25 2 2 2
BOLT 26450-060352 2 26 4 4 4
BOLT 26450-060302 2 26-1 S 4 4 4

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 VALVE ASSY,OPERATE 172958-72983 2 24-1 F 1 1 1

Remarks
(1)D=Ref.No.24 : 4mm,No.24-1 : 8mm.
Interchangeable by simultaneous
replacement with Ref.No.26-1.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.67. TRAVEL MOTOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

67. TRAVEL MOTOR

MOTOR ASSY, DRIVE 172A89-73300 1 1 2 2 2
SEAL KIT, FLOATING 172A65-73310 2 2 2 2 2
FLANGE,REAR 172A89-73310 2 3 2 2 2

FLANGE,REAR 172A89-73320 3 4 2 2 2
PLUG 172479-73750 4 5 6 6 6
PLUG 172479-73760 4 6 8 8 8

ORIFICE 172A69-73850 4 7 2 2 2
BALL 3/16 24190-060001 4 8 2 2 2
SPRING 172A89-73340 3 9 2 2 2
PLUG 172479-73480 3 10 2 2 2
PLUG 172A65-73620 3 11 4 4 4
SPRING 172A65-73630 3 12 4 4 4
SPRING RETAINER 172479-73800 3 13 4 4 4
VALV E 172479-73810 3 14 4 4 4
SPRING 172479-73830 3 15 4 4 4
SPOOL 172A69-73830 3 16 2 2 2
PLUG 172479-73850 3 17 6 6 6
O-RING 1B P-14.0 24315-000140 3 18 2 2 2
O-RING 1B P-18.0 24315-000180 3 19 6 6 6
O-RING 1B P-26.0 24315-000260 3 20 4 4 4
HUB 172A65-73320 2 21 2 2 2
SPINDLE 172A65-73330 2 22 2 2 2
CARRIER 172A65-73340 2 23 2 2 2
SUN GEAR 1 172A65-73350 2 24 2 2 2
PLANETARY, GEAR 1 172A65-73360 2 25 6 6 6
SUN GEAR 2 172A65-73370 2 26 2 2 2
PLANETARY, GEAR 2 172A65-73380 2 27 8 8 8
COLLOR,THRUST 172A65-73390 2 28 2 2 2
WASHER 1,THRUST 172A65-73400 2 29 8 8 8
WASHER 2,THRUST 172A65-73410 2 30 8 8 8
RING 172479-73420 2 31 2 2 2
WASHER 3,THRUST 172A65-73420 2 32 6 6 6
COVER 172A65-73430 2 33 2 2 2
NUT,RING 172A65-73440 2 34 2 2 2
B.BEARING 172A65-73450 2 35 4 4 4
O-RING 172499-73460 2 36 2 2 2
ROLLER 172A65-73460 2 37 6 6 6
NUT 172479-73470 2 38 2 2 2
ROLLER 172A65-73470 2 39 8 8 8
PLUG 172479-73480 2 40 4 4 4
RING,INNER 172A65-73480 2 41 6 6 6
RING,INNER 172A65-73490 2 42 8 8 8
BOLT M8X20 10.9T 172A65-73500 2 43 6 6 6
SCREW 8X12 172A65-73510 2 44 4 4 4
SHAFT 172A65-73520 2 45 2 2 2
SWASH PLATE 172A65-73530 2 46 2 2 2
PLATE,TIMMING 172A65-73540 2 47 2 2 2
SEAL, OIL 172A65-73550 2 48 2 2 2
BEARING 172A65-73560 2 49 2 2 2
VALVE ASSY,RELIEF 172A65-73570 2 50 4 4 4
RING,BACK-UP 172A65-73580 3 51 8 8 8

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

++ CONTINUE ++

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.67. TRAVEL MOTOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

67. TRAVEL MOTOR

O-RING 1B P-10.0 24315-000100 3 52 4 4 4
O-RING 1B P-11.0 24315-000110 3 53 4 4 4
O-RING 1B P-20.0 24315-000200 3 54 4 4 4

SPRING 172479-73590 2 55 20 20 20
PISTON ASSEMBLE 172499-73620 2 56 2 2 2
RETAINER PLATE 172499-73630 2 57 2 2 2

THRUST BALL 172499-73640 2 58 2 2 2
WASHER 172499-73660 2 59 4 4 4
WASHER 172499-73670 2 60 2 2 2
PISTON, HYDRAULIC 172499-73680 2 61 2 2 2
SPRING 172499-73700 2 62 2 2 2
PIN,STRAIGHT 172479-73710 2 63 4 4 4
PIN,STRAIGHT 172479-73710 2 64 4 4 4
PLATE,FRICTION 172499-73710 2 65 4 4 4
PLATE 172499-73720 2 66 6 6 6
O-RING 172499-73760 2 67 2 2 2
O-RING 172499-73770 2 68 2 2 2
RING 172499-73780 2 69 2 2 2
ROLLER 172499-73810 2 70 6 6 6
PISTON ASSEMBLE 172499-73820 2 71 2 2 2
PIVOT 172499-73830 2 72 4 4 4
SPRING 172499-73870 2 73 2 2 2
PIN,STRAIGHT 172479-73950 2 74 2 2 2
CIRCLIP 45 22242-000450 2 75 2 2 2
BALL BEARING 24101-062064 2 76 2 2 2
BALL 3/8,STEEL 24190-120001 2 77 2 2 2
O-RING 1B P-7.0 24315-000070 2 78 4 4 4
O-RING 1B P-14.0 24315-000140 2 79 6 6 6
O-RING, 1A G230.0 24321-002300 2 80 2 2 2
BOLT,10X20 26076-100202 2 81 8 8 8
BOLT M12X30 26450-120302 2 82 16 16 16
SPRING WASHER 16 22217-160000 1 83 24 24 24
BOLT M16X 45 PLATED 26116-160452 1 84 24 24 24
KIT,SEAL 172A65-73700 1 85 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.68. TURNING MOTOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

68. TURNING MOTOR

MOTOR ASSY, SWING 172A69-73310 1 1 1 1 1
SCREW 172162-70290 3 3 4 4 4
GEAR,SUN 172162-70310 3 4 1 1 1

RING,SNAP 172162-70320 3 5 1 1 1
HOLDER 172499-70720 3 6 1 1 1
RACE,INNER 172499-70730 3 7 4 4 4

BEARING,NEEDLE 172499-70740 3 8 4 4 4
GEAR,PLANETARY 172499-70750 3 9 4 4 4
PLATE,THRUST 172499-70760 3 10 1 1 1
HOLDER 172499-70770 3 11 1 1 1
GEAR,PLANETARY 172499-70780 3 12 3 3 3
GEAR,DRIVE 172499-70790 3 13 1 1 1
PLATE THRUST KIT 172499-71040 3 14 1 1 1
NEEDLE BEARING 172450-73360 3 15 3 3 3
WASHER 172423-73370 3 16 4 4 4
INNER RACE 172450-73370 3 17 3 3 3
HOUSING ASSY 172A69-73370 3 18 1 1 1
O-RING 172162-70150 4 19 1 1 1
SEAL, OIL 172A69-73320 4 20 1 1 1
O-RING 1B P-8.0 24315-000080 4 21 1 1 1
WASHER,THRUST 172450-73380 3 22 3 3 3
BEARING 172122-70260 3 24 1 1 1
PLUG 172148-70301 3 25 1 1 1
PIN 172122-70410 3 26 2 2 2
PLUG 172147-70500 3 27 1 1 1
PIN 172122-70530 3 28 1 1 1
BEARING,BALL 172162-70590 3 29 1 1 1
SHAFT 172499-70810 3 30 1 1 1
O-RING 172162-70820 3 31 1 1 1
DISK 172499-70830 3 32 3 3 3
PLATE,FRICTION 172499-70840 3 33 2 2 2
COLLAR 172499-70850 3 34 1 1 1
PISTON,BRAKE 172499-70860 3 35 1 1 1
O-RING AS568-257 172499-70870 3 36 1 1 1
SPRING 172499-70880 3 37 12 12 12
SPRING 172499-70890 3 38 8 8 8
PLATE,VALVE 172499-70970 3 39 1 1 1
PIN 172499-70980 3 40 2 2 2
ORIFICE 172124-70380 4 42 1 1 1
COVER 172499-70900 4 43 1 1 1
POPPET 172499-70910 4 44 2 2 2
PLUG 172499-70920 4 45 2 2 2
SPRING 172499-70930 4 46 2 2 2
VALVE ASSY,RELIEF 172A69-73340 4 47 2 2 2
O-RING AS568-916 172499-70950 5 48 2 2 2
RING,BACK-UP 172499-70960 5 49 2 2 2
RING, BUCK UP 172312-74780 5 50 2 2 2
O-RING 1B P-15.0 24315-000150 5 51 2 2 2
O-RING 1B P-16.0 24315-000160 5 52 2 2 2
O-RING 1B P 21 24315-000210 4 53 2 2 2
CASE 172A69-73330 3 54 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

++ CONTINUE ++

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Y

Fig.68. TURNING MOTOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

68. TURNING MOTOR

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

172A69-73350 3 55 1 1 1

172A69-73390 3 60 1 1 1

VALVE ASS
O-RING 1B P-11.0 24315-000110 4 56 2 2 2
O-RING 1B P-14.0 24315-000140 4 57 4 4 4

CYLINDER BLOCK ASSY 172A69-73360 3 58 1 1 1
PLATE,THRUST 172A69-73380 3 59 1 1 1
VALVE ASS

O-RING 1B P-11.0 24315-000110 4 61 1 1 1
O-RING 1B P-7.0 24315-000070 3 62 2 2 2
O-RING 1B P-10.0 24315-000100 3 63 3 3 3
O-RING 1B P-11.0 24315-000110 3 64 1 1 1
O-RING 1B P-14.0 24315-000140 3 65 1 1 1
O-RING, 1B G130.0 24325-001300 3 66 1 1 1
PACKING, G145.0 24325-001450 3 67 1 1 1
BOLT M 6X 30 26450-060302 3 68 2 2 2
BOLT M 8X 20 26450-080202 3 69 3 3 3
BOLT, 14 X 40 26450-140402 3 70 4 4 4
BOLT, 14 X 40 26450-140402 2 71 4 4 4
SPRING WASHER 16 22217-160000 1 72 8 8 8
BOLT, 16 X 50 26076-160502 1 73 8 8 8
REPAIR KIT 172499-71020 1 74 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.69. ACCUMULATOR

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MXXXXX) (B=MXXXXX) (C=MXXXXX)

69. ACCUMULATOR

ACCUMULATOR 172478-73600 1 1 1 1 1
ACCUMULATOR 172B11-73600 1 1-1 S 1 1 1

CLAMP 172478-73630 1 2 1 1 1

CONNECTOR 172478-76200 1 3 1 1 1
ELBOW 90 G1/2-G1/4 172531-73550 1 3-1 S 1 1 1

BOLT 26014-080202 1 4 1 1 1
BOLT 26014-080202 1 4-1 K 2 2 2

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 CLAMP 172B11-73630 1 2-1 S 1 1 1

Remarks
(1)D:Ref.No.2=92~95mm,
No.2-1=89~92mm.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.70. LINE FILTER

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

70. LINE FILTER

LINE FILTER 172837-73700 1 1 1 1 1
FILTER ELEMENT 172837-73730 2 2 1 1 1
O RING 172837-73740 2 3 1 1 1

CONNECTOR 172423-76100 1 4 1 1 1
ELBOW 3/8-1/2 172157-76300 1 5 1 1 1
O-RING 1B P-18.0 24315-000180 2 6 1 1 1

WASHER 6, POLISHED 22137-060000 1 7 2 2 2
BOLT, 6 X 55 26013-060552 1 8 2 2 2
O RING 41851-000180 1 9 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.71. SWIVEL JOINT(Y SPEC.)TO M92121

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92122) (B=M92122) (C=M92122)

71. SWIVEL JOINT(Y SPEC.)TO M92121

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

SHAFT, SWIVEL 172147-73810 2 2 1 1 1
HUB, SWIVEL 172147-73830 2 3 1 1 1

PLATE, SWIVEL 172147-73850 2 4 1 1 1
SPACER, SWIVEL 172122-73860 2 5 1 1 1
WASHER, THRUST 172122-73870 2 6 1 1 1
RING 22242-000700 2 7 1 1 1
PLUG 23871-030000 2 8 4 4 4
BOLT 26013-100402 2 9 4 4 4
SEAL ASSY 172147-73880 2 10 1 1 1
SEAL, SWIVEL 172122-73890 3 11 8 8 8
O-RING 24311-000800 3 12 1 1 1
O-RING 24311-001000 3 13 1 1 1
O-RING 24321-000950 3 14 1 1 1
BOLT 26013-120402 1 15 4 4 4

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 JOINT ASSY, SWIVEL 172187-73801 1 1 Z 1 1 1

Remarks
(1)Replacement with
Fig.120(71B),Ref.No1.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.119. (71A)SWIVEL JOINT(N SPEC.)FROM M92122

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92122) (B=M92122) (C=M92122)

119. (71A)SWIVEL JOINT(N SPEC.)FROM M92122

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

JOINT ASSY, SWIVEL 172A65-73800 1 1 W 1 1 1

SHAFT ASSY 172A65-73810 2 2 1 1 1
ROTOR 172A65-73840 2 3 1 1 1

FLANGE 172A65-73850 2 4 1 1 1
SPACER 172A65-73860 2 5 1 1 1
WASHER, SPRING 22217-100000 2 6 4 4 4
RING 22242-000720 2 7 1 1 1
PLUG 23871-030000 2 8 4 4 4
BOLT 26076-100402 2 9 4 4 4
SEAL KIT 172A65-73880 2 10 1 1 1
SEAL 172A65-73870 3 11 8 8 8
O-RING 24315-000800 3 12 1 1 1
O-RING 24315-001000 3 13 1 1 1
O-RING 24325-000950 3 14 1 1 1
BOLT 26013-120402 1 15 4 4 4

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

Remarks
* A:'NACHI'LABEL
* Interchangeable by simultaneous
replacement with Fig.120(71B)
Ref. No.1 from Y spec.

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.120. (71B)SWIVEL JOINT KIT(N SPEC.)FROM M92122

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=M92122) (B=M92122) (C=M92122)

120. (71B)SWIVEL JOINT KIT(N SPEC.)FROM M92122

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

JOINT KIT, SWIVEL 172A89-73900 1 1 W 1 1 1

ELBOW PF1/2,45 1D4180-22850 2 2 4 4 4

ADAPTER 172730-75141 2 4 2 2 2
CONNECTOR ASSY 172173-76102 2 5 2 2 2
O-RING 41851-000110 3 6 1 1 1
ADAPTER 172123-76121 2 7 1 1 1
CONNECTOR 172168-76162 2 8 1 1 1
CONNECTOR 172168-76162 2 9 1 1 1
ELBOW, ADJUST 172644-76161 2 10 2 2 2
O-RING 24315-000140 3 11 1 1 1
CONNECTOR, G3/8 172A65-76700 2 12 1 1 1
O-RING 41851-000140 3 13 1 1 1
CONNECTOR ASSY 172141-76900 2 14 4 4 4
O-RING 24315-000180 3 16 1 1 1
O-RING 41851-000110 2 17 1 1 1
O-RING 41851-000140 2 18 2 2 2
O-RING 41851-000140 2 19 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

1 JOINT ASSY, SWIVEL 172A65-73800 2 3 1 1 1

Remarks
(1)Inner parts are shown in
Fig.119(71A).

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.72. CONTROL VALVE(1/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

72. CONTROL VALVE(1/8)

VALVE ASSY, CONTROL 172A89-74100 1 1 1 1 1
VALVE ASSY, CONTROL 172A89-74101 1 1-1 N 1 1 1

VALVE ASSY, CONTROL 172A89-74102 1 1-2 N 1 1 1

TIE-ROD 172A69-71260 2 2 4 4 4
NUT 172422-74110 2 3 8 8 8
BODY ASSY 172A69-74110 2 4 1 1 1

BODY 172478-74360 3 5 1 1 1
PLUG ASSY 172187-74530 3 6 2 2 2
O-RING 24315-000110 4 7 2 2 2
SECTION ASSY, 4TH 172A69-74170 2 8 1 1 1
SECTION, 4TH 172A69-74180 3 9 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 10 4 4 4
SEAT, SPRING 172478-74180 4 11 2 2 2
SEAT, SPRING 172175-74220 4 12 2 2 2

O-RING 172151-74320 4 13 2 2 2
CAP 172455-74390 4 14 2 2 2
SPRING 172455-74410 4 15 2 2 2
POPPET 172455-74420 4 16 2 2 2
SPRING 172455-74440 4 17 2 2 2
PLUG 172455-74450 4 18 2 2 2
O-RING 172455-74460 4 19 2 2 2
O-RING 24321-000700 4 20 1 1 1
VALVE ASSY, SHUT-OFF 172455-74320 3 21 2 2 2
NUT, SHOE 172455-74010 4 22 1 1 1
PLUG 172455-74020 4 23 1 1 1
O-RING 172455-74030 4 24 1 1 1
POPPET 172455-74040 4 25 1 1 1
O-RING 172116-74150 4 26 1 1 1
SCREW, SETTING 172455-74990 4 27 1 1 1
PLUG ASSY 172187-74530 3 28 2 2 2
O-RING 24315-000110 4 29 1 1 1
PLUG ASSY 172187-74550 3 30 2 2 2
O-RING 24315-000180 4 31 2 2 2
BOLT 26013-100162 1 32 2 2 2
BOLT 26106-100122 1 33 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.73. CONTROL VALVE(2/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

73. CONTROL VALVE(2/8)

SECTION ASSY, BUCKET 172A89-74140 2 1 1 1 1
SECTION ASSY, BUCKET 172A89-74141 2 1-1 N 1 1 1

VALVE RELIEF 29.5/50 172A89-74150 3 2 2 2 2
O-RING 172116-74150 4 3 1 1 1
SECTION, BUCKET 172A89-74160 3 4 1 1 1

SECTION, BUCKET 172A89-74161 3 4-1 N 1 1 1

BOLT, SOCKET HEAD 172151-74060 4 5 4 4 4
SEAT,SPRING 172478-74180 4 6 2 2 2
SEAT, SPRING 172175-74220 4 7 2 2 2
O-RING 172151-74320 4 8 2 2 2
POPPET 172478-74320 4 9 1 1 1
POPPET 172478-74170 4 9-1 N 1 1 1

CAP 172455-74390 4 10 2 2 2
SPRING 172455-74410 4 11 2 2 2
POPPET 172455-74420 4 12 1 1 1

SPRING 172455-74440 4 13 2 2 2
PLUG 172455-74450 4 14 2 2 2
PAC KING 172455-74460 4 15 2 2 2
PACKING, G 70.0 24321-000700 4 16 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.74. CONTROL VALVE(3/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

74. CONTROL VALVE(3/8)

SECTION ASSY, BOOM 1 172A89-74180 2 1 1 1 1
VALVE RELIEF 29.5/50 172A89-74150 3 2 1 1 1
O-RING 172116-74150 4 3 1 1 1

VALVE RELIEF 29.5/50 172A89-74190 3 4 1 1 1
O-RING 172116-74150 4 5 1 1 1
SECTION, BOOM 1 172A89-74200 3 6 1 1 1

BOLT, SOCKET HEAD 172151-74060 4 7 2 2 2
SEAT,SPRING 172478-74180 4 8 2 2 2
ANTI-DRIFT VALVE 172488-74200 4 9 1 1 1
RING 172638-73650 5 10 1 1 1
O-RING 172116-74150 5 11 1 1 1
BODY 172488-74210 5 12 1 1 1
PISTON 172488-74220 5 13 1 1 1
POPPET 172455-74590 5 14 1 1 1
PLUG 172455-74600 5 15 1 1 1
SPOOL 172455-74620 5 16 1 1 1
SLEEVE 172455-74630 5 17 1 1 1
SPRING 172455-74640 5 18 1 1 1
SPRING 172455-74650 5 19 1 1 1
PAC KING 172455-74660 5 20 1 1 1
PAC KING 172455-74670 5 21 1 1 1
BACK UP RING 172455-74680 5 22 1 1 1
PLUG 172187-74690 5 23 1 1 1
O-RING 172312-74770 6 24 1 1 1
SEAT, SPRING 172455-74720 5 25 1 1 1
O-RING 1B P-7.0 24315-000070 5 26 2 2 2
SEAT, SPRING 172175-74220 4 27 2 2 2
O-RING 172151-74320 4 28 2 2 2
CAP 172455-74390 4 29 1 1 1
SPRING 172455-74410 4 30 2 2 2
POPPET 172455-74420 4 31 2 2 2
SPRING 172455-74440 4 32 2 2 2
PLUG 172455-74450 4 33 2 2 2
PAC KING 172455-74460 4 34 2 2 2
BOLT,SOCKET HEAD 172455-74530 4 35 5 5 5
PLUG 172187-74540 4 36 2 2 2
O-RING 1B P-14.0 24315-000140 5 37 1 1 1
POPPET 172455-74550 4 38 1 1 1
SPACER 172455-74560 4 39 1 1 1
O-RING 172455-74570 4 40 1 1 1
RING,BACK-UP 172455-74580 4 41 1 1 1
SPRING 172187-74630 4 42 1 1 1
PACKING, G 70.0 24321-000700 4 43 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.75. CONTROL VALVE(4/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

75. CONTROL VALVE(4/8)

INLET SECTION ASSY 172A89-74120 2 1 1 1 1
VALVE,RELIEF 25.7/30 172A89-74130 3 2 2 2 2
O-RING 172116-74150 4 3 2 2 2

INLET SECTION 172A69-74140 3 4 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 5 4 4 4
CAP ASSY 172A69-74150 4 6 1 1 1

CAP 172A69-74160 4 7 1 1 1
O-RING 172151-74320 4 8 2 2 2
PLUG 172422-74330 4 9 1 1 1
PACKING, G 70.0 24321-000700 4 10 2 2 2
PLUG ASSY 172187-74530 3 11 1 1 1
O-RING 1B P-11.0 24315-000110 4 12 1 1 1
SECTION,TRAVEL R 172A89-74210 2 13 1 1 1
BOLT, SOCKET HEAD 172151-74060 3 14 4 4 4
SEAT,SPRING 172478-74180 3 15 2 2 2
SEAT, SPRING 172175-74220 3 16 2 2 2
PLUG 172A69-74250 3 17 1 1 1
O-RING 172151-74320 3 18 2 2 2
CAP 172455-74390 3 19 2 2 2
SPRING 172455-74410 3 20 2 2 2
PAC KING 172455-74460 3 21 1 1 1
PACKING, G 70.0 24321-000700 3 22 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.76. CONTROL VALVE(5/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

76. CONTROL VALVE(5/8)

SECTION,TRAVEL L 172A89-74220 2 1 1 1 1
BOLT, SOCKET HEAD 172151-74060 3 2 4 4 4
SEAT,SPRING 172478-74180 3 3 2 2 2

SPRING 172113-74190 3 4 1 1 1
SEAT, SPRING 172175-74220 3 5 2 2 2
PLUG 172A69-74250 3 6 1 1 1

O-RING 172151-74320 3 7 2 2 2
CAP 172455-74390 3 8 2 2 2
POPPET, VALVE 172187-74410 3 9 1 1 1
SPRING 172455-74410 3 10 2 2 2
PAC KING 172455-74460 3 11 1 1 1
PACKING, G 70.0 24321-000700 3 12 1 1 1
SECTION,SWING ASSY 172A89-74230 2 13 1 1 1
VALVE RELIEF 29.5/50 172A89-74150 3 14 2 2 2
O-RING 172116-74150 4 15 1 1 1
SECTION,SWING 172A69-74280 3 16 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 17 4 4 4
SEAT,SPRING 172478-74180 4 18 2 2 2
SEAT, SPRING 172175-74220 4 19 2 2 2
O-RING 172151-74320 4 20 2 2 2
CAP 172455-74390 4 21 2 2 2
SPRING 172455-74410 4 22 2 2 2
POPPET 172455-74420 4 23 1 1 1
SPRING 172455-74440 4 24 1 1 1
PLUG 172455-74450 4 25 1 1 1
PAC KING 172455-74460 4 26 1 1 1
PACKING, G 70.0 24321-000700 4 27 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.77. CONTROL VALVE(6/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

77. CONTROL VALVE(6/8)

PTO SECTION ASSY 172A69-71130 2 1 1 1 1
PTO SECTION 172A69-71140 3 2 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 3 4 4 4

SEAT,SPRING 172478-74180 4 4 2 2 2
SEAT, SPRING 172175-74220 4 5 2 2 2
O-RING 172151-74320 4 6 2 2 2

CAP 172455-74390 4 7 2 2 2
SPRING 172455-74410 4 8 2 2 2
POPPET 172455-74420 4 9 2 2 2
SPRING 172455-74440 4 10 2 2 2
PLUG 172455-74450 4 11 2 2 2
PAC KING 172455-74460 4 12 2 2 2
PACKING, G 70.0 24321-000700 4 13 1 1 1
SHUTOFF VALVE 172455-74320 3 14 2 2 2
NUT, SHOE 172455-74010 4 15 1 1 1
PLUG 172455-74020 4 16 1 1 1
O-RING 172455-74030 4 17 1 1 1
POPPET, VALVE 172455-74040 4 18 1 1 1
O-RING 172116-74150 4 19 1 1 1
SCREW SET 172455-74990 4 20 1 1 1
SECTION ASSY, BOOM 2 172A69-74290 2 21 1 1 1
SECTION ASSY, BOOM 2 172A69-74291 2 21-1 N 1 1 1

SECTION, BOOM 2 172A69-74300 3 22 1 1 1
SECTION, BOOM 2 172A69-74301 3 22-1 N 1 1 1

CAP 172A69-71110 4 23 1 1 1
PISTON 172A69-71120 4 24 1 1 1

BOLT, SOCKET HEAD 172151-74060 4 25 4 4 4
SEAT,SPRING 172478-74180 4 26 1 1 1
SEAT, SPRING 172175-74220 4 27 1 1 1
O-RING 172151-74320 4 28 2 2 2
CAP 172455-74390 4 29 1 1 1
SPRING 172455-74410 4 30 1 1 1
POPPET 172455-74420 4 31 1 1 1
SPRING 172455-74440 4 32 1 1 1
PLUG 172455-74450 4 33 1 1 1
PAC KING 172455-74460 4 34 1 1 1
PACKING, G 70.0 24321-000700 4 35 1 1 1
PLUG 172187-74550 3 36 1 1 1
O-RING 1B P-18.0 24315-000180 4 37 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.78. CONTROL VALVE(7/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

78. CONTROL VALVE(7/8)

VALVE ASY,SECTION 172A89-74240 2 1 1 1 1
VALVE RELIEF 29.5/50 172A89-74150 3 2 2 2 2
O-RING 172116-74150 4 3 1 1 1

VALVE ASSY,SECTION 172A89-74260 3 4 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 5 4 4 4
SEAT, SPRING 172478-74180 4 6 2 2 2

SEAT, SPRING 172175-74220 4 7 2 2 2
O-RING 172151-74320 4 8 2 2 2
CAP 172455-74390 4 9 2 2 2
SPRING 172455-74410 4 10 2 2 2
POPPET 172455-74420 4 11 2 2 2
POPPET 172455-74420 4 11 -1 K 1 1 1

SPRING 172455-74440 4 12 2 2 2
PLUG 172455-74450 4 13 2 2 2
O-RING 172455-74460 4 14 2 2 2
VALVE, POPPET 172A89-74330 4 14A W 1 1 1

SECTION ASSY, BLADE 172A89-74280 2 15 1 1 1
SECTION, BLADE 172A69-71190 3 16 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 17 4 4 4
SEAT, SPRING 172478-74180 4 18 2 2 2
SPRING 172113-74190 4 19 1 1 1
SEAT, SPRING 172175-74220 4 20 2 2 2
O-RING 172151-74320 4 21 2 2 2
CAP 172455-74390 4 22 2 2 2
POPPET 172187-74410 4 23 1 1 1
SPRING 172455-74410 4 24 2 2 2
POPPET 172455-74420 4 25 1 1 1
SPRING 172455-74440 4 26 1 1 1
PLUG 172455-74450 4 27 1 1 1
O-RING 172455-74460 4 28 1 1 1
O-RING 24321-000700 4 29 1 1 1
VALVE RELIEF 15/50L 172A89-74290 3 30 1 1 1
O-RING 172116-74150 4 31 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.79. CONTROL VALVE(8/8)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

79. CONTROL VALVE(8/8)

BODY ASSY 172A69-71250 2 1 1 1 1
BODY 172478-74360 3 2 1 1 1
PLUG ASSY 172478-74370 3 3 1 1 1

SECTION,SWING 172A89-74270 2 4 1 1 1
BOLT, SOCKET HEAD 172151-74060 3 5 4 4 4
SEAT,SPRING 172478-74180 3 6 2 2 2

SEAT, SPRING 172175-74220 3 7 2 2 2
O-RING 172151-74320 3 8 2 2 2
CAP 172455-74390 3 9 2 2 2
SPRING 172455-74410 3 10 2 2 2
POPPET 172455-74420 3 11 2 2 2
SPRING 172455-74440 3 12 2 2 2
PLUG 172455-74450 3 13 2 2 2
PAC KING 172455-74460 3 14 2 2 2
PACKING, G 70.0 24321-000700 3 15 1 1 1
SECTION ASSY,CONTROL 172A89-74300 2 16 1 1 1
SECTION CONTROL 172A69-71230 3 17 1 1 1
CAP ASSY 172A69-71240 4 18 1 1 1
BOLT, SOCKET HEAD 172151-74060 4 19 4 4 4
SEAT,SPRING 172478-74180 4 20 1 1 1
SEAT, SPRING 172175-74220 4 21 1 1 1
PLUG 172A69-74250 4 22 1 1 1
O-RING 172151-74320 4 23 2 2 2
SPRING 172455-74410 4 24 1 1 1
PAC KING 172455-74460 4 25 1 1 1
CAP 172455-74480 4 26 1 1 1
PACKING, G 70.0 24321-000700 4 27 2 2 2
VALVE,RELIEF 24.2/50 172A89-74310 3 28 1 1 1
O-RING 172116-74150 4 29 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.80. 2-WAY VALVE

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

80. 2-WAY VALVE

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

BRACKET ASSY,2WAY 172A69-71750 1 1 1 1 1

172A36-74690 1 2 1 1 1

VALVE ASSY,2WA
KNOB 6.5X18X35 172157-58830 2 3 1 1 1
SHAFT 172437-74711 3 5 1 1 1
BLOCK,VALVE 172437-74720 3 6 1 1 1
STAY ASSY 172437-74732 3 7 1 1 1
LEVER 172A36-74750 3 8 1 1 1
PLATE,LOCK 172A36-74780 3 9 1 1 1
WASHER 8 22117-080000 3 10 1 1 1
WASHER 24,POLISHED 22137-240000 3 11 1 1 1
SPRING WASHER 6 22217-060000 3 12 4 4 4
COTTER PIN 2.0X16 22417-200160 3 13 1 1 1
PIN 8X 30 22487-080300 3 14 1 1 1
PLUG PT1/8,SCREW 23871-010000 3 15 4 4 4
O-RING 1A P-25.0 24311-000250 3 16 1 1 1
O-RING 1A P-32.0 24311-000320 3 17 1 1 1
SCREW M 5X 12 26022-050122 3 18 3 3 3
BOLT M 6X 16 26450-060162 3 19 4 4 4
JOINT 172151-76050 1 20 4 4 4
ELBOW PF1/4 172137-76100 1 21 1 1 1
O-RING 1B P-11.0 24315-000110 2 22 1 1 1
CONNECTOR PF1/4-45 172173-76102 1 23 3 3 3
PACKING, 11.0 41851-000110 2 24 3 3 3
CONNECTOR 1/4X1/4 172828-76330 1 25 1 1 1
JOINT RGI1/4 23391-020000 1 26 3 3 3
JOINT 90RGI1/4 23393-020000 1 27 1 1 1
JOINT 45RGI1/4 23394-020000 1 28 1 1 1
BOLT M 8X 25 26013-080252 1 29 3 3 3
BOLT W/WASHER M10X25 26013-100252 1 30 2 2 2

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.81. BLADE VALVE

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

81. BLADE VALVE

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

STAY ASSY,BLD VALVE 172A69-74310 1 1 1 1 1

172A69-74670 1 2 1 1 1

VALVE ASS
SPRING 172A69-74680 2 3 2 2 2
COVER 172A47-74710 2 4 1 1 1
PLUG 172A47-74720 2 5 2 2 2
PAC KING 172A47-74730 2 6 2 2 2
O-RING 172A47-74740 2 7 2 2 2
ROD,PUSH 172A47-74750 2 8 2 2 2
SHIM 172A47-74760 2 9 2 2 2
RO PLUG 172A47-74770 2 10 1 1 1
O-RING 172A47-74780 2 11 1 1 1
SCREW,HEX.S.H.C 172A47-74790 2 12 2 2 2
SEAT,SPRING 172A47-74800 2 13 2 2 2
WASHER 172A47-74810 2 14 2 2 2
SPRING 172A47-74820 2 15 2 2 2
CAM SHAFT 172A47-74840 2 16 1 1 1
BUSH 172A47-74850 2 17 2 2 2
CAM 172A47-74860 2 18 1 1 1
BALL,STEEL 172A47-74870 2 19 2 2 2
SET SCREW 172A47-74880 2 20 1 1 1
BELLOWS 172A47-74890 2 21 1 1 1
CONNECTOR PF1/4-45 172173-76102 1 22 2 2 2
PACKING, 11.0 41851-000110 2 23 2 2 2
JOINT PF1/4 172123-76121 1 24 1 1 1
CONNECTOR ASSY, 02FF 172141-76181 1 25 1 1 1
PACKING, 11.0 41851-000110 2 26 1 1 1
BOLT W/WASHER M10X25 26013-100252 1 27 2 2 2
BOLT W/WASHER M10X25 26013-100252 1 28 2 2 2
PACKING, 11.0 41851-000110 1 29 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.82. SOLENOID VALVE(P.T.O.)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

82. SOLENOID VALVE(P.T.O.)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

VALVE ASSY,G 172837-74130 1 1 1 1 1

172837-74140 2 2 2 2 2

VALVE ASS
O-RING 172837-74150 2 3 2 2 2
O-RING 172837-74160 2 4 2 2 2
O-RING 172837-74170 2 5 2 2 2
PLUG, 3/8 172142-74670 2 6 1 1 1
O-RING 1B P-14.0 24315-000140 2 7 1 1 1
JOINT PF1/4 172123-76121 1 8 1 1 1
JOINT PF1/4 172123-76121 1 9 1 1 1
ELBOW NIPPLE 90G3/8 172A47-76120 1 10 1 1 1
O-RING 1B P-14.0 24315-000140 2 11 1 1 1
CONNECTOR 1/4-1/4 172183-76200 1 12 2 2 2
BOLT W/WASHER M10X20 26013-100202 1 13 2 2 2
PACKING, 11.0 41851-000110 1 14 3 3 3
PACKING, 11.0 41851-000110 1 15 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Y

Fig.83. SOLENOID VALVE(PILOT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

(A=MZZZZZ) (B=MZZZZZ) (C=MZZZZZ)

83. SOLENOID VALVE(PILOT)

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

172A69-74410 1 1 1 1 1

VALVE ASS
VALVE ASSY,SOL 172A69-74411 1 1-1 N 1 1 1

SHIM 172A69-74420 2 2 Z 1 1 1

SHIM 172A69-74430 2 3 Z 1 1 1

PLUNGER 172A69-74440 2 4 1 1 1
SPRING 172A69-74450 2 5 1 1 1

PLUG 172A69-74460 2 6 1 1 1
VALVE, SOLENOID 172A69-74470 2 7 1 1 1
COVER 172A69-74490 2 8 1 1 1
COVER 172A69-74980 2 8-1 S 1 1 1

SPRING 172A69-74500 2 9 1 1 1
SPRING 172A69-74540 2 9-1 S 1 1 1

PLUG 172A69-74510 2 10 1 1 1
PLUG, PF1/2 172A69-74520 2 10-1 S 1 1 1

SPRING 172A46-74710 2 11 2 2 2
VALVE, SOLENOID 172A46-74720 2 12 1 1 1
PLUG 172A46-74730 2 13 3 3 3
O-RING 24311-000160 2 14 2 2 2
O-RING 24315-000100 2 15 1 1 1
O-RING 24315-000110 2 16 3 3 3
O-RING 24315-000110 2 16-1 K 4 4 4

O-RING 24315-000140 2 17 1 1 1
O-RING 24315-000180 2 17-1 S 1 1 1

O-RING 24315-000200 2 18 1 1 1
BOLT 26450-050122 2 19 4 4 4

BOLT 26450-050202 2 20 2 2 2
PLUNGER 172A69-74960 2 20A W 1 1 1

PLUG 172A69-74970 2 20B W 1 1 1

SCREW, ADJUSTING 172A69-74990 2 20C W 1 1 1

WASHER 22117-080000 2 20D W 1 1 1

NUT 26736-100002 2 20E W 1 1 1

ADAPTER 172730-75141 1 21 1 1 1
ADAPTER 172123-76121 1 22 1 1 1
CONNECTOR 172422-76140 1 23 1 1 1
CONNECTOR ASSY 172141-76181 1 24 2 2 2
O-RING 41851-000110 2 25 2 2 2
CONNECTOR 172638-76190 1 26 1 1 1
ELBOW, ADJUSTABLE 172491-76330 1 27 1 1 1

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

++ CONTINUE ++

(C)Copyrights YANMAR CO.,LTD.

0CS10-G55700

Fig.83. SOLENOID VALVE(PILOT)

0CS10-G55700

LEV. REF. PARTS NO. DESCRIPTION

83. SOLENOID VALVE(PILOT)

O-RING 24315-000110 2 28 1 1 1
BOLT 26013-100162 1 29 2 2 2
O-RING 41851-000110 1 30 2 2 2

O-RING 41851-000140 1 31 1 1 1

(A)=VIO80(US)
(B)=VIO80(AS)
(C)=VIO80(NZ)

(D)=
(E)=
(F)=

Q'TY

R I

(F) (D) (C) (B) (A) (E)

(C)Copyrights YANMAR CO.,LTD.
