RX-V795aRDS

Natural Sound AV Receiver

Ampli-tuner audio vidéo

G B

V293450

OWNER’S MANUAL

MODE D’EMPLOI

BEDIENUNGSANLEITUNG

BRUKSANVISNING

MANUALE DI ISTRUZIONI

MANUAL DE INSTRUCCIONES

GEBRUIKSAANWIJZING

Congratulations!

You are the proud owner of a Yamaha Digital Sound Field Processing (DSP) System—an extremely sophisticated audio component. The DSP system takes full advantage of Yamaha’s undisputed leadership in the field of digital audio processing to bring you a whole new world of listening experiences. Follow the instructions in this manual carefully when setting up your system, and the DSP system will sonically transform your room into a wide range of listening environments—anything from a famous concert hall to a cozy jazz club. In addition, you get incredible realism from most of surround-sound encoded video sources available in the market using the builtin Dolby Pro Logic Decoder, Dolby Digital Decoder and DTS Decoder.

Five built-in channels of amplification on this model mean that no additional amplifiers are required to enjoy advanced digital sound field processing.

Rather than tell you about the wonders of digital sound field processing, however, let’s get right down to the business of setting up the system and trying out its many capabilities. Please read this operation manual carefully and store it in a safe place for later reference.

English

CAUTION .................................................................. 2

INTRODUCTION ....................................................... 3

Features .................................................................... 3

What’s DSP?............................................................. 4

GETTING STARTED ................................................ 7

Getting started.......................................................... 7

Unpacking.............................................................. 7

Installing batteries in the remote controller ........... 8

Notes about the remote controller.......................... 8

Controls and their functions................................... 9

Front panel............................................................. 9

Display panel........................................................ 11

PREPARATION ...................................................... 12

Speaker setup......................................................... 12

Connections ........................................................... 14

Audio/video source equipment ............................ 14

Speakers ............................................................. 20

Antennas ............................................................. 23

Plugging in this unit ............................................. 25

On screen display.................................................. 26

Selecting the output modes

(“SET MENU” mode) ............................................. 27

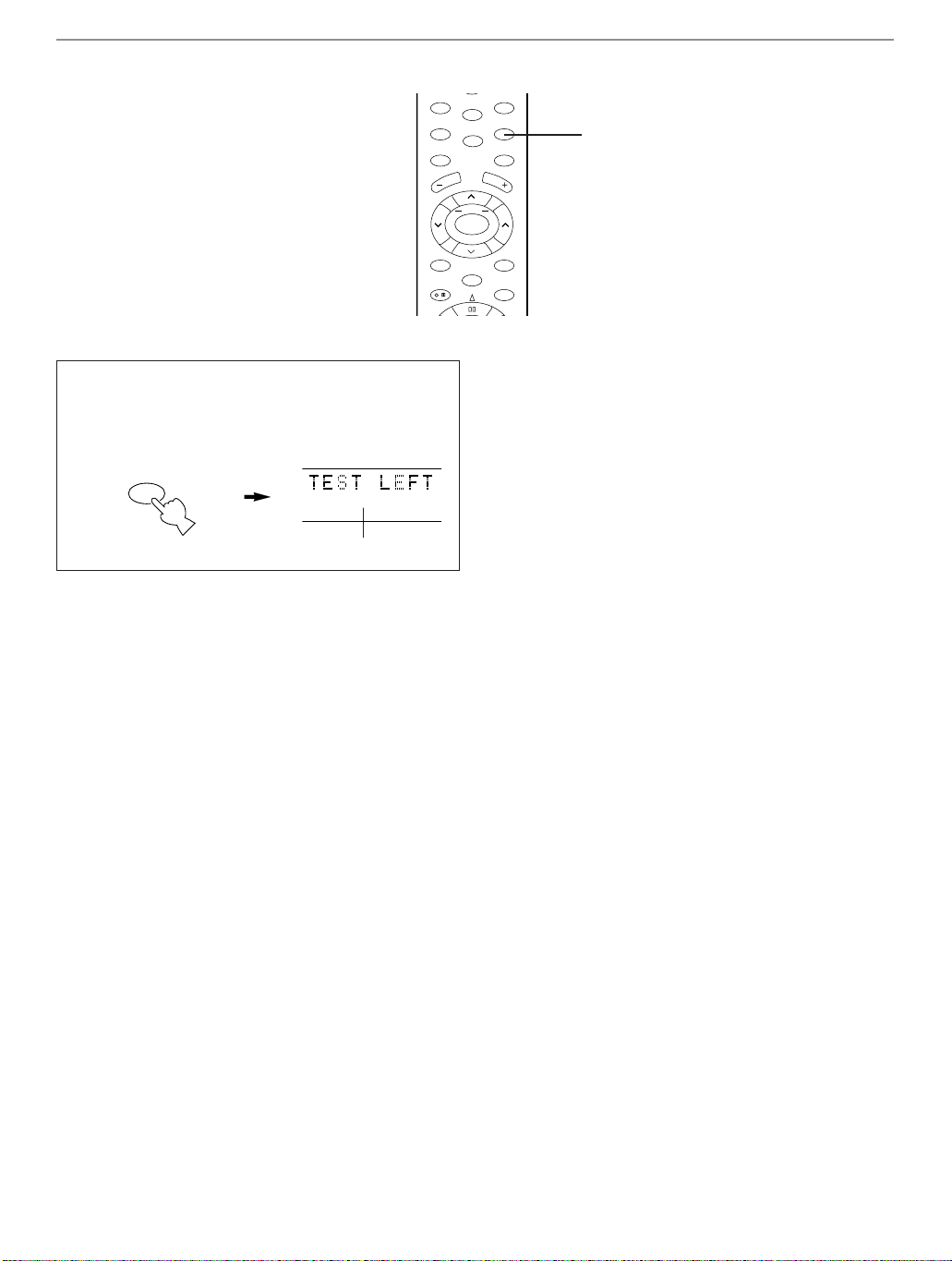

Speaker balance adjustment ................................ 30

BASIC OPERATION ............................................... 33

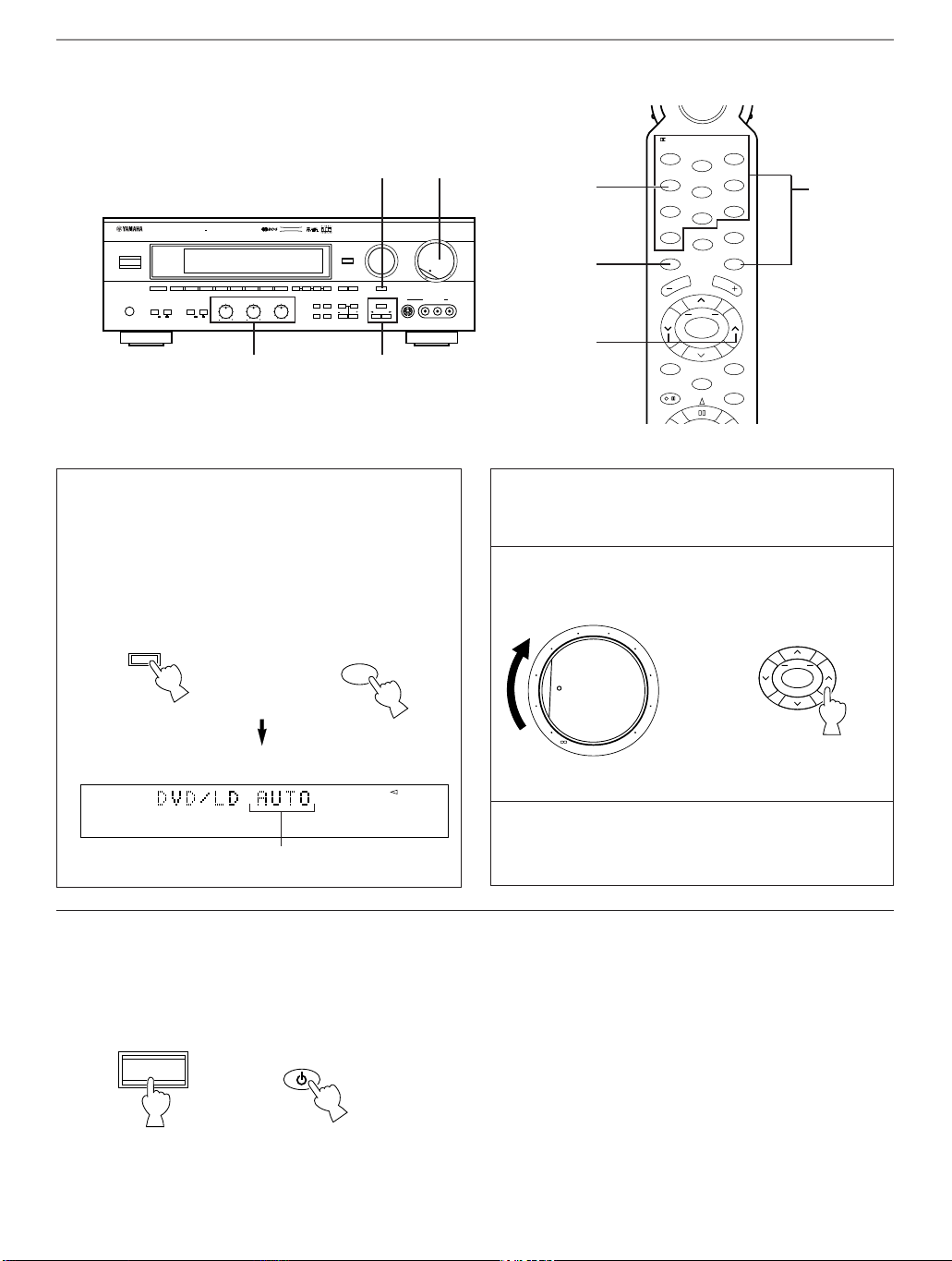

Playing a source .................................................... 33

Recording a source to tape (or MD) or dubbing

from tape (or MD) to tape (or MD)......................... 37

Sound control......................................................... 38

Tuning ..................................................................... 39

Basic operation ................................................... 39

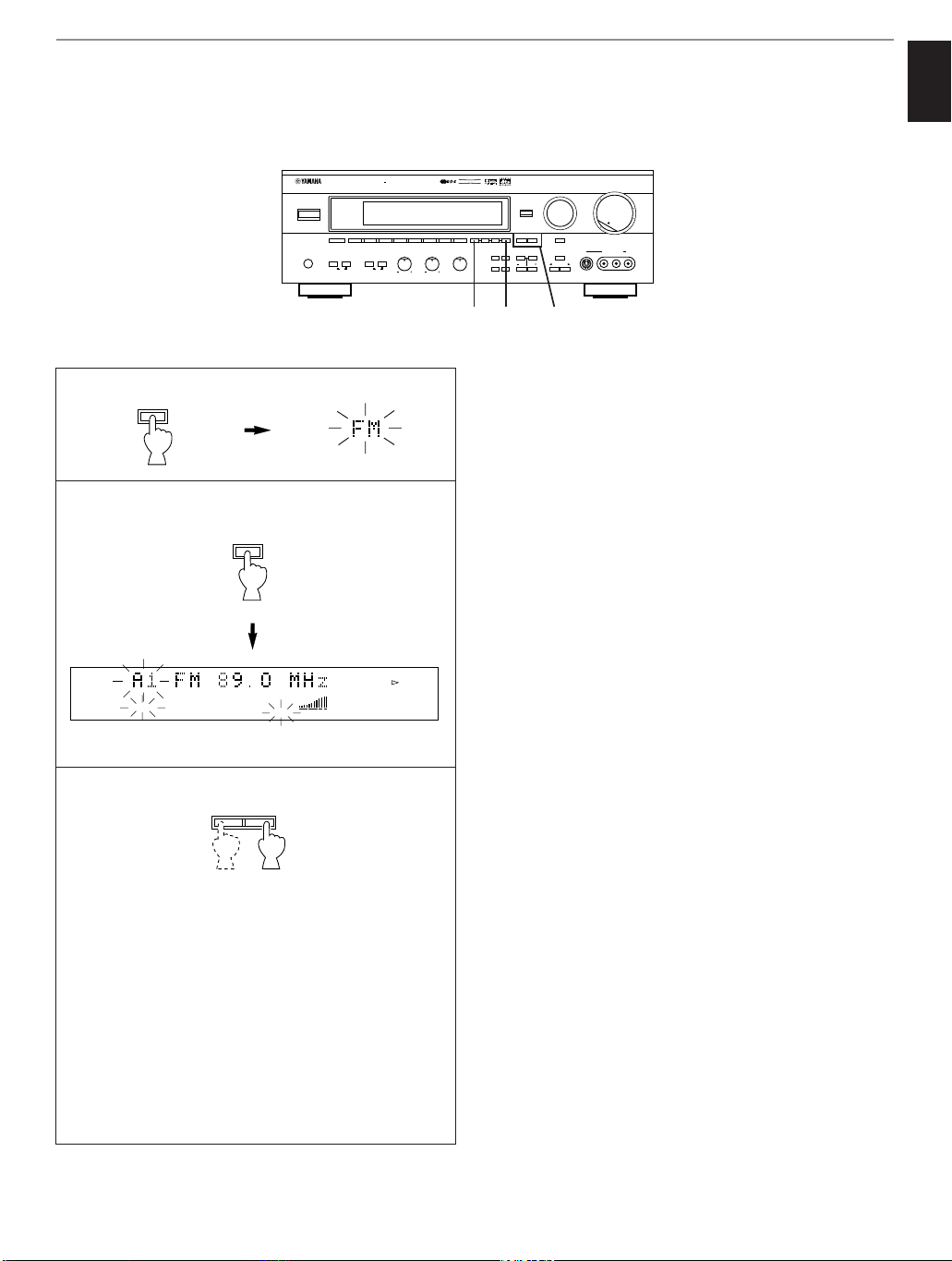

Preset tuning........................................................ 40

Receiving RDS stations .........................................43

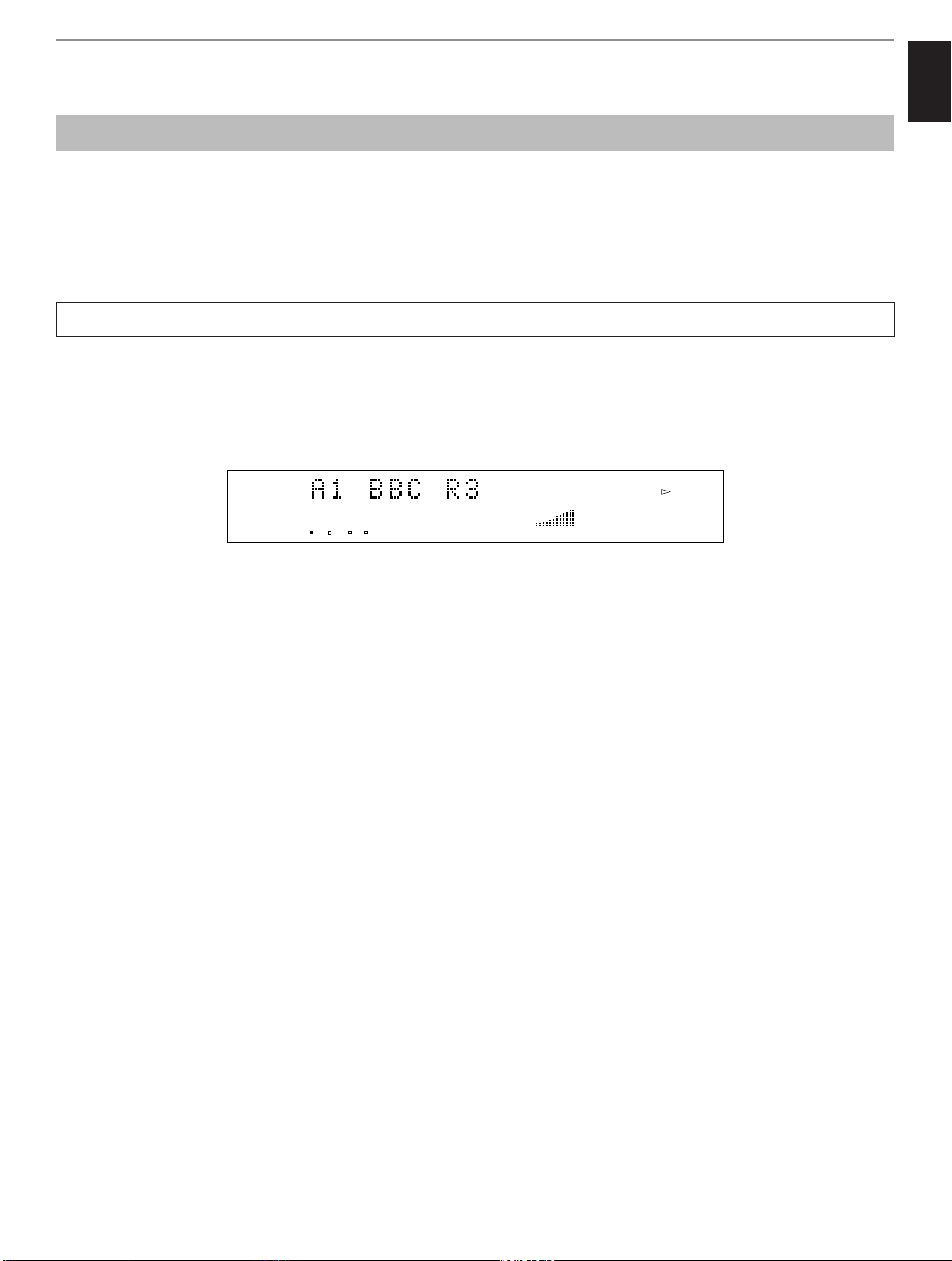

Displaying RDS data.............................................43

Selecting your desired program type from among

preset RDS stations (PTY SEEK).........................46

Automatic selection of desired program when

broadcasting starts................................................47

Using digital sound field processor (DSP) ......... 48

Playing a source with an effect of the digital

sound field processor (DSP)................................ 48

Adjusting output level of the center, right rear,

left rear speakers and subwoofer......................... 51

Brief overview of digital sound field programs...... 53

ADVANCED FEATURES ....................................... 56

“SET MENU” mode ............................................... 56

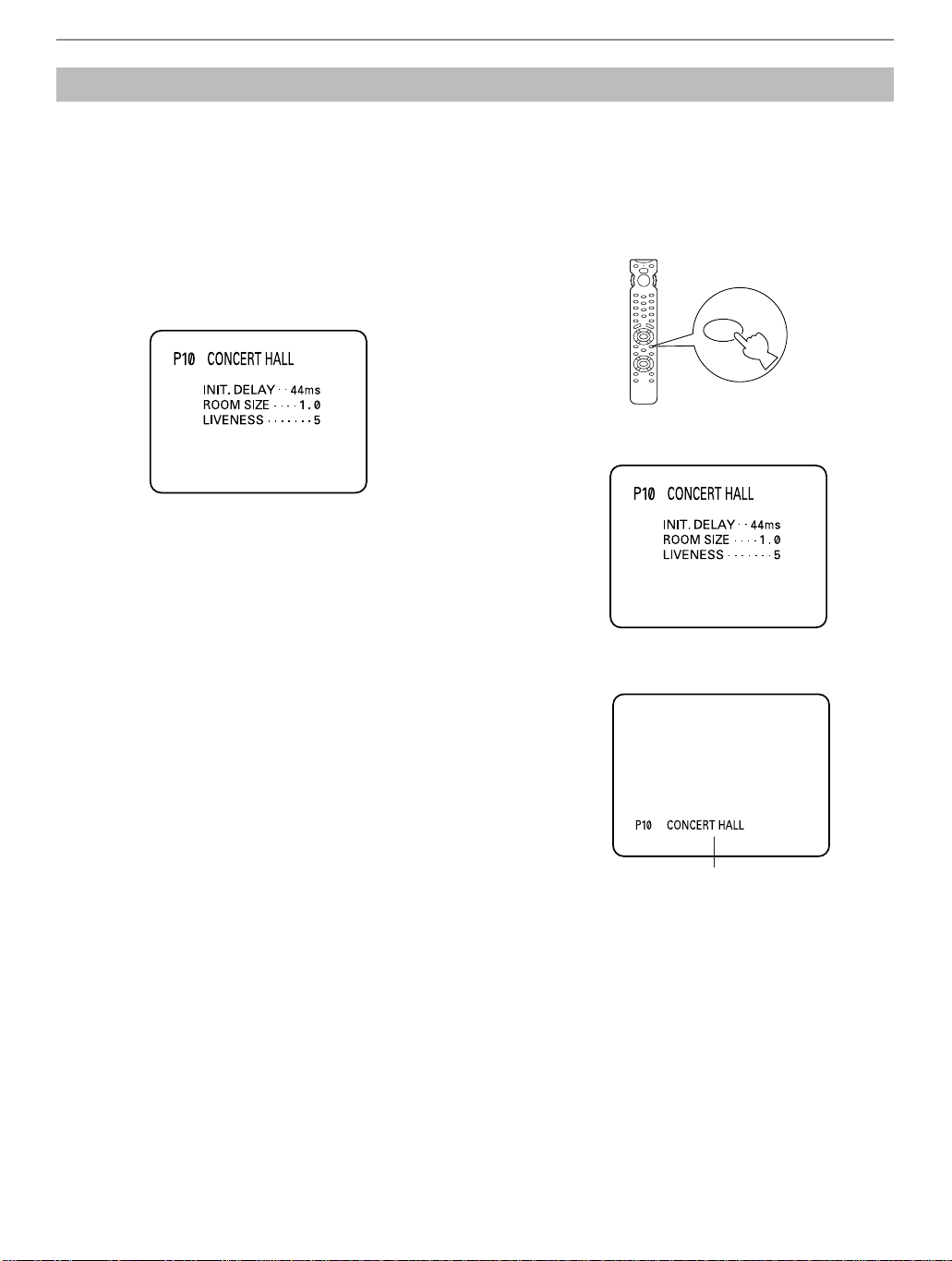

Creating your own sound fields .......................... 60

Setting the SLEEP timer ....................................... 64

REMOTE CONTROLLER ....................................... 65

Basic operation ..................................................... 65

Key name and function ......................................... 66

Entering manufacturer codes .............................. 71

Restoring the default codes ................................. 72

TROUBLESHOOTING ............................................ 73

SPECIFICATIONS .................................................. 76

LIST OF MANUFACTURE’S CODE

.............................................. The end of this manual

CONTENTS

1. To assure the finest performance, please read this manual

carefully. Keep it in a safe place for future reference.

2. Install this unit in a cool, dry, clean place – away from

windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose the unit to rain or water.

3. Never remove the unit cover. Contact your dealer if an

object falls inside the unit.

4. Do not use force on switches, controls or connection wires.

When moving the unit, first disconnect the power plug and the wires connected to other equipment. Never pull on the wires themselves.

5. The openings on the unit cover assure proper ventilation of

the unit. If these openings are obstructed, the temperature inside the unit will rise rapidly. Therefore, avoid placing objects against these openings, and install the unit in a well-ventilated area to prevent fire and damage. Be sure to allow a space of at least 20 cm behind, 20 cm on the both sides and 30 cm above the top panel of the unit to prevent fire and damage.

6. The voltage used must be the same as that specified on

this unit. Using this unit with a higher voltage than specified is dangerous and may result in fire or other accidents. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than specified.

7. Digital signals generated by this unit may interfere with

other equipment such as tuners, receivers or TVs. Move this unit farther away from such equipment if interference is observed.

8. Always set the VOLUME control to “–

∞

” before starting the audio source play. Increase the volume gradually to an appropriate level after playback has been started.

9. Do not attempt to clean the unit with chemical solvents;

this might damage the finish. Use a clean, dry cloth.

10.Be sure to read the “TROUBLESHOOTING” section

regarding common operating errors before concluding that the unit is faulty.

11.When not planning to use this unit for long periods of time,

disconnect the AC power plug from the wall outlet.

12.To prevent lightning damage, disconnect the AC power

plug and antenna cable when there is an electrical storm.

13.Grounding or polarization – Precautions should be taken

so that the grounding or polarization of an appliance is not defeated.

14.Do not connect an audio unit to the AC outlet on the rear

panel if the equipment requires more power than the outlet is rated to provide.

IMPORTANT

Please record the serial number of your unit in the space below.

Model: Serial No.: The serial number is located on the rear of the unit.

Retain this Owner’s Manual in a safe place for future reference.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this mode, this unit is designed to consume a small amount of power.

WARNING Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged.

If this unit fails to turn on when the STANDBY/ON switch is pressed: The IMPEDANCE SELECTOR switch may not be set to either end. If so, set the switch to either end when this unit is in the standby mode.

For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

Special Instructions for U.K. Model

IMPORTANT

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL Brown: LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

IMPEDANCE SELECTOR

: 6ΩMIN. /SPEAKER : 6

Ω

MIN. /SPEAKER

A OR B: 4

Ω

MIN. /SPEAKER

A B: 8

Ω

MIN. /SPEAKER

SET BEFORE POWER ON

REAR CENTER MAIN

: 8ΩMIN. /SPEAKER : 8

Ω

MIN. /SPEAKER

A OR B: 8

Ω

MIN. /SPEAKER

A B:I6

Ω

MIN. /SPEAKER

REAR CENTER MAIN

SWITCHED

I00W MAX. TOTAL

AC OUTLETS

CAUTION

SEE INSTRUCTION

MANUAL FOR CORRECT SETTING.

REAR

(SURROUND)

IMPEDANCE SELECTOR

(Europe model)

CAUTION : Read this before operating your unit.

English

5 Channel Power Amplification

Main: 85W + 85W (8Ω) RMS Output

Power , 0.04% THD, 20–20,000 Hz

Center: 85W (8Ω) RMS Output Power,

0.04% THD, 20–20,000 Hz

Rear: 85W + 85W (8Ω) RMS Output

Power , 0.04% THD, 20–20,000 Hz

Multi-Mode Digital Sound Field Processing

●

Digital Sound Field Processor (DSP)

●

Dolby Digital Decoder

●

Dolby Pro Logic Decoder

●

DTS Decoder

●

CINEMA DSP:Theater-like Sound Experience by the Combination of YAMAHA DSP Technology and Dolby Digital, Dolby Pro Logic or DTS

●

Automatic Input Balance Control for Dolby Pro Logic Decoding

●

Test Tone Generator for Easier Speaker Balance Adjustment

●

Speaker Output Mode Selection Capability for the Most Suitable Use of Your Speaker System

Sophisticated FM/AM Tuner

● 40-Station Random Access Preset Tuning

● Automatic Preset Tuning

● Preset Station Shifting Capability (Preset

Editing)

● Multi-Functions for RDS Broadcast

Reception

● IF Count Direct PLL Synthesizer Tuning

System

Others

●

“SET MENU”Mode which Provides You with 13 Titles of Setting Changes and Adjustments for Optimizing This Unit for Your Audio/Video System

● BASS EXTENSION Button for Reinforcing

Bass Response

● On Screen Display Function Helpful in

Controlling This Unit

● SLEEP Timer

●

OPTICAL and COAXIAL Digital Audio Signal Terminals

● 6 Channel External Decoder Input for

Other Future Formats

● Video Signal Input/Output Capability

(Including S Video Connections)

● Universal Remote Controller with Preset

Manufacturer Codes

Features

INTRODUCTION

Welcome to the exciting world of digital home entertainment. This unit is one of the most complete and advanced AV receiver available. Some of the more advanced features may not be familiar to you, but they are easy to use. State-of-the-art technologies such as Dolby Digital and Digital Theater Systems (DTS) may be new to your home, but you have probably experienced the amazing realism they bring to feature films in theaters around the world.

To make the listening experience even more enjoyable, this unit includes a number of exclusive, digitally created listening environments known as digital sound fields. Choosing a sound field program is like transporting yourself to such venues as an outdoor arena, a European church, or a cozy jazz club. Take some time now to read more about these features and enjoy the new experiences this unit brings to your home theater.

Digital Sound Field Processing

Technological advances in sound reproduction over the last 30 years have enhanced the listening experience with improved clarity, precision and power. However, something has still been missing: The atmosphere and acoustic ambiance of the public venue. Our Yamaha engineers have extensively researched the nature of sound acoustics and the way sound reflects inside a room. We sent these engineers to famous theaters and concert halls around the world to measure the acoustics of those venues with sophisticated microphones. The data they collected is used to recreate these environments in digital sound fields. Some of these digital sound fields are created using data measured directly at the original venue; others are created from combinations of data to form unique environments for specific purposes.

Of course, that only solves half of the problem. These engineers have no way of knowing the acoustics of your listening room, so we’ve made it possible for you to adjust the various parameters of this data to tailor each virtual venue to your taste. You can use these sound fields to enhance any source and in combination with any of the following surround sound technologies. Some are designed especially for music, and some especially for movies.

Dolby Pro Logic

Dolby Surround has been used in movie theaters since the mid-seventies. It has also been available in home entertainment systems since the late eighties and continues to be a popular format for home theater systems. It uses four discrete channels and five speakers to reproduce realistic and dynamic sound effects: two main channels (left and right), a center channel for dialog, and a rear channel for special sound effects. The rear channel reproduces sound within a narrow frequency range.

Most video tapes and laser discs include Dolby Surround encoding as do many TV and cable broadcasts. The Dolby Pro Logic decoder built into this unit employs a digital signal processing system that stabilizes each channel for even more accurate sound positioning than is available with standard analog processors.

Introduction

What’s DSP?

INTRODUCTION

English

Dolby Digital is the next level of Dolby Surround sound system developed for 35 mm film-movies by employing low bit-rate audio coding.

Dolby Digital is a digital surround sound system that provides completely independent multi-channel audio to you. Dolby Digital provides five full range channels in what is sometimes referred to as a “3/2” configuration: three front channels (left, center and right), and two surround channels. A sixth bass-only effect channel is also provided for output of LFE (low frequency effect), or low bass effects that are independent of other channels. (This is called the “LFE channel”.) This channel is counted as 0.1, thus giving rise to the term 5.1 channels in total.

Compared to Dolby Surround that is referred to a “3/1” system (left front, center, right front and just one surround channel), Dolby Digital features two surround channels, called stereo or split surrounds, each offering the same full range fidelity as the three front channels.

By using the built-in Dolby Digital decoder, you can experience the dramatic realism and impact of Dolby Digital theater sound in your home. Wide dynamic range of sound reproduced by the five full range channels and precise sound orientation by the digital sound processing presents listeners much excitement and realism that has never been experienced before.

Dolby Digital forms 5.1 channels as mentioned left, and moreover, it can also form fewer channels, for example 2 channel stereo and monaural. You may be able to find some 2 channel stereo and/or monaural sources encoded with Dolby Digital in the market.

Laserdisc and DVD are home audio formats that could benefit from Dolby Digital. In the near future, Dolby Digital will also be applied to DBS, CATV and HDTV. The ongoing release of Dolby Digital theatrical films now underway will provide an immediate source of Dolby Digital encoded video software.

Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

DTS (Digital Theater Systems) system was developed to replace analog soundtracks of movies with six discrete channels of digital soundtracks, and now, it is installed in many theaters around the world. The DTS digital playback system changed the way we experienced movies in theaters with six discrete channels of superb digital audio.

The DTS technology, through intense research and development, made it possible to deliver a similar encode/decode discrete technology to home audio surroundsound entertainment. The DTS Digital Surround is an encode/decode system which delivers six channels of master-quality, 20-bit audio; technically

5.1 channels, which means 5 full-range (left, center, right and two surround) channels, plus a subwoofer (LFE) channel (as “0.1”). It is compatible with the 5.1 speaker configurations that are currently available for home theater systems

The DTS Digital Surround algorithm is designed to encode the six channels of 20-bit audio onto some laserdiscs, compact discs and DVDs with considerably less data-compression.

By using the DTS decoder built into this unit, you can experience the dramatic realism and impact of the DTS installed theater’s high quality sound in your home.

Laserdisc, compact disc and DVD are home audio format within which DTS can represent its high quality multi-channel audio. (In addition to movies on laserdiscs, many exciting new multi-channel music recordings will also become available in the form of DTS-encoded compact discs.)

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”, “DTS Digital Surround”, are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

DTS Digital Surround

Dolby Digital

INTRODUCTION

Dolby Pro Logic + 2 Digital Sound Fields

Digital sound fields are created on the presence side and the rear surround side of the Dolby Pro Logic decoded sound field respectively. They create a wide acoustic environment and emphasize surround-effect in the room, letting you feel much presence as if you were watching a movie in a popular Dolby Surround theater.

For details, refer to pages 53 to 54.

Dolby Digital or DTS + 3 Digital Sound Fields

Digital sound fields are created on the presence side and the independent left and right surround sides of the Dolby Digital-decoded or the DTS-decoded sound field respectively. They create a wide acoustic environment and much surround effect in the room without losing high channel separation. With wide dynamic range of Dolby Digital or DTS sound, this sound field combination lets you feel as if you were watching a movie in the newest Dolby Digital theater or DTS installed theater. This is the most ideal home theater sound at the present time.

For details, refer to pages 53 to 54.

CINEMA DSP: Dolby Surround + DSP / DTS + DSP

The Dolby Surround sound and DTS systems show their full ability in a large movie theater, because movie sounds are originally designed to be reproduced in a large movie theater that uses a multitude of speakers. Trying to create a sound environment similar to that of a movie theater in your home is difficult because of the room size, material inside the walls, the number of speakers, and so on. In other words, your listening room is very different from a movie theater.

However, Yamaha DSP technology allows you to create nearly the same sound experience as that of a large movie theater in your home by compensating for the lack of presence and dynamics in the listening room with original digital sound fields combined with Dolby Surround or DTS Digital Surround sounds.

The YAMAHA “CINEMA DSP” logo indicates those programs that are created by the combination of YAMAHA DSP technology and Dolby Surround or DTS.

CINEMA DSP

INTRODUCTION

English

GETTING STARTED

Getting started

Remote controller

Batteries (size AA, R6, UM-3)

Indoor FM Antenna

AM Loop Antenna

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

DIR DIR

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

Unpacking

Carefully remove this unit and accessories from the box. You should find the unit itself and the following accessories.

Installing batteries in the remote controller

Since the remote controller will be used for many of this unit’s control operations, you should begin by installing the supplied batteries.

1. Turn the remote controller over and slide the battery

compartment cover in the direction of the arrow.

2. Insert the batteries (AA, R6, UM-3 type) according to the

polarity markings on the inside of the battery compartment.

3. Close the battery compartment cover.

Notes about the remote controller

Battery replacement

If you find that the remote controller must be used closer to the main unit, the batteries are weak. Replace both batteries with new ones.

Notes

●

Use AA, R6, UM-3 batteries.

●

Be sure the polarities are correct. (See the illustration inside the battery compartment.)

●

Remove the batteries if the remote controller is not used for an extended period of time.

●

If batteries leak, dispose of them immediately. Avoid touching the leaked material and contact with clothing, etc. Clean the battery compartment thoroughly before installing new batteries.

Be sure to insert the new batteries within 2 minutes after you remove the old batteries from the remote controller. If the remote controller is left for more than 2 minutes without batteries, all of the codes you entered will be cleared and the remote controller will return to the factory preset condition.

Remote controller operation range

Notes

●

The area between the remote controller and the main unit must be clear of large obstacles.

●

Do not expose the remote control sensor to strong lighting, in particular, an inverter type fluorescent lamp. Otherwise, the remote controller may not work properly. If necessary, position the main unit away from direct lighting.

30°

Remote control sensor

Within approximately 6 m (19.7 feet)

GETTING STARTED

English

Controls and their functions

Front panel

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E

2345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE 2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

8AB0C

I JKL

MNO R

23 45 6

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

MEMORY EDIT FM/AM

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

EFGH

1 STANDBY/ON switch

Press this switch to turn on the power. Press this switch again to set this unit in the standby mode. * A click from the switch and the initial rotation of the built-in

fan will be heard when the power is turned on. Standby mode

This unit is still using a small amount of power in this mode in order to be ready to receive infrared-signals from the remote controller.

2 Remote control sensor

Receives signals from the remote controller.

3 Display panel

Displays a variety of information. (Refer to page 11 for details.)

4 TAPE/MD MON/EXT. DECODER button

Press this button repeatedly until the “TAPE/MD MONITOR

”

indicator is illuminated

on the display. Sound source played or recorded on the unit connected to the TAPE/MD IN (PLAY)/OUT (REC) AUDIO SIGNAL terminals on the rear of this unit is selected as the input source taking priority of the INPUT SELECTOR’s setting. Press this button repeatedly until the “EXT. DECODER” appears

on the display. Sound signals input to the EXTERNAL DECODER INPUT terminals on the rear of this unit is selected as the input source taking priority of the INPUT SELECTOR’s setting. Press this button repeatedly until the original display mode is restored to cancel the above input sources.

5 INPUT SELECTOR

Turn this knob to select the input source. The selected source will be shown on the display.

6 Master VOLUME control

Simultaneously controls volume for all output sounds; main, rear, center and subwoofer. (The REC OUT level is not affected.) * The indicator on the master VOLUME control will flash when

the volume is decreased by pressing the MUTE key on the remote controller.

7 PHONES jack

Headphones can be plugged into this jack for private listening. You can listen to the sound to be output from the main speakers through headphones. When listening with headphones privately, set both SPEAKERS A and B switches to the OFF position and turn off the digital sound field processor by pressing the EFFECT button so that no DSP program name is illuminated on the display panel.

For the remote controller, refer to pages 65 to 72.

GETTING STARTED

PHONES

8 A/B/C/D/E button

Press this button to select a group (A–E) of preset stations.

9 SPEAKERS switches

Press the switch A or B (or both) for the main speakers you will use inward (ON). Press and release the switch for the main speakers you do not use outward (OFF).

0 Preset station number selector buttons

Select a preset station number (1 to 8).

A BASS EXTENSION button

Press this button inward (ON) to boost the bass frequency response at the main left and right channels while maintaining overall tonal balance. This function is effective for reinforcing the bass frequencies when a subwoofer is not used.

B TONE BYPASS button

Press this button inward (ON) to bypass the tone (BASS and TREBLE) control circuitry. This function is used for outputting

pure sound and checking the tone control settings. The tone control circuitry can be used when this button is released outward (OFF).

C BASS and TREBLE controls

Rotate these knobs to adjust the low and high frequency response for the left and right main channels only.

D BALANCE control

This knob controls the sound from the main speakers only. The balance of the output volume to the left and right main speakers can be adjusted to compensate for sound imbalances caused by the speaker location or listening room conditions.

E MEMORY (MAN’L/AUTO FM) button

Use this button to enter a station to memory. Refer to the section “Manual preset tuning” on page 40 for details. Hold down this button for more than 3 seconds to start automatic preset tuning. Refer to page 41 for details.

F EDIT button

This button is used to exchange the places of two preset stations with each other.

G TUNING MODE (AUTO/MAN’L MONO) button

Press this button to switch the tuning mode between automatic and manual. To select the automatic tuning mode, press this button so that the “AUTO” indicator is illuminated on the display. To select the manual tuning mode, press this button so that the “AUTO” indicator is not illuminated.

H FM/AM button

Press this button to switch the reception band between FM and AM.

I RDS MODE/FREQ button

When an RDS station is received, pressing this button changes the display mode into the PS mode, PTY mode, RT mode and/or CT mode (if the station employs these RDS data services), and frequency display in turn.

J PTY SEEK MODE button

Press this button to set the unit to the PTY SEEK mode.

K PTY SEEK START button

Press this button to begin searching for a station after the desired program type is selected in the PTY SEEK mode.

L EON button

Press this button to select a desired program type (NEWS, INFO, AFFAIRS, SPORT) when you want to call a radio program of that program type automatically.

M LEVEL button

This button is used to adjust the output level of the center and rear speakers, and subwoofer. First, press this button (several times) to select the speaker(s). The name appears on the display. Then press the + or – button (

) to change the output

level.

N –/+ button

Adjusts the level of the speaker(s) selected by pressing the LEVEL button. Moreover, performs setting changes and adjustments for functions selected by pressing the SET MENU button (

O).

O SET MENU button

Press this button once or more to select the desired function in the SET MENU mode.

P TUNING DOWN/UP button

Used for tuning. Press the “UP” side to tune in to a higher frequency, and press the “DOWN” side to tune in to a lower frequency. When this unit is in the PTY SEEK mode, pressing this button changes the currently selected program type.

Q PROGRAM selector button

Press this button in the or direction to select a digital sound field processing program.

R EFFECT button

Press this button to turn on and off the output from the center and rear speakers. The sound becomes normal 2-channel when this function is turned off. However, this does not apply to Dolby Digital or DTS. The signals at all channels will be distributed to the main channels and output from the main speakers, even if the output from the center and rear speakers are turned off, when Dolby Digital or DTS is decoded.

S VIDEO AUX terminals

Connect an auxiliary video or audio input source unit such as a camcorder to these terminals. A video unit with a S video output terminal can be connected to the S VIDEO terminal to obtain a high resolution picture. The source can be selected with the INPUT SELECTOR.

T INPUT MODE button

Press this button to select how input signals are received from sources that output two or more types of signals. The “AUTO”, “DTS” and “ANALOG” modes are available. Refer to page 36 for details.

GETTING STARTED

English

Display panel

DIGITAL

PRO LOGIC

DSP

TUNER

PHONO

TAPE/MD MONITOR

DVD/LD

TV/DBS

V-AUX

VCR

SLEEP

PS PTY RT CT

ENHANCED MOVIE THEATER 12 TV SPORTS MONO MOVIE DISCO JAZZ CLUB ROCK CONCERT CHURCH CONCERT HALL

MEMORY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT AUTO

0 20 100

STEREO

1324

56 7 8 9 A0BC EFD

1 indicators

Either “dts” indicators will be illuminated when the built-in DTS decoder is turned on. A red “dts” indicator will be illuminated when playing a compact disc or laserdisc encoded with DTS. An orange “dts” indicator will be illuminated when playing a DVD encoded with DTS. An orange “dts” indicator may be illuminated when playing a laserdisc encoded with DTS after a video-CD or DVD on a DVD/LD combi-player.

2 DSP program indicators

The name of the selected DSP program will be illuminated in the following cases.

• When the tuner is selected as the input source.

• When a DSP program parameter is selected or adjusted.

• When the DSP program No. 2, 3 or the subprogram

“Enhanced” of No. 1 is selected. There is no illumination here when no DSP program is selected.

3 Multi-information display

This display shows the current DSP program and the status of adjustments and setting changes. Several statuses can be viewed at one time. The current station frequency and band (AM or FM) will also appear when the tuner source input mode is selected.

4 Input source indicators

One of the arrows for these indicators will be illuminated depending on which source is selected.

5 DIGITAL and PRO LOGIC indicators

The DIGITAL indicator will be illuminated when the built-in Dolby Digital decoder is on and the signals of the source encoded with Dolby Digital are not 2-channels. The PRO LOGIC indicator will be illuminated when the built-in Dolby Pro Logic decoder is on.

6 DSP indicator

This indicator will be illuminated when the built-in digital sound field processor is on.

7 MEMORY indicator

A flashing MEMORY indicator means a station can be saved, as explained in the following: Press the MEMORY button. The MEMORY indicator will flash about 5 seconds. While the indicator is flashing, program the displayed station to memory by using the A/B/C/D/E and the

preset station number selector buttons.

8 RDS mode indicators

The name(s) of the RDS mode(s) employed by the currently received RDS station is (are) illuminated. Illumination of the indicator on the head of a name shows that the corresponding RDS mode is now selected.

9 PTY HOLD indicator

This indicator will be illuminated while the search is performed in the PTY SEEK mode.

0 EON indicator

This indicator will be illuminated when an RDS station that employs the EON data service is received.

A Program type name indicators

The name selected in the EON mode is illuminated.

B AUTO indicator

This indicator will be illuminated during the automatic tuning mode.

C STEREO indicator

This indicator will be illuminated when an FM stereo broadcast with sufficient signal strength is received.

D Signal-level indicator

This indicator shows the signal level of the received station. If multipath interference is detected, the indication decreases.

E TAPE/MD MONITOR indicator

This indicator will be illuminated when the tape deck (or MD recorder etc.) connected to the TAPE/MD IN and OUT terminals on the rear of this unit is selected as the input source by pressing the TAPE/MD MON/EXT. DECODER button.

F SLEEP indicator

This indicator will be illuminated when the built-in SLEEP timer is on.

GETTING STARTED

This unit has been designed to provide the best sound field quality with a full five-speaker system setup, using a pair of main speakers to output main source sounds, a pair of effect speakers to generate the sound field plus one center speaker for dialog. We therefore recommend that you use a fivespeaker setup. A four-speaker system using only one pair of effect speakers for the sound field will still provide impressive ambience and effects, however, and may be a good way to begin with this unit. You can always upgrade to the fivespeaker system later.

Use of the center dialog speaker is recommended

When playing back a source with Dolby Pro Logic decoded, or playing back a source which contains center-channel signals with Dolby Digital or DTS decoded, dialog, vocals etc. are output from the center channel. Therefore, if you want to maximize the performance of your Audio/Video home theater system, it is recommended that you use a center channel speaker.

If, for some reason, it is not practical to use a center speaker, it is possible to enjoy the movie without it. Best results, however, are obtained with the full system.

Use of a subwoofer expands your sound field

It is also possible to further expand your system with the addition of a subwoofer and amplifier. The use of a subwoofer is effective not only for reinforcing bass frequencies from any or all channels, but also for reproducing signals at the subwoofer channel with high fidelity during playing back a source with Dolby Digital or DTS decoded. You may wish to choose the convenience of a Yamaha Active Servo Processing Subwoofer System, which has its own built-in power amplifier.

Speaker setup

m Speakers and speaker placement

Your full five-speaker system will require two speaker pairs: the MAIN SPEAKERS (your normal stereo speakers) and the REAR SPEAKERS, plus the CENTER SPEAKER. You may also be using a SUBWOOFER.

The MAIN SPEAKERS should be high performance models and have enough power handling capacity to accept the maximum output of your audio system. Other speakers do not have to be equal to the MAIN SPEAKERS. For precise sound localization, however, it is ideal to use high performance models that can reproduce sounds in full range for the CENTER SPEAKER and REAR SPEAKERS.

Place the MAIN SPEAKERS in the ordinary position. Place the REAR SPEAKERS behind your listening position. They should be nearly 1.8m above the floor. Place the CENTER SPEAKER precisely between the two MAIN SPEAKERS. (To avoid interference, keep the speaker above or below the television monitor, or use a magnetically shielded speaker.) If using a SUBWOOFER, such as a Yamaha Active Servo Processing Subwoofer System, the position of the speaker is not so critical because low bass tones are not highly directional.

m Setting up your speaker system

Main speaker Center speaker Rear speaker

Subwoofer

PREPARATION

English

5 Speaker System

The recommended system for enjoying Audio/Video sources.

By the use of a center speaker, center channel sounds (dialog, vocals etc.) are precisely localized.

1. CENTER SPEAKER—Set to

“

LRG” or “SML”.

(See page 27.)

4 Speaker System

Basic system.

You can enjoy widely diffused sound by only adding a pair of rear speakers to a basic stereo speaker system. However, center channel sounds must be output from the left and right main speakers.

1. CENTER SPEAKER—Set to “NONE”. (See page 27.)

m Speaker system configurations

PREPARATION

Caution: Plug in this unit and other components after all connections are completed.

All connections must be correct, that is to say L (left) to L, R (right) to R, “+” to “+” and “–” to “–”. Also refer to the owner’s manual for each of your components.

Audio/video source equipment

●

Use RCA type pin plug cables for audio/video units with the exception described later.

●

The output (or input) terminals of YAMAHA audio/video units numbered as 1, 3, 4, etc. on the rear panel must be connected to the same-numbered terminals of this unit.

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

IN (PLAY) OUT (REC)

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

OUTPUT

LINE OUT

LINE IN

VIDEO OUT

AUDIO OUT

AUDIO IN

VIDEO OUT

VIDEO IN

OUTPUT

GND

VIDEO

AUDIO OUT

VIDEO OUT

(Europe model)

Turntable

MD recorder,

Tape deck, etc.

CD player

m Basic connections

(*1): GND terminal (For turntable use)

Connecting the ground wire of the turntable to the GND terminal will normally minimize hum, but in some cases better results may be obtained with the ground wire disconnected.

: Indicates the direction of signals.

Connections

PREPARATION

(*1)

LD player, DVD player, etc.

TV monitor

Video cassette

recorder

TV/Satellite tuner

English

PREPARATION

VIDEO AUX

S VIDEO VIDEO L AUDIO R

S VIDEO

VIDEO

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VIDEO OUT

S VIDEO OUT

AUDIO OUT L

AUDIO OUT R

Camcorder

VIDEO AUX terminals (on the front panel)

These terminals are used to connect a video input source such as a camcorder.

For connecting with a TV monitor that uses a 21 pin connector for input

Make a connection as figured below with a commercially available scart-plug connector cable.

: S-video cable

(Refer to page 18 for details about the S VIDEO terminal.)

(Europe model)

No connection

Scart-plug connector cable

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

IN (PLAY) OUT (REC)

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

VIDEO

AUDIO L

AUDIO R

TV monitor

Notes

●

When you connect an audio/video unit to both of the digital and analog terminals of this unit, make sure to connect to both terminals of the same name.

●

Be sure to attach the covers when the OPTICAL terminals are not being used, in order to protect the terminals from dust.

●

The DOLBY DIGITAL RF signal output terminal of your DVD/LD/CD combi-player, etc. cannot be connected directly to this unit’s DVD/LD COAXIAL terminal. See page 17 for proper connections to reproduce an LD source encoded with Dolby Digital.

●

In order to make this unit perform successful DTS-decoding, the DTS bitstream must not be altered, manipulated or corrupted in the process of sending the DTS bitstream from the DIGITAL OUT terminal of an external unit to a digital signal input terminal of this unit.

●

All digital audio signal input terminals are applicable to the sampling frequency of 32 kHz, 44.1 kHz and 48 kHz.

m Connecting to digital (OPTICAL and COAXIAL) terminals

If your CD player, LD player, DVD player, TV/satellite tuner, etc. are equipped with coaxial or optical digital audio signal output terminals, they can be connected to this unit’s COAXIAL or OPTICAL, or both terminals.

Digital audio signals are transmitted with less loss than analog audio signals. In addition, digital audio signal connections are necessary, especially for an LD player, a DVD player or a CD player to send signals encoded with Dolby Digital or DTS to this unit.

To make an optical digital connection between this unit and an external unit, remove the cover from each optical terminal, and then connect them by using a commercially available optical fiber cable that conforms to EIAJ standards. Other cables might not function correctly.

Even if you connect an audio/video unit to the OPTICAL (or COAXIAL) terminal of this unit, you must keep the unit connected with the same named analog audio signal terminals of this unit, because digital signal cannot be recorded by a tape deck or VCR connected to this unit. You can switch the selection of input signals between “digital” and “analog” easily. (See page 36 for details.)

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

IN (PLAY) OUT (REC)

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

OPTICAL DIGITAL OUT

COAXIAL DIGITAL OUT

OPTICAL DIGITAL OUT

TV/Satellite tuner

(Europe model)

PREPARATION

: Optical fiber cable

: Coaxial cable

LD player, DVD player, etc.

CD player

English

m Connecting to DOLBY DIGITAL RF output of the DVD/LD/CD combi-player

PREPARATION

If your DVD/LD/CD combi-player has a DOLBY DIGITAL RF signal output terminal, it can be connected to this unit by using an RF demodulator (separate purchase). First, connect the DOLBY DIGITAL RF signal output terminal of the DVD/LD/CD combi-player to the DOLBY DIGITAL RF signal input terminal of the RF demodulator. Next, connect the coaxial digital signal output terminal of the RF demodulator to the COAXIAL digital signal input terminal of this unit. This connection is necessary for sending audio signals of an LD source encoded with Dolby Digital to this unit.

It is also necessary to connect the DVD/LD/CD combi-player to this unit’s analog audio signal input terminals regardless of the DOLBY DIGITAL RF signal connection.

You must also connect the optical digital signal output terminal of the DVD/LD/CD combi-player to the OPTICAL DVD/LD digital signal input terminal of this unit. This connection is necessary for playing back a DVD source with Dolby Digital or DTS decoded, and playing back an LD source with DTS decoded.

When these connections are completed, set the input mode of the DVD/LD source to “AUTO”, and you will hear sounds decoded with Dolby Digital even if signals are input to both COAXIAL and OPTICAL digital signal input terminals of this unit. This is because signals input to the COAXIAL terminal take priority over signals input to the OPTICAL terminal. Refer to page 36 for details about switching the input mode.

Notes

●

If, for example, you play a CD on the DVD/LD/CD combiplayer, there is no input to the COAXIAL terminal, so the signals input to the OPTICAL terminal take priority. In this case, switch off the RF demodulator to listen to CD sound without interference. However, if your RF demodulator is the Yamaha model APD-1, you do not have to switch it off.

●

When you want to play an LD source encoded with Dolby Digital without decoding Dolby Digital, you must switch off the power of the RF demodulator.

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

IN (PLAY) OUT (REC)

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

COAXIAL DIGITAL OUT

DOLBY DIGITAL RF IN

OPTICAL DIGITAL OUT

ANALOG OUT

DOLBY DIGITAL RF OUT

(Europe model)

RF demodulator

DVD/LD/CD combiplayer, etc.

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

FM ANT

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

IN (PLAY) OUT (REC)

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

VIDEO IN

S-VIDEO IN

VIDEO IN

VIDEO OUT

S-VIDEO IN

S-VIDEO

OUT

VIDEO OUT

S-VIDEO OUT

m Connecting to S VIDEO terminals

If your monitor has an “S” video input terminal and your video cassette recorder, LD player, DVD player, etc. also have “S” video terminals, connect them to this unit’s S VIDEO SIGNAL terminals as illustrated below. In addition, a video unit which has an “S” video output can be connected to the VIDEO AUX S VIDEO terminal on the front of this unit. With these connections, you can play back or record high quality pictures. Otherwise, connect the “composite” video terminals of your monitor, video cassette recorder, LD player, DVD player, etc. to the “composite” VIDEO SIGNAL terminals of this unit.

Note

If video signals are sent to both S VIDEO input and VIDEO input terminals, the signals will be sent to their respective output terminals.

S VIDEO terminals

This unit provides you with S VIDEO terminals in addition to standard type VIDEO terminals. S VIDEO terminals transmit video signals separated into luminance (Y) signals and color (C) signals. In comparison with S VIDEO terminals, standard type VIDEO terminals transmit “composite” video signals.

Video cassette recorder

TV monitor

PREPARATION

: S-video cable

(*1): ON SCREEN SELECTOR S VIDEO/VIDEO switch Set this switch to either position to select the TV monitor on

which you want to display the on-screen information. S VIDEO: The on-screen information is displayed on the TV

monitor connected to the S VIDEO SIGNAL MONITOR OUT terminal.

VIDEO: The on-screen information is displayed on the TV

monitor connected to the composite VIDEO SIGNAL MONITOR OUT terminal.

(*1)

(Europe model)

LD player, DVD player, etc.

English

This unit is equipped with additional 6-channel audio signal input terminals (for left main, right main, center, left rear surround, right rear surround and subwoofer channels) for inputting signals from an external decoder of a future format to this unit. To listen to a sound by reproducing signals input to these terminals, press the TAPE/MD MON/EXT. DECODER button on the front panel repeatedly until “EXT. DECODER” appears on the display. By doing so, the signals input to these terminals are sent to the corresponding SPEAKERS terminals and OUTPUT terminals of this unit.

Notes

●

When signals input to these terminals are selected, the digital sound field processor cannot be used.

●

The settings of “1. CENTER SPEAKER,” “2. REAR SPEAKER”, “3. MAIN SPEAKER” and “4. LFE/BASS OUT” in the SET MENU mode have no effect on the signals input to these terminals. The setting of “5. MAIN LEVEL” is effective. (Refer to pages 27 to 28 for details.)

●

The adjustments of the output level of the center speakers, rear speakers and subwoofer are effective when the signals input to these terminals are selected as the input source. (Refer to pages 51 to 52 for details.)

Connecting an external decoder of a future format to this unit

PHONO CD

TAPE

MD DVD/LD TV/DBS VCR

IN OUT

1 3 4

AUDIO SIGNAL

ANT

75Ω UNBAL.

GND

SUB

WOOFER

ON SCREEN SELECTOR

S VIDEO VIDEO

DVD/LD

COAXIALOPTICAL OPTICAL

DVD/LD TV/DBSCD

DIGITAL SIGNAL

IN (PLAY) OUT (REC)

EXTERNAL DECODER INPUT

MAIN CENTER

SURROUND

GND

VIDEO SIGNAL

MONITOR

OUT

DVD/LD TV/DBS

IN OUT

VCR

MONITOR

OUT

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

SUBWOOFER OUT

SURROUND OUT

CENTER OUT

MAIN OUT

External decoder

(Europe model)

PREPARATION

Speakers

SPEAKERS

MAIN CENTER REAR

(SURROUND)

OUTPUT

SUB

WOOFER

CAUTION

SEE INSTRUCTION

MANUAL FOR CORRECT SETTING.

MAIN

CENTER REAR

(SURROUND)

Center speaker

Left

Right

Main speakers B

Rear speakers

Subwoofer system

Left

Right

Left

Use speakers with the specified impedance shown on the rear of this unit.

Red: positive (+) Black: negative (–)

➀

Loosen the knob.

➁

Insert the bare wire. [Remove approx. 5mm (1/4”) insulation from the speaker wires.]

➂

Tighten the knob and secure the wire.

How to Connect:

Connect the SPEAKERS terminals to your speakers with the wire of the proper gauge (keep as short as possible). If the connections are faulty, no sound will be heard from the speakers. Make sure that the polarity of the speaker wires is correct. That is the + and – markings are observed. If these wires are reversed, the sound will be unnatural and lack bass.

Caution Do not let the bare speaker wires touch each other or any metal part of this unit. This could damage this unit or the speakers, or both.

PREPARATION

Main speakers A

English

WARNING Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged.

Select the position whose requirements your speaker system meets.

(Upper position)

Rear: The impedance of each speaker must be 6Ω or

higher.

Center: The impedance of the speaker must be 6Ω or higher. Main: If you use one pair of main speakers, the impedance

of each speaker must be 4Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 8Ω or higher.

(Lower position)

Rear: The impedance of each speaker must be 8Ω or

higher.

Center: The impedance of the speaker must be 8Ω or higher. Main: If you use one pair of main speakers, the impedance

of each speaker must be 8Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 16Ω or higher.

m IMPEDANCE SELECTOR switch

IMPEDANCE SELECTOR

: 6ΩMIN. /SPEAKER : 6

Ω

MIN. /SPEAKER

A OR B: 4

Ω

MIN. /SPEAKER

A B: 8

Ω

MIN. /SPEAKER

SET BEFORE POWER ON

REAR CENTER MAIN

: 8ΩMIN. /SPEAKER : 8

Ω

MIN. /SPEAKER

A OR B: 8

Ω

MIN. /SPEAKER

A B:I6

Ω

MIN. /SPEAKER

REAR CENTER MAIN

SWITCHED

I00W MAX. TOTAL

AC OUTLETS

CAUTION

SEE INSTRUCTION

MANUAL FOR CORRECT SETTING.

REAR

(SURROUND)

(Europe model)

IMPEDANCE SELECTOR

Note on main speaker connections:

One or two speaker systems can be connected to this unit. If you use only one speaker system, connect it to either the

SPEAKERS A or B terminals.

Note on a subwoofer connection:

You may wish to add a subwoofer to reinforce low frequencies or to output low bass sound from the subwoofer channel when reproducing discrete signals. When using a subwoofer, connect the SUBWOOFER terminal of this unit to the INPUT terminal of the subwoofer amplifier, and connect the speaker terminals of the subwoofer amplifier to the subwoofer. With some subwoofers, including the Yamaha Active Servo Processing Subwoofer System, the amplifier and subwoofer are in the same unit. Such a subwoofer needs only the connection between the SUBWOOFER terminal of this unit and the INPUT terminal of the subwoofer. (Refer to page 22 for details about the SUBWOOFER terminal.)

PREPARATION

The speaker connections described on page 20 are fine for most applications. If for some reason, however, you wish to drive main, center and/or rear speakers with your existing amplifier, etc., the following terminals are available for connecting external amplifier(s) to this unit.

1 MAIN terminals

These terminals are for main channel line output. If you drive main speakers with an external stereo power amplifier, connect the input terminals of the external amplifier (MAIN IN or AUX terminals of an amplifier or a receiver) to these terminals. There is no connection to these terminals when you use the built-in amplifier. * Output signals from the MAIN terminals are affected by

the use of BASS, TREBLE, BALANCE controls, BASS EXTENSION button and the TONE BYPASS button.

2 SUBWOOFER terminal

When using a subwoofer, connect its amplifier input to this terminal. Low frequencies distributed from the main, center and/or rear channels are output from this terminal. (The cut-off frequency of this terminal is 90 Hz.) Signals of LFE (low frequency effect) generated when Dolby Digital or DTS is decoded are also output if they are assigned to this terminal.

3 CENTER terminal

This terminal is for center channel line output. If you drive a center speaker with an external power amplifier, connect the input terminal of the external amplifier to this terminal. There is no connection to this terminal when you use the built-in amplifier.

4 REAR (SURROUND) terminals

These terminals are for rear channel line output. If you drive rear speakers with an external stereo power amplifier, connect the input terminals of the external amplifier (MAIN IN or AUX terminals of an amplifier or a receiver) to these terminals. There is no connection to these terminals when you use the built-in amplifier.

Notes

•

Output level of signals from all of these terminals are adjusted by the use of VOLUME control on the front panel or VOLUME keys on the remote controller.

•

If an external power amplifier is connected to the MAIN, CENTER, or REAR output terminals, do not use the corresponding SPEAKERS terminals (MAIN, CENTER, or REAR).

m To drive main, center and/or rear speakers with external amplifiers

MAIN CENTER REAR

(SURROUND)

OUTPUT

SUB

WOOFER

12 34

PREPARATION

English

Antennas

●

Each antenna should be connected to the designated terminals correctly, as shown in the following figure.

●

Both AM and FM indoor antennas are included with this unit. In general, these antennas will probably provide sufficient signal strength. Nevertheless, a properly installed outdoor antenna will give clearer reception than an indoor one. If you experience poor reception quality only with the indoor antennas, the use of an outdoor antenna may result in improvement.

PHONO CD

TAPE

1 3

ANT

75Ω UNBAL.

GND

ON SCREEN SELECTOR

S VIDEO VIDEO

COAXIALOPTICAL

DVD/LDCD

DIGITAL SIGNAL

IN (PLAY)

GND

DVD/LD

IN OUT

VCR

S VIDEO SIGNAL

Outdoor FM antenna

Outdoor AM antenna

AM loop antenna (included)

Ground

75-ohm/300-ohm antenna adapter

75-ohm coaxial cable

300-ohm flat ribbon cable

Indoor FM

antenna

(included)

m Connecting the AM loop antenna

1.Press the tab and unlock the terminal hole.

2.Connect the AM loop antenna lead wires to the AM ANT and GND terminals.

3.Return the tab back to the original position to lock the lead wires. Lightly pull on the lead wires to confirm a good connection.

4.Attach the loop antenna to the antenna stand.

5.Orient the AM loop antenna so that the best reception is obtained.

Notes

●

The AM loop antenna should be placed apart from the main unit. The antenna may be hung on a wall.

●

The AM loop antenna should be kept connected, even if an outdoor AM antenna is connected to this unit.

PREPARATION

(Europe model)

75-ohm/300-ohm antenna adapter

Antenna stand

Loop antenna

m Connecting the indoor FM antenna

Connect the included indoor antenna to the 75Ω UNBAL. FM ANT terminal.

Note

Do not use an outdoor FM antenna and the indoor FM antenna at the same time.

GND terminal

For maximum safety and minimum interference, connect the GND terminal to a good ground. A good ground is a metal stake driven into moist earth.

m Optional outdoor FM antenna

Consult your dealer or authorized service center about the best method of selecting and erecting an outdoor FM antenna. The choice of the flat ribbon cable is also important. Flat ribbon cable performs well electrically, and is cheaper and somewhat easier to handle when routing it through windows and around rooms. Coaxial cable is more expensive, does a much better job of minimizing interference, is less prone to the effects of weather and close-by metal objects, and is nearly as good a signal conductor as flat ribbon cable. Coaxial cable is somewhat more difficult to install at the point where the cable enters the building. If coaxial cable is selected, make sure the antenna is designed to be used with this type of cable.

* Use a 75-ohm/300-ohm antenna adapter (not included) or a

75-ohm antenna adapter (not included) for connections.

300-ohm flat ribbon cable 75-ohm coaxial cable

75-ohm/300-ohm antenna adapter

Notes for FM antenna installation

●

To minimize the influence of automobile ignition noise, locate the antenna as far from heavy traffic as possible.

●

Keep the flat ribbon cable or coaxial cable as short as possible. Do not bundle or roll up an excess of the cable.

●

The antenna should be at least two meters (6.6 feet) from reinforced concrete walls or metal structures.

300-ohm flat ribbon cable

75-ohm coaxial cable

75-ohm antenna adapter

75-ohm coaxial cable

m Optional outdoor AM antenna

If this unit is placed in steel buildings or an area far from broadcasting stations, it may be necessary to install an outside long wire antenna.

PREPARATION

English

•

After completing all connections, plug the AC power cord into an AC outlet.

•

Unplug the AC power cord from the AC outlet if this unit is not to be used for a long period of time.

IMPEDANCE SELECTOR

: 6ΩMIN. /SPEAKER : 6

Ω

MIN. /SPEAKER

A OR B: 4

Ω

MIN. /SPEAKER

A B: 8

Ω

MIN. /SPEAKER

SET BEFORE POWER ON

REAR CENTER MAIN

: 8ΩMIN. /SPEAKER : 8

Ω

MIN. /SPEAKER

A OR B: 8

Ω

MIN. /SPEAKER

A B:I6

Ω

MIN. /SPEAKER

REAR CENTER MAIN

SWITCHED

I00W MAX. TOTAL

AC OUTLETS

CAUTION

SEE INSTRUCTION

MANUAL FOR CORRECT SETTING.

REAR

(SURROUND)

(Europe model)

Plugging in this unit

AC OUTLET(S)

(Europe model).................................. 2 SWITCHED OUTLETS

(U.K. model)......................................... 1 SWITCHED OUTLET

Use these to connect the power cords of your components to this unit.

The power to the SWITCHED outlets is controlled by this unit’s

STANDBY/ON switch or the remote controller’s POWER and STANDBY keys. These outlets will supply power to any

connected unit whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to the SWITCHED AC OUTLET(S) is 100W.

PREPARATION

(*1):

(*1)

To AC outlet

PREPARATION

If you connect your VCR, LD player, video monitor, etc. to this unit, you can take advantage of this unit’s capability to display program titles, parameter data and information for various setting changes and adjustments on your video monitor screen. This information will be superimposed over the video image.

If there is no video source connected or it is turned off, the information will be displayed over a blue colored background.

Note: The program titles, parameter data and other information are also displayed on the display panel of this unit.

Selecting a type of display

You can change the type of display showing various information on the monitor screen by pressing the ON SCREEN display key on the remote controller. Press this key to change the screen to a full or simple display, or no display at all.

(Example)

Full display

Simple display

Goes off after being displayed for several seconds.

Notes

●

When making a setting change or adjustment in the SET MENU mode, or adjusting the speaker balance by using the test tone, information is fully displayed on the monitor screen even if another type of display is currently selected.

●

Information displayed on the monitor screen in this way cannot be recorded by a VCR.

DISP

INDEX

ON SCREEN

On screen display

English

1. CENTER SPEAKER

Choices: LARGE (LRG)/SMALL (SML)/NONE Preset position: LRG

LRG: When your center speaker is approximately the same

size as the main speakers.

SML: When you use a center speaker that is smaller than

the main speakers. In this position, low bass signals (below 90 Hz) at the center channel are output from the SUBWOOFER terminals (or the main speakers if the MAIN position is selected on “4. LFE/BASS OUT”).

NONE: When you do not have a center speaker.

The center channel sound will be output from the left and right main speakers.

2. REAR SPEAKER

Choices: LARGE/SMALL Preset position: LARGE

LARGE: If your rear speakers have a high ability for bass

reproduction, or a subwoofer is connected to the rear speaker in parallel. In this position, full range signals are output from the rear speakers.

SMALL: If your rear speakers do not have a high ability for

bass reproduction. In this position, low bass signals (below 90 Hz) at the rear channels are output from the SUBWOOFER terminals (or the main speakers if the MAIN position is selected on “4. LFE/BASS OUT”).

The following functions control the output signals to the speakers in your audio system. When speaker connections are all completed, select a proper position on each function to maximize the performance of your speaker system. * For details about the SET MENU mode, refer to pages 56 to 59.

1. CENTER SPEAKER

2. REAR SPEAKER

3. MAIN SPEAKER

4. LFE/BASS OUT

5. MAIN LEVEL

m Function description

Selecting the output modes (“SET MENU”mode)

PREPARATION

3. MAIN SPEAKER

Choices: LARGE/SMALL Preset position: LARGE

LARGE: If your main speakers have a high ability for bass

reproduction. In this position, full range signals present at the main channels are output from the main speakers.

SMALL: If your main speakers do not have a high ability for

bass reproduction. However, if your system does not include a subwoofer, do not select this position. In this position, low bass signals (below 90 Hz) at the main channels are output from the SUBWOOFER terminals (if the SW or BOTH position is selected on “4. LFE/BASS OUT”).

4. LFE/BASS OUT

Choices: SW/MAIN/BOTH Preset position: SW

MAIN: If your system does not include a subwoofer.

In this position, full range signals present at the main channels, signals from the LFE channel and other low bass signals that are selected on “1. CENTER SPEAKER” to “3. MAIN SPEAKER” to be distributed from other channels are output from the main speakers.

SW/BOTH:

Select either the SW or BOTH position if your system includes a subwoofer. In either position, signals at LFE channel and other low bass signals that are selected on “1. CENTER SPEAKER” to “3. MAIN SPEAKER” to be distributed from other channels are output from the SUBWOOFER terminals. When the LARGE position is selected on “3. MAIN SPEAKER”, in the SW position, no signal is distributed from the main channels to the SUBWOOFER terminals, however in the BOTH position, low bass signals from the main channels are output to both of the main speakers and the SUBWOOFER terminals.

5. MAIN LEVEL

Choices: Normal (Nrml)/–10dB Preset position: Nrml

Normal: Normally, select this position. –10dB: If the volume levels to the center and/or rear

speakers are lower than the level to the main speakers even though they are adjusted to maximum. The volume level to the main speakers are decreased by 10 dB, so you can adjust the speaker output level balance properly.

PREPARATION

Note

The settings of “1. CENTER SPEAKER”, “2. REAR SPEAKER”, “3. MAIN SPEAKER” and “4. LFE/BASS OUT” have no effect on the signals input to the EXTERNAL DECODER INPUT terminals on the rear of this unit.

English

m Changing selections

Refer to the display panel or the monitor screen when changing the selections.

When using the remote controller, the selector dial must be set at “AMP/TUN”.

1 Turn on the power of this unit. (If necessary, turn on the

power of the monitor to display information.)

2 Select the function “1. CENTER SPEAKER” by using

one of the following methods.

3 Use one of the buttons figured below to select the

desired position.

4 Follow the same procedure for “2. REAR SPEAKER”,

“3. MAIN SPEAKER”, “4. LFE/BASS OUT” and/or “5. MAIN LEVEL”. First select the function by following step 2, and then select the proper position by following step 3.

Front panel

Remote controlFront panel

Remote control

STANDBY/ON

SELECT

DIR

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

A/B/C/D/E

100

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

Remote control

POWER

Changes.

PREPARATION

Front panel

LEVEL

SET

LEVEL

SET

SET MENU

AUDIO

SET MENU

AUDIO

SET UP

RETURN

LEVEL

SET MENU

POWER

VOLUME

MUTE

SLEEP

DIR DIR

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

POWER

STANDBY

AMP/TUN

Press once or more.

Press once.

SELECT

DIR

Press once or more.

1 Set the selector dial of the remote controller to

“AMP/TUN”.

Set to the “∞” position.

3 Select main speakers A or B.

* Both speakers A and B can be selected.

4 Turn on the power.

Set to the “0” position.

Set to the “OFF ( )”.

7 Press the TEST key on the remote controller to enter

the test mode.

This procedure lets you adjust the sound output level balance between the main, center and rear speakers using the built-in test tone generator. After the adjustments, the sound output level heard at the listening position will be the same from each speaker. This is important for the best performance of the digital sound field processor, the Dolby Digital decoder, the Dolby Pro Logic decoder and the DTS decoder.

The adjustment of each speaker output level should be done at your listening position with the remote controller.

VOLUME

–dB

STANDBY/ON

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON /EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

63 5

100

CLEAR

TEST

Front panel

Remote control

POWER

CONTINUED

Speaker balance adjustment

PREPARATION

SPEAKERS

OFF

Front panel

POWER

STANDBY

TUNER

TAPE/MD

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

AMP/TUN

BASS TREBLE

l0l

POWER

/DTS

SURROUND

MONO MOVIE

DVD/LD

ROCK

PHONO

HALL

EXT. DEC

A/B/C/D/E

l0l

STANDBY

MOVIE

THEATER 2

MOVIE

TAPE/MD

THEATER 1

TUNER

DISCO

VCR

TV SPORTS

TV/DBS

CHURCH

JAZZ CLUB

V-AUX

TEST

100

CLEAR

ENTER

BALANCE

l0l

BASS

EXTENSION

BYPASS

OFF

TONE

English

8 Turn up the volume.

You will hear a test tone (like pink noise) from the left main speaker, then the center speaker, then the right main speaker, then the right rear speaker, and then the left rear speaker, for about 2.5 seconds each. The display changes as shown below.

* The state of the test tone output is also shown on the

monitor screen by an image of the audio listening room. This is convenient for adjusting each speaker level.

* If the function “1. CENTER SPEAKER” in the SET MENU

mode is set in the “NONE” position, you will hear the center channel test tone from the left and right main speakers.

9 Adjust the BALANCE control so that the effect sound

output level of the left main speaker and the right main speaker are the same.

10 Adjust the sound output levels of the center speaker

and the rear speakers so that they become almost the same as the main speakers.

How to adjust:

Pressing the or key adjusts the level to the speaker (except the main speakers) currently outputting the test tone.

* Pressing the key raises and the key lowers

the level.

* While adjusting, the test tone is fixed on the selected

speaker.

If desired, you can select a speaker to output the test tone by pressing the or key once or more so that “CENTER”, “R SUR.” or “L SUR.” appears on the display. * While holding the or key pressed, the test

tone is fixed on the selected speaker.

* “CENTER” shows the center speaker is selected,

“R SUR.” shows the right rear speaker, and “L SUR.” shows the left rear speaker.

* The output level of the selected speaker can be

adjusted by the or key.

Main (L)

Main (R)

Center

Rear (L)

Rear (R)

SELECT

DIR

SELECT

DIR

Remote control

Front panel

Remote control

TEST DOLBY SUR.

EFFECT LEVEL CENTER 2dB

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

SET UP

RETURN

POWER

VOLUME

MUTE

SLEEP

DIR DIR

DISP

CODE SET

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

CONTINUED

PREPARATION

CODE SET

MUTE

VOLUME

BALANCE

l0l

11 When the adjustment is finished, press the TEST

key once again to cancel the test tone.

Notes

●

Once you have completed these adjustments, you can adjust the sound level on your audio system by using the VOLUME control (or the VOLUME keys on the remote controller) only.

●

If you use external power amplifiers, you may also use their volume controls to obtain proper balance.

●

If the function “1. CENTER SPEAKER” in the SET MENU mode is set in the “NONE” position, in step 10, the sound output level of the center speaker cannot be adjusted. This is because in this mode, the center sound is automatically output from the left and right main speakers.

●

If there is insufficient sound output from the center and rear speakers, you may decrease the main speaker output level by setting the function “5. MAIN LEVEL” in the SET MENU mode in the “–10dB” position.

Remote control

Disappears.

100

CLEAR

TEST

A/B/C/D/E

100

POWER

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

PREPARATION

English

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

When using the remote controller, the selector dial must be set at “AMP/TUN”.

Set to the “∞” position.

2 Select main speakers A or B.

Front panel

* Both speakers A and B can be selected.

3 Turn on the power.

4 Select an input source.

(For video sources, turn on the TV/monitor.) The selected source is shown on the display panel and the monitor screen.

Name of the selected input source

To select the tape deck connected to this unit’s TAPE/MD terminals or the source connected to this unit’s EXTERNAL DECODER INPUT terminals, use one of the buttons figured below. (Refer to page 35 for details.)

Front panel

Remote control

Front panel Remote control

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

A/B/C/D/E

100

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

Front panel

Remote control

POWER

BASIC OPERATION

Playing a source

SPEAKERS

OFF

CONTINUED

Front panel

EXT. DEC

HALL

TAPE/MD

MOVIE

THEATER 2

TAPE/MD MON

/EXT. DECODER

POWER

STANDBY

TUNER

TAPE/MD

MOVIE

THEATER 1

MOVIE

THEATER 2

/DTS

SURROUND

AMP/TUN

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

Remote control

VOLUME

–dB

STANDBY/ON

BASIC OPERATION

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET MENU

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

A/B/C/D/E

100

POWER

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

5 The current input mode is also shown for a source that

inputs two or more types of signals to this unit. To change the input mode, press the INPUT MODE button

on the front panel or the input selector key for the currently selected source on the remote controller. (Refer to page 36 for details on switching the input mode.)

6 Play the source. (Refer to page 39 for details on

tuning.)

Adjust the output level.

8 Adjust the BASS, TREBLE, BALANCE controls, etc.

(refer to page 38) and use the digital sound field processor. (Refer to pages 48 to 50.)

Front panel

Remote control

Input mode

INPUT MODE

DVD/LD

MONO MOVIE

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

Front panel

Remote control

VOLUME

–dB

VOLUME

MUTE

CODE SET

When you finish using this unit

Press the STANDBY/ON switch on the front panel or the STANDBY key on the remote controller to enter the standby

mode.

STANDBY/ON

Front panel

Remote control

STANDBY

English

To select the tape deck connected to this unit’s TAPE/MD terminals or the source connected to this unit’s EXTERNAL DECODER INPUT terminals as the input source.

Use one of the buttons figured below to make the corresponding indicator illuminated on the display.

“TAPE MONITOR”: Lights up for a few seconds just

after you select the tape deck connected to the TAPE/MD terminals.

“EXT. DECODER”: Lights up when the source

connected to the EXTERNAL DECODER INPUT terminals is selected.

Note

The input source selected in this way has priority over any other input source already selected. To select another input source, cancel both of the sources connected to the TAPE/MD and EXTERNAL DECODER INPUT terminals.

To cancel both of the sources connected to the TAPE/MD and EXTERNAL DECODER INPUT terminals.

Use one of the buttons figured above to make neither “EXT. DECODER” nor “TAPE/MD MONITOR” are illuminated on the display.

Notes on input source selection

●

Note that selecting an input source means that the source which is connected to the corresponding input terminals on the rear panel is selected. * To select the source connected to the VIDEO AUX

terminals on the front panel, select “V-AUX”.

●

If you select a video input source without canceling the source already selected in the way described on the left, you will see the picture of the video input source and hear the sound of the source already selected.

●

If a different audio source is selected with the input selector keys on the remote controller while enjoying a video source, the sound from the newly selected audio source is heard, but the picture from the video source can still be seen.

●

When you select an input source, the DSP program (or the state of no DSP program is used) which was used when the same input source was last selected will be automatically recalled.

●

If a nonstandardized source is played back, or the unit playing back a source is not operating correctly, “INPUT DATA ERR” appears on the display.

Front panel

TAPE/MD MON

/EXT. DECODER

Remote control

EXT. DEC

HALL

TAPE/MD

MOVIE

THEATER 2

BASIC OPERATION

TAPE/MD MONITOR

Press once or more.

TAPE/MD MONITOR

This unit allows you to switch the input mode for sources that send two or more types of signals to this unit. The following three input modes are provided.

AUTO

This mode is automatically selected when you turn on the power of this unit. In this mode, input signal is automatically selected by the following order of priority.

1. Digital signal encoded with Dolby Digital or DTS, or normal digital input signals (PCM)

2. Analog input signal (ANALOG)

* For a DVD/LD source, if digital signals are input from both

of the OPTICAL and COAXIAL terminals, the digital signal from the COAXIAL terminal is selected.

DTS

In this mode, only digital input signals encoded with DTS is selected even though other signals are input at the same time.

ANALOG

In this mode, only analog input signals are selected even though digital signals are input at the same time. Select this mode when you want to use analog input signals instead of digital input signals.

Notes on input mode selection

●

The input mode for a TV/DBS source is selected with function “12. TV/DBS INPUT” in the SET MENU mode. This unit will be automatically set to the selected input mode when the power is turned on.

●

Set the input mode to the AUTO mode to play a DVD/LD source encoded with Dolby Digital.

●

Select the ANALOG mode to play a normal 2-channel source with Dolby Surround decoded.

●

The sound output may be interrupted in some LD and DVD players in the following situation: The input mode is set to AUTO. A search is made while playing the disc encoded with Dolby Digital or DTS, then disc playing is restored. The sound output is interrupted for a moment because the digital input signal was selected again.

●

The input mode cannot be changed for PHONO, TUNER, TAPE/MD, VCR and VIDEO AUX sources because only analog signals are used.

●

The present input mode appears on the front display and monitor screen when the input source is changed to DVD/LD, CD or TV/DBS, or the input mode is changed. The present input signal is also shown on the monitor screen when the input mode is changed to AUTO, as shown below.

* However, the present input signal will not be shown when

the input mode is switched during the speaker test mode. Only AUTO will be displayed.

Notes on playing a source encoded with DTS

●

Select the DTS mode when playing an LD or CD source encoded with DTS. (Red “dts” indicator is illuminated on the display panel.) If the “AUTO” mode is selected, a noise may be heard just after playback begins. Do not play these sources in the ANALOG mode because only background noise will be output from the speakers.

●

This unit is automatically locked in the DTS decoding mode when playing a CD or LD source encoded with DTS in the AUTO mode to prevent background noise in future operation. The red “dts” indicator will be flashing. In this mode, no sound will be heard if a disc with normal digital signals (PCM) is played from a CD or LD source. To play back the disc normally, press the INPUT MODE button on the front panel, or, the input selector key for the current source on the remote controller.

BASIC OPERATION

m Switching the input mode for the CD, DVD/LD and TV/DBS sources

English

1 Select the source you want to record.

2 Play the source and then turn the VOLUME control up

to confirm the input source. (Refer to page 39 for details on tuning.)

3 Begin recording to the tape deck (or MD recorder etc.)

or VCR connected to this unit.

4 If the tape deck (or MD recorder etc.) is used for

recording, you can monitor the sound of recording. To monitor the sound of recording, light up the “TAPE/MD MONITOR” indicator on the display by pressing the TAPE/MD MON/EXT. DECODER button or TAPE/MD key.

Notes on recording

●

The VOLUME, BASS, TREBLE, BALANCE controls, the BASS EXTENSION button and the settings of DSP have

no effect on the material being recorded.

●

Turn off the “TAPE/MD MONITOR” indicator when the recording is finished by pressing the TAPE/MD MON/EXT. DECODER button once or more. Also, do not make “EXT. DECODER” appear on the display.

●

Composite video and S video signals pass independently through this unit’s video circuits. Therefore, when recording or dubbing video signals, if your video source unit is connected to provide only a S video (or only a composite video) signal, you can record only a S video (or only a composite video) signal on your VCR.

●

A source that is connected to this unit between optical or coaxial digital terminals only cannot be recorded by a tape deck or VCR connected to this unit.

●

A source of signals input to the EXTERNAL DECODER INPUT terminals of this unit cannot be recorded.

●

Please check the copyright laws in your country to record from records, compact discs, radio, etc. Recording of copyright material may infringe on copyright laws.

If you play back a video source that uses scramble or encoded signals to prevent it from being dubbed, there may be a case that display information superimposed on the picture and/or the picture itself is disturbed due to those signals.

Front panel

Remote control

/DTS

SURROUND

Front panel

Remote control

VOLUME

–dB

VOLUME

MUTE

CODE SET

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

EFCT

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

Recording a source to tape (or MD) or dubbing from tape (or MD) to tape (or MD)

m Recording the playing source to tape (or MD)

BASIC OPERATION

Front panel

TAPE/MD MON

/EXT. DECODER

Remote control

TAPE/MD

MOVIE

THEATER 2

TAPE/MD MONITOR

BASIC OPERATION

m Adjusting the BALANCE control

Adjust the balance of the output volume to the left and right speakers to compensate for sound imbalance caused by speaker location or listening room conditions.

Note

This control is effective only for the sound from the main speakers.

m Using the BASS EXTENSION

button

m Adjusting the BASS and TREBLE

controls

BASS : Turn this knob clockwise to increase (or counter-

clockwise to decrease) the low frequency response.

TREBLE : Turn this knob clockwise to increase (or counter

clockwise to decrease) the high frequency response.

Note

These controls are effective only for the sound from the main speakers.

m Using the TONE BYPASS button

Press this button inward (ON) to bypass the tone (BASS and TREBLE) control circuitry. This function is used for outputting

pure sound and checking the tone control settings. The tone control circuitry can be used when this button is released outward (OFF).

BASS TREBLE

l0l

OFF

BASS

EXTENSION

TONE

BYPASS

BALANCE

l0l

OFF

BASS

EXTENSION

TONE

BYPASS

Sound control

English

Tuning

BASIC OPERATION

1 Select “TUNER” as the input source.

2 Select the reception band. “FM” or “AM” will be

illuminated.

4 Tune to the desired station manually.

* Hold down the button to continue the tuning search.

1 Select “TUNER” as the input source.

2 Select the reception band. “FM” or “AM” will be

illuminated.

4 Press the “UP” side once to tune in to a higher

frequency. Press the “DOWN” side once to tune in to a lower frequency.

* Press the button again if the tuning search does not stop

at the correct station.

* Use manual tuning if the tuning search does not stop at

the correct station because the signals are weak.

Quick automatic-search tuning (automatic tuning) is effective when the station signals are strong with no interference. However, manual tuning can be used during less-than-ideal conditions.

Notes

●

Manually selecting an FM station will automatically change the reception to monaural to increase the signal quality.

●

When tuned in to a station, the frequency of the received station is shown on the display. If an RDS station that employs PS data service is received, the frequency is then replaced by the station name. Refer to page 45 for details.

m Automatic tuning m Manual tuning

FM/AM

TUNING

MODE

AUTO/MAN’L MONO

TUNING

MODE

AUTO/MAN’L MONO

DOWN

TUNING

DOWN

TUNING

Turn the “AUTO” indicator off.

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON /EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

FM/AM

AUTO

Basic operation

BASIC OPERATION

1 Tune to a station.

(Refer to the previous page for the tuning procedure.)

2 Select a group (A – E) of preset stations.

4 Select a preset station number (1 to 8) where you want

to program the station before the “MEMORY” indicator goes off from the display.

* In the same way, program other stations to A2, A3 ... A8. * You can program more stations to the preset station

numbers on other groups in the same way by selecting other groups in step 2.

11 Select the group of preset stations.

22 Select the preset station number.

Notes

• A new setting can be programmed in place of the former

one.

• For presets, the setting of the reception mode (stereo or

monaural) is stored along with the station frequency.

Memory back-up

The memory back-up circuit prevents the programmed data from being lost even if this unit is set to the standby mode or the power plug is disconnected from the AC outlet or the power is cut due to a temporary power failure. If, however, the power is cut for more than one week, the memory may be deleted. If so, it can be re-programmed by simply following the Preset tuning steps.

m Manual preset tuning

This unit can store station frequencies selected by the tuning operation. With this function, you can recall any desired station only by selecting the preset station number. Up to 40 stations (8 stations x 5 groups) can be stored.

To store stations

2, 11 3

MAN’L/AUTO FM

MEMORY

A/B/C/D/E

Flashes on and off for about 5 seconds.

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

AUTO

0 20 100

STEREO

Shows the displayed station has been programmed to A1.

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

Preset tuning

To recall a preset station

2 3 4 5 6 7 8

A/B/C/D/E

2 3 4

A/B/C/D/E

ENTER

DISC SKIP

PRESET

Front panel

Remote control

Front panel

Remote control

A/B/C/D/E

100

POWER

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

MONO MOVIE

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

INDEX

ON SCREEN

4, 22

2, 11

Select “AMP/TUN”

POWER

STANDBY

MOVIE

THEATER 1

TUNER

MOVIE

THEATER 2

TAPE/MD

/DTS

SURROUND

English

2 Press and hold for more than 3 seconds

To tune to higher frequencies, press the “UP” side once. To tune to lower frequencies, press the “DOWN” side once. * If the TUNING button is not pressed, in a while, the

automatic preset tuning begins automatically toward higher frequencies.

The automatic preset tuning begins from the frequency currently displayed. Received stations are programmed to A1, A2 ... A8 sequentially. * If more than 8 stations are received, they are also

programmed to the preset station numbers on other groups (B, C, D and E) in that order.

If you want to store the first received station to the desired preset station number.

If, for example, you want to store the first received station to C5, select “C5” by using the A/B/C/D/E button and the preset station number selector buttons after pressing the MEMORY button in step 2. Then press the TUNING button. The first received station is stored to C5, and next stations to C6, C7 ... sequentially. If stations are stored up to E8, the automatic preset tuning is finished automatically.

When the automatic preset tuning is finished

The display shows the frequency of the last preset station. Check the contents and the number of preset stations by following the procedure of the section “To recall a preset station” on page 40.

To recall a preset station

Simply follow the procedure of the section “To recall a preset station” on page 40. A recalled station is shown by the frequency (and the station name if the station employs PS data service) on the display.

Notes

●

You can replace a preset station by another FM or AM station manually by simply following the procedure of the section “To store stations” on page 40.

●

The automatic preset tuning search will be performed through all RDS network frequencies until stations are stored up to E8. If the number of received stations is not enough to be stored up to E8, the search is finished automatically after searching all frequencies.

●

With this function, only RDS stations with sufficient signal strength are stored automatically. If the station you want to program is weak in signal strength, tune to it in monaural manually and program it by following the procedure of the section “To store stations” on page 40. * There may be a case that this function cannot receive a

station which could be received by the automatic tuning method. This is because this function receives a large volume of PI (Program Identification) data along with the station.

m Automatic preset tuning

You can make use of an automatic preset tuning function for RDS stations. With this function, this unit performs automatic tuning and stores RDS stations with strong signals sequentially. Up to 40 stations are stored automatically in the same way as in the manual preset tuning method on page 40.

To store stations

BASIC OPERATION

Flashes.

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

MEMORY

AUTO

0 20 100

STEREO

NATURAL SOUND AV RECEIVER RX V795aRDS

PRESET

ROOM 2

STANDBY/ON

TAPE2MONITOR

MEMORY AUTO TUNING

SPEAKERS

ROOM 2 CONTROL

A/B/C/D/E12345678

SPEAKERSPHONES

BASS TREBLE BALANCE

BASS

TONE

EXTENSION

BYPASS

l0l

OFF

FM/AM

MEMORY

MAN’L/AUTO FM

DOWN

TUNING

STEREO

kHz

MHz

40 60

l00

l0l

DIGITAL

ENHANCED

70 mm

NORMAL WIDEPHANTOM

CINEMA DSP

DIGITAL

PCM AC—3

RT PS PTY

PTY HOLD

MAN’L/AUTO FM AUTO/MAN’L MONO

l0l

PRO LOGIC

DSP

SLEEPAUTO

EON NEWS INFO AFFAIRS SPORT

TUNING

MEMORY EDIT FM/AM

MODE

RDS MODE/

FREQ

PTY SEEK

MODE

TAPE/MD MON

/EXT. DECODER

DOWN

TUNING UPINPUT MODE

LEVEL EFFECT

EON

START

INPUT SELECTOR

SET MENU

PROGRAM

VOLUME

–dB

VIDEO AUX

S VIDEO VIDEO L AUDIO R

BASIC OPERATION

m Exchanging preset stations

You can exchange the places of two preset stations with each other as shown below.

Example)

If you want to exchange the preset stations on E1 and A5 with each other.

1 Recall the preset station on E1 (by following the

method of “To recall a preset station” on page 40).

3 Recall the preset station on A5 by following the same

method with step 1.

Shows the exchange of stations is completed.

Flashes.

EDIT

MEMORY

2, 4

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

4554

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET MENU

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON /EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

MEMORY

0 20 100

EDIT

English

RDS (Radio Data System) is a data transmission system gradually being introduced by FM stations in many countries. Stations using this system transmit an inaudible stream of data in addition to the normal radio signal. RDS data contains various information, such as PI (Program Identification), PS (Program Service name), PTY (Program Type), RT (Radio Text), CT (Clock Time), EON (Enhanced Other Networks), etc. RDS function is carried out among the network stations. * This unit utilizes PI, PS, PTY, RT, CT and EON to receive RDS broadcast stations.

Displaying RDS data

In areas where RDS broadcasts cannot be received, the RDS broadcast functions do not operate. (Skip the procedures from pages 43 to 47.)

The following five modes are available in this unit for displaying RDS data.

PS (Program Service name) mode:

Displays the name of the RDS station now being received instead of the frequency.

PTY (Program Type) mode:

Displays the type of the program on the RDS station now being received. There are 15 program types for classifying RDS stations. Refer to the next page for details.

RT (Radio Text) mode:

Displays information about the program (such as the title of the song, name of the singer, etc.) on the RDS station now being received.

CT (Clock Time) mode:

Displays the current time. This signal comes from the RDS station now being received.

EON (Enhanced Other Networks) mode:

Select a program type with the EON button. The unit will automatically change to a station that starts to broadcast that type of program. When the program is finished, the unit will return to the original program.

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

PS PTY RT CT

EON

SPORT

AUTO

0 20 100

STEREO

Receiving RDS stations

BASIC OPERATION

News:

Short accounts of facts, events and publicly expressed views, reportage and actuality.

Current affairs:

Topical program expanding or enlarging upon the news, generally in different presentation style or concept, including documentary debate, or analysis.

Information:

Program whose purpose is to impart advice in the widest sense, including meteorological reports and forecasts, consumer affairs, medical help, etc.

Sport:

Program concerned with any aspect of sport.

Education:

Program intended primarily to educate, of which the formal element is fundamental.

Drama:

All radio plays and serials.

Culture:

Programs concerned with any aspect of national or regional culture, including religious affairs, philosophy, social science, language, theatre, etc.

Science:

Programs about the natural sciences and technology.

Varied:

Used for mainly speech-based programs usually of light-entertainment nature, not covered by above categories. Examples are: quizzes, panel games, personality interviews, comedy and satire.

Pop:

Commercial music, which would generally be considered to be of current popular appeal, often featuring in current or recent record sales charts.

Rock:

Contemporary modern music, usually written and performed by young musicians.

M.O.R.:

(Middle of the Road Music). Common term to describe music considered to be “easylistening”, as opposed to Pop, Rock or Classical. Music in this category is often but not always, vocal, and usually of short duration (<5 min.)

Light classics:

Classical Musical for general, rather than specialist appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

Serious classics:

Performances of major orchestral works, symphonies, chamber music etc., and including Grand Opera.

Other music:

Musical styles not fitting into any of the above categories. Particularly used for specialist music, of which Jazz, Rhythm & Blues, Folk, Country, and Reggae are examples.

NEWS

AFFAIRS

INFO

SPORT

EDUCATE

DRAMA

CULTURE

SCIENCE

VARIED

POP M

ROCK M

M.O.R.M

LIGHT M

CLASSICS

OTHER M

m Program types in the PTY mode

BASIC OPERATION

English

BASIC OPERATION

m Changing the RDS modes

When an RDS station is received, “PS”, “PTY”, “RT” and/or “CT” that correspond to the RDS data services employed by the station light up on the display. By pressing the RDS MODE/FREQ button once or more, you can change the display mode among the RDS modes employed by the received station in the order shown below. (The RDS mode not employed by the station cannot be selected.) Illumination of the indicator on the head of the name of an RDS mode shows that the corresponding RDS mode is now selected. * When an RDS station is received, do not press the RDS MODE/FREQ button until one or more names of RDS modes light up on

the display. If the button is pressed before one or more names light up on the display, the mode cannot be changed. This is because the unit has not received all of the RDS data on the station yet.

* If no name of RDS mode lights up on the display, the mode cannot be changed.

PS mode The name of the station being received is displayed.

If the station does not employ the PS data service, this mode will not be selected.

PTY mode The type of the program currently broadcasted on the station

is displayed. If the station does not employ the PTY data service, this mode will not be selected. (You can make this unit search for a station which is broadcasting a program of your desired program type. For details, refer to the next page.)

RT mode Information about the program currently broadcasted on the

station is displayed. Information is displayed by a maximum of 64 Roman Alphabets including umlaut sign. If other characters are used on the RT data, they are displayed with under-bars. If the station does not employ the RT data service, this mode will not be selected.

CT mode Current time is displayed in the following form. The CT data

from the station being received changes every minute.

If the reception of data is accidentally cut off, “CT WAIT” may light up. If the station does not employ the CT data service, this mode will not be selected.

Frequency The frequency of the station being received is displayed. display mode

RDS MODE/

FREQ

Notes

• RDS data service cannot be utilized by this unit if the received signal is not strong enough. Especially, the RT (Radio Text mode)

needs sufficient data to be received, so the RT mode may not display even if other RDS modes (PS, PTY, etc.) are displayed.

• RDS data reception may not be possible due to poor reception conditions. If so, press the TUNING MODE button so that the

“AUTO” indicator goes off from the display. Though the reception mode is changed to monaural by this operation, when you change the display to an RDS mode, RDS data may be displayed.

• If the signal strength becomes weakened by external interference when receiving an RDS station, the RDS data service may be

cut off suddenly and “

...

WAIT” will light up on the display.

Hour Minute

BASIC OPERATION

1 Set the unit in the PTY SEEK mode.

* The program type of the station now being received or

“NEWS” flashes on the display.

2 Select the desired program type.

3 Begin searching all preset RDS stations.

* The “PTY HOLD” indicator will be illuminated on the

display.

• If a station which broadcasts the program type you selected

is found, the unit stops at the station and the display shows its frequency after showing the flashing name of the program type.

• If the selected station is not the desired one, press the PTY

SEEK START button once more. The unit begins searching for another station which broadcasts the same program type.

• To stop the search, press the PTY SEEK START button

once more.

To cancel this function

If the PTY SEEK MODE button is pressed once more, the PTY SEEK mode will be canceled.

Selecting your desired program type from among preset RDS stations (PTY SEEK)

By designating a program type, the unit automatically searches all preset stations for an RDS station which broadcasts a program of that program type. * There are 15 program types for classifying RDS stations. For details, refer to page 44.

Flashes.

DOWN

TUNING

MODE

START

PTY SEEK

PS PTY RT CT

PTY HOLD

AUTO

020

STEREO

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

MODE

START

PTY SEEK

English

BASIC OPERATION

1 Make sure that the “EON” indicator is illuminated on the

display.

* If the “EON” indicator is not illuminated on the display,

receive an (or another) RDS station so that the “EON” indicator will be illuminated on the display.

2 Select the desired program type, NEWS, INFO,

AFFAIRS or SPORT.

The search is performed among all preset RDS stations in the background. If a program is found, the program will be automatically received when it starts broadcasting.

3 When the broadcast of the selected program ends, the

previously received program (or another program of the same station) is recalled.

To cancel this function

Press the EON button once or more, so that no program type name is illuminated on the display.

Becomes illuminated.

EON

Automatic selection of desired program when broadcasting starts

This function uses the EON (Enhanced Other Networks) data service on the RDS station network. Only by selecting a desired program type (NEWS, INFO, AFFAIRS or SPORT), this unit automatically searches all preset RDS stations for a station that broadcasts that program type (though you cannot check the searching process), and, if found, receives a program when its broadcast starts in place of the program now being received. * This function can be used only when an RDS station that employs the EON data service is received. (When such a station is

received, the “EON” indicator will be illuminated on the display.)

PS PTY RT CT

EON

NEWS

AUTO

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

PS PTY RT CT

EON

AUTO

0 20 100

STEREO

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

PS PTY RT CT

EON

AUTO

0 20 100

STEREO

Flashes.

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

PS PTY RT CT

EON

NEWS

AUTO

0 20 100

STEREO

Press once or more.

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

When the selector dial is set at a position other than DSP:

* Do the next operation while the indicator is

illuminated. If the indicator goes off before you do the next operation, press the DSP key again.

Using digital sound field processor (DSP)

Playing a source with an effect of the digital sound field processor (DSP)

MOVIE

This unit incorporates a sophisticated, multi-program digital sound field processor. The processor allows you to electronically expand and change the shape of the audio sound field from both audio and video sources, creating a theater-like experience in your listening room. You can create an excellent audio sound field by selecting a suitable sound field program (this will, of course, depend on what you will be listening to), and adding desired adjustments.

In addition, this unit incorporates a Dolby Digital decoder and a Dolby Pro Logic decoder for multi-channel sound reproduction of sources encoded with Dolby Surround, and a DTS decoder for multi-channel sound reproduction of sources encoded with DTS. The operation of these decoders can be controlled by selecting a corresponding DSP program including a combined operation of YAMAHA DSP and the Dolby Digital, Dolby Pro Logic or DTS decoder.

This unit has 10 programs for digital sound field processing; 5 programs for Audio sources and 5 programs for Audio/Video sources. In addition, some programs have two subprograms. All programs contain parameters that can be adjusted to the listener’s taste.

For details about digital sound field programs, refer to pages 53 to 55.

2 When operating on the front panel:

If no program name is illuminated on the display panel, press the EFFECT button to turn on the digital sound field processor so that a name of a DSP program appears on the display panel and the monitor screen.

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

DVD/LD

TV/DBS

V-AUX

VCR

CONTINUED

EFFECT

BASIC OPERATION

POWER

STANDBY

TAPE/MD

MOVIE

THEATER 2

/DTS

SURROUND

DSP

The indicator lights up for about 3 seconds.

When the selector dial is set at DSP: Go on to the next step.

When operating on the remote controller:

1 Follow steps 1 to 7 shown in “Playing a source” on pages 33 to 34.

POWER

STANDBY

TAPE/MD

MOVIE

THEATER 2

/DTS

SURROUND

DSP

TAPE/MD

THEATER 1

TUNER

MONO MOVIE

DVD/LD

PHONO

EXT. DEC

ROCK

HALL

DSP

SLEEP

TV SPORTS

TV/DBS

JAZZ CLUB

A/B/C/D/E

DISC SKIP

VOLUME

V-AUX

ENTER

PRESET

CODE SET

MUTE

POWER

DISCO

VCR

CHURCH

TEST

100

CLEAR

EFCT

ON/OFF

INDEX

DISP

ON SCREEN

English

3 Select a program that is suitable for the source.

The name of the selected program appears on the display panel and the monitor screen.

●

djust the output level of each speaker. (For details, refer to the corresponding descriptions on pages 51 and 52.)

●

You can create your own sound field taste. (For details, refer to pages 60 to 63.)

Notes

●

Program selection can be made to individual input sources. Once you select a program, it is linked with the input source selected at this time. So, when you select the same input source the next time, the same program will be automatically recalled.

●

If you prefer to cancel the DSP, press the EFFECT button. The sound will be the normal 2-channel stereo without surround sound effect.

●

When a monaural sound source is played with the program PRO LOGIC (Normal/Enhanced), a proper effect will not be obtained. Moreover, sound may become unnatural depending on the settings of the speaker output modes (1. CENTER SPEAKER to 4. LFE/BASS OUT) in the SET MENU mode.

●

When this unit’s Dolby Pro Logic decoder, Dolby Digital decoder or DTS decoder is used, if the main-source sound is considerably altered by overadjustment of the BASS or TREBLE control, the relationship between the center and rear channels may produce an unnatural effect.

●

When a source of signals input to the EXTERNAL DECODER INPUT terminals of this unit is selected, the DSP cannot be used and the EFFECT button also will not function.

DSP

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

MOVIE THEATER 1

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

Subprogram name Program name

Press once or more.

b) For the programs No. 1, 2 and 3 only, you can select

the desired subprogram by pressing the corresponding DSP program selector key once or more.

PROGRAM

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

VOLUME

MUTE

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

EFCT

DSP

DISC SKIP

PRESET

ON/OFF

CODE SET

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

–dB

BASS

EXTENSION

TONE

BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

When operating on the front panel: When operating on the remote controller:

BASIC OPERATION

* Press “0” to select the program No. 10.

DSP

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

Program name

m To enjoy a video source encoded

with Dolby Surround, Dolby Digital or DTS

When you select the program No. 1, 2 or 3, and the input signal of the source is 2-channel stereo, Dolby Surround is decoded. When some program is selected and the input signal of the source is encoded with Dolby Digital, Dolby Digital is automatically decoded. When some program is selected and the input signal of the source is encoded with DTS, DTS is automatically decoded.

The following indicators on the display panel show you what sound processing is being made.

1 Lights up when a DVD source encoded with DTS is played

back and DTS is decoded.

2 Lights up when an LD source or a CD source encoded with

DTS is played back and DTS is decoded.

3 Lights up when Dolby Digital is being decoded and the

signals of selected source encoded with Dolby Digital is not in 2-channels.

4 Lights up when Dolby Surround is being decoded. 5 Lights up when Digital Sound Field Processor is turned

on.

The display panel or the monitor screen will show the selected subprogram according to the type of the decoding.

Notes

●

Dolby Digital will not be decoded if the source that is not encoded with Dolby Digital. DTS will not be decoded if the source that is not encoded with DTS.

●

If the input signals of source encoded with Dolby Digital are in 2-channels only, the sound processing for them is similar to that for analog or PCM audio signals.

Note

If you change the LD (or CD) being played back with DTS decoded to another disc not encoded with DTS when the red “dts” indicator is illuminated, playing back the newly selected disc will output no sound. In this state, the red “dts” indicator flashes to show that this unit is locked in the DTS-decoding mode. To play back the disc normally, change the current DTSdecoding mode to another mode by pressing an input selector key on the remote controller or the INPUT MODE button on the front panel so that the red “dts” indicator turns off.

m To cancel the effect sound

The EFFECT button on the front panel or the EFCT ON/OFF key on the remote controller make it simple to compare the normal stereo sound with the fully processed effect sound.

To cancel the effect sound and monitor only the main sound, press the EFCT ON/OFF key or the EFFECT button. Press the EFCT ON/OFF key or the EFFECT button a second time to restore the effect sound.

Notes

●

If the effect sound is canceled when signals encoded with Dolby Digital or DTS are input to this unit, signals of all channels are mixed and are output from the main speakers.

●

If the EFFECT button or the EFCT ON/OFF key is pressed to turn effect sounds off when Dolby Digital or DTS is decoded, it may happen that sound is output faintly or not output normally depending on a source. In that case, press the EFFECT button or the EFCT ON/OFF key to turn effect sounds ON, or use input signals not encoded with Dolby Digital or DTS.

DIGITAL

PRO LOGIC

DSP

DIGITAL SOURCE

AC 3 DTS PCM

4 5

Front panel

Remote control

EFFECT

EFCT

ON/OFF

BASIC OPERATION

English

Speakers

CENTER RIGHT SURROUND (R SUR.) LEFT SURROUND (L SUR.) SUBWOOFER (SWFR)

Preset value

0 0 0 0

Control range (dB)

MIN, –20 to +10 MIN, –20 to +10 MIN, –20 to +10 MIN, –20 to 0

Adjusting output level of the center, right rear, left rear speakers and subwoofer

You can adjust the sound output level of the each speaker even if the output level is already set in “Speaker balance adjustment” on pages 30 to 32.

CENTER

R SUR.

L SUR.

SWFR

(Center speaker output level)

(Right rear speaker output level)

(Left rear speaker output level)

(Subwoofer output level)

BASIC OPERATION

1 Select the speaker(s) whose level you want to adjust by using one of the following methods.

When operating on the front panel: When operating on the Remote controller:

Press a button repeatedly until the name of the desired speaker(s) appears on the display.

2 Adjust the level on the selected speaker(s).

3 Repeat steps 1 and 2 to make adjustments on the other speaker(s).

Notes

●

If the function “1. CENTER SPEAKER” in the SET MENU mode is set in the “NONE” position, the sound output level of the center speaker cannot be adjusted. This is because in this mode, the center sound is automatically output from the left and right main speakers.

●

Once the output level is adjusted, the level value will be the same in all the digital sound field programs.

●

The value of each speaker output level you set the last time will remain memorized even when this unit is in the standby mode. However, if the power cord is disconnected for more than one week, these values will be automatically changed to the factory default settings.

BASIC OPERATION

LEVEL

ON/OFF

TITLE

LEVEL

ON/OFF

TITLE

SELECT

DIR

m Method of adjustment

SELECT

DIR

Press once or more.

Press once.

POWER

STANDBY

TUNER

TAPE/MD

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

LEVEL

SET

LEVEL

SET

SET UP

RETURN

SET MENU

POWER

DIR DIR

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

2 1

Select “AMP/TUN.”

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

4554

l0l

–dB

BASS

EXTENSION

TONE BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

English

The following list gives you a brief description of the sound fields produced by each of the DSP programs. Keep in mind that most of these are precise digital recreations of actual acoustic environments. The data for these sound fields were recorded at actual locations using sophisticated sound field measurement equipment.

Note The channel level balance between the left and right rear effect speakers may vary depending on the sound field you are listening in. This is due to the fact that most of these sound field recreations are actual acoustic environments.

m Program No. 1 to 5: CINEMA-DSP programs (for Audio/Video sources)

●

These programs use the Dolby Pro Logic decoder, the Dolby Digital decoder or the DTS decoder.

●

Speaker output: main, center, rear Note: If the “NONE” position is selected on “1. CENTER SPEAKER” in the SET MENU mode, no sound is output from the center speaker.

●

Program No. 1 is for reproducing video discs, video tapes and similar sources which are encoded with Dolby Surround (bearing the “DOLBY SURROUND” or “DOLBY DIGITAL” logo) or encoded with DTS (bearing the “dts” logo).

Brief overview of digital sound field programs

BASIC OPERATION

FEATURE

The built-in Dolby Pro Logic decoder, the Dolby Digital decoder or the DTS decoder precisely reproduces sounds and sound effects of a source encoded with Dolby Surround or DTS. The realization of a highly efficient decoding process improves crosstalk and channel separation and makes sound positioning smoother and more precise.

Ideally simulates the multi-surround speaker systems of the newest film theater. The digital sound field processing and the Dolby Surround decoding or the DTS decoding are precisely performed without altering the originally designed sound orientation. The surround effects produced by this sound field fold the viewer naturally from the rear to the left and right and toward the screen.

No. PROGRAM SUBPROGRAM (TYPE)

1 /DTS PRO LOGIC/Normal ()

SURROUND Functions when the input signal is analog

or PCM audio or encoded with Dolby Digital in 2 channels.

DOLBY DIGITAL/Normal () Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS DIGITAL SUR/Normal () Functions when the input signal is encoded with DTS.

PRO LOGIC/Enhanced

() Functions when the input signal is analog or PCM audio or encoded with Dolby Digital in 2 channels.

DOLBY DIGITAL/Enhanced

() Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS DIGITAL SUR/Enhanced

() Functions when the input signal is encoded with DTS.

DSP

DIGITAL

DSP

PRO LOGIC

DIGITAL

PRO LOGIC

BASIC OPERATION

FEATURE

Creates the extremely wide sound field of a movie theater. It precisely reproduces the source sound in detail, giving both the video and the sound field incredible reality. Any kind of video sources encoded with Dolby Surround or DTS (especially large-scale movie productions) are ideal for use with this program.

Clearly reproduces dialog and sound effects in the latest sound design of science fiction films, thus creating a broad and expansive cinematic space amid the silence. You can enjoy science fiction films in a virtual-space sound field that includes Dolby Surround, Dolby Digital and DTS-encoded software employing the most advanced techniques.

Ideal for precisely reproducing the sound design of the newest multi-track films. The sound field is made to be similar to that of the newest movie theaters, so the reverberations of the sound field itself are restrained as much as possible. The data of the sound field of an opera house are used for the front presence side, so the three dimensional feeling of the sound field is emphasized, and dialog is precisely oriented on the screen. By using the data of the sound field of a concert hall on the rear surround side, powerful reverberations are generated. You can enjoy watching action, adventure movies, etc. with much presence.

This program is for reproducing sounds on a multi-track film, and characterized by a soft and extensive sound field. The front presence side of the sound field is relatively narrow. It spatially spreads all around and toward the screen, restraining echo effect of conversations without losing clarity. For the surround side, the harmony of music or chorus sounds beautifully in a wide space at the rear of the sound field.

No. PROGRAM SUBPROGRAM (TYPE)

2 MOVIE 70 mm Spectacle

THEATER 1 ()

Functions when the input signal is analog or PCM audio or encoded with Dolby Digital in 2 channels.

DGTL Spectacle

() Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS Spectacle

() Functions when the input signal is encoded with DTS.

70 mm Sci-Fi

() Functions when the input signal is analog or PCM audio or encoded with Dolby Digital in 2 channels.

DGTL Sci-Fi

() Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS Sci-Fi

() Functions when the input signal is encoded with DTS.

3 MOVIE 70 mm Adventure

THEATER 2 ()

Functions when the input signal is analog or PCM audio or encoded with Dolby Digital in 2 channels.

DGTL Adventure

() Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS Adventure

() Functions when the input signal is encoded with DTS.

70 mm General

() Functions when the input signal is analog or PCM audio or encoded with Dolby Digital in 2 channels.

DGTL General

() Functions when the input signal is encoded with Dolby Digital not in 2 channels.

DTS General

() Functions when the input signal is encoded with DTS.

DSP

DIGITAL

DSP

PRO LOGIC

DSP

DIGITAL

DSP

PRO LOGIC

DSP

DIGITAL

DSP

PRO LOGIC

DSP

DIGITAL

DSP

PRO LOGIC

●

Program No. 2 to 3 are suitable for reproducing video discs, video tapes and similar sources which are encoded with Dolby Surround (bearing the “DOLBY SURROUND” or “DOLBY DIGITAL” logo) or encoded with DTS (bearing the “dts” logo).

English

m Program No. 6 to 10: Hi-Fi DSP programs (for audio sources)

Speaker output: main, rear ( )

DSP

BASIC OPERATION

FEATURE

This program recreates the acoustic environment of a lively disco in the heart of a very lively city. The sound is dense and highly concentrated. It is also characterized by a high-energy, “immediate” sound.

This program is ideally suited for rock music. You will experience a very dynamic or lively sound field.

This is a small, cozy jazz club with a low ceiling. The sound is very close and intimate.

This program recreates the acoustic environment of a big church with a high pointed dome and columns along the sides. This interior produces very long reverberations.

In this program, the center will appear to be deep behind the main speakers, creating an expansive large hall ambience. Orchestra and opera music are suited for this sound field.

PROGRAM

DISCO

ROCK CONCERT

JAZZ CLUB

CHURCH

CONCERT HALL

No.

FEATURE

This program is designed specifically to enhance mono source programs. Compared to a strictly mono setting, the sound image created in this mode is wider and slightly forward of the speaker pair, lending an immediacy to the overall sound. It is particularly effective when used with old mono movies, news broadcasts and dialog.

This program is furnished with a tight sound field in which the sound will not spread excessively on the front side, but the rear surround side produces a dynamic sound expansion. This program is the most suitable for sports programs.

PROGRAM

MONO MOVIE

TV SPORTS

No.

●

For program No. 4 and 5 only, indicators light up as follows. When the input signal is analog or PCM audio: ( ) When the input signal is encoded with the Dolby Digital (not in 2 channels): (

)

When the input signal is encoded with the DTS: ( )

DSP

DIGITAL

DSP

ADVANCED FEATURES

1. CENTER SPEAKER

2. REAR SPEAKER

3. MAIN SPEAKER

4. LFE/BASS OUT

5. MAIN LEVEL

6. DOLBY DGTL SET LFE LEVEL

7. DOLBY DGTL SET DYNAMIC RANGE

8. DTS SET LFE LEVEL

19. CENTER DELAY

10. PARAMETER INI

11. MEMORY GUARD

12.TV/DBS INPUT

13. DIMMER

m Changes and adjustments

The following 13 functions maximize the performance of your system and increase the enjoyment of audio listening and video watching.

“SET MENU”mode

● Refer to the information in the display panel or monitor screen during operation. The monitor power must be turned on to display information on the monitor.

● When using the remote controller, the selector dial must be set at “AMP/TUN” or “DSP”.

NATURAL SOUND AV RECEIVER RX V795aRDS

SPEAKERSPHONES

OFF

BASS TREBLE BALANCE

VIDEO AUX

S VIDEO VIDEO L AUDIO R

VOLUME

INPUT SELECTOR

l0l

4554

l0l

–dB

BASS

EXTENSION

TONE BYPASS

l0l

LEVEL EFFECT

SET

PROGRAM

A/B/C/D/E12345678

MEMORY EDIT FM/AM

DOWN

TUNING UPINPUT MODE

TUNING

MODE

MAN’L/AUTO FM AUTO/MAN’L MONO

PRESET

kHz

MHz

MEMORY

AM FM

SLEEPAUTO

TAPE2MONITOR

DIGITAL

STEREO

l00

ROOM 2 CONTROL

NORMAL WIDEPHANTOM

40 60

SPEAKERS

RT PS PTY

PTY HOLD

EON NEWS INFO AFFAIRS SPORT

PCM AC—3

DSP

PRO LOGIC

DIGITAL

AUTO TUNING

SPEAKERS

ROOM 2

70 mm

ENHANCED

TAPE/MD MON

/EXT. DECODER

STANDBY/ON

CINEMA DSP

RDS MODE/

FREQ

EON

MODE

START

PTY SEEK

1 To make changes, select the applicable function by using one of the following methods.

When operating on the front panel: When operating on the Remote controller:

2 Select the desired position or edit parameter for the function by using the following keys.

3 Repeat steps 1 and 2 to change a setting or adjust for another function.

Press once or more.

Press once.

POWER

STANDBY

TUNER

TAPE/MD

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

LEVEL

SET

LEVEL

SET

SET UP

RETURN

LEVEL

SET MENU

POWER

DIR DIR

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

Select “AMP/TUN” or “DSP”.

SET MENU

AUDIO

SET MENU

DIR

SELECT

DIR

SELECT

DIR

English

1. CENTER SPEAKER 3. MAIN SPEAKER 5. MAIN LEVEL

2. REAR SPEAKER 4. LFE/BASS OUT (Selecting the output modes suitable for your speaker system)

Refer to pages 27 to 29 for details. (Once you have selected proper modes, you do not have to make a setting change, unless your speaker system is modified.)

m Function description

6. DOLBY DGTL SET

LFE LEVEL [Adjusting the output level at the LFE (low frequency effect) channel]

●

Control range: –20 dB to 0 dB Preset value: 0 dB

●

This adjustment is effective only when Dolby Digital is decoded and the signals of the selected source encoded with Dolby Digital contain LFE signals.

Adjusts the output level at the LFE (low frequency effect) channel. If the LFE signals are mixed with signals of other channels and they are output from the same speakers, the ratio of LFE signals to other signals can be adjusted. (Refer to page 5 for details about the LFE channel.)

ADVANCED FEATURES

●

Choices: MAX/STD/MIN Preset position: MAX

●

This adjustment is effective only when Dolby Digital is decoded.

“Dynamic range” is the difference between the maximum level and the minimum level of sounds. Sounds on a movie originally designed for movie theaters feature very wide dynamic range. Dolby Digital technology can bring the original sound track into a home audio format with this wide dynamic range unchanged. Powerful sounds of extremely wide dynamic range are not always suitable for home use. Depending upon the condition of your listening environment, it may not be possible to increase the sound output level as high as a movie theater. However, in a level suitable for listening in your room, the low level parts of source sound cannot be heard well because they will be lost among noises in your environment. Dolby Digital technology also made it possible to reduce an original sound track’s dynamic range for a home audio format by “compressing” the data of sound.

MAX: In this position, a source encoded with Dolby Digital

is reproduced in the original sound track’s wide dynamic range providing you with powerful sounds like a movie theater. Selecting this position will be more ideal if you can listen to a source in a high output level in a room specially soundproofed for audio/video enjoyment.

STD (Standard):

In this position, a source encoded with Dolby Digital is reproduced in the “compressed” dynamic range of the source suitable for low level listening.

MIN: In this position, dynamic range is more reduced than

in the STD position. Selecting this position will be effective when you must listen to a source in an extremely low level. * In this position, it may happen that sound is output

faintly or not output normally depending on a source. In that case, select the MAX or STD position.

7. DOLBY DGTL SET

DYNAMIC RANGE (Adjusting dynamic range)

ADVANCED FEATURES

9. CENTER DELAY [Adjusting the delay of center sounds (dialog etc.)]

●

Control range: 0 ms to 5 ms (in 1 ms step) Preset value: 0 ms

●

This adjustment is effective only when Dolby Digital or DTS is decoded and the signals of the selected source encoded with Dolby Digital or DTS contain center channel signals.

Adjusts the delay between the main sounds (at the main channels) and dialog etc. (at the center channel). The larger the value, the later the dialog etc. is generated. In your audio system, the distance from the center speaker to your listening position may be shorter than the distance from the left or right main speaker to your listening position. In that case, sounds from the left main, center and right main speakers can reach your listening position at the same time by delaying the sound from the center speaker.

10. PARAMETER INI (Initializing parameters on a DSP program)

You can initialize all parameter settings on a DSP program. Note that some DSP programs have two subprograms; all parameters on both subprograms are initialized by this operation.

Initializing method

Use the remote controller for the operation. A program number whose parameters has been changed is marked with “

”. First press the DSP key, and then press a DSP program selector key which corresponds to the program number whose parameters you want to initialize. When initialized, the “

” mark will disappear.

Note

When the selector dial of the remote controller is set at “DSP”, simply press the corresponding DSP program selector key.

8. DTS SET LFE LEVEL [Adjusting the output level at the LFE (low frequency effect) channel]

●

Control range: –10 dB to 10 dB Preset value: 0 dB

●

This adjustment is effective only when DTS is decoded and the signals of the selected source encoded with DTS contain LFE signals.

English

12. TV/DBS INPUT (Selecting the initial input mode of the source connected to the TV/DBS input terminals)

For the source connected to the TV/DBS input terminals of this unit, you can designate the input mode that is automatically selected when the power of this unit is switched on.

AUTO: In this position, the AUTO input mode is always

selected when the power of this unit is switched on.

LAST: In this position, the input mode you have selected the

last time is memorized and will not be changed even if the power of this unit is switched off.

* Refer to page 36 for details about switching the input mode.

13. DIMMER (Changing brightness of the display panel)

You can adjust the brightness of the display panel in five degree increments.

11. MEMORY GUARD (Locking DSP parameters and other adjustments)

If you wish to prevent accidental alteration to DSP parameters and other adjustments on this unit, select “ON”. In this position, they are locked and cannot be changed. The following functions on this unit can be locked by this operation.

• DSP parameters

• Other functions in the “SET MENU” mode

• ON SCREEN display key

• LEVEL key

• TEST key

ADVANCED FEATURES

What is a sound field?

In order to explain the impressive functions of the DSP, we need to first understand what a sound field really is.

What really creates the rich, full tones of a live instrument are the multiple reflections from the walls of the room. In addition to making the sound “live”, these reflections enable us to tell where the player is situated, and the size and shape of the room in which we are sitting. We can even tell whether it is highly reflective with steel and glass surfaces, or more absorbent with wood panels, carpeting and curtains.

The elements of a sound field

In any environment, in addition to the direct sound coming straight to our ears from the player’s instrument, there are two distinct types of sound reflections that combine to make up the sound field:

(1) Early Reflections.

Reflected sounds reach our ears extremely rapidly

(50 ms — 100 ms after the direct sound), after reflecting from one surface only—for example, from the ceiling or a wall. These reflections fall into specific patterns as shown in the diagram on page 62 for any particular environment, and provide vital information to our ears. Early reflections actually add clarity to the direct sound.

(2) Reverberations.

These are caused by reflections from more than one surface—walls, ceiling, the back of the room—so numerous that they merge together to form a continuous sonic “afterglow”. They are non-directional, and lessen the clarity of the direct sound.

Direct sound, early reflections and subsequent reverberation taken together help us to determine the subjective size and shape of the room, and it is this information that the DSP reproduces in order to create sound fields.

If you could create the appropriate early reflections and subsequent reverberations in your listening room, you would be able to create your own listening environment. The acoustics in your room could be changed to those of a concert hall, a dance floor, or virtually any size room at all. This ability to create sound fields at will is exactly what Yamaha has done with the DSP.

DSP programs consist of some parameters to determine apparent room size, reverberation time, distance from you to the performer, etc. In each program, these parameters are preset with values precisely calculated by Yamaha to create the sound field unique for the program. It is recommended to use DSP programs without changing values of parameters, however, this unit also allows you to create your own sound fields. Starting with one of the built-in programs, you can adjust those parameters. Even if the power cord of this unit is disconnected from the AC outlet, your custom sound fields will remain in the DSP’s memory for about one week. The following page details how to make your own sound fields.

Each DSP program has a set of parameters that allow you to change the characteristics of the acoustic environment to precisely create the effect you want. For the programs which have subprograms, each subprogram has a set of parameters. These parameters correspond to the many natural acoustic factors that create the sound field you experience in an actual concert hall or other listening environment. The size of the room, for example, affects the length of time between the “early reflections”—that is, the first few widely spaced reflections you hear after the direct sound. The “ROOM SIZE” parameter provided in many of the DSP programs alters the timing between these reflections, thus changing the shape of the “room” you hear. In addition to room size, the shape of the room and the characteristics of its surfaces have a significant effect on the final sound. Surfaces that absorb sound, for example, cause the reflections and reverberations to die out quicker, while highly reflective surfaces allow the reflections to carry on for a longer period of time. The DSP parameters allow you to control these and many other factors that contribute to your personal sound field, allowing you to essentially “redesign” the concert halls, theaters, etc. provided to create custom-tailored listening environments that ideally match your mood and music.

Refer to “Descriptions of the digital sound field parameters” on pages 62 to 63 for a description of what each parameter does, how it effects the sound, and its control range.

Creating your own sound fields

ADVANCED FEATURES

English

m Selecting and editing program parameters

This adjustment can be made only by using the remote controller and watching the monitor screen or the display panel.

Note

Information on the monitor screen would be easier to see than the display panel.

1 Set the selector dial of the remote controller to “DSP” or

“AMP/TUN”.

2 Turn on your monitor. If the currently selected type of

display is not the full display, press the ON SCREEN display key and select the full display.

3 Select the desired program (or subprogram) by following

the steps 2 and 3 of “Playing a source with an effect of the digital sound field processor (DSP)” on pages

48 and 49.

The selected program name and its parameters will be displayed on the monitor screen. The arrow-shaped cursor points to the first parameter or subprogram name.

4 Select the parameter which you want to edit.

5 Change the value on the selected parameter to create

the effect you want.

“ ” increases the value of the selected parameter, and “ ” decreases the value of the selected parameter. In both cases you can hold the key down to quickly move to the desired value. The display will pause for a moment at the initial set value of the parameter as a reminder. (On the monitor screen, the

mark at the head of the parameter name will disappear upon reaching the initial set value of the parameter.)

ADVANCED FEATURES

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

EFCT

DSP

DISC SKIP

PRESET

ON/OFF

SET UP

RETURN

LEVEL

SET MENU

POWER

SLEEP

DIR DIR

DISP

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SELECT

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

2 4, 5

Notes

●

For details about parameters, refer to pages 62 to 63.

●

Parameter edits made in this way will remain in effect even if power is lost due to a power failure or the power plug is disconnected from the AC outlet for up to about one week, after which all parameters, as well as other adjustments or setting changes on this unit, will return to their initial values or conditions.

DSP or AMP/TUN

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

DSP

POWER

STANDBY

INDEX

DISP

ON SCREEN

SURROUND

MONO MOVIE

DVD/LD

ROCK

PHONO

EXT. DEC

MOVIE

/DTS

THEATER 2

MOVIE

TAPE/MD

THEATER 1

TUNER

DISCO

VCR

TV SPORTS

TV/DBS

CHURCH

JAZZ CLUB

V-AUX

TEST

HALL

100

CLEAR

ENTER

A/B/C/D/E

DIR

SELECT

DIR

SELECT

DIR

m Descriptions of the digital sound field parameters

Not all of the following parameters are found in every program.

●

ROOM SIZE

How it Affects the Sound:

Changes the apparent size of the music venue. The larger the value, the larger the simulated room will sound.

What it Does:

Adjusts the timing between the early reflections. Early reflections are the first group of reflections you hear before the subsequent, dense reverberation begins.

Control Range:

0.1 – 2.0 Standard setting is 1.0.

Changing this parameter from 1 to 2 increases the apparent volume of the room eight times (length, width, and height all doubled).

P. ROOM SIZE (Presence Room Size)

Adjusts the apparent space size of the front presence sound field. The larger the value, the longer the interval between reflections becomes, which increases the depth of the sound source.

S. ROOM SIZE (Surround Room Size)

Adjusts the apparent space size of the rear surround sound field. The larger the value, the larger the surround sound field becomes.

●

INIT. DELAY (Initial Delay)

How it Affects the Sound:

Changes the apparent distance from the source sound. Since the distance between a sound source and a reflective

surface determines the delay between the direct sound and the first reflection, this parameter changes the location of the sound source within the acoustic environment.

What it Does:

Adjusts the delay between the direct sound and the first reflection heard by the listener.

Control Range:

1 – 99 milliseconds

For a small living room this parameter would be set for a small value. Large values for a big room. Larger values produce an echo effect.

P. INIT.DLY (Presence Initial Delay)

Adjusts the delay between the direct sound and the first reflection on the presence side of the sound field. The larger the value, the later the first reflection begins.

Control Range:

1 – 99 milliseconds

S. INIT. DLY (Surround Initial Delay)

Adjusts the delay between the direct sound and the first reflection on the rear surround side of the sound field. The larger the value, the later the first reflection begins.

Control Range:

1 – 49 milliseconds

INIT. DLY INIT. DLY INIT. DLY

Level

Direct sound

Early reflections

Time

Small space

Small

Level

Direct sound

Early reflections

Time

Large

Level

Direct sound

Early reflections

Time

Large space

Level

Time

Small

Level Level

Time

Large

Direct sound

Early reflections

ADVANCED FEATURES

English

●

LIVENESS

How it Affects the Sound:

This parameter changes the apparent reflectivity of the walls in the hall.

The early reflections from a sound source will lose intensity (decay) much faster in a room with acoustically absorbent wall surfaces than in one which has mostly reflective surfaces. A room with highly reflective surfaces in which the early reflections decay slowly is termed “live”, while a room with absorbent characteristics in which the reflections decay rapidly is termed “dead”. The LIVENESS parameter lets you adjust the early reflection decay rate, and thus the “liveness” of the room.

What it Does:

Changes the rate at which the early reflections decay.

Control Range:

0 – 10.

LIVENESS (Presence Liveness)

Adjusts the apparent reflectivity of the walls on the front presence sound field. The larger the value, the more reflective the front presence sound field becomes.

S. LIVENESS (Surround Liveness)

Adjusts the apparent reflectivity of the walls on the rear surround sound field. The larger the value, the more reflective the rear surround sound field becomes.

●

REV.TIME (Reverberation Time)

How it Affects the Sound:

The natural reverberation time of a room depends primarily on its size and the characteristics of its inner surfaces. This parameter, therefore, changes the apparent size of the acoustic environment over an extremely wide range.

What it Does:

Adjusts the amount of time it takes for the level of the dense, subsequent reverberation sound to decay by 60 dB (1 kHz).

Control Range:

1.0 – 5.0 seconds. The reverb time in a small-to-medium size hall would be

between 1 and 2, and in a large hall it is normally between 2 and 3.

●

REV. LEVEL (Reverberation Level)

This parameter adjusts the volume of the reverberation sound. The larger the value, the stronger the reverberation becomes.

Control Range:

0 – 100%

●

S. DELAY (Surround Delay)

Adjusts the delay between the direct sound and the first reflection on the rear surround side sound field. The larger the value, the later the surround sound field is generated.

Control Range:

When Dolby Surround is decoded:

15 – 30 milliseconds

When Dolby Digital or DTS is decoded:

0 – 15 milliseconds When a program without Dolby Surround or DTS encoded is used:

15 – 49 milliseconds

REV. TIME

60 dB

REV. TIME

60 dB

REV. TIME

60 dB

Level Level Level

Small

Time Time Time

Large

Direct sound

Dead Live

Level

Reverberations Reverberations Reverberations

Time

Small

Level Level

Time

Large

Direct sound

Early reflections

ADVANCED FEATURES

REV. LEVEL

Level

Direct sound

Time

1 Select the source using the INPUT SELECTOR and

start playback (or select a broadcast station) on the source unit.

2 Press the SLEEP key repeatedly until the desired

SLEEP time appears on the display. * “SLEEP time” is the time that elapses before this unit

is automatically turned into the standby mode.

Each time you press the SLEEP key, the SLEEP time changes as follows.

After a while, the display returns to the original indication.

To cancel the SLEEP timer

Press the SLEEP key repeatedly until “SLEEP OFF” appears on the display. (After a while, the display returns to the original indication.)

Note

The SLEEP timer setting can also be canceled by setting this unit into the standby mode with the STANDBY/ON switch on the front panel (or the STANDBY key on the remote controller) or disconnecting the power plug of this unit from the AC outlet.

SLEEP

Use the built-in SLEEP timer to automatically turn this unit into the standby mode after the time you set elapses. The SLEEP timer is useful when you plan to fall asleep while this unit is playing back or recording a source. The SLEEP timer also automatically turns off external units connected to the SWITCHED AC OUTLET(S) on the rear of this unit. The SLEEP timer can only be set using the remote controller.

To set the SLEEP time

120 90 60 30

SLEEP OFF

(The SLEEP timer is off.)

(Minutes)

Indicates the SLEEP time.

Flashes.

TUNER

PHONO

DVD/LD

TV/DBS

V-AUX

VCR

SLEEP

Setting the SLEEP timer

ADVANCED FEATURES

English

1 Select the position for the component that you want to

control by turning the selector dial. Note: Turn the selector dial until it stops with a click.

2 Press an operation key.

Note: Press a key with the remote controller aimed at the

front panel.

The remote controller is designed to control the most commonly used functions. If you have other Yamaha audio and video components with remote control capability, this remote controller will also control various functions of them. In addition, this remote controller can control other manufacturers’ audio and video components by programming the remote controller with the codes for other manufacturers.

REMOTE CONTROLLER

Basic operation

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

POWER

STANDBY

Selected position is shown.

The indicator will flash when a key is pressed.

Components which can be controlled

The selector dial can be turned to select nine positions. The components which can be controlled with the remote controller differs depending on the selected position. Refer to the diagram below to know what components can be controlled for each position.

AMP/TUN This unit can be controlled. Normally set to this position

TAPE/MD

Tape decks and MD recorders can be controlled. * Keys are originally preset to control Yamaha tape decks. To control a Yamaha MD

recorder, enter the code for Yamaha MD recorders.

CD players can be controlled. * Keys are originally preset to control Yamaha CD players.

DSP

This unit can be controlled and DSP programs can be selected directly.

DVD/LD

DVD players and LD players can be controlled. * To control the Yamaha model DVD-1000 or DVD-S700, enter the code number “4490”.

DVD MENU

DVD players can be controlled. * A code for a DVD player cannot be entered in this position.

VCR

VCRs can be controlled.

CBL/DBS

Cable TVs or DBS tuners can be controlled.

TVs can be controlled.

Notes

●

You can program the remote controller with the codes for other manufactures for all positions (except AMP/TUN and DSP) respectively. For example, if your CD player is not a Yamaha model, enter the code for the manufacture of the CD player when the CD position is selected. You can control your CD player with the remote controller when the CD position is selected.

You can enter one code for one position.

Refer to page 71 for details about entering codes.

●

Some Yamaha CD players and tape decks cannot be controlled with the default codes. To control such a model, enter the code for the model in the corresponding position.

●

For the DVD/LD and DVD MENU positions: If you enter a code for a DVD player in the DVD/LD position, the keys in the DVD MENU position become also available for controlling the DVD player. You cannot enter a code for a DVD player when the DVD MENU is selected.

●

You can enter the code for your second (or third) VCR in the CBL/DBS position if you do not use a cable TV, DBS tuner, etc. You can also enter the code for your second (or third) VCR in the DVD MENU position if you do not use a DVD player. In this case, however, you must enter a code for an LD player in the DVD/LD position even if you do not use an LD player. Refer to page 71 for details.

m AMP/TUN

* The keys drawn in a light tone do not function.

Key name and function

The key functions differ depending on the position selected by the selector dial as shown below.

Note TV POWER and TV VOLUME function if you have entered the

code for your TV.

1 POWER

Press this key to turn on the power of this unit.

2 Input selector keys

Press a key to select the input source.

3 EXT. DEC.

Press this key to select the input signals from the EXTERNAL DECODER INPUT terminals as the input source. This function takes priority over the input selector key setting. “EXT. DECODER” will be illuminated on the display panel. The source selected with the input selector keys becomes the current input source when “EXT. DECODER” is not illuminated on the display panel. * If the DSP key (

5) is pressed, you can select the HALL

program by pressing this key while the indicator (C) is illuminated.

4 A/B/C/D/E

Press this key to select a group of preset stations.

5 DSP

Press this key. While the indicator (C) is illuminated for about three seconds, select a DSP program using the keys (2, 3, D). No DSP program can be selected after the indicator goes off.

6 PRESET +/–

+: Press this key to select the next preset station number. –: Press this key to select the previous preset station

number.

7 VOLUME (up)/ (down)

Press these keys to increase or decrease the volume.

8 MUTE

Press this key to mute the volume. The volume can be returned to the original level by pressing any remote controller key which controls this unit. The indicator on the VOLUME control flashes during the mute mode.

9 SLEEP

Press this key to turn the built-in SLEEP timer on and off, and set the SLEEP time. (Refer to page 64.)

0 / / /

The (up) and (down) keys select the DSP parameters, or select speaker(s) or functions according to the mode selected by the LEVEL or SET MENU key. The or keys adjust or make changes in the selected parameter, speaker(s) or function.

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

(TV VOLUME)

REMOTE CONTROLLER

English

The functions of all keys are the same with the AMP/TUN position except the DSP program selector keys figured on the left.

DSP program selector keys

Press a key corresponding to the DSP program you want to select. The program is directly selected.

Note: Press “0” to select the program No. 10.

REMOTE CONTROLLER

A LEVEL

This key is used to adjust the output level of the center speaker, rear speakers and subwoofer. First, press this key. Then select the speaker(s) by pressing this key repeatedly or by using the or key (0). The name will be illuminated on the display. Then press the or key (0) to change the output level.

B STANDBY

Press this key to set this unit in the standby mode.

C Indicator

This indicator flashes when a key is pressed on the remote controller. (Transmitting infrared signals.)

D CHURCH

If the DSP key (5) is pressed, you can select the CHURCH program by pressing this key while the indicator (C) is illuminated.

E TEST

This key is used when adjusting the speaker balance. (Refer to pages 30 to 32.)

F EFCT ON/OFF

Press this key to turn on/off the digital sound field processor, which includes the Dolby Pro Logic decoder, Dolby Digital decoder and DTS decoder.

G ON SCREEN

Press this key to change the type of display on the monitor screen. Three types of displays are available. Each time the key is pressed, the information can be changed to a full, simple and no display.

H SET MENU

Press this key to turn the unit into the SET MENU mode. Select a function by pressing this key repeatedly or by using the or key (0). The function name will be illuminated on the display. Then press the or key (0) to adjust or make settings in the function.

100

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

DSP program selector keys

m DSP

The keys drawn in a light tone do not function. For the keys which are not described here, see “AMP/TUN” on page 66. For details, refer to the instruction manual for each of your components.

m TAPE/MD

Note TV POWER and TV VOLUME function if you have entered the

code for your TV.

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

INPUT

(TV VOLUME)

7 9

0 A

For tape decks

1 POWER

This key turns on this unit when the default code is used. If another code is entered and your tape deck’s remote controller has a power key, this key will turn on the tape deck.

2 REC/PAUSE

Press this key to set the tape deck in the recording pause mode.

3 DIR A

Press this key to select the playing direction of DECK A.

4 PLAY

Press this key to play a tape.

5 REWIND

Press this key to rewind a tape.

7 DECK A/B

Press this key to select A or B on a double cassette tape deck.

9 DIR B

Press this key to select the playing direction of DECK B.

0 STOP

Press this key to stop a tape.

A FAST FORWARD

Press this key to fast forward a tape.

For MD recorders

Enter the proper code for your MD recorder.

1 POWER

This key turns on this unit if a code for a Yamaha MD recorder is entered. If another manufactuer’s code is entered and your MD recorder’s remote controller has a power key, this key will turn on the MD recorder.

2 REC/PAUSE 3 SKIP 4 PLAY 5 BACKWARD 6 DISPLAY 8 PAUSE 9 SKIP 0 STOP A FAST FORWARD

REMOTE CONTROLLER

English

The keys drawn in a light tone do not function. For the keys which are not described here, see “AMP/TUN” on page 66. For details, refer to the instruction manual for each of your components.

m DVD/LD

Note TV POWER, TV VOLUME and TV INPUT function if

you have entered the code for your TV.

Note TV POWER, TV VOLUME and TV INPUT function if

you have entered the code for your TV.

m DVD MENU

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER) SKIP/SEARCH

PLAY SUBTITLE (DVD)/ BACKWARD (LD)

SUBTITLE ON/OFF (DVD)

DISC SKIP

INPUT

POWER

(TV VOLUME)

DISPLAY (TV INPUT) PAUSE

STOP

ANGLE (DVD)

AUDIO (DVD)

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

+10

MENU LEFT

MENU SELECT

SET UP

TITLE

DISC SKIP

Numeric

keys

POWER

(TV VOLUME)

TITLE/INDEX

MENU RIGHT

(TV INPUT) MENU UP

MENU DOWN

CLEAR

RETURN MENU

m CD

Note TV POWER, TV VOLUME and TV INPUT function if you have entered the

code for your TV.

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

INPUT

(TV VOLUME)

(TV INPUT)

1 POWER

This key turns on this unit when the default code is used. If another code is entered and your CD player’s remote controller has a power key, this key will turn on the CD player.

2 DISC SKIP

Press these keys to skip to the next or previous CD.

3 , SKIP

Press to skip to the beginning of the next track. Press to skip to the beginning of the current or previous track.

4 PLAY

Press this key to play a CD.

5 BACKWARD

Press this key to reverse playback rapidly.

6 PAUSE

Press this key to pause playback. This key functions as PAUSE/STOP for operating Yamaha CD players under default settings.

7 STOP

Press this key to stop playback. This key functions as PAUSE/STOP for operating Yamaha CD players under default settings.

8 FAST FORWARD

Press this key to advance playback rapidly.

(*1)

(*1): For a DVD player:

This key turns on this unit when the default code is used.

For an CD player:

This key turns on this unit if a code for a Yamaha LD player is entered.

REMOTE CONTROLLER

The keys drawn in a light tone do not function. For the keys which are not described here, see “AMP/TUN” on page 66. For details, refer to the instruction manual for each of your components.

m VCR m TV

Note

You can control your VCR if you have entered the code for it.

Note TV POWER, TV VOLUME and TV INPUT function if you have

entered the code for your TV.

Note TV POWER, TV VOLUME and TV INPUT function if you

have entered the code for your TV.

m CBL/DBS

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

CHANNEL ENTER

VCR REC (*1)

PLAY

REWIND

CHANNEL +(UP)/–(DOWN)

CHANNEL

POWER

(TV VOLUME)

DISPLAY (TV INPUT)

PAUSE STOP

FAST FORWARD

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

DIR B

TV POWER

TV MUTE

TV SLEEP

CHANNEL

ENTER

CHANNEL +(UP)/–(DOWN)

CHANNEL

TV VOLUME

DISPLAY

TV EFFECT ON/OFF

TV INPUT

(VCR)

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

MENU LEFT

CHANNEL

ENTER

MENU SELECT

CHANNEL +(UP)/–(DOWN)

CHANNEL

POWER

(TV VOLUME)

DISPLAY

+100

(TV INPUT) MENU UP

MENU RIGHT

RECALL

MENU DOWN

REMOTE CONTROLLER

(*1) Press this key twice to start recording.

English

Entering manufacturer codes

If you have a component which is not a Yamaha model, you can enter the code for the manufacturer of the component in the corresponding position of the selector dial. By doing so, you can control the component with the remote controller.

Refer to the code list at the end of this manual for the code numbers you need.

Notes

● Some Yamaha CD players and tape decks cannot be controlled with the default codes. To control such a model, enter the code for the model in the corresponding position.

● If there is no code applicable for your component in the code list, you must use the remote controller provided for the component.

1 Set the selector dial to the position for controlling the

component. (For example, set to “VCR” for a VCR.)

2 Press both of the VOLUME and keys at the

same time and hold them until the indicator flashes twice.

3 Use the numeric keys to enter the four-digit

manufacturer code for the component to be used. Make sure that the indicator flashes twice.

* If the indicator does not flash, repeat step 3 and enter

the code again.

4 Try operating the component with the remote controller

to check the code entering is successful.

Note

If the component cannot be controlled, enter another code for the same manufacturer.

Entering a code

POWER

STANDBY

TAPE/MD

MOVIE

THEATER 2

/DTS

SURROUND

POWER

STANDBY

Flashes twice.

Entering a code for a second (or third) VCR

You can use the CBL/DBS or DVD MENU position, or both of them to control a second (and/or third) VCR if you do not use a cable TV, DBS tuner, DVD player etc. *

If you will use the DVD MENU position for a second (or third) VCR, you must enter the code for an LD player in the DVD/LD position.

1 Set the selector dial to the CBL/DBS or DVD MENU

position.

2 Press both of the VOLUME and keys at the

same time and hold them until the indicator flashes twice.

3 Press the MUTE key.

4 Use the numeric keys to enter the four-digit

manufacturer code for the second (or third) VCR. Make sure that the indicator flashes twice.

* If the indicator does not flash, repeat step 4 and enter the

code again.

5 Try operating the component with the remote controller

to check the code entering is successful.

Note

If the component cannot be controlled, enter another code for the same manufacturer.

Flashes twice.

VOLUME

MUTE

CODE SET

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

POWER

STANDBY

Flashes twice.

VOLUME

MUTE

CODE SET

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

POWER

STANDBY

Flashes twice.

REMOTE CONTROLLER

POWER

/DTS

SURROUND

STANDBY

MOVIE

THEATER 2

MOVIE

CODE SET

MUTE

VOLUME

POWER

STANDBY

Restoring the default codes

1 Press both of the VOLUME and keys at the

same time and hold them until the indicator flashes twice.

2 Enter the code number “9987”.

* Make sure that the indicator flashes twice.

1 Set the selector dial to the position for which you want to

restore the default code.

2 Press both of the VOLUME and keys at the

same time and hold them until the indicator flashes twice.

3 Enter the code number “9999”.

* Make sure that the indicator flashes twice.

To restore the default codes for the all positions.

To restore the default code for each position

Default codes

The following codes are preset as the default code.

We recommend that you write all code numbers you have entered on the “Quick Reference Card”.

Position Component Code

TV TV 0037 CBL/DBS DBS tuner 2455 VCR VCR 3072 DVD/LD DVD player 4545 YAMAHA CD CD player 6187 YAMAHA TAPE/MD Tape deck 8524 YAMAHA

VOLUME

MUTE

CODE SET

POWER

STANDBY

Flashes twice.

POWER

STANDBY

Flashes twice.

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

POWER

STANDBY

Flashes twice.

A/B/C/D/E

100

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

VOLUME

MUTE

CODE SET

POWER

STANDBY

Flashes twice.

POWER

STANDBY

MOVIE

THEATER 2

/DTS

SURROUND

REMOTE CONTROLLER

English

Refer to the chart below when this unit does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, disconnect the power cord and contact your authorized YAMAHA dealer or service center.

Problem

The unit fails to turn on when the STANDBY/ON switch is pressed, or turns into the standby mode suddenly soon after the power is turned on.

This unit does not work normally.

No sound or no picture.

No picture

The sound suddenly goes off.

Only one side speaker outputs the sound.

No sound from the effect speakers.

No sound from the center speaker.

Poor bass reproduction.

Sound “hums”.

The volume level is low while playing a record.

The volume level cannot be increased, or sound is distorted.

Cause

Power cord is not plugged in or is not completely inserted.

The IMPEDANCE SELECTOR switch on the rear panel is not set to either end.

There is an influence of strong external noise (lightning, excessive static electricity, etc.) or a misoperation on this unit while using this unit.

Incorrect output cord connections.

Appropriate input source is not selected.

Speaker connections are not secure. Digital signals other than PCM audio and

Dolby Digital (or DTS) encoded signals which this unit cannot reproduce are input to this unit by playing a CD-ROM etc.

There is no S video terminal connection between this unit and the TV, though S video signals are input to this unit.

The protection circuit has been activated because of short circuit etc.

The SLEEP timer came on. Incorrect setting of the BALANCE control. Incorrect cord connections.

The EFFECT button is set off. A Dolby Surround (or DTS) decoding

program is being used with material not encoded with Dolby Surround (or DTS).

The function “1. CENTER SPEAKER” in the SET MENU mode is set to the “NONE” position.

One of the DSP programs No. 6 to No. 10 is selected when the input signal of source is 2-channel stereo (analog/PCM).

The input signals of source encoded with Dolby Digital or DTS do not have center channel signals.

The function “4. LFE/BASS OUT” in the SET MENU mode is set in the SW or BOTH position, though your system does not include a subwoofer.

Output mode selection for each channel (MAIN, CENTER or REAR) is improper.

Incorrect cord connections.

No connection from the turntable to the GND terminal.

The record is being played on a turntable with an MC cartridge.

The component connected to the TAPE/MD OUT terminals of this unit is turned off.

What to Do

Firmly plug in the power cord.

Set the switch to either end when this unit is in the standby mode.

Turn this unit into the standby mode and disconnect the AC power cord from the AC outlet. After about 30 seconds have passed, connect the power and operate this unit again.

Connect the cords properly. If the problem persists, the cords may be defective.

Select the appropriate input source with the INPUT SELECTOR or the TAPE/MD MON/EXT. DECODER button.

Secure the connections. Play a source whose signals this unit can

reproduce.

Connect this unit’s S VIDEO MONITOR OUT terminal to the TV’s S video input terminal.

Turn this unit into the standby mode, and then turn on to reset the protection circuit.

Cancel the SLEEP timer function. Adjust it to the appropriate position. Connect the cords properly. If the problem

persists, the cords may be defective. Press the EFFECT button to turn it on. Use a different sound field program.

Select the appropriate position.

Select another program.

Refer to the instructions for the source currently played.

Select the MAIN position.

Make output mode selections suitable for your speaker system.

Firmly connect the audio plugs. If the problem persists, the cords may be defective.

Make the GND connection between the turntable and this unit.

The player should be connected to the unit through the MC head amplifier.

Turn on the power to the component.

General

TROUBLESHOOTING

Problem

The remote controller does not work.

The remote controller does not function properly.

This unit or another component cannot be controlled with the remote controller.

Cause

The batteries of this remote controller are weak.

Wrong distance or angle.

Direct sunlight or lighting (of an inverter type of fluorescent lamp etc.) is striking the remote control sensor of the main unit.

The selector dial of the remote controller is not set at the proper position.

The code for controlling the component is not preset to the remote controller.

What to Do

Replace the batteries with new ones.

The remote controller will function from a maximum range of 6 meters, no more than 30 degrees off-axis from the front panel.

Change position of the main unit.

Set the selector dial to the proper position.

Enter the code for controlling the component in the corresponding position of the remote controller.

Remote controller

Problem

DSP parameters and some other settings on this unit cannot be changed.

“INPUT DATA ERR” appears on the display and no sound is heard.

The sound field cannot be recorded.

This unit does not operate properly.

A source cannot be recorded by a tape deck or VCR connected to this unit.

Noise from nearby TV or tuner.

The sound is degraded when listening with the headphones connected to the compact disc player or tape deck that is connected with this unit.

Cause

The function “11. MEMORY GUARD” in the SET MENU mode is set to the “ON” position.

A nonstandardized source is played back, or the unit playing back a source is misoperating.

It is not possible to record the sound field on a tape deck connected to this unit’s TAPE/MD OUT terminals.

The internal microcomputer has been frozen by an external electric shock (lightning, excessive static electricity, etc.) or power supply with low voltage.

The source unit is connected to this unit between digital terminals only.

This unit is too close to the affected equipment.

This unit is in the standby mode.

What to Do

Set to the “OFF” position.

Check the source, or turn off the unit playing back the source and then turn on again.

Unplug the AC power cord from the wall AC outlet, and then plug in again after about one minute.

Make additional connection between analog terminals.

Move the unit further away from the affected equipment.

Turn the power to this unit on.

English

TROUBLESHOOTING

Problem

A loud hissing noise is heard when you play back a source encoded with DTS.

A percussive noise is heard when you begin playing back a source encoded with DTS.

No sound is heard when you play back a source encoded with DTS, even though the “AUTO” or “DTS” input mode is selected on this unit.

No sound is heard when you play back an MD onto which you have recorded a source encoded with DTS.

No sound is heard when you play back a DAT onto which you have recorded a source encoded with DTS.

No sound is heard when you play back a source (CD etc.) even though the currently selected input mode is “AUTO”.

Problem

FM stereo reception is noisy.

There is distortion and clear reception cannot be obtained even with a good FM antenna.

A desired station cannot be tuned in with the automatic tuning method.

Previously preset stations can no longer be tuned in.

A desired station cannot be tuned in with the automatic tuning method.

There are continuous crackling and hissing noises.

There are buzzing and whining noises (especially in the evening).

Cause

The player which plays back the source is not connected to a digital audio signal input terminal of this unit.

The “ANALOG” input mode is selected on this unit.

If the “AUTO” input mode is selected, depending on some sources, there may be a case that a noise is heard while this unit is identifying the format of input signal.

The DTS decoder built into this unit does not function because the player has a digital volume control and it is set at a position other than “maximum”, “neutral” or “ineffective”.

A source encoded with DTS cannot be recorded onto an MD.

Depending on a DAT deck, a source encoded with DTS cannot be recorded onto a DAT.

In the “AUTO” mode, DTS-decoding mode cannot be changed to the normal (PCM) digital signal input mode automatically.

Cause

Because of the characteristics of FM stereo broadcasts, this is limited to cases where the transmitter is too far away or the antenna input is poor.

There is multipath interference.

The station is too weak.

This unit has been unplugged for a long period.

Weak signal or loose antenna connections.

Noises result from lightning, fluorescent lamps, motors, thermostats and other electrical equipment.

A television set is being used nearby.

What to Do

The player must be connected to a digital audio signal input terminal of this unit besides analog audio signal terminal connections.

Select a proper input mode on this unit to turn on the DTS decoder built into this unit.

Set the input mode of the currently selected input source to “DTS”.

Set the player’s digital volume control at the maximum, neutral or ineffective position.

Press the INPUT MODE button on the front panel or the input selector button (for the currently selected source) on the remote controller so that “PCM” appears on the monitor screen.

What to Do

Check the antenna connections. Try using a high quality directional FM antenna. Set the TUNING MODE button to the manual tuning mode.

Adjust antenna placement to eliminate multipath interference.

Use the manual tuning method. Use a high quality directional FM antenna.

Repeat the presetting procedure.

Tighten the AM loop antenna connections and rotate it for best reception.

Use the manual tuning method. Use an outdoor antenna and a ground wire.

This will help somewhat but it is difficult to eliminate all the noises.

Relocate this unit away from the TV.

When playing back a source encoded with DTS:

Tuner

Notes

• It is necessary to use a DTS decoder to play back a source encoded with DTS, so the player which plays back a source must be

connected to a digital audio input terminal of this unit in the way described in this manual. If this connection is not made or only a D-to-A converter is used without using a DTS decoder, when you play back a source, only a loud hiss noise will be heard.

• If you make a search (or skip etc.) operation while playing back a source encoded with DTS, the “dts” indicator goes out from the

display. This is because this unit automatically changes the DTS-decoding mode to the standard (PCM) digital signal input mode to prevent a noise from being output.

• A source encoded with DTS cannot be recorded onto analog audio and video tapes, and also, an analog tape recorded with a

source encoded with DTS cannot be played back. The same result is obtained for MDs and DATs (depending on a DAT deck used for recording and/or playback).

FMAM

AUDIO SECTION

Minimum RMS Output Power Per Channel (Power Amp. Section)

(When both channels are driven)

MAIN L/R

20 Hz to 20 kHz, 0.04% THD, 8 ohms

................................................ 85W+85W

1 kHz, 0.07% THD, 8 ohms

............................................ 100W+100W

CENTER

20 Hz to 20 kHz, 0.04% THD, 8 ohms

.......................................................... 85W

1 kHz, 0.07% THD, 8 ohms............ 100W

REAR L/R

20 Hz to 20 kHz, 0.04% THD, 8 ohms

.................................................85W+85W

1 kHz, 0.07% THD, 8 ohms

.............................................100W+100W

Maximum Power (EIAJ) [China and General models only]

1 kHz, 10% THD

, 8 ohms

(When both channels are driven)

MAIN L/R................................125W+125W

CENTER.............................................125W

REAR L/R...............................125W+125W

Dynamic Power Per Channel (by IHF Dynamic Headroom Measuring Method)

MAIN L/R (8 ohms/6 ohms/4 ohms/2 ohms) (When both channels are driven)

..................................115W/140W/170W/200W

Dynamic Headroom

[U.S.A. and Canada models only]

MAIN L/R (8 ohms) .......................... 1.31 dB

DIN Standard Output Power Per Channel

[Europe, U.K. and Singapore models only]

MAIN L/R (1 kHz, 0.7% THD, 4 ohms)

(When both channels are driven) ..... 130W

IEC Power

[Europe, U.K. and Singapore models only]

MAIN L/R (1 kHz, 0.04% THD, 8 ohms)

(When both channels are driven) ....... 95W

Power Band Width

8 ohms, 40W, 0.09% THD

(When both channels are driven)

MAIN L/R .........................10 Hz to 50 kHz

Damping Factor (SPEAKER A)

MAIN L/R (20 Hz to 20 kHz, 8 ohms)

..................................................... 80 or more

Input Sensitivity/Impedance

CD/TAPEzMD/DVDzLD/TVzDBS/VCR

/VIDEO AUX ................... 150 mV/47 k-ohms

PHONO MM......................2.5 mV/47 k-ohms

Maximum Input Signal

CD/TAPEzMD/DVDzLD/TVzDBS/VCR /VIDEO AUX (EFFECT ON)

(1 kHz, 0.5% THD) ................... 2.2V or more

PHONO MM (1 kHz, 0.04% THD)

............................................ 110 mV or more

Output Level/Impedance

REC OUT....................... 150 mV/1.0 k-ohms

PRE OUT............................ 2.6V/1.1 k-ohms

SUBWOOFER (MAIN SP: SMALL)

............................................ 4.0V/1.2 k-ohms

Headphone Jack Rated Output/Impedance

Output Level

CD/TAPEzMD/DVDzLD/TVzDBS/VCR /VIDEO AUX Input: 1 kHz,

150 mV, RL=8 ohms ........................ 0.55V

Impedance .................................... 390 ohms

Frequency Response (20 Hz to 20 kHz)

CD/TAPEzMD/DVDzLD/TVzDBS/VCR /VIDEO AUX to MAIN L/R SP OUT

........................................................ 0±0.5 dB

RIAA Equalization Deviation

PHONO MM ....................................0±0.5 dB

Total Harmonic Distortion (20 Hz to 20 kHz)

CD/TAPEzMD/DVDzLD/TVzDBS/VCR/VIDEO AUX to MAIN SP OUT, 40W/8 ohms

.............................................. 0.025% or less

PHONO MM to REC OUT, 1V

................................................ 0.02% or less

Signal-to-Noise Ratio (IHF-A Network)

CD/TAPEzMD/DVDzLD/TVzDBS/VCR/VIDEO AUX to SP OUT (Input Shorted 150 mV)

(EFFECT OFF) ...................... 96 dB or more

PHONO MM to REC OUT (Input Shorted 5 mV)

[U.S.A., Canada, China and General

models] .................................86 dB or more

[Europe, U.K., Australia and Singapore

models] .................................82 dB or more

Residual Noise (IHF-A Network)

MAIN L/R SP OUT ................. 170 µV or less

Channel Separation (Vol. –30 dB, EFFECT OFF)

CD/TAPEzMD/DVDzLD/TVzDBS/VCR/VIDEO AUX Input 5.1 k-ohms Shorted

1 kHz/10 kHz

........................................ 60/45 dB or more

PHONO MM Input Shorted

1 kHz/10 kHz

.........................................60/55 dB or more

Tone Control Characteristics

Bass

Boost/Cut ........................... ±10 dB (50 Hz)

Turnover frequency ........................ 350 Hz

Treble

Boost/Cut ......................... ±10 dB (20 kHz)

Turnover frequency ....................... 3.5 kHz

Bass Extension (MAIN L/R) .......+6 dB (50 Hz)

Filter Characteristics

MAIN L/R, CENTER, REAR L/R (MAIN, CENTER, REAR SP: SMALL)

(H.P.F.) .......................fc = 90 Hz, 12 dB/oct.

SUBWOOFER (L.P.F.)

.................................... fc = 90 Hz, 18 dB/oct.

Gain Tracking Error (0 to –60 dB)

MAIN L/R ....................................3 dB or less

VIDEO SECTION

Video Signal Type

[U.S.A. and Canada models]................NTSC

[Europe, U.K., Australia and Singapore

models] .................................................. PAL

[China and General models] ....... NTSC/PAL

Video Signal Level ................. 1 Vp-p/75 ohms

S-Video Signal Level

Y ......................................... 1 Vp-p/75 ohms

C .................................. 0.286 Vp-p/75 ohms

Maximum Input Level ........... 1.5 Vp-p or more

Signal-to-Noise Ratio ............... 50 dB or more

Monitor Out Frequency Response

..................................... 5 Hz to 10 MHz, –3 dB

FM SECTION

Tuning Range

[U.S.A. and Canada models]

..........................................87.5 to 107.9 MHz

[Europe, U.K., Australia, China, Singapore

and General models] ........87.5 to 108.0 MHz

50 dB Quieting Sensitivity (IHF, 75 ohms, 100% mod., 1 kHz)

[U.S.A., Canada, China and General models only]

Mono.................................1.6 µV (15.3 dBf)

Stereo................................23 µV (38.5 dBf)

Usable Sensitivity (75 ohms)

[Europe, U.K., Australia and Singapore models only]

DIN, Mono (S/N 26 dB) .....................0.9 µV

DIN, Stereo (S/N 46 dB).....................28 µV

Alternate Channel Selectivity (±400 kHz)

[U.S.A., Canada, China and General

models only]..........................................75 dB

Selectivity (two signals, 40 kHz Dev. ±300 kHz)

[Europe, U.K., Australia and Singapore

models only] .........................................55 dB

Signal-to-Noise Ratio

(IHF) Mono/Stereo

[U.S.A., Canada, China and General

models]..........................................81/75 dB

(DIN-Weighted, 40 kHz Dev.) Mono/Stereo

[Europe, U.K., Australia and Singapore

models]..........................................75/69 dB

SPECIFICATIONS

English

SPECIFICATIONS

Harmonic Distortion (1 kHz)

Mono/Stereo ....................................0.1/0.2%

Stereo Separation (1 kHz).......................48 dB

Frequency Response

20 Hz to 15 kHz..................................0±1 dB

Output Level (100% mod., 1 kHz)

[U.S.A., Canada, China and General models]

...........................................................550 mV

[Europe, U.K., Australia and Singapore

models (40 kHz Dev.)] ......................550 mV

AM SECTION

Tuning Range

[U.S.A., Canada, China and General models]

........................................... 530 to 1,710 kHz

[Europe, U.K., Australia and Singapore

models] ...............................531 to 1,611 kHz

Usable Sensitivity..............................300 µV/m

Signal-to-Noise Ratio ..............................52 dB

Output Level (30% mod., 1 kHz) .........150 mV

GENERAL

Power Supply

[U.S.A. and Canada models]

............................................. AC 120V/60 Hz

[Europe, U.K. and Singapore models]

............................................. AC 230V/50 Hz

[Australia model] .................. AC 240V/50 Hz

[China and General models]

.................. AC 110/120/220/240V, 50/60 Hz

Power Consumption

[U.S.A. model] ..................................... 310W

[Europe, U.K., Australia, China, Singapore

and General models] ............................350W

[Canada model]........................350W/440 VA

Maximum Power Consumption

[General model only] ...........................690W

AC Outlets

2 SWITCHED OUTLETS

[U.S.A., Europe, Canada, China, Singapore

and General models] ....... 100W max. total

1 SWITCHED OUTLET

[U.K. and Australia models] ..... 100W max.

Dimensions (W x H x D)

........................................ 435 x 151 x 391 mm

Weight ................................................. 13.0 kg

Accessories..........................Remote controller

Batteries

AM loop antenna

Indoor FM antenna

* Specifications are subject to change without

notice.

Manufacturer Code

Abex 0032 Acura 0009 Admiral 0093, 0163, 0213 Adyson 0217, 0032 Akai 0208, 0361 Akura 0218, 0264, 0369 Alaron 0216 Alba 0037, 0218, 0371, 0009,

0036, 0235 Allorgan 0294 Amplivision 0217 Amstrad 0371, 0009, 0362, 0369 Anam 0009, 0068 Anitech 0009, 0068, 0076 Arcam 0216, 0217 Asberg 0076 Asuka 0218 Atlantic 0206 Audiosonic 0037, 0109 Autovox 0206, 0076, 0336 BPL 0282 BSR 0294 BTC 0218 Baird 0343 Basic Line 0218, 0009 Baur 0037, 0010, 0554, 0349, 0361 Beko 0370 Beon 0037 Binatone 0217 Blaupunkt 0554, 0191, 0195, 0200,

0213, 0327, 0328 Blue Sky 0218 Blue Star 0282 Bondstec 0247 Boots 0217 Brandt 0109, 0196, 0198,

0205, 0333, 0335 Brionvega 0362 Britannia 0216 Bush 0037, 0218, 0374, 0371, 0294,

0009, 0282, 0036, 0349 CCE 0037, 0217 CGE 0074, 0076, 0084, 0247, 0306 CS Electronics 0216 CTC 0247 Carrefour 0036 Cascade 0009 Cathay 0037 Centurion 0037 Century 0213 Cimline 0009 Clarivox 0037 Clatronic 0370, 0076, 0247 Condor 0370, 0320

Contec 0216, 0009, 0036, 0157 Continental Edison 0196, 0198,

0205, 0333 Crosley 0074, 0076, 0084, 0213 Crown 0037, 0370, 0418, 0009, 0076 Crystal 0431 Curtis Mathes 0093 Cybertron 0218 Daewoo 0037, 0374, 0009 Dainichi 0218, 0215 Dansai 0037 Dayton 0009 De Graaf 0208 Decca 0037, 0072 Dixi 0037, 0009 Dual 0336, 0352 Dual Tec 0217 Dumont 0070 Elbe 0259 Elin 0037 Elite 0218, 0320 Elta 0009 Emerson 0282, 0213, 0361 Erres 0037, 0012 Expert 0206 Ferguson 0037, 0109, 0005, 0073,

0190, 0238, 0287, 0335, 0343 Fidelity 0216, 0361 Finlandia 0208, 0346, 0359 Finlux 0037, 0072, 0070, 0105, 0346 Firstline 0216, 0217, 0294, 0009,

0321, 0247 Fisher 0370, 0217, 0208, 0303 Flint 0455 Formenti 0037, 0320, 0213 Frontech 0264, 0431, 0163, 0247 Fujitsu 0072, 0206 Funai 0294, 0264, 0303 GE 0282, 0093 GEC 0037, 0217, 0072, 0043, 0205 GPM 0218 Geloso 0009, 0213 Genexxa 0218, 0163 GoldStar 0037, 0217, 0109,

0032, 0290 Goodmans 0037, 0217, 0374, 0371,

0072, 0036, 0235, 0317, 0343 Gorenje 0370 Gradiente 0053 Graetz 0163, 0361 Granada 0037, 0217, 0072, 0146,

0208, 0339, 0359 Grandin 0282 Grundig 0037, 0554, 0070, 0191,

0195, 0205 HCM 0009, 0282 Hanseatic 0037, 0320, 0361 Harley Davidson 0043

Harvard 0068 Hinari 0037, 0218, 0009, 0036 Hisawa 0282, 0455 Hitachi 0217, 0036, 0109, 0032, 0043,

0044, 0105, 0163, 0196,

0198, 0225, 0306, 0349 Huanyu 0216, 0374 Hypson 0037, 0282, 0264 ICE 0217, 0371, 0264 ICeS 0218 ITS 0371 ITT 0163, 0361 Imperial 0370, 0418, 0074, 0076,

0084, 0247 Indiana 0037 Ingelen 0163 Inno Hit 0072 Interbuy 0068 Interfunk 0037, 0163, 0247, 0361 Intervision 0037, 0217, 0264,

0102, 0068 Isukai 0218 JVC 0371, 0036, 0053, 0190, 0192 KTV 0217 Kaisui 0216, 0217, 0218, 0009, 0282 Kamp 0216 Kapsch 0206, 0163 Kawasho 0216 Kendo 0037, 0235, 0362 Kingsley 0216 Kneissel 0259 Korpel 0037 Koyoda 0009 Leyco 0037, 0294, 0072, 0264 Liesenk & Tter 0037 Lloytron 0032 Loewe 0075 Luma 0206 Luxor 0349, 0361 M Electronic 0037, 0217, 0374, 0009,

0109, 0068, 0105, 0163,

0287, 0346 MGA 0150 MTC 0216, 0349 Magnadyne 0102, 0247 Magnafon 0102, 0076, 0213 Magnavox 0036 Manesth 0217, 0320, 0264, 0235 Marantz 0037 Mark 0037 Matsui 0037, 0217, 0371, 0294,

0009, 0072, 0036, 0035,

0011, 0208, 0235 Matsushita 0250 McMichael 0043 Mediator 0037, 0012 Memorex 0009, 0250, 0150 Memphis 0337

LIST OF MANUFACTURER’S CODES LISTE DES CODES FABRICANTS VERZEICHNIS DER HERSTELLER CODES LISTA ÖVER TILLVERKARKODER

ELENCO DEI CODICI DEL FABBRICANTE LISTA DE CÓDIGOS DE FABRICANTES LIJST V AN CODES V AN F ABRIKANT

Metz 0213, 0367 Midland 0032 Minerva 0554, 0070 Minoka 0369 Mitsubishi 0036, 0093, 0108, 0150 Mivar 0216, 0290, 0291, 0292 Motion 0076 Motorola 0093 Multitech 0216, 0217, 0009, 0102, 0076 NEC 0455, 0036 NEI 0037, 0431, 0337 Neckermann 0037, 0554, 0191,

0213, 0349

Nikkai 0037, 0216, 0218, 0072,

0264, 0035, 0032, 0337 Nikko 0317 Nobliko 0102, 0076 Nokia 0361 Nordmende 0109, 0196, 0198,

0213, 0287, 0343 Oceanic 0163, 0215, 0361 Optimus 0250 Optonica 0093 Orion 0037, 0294, 0320, 0321, 0235 Osaki 0217, 0218, 0072, 0264, 0032 Oso 0218 Osume 0072, 0032, 0157 Otake 0317 Otto Versand 0037, 0217, 0320, 0036,

0010, 0554, 0191, 0213,

0343, 0349 Palladium 0370, 0418 Panama 0217, 0264 Panasonic 0250, 0163, 0213, 0214,

0226, 0367 Pathe Cinema 0216, 0320, 0213, 0238 Pathe Marconi 0196, 0198, 0205, 0333 Pausa 0009 Penney 0032 Perdio 0320 Phase 0032 Philco 0074, 0076, 0084, 0213, 0247 Philips 0037, 0374, 0554, 0012,

0043, 0323 Phonola 0037, 0012 Pioneer 0109, 0163, 0287 Profex 0009, 0076, 0361 Proline 0321 Protech 0037, 0217, 0418, 0009,

0264, 0102, 0431, 0247, 0337 Pye 0012 Quasar 0250 Quelle 0037, 0010, 0554, 0011,

0070, 0074, 0084, 0200,

0213, 0306, 0327, 0328, 0361 Questa 0036 R-Line 0037 RBM 0070 RCA 0090, 0093 Radio Shack 0032 Radiola 0037, 0012, 0323 Rank Arena 0036

Realistic 0032 Rediffusion 0361 Revox 0037 Rex 0206, 0264, 0163, 0259 Rhapsody 0216 Roadstar 0218, 0418, 0009, 0264 SBR 0037, 0012, 0043 SEG 0217, 0264, 0036, 0076 SEI 0294, 0102, 0213 Saba 0109, 0075, 0163, 0196, 0198,

0205, 0213, 0287, 0335, 0343 Saccs 0238 Saisho 0009, 0264, 0431, 0011, 0235 Salora 0163, 0349, 0359, 0361 Sambers 0102, 0076, 0213 Sampo 0032 Samsung 0037, 0370, 0217, 0009,

0264, 0032, 0090, 0290 Sandra 0216 Sanyo 0072, 0036, 0011, 0146, 0157,

0208, 0213, 0339 Schaub Lorenz 0361 Schneider 0037, 0218, 0371, 0247,

0303, 0323, 0336, 0352 Sears 0146 Sei-Sinudyne 0010 Seleco 0206, 0163, 0259, 0362 Sentra 0035 Sharp 0036, 0093, 0157 Shorai 0294 Siarem 0102, 0213 Siemens 0037, 0554, 0157, 0191,

0195, 0200, 0213, 0327, 0328 Silver 0036 Sinudyne 0294, 0102, 0213, 0235 Solavox 0032, 0163 Sonitron 0208 Sonoko 0037, 0009 Sonolor 0163, 0208, 0215 Sontec 0037 Sony 0036, 0010, 0011 Soundwave 0037, 0418 Standard 0217, 0218, 0009 Stern 0206, 0163, 0259 Sunkai 0294, 0321 Susumu 0218 Sysline 0037 Tandy 0217, 0218, 0072, 0093, 0163 Tashiko 0217, 0036, 0043, 0359 Tatung 0037, 0217, 0072 Tec 0217, 0247 Technema 0320 Technics 0250 Teknika 0150 Teleavia 0205, 0333, 0343 Telefunken 0109, 0005, 0074, 0084,

0101, 0213, 0262, 0306,

0335, 0343 Telemeister 0320 Teletech 0009 Teleton 0217, 0206, 0349 Tensai 0218, 0294, 0320, 0317

Texet 0216, 0218 Thomson 0109, 0196, 0198, 0205,

0287, 0333, 0343, 0349

Thorn 0037, 0072, 0035, 0074,

0084, 0190, 0192, 0361 Thorn-Ferguson 0343 Tomashi 0282 Toshiba 0036, 0035, 0070, 0243 Trical 0157 Triumph 0243 Uher 0206, 0320, 0303 Ultra 0192 Ultravox 0102 Universum 0037, 0370, 0264,

0105, 0346 Vestel 0037 Victor 0053 Videosat 0247 Videotechnic 0217 Vidtech 0036 Vision 0320 Voxson 0163 Waltham 0217 Watson 0037, 0320 Watt Radio 0102 Wega 0036 White Westinghouse 0037, 0216, 0320 Yoko 0037, 0217, 0264, 0431 Zanussi 0206

CABLE

Manufacturer Code

ABC 1003, 1008, 1014, 1017 Birgmingham Cable Communications

1276 British Telecom 1003, 1105 Cabletime 1161, 1271, 1377 Clyde 1086 Contec 1019 Decsat 1423 Filmnet 1443 France Telecom 1451 GEC 1086 General Instrument 1276 GoldStar 1144 Jerrold 1003, 1276, 1014 MNet 1443, 1019 Magnavox 1032 Memorex 1000 Movie Time 1156 NSC 1156 Oak 1019 PVP Stereo Visual Matrix 1003 Panasonic 1000 Paragon 1000 Pioneer 1144, 1260 Pulsar 1000 Runco 1000 STS 1156

Salora 1382 Samsung 1144 Satbox 1375 Scientific Atlanta 1008, 1277, 1017 Starcom 1003 Tele+1 1443 Teleservice 1281 Toshiba 1000 Tudi 1286 United Cable 1003 Videoway 1250 Westminster 1105 Zenith 1000

DBS TUNER

Manufacturer Code

AST 2321, 2351 Alba 2455, 2421, 2362, 2613 Aldes 2288 Allantide 2333 Amstrad 2080, 2252, 2345, 2461, 2501 Ankaro 2369, 2288, 2220, 2519, 2217 Anttron 2421, 2183 Arcon 2368 Armstrong 2243 Astra 2108, 2539 Astro 2520, 2173, 2358, 2501 Avalon 2396 Axis 2369, 2530 BT 2668 Barcom 2217 Beko 2189 Best 2369, 2217 Blaupunkt 2173 Boca 2243, 2513 Brain Wave 2332 Bush 2067 CNT 2520 Cambridge 2344 Channel Master 2362 Chaparral 2053, 2209 CityCom 2394 Commlink 2288 Connexions 2396 Crown 2243 Cyrus 2200 D-box 2723 DDC 2362 DNT 2396, 2200 Diskxpress 2217 Drake 2268 EIF 2417 Echostar 2396, 2871 Emanon 2421 FTE 2331 Ferguson 2183, 2067, 2189, 2336 Fidelity 2252 Finlux 2455, 2108, 2344, 2397 Fracarro 2871

Freecom 2421, 2335 Fuba 2421, 2369, 2396, 2217,

2297, 2417 G-Sat 2183 Galaxis 2288, 2834, 2863 Galaxisat 2321 GoldStar 2335 Gooding 2571 Goodmans 2189 Grothusen 2335 Grundig 2571, 2173, 2189, 2328 Harting und Helling 2333 Hinari 2183 Hirschmann 2502, 2173, 2573,

2287, 2333, 2397, 2398 Hitachi 2455 Houston 2668 Huth 2243, 2288, 2220, 2346 ITT 2108 InVideo 2871 Intervision 2592 JVC 2571 Johansson 2332 Kathrein 2173, 2200, 2092, 2331,

2358, 2394, 2442, 2480, 2504 Kosmos 2331, 2335 Kreiselmeyer 2173 Kyostar 2421 La Sat 2520, 2513, 2464 Lemon 2692 Lenco 2421, 2335 Lennox 2592 Lupus 2369 Luxor 2573, 2108 Manhattan 2455, 2592, 2520 Marantz 2200 Maspro 2092, 2328, 2336 Matsui 2571, 2344 Mediamarkt 2243 Micro Technology 2333, 2539 Minerva 2571 Morgan’s 2243, 2513 Multistar 2331, 2464 Muratto 2335 Navex 2332 Neuhaus 2501 Neusat 2692, 2834 Newhaus 2220 Nikko 2360 Nokia 2455, 2573, 2108, 2328,

2397, 2873 Nordmende 2362 Orbitech 2501 Oxford 2344 Pace 2455, 2183, 2067, 2328,

2336, 2791 Palcom 2297 Palladium 2571 Palsat 2501 Panda 2455 Philips 2455, 2571, 2200, 2292, 2328 Phonotrend 2288, 2592

Planet 2871 Plasmatic 2442 Polytron 2394 Promax 2455 Prosat 2288 Quadral 2362, 2519 RFT 2288, 2220, 2200 Radiola 2200 Radix 2396, 2882 SAT 2321, 2351, 2461 SEG 2421, 2369, 2539 STVI 2417 Saba 2520, 2336 Sabre 2455 Sagem 2820 Salora 2108 Samsung 2287 SatPartner 2421, 2332, 2520, 2502,

2335, 2692 Satcom 2605, 2346 Satec 2183, 2328 Satmaster 2346 Schwaiger 2183, 2394, 2504 Seemann 2396, 2530 Siemens 2173 Skymaster 2288, 2605, 2519 Star Trak 2421 Strong 2421 Sunstar 2513 TPS 2820 Tantec 2455, 2297, 2336 TechniSat 2262, 2501 Techniland 2346 Telefunken 2421 Teleka 2243, 2613 Telesat 2605 Thomson 2455 Tonna 2668, 2346 Triad 2321, 2333, 2335, 2351 Triasat 2501 Unitor 2332, 2217 Universum 2571, 2173 Vector 2333 Ventana 2200 Vortec 2421 Vtech 2351 Wevasat 2333 Winersat 2332 Wisi 2455, 2396, 2173, 2321,

2351, 2372, 2406, 2407 XSat 2889 Xcom Multimedia 2889 Zehnder 2520, 2321, 2331

VCR

Manufacturer Code

ASA 3037, 3081 Admiral 3048

Adventura 3000 Aiko 3278 Aiwa 3000, 3037, 3307, 3348, 3352 Akai 3315, 3106, 3041, 3053 Akiba 3072 Alba 3072, 3020, 3278, 3209,

3315, 3352 Ambassador 3020 Amstrad 3000, 3278, 3325, 3332 Anitech 3072 Asha 3240 Asuka 3037 Audiovox 3037 Baird 3000, 3041, 3104, 3107 Basic Line 3072, 3020, 3278 Beaumark 3240 Bell & Howell 3104 Blaupunkt 3034, 3226, 3195,

3003, 3006, 3154,

3162, 3227, 3403 Brandt 3320, 3187, 3321 Brandt Electronic 3041 Broksonic 3209 Bush 3072, 3278, 3209, 3352 CCE 3072, 3278 CGE 3000 Calix 3037 Capehart 3020 Carver 3081 Catron 3020 Cimline 3072 Cineral 3278 Citizen 3037, 3278 Clatronic 3020 Colt 3072 Combitech 3352 Condor 3020 Craig 3072, 3037, 3047, 3240 Crown 3072, 3020, 3278 Curtis Mathes 3041, 3162 Cybernex 3240 Cyrus 3081 Daewoo 3020, 3278, 3045 Dansai 3072 Daytron 3020 De Graaf 3042, 3166 Decca 3000, 3081 Denon 3042 Dual 3041 Dumont 3000, 3081, 3104 Dynatech 3000 ESC 3278, 3240 Elbe 3038 Elcatech 3072 Electrohome 3037 Electrophonic 3037 Emerex 3032 Emerson 3000, 3037, 3278, 3209,

3036, 3043, 3088 Ferguson 3320, 3041, 3107, 3321 Fidelity 3000 Finlandia 3081, 3104

Finlux 3000, 3081, 3042, 3104 Firstline 3072, 3037, 3209,

3045, 3043 Fisher 3046, 3047, 3054, 3104 Frontech 3020 Fuji 3033 Funai 3000 GE 3048, 3240 GEC 3081 Garrard 3000 General 3020 Go Video 3432 GoldHand 3072 GoldStar 3037, 3038, 3225 Goodmans 3072, 3000, 3020,

3037, 3278, 3403 Gradiente 3000, 3008 Graetz 3005, 3041, 3104, 3240 Granada 3081, 3046, 3104 Grandin 3072, 3000, 3037 Grundig 3072, 3081, 3347, 3226,

3195, 3003, 3006, 3007,

3207, 3349, 3403 HCM 3072 HI-Q 3047 Hanseatic 3037 Harley Davidson 3000 Harman/Kardon 3038 Harwood 3072 Headquarter 3046 Hinari 3072, 3004, 3240, 3352 Hitachi 3000, 3004, 3042, 3041,

3166, 3235, 3240 Hypson 3072 ITT 3106, 3046, 3384, 3005,

3041, 3104, 3240 ITV 3037, 3278 Imperial 3000 Ingersol 3004 Interfunk 3081 JVC 3067, 3384, 3008, 3041,

3206, 3207, 3486 Jensen 3041 KEC 3037, 3278 KLH 3072 Kaisui 3072 Kendo 3209, 3106 Kenwood 3067, 3384, 3038, 3041 Kodak 3037 Korpel 3072 LXI 3037 Lenco 3278 Leyco 3072 LIoyd’s 3000 Loewe 3037, 3004, 3081, 3006 Logik 3072, 3004, 3240 Luxor 3106, 3048, 3046, 3043, 3104 M Electronic 3000 MGA 3043, 3240 MGN Technology 3240 MTC 3000, 3240 Magnasonic 3278

Magnavox 3000, 3081 Magnin 3240 Manesth 3072, 3045 Marantz 3081, 3003, 3006 Marta 3037 Matsui 3209, 3004, 3036,

3088, 3348, 3352 Matsushita 3162 Memorex 3000, 3037, 3048,

3046, 3047, 3104,

3162, 3240, 3307 Memphis 3072 Metz 3347, 3195, 3003,

3006, 3162, 3227 Minerva 3195, 3006 Minolta 3042 Mitsubishi 3081, 3067, 3048, 3043 Motorola 3048 Multitech 3072, 3000 Murphy 3000 NEC 3067, 3038, 3041, 3104 Neckermann 3081 Nesco 3072 Nikko 3037 Nikon 3034 Noblex 3240 Nokia 3106, 3046, 3041, 3104, 3240 Nordmende 3320, 3384, 3041,

3297, 3321 Oceanic 3000, 3041 Okano 3315, 3348 Olympus 3226 Optimus 3037, 3432, 3048, 3104, 3162 Orion 3209, 3004, 3036,

3088, 3348, 3352 Osaki 3072, 3000, 3037 Otto Versand 3081 Palladium 3072, 3037, 3006, 3041 Panasonic 3226, 3162, 3225, 3227 Pathe Cinema 3036 Pathe Marconi 3041 Penney 3037, 3042, 3038, 3054, 3240 Pentax 3042 Perdio 3000 Philco 3209, 3038 Philips 3081, 3384, 3403 Phonola 3081 Pilot 3037 Pioneer 3081, 3067, 3162, 3235 Portland 3020 Profex 3322 Profitronic 3240 Proline 3000 Protec 3072 Pye 3081 Quarter 3046 Quartz 3046 Quasar 3162 Quelle 3081 RCA 3106, 3042, 3048, 3240 RFT 3403 Radio Shack 3000, 3037

Radiola 3081 Radix 3037 Randex 3037 Realistic 3000, 3037, 3048,

3046, 3047, 3104 Rex 3384, 3041 Ricoh 3034 Roadstar 3072, 3037, 3278, 3240 SBR 3081 SEG 3322, 3240 SEI 3004, 3081 STS 3042 Saba 3320, 3384, 3041, 3206,

3207, 3297, 3321 Saisho 3209, 3004, 3036, 3088 Salora 3106, 3046, 3043 Samsung 3432, 3045, 3053, 3240 Sanky 3048 Sansui 3000, 3067, 3041 Sanyo 3046, 3047, 3104, 3240 Saville 3352 Schaub Lorenz 3000, 3005,

3041, 3104 Schneider 3072, 3000, 3081 Scott 3045, 3043 Sears 3000, 3037, 3042, 3046,

3047, 3054, 3104 Seleco 3041 Semp 3045 Sentra 3020 Sharp 3048 Shintom 3072, 3104 Shogun 3240 Shorai 3004 Siemens 3037, 3081, 3195, 3003,

3006, 3054, 3104 Silva 3037 Singer 3072, 3045 Sinudyne 3004, 3081 Solavox 3020 Sonolor 3046 Sontec 3037 Sony 3000, 3032, 3033, 3034, 3011 Sunkai 3348 Sunstar 3000 Suntronic 3000 Sylvania 3000, 3081, 3043 Symphonic 3000 TMK 3036, 3240 Tashiko 3000 Tatung 3000, 3081, 3041 Teac 3000, 3041 Tec 3020 Technics 3226, 3162 Teknika 3000, 3037 Teleavia 3041 Telefunken 3320, 3384, 3041,

3187, 3321 Tenosal 3072 Tensai 3322, 3000 Thomas 3000 Thomson 3320, 3384, 3041

Thorn 3036, 3041, 3104 Toshiba 3081, 3045, 3384,

3041, 3043 Totevision 3037, 3240 Towada 3322 Uher 3240 Unitech 3240 Universum 3000, 3037, 3081, 3106,

3195, 3006, 3240, 3325 Vector 3045 Vector Research 3038 Video Concepts 3045 Videosonic 3240 Wards 3072, 3000, 3081, 3042,

3048, 3047, 3240 White Westinghouse 3278 XR-1000 3072, 3000 Yamaha 3038 Yamishi 3072 Yokan 3072 Yoko 3020, 3240 Zenith 3000, 3033, 3034

DVD PLAYER

Manufacturer Code

Kenwood 4534 Magnavox 4503 Onkyo 4503 Panasonic 4490 Philips 4539, 4503 Pioneer 4525 Sony 4533 Technics 4490 Thomson 4551 Toshiba 4503 Yamaha 4490, 4545 Zenith 4503

LD PLAYER

Manufacturer Code

Aiwa 5203 Carver 5064, 5194 Cyrus 5388 Denon 5059, 5172 Disco Vision 5023 Funai 5203 Hitachi 5023 Magnavox 5194, 5217 Marantz 5064, 5194 Mitsubishi 5059 NAD 5059 Panasonic 5204, 5496 Philips 5064, 5388, 5194 Pioneer 5023, 5059 Quasar 5204

Radiola 5388 Realistic 5203 Salora 5064 Sega 5023 Sharp 5001 Sony 5193, 5201 Technics 5204, 5496 Telefunken 5059 Theta Digital 5194 Thorn 5014 Yamaha 5217

CD PLAYER

Manufacturer Code

Aiwa 6124, 6157, 6419 Akai 6108, 6156, 6199 Alba 6536, 6288, 6334 Arcam 6157 Audio Research 6157 Audio Ton 6157 Audiolab 6157 Audiomeca 6157 BSR 6134 Bestar 6164 Binatone 6452 California Audio Lab 6029 Carver 6157, 6179 Condor 6134, 6164 Cyrus 6157 DKK 6000 Denon 6003, 6034 Dual 6196 Emerson 6164 Fisher 6048, 6179, 6342 GE 6334 Genexxa 6032, 6164 GoldStar 6525, 6383 Goodmans 6536 Grundig 6157 Harman/Kardon 6108, 6173 Hitachi 6032, 6291 JVC 6072 Kenwood 6037, 6523, 6028,

6048, 6190 Kodak 6287 Krell 6157 Linn 6157 Luxman 6328 M Electronic 6525 MCS 6029 Magnavox 6157, 6038, 6129 Marantz 6157, 6029, 6038, 6129 Matsui 6157, 6288, 6307 Mclntosh 6287 Memorex 6032, 6164 Meridian 6157 Micromega 6157 Mission 6157 Mitsubishi 6108, 6156

NAD 6000 NSM 6157 Naim 6157 Nikko 6525, 6164 Onkyo 6101, 6102 Optimus 6000, 6032, 6037, 6536,

6048, 6179, 6196, 6342 Panasonic 6303, 6029, 6367 Philips 6157, 6274, 6287 Pioneer 6032 Poppy 6164 Proton 6157 QED 6157 Quad 6157 Quasar 6029 RCA 6179 Realistic 6164, 6179 Revox 6157, 6113 Roadstar 6461, 6525, 6527 Rotel 6157 SAE 6157 Sansui 6157, 6202, 6513 Sanyo 6048, 6179, 6342 Schneider 6134 Scott 6164 Sharp 6037, 6262, 6265 Sherwood 6114, 6196 Siemens 6516 Signature 6108 Sony 6000, 6490 Teac 6378 Technics 6207, 6303, 6029 Toshiba 6481 Universum 6157 Victor 6072 Wards 6157, 6108 Yamaha 6036, 6082, 6187, 6712 Yorx 6461

MD RECORDER

Manufacturer Code

Kenwood 7826 Sony 7490 Yamaha 7888, 7490

TAPE DECK

Manufacturer Code

Aiwa 8029, 8197, 8200 Akai 8188, 8189 Arcam 8076 Carver 8029 Denon 8076, 8412 Fisher 8074 Grundig 8029 Harman/Kardon 8182 JVC 8244, 8273, 8274

Kenwood 8070, 8071, 8092,

8205, 8233, 8234 Magnavox 8029 Marantz 8029, 8009 Memorex 8099, 8101 Mitsubishi 8189 Onkyo 8136, 8135 Optimus 8027, 8220 Panasonic 8229 Philips 8029 Pioneer 8027, 8099, 8101, 8220 Revox 8029 Sansui 8029, 8009 Sanyo 8074 Sharp 8205 Sony 8170, 8243 Technics 8229 Victor 8273, 8274 Wards 8027 Yamaha 8094, 8097, 8205, 8478, 8524

YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A. YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

Printed in Malaysia

V416020

Quick Reference Card

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

LEVEL

MUTE

SLEEP

A/B/C/D/E

PRESET +/–

INPUT

DSP

EXT. DEC.

POWER

(TV VOLUME)

EFFECT ON/OFF

ON SCREEN

STANDBY

TEST

SET MENU

VOLUME

UP/DOWN

A/B/C/D/E

100

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

ENTER

HALL

TEST

DSP program

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

INPUT

REC/PAUSE

DIR A

SKIP (MD)

REWIND

BACKWARD

(MD)

DISPLAY (MD) DECK A/B

DIR B SKIP (MD)

PAUSE

STOP FAST

FORWARD

PLAY

POWER

(TV VOLUME)

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

SKIP

PLAY

BACKWARD

INPUT

DISC SKIP

POWER

(TV VOLUME)

(TV INPUT) PAUSE

STOP FAST

FORWARD

DISPLAY

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

SKIP/SEARCH

PLAY

SUBTITLE (DVD)/

BACKWARD (LD)

SUBTITLE

ON/OFF (DVD)

DISC SKIP

INPUT

POWER

(TV VOLUME)

DISPLAY (TV INPUT)

PAUSE

STOP ANGLE (DVD)/

FAST FORWARD (LD)

AUDIO (DVD)

m AMP/TUN

m DSP

m TAPE/MD

m CD

m DVD/LD

V296070

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

+10

MENU LEFT

MENU SELECT

SET UP

TITLE

DISC SKIP

Numeric

keys

POWER

(TV VOLUME)

TITLE/INDEX

MENU RIGHT

(TV INPUT) MENU UP

MENU DOWN

CLEAR

RETURN MENU

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

MENU LEFT

CHANNEL

ENTER

MENU SELECT

CHANNEL

+(UP)/–(DOWN)

CHANNEL

POWER

(TV VOLUME)

DISPLAY

+100

(TV INPUT) MENU UP

MENU RIGHT

RECALL

MENU DOWN

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

TV POWER

TV MUTE

TV SLEEP

CHANNEL

ENTER

CHANNEL

+(UP)/–(DOWN)

CHANNEL

TV VOLUME

DISPLAY

TV EFFECT ON/OFF

TV INPUT

(VCR)

A/B/C/D/E

100

SET UP

RETURN

LEVEL

SET MENU

POWER

STANDBY

TUNER

TAPE/MD

DVD/LD

TV/DBS

VCR

PHONO

V-AUX

EXT. DEC

MOVIE

THEATER 1

MOVIE

THEATER 2

MONO MOVIE

/DTS

SURROUND

DISCO

TV SPORTS

ROCK

CHURCH

JAZZ CLUB

CLEAR

SLEEP

ENTER

HALL

TEST

EFCT

DISP

DSP

DISC SKIP

PRESET

ON/OFF

INDEX

A/B

VCR REC TV INPUT

ON SCREEN

SUBTITLE ANGLE

AUDIO

ON/OFF

TITLE

VOLUME

MUTE

CODE SET

SELECT

DIR

(TV POWER)

CHANNEL

ENTER

VCR REC (*1)

PLAY

REWIND

CHANNEL

+(UP)/–(DOWN)

CHANNEL

POWER

(TV VOLUME)

DISPLAY (TV INPUT)

PAUSE STOP

FAST FORWARD

Quick Reference Card

m DVD MENU

m VCR m TV

*1: Press this key twice to start recording.

Appuyer deux fois sur cette touche pour démarrer l’enregistrement. Diese Taste zweimal drücken, um die Aufnahme zu starten. Tryck två gånger på denna knapp för att starta inspelningen.

m CBL/DBS

Premere due volte questo tasto per iniziare la registrazione. Oprima dos veces esta tecla para empezar a grabar. Druk tweemaal op deze toets om met opnemen te beginnen.

V296070

documentation manual, user maintenance, brochure, user reference, pdf manual

This file has been downloaded from:

User Manual and User Guide for many equipments like mobile phones, photo cameras, monther board, monitors, software, tv, dvd, and othes..

Manual users, user manuals, user guide manual, owners manual, instruction manual, manual owner, manual owner's, manual guide,

manual operation, operating manual, user's manual, operating instructions, manual operators, manual operator, manual product,

Yamaha Audio RX-V795aRDS User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

CAUTION

Features

INTRODUCTION

What’s DSP?

GETTING STARTED

Getting started

Unpacking

Installing batteries in the remote controller

Notes about the remote controller

Controls and their functions

Front panel

Display panel

Speaker setup

PREPARATION

Audio/video source equipment

Connections

Speakers

Antennas

Plugging in this unit

On screen display

Selecting the output modes (“SET MENU”mode)

Speaker balance adjustment

BASIC OPERATION

Playing a source

Recording a source to tape (or MD) or dubbing from tape (or MD) to tape (or MD)

Sound control

Tuning

BASIC OPERATION

Preset tuning

Displaying RDS data

Receiving RDS stations

Selecting your desired program type from among preset RDS stations (PTY SEEK)

Automatic selection of desired program when broadcasting starts

Using digital sound field processor (DSP)

Playing a source with an effect of the digital sound field processor (DSP)

Adjusting output level of the center, right rear, left rear speakers and subwoofer

Brief overview of digital sound field programs

ADVANCED FEATURES

“SET MENU”mode

Creating your own sound fields

Setting the SLEEP timer

REMOTE CONTROLLER

Basic operation

Key name and function

Entering manufacturer codes

Restoring the default codes

TROUBLESHOOTING

SPECIFICATIONS

Quick Reference Card
