Yamaha Audio RX-V1 User Manual

Download

UCA

R X -V 1

Natural Sound AV Receiver Ampli-Tuner Audio-Video

DIGITAL

DOLBY

CINEMA DSP

DIGITAL

SURROUND

INPUT SELECTOR

INPUT MODE

6CH IMPUT

EFFECT

A/B/C/D/E

BALANCE

EXTENSION

11 22 33

PRESET/TUNING

PROCESSOR

EDIT

REC OUT/ZONE 2

SOURCE/REMOTE

DIRECT

S VIDEO VIDEO L RAUDIO

DVD

D-TV

CBL/SAT TAPE

TUNER

VCR 1

VCR 2 CD

PHONOVCR 3

VIDEO AUX

BASS

ON OFF

FM/AM MEMORY

VIDEO AUX

VOLUME

TUNING MODE

MANL/AUTO FM

AUTO/MANL MONO

STANDBY/ON

NATURAL SOUND AV RECEIVER

SPEAKERS

PHONES BASS TREBLE

RX-V1

PROGRAM PRESET/TUNING

–

TRANSMIT RE-NAME CLEAR

MACROLEARN

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

TITLE

ENTER

SOURCE

DISPLAY

SELECT

SEARCH CHAPTER

$*#$

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

1234

ROCK

ENTER-

CONCERT

TAINMENT

VIDEO 1

5678

MOVIE

EX/ES

THEATER

THEATER 2

THEATER 1

9101112

0 +10 +100

CHP/INDEX

A / B / C / D / E

PRESET

++ +

TV INPUT

MUTE

TV VOL

TV MUTE

EFFECT

–– –

DISC

MACRO

OFF ON

6CH INPUT

SOUND

+–

CONCERT VIDEO 2

/DTS

SUR.

VOLUME

OWNER’S MANUAL

MODE D’EMPLOI

SAFETY INSTRUCTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO N OT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER-SERVICEABLE

PARTS INSIDE. REFER SERVICING TO

QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

8 Ventilation – The unit should be situated so that its

location or position does not interfere with its proper ventilation. For example, the unit should not be situated on a bed, sofa, rug, or similar surface, that may block the ventilation openings; or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9 Heat – The unit should be situated away from heat sources

such as radiators, stoves, or other appliances that produce heat.

10 Power Sources – The unit should be connected to a power

supply only of the type described in the operating instructions or as marked on the unit.

11 Power-Cord Protection – Power-supply cords should be

routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the unit.

12 Cleaning – The unit should be cleaned only as

recommended by the manufacturer.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

1 Read Instructions – All the safety and operating

instructions should be read before the unit is operated.

2 Retain Instructions – The safety and operating instructions

should be retained for future reference.

3 Heed Warnings – All warnings on the unit and in the

operating instructions should be adhered to.

4 Follow Instructions – All operating and other instructions

should be followed.

5 Water and Moisture – The unit should not be used near

water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc.

6 Carts and Stands – The unit should be used only with a

cart or stand that is recommended by the manufacturer.

6A A unit and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the unit and cart combination to overturn.

13 Nonuse Periods – The power cord of the unit should be

unplugged from the outlet when left unused for a long period of time.

14 Object and Liquid Entry – Care should be taken so that

objects do not fall into and liquids are not spilled into the inside of the unit.

15 Damage Requiring Service – The unit should be serviced

by qualified service personnel when: A. The power-supply cord or the plug has been

damaged; or

B. Objects have fallen, or liquid has been spilled into the

unit; or

C. The unit has been exposed to rain; or D. The unit does not appear to operate normally or

exhibits a marked change in performance; or

E. The unit has been dropped, or the cabinet damaged.

16 Servicing – The user should not attempt to service the unit

beyond those means described in the operating instructions. All other servicing should be referred to qualified service personnel.

17 Power Lines – An outdoor antenna should be located away

from power lines.

18 Grounding or Polarization – Precautions should be taken

so that the grounding or polarization is not defeated.

7 Wall or Ceiling Mounting – The unit should be mounted to

a wall or ceiling only as recommended by the manufacturer.

19 For US customers only:

Outdoor Antenna Grounding – If an outside antenna is connected to this unit, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

Note to CATV system installer:

This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC INFORMATION (for US customers only)

EXAMPLE OF ANTENNA GROUNDING

MAST

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

NEC

– NATIONAL ELECTRICAL CODE

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT (NEC SECTION 810–20)

GROUNDING CONDUCTORS (NEC SECTION 810–21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250. PART H)

1. IMPORTANT NOTICE : DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT : When connecting this product to accessories

and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE : This product has been tested and found to comply

with the requirements listed in FCC Regulations, Part 15 for Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices.

This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices.

We Want You Listening For A Lifetime

Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., U.S.A. 6660 Orangethorpe Ave, Buena Park, CA 90620.

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing.

Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

CAUTION: READ THIS BEFORE OPERATING YOUR UNIT.

1. To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.

2. Install this unit in a cool, dry, clean place – away from windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electrical shock, do not expose the unit to rain or water.

3. Never open the cabinet. If something drops into the set, contact your dealer.

4. Do not use force on switches, controls or connection wires. When moving the unit, first disconnect the power plug and the wires connected to other equipment. Never pull the wires themselves.

5. The openings on the cover assure proper ventilation of the unit. If these openings are obstructed, the temperature inside the unit will rise rapidly. Therefore, avoid placing objects against these openings, and install the unit in a well-ventilated area to prevent fire and damage.

6. The voltage used must be the same as that specified on this unit. Using this unit with a higher voltage than specified is dangerous and may result in fire or other accidents. YAMAHA will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.

7. Digital signals generated by this unit may interfere with other equipment such as tuners, receivers and TVs. Move this unit farther away from such equipment if interference is observed.

This unit is not disconnected from the AC power source as long as it is connected to the wall outlet, even if this unit itself is turned off. This state is called the standby mode. In this state, this unit is designed to consume a very small quantity of power.

IMPORTANT

Please record the serial number of this unit in the space below. MODEL: Serial No.: The serial number is located on the rear of the unit. Retain this Owner’s Manual in a safe place for future reference.

FOR CANADIAN CUSTOMERS

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

This Class B digital apparatus complies with Canadian ICES-003.

Manufactured under license from Dolby Laboratories. “Dolby”, “AC3”, “Pro Logic”, “Surround EX” and the double-D symbol are trademarks of Dolby Laboratories. Confidential Unpublished Works.  1992-1997 Dolby Laboratories, Inc. All rights reserved.

8. Do not attempt to clean the unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.

9. Be sure to read the “Troubleshooting” section regarding common operating errors before concluding that the unit is faulty.

10. When not planning to use this unit for a long period of time (e.g., a vacation), disconnect the AC power plug from the wall outlet.

11. To prevent lightning damage, disconnect the AC power plug and disconnect the antenna cable when there is an electrical storm.

12. Grounding or polarization – Precautions should be taken so that the grounding or polarization of the unit is not defeated.

13. AC outlet Do not connect audio equipment to the AC outlet on the rear panel if that equipment requires more power than the outlet is rated to provide.

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”, “DTS Digital Surround” and “DTS ES” are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

III

Contents

Introduction 2

English

Features ............................................................................................................... 3

Getting Started .................................................................................................... 5

Controls and Functions ....................................................................................... 6

Preparations 12

Speaker System Configurations ........................................................................ 13

Speaker Placement ............................................................................................ 14

Hookups ............................................................................................................ 15

On-Screen Displays (OSD) ............................................................................... 26

Speaker Settings ................................................................................................ 27

Speaker Output Levels ...................................................................................... 27

Basic Operation 30

Basic Playback .................................................................................................. 31

AM/FM Tuner................................................................................................... 35

Basic Recording ................................................................................................ 39

Advanced Operation 40

SET MENU Items ............................................................................................. 41

Remote Control Features .................................................................................. 54

Adjusting the Levels of the Effect Speakers ..................................................... 67

Setting the Sleep Timer..................................................................................... 67

ZONE 2 ............................................................................................................. 68

Addtional Information 70

Digital Sound Field Processing (DSP).............................................................. 71

Hi-Fi DSP-Sound Field Program ...................................................................... 72

CINEMA-DSP .................................................................................................. 73

CINEMA-DSP Sound Field Program ............................................................... 75

Sound Field Program Parameter Editing .......................................................... 77

Digital Sound Field Parameter Descriptions..................................................... 78

Appendix 82

Troubleshooting ................................................................................................ 83

Reference Chart for the INPUT and OUTPUT Jacks ....................................... 87

CINEMA - EQ Frequency Characteristics ....................................................... 87

Specifications .................................................................................................... 88

Introduction

Features 3

Introduction ......................................................................................................... 3

Dolby Digital and Dolby Digital Surround EX .................................................. 3

DTS and DTS ES ................................................................................................ 3

Comparing Surround Technologies .................................................................... 3

Digital Sound Fields (DSP) ................................................................................ 4

Multi-function remote control............................................................................. 4

Various Input and Output Jacks .......................................................................... 4

Built-in 8-channel power amplifier..................................................................... 4

Custom installation facility ................................................................................. 4

Getting Started 5

Checking the Package Contents .......................................................................... 5

Installing Batteries in the Remote Control.......................................................... 5

Using the Remote Control .................................................................................. 5

Controls and Functions 6

Front Panel .......................................................................................................... 6

Opening and Closing the Front Panel Door ........................................................ 7

Remote Control ................................................................................................... 8

Front Panel Display........................................................................................... 10

Rear Panel ......................................................................................................... 11

Features

Introduction

Welcome to the exciting world of digital home entertainment. The RX-V1 is the most complete and advanced AV receiver available. Though some of the more advanced features of this unit may not be familiar to you, they are easy to use. Incorporated state-of-the-art technology such as Dolby Digital and DTS can bring the same audio experience to your home as they have brought to feature films in quality theaters around the world. To make the listening experience even more enjoyable, the RX-V1 includes a number of exclusive, digitally created listening environments known as digital sound fields. Choosing a sound field program is like transporting yourself to such venues as an outdoor arena, an European church, or a cozy jazz club. Take some time now to read more about these features and enjoy the new experiences the RX-V1 brings to your home theater.

Dolby Digital and Dolby Digital Surround EX

The RX-V1 is equipped with a Dolby Digital decoder which reproduces industry standard Dolby Digital surround sound for a cinematic audio experience in your home. Dolby Digital is a 5.1 channel format because it uses five discrete channels (left and right Main channels, Center channel, and left and right Rear channels) and a special low frequency channel (that is used only enough to merit the “0.1” channel rating) to create incredibly realistic 360˚ surround effects. Recently, Dolby Digital Surround EX was introduced in movie theaters as an advanced surround technology. The addition of a Rear Center channel makes front-to-back transitions more realistic. You can enjoy the newest Dolby Digital Surround EX software with the CINEMA DSP programs in the RX-V1 such as Dolby Digital/ Matrix 6.1.

DTS and DTS ES

The RX-V1 is also equipped with a DTS decoder, which uses a 5.1 channel system to create a full surround sound environment. It was developed as a way to replace the analog soundtracks of movies with six channels of digital sound. In comparison with Dolby Digital, DTS uses less compression to store the sound information. The newly presented DTS ES system reproduces digital sound similar to Dolby Digital Surround EX. The use of the Rear Center speaker along with the existing 5.1 channel speakers provides a fully immersive cinematic audio experience.

English

Comparing Surround Technologies

To enjoy dynamic feature film sound at home, you should have the appropriate sound reproduction system for your home theater. The traditional standard for home surround systems was called Dolby Surround and consisted of four channels (left and right Main channels, a Center channel, and a Surround channel for effects). The new home theater standard is Dolby Digital and consists of 5.1 channels (left and right Main channels, a Center channel, left and right Rear channels, and an LFE (low frequency effect) channel). The newer DTS surround technology also makes use of a 5.1 channel system. The 6.1 channel system which adds a Rear Center channel to the 5.1 channel configuration is the latest advancement in surround sound technology, and is employed by Dolby Digital Surround EX and DTS ES.

LRLCR

and DTS ES

Reproduction Channel System

LSCR

Dolby Surround

(Pro Logic)

4 channels Left (L) and right (R) Main,

Center (C), and Surround (S) channels

LRLCR

Dolby Digital

and DTS

5.1 channels Left (L) and right (R) Main,

Center (C), left and right Rear (RL and RR), and Subwoofer (SW) channels

Dolby Digital Surround EX

6.1 channels Left (L) and right (R) Main,

Center (C), left and right Rear (RL and RR), Rear Center (RC), and Subwoofer (SW) channels

Features

Introduction

Digital Sound Fields (DSP)

Technological advances in sound reproduction over the last 30 years have enhanced the listening experience with improved clarity, precision, and power. However, something has been missing: the atmosphere and acoustic ambience of the public venue. Our Yamaha engineers have extensively researched the nature of sound acoustics and the way sound reflects inside a room. We sent these engineers to famous theaters and concert halls around the world to measure the acoustics of those venues with sophisticated microphones. The data they collected is used to recreate these environments in digital sound fields. Some of these digital sound fields have been created using data measured at the original venue; others have been created from combinations of data to form unique environments for specific purposes. Some have been designed especially for music, and others especially for movies. Of course, this only solves half of the problem. Because these engineers have no way of knowing the acoustics of your entertainment room, we have made it possible for you to adjust the various parameters of this data to tailor each virtual venue to your taste. You can use these sound fields to enhance any source and in combination with any of the following surround sound technologies.

CINEMA-DSP: Dolby Digital + DSP and DTS + DSP

The Dolby Digital system and DTS system show their full capability in large movie theaters, because feature film soundtracks are designed to be reproduced in such environments. It is difficult to recreate a sound environment similar to a movie theater in your entertainment room because of the room size, wall materials, and the number of speakers in your entertainment system. Yamaha DSP technology makes it possible for you to enjoy nearly the same sound experience as that of a large movie theater in your entertainment room by compensating for lack of presence and dynamics in your entertainment room with Yamaha’s original digital sound fields combined with Dolby Digital or DTS soundtracks.

Virtual CINEMA DSP and HP CINEMA DSP

Yamaha developed the Virtual CINEMA DSP algorithm which allows you to experience the virtual sound fields without surround speakers. This makes it possible for the RX-V1 to produce a full surround sound catering to the number of speakers you have. The RX-V1 also has an HP (Headphones) CINEMA DSP algorithm which is achieved by the crosstalk processing applying the precise Head Related Transfer Function. You can therefore enjoy listening to the CINEMA DSP soundfields on headphones.

Multi-function remote control

The remote control can operate other audio-video components once you program the remote control using the manufacturer code and Learn feature.

Various Input and Output Jacks

The RX-V1 has various output jacks for audio and video signals as well as a digital recording output jack. Many input jacks are also available for connection to multiple audio-video sources. All the video inputs and outputs have S-video jacks in addition to standard composite video jacks for improved video picture quality. Component video input and output jacks are also available to deliver the excellent video signals from DVD players and other high quality video sources. The coaxial and optical digital signal jacks (provided for direct transmission of digital signals) automatically detect Dolby Digital, DTS, and PCM signals. A demodulator circuit is built into the Dolby Digital RF input so you can connect it directly to the Dolby Digital RF signal output on your LD player. Additionally, there are six audio inputs for disscrete multichannel reproduction from an external decoder. The RX-V1 also comes with a monaural subwoofer jack and split subwoofer jacks which can reproduce delicate but powerful low frequency effects.

Built-in 8-channel power amplifier

Main: 110 W + 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Center: 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Rear: 110 W + 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz Front: 35 W + 35 W (8Ω) RMS Output Power, 0.05% THD, 1 kHz Rear Center: 110 W (8Ω) RMS Output Power, 0.015% THD, 20-20,000 Hz

Custom installation facility

You can make up a multi-room audio-video system with this unit. With this feature, you can set this unit to reproduce separate input sources in the main room and in a second (ZONE 2) room using the supplied remote control in the second room.

Getting Started

Checking the Package Contents

Check your package to make sure it has the following items.

MACRO

TRANSMIT RE-NAME CLEAR

MACROLEARN

OFF ON

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOURCE

SOUND

DISPLAY

SELECT

SEARCH CHAPTER

1 2 3 4

ROCK

CONCERT

5 6 7 8

THEATER

9 10 11 12

A / B / C / D / E

TV INPUT

TV MUTE

ENTER-

TAINMENT

MOVIE

THEATER 1

0 +10 +100

PRESET

DISC

+–

* #

CONCERT

VIDEO 2

VIDEO 1

MOVIE

/DTS

THEATER 2

SUR.

MUTE

VOLUME

EFFECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

EX/ES

CHP/INDEX

+ + +

TV VOL

– – –

Remote Control

Alkaline Batteries (3) (LR6)

Quick Reference Card

Power Buttons

Display Window

Source Select

Program/10Key Section

Others

Setup Section

Programming Sectio n

Input Section

Operation Section

Volume Section

DISPLAY

PRESET NUMBER 1~8

(Preset Group) E (Preset Group) D (Preset Group) C PRESET + / –

(Preset Group) A/B/C/D/E

DECK A / DECK B

DIRECTION A/B PLAY STOP

POWER STOP

INDEX

DISPLAY

SEARCH POWER REC PAUSE

POWER

(Preset Group) A (Preset Group) B

FAST FORWARD REWIND REC / PAUSE

Quick Reference Guide

SKIP SEARCH PLAY PAUSE (YAMAHA : PAUSE / STOP) 1~9

CLEAR +10

0 DISC SKIP

SKIP SEARCH PLAY PAUSE STOP 1~9

+10 0

FM Antenna

AM Loop Antenna

Antenna Adapter

(U.S.A. and Canada Models only)

Installing Batteries in the Remote Control

Insert the batteries in the correct direction by aligning the + and – marks on the batteries with the polarity illustrations (+ and –) inside the battery compartment. Change the batteries periodically. Do not use old batteries together with new ones. Do not use different types of batteries (such as alkaline and manganese batteries) together. Read the packaging carefully as these different types of batteries may have the same shape and color.

English

■ About Changing Batteries

As the batteries wear out, the operating range of the remote control decreases and the TRANSMIT indicator does not flash or its light becomes dim. When you notice any of these conditions, change all of the batteries.

Reset button

Notes:

• If the remote control is without batteries for more than 20 minutes, or if worn out batteries remain in the unit, the contents of the memory may be cleared. If the memory is cleared, insert new batteries and reprogram any functions that may have been cleared.

• After you insert new batteries, be sure to push RESET in the battery compartment using a ball point pen or similar object before using the remote control. (This does not clear the contents of the memory.)

Using the Remote Control

The remote control transmits a directional infrared beam. Be sure to aim the remote control directly at the remote control sensor on the main unit during operation. When the sensor is covered or there is a large object between the remote control and the main unit, the sensor cannot receive signals. The sensor may not be able to receive signals properly when it is exposed to direct sunlight or a strong artificial light (such as a fluorescent or strobe light). In this case, change the direction of the light or reposition the main unit to avoid direct lighting.

DIGITAL

DOLBY

CINEMA DSP

RX-V1

NATURAL SOUND AV RECEIVER

STANDBY/ON

SPEAKERS

PROGRAM PRESET/TUNING

PHONES BASS TREBLE

–

30° 30°

DIGITAL

SURROUND

INPUT SELECTOR

INPUT MODE

6CH IMPUT

EFFECT

A/B/C/D/E

PRESET/TUNING

FM/AM MEMORY

TUNING MODE

EDIT

MANL/AUTO FM

REC OUT/ZONE 2

D-TV CBL/SAT TAPE VCR 1

VCR 2 CD

VIDEO AUX

AUTO/MANL MONO

VIDEO AUX

SOURCE/REMOTE

S VIDEO VIDEO L RAUDIO

DVD

MD TUNER

PHONOVCR 3

BALANCE

BASS

PROCESSOR

EXTENSION

DIRECT

22 33

–

ON OFF

Approximately 6m (20 feet)

VOLUME

■ About handling the remote control

Handle the remote control with care. Do not spill water or other liquids on the remote control. Do not drop the remote control. Do not leave or store the remote control in the following types of conditions:

• high humidity or temperature such as near a heater, stove or bath; or

• dusty places; or

• in places subject to extremely low temperatures.

Controls and Functions

Front Panel

Introduction

DIGITAL

DOLBY

CINEMA DSP

NATURAL SOUND AV RECEIVER

RX-V1

DIGITAL

SURROUND

INPUT SELECTOR

VOLUME

STANDBY/ON

SPEAKERS

PHONES BASS TREBLE

PROGRAM PRESET/TUNING

–

~ STANDBY/ON

Turns this unit on (On mode) and off (Standby mode). When you turn on this unit, you will hear a click and there will be a four to five to second delay before this unit can reproduce sound. In Standby mode, this unit consumes a small amount of power so it can respond to the remote control.

Ÿ Remote Control Sensor

Receives signals from the remote control.

EFFECT

–

6CH IMPUT

BALANCE

22 33 44

INPUT MODE

A/B/C/D/E

BASS

EXTENSION

ON OFF

PROCESSOR

DIRECT

REC OUT/ZONE 2

CBL/SAT TAPE

VCR 1

VCR 2 CD VIDEO AUX

SOURCE/REMOTE

D-TV

DVD

MD TUNER

PHONOVCR 3

PRESET/TUNING

FM/AM MEMORY

EDIT

VIDEO AUX

S VIDEO VIDEO L RAUDIO

‹ SPEAKERS A/B

When pushed in (ON), these buttons turn on the set of Main speakers connected to the A and/or B terminals on the rear panel.

MANL/AUTO FM

PRESET/TUNING

EDIT

TUNING MODE

AUTO/MANL MONO

FM/AM MEMORY

MANL/AUTO FM

TUNING MODE

AUTO/MANL MONO

! Front Panel Display

Shows information about the operational status of this unit (see page 10).

⁄ INPUT MODE

Selects the mode of input for sources that output two or more types of signals to this unit (see page 33). You cannot control the input mode when you select 6CH INPUT as the input source.

@ INPUT SELECTOR

Selects the input source (DVD, LD, D-TV, CBL/SAT, VCR 1, VCR 2, VCR 3, V-AUX, PHONO, CD, TUNER, TAPE, MD) you want to listen to or watch.

¤ VOLUME

Controls the output level of all audio channels. This does not affect the REC OUT level.

# PHONES

Outputs audio signals for private listening using headphones. When you connect headphones, no signals are output to the PREOUT jacks or the speakers.

$ BASS

Adjusts the low frequency response for the left and right Main speaker channels. Turn the control to the right to increase the low frequency response and turn the control to the left to decrease the low frequency response. If you increase or decrease the low frequency sound to an extreme level, the tonal quality from the Center, Front Effect, Rear Center, and Rear speakers may not match that of the left and right Main speakers.

› PROGRAM /

Selects the sound field program (see page 34). Selecting a sound field program turns on the effect.

% TREBLE

Adjusts the high frequency response for the left and right main channels. Turn the control to the right to increase the high frequency response and turn the control to the left to decrease the high frequency response. If you increase or decrease the high frequency sound to an extreme level, the tonal quality from the Center, Front Effect, Rear Center, and Rear speakers may not match that of the left and right Main speakers.

Controls and Functions

ﬁ EFFECT

Switches the effect speakers (Center, Front Effect, Rear and Rear Center) on and off. If you turn off the output of these speakers using EFFECT, all DTS and Dolby Digital audio signals are directed to the Main left and right channels except for the LFE channel. When DTS or Dolby Digital signals are mixed, the left and right Main channel signal levels may not match.

^ 6CH INPUT

Switches between 6CH INPUT mode and normal input modes. 6CH INPUT mode takes priority over the source selected with INPUT SELECTOR. You cannot use DSP sound field programs while using an external decoder.

ﬂ BALANCE

Controls the balance of the sound levels coming from the right and left Main speaker(s). Setting this control to the center position “0” is appropriate for most situations.

& A/B/C/D/E

Selects one of the five preset station groups.

‡ BASS EXTENSION ON/OFF

When pushed in (ON), this feature boosts the bass frequency of the left and right main channels by +6 dB (60 Hz) while maintaining overall tonal balance. This boost is useful if you do not use a subwoofer. However, this boost may not be noticeable if the main speakers are set to “SMALL” and the bass output mode is set to “SW.”

* PROCESSOR DIRECT ON/OFF

When pushed in (ON), BASS, TREBLE, BALANCE, and BASS EXTENSION are bypassed, eliminating any

alteration of the original signal.

° PRESET/TUNING /

Selects preset stations when the colon “:” appears next to the band indication in the display, and selects the tuning frequency when the colon “:” does not appear.

( REC OUT/ZONE2

Selects the source you want to direct to the audio/video recorder and ZONE 2 outputs independent of the source you are listening to in the main room. When set to the SOURCE/ REMOTE position, the input source is directed to all outputs.

· VIDEO AUX

Inputs audio and video signals from a portable external source such as a video camera. To reproduce source signals from these jacks, select V-AUX as the input source. To direct this source to the VCR 1 output jacks, select VIDEO AUX using REC OUT/ZONE 2.

) PRESET/TUNING (EDIT)

Switches the function of PRESET/TUNING / (the colon “:” turns on or off). This button is also used to exchange the places of two preset stations with each other.

‚ FM/AM

Switches the reception band between FM and AM.

_ MEMORY (MAN’L/AUTO FM)

Enters a station into memory. See “Manually presetting stations” on page 36 for details. Hold down this button for more than three seconds to start automatic preset tuning. See “Automatically presetting stations” on page 37 for details.

— TUNING MODE (AUTO/MAN’L MONO)

Switches the tuning mode between automatic and manual. To select the automatic tuning mode, press this button so that the AUTO TUNING indicator appears in the front panel display (the STEREO indicator also appears if receiving a stereo broadcast). To select the manual tuning mode, press this button so that the AUTO TUNING indicator does not appear.

English

Opening and Closing the Front Panel Door

When you are not operating the controls behind the front panel door, close the door.

Controls and Functions

Remote Control

Introduction

Power Buttons

Turn the power on and off. Press SYSTEM POWER to turn on the power and STANDBY to turn off (Standby mode) the power to the main unit.

Display Window

Shows the source component that you select to control.

Source Select

Selects the source component without switching the input.

Program/10-Key Section

Functions as the numeric buttons or DSP program group buttons.

Others

Functions vary depending on your components that are set up with the manufacturer code.

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

V-AUX TAPE PHONO

TITLE

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

CONCERT

6.1/ES

THEATER

CHP/INDEX

A / B / C / D / E PRESET

++ +

TV INPUT

TV VOL

TV MUTE

–– –

SEARCH CHAPTER

1234

ROCK

ENTER-

CONCERT

TAINMENT

5678

MOVIE

THEATER 2

THEATER 1

9101112

0 +10 +100

MUTE

EFFECT

DISC

MACRO

MACROLEARN

OFF ON

6CH INPUT

ENTER

SOUND

+–

CONCERT

VIDEO 2

VIDEO 1

MOVIE

/DTS

SUR.

VOLUME

Programming Section

Provides a selection of programming types you can utilize to conveniently operate your other components.

Input Section

Selects the input source. Press an input button repeatedly to select the input mode.

Operation Section

Provides functions such as play, stop, skip, etc. for operating your other components.

Volume Section

Controls the volume.

ON SCREEN

LEVEL

Setup Section

SLEEP TEST

Sets speaker output levels, SET MENU, DSP parameters, etc.

PARAMETER

SET MENU

~ Infrared window

Outputs infrared control signals. Aim this window at the component you want to operate.

Ÿ CLEAR

Used for clearing functions acquired using the Learn and Rename features, programmed macros, and preset manufacturer codes (see pages 65, 66).

Controls and Functions

English

ﬂ +/–

PRESET +/– selects a preset station. CH +/– selects the next or previous channel. DISC +/– skips to the next or previous disc.

& MUTE

Mutes the sound. Press again to restore audio output at the previous volume level.

! RE-NAME

Used for changing the source name in the display window (see page 65).

⁄ LEARN

Used for setting up the manufacturer code or programming the functions of other remote controls (see pages 61, 62).

@ MACRO

Used to program a series of operations onto a single button (see page 63).

¤ MACRO ON/OFF

Turns the macro function on and off.

# TRANSMIT

Flashes while the remote control is sending signals.

‹ 6CH INPUT

Switches to the 6CH INPUT mode when using an external decoder.

$ LIGHT

Turns the light on or off. When you press this button once, the light turns on for about ten seconds. Press again to turn off the light.

› 10KEY/DSP

Selects the numeric button (10KEY) mode or DSP mode. You can use the 13 buttons to select numbers or DSP programs directly according to the position of this switch.

% DSP program group/Numeric buttons

Select DSP programs or numbers according to the position of 10KEY/DSP. (Press a button repeatedly to select a DSP program within that group.)

ﬁ A/B/C/D/E

Selects one of the five preset station groups.

TV operation buttons

TV INPUT switches between TV and VCR mode. TV MUTE mutes the TV sound.

^ TV VOL +/–

Increases or decreases the TV volume level.

‡ VOLUME +/–

Increases or decreases the volume level.

* EFFECT

Switches the effect speakers (center, front, rear, and rear center) on and off. If the output of these speakers is switched off, all DTS and Dolby Digital audio signals are directed to the main left and right channels except for the LFE channel.

° Cover

Slides down to show the setup buttons.

( LEVEL

Selects the effect speaker channels (center, front, rear and subwoofer) so you can adjust their level independently. Press this button repeatedly to select the effect speaker channel you want to adjust, then use + or – to adjust the level.

· ON SCREEN

Selects the On-Screen Display mode for your video monitor.

) SLEEP Timer

Sets the Sleep Timer. Press repeatedly to set the amount of time before the main unit is automatically turned off.

‚ TEST

Selects the test mode (see page 27).

_ PARAMETER/SET MENU

Selects the PARAMETER mode or SET MENU mode. You can use the cursor program parameter values or SET MENU items according to the position of this switch.

— Cursor buttons

Selects and adjusts DSP program parameters and SET MENU items according to the position of PARAMETER/SET MENU.

/ % / + / – buttons to adjust DSP

/ % / + / –

+ RESET

Press this button after you exchange batteries or when the remote control stops working properly. (Pressing RESET does not clear acquired functions.)

Controls and Functions

Front Panel Display

Introduction

VIRTUAL

DIGITAL

PRO LOGIC

DSP

PCM

SPEAKERS

~ DTS indicator

Lights up when the built-in DTS decoder is on.

Ÿ VIRTUAL indicator

Lights up when using Virtual Cinema DSP (See page 34.)

! Multi-information display

Shows the current DSP program and other information when adjusting or changing settings.

DVD MD TAPE TUNER CD PHONO

SLEEP

STEREO AUTO

TUNING

MEMORY

D-TV

CBL/SAT

VCR 1 VCR 2 VCR 3

V-AUX

# DSP indicator

Lights up when you select a digital sound field program.

‹ Headphones indicator

Lights up when headphones are connected.

$ SPEAKERS A/B indicator

Lights up according to which set of main speakers are selected. Both indicators light up when both sets of speakers are selected.

⁄ STEREO indicator

Lights up when the AUTO TUNING indicator is on and the unit is receiving a strong signal for an FM stereo broadcast.

@ Input source indicator

Shows the current input source with the arrow-shaped cursor.

¤ DIGITAL and PRO LOGIC

indicators

Light up according to the type of Dolby signals this unit is reproducing. “

DIGITAL” lights up when the built-in Dolby Digital decoder is on. “

PRO LOGIC” lights up when the built-in Dolby Pro Logic Decoder is on.

› PCM indicator

Lights up when this unit is reproducing PCM (Pulse Code Modulation) digital audio signals.

% AUTO TUNING indicator

Shows that the Tuner is in automatic tuning mode.

ﬁ MEMORY indicator

Flashes to show a station can be saved.

^ SLEEP indicator

Lights up while the Sleep Timer is on.

Controls and Functions

Rear Panel

English

~ RF (AC-3) input jack

Connect to the RF output terminal of your LD player.

Ÿ Audio equipment jacks

Refer to page 16 for hookup information.

! Video equipment jacks

Refer to page 18 for hookup information.

⁄ Antenna input terminals

Refer to page 25 for hookup information.

@ Speaker terminals

Refer to page 20 for hookup information.

¤ AC OUTLETS

Use these outlets to supply power to your other audio/video equipment.

# AC power cord

Connect to a power outlet.

‹ IMPEDANCE SELECTOR

Use this switch to match the amplifier output to your speaker impedance. Turn off the power before you change the setting of this switch (see page 22).

$ DIGITAL OPTICAL/COAXIAL jacks

Refer to page 15 for detailed information.

› 6CH INPUT jacks

Refer to page 24 for hookup information.

% ZONE 2 OUT/VIDEO OUT jacks

Refer to page 68 for hookup information.

ﬁ REMOTE 1 IN/OUT/REMOTE 2 IN

jacks

Refer to page 68 for hookup information.

^ RS232C/CTRL OUT +5V terminals

These are control expansion terminals for commercial use. Consult your dealer for details.

ﬂ PRE OUT/MAIN IN jacks

Refer to page 23 for hookup information.

Preparations

Speaker System Configurations 13

Eight or Seven Speaker Configuration –Full Cinema DSP– ............................ 13

Six Speaker Configuration –Hi Fi DSP– .......................................................... 13

Five Speaker Configuration –Standard 5.1 Channel–....................................... 13

Four Speaker Configuration –Minimum Requirement– ................................... 13

Speaker Placement 14

Placing the Main Speakers ................................................................................ 14

Placing the Center Speaker ............................................................................... 14

Placing the Front Effect, Rear and Rear Center Speakers ................................ 14

When You Use a Projection Screen .................................................................. 14

Placing the Subwoofers..................................................................................... 14

Hookups 15

On-Screen Displays (OSD) 26

Speaker Settings 27

Speaker Output Levels 27

Connecting to Digital Jacks .............................................................................. 15

About the Video Jacks ...................................................................................... 15

About the RF (AC-3) Signal Input Jack ...................................................... 15

Connecting Audio Components ........................................................................ 16

Connecting Video Components ........................................................................ 18

Connecting Speakers......................................................................................... 20

Connecting External Amplifiers ....................................................................... 23

Connecting an External Decoder ...................................................................... 24

Connecting Power Supply Cords ...................................................................... 24

Connecting the Antennas .................................................................................. 25

OSD Modes....................................................................................................... 26

Selecting the OSD Mode .................................................................................. 26

Before You Begin ............................................................................................. 27

Dolby Surround Test......................................................................................... 28

DSP Test ........................................................................................................... 29

Speaker System Configurations

The most complete speaker configuration consists of eight speakers: the left and right Main speakers, a Center speaker, the left and right Rear speakers, the left and right Front Effect speakers, and a Rear Center speaker. If you do not use eight speakers, you can direct the signals for speakers that are not in your system to other speakers in your configuration. A Subwoofer can be used with any of these configurations to produce a fuller sound.

Front Effect Speakers

Front Effect Speakers Rear Speakers

Main Speakers

Center Speaker

Front Subwoofer

Rear Subwoofer

Rear Speakers

Rear Center Speaker

Rear Subwoofer

English

( )

■ Eight or Seven Speaker Configuration –Full Cinema

DSP–

When you reproduce feature film software, this configuration fullly expresses the powerful and realistic sound qualities of 70 mm multitrack audio. The dialogue is positioned as if it were coming from directly on the screen, the sound effect is positioned slightlly behind the screen, and the soundtrack music is positioned even further behind the screen to express the width and depth of the overall presentation. This configuration makes the most of this unit’s capability.

The Rear Center speaker is useful for playback of Dolby Digital Surround EX or DTS ES.

■ Six Speaker Configuration –Hi Fi DSP–

This configuration is used the most for audio playback with HiFi DSP. It does not position the dialogue sound as well as a seven or eight speaker configuration. However, it creates a dynamic DSP (Digital Sound Field Processor) sound field which adds depth to the sound.

For this speaker configuration, change SET MENU item 1A. CENTER SP to “NONE” and 1D. REAR CT SP to “NONE” (see page 41).

■ Five Speaker Configuration –Standard 5.1 Channel–

This configuration does not express the height of the sound field as well as the seven or eight speaker configuration. However, it positions the dialogue sound as coming directly from the screen.

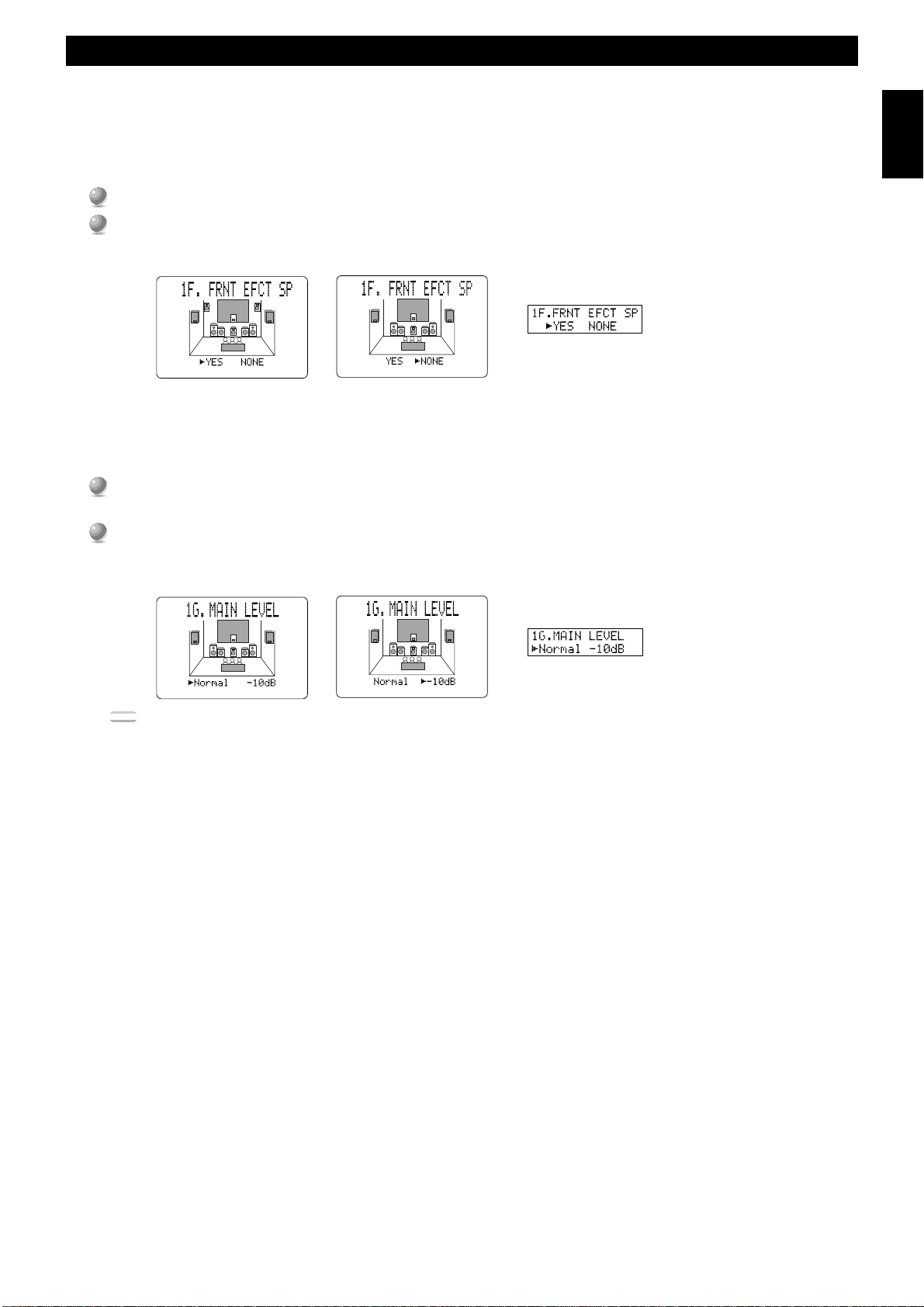

For this speaker configuration, change SET MENU item 1F. FRNT EFCT SP to “NONE” and 1D. REAR CT SP to “NONE” (see page 41).

■ Four Speaker Configuration –Minimum

Requirement–

In this configuration, the Center speaker signals and Front Effect speaker signals are directed to the left and right Main speakers.

For this speaker configuration, change SET MENU item 1A. CENTER SP to “NONE,” item 1F. FRNT EFCT SP to “NONE,” and item 1D. REAR CT SP to “NONE” (see page 41).

Speaker Placement

Where you place your speakers has a tremendous effect on how well your system sounds.

Main

speaker

TV or Video

monitor

Main

speaker

Place the left and right Main speakers an equal distance from the main listening position.

If you have a TV or video monitor in your system, the distance of each speaker from each side of the TV or video monitor should be the same.

■ Placing the Center Speaker

TV or Video

■ Placing the Main Speakers

monitor

Center speaker

Preparations

approx.

0.5~1m 0.5~1m1.5~3m

(3ft) (1~3ft) (5~15ft) (1~3ft) (3ft)

approx.

If you have a TV or video monitor in your system, align the front face of the Center speaker with the front face of the monitor. Place the speaker as close to the monitor as possible, such as directly over or under the monitor. If you place the speaker under the monitor, the Front Effect speakers can adjust the height of the sound to correspond with the action on the screen (depending on the listener’s position). If you have a projection screen in your system, place the Center speaker under the screen. Be sure to align the speaker with the center of the screen.

■ Placing the Front Effect, Rear and Rear Center

Speakers

These speakers should be placed about 0.5~1m (1~3 feet) outside the Main speakers and in the front of the room. They should be turned toward the main listening position. Place the Rear speakers in the back of the room so they face the main listening position. The Rear speakers can be placed farther apart than the Front Effect speakers. The Front Effect and Rear speakers should be placed about

1.8m (6 feet) above the floor. Once you begin listening to programs, continue to adjust the speaker placement

until you obtain a balanced sound from the Main speakers and the Front Effect and Rear speakers.

■ When You Use a Projection Screen

Place the speakers as shown in the illustration.

1/4

The Main speakers should be placed about one-quarter of the way up from the bottom of the screen.

Place the Center speaker in the center and directly under the screen. The Center speaker provides precise dialogue localization.

When you use a projection screen with your system, the Front Effect speakers provide better effect quality. The CINEMA-DSP sound field programs (see page

34) raise the sound from the Center speaker upward and provide natural sound corresponding with the video images.

■ Placing the Subwoofers

Place the Front Subwoofer near the Main speakers. Turn it slightly toward the center of the room to reduce wall reflections. If you use a Rear Subwoofer, place it behind the main listening position. The placement of the Rear Subwoofer is not critical because of

the ultralow frequencies of the sound being reproduced. By adding a high quality Subwoofer to the speaker configurations shown on pages 21 and 22, you can enjoy more powerful and realistic

movie effects, even if your Main speakers are large.

Note:

Front Effect speakers

Front Effect Speakers

Front Subwoofer

Main speakers

Center speaker

Rear speakers

Rear Speakers

Rear Center Speaker

Rear Subwoofer

Rear Center speaker

• If you use different brands of speakers (with different tonal qualities) in your configuration, the tone of a moving human voice and other types of sound may not shift smoothly. We recommend that you use speakers from the same manufacturer or speakers with the same tonal quality.

You can also adjust the output levels and equalization of your effect speakers using the SET MENU (see page 41).

If you are using small speakers, the addition of a Subwoofer will reinforce the sound effects of movies (see page 21).

Hookups

Connecting to Digital Jacks

The RX-V1 has digital jacks for direct transmission of digital signals through either coaxial or fiber optic cables. You can use the digital jacks to input PCM, DTS and Dolby Digital bitstreams. When you connect components to both the COAXIAL and OPTICAL jacks (for CD, DVD, and CBL/SAT) priority is given to the input signals from the COAXIAL jack. All digital input jacks are acceptable for 96 kHz/24 bit digital signals.

■ About the Dust Protection Cap

Pull out the cap from the optical jack before you connect the fiber optic cable. Do not discard the cap. When you are not using the optical jack, be sure to put the cap back in place. This cap protects the jack from dust.

About the Video Jacks

There are three types of video jacks. Video signals input through the VIDEO jacks are the conventional composite video signals. Video signals input through the S VIDEO jacks are separated into luminance (Y) and color (C) video signals. The S-video signals achieve high quality color reproduction. Video signals input through the COMPONENT VIDEO jacks are separated into luminance (Y) and color difference (PB/CB, PR/CR) video signals. The jacks are also separated into three for each signal. The description of the component video jacks may be different depending on the component (e.g. Y, CB, CR / Y, PB, PR / Y, B-Y, R-Y/ etc.). Component video signals provide the best quality in picture reproduction.

Composite VIDEO terminal

S VIDEO terminal

COMPONENT VIDEO terminals

PR/CRPB/CBY

Note:

• Each type of video jack works independently. Signals input through the composite video, S-video, and component jacks are output through the corresponding composite video, S-video, and component jacks respectively.

Caution:

• Use a commercially available S-video cable when connecting to the S VIDEO jacks, and commercially available video cables when connecting to the COMPONENT VIDEO jacks.

• When you are using the COMPONENT VIDEO jacks, check the details in the owner’s manual that came with the component being connected.

English

About the RF (AC-3) Signal Input Jack

If your LD player has an signals are input at the same time, priority is given to the RF signals. When you want to reproduce RF (AC-3) signals, set the input mode to “D.D. RF” using INPUT MODE.

RF (AC-3) signal output jack, connect it to the RF (AC-3) input jack on this unit. If RF (AC-3) and analog

Note:

• RF (AC-3) signals cannot be output using the REC OUT selector. When you record

R F (A C -3 )

L D

sound or images from an LD player, be sure to connect the player to either the

DIGITAL OPTICAL or analog AUDIO jacks.

Caution:

• Even if you connect an LD player with an RF (AC-3) output jack to this unit, you cannot reproduce Dolby Digital sound from all LD discs. You must playback an LD disc encoded with Dolby Digital signals in order to take advantage of the Dolby Digital sound.

Hookups

Connecting Audio Components

Before you connect any components, disconnect the power supply to all the components you plan to connect including the RX-V1 and determine which jacks are for the left and right channels and for input and output. When you connect other YAMAHA audio equipment (such as a CD player or changer, MD deck, or tape deck, connect to terminals with the same number labels. Yamaha applies this labelling system to all its products. In the hookup illustrations on the following pages:

indicates signal direction,

indicates coaxial cables,

indicates left side analog cables,

indicates right side analog cables,

indicates optical cables; and,

Preparations

After you finish all hookups, check them again to make sure they are correct.

indicates S-video cables.

Turnable

Optical Output

Coaxial Output

RF(AC-3)

COAXIAL OPTICAL

GND

DVD

CD player

GND

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

Ground

AUDIO PHONO

Output

AUDIO VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL

Analog Output

L R

AUDIO VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

COMPONE

REMOTE 1

■ Connecting a Turntable

Connect the left and right signal output cords to the PHONO L and

R jacks.

Note:

• These jacks are for connecting a turntable with an MM or high output MC cartridge. If you have a turntable with a low output MC cartridge, use an inline boosting transformer or MC-head amplifier when connecting to these jacks.

Caution:

• The GND terminal does not electrically ground the turntable. It simply reduces noise in the signal. In some cases, you may hear less noise if you do not connect to the GND terminal.

■ Connecting a CD Player

Connect the left and right analog signal output jacks on your CD

player to the CD 1 L and R jacks.

Notes:

• The COAXIAL CD and OPTICAL CD jacks are available for a CD player which has coaxial or optical digital outputs.

• When you connect a CD player to both the COAXIAL CD and OPTICAL CD jacks, priority is given to the input signals from the COAXIAL CD jack.

• The OPTICAL jacks on this unit conform to the EIA standard. If you use a fiber optic cable that does not conform to this standard, the RX-V1 may not function properly.

Hookups

R L

Analog

Input

Optical

Input

Optical Output

Tape Deck

RF(AC-3)

COAXIAL OPTICAL

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

MD or DAT Deck

RF(AC-3)

COAXIAL OPTICAL

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

PLAY)

(

OUT

(REC)

MAIN

DVD

Analog Output

AUDIO VIDEO

Analog

Input Analog

Output

AUDIO VIDEO

■ Connecting a Tape Deck

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

Connect the left and right signal output jacks on your tape deck to

the TAPE 3 (PLAY) L and R jacks.

Connect the left and right signal input jacks on your tape deck to the

TAPE 4 (REC) L and R jacks.

Notes:

• You can monitor audio recordings if you connect a three-head tape deck to the

TAPE 3 (PLAY) jacks.

• When you connect a tape deck to the RX-V1, keep the deck’s power on while using

the RX-V1. If the power is off, the RX-V1 may distort the sound from other equipment.

English

• When you record from source equipment connected to the RX-V1 while the

RX-V1’s power is off, the recorded sound may be distorted. To avoid this problem, turn on the RX-V1.

■ Connecting an MD or DAT Deck

Connect the left and right analog signal output jacks on your MD or

L R

S VIDEO

VIDEO DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

DAT deck to the MD 3 (PLAY) L and R jacks.

Connect the left and right analog signal input jacks on your MD or

DAT deck to the MD 4 (REC) L and R jacks.

Connect the optical digital signal output jack on your MD or DAT

deck to the OPTICAL MD (PLAY) jack.

Connect the optical digital signal input jack on your MD or DAT deck to the OPTICAL MD (REC) jack.

Note:

• When you connect your MD or DAT deck to both the analog and digital input and

output jacks, priority is given to the digital signals.

Hookups

M N

Connecting Video Components

Note:

• If you make S-video connections to this unit, it is not necessary to make composite video connections. If both types of connections are made, this unit gives priority to the S-video signal.

Preparations

Optical Output

RF-Signal

Output

RF(AC-3)

COAXIAL OPTICAL

DIGITAL

LD Player

Analog Audio Output

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

PLAY)

(

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT

CENTER CBL /SAT

ZONE 2 OUT VIDEO

VCR 1

S-video Output

Video Output

AUDIO VIDEO

S VIDEO

VIDEO DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

VCR 3

OUT

MONITOR

OUT 1

OUT

MONITOR

OUT 2

L R

COMPONENT VIDEO

PB/CBY

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

MONO

REAR CTR

PREOUT/MAIN IN

■ Connecting an LD Player

Connect the left and right audio signal output jacks on your LD

PR/C

DVD

D-TV

CBL /SAT

MONITOR

OUT

FRONT

REAR

(SURROUND)

SUB

WOOFER

SPLIT

CENTER

OUT

MAIN

MAIN OUT

player to the LD L and R jacks.

If your LD player has an RF signal or optical digital signal outputs, you can connect them to this unit. Connect the RF signal output jack on your LD player to the LD jack. Connect the optical digital signal output jack on your LD player to the

OPTICAL LD jack.

Connect the composite video signal output jack on your LD player to

the LD VIDEO jack.

If your LD player has an S-video output, you can connect it to this unit. Connect the S-video signal output jack on your LD player to the LD S VIDEO jack.

RF (AC-3)

Optical Output

RF(AC-3)

COAXIAL OPTICAL

DIGITAL

Optical Output

Coaxial Output

RF(AC-3)

COAXIAL OPTICAL

Digital TV/

AUDIO

GND

PHONO

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER 6CH INPUT

CENTER CBL /SAT

ZONE 2 OUT VIDEO

VCR 1

Satellite/Cable TV

GND

DVD

CBL

(PLAY)

/SAT

TAPE

OUT

(REC)

(PLAY)

PLAY)

(

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

AUDIO VIDEO

OUT

Tuner

Video Output

AUDIO

AUDIO VIDEO

PHONO

CENTER

ZONE 2 OUT VIDEO

Analog Audio Output

L R

Video Output

COMPONENT VIDEO

S VIDEO

VIDEO DVD

CBL /SAT

OUT

REMOTE 1

OUT

REMOTE 2

OUT

100Ω

L R

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

VCR 1 OUT

VCR 2

OUT

IN VCR 3 OUT

MONITOR

OUT 1

MONITOR

OUT 2

MONITOR

OUT 1

MONITOR

OUT 2

OUT

D-TV

VCR 1

VCR 2

VCR 3

S-video Output

Component Output

OUT

MONO

REAR CTR

RS-

232C

CTRL

OUT +5V

20mA

PREOUT/MAIN IN

PR/CRPB/CBY

DVD

D-TV

CBL

/SAT

MONITOR

OUT

(SURROUND)

WOOFER

CENTER

75Ω

UNBAL.

FRONT

REAR

SUB

SPLIT

OUT

MAIN

–

MAIN OUT

Analog Audio Output

S-video Output

Component Output

COMPONENT VIDEO

PREOUT/MAIN IN

REMOTE 1

OUT

REMOTE 2

MONO

REAR CTR

RS232C

CTRL

OUT +5V

100Ω

20mA

PR/CRPB/CBY

DVD

D-TV

CBL

/SAT

MONITOR

OUT

FRONT

(SURROUND)

WOOFER

CENTER

75Ω

UNBAL.

REAR

SUB

SPLIT

OUT

MAIN

MAIN OUT

■ Connecting a TV or Digital TV

Connect the left and right analog signal output jacks on your TV to

the D-TV L and R jacks.

If your TV has an optical digital signal output, you can connect it to this unit. Connect the optical digital signal output jack on your TV to the OPTICAL D-TV jack.

Connect the composite video signal output jack on your TV to the

D-TV VIDEO jack.

If your TV has an S-video output or component video output, you can connect it to this unit. Connect the S-video signal output jack on your TV to the D-TV S VIDEO jack or connect the component signal output jacks on your TV to the D-TV COMPONENT VIDEO jacks.

■ Connecting a Satellite Tuner or Cable TV Tuner (Set

Top Box)

Connect the left and right audio signal output jacks on your tuner to

the CBL/SAT L and R jacks.

If your tuner has coaxial or optical digital signal outputs, you can connect them to this unit. Connect the coaxial digital signal output jack on your tuner to the COAXIAL CBL/SAT jack. Connect the optical digital signal output jack on your tuner to the OPTICAL

CBL/SAT jack.

Connect the composite video signal output jack on your tuner to the

CBL/SAT VIDEO jack.

–

If your tuner has an S-video or component video output, you can connect it to this unit. Connect the S-video signal output jack on your tuner to the CBL/SAT S VIDEO jack or connect the component signal output jacks on your tuner to the CBL/SAT COMPONENT VIDEO jacks.

Hookups

Audio Input

R L

Audio Output

RF(AC-3)

GND

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

Video Input

VCR

S-video Input S-video Output

Video Output

AUDIO

AUDIO VIDEO

PHONO

OUT

VCR 1

VCR 2

COMPONENT VIDEO

S VIDEO

VIDEO

DVD

D-TV

CBL /SAT

OUT

REMOTE 1

PR/CRPB/CBY

DVD

D-TV

CBL /SAT

MONITOR

OUT

PREOUT/MAIN IN

FRONT

REAR

(SURROUND)

■ Connecting a VCR

Connect the left and right audio signal output jacks on your VCR to

the VCR 1 IN L and R jacks.

Connect the left and right audio signal input jacks on your VCR to

the VCR 1 OUT L and R jacks.

Connect the composite video signal output jack on your VCR to the

VCR 1 VIDEO IN jack.

If your VCR has an S-video input, you can connect it to this unit. Connect the S-video signal output jack on your VCR to the VCR 1 IN S

VIDEO jack.

Connect the composite video signal input jack on your VCR to the

English

VCR 1 VIDEO OUT jack.

If your VCR has an S-video input, you can connect it to this unit. Connect the S-video signal input jack on your VCR to the VCR 1 OUT S

VIDEO jack.

Notes:

• You can connect other VCRs to the RX-V1 using the VCR 2 and VCR 3 jacks.

• If your VCR has an optical digital signal output jack, connect it to the OPTICAL VCR 1 jack of this unit.

Analog Audio Output

Optical Output

S-video Output

Component Output

DVD player

VIDEO

DVD

D-TV

CBL /SAT

VCR 1

OUT

VCR 2

OUT

VCR 3

OUT

MONITOR

OUT 1

MONITOR

OUT 2

D-TV

CBL /SAT

VCR 1 OUT

VCR 2

OUT

IN VCR 3 OUT

MONITOR

OUT 1

MONITOR

OUT 2

Video

Monitor

Video Output

COMPONENT VIDEO

S VIDEO

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

REMOTE 1

OUT

REMOTE 2

RS-

232C

CTRL

OUT +5V

100Ω

20mA

S-video Input

Component Input

MONO

REAR CTR

MONO

REAR CTR

PREOUT/MAIN IN

PR/CRPB/CBY

MONITOR

DVD

D-TV

CBL /SAT

OUT

FRONT

REAR

(SURROUND)

WOOFER

CENTER

CBL /SAT

OUT

FRONT

REAR

(SURROUND)

SUB

WOOFER

SPLIT

CENTER

OUT

MAIN

OUT

SUB SPLIT

OUT

MAIN

MAIN OUT

Coaxial Output

C C

O S

AUDIO

RF(AC-3)

GND

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

OUT

(REC)

(PLAY)

(

PLAY)

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

DVD

CBL

(PLAY)

/SAT

COAXIAL

TAPE

OPTICAL

OUT

(REC)

(PLAY)

PLAY)

(

MD MD

OUT

(REC)

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER

6CH INPUT CBL /SAT

VCR 1

DIGITAL

PHONO

ZONE 2 OUT VIDEO

CENTER

ZONE 2 OUT VIDEO

CENTER

AUDIO VIDEO

OUT

Video Input

■ Connecting a DVD Player

Connect the left and right analog signal output jacks on your DVD

player to the DVD L and R jacks.

If your DVD player has coaxial or optical digital outputs, you can connect one or both of them to this unit.

75Ω

UNBAL.

FM ANT

GND

AM ANT

Connect the coaxial digital signal output jack on your DVD player to the COAXIAL DVD jack. Connect the optical digital signal output jack on your DVD player to the

OPTICAL DVD jack.

Connect the composite video signal output jack on your DVD player

to the DVD VIDEO jack.

–

If your DVD player has an S-video output or component video output, you can connect it to this unit. Connect the S-video signal output jack on your DVD player to the DVD S-VIDEO jack or connect the component signal output jacks on your DVD player to the DVD COMPONENT VIDEO jacks.

■ Connecting a Video Monitor

Connect the composite video signal input jack on your monitor to

MONITOR OUT 1 VIDEO jack.

If your video monitor has an S-video input, you can connect it to this unit. Connect the S-video signal input jack on your video monitor to the MONITOR OUT 1 S-VIDEO jack. If your video monitor has component video signal inputs, you can connect them to the COMPONENT VIDEO MONITOR OUT jacks.

Note:

• You can connect another monitor to this unit using the MONITOR OUT 2 jacks.

Hookups

AMAINB

–

Connecting Speakers

This section explains how to connect speakers to the RX-V1. After you finish connecting your speakers, use the SET MENU to change the signal output settings according to the number and size of the speakers in your configuration.

■ Using Speaker Cords

A speaker cord is actually a pair of insulated cables running side by side. One of the cables is colored or shaped differently, perhaps with a stripe, groove or ridge. To make sure you always connect speakers with the correct polarity, determine the difference between the cables of your speaker cord, make a note of which cable you plan to use for which polarity (+ and –), and always connect the speaker cords consistently.

Strip off 9 mm (3/8 in.) of an inch of insulation from the ends of the

cables.

Twist the exposed wires of the cable together to prevent short

Preparations

BANANA PLUG

circuits.

Loosen the terminal knob by turning it counterclockwise.

Insert only the exposed portion of the cable into the slot in the side of

the terminal, and tighten the terminal knob.

Note:

• If your speaker cords have banana plugs, tighten the terminal knob and insert the plug into the end of the terminal.

Caution:

• Connect the speaker cords with care to avoid creating a short circuit. If you turn on the power and there is a short circuit, this unit may be damaged even though the protection circuit automatically shuts off the power.

Right Main Speaker A

Right Main Speaker B

Center Speaker

Left Main Speaker A

Left Main Speaker B

■ Connecting the Main Speakers

Before connecting any speaker cords, identify which terminals are for the right and left channels and also the + and – polarities. If you connect speakers with the wrong polarity (+ to –), the RX-V1 will not reproduce clear sound.

Connect the + and – terminals of your right and left Main speakers to the L and R MAIN + and – terminals on this unit.

■ Connecting the Center Speaker

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

–

Connect the + terminal of your Center speaker to the CENTER + terminal and the – terminal of your Center speaker to the CENTER –

terminal.

Hookups

Right Front

Effect Speaker

SPEAKERS

FRONT

–

CENTER REAR CENTER

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

Left Front

■ Connecting the Front Effect Speakers

English

Effect Speaker

Connect the + and – terminals of your right and left Front Effect speakers to the L and R FRONT + and – terminals on this unit.

–

REAR

–

■ Connecting the Rear and Rear Center Speakers

Connect the + and – terminals of your right and left Rear speakers to

the L and R REAR + and – terminals on this unit.

Connect the + terminal of your Rear Center speaker to the REAR

CENTER + terminal and the – terminal of your Rear Center speaker to REAR CENTER – terminal.

Right Rear

Speaker

Right

Subwoofer

system

Rear Center Speaker

Subwoofer system

PREOUT/MAIN IN

FRONT

REAR

REMOTE 1

REMOTE 2

100Ω

(SURROUND)

OUT

RB-

2320

232C

CTRL OUT

+5V

20mA

MONO

REAR CTR

WOOFER

SPLIT

CENTER

OUT

MAIN

MAIN OUT

SUB

Left Rear Speaker

Left

Subwoofer

system

■ Connecting a Front Subwoofer

Connect the signal input jack on your subwoofer to the PRE OUT/ MAIN IN SUBWOOFER MONO jack.

By connecting two Subwoofers to the SUBWOOFER SPLIT jacks, this unit can reproduce subtle directional changes in the low frequency sounds. When you use two Subwoofers, connect both of them to the SUBWOOFER

SPLIT jacks using pin plugs.

Caution:

• The SUBWOOFER jacks (output) have a built-in high cut-off filter (90 Hz). When using a powered subwoofer, set the high cut-off frequency to “MAX” on your Subwoofer.

Hookups

Right Rear

Speaker

Left Rear

Speaker

■ Connecting a Rear Subwoofer

By using both Front and Rear Subwoofers, the CINEMA-DSP sound field programs can produce realistic movie effects with powerful, dynamic sound. To take advantage of this dynamic sound, be sure to set the 1C. REAR L/R SP item in the SET MENU to “LARGE” (see page 41), and connect your Rear speakers and Subwoofer as shown below.

Connect the right + input terminal on your Subwoofer to the REAR

SPEAKERS

FRONT

–

REAR

–

CENTER REAR CENTER

Preparations

Subwoofer

system

R + terminal, and the right – input terminal on your Subwoofer to the REAR R – terminal with speaker cords.

Connect the left + input terminal on your Subwoofer to the REAR

L + terminal, and the left – input terminal on your Subwoofer to the REAR L – terminal with speaker cords.

Connect your Rear speakers to the output terminals on the Rear

Subwoofer.

Be sure to connect the Rear speakers to the Subwoofer with the correct polarity.

Note:

• Adjust the speaker volume for the Subwoofer with the controls on the Subwoofers, not on the RX-V1.

■ Impedance Selector switch

WARNING

Do not change the IMPEDANCE SELECTOR switch setting while the power to

this unit is on, otherwise this unit may be damaged.

IF THIS UNIT FAILS TO TURN ON WHEN THE STANDBY/ON SWITCH IS PRESSED:

The IMPEDANCE SELECTOR switch may not be set to either end. If so, set the switch to either end when this unit is in the standby mode.

IM PEDANCE SELECTOR

S E T B EF O R E P O WE R ON

F RO N T R EA R R EA R CE N T E R C EN T E R M A IN A O R B A + B

VOLTAGE SELECTOR

Select the position whose requirements your speaker system meets.

(Upper position)

Front Effect:

The impedance of each speaker must be 6Ω or higher.

Rear: The impedance of each speaker must be 4Ω or higher. Rear Center:

The impedance of the speaker must be 4Ω or higher.

Center:The impedance of the speaker must be 4Ω or higher. Main: If you use one pair of main speakers, the impedance of each

speaker must be 4Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 8Ω or higher.

(Lower position)

Front Effect:

The impedance of each speaker must be 8Ω or higher.

Rear: The impedance of each speaker must be 8Ω or higher. Rear Center:

The impedance of the speaker must be 8Ω or higher.

Center:The impedance of the speaker must be 8Ω or higher. Main: <Except Canada model>

If you use one pair of main speakers, the impedance of each speaker must be 8Ω or higher. If you use two pairs of main speakers, the impedance of each speaker must be 16Ω or higher.

The impedance of each speaker must be 8Ω or higher.

Hookups

Connecting External Amplifiers

If you want to increase the power output to the speakers, or want to use another amplifier, connect an external amplifier to the PRE OUT/ MAIN IN terminals as follows.

PREOUT/MAIN IN

FRONT

REAR

(SURROUND)

SUB

WOOFER

MONO

REAR CTR

~ MAIN jacks

MAIN OUT jack ....... Main channel line output jacks.

The signals output through these jacks are affected by BASS, TREBLE, BALANCE, and BASS EXTENSION settings.

MAIN IN jacks .......... Line input to the RX-V1 Main channel

amplifiers.

Ÿ CENTER jacks

CENTER OUT jack . Center channel line output jacks.

CENTER IN jack ..... Line input to the RX-V1 Center channel

amplifier.

! REAR CT jack

Rear Center channel line output jack.

SPLIT

CENTER

OUT

MAIN

OUT

⁄ SUBWOOFER jacks

Subwoofers reinforce very low frequencies.

MONO .................... Main, Center and Rear channel

frequencies below 90 Hz are output through this jack. You can also direct DTS and Dolby Digital LFE signals to this output.

SPLIT ..................... The SPLIT jacks output stereo separation

for the Main and Rear channels and a split mono signal for the Center and LFE channels.

Adjust the volume level of the subwoofer with the control on the subwoofer. Subwoofer volume cannot be adjusted from this unit. Depending on the settings in SET MENU items

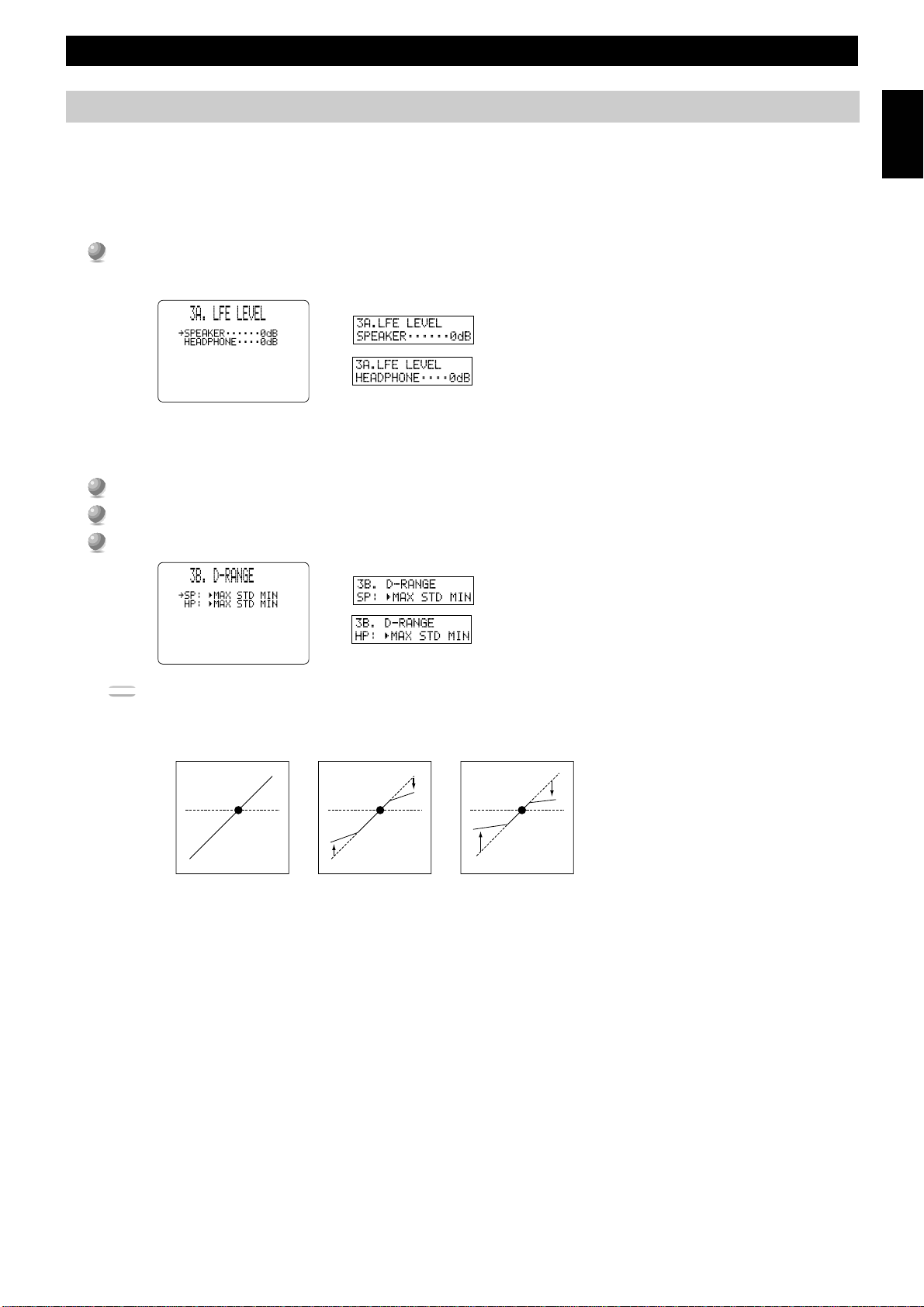

1. SPEAKER SET, 3A. LFE LEVEL and 4A. LFE LEVEL, some signals may not be output from the SUBWOOFER jacks.

@ FRONT

Front Effect channel line output jacks.

English

Note:

• When RCA pin plugs are connected to the PRE OUT/MAIN IN output jacks for output to external amplifiers, the corresponding internal amplifiers will be

muted.

¤ REAR (SURROUND)

Rear channel line output jacks.

Hookups

Connecting an External Decoder

The RX-V1 is equipped with six additional input jacks (left and right MAIN, CENTER, left and right SURROUND and SUBWOOFER) for discrete multi-channel input from an external decoder, sound processor, or pre-amplifier.

Connect the output jacks on your external decoder to the 6CH

MAIN

DVD

SURROUND

SUB

D-TV

WOOFER 6CH INPUT

CBL /SAT

VCR 1

DIGITAL

Subwoofer Output

Preparations

External Decoder

CENTER

ZONE 2 OUT VIDEO

OUT

Center Output

Main OutputSurround Output

INPUT jacks.

Be sure to match the left and right outputs to the left and right input jacks for the main and surround channels. To listen to the sound from your external decoder, press 6CH INPUT on this unit or the remote control.

Note:

• When you select 6CH INPUT as the input source, this unit automatically turns off

the digital sound field processor, and you cannot listen to DSP programs.

Connecting Power Supply Cords

IM PEDANCE SELECTOR

AC OUTLETS

AC Power Cord

AC OUTLETS

■ Connecting the AC Power Cord

After completing all connections, plug the AC power cord into a convenient AC outlet.

■ AC OUTLETS

Use these to connect the power cords from your other components to this unit. The power to the switched outlets is controlled by this unit’s STANDBY/ON (SYSTEM POWER ON or STANDBY on the remote). These outlets will supply power to any connected unit whenever this unit is turned on. The maximum power (total power consumption of components) that can be connected to AC OUTLETS is 100 W (U.S.A. and Canada model) or 120 W (Australia model).

Hookups

Connecting the Antennas

Both AM and FM indoor antennas are included with this unit. These antennas should provide sufficient signal strength in most situations. However, a properly installed outdoor antenna provides clearer reception. If you experience poor reception quality using the indoor antennas, an outdoor antenna may improve the reception. Connect each antenna as shown below.

Outdoor FM antenna

75Ω coaxial cable

Antenna adapter to match with F-type connector (included for U.S.A. and Canada Models)

■ Optional outdoor FM antenna

Consult your dealer or authorized service center about the best method of selecting and erecting an outdoor FM antenna.

Indoor FM antenna (included)

VIDEO

PR/CR

/CB

PREOUT/MAIN IN

75Ω/300Ω antenna adapter

300Ω ribbon

MONO

REAR CTR

cable

■ Connecting the indoor FM antenna

Connect the included indoor antenna to the 75Ω UNBAL. FM ANT terminal.

SPEAKERS

DVD

D-TV

CBL /SAT

MONITOR

OUT

FRONT

REAR

(SURROUND)

WOOFER

SPLIT

CENTER

MAIN

75Ω

UNBAL.

ANT

GND

ANT

SUB

OUT

–

FRONT

–

REAR

–

CENTER REAR CENTER

–

AMAINB

■ Optional outdoor AM antenna

If this unit is in a steel building or at a great distance from the transmitter, it may be necessary to install an outdoor AM antenna.

AM loop antenna (included)

Ground

English

Antenna stand

Loop Antenna

■ Connecting the AM loop antenna

Press the tab to unlock the terminal hole.

Insert the AM loop antenna lead wires to the AM ANT and GND

terminals.

Lift the tab to its original position to lock the lead wires.

Lightly pull on the lead wires to confirm a good connection.

Attach the loop antenna to the antenna stand.

Orient the AM loop antenna so that the best reception is obtained.

Notes:

• The AM loop antenna should be placed away from this unit. The antenna may be hung on a wall.

• The AM loop antenna should remain connected, even if an outdoor AM antenna is connected to this unit.

• To minimize the influence of automobile ignition noise, locate the antenna as far from heavy traffic as possible.

• Keep the ribbon cable or coaxial cable as short as possible.

Do not bundle or roll up excess cable.

• The antenna should be at least 1.8m (6 feet) from reinforced concrete walls and metallic structures.

On-Screen Displays (OSD)

You can display the operation information for this unit on a video monitor. If you display the SET MENU and DSP sound field program parameter settings on a screen, it is much easier to see the available options and parameters than it is by reading this information on the front panel display. If a video source is being reproduced, the OSD is superimposed over the image. If a video source is not being reproduced (or the power of the source equipment is off), the OSD is shown on a blue background.

OSD Modes

You can change the amount of information the OSD shows.

Full Display ...............This mode always shows the sound field program parameter settings on the

video monitor (see page 77).

Short Display............. This mode briefly shows the same contents as the front panel display at the

bottom of the screen, then disappears.

Display Off................ This mode briefly shows the “DISPLAY OFF” message at the bottom of the

screen, then disappears. Afterwards, no changes to operations appear on the

Preparations

Full Display

Short Display

screen except those of the ON SCREEN.

Notes:

• When you choose the Full Display mode, INPUT SELECTOR, VOLUME and some

other types of operation information are displayed at the bottom of the screen in the same format as the front panel display.

• The OSD signal is not output through the REC OUT Selector, and will not be recorded

with any video signal.

• The SET MENU, TEST DOLBY SUR and TEST DSP appear regardless of the OSD mode.

Selecting the OSD Mode

ON SCREEN

LEVEL

SLEEP TEST

PARAMETER

SET MENU

When you turn on the power, the video monitor and front panel

display shows the level of the main volume for a few seconds and then switches to show the current sound field program.

Press ON SCREEN on the remote control repeatedly to change the

display mode.

The OSD mode changes in the following order: Full Display, Short Display, and Display Off.

Caution:

• If you choose a video input source that has equipment connected to both the S VIDEO IN and composite VIDEO IN jacks, and both the S VIDEO OUT and

composite VIDEO OUT jacks are connected to a video monitor, the video signal is output to both the S VIDEO OUT and VIDEO OUT jacks. However, the OSD is carried only on the S-video signal. If no video signal is input, the OSD is carried on both the S-video and composite video signals.

• If your video monitor is connected only to the COMPONENT VIDEO terminals of this unit, the OSD is not shown. Make sure to connect your video monitor to the COMPONENT VIDEO terminal and either VIDEO or S VIDEO terminals if you would like to see the OSD.

• Playing back video software that has an anti-copy signal or video signals with a lot of noise may produce unstable images.

Speaker Settings

The RX-V1 has seven SPEAKER SET items in the SET MENU that you must set according to the number of speakers in your configuration and their size. The following table summarizes these SPEAKER SET items, and shows the initial settings as well as other possible settings. If the initial settings are not appropriate for your speaker configuration, change the settings in the SET MENU (see page 41).

Summary of SPEAKER SET items 1A through 1G.

Item

1A. CENTER SP

1B. MAIN SP

1C. REAR L/R SP

1D. REAR CT SP

1E. LFE/BASS OUT

1F. FRNT EFCT SP

1G. MAIN LEVEL

Description

Selects the Center channel output mode according to the size of the Center speaker. The possible settings are LRG (large), SML (small) and NONE.

Selects the Main channel output mode according to the size of the Main speakers. The possible settings are LARGE and SMALL.

Selects the Rear channel output mode according to the size of the Rear speakers. The possible settings are LRG (large), SML (small) and NONE.

Selects the Rear center channel output according to the size of the Rear Center speaker. The possible settings are LRG (large), SML (small) and NONE.

Selects a speaker for the LFE/Bass signal output. The possible settings are SW (subwoofer), MAIN, and BOTH.

Selects the Front Effect signal output mode for the Front Effect signals. The possible settings are YES and NONE.

Selects the output level for the Main channel signal. The possible settings are Normal and –10 dB.

Initial Setting

LRG

LARGE

LRG

BOTH

YES

Normal

English

Speaker Output Levels

This section explains how to set the speaker output levels using the test tone generator. The Dolby Surround test is for balancing the output levels of the six speakers required for surround sound systems. The DSP test is for balancing the Front Effect speakers with the Main speakers for the DSP sound field programs.

Before You Begin

BASS TREBLE

–

PARAMETER

10KEY DSP

–

SET MENU

BALANCE

Set BASS, TREBLE and BALANCE on the front panel to “0” (the

center position) and turn off BASS EXTENSION.

Sit in the main listening position and set PARAMETER/SET

MENU on the remote control to PARAMETER.

Set 10KEY/DSP on the remote control to DSP and press / DTS

SUR.

Press TEST on the remote control once or twice to select the test you want.

• Select “TEST DOLBY SUR.” to match the output levels of the Center, Rear Center and left and right Rear speakers to the left and right Main speakers.

• Select “TEST DSP” to match the output levels of the Front Effect speakers to the Main speakers.

Speaker Output Levels

Dolby Surround Test

Use the Dolby Surround Test to balance the output levels of speakers required for surround sound systems.

TEST

Preparations

Press TEST on the remote control so “TEST DOLBY SUR.”

appears on the video monitor and front panel display.

LRLC

Adjust VOLUME +/– so you can hear the test tone.

• The test tone is produced from the left Main speaker, Center speaker, right Main speaker, right Rear speaker, Rear Center speaker and left Rear speaker in order. The tone is produced for 2.5 seconds each time.

• You can stop the sequence temporarily by pressing

Adjust the output level of the effect speakers using the cursor – or +

or %.

buttons on the remote control so the output level coming from each speaker is the same.

• You can increase the output levels of the effect channels (left Rear, right Rear, Rear Center and Center) to +10 dB. If the output level of the Center, Rear, and Rear Center speakers is lower than that from the Main speakers even after you have increased the sound volume level of the Center, Rear, and Rear Center speakers up to +10 dB, set the 1G. MAIN LEVEL item in the SET MENU to “–10dB.” Setting the 1G. MAIN LEVEL item to this setting decreases the Main speaker volume level to about one-third the normal level. After you set the 1G. MAIN LEVEL item in the SET MENU to “–10dB,” adjust the levels for the Center, Rear, and Rear Center speakers again.

When you finish adjusting the output level of the Center, Rear, and Rear Center speakers, press TEST repeatedly until the current DSP program appears.

Note:

• The tonal quality of the speakers can be adjusted using the 7. CENTER GEQ, 8. REAR CT GEQ, and 9. CINEMA EQ items in the SET MENU (see page 49~50).

Speaker Output Levels

DSP Test

Adjust the output level of the Front Effect speakers while this unit is reproducing a DSP sound field program. If you do not use Front Effect speakers, set the 1F. FRNT EFCT SP item in the SET MENU to “NONE” (see page 41), and the DSP Front Effect signals will be mixed with the Main channel signals.

TEST

LRLC

Press TEST repeatedly until “TEST DSP” appears on the video

monitor and front panel display.

Adjust VOLUME so you can hear the test tone.

• The test tone is produced alternately from the Front Effect speakers and Main speakers. The tone is produced for 2.5 seconds each time.

English

Adjust the output level of the Front Effect speakers using + and – so

the output level coming from the Front Effect speakers is the same as that of the Main speakers.

• The test tone is automatically produced from the Front Effect speakers while you are adjusting the level.

When you finish adjusting the output level of the Front Effect

speakers, press TEST repeatedly until the current DSP program appears.

Notes:

• If you cannot hear the test tone, set VOLUME, turn off the power, and check the speaker cords and hookups.

• The test tone can be reproduced separately from the left and right Front Effect speakers. This is useful when you want to check the hookups to these speakers.

Press

to reproduce the test tone from the left speaker, and press % to reproduce the tone from the right speaker. (The OSD shows which speaker is reproducing the tone.)

• You cannot adjust the output level of the left and right Front Effect speakers separately.

• You can stop the test tone’s alternation temporarily by pressing

• The tonal quality of the speakers can be adjusted using the 7. CENTER GEQ, 8. REAR CT GEQ, and 9. CINEMA EQ items in the SET MENU (see page 49~50).

• If the sound volume of the Front Effect speakers is lower than that of the Main speakers, even after you have increased the output level up to +10 dB, set the 1G. MAIN LEVEL item in the SET MENU to “–10dB.” Setting the 1G. MAIN LEVEL item to “–10dB” decreases the Main speaker output level to about one-third of the normal level. After you set the 1G. MAIN LEVEL item in the SET MENU to “–10dB,” repeat the TEST DOLBY SUR. procedure on the previous page.

or %.

Basic Operation

Basic Opera tion

Basic Playback 31

Power Control ................................................................................................... 31

Selecting a Source ............................................................................................. 32

Input Modes and Indications............................................................................. 33

Selecting a Sound Field Program...................................................................... 34

AM/FM Tuner 35

Basic Recording 39

Manual Tuning.................................................................................................. 35

Automatic Tuning ............................................................................................. 35

Presetting Stations............................................................................................. 36

Tuning to Preset Stations .................................................................................. 38

Exchanging Preset Stations ............................................................................... 38

Preparations....................................................................................................... 39

Basic Playback

English

STANDBY

SYSTEM

POWER

Input buttons

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

TITLE

SOURCE

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

6.1/ES

CHP/INDEX

A / B / C / D / E

++ +

TV INPUT

TV VOL

TV MUTE

–– –

DISPLAY

SEARCH CHAPTER

1234

ROCK

ENTER-

CONCERT

TAINMENT

5678

MOVIE

THEATER

THEATER 1

9101112

0 +10 +100

PRESET

DISC

MACROLEARN

ENTER

CONCERT

VIDEO 1

MOVIE

THEATER 2

MUTE

EFFECT

MACRO

OFF ON

6CH INPUT

SOUND

CONCERT

VIDEO 2

/DTS

SUR.

VOLUME

+–

STANDBY/ON EFFECT INPUT SELECTOR VOLUME

STANDBY/ON

NATURAL SOUND AV RECEIVER

DOLBY

CINEMA DSP

RX-V1

DIGITAL

INPUT SELECTOREFFECT VOLUME

INPUT MODE

DIGITAL

SURROUND

INPUT SELECTOR

INPUT MODE

SPEAKERS

PROGRAM PRESET/TUNING

PHONES BASS TREBLE

22 33 44

–

EFFECT

–

6CH IMPUT

BALANCE

A/B/C/D/E

BASS

EXTENSION

ON OFF

PROCESSOR

DIRECT

REC OUT/ZONE 2

SOURCE/REMOTE

D-TV

CBL/SAT TAPE

VCR 1

VCR 2 CD

VIDEO AUX

DVD

MD TUNER

PHONOVCR 3

PRESET/TUNING

FM/AM MEMORY

EDIT

VIDEO AUX

S VIDEO VIDEO L RAUDIO

MANL/AUTO FM

TUNING MODE

AUTO/MANL MONO

VOLUME

EFFECT

VOLUME

Power Control

SYSTEM

STANDBY/ON

POWER

SYSTEM

POWER

STANDBY

Press STANDBY/ON (or SYSTEM POWER on the remote

control) to turn on the power.

• The front panel (and the monitor screen) shows the level of the volume for a few seconds and then switches to show the current sound field program.

Press STANDBY/ON (or STANDBY on the remote control) to turn

off the power.

Note:

• This unit stores its current operational status in memory before the power is turned off. By connecting a commercially available timer to this unit, you can easily playback or record a source at any time you wish.

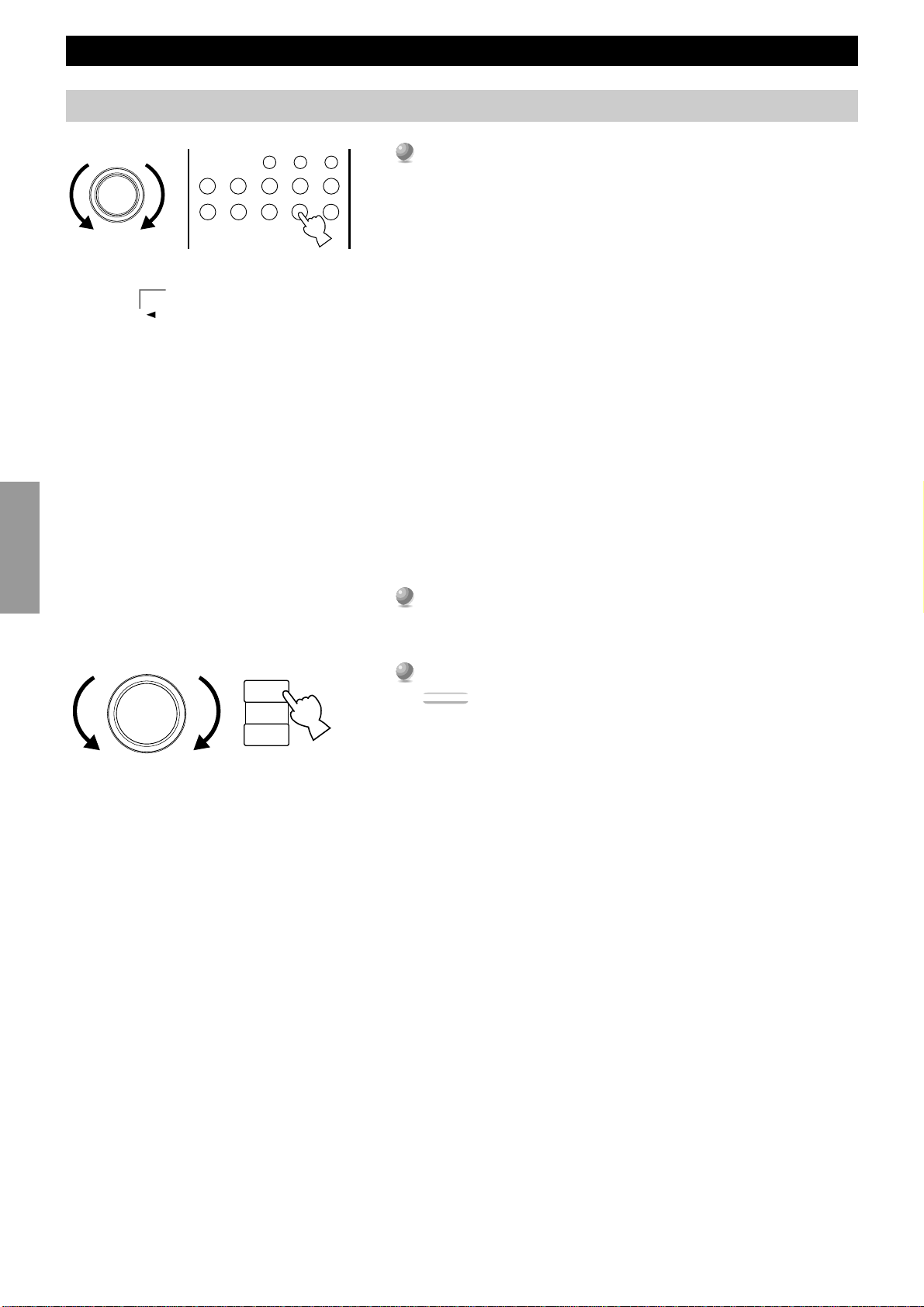

Selecting a Source

Basic Playback

INPUT SELECTOR

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

V-AUX TAPE PHONO

Select the source using INPUT SELECTOR, or press one of the

input buttons on the remote control.

• The current source is indicated on the front panel display with an arrow.

• The current source name and input mode appear on the front panel display and the video monitor for a few seconds.

D-TV

CBL/SAT

VCR 1 VCR 2 VCR 3

V-AUX

The selected source

DVD MD TAPE TUNER CD PHONO

Select this source:

DVD .................................. DVD player

LD...................................... LD player

D-TV.................................. Digital TV or TV

CBL/SAT........................... Cable TV or Satellite tuner

VCR 1 ................................ Video deck 1

To reproduce the signal from this equipment.

VCR 2 ................................ Video deck 2

VCR 3 ................................ Video deck 3

V-AUX .............................. Other A/V equipment

PHONO ............................. Turntable

CD...................................... CD player

TUNER.............................. AM/FM tuner

TAPE ................................. TAPE deck

MD..................................... MD recorder

Start playback (or select a broadcast station) on the source

Basic Opera tion

equipment.

• Refer to the operation instructions for the equipment.

VOLUME

–

Adjust VOLUME (or VOLUME +/– on the remote control).

Caution:

• If the power of the equipment connected to the VCR 1, VCR 2, VCR 3, TAPE, and MD OUT jacks is turned off, reproduced sound may be distorted or the volume may be lowered. In these cases, turn on the equipment.

■ BGV (Back Ground Video) Function

The BGV (Back Ground Video) function allows you to combine a video signal from a video source with a sound signal from an audio source. (For example, you can listen to classical music while you are watching a video.)

Using the remote control, select a source from the video group, then select a source from the audio group. Use the input buttons on the remote control to make your selections. The BGV function does not work if you select the sources using INPUT SELECTOR on the front panel.

Basic Playback

Input Modes and Indications

The RX-V1 comes with various input jacks. If your external component is connected to more than one type of input jack, you can set the priority of the input signal. Press INPUT MODE on the front panel or an input button (press it repeatedly) on the remote control to display or change the input mode.

AUTO

Dolby Digital RF

DTS

DIGITAL

ANALOG

AUTO: ................. This mode is automatically selected when you turn on the power of this

unit. In this mode, the input signal is automatically selected in the following order.

1) Dolby Digital or DTS encoded signals

2) Digital (PCM) signals

3) Analog signals

DTS:..................... In this mode, only digital input signals encoded with DTS are selected

even if other signals are input at the same time.

ANALOG: ........... In this mode, only analog input signals are selected even if digital signals

are input at the same time.

AUTO: ................. In this mode, this unit automatically selects the signal in the following

order.

1) Dolby Digital RF encoded signals

2) DTS encoded signals

3) Digital (PCM) signals

4) Analog signals

D.D. RF:............... This unit only selects Dolby Digital RF encoded signals.

DTS:..................... This unit only selects DTS encoded signals.

DGTL:.................. This unit only selects digital (PCM) signals input through the OPTICAL

jacks.

ANALOG: ........... This unit only selects signals input through the ANALOG jacks. This unit

will not select Dolby Digital RF or DTS signals.

Notes:

• For CD, DVD, and CBL/SAT sources, if digital signals are input from both the

OPTICAL and COAXIAL terminals, the digital signal from the COAXIAL terminal is selected.

• When the “AUTO” mode is selected, the RX-V1 automatically determines the type of signal. If the RX-V1 detects a DTS or Dolby Digital signal, the decoder automatically switches to the appropriate setting and reproduces 5.1 channel sound.

• When you use functions such as pause, search, or disc change while playing a disc encoded with DTS signals, the DTS indicator flashes until the next playback starts.

• If you play a disc encoded with DTS signals and the input mode is set to “ANALOG”, this unit reproduces the noise of an unprocessed DTS signal. When you want to play a DTS source, be sure to connect the source to a digital input jack and set the input mode to “AUTO” or “DTS. ”

• If you switch the input mode to “ANALOG” while playing a disc encoded with DTS signals, this unit reproduces no sound.

• For LD software that does not contain a digital soundtrack, connect the LD player to the analog jacks and set the input mode to “AUTO” or “ANALOG.”

• The input mode resets to “AUTO” after you turn off the power. When the current input source is D-TV, CBL/SAT, and VCR 1, the input mode resets to the one set using the

15. INPUT MODE item in the SET MENU after you turn off the power (see page 52).

• If the LD player is transmitting signals in a non-standard method, the RX-V1 cannot detect the DTS or Dolby Digital signal. In this case, the decoder automatically switches to PCM or analog.

• Some audio/video equipment, such as LD players, output different audio signals through their analog and digital jacks. Change the input mode as necessary.

English

Basic Playback

Selecting a Sound Field Program

You can enhance your listening experience by selecting a DSP sound field program. The 24 DSP sound field programs are divided into 12 DSP program groups. For details about each program, see pages 71~76.

Set 10KEY/DSP to DSP.

Press one of the DSP program group buttons (or PROGRAM

or% on the main unit) repeatedly until the DSP program you want

10KEY/DSP

6.1/ES

If you want to utilize the Rear Center speaker with a 5.1 channel program source, press 6.1/ES. However, note that to achieve the proper effect with the rear center channel, Dolby Digital

Basic Opera tion

Surround EX or DTS ES software should be used.

appears in the front panel display.

• For example, to select “Live Concert,” press HALL 2 repeatedly. You can

also select sound field programs within the current group by setting PARAMETER/SET MENU to the PARAMETER position and pressing the cursor + or – button.

Notes:

• If a DTS or Dolby Digital signal is input when the input mode is set to “AUTO”, the sound field program automatically switches to the appropriate decoding program.

• Choose a sound field program based on your listening preference, not on the name of the program. The acoustics of your listening room affect the sound field program. Minimize the sound reflections in your room to maximize the effect created by the program.

• When you select an input source, the main unit automatically selects the last sound field program used with that source.

• When you turn off the main unit, the current source and sound field program are memorized and are automatically selected when you turn on the power again.

• When high rate 96kHz sampling 24 bit digital signals are output from source equipment, the DSP sound field cannot operate on the source sounds. In this case, the sounds are reproduced as normal 2-channel stereo.

Hi-Fi DSP Programs

Europe Hall A Europe Hall B Europe Hall C

U.S.A. Hall D

Europe Hall E

Live Concert

Church

Tokyo

Freiburg

Royaumont

Jazz Club

Village Gate Village Vanguard The Bottom Line

Rock Concert

Roxy Theatre

Warehouse Loft

Arena

Entertainment

Disco

Party

Game/Amusement

CINEMA-DSP Programs

Concert Video 1

Pop/Rock

Concert Video 2

Classical/Opera

Pavilion

TV Theater

Mono Movie

Variety/Sports

Movie Theater 1

Spectacle

Sci-Fi

Movie Theater 2

Adventure

General

/DTS SURROUND

Normal/Matrix 6.1/ES

Enhanced/6.1/ES

■ Virtual CINEMA DSP and HP CINEMA DSP

You can experience the virtual CINEMA DSP sound field by setting the 1C. REAR L/R SP item in the SET MENU to “NONE.” The sound field processing is changed to the Virtual CINEMA DSP mode according to the selected sound field program. Virtual CINEMA DSP is performed using the Main speakers. You can also listen to HP (Headphone) CINEMA DSP by connecting your headphones to the PHONES jack while the DSP sound fields are on.

■ Normal Stereo Reproduction

For normal stereo reproduction, press EFFECT to turn off the effect.

Notes:

• When you turn off the effect, no sound is reproduced from the Front Effect, Center, Rear, and Rear Center speakers.

• If you turn off the effect while DTS or Dolby Digital signals are being reproduced, the dynamic range of the signal is automatically compressed.

• The sound volume may be extremely reduced when you turn off the effect or if you change SET MENU item 3B. D-RANGE to MIN. In this case turn on the effect.

AM/FM Tuner

Automatic tuning is effective when the radio signals are strong and have no interference. However, manual tuning is best for weaker signals that have some interference.

Manual Tuning

Select “TUNER” as the input source.

FM/AM

TUNING MODE

AUTO/MAN’L MONO

PRESET/TUNING

You can use INPUT SELECTOR on the main unit or the input button on the remote control.

Press AM/FM to select the reception band.

“FM” or “AM” appears in the display.

Press TUNING MODE (AUTO/MAN’L MONO) so that the

“AUTO TUNING” indicator goes off in the display.

If the colon (:) appears in the display next to the AM or FM indicator, press PRESET/TUNING (EDIT) to turn it off.

Turn this indicator off.

DVD MD

D-TV

CBL/SAT

TAPE VCR 1 VCR 2 VCR 3 V-AUX

TUNER CD PHONO

SLEEP

D S P

S P EA K E R S A

Press PRESET/TUNING % or % to tune to the desired station

STEREO AUTO

TUNING

MEMORY

manually.

Hold down the button to continue the tuning search.

English

Automatic Tuning

FM/AM

TUNING MODE

AUTO/MAN’L MONO

PRESET/TUNING

AUTO

Note:

• Manually selecting an FM station will automatically change the reception to monaural to increase the signal quality.

Select “TUNER” as the input source.

You can use INPUT SELECTOR on the main unit or the input button on the remote control.

Press AM/FM to select the reception band.

“FM” or “AM” appears in the display.

Press TUNING MODE (AUTO/MAN’L MONO) so that the

“AUTO TUNING” indicator appears in the display.

If the colon (:) appears in the display next to the AM or FM indicator, press PRESET/TUNING (EDIT) to turn it off.

Turn this indicator off.

DVD

D-TV

CBL/SAT

TAPE VCR 1 VCR 2 VCR 3 V-AUX

TUNER

PHONO

SLEEP

D S P

S P EA K E R S A

Press PRESET/TUNING % or % once to begin auto tuning.

STEREO

AUTO TUNING

MEMORY

Press frequency. Press the same button again if the tuning search stops short of the correct station.

Use manual tuning if the tuning search does not stop at the correct station because the signals are weak.

to tune to a higher frequency, or press % to tune to a lower

Presetting Stations

MEMORY

MAN’L/AUTO FM

MEMORY

AM/FM Tuner

■ Manually presetting stations

This unit can store up to 40 stations (8 stations x 5 groups). Using this feature, you can easily tune to any preset station by selecting the preset station number (see page 38).

Tune to a station.

See the previous page for tuning instructions.

Press MEMORY (MAN’L/AUTO FM).

The MEMORY indicator flashes for about five seconds.

A/B/C/D/E

S P EA K E R S A

PRESET/TUNING

Basic Opera tion

MEMORY

MAN’L/AUTO FM

S P EA K E R S A

Shows the displayed station has been programmed to A-1.

STEREO

MEMORY

CBL/SAT

VCR 1 VCR 2 VCR 3 V-AUX

Press A/B/C/D/E repeatedly to select a preset station group (A to E).

The group letter appears on the display.

Note:

• You must select a preset station group before the MEMORY indicator stops flashing (about five seconds).

Press PRESET/TUNING % or % to select a preset station number

(1 to 8).

Press Press

Note:

• You must select a preset station group before the MEMORY indicator goes off

Press MEMORY (MAN’L/AUTO FM).

The station band and frequency appear in the display with the preset group and number you selected.

DVD

D-TV

TAPE TUNER CD PHONO

SLEEP

to select a higher preset station number.

to select a lower preset station number.

(about five seconds).

Repeat steps 1 through 5 to store other stations.

You can store up to 40 stations (A1~A8, B1~B8, C1~C8, D1~D8, and E1~E8).

Notes:

• The memory back-up circuit prevents the stored data from being lost even if this unit is set to standby mode, the power cord is disconnected from the AC outlet, or power service is temporarily cut due to power failure. However, if the power is cut for more than one week, the memory may be deleted.

• Any stored station data existing at a preset number is cleared when you store a new station at that preset number.

• The reception mode (stereo or monaural) is stored along with the station frequency.

AM/FM Tuner

S P EA K E R S A

MEMORY

MAN’L/AUTO FM

■ Automatically presetting stations

You can use the automatic preset tuning feature to store FM stations. With this function, the unit automatically tunes to FM stations with strong signals, then stores up to 40 of those stations in order.

Tune to the FM station from which you want automatic presetting to

begin.

See page 35 for tuning instructions.

Press and hold MEMORY for more than 3 seconds.

The preset number and MEMORY and AUTO TUNING indicators flash. Then, after about five seconds, automatic preset tuning begins.

DVD MD

D-TV

CBL/SAT

TAPE VCR 1 VCR 2 VCR 3 V-AUX

TUNER

PHONO

SLEEP

STEREO AUTO

TUNING MEMORY

Automatic Preset Tuning Options

Before Automatic Preset Tuning begins (within about five seconds), you can set the preset number from which the unit will store FM stations and the direction in which the unit will scan for stations.

• Press A/B/C/D/E and PRESET/TUNING

number where the first station will be stored. The unit will stop storing stations if it reaches preset number E8.

• Turn off PRESET/TUNING (EDIT) (“ : ” is off) and press PRESET/

TUNING

to scan for higher frequency stations. If you do not press either button

to scan for lower frequency stations or PRESET/TUNING

before Automatic Preset Tuning begins, the unit will scan for higher frequency stations.

/% to select the preset

English

When Automatic Preset Tuning is complete, the display shows the frequency of the last preset station.

Notes:

• You can replace a preset station with another FM or AM station manually by simply following the procedure of the section “Manually presetting stations” on page 36.

• If the number of received stations does not reach to E8, the search finishes automatically after searching all frequencies.

• With this function, only FM stations with sufficient signal strength are stored automatically. If the station you want to program is weak in signal strength, tune to it in monaural mode manually, then program it by following the procedure in “Manually presetting stations” on page 36.

Tuning to Preset Stations

AM/FM Tuner

A/B/C/D/E

PRESET/TUNING

EDIT

S P EA K E R S A

Press A/B/C/D/E to select the preset station group.

The preset group letter appears in the display and changes each time you press A/B/C/D/E.

Press PRESET/TUNING (EDIT) so that the colon (:) appears next

to the AM or FM indicator.

“:” must appear in the display to recall preset stations. If necessary, press PRESET/TUNING (EDIT) again.

PRESET/TUNING

Press PRESET/TUNING % or % to select a preset station number

(1 to 8).

The preset group and number appear in the display along with the station band, frequency, and signal strength information.

DVD MD

D-TV

CBL/SAT

TAPE

VCR 1

S PE A K ER S A

STEREO AUTO

TUNING

VCR 2 VCR 3 V-AUX

TUNER CD PHONO

SLEEP

Exchanging Preset Stations

You can exchange the stations stored on two preset numbers. The example below describes the procedure for exchanging the stored stations at preset numbers E1 and A5.

Basic Opera tion

PRESET/TUNING

EDIT

S P EA K E R S A

Tune to the E1 preset station number.

See above for “Tuning to Preset Stations.”

Press and hold PRESET/TUNING (EDIT) for more than 3 seconds.

“E-1” flashes in the display.

S PE A K ER S A

PRESET/TUNING

EDIT

S PE A K ER S A

Shows the exchange of stations is completed.

STEREO AUTO

TUNING

CBL/SAT

VCR 1 VCR 2 VCR 3

V-AUX

Tune to the A5 preset station number.

See above for “Tuning to Preset Stations.” A-5 flashes in the display.

Press PRESET/TUNING (EDIT) again.

The stations stored at the two preset locations are exchanged.

DVD

D-TV

TAPE TUNER CD PHONO

SLEEP

Basic Recording

REC OUT/ZONE 2 allows you to record one source while viewing and/or listening to another source.

Preparations

Turn on the power to the RX-V1 and all connected equipment.

STANDBY/ON

REC OUT/ZONE 2

SOURCE/REMOTE

D-TV

CBL/SAT TAPE

VCR 1

VCR 2 CD

VIDEO AUX

DVD

PHONOVCR 3

TUNER

Select the source equipment you want to record using REC OUT/

ZONE 2.

• To record the current source, set REC OUT/ZONE 2 to SOURCE/

REMOTE.

• To record a source that you do not want to reproduce, set REC OUT/

ZONE 2 to the source you want to record.

Start playback (or select a broadcast station) on the source

equipment.

Start recording on the recording equipment.

• If you want to listen to another source, and REC OUT/ZONE 2 is not set

to SOURCE/REMOTE, select the source you want to reproduce with

INPUT SELECTOR and adjust the volume.

Notes:

• Do a test recording before you start an actual recording.

• When this unit’s power is off, you cannot record between other equipment

connected to this unit.

• Operating BASS and TREBLE, BASS EXTENSION, BALANCE, VOLUME,

and DSP programs do not affect the recorded signal.

Caution:

• The RF (AC-3) input signal cannot be output using REC OUT/ZONE 2.

English

■ Special considerations when recording DTS software

The DTS signal is a digital bitstream. Attempting to digitally record the DTS bitstream will result in noise being recorded. Therefore, if you want to use this unit to record sources that have DTS signals recorded on them, the following considerations need to be made.

For DTS encoded LDs, DVDs, and CDs:

Only 2-channel analog audio signals may be recorded as follows:

Laser Discs:

Set your Laser Disc player’s left and right outputs to the analog soundtrack.

DVDs:

Use the disc menu to set the DVD player’s mixed 2-channel left and right audio outputs to the PCM or Dolby Digital soundtrack.

Compact Discs:

The DTS signal recorded on CDs can only be output as a digital bitstream, and therefore cannot be recorded.

Advanced Operation

SET MENU Items 41

Operating the SET MENU ................................................................................ 42

1. SPEAKER SET (1A. CENTER SP to 1G. MAIN LEVEL) ......................... 43

2. LOW FREQ. TEST....................................................................................... 46

3. DOLBY D. SET (Dolby Digital Set) ............................................................ 47

4. DTS SET ....................................................................................................... 48

5. SP DELAY TIME ......................................................................................... 48

6. AUDIO DELAY ........................................................................................... 48

7. CENTER GEQ (Center Graphic Equalizer) .................................................49

8. REAR CT GEQ (Rear Center Graphic Equalizer) ....................................... 49

9. CINEMA EQ ................................................................................................ 50

10. HP TONE CTRL (Headphone Tone Control) ............................................ 51

11. PARAMETER INI (Parameter Initialization) ............................................ 51

12. 6.1/ES AUTO.............................................................................................. 51

13. MEMORY GUARD ................................................................................... 52

14. CMPNT-V INPT (Component Video Input) .............................................. 52

15. INPUT MODE ............................................................................................ 52

16. INPUT RENAME ....................................................................................... 53

17. DIMMER .................................................................................................... 53

18. ZONE 2 SET ............................................................................................... 53

Remote Control Features 54

Using the Remote Control ................................................................................ 54

Advanced

Operation

Each Component Control Area ......................................................................... 56

Operating a Tuner (TUNER Area) ................................................................... 56

Operating a Tape Deck (TAPE Area) ............................................................... 56

Operating a CD Player (CD Area) .................................................................... 57

Operating an MD Recorder (MD Area) ............................................................ 57

Operating an LD Player (LD Area) .................................................................. 58

Operating a DVD Player (DVD Area) .............................................................. 58

Operating a VCR (VCR1/VCR2/VCR3 Area) .................................................59

Operating a TV or Digital TV (D-TV Area)..................................................... 59

Operating a Cable or Satellite TV Tuner (CBSAT Area) ................................. 60

Free area (OPTN and PHONO Areas) .............................................................. 60

Seting the Manufacturer Code in the Remote Control...................................... 61

Programming a New Remote Control Function ............................................... 62

Using the Macro Feature................................................................................... 63

Changing the Source Name in the Display Window ........................................ 65

Clearing a Learned Function or Macro ............................................................. 65

Clearing Learned Functions, Macros, Renamed Displays, and Manufacturer

Setups ................................................................................................................ 66

Adjusting the Levels of the Effect Speakers 67 Setting the Sleep Timer 67 ZONE 2 68

Connections....................................................................................................... 68

Remote Control in ZONE 2 .............................................................................. 69

SET MENU Items

The SET MENU consists of eighteen items including the Speaker Set, Center Graphic Equalizer and Parameter Initialization features. Choose the appropriate item and adjust or select the values as necessary.

Notes:

• You can adjust the items in the SET MENU while reproducing a source.

• We recommend that you adjust the items in the SET MENU while using a video monitor. It is easier to see the video monitor screen than it is to see the front panel display on this unit while adjusting SET MENU items.

Items

1. SPEAKER SET

1A. CENTER SP 1B. MAIN SP 1C. REAR L/R SP 1D. REAR CT SP 1E. LFE/BASS OUT 1F. FRNT EFCT SP 1G. MAIN LEVEL

2. LOW FREQ. TEST

3. DOLBY D. SET

3A. LFE LEVEL 3B. D-RANGE

4. DTS SET

4A. LFE LEVEL

Descriptions

Selects the output mode suitable for your Center speaker. Selects the output mode suitable for your Main speakers. Selects the output mode suitable for your Rear speakers. Selects the output mode suitable for your Rear Center speaker. Selects the speakers for your LFE/BASS signal output. Selects the output mode for your Front Effect speakers. Selects the output level for your main channels.

Matches the Subwoofer level with the level of the other speakers.

Adjusts the output level of the LFE channel for Dolby Digital signals. Adjusts the dynamic range for Dolby Digital signals.

Adjusts the output level of the LFE channel for DTS signals.

Setting (Bold as default)

LRG / SML / NONE LARGE / SMALL LRG / SML / NONE LRG / SML / NONE SW / MAIN / BOTH YES / NONE Normal / –10 dB

TEST TONE: OFF / ON OUTPUT: MAIN L/R, MAIN L, CENTER, MAIN R, R SUR.(REAR R), REAR CT, L SUR.(REAR L), SUBWOOFER, FRONT FREQ.: 35 Hz-250 Hz

SPEAKER: –20 dB to 0 dB HEADPHONE: –20 dB to 0 dB SP(SPEAKER): MAX / STD / MIN HP(HEADPHONE): MAX / STD / MIN

SPEAKER: –10 dB to +10 dB (0 dB) HEADPHONE: –10 dB to +10 dB (0 dB)

English

Page

43 43 43 44 44 45 45

5. SP DELAY TIME

6. AUDIO DELAY

7. CENTER GEQ

8. REAR CT GEQ

9. CINEMA EQ

9A. L, C, R EQ

9B. FRNT EFCT EQ

9C. REAR L/R EQ

9D. REAR CT EQ

10. HP TONE CTRL

11. PARAMETER INI

12. 6.1/ES AUTO

13. MEMORY GUARD

14. CMPNT-V INPT

Adjusts the delay time for Center and Rear Center speakers.

Adjusts the delay time for all channels.

Matches the Center speaker tonal quality with the Main speakers.

Controls the tonal quality of the Rear Center speaker.

Adjusts the tonal balance of the Main and Center speakers, Front Effect speakers, Rear speakers and Rear Center speaker separately.

Adjusts the tonal balance of the headphones.

Initializes the parameters of a group of DSP programs.

Selects the AUTO mode of Dolby Digital Matrix 6.1 and DTS ES decoding.

Locks DSP program parameters and other SET MENU settings.

Selects the equipment to be connected to the component video inputs A, B or C.

CENTER: 0 ms to 5 ms REAR CNTR: 0 ms to 30 ms (3 ms)

0 ms to 99 ms

5-band: –6 dB to +6 dB (0 dB)

LCR, FRNT EFCT, REAR L/R, REAR CT: OFF / ON

HIGHFRQ: 1 kHz to 12.7 kHz GAIN: –9 dB to +6 dB (–3 dB or 0 dB)

PEQFRQ: 1 kHz to 12.7 kHz (8 kHz or 12.7 kHz) GAIN: –9 dB to +6 dB (–3 dB or –4 dB)

BASS, TRBL: –6 dB to +3 dB (0 dB)

1 to 12

ON / OFF

OFF / ON

A: DVD B: D-TV C: CBL/SAT

15. INPUT MODE

16. INPUT RENAME

17. DIMMER

18. ZONE 2 SET

Selects the initial input mode of the sources connected to D-TV, CBL/SAT and VCR 1.

Changes the name of the inputs.

Adjusts the brightness of the front panel display.

Selects the mode of Zone 2.

D-TV: AUTO / LAST CBL/SAT: AUTO / LAST VCR1: AUTO / LAST

Up to eight characters.

–4 to 0

CTRL IN : MODE 1 / MODE 2 ZONE 2 OUT: FIX(fixed) / VAR.(variable)

SET MENU Items

Operating the SET MENU

This section describes how to adjust items in the SET MENU using the remote control.

ON SCREEN

LEVEL

SLEEP TEST

■ General procedure for adjusting items

Some items require extra steps to change to the desired setting.

Set PARAMETER/SET MENU to SET MENU.

PARAMETER

SET MENU

Press % or % repeatedly to select an item, then press + or – to change the setting of that item.

• The last item you adjusted appears on the front panel display (or in the SET MENU OSD if you are using a video monitor).

OSD (On Screen Display)

PARAMETER

SET MENU

PARAMETER / SET MENU

Cursor buttons

Front Panel Display

–

• If “Press + / – Key!” appears on the display, press + or – to select that item, then press % or % to select a sub item, then press +

Advanced

Operation

or – to change the setting of that item.

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

6.1/ES

CHP/INDEX

CONCERT

THEATER

–

Press % or % repeatedly or a DSP program button to exit the SET MENU.

–

CONCERT

VIDEO 1

MOVIE

THEATER 2

CONCERT

VIDEO 2

/DTS

SUR.

–

1234

ENTER-

TAINMENT

5678

MOVIE

THEATER 1

9101112

0 +10 +100

SET MENU Items

1. SPEAKER SET (1A. CENTER SP to 1G. MAIN LEVEL)

Use this feature to select suitable output modes for your speaker configuration. You must set the output mode when you use a subwoofer.

■ 1A. CENTER SP (Center Speaker Mode)

By adding a Center speaker to your speaker configuration, the RX-V1 can provide good dialogue localization for many listeners and superior synchronization of sound and images. The OSD shows a large, small or no center speaker depending on how you set this item. The initial setting is “LRG”.

Select the “LRG” (Large) setting if you have a large Center speaker. The entire range of Center channel signals is sent to the Center speaker.

Select the “SML” (Small) setting if you have a small Center speaker. Center channel low frequency signals of 90 Hz and below are directed to the speakers selected with the 1E. LFE/BASS OUT item (see page 44).

Select the “NONE” setting if you do not have a Center speaker. All of the Center channel signals are directed to the left and right Main speakers. The “NONE” position provides good dialogue localization for the person sitting in the main listening position.

NoneSmallLarge

■ 1B. MAIN SP (Main Speaker Mode)

English

The display shows small or large Main speakers depending on how you set this item. The initial setting is “LARGE”.

Select the “LARGE” setting if you have large Main speakers. The entire range of left and right Main channel signals is directed to the left and right Main speakers.

Select the “SMALL” setting if you have small Main speakers. The Main channel low frequency signals of 90 Hz and below are directed to the speakers selected with the 1E. LFE/BASS OUT item (see page 44).

Large

Note:

• When you select the “MAIN” setting for the 1E. LFE/BASS OUT item, the Main channel low frequency signals of 90 Hz and below are directed to the Main speakers even if you select the “SMALL” setting for the Main speaker mode. In this case, the OSD shows large Main speakers.

Small

■ 1C. REAR L/R SP (Rear Speaker Mode)

The OSD shows large, small or no Rear speakers depending on how you set this item. The initial setting is “LRG”.

Select the “LRG” setting if you have large left and right Rear speakers or if you use a Rear Subwoofer (see page 22). The entire range of Rear channel signals is sent to the left and right Rear speakers.

Select the “SML” setting if you have small left and right Rear speakers. Rear channel low frequency signals of 90 Hz and below are directed to the speakers selected with the 1E. LFE/BASS OUT item (see page 44).

Select the “NONE” setting if you do not have Rear speakers.

• In this case, Rear Center speaker will automatically be set to “NONE” and the 1D. REAR CT SP item will be skipped.

Large Small None

SET MENU Items

■ 1D. REAR CT SP (Rear Center Speaker Mode)

By adding a Rear Center speaker to your speaker configuration, the RX-V1 can provide more realistic front-to-back and back-to-front transitions. The initial setting is “LRG”.

Select the “LRG” setting if you have a large Rear Center speaker. The entire range of Rear Center channel signals is sent to the Rear Center speakers.

Select the “SML” (small) setting if you have a small Rear Center speaker. Rear Center channel low frequency signals of 90 Hz and below are distributed to speakers selected with the 1E. LFE/BASS OUT item.

Select the “NONE” setting if you do not have a Rear Center speaker.

Large

■ 1E. LFE/BASS OUT (Bass Out Mode)

LFE signals carry low frequency effects when this unit decodes DTS or Dolby Digital signals. Low frequency signals are defined as 90 Hz and below. The initial setting is “BOTH”.

Small None

Select the “SW” (Subwoofer) setting if you use a Subwoofer. The LFE signals are directed to the Subwoofer. Select the “MAIN” setting if you do not use a Subwoofer. The LFE signals are directed to the Main speakers. Select the “BOTH” setting if you use a Subwoofer and you want to mix the Main channel low frequency sound signals

with the LFE signals.

Subwoofer Main Both

Note:

Advanced

Operation

• The low frequency signals of 90Hz and below from all Main, Center, Rear and Rear Center channels are directed to the LFE channel when you select the small speaker setting in items 1A, 1B, 1C and 1D.

SET MENU Items

■ 1F. FRNT EFCT SP (Front Effect Speaker Mode)

The RX-V1 uses Front Effect speakers to localize the virtual sound sources of the sound field programs. If you do not use Front Effect speakers, you can direct the Front Effect signals to the Main speakers.

The OSD shows small or no Front Effect speakers depending on how you set this item. The initial setting is “YES”.

Select the “YES” setting if you use Front Effect speakers. Select the “NONE” setting if you do not use Front Effect speakers. The Front Effect signals are mixed with the Main

channels.

YES NONE

■ 1G. MAIN LEVEL

Change this setting if you cannot match the sound volume of the Front, Rear, and Center speakers with the Main speakers because of the unusually high efficiency performance of the Main speakers. The initial setting is “Normal”.

Select the “Normal” setting if you can match the volume of your effect speakers with the volume of your Main speakers using the Dolby Surround Test (page 28).

Select the “–10dB” setting if you cannot match the volume of your effect speakers with the volume of your Main speakers using the Dolby Surround Test (page 28).

English

Normal –10dB

Note:

• When this unit decodes 96 kHz sampling/24 bit digital signals or 6CH INPUT is on, level adjustments in items 1A~1F are not possible.

SET MENU Items

2. LOW FREQ. TEST

Use this feature to adjust the Subwoofer volume so it matches the volume of the other speakers in your configuration. Change the setting using the remote control while sitting in the main listening position.

Press + or – to set the TEST TONE to “ON”, and adjust the volume using VOLUME + so you can hear the tone.

Press % repeatedly to go to OUTPUT and press + or – to select the speaker you want to compare with the Subwoofer.

• If “SUBWOOFER” is selected, test tones above 90 Hz will not be output from the Subwoofer. The test tone will not necessarily be output from the selected speakers. The output mode of the test tone depends on the settings of the 1. SPEAKER SET items in the SET MENU.

Press % repeatedly to go to FREQ. and press + or – to select the frequency you want to use.

Adjust the Subwoofer volume using the controls on the Subwoofer so it matches the volume of the speaker you are comparing it to.

Notes:

• Do not turn up the VOLUME too high.

• If no test tone is heard, turn off the power and make sure all the necessary hookups are correct.

Digital Generator

(Wide Band Noise Produced)

NOISE

FREQ.

Advanced

Operation

Center freq.

Band Pass Filter

35 Hz~250 Hz

■ About the Test Tone

The test tone is produced by the tone generator. The tone generator produces a narrow band noise centered at a specified

frequency by the band pass filter. You can change the center frequency from 35 Hz through 250 Hz in one-sixth

octave steps. You can use the test tone not only for adjusting the subwoofer level, but also for

checking the low frequency characteristics of your listening room. Low frequency sounds are especially affected by the listener’s position, speaker placement, subwoofer polarity and other conditions.

SET MENU Items

3. DOLBY D. SET (Dolby Digital Set)

■ 3A. LFE LEVEL

Use this feature to adjust the output level of the LFE (low frequency effect) channel when playing back Dolby Digital encoded software. This setting is effective only when this unit decodes Dolby Digital signals. The LFE signal carries the low frequency special effect sound which is only added to certain scenes.

You can adjust the levels from 0 dB to –20 dB.

• Adjust the LFE levels according to the capacity of your subwoofer or headphones.

■ 3B. D-RANGE (Dynamic Range)

Use this feature to adjust the dynamic range. This setting is effective only when this unit decodes Dolby Digital signals.

Select the “MAX” setting for feature films. Select the “STD” (Standard) setting for general use. Select the “MIN” setting for listening to sources at extremely low volume levels.

English

Note:

• When D-RANGE is set to “MIN”, sound output may be faint because some Dolby Digital software is not compatible with the minimum level dynamic range.

MAX

Dialogue level

Output Level

Input Level

STD

Dialogue level

1.0

Output Level

0.0

L-LEVEL BST

Input Level

H-LEVEL CUT

0.0

1.0

MIN

Dialogue level

Output Level

Input Level

SET MENU Items

4. DTS SET

■ 4A. LFE LEVEL

Use this feature to adjust the output level of the LFE (low frequency effect) channel when playing back DTS encoded software. This setting is effective only when this unit decodes DTS signals. The LFE signal carries the low frequency special effect sound which is only added to certain scenes.

You can adjust the levels from –10 dB to +10 dB.

• Adjust the LFE level according to the capacity of your subwoofer or headphones.

5. SP DELAY TIME

Use this feature to adjust the delay of the Center and the Rear Center channel sounds. This feature works when this unit decodes DTS or Dolby Digital signals. Ideally, the Center speaker and the Rear Center speaker should be the same distance from the main listening position as the left and right Main speakers. However, in most home situations, the Center speaker or the Rear Center speaker is placed in line with the Main speakers or the Rear speakers. By delaying the sound from the Center speaker and the Rear Center speaker, the apparent distance from the Center speaker and the Rear Center speaker to the main listening position can be adjusted to make it seem the same as the distance between the left and right Main speaker, and the left and right Rear speakers to the listening position. Adjusting the delay time for the Center speaker is especially important for giving depth to the dialogue.

You can adjust the delay time from 0 ms to 5 ms for the Center speaker and from 0 ms to 30 ms for the Rear Center speaker.

• Increasing the delay 1 ms simulates moving the speakers about 30 cm (one foot) farther away from the listening position.

Center speaker image

Advanced

Operation

RC RC

Rear Center speaker image

6. AUDIO DELAY

Use this feature to adjust the delay time of all channel sounds, when this unit decodes DTS or Dolby Digital signals. Adjusting AUDIO DELAY is especially important for matching the sounds to screen pictures. Initial settings is “0ms”.

You can adjust the delay time from 0ms to 99ms.

SET MENU Items

7. CENTER GEQ (Center Graphic Equalizer)

Use this feature to adjust the built-in five band graphic equalizer so the Center speaker tone matches that of the left and right Main speakers. You can select the 100 Hz, 300 Hz, 1 kHz, 3 kHz, or 10 kHz frequencies.

Use % to select a higher frequency and % to select a lower frequency.

Press + or – to adjust the level of that frequency.

Note:

• You can monitor the Center speaker sound while adjusting this item using the Dolby Surround test tone generator. Press TEST before starting the procedure above. “TEST DOLBY SUR.” appears, and the test tone starts alternating among the speakers. Once you begin the procedure above, the test tone remains at the Center speaker and you can hear how the sound changes as you adjust the various frequency levels. To turn off the test tone generator, press TEST repeatedly until the current DSP program appears (see page 28).

8. REAR CT GEQ (Rear Center Graphic Equalizer)

Use this feature to adjust the built-in five band graphic equalizer so the Rear Center speaker tone matches that of the left and right Main speakers.

Use % to select a higher frequency and % to select a lower frequency.

English

Press + or – to adjust the level of that frequency.

SET MENU Items

9. CINEMA EQ

Use this feature to match the tonal quality of four groups of speakers: the Main and Center speaker group, the Front Effect speakers group, the Rear speakers group, and the Rear Center speaker group. CINEMA-EQ consists of a high-shelving equalizer (HIGH) and a parametric equalizer (PEQ). The high-shelving equalizer changes high frequency characteristics, and the parametric equalizer boosts or cuts any selected frequency. The equalizer can be used for a variety of purposes, such as adjusting the tonal quality of differing types of speakers, adjusting the tonal quality in different installation environments, or adjusting the source sound to your liking.

The CINEMA EQ characteristic charts below show the value of the CINEMA EQ factory settings for each speaker group for general listening conditions.

▲ L.C.R. Preset Value

HIGH : FRQ 12.7 kHz GAIN –3 dB PEQ : FRQ 12.7 kHz GAIN –4 dB

▲ FRONT and REAR Preset Value

HIGH : FRQ 12.7 kHz GAIN 0dB PEQ : FRQ 8.0 kHz GAIN –3dB

G A

PEQ HIGH

HIGH PEQ

FRQ

If you want to change the characteristics, follow the procedure below to adjust the frequency and gain for the high-shelving equalizer (HIGH) and parametric equalizer (PEQ). For the more detailed characteristics in different settings, see “CINEMA-EQ Frequency Characteristics” on page 87.

Press % or % repeatedly to select one of the speaker groups and press + to select “ON”.

Press % or % repeatedly to select one of the following parameters, then press + or – to change the setting of that

parameter.

Advanced

Operation

HIGH

PEQ

• Each time you press %, the parameter changes on the front panel display as shown above. Press the cursor % to go in the reverse order.

Notes:

• When the 1F. FRNT EFCT SP item is set to “NONE”, the Front Effect signals are output from the Main speakers.

• CINEMA-EQ does not work when you press EFFECT to turn off the effect.

SET MENU Items

10. HP TONE CTRL (Headphone Tone Control)

Use this feature to adjust the level of bass and treble when you use your headphones. The initial Setting is 0 dB for both bass and treble. This does not effect to the 96 kHz sampling digital signal.

Select BASS or TRBL and press + or – to change each level. You can adjust the level from –6 dB to +3 dB.

11. PARAMETER INI (Parameter Initialization)

Use this feature to initialize the parameters for each DSP program within a DSP program group. When you initialize a DSP program group, all of the parameter values within that group revert to their initial settings.

Press the DSP program group button on the remote control for the DSP program you want to initialize.

• All of the DSP programs within the selected program group are initialized.

Repeat this step to initialize other DSP program groups.

English

Notes:

• The asterisk (*) mark next to a DSP program group number indicates that you have changed the parameter values in one or more DSP programs within that group.

• The parameter values of the DSP programs do not change if you initialize a program group that does not have the asterisk (*) mark.

• When the MEMORY GUARD function is set to “ON” (see page 52), you cannot initialize any program groups.

• You cannot initialize the individual DSP programs within a group separately.

Caution:

• Once you initialize a DSP program group, you cannot have this unit revert the parameter values back to the previous settings automatically.

12. 6.1/ES AUTO

Use this feature to switch the DOLBY Digital Matrix 6.1 and DTS ES AUTO mode on or off.

Select “ON” to allow the main unit to automatically turn on the Dolby Digital Matrix 6.1 or DTS ES decoder when the software with identification signal is detected.

Select “OFF” if you want to control the mode manually by pressing 6.1/ES on the remote.

SET MENU Items

13. MEMORY GUARD

Use this feature to prevent accidental changes to DSP program parameter values and other settings on this unit.

Select “ON” to use MEMORY GUARD to protect the following features:

• DSP program parameters

• All SET MENU items

• Front, Rear Center speaker and Subwoofer levels

• The On-Screen Display mode

Notes:

• When MEMORY GUARD is “ON”, you cannot use any of the test modes.

• When MEMORY GUARD is “ON”, you cannot select any other SET MENU item.

14. CMPNT-V INPUT (Component Video Input)

Use this feature to designate the input for each COMPONENT VIDEO terminal, A, B, and C. The initial settings are as written on the rear panel. (Terminal A is for DVD, terminal B is for D-TV, and terminal C is for CBL/SAT.)

Select [A], [B], or [C] according to which terminal your equipment is connected to by pressing % or %.

Select the video input for your equipment by pressing + or –.

• You cannot select the same input once you have already selected it.

Advanced

Operation

15. INPUT MODE

Use this feature to designate the input mode for sources connected to D-TV, CBL/SAT and VCR 1 input jacks when you turn on this unit.

Select “AUTO” to allow this unit to automatically detect the type of input signal and select the appropriate input mode. Select “LAST” to set this unit to automatically select the last input mode used for that source.

SET MENU Items

16. INPUT RENAME

Use this feature to change the name of the input which appears on the OSD or the front panel display.

Select the input you want to change the name of by pressing an input button (or using INPUT SELECTOR).

Press + or – to place the ^ under the space or the character you want to edit.

Press % or % to select the character you want to use and + or – to move to the next one.

• Press A~Z, a space, 0~9, a space, a~z, a space, #,

• Follow the procedure above to rename other inputs.

Press + or – repeatedly to exit the INPUT RENAME mode.

to change the character in the following order, or press % to go in the reverse order.

, +, and so on.

17. DIMMER

You can adjust the brightness of the front panel display from –4 to 0.

English

18. ZONE 2 SET

Select ZONE2 OUT to change the setting of the ZONE 2 output volume.

Selecting “VAR.” allows you to control the volume output to ZONE 2 with the remote control. Select “FIX” when you don’t want to change the volume of output to ZONE 2 with the remote control.

Use CTRL IN to change the setting of the REMOTE 1 IN and REMOTE 2 IN jacks.

Selecting “MODE 1” allows you to control this unit using the tuner preset buttons on the remote control. Selecting “MODE 2” disables control of this unit using the tuner preset buttons on the remote control.

Remote Control Features

The remote control can operate the main unit as well as other Yamaha audio and video components. To control the components of other manufacturers (or some Yamaha), you must set up the remote control with the manufacturer’s codes. This remote control also has a sophisticated Learn feature that allows it to acquire functions from the remote controls of other components in your system (or other household appliances) equipped with infrared remote control receivers. The Macro feature allows you to program a series of operations in sequence onto a single button, or use the factory preset macros to operate other Yamaha components. These features make it possible for you to reduce the number of remote control units in your entertainment room.

Notes:

• For operating distance of the remote contorol and notes about batteries, refer to page 5.

• For the name and function of each part and button, refer to pages 8 and 9.

• If the memory in the remote control becomes full, no further learning is possible even if there are still some programmable buttons available.

Using the Remote Control

The main unit control area is the shaded area shown below. It is for controlling the RX-V1. You can use functions within this area no matter which Component Control Area is selected.

Advanced

Operation

Input selector

10KEY/DSP (DSP is selected)

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

6.1/ES

CHP/INDEX

TV VOL

ON SCREEN

SEARCH CHAPTER

1234

ROCK

CONCERT

5678

THEATER

9101112

A / B / C / D / E PRESET

++ +

TV INPUT

TV MUTE

–– –

LEVEL

SLEEP TEST

MACROLEARN

V-AUX TAPE PHONO

TITLE

ENTER

ENTER-

CONCERT

TAINMENT

VIDEO 1

MOVIE

THEATER 2

THEATER 1

0 +10 +100

MUTE

EFFECT

DISC

MACRO

OFF ON

6CH INPUT

SOUND

CONCERT

VIDEO 2

VOLUME

PARAMETER

SET MENU

+–

The component control area is the shaded area shown below. Each component has different functions for operation buttons in the component control area. The component, which was chosen by pressing an input button, can be controlled and the display window shows the corresponding name of the input.

MACRO

MACROLEARN

OFF ON

6CH INPUT

ENTER

TITLE

SOUND

ENTER

+–

DISPLAY

SEARCH CHAPTER

CONCERT

VIDEO 2

VIDEO 1

1234

MOVIE

ROCK

ENTER-

THEATER 2

CONCERT

TAINMENT

5678

MOVIE

THEATER

THEATER 1

9101112

0 +10 +100

MUTE

VOLUME

EFFECT

DISC

CONCERT

VIDEO 1

MOVIE

THEATER 2

CONCERT

Input selector and switching the control area for each component

10KEY/DSP (10KEY is selected)

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

TITLE

SOURCE

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

CONCERT

EX/ES

THEATER

CHP/INDEX

A / B / C / D / E PRESET

++ +

TV INPUT

TV-VOL

TV MUTE

–– –

DISPLAY

SEARCH CHAPTER

POWER REC STOP PAUSE PLAY

1234

ROCK

ENTER-

TAINMENT

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

5678

MOVIE

THEATER 1

9101112

0 +10 +100

6.1/ES

CHP/INDEX

A / B / C / D / E PRESET

TV INPUT

TV VOL

DISC

TV MUTE

––

SOUND

+–

VIDEO 2

There are 14 component control areas. You can setup the manufacturer code and program other remote control functions in each area (Cannot setup the manufacturer code in the OPTN area). See pages 61 and 62.

Remote Control Features

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

POWER REC STOP PAUSE PLAY

+–

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

POWER REC STOP PAUSE PLAY

+–

■ SOURCE SELECT

You can control another component independently from the input you selected by pressing an input button.

Press SELECT % or % to choose a component and set the remote control to be used for it.

The display window will show one of the following: V-AUX, TAPE, PHONO, D-TV (digital and regular TV),

CBSAT (Cable TV/Satellite TV), TUNER, MD, CD, VCR 1, VCR 2, VCR 3, LD, DVD, Zone2, OPTN (Option).

SOURCE

SELECT

■ About Zone2

When you make up a second audio-video room with this unit’s Zone2 system, you might want to use this remote control. Selecting

Zone2 sets the remote control to be in the Zone2 mode. See page 69 for details.

English

Pressing % selects Zone2 first.

■ About OPTN

OPTN is an extra component control area to be programmed with other remote control functions. (You cannot setup the manufacturer

code in this area.) See page 60 for the programmable area.

Pressing ﬁ selects OPTN first.

■ Light up function

The buttons which are active and the display window light up for 10 seconds after pressing LIGHT.

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

TITLE

SOURCE

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

DISPLAY

SEARCH CHAPTER

1234

MACROLEARN

ENTER

MACRO

OFF ON

6CH INPUT

SOUND

+–

Remote Control Features

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT

TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

Each Component Control Area

The general operational buttons are shown for each area. Some of them may not function depending on the equipment you have.

■ Operating a Tuner (TUNER Area)

POWER

Preset number 1 to 8

Preset group A Preset group B

■ Operating a Tape Deck (TAPE Area)

Advanced

Operation

Fast forward

REC / PAUSE

Rewind

Preset group E Preset group D

Preset group C PRESET + / –

Preset group A/B/C/D/E

Deck A / Deck B

Direction A / B PLAY

STOP

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

Remote Control Features

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER

MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

■ Operating a CD Player (CD Area)

DISPLAY

English

POWER

STOP

INDEX

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

■ Operating an MD Recorder (MD Area)

Skip Search PLAY

PAUSE (YAMAHA : Pause / Stop)

Numeric buttons 1 to 9

CLEAR

Numeric button +10 Numeric button 0

DISC +/– (Disc Skip)

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

DISPLAY

REC / PUASE

POWER

Skip Search PLAY

PAUSE STOP

Numeric buttons 1 to 9

Numeric button +10 Numeric button 0

Remote Control Features

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3

LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD

DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

■ Operating an LD Player (LD Area)

DISPLAY

POWER

STOP

Chapter / Time

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

■ Operating a DVD Player (DVD Area)

Advanced

Operation

SOUND

CHAPTER +/– (Chapter Search) PLAY

PAUSE

Numeric buttons 1 to 9

CLEAR

Numeric button +10 Numeric button 0

DISPLAY

Title / Index

TITLE

POWER

Return

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

Menu cursor / ENTER

SOUND

Skip Search PLAY

PAUSE STOP

Numeric buttons 1 to 9

CLEAR

Numeric button +10 Numeric button 0

Disc Skip

Remote Control Features

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

■ Operating a VCR (VCR 1 / VCR 2 / VCR 3 Area)

Rewind /

Fast Forward

POWER

REC

(Press twice)

TV / VIDEO

PLAY PAUSE

STOP

Numeric buttons 1 to 9

English

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

■ Operating a TV or Digital TV (D-TV Area)

DISPLAY

POWER

Enter

TV INPUT

TV VOL +/–

TV MUTE

Numeric button 10 or 0

CH +/–

You can control your VCR, if you have set up the code for VCR1.

Numeric buttons 1 to 9

Numeric button 10 or 0

CH +/–

Remote Control Features

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV

CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

■ Operating a Cable or Satellite TV Tuner (CBSAT Area)

DISPLAY

Menu cursor / ENTER

POWER

Enter

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

■ Free Area (OPTN and PHONO Areas)

Advanced

Operation

You can control your VCR, if you have set up the code for VCR1.

Numeric buttons 1 to 9

Recall Numeric button 0

CH +/–

TV VOL +/–, TV INPUT, and TV MUTE function if you

have set up the manufacturer code for the D-TV Area.

Remote Control Features

Setting the Manufacturer Code in the Remote Control

You can control other components by setting a manufacturer code. A code can be set up in each component controol area except for the OPTN area. The Yamaha code is factory preset for DVD, LD, CD, MD, TUNER, and TAPE (Yamaha for LD, and Yamaha1 for others). There is no factory preset code on VCR1/2/3, D-TV, CBSAT, V-AUX, and PHONO.

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

LEARN

6CH INPUT

TITLE

ENTER

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

SEARCH CHAPTER

SOUND

flashes alternately

+–

Select the source component you want to preset by using

the input buttons.

Press and hold LEARN for about three seconds using a

ballpoint pen or similar object.

Use %/% to select the name of your component’s

manufacturer.

• You will find the names of most audio-video manufacturers worldwide in alphabetical order on the display window.

Press POWER (or any other button) on the remote control

while pointing it at the component to check if you have set up the code correctly. If the component cannot be controlled by the remote control, try entering another code for the same manufacturer.

English

Press LEARN to confirm the preset.

• If you want to preset another code for another component immediately, press ENTER and repeat steps 1 to 4.

Note:

• If you have already programmed a remote control function to a button, the function takes priority over the set up manufacturer code’s function.

■ Controlling a different component from the source component (input) you selected

6CH INPUT

TITLE

ENTER

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

Note:

SEARCH CHAPTER

SOUND

+–

• “ERROR” appears in the display window in the following conditions: when pressing a button other than the cursor and ENTER; when pressing more than one button at once; and when one of MACRO ON/OFF, 10KEY/DSP, PARAMETER/SET MENU is switched to another position.

Repeat steps 1 and 2 of the procedure in “Setting the

Manufacturer Code in the Remote Control”.

Select a Library (component category) by using %/%.

• There are 12 Libraries to set up a manufacturer code; L:TV, L:CAB (CABLE), L:DBS, L:SAT, L:VCR, L:DVD, L:LD, L:CD, L:MD, L:TAP (TAPE), L:TUN (TUNER), *L:AMP.

*L:AMP has three codes; YPC, DSP, and NO. “YPC” should be selected to operate the RX-V1. “DSP” is for operating Yamaha DSP amplifiers other than the RX-V1. “NO” is to clear the main unit control area functions.

Repeat steps 3 and 4 of the procedure in “Setting the

Manufacturer Code in the Remote Control ”.

Remote Control Features

Programming a New Remote Control Function

If you desire to program functions not included in the basic operations covered by the manufacturer code, or a manufacturer code is not available, the following procedure needs to be performed. The possible programming area is the same as a component control area, so buttons are programmable independently for each source component area. It is also possible to program in the main unit control area. (Refer to page 54 for details on component control area and main unit control area.)

Place this remote control and the other remote control

POWER

SYSTEM

TRANSMIT RE-NAME CLEAR

VCR 1 VCR 2 VCR 3 LD DVD

D-TV CBL/SAT TUNER MD CD

STANDBY

V-AUX TAPE PHONO

TITLE

6CH INPUT

MACROLEARN

OFF ON

MACRO

5~10 cm (2 to 4 in.)

about 5 to 10 cm (2 to 4 in.) apart on a flat surface so that their infrared transmitters are aimed at each other.

Select a source component.

LEARN

Press LEARN using a ball point pen or similar object.

flashes alternately

POWER

SYSTEM

TRANSMIT RE-NAME CLEAR

VCR 1 VCR 2 VCR 3 LD DVD

D-TV CBL/SAT TUNER MD CD

STANDBY

V-AUX TAPE PHONO

TITLE

6CH INPUT

TITLE

6CH INPUT

MACROLEARN

OFF ON

MACRO

POWER

SYSTEM

TRANSMIT RE-NAME CLEAR

VCR 1 VCR 2 VCR 3 LD DVD

D-TV CBL/SAT TUNER MD CD

STANDBY

A/B

V-AUX TAPE PHONO

MACROLEARN

TAPE

OFF ON

MACRO

Press and release the button where you want the new function to be programmed.

Press and hold the button on the other remote control that

has the function you want to program into this remote control until “OK” appears in the display window.

• “NG” appears in display window when programming is not done correctly.

Advanced

Operation

LEARN

Repeat Steps 4 and 5 to program additional functions.

Press LEARN again to exit the Learn mode.

Notes:

• If you do not press any button within 30 seconds, the learning process is canceled.

• This remote control transmits infrared rays. If the other remote control also uses infrared rays, this remote control can learn most of the other remote control’s functions. However, you may not be able to program some special signals or extremely long transmissions. (Refer to the operation instructions for the other remote control.) When the memory is full, “FULL” appears in the display window, and this remote control cannot acquire any more functions. Clear unnecessary programmed functions to allow the unit to acquire new functions.

• Even if the batteries in the other remote control have enough power to transmit signals for operation, they may not have enough power to transmit signals to this remote control.

• When the remote controls are either too close together or too far apart, you may not be able to program this remote control.

• Direct sunlight interferes with infrared rays.

• “ERROR” appears in the display window in the following conditions: when pressing more than one button at once; and when MACRO ON/OFF is switched to another position.

Remote Control Features

POWER

Using the Macro Feature

The Macro feature makes it possible to perform a series of operations by pressing just one button. For example, when you want to play a CD, normally you would turn on the components, select the CD input, and press the play button to start playback. Using the Macro feature, you can perform all those operations by simply pressing the CD macro button. The macro buttons (the input buttons and SYSTEM POWER ON/STANDBY) are factory preset with macro programs. You can also program your own macros (see page 64).

Press a Macro button Automatically transmits signals of each button sequentially

Macro button First Second

TAPE

DVD

SYSTEM

POWER

TAPE

DVD

PLAY

Third

PLAY

(TAPE Area)

PLAY

(MD Area)

PLAY

(LD Area)

PLAY

(DVD Area)

(CD Area)

English

VCR 1

VCR 2

VCR 3

TUNER

V-AUX

PHONO

D-TV

CBL/SAT

SYSTEM

POWER

STANDBY

SYSTEM

POWER

(*1)

STANDBY

TUNER

V-AUX

PHONO

CBL/SAT

(*2)

VCR 1

VCR 2

VCR 3

D-TV

(D-TV Area)

PLAY

(VCR1 Area)

PLAY

(VCR2 Area)

PLAY

(VCR3 Area)

*1 In order to turn on some Yamaha components connected to this unit, connect those components to AC OUTLETS on the rear panel. *2 If the macro you select includes power on/off functions, the equipment may turn off if it is already on when you press the macro button. For example, if

your TV is on and you press the SYSTEM POWER macro button, the TV turns off.

Note:

• Make sure you set up the manufacturer code (See page 61) or program a function using the Learn feature (See page 62) to the remote control for your component, or the factory preset macros do not work.

■ Operating the Macro Feature

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

Remote Control Features

MACRO ON/OFF

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

MACROLEARN

OFF ON

V-AUX TAPE PHONO

MACRO

Macro buttons

Set MACRO ON/OFF to ON.

Press a Macro button.

Notes:

• When you are finished using the Macro feature, set MACRO ON/ OFF to OFF.

• While the main unit is carrying out a macro program, the main unit does not receive any other button’s function until the macro is complete (the TRANSMIT indicator stops flashing).

• Continue to aim the remote control at the equipment the macro is operating until the macro program is complete.

TITLE

6CH INPUT

ENTER

■ Programming a Macro

You can use the Macro feature to transmit many remote control commands by pressing a single button.

Press MACRO using a ball point pen or similar object.

MACRO

flashes alternately

• If you do not initiate the procedure within 30 seconds, the macro programming process is canceled.

Press the macro button on which you want to program the

Macro.

• If you want to change the source component, use SOURCE

SELECT buttons, input is selected as a Macro step, whereas SOURCE

SELECT %/% only changes the component.

/% or input buttons. When you use input

• The display window shows the button you chose for programming the macro and the component name in alternation.

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

Advanced

Operation

SOURCE

DISPLAY

SELECT

SEARCH CHAPTER

POWER REC STOP PAUSE PLAY

TITLE

ENTER

MACRO

6CH INPUT

SOUND

+–

indicates the number of macrosteps you entered

flashes alternately

Press the buttons of the functions that you want to include

in the macro sequence in order.

• You can set up to 10 Macro steps (10 functions).

(ex)

MCR1 : DVD input

MCR 1 : DVD input

MCR2 : DVD ›

MCR 2 : DVD ›

MCR3 : DVD #

MCR 3 : DVD #

Press MACRO again when the sequence you want to program is complete.

• After you set 10 steps, “FULL” is displayed.

Notes:

• “NG” appears in the display window when programming is not done correctly.

• “ERROR” appears in the display window in the following conditions: when pressing more than one button at once; and when MACRO ON/OFF is

switched to another position.

Remote Control Features

Changing the Source Name in the Display Window

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

RE-NAME

6CH INPUT

TITLE

ENTER

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

SEARCH CHAPTER

RE-NAME

SOUND

+–

Select the source component you want to rename by using

the input buttons.

Press RE-NAME using a ballpoint pen or similar object.

Use the cursor buttons %/% to select a character.

• Pressing

changes the character in the following order: A~Z,

a~z, 0~9, space, -(hyphen).

Use the cursor buttons %/% to enter a character or move to the next cursor postion.

Press RE-NAME to confirm renaming.

• If you want to rename another source component immediately, press ENTER and repeat steps 1, 3 and 4.

English

Clearing a Learned Function or Macro

Select the source component that you want to clear on the

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

MACRO

LEARN

While pressing

CLEAR

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

flashes alternately

window by using input buttons.

Press LEARN if you want to clear a learned function, or

press MACRO to clear a programmed macro, using a ball point pen or similar object.

Press and hold CLEAR using a ball point pen or similar

object, and at the same time press the button from which you want to clear the learned function or macro for about 3 seconds.

• “C:NG” appears in the display window if the operation is

You can clear other learned functions and macros at this time by continuing to hold down CLEAR and pressing the other buttons on which those learned functions or macros are programmed.

unsuccessful. Should this occur, try doing step 3 again.

MACRO

LEARN

Press LEARN again to confirm clearing a learned function, or press MACRO again to confirm clearing a programmed macro.

• Once you clear a learned function or macro from a button, the button reverts to its factory preset function or macro.

Remote Control Features

Clearing Learned Functions, Macros, Renamed Displays, and Manufacturer Setups

Press CLEAR using a ballpoint pen or similar object.

CLEAR

6CH INPUT

TITLE

ENTER

SOURCE

DISPLAY

SELECT

POWER REC STOP PAUSE PLAY

SEARCH CHAPTER

SOUND

+–

Press %/% to select the clear mode. The mode is shown

in the window in the following order:

(L: name of a component) Clears all learning functions of the component.

For example, when DVD is selected as

the source component.

Clears all learning functions of the main unit control area (see page 54).

Clears all learning functions.

Clears all macros.

Clears all renamed displays in the display window.

Clears all programmed functions including manufacturer code presets. This returns to the factory presets.

Press and hold CLEAR again for about 3 seconds.

CLEAR

Advanced

Operation

• “C:NG” appears in the display window if the operation is unsuccessful.

CLEAR

Notes:

• If the remote control is without batteries for more than twenty minutes, or if worn out batteries remain in the unit, the contents of the memory may be cleared. When the memory is cleared, insert new batteries and program any acquired functions that may have been cleared.

• “ERROR” appears in the display window for the following conditions: when pressing a button other than the cursor and ENTER; when pressing more than one button at once; and when one of MACRO ON/OFF, 10KEY/DSP, PARAMETER/SET MENU is switched to another position.

Press CLEAR to confirm clearing.

• Once you clear a learned function or macro from a button, the button reverts to its factory preset function or macro.

Adjusting the Levels of the Effect Speakers

You can adjust the volume level of each effect speaker (Center, Right Rear, Rear Center, Left Rear, Front Effect, and Subwoofer) while listening to a music source.

ON SCREEN

SLEEP TEST

LEVEL

PARAMETER

SET MENU

Center

Right Rear

Set PARAMETER/SET MENU to PARAMETER.

Press LEVEL to select the speaker(s) you want to adjust.

Each time you press this button the selected speaker changes and appears in the front panel display only as follows: Center, Right Rear, Rear Center, Left Rear, Front Effect Speakers, and Subwoofer

Rear Center

Adjust the speaker volume level using the + or – on the remote

control.

Left Rear

Front

Subwoofer

You can adjust the Center, Right Rear, Rear Center, Left Rear, Front Effect Speakers from +10 dB to –10 dB. You can adjust the Subwoofer from 0 dB down to –20 dB.

Notes:

• You cannot adjust the left and right speakers independently.

• When you adjust the speaker level using LEVEL, the settings you made using the

Dolby Surround Test and DSP Test change.

• When PARAMETER/SET MENU is set to SET MENU, you cannot adjust the speaker level using LEVEL. However, each time you press LEVEL the current level setting of each speaker appears. Select the speaker level you want to check

using

or %.

English

Setting the Sleep Timer

Use this feature to automatically turn off the main unit after the amount of time you set. The Sleep Timer is useful when you plan to fall asleep while the main unit is reproducing or recording a source. The Sleep Timer also automatically turns off external components connected to AC OUTLETS. The Sleep Timer can only be set using the remote control.

■ To set the Sleep Timer

Select a source using INPUT SELECTOR and start playback (or

select a broadcast station) on the source component.

Press SLEEP repeatedly to set the amount of time before the main

unit automatically turns off.

Each time you press SLEEP, the front panel display changes as shown below. After a few seconds the display returns to the previous indication.

= SLEEP 120 min = SLEEP 90 min

SLEEP OFF + SLEEP 30 min + SLEEP 60 min +

■ To cancel the Sleep Timer

Press SLEEP repeatedly until “SLEEP OFF” appears in the front

panel display.

After a few seconds, the display returns to the previous indication.

Note:

• The Sleep Timer setting can also be canceled by turning off the main unit using

STANDBY on the remote control (or STANDBY/ON on the front panel) or disconnecting the AC Power Cord from the AC outlet.

ON SCREEN

SLEEP TEST

LEVEL

PARAMETER

SET MENU

ZONE 2

You can make up a multi-room audio-video system with this unit. With this feature, you can set this unit to reproduce separate input sources in the main room and second (Zone 2) room using the supplied remote control in the second room.

ONLY ANALOG SIGNALS ARE SENT TO THE SECOND ROOM. FOR ANY SOURCE YOU WISH TO LISTEN TO IN THE SECOND ROOM, YOU MUST CONNECT THE ANALOG OUTPUT FROM THE SOURCE TO THE CORRESPONDING ANALOG INPUT ON THIS UNIT.

Connections

To use the multi-room functions of this unit, you need the following additional equipment:

• An infrared signal receiver in the second room

• An infrared emitter in the main room This emitter transmits the infrared signals from the remote control in the second room to the main room (for example, to a CD player or LD player).

• An amplifier and speakers for the second room

• A video monitor for the second room

Notes:

• Since there are so many ways to connect and use this unit in a multi-room installation, we recommend that you consult with a custom installation specialist for the Zone 2 connections which will best meet your requirements.

• Some Yamaha models are able to connect directly to the REMOTE 1 OUT jacks of this unit. If you own these products, you may not need to use an infrared emitter. Up to six Yamaha components can be connected as shown.

OUT OUT

IN IN

Remote 1

OUT

This Unit

■ A sample of system configuration and connections

Main Room

DVD Player

(or other component)

Infrared emitter

Advanced

Operation

This Unit

REMOTE 1 OUT

■ Special considerations when using DTS software

The DTS signal is a digital bitstream. Therefore, if you attempt to send the DTS signal to Zone 2, you will only be able to hear the digital noise sound that could damage your loudspeakers.

Due to this characteristic of DTS encoded discs, the following considerations and adjustments need to be made.

AUDIO SIGNAL ZONE 2 OUT

Second Room

Amplifier

REMOTE 1 IN

Video

monitor

Remote control

(in the Zone 2 mode)

Infrared signal receiver

VIDEO SIGNAL ZONE 2 OUT

For DTS encoded LDs or DVDs

Only 2-channel audio signals may be sent to Zone 2, as follows:

• Laser disc – Set your Laser Disc player’s left and right outputs to the analog sound track.

• DVD disc – Use the disc menu to set the DVD player’s mixed 2-channel left and right audio outputs to PCM or Dolby Digital.

For DTS encoded compact discs

DO NOT USE the Zone 2 feature with DTS encoded compact discs.

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

DISPLAY

SOURCE

SELECT

SEAR

ZONE 2

Remote Control in ZONE 2

In the second (Zone 2) room, the supplied remote control can be used as the Zone 2 remote control. You can select the input source and control the component which is located in the main room directly from the second room regardless of the listening condition in the main room.

Press SOURCE SELECT % to display ZONE2 in the display

window.

Use the input buttons to select the input source you want to listen to.

• The display window shows “2: name of selected input” if the remote control is in the Zone 2 mode.

You can control the component using the Component Control Area

buttons.

Note:

• VOLUME + / – can be used to adjust the volume if you set the SET MENU item

18. ZONE2 SET, ZONE2 OUT to “VAR.” (see page 53).

English

VOLUME

Additional Information

Digital Sound Field Processing (DSP) 71

Understanding Sound Fields ............................................................................. 71

Recreating a Sound Field .................................................................................. 71

E/R (Early Reflection) ...................................................................................... 71

4ch REV. (Four Channel Reverberation).......................................................... 71

Illustration of the Virtual Sound Sources and Echo Patterns............................ 71

Hi-Fi DSP-Sound Field Program 72

Program Group 1 : Concert Hall 1 .................................................................. 72

Program Group 2 : Concert Hall 2 .................................................................. 72

Program Group 3 : Church.............................................................................. 72

Program Group 4 : Jazz Club .......................................................................... 72

Program Group 5 : Rock Concert ................................................................... 72

Program Group 6 : Entertainment ................................................................... 72

CINEMA-DSP 73

The Sound Design of CINEMA-DSP Sound Field Programs .......................... 73

Sound Field Images of the CINEMA-DSP Programs....................................... 73

Movie Theater Programs................................................................................... 74

CINEMA-DSP Sound Field Program 75

Program Group 7 : Concert Video 1 ............................................................... 76

Program Group 8 : Concert Video 2 ............................................................... 76

Program Group 9 : TV Theater ....................................................................... 76

Program Group 10 : Movie Theater 1.............................................................. 76

Program Group 11 : Movie Theater 2.............................................................. 76

Program Group 12 : Dolby/DTS Surround ...................................................... 76

Sound Field Program Parameter Editing 77

Changing Parameter Settings ............................................................................ 77

Resetting a Parameter to the Factory Preset Value ........................................... 77

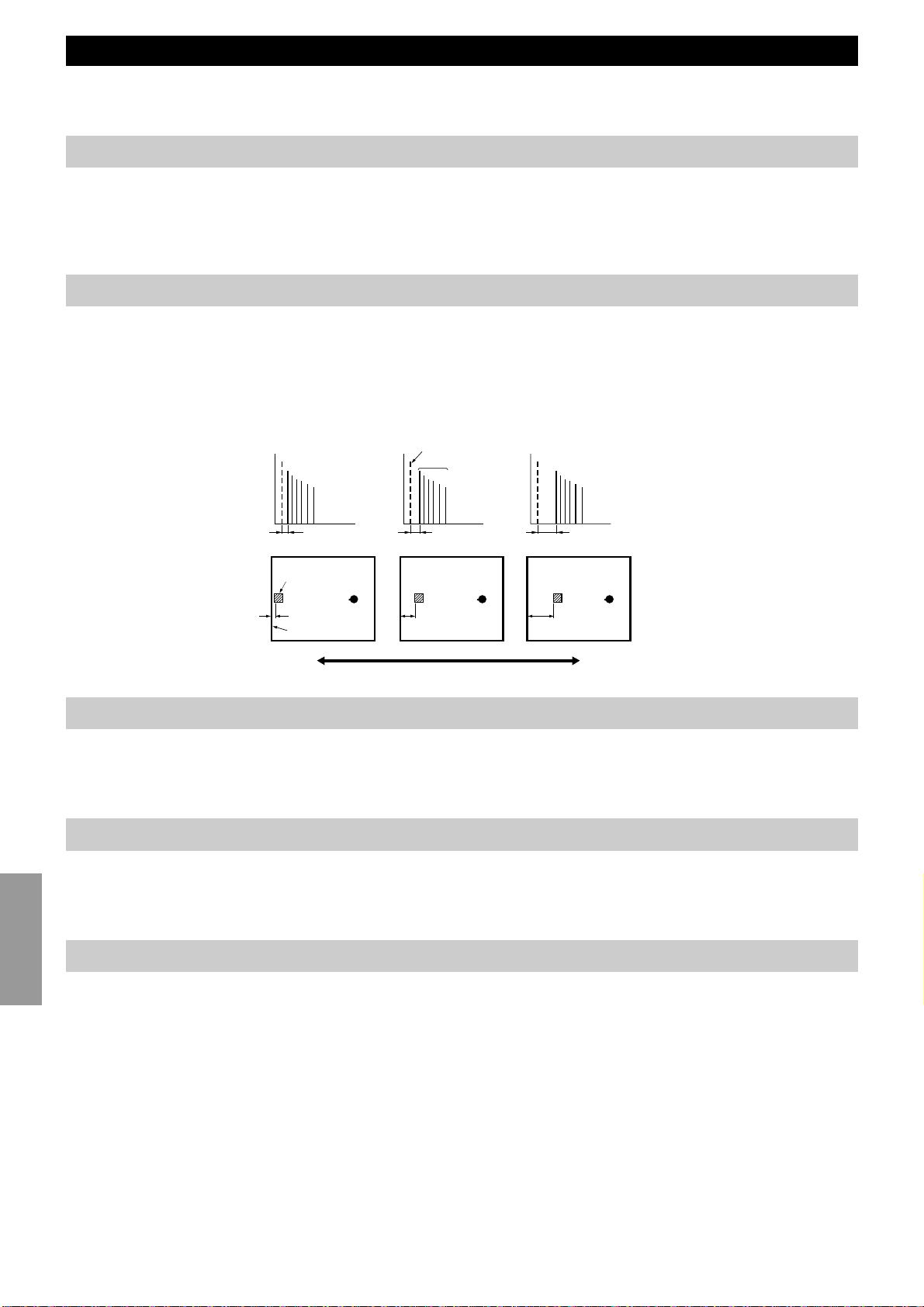

Digital Sound Field Parameter Descriptions 78

Additional

Information

EFCT TRIM (Effect Trim) ............................................................................... 78

INIT. DLY (Initial Delay)................................................................................. 78

P. INIT. DLY (Presence Initial Delay) ............................................................. 78

RC. INIT. DLY (Rear Center Initial Delay) ..................................................... 78

S. INIT. DLY (Surround Initial Delay) ............................................................ 78

S. DLY (Surround Delay) ................................................................................. 79

ROOM SIZE ..................................................................................................... 79

RC. ROOM SIZE (Rear Center Room Size) .................................................... 80

S. ROOM SIZE (Surround Room Size)............................................................ 80

LIVENESS........................................................................................................ 80

S. LIVENESS (Surround Liveness).................................................................. 80

RC LIVENESS (Rear Center Liveness) ........................................................... 80

REV. TIME (Reverberation Time) ................................................................... 81

REV. DELAY (Reverberation Delay) .............................................................. 81

REV. LEVEL (Reverberation Level) ............................................................... 81

Digital Sound Field Processing (DSP)

Understanding Sound Fields

A sound field is defined as the “characteristic sound reflections of a particular space.” In concert halls and other music venues, we hear early reflections and reverberations as well as the direct sound produced by the artist(s). The variations in the early reflections and other reverberations among the different music venues is what gives each venue its special and recognizable sound quality. Yamaha sent teams of sound engineers all around the world to measure the sound reflections of famous concert halls and music venues, and collect detailed sound field information such as the direction, strength, range, and delay time of those reflections. Then we stored this enormous amount of data in the ROM chips of the RX-V1.

Recreating a Sound Field

Recreating the sound field of a concert hall or an opera house requires localizing the virtual sound sources in your listening room. The traditional stereo system that uses only two speakers is not capable of recreating a realistic sound field. Yamaha’s DSP requires four effect speakers to recreate sound fields based on the measured sound field data. The processor controls the strength and delay time of the signals output from the four effect speakers to localize the virtual sound sources in a full circle around the listener.

The DSP sound field programs can be classified in two types based on the sound field processing method: programs that use early reflections only and programs that use both early reflections and reverberation.

English

E/R (Early Reflection)

Each sound field is distinguished by the structure of the reflected sound. The increased processing capability of DSP technology enables Yamaha engineers to incorporate even minute reflections with long delay times into the sound field data.

4ch REV. (Four Channel Reverberation)

This type of program consists of early reflections and high quality digital reverberation processing. Reverberation is the most important element for recreating the sound field of a church. To recreate a realistic spatial sound image from reverberation data, Yamaha has adapted the four-channel-output reverberation technology.

Illustration of the Virtual Sound Sources and Echo Patterns

The virtual sound sources and echo patterns for the DSP sound field programs are shown below. The illustration of the virtual sound sources shows early reflection sound only and the illustration of the echo patterns shows both reflected sound and reverberation.

Virtual Sound Sources

The center of these circles represent the virtual sound source. The size of the circle indicates the strength of the virtual sound source.

The direct sound source

The listening position

Echo Patterns

Direct sound source

Early reflections

50~80 mSec

Reverbration

Hi-Fi DSP-Sound Field Program

Program Group 1 : Concert Hall 1

■ Europe Hall A

This is a large fan-shaped concert hall in Munich which has approximately 2500 seats. Almost the whole interior is made of wood. There is relatively little reflection from the walls, and sound spreads finely and beautifully.

■ Europe Hall B

This is a large shoe-box type concert hall with less than 2400 seats located in Frankfurt. This hall has a very solid, powerful sound. The listener’s virtual seat is in the center-right section on the first floor.

Program Group 2 : Concert Hall 2

■ U.S.A. Hall D

This is a large 2600 seat concert hall in the United States which features a fairly traditional European design. The interior is relatively simple, in the American style. The middle and high frequencies are richly and beautifully reinforced.

■ Europe Hall E

This is a large 2200 seat shoe-box type concert hall in Amsterdam. It has a circular stage with seats located behind the stage.

Program Group 3 : Church

■ Tokyo

The acoustic environment of an ordinary church with moderate reverberations. The reverberation lasts 2.5 seconds. This is ideal for reproducing church organ and choral music.

■ Freiburg

This program recreates the acoustic environment of a big church located in south Germany. The reverberation delay is very long while the early reflections are smaller than with other sound field programs.

■ Europe Hall C

A classic shoe-box type concert hall with approximately 1700 seats. Pillars and ornate carvings create extremely complex reflections which produce a very full, rich sound.

■ Live Concert

A large round concert hall with a rich surround effect. Pronounced reflections from all directions emphasize the extension of sounds. The sound field has a great deal of presence, and your virtual seat is near the center, close to the stage.

■ Royaumont

This program features the sound field created by the refectory (dining hall) of a beautiful medieval Gothic monastery located in Royaumont on the outskirts of Paris.

Program Group 4 : Jazz Club

■ Village Gate

This is the sound field at a jazz club in New York. It is in a basement and has a relatively spacious floor area. The listener’s virtual seat is at the center left of the hall.

Program Group 5 : Rock Concert

■ Roxy Theatre

The ideal program for lively, dynamic rock music. The data for this program

Additional

Information

was recorded at LA’s “hottest” rock club. The listener’s virtual seat is at the center-left of the hall.

Program Group 6 : Entertainment

■ Disco

This program recreates the acoustic environment of a lively disco in the heart of a big city. The sound is dense and highly concentrated. It is also characterized by a high-energy, “immediate” sound.

■ Village Vanguard

A traditional jazz club in New York, located on 7th Avenue. This room has a low ceiling, and the “stage” is located in a corner. This program creates an intimate “close-to-the music” feel.

■ Warehouse Loft

This program simulates a space enclosed by concrete. An energetic sound field is created with relatively clear reflections from the walls.

■ Party

This is a sound field suitable for background music at parties where you can hear the sound directly from the rear as well, thus realizing music enjoyment over a wide area.

■ The Bottom Line

This is the sound field at stage front in “The Bottom Line”, a famous New York jazz club. The floor can seat 300 people to the left and right in a sound field offering a real and vibrant sound.

■ Arena

A classic shoe-box type concert hall. This program gives you long delays between direct sounds and effect sounds, with the extraordinarily spacious feel of a large arena.

■ Game/Amusement

This program adds a deep and spatial feeling to video game sounds and is also suitable for karaoke.

CINEMA-DSP

The Sound Design of CINEMA-DSP Sound Field Programs

Filmmakers intend the dialog to be located right on the screen, the effect sound a little farther back, the music spread even farther back, and the surround sound around the listener. Of course, all of these sounds must be synchronized with the images on the screen. CINEMA-DSP is an upgraded version of YAMAHA DSP specially designed for movie soundtracks. CINEMA-DSP integrates the DTS, Dolby Digital, and Dolby Pro Logic surround sound technologies with YAMAHA DSP sound field programs to provide the surround sound field. It recreates the most complete movie sound design in your audio room. In CINEMA-DSP sound field programs, Yamaha’s exclusive DSP processing is added to the front left, center, and right channels, so the listener can enjoy realistic dialogue, depth of sound, smooth transition between sound sources, and a surround sound field that goes beyond the screen. When a DTS or Dolby Digital signal is detected, the CINEMA-DSP sound field processor automatically chooses the most suitable sound field program for that signal.

L SURROUND SOUND FIELD

PRESENCE SOUND FIELD

MUSIC

R SURROUND SOUND FIELD

DIALOG EFFECT

AV ROOM

English

Sound Field Images of the CINEMA-DSP Programs

Each CINEMA-DSP program has its own type of sound field processing block. The sound field data, including the presence and surround sound fields, are based on actual measured data. The presence and surround sound fields can be expressed in the distribution of virtual sound sources and echo patterns. However, as these two types of sound fields are processed with complex elements such as energy balance and mixing signal ratios, they are expressed as a sound field based on auditory perception.

Dolby Digital or DTS input

Presence sound field

Sound source

Screen

Listening position

Listening room

Surround sound field

Reverberation

Stereo input

Presence sound field

Front sound source

Screen

Listening position

Listening room

Left surround sound source

Left surround sound field

Right surround sound source

Right surround sound field

Reverberation

CINEMA-DSP

Movie Theater Programs

Most movie software has four-channel (left, center, right and surround) sound information encoded using Dolby Surround matrix processing and stored on the left and right tracks. These signals are processed by the Dolby Pro Logic decoder. The Movie Theater Programs are designed to recreate the spaciousness and delicate nuances of sound that tend to be lost in the encoding and decoding processes. The six-channel soundtracks found on 70 mm film produce precise sound field localization and rich, deep sound without using matrix processing. The RX-V1’s Movie Theater 70 mm Programs provide the same quality of sound and sound localization that six-channel soundtracks do. The built-in Dolby Digital decoder brings the professional quality sound designed for movie theaters, into your home. With the RX-V1’s Movie Theater program, you can recreate a dynamic sound that gives you the feeling of being at a public theater in your living room using the Dolby Digital technology.

■ Dolby Pro Logic + DSP Sound Field Effect

These programs express an immense sound field and a large surround effect. They also give depth to the sound from the Main Speakers to recreate the realistic sound of a Dolby Stereo theater.

Presence DSP Sound Field

■ Dolby Digital/DTS + DSP Sound Field Effect

These programs use Yamaha’s tri-field DSP process on each of the Dolby Digital signals for the front, left surround, and right surround channels. This processing enables the RX-V1 to reproduce the immense sound field and surround expression of a Dolby Digital equipped movie theater without sacrificing the clear separation of all channels.

Additional

Information

Left Surround DSP Sound Field

Surround DSP Sound Field

Presence DSP Sound Field

Right Surround DSP Sound Field

■ Dolby Digital Matrix 6.1/DTS ES + DSP Sound Field Effect

These programs provide you the maximum experience of the spacious surround effects since an extra Rear Center DSP sound field created from the Rear Center channel is added.

CINEMA-DSP Sound Field Program

According to the input signal format, the RX-V1 automatically chooses the appropriate decoder and DSP sound field pattern.

Table of Program Names for Each Input Format

Program Group

CONCERT

THEATER

THEATER 1

THEATER 2

Input

VIDEO 1

VIDEO 2

MOVIE

Stereo

(2ch)

Pop/Rock DJ Classical/Opera Pavilion Mono Movie Variety/Sports 70 mm Spectacle 70 mm Sci-Fi 70 mm Adventure 70 mm General

DOLBY DIGITAL

(5.1ch)

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

– – – – – – – – DGTL Spectacle DGTL Sci-Fi DGTL Adventure DGTL General

DTS

(5.1ch)

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

DTS Spectacle DTS Sci-Fi DTS Adventure DTS General

DOLBY DIGITAL

(6.1ch)*

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

– – – – – – – – Spectacle 6.1 Sci-Fi 6.1 Adventure 6.1 General 6.1

DTS ES

(6.1ch)*

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Spectacle ES Sci-Fi ES Adventure ES General ES

English

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

ES Enhanced ES

PRO LOGIC

* The Matrix decoder is ON.

DOLBY

DIGITAL

DTS

DIGITAL SUR

Normal Enhanced

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

– – – – – – – –

– – – – – – – – Normal Enhanced

– – – – – – – –

– – – – – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Normal Enhanced

– – – – – – – –

– – – – – – – – Matrix 6.1 Enhanced 6.1

– – – – – – – –

■ Program Groups 7~9

These are sound field programs for the audio-video sources.

■ Program Groups 10~12

Ideal for reproducing a movie program which is encoded with Dolby Surround, Dolby Digital, or DTS. When the newest movie program encoded with Dolby Digital Surround EX or DTS ES is input, you can enjoy the full 6.1 channel reproduction using the internal Matrix decoder.

PRO LOGIC functions when the input signal is analog or PCM audio, or encoded with Dolby Digital in two channels. DOLBY DIGITAL functions when the input signal is encoded with Dolby Digital in more than two channels. DTS DIGITAL SUR functions when the input signal is encoded with DTS.

Note:

• No sound wil be output from the Main speakers when a monaural source is played with sound field Program Groups 7~12.

CINEMA-DSP Sound Field Program

Program Group 7 : Concert Video 1

■ Pop/Rock

This program produces an enthusiastic atmosphere and lets you feel as if you are at an actual jazz or rock concert.

■ DJ

Program Group 8 : Concert Video 2

■ Classical/Opera

This program provides excellent vocal depth and overall clarity by restraining excessive reverberation.

The surround sound field is relatively moderate but it reproduces beautiful sound using data collected from a concert hall.

■ Pavilion

Program Group 9 : TV Theater

■ Mono Movie

This program is provided for reproducing monaural video sources (such as old movies). The program produces the optimum reverberation to create sound depth using only the presence sound field.

■ Variety/Sports

Program Group 10 : Movie Theater 1

The sound field makes the voice of a disc jockey sound clearer.

This program reproduces vocals clearly, letting you feel the spaciousness of a pavilion. Reverberation, which is somewhat delayed, reproduces the live acoustics unique to a pavilion, and helps to make concert scenes more exciting.

Though the presence sound field is relatively narrow, the surround sound field employs the sound environment of a large concert hall. With this program, you can enjoy watching various TV programs such as news, variety shows, music programs or sports programs.

■ Spectacle

This program creates the extremely wide sound field of a 70 mm movie theater. It precisely reproduces the source sound in detail, making both the video and the sound fields incredibly real. This program is ideal for any kind of Dolby Surround video source (especially large-scale movie productions).

Program Group 11 : Movie Theater 2

■ Adventure

This program is ideal for precisely reproducing the sound design of the newest 70 mm and multichannel soundtrack films. The sound field is made to be similar to that of the newest movie theaters, so the reverberations of the sound field itself are restrained as much as possible.

Additional

Program Group 12 : Dolby/DTS Surround

Information

■ Normal/Matrix 6.1/ES

The built-in decoder precisely reproduces sounds and sound effects from sources. The highly efficient decoding process improves crosstalk and channel separation and makes sound positioning smoother and more precise.

In this program, no DSP effect is applied.

■ Sci-Fi

This program clearly reproduces the broad and expansive cinematic space from the soundtracks of the latest science fiction films.

■ General

This program is for reproducing sounds from 70 mm and multichannel soundtrack films, and is characterized by a soft and extensive sound field. The presence sound field is relatively narrow. It spatially spreads all around and toward the screen, restraining the effect of conversations without losing clarity.

■ Enhanced/6.1/ES

This program ideally simulates the multiple surround speaker systems of 35 mm film theaters. The Dolby Surround decoding and the digital sound field processing create precise effects without altering the original sound orientation. The surround effects produced by this sound field wrap around the viewer naturally from the back to the left and right and toward the screen.

Sound Field Program Parameter Editing

You can enjoy good quality sound with the pre-set parameters. Although you do not have to change the initial settings, you can change some of the parameters to better suit the input source or your listening room.

Changing Parameter Settings

Set PARAMETER/SET MENU to PARAMETER on the remote

control.

PARAMETER

SET MENU

Program Type (subprogram)

Program No. Program Name

Turn on your video monitor and press ON SCREEN to select the

full display.

Select the sound field program you want to adjust.

Press % or % to select the parameter.

Press + or – to change the parameter value.

When you set the parameter to a value other than the factory preset value, an asterisk mark appears by the parameter name on the monitor screen.

Repeat steps 3 through 5 above as necessary to change other

program parameters.

English

Cursor Parameters

Example of the CONCERT HALL 1

Resetting a Parameter to the Factory Preset Value

■ To reset some of the parameters to the

factory preset values

Select the parameter you want to reset. Then, press and hold + or – until the value stops at the factory preset value temporarily. (The asterisk mark by the parameter name disappears on the video monitor.)

Notes:

• The available parameters may be displayed on more than one OSD page for some of the programs. To scroll through pages, press % or %.

• When “MEMORY GUARD!” appears on the screen, the Memory Guard function is on, and you cannot change parameter values. Turn off the Memory Guard function using the SET MENU (see page 52).

■ To reset all of the parameters back to the

factory preset values

Use the SET MENU to reset all of the parameter values of all DSP programs within the selected group to the factory preset values (see page 51). This operation resets all of the parameter values of all DSP programs within that group to the factory preset values.

Digital Sound Field Parameter Descriptions

You can adjust the values of certain digital sound field parameters so the sound fields are recreated accurately in your listening room. Not all of the following parameters are found in every program.

EFCT TRIM (Effect Trim)

Function .................... This parameter adjusts the level of all the effect sounds within a narrow range.

Control Range ........... –3 dB - +3 dB

Description ................ Depending on the acoustics of your listening room, you may want to increase or decrease the effect level relative

to the direct sound.

INIT. DLY (Initial Delay)

Function .................... This parameter changes the apparent distance from the source sound by adjusting the delay between the direct

sound and the first reflection heard by the listener.

Control Range ........... 1 - 99 milliseconds

Description ................ The smaller the value, the closer the sound source seems to the listener. The larger the value, the farther the

apparent distance seems. For a small room, this parameter would be set to a small value, for a large room, set it to

a large value.

Sound Source

Primary

Level

Reflected Sound

INIT. DLY

Time Time

Sound Source

Reflection Face

Small value = 1 ms

INIT. DLYINIT. DLY

Time

Large value = 99 ms

P. INIT. DLY (Presence Initial Delay)

Function .................... This parameter adjusts the delay between the direct sound and the first reflection in the presence sound field.

Control Range ........... 1 - 99 milliseconds

Description ................ The larger the value, the later the first reflection begins.

RC. INIT. DLY (Rear Center Initial Delay)

Function .................... This parameter adjusts the delay between the direct sound and the first reflection in the rear center sound field.

Control Range ........... 1 - 49 milliseconds

Description ................ The larger the value, the later the first reflection begins.

S. INIT. DLY (Surround Initial Delay)

Additional

Information

Function .................... This parameter adjusts the delay between the direct sound and the first reflection on the surround side of the

sound field. You can only adjust this parameter when at least two front channels and two rear channels are used.

Control Range ........... 1 - 49 milliseconds

Description ................ The larger the value, the later the first reflection begins. You can only adjust this parameter for the Dolby Digital

and DTS signals.

Digital Sound Field Parameter Descriptions

S. DLY (Surround Delay)

Function .................... This parameter adjusts the delay between the direct sound and the first reflection in the surround sound field.

Control Range ........... 0 - 49 milliseconds (The range depends on the signal format.)

Description ................ When Dolby Digital signals are decoded: the larger the parameter, the later the surround sound source begins.

When a non-Dolby Digital program is decoded: the larger the parameter, the later the surround sound field

begins.

No surround sound source is produced.

Dolby Digital or DTS Input

Direct Sound

SURROUND (LS/RS)

S Sound Field

Level

S. DELAY

S. INIT. DELAY

Time

Others

The surround sound field is not reproduced.

Direct Sound

S Sound Field

Level

S. DELAY

Time

ROOM SIZE

Function .................... This parameter adjusts the apparent size of the surround sound field. The larger the value, the larger the surround

sound field becomes.

Control Range ........... 0.1 - 2.0

Description ................ As the sound is repeatedly reflected around a room, the larger the hall is, the longer the time between the original

reflected sound and the subsequent reflections. By controlling the time between the reflected sounds, you can

change the apparent size of the virtual venue. Changing this parameter from one to two, doubles the apparent

length of the room.

English

Sound Source

Level

Small value

Small value = 0.1

Time

Sound Source

Level

Time

Primary Reflected Sound

Level

Large value

Large value = 2.0

Time

Digital Sound Field Parameter Descriptions

RC. ROOM SIZE (Rear Center Room Size)

Function .................... This parameter adjusts the apparent size of the rear center sound field.

Control Range ........... 0.1 - 2.0

Description ................ The larger the value, the more reflective the presence sound field walls become.

S. ROOM SIZE (Surround Room Size)

Function .................... This parameter adjusts the apparent size of the surround sound field.

Control Range ........... 0.1 - 2.0

Description ................ The larger the value, the larger the surround sound field becomes.

LIVENESS

Function .................... This parameter adjusts the reflectivity of the virtual walls in the hall by changing the rate at which the early

reflections decay.

Control Range ........... 0 - 10

Description ................ The early reflections of a sound source decay much faster in a room with acoustically absorbent wall surfaces

than in one which has highly reflective surfaces. A room with acoustically absorbent surfaces is referred to as

“dead,” while a room with highly reflective surfaces is referred to as “live.” The LIVENESS parameter lets you

adjust the early reflection decay rate, and thus the “liveness” of the room.

Source Sound

Live

Source Sound

Level

Time

Small Reflected Sound

Small value = 0

Dead

Level

Time

Level

Time

Large Reflected Sound

Large value = 10

S. LIVENESS (Surround Liveness)

Function .................... This parameter adjusts the apparent reflectivity of the virtual walls in the surround sound field.

Control Range ........... 0 - 10

Description ................ The larger the value, the more reflective the surround sound field walls become.

RC. LIVENESS (Rear Center Liveness)

Function .................... This parameter adjusts the apparent reflectivity of the virtual wall in the rear center sound field.

Additional

Information

Control Range ........... 0 - 10

Description ................ The larger the value, the more reflective the surround sound field walls become.

Digital Sound Field Parameter Descriptions

REV. TIME (Reverberation Time)

Function .................... This parameter adjusts the amount of time it takes for the dense, subsequent reverberation sound to decay by

60 dB (at 1 kHz). This changes the apparent size of the acoustic environment over an extremely wide range.

Control Range ........... 1.0 - 5.0 seconds

Description ................ Set a longer reverberation time for “dead” sources and listening room environments and a shorter time for “live”

sources and listening room environments.

Source Sound

Primary Reflected Sound

Reverberation

REV. TIME

Reverberation

REV. TIME

Long Reverberation

Source Sound

Reverberation

60 dB 60 dB 60 dB

REV. TIME

Short Reverberation

Small value = 1.0 s Large value = 5.0 s

REV. DELAY (Reverberation Delay)

Function .................... This parameter adjusts the time difference between the beginning of the direct sound and the beginning of the

reverberation sound.

Control Range ........... 0 - 250 milliseconds

Description ................ The larger the value, the later the reverberation sound begins. A later reverberation sound makes you feel like you

are in a larger acoustic environment.

English

Source Sound

Level

(dB)

Reverberation

REV. DELAY

REV TIME

REV. LEVEL (Reverberation Level)

Function .................... This parameter adjusts the volume of the reverberation sound.

Control Range ........... 0 - 100%

Description ................ The larger the value, the stronger the reverberation becomes.

Source Sound

Level

REV LEVEL

60 dB

Time

Appendix

Troubleshooting 83 Reference Chart for the INPUT and OUTPUT Jacks 87

Appendix

CINEMA - EQ Frequency Characteristics 87 Specifications 88

Troubleshooting

Refer to the chart below when the RX-V1 does not function properly. If the problem you are experiencing is not listed below or if the instruction below does not help, turn the power off, disconnect the power cord, and contact your dealer or the nearest Yamaha Audio Products Service Department. After this unit is exposed to strong external electric shock (such as lightning and large static electricity) or you mishandle the operation of this unit, it may not function properly. In these cases, turn the power off, unplug the power cord, plug it back in after 30 seconds, and start operating.

General

Problem

The unit fails to turn on when STANDBY/ON is pressed, or returns to standby mode suddenly soon after the power is turned on.

Hum

Possible Cause What to Do

The power cord is not plugged in or is not completely inserted.

IMPEDANCE SELECTOR on the rear panel is not set correctly.

The protection circuitry has been activated.

There is a faulty cable connection.

No connection from the turntable to the GND terminal.

Plug in the power cord securely (see page

24). Set the switch completely to either position

(depending on your speakers) while this unit is in standby mode (see page 22).

Make sure all speaker wire connections on this unit and on all speakers are secure and that the wire for each connection does not touch anything other than its respective connection.

Connect the audio plugs securely. If the problem persists, the cords may be defective.

Connect the grounding cord of your turntable to the GND terminal of this unit (see page

16).

English

No Sound or no picture

No picture

No sound is coming from one side.

The volume is turned down. Faulty or incorrect input or output

connection. Incorrect input source.

This unit is set to DTS input mode.

Digital signals other than PCM audio, Dolby Digital, or DTS encoded signals are input to this unit by playing a CD-ROM, etc.

The source equipment is connected to this unit using an S-video cable, but there is no S-video connection between this unit and your video monitor.

There is a faulty cable connection.

BALANCE is turned all the way to one side.

Turn up the volume. Connect the equipment correctly. If the

problem persists, the cords may be defective. Select the appropriate input source with

INPUT SELECTOR. Press INPUT MODE to select another input

mode Play a source whose signals this unit can

reproduce.

Connect this unit’s S VIDEO MONITOR OUT terminal to the TV’s S-video input terminal or disconnect the S-video cable from the source equipment.

Connect all cables securely. If the problem persists, the cords may be defective.

Adjust BALANCE.

The volume level cannot be increased very much when adjusting VOLUME.

The sound suddenly goes off.

MUTE is on.

The equipment connected to the TAPE/ MD OUT jacks of this unit is turned off.

The protection circuitry has been activated because of short circuit etc.

The SLEEP timer came on.

Turn VOLUME to minimum, press MUTE to restore audio, and adjust the volume again.

Turn on the power to the equipment.

Reset the protection circuitry by turning the unit off and on.

Cancel the SLEEP timer function.

Troubleshooting

Problem Possible Cause What to Do

No sound is coming from the Effect speakers.

The effect is off.

Press EFFECT to turn on the effect sound.

No sound is coming from the Front Effect speakers.

No sound is coming from the Center speaker.

No sound is coming from the Rear Effect speakers.

A Dolby Surround or DTS decoding sound field program is being used with material not encoded with Dolby Surround or DTS.

PRO LOGIC/Normal, DOLBY DIGITAL/ Normal or DTS DIGITAL SUR./Normal of DSP program 12 is selected.

The front level is turned to minimum.

The 1F. FRNT EFCT item in the SET MENU is set to “NONE”.

The 1A. CENTER SP item in the SET MENU is set to “NONE”.

One of the Hi-Fi DSP sound field programs (1 to 6) is selected.

The input signals of a source encoded with Dolby Digital or DTS do not include center channel signals.

The right and left Rear speaker levels are set to minimum.

Select another sound field program.

Adjust the Front Effect speaker level (see page 67).

Select “YES” (see page 45).

Select the appropriate mode for your Center speaker (see page 43).

Select another sound field program.

Refer to the instructions for the source currently playing.

Increase the right and left Rear speaker levels (see page 67).

No sound is coming from the Subwoofer.

Poor bass reproduction.

The volume level cannot be increased, or sound is distorted.

DSP parameters and some other settings on this unit cannot be changed.

A monaural source is played with sound field program 12.

The 1E. LFE/BASS OUT item in the SET MENU is set to “MAIN” when a Dolby Digital or DTS encoded software is played.

The 1E. LFE/BASS OUT item in the SET MENU is set to “SW” or “MAIN” when a 2channel encoded software is played.

The 1E. LFE/BASS OUT item in the SET MENU is set to “SW” or “BOTH” and your system does not include a subwoofer.

The output mode selection for each channel (MAIN, CENTER or REAR) in the SET MENU does not match your speaker configuration.

The power to the equipment connected to the REC OUT jacks of this unit is off.

The 13. MEMORY GUARD item in the SET MENU is set to “ON”.

Select another sound field program.

Select “SW” or “BOTH” (see page 44).

Select “BOTH” (see page 44).

Select “MAIN” (see page 44).

Select the appropriate output mode for each channel based on the size of the speakers in your configuration (see pages 43 through

44). Turn on the power to the equipment.

Select “OFF” (see page 52).

This unit does not operate properly.

Appendix

The internal microcomputer has been frozen by an external electric shock (such as lightning or excessive static electricity) or by a power supply with low voltage.

Disconnect the AC power cord from the outlet, then plug it in again after about one minute.

Troubleshooting

Problem Possible Cause What to Do

A source cannot be recorded by a tape deck or VCR connected to this unit.

CHECK SP WIRES!" appears on the display.

There is noise from a nearby TV or tuner.

The sound is degraded when listening with the headphones connected to the CD player or cassette deck that are connected to this unit.

“INPUT DATA ERROR” appears on the display and no sound is heard.

The source unit is connected to this unit using digital jacks only.

Speaker cables are short circuited.

This unit is too close to the affected equipment.

The power to this unit is off.

A non-standard source is played back, or the equipment playing back the source is not operating correctly.

Make additional connections to the analog jacks (see pages 16 through 19).

Make sure all speaker cables are connected correctly.

Move this unit farther away from the affected equipment.

Turn on the power to this unit.

Check the source, or turn off the source equipment, then turn it on again.

Tuner

Problem

FM stereo reception is noisy.

Possible Cause What to Do

Because of the characteristics of FM stereo broadcasts, this is limited to cases where the transmitter is too far away or the antenna input is poor.

Check the antenna connections. Try using a high quality directional FM antenna. Set TUNING MODE to the manual tuning mode.

English

There is distortion and clear reception cannot be obtained even with a good

FM antenna. A desired station cannot be

tuned in with the automatic tuning method.

Previously preset stations can no longer be tuned in using preset tuning.

A desired station cannot be tuned in with the automatic tuning method.

There are continuous

crackling and hissing noises.

There are buzzing and whining noises (especially in the evening).

There is multipath interference.

The station is too weak.

This unit has been unplugged for a long period.

Weak signal or loose antenna connections.

Noises result from lightning, fluorescent lamps, motors, thermostats and other electrical equipment.

A television set is being used nearby.

Adjust the antenna orientation to eliminate multipath interference.

Use the manual tuning method. Use a high quality directional FM antenna.

Repeat the presetting procedure (see page

36).

Tighten the AM loop antenna connections and adjust the antenna’s orientation for best reception.

Use the manual tuning method. Use an outdoor antenna and a ground wire.

This will help somewhat but it is difficult to eliminate all the noises.

Relocate this unit away from the TV.

Remote Control

Troubleshooting

Problem

The remote control does not work.

The remote control does not function properly.

The remote control does not “learn” new functions. (The TRANSMIT indicator does not light up or flash.)

Possible Cause What to Do

The batteries are dead.

The internal microcomputer has “frozen”.

Wrong distance or angle.

Direct sunlight or lighting (such as an inverter type of fluorescent lamp) is striking the remote control sensor of this unit.

The internal microcomputer has “frozen”.

The batteries of this remote control and/or the other remote control are too weak.

The distance between the two remote controls is too far or near.

The signal coding or modulation of the other remote control is not compatible with this remote control.

Replace the batteries with new ones and press RESET (see page 5).

Press RESET on the remote control (see page 5).

The remote control will function within a maximum range of 6 m (20 feet), no more than 30 degrees off-axis from the front panel (see page 5).

Change the position of this unit.

Press RESET on the remote control (see page 5).

Replace the batteries (and press RESET on the remote control) (see page 5).

Place the remote controls at the proper distance (see page 62).

Learning is not possible.

Continuous functions such as volume are learned, but operate only for a moment before stopping.

Memory capacity is full.

The internal microcomputer has “frozen”.

The learning process is incomplete.

Further learning is not possible without deleting unnecessary new functions (see page 66).

Press RESET on the remote control (see page 5).

Be sure to press and hold the function button on the other remote control until TRANSMIT begins flashing slowly.

Appendix

Reference Chart for the INPUT and OUTPUT Jacks

SIGNAL

PHONO CD

ANALOG

Ο Ο

OUT

AUDIO

DIGITAL

COAXIAL OPTICAL

IN OUT IN OUT

COMPOSITE S-VIDEO COMPONENT

IN OUT IN OUT IN OUT

VIDEO

TUNER TAPE MD DVD LD D-TV CBL/SAT VCR 1, 2, 3 V-AUX 6 CH INPUT

Ο Ο Ο Ο Ο Ο Ο Ο Ο

SUBWOOFER ZONE 2 OUT MONITOR OUT SPEAKER OUT HEADPHONES

*1 This input can be changed to another video input by using the SET MENU. *2 Only for VCR 1 *3 SPLIT L,R, and MONO outputs *4 MAIN L,R, CENTER, FRONT L,R, REAR L,R, and REAR CENTER total 8 channels

Ο Ο

Ο Ο Ο

Ο Ο

∗3

Ο Ο Ο Ο

∗2

Ο Ο Ο Ο Ο Ο

Ο Ο

∗4

CINEMA - EQ Frequency Characteristics

Ο Ο

English

∗1

∗1 ∗1

Cinema EQ is a digital equalizer that lets you independently adjust the sound quality of each speaker.

■HIGH (High Shelving Filter): Adjusts high

frequency response smoothly. There are 16 responses affecting frequencies in the 1 to 12.7 kHz range, while gain is adjusted between +6 and

■PEQ (Parametric Equalizer): Allows

smooth boost and cut at an arbitrary frequency range. The center frequency can be in the 1 to

12.7 kHz range, with gain between +6 and –9 dB.

–9 dB.

▲ HIGH Frequency

Range GAIN +6 ~ –9 dB

–3

–6

–9

20 50 100 200 500 1k 2k 5k 10k 20k

▲ PEQ Frequency

Range GAIN +6 ~ –9 dB Q 1.85 (fixed)

–3

–6

–9

20 50 100 200 500 1k 2k 5k 10k 20k

FRQ

▲ HIGH Frequency

Range FRQ 1.0 ~ 12.7 kHz

1.0k

1.2k

1.6k

2.0k

2.5k

3.2k

4.0k

5.0k

5.7k

–3

6.3k

7.1k

8.0k

9.0k

–6

10.1k

11.3k

12.7kHz

–9

20 50 100 200 500 1k 2k 5k 10k 20k

▲ PEQ Frequency

Range FRQ 1.0 ~ 12.7 kHz Q 1.85 (fixed)

1.0k

1.2k

1.6k

2.0k

2.5k

3.2k

4.0k

5.0k

5.7k

–3

6.3k

7.1k

8.0k

9.0k

–6

10.1k

11.3k

12.7kHz

–9

20 50 100 200 500 1k 2k 5k 10k 20k

FRQ

Specifications

Audio Section

Minimum RMS Output Power per Channel

MAIN L/R, CENTER, REAR L/R/C (20 Hz to 20 kHz, 0.015% THD, 8 ohms) ------------ 110 W FRONT L/R (1 kHz, 0.05% THD, 8 ohms) ------------ 35 W

Dynamic Power (IHF)

MAIN L/R (8/6/4/2 ohms) -------------- 150/180/240/340 W

Dynamic Headroom

MAIN L/R (8 ohms) -------------------------------------- 1.3 dB

Power Band Width

MAIN L/R (55 W, 0.04% THD, 8 ohms)

---------------------------------------------------10 Hz to 50 kHz

Damping Factor

MAIN L/R (20 Hz to 20 kHz, 8 ohms) --------- 200 or more

Input Sensitivity/Impedance (110 W/8 ohms)

CD, etc. -------------------------------------- 150 mV/47k-ohms PHONO MM --------------------------------2.5 mV/47k-ohms MAIN IN ----------------------------------------- 1 V/47k-ohms

Output Level/Impedance

REC OUT ----------------------------------- 150 mV/600 ohms MAIN OUT ------------------------------------- 1 V/1.2 k-ohms SUBWOOFER [SPLIT L/R] ----------------- 2 V/1.2 k-ohms

[MONO] -----------------4 V/1.2 k-ohms PHONES Output ------------------------------------ 150 mV/100 ohms Frequency Response (10 Hz to 100 kHz)

CD, etc. to MAIN L/R SP. OUT------------------------ –3 dB Total Harmonic Distortion (20 Hz to 20 kHz)

CD, etc. to MAIN OUT (1 V) -----------------0.005% or less

MAIN IN to SP OUT (55 W/8 ohms)-------- 0.005% or less Signal to Noise Ratio (IHF-A network)

(Input shorted, EFFECT off) ------------------ 96 dB or more Residual Noise (IHF-A network)

MAIN L/R SP. OUT --------------------------- 150 µV or less Channel Separation (Vol –30 dB, 5.1 k-ohms terminated)

1 kHz/10 kHz ---------------------------- 70 dB/60 dB or more Tone Control (MAIN L/R)

Bass Boost/Cut --------------------------------- ±10 dB (50 Hz)

Treble Boost/Cut ----------------------------- ±10 dB (20 kHz)

Bass Extension ---------------------------------- +6 dB (60 Hz)

Video Section

Video Signal Type ------------------------------------------------- NTSC

[Australia model]------------------------------------------- PAL Composite Video Signal Level ----------------------- 1 Vp-p/75 ohms S-Video Signal Level

Y------------------------------------------------- 1 Vp-p/75 ohms

C-------------------------------------------- 0.286 Vp-p/75 ohms Component Video Signal Level

Y------------------------------------------------- 1 Vp-p/75 ohms

B/CB, PR/CR --------------------------------- 0.7 Vp-p/75 ohms

Appendix

P Maximum Input Level ------------------------------------------ 1.5 Vp-p Signal to Noise Ratio ------------------------------------ 50 dB or more Frequency Response

(MONITOR OUT) ------------------- 5 Hz to 10 MHz, –3 dB

FM Section

Tuning Range ---------------------------------------- 87.5 to 107.9 MHz

[Australia model] -------------------------- 87.5 to 108.0 MHz

50 dB Quieting Sensitivity (IHF, 75 ohms, 100% mod., 1 kHz)

Mono------------------------------------------ 1.6 µV (15.3 dBf) Stereo ------------------------------------------ 23 µV (38.5 dBf)

Usable Sensitinity (75 ohms) [Australia model only]

DIN, Mono (S/N 26 dB) -------------------------------- 0.9 µV DIN, Stereo (S/N 46 dB) --------------------------------- 28 µV

Signal-to-Noise Ratio

(IHF) Mono/Stereo ------------------------------- 81 dB/75 dB [Australia model] (DIN Weighted, 40 kHz Dev.) Mono/Stereo

------------------------------------------------------- 75 dB/69 dB

Harmonic Distortion (1 kHz)

Mono/Stereo -------------------------------------------- 0.1/0.2% Stereo Separation (1 kHz) ----------------------------------------- 48 dB Frequency Response

20 Hz to 15 kHz ------------------------------------------0±1 dB

AM Section

Tuning Range ------------------------------------------ 530 to 1,710 kHz

[Australia model] ---------------------------- 531 to 1,611 kHz Usable Sensitivity --------------------------------------------- 300 µV/m Signal-to-Noise Ratio ---------------------------------------------- 52 dB

General

Power Supply --------------------------------------AC 120 V, 50/60 Hz

[Australia model] --------------------------- AC 240 V, 50 Hz Power Consumption----------------------------------------------- 550 W AC Outlets (Total 120 W maximum)------------------- 3 (Switched)

[Australia model] (100 W maximum)--------- 1 (Switched) Dimensions (W x H x D) -------------------------471 x 211 x 473 mm

(18-1/2” x 8-1/4” x 18-5/8”) Weight ----------------------------------------------- 28 kg (61 lbs 11oz) Accessories ----------------------------------------------- Remote control

Alkaline batteries

Quick reference guide

AM loop antenna

Indoor FM antenna

Antenna adapter (Except for Australia model)

*Specifications are subject to change without notice.

YAMAHA ELECTRONICS CORPORATION, USA 6660 ORANGETHORPE AVE., BUENA PARK, CALIF. 90620, U.S.A. YAMAHA CANADA MUSIC LTD. 135 MILNER AVE., SCARBOROUGH, ONTARIO M1S 3R1, CANADA YAMAHA ELECTRONIK EUROPA G.m.b.H. SIEMENSSTR. 22-34, 25462 RELLINGEN BEI HAMBURG, F.R. OF GERMANY YAMAHA ELECTRONIQUE FRANCE S.A. RUE AMBROISE CROIZAT BP70 CROISSY-BEAUBOURG 77312 MARNE-LA-VALLEE CEDEX02, FRANCE YAMAHA ELECTRONICS (UK) LTD. YAMAHA HOUSE, 200 RICKMANSWORTH ROAD WATFORD, HERTS WD1 7JS, ENGLAND YAMAHA SCANDINAVIA A.B. J A WETTERGRENS GATA 1, BOX 30053, 400 43 VÄSTRA FRÖLUNDA, SWEDEN YAMAHA MUSIC AUSTRALIA PTY, LTD. 17-33 MARKET ST., SOUTH MELBOURNE, 3205 VIC., AUSTRALIA

V482920-1Printed in Japan

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT

TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER

MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

Quick Reference Card

Power Buttons

Display Window

Source Select

Program/10Key Section

Others

■ Remote Control

TRANSMIT RE-NAME CLEAR

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

TITLE

SOURCE

SELECT

POWER REC STOP PAUSE PLAY

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

6.1/ES

CHP/INDEX

++ +

TV VOL

–– –

DISPLAY

SEARCH CHAPTER

1234

ROCK

ENTER-

CONCERT

TAINMENT

5678

MOVIE

THEATER

THEATER 1

9101112

0 +10 +100

A / B / C / D / E PRESET

TV INPUT

TV MUTE

DISC

MACROLEARN

ENTER

CONCERT

VIDEO 1

MOVIE

THEATER 2

MUTE

EFFECT

MACRO

OFF ON

6CH INPUT

SOUND

CONCERT

VIDEO 2

/DTS

SUR.

VOLUME

+–

Programming Section

Input Section

POWER

Operation Section

(Preset Group) A (Preset Group) B

Volume Section

■ TUNER ■ CD

DISPLAY

SEARCH POWER STOP

PRESET NUMBER 1~8

INDEX

■ MD

■ TAPE

(Preset Group) E (Preset Group) D

(Preset Group) C PRESET + / –

(Preset Group) A/B/C/D/E

SKIP SEARCH PLAY PAUSE (YAMAHA : PAUSE / STOP)

1~9

CLEAR +10

0 DISC SKIP

Setup Section

ON SCREEN

SLEEP TEST

LEVEL

FAST FORWARD

PARAMETER

SET MENU

REWIND REC / PAUSE

DECK A / DECK B

DIRECTION A/B PLAY

STOP

DISPLAY

SEARCH POWER REC PAUSE

SKIP SEARCH PLAY

PAUSE STOP

1~9

+10 0

V483210

Quick Reference Card

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV

CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3 LD

DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

SYSTEM

POWER

STANDBY

V-AUX TAPE PHONO

D-TV CBL/SAT TUNER MD CD

VCR 1 VCR 2 VCR 3

LD DVD

6CH INPUT

TITLE

ENTER

SOUND

DISPLAY

SOURCE

SELECT

SEARCH CHAPTER

10KEY DSP HALL 1 HALL 2 CHURCH JAZZ CLUB

ROCK

CONCERT

ENTER-

TAINMENT

CONCERT

VIDEO 2

CONCERT

VIDEO 1

POWER REC STOP PAUSE PLAY

6.1/ES

THEATER

MOVIE

THEATER 2

MOVIE

THEATER 1

0 +10 +100

1234

5678

9101112

++ +

TV VOL

A / B / C / D / E

PRESET

TV INPUT

TV MUTE

DISC

MUTE

EFFECT

VOLUME

+–

CHP/INDEX

–– –

DISPLAY

SEARCH POWER STOP

SOUND

CHAPTER SEARCH

PLAY PAUSE

1~9

REWIND / FAST FORWARD

POWER REC

(Press twice)

■

VCR 1/VCR 2/VCR 3

PLAY PAUSE STOP

1~9

DISPLAY MENU

POWER

■ CBSAT■ LD

MENU CURSOR / ENTER

(*2)

1~9

CHAPTER / TIME

(*1)

TITLE

MENU DISPLAY

SEARCH POWER RETURN

TITLE / INDEX

(*1)

CLEAR +10

TV / VIDEO

(*1)

■ DVD ■ D-TV

MENU CURSOR / ENTER SOUND

SKIP SEARCH PLAY

PAUSE STOP

1~9

CLEAR +10

0 DISC SKIP

DISPLAY

POWER

ENTER

TV INPUT TV VOLUME

TV MUTE

10 or 0

CHANNEL + / –฀

(*2)

1~9

10 or 0

CHANNEL + / –

ENTER

RECALL 0

(*1)

(*1) TV VOL, TV INPUT, TV MUTE function if you have setup the manufacturer code

for the D-TV Area.

(*1) TV VOL, TV INPUT, TV MUTE fonctionnent si vous avez réglé le code du

fabricant pour la zone D-TV.

(*1) TV VOL, TV INPUT und TV MUTE-Funktion, wenn Sie den Herstellercode für

den D-TV-Bereich eingestellt haben.

(*1) TV VOL, TV INPUT och TV MUTE om du har programmerat tillverkarkoden för

D-TV-området.
