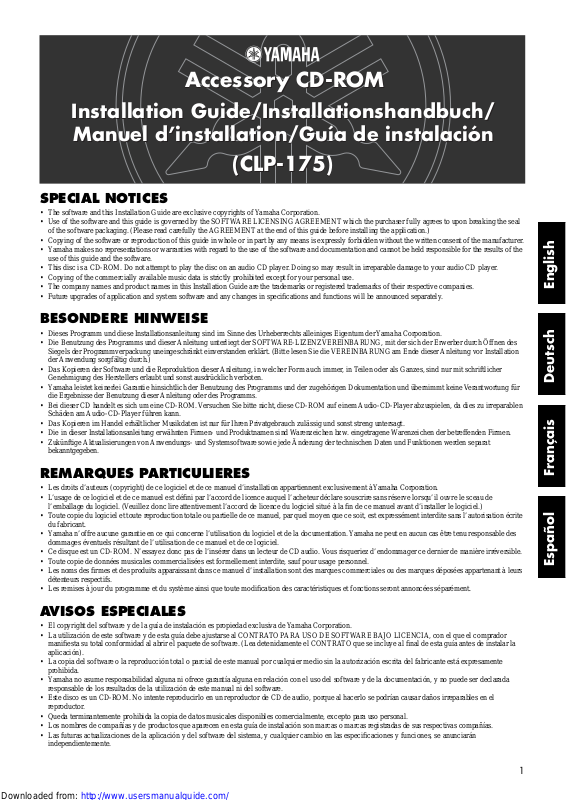

Accessory CD-ROM

Accessory CD-ROM

Installation Guide/Installationshandbuch/

Installation Guide/Installationshandbuch/

Manuel d’installation/Guía de instalación

Manuel d’installation/Guía de instalación

(CLP-175)

(CLP-175)

SPECIAL NOTICES

• The software and this Installation Guide are exclusive copyrights of Yamaha Corporation.

• Use of the software and this guide is governed by the SOFTWARE LICENSING AGREEMENT which the purchaser fully agrees to upon breaking the seal
of the software packaging. (Please read carefully the AGREEMENT at the end of this guide before installing the application.)

• Copying of the software or reproduction of this guide in whole or in part by any means is expressly forbidden without the written consent of the manufacturer.

•Yamaha makes no representations or warranties with regard to the use of the software and documentation and cannot be held responsible for the results of the
use of this guide and the software.

• This disc is a CD-ROM. Do not attempt to play the disc on an audio CD player. Doing so may result in irreparable damage to your audio CD player.

• Copying of the commercially available music data is strictly prohibited except for your personal use.

• The company names and product names in this Installation Guide are the trademarks or registered trademarks of their respective companies.

• Future upgrades of application and system software and any changes in specifications and functions will be announced separately.

English

BESONDERE HINWEISE

• Dieses Programm und diese Installationsanleitung sind im Sinne des Urheberrechts alleiniges Eigentum der Yamaha Corporation.

• Die Benutzung des Programms und dieser Anleitung unterliegt der SOFTWARE-LIZENZVEREINBARUNG, mit der sich der Erwerber durch Öffnen des
Siegels der Programmverpackung uneingeschränkt einverstanden erklärt. (Bitte lesen Sie die VEREINBARUNG am Ende dieser Anleitung vor Installation
der Anwendung sorgfältig durch.)

• Das Kopieren der Software und die Reproduktion dieser Anleitung, in welcher Form auch immer, in Teilen oder als Ganzes, sind nur mit schriftlicher
Genehmigung des Herstellers erlaubt und sonst ausdrücklich verboten.

•Yamaha leistet keinerlei Garantie hinsichtlich der Benutzung des Programms und der zugehörigen Dokumentation und übernimmt keine V erantw ortung für
die Ergebnisse der Benutzung dieser Anleitung oder des Programms.

• Bei dieser CD handelt es sich um eine CD-ROM. Versuchen Sie bitte nicht, diese CD-ROM auf einem Audio-CD-Player abzuspielen, da dies zu irreparablen
Schäden am Audio-CD-Player führen kann.

• Das Kopieren im Handel erhältlicher Musikdaten ist nur für Ihren Privatgebrauch zulässig und sonst streng untersagt.

• Die in dieser Installationsanleitung erwähnten Firmen- und Produktnamen sind Warenzeichen bzw. eingetragene Warenzeichen der betreffenden Firmen.

• Zukünftige Aktualisierungen von Anwendungs- und Systemsoftware sowie jede Änderung der technischen Daten und Funktionen werden separat
bekanntgegeben.

REMARQUES PARTICULIERES

• Les droits d’auteurs (copyright) de ce logiciel et de ce manuel d’installation appartiennent exclusivement à Yamaha Corporation.

•L’usage de ce logiciel et de ce manuel est défini par l’accord de licence auquel l’acheteur déclare souscrire sans réserve lorsqu’il ouvre le sceau de
l’emballage du logiciel. (Veuillez donc lire attentivement l’accord de licence du logiciel situé à la fin de ce manuel avant d’installer le logiciel.)

•Toute copie du logiciel et toute reproduction totale ou partielle de ce manuel, par quel moyen que ce soit, est expressément interdite sans l’autorisation écrite
du fabricant.

•Yamaha n’offre aucune garantie en ce qui concerne l’utilisation du logiciel et de la documentation. Yamaha ne peut en aucun cas être tenu responsable des
dommages éventuels résultant de l’utilisation de ce manuel et de ce logiciel.

• Ce disque est un CD-ROM. N’essayez donc pas de l’insérer dans un lecteur de CD audio. Vous risqueriez d’endommager ce dernier de manière irréversible.

•Toute copie de données musicales commercialisées est formellement interdite, sauf pour usage personnel.

• Les noms des firmes et des produits apparaissant dans ce manuel d’installation sont des marques commerciales ou des marques déposées appartenant à leurs
détenteurs respectifs.

• Les remises à jour du programme et du système ainsi que toute modification des caractéristiques et fonctions seront annoncées séparément.

DeutschFrançaisEspañol

AVISOS ESPECIALES

• El copyright del software y de la guía de instalación es propiedad exclusiva de Yamaha Corporation.

• La utilización de este software y de esta guía debe ajustarse al CONTRATO PARA USO DE SOFTWARE BAJO LICENCIA, con el que el comprador
manifiesta su total conformidad al abrir el paquete de software. (Lea detenidamente el CONTRATO que se incluye al final de esta guía antes de instalar la
aplicación).

• La copia del software o la reproducción total o parcial de este manual por cualquier medio sin la autorización escrita del fabricante está expresamente
prohibida.

•Yamaha no asume responsabilidad alguna ni ofrece garantía alguna en relación con el uso del software y de la documentación, y no puede ser declarada
responsable de los resultados de la utilización de este manual ni del software.

• Este disco es un CD-ROM. No intente reproducirlo en un reproductor de CD de audio, porque al hacerlo se podrían causar daños irreparables en el
reproductor.

• Queda terminantemente prohibida la copia de datos musicales disponibles comercialmente, excepto para uso personal.

• Los nombres de compañías y de productos que aparecen en esta guía de instalación son marcas o marcas registradas de sus respectivas compañías.

• Las futuras actualizaciones de la aplicación y del software del sistema, y cualquier cambio en las especificaciones y funciones, se anunciarán
independientemente.

1

Important Notices about the CD-ROM

Data Types

This CD-ROM includes application software.
Please refer to page 3 (Windows) and 9 (Macintosh) for details about the software and how to install it.

These applications allow you to transfer data between your computer and the Clavinova.

Operating System (OS)

English

The applications in this CD-ROM are provided in versions for both Windows and Macintosh operating systems. The installation procedure and
the applications themselves differ depending on the operating system that you are using. Please refer to the appropriate installation instructions.

→
→

Never attempt to play back the included CD-ROM on an audio CD player. Doing so may result in damage to your hearing as well as to your CD
player/audio speakers.

Windows Read page 3, 6, 13.
Macintosh Read page 3, 10, 13.

Media format

The Clavinova and the File Utility software are compatible with the MS-DOS format media.

2

CD-ROM installation procedure

The following steps are the same for both Windows and Macintosh.

1

Verify that your system meets the operating requirements of the software (File Utility, driver, etc.) (Windows page 6, Macintosh page 10).

2

Connect the Clavinova to your computer.
Refer to the owner’s manual for details on connections.

n Depending on the computer system you are using, some types of connections may not be possible.

3

Install the driver appropriate for your type of connection into your computer, and make the necessary settings.
The arrow symbols shown below represent cables.

• Connection using a USB cable
USB connector of the Clavinova ↔ USB connector of the computer … Windows page 6, Macintosh page 10

• Connection using a serial cable
TO HOST connector of the Clavinova ↔ Serial port of the computer (RS-232C or RS-422 connector) … page 8

• Connection using MIDI cables
MIDI connector of the Clavinova ← MIDI interface device → Computer

… Refer to the owner’s manual for the MIDI interface device.

4

Install the software (File Utility, etc.)
Refer to pages 6 (Windows) or 10 (Macintosh) for the installation procedure.

5

Start up the software.

For subsequent operation, refer to the owner’s manual for each software program (online help/PDF manual).

n In order to view PDF files, you will need to install Acrobat Reader in your computer (Windows page 6, Macintosh page 10).

English

For Windows Users

Contents of the CD-ROM

The CD-ROM contains a variety of applications (with installers) and data in the following folders.

Folder Name Application Name Contents

*1

Acroread_ Acrobat Reader

FileUtil_ File Utility

USBdrv_ YAMAHA USB MIDI Driver (for W in98, Me) Enables your computer to communicate with the Clavinova when your com-

USBdrv2k_ YAMAHA USB MIDI Driver (for Win2000, XP)

Mididrv_ YAMAHA CBX Driver Allows the serial port of your computer to be connected directly to the

SongData Demonstration Song Enables you to use the File Utility to transmit data to the Clavinova so you

Adv Piano Suite Lite

advdoc Getting Started with Piano Suite Lite

*2

*2

*3

*1

*1

PDF (Portable Document Format) viewer. Enables you to view each PDF
manual for the applications.

Enables you to manage files in the storage memory on the Clavinova or on
the floppy disk.

puter and the Clavinova are connected using a USB cable.

Clavinova so that MIDI messages can be transferred.

can enjoy demo song (SMF file) playback on the Clavinova.

You can experience the essence of the Adventus Piano Suite, a music soft­ware for learning, playing, and creating.

Basic guide for setup and exploration of Piano Suite Lite.

yamahamusicsoft.com Yamaha various software Introduction for music software products from Yamaha.

*1 Unfortunately, Yamaha makes no guarantee concerning the stability of this program nor can it offer user support for it.
*2 The applications are supplied with online/PDF manuals.
*3 You can start the application as either a stand-alone software or a plug-in application in the Open Plug-in Technology compatible application. See page 5 for

details about Open Plug-in Technology.

3

Limitations on the Clavinova when using the File Utility

By using the File Utility, you can transfer files between the internal memory or floppy disk of the Clavinova and your computer, and
edit them.
There are some operating states of the Clavinova in which it is not possible to use the File Utility or in which some File Utility functions
are not available.

You cannot use File Utility to perform file operations in the following states.

• Demo song mode

• Song recording/playback mode

• During file operations

• During the various [SONG SETTING] operations

The following operations cannot be performed while File Utility is running.

• File operations

• Song loading

English

•Track button on/off

The following operations cannot be performed on the Clavinova.

• Changing the name of a protected song

• Changing the filename extension of a file

• Japanese display in the LCD screen

• Creating a folder

• Copying a folder from the computer to the storage memory

•Transmitting a folder from floppy disk to storage memory

• Copying a file within the same folder

•Transmitting a protected song to the computer

•Transmitting path information to a device

n When transferring a file between the Clavinova and your computer, you must set the type of characters on your Clavinova ([CharacterCode]) to

n On the Clavinova, the File Utility ID is fixed at “1”. If you specify an ID other than “1,” you will be unable to transmit or receive data. For details

(A “protected song” is song data such as a preset song that has been copied to the storage memory, or DOC data (See the CLP-175
owner’s manual).)

match the language of the operating system for the computer in which you installed File Utility.
If the character code of the Clavinova does not match the language of the computer that is running File Utility, the file may not be handled cor­rectly.

on the File Utility ID, refer to the File Utility PDF manual.

4

About Open Plug-in Technology

You can start the File Utility software as either a stand-alone software or a plug-in application in the Open Plug-in Technology compatible
application.
Refer to the owner’s manual of the client application (sequencer, etc.) for details on using the File Utility as a plug-in software.

Open Plug-in Technology (OPT) is a newly developed software format that allows control over MIDI devices from a music software
sequencer. For example, this allows you to start up and operate various parts of your music system, such as plug-in board editors, and
mixing control editors - directly from an OPT-compatible sequencer, without having to use each separately. This also makes it unnec­essary to set MIDI drivers for each application, streamlining your music production system and making all operations more convenient
and seamless.

About the OPT Levels

The client application and its compatibility with OPT can be divided into three levels, as shown below.

Level 1 – OPT Panels provides basic support for opening and displaying OPT control panels that can transmit data via the

clients’ external MIDI ports.
Typically this will allow basic hardware editor control panels to operate properly.

Level 2 – OPT Processors provides support for real-time MIDI processors and panel automation.

Typically this will allow both real-time and offline MIDI effects (e.g. Arpeggiators, transposers etc.) to operate properly
and supply automation to OPT panels.

Level 3 – OPT Views provides support for edit views and MIDI processors/panels that require direct access to client se-

quencer storage structures. Typically this will allow sophisticated MIDI edit views to be supported (e.g. List editors, Auto
Accompaniment, Data Checkers etc.).

OPT Level Implementation for the File Utility

This chart shows the OPT-compatibility of the File Utility.

OPT levels of the client application

Operation support Operation limits

VIEWS (Level3) Yes None

PROCESSORS (Level2) Yes None

PANELS (Level1) No —

English

File Utility operation

n Certain operations may not work as expected if there is no corresponding function in the client application (sequencer, etc.). The highest level of imple-

mentation for the client application is indicated in the OPT logo (which appears along with the version information in the application).

5

●

Minimum System Requirements

n Depending on your operating system, it may be necessary to satisfy

• File Utility

Computer:

OS:

Available Memory: 32 MB or more
Hard Disk:
Display:

• USB MIDI Driver

Computer:

OS:

English

Available Memory: 32 MB or more
Hard Disk:

•YAMAHA CBX Driver

OS:

Software Installation

n For details about the application software which has no installation

Uninstalling the application software

Follow the procedure below to remove the installed software.
Select [Start | Settings | Control Panel | Add/Remove Programs |
Install/Uninstall] to specify the item you wish to remove, then
click [Add/Remove...]. A dialog panel appears. Follow the in­structions on screen to uninstall the application software.

n The menu or button names may vary depending on the OS.

Acrobat Reader

In order to view the PDF manuals included with each application,
you’ll need to install Acrobat Reader.

conditions in addition to those listed below.

PC with 166 megahertz (MHz); Intel® Pentium®/
Celeron® family

Windows® 98/98SE/Me/2000/XP Home Edition/XP
Professional

6 MB or more
640 × 480, High Color (16 bit)

PC equipped with a USB port and 166 megahertz
(MHz) or faster Intel® Pentium® or Celeron® family

Windows® 98/98SE/Me/2000/XP Home Edition/XP
Professional

2 MB or more

Windows® 95/98/98SE/Me/NT4.0/2000/XP Home
Edition/XP Professional

guide described below, refer to the online manual of each software.

USB MIDI Driver

To operate the Clavinova from your computer via USB, you’ll need
to install the appropriate driver software.
The USB-MIDI driver is software that transfers MIDI data back and
forth between sequence software and the Clavinova via a USB cable.

Computer

Sequence

Software

Driver

→

Windows 98/Me users See below.

→

Windows 2000 users See page 7.

→

Windows XP users See page 8.

USB cable

TRACK

EXTRA

TRACK

1

TRACKS

2

SONG SELECT

TOP

START

/

STOP

REC

SONG KEYBOARD

NEW SONG

SYNCHRO START

MAXMIN

SONG BALANCE

MASTER VOLUME

DEMO

SONG

n Before you install the USB MIDI driver, you can minimize the

possibility of problems by putting your computer in the following
state.

• Close all applications and windows that you are not using.

• Disconnect all cables from the Clavinova except for the
cable whose driver you are installing.

Installing the driver on a Windows 98/Me
system

1

Start the computer.

2

Insert the included CD-ROM into the CD-ROM drive.

3

Make sure the POWER switch on the Clavino v a is set to OFF and
use the USB cable to connect the USB terminal of the computer
to the USB terminal of the Clavinova. When the Clavinova is
turned on, the computer automatically displays the “Add New
Hardware Wizard.” If the Add New Hardware Wizard does not
appear, click “Add New Hardware” in the Control Panel.

For Windows Me users, check the radio button to the left of “Auto-

n

matic search for a better driver (Recommended)” and click [Next].
The system automatically starts searching and installing the driver.
Proceed to Step 8. If the system does not detect the driver, select
“Specify the location of the driver (Advanced)” and specify the CD­ROM drive’s “USBdrv_” to install the driver.

Windows 98

Clavinova

METRONOME

FILE

SETTINGSTART/STOP

SONG
SETTING

DOWN

UP

TEMPO

CAD

AFC

VOICE

MIDI

E.CLAVI-

E.PIANO

E.PIANO

GRAND

VIBRA-

HARPSI-

GRAND

CONTRAST

B

SETTING

SETTING

CHORUSON

/

OFFREVERB

SPLIT

CHORD

2

1

PIANO 1

PHONE

CHORD

PIANO 2

GUITAR

NOYES

OTHER

AFC

BRILLIANCE

WOOD

CHURCH

SYNTH.

JAZZ

VARIATION

SETTING

SETTING

BRIGHTMELLOW

BASS

ORGAN

PAD

ORGAN

CHOIR

STRINGS

E.BASSXG

EXIT

VOICE

EFFECT

POWER

n If an older version of Acrobat Reader is installed on your PC, you’ll

need to uninstall it before proceeding.

1

Double-click on the “Acroread_” folder.
Four different language folders will be displayed.

2

Select the language you want to use and double-click on its folder.
“ar500***.exe” file will be displayed. (“***” indicates the
selected language.)

n The file name might change if the application software has been up-

graded.

3

Double-click on the “ar500***.exe.”
Acrobat Reader Setup Dialog box will be displayed.

4

Execute the installation by following the on-screen directions.

After installation is complete, the Acrobat folder appears on your PC
(in Program Files, as the default).
For information on using the Acrobat Reader, refer to the Reader
Guide in the Help menu.

6

Windows Me

4 Click [Next].

The window below enables you to select the search method.

Windows Me

The driver has been installed.

5 Check the radio button to the left of “Search for the best driver for

your device. (Recommended).” Click [Next].
The window that enables you to select a location in which to
install the driver appears.

6 Check the “Specify a location” box and uncheck all other items.

Specify the USBdrv_ directory of the CD-ROM drive (such as
D:\USBdrv_\). Click [Next].

7 When the system detects the driver on the CD-ROM and is ready

for installation, it displays the following screen.
Make sure that the “YAMAHA USB MIDI Driver” is listed, and
click [Next]. The system starts the installation.

8 When the installation is complete, the following screen appears.

Click [Finish].

n Some computers may take about ten seconds to show this screen

after the installation is complete.

Windows 98

● Installing the driver on a Windows 2000 sys­tem

1 Start the computer and use the “Administrator” account to log into

Windows 2000.

2 Select [My Computer | Control Panel | System | Hardware | Driver

Signing | File Signature Verification], and check the radio button
to the left of “Ignore -Install all files, regardless of file signature”
and click [OK].

3 Insert the included CD-ROM into the CD-ROM drive.
4 Make sure the POWER switch on the Clavinova is set to OFF and

use the USB cable to connect the USB terminal of the computer
to the USB terminal of the Clavinova. When the Clavinova is
turned on, the computer automatically displays the “Found New
Hardware Wizard.” Click [Next].

5 Check the radio button to the left of “Search for a suitable driver

for my device. (Recommended).” Click [Next].
The window that appears enables you to select a location in which
to install the driver.

6 Check the “Specify a location” box and uncheck all other items.

Specify the USBdrv2k_ directory of the CD-ROM drive (such as
D:\USBdrv2k_\). Click [Next].

7 When the installation is complete, the system displays “Complet-

ing the Found New Hardware Wizard.” Click [Finish].

n Some computers may take about ten seconds to show this screen

after the installation is complete.

8 Restart the computer.

The driver has been installed.

English

7
