Introduction

Thank you for choosing a Yamaha CLP-154S/155 Clavinova. Your Clavinova is a fine musical instrument that employs advanced Yamaha music technology. With the proper care, your Clavinova will give you many years of musical pleasure.

● Yamaha’s AWM (Advanced Wave Memory) tone generator system offers rich, realistic voices. The

CLP-155 additionally features stereo sampling of its PIANO 1 voice for unmatched realism and expressive power.

● Piano-like touch response — adjustable in 4 stages — provides extensive expressive control and out-

standing playability.

● Dual play mode allows 2 voices to be played simultaneously.

● Unique Clavinova Tone voice provides a fresh sound for new musical expression.

● Damper pedal includes natural resonance effect for the piano voices, simulates the string and sound-

board resonance of acoustic pianos.

● Metronome feature with variable tempo facilitates practice.

● 2-track digital recorder lets you record and play back anything you play on the keyboard (up to ap-

proximately 4,200 notes).

● MIDI compatibility and a range of MIDI functions make the Clavinova useful in a range of advanced

MIDI music systems.

In order to make the most of your Clavinova’s performance potential and features, we urge you to read this Owner’s Manual thoroughly, and keep it in a safe place for later reference.

Taking Care Of Your Clavinova

Your Clavinova is a fine musical instrument, and deserves the most careful treatment.

Observe the following points and your Clavinova will sound and look great for many years.

1 Never open the case and touch or tamper with the inter-

nal circuitry.

2 Always turn the POWER switch OFF after use, and

close the key cover to protect the keyboard, or cover the keyboard with the dust cover provided.

3 Clean the cabinet and keys of your Clavinova only with

a clean, slightly damp cloth. A neutral cleanser may be used if desired. Never use abrasive cleansers, waxes, solvents or chemical dust cloths since these can dull or damage the finish.

4 Never place any vinyl products on your Clavinova. Con-

tact with vinyl can cause irreversible damage to the finish.

5 Install your Clavinova in a place that is away from di-

rect sunlight, excessive humidity or heat.

6 Never apply excessive force to the controls, connectors

or other parts of your Clavinova, and avoid scratching or bumping it with hard objects.

● Name Plate Location

The CLP-154S/155 name plate is located on the bottom panel.

Contents

The Control Panel............................................................2

Connections......................................................................4

Selecting & Playing Voices ...........................................5

■ Playing the Demonstration Tunes...............................6

The Dual Mode..................................................................7

● Adjusting the Balance Between the

Dual-mode Voices ..................................................7

● Shifting a Dual-Mode Voice Up One Octave ..........7

● Slow-attack Strings (CLP-155 only) .......................7

● Memorizing the Balance, Strings Type (CLP-155),

& Octave Shift Settings ..........................................7

Reverb ...............................................................................8

● Adjusting Reverb Depth .........................................8

● Memorizing the Reverb Type & Depth Settings .....8

Brilliance (CLP-155) ..........................................................9

● Memorizing the Brilliance Setting ...........................9

The Pedals .........................................................................9

● Soft (Left) Pedal .....................................................9

● Sostenuto (Center) Pedal.......................................9

● Damper (Right) Pedal.............................................9

Touch Sensitivity ...........................................................10

● Memorizing the Touch Sensitivity Setting ............10

Transposition..................................................................10

Pitch Control ...................................................................11

● Tuning Up.............................................................11

Using the Recorder .......................................................13

■ Recording..................................................................13

● Changing the Initial Settings.................................14

● Erasing a Single Track .........................................14

■ Playback ...................................................................14

● Fast Forward Playback.........................................14

MIDI Functions ...............................................................15

● A Brief Introduction to MIDI ..................................15

● MIDI “Messages” Transmitted & Received

by the Clavinova...................................................15

● MIDI Transmit & Receive Channel Selection .......16

● MIDI Transmit Transpose.....................................16

■ Other MIDI Functions................................................17

● Local Control ON/OFF..........................................17

● Program Change ON/OFF ...................................17

● Control Change ON/OFF......................................18

● The Multi-Timbre Mode ........................................18

● The MIDI Split & Left Local OFF Mode ................19

● The MIDI Split & Right Local Off Mode ................19

● Transmitting the Panel Settings (CLP-155 only) ..20

● Bulk Data Dump ...................................................20

Factory Preset Recall ...................................................21

Troubleshooting.............................................................21

Options & Expander Modules ....................................21

● Tuning Down ........................................................11

● To Restore Standard Pitch ...................................11

● Memorizing the Pitch Control Setting ...................11

The Metronome & Tempo Control.............................12

■ The Metronome ........................................................12

● Metronome Volume ..............................................12

● Metronome Time Signature..................................12

■ Tempo Control ..........................................................12

Keyboard Stand Assembly ............................................ i

MIDI Data Format ........................................................... vii

Specifications ................................................................ viii

MIDI Implementation Chart .......................................... ix

CLP-154S

The Control Panel

REVERB

ROOM HALL 1

MASTER VOLUME

MIN MAX

HALL 2 COSMIC

MIDI/

TRANSPOSE

PIANO 1

PIANO 2

CLAVINOVA

RECORDER

HARPSI-

ORGAN

CHORD

E. PIANO

TONE

METRONOME

TEMPO

32 120 280

PLAY

REC DEMO

PHONES Jacks

(Bottom Panel)

CLP-155

POWER

MASTER VOLUME

MIN MAX

Pitch control keys

(See page 11)

Left voice shift up key

BRILLIANCE

MELLOW NORMAL BRIGHT

PIANO 2

MASTER VOLUME

MIN MAX

CLAVINOVA

TONE

REVERB

ROOM HALL 1 HALL 2

MIDI/

COSMIC

PIANO 1

TRANSPOSE

Balance/Depth keys (See page 7, 8)

HARPSI-

CHORD

E. PIANO

VIBES

HARPSI-

CLAVINOVA

CHORD

E. PIANO

TONE

PIANO 2

Transpose keys

(See page 10)

STRINGS

ORGAN

RECORDER

TEMPO

PLAY

REC DEMO

Right voice shift up key

(See page 7)

RECORDER

PLAY

REC

DEMO

TEMPO

32 120 280

METRONOME

ORGAN

METRONOME

32 120 280

578902

C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6

B0A0G0F0E0D0C0B-1A-1 D6 E6

(See page 7)

REVERB

ROOM HALL 1 HALL 2

MIDI/

COSMIC

TRANSPOSE

PIANO 1

4657890

POWER

Pitch control keys

PHONES Jacks

(Bottom Panel)

(See page 11)

● The Music Stand

REVERB

BRILLIANCE

ROOM

MELLOW

HALL 1

NORMAL

MASTER VOLUME

MIN MAX

C1 D1 E1 F1 G1 A1 B1 C2 D2 E2 F2 G2 A2 B2 C3 D3 E3 F3 G3 A3 B3 C4 D4 E4 F4 G4 A4 B4 C5 D5 E5 F5 G5 A5 B5 C6

B0A0G0F0E0D0C0B-1A-1 D6 E6

Left voice shift up key

(See page 7)

HALL 2

MIDI/

BRIGHT

COSMIC

PIANO 1

TRANSPOSE

HARPSI-

CLAVINOVA

CHORD

E. PIANO

TONE

PIANO 2

Transpose keys

VIBES

(See page 10)

STRINGS

Balance/Depth keys (See page 7, 8)

ORGAN

METRONOME

TEMPO

32 120 280

RECORDER

DEMO

PLAY

REC

Right voice shift up key

(See page 7)

If you will be using sheet music with your Clavinova, raise the music stand built into its top panel by lifting the rear edge of the music stand, then flip down the music stand braces and engage them with the corresponding recesses.

The music stand can be lowered after slightly lifting it and folding the two brackets which support it against the back of the stand.

F6 G6 A6 B6 C7

Memory key (See page 7, 8, 10, 11)

1 [POWER] Switch

Press the [POWER] switch once to turn the power ON, a second time to turn the power OFF. When the power is initially turned ON, the [PIANO 1] voice selector LED will light, and the power indicator located below the left end of the keyboard will light.

2 [MASTER VOLUME] Control

The [MASTER VOLUME] control adjusts the volume (level) of sound produced by the Clavinova’s internal stereo sound system. The [MASTER VOLUME] control also adjusts headphone volume when a pair of headphones is plugged into the PHONES jack (page 4).

[BRILLIANCE] Button

(CLP-155 only)

This button can be used to change the tonality or “timbre” of the selected voice. See page 9 for details.

4 [REVERB] Button

The [REVERB] button selects a number of digital reverb effects that you can use for extra depth and expressive power. See page 8 for details.

• The PIANO 1 voice is auto-

NOTE

matically selected whenever the [POWER] switch is initially turned ON.

7 [METRONOME] Button

Turns the metronome sound on and off. The [TEMPO] control, below, is used to set the tempo of the metronome sound. More precise tempo settings can be achieved by using the [METRONOME] button and the CLP-154S/155 keyboard as described on page 12.

8 [TEMPO] Control

This control adjusts the tempo of the CLP-154S/155 metronome function as well as the playback tempo of the recorder function. The tempo range is from 32 to 280 quarter-note beats per minute.

9 RECORDER [PLAY] and [REC]

Buttons

These buttons control the CLP-154S/ 155 2-track recorder, letting you record and play back just about anything you play on the keyboard — up to a maximum of about 4,200 notes. See page 13 for details.

F6 G6 A6 B6 C7

Memory key (See page 7, 8, 10, 11)

Soft

pedal

Damper

Sostenuto

pedal

5 [MIDI/TRANSPOSE] Button

The [MIDI/TRANSPOSE] button allows access to the Clavinova’s TRANSPOSE function (to shift the pitch of the entire keyboard up or down), keyboard touch sensitivity adjustment, and MIDI functions. For details refer to “TRANSPOSITION” on page 10, “TOUCH SENSITIVITY” on page 10, and “MIDI FUNCTIONS” on page 15.

6 Voice Selectors

The CLP-154S has six voice selectors and the CLP-155 has eight. Simply press any of the voice selectors to select the corresponding voice. The voice selector LED will light to indicate which voice is currently selected. The CLP-154S/155 also has a DUAL mode in which two voices can be played simultaneously across the full range of the keyboard — see page 7 for details.

0 [DEMO] Button

Activates the demo playback mode in which you can select playback of different demonstration sequences for each of the Clavinova’s voices. See page 6 for details.

! Pedals

The CLP-154S/155’s soft (left), sostenuto (center) and damper (right) pedals provide a range of expressive control capabilities similar to the pedal functions on an acoustic piano. See page 9 for details.

CLP-154S

CLP-155

Connections

312

MIDI

THRU

OUT

312

MIDI

AUX IN

OUT

AUX OUT

THRU

R L/L+R

AUX IN

AUX OUT

R L/L+R

1 AUX IN L and R Jacks

AUX IN

DOU-10

2 AUX OUT L/L+R and R Jacks

AUX OUT

L/L+RR

Stereo System

These jacks are intended for use with an external tone generator module such as the Yamaha DOU-10 Disk Orchestra Unit. The stereo outputs from the external tone generator module are connected to the AUX IN L and R jacks, allowing the sound of the tone generator to be reproduced via the Clavinova’s internal sound system and speakers.

• The input signal from the AUX IN jacks is delivered to the AUX OUT jacks, but is

NOTE

not affected by the Clavinova’s volume control or reverb effect.

The AUX OUT L/L+R and R jacks deliver the output of the Clavinova for connection to an instrument amplifier, mixing console, PA system, or recording equipment. If you will be connecting the Clavinova to a monaural sound system, use only the L/L+R jack. When a plug is inserted into the L/L+R jack only, the leftand right-channel signals are combined and delivered via the L/L+R jack so you don’t lose any of the Clavinova’s sound.

The Internal Amplifier & Speaker System

The CLP-154S and CLP-155 feature high-performance stereo amplifiers delivering 20 and 30 watts per channel, respectively. The CLP-155 features a bass-reflex type enclosure with two 13-cm and two 5-cm speakers, while the CLP-154S houses a pair of 13-cm speaker units in a sealed enclosure.

• The AUX OUT jack signal must never be returned to the AUX IN jacks, either

NOTE

directly or through external equipment.

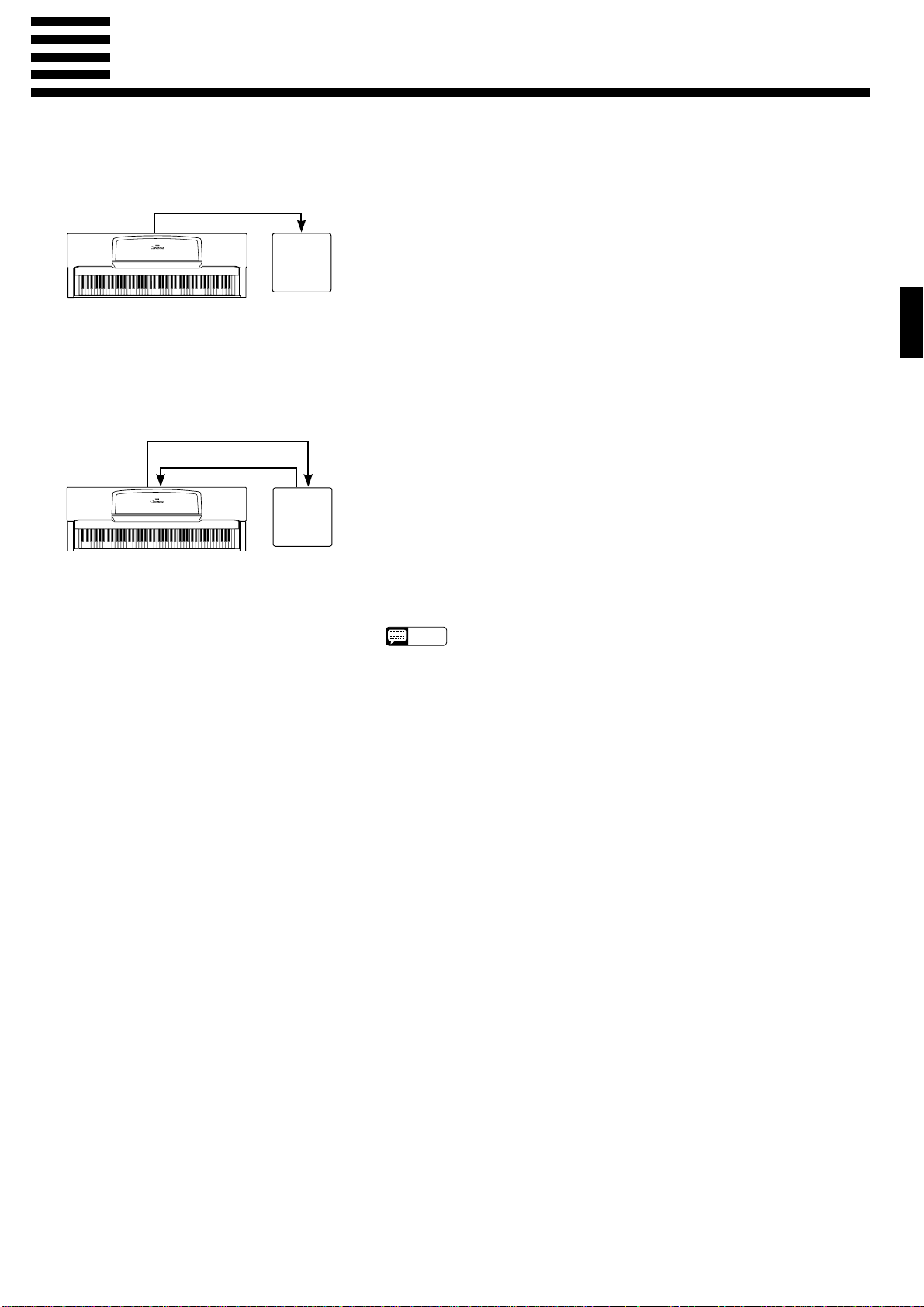

3 MIDI IN, THRU and OUT

Connectors

IN OUT THRU

MIDI

The MIDI IN connector receives MIDI data from an external MIDI device (such as the DOU-10 Disk Orchestra Unit) which can be used to control the Clavinova. The MIDI THRU connector re-transmits any data received at the MIDI IN connector, allowing “chaining” of several MIDI instruments or other devices. The MIDI OUT connector transmits MIDI data generated by the Clavinova (e.g. note and velocity data produced by playing the Clavinova keyboard).

More details on MIDI are given in “MIDI FUNCTIONS” on page 15.

Tone Generator

DOU-10

● PHONES Jacks (Bottom Panel)

Two pairs of standard pair of stereo headphones can be plugged in here for private practice or late-night playing. The internal speaker system is automatically shut off when a pair of headphones is plugged into either of the PHONES jacks.

Selecting & Playing Voices

ZTurn Power On

POWER

XSet the Volume

MASTER VOLUME

MIN MAX

CSelect a Voice

CLP-154S

PIANO 1

PIANO 2

CLAVINOVA

TONE

E. PIANO

HARPSI-

CHORD

After making sure that the Clavinova’s AC plug is properly inserted into

a convenient AC wall outlet, press the [POWER] switch located to the left of the keyboard to turn the power ON.

When the power is turned ON, the [PIANO 1] voice selector LED will

light (the PIANO 1 voice is automatically selected whenever the power is turned ON).

Initially set the [MASTER VOLUME] control about half way between

the “MIN” and “MAX” settings. Then, when you start playing, re-adjust the [MASTER VOLUME] control for the most comfortable listening level.

Select the desired voice by pressing one of the voice selectors.

CLP-155

ORGAN

PIANO 1

PIANO 2

CLAVINOVA

TONE

E. PIANO

HARPSI-

CHORD

VIBES

STRINGS

ORGAN

VPlay

BAdjust Tone & Add Effects

As Required

REVERB

CLP-154S

CLP-155

BRILLIANCE

MELLOW NORMAL BRIGHT

ROOM HALL 1 HALL 2 COSMIC

REVERB

ROOM HALL 1 HALL 2 COSMIC

The Clavinova also offers keyboard touch response, so the volume and timbre of notes played can be controlled according to how “hard” you play the keys. The amount of variation available depends on the selected voice.

You can also change the overall tone or add reverb and/or effects as desired by using the [REVERB] button, and the [BRILLIANCE] button on the CLP-155 (see page 9 for [BRILLIANCE] button operation, “Reverb” on page 8).

Selecting & Playing Voices

MASTER VOLUME

MIN MAX

Playing the Demonstration Tunes

The CLP-154S features 6 demonstration tunes and the CLP-155 has 8 demo tunes that effectively

demonstrate their sound capabilities. Here’s how you can select and play the demo tunes.

ZEngage the Demo Mode

DEMO

XSelect a Demo Tune

CLP-154S

PIANO 1

PIANO 2

CLAVINOVA

TONE

E. PIANO

CSet the Volume

VPlay a Different Demo

Press the [DEMO] button to engage the demo mode — the voice selectors

will flash in sequence.

Press one of the flashing voice selectors to start playback of the corresponding demo tune — featuring the voice normally selected by that voice selector button. The demo tunes will play in sequence until stopped, starting with the selected tune. The voice selector indicator will flash during demo playback.

CLP-155

HARPSI-

CHORD

ORGAN

PIANO 1

PIANO 2

CLAVINOVA

TONE

E. PIANO

HARPSI-

CHORD

VIBES

STRINGS

Use the [MASTER VOLUME] control to adjust the volume.

• The [TEMPO] control does not affect demo playback.

NOTE

You can start playback of any other demo tune during playback by simply pressing the corresponding voice selector. Playback will stop and the playbackready mode described in step 2, above, will be re-engaged if you press the voice selector of the demo that is currently playing.

ORGAN

B Stop the Demo

DEMO

The Demo Tunes CLP-154S

[PIANO 1] button: Etude op. 10-5 “Black Keys” by F. F. Chopin [PIANO 2] button: “Le Rhône” by K. Hattori [CLAVINOVA TONE] button: “Pavane pour une infante défunte” by

M. J. Ravel [HARPSICHORD] button: “Le Coucou” by L. C. Daquin [ORGAN] button: “Jesu, Joy Of Man’s Desiring” (Chorale from Cantata

No. 147) by J. S. Bach

to the normal play mode.

Press the [DEMO] button when you want to stop demo playback and return

CLP-155

[PIANO 1] button: Etude op. 10-5 “Black Keys” by F. F. Chopin [PIANO 2] button: “Le Rhône” by K. Hattori [CLAVINOVA TONE] button: “Pavane pour une infante défunte” by

M. J. Ravel [HARPSICHORD] button: “Le Coucou” by L. C. Daquin [VIBES] button: “Schmetterling (Papilions)” op. 43 by E. H. Grieg [STRINGS] button: “Charmaine” by L. Polladk [ORGAN] button: “Jesu, Joy Of Man’s Desiring” (Chorale from Cantata

No. 147) by J. S. Bach

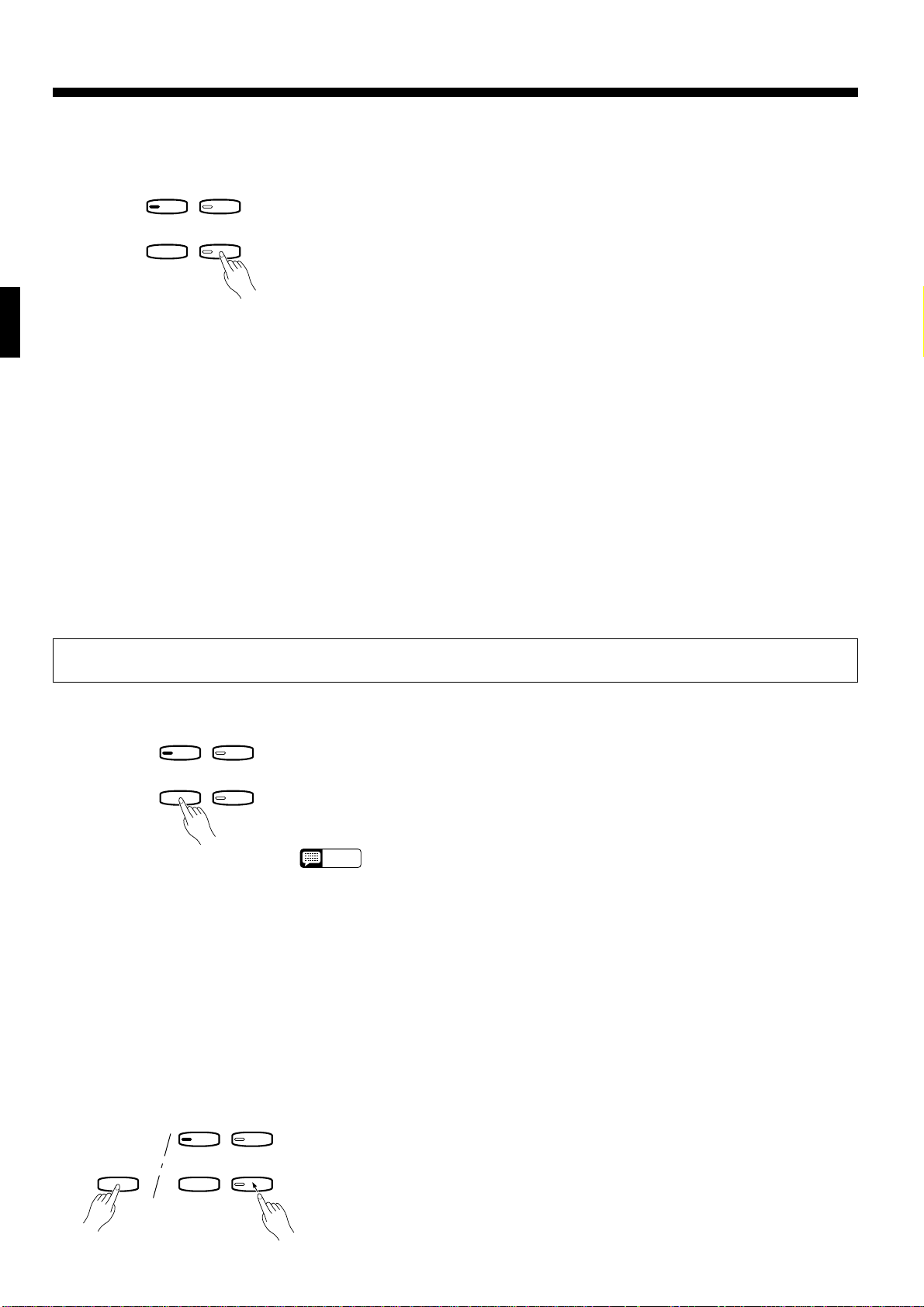

The Dual Mode

The DUAL mode makes it possible to play two voices simultaneously across the entire range of the keyboard. To activate the DUAL mode simply press two voice selectors at the same time (or press one voice selector while holding another). The voice indicators of both selected voices will light when the DUAL mode is active. To return to the normal single-voice play mode, press any single voice selector.

● Adjusting the Balance Be-

tween the Dual-mode Voices

Left voice maximum.

INOVA

E. PIANO

balance.

Equal

HARPSI-

CHORD

Right voice

maximum.

● Shifting a Dual-Mode Voice

Up One Octave

E. PIANO

HARPSI-

CHORD

Left voice

shift up.

Right voice

shift up.

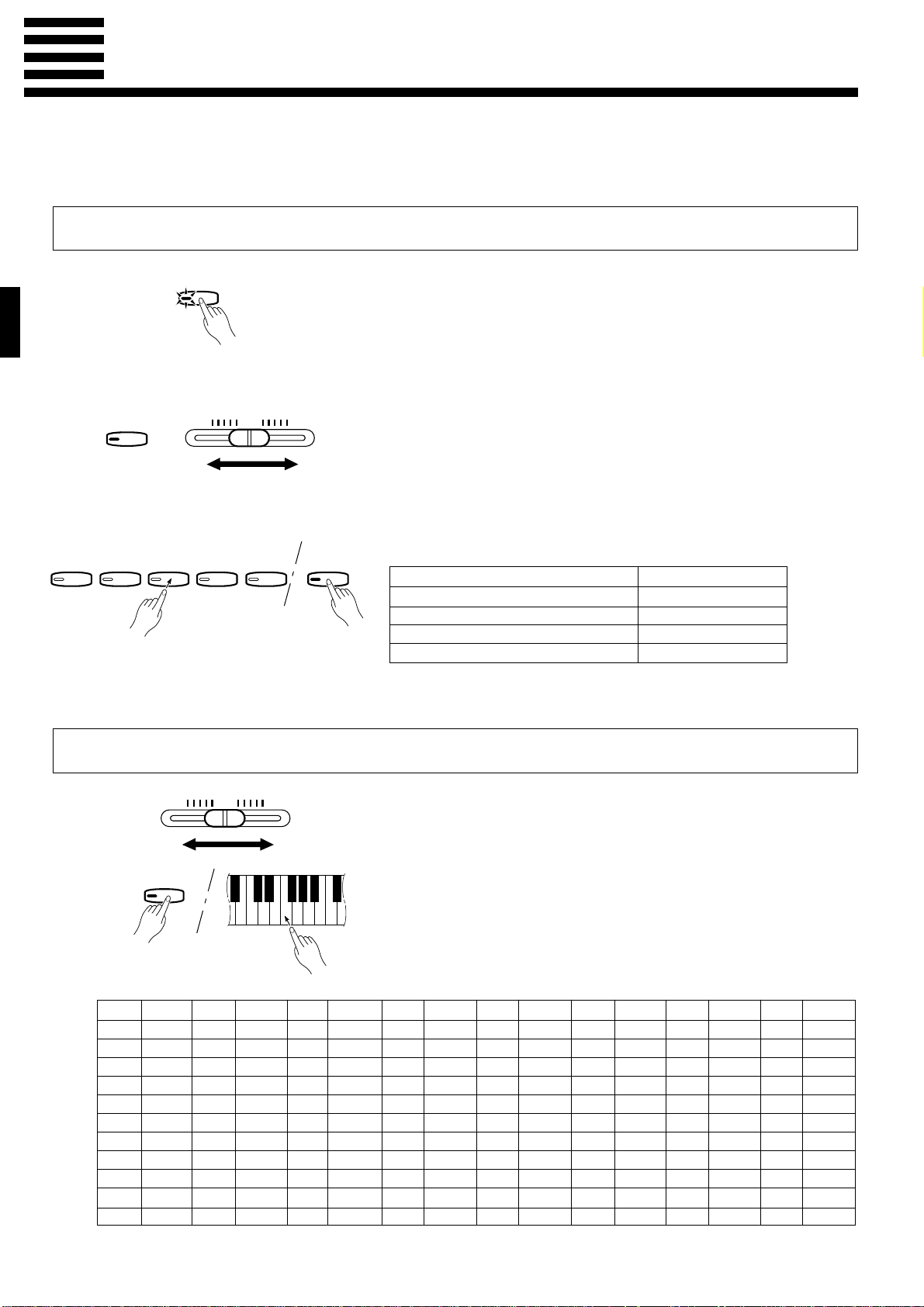

The volume levels of the two voices combined in the DUAL mode are

normally set automatically to produce a pleasing balance (see “Default Settings” below). The balance can be adjusted manually by using the C2 through C4 keys on the keyboard while pressing the two voice selectors corresponding to the voices to be combined in the DUAL mode.

The C3 key produces equal (50:50) balance between the two voices, while keys to the left of C3 increase the volume of the left voice in relation to the right voice, and keys to the right of C3 increase the volume of the right voice in relation to the left voice. By “left” and “right” voice we refer to the relative positions of the voice selectors — i.e. in a PIANO 2/ CLAVINOVA TONE combination PIANO 2 is the left voice and CLAVINOVA TONE is the right voice.

Depending on which voices you combine using the DUAL mode, the combination may sound better if one of the voices is shifted up an octave. To shift the right voice, press the C5 key while pressing the two voice selectors corresponding to the voices to be combined in the DUAL mode. Press C5 again to shift the voice back to its normal range. Use the C1 key in the same way to shift the left voice.

Default octave settings are provided for all voice combinations, as listed in the “Default Settings” chart, below.

● Slow-attack Strings (CLP-155 only)

PIANO 1

PIANO 2

CLA

STRINGS

ORGAN

In a DUAL mode voice combination using STRINGS and any other voice, it is possible to switch the STRINGS voice to a slow-attack variation when initially selecting the voices by pressing the [STRINGS] selector twice while holding the other voice selector. Repeat this operation to return to the normal STRINGS voice attack.

● Memorizing the Balance,

Strings Type (CLP-155), & Octave Shift Settings

E. PIANO

HARPSI-

CHORD

Press the C7 key while holding any two voice selectors to memorize all

balance, STRINGS voice attack variation (CLP-155), and octave shift settings made since the power was turned on. The memorized settings will be retained in memory for about one week after the power is turned off, then the default settings will be restored. To keep the memorized settings for longer periods, turn the power on briefly at least once a week.

If these settings are not memorized as described above, they are retained in

memory only until the Clavinova is turned off.

Default Settings

PIANO 1 PIANO 2

PIANO 1 C3 C3 C3 C3 C3 F2 F2 E2

Octave Shift

C2 … C4: Balance keys 0: Normal octave L: Left voice up one octave R: Right voice up one octave

PIANO 2 0 C3 C3 C3 C3 F2 F2 E2

CLAVINOVA TONE

E. PIANO 0 0 0 C3

HARPSICHORD 0 0 0 0 C3 F2 G2 G2

VIBES (CLP-155) RR R R R B2 B2

STRINGS (CLP-155) 00000L C3

ORGAN 0 0 0 0 0 L 0

0 0 C3 C3 C3 F2 F2 F2

CLAVINOVA

TONE

E. PIANO

Balance

HARPSI- VIBES STRINGS

CHORD (CLP-155) (CLP-155) (CLP-154S) (CLP-155)

C3 F2 F2 E2

ORGAN

Reverb

The [REVERB] button selects a number of digital reverb effects that you can use for extra depth and

expressive power.

To select a reverb type press the [REVERB] button a few times until the indicator corresponding to the desired type lights (the indicators light in sequence each time the [REVERB] button is pressed). No reverb is produced when all indicators are off.

OFF ............When no reverb effect is selected (no REVERB indicator is lit), a special natural

damper effect is applied to the piano voices. This simulates the natural resonance of an acoustic piano’s strings and sound board when the damper pedal is pressed.

ROOM........This setting add a continuous reverb effect to the sound that is similar to the type of

acoustic reverberation you would hear in a medium-size room.

HALL 1 ......For a “bigger” reverb sound, use the HALL 1 setting. This effect simulates the natu-

ral reverberation of a medium-size concert hall.

HALL 2 ......For a really spacious reverb sound, use the HALL 2 setting. This effect simulates the

natural reverberation of a large concert hall.

COSMIC ....The COSMIC reverb effect produces an echo-plus-reverb sound that can add life and

animation to your music.

● Adjusting Reverb Depth

REVERB

ROOM HALL 1 HALL 2 COSMIC

Decrease depth.

Normal

depth.

Increase

depth.

● Memorizing the Reverb

Type & Depth Settings

REVERB

ROOM HALL 1 HALL 2 COSMIC

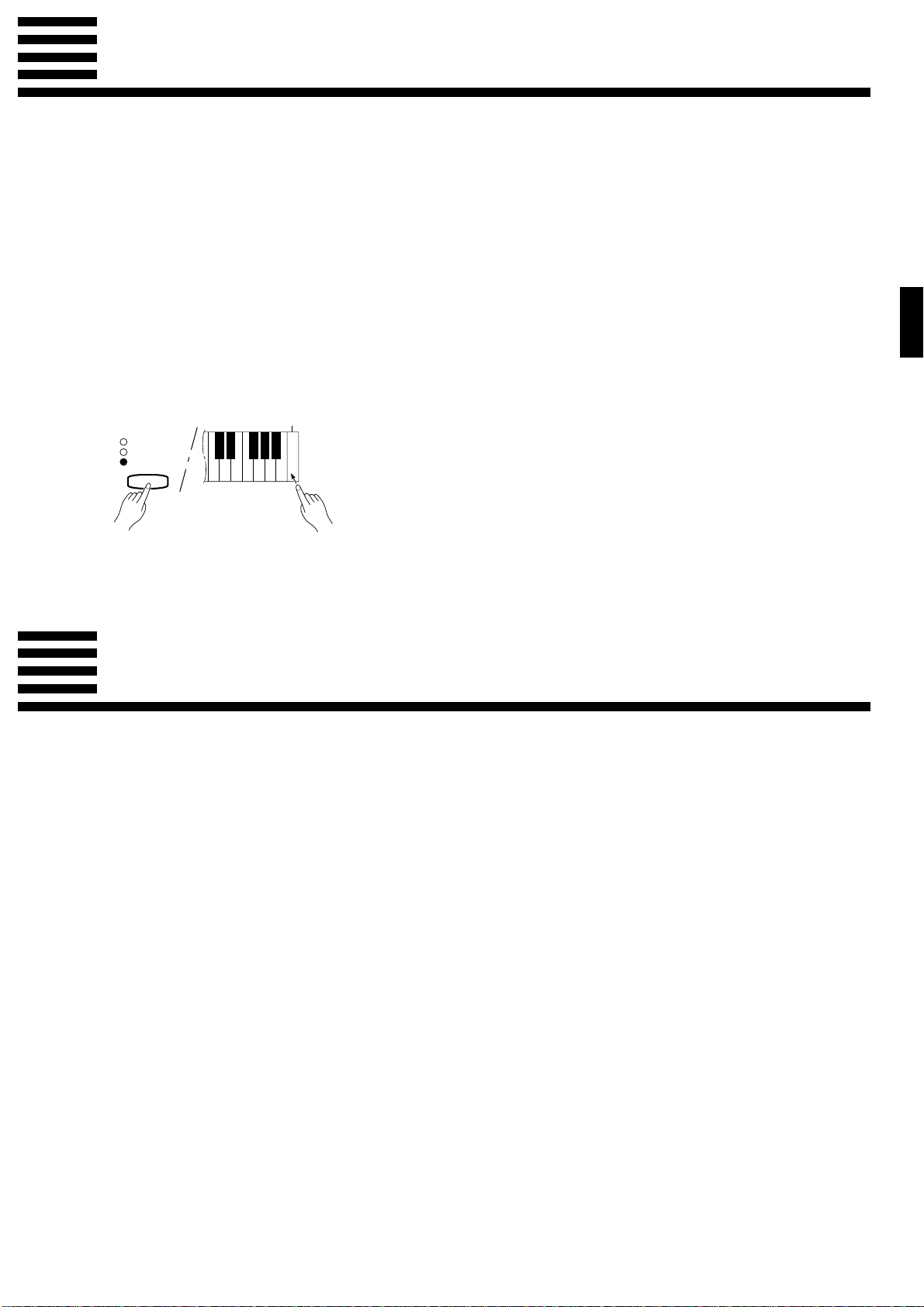

The depth of the selected reverb effect can be adjusted for the current

voice by using the C2 through C4 keys on the keyboard while holding the [REVERB] button. The C3 key sets the “normal” depth for the selected effect. Keys to the left of C3 decrease the reverb depth, while keys to the right of the C3 key increase the reverb depth. Separate reverb settings can be made for each effect and voice, and these settings are retained in memory until the power is turned off. The depth of the natural damper effect is fixed.

Default Settings

ROOM HALL 1 HALL 2

STRINGS (CLP-155), ORGAN C3 C3 F3 E3

* All effect types set to C3 for all other voices. * The default reverb type is ROOM.

COSMIC

Press the C7 key while holding the [REVERB] button to memorize the

current effect type and all depth settings made since the power was turned on. The memorized settings will be retained in memory for about one week

after the power is turned off, then the default settings will be restored. To keep the memorized settings for longer periods, turn the power on briefly at least once a week.

If these settings are not memorized as described above, they are retained

in memory only until the Clavinova is turned off.

+ 25 hidden pages
