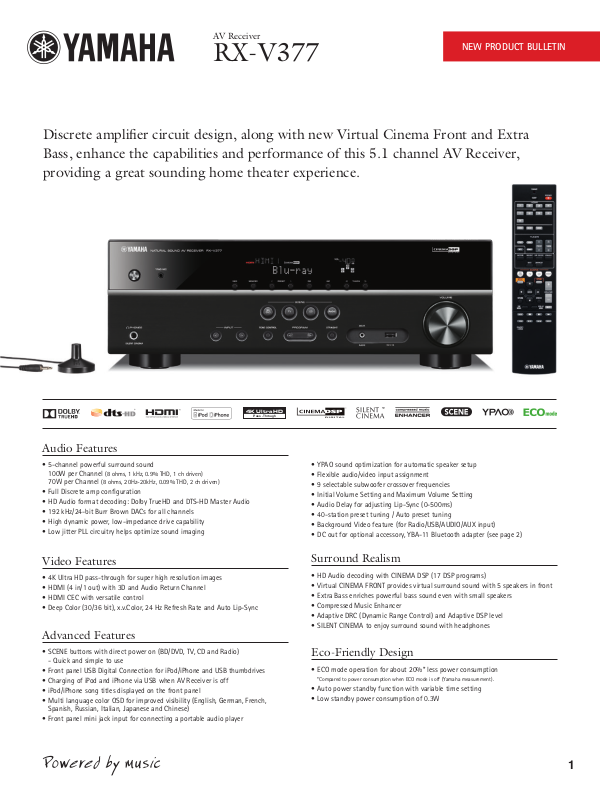

RX-V377

Discrete ampliﬁer circuit design, along with new Virtual Cinema Front and Extra Bass, enhance the capabilities and performance of this 5.1 channel AV Receiver, providing a great sounding home theater experience.

Pass-Through

Audio Features

• 5-channel powerful surround sound 100W per Channel 70W per Channel

• Full Discrete amp configuration

• HD Audio format decoding: Dolby TrueHD and DTS-HD Master Audio

• 192 kHz/24-bit Burr Brown DACs for all channels

• High dynamic power, low-impedance drive capability

• Low jitter PLL circuitry helps optimize sound imaging

(8 ohms, 1 kHz, 0.9% THD, 1 ch driven)

(8 ohms, 20Hz-20kHz, 0.09% THD, 2 ch driven)

Video Features

• 4K Ultra HD pass-through for super high resolution images

• HDMI (4 in/1 out) with 3D and Audio Return Channel

• HDMI CEC with versatile control

• Deep Color (30/36 bit), x.v.Color, 24 Hz Refresh Rate and Auto Lip-Sync

Advanced Features

• SCENE buttons with direct power on (BD/DVD, TV, CD and Radio)

- Quick and simple to use

• Front panel USB Digital Connection for iPod/iPhone and USB thumbdrives

• Charging of iPod and iPhone via USB when AV Receiver is off

• iPod/iPhone song titles displayed on the front panel

• Multi language color OSD for improved visibility (English, German, French, Spanish, Russian, Italian, Japanese and Chinese)

• Front panel mini jack input for connecting a portable audio player

• YPAO sound optimization for automatic speaker setup

• Flexible audio/video input assignment

• 9 selectable subwoofer crossover frequencies

• Initial Volume Setting and Maximum Volume Setting

• Audio Delay for adjusting Lip-Sync (0-500ms)

• 40-station preset tuning / Auto preset tuning

• Background Video feature (for Radio/USB/AUDIO/AUX input)

• DC out for optional accessory, YBA-11 Bluetooth adapter (see page 2)

Surround Realism

• HD Audio decoding with CINEMA DSP (17 DSP programs)

• Virtual CINEMA FRONT provides virtual surround sound with 5 speakers in front

• Extra Bass enriches powerful bass sound even with small speakers

• Compressed Music Enhancer

• Adaptive DRC (Dynamic Range Control) and Adaptive DSP level

• SILENT CINEMA to enjoy surround sound with headphones

Eco-Friendly Design

• ECO mode operation for about 20%* less power consumption

*Compared to power consumption when ECO mode is off (Yamaha measurement).

• Auto power standby function with variable time setting

• Low standby power consumption of 0.3W

AV Receiver

FRSRFLSLC

RX-V377

NEW PRODUCT BULLETIN

Virtual CINEMA FRONT Provides Virtual 5-channel Surround Sound

Even when it is impossible to install surround speakers behind the listening position. You can enjoy virtual 5-channel surround sound with

Extra Bass Provides Rich Bass Reproduction, Even with Small Speakers.

Yamaha’s exclusive low-range enhancement technology delivers richer bass while maintaining good sound imaging and balance even with compact front speakers. It will also improve the bass sound from a subwoofer.

higher quality and resolution by installing

Extra Bass OFF Extra Bass ON

the surround speakers at the front. You get more flexibility to arrange your speakers inside the room.

Main Speciﬁcations

Audio Section

Rated Output Power (8 ohms, 1 kHz, 0.9% THD, 1 ch driven) Front L/R 100 W + 100 W Center 100 W Surround L/R 100 W + 100 W Rated Output Power (8 ohms, 20 Hz-20 kHz, 0.09% THD, 2 ch driven) Front L/R 70 W + 70 W Dynamic Power/Ch (Front L/R, 8/6/4/2 ohms) 110/130/160/180 W

Virtual Speakers Actual Speakers

4K Ultra HD Supports the Latest High Resolution Video Formats

The RX-V377's HDMI input/output supports 4K Ultra HD video image pass-through, ensuring compatibility with the newest super high resolution video formats.

Ultra HD

signal

4K Ultra HD compatible video source

General

Standby Power Consumption 0.3W

Dimensions (W x H x D) 435 x 151 x 315 mm

Weight 16.3 lbs.;7.4 kg

17-1/8” x 6” x 12-3/8”

Ultra HD

signal

AV Receiver 4K Ultra HD

compatible

Optional Accessories

Bluetooth® Wireless Audio Receiver YBA-11

Bluetooth Adapter for Wireless Music Streaming

With the YBA-11, you'll be able to stream music wirelessly from a Bluetooth capable mobile phone or a PC to the AV receiver. Thanks to the digital connection and aptX® audio coding algorithm, you'll enjoy wireless music streaming with optimum sound quality.

Extensive Connections

Inputs

HDMI (Audio Input Assignable) 4 USB*1 1 Radio Antenna (FM/AM) 1 / 1 Optical Digital 1 Coaxial Digital 2 Analog Audio*1 (incl. Mini Jack Input) 3 Component Video (Audio Input Assignable) 2 Composite Video (Audio Input Assignable) 3

*1 Including front panel terminals.

• “Made for iPod,” and “Made for iPhone,” mean that an electronic accessory has been designed to connect specifically to iPod, iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the

operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod, iPhone, may affect wireless performance. iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. • The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Yamaha Corporation is under license. Other trademarks and trade names are those of their respective owners. • The “aptX™ software is copyright CSR plc or its group companies. All rights reserved. The aptX™ mark and the aptX logo are trade marks of CSR plc or one of its group companies and may be registered in one or more jurisdictions.” • Dolby, Pro Logic, and the double-D symbol are registered trademarks of Dolby Laboratories. • DTS, DTS-HD, the Symbol, & DTS or DTS-HD and the Symbol together are registered trademarks of DTS, Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. • Burr-Brown products are trademarks of Texas Instruments, Inc. • “x.v.Color” is a trademark of Sony Corporation. • CINEMA DSP is a trademark of Yamaha Corporation.

• SILENT CINEMA is a trademark of Yamaha Corporation. • Product designs and specifications are subject to change without notice.

Outputs

HDMI 1 AV Out (Analog audio and composite video) 1 Component Video Monitor 1 Composite Monitor 1 Composite AV 1 Speaker 5ch

Subwoofer 1

DC Out*

Headphone Jack 1

For optional accessories.
