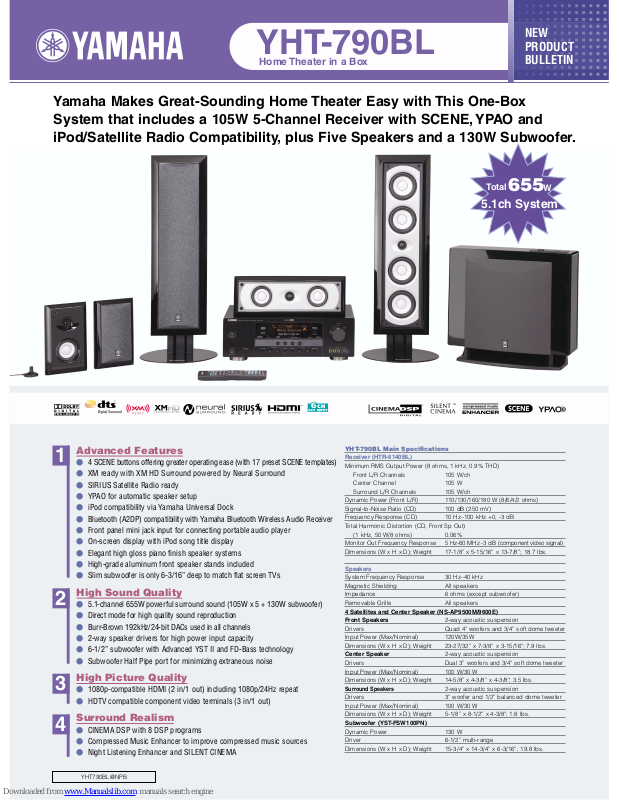

YHT790BL@NPB
Yamaha Makes Great-Sounding Home Theater Easy with This One-Box
System that includes a 105W 5-Channel Receiver with SCENE, YPAO and
iPod/Satellite Radio Compatibility, plus Five Speakers and a 130W Subwoofer.
Advanced Features
䢇 4 SCENE buttons offering greater operating ease (with 17 preset SCENE templates)
䢇 XM ready with XM HD Surround powered by Neural Surround
䢇 SIRIUS Satellite Radio ready
䢇 YPAO for automatic speaker setup
䢇 iPod compatibility via Yamaha Universal Dock
䢇 Bluetooth (A2DP) compatibility with Yamaha Bluetooth Wireless Audio Receiver
䢇 Front panel mini jack input for connecting portable audio player
䢇 On-screen display with iPod song title display
䢇 Elegant high gloss piano finish speaker systems
䢇 High-grade aluminum front speaker stands included
䢇 Slim subwoofer is only 6-3/16” deep to match flat screen TVs
High Sound Quality
䢇 5.1-channel 655W powerful surround sound (105W x 5 + 130W subwoofer)
䢇 Direct mode for high quality sound reproduction
䢇 Burr-Brown 192kHz/24-bit DACs used in all channels
䢇 2-way speaker drivers for high power input capacity
䢇 6-1/2” subwoofer with Advanced YST II and FD-Bass technology
䢇 Subwoofer Half Pipe port for minimizing extraneous noise
High Picture Quality
䢇 1080p-compatible HDMI (2 in/1 out) including 1080p/24Hz repeat
䢇 HDTV compatible component video terminals (3 in/1 out)
Surround Realism
䢇 CINEMA DSP with 8 DSP programs
䢇 Compressed Music Enhancer to improve compressed music sources
䢇 Night Listening Enhancer and SILENT CINEMA
YHT-790BL
Home Theater in a Box
NEW
PRODUCT
BULLETIN
NEW
PRODUCT
BULLETIN
1
2
3
4
5.1ch System
Total
655
W
YHT-790BL Main Specifications
Receiver (HTR-6140BL)
Minimum RMS Output Power (8 ohms, 1 kHz, 0.9% THD)
Front L/R Channels 105 W/ch
Center Channel 105 W
Surround L/R Channels 105 W/ch
Dynamic Power (Front L/R) 110/130/160/180 W (8/6/4/2 ohms)
Signal-to-Noise Ratio (CD) 100 dB (250 mV)
Frequency Response (CD) 10 Hz–100 kHz +0, -3 dB
Total Harmonic Distortion (CD, Front Sp Out)
(1 kHz, 50 W/8 ohms) 0.06%
Monitor Out Frequency Response 5 Hz-60 MHz -3 dB (component video signal)
Dimensions (W x H x D); Weight 17-1/8” x 5-15/16” x 13-7/8”; 18.7 lbs.
Speakers
System Frequency Response 30 Hz–40 kHz
Magnetic Shielding All speakers
Impedance 6 ohms (except subwoofer)
Removable Grille All speakers
4 Satellites and Center Speaker (NS-AP9500M/9600E)
Front Speakers 2-way acoustic suspension
Drivers Quad 4" woofers and 3/4” soft dome tweeter
Input Power (Max/Nominal) 120W/35W
Dimensions (W x H x D); Weight 23-27/32” x 7-3/8” x 3-15/16"; 7.9 lbs.
Center Speaker 2-way acoustic suspension
Drivers Dual 3” woofers and 3/4” soft dome tweeter
Input Power (Max/Nominal) 100 W/30 W
Dimensions (W x H x D); Weight 14-5/8” x 4-3/8” x 4-3/8"; 3.5 lbs.
Surround Speakers
2-way acoustic suspension
Drivers 3” woofer and 1/2” balanced dome tweeter
Input Power (Max/Nominal) 100 W/30 W
Dimensions (W x H x D); Weight 5-1/8” x 8-1/2” x 4-3/8"; 1.8 lbs.
Subwoofer (YST-FSW100PN)
Dynamic Power 130 W
Driver 6-1/2” multi-range
Dimensions (W x H x D); Weight 15-3/4” x 14-3/4” x 6-3/16”; 19.8 lbs.
Page 2

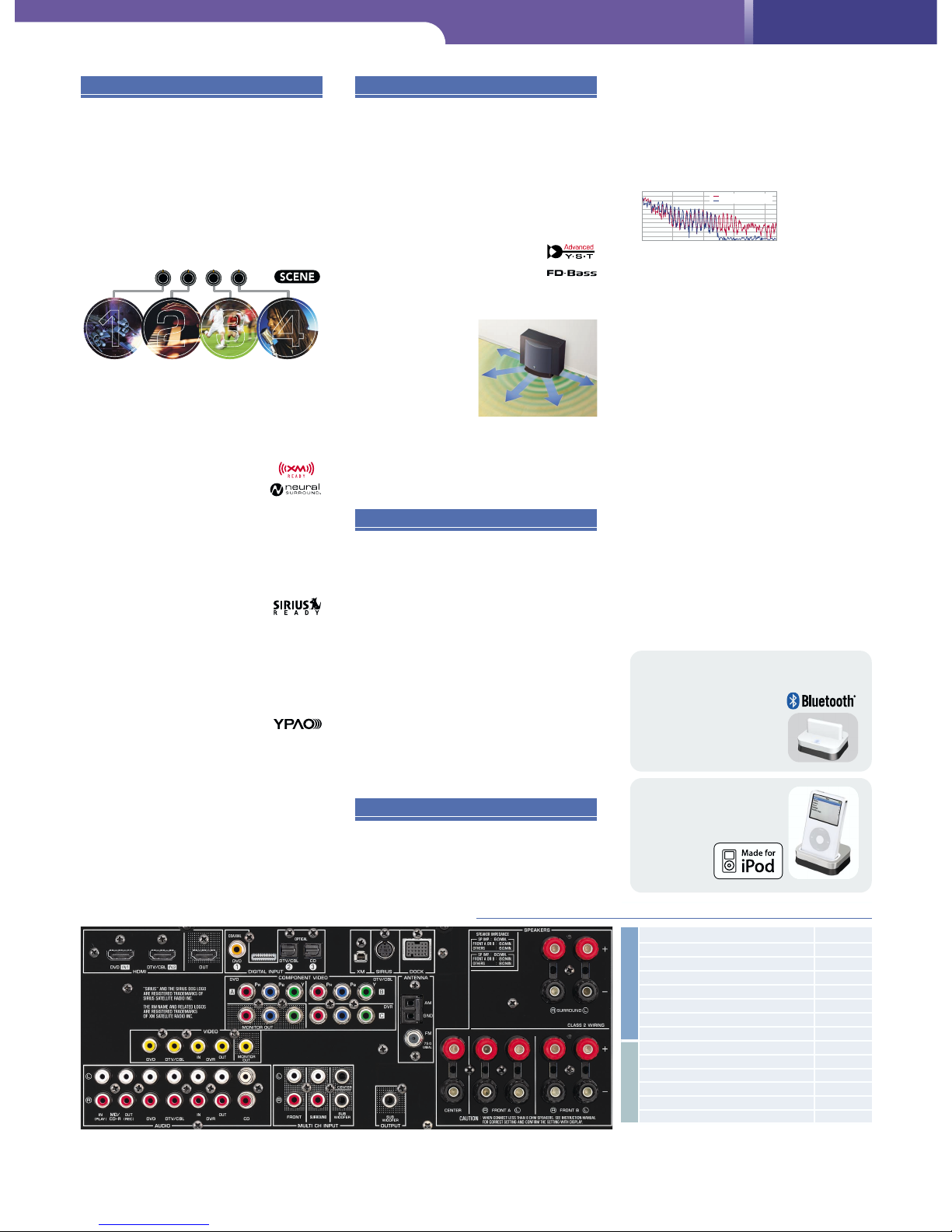

Advanced Features
SCENE — Greater Operating Ease
Four SCENE buttons make operating the
receiver easier than ever. Pressing a SCENE
button automatically turns the power on and
launches a number of operations that initiate
play of the source controlled by that button.
Many SCENE settings are available, such as
Dock Listening, DVD Viewing, Radio Listening
and Game Playing. Browsing and selecting the
settings is quickly accomplished by rotating the
Input knob and watching the on-screen display.
The SCENE names can be changed also.
XM Satellite Radio Ready with XM HD
Surround Powered by Neural Surround
This HTiB is XM Satellite Radio Ready, allowing
you to hear over 170 digital channels of music,
news, sports, talk and entertainment.
To get XM Satellite Radio the XM
Mini-Tuner and Home Dock including
home antenna are required.
The YHT-790BL is also capable of receiving
XM Satellite Radio with XM HD Surround
powered by Neural Surround.
SIRIUS Satellite Radio Ready
The YHT-790BL is also ready to receive SIRIUS
satellite radio. SIRIUS brings your favorite
entertainment straight into your
home, including 100% commercialfree music, plus superior sports coverage,
uncensored talk and comedy, exclusive
entertainment, world-class news and more.
YPAO for Automatic Speaker Setup
This system uses Yamaha’s YPAO system that
quickly and automatically analyzes the acoustics
of the room and adjusts various
speaker parameters to provide the
optimum sound at the listening position. It’s like
having a professional audio engineer set up and
tweak your system.
Initial Volume and Maximum Volume
Two volume setting functions are included on
this receiver for additional convenience. Initial
Volume Setting allows you to set the volume
level that will be heard each time the power is
turned on. Maximum Volume Setting prevents
unexpected loud sounds, for example if a
young child turns the volume knob.
High Sound Quality
Direct Stereo
You can enjoy pure HiFi sound from 2-channel
PCM and analog sources by the Direct mode
which allows signals to bypass the decoders
and DSP processors.
Advanced YST II and FD-Bass Technology for
Deep, Powerful Bass
In Advanced YST II, an Advanced Negative
Impedance Converter enables the speaker
cone to be driven with even tighter
control. The result is more stable
and accurate low range response,
as well as higher sound pressure
levels, for more natural and energetic bass
reproduction. Semicircular FD-Bass
technology provides
the benefits of full 180°
dispersion when
placed against a wall,
compact design and
minimal extraneous
noise for high sound
quality.
Half Pipe Port
The subwoofer also employs a new design
feature called the Half Pipe port, which further
smoothes bass response and minimizes
extraneous noise.
High Picture Quality
1080p-Compatible HDMI (2 In/1 Out)
This HTiB features dual HDMI inputs and one
output that support 1080p resolution so you can
connect two HDMI sources, such as a DVD player
and a high definition set-top box, and enjoy the
highest possible quality with a 1080p display. It is
also capable of repeating the 1080p/24Hz signal
for enjoying the highest quality picuture from Bluray discs.
HDTV Compatible Component Video Terminals
(3 In/1 Out)
Component Video inputs offer higher picture
quality, for use with units such as DVD players that
have Component Video output. You can enjoy
three different sources without having to change
connections. The frequency response of the
component video signal is 5Hz – 60MHz, making
it compatible with HDTV (1080i/720p).
Surround Realism
CINEMA DSP with 8 DSP Programs
You have a choice of eight unique Yamaha
CINEMA DSP surround programs to bring out
the full audio potential of your entertainment
sources.
Compressed Music Enhancer
When music is encoded in a digital compressed
format such as MP3, frequency response suffers
in the high and low ranges. Yamaha employs
sophisticated digital signal processing with
exclusive algorithms, enabling faithful
reproduction of the original music, for excellent
sound quality.
Other Notable Features
• 40-station preset tuning / Auto preset tuning
• HD Audio LPCM 5.1-channel reception (up to
96kHz)
• High dynamic power, low-impedance drive
capability
• 192kHz/24-bit DACs for all channels
• iPod song titles displayed in English and
Western European languages ISO 8859-1 (Latin
1) on the front panel and on-screen display
• Night Listening Enhancer, SILENT CINEMA and
Virtual CINEMA DSP
• Audio Delay for adjusting lip-sync (0–160ms)
• 9 selectable subwoofer crossover frequencies
• Subwoofer phase select
• Dolby Digital, DTS and Dolby Pro Logic II
decoding
• Front panel Video Aux input with mini jack for
connecting portable audio player
• Subwoofer out
• 6-channel external input
• Speaker A or B selection
• Preset remote unit
• Slim subwoofer is only 6-3/16” deep to match
flat screen TVs
• Elegant high gloss piano finish speaker
systems
• High-grade aluminum front speaker stands
included
NEW PRODUCT BULLETIN
YHT-790BL Home Theater in a Box
• The XM Satellite Radio service is only available in the 48 contiguous United States (not available in Alaska and Hawaii) and Canada. • XM name, XM Ready and related logos are registered trademarks of XM
Satellite Radio, Inc. • Neural Surround™ name and related logos are trademarks owned by Neural Audio Corporation. • “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc.
• iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries. • Dolby and the double-D symbol are registered trademarks of Dolby Laboratories. • DTS is a registered trademark of DTS,
Inc. • HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. • Burr-Brown products are trademarks of Texas Instruments, Inc. • The
Bluetooth®
word mark and logos are registered trademarks ownerd by Bluetooth SIG. Inc. • CINEMA DSP is a trademark of Yamaha Corporation. • SILENT CINEMA is a trademark of Yamaha Corporation. • Product
designs and specifications are subject to change without notice.
HDMI 2
XM / SIRIUS Satellite Radio Terminal 1 / 1
Dock Terminal (for iPod / Bluetooth) 1
Optical Digital (Fixed and Assignable) 2
Coaxial Digital (Fixed and Assignable) 1
Analog A/V / Audio* 4 / 2
Component Video 3
Multi-Channel External Input 6 ch
HDMI 1
Analog A/V / Audio 1 / 1
Component Video Monitor 1
Composite Monitor 1
Speaker (without subwoofer) 5 ch / 7 ter.
Subwoofer 1
* Including front panel Video Aux terminals.
Inputs
Outputs
Compressed Music Enhancer On
Compressed Music Enhancer Off
Frequency (kHz)
dB
0
-100
-50
0
10
5101520
Signals lost during the
compressed digital
audio encoding and
decoding processes are
effectively replaced to
vividly revive the music.
YHT-790BL Receiver (HTR-6140BL) Rear Panel and Inputs/Outputs
DVD
Viewing
Disc
Listening
TV
Viewing
Radio
Listening
1 2 3 4
Yamaha Universal Dock
for iPod
The optional Yamaha
Universal Dock lets you
connect
your iPod to
the receiver.
iPod not included
Yamaha Bluetooth®Wireless Audio Receiver
The YBA-10 Bluetooth Wireless Audio
Receiver docks to the
receiver and supports
A2DP audio streaming, so
you can enjoy music
wirelessly from Bluetoothenabled mobile phones,
Windows PCs and Macs.
