Yamaha RP-U200 User Manual

PERSONAL RECEIVER

RP-U200

U C A

AUX1

AUX2

TUNER

GAME

/DTS

SURROUND

POWER

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

TESTON/

VIRTUAL

5.I

USB PCM D.

DSP

DIGITAL PROLOGIC FMAM ST

VOL

DSP P-SET

OFF

VOLUMEMUTE

OPERATION MANUAL MANUEL D’UTILISATION

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

• Explanation of Graphical Symbols

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert you to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT

Please record the serial number of this system in the space below.

Model: Serial No.: The serial number is located on the rear of the main

unit. Retain this Owner’s Manual in a safe place for future reference.

2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use this apparatus near water. 6 Clean only with dry cloth. 7 Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8 Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9 Do not defeat the safety purpose of the polarized or

grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11 Only use attachments/accessories specified by the

manufacturer.

12 Use only with the cart, stand, tripod,

bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13 Unplug this apparatus during lightning storms or when

unused for long periods of time.

14 Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

COMPLIANCE INFORMATION STATEMENT

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party:

Address:

Telephone:

Type of Equipment:

Model Name:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that may cause undesired operation. See the user manual instructions if interference to radio reception is suspected.

Yamaha Electronics Corp., 6660 Orangethorpe Ave. Buena Park, CA90620 714-522-9105 Receiver RP-U200

FCC INFORMATION (for US customers only)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded

cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for

Class “B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the product “OFF” and “ON”, please try to eliminate the problem by using one of the following measures: Relocate either this product or the device that is being affected by the interference. Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s. In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to coaxial type cable. If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distributethis type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corp., 6660 Orangethorpe Ave. Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

We Want You Listening For A Lifetime

YAMAHA and the Electronic Industries Association’s Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion – and, most importantly, without affecting your sensitive hearing.

Since hearing damage from loud sounds is often undetectable until it is too late, YAMAHA and the Electronic Industries Association’s Consumer Electronics Group recommend you to avoid prolonged exposure from excessive volume levels.

INTRODUCTION

About this manual

● This manual explains how to operate this unit. Refer to the separate “SET UP MANUAL” for how to connect this unit with other equipment, and to install the Application Software, etc. to your computer from the supplied CD-ROM.

● This manual mainly explains how to operate this unit using the front panel of this unit and the supplied remote control.

● When this unit and your computer are connected with the USB cable, and the supplied Application Software is installed on the computer, you can operate this unit from the computer using the Application Software. Refer to the online help of the Application Software for how to use the Application Software. The Application Software extends the use of this unit with additional functions which cannot be used with the front panel keys or the remote control. This manual introduces those functions by the following style.

Example:

 Adjusting USB MIX LEVEL

When an input other than the USB terminal is selected, you can listen to the mixed sound signals from the selected input and from the USB terminal. Also, the mixing ratio of the signals from the USB terminal can be adjusted. * Refer to the online help of the Application Software for

details.

This manual also offers brief explanations about the functions available with the Application Software on page 22–27. Refer to the online help of the Application Software for details of how to use the functions.

Features

● This unit brings high-quality audio to your computer

This unit is a multimedia amplifier that brings you a new level of audio enjoyment. This unit has a USB port for connection with a personal computer. The USB interface allows remote control of this unit from your computer and control of sound data sent from your computer.

● Equipped with a five-channel power amplifier

This unit has a five-channel power amplifier for reproducing surround sound fields of Dolby Digital*, DTS** and Yamaha CINEMA-DSP effectively. You can enjoy a full-scale home theater sound simply by adding the optional Yamaha speaker system NS-U40P and an optional subwoofer to this unit.

● Equipped with Dolby Digital and DTS decoders

This unit reproduces multichannel sources encoded with Dolby Digital* or DTS** faithfully by using the built-in Dolby Digital and DTS decoders. You can now experience the sound scale and the realistic sensation of actual theaters in your home.

● The newly-developed Yamaha Near-Field Cinema DSP (Digital Sound Field Processor)

Various DSP sound field programs allow you to select the program suitable for the selected input source. You can experience the sound fields of famous concert halls, movie theaters, etc. around the world in your home. The DSP sound effects are also available for headphone listening.

● Compatible with various USB audio functions

This unit is compatible with the following audio signals received via a USB connection: multi-channel (two, four and six channels) audio, high quality digital audio of 24 bit/48 kHz and Dolby Digitalencoded signals. (Some operating systems and software programs do not support this feature.)

● Various inputs/outputs and easy operation

This unit is equipped with various input and output terminals for both analog and digital signals, making it ideal as a control center for other audio equipment, such as a personal computer, CD player and MD recorder. The supplied remote control makes operation easy, and the supplied Application Software allows control of this unit from your computer including detailed settings.

● Compatible with Virtual Dolby Digital and DTS Virtual

5.1

By employing the Virtual 3D technology, this unit reproduces multi-channel sources such as Dolby Digital and DTS providing realistic surround effects even with just two speakers.

CONTENTS

CAUTION................................ 2

OUTLINE OF THIS UNIT

Main features of this unit.............. 3

Dolby Digital and DTS .................. 4

Virtual 3D....................................... 5

Digital Sound Field Processing (DSP) .....

CONTROLS AND THEIR FUNCTIONS

Front panel & Remote control...... 6

About the display.......................... 8

BASIC OPERATION

Playing a source ........................... 9

Using sound field programs ...... 11

Recording.................................... 12

CAUTION

OUTLINE OF

THIS UNIT

THEIR FUNCTIONS

CONTROLS &

OPERATION

BASIC

Manufactured under license from Dolby Laboratories. “Dolby”, “AC-3”, “Pro Logic” and the double-D symbol are

Manufactured under license from Digital Theater Systems, Inc. US Pat. No. 5,451,942 and other world-wide patents issued and pending. “DTS”, “DTS Digital Surround”, are trademarks of Digital Theater Systems, Inc. Copyright 1996 Digital Theater Systems, Inc. All Rights Reserved.

LISTENING TO AN FM BROADCAST

Tuning into an FM station........... 14

Using the presets........................ 16

ADVANCED OPERATION

Adjusting the speaker balance ...

Setting USB channel .................. 20

Operating this unit with the

Application Software.................. 22

APPENDIX

Troubleshooting ......................... 28

Specifications ............................. 31

LISTENING TO AN

FM BROADCAST

OPERATION

ADVANCED

APPENDIX

English

E-1

CAUTION:

Read this before operating this unit

1. To assure the finest performance, please read this

manual carefully. Keep it in a safe place for future reference.

2. Install this unit in a cool, dry, clean place – away from

windows, heat sources, sources of excessive vibration, dust, moisture and cold. Avoid sources of humming (transformers, motors). To prevent fire or electric shock, do not expose the unit to rain or water.

3. Never open the cabinet. If something drops into the

set, contact your dealer.

4. Do not use force on switches, controls or connection

wires. When moving the unit, first disconnect the power plug and the wires connected to other equipment. Never pull the wires themselves.

5. The openings on the unit cover assure proper

ventilation of the unit. If these openings are obstructed, the temperature inside the unit will rise rapidly; therefore, avoid placing objects against these openings. To prevent fire or damage, install the unit in a well-ventilated area.

To prevent fire or damage, be sure to allow a space of at least 10 cm behind, 10 cm on both sides and 10 cm above the top panel of the unit.

6. The voltage used must be the same as that specified

on this unit. Using this unit with a higher voltage than specified is dangerous and may result in fire or other accidents. YAMAHA will not be held responsible for any damage resulting from use of this unit with a voltage other than that specified.

7. Always set the volume to minim um before starting

audio playback. Increase the volume gradually to an appropriate level after playback has been started.

8. Do not attempt to clean the unit with chemical solvents

as this might damage the finish. Use a clean, dry cloth.

9. Be sure to read the “TROUBLESHOOTING” section

regarding common operating errors before concluding that the unit is faulty.

10. When not planning to use this unit for a long period

(i.e., vacation, etc.), disconnect the AC power plug from the wall outlet.

11.

To prevent lightning damage, disconnect the AC power plug when there is an electric storm.

12. Grounding or polarization – Precautions should be

taken so that the grounding or polarization of appliances is not defeated.

For U.K. customers

If the socket outlets in the home are not suitable for the plug supplied with this appliance, it should be cut off and an appropriate 3 pin plug fitted. For details, refer to the instructions described below. Note: The plug severed from the mains lead must be destroyed, as a plug with bared flexible cord is hazardous if engaged in a live socket outlet.

SPECIAL INSTRUCTIONS FOR U.K. MODEL

IMPORTANT:

THE WIRES IN MAINS LEAD ARE COLOURED IN ACCORDANCE WITH THE FOLLOWING CODE:

Blue: NEUTRAL Brown: LIVE As the colours of the wires in the mains lead of this

apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK. The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED. Making sure that neither core is connected to the earth terminal of the three pin plug.

For Canadian Customers

To prevent electric shock, match wide blade of plug to wide slot and fully insert.

This Class B digital apparatus complies with Canadian ICES-003.

When this unit is turned off by pressing the power switch on the front panel or the POWER key on the remote control, this unit turns into the standby mode. In this mode, this unit is designed to consume a small amount of power. This unit’s power supply is completely cut off from the AC line only when the AC power cord is disconnected.

E-2

OUTLINE OF THIS UNIT

Main features of this unit

Using Y amaha’s unique DSP technology, this unit can bring excitement and realism to any audio source by simulating the acoustic environments of concert halls, movie theaters, and so on. With its stylish, vertical design, this unit allows you to use various audio sources, including the built-in FM tuner, your computer, CD player, MD or tape deck, as shown below.

This unit

OUTLINE OF THIS UNIT

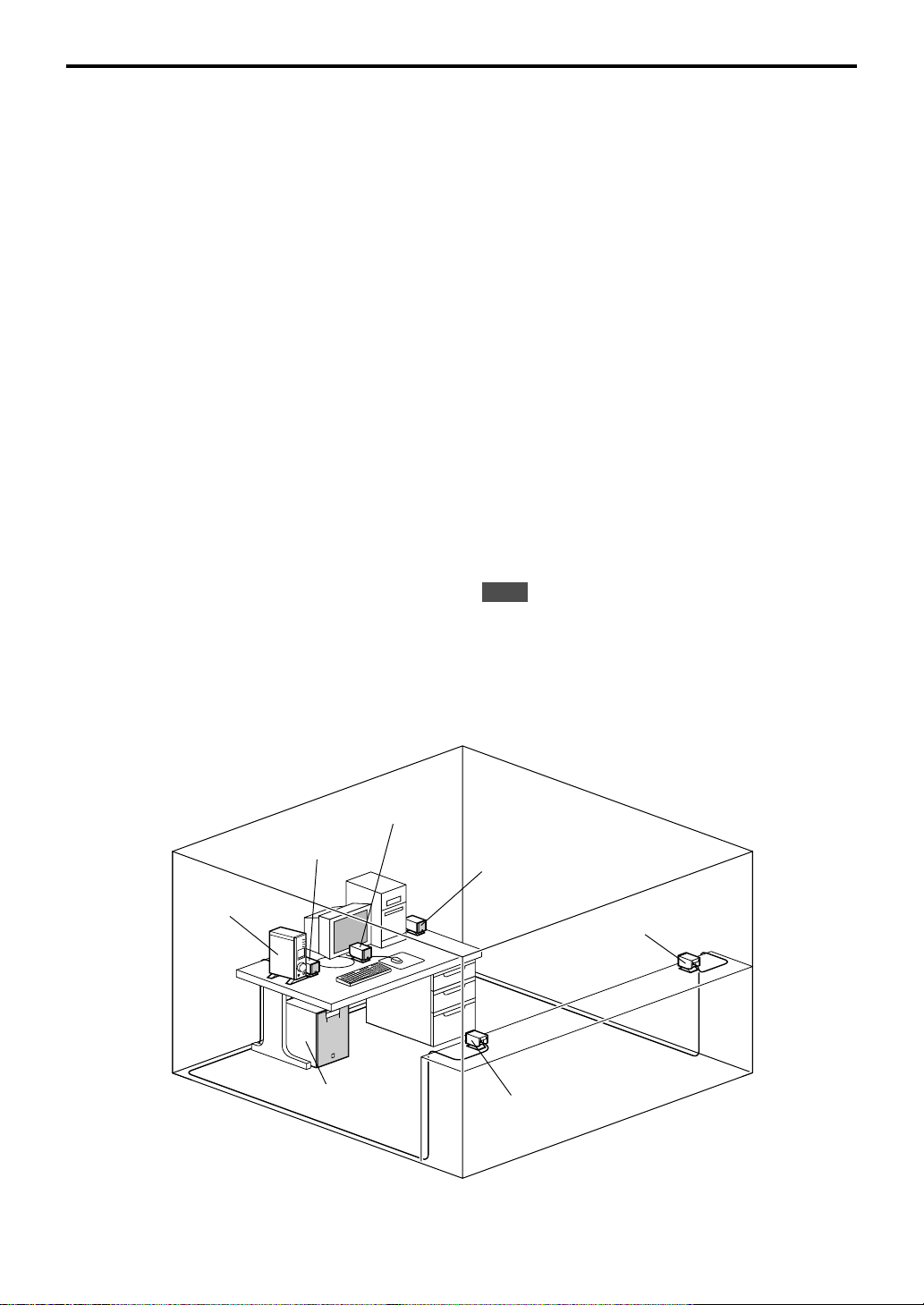

Although this unit can be used as part of a typical hi-fi system, connecting it to your computer via the USB terminal, and running the supplied Application Software, allows you to remotely control this unit from your computer and make some adjustments and settings.

FM antenna

OUTLINE OF

THIS UNIT

CD player

MD recorder etc.

HIGH CUTSTANDBY/ON

VOLUME

150Hz50Hz

100

SUPERWOOFER SYSTEM YST-SW45

Subwoofer

Front speaker (L)

DSP P-SET

VIRTUAL

DIGITAL PROLOGICFM AMST

VOL

USBPCM D.

AUX1

AUX2

TUNER

5.I

DSP

Personal computer

Front speaker (R)

Surround speaker (L)

* Refer to the separ ate “SET UP MANUAL” for

connections.

Center speaker

Surround speaker (R)

English

E-3

OUTLINE OF THIS UNIT

Dolby Digital and DTS

This unit features a built-in Dolby Digital decoder and a DTS decoder for reproducing surround sounds of sources encoded with Dolby Digital or DTS. With such state-of-the-art technologies, this unit can bring the same audio experience to your home as they have brought to feature films in quality theaters around the world. Take some time now to read more about these features and enjoy the new experiences this system brings to your home theater.

 Dolby Surround

Dolby Surround uses four discrete channels and five speakers to reproduce realistic and dynamic sound effects: two main channels (left and right), a center channel for dialog, and a surround channel for special sound effects. The surround channel reproduces sound within a narrow frequency range.

Most video tapes and laser discs include Dolby Surround encoding, as do many TV and cable broadcasts. The Dolby Pro Logic decoder built into this unit employs a digital signal processing system that stabilizes each channel for even more accurate sound positioning than is available with standard analog processors.

 Dolby Digital

Dolby Digital is a digital surround sound system that provides completely independent multi-channel audio to you. Dolby Digital provides five full-range channels in what is sometimes referred to as a “3/2” configuration: three front channels (left, center and right), and two surround channels. A sixth bass-only effect channel is also provided for output of LFE (low frequency effect), or low bass effects that are independent of other channels. (This is called the “LFE channel”.) This channel is counted as 0.1, thus giving rise to the term 5.1 channels in total.

The wide dynamic range of sound reproduced by the five full-range channels and precise sound orientation by digital sound processing provides listeners with excitement and realism that have never been experienced before.

 DTS (Digital Theater System)

Digital Surround

DTS was developed to replace the analog soundtracks of movies with six discrete channels of digital soundtracks, and it is now installed in many theaters around the world. The DTS digital playback system changed the way we experienced movies in theaters with six discrete channels of superb digital audio. DTS technology, through intense research and development, has made it possible to deliver similar encode/decode discrete technology to home audio surround-sound entertainment. DTS Digital Surround is an encode/decode system which delivers six channels of master-quality, 20-bit audio; technically, it offers 5.1 channels, which means 5 full-range (left, center, right and two surround) channels, plus a subwoofer (LFE) channel (as “0.1”). It is compatible with the 5.1 speaker configurations that are currently available for home theater systems.

E-4

Virtual 3D

OUTLINE OF THIS UNIT

Surround sound typically requires several speakers situated in front of and behind the listening position, which requires a substantial amount of space that may not always be available. In addition to ordinary surround sound reproduction using several speakers, this unit enables you to enjoy surround sound effects with only two speakers by using Yamaha’s unique “Virtual 3D” (three-dimensional) technology.

FL C FR

RL RR

Typical surround system Virtual 3D

Virtual 3D, which is used by this unit’s sound field programs, simulates the surround effect provided by surround and center speakers, creating “virtual” surround speakers, as shown, so even with only two front speakers, you can still enjoy surround sound.

Digital Sound Field Processing (DSP)

When you listen to a performance in a concert hall, jazz club, or other live music venue, you not only hear the direct sound coming from the musical instruments and singers, but also the “early reflections” and natur al reverberation. Early reflections are the initial sound waves that bounce off the floor, ceiling, and walls. Natural reverberation is made up of sound waves that gradually attenuate as they bounce repeatedly off multiple surfaces.

Since the way you hear early reflections and reverberation depends on the shape and size of the building as well as the material and construction of the walls and ceiling, each venue has its own unique “sound,” called its “sound field.” At Yamaha, we have measured all the elements that make up a typical sound field—direction and level of the reflections, band-width characteristics, and delay times—at famous concert halls and opera houses around the world. The information gained in this process has been converted into programs that can be reproduced using Yamaha’s DSP technology. Using its on-board DSP, this unit can process any audio source and recreate the atmosphere of the original venue.

FL C FR

RL RR

Virtual speakers

OUTLINE OF

THIS UNIT

Early sound reflections

Direct sound

Reverberation

English

E-5

CONTROLS AND THEIR FUNCTIONS

7 8

CONTROLS AND THEIR FUNCTIONS

Front panel & Remote control

4 5

Front panel

AUX1

AUX2

TUNER

VIRTUAL

5.I

DIGITAL

USB PCM D.

PROLOGIC FMAM ST

VOL

DSP P-SET

Remote control

POWER

GAME

/DTS

SURROUND

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

TESTON/

D E

OFF

9 4

DSP

VOLUMEMUTE

1 Input selectors & indicators

These four keys, explained below, are used to select the input source. The indicator of the selected source lights up.

● PC key

This key selects your computer as the input source. Pressing this key repeatedly selects the signals received at the USB, digital (DIGITAL PC COAX IN or DIGITAL PC OPT IN) or analog (ANALOG PC IN) input. The DIGITAL PC OPT IN has priority over the DIGITAL PC COAX IN, so if you connect to both inputs, the signal received at the DIGITAL PC OPT IN is used.

E-6

● AUX1 key

This key selects the equipment connected to the ANALOG AUX 1 IN or DIGITAL AUX 1 OPT IN connector as the input source. Pressing this key repeatedly selects the digital or analog input.

● AUX2 key

This key selects the equipment connected to the ANALOG AUX 2 IN connectors as the input source.

● TUNER key

This key selects the built-in FM tuner as the input source. If the tuner is already selected, this key toggles the reception mode between FM auto stereo and FM monaural.

CONTROLS AND THEIR FUNCTIONS

2 Display

The display shows various settings, selected input source, sound field program and various other information.

3 DSP key [front panel]

ON/OFF key [remote control]

This key activates the sound field programs produced by the internal DSP.

4 P-SET key ( ) [front panel]

PRESET key [remote control]

This key changes the display status of the built-in FM tuner from the frequency display mode to the preset tuning mode. If the tuner is already in the preset tuning mode, each press of this key changes the group of preset stations (A, B, C, D, E). * This key works only when the tuner is selected as the

input source.

5 / (Down/Up) keys

These keys are used for selecting sound field programs, changing station frequencies, selecting preset station numbers, etc.

6 Volume control [front panel]

VOLUME

These control and keys adjust the speaker and headphone volume. The volume cannot be adjusted when this unit is in the standby mode.

(Down/Up) keys [remote control]

7 Headphone jack

Stereo headphones can be connected to this mini-jack for private listening, with Virtual 3D effects specifically tailored for headphone listening.

8 Power switch ( ) [front panel]

POWER key [remote control]

Each click of this switch changes the status of this unit between standby mode and power on. * In the standby mode, this unit can be turned on

remotely from your computer, using the supplied Application Software. Note that this unit uses a small amount of power in the standby mode.

9 MEMORY key

This key is used to store a desired station in the memory. * This key works only when the tuner is selected as

the input source.

A TEST key

This key is used to output a test tone. The test tone is used when adjusting the volume balance among all speakers in the system including the virtual surround speakers. (Refer to page 19 for details.)

B Custom keys (A, B, C)

These keys are available when this unit and your computer are connected with the USB cable, and the supplied Application Software is installed on the computer. Each of these keys can be programmed with a set of commands (input selector, sound field program, volume setting, etc.) by using the Application Software. After storing, simply pressing each key will execute the stored command. * Refer to the online help of the Application Software for

details.

C MUTE key

This key is used to cut off sound output temporarily. Turning the volume control on the front panel or pressing the VOLUME ke ys on the remote control restores sound output. Pressing this key again also restores sound output. * Sound output will also be restored by changing the

status of this unit between standby and power-on, changing the input source or the sound field program, and so on.

D MANUAL key

This key changes the display status of the built-in FM tuner from the preset tuning mode to the frequency display mode. * This key works only when the tuner is selected as the

input source.

E Tuning /

These keys work in the following ways according to the status of the tuner.

In the frequency display mode:

Each press of selects a higher frequency and selects a lower frequency.

In the preset tuning mode:

Each press of selects a higher preset station number and selects a lower preset station number.

(Down/Up) keys

THEIR FUNCTIONS

CONTROLS &

0 Sound field program selector keys

Each of these keys selects the corresponding sound field program.

English

E-7

CONTROLS AND THEIR FUNCTIONS

About the display

This section explains what the various display indicators mean.

1 VIRTUAL

This indicator appears when this unit is using Virtual 3D.

2 USB

This indicator appears when audio signals are sent or received via the USB terminal. * If you use a Macintosh computer, this indicator is

always illuminated when this unit is connected to the computer via the USB terminals.

3 (DTS)

This indicator appears when an input signal is decoded with DTS.

4 PCM

This indicator appears when a PCM digital audio signal is selected as the input source.

This indicator appears when headphones are connected to the headphone jack of this unit.

6 5.1CH

This indicator appears when a 5.1 channel digital audio signal is selected as the input source.

7 DSP

This indicator appears when the DSP is processing the input signal.

8 Sound output indicator

This indicator shows the currently used speakers. A red dot shows that the corresponding speaker is currently used, or the speaker is set for use in the Application Software. The mark shows that sound is outputted. * When using the test tone, a red dot shows the

channel currently outputting the test tone.

* When using headphones, only the two dots for the left

and right front speakers appear regardless of the

E-8

setting in “Speaker Settings”.

VIRTUAL 5.ICH

A B

DIGITAL PROLOGIC FM ST

C D

VOL

USB PCM D.

6542

9 D.

This indicator appears when an audio signal encoded with Dolby Digital is selected as the input source.

0 ST

This indicator appears when a stereo broadcast is received in stereo mode.

A (DOLBY) DIGITAL

This indicator appears when an input signal is decoded with Dolby Digital.

B (DOLBY) PROLOGIC

This indicator appears when an input signal is decoded with Dolby ProLogic.

C FM

This indicator appears when the built-in FM tuner is selected as the input source.

D Multi-information display

Various messages and information appear here.

E VOL (volume)

This indicator graphically displays the volume level setting.

Note

The indicators , “5.1CH” and will not appear when sound signals are decoded on the computer (by using DVDplayback software, etc.).

DSP

9 0

BASIC OPERATION

Playing a source

This section explains how to turn on this unit and select input sources. If any external audio equipment is connected to this unit, turn it on first.

VIRTUAL

VOL

DSP P-SET

DIGITAL

USBPCM D.

PROLOGICFM AMST

POWER

GAME

SURROUND

/DTS

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

TESTON/

AUX1

AUX2

TUNER

5.I

DSP

2, 5

OFF

B CA

VOLUMEMUTE

2, 5

BASIC OPERATION

Start the selected input source.

Refer to “Listening to an FM broadcast” on pages 14–18 about how to tune into a desired station.

Adjust the volume to the desired level.

VOLUME

Front panel

As you prefer, use a sound field program.

Remote control

Refer to page 11 for details about the sound field programs.

Turn on this unit.

POWER

Front panel

The message “Hello” appears for a few seconds, and this unit returns to the state in which it was last used (e.g., the input source that was selected when this unit was turned off is selected).

Decrease the volume to minimum (MIN).

Front panel

Select an input source by using the input selector keys.

The corresponding indicator on the front panel lights up.

AUX1

AUX2

TUNER

Front panel

Refer to the explanation on the right side for details about using the input selector keys.

Remote control

VOLUME

Remote control

AUX1

AUX2

TUNER

Remote control

About the input selector keys

Each of the input selector keys selects the following input signals.

PC: Press the PC key repeatedly to select the PC inputs:

AUX1: Press the AUX1 key repeatedly to select the inputs:

AUX2: Press the AUX2 key to select

TUNER: Press the TUNER key to select the built-in FM tuner as

“USB”, “PC_DIGT” and “PC_ANLG”. PC_DIGT selects the DIGITAL PC COAX IN or DIGITAL PC OPT IN, and PC_ANLG selects the ANALOG PC IN. Note: The DIGITAL PC OPT IN has priority over the DIGITAL PC COAX IN, so if you connect to both inputs, the signal received at the DIGITAL PC OPT IN is used.

VOL

VOLVOL

“AUX1_DG” and “AUX1_AN”. AUX1_DG selects the equipment connected to the DIGITAL AUX 1 OPT IN, and AUX1_AN selects the equipment connected to the ANALOG AUX 1 IN connector as the input source.

VOL

the equipment connected to the ANALOG AUX 2 IN connectors as the input source.

VOL

the input source. * When the TUNER key is pressed, “TUNER” appears

first on the display, and then changes to the display of a frequency or a preset station.

FM ST

VOL

FM ST

VOL

OPERATION

BASIC

English

E-9

BASIC OPERATION

Note

When the PC, AUX1 or AUX2 input selector key is pressed, the display shows the name of the selected input source for a short while, and then shows the currently selected sound field program. When no sound field program is selected, “THROUGH” is shown on the display.

The names of input sources shown on the display can be changed with the Application Software. Refer to the Online Help of the Application Software for details.

 To cut off sound output temporarily

Press the MUTE key. To restore sound output, turn the volume control on the front panel or press the VOLUME keys on the remote control. Pressing the MUTE key again also restores sound output.

MUTE

Remote control

Note

Sound output will also be restored by changing the status of this unit between standby and power-on modes, changing the input source or the sound field program, using the test tone, or using the A, B, C keys on the remote control.

 When you listen with headphones

Connect the headphones to the headphone jack. No sound will be outputted from the speakers.

 When you have finished using this unit

Set this unit to the standby mode by pressing the power switch on the front panel or the POWER key on the remote control.

POWER

Front panel

Remote control

Note

When not planning to use this unit for a long period (i.e., vacation, etc.), disconnect the AC power plug from the wall outlet.

 Setting USB MIX

When an input other than the USB terminal is selected, you can listen to the mixed signals from the selected input and from the USB terminal. Also, the mixing ratio of the signals from the USB terminal can be adjusted. * Refer to the online help of the Application Software for details.

 Setting graphic equalizer

You can adjust the frequency characteristics as you prefer by using the 7-band graphic equalizer. * Refer to the online help of the Application Software for details.

Notes

● Some setting changes may be needed on the computer to reproduce signals sent from the computer to this unit via the USB connection. Refer to the separate “SET UP MANUAL” for details.

● Some setting changes may be needed on the computer to reproduce signals sent from the computer to this unit via a sound card, etc.

E-10

Automatic power saving function

If there is no operation on this unit’s front panel, the remote control or the Application Software for about 24 hours with the power of this unit on, this unit will automatically be set to the standby mode.

BASIC OPERATION

Using sound field programs

This unit’s built-in DSP (Digital Sound field Processor) can simulate various acoustic environments, including a concert hall and movie theater, with its seven sound field programs. For the best results, choose a program appropriate for the selected audio source.

First follow steps 1–5 of “Playing a source” on page 9.

VIRTUAL

VOL

DSP P-SET

DIGITAL

USBPCM D.

PROLOGICFM AMST

POWER

GAME

SURROUND

/DTS

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

TESTON/

B CA

VOLUMEMUTE

OFF

AUX1

AUX2

TUNER

5.I

DSP

Turn on the DSP.

DSP

(When using the remote control, step 1 can be

Front panel

skipped.)

The name of the selected sound field program appears on the display.

Select the desired sound field program.

JAZZ CHURCHHALL

The following programs are available.

Program

HALL (CONCERT HALL EUROPE)

JAZZ (JAZZ CLUB VILLAGE GATE)

CHURCH (CHURCH ROYAUMONT)

Hi-Fi DSP (for music sources)

GAME (GAME AMUSEMENT)

MOVIE (MOVIE THEATER)

This program simulates the sound field of a mediumsized hall, with a beautiful and rich reverberation.

This program simulates the sound field of a famous New York jazz club.

This program simulates the sound field of a Gothic church, with the unique effect of sound reverberating back and forth in a domed ceiling.

This program adds depth and surround effects to computer games, enhancing the gaming experience.

The realism provided by this program gives the impression that you’re actually in the scene.

LIVE (LIVE CONCERT)

This program produces an enthusiastic atmosphere and lets you feel that you are in the midst of the action, as if attending an actual jazz or rock concert.

NORMAL ( DTS SUR.) [HP3D*

(Headphone 3D)

This program reproduces the surround sound of a source encoded with Dolby Pro Logic, Dolby Digital

]

or DTS faithfully. Sensing the input signal, the built-in Dolby Digital decoder or the DTS decoder automatically works. When this unit is set to the “Virtual 3D” mode (the

CINEMA DSP (for video sources)

surround speakers are not used) in the Application Software, 5.1-channel surround sound effects are reproduced with only two front speakers by using Yamaha’s “Virtual 3D” technology.

Feature

Front panel

MOVIE LIVEGAME

/DTS

TESTON/

SURROUND

Remote control

OFF

Front panel: Pressing or repeatedly changes the

program.

Remote control: Press the key of the desired program.

DSP

VOL

Active program

Note

These programs create a sound field that feels real, just as if you were actually there.

These programs can be used together with Dolby Pro Logic, Dolby Digital or DTS for enjoying surround sounds of motionpicture audio.

: HP3D

This program enables you to enjoy a virtual 3D effect with headphones. When you connect headphones to this unit, the DTS SUR. program automatically changes to HP3D .

OPERATION

BASIC

English

E-11

BASIC OPERATION

Notes

● Just after selecting a program, the program name scrolls from right to left on the display, and then its short-version name lights up.

● No sound field program can be used when receiving signals with a 96 kHz sampling frequency.

 Adjusting DSP sound field parameters

The surround effect of each program or the Virtual 3D effect can be adjusted to the desired taste by using the Application Software. Refer to the online help of the Application Software for details.

Recording

Input sources (e.g., a computer or CD player) selected on this unit can be recorded by an MD recorder, tape deck, etc. connected to this unit. Also, input signals can be fed to your computer via the USB connection. * When a source is recorded using a sound field

program, sound field effects are recorded with the source.

 Recording on an external recording unit

POWER

VIRTUAL

VOL

DSP P-SET

DIGITAL

USBPCM D.

PROLOGICFM AMST

AUX1

AUX2

TUNER

5.I

DSP

GAME

SURROUND

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

/DTS

TESTON/

B CA

OFF

VOLUMEMUTE

 To turn off the sound field effect

Press the DSP key on the front panel or the ON/OFF key on the remote control. “THROUGH” appears on the display.

DSP

Front panel

ON/OFF

Remote control

Note

When the sound field effect is off, sound is reproduced in normal stereo.

First turn on the external unit to be used, and then this unit.

Select the source to be recorded by using the input selector keys.

AUX1

AUX2

TUNER

Front panel

Start recording on a recording unit (an MD

AUX1

AUX2

TUNER

Remote control

recorder, tape deck, etc.).

Start playing the input source .

 Playing the recorded result via this unit

Select the input signals sent from the recording unit with the input selector keys.

E-12

Notes

● If input signals received at any digital input terminal other than the USB terminal is outputted at the digital output terminal, the sampling frequency for the output signals is the same as that for input signals.

● The sampling frequency for digital signals converted from analog signals on this unit is 44.1 kHz or 48 kHz.

● When digital input signals are outputted at the digital output terminal, track information (CD-text data, automatic track renewal when recording is made on an MD, etc.) is invalid if any sound field program (including the graphic equalizer effect) is used.

● Both REC OUT and OPT OUT terminals on the rear of this unit output the same constituents of signals as outputted from the left and right front speakers.

 Recording on a computer (via the USB connection)

BASIC OPERATION

When recording or processing signals inputted to your computer via the USB connection, the following setting is needed on the computer.

 Selecting Recording Device

When using Windows

1. Click the Windows “Start” button and select “Settings”, and then “Control Panel”.

2. Double-click the “Multimedia” icon (or the “Sounds and Multimedia” icon).

3. Click the “Audio” tab and select “USB Audio Device” at “Preferred device” of “Recording” (or “Sound Recording”).

When using a Macintosh

Select “USB Audio” as the input device at “Sound” on the Control Panel.

 Setting of Recording Software

Select a sampling frequency from 44.1 kHz and 48 kHz. Select a resolution from 16 bits and 24 bits. The sampling frequency of 44.1 kHz with the resolution of 16 bits produces a sound quality comparable to the compact disc (CD).

POWER

VIRTUAL

VOL

DSP P-SET

DIGITAL

USBPCM D.

PROLOGICFM AMST

AUX1

AUX2

TUNER

5.I

DSP

GAME

SURROUND

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

/DTS

TESTON/

OFF

B CA

VOLUMEMUTE

Select the source to be recorded by using the input selector keys.

AUX1

AUX2

TUNER

Front panel

Start recording with the recording software on the

AUX1

AUX2

TUNER

Remote control

computer.

Start playing the input source.

 Playing the recorded result via this unit

Press the PC input selector key repeatedly to select USB as the input source, and play the recorded result on the computer.

Notes

● If the number of USB channels is set to six, recording cannot be made via the USB connection. Reset the number of USB channels to two or four.

● To record digital input signals with a 48 kHz sampling frequency, the frequency of the input signals must be 48 kHz.

● To record sound signals received at an analog or digital input of the sound card etc., and not via the USB connection, select the corresponding device, such as “Sound Card”, from “Preferred device” of “Recording” (or “Sound Recording”) on the computer.

● The sampling frequency and resolution of signals recordable on the computer differ from operating systems. You can refer to the following Y amaha w ebsite for details about the related information.

http://www.yamaha.co.jp/audio/

OPERATION

BASIC

Notes

● Please check the copyright laws in your country before recording compact discs, radio, etc. Recording of copyright material may infringe copyright laws.

● You cannot make a recording from a CD-R, MD, etc. which is a copy of an audio CD, to another CD-R, MD, etc. via the USB connection or the digital terminal connection. Also, you cannot make a recording from an MD which is recorded with digital signals received via the USB connection, to another MD via a digital connection.

English

E-13

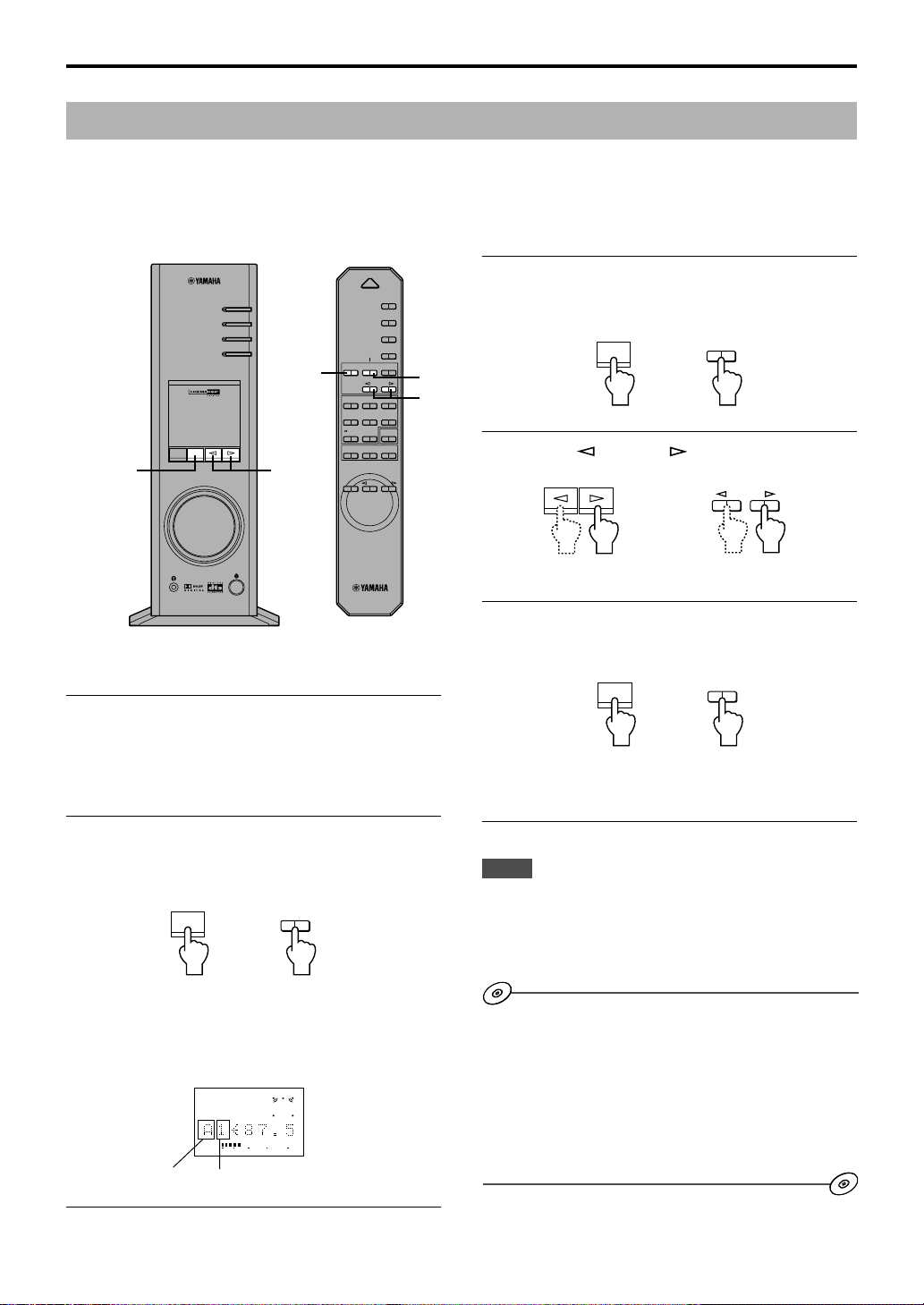

LISTENING TO AN FM BROADCAST

Tuning into an FM station

Normally, if station signals are strong and there is no interference, quick auto tuning is possible. However, if the signal of the station you want to select is weak or the reception condition is bad, you must tune in to it manually.

POWER

VIRTUAL

VOL

DSP P-SET

DIGITAL

USBPCM D.

PROLOGICFM AMST

AUX1

AUX2

TUNER

1, 2, 3

5.I

DSP

GAME

SURROUND

/DTS

AUX1

AUX2

TUNER

PRESET MANUALMEMORY

JAZZ CHURCHHALL

MOVIE LIVE

TESTON/

B CA

VOLUMEMUTE

If the tuner is in the preset tuning mode, press the

1 2,

TUNER key (front panel) or the MANUAL key (remote control) to change the preset tuning mode to the frequency display mode.

AUX2

TUNER

AUX1

MANUAL

OFF

Auto tuning

First turn on this unit.

Press the TUNER input selector key to select the built-in FM tuner.

AUX1

AUX2

TUNER

Front panel

The tuner turns on in either of the following modes. (The mode which was selected the last time you used the tuner is selected.)

● Frequency display mode

The display shows the selected frequency. This mode is for tuning into a station by changing the frequency.

● Preset tuning mode

This mode is for tuning into a preset station which is already stored in the memory. The display shows the preset group (A to E), the number (1 to 8) and the frequency of the preset station.

AUX1

AUX2

TUNER

Remote control

VOL

(U.S.A. model)

FM ST

Front panel

Press the TUNER key (front panel) or the MANUAL

Remote control

key (remote control) to select the desired reception mode: FM auto stereo or FM monaural.

AUX1

AUX2

TUNER

Front panel

MANUAL

Remote control

The reception mode changes alternately by each press of the TUNER key.

● FM auto stereo

When a stereo broadcast is received, it is received in stereo automatically. (The “ST” indicator lights up on the display.) If, however, the signal of a stereo broadcast is weak, it may be received in monaural automatically. (In this case, the “ST” indicator goes off.)

● FM monaural

Any broadcast is received in monaural. (On the display, “M” appears above the frequency.) If you hear noise in the FM auto stereo mode, try switching to FM monaural.

FM auto stereo

FM ST

VOL

FM monaural

VOL

E-14

+ 39 hidden pages
