Yamaha XV19SX(C), ROADLINER S, XV19MX(C) User Manual
OWNER’S MANUAL
XV19SX(C)
XV19MX(C)
LIT-11626-21-49
1D7-28199-12
EAU10041
INTRODUCTION
EAU10080
Congratulations on your purchase of the Yamaha XV19SX(C)/XV19MX(C). This model is the result of Yamaha’s vast experience in the production of fine sporting, touring, and pacesetting racing machines. It represents the high degree of craftsmanship and reliability that have made Yamaha a leader in these fields.
This manual will give you an understanding of the operation, inspection, and basic maintenance of this motorcycle. If you
have any questions concerning the operation or maintenance of your motorcycle, please consult a Yamaha dealer.
The design and manufacture of this Yamaha motorcycle fully comply with the emissions standards for clean air applicable at
the date of manufacture. Yamaha has met these standards without reducing the performance or economy of operation of the
motorcycle. To maintain these high standards, it is important that you and your Yamaha dealer pay close attention to the
recommended maintenance schedules and operating instructions contained within this manual.
IMPORTANT MANUAL INFORMATION
Particularly important information is distinguished in this manual by the following notations:
The Safety Alert Symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED!
EAU10131
WARNING
Failure to follow WARNING instructions could result in severe injury or death
motorcycle operator, a bystander or a person inspecting or repairing the motor-
to the
cycle.
CAUTION:
NOTE:
A CAUTION indicates special precautions that must be taken to avoid damage to
the motorcycle.
A NOTE provides key information to make procedures easier or clearer.
NOTE:
● This manual should be considered a permanent part of this motorcycle and should remain with it even if the motorcycle
is subsequently sold.
● Yamaha continually seeks advancements in product design and quality. Therefore, while this manual contains the most
current product information available at the time of printing, there may be minor discrepancies between your motorcycle
and this manual. If you have any questions concerning this manual, please consult your Yamaha dealer.
EWA10010
WARNING
PLEASE READ THIS MANUAL AND THE “YOU AND YOUR MOTORCYCLE: RIDING TIPS” BOOKLET CAREFULLY
AND COMPLETELY BEFORE OPERATING THIS MOTORCYCLE. DO NOT ATTEMPT TO OPERATE THIS MOTORCYCLE UNTIL YOU HAVE ATTAINED ADEQUATE KNOWLEDGE OF ITS CONTROLS AND OPERATING FEATURES
IMPORTANT MANUAL INFORMATION
AND UNTIL YOU HAVE BEEN TRAINED IN SAFE AND PROPER RIDING TECHNIQUES. REGULAR INSPECTIONS
AND CAREFUL MAINTENANCE, ALONG WITH GOOD RIDING SKILLS, WILL ENSURE THAT YOU SAFELY ENJOY
THE CAPABILITIES AND THE RELIABILITY OF THIS MOTORCYCLE.
*Product and specifications are subject to change without notice.
IMPORTANT MANUAL INFORMATION
AFFIX DEALER
LABEL HERE
XV19SX(C)/XV19MX(C)
OWNER’S MANUAL
©2007 by Yamaha Motor Corporation, U.S.A.
1st edition, June 2007
All rights reserved.
Any reprinting or unauthorized use
without the written permission of
Yamaha Motor Corporation, U.S.A.
is expressly prohibited.
Printed in Japan.
P/N LIT-11626-21-49
EAU10192
TABLE OF CONTENTS
SAFETY INFORMATION ..................1-1
Location of important labels ...........1-5
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view........................................2-2
Controls and instruments ................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Multi-function meter unit .................3-3
Handlebar switches ........................3-7
Clutch lever ....................................3-9
Shift pedal ......................................3-9
Brake lever .....................................3-9
Brake pedal ..................................3-10
Fuel tank cap ................................3-10
Fuel ..............................................3-11
Catalytic converter ........................3-12
Rider seat .....................................3-12
Helmet holder ...............................3-13
Adjusting the shock absorber
assembly ...................................3-14
EXUP system ...............................3-15
Sidestand .....................................3-16
Ignition circuit cut-off system ........3-16
Auxiliary DC connector .................3-18
PRE-OPERATION CHECKS ............. 4-1
Pre-operation check list ................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS ................................ 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
PERIODIC MAINTENANCE .......... 6-1
Owner’s tool kit .............................. 6-1
Periodic maintenance chart for
the emission control system ....... 6-3
General maintenance and
lubrication chart .......................... 6-4
Checking the spark plugs .............. 6-8
Canister (for California only) .......... 6-9
Engine oil and oil filter cartridge ..... 6-9
Transfer case oil .......................... 6-12
Air filter element ........................... 6-13
Checking the throttle cable free
play ........................................... 6-13
Valve clearance ........................... 6-13
Tires ............................................. 6-14
Cast wheels ................................. 6-15
Accessories and replacement
parts ......................................... 6-16
Clutch lever .................................. 6-16
Adjusting the rear brake light
switch ........................................6-17
Checking the front and rear
brake pads ................................6-17
Checking the brake and clutch
fluid levels .................................6-18
Changing the brake and clutch
fluids .........................................6-19
Drive belt slack .............................6-19
Checking and lubricating the
cables .......................................6-20
Checking and lubricating the
throttle grip and cable ...............6-20
Checking and lubricating the
brake and shift pedals ............... 6-21
Checking and lubricating the
brake and clutch levers .............6-21
Checking and lubricating the
sidestand ..................................6-22
Lubricating the rear suspension ... 6-22
Checking the front fork .................6-23
Checking the steering ..................6-23
Checking the wheel bearings .......6-24
Battery ..........................................6-24
Replacing the fuses ...................... 6-26
Replacing a headlight bulb ...........6-27
Tail/brake light ..............................6-30
Replacing a turn signal light
bulb ...........................................6-30
License plate light ........................6-31
Supporting the motorcycle ...........6-31
TABLE OF CONTENTS
Troubleshooting ............................6-32
Troubleshooting chart ...................6-33
MOTORCYCLE CARE AND
STORAGE ..........................................7-1
Matte color caution .........................7-1
Care ................................................7-1
Storage ...........................................7-3
SPECIFICATIONS .............................8-1
CONSUMER INFORMATION.............9-1
Identification numbers ....................9-1
Reporting safety defects .................9-3
Motorcycle noise regulation ............9-4
Maintenance record ........................9-5
YAMAHA MOTOR CORPORATION,
U.S.A. STREET AND ENDURO
MOTORCYCLE LIMITED
WARRANTY ................................9-7
YAMAHA EXTENDED SERVICE
(Y.E.S.) ........................................9-9
SAFETY INFORMATION
EAU10281
MOTORCYCLES ARE SINGLE
TRACK VEHICLES. THEIR SAFE USE
AND OPERATION ARE DEPENDENT
UPON THE USE OF PROPER RIDING
TECHNIQUES AS WELL AS THE EXPERTISE OF THE OPERATOR. EVERY OPERATOR SHOULD KNOW
THE FOLLOWING REQUIREMENTS
BEFORE RIDING THIS MOTORCYCLE.
HE OR SHE SHOULD:
● OBTAIN THOROUGH INSTRUC-
TIONS FROM A COMPETENT
SOURCE ON ALL ASPECTS OF
MOTORCYCLE OPERATION.
● OBSERVE THE WARNINGS AND
MAINTENANCE REQUIREMENTS IN THE OWNER’S MANUAL.
● OBTAIN QUALIFIED TRAINING
IN SAFE AND PROPER RIDING
TECHNIQUES.
● OBTAIN PROFESSIONAL TECH-
NICAL SERVICE AS INDICATED
BY THE OWNER’S MANUAL
AND/OR WHEN MADE NECESSARY BY MECHANICAL CONDITIONS.
Safe riding
● Always make pre-operation
checks. Careful checks may help
prevent an accident.
● This motorcycle is designed to car-
ry the operator and a passenger.
● The failure of motorists to detect
and recognize motorcycles in traffic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore:
• Wear a brightly colored jacket.
• Use extra caution when you are
approaching and passing
through intersections, since intersections are the most likely
places for motorcycle accidents
to occur.
• Ride where other motorists can
see you. Avoid riding in another
motorist’s blind spot.
● Many accidents involve inexperi-
enced operators. In fact, many operators who have been involved in
accidents do not even have a current motorcycle license.
• Make sure that you are qualified
and that you only lend your
motorcycle to other qualified operators.
• Know your skills and limits.
Staying within your limits may
help you to avoid an accident.
• We recommend that you practice riding your motorcycle
where there is no traffic until you
have become thoroughly familiar with the motorcycle and all of
its controls.
● Many accidents have been caused
by error of the motorcycle operator. A typical error made by the operator is veering wide on a turn
1
1-1
SAFETY INFORMATION
due to EXCESSIVE SPEED or undercornering (insufficient lean angle for the speed).
1
• Always obey the speed limit and
never travel faster than warranted by road and traffic conditions.
• Always signal before turning or
changing lanes. Make sure that
other motorists can see you.
● The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the operator footrests during operation to maintain control of the motorcycle.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger footrests.
• Never carry a passenger unless
he or she can firmly place both
feet on the passenger footrests.
● Never ride under the influence of
alcohol or other drugs.
● This motorcycle is designed for on-
road use only. It is not suitable for
off-road use.
Protective apparel
The majority of fatalities from motorcycle accidents are the result of head
injuries. The use of a safety helmet is
the single most critical factor in the prevention or reduction of head injuries.
● Always wear an approved helmet.
● Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impairment
of vision that could delay seeing a
hazard.
● The use of a jacket, heavy boots,
trousers, gloves, etc., is effective in
preventing or reducing abrasions
or lacerations.
● Never wear loose-fitting clothes,
otherwise they could catch on the
control levers, footrests, or wheels
and cause injury or an accident.
● Never touch the engine or exhaust
system during or after operation.
They become very hot and can
cause burns. Always wear protective clothing that covers your legs,
ankles, and feet.
● A passenger should also observe
the above precautions.
Modifications
Modifications made to this motorcycle
not approved by Yamaha, or the removal of original equipment, may render the motorcycle unsafe for use and
may cause severe personal injury.
Modifications may also make your
motorcycle illegal to use.
Loading and accessories
Adding accessories or cargo to your
motorcycle can adversely affect stability and handling if the weight distribution
of the motorcycle is changed. To avoid
the possibility of an accident, use extreme caution when adding cargo or
accessories to your motorcycle. Use
extra care when riding a motorcycle
that has added cargo or accessories.
Here are some general guidelines to
follow if loading cargo or adding accessories to your motorcycle:
1-2
SAFETY INFORMATION
Loading
The total weight of the operator, passenger, accessories and cargo must
not exceed the maximum load limit.
Maximum load:
210 kg (463 lb)
When loading within this weight limit,
keep the following in mind:
● Cargo and accessory weight
should be kept as low and close to
the motorcycle as possible. Make
sure to distribute the weight as
evenly as possible on both sides of
the motorcycle to minimize imbalance or instability.
● Shifting weights can create a sud-
den imbalance. Make sure that accessories and cargo are securely
attached to the motorcycle before
riding. Check accessory mounts
and cargo restraints frequently.
● Never attach any large or heavy
items to the handlebar, front fork,
or front fender. These items, including such cargo as sleeping
bags, duffel bags, or tents, can
create unstable handling or a slow
steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this motorcycle. Since Yamaha cannot
test all other accessories that may be
available, you must personally be responsible for the proper selection, installation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any accessories.
Keep the following guidelines in mind,
as well as those provided under “Load-
ing” when mounting accessories.
● Never install accessories or carry
cargo that would impair the perfor-
mance of your motorcycle. Care-
fully inspect the accessory before
using it to make sure that it does
not in any way reduce ground
clearance or cornering clearance,
limit suspension travel, steering
travel or control operation, or obscure lights or reflectors.
• Accessories fitted to the handlebar or the front fork area can
create instability due to improper
weight distribution or aerodynamic changes. If accessories
are added to the handlebar or
front fork area, they must be as
lightweight as possible and
should be kept to a minimum.
• Bulky or large accessories may
seriously affect the stability of
the motorcycle due to aerodynamic effects. Wind may attempt to lift the motorcycle, or
the motorcycle may become unstable in cross winds. These accessories may also cause
instability when passing or being
passed by large vehicles.
• Certain accessories can displace the operator from his or
her normal riding position. This
improper position limits the freedom of movement of the opera-
1
1-3
SAFETY INFORMATION
tor and may limit control ability,
therefore, such accessories are
not recommended.
1
● Use caution when adding electri-
cal accessories. If electrical accessories exceed the capacity of the
motorcycle’s electrical system, an
electric failure could result, which
could cause a dangerous loss of
lights or engine power.
Gasoline and exhaust gas
● GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off when
refueling.
• Take care not to spill any gasoline on the engine or exhaust
system when refueling.
• Never refuel while smoking or in
the vicinity of an open flame.
● Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poisonous and may cause loss of
consciousness and death within a
short time. Always operate your
motorcycle in an area that has adequate ventilation.
● Always turn the engine off before
leaving the motorcycle unattended
and remove the key from the main
switch. When parking the motorcycle, note the following:
• The engine and exhaust system
may be hot, therefore, park the
motorcycle in a place where pedestrians or children are not likely to touch these hot areas.
• Do not park the motorcycle on a
slope or soft ground, otherwise it
may fall over.
• Do not park the motorcycle near
a flammable source, (e.g., a kerosene heater, or near an open
flame), otherwise it could catch
fire.
● When transporting the motorcycle
in another vehicle, make sure that
it is kept upright. If the motorcycle
should lean over, gasoline may
leak out of the fuel tank.
● If you should swallow any gaso-
line, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immediately.
If any gasoline spills on your skin
1-4
or clothing, immediately wash the
affected area with soap and water
and change your clothes.
Location of important labels
Please read the following important labels carefully before operating this vehicle.
SAFETY INFORMATION
EAU10381
1
1-5
SAFETY INFORMATION
1
1
4
California only
2
PREMIUM UNLEADED GASOLINE ONLY
91 Min. Pump Octane (R+M) 2
5PW-2415E-11
3
5
1-6
Left view
DESCRIPTION
EAU10410
2
1. Headlight (page 6-27)
2. Clutch fluid reservoir (page 6-18)
3. Seat lock (page 3-12)
4. Main fuse (page 6-26)
5. Battery (page 6-24)
6. Owner’s tool kit (page 6-1)
7. License plate light (page 6-31)
8. Tail/brake light (page 6-30)
9. Engine oil drain bolt B (crankcase) (page 6-9)
10.Engine oil drain bolt A (crankcase) (page 6-9)
11.Shift pedal (page 3-9)
2-1
DESCRIPTION
Right view
2
EAU10420
1. Helmet holder (page 3-13)
2. Fuel injection system fuse (page 6-26)
3. Rear brake fluid reservoir (page 6-18)
4. Fuse box (page 6-26)
5. Engine oil filler cap (page 6-9)
6. Fuel tank cap (page 3-10)
7. Front brake fluid reservoir (page 6-18)
8. Brake pedal (page 3-10)
9. Engine oil filter cartridge (page 6-9)
10.Engine oil drain bolt (oil tank) (page 6-9)
11.Shock absorber assembly spring preload adjusting nut (page 3-14)
2-2
Controls and instruments
1. Clutch lever (page 3-9)
2. Left handlebar switches (page 3-7)
3. Multi-function meter unit (page 3-3)
4. Main switch/steering lock (page 3-1)
5. Right handlebar switches (page 3-7)
6. Throttle grip (page 6-13)
7. Brake lever (page 3-9)
DESCRIPTION
EAU10430
2
2-3
INSTRUMENT AND CONTROL FUNCTIONS
Main switch/steering lock
The main switch/steering lock is located under the main switch/steering lock
cover. To access the main
switch/steering lock, slide the cover forward.
3
1. Main switch/steering lock cover
2. Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU38390
ON
EAU10540
All electrical circuits are supplied with
power, and the meter lighting, taillight,
license plate light and position lights
come on, and the engine can be started. The key cannot be removed.
NOTE:
The headlight comes on automatically
when the engine is started and stays on
until the key is turned to “OFF”, even if
the engine stalls.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be removed.
To lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
3-1
INSTRUMENT AND CONTROL FUNCTIONS
To unlock the steering
1. Push.
2. Turn.
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped before turning the key to “OFF” or
“LOCK”.
EAU11003
Indicator and warning lights
1. Neutral indicator light “”
2. High beam indicator light “”
3. Right turn signal indicator light “”
4. Left turn signal indicator light “”
5. Engine trouble warning light “”
6. Fuel level warning light “”
EAU11030
Turn signal indicator lights “”
and “”
The corresponding indicator light flashes when the turn signal switch is
pushed to the left or right.
EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
High beam indicator light “”
EAU11080
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11361
Fuel level warning light “”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal) (0.66 Imp.gal).
When this occurs, refuel as soon as
possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, and then go off,
have a Yamaha dealer check the electrical circuit.
NOTE:
This model is also equipped with a selfdiagnosis device for the fuel level detection circuit. If the fuel level detection
circuit is defective, the following cycle
will be repeated until the malfunction is
corrected: The fuel level warning light
3
3-2
INSTRUMENT AND CONTROL FUNCTIONS
will flash eight times, and then go off for
3.0 seconds. If this occurs, have a
Yamaha dealer check the vehicle.
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
3
engine is defective. When this occurs,
have a Yamaha dealer check the selfdiagnosis system. (See page 3-3 for an
explanation of the self-diagnosis device.)
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU11530
EAU38426
Multi-function meter unit
1. Speedometer
2. Fuel gauge
3. Odometer/tripmeter/fuel reserve tripmeter/clock
4. Tachometer
EWA12421
WARNING
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit.
The multi-function meter unit is
equipped with the following:
● a speedometer (which shows the
riding speed)
● a tachometer (which shows the en-
gine speed)
● a fuel gauge
● an odometer (which shows the to-
tal distance traveled)
● two tripmeters (which show the
distance traveled since they were
last set to zero)
● a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
● a clock
● a self-diagnosis device
● a brightness control mode
NOTE:
● Be sure to turn the key to “ON” be-
fore using the “SELECT” and reset
switches, except for setting the
brightness control mode.
● To switch the odometer, the trip-
meters and the fuel reserve tripmeter displays between kilometers
and miles, press the “SELECT”
switch for at least two seconds.
3-3
INSTRUMENT AND CONTROL FUNCTIONS

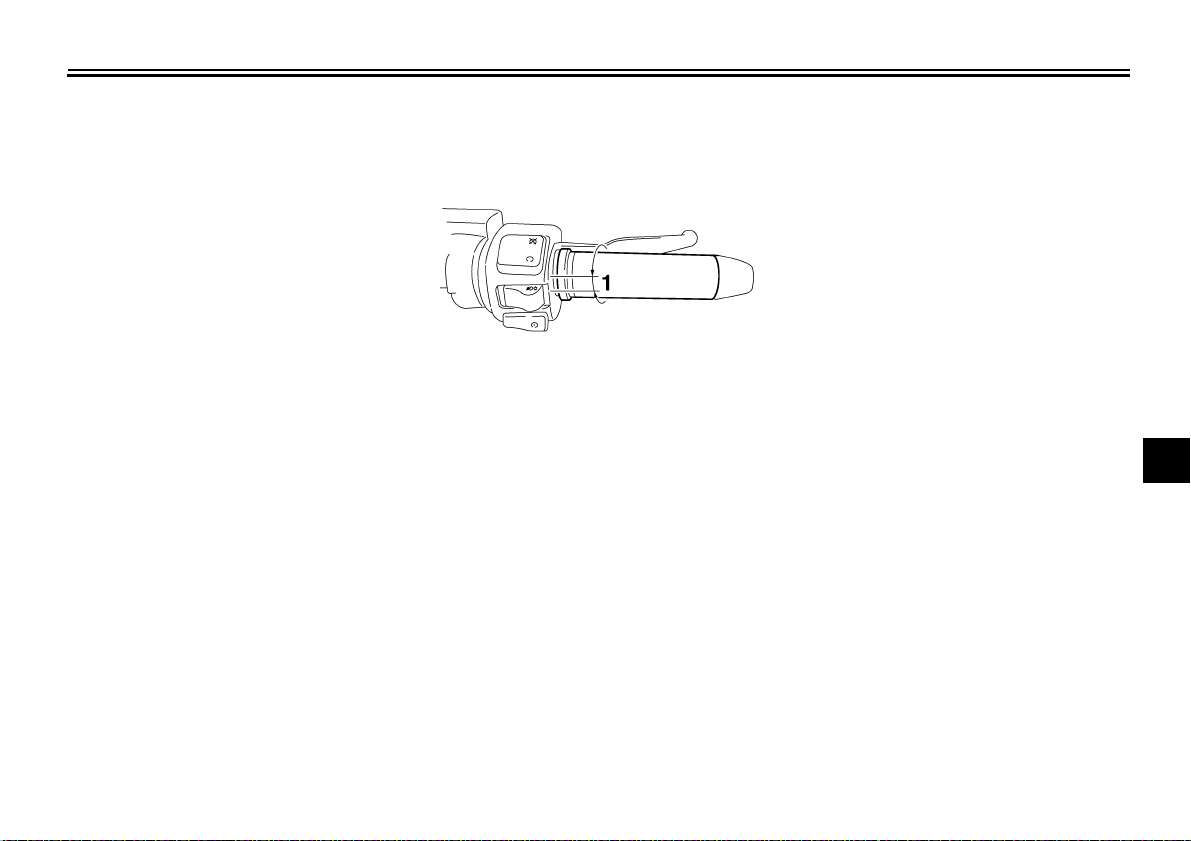

1. “SELECT” switch
1. Reset switch
Speedometer
1. Speedometer 1. Tachometer
When the key is turned to “ON”, the
speedometer needle will sweep once
across the speed range and then return
to zero in order to test the electrical circuit.
Tachometer
2. Tachometer red zone
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electrical circuit.
CAUTION:
Do not operate the engine in the tachometer red zone.
Red zone: 5000 r/min and above
3
ECA10031
3-4
INSTRUMENT AND CONTROL FUNCTIONS
Fuel gauge
3
1. Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches
“E”, approximately 3.0 L (0.79 US gal)
(0.66 Imp.gal) remain in the fuel tank. If
this occurs, refuel as soon as possible.
When the key is turned to “ON”, the fuel
gauge needle will sweep once across
the fuel level range and then return to
the current amount in order to test the
electrical circuit.
NOTE:
● Do not allow the fuel tank to empty
itself completely.
● The fuel gauge does not indicate
the correct fuel level for the first 5
km/h (3 mi/h) after refueling.
Odometer, tripmeters, fuel reserve
tripmeter and clock
1. Odometer/tripmeter/fuel reserve tripmeter/clock
Push the “SELECT” switch to switch
the display between the odometer
mode “ODO”, the tripmeter modes
“TRIP 1” and “TRIP 2” and the clock
mode in the following order:
ODO → TRIP 1 → TRIP 2 → Clock →
ODO
If the fuel level warning light comes on
(see page 3-2), the odometer display
will automatically change to the fuel reserve tripmeter mode “F-TRIP” and
3-5
start counting the distance traveled
from that point. In that case, push the
“SELECT” switch to switch the display
between the various tripmeter, odometer, and clock modes in the following order:
F-TRIP → TRIP 1 → TRIP 2 → Clock
→ ODO → F-TRIP
To reset a tripmeter, select it by pushing the “SELECT” switch, and then
push the reset switch for at least one
second. If you do not reset the fuel reserve tripmeter manually, it will reset itself automatically, and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
To set the clock:
1. Clock
INSTRUMENT AND CONTROL FUNCTIONS
1. Push the “SELECT” switch to
change the display to the clock
mode.
2. Push the “SELECT” and reset
switches together for at least two
seconds.
3. When the hour digits start flashing,
push the reset switch to set the
hours.
4. Push the “SELECT” switch, and
the minute digits will start flashing.
5. Push the reset switch to set the
minutes.
6. Push the “SELECT” switch and
then release it to start the clock.
Self-diagnosis device
This model is equipped with a self-diagnosis device for various electrical circuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripmeter/clock display will indicate a two-digit
error code.
If the odometer/tripmeter/clock display
indicates any error codes, note the
code number, and then have a Yamaha
dealer check the vehicle.
ECA11590
CAUTION:
If the display indicates an error
code, the vehicle should be checked
as soon as possible in order to avoid
engine damage.
Brightness control mode
1. Multi-function meter unit panel
2. LCD
3. Speedometer needle
4. Tachometer needle
5. Fuel gauge needle
The brightness can be adjusted for the
following:
● the multi-function meter unit panel
(item number “1”)
● the LCD (item number “2”)
3-6
● the speedometer, tachometer, and
the fuel gauge needles (item num-
ber “3”)
Select the brightness control mode as
follows.
1. Turn the key to “OFF”.
2. Push and hold the “SELECT”
switch.
3. Turn the key to “ON”, and then release the “SELECT” switch after
five seconds.
Item number “1” is displayed.
1. Multi-function meter unit panel
2. Item number
3. Brightness level
4. Adjust the multi-function meter unit
panel brightness level by pushing
the reset switch.
3
INSTRUMENT AND CONTROL FUNCTIONS
5. Push the “SELECT” switch to select the LCD.
Item number “2” is displayed.
Adjust the LCD brightness level by
pushing the reset switch.
3
1. LCD
2. Item number
3. Brightness level
6. Push the “SELECT” switch to select the speedometer, tachometer,
and the fuel gauge needles.
Item number “3” is displayed.
Adjust the brightness level of the
speedometer, tachometer, and the
fuel gauge needles by pushing the
reset switch.
1. Speedometer needle
2. Tachometer needle
3. Fuel gauge needle
4. Item number
5. Brightness level
7. Push the “SELECT” switch.
The odometer/tripmeter/clock display will return to the prior mode.
EAU12347
Handlebar switches
Left
1. Dimmer switch “ / ”
2. Turn signal switch “ / ”
3. Horn switch “”
Right
1. Engine stop switch “ / ”
2. Light switch (for optional lights) “”
3. Start switch “”
3-7
INSTRUMENT AND CONTROL FUNCTIONS
Dimmer switch “ / ”
EAU12400
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12430
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the center
position.
Since this model is equipped with a
self-canceling system, the turn signal
lights will self-cancel after the vehicle
has traveled both about 150 m (490 ft)
and for approximately 15 seconds.
However, the turn signal lights can also
be canceled manually by pushing the
switch in after it has returned to the center position.
NOTE:
The self-canceling system only operates when the vehicle is moving, so that
the turn signal lights will not self-cancel
while you are stopped at an intersection.
Horn switch “”
EAU12500
Press this switch to sound the horn.
EAU12660
Engine stop switch “ / ”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergency, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU38331
Light switch (for optional
lights) “”
This model can be equipped with optional lights available at a Yamaha
dealer.
Push this switch to the left to turn the
optional lights on and to the right to turn
them off.
ECA15321
CAUTION:
Do not install a bulb which exceeds
12 V, 35 W in either light, otherwise
the headlight fuse may blow or the
battery may discharge.
Start switch “”
EAU12710
Push this switch to crank the engine
with the starter.
ECA10050
CAUTION:
See page 5-1 for starting instructions prior to starting the engine.
3
EAU41700
The engine trouble warning light will
come on when the key is turned to “ON”
and the start switch is pushed, but this
does not indicate a malfunction.
3-8
INSTRUMENT AND CONTROL FUNCTIONS
Clutch lever
EAU12820
Shift pedal
EAU12880
3
1. Clutch lever 1. Shift pedal 1. Brake lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handlebar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the ignition circuit cut-off system. (See page

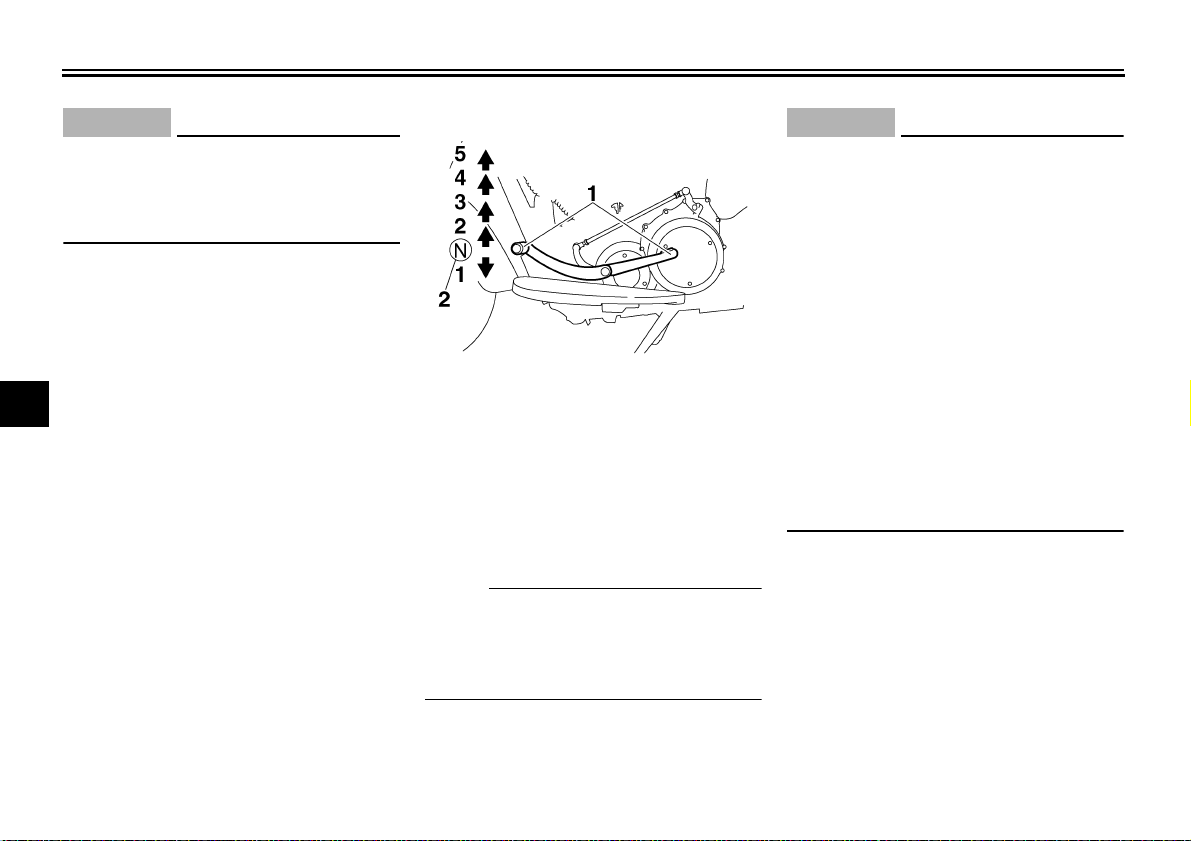

The shift pedal is located on the left
side of the engine and is used in combination with the clutch lever when
shifting the gears of the 5-speed constant-mesh transmission equipped on
this motorcycle.
NOTE:
Use your toes or heel to shift up and
your toes to shift down.
3-16.)
EAU12890
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handlebar grip.
3-9
INSTRUMENT AND CONTROL FUNCTIONS
EAU12941
Brake pedal
1. Brake pedal 1. Fuel tank cap lock cover
The brake pedal is on the right side of
the motorcycle. To apply the rear
Fuel tank cap
2. “” mark
3. Unlock.
4. Lock.
brake, press down on the brake pedal.
To remove the fuel tank cap
Slide the lock cover open, insert the key
into the lock, and then turn it 1/4 turn
clockwise. The lock will be released
and the fuel tank cap can be removed.
To install the fuel tank cap
1. Insert the fuel tank cap into the
tank opening with the key inserted
in the lock and with the “” mark
facing forward.
EAU13120
2. Turn the key counterclockwise to
the original position, remove it, and
then close the lock cover.
NOTE:
The fuel tank cap cannot be installed
unless the key is in the lock. In addition,
the key cannot be removed if the cap is
not properly installed and locked.
EWA10130
WARNING
Make sure that the fuel tank cap is
properly installed before riding.
3
3-10
INSTRUMENT AND CONTROL FUNCTIONS
Fuel
3
1. Fuel tank filler tube
2. Fuel level
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING
● Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.
● Avoid spilling fuel on the hot en-
gine.
EAU13211
EWA10880
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfaces or plastic parts.
EAU13380
Recommended fuel:
PREMIUM UNLEADED GASOLINE
ONLY
Fuel tank capacity:
17.0 L (4.49 US gal) (3.74 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
3.0 L (0.79 US gal) (0.66 Imp.gal)
ECA11400
CAUTION:
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
octane number of 95 or higher. If
knocking (or pinging) occurs, use a
gasoline of a different brand. Use of unleaded fuel will extend spark plug life
and reduce maintenance costs.
Gasohol
There are two types of gasohol: gasohol containing ethanol and that containing methanol. Gasohol containing
ethanol can be used if the ethanol content does not exceed 10%. Gasohol
containing methanol is not recommended by Yamaha because it can
cause damage to the fuel system or vehicle performance problems.
Your Yamaha engine has been designed to use premium unleaded gasoline with a pump octane number
[(R+M)/2] of 91 or higher, or a research
3-11
INSTRUMENT AND CONTROL FUNCTIONS
EAU13431
Catalytic converter
This model is equipped with a catalytic
converter in the exhaust system.
EWA10860
WARNING
The exhaust system is hot after operation. Make sure that the exhaust
system has cooled down before doing any maintenance work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
● Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
● Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.
● Do not allow the engine to idle
too long.
EAU34042
Rider seat
To remove the rider seat

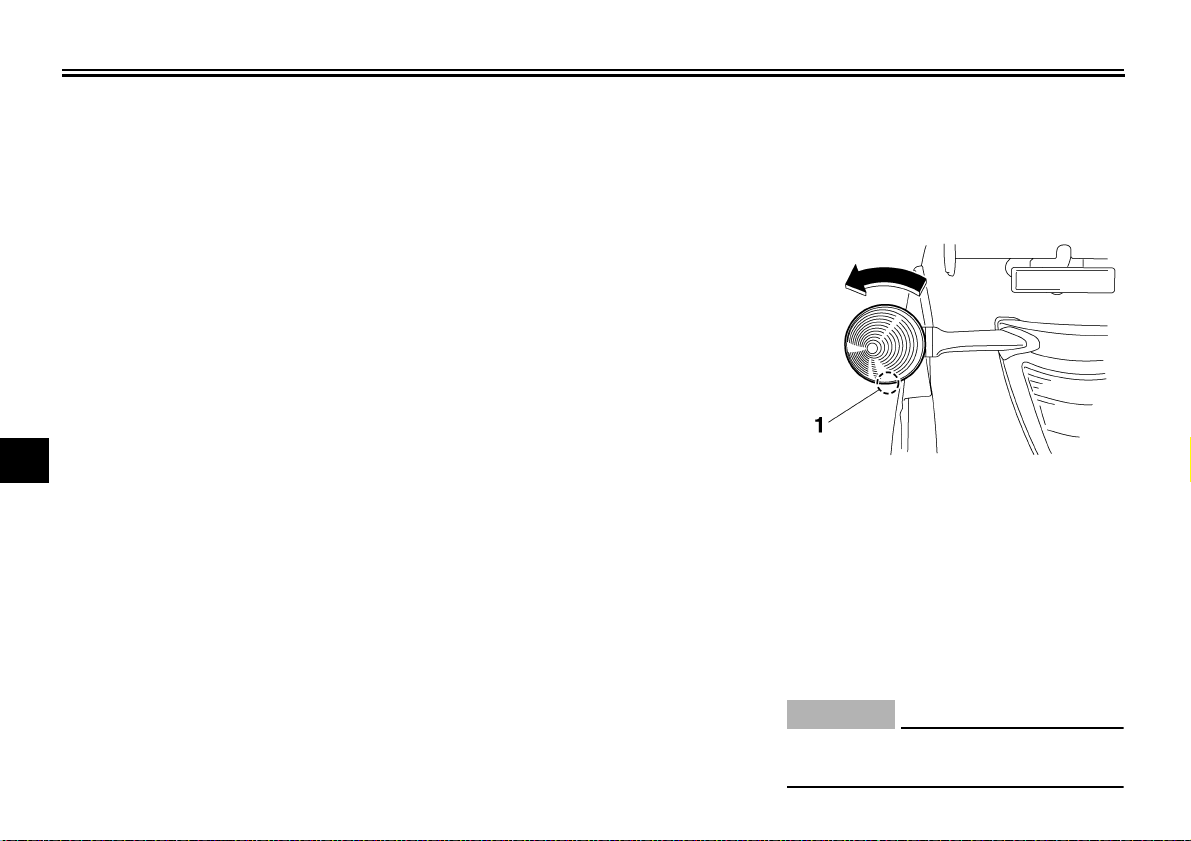

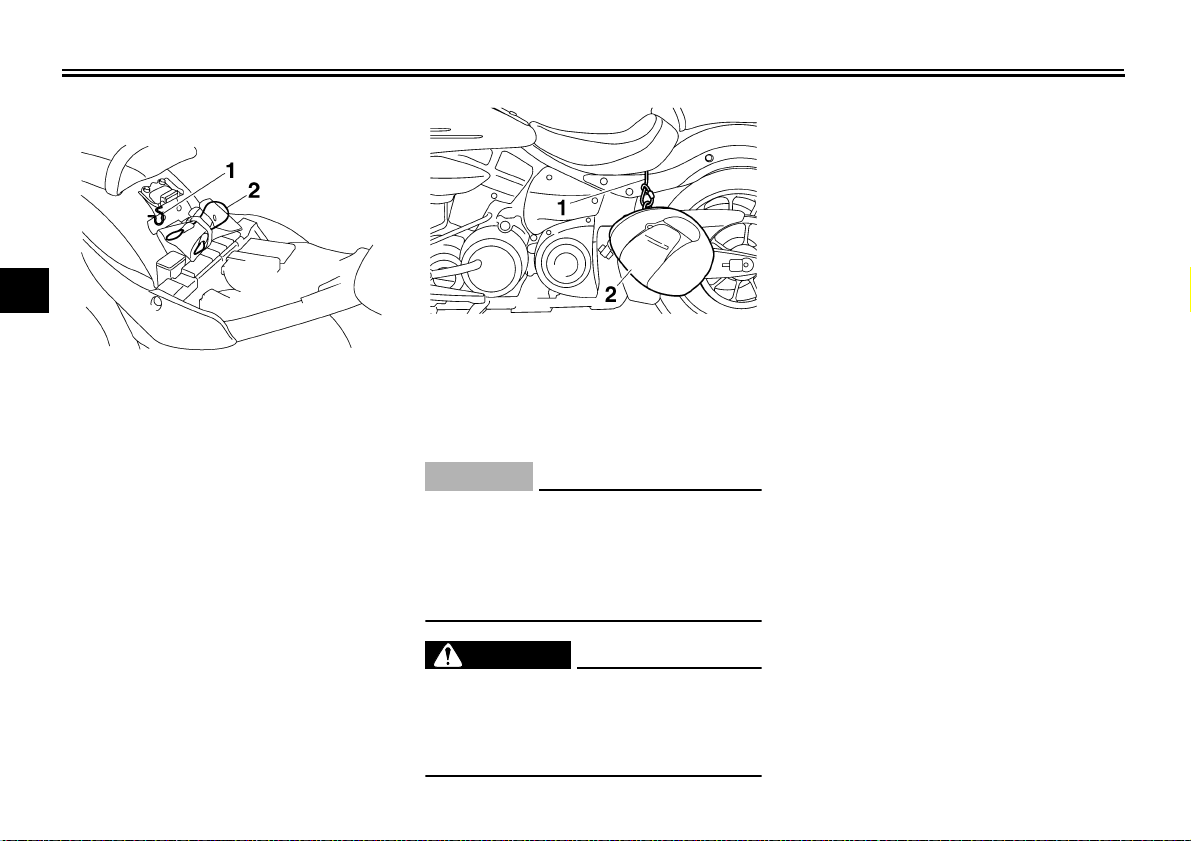

1. Insert the key into the seat lock,
and then turn it counterclockwise.
1. Seat lock
2. Unlock.
2. While holding the key in that position, lift the front of the seat up, and
then pull the seat off.
To install the rider seat
1. Insert the projection on the rear of
the seat into the seat holder as
shown.
3
1. Projection
2. Seat holder
2. Push the front of the seat down to
lock it in place.
3. Remove the key.
NOTE:
Make sure that the seat is properly secured before riding.
3-12
Loading...
