ELECTRIC GUITAR
Pacifica 012
SERVICE MANUAL
The solder used in the production of this product contains LEAD. In addition, other electrical/
electronic and/or plastic (Where applicable) components may also contain traces of chemicals
found by the California Health and W elfare Agency (and possibly other entities) to cause cancer
and/or birth defects or other reproductive harm.
DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR
MOUTH FOR ANY REASON WHAT SO EVER!
Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not
inhale solder fumes or expose eyes to solder/flux vapor!
If you come in contact with solder or components located inside the enclosure of this product,
wash your hands before handling food.
This document is printed on chlorine free (ECF) paper with soy ink.
EG
WARNING : CHEMICAL CONTENT NOTICE!
CONTENTS
OVERALL ASSEMBLY ............................................ 2
CIRCUIT DIAGRAM .................................................. 4
WIRING .................................................................... 4
SPECIFICATIONS ................................................. 4
011613
0.768K-921 Printed in Japan ’01.11
HAMAMATSU, JAPAN
Page 2
Pacifica 012
OVERALL ASSEMBLY
E27
Bridge Assembly: Vintage Type (QC493900)
B01
B04
E01
E01b
E06b
E06
A01a
A seal is attached
on the rear of the neck.
PAC 012
E06a
E20
B05
B03
B02
D01
G02
E43
E01a
E12
E39
A01
E43a
E11
E10
Jack Installation
F11
F11c
F11
F12
F13
E20a
E20
F11b
F13
F11a
G01
E27b
E27a
E27c
E54E53
G04 G05
G03
G08 G09
G07
G11
G12 G13
E28
F04
F01d
F03
F01
E48
F08
VOLUME: 15A 500KΩ
E49
F01a
F09 F10
F01b F01c
F08 F09 F10
E27
TONE: 05A 250KΩ
F11
F12
F13
E43
F11a F11b
F11c
E43a
2
Page 3
Pacifica 012
REF NO.
PART NO. DESCRIPTION REMARKS
QTY
OVERALL ASSEMBLY Pacifica 012
A01 Neck Assembly NS
*
*
AAX32330
A01a Seal (QC65750)
D01 Body
E01 Tuning Machine Assembly Chrome 1set 08
E01a Bushing
E01b Screw 2.1X10 (Chrome)
E06 String Guide VINTAGE 2092SB Chrome 01
E06a Spacer
E06b Screw 1.8X10 (Chrome)
E10 Rod Cover Black 01
E11 Oval Head Wood Screw 2.1X10 FCM3BL Black
E12 Nut Urea 41mm (Black) 04
E20 Neck Plate SQUARE 2022JP Chrome 05
E20a Oval Head Tapping Screw 4.0X35 FNM33G Nickel 4 01
E27 Bridge Assembly VINTAGE 1021ST1 Chrome 09
E27a Arm Spring Plate 1010-031
E27b Oval Head Tapping Screw 4.0X35 FNM33G Nickel 2 01
E27c Arm Spring 1010-033 (Nickel) 3
E28 Round Head Wood Screw 3.1X25 FCM33G Chrome 6 01
E39 Strings KOREA K1060 1set (QC58310)
E43 Strap Button ST-type (Chrome) 2 01
E43a Oval Head Tapping Screw 3.5X25 FCM33G Chrome 2 04
E48 Volume Knob KPK6D2S1H-B White 04
E49 Tone Knob KPK6D2S1H-A White 04
E53 Back Cover Bridge ST-type White
E54 Oval Head Wood Screw 2.7X13 FCM33G Chrome 6 02
F01 Electrical Unit (QC49430)
F01a Variable Resistor 15A 500K ohm VOLUME 03
F01b Variable Resistor 05A 250K ohm TONE 03
F01c Mylar Capacitor KELM2A473J 0.022uF 01
F01d Pickup Switch 5-P Lever KESL05 06
F03 Knob KPK7D-05 (White) with Pickup Switch 05
F04 Oval Head Screw 3.0X8 FNM33G (Nickel) with Pickup Switch 2
F08 Hexagonal Nut M8 t=2 with Volume 2
F09 Flat Washer 8 t=0.5 with Volume 2
F10 Toothed Lock Washer 10 t=0.5 with Volume 2
F11 Electrical Unit (Jack) KEJP6.3 MONO 03
F11a Hexagonal Nut 9S FCM33G (Chrome) 01
F11b Flat Washer 9S FCM33G (Chrome) 01
F11c Toothed Lock Washer A9S FNM33G(Nickel) 01
F12 Jack Panel Black 05
F13 Oval Head Wood Screw 2.7X13 FCM3BL Black 2 03
--
--
QC493600
--
--
QC493700
--
-VD955900
EB620070
VB344800
QC493800
EN240060
QC493900
-EN240060
-EQ231256
-QC494000
EN230140
QC562400
QC562500
QB822360
03706330
-HS120070
HS120100
QC562300
QC561800
QC561900
QC562000
--
--
-QC562600
LX200020
LX200010
ET800180
VB518300
EB620020
RANK
G01 Pick Guard KPF4D-2S1H (White) 15
QC561000
G02 Oval Head Wood Screw 2.7X13 FCM33G Chrome 11 02
03706330
G03 Pickup Assembly S/C KEU9DE6000S FRONT 11
QC561100
G04 Pickup Spring 5X7.5X18 A 2
QC561200
G05 Oval Head Screw 3.0X25 FNM33G Nickel 2
QC561300
G07 Pickup Assembly S/C KEU9DE6000N CENTER 11
QC561400
G08 Pickup Spring 5X7.5X18 A 2
QC561200
G09 Oval Head Screw 3.0X25 FNM33G Nickel 2
QC561300
G11 Pickup Assembly H/B KEU9DE615WH REAR 08
QC561500
G12 Pickup Spring 5X30 B 2
QC561600
G13 Oval Head Screw 3.0X30 FNM33G Nickel 2
QC561700
H01 Accessory Unit G-1 1set 07
QC354000
QC493900
B01 Arm Chrome (Head:WH) 05
AAX10000
B02 Bridge Base Chrome 05
AAX10010
B03 Bridge T ail 05
AAX10020
B04 Bridge Piece Assembly Chrome 604
AAX10030
B05 Flat Head Screw 4.0X9 FCM33G Chrome 3 01
EX803070
: New Parts RANK: Japan only
Cord 2.5 BK (QC58320)
--
Wrench #1.5
--
Wrench #5
--
Bridge Assembly VINTAGE 1021ST1 Chrome 09
3
Page 4
Pacifica 012

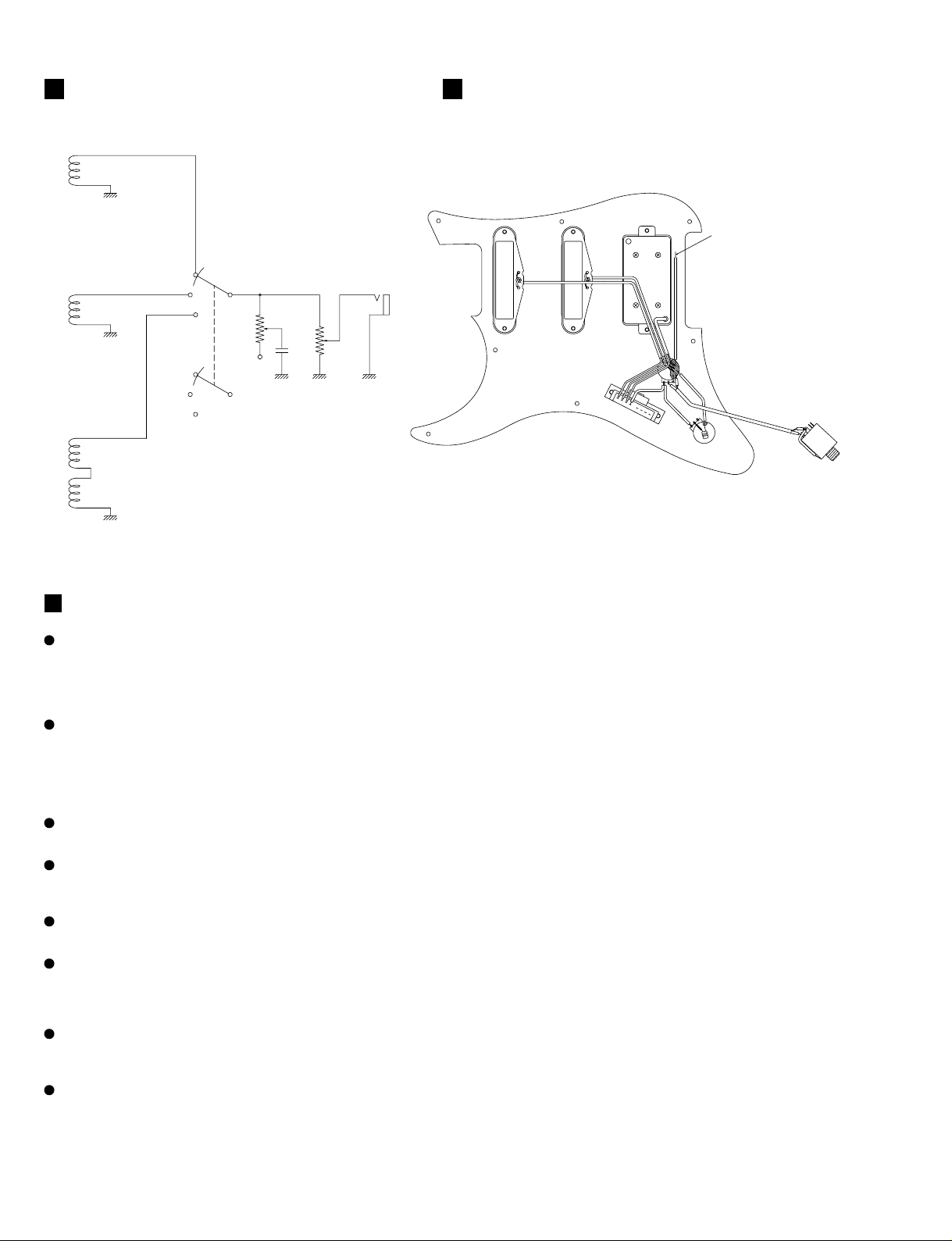

CIRCUIT DIAGRAM
FRONT PICKUP
CENTER PICKUP
REAR PICKUP
PICKUP SWITCH
(2pole 5position)
TONE VOLUME OUTPUT
1
2
3
05A 250KΩ
0.022uF
15A 500KΩ
3
2
1
GP12-03
WIRING
FRONT
PICKUP
CENTER
PICKUP
REAR
PICKUP
PICKUP
PICKUP
SWITCH
SWITCH
RE
BL
VOLUME
VOLUME
15A 500KΩ
15A 500KΩ
BL
RE
TONE
05A 250KΩ
to spring plate
RE
0.022uF
0.022uF
OUTPUT
JACK
SPECIFICATIONS
STANDARD SPECIFICA TIONS
Scale Length..............................648.0mm
Body-Neck Construction .........Bolt On
Length........................................ 978.5mm
Width .........................................325.5mm
Net Weight ................................ 3.4kg
COLOR
Body
BL ............................................. Black
RM............................................ Red Metallic
DBM ........................................ Dark Blue Metallic
Neck
NS............................................. Natural Satin
BODY
Material......................................Agatize
Body Depth ............................... 44mm
FINGERBOARD
Material......................................Sonokeling
Fingerboard Width ................... 0-F 41.0 mm, 12-F 51.4 mm
No. of Frets................................22
NECK
Material......................................Maple
Neck Thickness ........................1-F 20.9 mm, 12-F 22.9 mm
PAR TS
Hardware ................................... Chrome Plated
Nut..............................................Urea
Bridge ........................................ Vintage Type: Chrome
Strings........................................ Korea: K1060
CONTROLS
Volume.......................................15A 500KΩ x 1
Tone ........................................... 05A 250KΩ x 1
Pickup Switch............................2 pole 5 position Lever Switch
PICKUPS
Front/Center.............................Single Coil
Rear ............................................ Humbucking
Magnet
Front/Center/Rear ................Ceramics
4
