Yamaha IF2115-95W, IF2112-99W, IF2115-99W, IF2115-64W, IF2112-64W User Manual

SPEAKER SYSTEM

Installation Series

IF2115/64(W), IF2115/95(W), IF2115/99(W),
IF2112/64(W), IF2112/95(W), IF2112/99(W)

OWNER'S MANUAL

Thank you for choosing this Yamaha speaker system. In order to take maximum
advantage of the speaker's features and ensure optimum performance and longevity,
please read this manual carefully before using the speaker system. Keep the manual
in safe place for future reference.

BEDIENUNGSANLEITUNG

Vielen Dank für die Auswahl dieses Lautsprechersystems von Yamaha. Damit Sie die
Eigenschaften dieses Lautsprechers optimal nutzen können, und um maximale
Leistung und Lebensdauer sicherzustellen, lesen Sie bitte vor der Inbetriebnahme
diese Anleitung sorgfältig durch. Bitte bewahren Sie diese Anleitung zum späteren
Nachschlagen an einem sicheren Ort auf.

MODE D’EMPLOI

Nous vous remercions d'avoir acheté ces enceintes Yamaha. Pour obtenir les
performances optimales de vos enceintes et garantir une longévité maximale, lisez
attentivement ce mode d'emploi avant d'utiliser les enceintes. Conservez-le en lieu
sûr pour pouvoir vous y référer ultérieurement.

EnglishDeutschFrançaisEspañol日本語

MANUAL DE INSTRUCCIONES

Gracias por escoger este sistema de altavoces Yamaha. A fin de aprovechar al
máximo las características de los altavoces y obtener un rendimiento y durabilidad
óptimos, lea atentamente este manual antes de utilizar el sistema. Guarde este
manual en un lugar seguro para futuras consultas.

取扱説明書

このたびは、ヤマハ製品をお買い求めいただきまして、まことにありがとうございます。
スピーカーの優れた性能を十分に生かして、末永くご愛用いただくために、この取扱説明書をご使用の
前に必ずお読みください。

EN

DE

FR

ES

JA

PRECAUTIONS

PLEASE READ CAREFULLY BEFORE PROCEEDING

* Please keep this manual in a safe place for future reference.

CAUTION

Always follow the basic precautions listed below to avoid the possibility of physical injury to you or
others, or damage to the device or other property. These precautions include, but are not limited to, the
following:

English

Location

• Always consult qualified Yamaha service personnel if the
device installation requires construction work, and make
sure to observe the following precautions.

- Choose mounting hardware and an installation location that

-Avoid locations that are exposed to constant vibration.

- Make sure to use the specified hardware.

- Inspect the device periodically.

• When transporting or moving the device, always use two or
more people. Attempting to lift the device by yourself may
damage your back, result in other injury, or cause damage to
the device itself.

• Before moving the device, remove all connected cables.

• Do not expose the device to excessive dust or vibrations, or
extreme cold or heat (such as in direct sunlight, near a
heater, or in a car during the day) to prevent the possibility of
panel disfiguration or damage to the internal components.

• Do not place the device in an unstable position where it
might accidentally fall over.

Connections

• Before connecting the device to other devices, turn off the
power for all devices. Before turning the power on or off for
all devices, set all volume levels to minimum.

• Use only speaker cables for connecting speakers to the
speaker jacks. Use of other types of cables may result in fire.

can support the weight of the device.

Handling caution

• When choosing a power amplifier to use with your speakers,
make sure that its power output matches the speakers’
power capacity (refer to the Specifications on page 14).
Even if the amplifier’s power output is lower than the
speakers’ power capacity, the speakers may be damaged
when clipping of a high input signal occurs. The following
may cause damage to speakers:

- Feedback caused when using a microphone.

- Continuous high sound pressure level produced by electronic

instruments.

- Continuous high-power output of distorted signals.

- Popping noises caused by turning on equipment, or by

connecting or disconnecting system components while the
amplifier is turned on.

• When turning on the AC power in your audio system, always
turn on the power amplifier LAST, to avoid speaker damage.
When turning the power off, the power amplifier should be
turned off FIRST for the same reason.

• Do not operate this device at high volume levels or at a level
that is uncomfortable, since it is capable of producing sound
levels that could cause permanent hearing loss. If you
experience any discomfort or ringing in the ears, or suspect
an hearing loss, you should consult an audiologist.

Yamaha cannot be held responsible for damage caused
by improper use or modifications to the device.

* Illustrations herein are for explanatory purposes only, and

may not match actual appearance during operation.

* Company names and product names herein are trademarks

or registered trademarks of their respective companies.

For details on signal processor settings when driving speakers
with the use of multiple power amplifiers, please refer to the
web site below.

Yamaha Pro Audio global web site

http://www.yamahaproaudio.com/

(6)-1

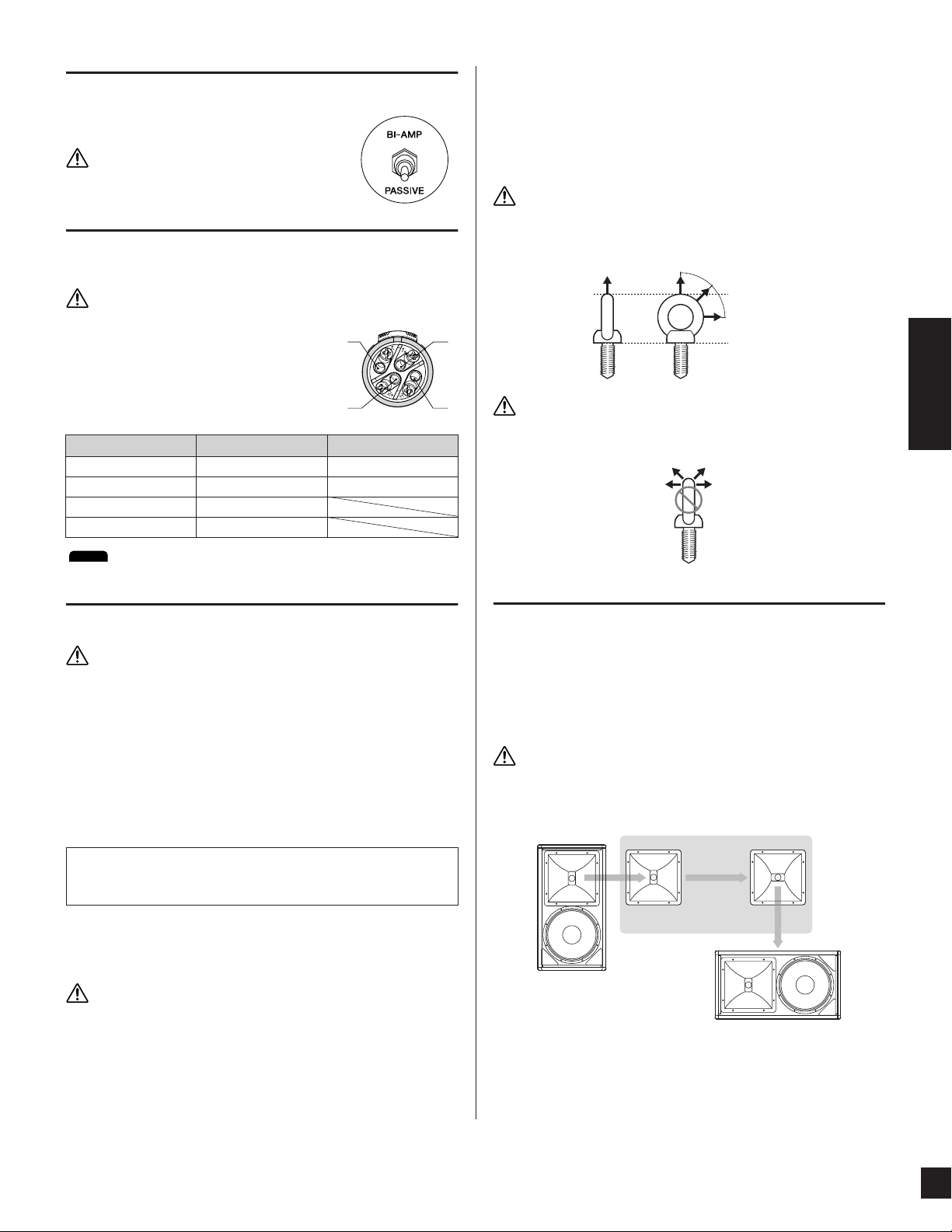

Bi-Amp/Passive switch

Select the Bi-Amp mode (bi-amp drive) or
the Passive mode (full-range drive).

CAUTION

Do not change the Bi-amp/Passive setting
while the speaker is in use.

Neutrik Speakon NL4 plug wiring

Connect the plugs as shown below.

CAUTION

Be sure to use proper speaker cable – not
shielded instrument or line cable – for all
speaker connections.

1- 1+

■

Eye bolt strength

Keep in mind that the strength of the eye bolt differs
depending on the suspension angle of the speaker. Make
sure that the load for each eye bolt is less than 740 kg
when suspending at an angle of 0 degrees, and less than
185 kg at an angle of 45 degrees.

CAUTION

When using the eye bolts, make sure that the suspension angle
is within the range of 0 to 45 degrees, as shown below.

0º (740kg)

45º (185kg)

90º (148kg)

2+ 2-

NEUTRIK plug

1+ LF+ +

1– LF– –

2+ HF+

2– HF–

NOTE

The Speakon jack and barrier strip terminals are
connected in parallel.

Bi-Amp Passive

Suspended Installation

CAUTION

●

The strength of the suspension points on the speaker is
per point (maximum).

●

Before doing any installation or construction work, consult
with an installation expert.

When choosing the installation location, suspension wire and

●

mounting hardware, make sure all are strong enough to
support the weight of the speaker.

●

Some fittings may deteriorate over extended periods of time
due to wear and or corrosion. For optimum safety, the
installation should be checked thoroughly at regular intervals.

60 kg

CAUTION

Do not suspend the eye bolts as shown in the diagram below.

Rotatable horn

1.

Remove all fixing screws on the grille, and remove the
grille from the speaker.

Remove all screws installed on the horn, pull out the

2.

horn from the speaker, rotate the horn 90 degrees,
and re-install the horn to the speaker.

CAUTION

Be careful when rotating the horn so that you do not
accidentally cut the connection wires connected to the horn
driver.

English

Yamaha cannot be held responsible for damage or injury
caused by insufficient strength of the support structure
or improper installation.

■

Using eye bolts for suspension

For optimum safety, make sure to carefully follow the
precautions below.

CAUTION

●

Use only the supplied eye bolts.

●

Use three or more eye bolts for suspended installations.

●

Use the optional array frame if you intend to suspend a
speaker from another suspended speaker.

Install the eye bolts to multiple surfaces of the speaker, not

●

just one surface.

Ver tical

Rotate 90 degrees

Horizontal

IF2115/2112 Owner’s Manual

3

Specifications

System Type

Model IF2112/64(W)

Specifications/
Drive Mode

Frequency Range
(-10dB) (4 π )*1

Frequency Range (±3dB) (4 π )

Nominal Coverage (H x V, -6dB)

Power Rating 600 W

Nominal Impedance 8 ohms

Sensitivity (1W@1m)

Calculated Peak SPL

Calculated Continuous SPL

*1

Bi-amp

Passive

50 Hz-20k Hz (Bi-amp mode) 45 Hz-20k Hz (Bi-amp mode)

65 Hz-20k Hz (Bi-amp mode) 55 Hz-20k Hz (Bi-amp mode)

IF2112/64(W): 60° x 40°, can be rotated to 40° x 60°
IF2112/95(W): 90° x 50°, can be rotated to 50° x 90°
IF2112/99(W): 90° x 90°

LF:
700 W
(AES)

LF:
8 ohms

LF:
96dB
SPL

LF:
130dB
SPL

LF:
124dB
SPL

HF:
110 W
(AES)

HF:
8 ohms

HF:
110dB
SPL

HF:
136dB
SPL

HF:
130dB
SPL

96dB
SPL

130dB
SPL

124dB
SPL

*2

IF2112/95(W) F2112/99(W)

Bi-amp

Passive

HF:

LF: 700

*2

600 W

8 ohms

96dB
SPL

130dB
SPL

124dB
SPL

W(AES)

LF:
8 ohms

LF:
96dB
SPL

LF:
130dB
SPL

LF:
124dB
SPL

110 W
(AES)

HF: 8
ohms

HF:
108dB
SPL

HF:
134dB
SPL

HF:
128dB
SPL

High power 2-way full-range speaker

IF2115/64(W) IF2115/95(W) IF2115/99(W)

Passive

*2

600 W

8 ohms

96dB
SPL

130dB
SPL

124dB
SPL

Bi-amp

LF:
700 W
(AES)

LF:
8 ohms

LF:
96dB
SPL

LF:
130dB
SPL

LF:
124dB
SPL

HF:
110 W
(AES)

HF:
8 ohms

HF:
106dB
SPL

HF:
132dB
SPL

HF:
126dB
SPL

Bi-amp

Passive

IF2115/64(W): 60° x 40°, can be rotated to 40° x 60°
IF2115/95(W): 90° x 50°, can be rotated to 50° x 90°
IF2115/99(W): 90° x 90°

LF:

*2

600 W

700 W
(AES)

LF:

8 ohms

8 ohms

LF:

97dB

98dB

SPL

SPL

LF:

131dB

132dB

SPL

SPL

LF:

125dB

126dB

SPL

SPL

HF:
110 W
(AES)

HF:
8 ohms

HF:
110dB
SPL

HF:
136dB
SPL

HF:
130dB
SPL

Passive

*2

600 W

8 ohms

97dB
SPL

131dB
SPL

125dB
SPL

Bi-amp

LF:
700 W
(AES)

LF:
8 ohms

LF:
98dB
SPL

LF:
132dB
SPL

LF:
126dB
SPL

Components

LF 12" (30cm) Woofer, 4" (100mm) Voice Coil 15" (38cm) Woofer, 4" (100mm) Voice Coil

HF

Rotatable Constant Directivity Horn, 1.4" (38mm) exit, 3" (76mm) Voice Coil
Compression Driver

Rotatable Constant Directivity Horn, 1.4" (38mm) exit, 3" (76mm) Voice Coil
Compression Driver

Enclosure

Dimensions (H x W x D) 695 x 378 x 454 mm (27.4 x 14.9 x 17.9 in) 770 x 448 x 534 mm (30.3 x 17.6 x 21.0 in)

Weight 31 kg (68 lbs) 39 kg (86 lbs)

Shape 30° Trapezoidal 30° Trapezoidal

Material 5/8 inch (16mm), 11-ply Finnish Birch 5/8 inch (16mm), 11-ply Finnish Birch

Finish Textured Black (Textured White) Textured Black (Textured White)

Grill

Connectors 1x Neutrik NL4 and barrier strip, wired in parallel 1x Neutrik NL4 and barrier strip, wired in parallel

Flying Hardware

Pole Mounts n/a n/a

Handle n/a n/a

16 gauge powder coated perforated steel grilles, backed with acoustically
transparent reticulated foam

15x M10 for shoulder eyebolts and U-bracket
4x M8 for 3rd party speaker mount hardware

16 gauge powder coated perforated steel grilles, backed with acoustically
transparent reticulated foam

15x M10 for shoulder eyebolts and U-bracket
4x M8 for 3rd party speaker mount hardware

Optional Accessory

U-bracket UB2112(W) UB2115(W)

Array Frame HAF2-2112(W), HAF3-2112(W), VAF2-2112(W) HAF2-2115(W), HAF3-2115(W), VAF2-2115(W)

3rd party accessory

Omnimount (US) 120.0 series 120.0 series

Multimount (US, Allen
products)

Powermount (UK) 120 series 120 series

Ohashi (Japan) n/a n/a

120 series 120 series

HF:
110 W
(AES)

HF: 8
ohms

HF:
108dB
SPL

HF:
134dB
SPL

HF:
128dB
SPL

Passive

*2

600 W

8 ohms

97dB
SPL

131dB
SPL

125dB
SPL

Bi-amp

LF:
700 W
(AES)

LF:
8 ohms

LF:
98dB
SPL

LF:
132dB
SPL

LF:
126dB
SPL

HF:
110 W
(AES)

HF:
8 ohms

HF:
106dB
SPL

HF:
132dB
SPL

HF:
126dB
SPL

14

*1: With recommended YAMAHA DSP configuration.
*2: 2 hrs. IEC noise.

* Specifications and descriptions in this owner’s manual are for infor mation purposes only. Yamaha Corp. reserves the right to change or modify products or specifications at any time without prior

notice. Since specifications, equipment or options may not be the same in every locale, please check with your Yamaha dealer.

* Die technischen Daten und Beschreibungen in dieser Bedienungsanleitung dienen nur der Information. Yamaha Cor p. behält sich das Recht vor, Produkte oder deren technische Daten jederzeit ohne

vorherige Ankündigung zu verändern oder zu modifizieren. Da die technischen Daten, das Gerät selbst oder Sonderzubehör nicht in jedem Land gleich sind, setzen Sie sich im Zweifel bitte mit Ihrem
Ya maha-Händler in Verbindung.

* Les caractéristiques techniques et les descriptions du mode d’femploi ne sont données que pour information. Yamaha Corp. se réserve le droit de changer ou modifier les produits et leurs

caractéristiques techniques à tout moment sans aucun avis. Du fait que les caractéristiques techniques, les équipements et les options peuvent différer d’fun pays à l’fautre, adressez-vous au
distributeur Yamaha le plus proche.

* Las especificaciones y descripciones de este manual del propietario tienen sólo el propósito de servir como información. Yamaha Corp. se reserva el derecho a efectuar cambios o modificaciones en

los productos o especificaciones en cualquier momento sin previo aviso. Puesto que las especificaciones, equipos u opciones pueden no ser las mismas en todos los mercados, solicite información
a su distribuidor Yamaha.

仕様および外観は改良のため予告なく変更することがあります。

*

IF2115/IF2112

Dimensions

IF2112

155

41.3

267

304

8-M10

232.8

127

75°

75°

378

454

187

150

38 416

88.9
4-M8

174.6347.7

695

41.3 612.8 41.3

M10

2-M10

unit: mm

IF2115

183.5

41.3

305

382

494

534

302.6

75°

448

75°

229

152

40

41.3

88.9

770

174.6

687

385

41.3

M10
4-M8

2-M10

unit: mm

IF2115/IF2112

15

For details of products, please contact your nearest Yamaha
representative or the authorized distributor listed below.

Pour plus de details sur les produits, veuillez-vous adresser a Yamaha ou
au distributeur le plus proche de vous figurant dans la liste suivante.

Die Einzelheiten zu Produkten sind bei Ihrer unten aufgefuhrten
Niederlassung und bei Yamaha Vertragshandlern in den jeweiligen Bes­timmungslandern erhaltlich.

Para detalles sobre productos, contacte su tienda Yamaha mas cercana o el
distribuidor autorizado que se lista debajo.

NORTH AMERICA

CANADA

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,
M1S 3R1, Canada
Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,
U.S.A.
Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de México S.A. de C.V.

Calz. Javier Rojo Gómez #1149,
Col. Guadalupe del Moral
C.P. 09300, México, D.F., México
Tel: [phone]

BRAZIL

Yamaha Musical do Brasil Ltda.

Rua Joaquim Floriano, 913 - 4' andar, Itaim Bibi,
CEP 04534-013 Sao Paulo, SP. BRAZIL
Tel: [phone]

ARGENTINA

Yamaha Music Latin America, S.A.
Sucursal de Argentina

Viamonte 1145 Piso2-B 1053,
Buenos Aires, Argentina
Tel: [phone]

PAN AMA AND OTHER LATIN
AMERICAN COUNTRIES/
CARIBBEAN COUNTRIES

Yamaha Music Latin America, S.A.

Torre Banco General, Piso 7, Urbanización Marbella,

Calle 47 y Aquilino de la Guardia,
Ciudad de Panamá, Panamá
Tel: [phone]

EUROPE

THE UNITED KINGDOM

Yamaha Music U.K. Ltd.

Sherbourne Drive, Tilbrook, Milton Keynes,
MK7 8BL, England
Tel: [phone]

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

SWITZERLAND/LIECHTENSTEIN

Yamaha Music Central Europe GmbH,
Branch Switzerland

Seefeldstrasse 94, 8008 Zürich, Switzerland
Tel: [phone]

AUSTRIA

Yamaha Music Central Europe GmbH,
Branch Austria

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

CZECH REPUBLIC/SLOVAKIA/
HUNGARY/SLOVENIA

Yamaha Music Central Europe GmbH,
Branch Austria, CEE Department

Schleiergasse 20, A-1100 Wien, Austria
Tel: [phone]

POLAND

Yamaha Music Central Europe GmbH
Sp.z. o.o. Oddzial w Polsce

ul. 17 Stycznia 56, PL-02-146 Warszawa, Poland
Tel: [phone]

THE NETHERLANDS/
BELGIUM/LUXEMBOURG

Yamaha Music Central Europe GmbH,
Branch Benelux

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands
Tel: [phone]

FRANCE

Yamaha Musique France

BP 70-77312 Marne-la-Vallée Cedex 2, France
Tel: [phone]

ITALY

Yamaha Musica Italia S.P.A.
Combo Division

Viale Italia 88, 20020 Lainate (Milano), Italy
Tel: [phone]

SPAIN/PORTUGAL

Yamaha Música Ibérica, S.A.

Ctra. de la Coruna km. 17, 200, 28230
Las Rozas (Madrid), Spain
Tel: [phone]

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1, Box 30053
S-400 43 Göteborg, Sweden
Tel: [phone]

DENMARK

YS Copenhagen Liaison Office

Generatorvej 6A, DK-2730 Herlev, Denmark
Tel: [phone]

NORWAY

Norsk filial av Yamaha Scandinavia AB

Grini Næringspark 1, N-1345 Østerås, Norway
Tel: [phone]

RUSSIA

Yamaha Music (Russia)

Office 4015, entrance 2, 21/5 Kuznetskii
Most street, Moscow, 107996, Russia
Tel: [phone]

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

AFRICA

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany
Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LOB 16-513, P.O.Box 17328, Jubel Ali,
Dubai, United Arab Emirates
Tel: [phone]

ASIA

THE PEOPLE’S REPUBLIC OF CHINA

Yamaha Music & Electronics (China) Co.,Ltd.

25/F., United Plaza, 1468 Nanjing Road (West),
Jingan, Shanghai, China
Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)
PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot
Subroto Kav. 4, Jakarta 12930, Indonesia
Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

8F, 9F, Dongsung Bldg. 158-9 Samsung-Dong,
Kangnam-Gu, Seoul, Korea
Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,
Petaling Jaya, Selangor, Malaysia
Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

#03-11 A-Z Building
140 Paya Lebor Road, Singapore 409015
Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.
Taiwan 104, R.O.C.
Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

891/1 Siam Motors Building, 15-16 floor
Rama 1 road, Wangmai, Pathumwan
Bangkok 10330, Thailand
Tel: [phone]

OTHER ASIAN COUNTRIES

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,
Victoria 3006, Australia
Tel: [phone]

COUNTRIES AND TRUST
TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,
Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Naka-ku, Hamamatsu,
Japan 430-8650
Tel: [phone]

HEAD OFFICE

Yamaha Corporation, Pro Audio & Digital Musical Instrument Division

Nakazawa-cho 10-1, Naka-ku, Hamamatsu, Japan 430-8650
Tel: [phone]

PA19

Yamaha Pro Audio global web site

http://www.yamahaproaudio.com/

Yamaha Manual Library

http://www.yamaha.co.jp/manual/

U.R.G., Pro Audio & Digital Musical Instrument Division, Yamaha Corporation

© 2005 Yamaha Corporation

WJ48700 MW-03D0
