Yamaha CRW-F1, CRW-NB User Manual

(DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party: Yamaha Electronics Corporation, USA.

Address: 6660 Orangethorpe Avenue

Buena Park, CA 90620

Telephone: [phone]

Fax: [phone]

Type of Equipment: CD Recordable/Rewritable Drive

Model Name: CRW-F1

CRW-F1-NB

This device complies with Part 15 of the FCC Rules.
Operation is subject to the following conditions:

1) this device may not cause harmful interference, and

2) this device must accept any interference received including interference that
may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements.
Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables.
Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void
your FCC authorization to use this product in the USA.

3. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class
“B” digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product
in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses
radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause
interference harmful to the operation of other electronic devices. Compliance with FCC regulations does not guarantee that
interference will not occur in all installations. If this product is found to be the source of interference, which can be determined
by turning the product “OFF” and “ON”, please try to eliminate the problem by using one of the following measures:
Relocate either this product or the device that is being affected by the interference.
Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.
In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change
the lead-in to coaxial type cable.
If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this
type of product. If you can not locate the appropriate retailer, please contact Yamaha Electronics Corporation, USA.
6660 Orangethorpe Avenue, Buena Park, CA 90620 U.S.A.

Laser Product Class: Class 1
Laser Diode Properties

Wavelength: 779 – 789 nm
Pulse Durations and Max. Output
at the Objective Lens of the Laser Pickup Unit

DC Erase Mode: 20 mW Max. (Continuous),
Write Mode: Max.62 mW

(Max. Cycle 111 ns, Min. Cycle 30 ns at Max. Speed)

Laserprodukt-Klasse: Klasse 1
Eigenschaften der Laserdiode

Wellenlänge: 779 – 789 nm
Impulsdauer und max. Ausgang an der
Objektivlinse der Laser-Abtasteinheit

Löschmodus (Gleichstrom): max. 20 mW (kontinuierlich),
Schreibmodus: max. 62 mW

(max. Zyklus 111 ns, min. Zyklus 30 ns bei maximaler Geschwindigkeit)

Classe du produit laser: Classe 1
Caractéristiques de la diode laser

Longueur d’onde: 779 – 789 nm
Durée des impulsions et sortie maximum depuis
la lentille de focalisation du bloc capteur optique

Mode de suppression DC: max. 20 mW (en continu),
Mode de gravure: max. 62 mW

(Cycle max. 111 ns, cycle min. 30 ns à vitesse maximale)

Clase de producto láser: Clase 1
Propiedades del diodo láser

Longitud de onda: 779 – 789 nm
Duración del pulso y potencia de salida máxima
en el objetivo de la unidad captora de láser

Modo de borrado DC: 20 mW máx. (contin ua),
Modo de escritura: máx. 62 mW

(ciclo máx. 111 ns, ciclo mín. 30 ns a velocidad máxima)

CLASS 1 LASER PRODUCT

LASER KLASSE 1 PRODUKT

LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT

PRODUIT LASER DE CLASSE 1

CAUTION

Use of controls or adjustments or performance of
procedures other than those specified herein may result
in hazardous radiation exposure.

ACHTUNG

Halten Sie sich beim Bedienen und Einstellen der
Bedienungselemente sowie bei der Bedienungsabfolge
an die Anleitung, da sonst gefährliche Strahlen austreten
können.

ATTENTION

L’emploi de commandes, de réglages ou un choix de
procédures différents des spécifications de cette
brochure peut entraîner une exposition à d’éventuelles
radiations pouvant être dangereuses.

PRECAUCION

El usar los controles o ajustar o realizar procedimientos
diferentes a los especificados aquí resultará en
peligrosas exposiciones a la radiación.

VARO! AVATTAESSA JA SUOJALUKITUS OHITETTAESSA

OLET ALTTINA NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING! OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR

ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD.
BETRAKTA EJ STRÅLEN. STRÅLEN ÄR FARLIG.

CAUTION - VISIBLE AND / OR INVISIBLE LASER RADIATION WHEN OPEN.

AVOID EXPOSURE TO BEAM.

VARNING - SYNLIG OCH / ELLER OSYNLIG LASERSTRÅLNING NÄR DENNA

DEL ÄR ÖPPNAD. STRÅLEN ÄR FARLIG.

VARO ! AVATTAESSA OLET ALTTIINA NÄKYVÄLLE JA / TAI

NÄKYMÄTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN.

VARNING - SYNLIG OCH / ELLER OSYNLIG LASERSTRÅLNING NÄR DENNA DEL

ÄR ÖPPNAD. BETRAKTA EJ STRÅLEN.

VORSICHT ! SICHTBARE UND / ODER UNSICHTBARE LASERSTRAHLUNG

WENN ABDECKUNG GEÖFFNET. NICHT DEM STRAHL AUSSETZEN.

ATTENTION - RADIATION VISIBLE ET / OU INVISIBLE LORSQUE L’APPAREIL

EST OUVERT. EVITEZ TOUTE EXPOSITION AU FAISCEAU.

DANGER - VISIBLE AND / OR INVISIBLE LASER
RADIATION WHEN OPEN. AVOID DIRECT EXPOSURE
TO BEAM.

COMPLIES WITH 21 CFR CHAPTER 1, SUBCHAPTER J.

OWNER’S MANUAL

English

i

SAFETY PRECAUTIONS

PLEASE READ THE FOLLOWING WARNINGS AND CAUTIONS CAREFULLY TO
PREVENT PERSONAL INJURY AND DAMAGE TO THE DEVICE.

These precautions explain how to use the device properly and safely, thereby preventing
injury to yourself and others. This sect ion has bee n su b-d ivided into a W AR N ING se ction
and a CAUTION section, according to the likelihood and nature of any potential injuries or
damage inflicted. They relate to your personal safety, and also help you prevent the risk of
damage to the device. Please read these sections carefully prior to proceeding.

WARNING

Always follow these basic precautions to avoid short-circuit, damage, fire, or other
hazards, and to avoid serious injury or fatal accident from electrical shock.

●

Do not attempt to open or disassemble the device to avoid the risk of electrical shock,
fire, or malfunction.

●

Do not look directly at the laser source to avoid the risk of eye damage or blindness.

●

Do not insert fingers or foreign objects into the device to avoid the risk of electrical
shock, fire, malfunction, or personal injury.

●

Do not expose the device to high humidity or place liquid containers such as a flower
vase on the d e vic e to a void the risk of electrical shock, fire, o r malfunction.

●

Do not expo se the de vice to temp erature o utside the r ange o f 5 to 40 °C ( 41 to 10 4 °F) t o
avoid the risk of fire, deforma tion of the device panel, or malfunction.

●

Do not expose the device to dusty place to avoid the risk of fire or malfunction.

●

Always follow the owner’s manual to set up or connect the devices properly to avoid the
risk of electrical shock, fire, malfunction, or personal injury.

●

If unusual smells, sounds or smoke come from the device, or if foreign objects such as
liquid intrude into the device, turn off and unplug the computer immediately to avoid the
risk of electrical shock, fire, or malfunction. Contact the store of purchase or your nearest
Yamaha dealer (listed at the back of this manual).

●

Be sure that the computer is electrically grounded to avoid the risk of electrical shock.

●

Prior to cleaning the drive, always unplug the computer or do not handle the plug with
wet hands to avoid the risk of electrical shock.

ii

CAUTION

Always follow these basic precautions to avoid physical injury to yourself or others, and
damage to the device or other property.

●

Alwa y s unplug th e comp uter if it will n ot be used for a p rolonged period or if there is
poss ibility of lightning, to avoid the r is k of electrical shock, fire, or short-circuit.

●

Do not use th e device near other electric al ap plia nc es s u c h as televisions, radios, or
speakers to avoid the risk of interf er en ces between each other.

●

Do not place the computer unstably to avoid the risk of malfunction or personal injury by
its fallin g down.

●

Do not place the device with a possibility of excessive vibration to avoid the risk of
damage to written data or malfunction.

●

Place the device horizontally to avoid the risk of damage to written data.

●

Prior to transporting the device, remove the disc from the disc tray to avoid the risk of
damage to written data.

●

Use soft, dry cloths to wipe the device. Do not use benzene, paint thinner, detergents, or
chemically treated wiped cloths, and do not place vinyl, plastic, or rubber objects on the
device to avoid the risk of malfunction or damage to surface of the device.

●

Do not rest your weight on or place heavy objects on the device, and do not apply
excessive forc e to the buttons , switches, or connecto rs to avoid the risk of dama ge to the
device or personal injury.

●

Do not listen to audio with headphones at high volume for prolonged period to avoid
auditory disorder.

●

Prior to turning on the computer, always minimize the volume to avoid auditory disorder
by a sudden burst of soun d at high volum e.

●

Do not p lace th e device near magnets or anything m ag netized such as a disp lay to avoid
the risk of interferences between each other.

●

Have the device serviced regularly to avoid internal dust buildup that can cause
malfunction, damage or fire. For service information and service charges, contact the
store of purchase or your nearest Yamaha dealer (listed at the back of this manual).

●

This drive is for use only with movable equipment, weighing less than 18 kg.

iii

WARRANTY

YAMAHA AND ITS SUPPLIERS ACCEPT NO LIABILITY FOR ANY PROBLEMS THAT OCCUR
AS A RESULT OF ANY OPERATIONS CARRIED OUT OTHER THAN THOSE STATED IN THE
MANUAL FOR THIS PRODUCT, OR THE LOSS OR THE DAMAGE OF ANY DATA CAUSED AS
A RESULT OF USING THIS PRODUCT.

Precautions for Transportation

Transporting the device unfixed may damage its internal mechanism or circuits.

• Remove the disc from the disc tray of the device.

• Put the device in the original box .

For the Yamaha retail kit, refer to the original box to check that the complete accessories are
included prior to inst allation . A c ce ss ories vary depending on the model.

To reduce power consumption of the C RW-F1 drive, set your computer to power saving mode.
(P. 38)

• ©2002 YAMAHA CORPORATION. All Rights Reserved.

• This document may not, in whole or in part, be copied, photocopied, reproduced, translated,
transmitted, or reduced to any electronic medium of machine readable form without prior
consent in writ ing from Yamaha.

• Windows is a registered trademark of Microsoft Corporation.

• DiscT@2™ and SafeBurn™ are trademarks of Yamaha Corporation.

• All other trademarks are th e p ro p e rty of th eir r es pe ct ive companies.
™ and ® marks are not spec ified in th is manual.

iv

Table of Contents

Features of the CRW-F1 Drive..................................................... 1

Names and Functions of Parts..................................................... 2

Front Panel...............................................................................................2

Rear Panel................................................................................................3

Precautions on Use.................................................................. 4

Handling Discs ........................................................................................4

Copyright.................................................................................................4

Disclaimer of Indemnity..........................................................................4

Compatible Discs.....................................................................................5

System Requirements..............................................................................8

Preparing the CRW-F1 Drive.......................................................9

Serial Number..........................................................................................9

1 Decide the Installation Method..........................................................10

2 Set the Jumper Switch .......................................................................15

3 Install the CRW-F1 Drive..................................................................17

4 Check Recognition of the CRW-F1 Drive........................................23

5 Install CD Writing Software..............................................................26

Loading/Ejecting a Disc ...........................................................27

Troubleshooting.....................................................................29

Firmware.............................................................................36

CRW-F1 Drive Specifications.................................. ...................37

Technical Notes.....................................................................40

Buffer Underrun Protection Function....................................................40

Writing Methods....................................................................................40

For details about installing and usi ng the CD writing software, refe r to the instruc tion for
it.

• The information contained in this manual is subject to change without prior notice.

• Reproduction of this manual, either in part or in full, is expressly forbidden.

v

Features of the CRW-F1 Drive

Advanced Audio Master Quality Recording (High quality audio writing mode)

Audio Master Quality Recording enables you to create high quality audio CDs that
can be played back beautifully on any compatible device including car stereos. In
addition, the data quality of your CDs can be preserved for a long time. (P. 41)
This mode is available for CD-R discs with a capacity of 65 0MB, 700MB, and
870MB.

DiscT@2

The DiscT@2 function enables you to burn t exts/pictures on the data surface of a
CD-R disc. Writing software that supports the function is required to operate it. For
details about this feature, refer to the instruction for the writing software.

Note

• The function cannot be used with a CD-RW disc.

• Appearance of burned images such as pictures varies depending on the material of a disc.

High speed writing/reading

The CRW-F1 drive supports up to 44X-speed writing for CD-R discs, up to 24X­speed writing/rewriting for CD-RW discs, and up to 44X-speed data reading or
digital audio data extraction. The Full CAV method enables 44X-speed writing and
high fidelity stable writing at once for CD-R discs.

Tip

The Partial CAV method (P. 42) and the Full CAV method permit 24X-speed writing/
rewritin g for CD-R W discs.

SafeBurn™ (Enhanced stability writ ing technology)

The generous 8MB bu ffer memory provide s s ufficient data storage to enable stable
disc writing at high speeds. Even if data transfer from the computer is interrupted,
the Buffer Underrun Protection function is activated to save CD-R discs from a
writing error. (P. 40)
“Optimum Write Speed Control” adjusts the writing speed to the optimum rate for
CD-R discs automatically. The maximum writing speed can be set with CD writing
software.

Note

• “Optimum Write Speed Control” c a n be activated when the maxi mum wr iting speed
is set at 16X or more.

• The minimum writing spe ed to be au tomatically selected is 8X. Man ually set the
optimu m writing speed if a writing spe ed suppor ted by a disc is less than 8X.

CD-MRW (CD Mount Rainier ReWrit ing )

CD-MRW is a new standard of packet writing. Compared to the ordinary packet
writing, CD-MRW provides many useful functions such as background formatting.
(P. 42)

1

Names and Functions of Parts

Front Panel

➀➂

➃➄

➀

Disc tray

Holds the disc. It is opened or clos ed by
pressing the ej ec t button. (P. 27)

➁

Manual eject hole

Forcibly opens the disc tray when the tray
cannot be opened by pressing the eject
button. (P. 28)

➂

Eject button

Press to open or close the disc tray.
(P. 27)

➃

Headphone jack

Connects headphones or external speakers
to the drive; has stereo mini-jack
specifications.

➄

Headphone volume dial

Controls the volume of the head phones.
The volume increases as the dial is tu rned
to the right.

➁

➅

➅

LED

Indicates the operational status of the
CRW-F1 drive by its colors and blinking
patterns.

Lights or blinks blue

• Lights: Standby (with disc)

• Blinks: Opening/Closing disc tray,
reading disc information (TOC), or
playback audio

• Blinks rapidly: Read in g da ta

Blinks purple

• Blinks: Accessing for writing or test
writing

• Blinks rapidly: Writing

Blinks amber

Firmware update is incomplete. Retry to
update the firmware.

Off

Standby (no disc), the disc tray is ope n, or
power saving (opera ted via computer
setting)

2

Names and Functions of Parts

Rear Panel

➁➀➂ ➃ ➄

➀

DIGITAL AUDIO OUT

Connects to the sound card in the computer
using a digital audio cable if the sou nd card
has an S/PDIF (digital audio) input jack.
(P. 21)

➁

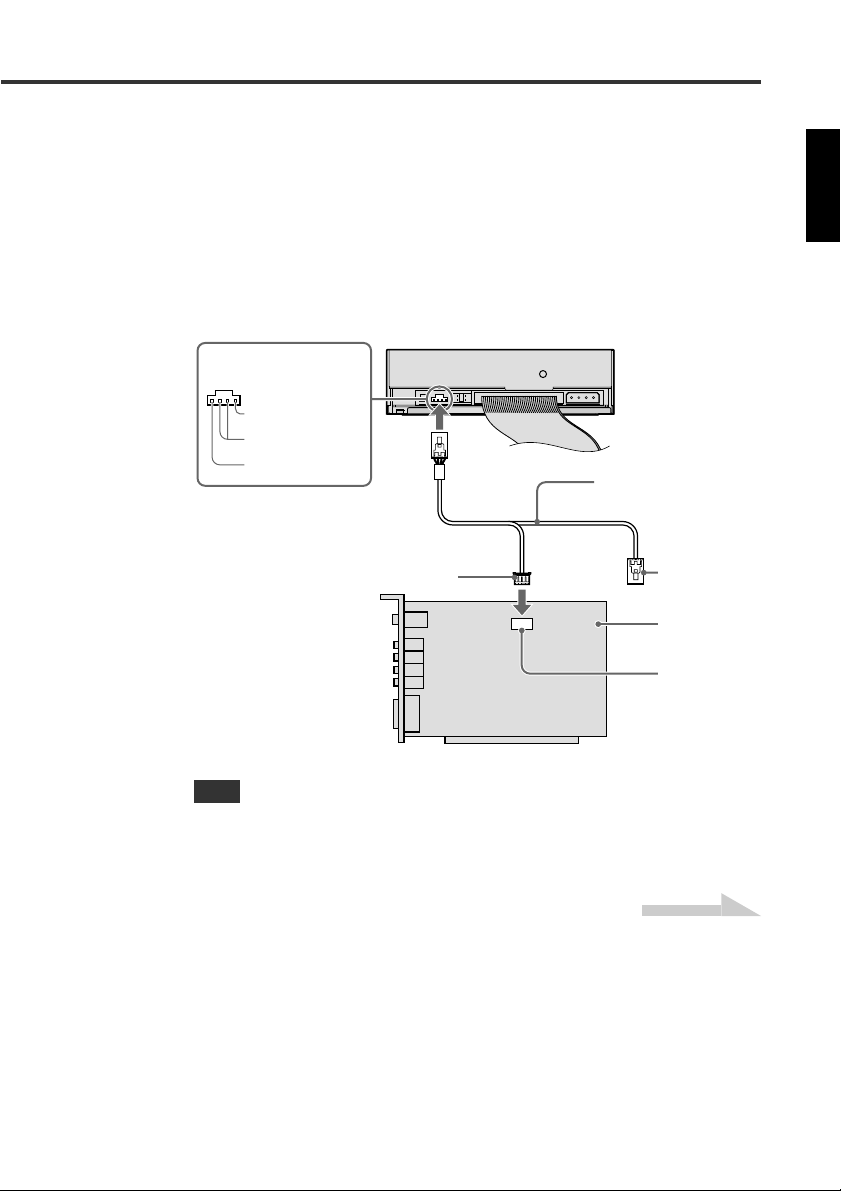

ANALOG AUDIO OUT

Connects to the sound card in the computer
using an audio cabl e. (P. 20)

➂

Jumper switch

Insert a plastic shunt into the switch to set
the connection of the IDE to master or
slave. The switch is set at slave by default.
(P. 15)

➃

IDE INTERFACE CONNECTOR

Connects a 40-pin IDE cable. (P. 18)

➄

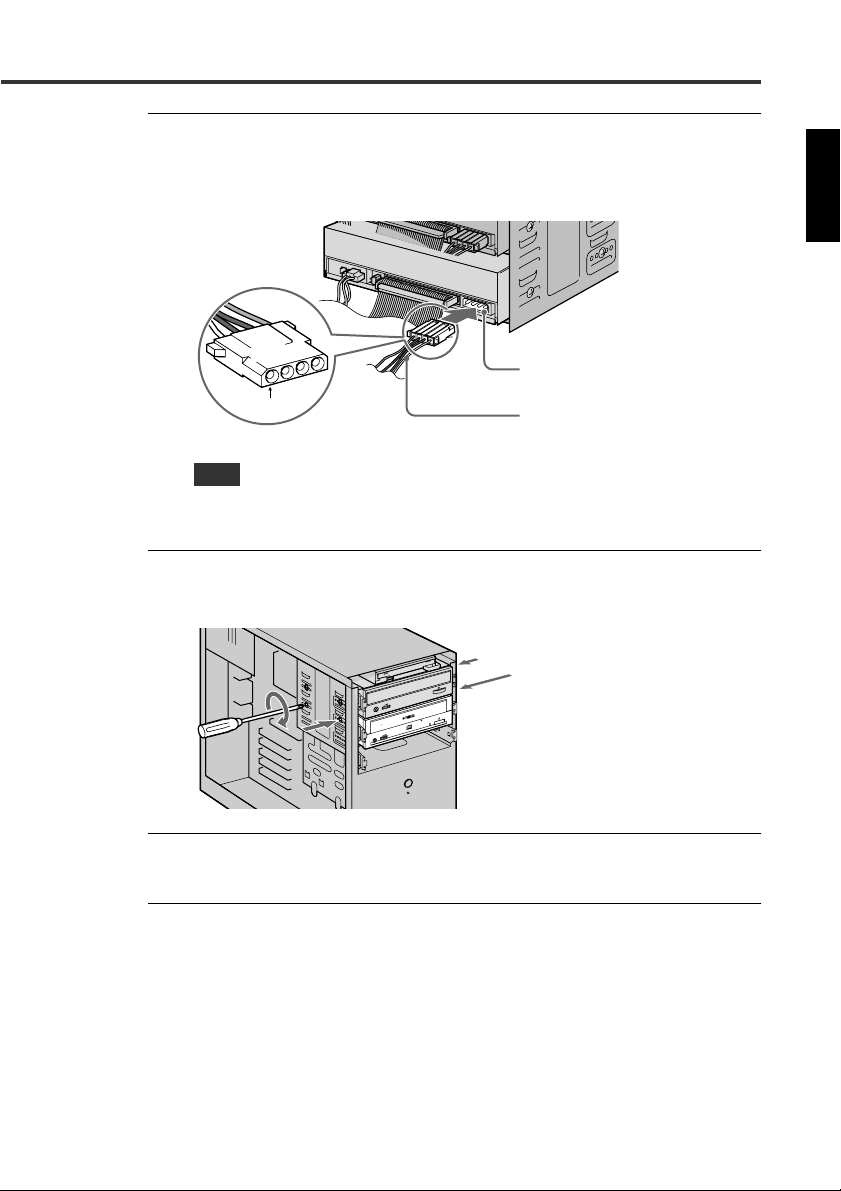

DC INPUT

Connects the 4-pin internal power cable of
the computer. (P. 22)

3

Precautions on Use

Handling Discs

Take the following precautions to avoid trouble, such as writing errors, loss of
recorded data, and malfuncti on of the drive, when handling discs.

• Do not place discs in a hot or damp place or where they will be exposed to direct
sunlight.

• Do not touch the disc surface. Hold the disc by the edge when handling it.

• Remove dust and dirt from the disc surface. Use an air spray to remove dust. The
disc surface may be scratched if strongly wiped with a dry cloth.

• Do not stick labels to the disc surface or write anything on it except where
designated.

• Do not clean discs with chemicals or detergents.

• Do not bend or drop di scs.

Copyright

It is prohibited by law to duplicate copyright materia l for non-p ersona l use without
the prior consent of the copyright holder. When copying material with your CD-R/
RW drive, take due care not to infringe the copyright.

Disclaimer of Indemnity

• Yamaha assumes no liability for the loss of any profits incurred as a result of the
loss or corruption of data written on a CD-R or CD-RW, for any loss or damage
caused by or arising out of extraordinary circumstances (including circumstances
that Yamaha has foreseen or could foresee), nor for any damages incurred or
claimed by a thir d pa r ty .

• After handling important data, make a comparison between the original and the
copied data (to confirm that th e data has been copied properly).

• In no event shall Yamaha be liable for any damage to discs due to a buffer
underrun error (P. 40) or for any other reason, or the inability to use distributed
discs with your drive.

• Yamaha assumes no liability for the inability to write/playback discs because of
their format.

4

Precautions on Use

Compatible Discs

For the latest information about compatible discs, refer to the following website.
YAMAHA CD-R/RW Drive website

URL: http://www.yamaha.co.jp/english/product/computer/

Disc shape

Circular disc 12 cm, 8 cm
Card-type disc Discs confirmed by Yamaha

Note

Do not use any irregular shaped discs s uc h as h ea rt-sha p e d or star-sh a pe d discs to a void
the risk of malfun c t io n.

Recordable disc type

The CRW-F1 drive is compatible with the following discs.

CD-R discs

• Orange Book Part2 Vol.1 Version3.1-compliant discs

• Orange Book Part2 Vol.2 Version1.1-compliant discs

Writing speed

The writing speed sett in gs are available in writing softw ar e .
1X, 4X, 8X, 16X, 44X

Note

• 44X-speed writing is enabled with the Full CAV method.

• Some writing speed settings may not be available depending on the specification of
a disc.

• When the writing speed is set at 16X or 44X, “Optimum Write Speed Control”
automatically ad justs the writing s peed to the optim um rate fo r each disc within the
selected writing speed.

Device compatibility

CD-R discs can be read /played back on a CD-ROM drive or a CD player.

5

CD-RW discs

• Orange Book Part3 Vol.1 Version1.0-compliant discs

• Orange Book Part3 Vol.1 Version2.0-compliant discs

Writing/Rewriting speed

The writing speed settings are available in writing software.
2X, 4X

Note

• Some discs support only 2X speed.

• Some writing/rewriting speed settings may not be available depending on the
specification of a disc.

Device compatibility

CD-RW discs can be read/played back on a device th at supports CD-RW discs
(e.g. CD-ROM drive).

High Speed CD-RW disc s

Orange Book Part3 Vol.2-compliant di sc s

Writing/Rewriting speed

The writing speed settings are available in writing software.
4X, 10X, 12X

Note

• Some writing/rewriting speed settings may not be available depending on the
specification of a disc.

• When using the packet writing method (P. 41) for writing/rewriting onto a High
Speed CD-RW disc, you can select the 10X Full CAV method. For more details,
refer to the in s truction for the CD writing softwa re. (CD writing so ftware that has
the feature to select the Full CAV method is required.)

• The Full CAV method is recommended when editing a written file with application
software.

Device compatibility

High Speed CD-RW discs can be read/played back on a CD-RW device that bears
the High Speed CD-RW logo or a device that suppor ts CD-RW discs (e.g. CD­ROM drive).

Note

In order to write, delete, read or play back a H igh Sp eed C D -RW disc, use a C D-R /RW
drive that bears the High Speed CD -RW logo. When using a CD -R O M drive to read /
play back a High Speed CD-RW disc, a drive supporting CD-RW discs is required.
A CD-R/RW drive without the logo may not recognize a High Speed CD-RW disc,
resulting in com p uter malfunction.
Refer to the Yamaha website to ch eck the disc compatibility p rior to using a
YAMAHA CD-R/RW drive without the logo for a High Speed CD-RW disc.
URL: http://www.yamaha.co.jp/english/product/computer/

Continued on next page

6

Precautions on Use

Ultra Speed CD-RW discs

Orange Book Part3 Vol.3-compliant discs

Writing/Rewriting speed

The writing speed sett in gs are available in writing softw ar e .
10X, 16X, 24X

Note

• 24X-speed writing/rewriting is en ab led with the Partial CAV method.

• Some writing/rewriting speed settings may not be available depending on the
specification of a disc.

• W hen using the packet writing method (P. 41) for writing/rewriting onto an Ultra
Speed CD-RW disc, you can select the 24X Full CAV method. For more details,
refer to the ins truction for the C D writing softw a re. (CD writing s o ftware that has
the feature to select the Full CAV method is required.)

• The Full CAV method is recommended when editing a written file with application
software.

Device compatibility

Ultra Speed CD-RW discs can be read/played back on a device that supports CD­RW discs (e.g. CD-ROM drive) or a device that bears the High/Ultra Speed CD­RW logo.

7

System Requirements

The CRW-F1 drive is designed to operate in the following computer environment. If
your computer does not meet th ese requirements, the CRW-F1 drive may not writ e
at the maximum speed.

Computer (PC/A T compatible)

• CPU: Pentium II-class or higher, 300 MHz or faster

• RAM: 32MB (64MB or more is recommended)
64MB or more is required (128MB is recommended) for Windows 2000
Professional, while 128MB or more is required (256MB is recommended) for
Windows XP.

• An empty 5 ¼-inch dr ive bay (for installing the CRW-F1 drive as an additional
drive into the computer)

• Hard drive sp ac e
Writing data on a CD-R/RW disc requires 50MB to 100MB of free space as a
working area on the hard drive. When writing data on a CD-R/RW disc after
creating an image file, there must be enough free space on the hard drive to stor e
the image file in addition to the working area (a total of up to 1.1GB).
However, hard drive space for image files is not required when directly writing
onto a CD-R/RW disc from a hard drive or CD-ROM using the CRW-F1 drive
(on-the-fly writing).

Image file

An im a ge fi le is da ta file s th a t ar e co lle ct ed to b e w r itte n on a C D -R /RW disc . T h e fil e
is usefu l for writing the same data onto multiple d isc s. For details, refer to the
instruct ion for the CD writing softwa re.

Operating system

Windows 95 (OSR2 or later), Windows 98, Windows 98 Second Edition,
Windows Me, Windows 2000 Professional,
Windows XP (Home Edition/Professional Edition)

CD writing sof tware

The CRW-F1 drive requires CD writing software to write onto a CD-R/RW disc.
Use the CD writing software that supports the CRW-F1 drive.
For details about installing and using the CD writing software, refer to the
instruction for it.

8

Preparing the CRW-F1 Drive

Preparing tools

• Phillips screwdriver: Use the proper screwdriver for

the screws to install the CRW-F1 drive into the
computer.

• Narrow pliers: Insert and remove the incl uded plastic

shunt for the jumper switch.

Serial Number

The serial number, printe d on the la bel on the t op of yo ur CRW-F1 drive , is requ ired
when you have a question about the drive or need user support services.
Please write the serial number down in the space below prior to installing the CRW­F1 drive into your computer. It will be difficult to check the serial number after
installation.

Serial number
(10 characters: 3 letters +
7 numbers)

Serial Number

9

The following describes how to install the CRW-F1 drive on the computer by taking
a tower-type computer for exampl e.

Note

The methods of removing the computer cover or panels and installing an internal device
vary depending on th e co mputer model. Refer to the instru ction f or th e co mputer.

1 Decide the Installation Method

Check the connection of any IDE device installed to decide the installation method
of the CRW-F1 drive.

Note

• The CRW-F1 drive supports Ultra ATA/33. (The CRW-F1 drive is operated with
Ultra ATA/33 even if the motherboard or the IDE cable support Ultra ATA/66 or
Ultra ATA/100.)

• The 40-pin IDE cable (with 40 wires) included in a Yamaha retail kit supports Ultra
ATA/33. IDE devices connected to the 40-pin IDE cable are operated with Ultra
ATA/33 even if the devices support Ultra ATA/66 or Ultra ATA/100.

• Install the CR W-F1 driv e ho rizo n ta lly .

Turn off and un plug th e computer.

1

When handling internal compu ter devices, always turn off the comput er to
avoid the risk of an electrical shock or dam age to the drive or comput er
devices. Be sure to unplug the compu ter prior to ha nd lin g any inter na l
computer device.

Remove all periph eral d evices and cables connected to the

2

computer prior to rem oving the computer cover.

Clothes and body can become charged with static electricity.
Discharge any static electricity by touching a metallic part of the case or
power unit.
For more information, refer to the instruction for the computer.

10

Preparing the CRW-F1 Drive

Installing the CRW-F1 drive as an additional drive

Check the IDE channel (primary/secondary and master/slave) connecting the CRW­F1 drive. (P. 12 – 14)

CRW-F1 drive

Note

An empty 5 ¼ -i n ch drive b a y is required to install the CRW-F 1 drive.

Replacing an existing IDE device with the CRW-F1 drive

Connect the CRW-F1 drive to the cable that was previously connected to the IDE
device.

CD-ROM drive, etc.

CRW-F1 drive

Note

When replacing a SCSI device such as a SCSI type CD-ROM drive, do not connect the
CRW -F1 drive to the cable t hat was previously connected to the S C SI device. Use a 4 0­pin IDE cable to connect the CRW-F1 drive to the computer.

11

Examples of connecting the CRW-F1 drive

The following describes how to connect the CRW-F1 drive for example.

Example 1: As a secondary slave (For additional drive)

Hard drive (master)

IDE cable (primary) IDE cable (secondary)

CD-ROM drive,
etc. (master)

CRW-F1 drive
(slave)

Example 2: As a secondary master

(For replacing the existing drive with the CRW-F1 drive)

Hard drive (master)

IDE cable (primary) IDE cable (secondary)

CRW-F1 drive
(master)

For the best performance of the CRW-F1 drive, connecting the drive as the
sole secondary master is recommended.

Continued on next page

12

Preparing the CRW-F1 Drive

Note

• The CRW-F1 drive is set at slave by default. Set the device to master and connect the
device to the end of the cable when connecting an IDE device to an IDE cable solely.

• Connecting the CRW-F1 drive as th e pr imary master is recom mended if no IDE
device is connected to the primary IDE cable such as the case that the operating
system is started up from a SCSI hard drive.

• Some IDE cables have only one connector to connect the device. Prepare an IDE
cable with two connectors to connect the devices if another connector is required.

• Check the master /s lave setting prior to co nnecting the removed devic e to anothe r
connector. For more details, refer to the instruction for the device or refer to the
manufacturer’s website.

Enhanced-IDE ( E-IDE)

E-IDE is a sta n da rd fo r co nnecting computers to ID E devices such as h a rd dr iv es , C D­ROM drives and CD-R/RW drives. Most computers have two IDE connectors (primary
and secondary). Each connector can be connected to two devices with an IDE cable.
Two IDE devices connected by one IDE cable are called “master” and “slave.”

Master

MasterMotherboard Primary

13

Secondary

Slave

Slave

The master/slave settings for general IDE devices are as follows.

•

Hard drive:

rear pane l or the h ard d riv e bo tt om p an e l. Th e c ab le se lec t (C S E L ) se ttin g is req uir ed
for som e hard drives.

•

CD-ROM drive, etc.:

Note

Assign each IDE device to master or slave res p ec tiv ely when two IDE devices are
connected to one IDE cable. Connect the IDE device to the end of the IDE cable when the
device is set to master, or co n nect it to the middle of the cable when it is s e t to slave.

Change the setting with th e jumper switch on th e circuit board on th e

Chan ge the setting with th e jumper switch on t h e rear pane l .

14

Preparing the CRW-F1 Drive

2 Set the Jumper Switch

Refer to the examples of connecting the CRW-F1 drive on page 12, and set the
CRW-F1 drive to master/slave to support your computer environment.

Set the plastic shunt at the jum per switch on the rear panel
with narrow p liers.

The position to be inserted the plastic shunt varies depending on the setting.

15

Master Slave

(default)

The CRW-F1 drive is set at slave by default.
When replacing an IDE device (master) with the CRW-F1 drive, set the
drive to mas ter.

Note

• The function of a plastic shunt is to electrically connect the jumper switch contacts.
Inserting and remo ving the pin turn the settings on and of f.

• Be sure to turn off the computer prior to setti ng the jum p er switch.

Cable Select (CSEL)

For the c omputer s upporting a c able select function, insert a plas tic shunt in to the CSEL
jumpe r switc h so th at the co mp uter w ill auto m atical ly adju st the C RW -F 1 driv e settin g to
master or slave.
If the C S EL setting results in an y problems to the C RW-F1 drive, set th e drive to m aster
or slave.
Refer to the instru ction for the c omputer t o find out if it supports th e CSEL function.

16

Preparing the CRW-F1 Drive

3 Install the CRW-F1 Drive

The following describes how to install the CRW-F1 drive as an additional drive for
example.

Prepare to install.

1

Installing the CRW-F1 drive as an addi tional drive

Remove the front cover from the 5 ¼-inch drive bay.

Replacing

Remove all cables connected to the CD-ROM or other devices to be replaced.
Then remove the device itself from the computer.

Audio cable

17

IDE cable 4-pin internal power

cable

Note

• Be careful not to d amage the various cables co n nected to the rear pa nel of the
CD-ROM drive.

• The audio cable is usually caught by the hook at the top of the connector.
Release the hook and remove the connector without using excessive force.

• Do not apply excessive force to the CD-ROM drive or cables.

• Hold the cable by t he co nne ctor to rem ov e the c able . Pulli ng th e ca ble itse lf wi th
excessive force may damage the wires inside.

Install the CRW -F1 d rive carefully into the drive bay and

1

2

temporarily fasten the scr ews by hand.

Be sure that there is enough space to connect the 4-pin internal power cable,
40-pin IDE cable, and audio cable prior to temporarily fastening the included
four screws to the fixed position.

Install the CRW-F1 drive carefully into
the drive bay from the front

Note

Do not apply e xcessive force to the CRW-F1 drive.

Connect a 40-pin ID E cab le.

3

Connect a 40-pin IDE cable to the IDE connector on the motherboard and the
IDE interface connector on the rear panel o f th e CRW-F1 drive. Be sure that
the colored wire is connected to the first pin of the connectors, as shown in the
diagram below.

Motherboard

IDE connector
40-pin IDE cable

Colored wire

IDE interfac e
connector

1

Colored wire

Continued on next page

18

Preparing the CRW-F1 Drive

Note

• The 40-pin IDE cable (with 40 wires ) included in a Yamah a retail kit supports
Ultra ATA/33. IDE devices connected to the 40-pin IDE cable are operated with
Ultra ATA/33 even if the devices support Ultra ATA/66 or Ultra ATA/100.

• The CRW-F1 drive is op erated wi th Ultra ATA/33 eve n if the drive can be
connected by an IDE cable (with 80 wires) supporting Ultra ATA/66 or Ultra
ATA/100.

• Use an IDE cable no long er th an 45.7 cm (18 in c hes).

• When two IDE devices are connected to one IDE cable, be sure to assign each as
master /slav e re sp ec tiv ely.

Connect an au dio ca ble if necessa ry.

4

The sound card of the computer enables you to listen to audio CDs played
back on the CRW-F1 drive. There are two me th ods to connect the CRW-F1
drive and the sound card: analog connection and digital connection.

Audio CD playback

• Audio is available from the he adphones or speakers connected to th e
headphone jack on the front panel of the CRW-F1 drive (this is convenient
for the computer without a sound card). In such a case, connecting an audio
cable is not required.

• An audio cable is not requi r ed to extract an image file from an audio CD
since data is transferred via the IDE cable.

• If the CRW-F1 drive is installed as an additional drive and a CD-ROM
drive or a DVD-ROM drive is already connected to the sound card, using
the existing drive to play back an audio CD is recommended.

19

Analog connection

Connect one end of the audio cable (the end with one connector) to the analog
audio output jack on the rear panel of the CRW-F1 drive. Be sure that the
connector is in the correct direction prior to connecting it.
There are two types of connectors at the other end of the audio cable. Select
the one that fits the sound card: Vertical co nnector (PH) and Horizontal
connector (MPC). Use only one of the t w o connectors, and leave the other
free. Check the direction of the connector prior to connecting it to the sou nd
card.

Analog audio output
jack

Left channel (L)
Ground (G)

Right channel (R)

Audio cable

Vertical con ne ctor ( PH )

Horizontal
connector
(MPC )

Sound card

Audio input
jack

Note

Some sound cards have more than one audio input jack, including those which do
not support the specification of the CRW-F1 drive. If playback audio cannot be
heard fr o m the spe akers, refer to the instruction for th e sound ca rd.

Continued on next page

20

Preparing the CRW-F1 Drive

Digital connec ti o n

Digital connection enable s you to enjo y hig he r qu al ity aud i o with le ss
distortion since the digital signals recorded on the audio CD are output to the
sound card with high fidelity.

Connect the digital audio output jack of the CRW-F1 drive and the S/PDIF
(digital audio) input jack of the sound card with a digital audio cable. Be sure
that the connector is in the correct direction prior to connecting it.

Digital audio output
jack

Ground (G)
Signal (D)

Digital audio cable

Sound card

S/PDIF
input jack

21

Note

A digital audio cable with a proper connector and a sound card with an S/PDIF
(digital audio) input jack are required.

Connect the 4-pin internal power cable of the compu ter (D C

5

5 V and DC 1 2 V ) to the pow er c onnector on the rear panel of
the CRW-F1 drive.

Top

Bottom

Note

The 4-pin internal power cable cannot be connected if it is upside down. If the
conne c t o r does not connect e a s ily, check that it is in th e c orrect direction.

Tighten four screws fastened tentatively with a Phillips

6

Power connector

4-pin internal power cable

screwdriver.

Attach the computer cover and reco nnec t the pe riphera l

7

devices and cables.

22

Preparing the CRW-F1 Drive

4 Check Recognition of the CRW-F1 Drive

Plug in and turn on the comp uter.

1

Check that the LED blinks blue, and then turns off.

Check that the C R W-F1 drive is properly recognized by

2

Windows.

The operation varies depending on your operating system.

For Windows X P

1

Select Start on the tas kbar, then Control Panel, System, Hardware tab,
and Device Manager. The Device Manager dialog box appears.

Note

System

If the

to Classic View

icon is not shown in the

on the left side of the window.

Control Panel

LED blinks blue, then
turns o f f.

window, click

Switch

23

2

If there is to the left of DVD/CD-ROM drives, click .
“YAMAHA CRW-F1E” should be shown when the CRW-F1 drive has
been recognized properly.

“YAMAHA CRW­F1E” is shown.

If the drive name is not shown or there is or mark.

The CRW-F1 drive has not been recognized properly. Check the cable
connections and the master/slave settings of the IDE devices connected to the
computer.

For Windows 2000 Professional

1

Select Start on the taskbar, then Settings, Control Panel, System,
Hardware tab, and Device Manager. Th e Device Manager dialog box

appears.

2

If there is to the left of DVD/CD-ROM Drive, click .
“YAMAHA CRW-F1E” should be shown when the CRW-F1 drive has
been recognized properly.

For Windows 95/ 98/98 Second Edition/Me

1

Select Start on the taskbar, then Settings, Control Panel, System, and
Device Manager tab. The Device Manager dialog box appears.

Note

For Windows Me, if the
window, click

2

If there is to the left of CDROM, click .
“YAMAHA CRW-F1E” should be shown when the CRW-F1 drive has
been recognized properly.

view all Control Panel options

icon is n ot shown in the

System

Control Panel

on the left side of the window.

Change the DMA setting.

3

The DMA setting may not be displayed, depending on your computer. In such
a case, use the CRW-F1 drive without changing t he DMA setting.

Tip

To max im iz e th e p er fo rmance of the CR W-F1 drive, changing the DM A setting
for other IDE devices such as a hard d r ive or a CD/DVD-ROM drive i s
recommended.

Continued on next page

24

Preparing the CRW-F1 Drive

For Windows XP/2 00 0 Pr o f es s ional

1 Log on to the administrator accoun t.
2

In the Device Manager dialog box (P. 23), select the IDE channe l
(primary/secondary) connected to the CRW-F1 dri ve and then Advanced
Settings tab.

3

Set “Transfer Mode” to “DMA if available” in the “Device 0” item (for
master) or the “Device 1” item (for slave).

Note

The CR W-F1 drive operation m ay become unstab le, d e pe nding on your computer
environment. In such a case, set “Transfer Mode” to “PIO only.”

Set

(This screen is an example
on Windows XP.)

25

For Windows 95/98/98 Second Edition/Me

1

In the Device Manager dialog box (P. 24), select YAMAHA CRW-F1E
Properties and then Settings tab.

2 Check “DMA.”

Note

The CR W-F1 drive operation m ay become unstab le, d e pe nding on your computer
environment. In such a case, uncheck “DMA.” The “Simultaneous Data Transfer”
setting does not affect C RW-F1 drive operation .

Recommended DMA settings (transfer mode settings)

Operating System Recommended Remarks

Windows XP/
2000 Professional

Windows 95/98/
98 Second Edition/Me

Direct Memory Access (DMA)

DMA is a method that transf er s data between va ri ou s peripheral devices (e.g., a
hard drive, CD-R/RW drive, etc.) and the computer memory without going
through th e C P U in th e co mputer. D MA transf er sett ing i nc re as es th e d a ta t ra ns fe r
speed and the processing speed by reducing strain on the CPU.

DMA mode PIO mode if operation

becomes unstable

Check Uncheck if operation

becomes unstable

5 Install CD Writing Software

Install the CD writing software. For de tails about in stalling th e CD writing software,
refer to the instruction for it.

26

Loading/Ejecting a Disc

Prior to the operation, check that the computer is turned on.

Open the disc tray by p ressing the eject button.

1

Press the eject button

Place the disc onto the d isc tray p rope rly with its label facing

2

upward.

Or remove the disc from the disc tray carefully so not to damage it.

Place or remove the disc
onto/from the disc tray

27

Close the disc tray by pressing the eject b utton or by gen tly

3

pushing the disc tray into the computer.

Note

• Place or remove the disc after the disc tray has fully opened. Do not push or pull
the disc tray with applying excessive force to avoid damage to the drive or the
disc.

• The disc tray does not open wh ile the application software prohibits ejecting,
including when the drive accesses the disc.

Manually Ejecting a Disc

If the disc tray fails to open for some reason, such as a power failure, follow the
steps below to remove the disc from the drive.

Note

Frequent use of this operation m ay ca use m alfun ction of the drive.

Prepare a thin pin-like object, such as a straighten ed paper

1

clip.

Use an object less than 2 mm in diameter and more than 3 cm in length.

Turn off the com p u ter.

2

Insert the thin pin-like object straight into the m an u al eject

3

hole, and push it in.

When the disc tray opens, remov e the disc.

Turn on the com p uter, and close the disc tray.

4

Manual eject
hole

28

Troubleshooting

Refer to the YAMAHA CD-R/RW Drive web s ite fo r the late st sup por t inf orm at ion ,
including the troubleshooting guide.

YAMAHA CD-R/RW Drive website

URL: http://www.yamaha.co.jp/english/product/computer/

Europe

URL: http://www.yamaha-it.de/

1 The CRW-F1 drive is not recognized by the operating system. (P. 23)

●

Is the 4-pin inte rnal power cable connected properl y to the CRW-F1 drive?

Turn off the computer, and remove the computer cover. Check that the connector of
the 4-pin internal power cable is connected to the CRW-F1 drive in the correct
direction, and that the 4-pin internal power cable is ful ly connected. (P. 10, 22)

●

If the CRW-F1 drive is connected to another 4-pin internal power cable that
properly conducts power to anoth er device, is the CRW- F1 drive turned on ?

Turn off the computer. Be sure that the CRW-F1 drive is connected to another 4-pin
internal power cable that properly conducts power to another device, and check that
the CRW-F1 drive is turned on when turning on the computer. (P. 10, 22)
If the drive is turned on, the computer’s power unit may be damaged.
If the drive is not turned on, contact the store of purchase or your nearest Yamaha
dealer (listed at the back of this manual).

●

Is the IDE cable connected properl y to the CRW-F1 drive?

Turn off the computer and remove the computer cover. Check that the connector of
the IDE cable connected to the CRW-F1 drive is in the correct direction, and that the
IDE cable is fully connected. (P . 10, 18)
Then check that the pins of the IDE interface connector of the CRW-F1 drive are not
bent.

●

Is the IDE cable connected properl y to the motherboard?

Check that the connector of th e IDE cable is connected to the motherboard in the
correct direction, and that the IDE cable is fu lly connected. (P. 18)

29

●

Is each IDE device set respectively?

When one IDE device is connected to one IDE cable, be sure that the device is set to
master or CSEL.
When two IDE devices are connected to one IDE cable, be sure that both devices are
not set to master (or slave).
When the CRW-F1 drive is set to CSEL, reset it to master or slave. (P. 15)
When you have the problem even if each IDE device is set properly as above,
contact the store of purchase or your nearest Yamaha dealer (listed at the back of this
manual).

2 The disc tray does not open when you press the eject button.

●

Is the CRW-F1 drive recognized by the operating system? (P. 23)

Refer to “The CRW-F1 drive is not recognize d by the operating system.”
(Troubleshooting, Item 1)

●

Is any CD writing software being used?

Some CD writing software prohibits ejecting while accessing. (If you are using such
a software program, the disc tray does not open even if the eject button is pressed.)
In such a case, follow the steps in the software window to eject the disc, or quit the
CD writing software prior to pressing the eject button.

●

Is the disc tray opened when the computer is restarted?

Quit all running application software, restart your computer, and press the eject
button of the CRW-F1 drive.

●

Is the disc tray opened if the IDE cable is removed from the CRW-F1 drive?

Turn off the computer and remove the IDE cable from the IDE interface terminal on
the rear panel of the CRW-F1 drive. (P. 10, 18)
Restart the computer, and press the eject button of the CRW-F1 drive once again.

●

Turn off the computer, and remove the disc following “ Manually Ejecting a D isc.”
(P. 28)

If the disc tray is caught in the drive and does not come out, or if it cannot be opened
or closed using the eject button after it is pulled out manually, contact the store of
purchase or your ne arest Yamaha dealer (listed at the back of thi s manual).

30

Troubleshooting

3 The disc is ejected without order (or it comes out spontaneously).

●

Is the disc set properly (horizontally) on the disc t ray?

Set the disc properly, and clos e th e disc tray.

●

Is the disc dusty or dir ty?

Remove dust or dirt from the disc using an air spray or a dry soft cloth. To avoid
damaging discs, wipe the disc gently from the center to the edge of the disc.

●

Does the drive accept other discs (audio CD, CD-ROM, blank CD-R disc, etc.)?

If a specific disc is ejected, the disc itsel f may be damaged or deformed.
If all discs are ejected, contact the s to r e of purchase or your nearest Yamaha deal er
(listed at the back of this manual).

4 No data can be read from a disc.

●

Is the disc ejected without order?

Refer to “The disc is ejected without order (or it comes out spontaneously).”
(Troubleshooting, Item 3)

●

Is the disc compa tible with the dr ive? (P. 5, 37)

Be sure that the disc is compatible with the CRW-F1 drive.

●

Is the disc dusty or dir ty?

Remove dust or dirt from the disc using an air spray or a dry soft cloth. To avoid
damaging discs, wipe the disc gently from the center to the edge of the disc.

●

Can data be read from other discs (audio CD, CD-ROM, etc.)?

If no data can be read from a specific disc, data may be written in a format that the
drive cannot recognize, or the disc itself may be damaged or deformed. Note that no
data can be read from blank discs, and the CRW-F1 drive infrequently fail to read
data correctly from a disc even if the disc is compatible with the drive.

31

●

Does the LED of th e CRW-F1 drive light correctly wh en a disc is inserted ?

When a disc is inserted, the LED will blink blue for a moment and then light blue.
(P. 2)
If no data can be read from a specific disc, data may be written in a format that the
drive cannot recogn ize, or the disc may be dama ged or deformed.
If the LED does not light (stating that the drive canno t reco gn ize the disc) no ma tter
what type of disc is inser te d , co nta c t the sto r e of pu r ch a se or your nearest Yamaha
dealer (listed at the back of this manual).

5 The playback of an audio CD (CD-DA) is inaudible.

●

Check that the volume is not set to the minimum level.

●

If the playback audio from headphones or external speakers connected to the
computer is inaudible, be sure that the audio cable is properly connected to the
CRW-F1 drive and th e so und car d. If th e so und car d ha s m ore than one au dio in put
jack, connect the audio cable to th e other input jack. (P. 20, 21)

●

For Windows XP/Me, follow the steps if the playback audio from headphones
connected to the CRW-F1 drive is inaudible.

If Windows Media Player 7.0 or later is used with Windows XP/Me, this problem
can happen since the digital playback option is activated by default setting.

For Windows XP

1 In the Device Manager dialog box (P. 23), select YAMAHA CRW-F1E

Properties and then Properties tab.

2

Uncheck “Enable digital CD audio for this CD-ROM device” in the “Digital CD
Playback” item.

Uncheck
(This screen is an example
on Windows XP.)

Continued on next page

32

Troubleshooting

3

Start “Windows Media Player.” In the menu bar, select Tools, Options, Devices
tab, CD-RW Drive, and Properties.

4 Select “Analog” in the “Playback” item.

Select
(This screen is an
example on Windows
Media Player 8.0.)

For Windows Me

1

Follow step 1 and 2 on page 32, and uncheck “Enable digital CD audio for this
CD-ROM device.”

2 Start “Windows Media Player.” In the menu bar, select Tools, Options and CD

Audio tab.

3

Uncheck “Digital playback” in the “Playback Settings” item.

33

Uncheck
(This screen is an
example on Windows
Media Player 7.0.)

6 No data can be read from any CDs, a disc is ejected spontaneously, or the

LED does not light when a disc is inserted. (The LED does not change to
blinking blue and then lighting blue.) (P. 2)

Remove the IDE cable from the CRW-F1 d riv e while the 4-pin internal power cable
is connected to the drive, and in sert the disc once again. If a specific disc is
automatically ejected or cannot be read, the disc itself may have a problem.
If the drive does not accept any compatible discs (and the LED does not light),
contact the store of purchase or your nearest Yamaha dealer (listed at the back of this
manual).

7 The error message “Buffer Underrun” is displayed.

If your CD writing software supports Buffer Underrun Protection, it is required to be
activated. For more details, refer to the instruction for the CD writing software.

To prevent the occurrence of a buffer underrun and to increase the efficiency of data
writing, try the following:
– Reduce the data writing speed.
– Create an image file on the hard drive.
– Optimize the hard drive. (Defragmentation )
– Do not start any application software including scre en savers during data wr iting.
– Deactivate the power management for the hard drive.
– Set the data transfer mode of any IDE device such as a hard drive or CD-ROM

drive to “DMA.” (P. 24)
– Deactivate Windows Active Desktop.
– Quit all memory-resident software programs.
– Check your CD writing software settings with the instruction for it.

Note

A writing error may happen if the drive is vibrated while data is being written on a CD-R
or a CD-RW disc.
