Yale Interconnected Locksets User Manual

Interconnected Locksets

ANSI/BHMA Grade 2 Certified

Mechanical | Electronic

Introduction

Table of Contents

YH Collection Mechanical Interconnected Locksets

Infographic ....................................................................... 3

Specifications .................................................................. 4

Functions ......................................................................... 5

Finishes ............................................................................ 5

How to Order ................................................................... 6

Dimensions ...................................................................... 7

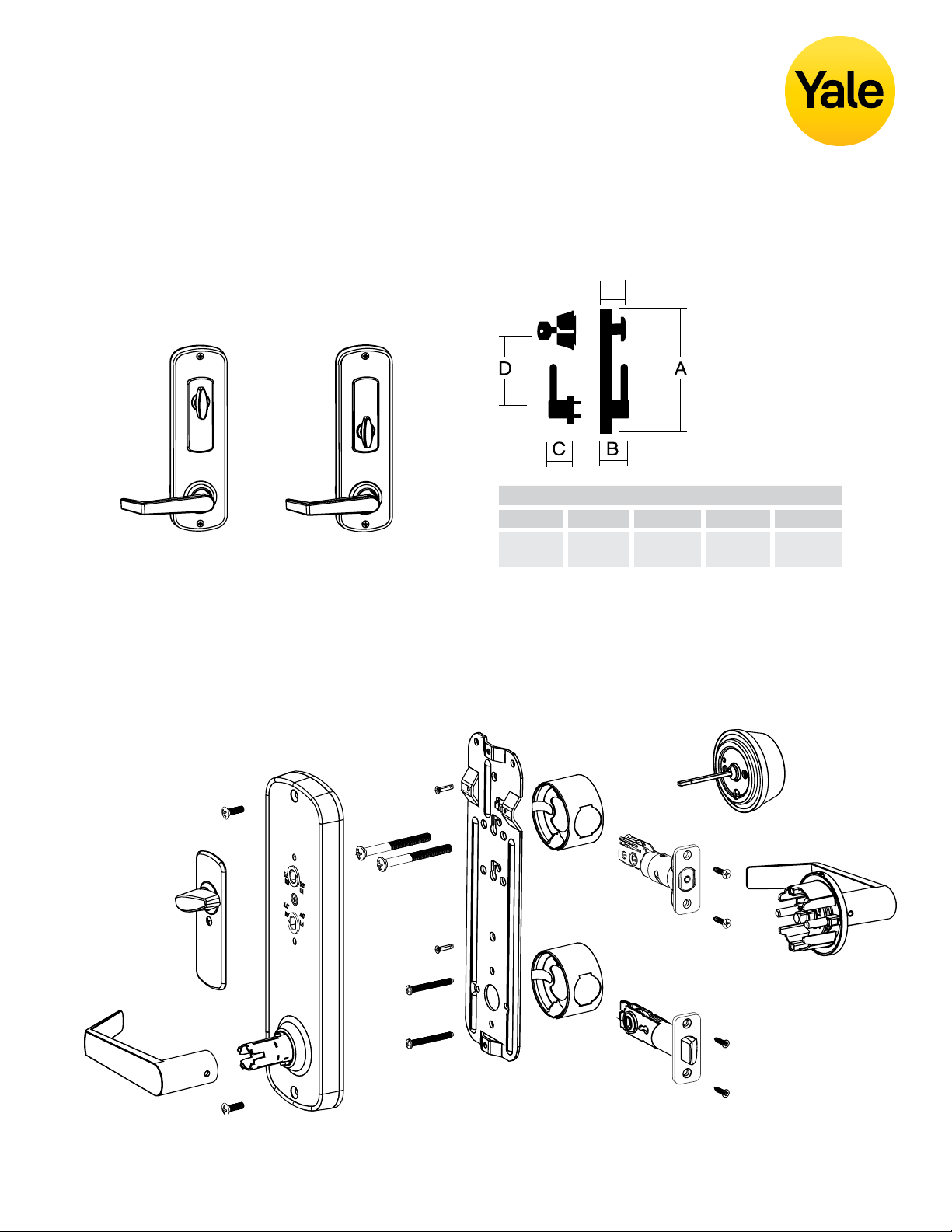

Exploded View................................................................. 7

Sample Architectural Specification ............................. 8

Assure Lock Interconnected Locksets

Infographic ....................................................................... 9

Specifications ................................................................ 10

Functions ........................................................................11

Finishes ...........................................................................11

How to Order ................................................................. 12

Dimensions .................................................................... 13

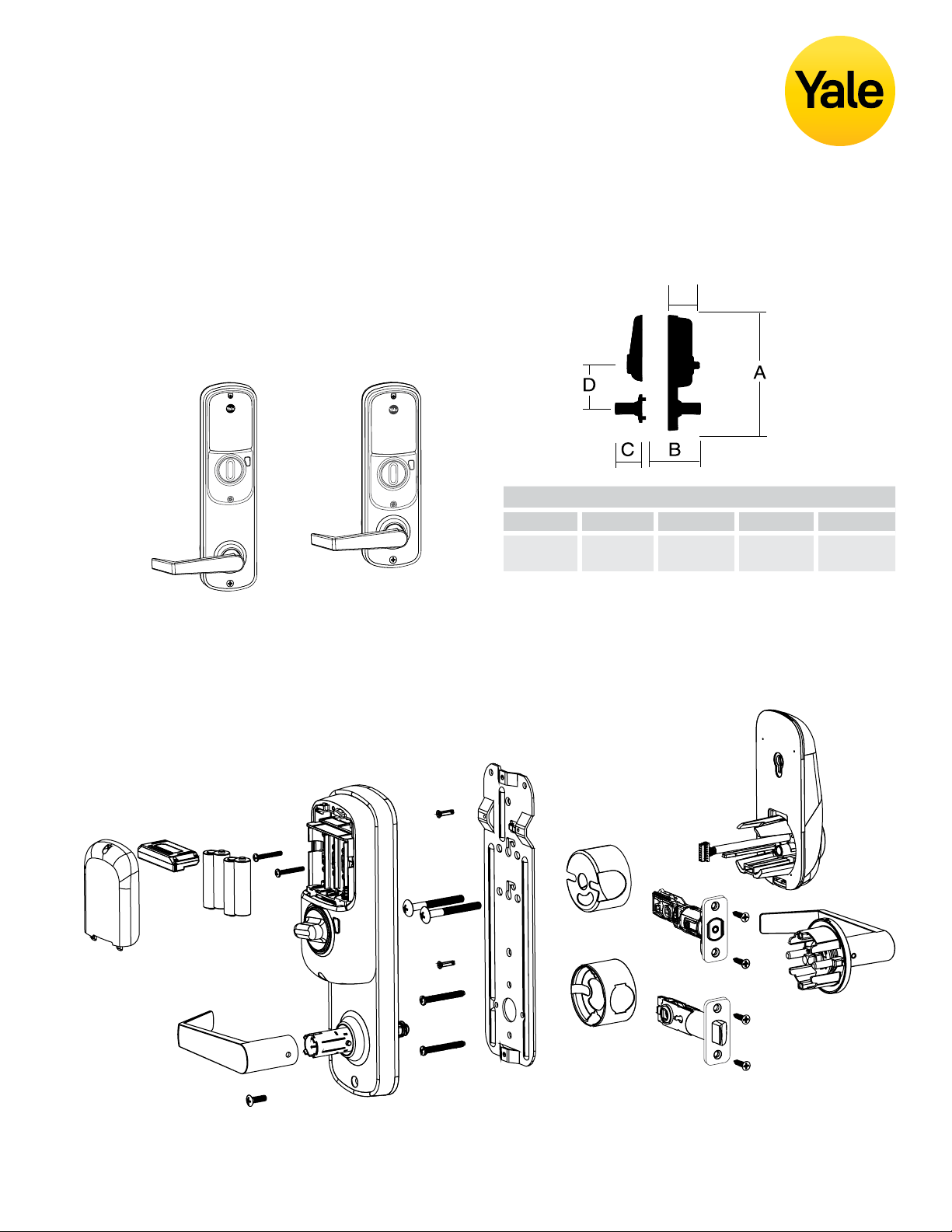

Exploded View............................................................... 13

Sample Architectural Specification ........................... 14

Interconnected Lockset Accessories

Levers ............................................................................. 15

Cylinders ........................................................................ 16

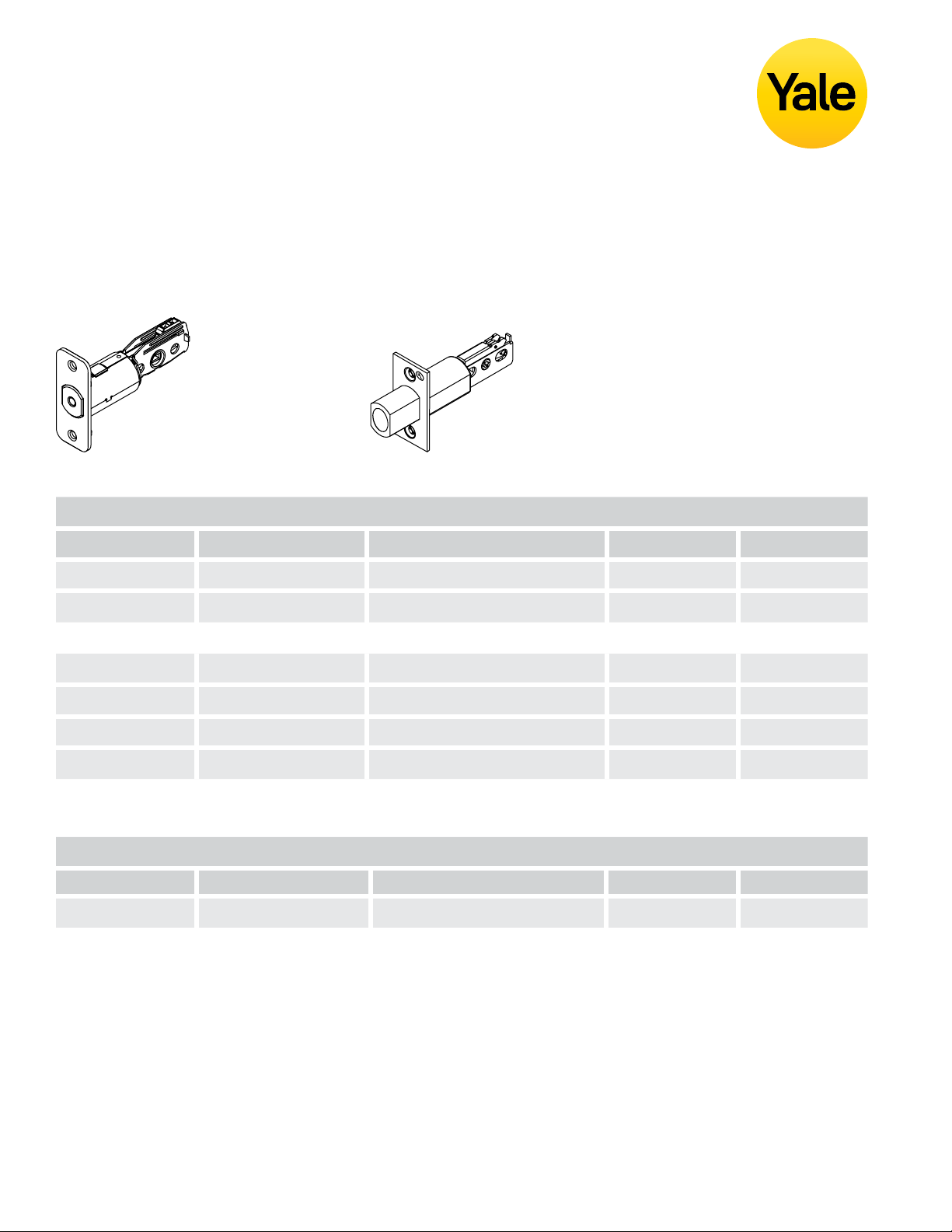

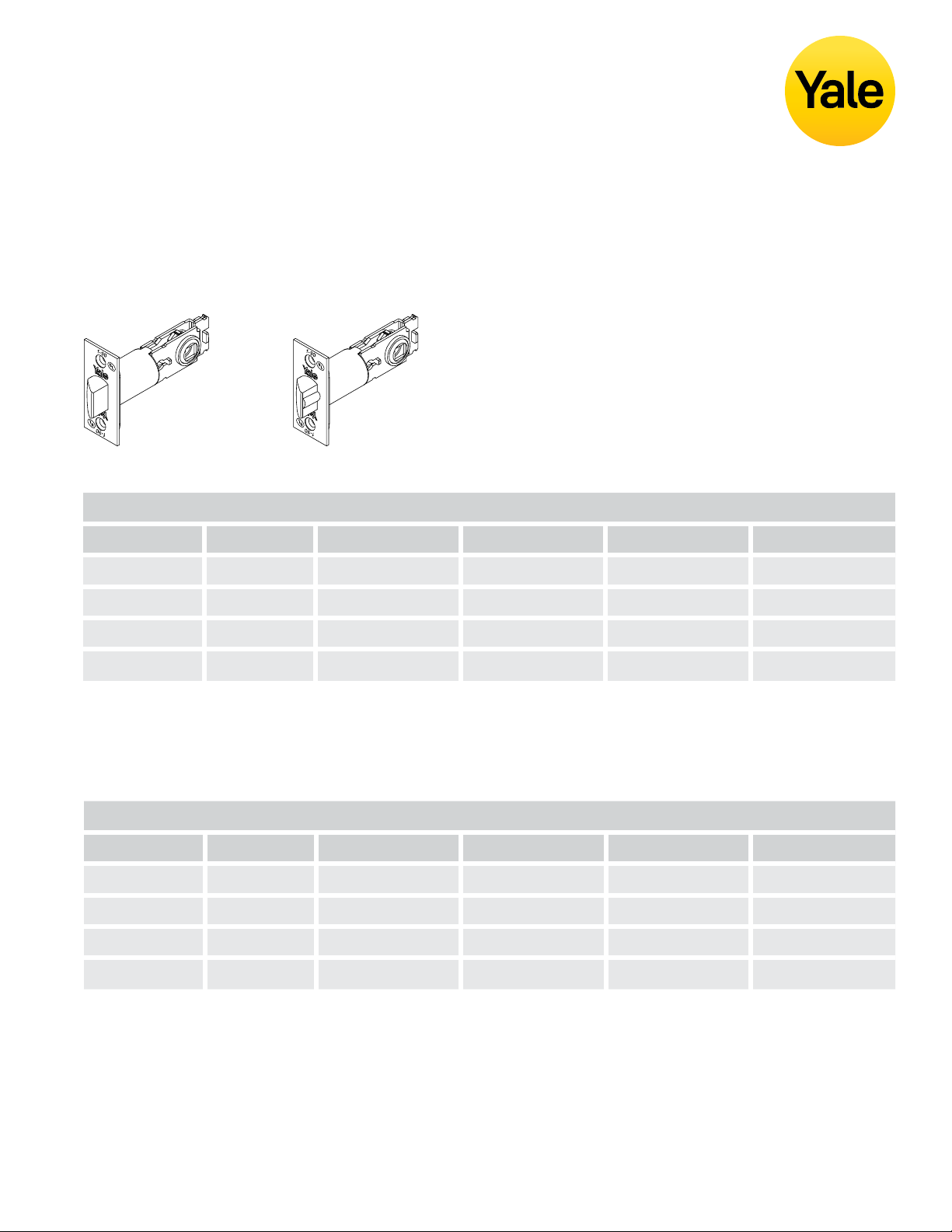

Latchbolts ...................................................................... 17

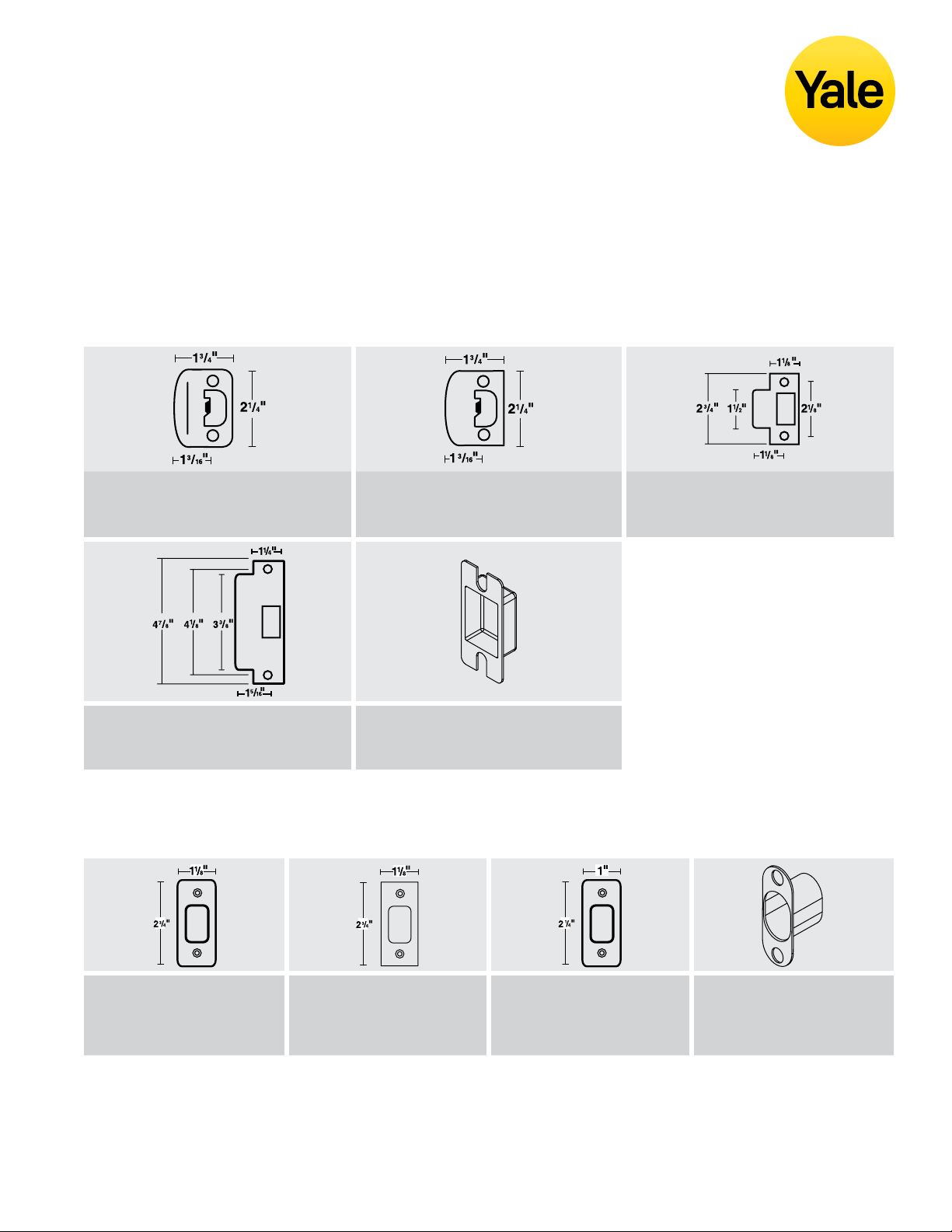

Strikes ............................................................................. 19

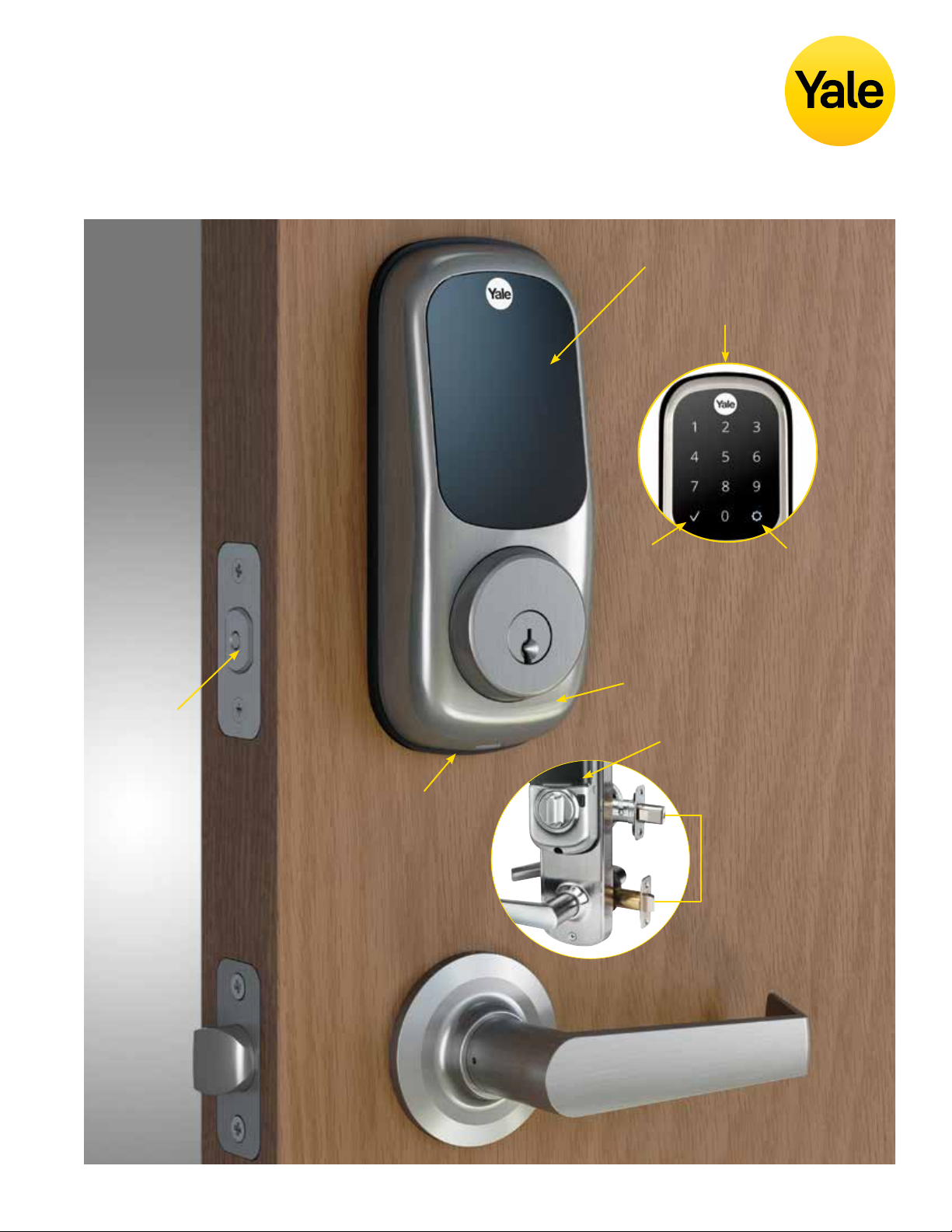

Yale Assure Lock® Interconnected electronic locksets combine Yale Assure Lock® electronic deadbolts with the convenience of a passage lever assortment for panic proof egress. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for a quick and easy exit.

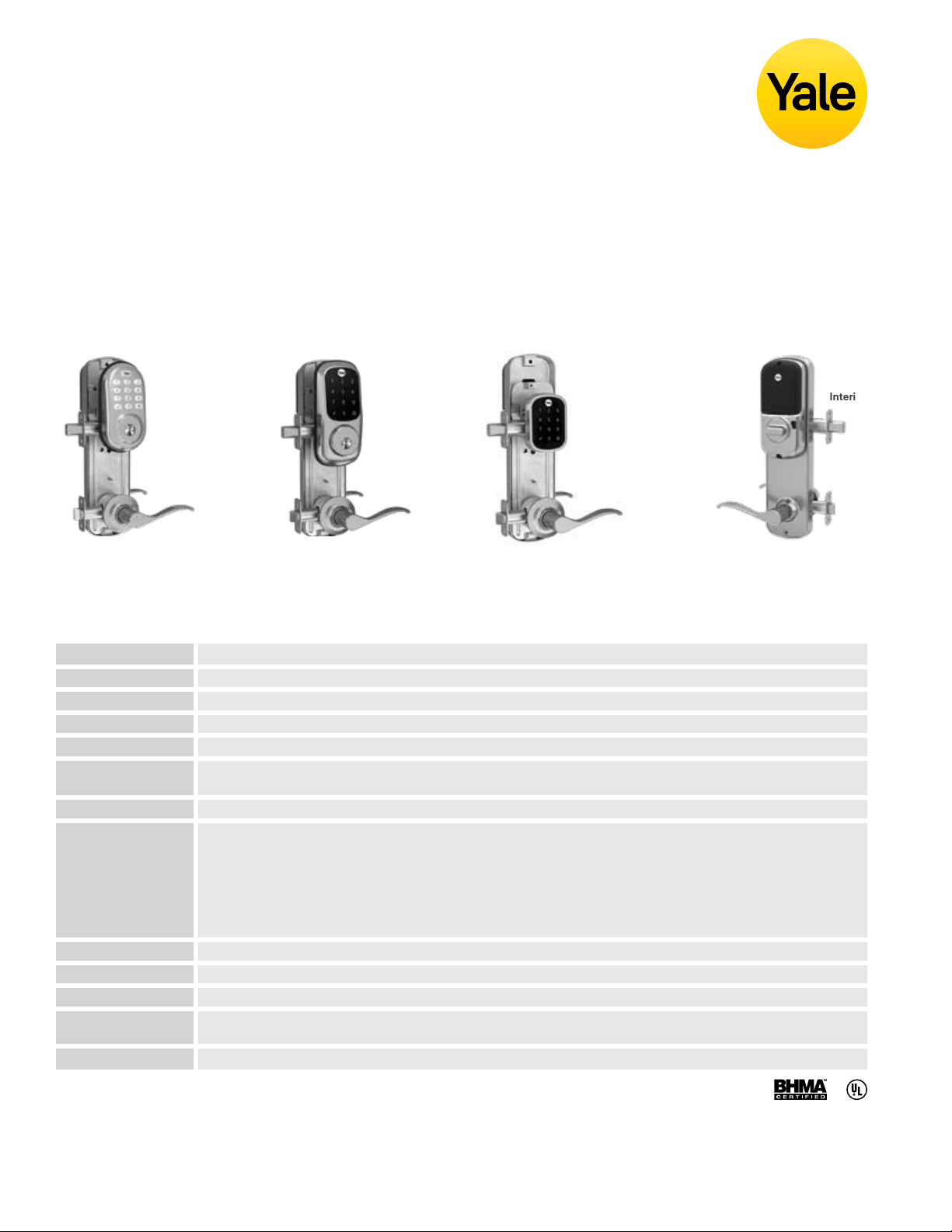

Select from the Yale Assure Lock Interconnected Push Button, Touchscreen, or Key Free for convenient levels of effortless access. This is a significant benefit to multi-family and multi-unit projects commonly requiring re-keying. Push button and touchscreen deadbolts with key override offer keyless options as well as keys for multi-family environments. Go totally key free with an Assure Lock key free model and eliminate the hassle of re-keying.

The Yale YH Collection® mechanical interconnected locksets combine our integrated leverset with the added safety and security of a deadbolt. From the inside, both the latchbolt and the deadbolt are retracted simultaneously in a single motion for quick and easy egress.

The YH Collection face-removable and interchangeable core design provide easy access to the cylinder without having to remove the deadbolt from the door. This is a significant benefit to multifamily projects commonly requiring re-keying.

Interconnected Locksets Grade 2

YH Collection® Mechanical Interconnected Locksets

Available in 3 functions for multiple applications (Privacy with deadbolt indicator shown)

Face removable deadbolt and interchangeable core options allow effortless cylinder change outs

Field adjustable center to center dimension, installs into most standard door preparations

Latchbolt and deadbolt retract simultaneously for easy egress; interior thumbturn quickly secures opening

Available with fixed core, SFIC or LFIC cylinders in a variety of keyways

Interconnected Locksets Grade 2

13 lever options and 6 finishes complement any decor

ANSI/BHMA Grade 2

Certified for long life

YH Collection® Mechanical Interconnected Locksets

Features

Exterior Interior

• 2 functions, 14 lever designs and 5 finishes

• Field adjustable from 4" to 51/2" center to center

• ANSI/BHMA A156.12 Grade 2 certified

• UL/cUL listed for 90 minute fire doors

• Available with fixed core (Can be ordered as conventional cylinder or SFIC or LFIC cylinder less core.)

• Field reversible handing

• Three year warranty

Passage Lever with Fixed Core Cylinder Shown

Specifications

Door Specs 21/8" (54mm) face bore, 1" (25mm) edge bore, 4" (102mm) or 51/2" (140mm) center to center

Backset 23/8" (60mm) or 23/4" (70mm)

Door Thickness 13/8" (35mm) to 13/4" (44mm)

Handing Field reversible

Latch Faceplate 1" (25mm) W x 21/4" (57mm) H; radius corner standard, square corner available to order

Strike

Cylinder KW1 compatible standard, other cylinders/keyways available to order

Keying KD (Keyed Different) standard, master keying available to order

Packaging Box pack

ADA

ANSI/BHMA Certified ANSI/BHMA A156.12, Grade 2

UL/cUL Listed for 90 minute fire doors

Warranty Three years

21/4" (57mm) Full Lip Lockset and 11/8" (29mm) W x 23/4' (70mm) H Deadbolt; Radius Corner standard, other strikes available to order.

Conforms to ADA requirements for barrier free access when installed at the correct distance from the finished floor

Applications

• Multi-family residences

• Assisted living facilities

• Public restrooms

• Offices and small business applications

Interconnected Locksets Grade 2

YH Collection® Mechanical Interconnected Locksets

Functions

YR852 YR853

Passage

• Single point lock.

• Latchbolt is operated by either lever at all times.

• Deadbolt activated by key on outside; inside by T-turn.

• Interior lever retracts latch and deadbolt simultaneously.

Privacy with Deadbolt Indicator

• Single point lock.

• Latchbolt is operated by either lever at all times.

• Deadbolt activated by emergency key on outside; inside by T-turn.

• Occupancy indicator displays “In Use” when deadbolt thrown or “Vacant” when deadbolt retracted.

• Interior lever retracts latch and deadbolt simultaneously.

Finishes

605 (US3)

Bright Brass, Clear

Coated

613E (US10BE) Dark Oxidized Satin Bronze - equivalent

ANSI/BHMA Code (US Designation)

619 (US15)

Satin Nickel Plated,

Clear Coated

Finish Description

626 (US26D)

Satin Chrome Plated

(US10BP)

Oil Rubbed Bronze -

Permanent

(BSP)

Black Suede

Interconnected Locksets Grade 2

YH Collection® Interconnected Mechanical Locksets

How To Order

Mechanical Deadbolt with Lever

Lever Function

AC = Academy AU = Augusta CH = Charleston DW = Delaware KC = Kincaid MA = Marina MC = McClure MO = Monroe MN = Milan NW = Norwood PB = Pacific Beach WL = Woodland VL = Valdosta VG = Virgo

* Cylinder that will be installed MUST be specified on the order.

YR852 = Passage

YR853 = Privacy with Deadbolt Indicator

Latch Strike Cylinder/Core

Lockset Deadbolt Lockset Deadbolt Lockset Deadbolt

See page 11. See page 11. See page 16.

Build Your Order String

LC = Less Cylinder*

SFICLC = Less Small Format Core

LFICLC = Less Large Format Core

Backset Hand

Center

23/8"

23/4"RHLH4"51/2"

605 (US3) = Bright Brass Clear Coated

613E (US10BE) = Dark Oxidized Satin Bronze - equivalent

619 (US15) = Satin Nickel Plated Clear Coated

626 (US26D) = Satin Chrome Plated

0BP (US10BP) = Oil Rubbed Bronze Permanent

(BSP) = Black Suede

Finish

Latch Strike Cylinder/Core

Quantity Lever Function

Lockset Deadbolt Lockset Deadbolt Lockset Deadbolt

Example: NW YR852 YR01808 YR01D44 YR02020 YR02086 N/A YR06Y416 23/4" RH 4" 626

The example above provides a single locking function unit with 23/4" square corner latches with a PARA keyway cylinder. Lockset will be preset to RH and 4" CTC.

Backset Handing

Interconnected Locksets Grade 2

Center

Finish
