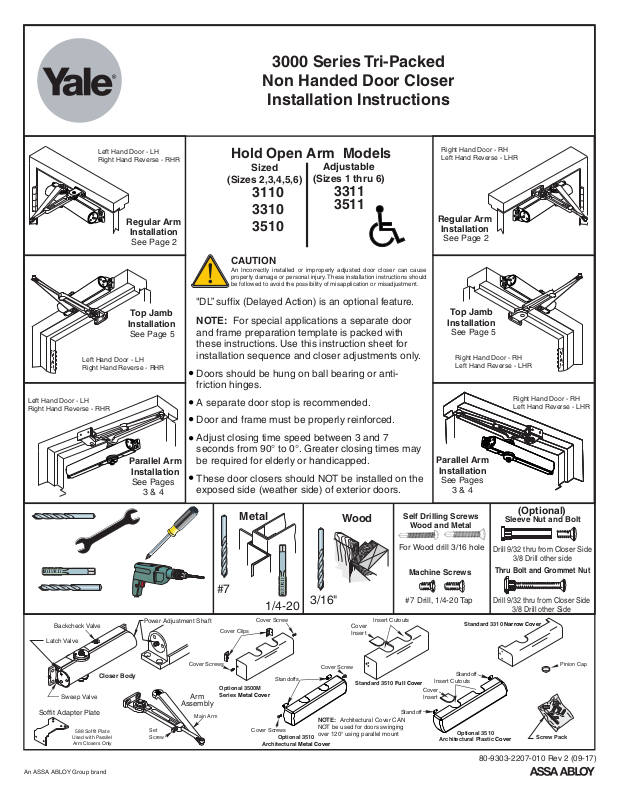

Yale 3110, 3310, 3311, 3510, 3511 Installation Instructions Manual
3000 Series Tri-Packed
Non Handed Door Closer
Installation Instructions
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Left Hand Door - LH
Right Hand Reverse - RHR
Regular Arm
Installation
See Page 2
Top Jamb
Installation
See Page 5
Parallel Arm
Installation
See Pages
3 & 4
Hold Open Arm Models
Sized
(Sizes 2,3,4,5,6)
3110
3310
Adjustable
(Sizes 1 thru 6)
3311
3511
3510
CAUTION
An Incorrectly installed or improperly adjusted door closer can cause
property damage or personal injury. These installation instructions should
!
be followed to avoid the possibility of misapplication or misadjustment.
"DL” suffix (Delayed Action) is an optional feature.
NOTE: For special applications a separate door
and frame preparation template is packed with
these instructions. Use this instruction sheet for
installation sequence and closer adjustments only.
Doors should be hung on ball bearing or antifriction hinges.
A separate door stop is recommended.
Door and frame must be properly reinforced.
Adjust closing time speed between 3 and 7
seconds from 90° to 0°. Greater closing times may
be required for elderly or handicapped.
These door closers should NOT be installed on the
exposed side (weather side) of exterior doors.
Right Hand Door - RH
Left Hand Reverse - LHR
Regular Arm
Installation
See Page 2
Top Jamb
Installation
See Page 5
Right Hand Door - RH
Left Hand Reverse - LHR
Parallel Arm
Installation
See Pages
3 & 4
Right Hand Door - RH
Left Hand Reverse - LHR
Backcheck Valve
Latch Valve
Sweep Valve
Soffit Adapter Plate
588 Soffit Plate
Used with Parallel
Arm Closers Only
An ASSA ABLOY Group brand
Closer Body
Power Adjustment Shaft
Cover Screws
Arm
Assembly
Main Arm
Set
Screw
Metal
#7
Cover Screw
Cover Clips
Optional 3500M
Series Metal Cover
Cover Screws
1/4-20
Standoffs
Optional 3510
Architectural Metal Cover
3/16"
Cover Screw
NOTE: Architectural Cover CAN
NOT be used for doors swinging
over 120° using parallel mount
Wood
Insert Cutouts
Cover
Insert
Standard 3510 Full Cover
Self Drilling Screws
Wood and Metal
For Wood drill 3/16 hole
Machine Screws
#7 Drill, 1/4-20 Tap
Standard 3310 Narrow Cover
Standoff
Insert Cutouts
Cover
Insert
Standoff
Optional 3510
Architectural Plastic Cover
(Optional)
Sleeve Nut and Bolt
Drill 9/32 thru from Closer Side
3/8 Drill other side
Thru Bolt and Grommet Nut
Drill 9/32 thru from Closer Side
3/8 Drill other Side
Pinion Cap
Screw Pack
80-9303-2207-010 Rev 2 (09-17)
3010 Series
Parts
Hold Open Arm Door Closers — Regular Arm
Mark and Drill Holes
1
1-1/4
(32)
2
A
5-1/2
(140)
1-3/4
(44)
1-5/8
(41)
Co
v
er
Optional
Installation Sequence
L
C
D
90°
E
F
R
Y
Z
S
A
Left
Hand
Nut Down
B
H
Optional
G
3/4
(19)
101° to 130°
131° to *180°
Sweep
Opening
To 100°
Dimension "A"
7-1/2
(191)
6
(152)
4-1/2
(114)
4
12
(305)
Right Hand Shown
Inches
(mm)
Door/Wall/Hardware/Jamb
*
conditions permitting
Latch
5
Optional
H
For
3510 Architectural
Cover Only
Backcheck
An ASSA ABLOY Group brand
Spring Power Adjust
(If Necessary)
!
Caution:
Don't completely
close valve
Set Hold Open
6
9
0
Pinion Cap
7
8
or Optional Cover
.
n
i
m
°
0
9
°
-
1
8
°
0
A
B
(2)
Screw pinion cap onto pinion shaft by
hand or with a Phillips screw driver
- DO NOT OVER TIGHTEN.
or
2
80-9303-2207-010 Rev 2 (09-17)
