Yale 724NS, 724WS, 724, 224 Installation Instructions Manual

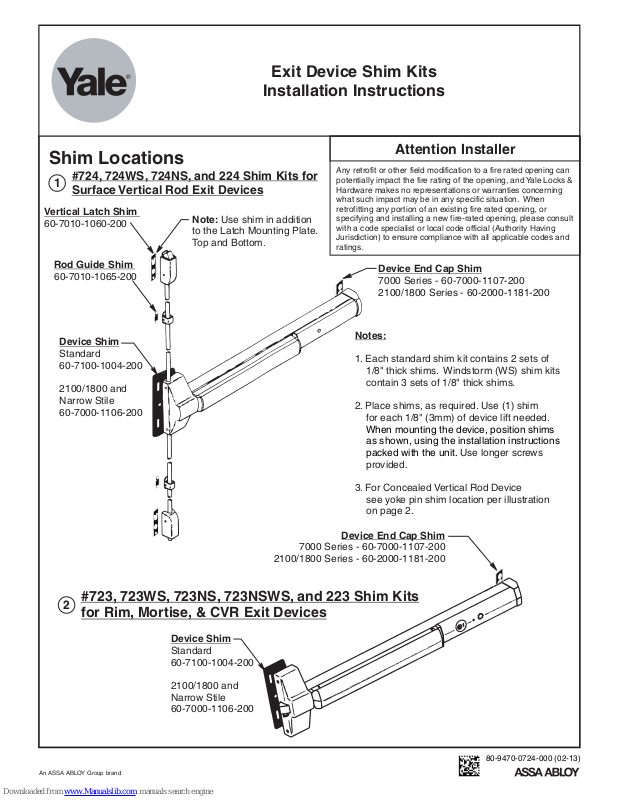

Shim Locations

#724, 724WS, 724NS, and 224 Shim Kits for

1

Surface Vertical Rod Exit Devices

Vertical Latch Shim

60-7010-1060-200

Note: Use shim in addition
to the Latch Mounting Plate.
Top and Bottom.

Exit Device Shim Kits

Installation Instructions

Attention Installer

Any retrofit or other field modification to a fire rated opening can
potentially impact the fire rating of the opening, and Yale Locks &
Hardware makes no representations or warranties concerning
what such impact may be in any specific situation. When
retrofitting any portion of an existing fire rated opening, or
specifying and installing a new fire-rated opening, please consult
with a code specialist or local code official (Authority Having
Jurisdiction) to ensure compliance with all applicable codes and
ratings.

Rod Guide Shim

60-7010-1065-200

Device Shim

Standard
60-7100-1004-200

2100/1800 and
Narrow Stile
60-7000-1106-200

Device End Cap Shim

7000 Series - 60-7000-1107-200
2100/1800 Series - 60-2000-1181-200

Notes:

1. Each standard shim kit contains 2 sets of
1/8" thick shims. Windstorm (WS) shim kits
contain 3 sets of 1/8" thick shims.

2. Place shims, as required. Use (1) shim
for each 1/8" (3mm) of device lift needed.
When mounting the device, position shims

as shown, using the installation instructions
packed with the unit. Use longer screws

provided.

3. For Concealed Vertical Rod Device
see yoke pin shim location per illustration
on page 2.

Device End Cap Shim

7000 Series - 60-7000-1107-200

2100/1800 Series - 60-2000-1181-200

#723, 723WS, 723NS, 723NSWS, and 223 Shim Kits

2

for Rim, Mortise, & CVR Exit Devices

Device Shim

Standard
60-7100-1004-200

2100/1800 and
Narrow Stile
60-7000-1106-200

An ASSA ABLOY Group brand

80-9470-0724-000 (02-13)

Caution : Strike Location Will Vary

Yoke Pin Shim Location

Device Shim

See Page 1

Strike
Caution - Strike location

will vary. Adjust strike to
compensate for the shim height.

Spindle Assembly

For Night Latch Function:

Replace Tailpiece as required
(Longer Tailpiece and Retainer Ring
provided) to maintain proper length
See Figure 1, above.

Raised Molding

Clear Raised Door Molding

Use (1) Shim for each 1/8"
(3mm) of device lift needed.

Device Shim

See Page 1

Figure 1.

Device
Mounting
Surface
(See Note)

Hold “A”

Cut Line

TRIM SERIES

WIDE STILE

NARROW STILE

DIM “A”

5/16" (8mm)

1/4" (6mm)

Yoke Pin Shim

60-7020-1064
Place under Yoke Pin. Use equal number as

device shim to match added thickness.

CAUTION:

When removing the spindle assembly from the trim,
keep the clutch spring and screws, they are needed for
reassembly. When finished, check the lock and unlock
function before mounting. Follow detail Figure 1 for
sizing the tailpiece to the door thickness.

For Thumbpiece Applications:

Thumbpiece applications follow the same procedure as
above, but the original smaller drive plate must be used
with the new tailpiece included in the kit. To do this
remove the cylinder housing assembly and the original
spindle assembly from the trim (steps 1 & 2 to left).
Remove the retaining ring from both spindle
assemblies, switch the tailpieces and reassemble
(longer tail-piece to the smaller drive plate) with a
retaining ring. Reattach to trim using clutch spring and

Spindle Assembly

2

60-7000-0217
Remove and replace
with 60-7000-0213
when required.

Cylinder Housing

1

Assembly

60-7000-0215
Must be disassembled
prior to removal of
spindle assembly.

screws; then reassemble the cylinder housing with the
cylinder.

Spindle Assembly

Trim Assembly

3

60-7000-0213
With longer Tailpiece
for RIM, SVR, and
CVR when required.

540F or 440F Trim Applications:

For 540F or 440F Trim remove roll pin from Tailpiece
assembly (keep pin), remove Tailpiece and replace with
optional Tailpiece supplied. Use initial roll pin to
reassemble. Size to fit, see Figure 1, above.

Strike

Drive Plate

Tailpiece

Caution - Strike location will vary. Adjust strike to

compensate for the shim height.

Clear Raised Door Molding

Use (1) Shim for each 1/8" (3mm) of device lift needed.
