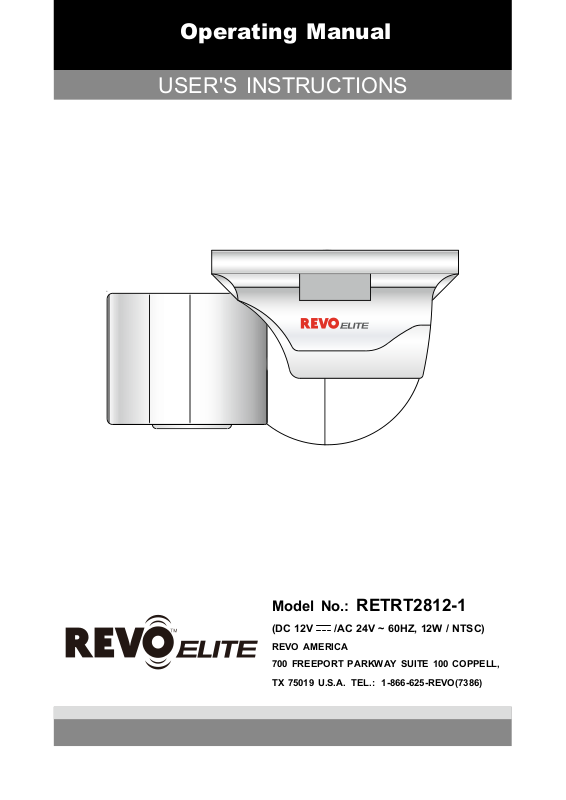

Yahee RETRT2812-1 User Manual
Operating Manual
USER'S INSTRUCTIONS
Model No.: RETRT2812-1
(DC 12V
REVO AMERICA
700 FREEPORT PARKWAY SUITE 100 COPPELL,
TX 75019 U.S.A. TEL.: 1-866-625-REVO(7386)
/AC 24V ~ 60HZ, 12W / NTSC)
USER’S MANUAL
2
USER’S MANUAL
• General Features
• Installing & Adjusting
• Dimension & Specification
• OSD Control Button
•
Camera Menu Set Up

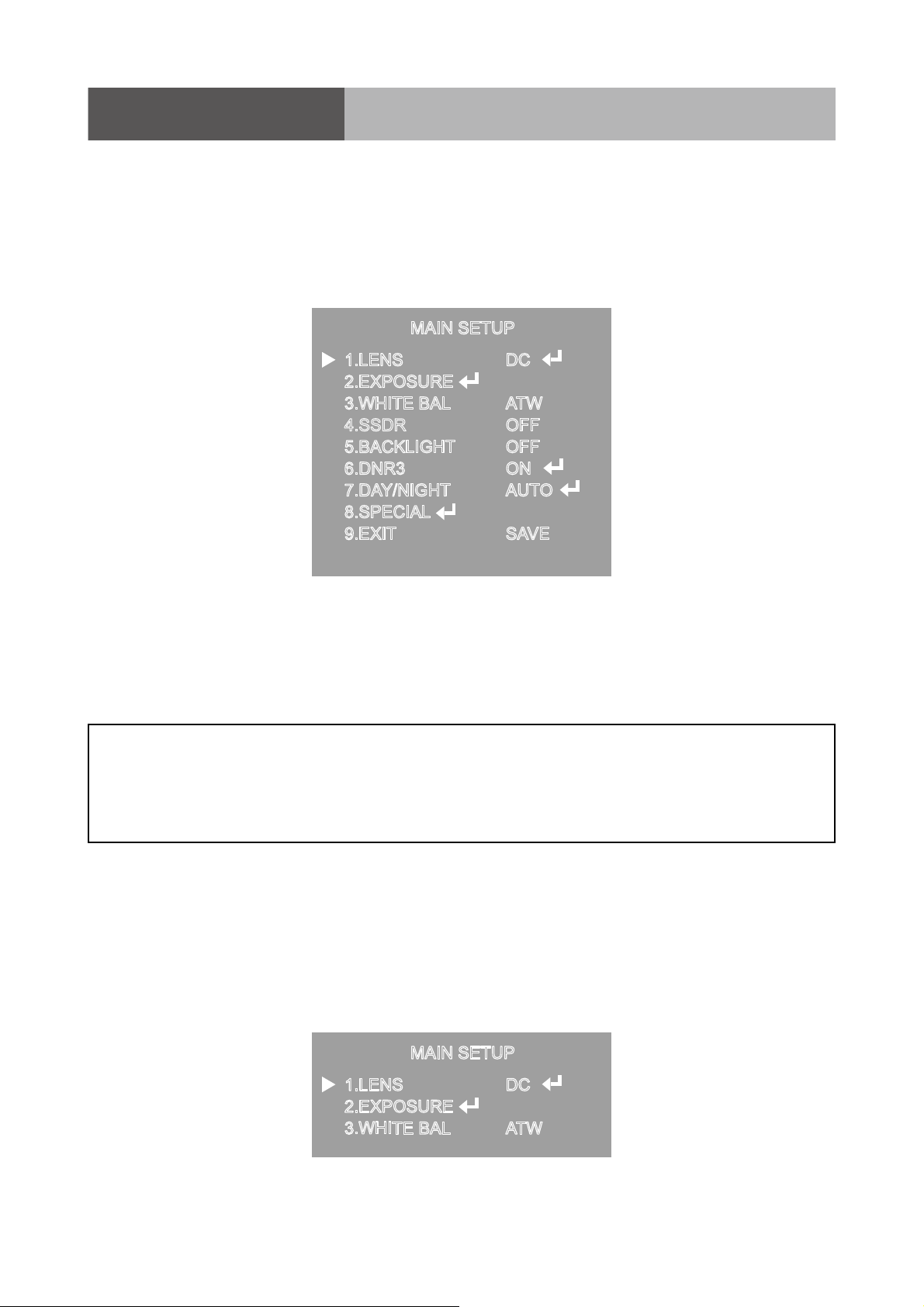

1. Menu Set Up
2
.
Lens Setting
3
.

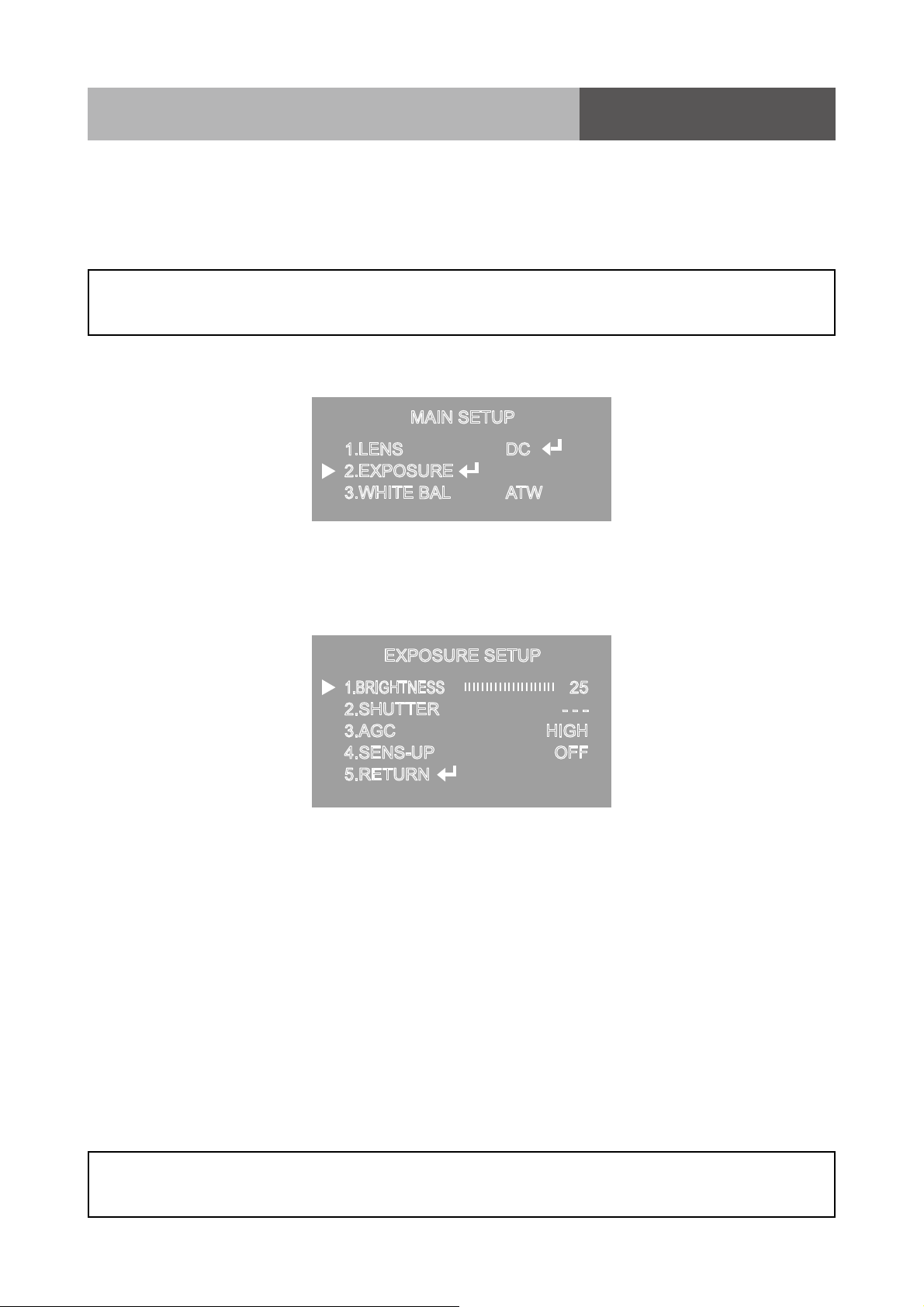

Exposure Setting
4
.

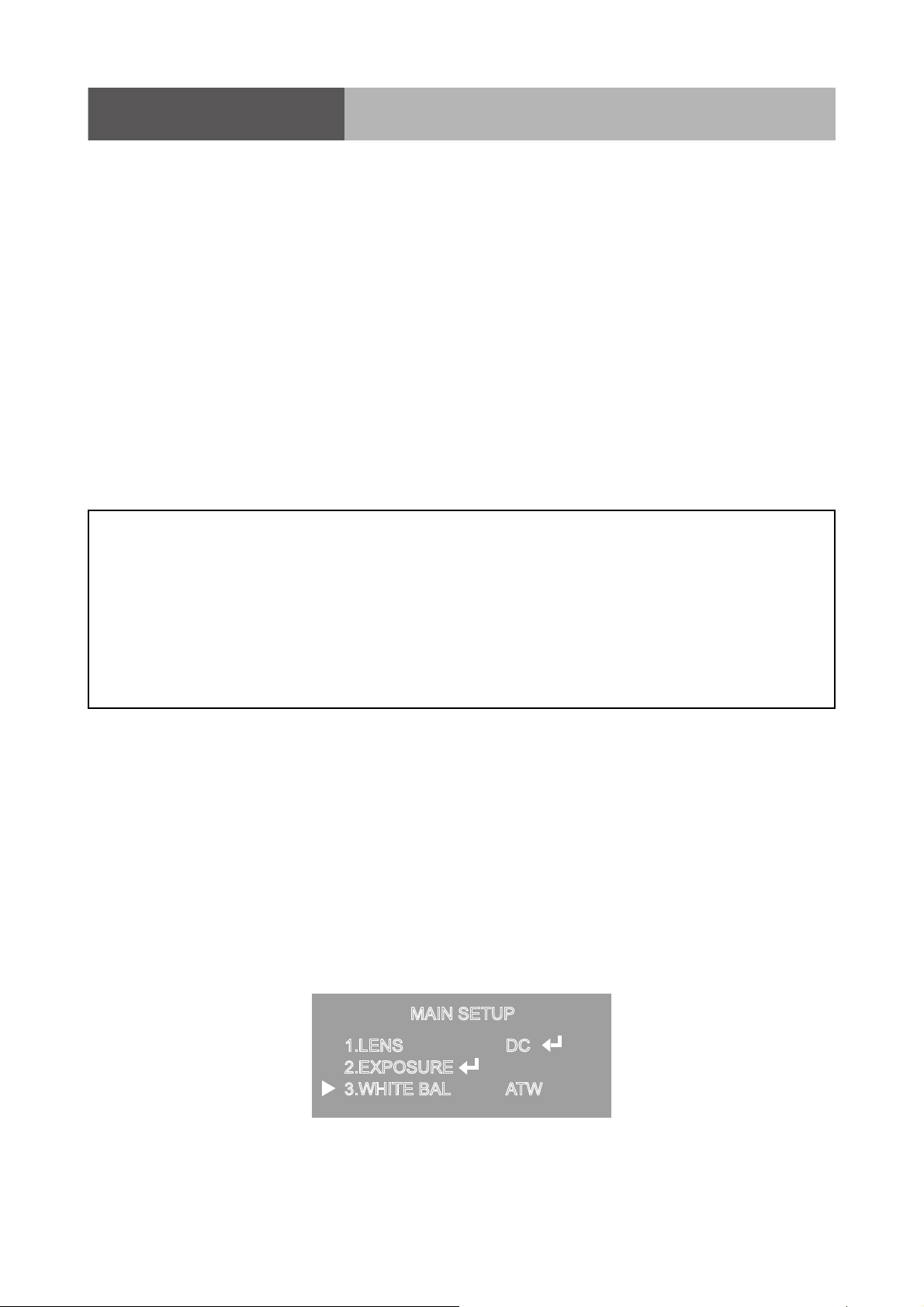

White Balance Setting
5
.

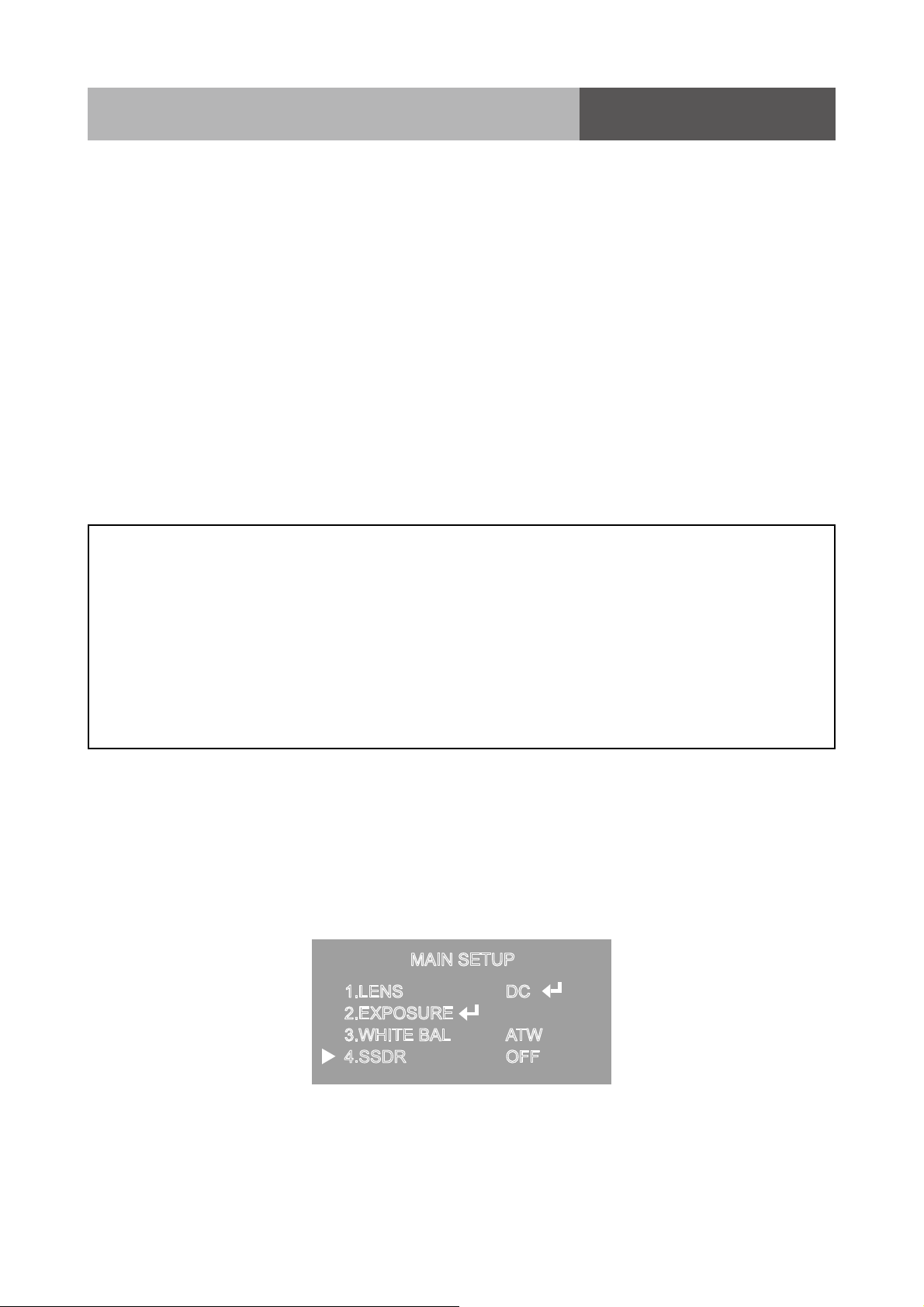

SSDR Setting
Contents
4
5
6
7
8
8
9
10
11
6
.

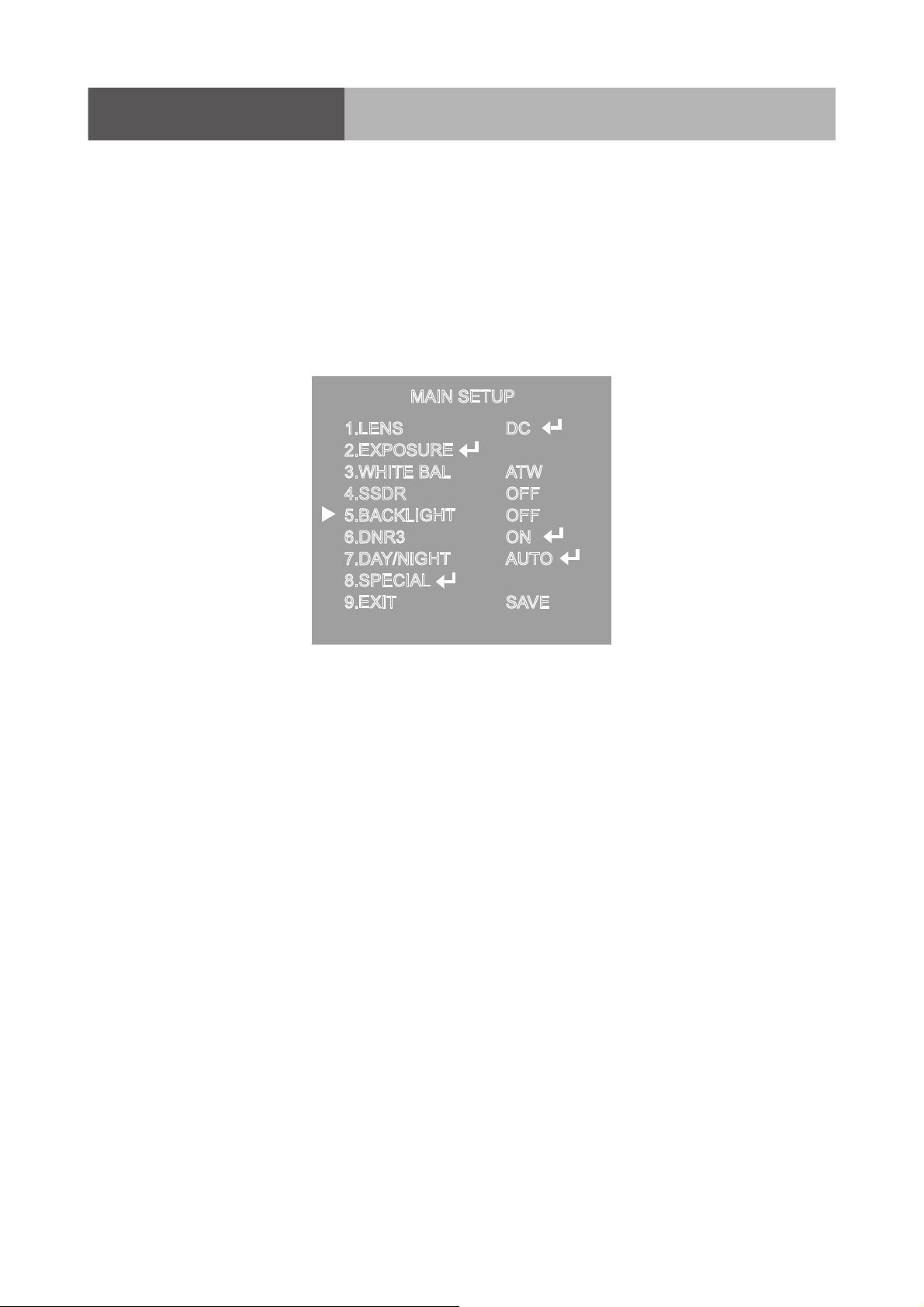

Backlight Setting
.

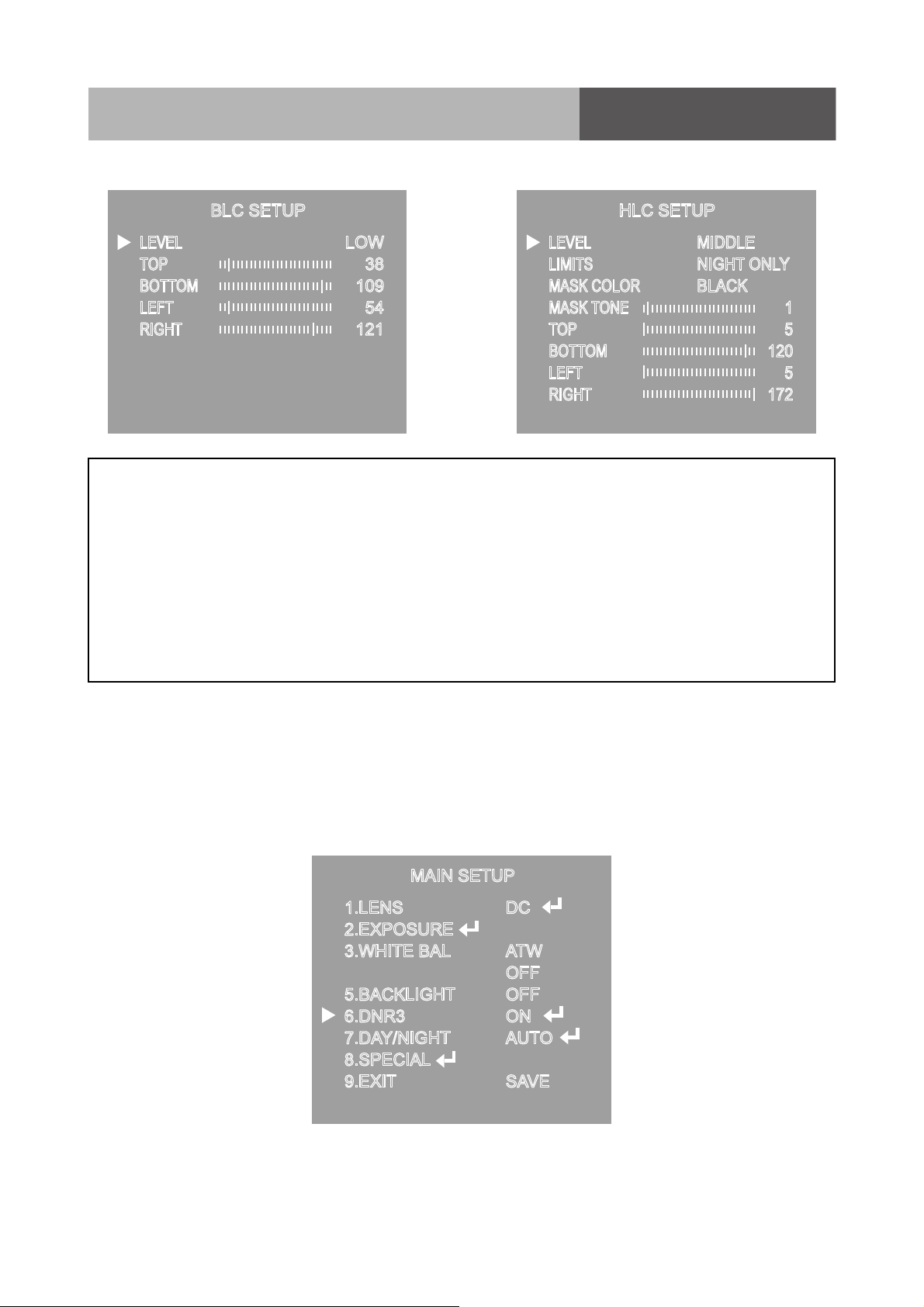

DNR3 Setting
7
8
.

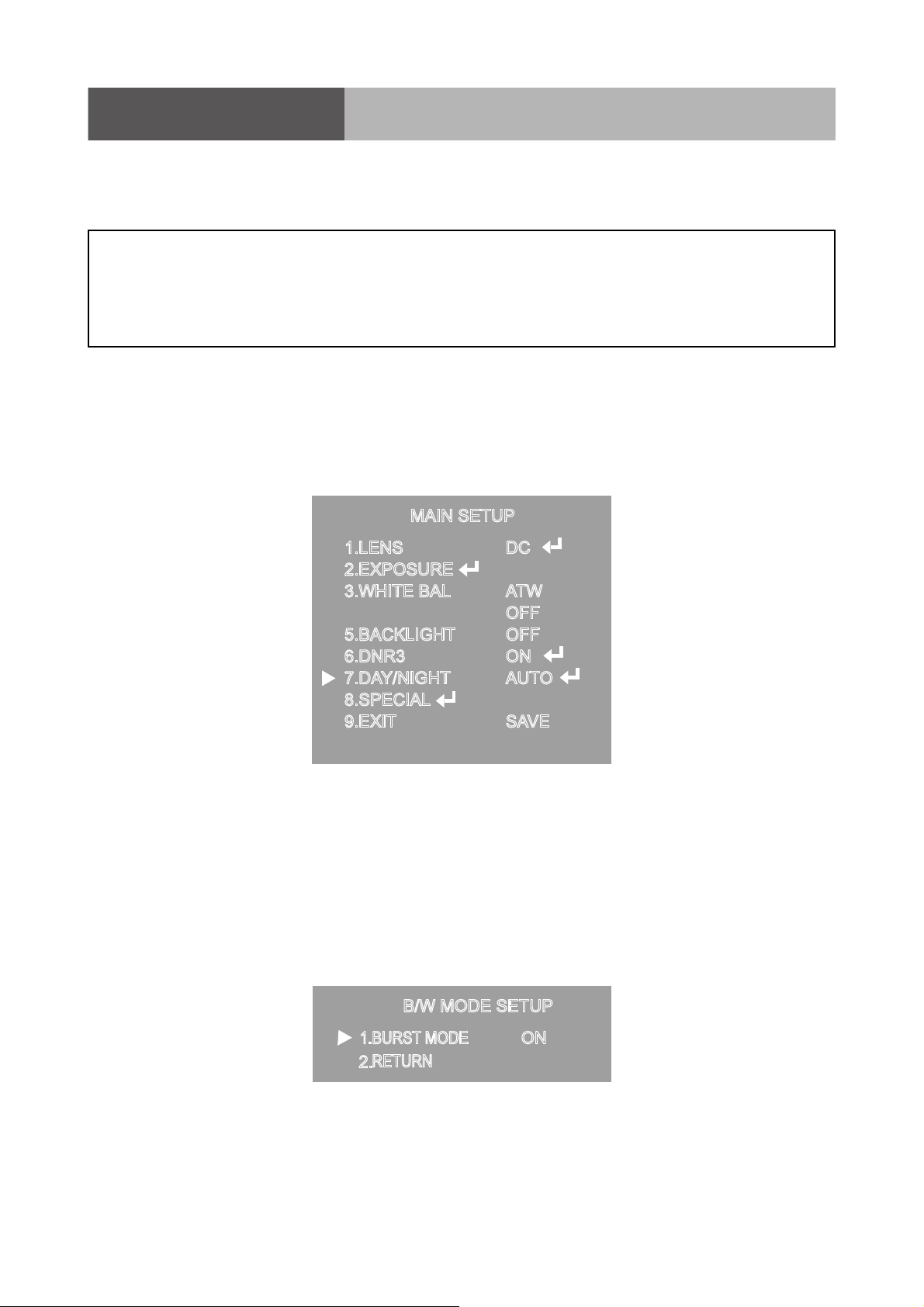

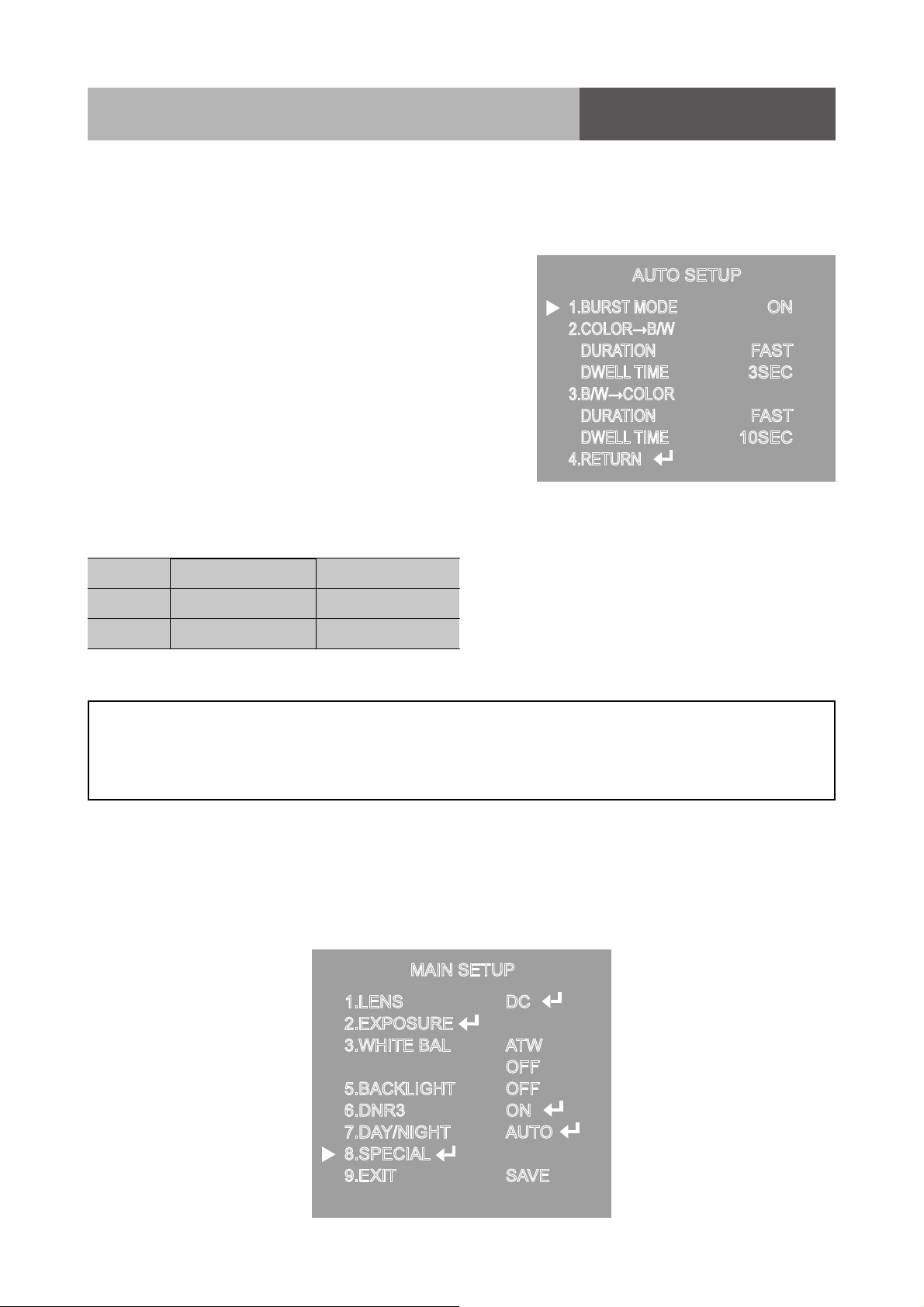

Day/Night Setting
9
.

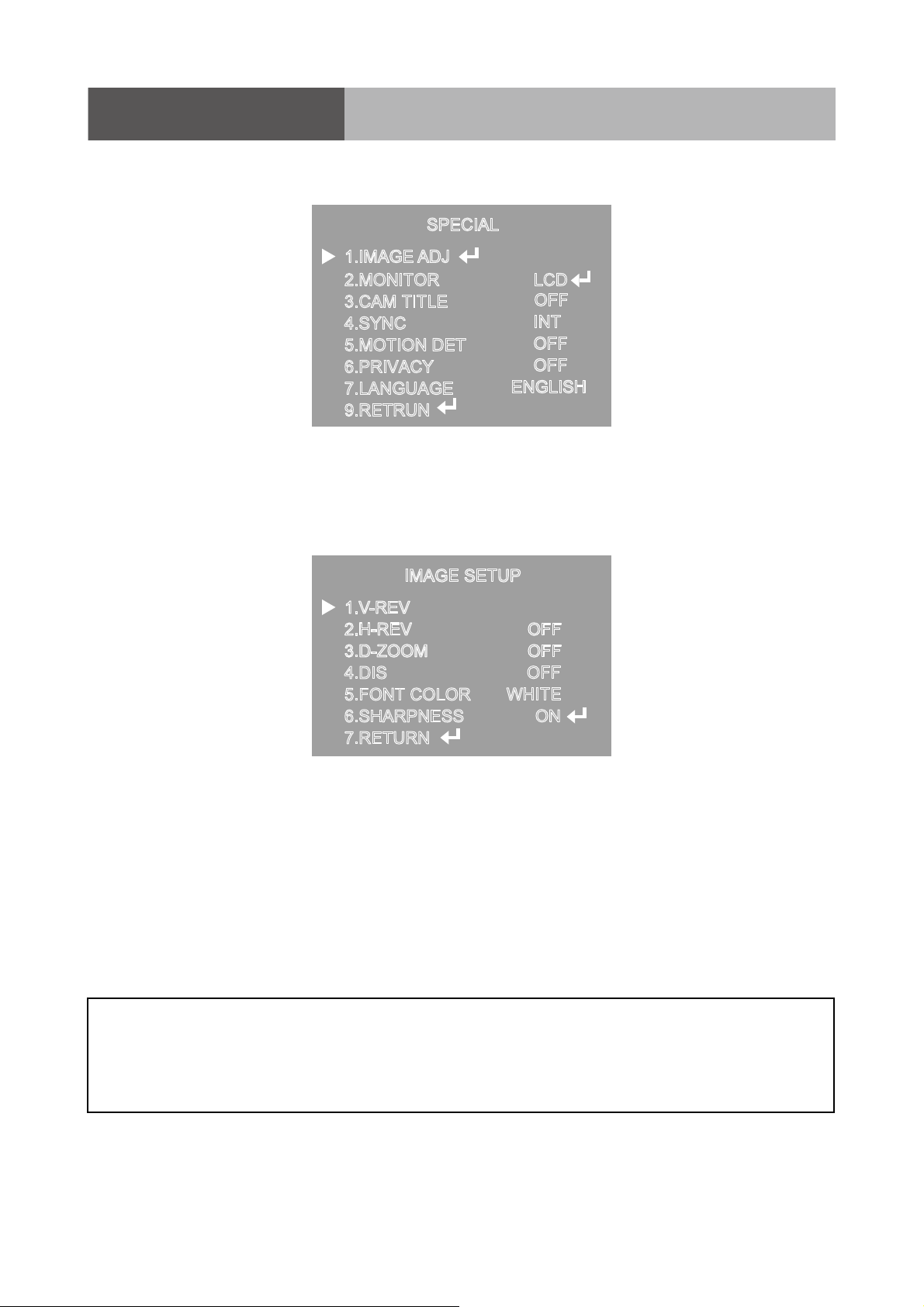

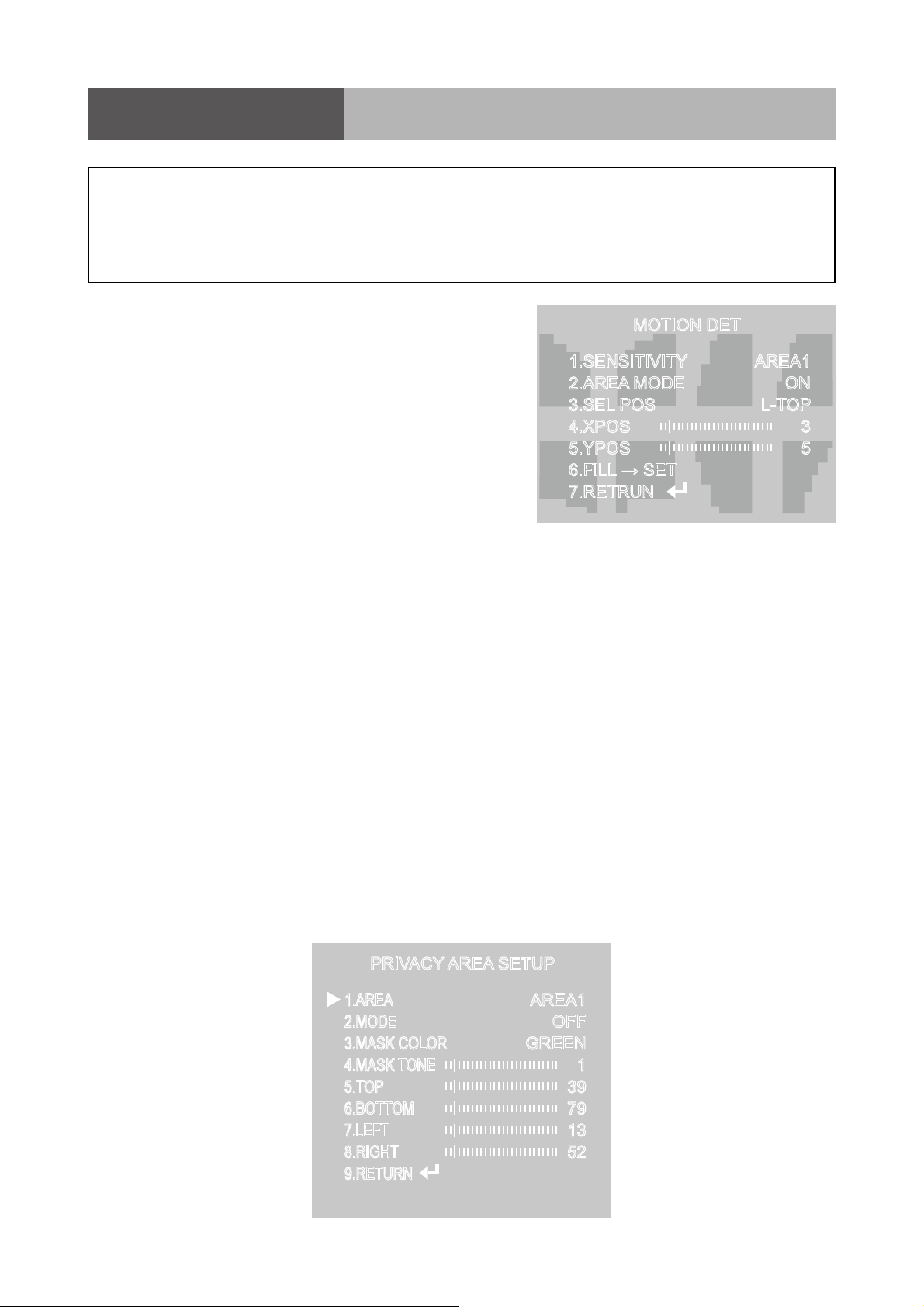

Special Setting
10
.
Exit Setting
• Trouble Shooting
12
13
14
15
19
20
3
USER’S MANUAL
General Features
•
Ultra High Sensitivity
- The built-in high sensitivity COLOR CCD produces a clear image even in 0Lux(B/W, IR-LED ON)
or lower illumination.
•
600TV Lines
- By adopting a diagonal 2.8mm(1/3") 410,000 (NTSC) pixel, 470,000(PAL) pixel SONY CCD,
the camera produces clear picture quality with a horizontal resolution of 600 TV lines for
color and a horizontal resolution of 700TV lines for BW mode.
•
DNR3
-
The high-performance W-V DSP chip effectively removes low-light gain noise and
provide clear images even in dark environments.
•
Day & Night
- This camera has a function that automatically selects the mode that is appropriate for
ghosting to
daytime or night-time conditions. The COLOR mode operates in daytime conditions to
provide optimum colors, and BW mode operates in night-time conditions to enhance the
definition of the image.
•
SSDR
- For images with high contrast between bright and dark Areas from difficult lighting conditions
such as backlighting, this camera selectively illuminates darker Areas while retaining the same
light level for brighter Areas to even out the overall brightness.
•
Miscellaneous Functions
- HLC(High Light Compensation), SENS-UP, FLIP(H/V-REV), D-ZOOM, SHARPNESS, MOTION
DETECTION and PRIVACY functions are provided.
•
Disk Saving Effects
- Up-most and advanced DNR technology camera picture quality has a disk saving effects due
Image sizes are smaller than standard CCTV camera image.
•
Controlled by OSD Menu
to
- The camera can be controlled by selecting the menu text displayed on the monitor screen.
•
IP66 Approved / Vandal Proof / RoHS Compliance
- To prevent from external strong impact. It has a high strength and durable exterior material of die
cast aluminum body. It also has designed to prevent from shock, dust and rain resistant. The
turret camera has designed to install anywhere even at exterior places.
4
USER’S MANUAL
1. Installation
INSTALLING & ADJUSTING
- Place the mounting plate on a flat installation surface
and mount with the provided screws.
- Feed the cable through the center of the mounting plate.
- Place the camera body in the mounting plate socket
and hold.
- Then place the outer plate over the camera body &
mounting plate and tighten side screws to lock the
camera into place.
- Loosen side screws to adjust camera angle as needed,
then tighten the side screws to lock into place.
2. Focus/Zoom Screw
- To widen the viewing angle turn the Zoom screw
to "W"(Wide) to obtain a closer view turn it to
"T"(Tele)
- Turn the Focus screw to "N"(Near) or ""
(Far) until the sharpest Focus is made.
5
USER’S MANUAL
DIMENSION & SPECIFICATION
1. Dimension & Connection
Dimension
2. Specification
Image Pick-Up Device
TV System
Tot a l P ixels
Scanning Frequency
Scanning System
Synchronization
Resolution
Minimum Illumination
S/N Ratio
Video Output
Electronic Shutter Speed
OSD
SSDR
BLC
Day & Night
Gain Control
White Balance
SENS-UP
Motion Detection
Privacy Masking
DNR3 (Digital Noise R eduction)
Digital Zoom
DIS (Digital Image Stabilization)
Sharpness
Flip / Mirror On /
Power Supply
Power Consumption
Lens
Operational Temp
Storage Temp
Dimension
Weight
Available
Low / High /
Auto / O
DC Auto Iris Varifocal Lens(2.8mm-12mm)
.
On /
.
140mm
1/3” Sony Super HAD CCD
NTSC
811(H) * 508(V)
768(H) * 494(V)
15.734KHz(H) & 59.94Hz(V )
2:1 Interlace
Internal / Line Lock
600TV Lines
IR LED OFF: 0.15 Lux, IR LED ON: 0.00002 Lux
More than 52dB
CVBS: 1.0Vp-p / 75
NTSC=(1/60sec~1/120,000sec) / PAL=(1/50sec~1/120,000sec)
On / O Level adjustable)
BLC / HLC / OFF
Color / BW / AUTO
ATW / Outdoor / Indoor / Manual / AWC (1,700°K ~ 11,000°K)
On / O Programmable Zones)
On / O
On / O Level adjustable)
On / O x1 ~ x16)
On / O Level adjustable)
DC 12V / AC 24V Dual Voltage
IR LED OFF 200mA(DC), IR LED OFF 70mA(AC) / IR LED ON 670mA(DC), IR LED ON 240mA(AC)
-10 ~ +50 Deg C. RH95% MAX.
-20 ~ +60 Deg C. RH95% MAX.
140mm(W) * 111mm(H) * 180mm(D)
1800g
Connection
Selectable x2 ~ x512)
Programmable Zones)
6
USER’S MANUAL
OSD Control Button
1. OSD button could be used when it needs to OSD control.
Up button: Moves the cursor upwards. Use this button to select an item
or adjust the parameters.
Down button: Moves the cursor downwards. Use this button to select an
item or adjust the parameters.
•
Left button: Moves the cursor to the left. Use this button to select or
adjust the parameters of the selected item. The parameter changes
each time this button is pressed.
•
Right button: Moves the cursor to the right. Use this button to select or
adjust the parameters of the selected item. The parameter changes each
time this button is pressed.
•
Set button: Executes selections and displays a submenu for an item with
the
mark.
7
