Yaesu Musen 10334620 Users manual

Page 1

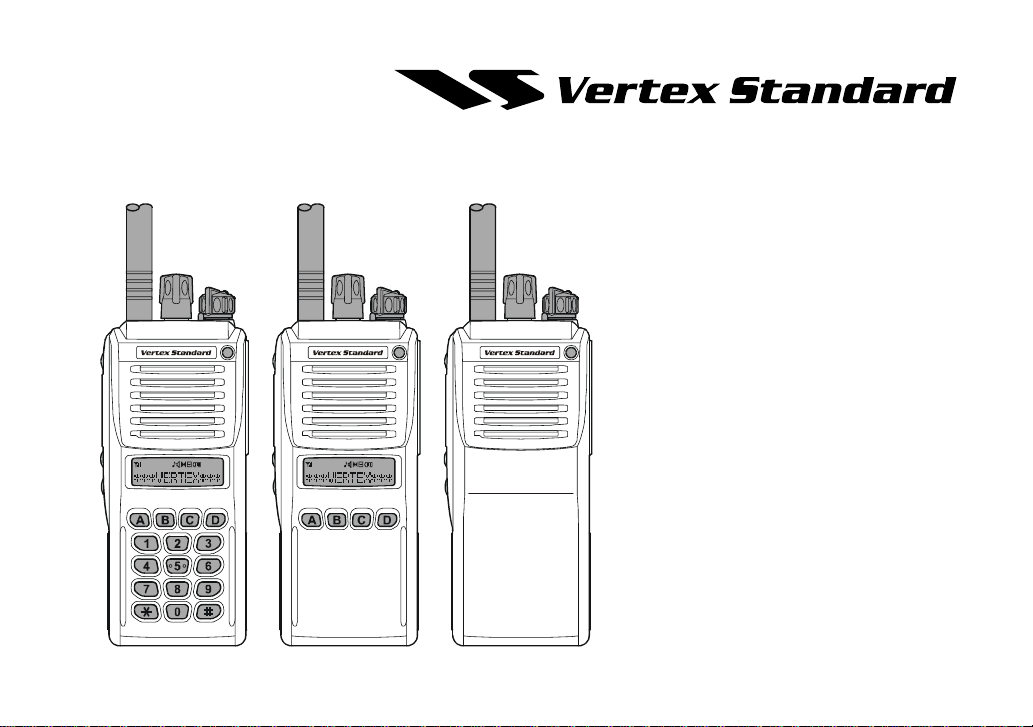

16 Key Version 4 Key Version Non-LCD Version
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
VX-920/-970
S
ERIES
OPERATING MANUAL
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
10900 Walker Street, Cypress, CA 90630, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road, Kwun Tong, Kowloon, Hong Kong
Page 2
CONTENTS
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Note .................................................................................. 2
Warning! FCC RF Exposure Requirements ................... 3
Controls & Connectors (16-Key Version) ...................... 4
Controls & Connectors (4-Key Version) ........................ 5
Controls & Connectors (Non-LCD Version) .................. 6
LCD Icons & Indicators (16-Key & 4-Key Versions) ..... 7
Before You Begin ............................................................ 8
Battery Pack Installation and Removal ....................... 8
Low Battery Indication ............................................... 8
Congratulations!
You now have at your fingertips a valuable communications tool-a VERTEX STANDARD two-way radio! Rugged, reliable and easy to use, your VERTEX STANDARD radio will keep you in constant touch with your colleagues for years to come, with negligible maintenance down-time.
Please take a few minutes to read this manual carefully. The information presented here will allow you to derive maximum performance from your radio, in case questions arise later on.
We're glad you joined the VERTEX STANDARD team. Call on us anytime, because communications is our business. Let us help you get your message across.
Notice!: There are no owner-serviceable parts inside the radio. All service jobs must be referred to an autho­rized VERTEX STANDARD Service Representative. Consult your Authorized VERTEX STANDARD Dealer for installation of optional accessories.
Operation ......................................................................... 9
Preliminary Steps ........................................................ 9
Operation Quick Start ................................................. 9
Advanced Operation ...................................................... 12
Programmable Key and Toggle Switch Functions .... 12
Descriptipon of Operating Functions ....................... 14
ARTS (Auto Range Transpond System) ....................... 22
DTMF Paging System ................................................... 22
User Set Mode (16-Key & 4-Key Versions) .................. 23
Optional Accessories .................................................... 24
Page 3
NOTE
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
In order to maintain the specified water integrity performance, periodic maintenance is recommended.Should the radio sustain a severe shock (e.g. if it is dropped), the water integrity may be compromised,
requiring service. Should this occur, contact your Authorized Vertex Dealer or Vertex Standard USA, Inc.
Important Notice for North American Users Regarding 406 MHz Guard Band
The U.S. Coast Guard and National Oceanographic and Atmospheric Administration have requested the cooperation of the U.S. Federal Communications Commission in preserving the integrity of the protected frequency range 406.0 to 406.1 MHz, which is reserved for use by distress beacons. Do not attempt to program this apparatus, under any circumstances, for operation in the frequency range 406.0 - 406.1 MHz if the apparatus is to be used in or near North America.
Warning - Frequency band 406 - 406.1 MHz is reserved for use ONLY as a distress beacon by the US Coast Guard and NOAA. Under no circumstance should this frequency band be part of the preprogrammed operating frequencies of this radio.
VX-920/-970 SERIES OPERATING MANUAL
1
Page 4
WARNING! FCC RF EXPOSURE REQUIREMENTS
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
This Radio has been tested and complies with the Federal Communications Commission (FCC) RF exposure limits for Occupational Use/Controlled exposure environment. In addition, it complies with the following Stan­dards and Guidelines:
FCC 96-326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation.
FCC OET Bulletin 65 Edition 97-01 (1997) Supplement C, Evaluating Compliance with FCC Guidelines for
Human Exposure to Radio Frequency Electromagnetic Fields. ANSI/IEEE C95.1-1992, IEEE Standard for Safety Levels with Respect to Human Exposure to Radio
Frequency Electromagnetic Fields, 3 kHz to 300 GHz. ANSI/IEEE C95.3-1992, IEEE Recommended Practice for the Measurement of Potentially Hazardous Elec-
tromagnetic Fields - RF and Microwave.
WARNING:
This radio generates RF electromagnetic energy during transmit mode. This radio is designed for and classified as Occupational Use Only, meaning it must be used only during the course of employment by individuals aware of the hazards, and the ways to minimize such hazards. This radio is not intended for use by the General Population in an uncontrolled environment.
CAUTION:
To ensure that your expose to RF electromagnetic energy is within the FCC allowable limits for occupa­tional use, always adhere to the following guidelines:
This radio is NOT approved for use by the general population in an uncontrolled exposure envi-
ronment. This radio is restricted to occupational use, work related operations only where the radio operator must have the knowledge to control his or her RF exposure conditions. When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm) away
from your mouth and keep the antenna at least 2 inches (5 cm) away from your head and body.
2
VX-920/-970 SERIES OPERATING MANUAL
Page 5
WARNING! FCC RF EXPOSURE REQUIREMENTS
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
The radio must be used with a maximum operating duty cycle not exceeding 50%, in typical
Push-to-Talk configurations. DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting more than 50% of the time can cause FCC RF exposure compliance requirements to be ex­ceeded. The radio is transmitting when the red LED on the top of the radio is illuminated. You can cause the radio to transmit by pressing the P-T-T button. SAR compliance for body-worn use was only demonstrated for the specific belt-clip Part Number
(CLIP-920). Other body-worn accessories or configurations may NOT comply with the FCC RF exposure requirements and should be avoided. DO NOT transmit when the radio is used in Body Worn configuration with the following acces-
sory: belt-clip. It must be used ONLY for (1) there is 4 cm distance from the body during transmitting, (2) monitoring purposes, using the speaker only and (3) for carrying purposes. Always use Vertex Standard authorized accessories.
The information listed above provides the user with the information needed to make him or her
aware of RF exposure, and what to do to assure that this radio operates with the FCC RF expo­sure limits of this radio. Electromagnetic Interference/Compatibility
During transmissions, this radio generates RF energy that can possibly cause interference with other devices or systems. To avoid such interference, turn off the radio in areas where signs are posted to do so. Do not operate the transmitter in areas that are sensitive to electromagnetic radiation such as hospitals, health care facilities, aircraft, and blasting sites.
VX-920/-970 SERIES OPERATING MANUAL
3
Page 6
SIDE SEL Key
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
CONTROLS & CONNECTORS
VOL/PWR Knob
CH (Channel) Selector
Antenna Jack
TOP SEL Key
TOGGLE Switch
SpeakerMain Microphone
(
16-KEY VERSION
LED Indicator
Steady Red:
Steady Green:
Blinking Green:
Dealer Programmed Color
)
Transmitting in progress
Tone Squelch in defeated condition
Busy Channel
Emergency, 5-Tone Decoded, or 2-Tone Decoded
: one of “Flashing in white,”
“Continuation changes in sequential colors,” or “tog­gling the two colors.”
:
PTT Switch
MONITOR Button
LAMP Key
4
MIC/SP Jack (
External MIC/SP
Sub Microphone
(
Noise Canceling MIC
)
Battery Pack LatchLCD (Liquid Crystal Display
16-Button DTMF Keypad
)
)
VX-920/-970 SERIES OPERATING MANUAL
Page 7
SIDE SEL Key
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
CONTROLS & CONNECTORS
VOL/PWR Knob
CH (Channel) Selector
Antenna Jack
TOP SEL Key
TOGGLE Switch
(
4-KEY VERSION
LED Indicator
SpeakerMain Microphone
)
Steady Red:
Transmitting in progress
Steady Green:
Tone Squelch in defeated condition
Blinking Green:
Busy Channel
Dealer Programmed Color
Emergency, 5-Tone Decoded, or 2-Tone Decoded
: one of “Flashing in white,”
“Continuation changes in sequential colors,” or “tog­gling the two colors.”
:
PTT Switch
MONITOR Button
LAMP Key
VX-920/-970 SERIES OPERATING MANUAL
MIC/SP Jack (
External MIC/SP
Sub Microphone
(
Noise Canceling MIC
)
Battery Pack LatchLCD (Liquid Crystal Display
4-Button Programmable Key
)
)
5
Page 8
SIDE SEL 1 Key
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
CONTROLS & CONNECTORS
VOL/PWR Knob
CH (Channel) Selector
Antenna Jack
TOP SEL Key
TOGGLE Switch
SpeakerMain Microphone
(
NON-LCD VERSION
LED Indicator
Steady Red:
Transmitting in progress
Steady Green:
Tone Squelch in defeated condition
Blinking Green:
Busy Channel
Dealer Programmed Color
Emergency, 5-Tone Decoded, or 2-Tone Decoded
)
:
: one of “Flashing in white,”
“Continuation changes in sequential colors,” or “tog­gling the two colors.”
PTT Switch
MONITOR Button
LAMP Key
6
Battery Pack Latch
MIC/SP Jack (
External MIC/SP
Sub Microphone
(
Noise Canceling MIC
VX-920/-970 SERIES OPERATING MANUAL
)
)
Page 9
LCD ICONS & INDICA TORS
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
This channel on “SCAN” List
Priority Scan is activated
“DUAL WATCH” is activated
Low Transmit Power Mode On
Option SW (Key Function)
is activated
RSSI Indicator (four steps)
Encryption is activated
(
16-KEY & 4-KEY VERSIONS
“CALL” Indicator Receiver Monitor
“Talk-Around” is enabled
“Voice Message” is received
12 Character Alpha-numeric Display
)
Battery Indicator
SUB-LCD
888: Channel Group Number
-P-: Priority Channel
-H-: Home Channel In: ARTS “In Range” Out: ARTS “Out of Range”
“Group Scan” is enabled
VX-920/-970 SERIES OPERATING MANUAL
7
Page 10
BEFORE YOU BEGIN
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Battery Pack Installation and Removal
To install the battery, hold the transceiver with your
left hand, so your palm is over the speaker and your thumb is on the top of the belt clip. Carefully mate the battery’s four insertion slots with their corresponding alignment tabs on the transceiver case, while tilting the Belt Clip outward. Proper alignment occurs with the battery pack offset about 1/2 inch from the top edge of the battery com­partment.
Guide the pack on to the tabs with a slight inward
pressure, then slide the battery pack upward, un­til it locks in place with a “Click.”
Tilt the Belt Clip
Insert the Battery Pack
To remove the battery, turn the radio off and re-
move any protective cases. Slide the Battery Pack Latch on the bottom of the radio toward the front panel while sliding the battery down about 1/2 inch. Then lift the battery out from the radio while un­folding the Belt Clip.
Do not attempt to open any of the re­chargeable Lithium-Ion packs, as they
could explode if accidentally short-circuited.
Low Battery Indication
As the battery discharges during use, the voltage gradually becomes lower. When the battery voltage becomes to low, substitute a freshly charged battery and recharge the depleted pack. The LED indicator on the top of the radio will blink red when the battery voltage is low.
Caution
Danger of explosion if battery is replaced with an incorrect battery. Replace only with the same or equivalent type.
8
VX-920/-970 SERIES OPERATING MANUAL
Page 11
Preliminary Steps
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Install a charged battery pack
onto the transceiver, as de­scribed previously.
Screw the supplied antenna
onto the Antenna jack. Never attempt to operate this trans­ceiver without an antenna con­nected.
If you have a Speaker/Micro-
phone, we recommend that it not be connected until you are familiar with the basic operation of the VX-920/-970.
VX-920/-970 SERIES OPERATING MANUAL
OPERATION
Operation Quick Start
Turn the top panel’s
VOL/PWR knob clock­wise to turn the radio on.

Turn the top panel’s CH
selector knob to choose the desired operating channel. On the 16-key and 4-key versions, a channel name will appear on the LCD.
If you want to select the operating channel from
a different Memory Channel Group, press the Pro­grammable key (assigned to the Memory Group Up or Down function) to select the Memory Chan­nel Group you want before selecting the operat­ing channel. A Group name will appear on the LCD whenever the Programmable key is pressed. Note: Some models are programmed so that the operating channels are selected by the Program­mable key and the memory channel group is se­lected by the CH selector knob. For further de­tails, contact your VERTEX STANDARD dealer.
9
Page 12
Rotate the VOL/PWR
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
knob to set the volume level. If no signal is present, press and hold in the MONITOR button (under the PTT switch) more than 2 seconds; background noise will now be heard, and you may use this to set the VOL/PWR knob for the desired audio level. Press and hold the MONITOR button more than 2 sec­onds (or press the MONITOR button twice) to quiet the noise and resume normal (quiet) moni­toring.
To transmit, monitor the
channel and make sure it is clear. Press and hold the PTT switch. Speak into the mi­crophone area of the front panel grille (above the upper left edge of the LCD) in a normal voice level. To return to the Receive mode, release the PTT switch.
OPERATION
Press the (Orange) TOP
Switch the top panel’s
SEL key or SIDE SEL key (above the PTT switch) to activate one of the preprogrammed func­tions which may have been enabled at the time of programming by the dealer. See the next sec­tion for details regarding the available features.
TOGGLE switch to the [A], [B]
, or [Center
] position to activate one of the pre-programmed functions which may have been enabled at the time of programming by the dealer. When this switch is in the [A(left)],
[B(
right)], or [Center] position, the feature pro­grammed (by your dealer) to that switch position will be activated. See the next section for details regarding the available features.
10
VX-920/-970 SERIES OPERATING MANUAL
Page 13
OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
If a Speaker/Microphone is available, remove the
plastic cap and its two mounting screws from the right side of the transceiver, then align the con­nector of the Speaker/Microphone on the trans­ceiver body; secure the connector pin using the screws supplied with the Speaker/Microphone. Hold the speaker grille up next to your ear while receiving. To transmit, press the PTT switch on the Speaker/Microphone, just as you would on the main transceiver’s body, and speak into the mi­crophone on a normal voice level.
Note 1): Save the original plastic cap and its mounting screws. They should be reinstalled when not using the Speaker/Microphone.
2) When you press the PTT switch on the Speaker/Microphone, it disables the internal microphone, and vice versa.
If the Busy Channel Lockout feature has been
programmed on a channel, the radio will not trans­mit when a carrier is present. Instead, the radio will generate short beep three times and indicate “
ERROR
*
key versions). Release the PTT switch and wait for the channel to be clear of activity.
” on the display (16-key and 4-
*
If CTCSS or Digital Coded Squelch (DCS) Lock-
out has been programmed on a channel, the radio can transmit only when there is no carrier being received or when the carrier being received in­cludes the correct CTCSS tone or DCS code.
Automatic Time-Out Timer
If the selected channel has been programmed for automatic time-out, you must limit the length of each transmission. While transmitting, a beep will sound 10 seconds before time-out. Another beep will sound just before the deadline; the “TX” indicator will dis­appear and transmission will cease soon thereafter. To resume transmitting, you must release the PTT switch and wait for the “penalty timer” to expire.
VX-920/-970 SERIES OPERATING MANUAL
11
Page 14
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Programmable Key and Toggle Switch Functions
All versions of the VX-920/-970 include the TOP SEL, SIDE SEL, MONITOR, and LAMP keys, and
the TOGGLE switch. The sions include the [A], [B], [C]
Furthermore, the [#]
function keys. The Programmable key and
16-key version includes the [
TOGGLE switch functions can be customized, via programming by your VERTEX STANDARD dealer, to meet your communications/network requirements. Some features may require the purchase and instal­lation of optional internal accessories. The possible Programmable key and TOGGLE switch program­ming features are illustrated at the right, and their functions are explained on page 10. For further de­tails, contact your VERTEX STANDARD dealer.
FUNCTION
None Monitor
2
Lamp Scan Dual Watch Low Power Talk Around TX Save Disable Encryption Follow-Me Scan
1
16-key and 4-key ver-
, and [D] function keys.
TOP SEL
SIDE SEL MONITOR LAMP
12
For future reference, check the box next to each func­tion that has been assigned to the Programmable key and TOGGLE switch on your particular radio, and keep it handy.
]
and
FUNCTION
None Scan Dual Watch Low Power Talk Around TX Save Disable Encryption Follow-Me Scan Lock Audio PC (PIT) Clear Voice Group Recall Shortcut
1: Requires FVP-25 or FVP-36 Encryption Unit 2: This function does not select on the Non-LCD Version 3: This function is only selected on the 16-key Version 4: Requires DVS-5 Voice Storage Unit
PROGRAMMABLE K EY
1
16-KEY & 4-KEY VERSIONS 16-KEY VERSION
[A] [B] [C] [D]
TOGGLE SWITCH (POSITION
A
Group 1 Group 2 Group 3
Center B
Group 1 Group 2 Group 3
[] [#]
)
Group 1 Group 2 Group 3
VX-920/-970 SERIES OPERATING MANUAL
Page 15
FUNCTION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Follow-Me Dual Watch
2
Group Up Group Down Channel Up Channel Down
2
Set Call/Reset Call 1 Call 2 Call 3 Call 4 Call 5 Code Up Code Down Code Set Speed Dial Option SW 1 Option SW 2 Emergency Home Selectable Tone Direct Channel #1 Direct Channel #2 Direct Channel #3 Direct Channel #4 REC/PLAY SQL AF Min Volume Status Set Status Up Status Down Status Check Audio PC (PIT) Lone Worker DTMF Code Set TA Scan
2
2
2
2
2
3
2
4
2
2
2
2
2
VX-920/-970 SERIES OPERATING MANUAL
ADVANCED OPERATION
PROGRAMMABLE K EY
TOP SEL SIDE SEL MONITOR LAMP
2
2
2222
3
16-KEY & 4-KEY VERSIONS 16-KEY VERSION
[A] [B] [C] [D]
[] [#]
13
Page 16
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Description of Operating Functions
ONITOR
M
Press the assigned programmable key to cancel CTCSS- and DCS-controlled squelch; the BUSY/ TX indicator will glow green. Press and hold this button for 1.5 seconds to hear background noise (unmute the audio); the BUSY/TX indicator will blink green.
LAMP
Press the assigned programmable key to illuminate the LCD for five seconds.
SCAN
The Scanning feature is used to monitor multiple sig­nals programmed into the transceiver. While scan­ning, the transceiver will check each channel for the presence of a signal, and will stop on a channel if a signal is present.
To activate scanning:
Press the assigned programmable key, or set the
toggle switch to the assigned position to activate scanning.
The scanner will search the channels of each chan-
nel, looking for active ones; it will pause each time it finds a channel on which someone is speaking.
Press the assigned programmable key again, or
set the toggle switch to a different position to dis­able scanning. Operation will revert to the pro­grammed revert channel.
Note: Your dealer may have programmed your radio to stay on one of the following channels if you press the PTT switch during scanning pause:
Current channel (“Talk Back”)“Last Busy” channel“Priority” channel“Home” channel“Scan Start” channel
14
VX-920/-970 SERIES OPERATING MANUAL
Page 17
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
DUAL WAT CH
The Dual Watch feature is similar to the SCAN fea­ture, except that only two channels are monitored:
The current operating channel; andThe Priority channel.
To activate Dual Watch:
Press the assigned programmable key, or set the
toggle switch to the assigned position.
The scanner will search the two channels; it will
pause each time it finds a channel on which some­one is speaking.
To stop Dual Watch:
Press the assigned programmable key, or set the
toggle switch to a different position.
Operation will revert to the “Dual Watch Start”
channel.
LOW POWER
Press the assigned programmable key, or set the toggle switch to the assigned position to set the radio’s transmitter to the “Low Power” mode, thus extending battery life. Press the key again, or set the toggle switch to a different position to return to “Nor­mal” transmit power when in difficult terrain.
In the 16-key and 4-key versions, the “ be indicated on the display when the radio’s trans­mitter is set to the “Low Power” mode.
TALK AROUND (TA
Press the assigned programmable key, or set the toggle switch to the assigned position to activate the Talk Around feature when you are operating on du­plex channel systems (separate receive and transmit frequencies, utilizing a “repeater” station). The Talk Around feature allows you to bypass the repeater sta­tion and talk directly to a station that is nearby. This feature has no effect when you are operating on “sim­plex” channels, where the receive and transmit fre­quencies are already the same.
In the 16-Key and 4-Key versions, the “ be indicated on the display when the “TA” function is activated.
Note that your dealer may have mode provision for “Talk Around” channels by programming “repeater” and “Talk Around” frequencies on two adjacent chan­nels. If so, the key may be used for one of the other Pre-Programmed Functions.
)
” icon will
” icon will
VX-920/-970 SERIES OPERATING MANUAL
15
Page 18
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
TX SAVE DISABLE
Press the assigned programmable key, or set the toggle switch to the assigned position to disable the Trans­mit Battery Saver, if you are operating in a location where high power is almost always needed.
The Transmit Battery Saver helps extend battery life by reducing transmit power when a very strong sig­nal from an apparently nearby station is being re­ceived. Under some circumstances, though, your hand-held radio may not be heard well at the other end of the communication path, and high power may be necessary at all times.
ENCRYPTION (OPTION
When the Voice Scrambler feature is enabled, press the assigned programmable key to toggle the voice encryption on and off.
)
LOCK
Set the toggle switch to the assigned position to lock the VX-920/-970’s knob, soft keys, and PTT switch. The precise lockout configulation is programmed by your Dealer.
AUDIO PC (PIT
Press the assigned programmable key, or set the toggle switch to activates the Audio Pitch Control­ler. The Audio Pitch Controller allow you to the most comfortable and/or effective reception in noisy en­vironments.
Press the key again, or set the toggle switch to a dif­ferent position to disable the Audio Pitch Controller.
)
CLEAR VOICE
Set the toggle switch to the assigned position to acti­vates the Clear Voice feature. When you are operaiton in a noisy environment, activates the Clear Voice feature. Set the toggle switch to a different position to disable the Clear Voice feature.
16
VX-920/-970 SERIES OPERATING MANUAL
Page 19
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
FOLLOW-ME SCAN
The “Follow-Me” Scan feature checks a User-as­signed Priority Channel regularly as you scan other channels. Thus, if only Channels 1, 3, and 5 (of the 8 available channels) are designated for “Scanning,” the user may nonetheless assign Channel 2 as the “User-assigned” Priority Channel via the “Follow­Me” feature.
To activate “Follow-Me” scanning, first select the channel you want to designate as the “User-Assigned Priority Channel” and press the assigned program­mable key, or set the toggle switch to the assigned position. Then rotate the CH Selector knob to recall to the “Scanning Start” channel which has been pro­grammed by your dealer to activate the scanner. When the scanner stops on an “Active” channel, the User­assigned Priority Channel will automatically be checked every few seconds; if activity is found on the User-assigned Priority Channel, the radio will switch between it and the Dealer-Assigned Priority Channel, if any.
FOLLOW-ME DUAL WATCH
To set up a “Dual Watch” frequency pair using the “Follow-Me” feature, select a channel using the CH Selector knob. Now press the assigned programmable key; pressing the assigned programmable key locks the current channel as the User-assigned Priority Channel. Now rotate the CH Selector knob to select another channel (not the “Scanning Start” channel). Your radio will now switch back-and-forth between the currently-selected channel and the User-assigned Priority Channel.
During “Follow-Me” scanning (after you have pressed the key), you can set up the “Dual Watch” feature by rotating the CH Selector knob to another channel. The radio will then scan back and forth be­tween the original User-assigned Priority Channel and the newly-selected channel.
The Priority Channel you have assigned (before pressing the key) will be retained in memory until you change it.
VX-920/-970 SERIES OPERATING MANUAL
17
Page 20
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
GROUP UP/DOWN
Press the assigned programmable key to select a dif­ferent group of channels. Once the desired Group is reached, rotate the CH Selector knob to select the desired channel within the selected Group.
You may wish to have the Scanner pass through more than one Group during the scanning process (nor­mally, scanning is performed within the current group only). To include the current Group in the scanning loop, press and hold in the assigned programmable key for one second. To remove a Group from Group Scan, press and hold in the assigned programmable key again for one second.
Multi-Group Scanning is only possible if you are us­ing the “User Scan” list. To edit the User Scan list, press and hold the assigned programmable key for one second to delete the current Memory Group from the Scanning. Alternatively, press and hold the assigned programmable key for one second to delete the Cur­rent Memory channel from the Scanning. When you delete a Group or channel, “ pear on the LCD for one second after pressing the assigned programmable key. To restore a particular channel to your scanning list, press and hold in the assigned programmable key again for one second;
-
SCAN Skip
18
-
” will ap-
-
SCAN Stop
second after pressing the assigned programmable key.
-
” will appear on the LCD for one
CHANNEL UP/DOWN
Press the assigned programmable key to select a dif­ferent channel within the current group.
SET
Press the assigned programmable key to activate the “User Set” (Menu) Mode. See page 23 for details
CALL/RESET
While the DTMF Paging System
This feature, if enabled, allows the user to change the 3-digit Page Call code, used to call other simi­larly-equipped stations. Press the assigned program­mable key, followed by the three digits representing the Page Call code of the station you wish to call. Three tones will be heard after the last key is pressed (the new code will now be transmitted).
The receiver squelch of the other station will be opened, and you can begin communication.
While the 2-Tone/5-Tone Paging System
This feature, if enabled, press the assigned program­mable key to send a 2-tone/5-tone sequential tone.
VX-920/-970 SERIES OPERATING MANUAL
Page 21
CALL 1 TO CALL 5
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Press the assigned programmable key to send a 2­tone/5-tone sequential tone group which is pre-de­fined.
CODE UP/DOWN
Press the assigned programmable key to select a 2­tone/5-tone encode code from the pre-defined en­code list.
CODE SET
Press the assigned programmable key to change the encode digits for 5-tone operation. To change a spe­cific digit, select the desired digit using the [A] key, then change the number using the [B]/[C] keys, and store the number using the [D] key.
SPEED DIAL
Your Dealer may have pre-programmed Auto-Dial telephone number memories into your radio.
To dial a number, press the assigned programmable key, then press the front panel’s numeric key corre­sponding to the Auto-Dial memory number list pro­vided by your Dealer or Network Administrator. The DTMF tones sent during the dialing sequence will be heard in the speaker.
VX-920/-970 SERIES OPERATING MANUAL
(
16-KEY VERSION ONLY
ADVANCED OPERATION
)
OPTION SW1
Press the assigned programmable key to toggle the optional accessory “1” “On” and “Off.”
OPTION SW2
Press the assigned programmable key to toggle the optional accessory “2” “On” and “Off.”
EMERGENCY
The VX-920/-970 series include an “Emergency” feature which may be useful for alerting another party monitoring on the same frequency as your transceiver’s channel.
Press the assigned programmable key to initiate an emergency call. For further details contact your Dealer.
HOME CHANNEL
Press the assigned programmable key to recall the pre-defined Home group/channel. When you recall the Home group/channel, the “ pear on the LCD.
H” notation will ap-
19
Page 22
ADVANCED OPERATION
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
SELECTABLE T ONE
Press the assigned programmable key to select a sub­audible tone (CTCSS/DCS) from the pre-defined tone table. You can operate using the indicated sub­audible tone in the Selectable Tone mode.
DIRECT CH#1 TO #4
Press the assigned programmable key to recall the Dealer pre-programmed channel directly.
REC/PLAY (VOICE STORAGE: OPTION
This function allows your radio to record a received voice message, and to play back the recorded audio. It requires installation of the optional Voice Record­ing Unit.
Recording;
Press the assigned programmable key for 1.5 sec­onds to enable the Voice Recording Mode. When an incoming signal is received (the squelch opens and audio passes), the incoming audio will be recorded. In the 16-key and 4-key versions, the “ flash during audio recording, and the “ remain on once recording is complete.
Playback;
Press the assigned programmable key momentarily
20
)
” icon will ” icon will
to play back the last message. To stop the play-back, press this key again. In the 16-key version, press the [A] key to jump to the previous message while playback is proceeding, or press the [B] key to jump to the next message. You may press the [D] key, at any time during play­back, to clear all messages and stop the play-back.
SQL
You can manually adjust the squelch level using this function: Press the assigned programmable key. A tone will
sound, and the current squelch level will appear on the display.
Press the MONITOR/LAMP button to select the
desired squelch level.
Two seconds after releasing the MONITOR/
LAMP button, the display will revert to the normal
channel indication.
AF MIN VR
Press the assigned programmable key to reduce the audio output to the (lower) level programmed by your Dealer.
Press the key again to return to the normal audio output level.
VX-920/-970 SERIES OPERATING MANUAL
Page 23
ST ATUS SET
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
Press the assigned programmable key to change the 5-Tone status code. To change the status code, se­lect the desired digit by [A] key, then change the num­ber by [B]/[C] key, and store the number by [D key.
ST ATUS UP/DOWN
Press the assigned programmable key to select a 5­Tone status code from the pre-defined status list.
STATUS CHECK
Press the assigned programmable key to check the 5-Tone receive status code. When you press this key, the LCD display will indicate the “Message” corre­sponding to the receive status condition per the pre­defined status list.
LONE WORKER
Press the assigned programmable key to toggle the Lone Worker feature “On” and “Off.”
The Lone Worker feature is designed to emit an alarm for 30 seconds when the Lone Worker Timer (pro­grammed by your Dealer) has expired. If the user does not reset the timer by pressing the PTT switch, the radio switches to the Emergency mode.
VX-920/-970 SERIES OPERATING MANUAL
ADVANCED OPERATION
To revive the radio from the Emergency mode, just press the programmable key which is assigned the Emergency feature or turn off the radio.
DTMF CODE SET
]
You may send the desired telephone number manually.
To dial a number manually, press the assigned pro­grammable key, then press the desired numbers on the front panel’s numeric key. Now, press the PTT switch to send the telephone number. The DTMF tones sent during the dialing sequence will be heard in the speaker.
TA S CAN
Press the assigned programmable key to toggle the TA (Talk Around) scan feature “On” and “Off.”
While TA scan is proceeding, the VX-920/-970 will search both the transmit and receive frequencies (the “
” icon will blink on the 16-key and 4-key versions).
When a signal is encountered on the receive frequency, the VX-920/-970 will pause until the signal disap­pears (“ signal is encountered on the transmit frequency, the VX-920/-970 will check for activity on the receive frequency every few seconds (interval programmed by your Dealer).
” icon will appear but not blink). When a
(
16-KEY VERSION ONLY
)
21
Page 24
ARTS
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
(
AUTO RANGE T RANSPOND SYSTEM
)
DTMF PAGING SYSTEM
This system is designed to inform you when you and another ARTS-equipped station are within communi­cation range.
During ARTS operation, when the radio receives the correct ARTS signal, a short beep will sound and the “In” (meaning “In Service”) notation will be displayed on the sub-LCD
. If you move out of range for more than two minutes, your radio senses that no signal has been received; three short beeps will sound, and “Out” (“Out of Service”) will be displayed on the sub-LCD
. If you subsequently move back into range,
as soon as the other station transmits, a short beep will sound and “In” will be displayed again on the sub-LCD
.
: Except on Non-LCD version.
This system allows paging and selective calling, us­ing DTMF tone sequences.
When your radio is paged by a station bearing a tone sequence which matches yours, your radio’s squelch will open and the alert will sound.
In the 16-key and 4-key versions, the three-digit code of the station which paged you will appear on your radio’s LCD.
22
VX-920/-970 SERIES OPERATING MANUAL
Page 25
The VX-920/-970 Series includes a “User Set
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
(Menu)” Mode which allows the user to define or configure various settings, such as Beep On/Off, Squelch, LCD contrast, etc. To activate the “User Set (Menu)” Mode:
Press the assigned programmable key for the
“SET” function to enter the “User Set Mode.”
Select the User Set Mode Item you want change
using the CH selector knob.
Press the MONITOR/LAMP buttons to select
the status of the selected item.
Rotate the CH selector knob one click to save
the new setting.
Press PTT switch to exit to normal operation.
VX-920/-970 SERIES OPERATING MANUAL
USER SET MODE
(
16-KEY & 4-KEY VERSIONS
)
DISPLAY DESCRIPTION
1
SQL
2
SCN List
3
BEEP
4
BELL
5
Lighting
6
Lock
7
Group
8
SCAN
9
DW
10
TA
11
AF MinVR
12
Beep VR
13
Contrast
14
Pitch
15
REC Mode
16
Play Mode
Note: The menu “15: REC Mode” and “16: Play Mode” will ap-
pear only when the Voice Recording Unit is installed.
Select the Squelch Threshold Level Select the Scan List “User” or “Dealer” Set the Beep On/Off Set the Bell On/Off (Bell engaged by sub-audible CTCSS/DCS) Set the BUSY/TX LED On/Off Set the Lock function to be Locked (Key/PTT/Key+PTT) Set the Operation Group Set the Scan status (same function as Scan key) Set the Dual Watch status (same function as DW key) Set the Talk Around status (same function as TA key) Set the Minimum Volume level Set the Beep volume level Set the LCD contrast Select the Special Receive Audio Response ONE: Enables recording one message (max.
120 seconds), and playback from the beginning of the message.
ROL: Enables recording whenever squelch
opens, and playback of the last 120 seconds.
Set the priority audio on playback mode. PLY: Playback audio is higher priority than re-
ceived signal
SIG: Received signal is higher priority than
playback audio
23
Page 26
OPTIONAL ACCESSORIES
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
FNB-V86LI 7.4V, 1150 mAh Lithium-Ion Battery FNB-V87LI 7.4V, 2000 mAh Lithium-Ion Battery FBA-34 Alkaline Battery Case (6 x AA) VAC-920 Desk top Rapid Charger PA-39 AC Adapter VT60F VX-Trunk Unit VT60FS VX-Trunk/Encryption Unit FVP-36 Encryption Unit FVP-35 Encryption Unit
(Rolling Code Voice Scrambler)
DVS-5 Voice Storage Unit MDC1200 Digital ANI Encoder Unit VME-100 ANI Encoder Unit VMDE-200 ANI Encoder/Decoder Unit SRX-3 Multi Band Receiver Unit
(450-512 MHz)
SRX-4 Multi Band Receiver Unit
(134-174 MHz)
MH-65
B7A
ATV-8A VHF Antenna (134-151 MHz) ATV-8B VHF Antenna (150-163 MHz) ATV-8C VHF Antenna (161-174 MHz) ATV-6XL VHF Antenna
Speaker/Microphone
(134-174 MHz, Untuned)
ATU-6A UHF Antenna (400-430 MHz) ATU-6C UHF Antenna (440-470 MHz) ATU-6D UHF Antenna (450-485 MHz) ATU-6F UHF Antenna (485-520 MHz) ATW-1A Dual Band Antenna
(134-151 MHz, 450-520 MHz)
ATW-1B Dual Band Antenna
(150-163 MHz, 450-520 MHz)
ATW-1C Dual Band Antenna
(160-174 MHz, 450-520 MHz)
LCC-920 Leather Case CE59 Programming Software FIF-8 Flash ROM Writer FIF-10A USB Programming Interface CT-108 PC Programming Cable (for FIF-10) CT-109 PC Programming kit
(CT-29 + CT-115)
CT-110 PC Programming Cable (for FIF-8) CT-115 PC Programming Cable (for VPL-1) CT-116 Radio to Radio Cloning Cable
Availability of accessories may vary; some acces­sories are supplied standard per local require­ments, others may be unavailable in some regions. Check with your VERTEX STANDARD Dealer for changes to this list.
24
VX-920/-970 SERIES OPERATING MANUAL
Page 27
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
This device complies with Part 15 of the FCC rules. Operation is subject to the condition that this device does not cause harmful interference.
Page 28
Copyright 2005
Vertex Standard Co., Ltd.
FCC ID: K6610334620/IC ID: 511B-10334620
VERTEX STANDARD CO., LTD. All rights reserved.
No portion of this manual may be reproduced without the permission of VERTEX STANDARD CO., LTD.
Printed in Japan
0510?-0E
EC033N200
Loading...
