IDENTIFICATION OF PARTS
2
①
②
8
7
12
13
11
15
1
2
3
4
5
10
9
14
6
TAPE (not include)
1. POWER SWITCH 2.TAPE LENGTH COUNTER
3. AUTO / MANUAL SWITCH 4. INTERVAL ADJUSTMENT KNOB
5. OVER LOAD ALARM LAMP 6. PANEL SWITCH
7. SAFETY LID 8. HOOK
9. TAPE OUTLET 10. FRONT PANEL HOOK
11. FRONT PANEL 12. ROLLER
13. SILICON SPONGE ROLLER 14.BOBBIN
15. TAPE GUIDE
Page 3
1)
3)
8)
surface
adhesive side
3
13 SILICON SPONGE ROLLER
12 ROLLER
10 FRONT PANEL HOOK
7)
9)
2)
INTRODUCTION
Thank you for purchasing our Automatic Tape Dispenser.
Our product is produced for industrial use.
Please read this Instruction Manual careflly and become familier with
machine before handling it.
BEFORE USE
1) Before you plug in the cord, make sure that the Power Switch 1 is off.
2) Set the Tape Length Counter 2 for more than 200mm.
■If you this for less than 200mm, the tape would not come out smoothly.
3) Set the Auto/Manual Switch 3 for Manual.
4) Plug into an outlet firmly.
5) Turn the Power Switch 1 on.
6) Put a tape onto the Bobbin 14.
7) Open the Safty Lid 7.
8) Extend the tape and fold the edge of tape about 20-30mm to the sticky side.
■If the tape has no glue, it is not necessary.
9) Insert the tape between the Roller 12 and the Silicon Sponge Roller 13.
10) Tap the Panel Switch 6 upwards once lightly.
11) Cut two or three pieces to make sure that tape comes out from the Tape Outlet 9.
12) Make sure that the tape is coming out smoothly, then close the Safety Lid 6.
■If the tape winds around the other Roller, please turn the Power Switch 1 off, remove the Front
Panel Hook 10 and open the panel.
Cut the wound up the tape off and start again.
■Whenever cut the wound up the tape off, extreme care for do not scratch the roller.
13) Set the tape length as you like.
Anytime you set the length, the Power Switch 1 must be off.
Page 4
MANUAL
AUTOMATIC
ALARM
SAFETY SWITCH
4
1) Set Manual/mode to cut a tape one by one.
2) Switch on by pressing the Start button.
3) In the case of cutting any longer than 120mm, it is effective to lift a tape up while taking a tape.
Then next piece of tape will come out like automatically.
1) Set Auto/mode to cut a tape in the specified time interval.
2) Switch on by pressing the Start button and the piece of tape will automatically come out in the
specified time interval.
3) If turning the interval Adjustment Knob 4, interval time in between cutting will be adjustable within
10 second.
1) If turning off the switch, alarm will be cancelled.
2) Please refer to "Before use" (P4) and set the tape properly again after removing it.
(You can turn Roller 12 by hand when turning off the switch.)
3) Please use the machine after confirming that alarm switch is not flashing.
When opening Front Panel, switch will be automatically off and not operate while opening.
When alarm is still flashing after removing the tape jammed,
please turn off the switch immediately and unplug for your
own safety
Please DO NOT open Front Panel more than 90 degree
because cable and wire are connected with Front Panel
and may be damaged if you do it
HOW TO REMOVE THE TAPE
Please open Safety Lid 7 and remove the tape with bobbin from the machine.
Page 5
Attention for
cutting edge
Tightening
Loosening
Screw to fix Blade Cutter
3mm hexagonal wrench
MAINTENANCE
1) Please make sure that switch is turned off and Power Cord is unplugged.
2) Use neutral detergent and clean up rollers and other spare parts.
Do not use thinners, benzine, and any kind of alcoholic oil.
3) Normally, it is not necessary to put any oil to Solenoid and any other main parts.
However, please put some oil on the parts of blade cutter as depends on the condition.
4) Do not put any oil to Solenoid.

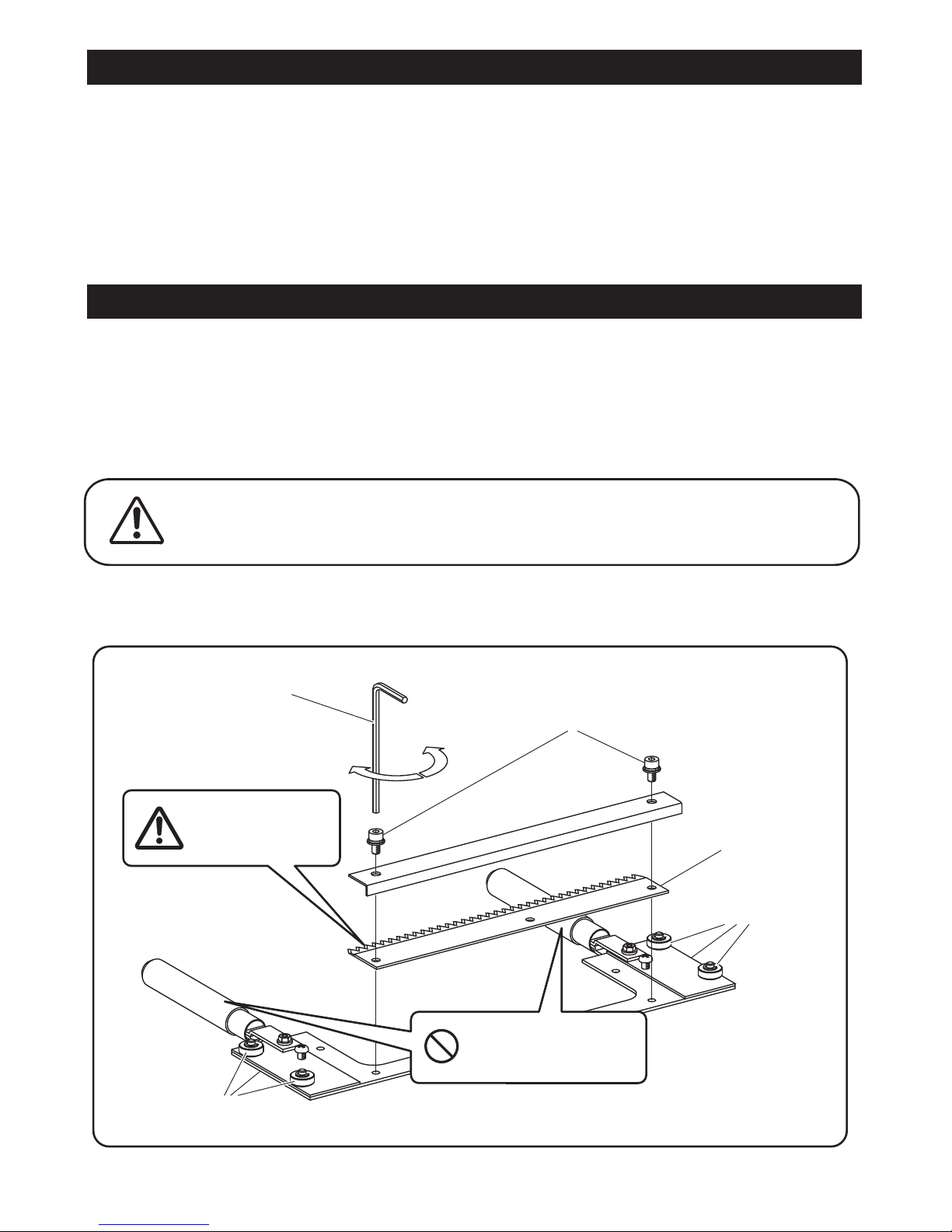

HOW TO REPLACE THE BLADE
1) Please make sure that switch is off and Power Cord is unplugged.
2) Remove the hook and open the Front Panel.
3) Loosen the screw for Blade cutter and remove it.
4) Close the Front Panel and fix it firmly.
Please pay your attention when replacing the Blade Cutter
Do not put any
oil to Solenoid
a little drop of oil
a little drop of oil
Blade Cutter
5
Page 6
6
TROUBLE SHOOTING
Please make the following procedure before being repaired.
If checking all things as mentioned above and still having a
problem, please contact your supplier or YAESU JAPAN
No Function
Not Cutting Well
Not Operate Properly
Confirm whether it is properly plugged
Confirm whether it is properly plugged with both machine
and power suply
Confirm whether switch is turned on
Confirm whether fuse is still working
Confirm whether Front Panel is properly
and completely closed
Confirm whether alarm is flashing
Confirm whether Blade Cutter is properly
fixed
Confirm whether Blade Cutter is already
consumed
Confirm whether tape is properly installed
Confirm whether tape is jammed
Confirm whether feeding roller is turning
Please replace new fuse. If not working or fuse blows out
immediately after replacing it, please contact our agent or
manufacturer
Please securely hook and close Front Panel
Please switch on properly
Please refer to "ALARM" (P4). If alarm is still flashing, please
contact our agent or manufacturer
Please refer to "MAINTENANCE" (P5)
Please refer to "MAINTENANCE"(P5) and replace new
Blade Cutter
Please refer to "BEFORE USE" (P3)
Please remove tape jammed and waste. Then set tape again
properly
If feeding roller is turning and tape doesn't come out, please
contact our agent or manufacturer
Page 7
7
SPECIFICATIONS
■ If you have any questions, please let us have immediate instructions.
POWER REQUIRMENT 100VAC 50/60Hz
120VAC 50/60Hz 600W
220-240VAC 50/60Hz
DIMENSIONS 330 (W) X 290 (H) X 250 (D) mm (ZCUT-3150)
430 (W) X 290 (H) X 250 (D) mm (ZCUT-3250)
WEIGHT 16 KGS. (ZCUT-3150)
18 KGS. (ZCUT-3250)
TAPE SPEED 132mm/sec 50Hz
160mm/sec 60Hz
TAPE WIDTH from 15mm to 150mm (ZCUT-3150)
from 15mm to 250mm (ZCUT-3250)
CUTTING LENGTH from 50mm to 9999mm
ROLL SIZE OUTSIDE DIAMETER 200mm
ACCESSORIES BOBBIN (75mm) 1 PC.
FUSE 1PC. 8A (100V,120V) 5A(220-240V)
Page 8
YAESU KEIKOGYO CO., LTD.
39-8, Senju Motomachi, Adachi-Ku,
Tokyo, 120-0041, Japan
Phone 81-3-3888-8751
Fax 81-3-3888-1592
PLEASE VISIT OUR WEB SITE
http://www.yaesu1965.com/
