CHIP4e+

Compact High-Integration 5x86 Platform with Ethernet

P/N 128767-001A

 2002 XYCOM, INC.

Printed in the United States of America

CHIP4e+ Manual

Revision Description Date

A Manual Released 3/98 B T ouchscreen Updates 7/02

Trademark Information

Brand or product names are registered trademarks of their respective owners. AMD is a registered trademark and 5x86 is a trademark of Advanced Micro Devices Inc.

This document is copyrighted by Xycom Incorporated (Xycom) and shall not be reproduced or copied without expressed written authorization from Xycom.

The information contained within this document is subject to change without notice.

xycom

Technical Publications Department 750 North Maple Road Saline, MI 48176–1292 734-429-4971 (phone) 734-429-1010 (fax)

Table of Contents

Chapter 1 – Module Overview....................................................................................................................5

Module Features........................................................................................................................................................5

Architecture...............................................................................................................................................................6

CPU........................................................................................................................................................................7

PCI Bus Interface ...................................................................................................................................................7

SVGA Graphics Controller..................................................................................................................................7

Fast IDE controller ..............................................................................................................................................7

Ethernet Controller..............................................................................................................................................7

On-board Memory..................................................................................................................................................8

DRAM.................................................................................................................................................................8

Flash BIOS ..........................................................................................................................................................8

Non-Volatile SRAM or DOC2000 (optional)......................................................................................................8

Serial and Parallel Ports..........................................................................................................................................9

Keyboard Ports.......................................................................................................................................................9

Mouse Port ...........................................................................................................................................................10

IR Interface...........................................................................................................................................................10

Flat-panel Interfaces.............................................................................................................................................10

Floppy and Hard Drives.......................................................................................................................................10

Keypad Interface ..................................................................................................................................................11

Expansion Options................................................................................................................................................11

Environmental Specifications..................................................................................................................................11

Hardware Specifications..........................................................................................................................................12

Chapter 2 – Installation............................................................................................................................. 13

Configuration Options .............................................................................................................................................14

Jumper Settings.....................................................................................................................................................14

System Interrupts..................................................................................................................................................15

DMA Mapping.....................................................................................................................................................15

Memory Map........................................................................................................................................................16

I/O Map ................................................................................................................................................................17

Registers..................................................................................................................................................................18

Register 231h – CPU LED Port............................................................................................................................18

Register 233h – Flash BIOS Control....................................................................................................................19

Register 234h – I/O Port Location........................................................................................................................19

Offset Registers....................................................................................................................................................20

Offset 0 Page Register for Programming (Port Address)...................................................................................20

Offset 1 Page Register for Programming (Port Address +1)..............................................................................20

Connectors...............................................................................................................................................................21

Parallel Port Connector (PARCOM2)..................................................................................................................21

Serial Port Connectors..........................................................................................................................................22

COM1 Connector (COM1)................................................................................................................................22

COM2 Connector (PARCOM2)........................................................................................................................23

PS/2 Keyboard and Mouse Port Connector (KBMS1).........................................................................................24

Internal Keyboard Connector (KYBD1)...............................................................................................................24

VGA Connector (VGA2)......................................................................................................................................24

External Floppy Drive Connector (FDD2)...........................................................................................................24

Internal LED Connector (LEDMSC1)..................................................................................................................25

FPGA Program Connector (J5)............................................................................................................................26

IDE Connector (HDD2) ....................................................................................................................................... 26

Power Connectors (DCPWR1).............................................................................................................................27

Touch Control Connector (TCTRL1)...................................................................................................................27

CHIP4e+ Manual

Touch Connector (TCH1).....................................................................................................................................28

STN Flat-Panel Connector (FPNL1)....................................................................................................................28

TFT Flat-Panel Connector (FPNL2).....................................................................................................................29

Backlight Inverter Connector (DCINV1) .............................................................................................................29

AC Input Connector (ACIN1)..............................................................................................................................30

AC Supply Connector (ACOUT1) .......................................................................................................................30

H8 Boot Program (PROGH3) .............................................................................................................................. 30

Ethernet Connector (ETHER1) ............................................................................................................................30

PC/104 Connector (P7 and P8).............................................................................................................................30

Keypad Connector (KEYPAD1)..........................................................................................................................32

Moving through the Menus .....................................................................................................................................33

BIOS Main Menu....................................................................................................................................................34

IDE Adapter 0 Master and Slave Submenu..........................................................................................................35

Memory Shadow Submenu...................................................................................................................................36

Boot Sequence Submenu......................................................................................................................................37

Numlock Submenu ...............................................................................................................................................38

Advanced Menu....................................................................................................................................................39

Integrated Peripherals Submenu........................................................................................................................... 40

Advanced Chipset Control Submenu....................................................................................................................41

Security Menu.........................................................................................................................................................42

Exit Menu ................................................................................................................................................................43

BIOS Compatibility.................................................................................................................................................44

Appendix A – DRAM Installation.............................................................................................................. 45

Appendix B – Video Modes......................................................................................................................47

Standard Modes.......................................................................................................................................................47

Extended Modes......................................................................................................................................................48

Windows

3.1..........................................................................................................................................................48

Windows 95.............................................................................................................................................................48

Windows NT® 3.5..................................................................................................................................................49

OS/2 Warp 3............................................................................................................................................................49

Index.......................................................................................................................................................................50

Chapter 1 – Module Overview

The Xycom Compact High-Integration 5x86™ Platform with Ethernet (CHIP4e+) is designed for use in Xycom’s line of flat-panel industrial personal computers. The CHIP4e+ is optimized in design, layout, and features for use with these flat-panel computer systems. This integrated design approach allows Xycom industrial PC/ATs to incorporate “Big PC” features in an extremely compact package. These “Big PC” features include a 133 MHz CPU, PCI-bus SVGA controller, PCI IDE controller, PCI 10BASE-T/100BASE-TX controller, infrared port, and integrated touch screen.

Module Features

The CHIP4e+ offers the following features:

• 133 MHz Am5x86 CPU

• 4 to 64 Mbytes EDO DRAM

• PCI local bus SVGA controller

• Jumper-selectable flat-panel interface that supports STN and TFT formats up

to 640x480x16M

• CRT interface that supports formats up to 1024x768x256

• 1Mbyte video memory

• PCI fast IDE controller

• Two 16550-compatible serial ports

• UART1: RS-232 or RS-485

• UART2: RS-232 port, Infrared (IR), or touch screen

• Centronics-compatible parallel port

• PCI 10BASE-T/100BASE-TX Ethernet controller

• PC/104 support

• Floppy controller and external floppy connector

• PS/2 mouse and keyboard ports

• Real-time clock and battery

• Touch screen, keypad, and LED interfaces

• DOC2000 or 32Kx8 and 128Kx8 non-volatile SRAM support

CHIP4e+ Manual

ppy

Architecture

This section describes the architecture of the CHIP4e+ processor module.

Flash BIOS

AM5x86

CPU

SRAM

EPROM

DOC2000

CPU to ISA

M1487

CPU Local Bus

RTC

ISA Bus

CRT

65550

VGA

EIDE

Panel

Flat

PCI Bus

1Mbyte DRAM

Keypad

CPU to PCI

M1489

H8 Keyboard Controller

82558

Ethernet

Mag

10/100BT

Touch

4 to 64Mbytes

DRAM

KBD

Mouse

Flo

Super I/O

37C669

LPT1 COM1 COM2

Touch

IRDA

FPGA

Ports, FLASH

LED

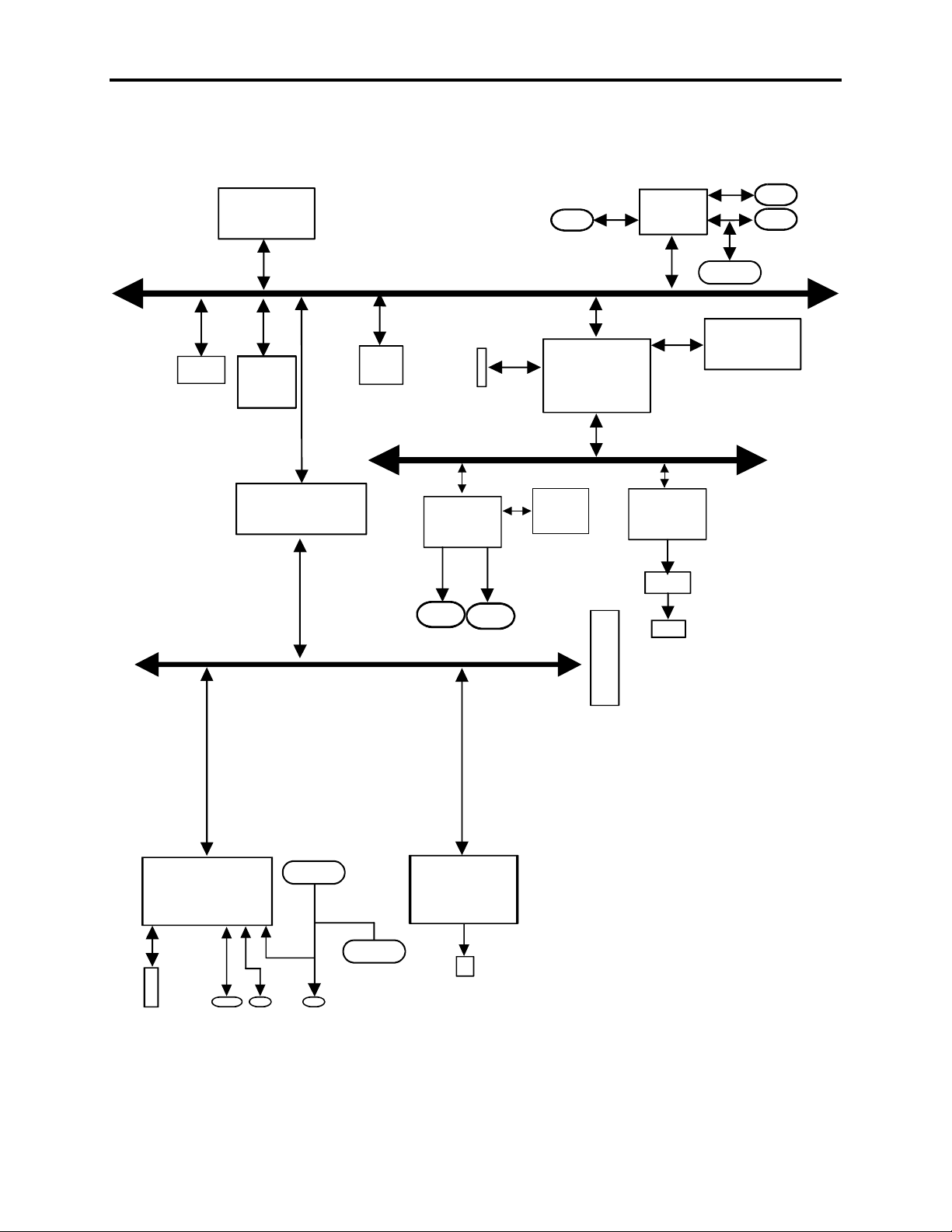

Figure 0-1. CHIP4e+ Functional Block Diagram

PC/104

CPU

The CHIP4e+ incorporates an AMD® 5x86 processor with a CPU clock that runs quadrupled at 133 MHz with a 33 MHz external bus. The unified 16 Kbyte writeback cache technology minimizes the time the CPU core spends waiting for data or instructions, accelerating business and multimedia applications.

PCI Bus Interface

The FinALI chipset integrates a high-performance CPU-to-PCI interface capable of accelerated data transfers. The interface allows 32-bit master and slave PCI devices.

SVGA Graphics Controller

The PCI bus SVGA graphics controller supports CRTs and flat-panel displays with 1 Mbyte video DRAM. It supports resolutions of 640x480 with 16M colors; 800x600 with 64K colors; and 1024x768 with 256 colors.

Fast IDE controller

The high-speed local bus IDE controller supports programmed I/O (PIO) modes 0-4. It also provides 4x32-bit read-ahead buffer and 4x32-bit write-post buffer support to enhance IDE performance.

Caution

The IDE controller supports enhanced PIO modes, which reduce the cycle times for 16-bit data transfers to the hard drive. Check with your drive manual to see if the drive you are using supports these modes. The higher the PIO mode, the shorter the cycle time. As the IDE cable length increases, this reduced cycle time can lead to erratic operation. As a result, it is in your best interest to keep the IDE cable as short as possible.

Select the PIO modes in the BIOS setup (refer to Chapter 3). The autoconfigure classifies the drive connected if the drive supports the auto ID command. If you experience problems, change the PIO to standard.

Ethernet Controller

The CHIP4e+ contains a state-of-the-art 10BASE-T/100BASE-TX Ethernet controller with a 32-bit PCI bus-mastering interface to support 100-Mbits per second bus transfers. The controller serves as both a PCI master and slave. The Ethernet connector (ETHER1) provides auto-sensing for 10BASE-T and 100BASE-TX connections.

CHIP4e+ Manual

On-board Memory

DRAM

The CHIP4e+ has one 72-pin SIMM memory site, providing up to 64 Mbytes of DRAM. Populate the memory site with standard fast page mode memory or extended data out memory (EDO). EDO memory improves DRAM read performance.

Flash BIOS

The CHIP4e+ board provides a Flash BIOS location for system and video ROM. Table 0-1 describes the Flash memory map.

Device Address Software System Address

60000-7FFFFh System BIOS E0000-FFFFFh (also FFFE000010000-5FFFFh Undefined

00000-0FFFFh Video BIOS C0000-CFFFFh

Table 0-1. Flash Memory Map

FFFFFFFFh)

Non-Volatile SRAM or DOC2000 (optional)

Socket U25 is a 32-pin ROM site that provides an option for installing non-volatile SRAM or DiskonChip 2000 modules. You must specify which option you are installing on the BIOS Setup Advanced menu (refer to Chapter 3 for more information on the BIOS Setup menus).

Note

You may only install SRAM or DOC2000 in socket U25; you cannot install both.

Non-volatile SRAM contains a built-in battery and battery backup circuitry. Battery life is approximately seven years in the absence of VCC. Socket U25 supports 32Kx8 and 128Kx8 memory sizes. BIOS defines the location of SRAM as CC000.

DiskOnChip 2000 (DOC2000) is a Flash memory module. It contains an expansion BIOS that allows Flash memory to emulate a disk drive when the corresponding option is enabled in the BIOS Setup Advanced menu. If the system already incorporates a C: drive (IDE), DOC2000 becomes the D: drive. When installed, the DOC2000 module occupies memory address CC000-CFFFFh.

Serial and Parallel Ports

PC/AT peripherals include two high-speed, RS-232C, 16550-compatible serial ports and one bi-directional Centronics-compatible parallel port.

UART1 (COM1) accepts an RS-232 or a RS-485 connection (you can only use one connection at a time). UART2 (COM2) can be used for one of the following three options:

• RS-232 out the 25-pin DB connector

• Touch screen controller interface

• Infrared (IR) interface

Use the BIOS setup menus to configure the port as a serial or infrared port. You can use this port as both a serial and IR interface by allowing software to control the connection.

You cannot use UART2 as a serial and IR port at the same time.

If the touch screen controller is jumpered to use UART2 as a serial device, the 25pin DB connector cannot be used to interface to a device. These lines are combined internally.

Note

The BIOS setup menus for UART2 must be set to standard operation to use the touch screen controller on UART2.

Keyboard Ports

The keyboard port is routed to two separate connectors. One is a PS/2 connector, allowing the keyboard to be routed out the side of the unit; the other connector allows the keyboard to be routed to the front of the unit.

A polyswitch protects the +5 V on the keyboard port. This device opens if the +5 V is shorted to GND. Once you remove the shorting condition, the polyswitch allows current flow to resume.

Note

You can only use one keyboard port at a time.

CHIP4e+ Manual

Mouse Port

The CHIP4e+ supports two mouse ports. The external mouse port is routed to the PS/2 mouse connector; the internal mouse port is routed to the touch screen controller. If touch screen drivers are loaded, the external mouse port is disabled. Both the external port and the touch screen controller may be plugged in at the same time. However, the driver loaded may impair the operation of one of the ports. If the Microtouch mouse drivers are loaded, the external mouse port will use these drivers.

Note

When using the Xycom touchscreen controller (PIN 140554), the

CHIP4e+ will behave the same. If using a PS/2 mouse is desired, install

the Touch-Base touch driver in serial mode. In serial mode, the

controller will use a COM port and free the PS/2 mouse port. Please

follow the installation instructions on the Xycom documentation.

A polyswitch protects the +5 V on the mouse port. This device opens if the +5 V is shorted to GND. Once you remove the shorting condition, the polyswitch allows current flow to resume.

IR Interface

The IR interface, which uses UART2, is a half-duplex serial port capable of 115 Kbaud transfer rates. It also supports two transfer formats: IrDA and ASKIR. You must load software to support communication between two devices.

Flat-panel Interfaces

The CHIP4e+ incorporates two flat-panel connectors. The STN connector interfaces directly to STN flat panels. It provides a substrate voltage (VEE) of 34 volts, contrast control, and frame rate modulation to allow 4096 colors to be displayed. The TFT connector interfaces directly to TFT flat panels.

The flat-panel type is jumper selectable. Refer to Chapter 2 for jumper settings.

Floppy and Hard Drives

The CHIP4e+ can interface to a floppy drive via the external floppy connector. To connect a floppy drive to the external connector after power up, you must specify the floppy drive as a 1.44 Mbyte drive, and disable the floppy check option in the BIOS setup menus. If this is not done, the system will generate a floppy drive error during the Power On Self Test (POST).

The PCI-to-IDE interface supports one hard drive via the on-board IDE controller.

Caution

The total IDE cable length must not exceed 18 inches.

Keypad Interface

The CHIP4e+ provides a keypad interface. A connector supports up to a 10x8 scan matrix, which is combined with the keyboard bit stream by the keyboard controller.

Expansion Options

The CHIP4e+ provides a location to stack up to two PC/104 cards (refer to the PC/104 Connector section in Chapter 2).

Environmental Specifications

Table 0-2. Environmental Specifications

Characteristic Specification

Temperature

Operating Non-operating

Humidity

Operating Non-operating

Altitude

Operating Non-operating

0° to 55° C (32° to 131° F)

-20° to 60°C (-4° to 140°F) 20% to 80% RH non-condensing

20% to 80% RH non-condensing

Sea level to 10,000 feet (3048 m) Sea level to 40,000 feet (12192 m)

Vibration

Shock

Frequency Operating

Non-operating

Operating Non-operating

5 to 2000 Hz

0.006" peak-to-peak displacement

1.0g maximum acceleration

0.015" peak-to-peak displacement

2.5 g maximum acceleration 15g peak acceleration, 11 msec duration

30g peak acceleration, 11 msec duration

CHIP4e+ Manual

Hardware Specifications

Table 0-3. Hardware Specifications

Characteristic Specification

Power Specifications

+12V

-12V

+5V CPU speed 133 MHz PCI Super VGA Graphics Controller

Serial Ports (2) 16550 compatible

Parallel Interface Centronics compatible On-board memory 4 to 64 Mbytes EDO DRAM PCI Ethernet interface 10BASE-T/100BASE-TX PCI IDE Primary connector Floppy drive 1.44 Mbyte (external option) Expansion Options PC/104 (-5 V is not supported)

Typical Maximum 25ma 50ma 25ma 50ma

2.50 A 3.0A 1 Mbyte video DRAM

STN and TFT support 640x48016M colors 800x60064K colors 1024x768 256 colors

UART1: RS-232 or RS-485 UART2: RS-232, IR, or touch-screen

Chapter 2 – Installation

This chapter provides information on configuring the CHIP4e+ processor module. Figure 0-1 illustrates jumper and connector locations on the CHIP4e+.

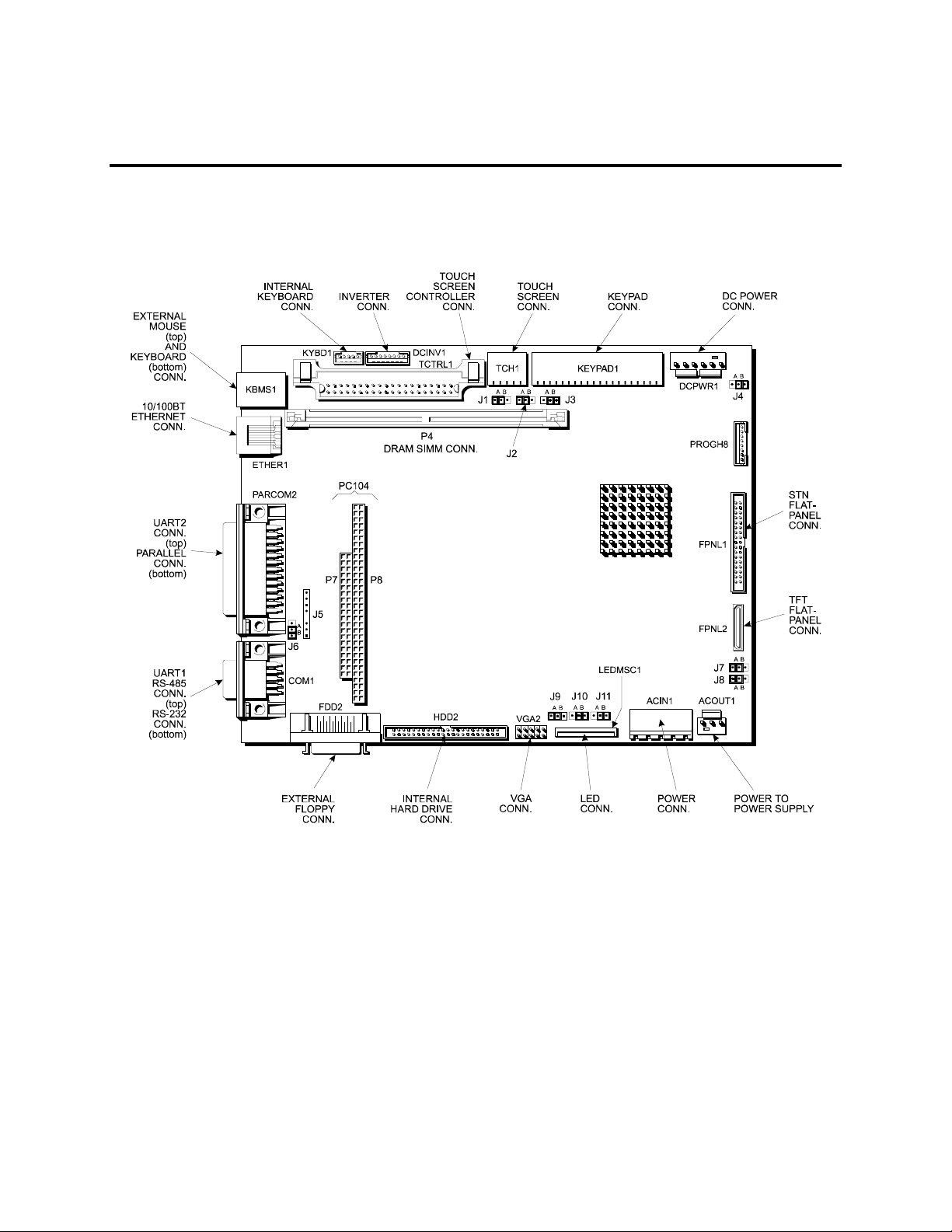

Figure 0-1. CHIP4e+ Jumper and Connector Locations

CHIP4e+ Manual

Configuration Options

Jumper Settings

Table 2-1 lists the module’s jumpers, and their default positions and functions. The jumpers marked Access are at the top of the board for easy customer access.

Jumper Position Function

J3* A J4

J7* A

J9-J11* A

ü Indicates the default settings.

A B

B A

B B

A B

Table 0-1. CHIP4e+ Jumpers

Push button reset switch disabled (Access) Push button reset switch enabled

CMOS OK (Access) Clear CMOS

Auto Detect (Access) CRT selected Normal Program keyboard controller

Boot Flash enabled EPROM boot enabled

+5V panel logic +3.3V panel logic (see Table 2-2) VGA enabled VGA disabled

Panel type select (see Table 0-2)

*Flat panel/CRT setting will dictate default settings on J3, J7, and J9-J11.

Panel Type J7 J9 J10 J11

Sharp TFT 421/344

Kyocera STN

Sharp TFT

Kyocera STN

Sharp TFT

System Interrupts

Table 0-3 describes the interrupts used on the CHIP4e+.

Table 0-2. Jumper-Selectable Panel Type

ABB B 640x480 +5V

AAB B 640x480 +5V

ABA B 1024x768 +5V

AAA B 1024x768 +5V

BBB A 800x600 +3.3V

BAB A 800x600 +3.3V

Table 0-3. System Interrupts

Interrupt Function

IRQ0 System Timer IRQ1 Keyboard IRQ2 Cascade IRQ3 Serial Port* IRQ4 Serial Port* IRQ5 Parallel Port* IRQ6 Floppy Controller IRQ7 Parallel Port* IRQ8 Real-Time Clock IRQ9 Unused IRQ10 Serial Port* IRQ11 Serial Port* IRQ12 Mouse Port IRQ13 Math Coprocessor IRQ14 Fixed Disk IRQ15 Unused

*BIOS setup controlled

The BIOS setup menu controls the serial and parallel port interrupts. You can map the two serial ports to any two of the following interrupts: 3, 4, 10, or 11. The defaults are interrupts 3 and 4. This leaves IRQ10 and IRQ11 unused. You can map the parallel port to IRQ5 or IRQ7.

DMA Mapping

DMA Function

Table 0-4. DMA Channels

CHIP4e+ Manual

DMA Function

DMA0 Unused (Could be used for EPP/ECP parallel port option) DMA1 Unused DMA2 Floppy Controller DMA3 Unused (Could be used for EPP/ECP parallel port option) DMA5 Unused DMA6 Unused DMA7 Unused

DMA channels 0-3 are 8-bit; 5-7 are 16-bit. When the ECP option is enabled one of the 8-bit DMA channels is used.

Memory Map

Table 0-5 shows the CHIP4e+ memory map. The I/O designation refers to memory viewed as part of the AT bus.

Table 0-5. Memory Map

Address Range (hex) Size Device

FFFE0000 - FFFFFFFF 128 Kbytes System BIOS F8000000 - FFFEFFFF ~128 Mbytes Allocated to PCI bus by BIOS or operating system 80000000 - F7FFFFFF 15 x 128 Mbytes 128 Mbytes blocks of F8000000-FFFFFFFF

(shadowed 15 times) 08000000 - 7FFFFFFF 15 x 128 Mbytes 128 Mbytes blocks of 0-07FFFFFF (shadowed 15 times) 04000000 - 07FFFFFF 64 Mbytes Allocated to PCI bus by BIOS or operating system 00100000 - end of DRAM DRAM 000F0000 - 000FFFFF 64 Kbytes System BIOS 000E0000 - 000EFFFF 64 Kbytes System BIOS 000D0000 - 000DFFFF 64 Kbytes AT bus I/O 000CC000- 000CFFFF 16 Kbytes DOC2000 or Battery-backed SRAM option 000C0000 - 000CBFFF 48 Kbytes VGA BIOS 000A0000 - 000BFFFF 128 Kbytes VGA DRAM memory 00000000 - 0009FFFF 640 Kbytes DRAM

I/O Map

Table 0-6 depicts the CHIP4e+’s I/O map. It contains the IBM AT architecture I/O ports, as well as some additions.

Table 0-6. I/O Map

Hex Range Device

000-01F DMA controller 1, 8237A-5 equivalent 020-021 Interrupt c ont rol l er 1, 8259 equivalent 022 M1489/M1487 confi guration index register 023 M1489/M1487 confi guration data register 025-02F Interrupt controller 1, 8259 equivalent 040-05F Timer, 8254-2 equivalent 060-06F 8742 equivalent (keyboard) 070-07F Real time clock bit 7 NMI mask 080-091 DMA page register 092 Reset/ Fast Gate A20 93-9F DMA page register 0A0-0BF Interrupt controller 2, 8259 equivalent 0C0-0DF DMA controller 2, 8237A-5 equivalent 0F0 N/A 0F1 N/A 0F2-0F3 N/A 0F4 IDE ID port 0F5-0F7 N/A 0F8 IDE Index port 0F9-0FB N/A 0FC IDE Data port 0FD-0FF N/A 100 Available 102 C&T Global enabl e regi ster 103-179 Available 180-181 SRAM control register (may be remapped based on I/ O port 234h) 182-1EF Available 1F0-1F7 IDE c ontroller (ATdrive) 231 Xycom LE D port 233 Xycom Flas h control register 234 Xycom I / O port control register 278-27F Parallel port 2 280-2F7 Available 2F8-2FF Serial port 2 300-36F Available 370-377 Alternate f l oppy di sk controller 378-37F Parallel port 1 380-3AF Available 3B0-3BB Mono mode video 3BC-3BF Reserved for parallel port 3C0-3CF VGA/EGA2 3D0-3DF CHIPS flat panel and color mode registers 3E0-3EF Available 3F0-3F7 Primary floppy disk controller 3F8-3FF Serial port 1 CF8 PCI configuration address regi ster CFC PCI configuration data register

CHIP4e+ Manual

Serial and parallel port addresses are controlled in the BIOS setup menus. Changing the setting changes the I/O location.

Serial and parallel port interrupts are available if software does not use the ports or does not use the interrupt.

Registers

The CHIP4e+ contains three ports: 231h, 233h, and 234h.

Note

Table 0-7. Register 231h - CPU LED Port

Bit LED/Signal Result R/W

0 Reserved 0 R 1 DOC2000 EN 0 = Disable

1 = Enable 2 Reserved 0 R 3 Reserved 0 R 4 Reserved 0 R 5 ENFLASHWR 1 = Enables Flash write

Note: This bit must be 1 to

make Flash visible at D0000h

when booting from AT bus.

6 VGA_EN 1 = Enables on-board VGA R 7 CLRCMS 1 = CMOS okay

0 = Clear CMOS

R/W

Table 0-8. Register 233h - Flash BIOS Control Register

Bit Signal Result R/W

0 FLA15 Flash address 15 - page control bit R/W 1 FLA16 Flash address 16 - page control bit R/W 2 FLA17 Flash address 17 - page control bit R/W 3 FLA18 Flash address 18 - page control bit R/W 4 FPSEL0 Flat panel select bit 0 R 5 FPSEL1 Flat panel select bit 1 R 6 FPSEL2 Flat panel select bit 2 R 7 FPSEL3 Flat panel select bit 3 R

Table 0-9. Register 234h - I/O Port Location Register

Bit Signal Result R/W

0 Reserved 0 R 1 Reserved 0 R 2 Reserved 0 R 3 Reserved 0 R 4 Reserved 0 R 5 Reserved 0 R 6 I/O port bit0 0 R/W 7 I/O port bit1 0 R/W

CHIP4e+ Manual

Offset Registers

The following registers are located starting at the I/O location defined by register 234h, bits 6 and 7.

Offset 0 Page Register for Programming (Port Address)

Offset 0 is a read-only register that checks the battery status.

Table 0-10. I/O Port Selection (Port Address)

I/O Port Selection Port Address

00 180h 01 2E0h 10 3E0h 11 300h

Table 0-11. Offset 0 Page Register for Programming (Port Address)

Bit Signal Result R/W

0 Battery status 0 = Battery good

1 = Battery failed

1-7 Reserved 0 R

Offset 1 Page Register for Programming (Port Address +1)

Offset 1 controls the SRAM paging bits.

Table 0-12. Offset 1 Page Register for Programming (Port Address +1)

Bit Signal Result R/W

0 Control RAM15 ROM address 15 - page control bit R/W 1 Control RAM16 ROM address 16 - page control bit R/W 2 Control RAM17 ROM address 17 - page control bit R/W 3 Reserved 0 R 4 Reserved 0 R 5 Reserved R/W 6 Reserved 0 R 7 Reserved 0 R

Connectors

This section describes the CHIP4e+ connectors and their pinouts.

Parallel Port Connector (PARCOM2)

This stacked 25-pin DB connector supports ECP and EPP. The A bollowing the pin number indicates the parallel port connector; B indicates COM2.

Pin Signal Pin Signal

1A STROBE 1B ORB_GND 2A PD(0) 2B TXD2 3A PD(1) 3B RXD2 4A PD(2) 4B RTS2 5A PD(3) 5B CTS2 6A PD(4) 6B DSR2 7A PD(5) 7B GND 8A PD(6) 8B DCD2 9A PD(7) 9B NC 10A PACK 10B NC 11A PBUSY 11B PB_RESET* 12A PE 12B NC 13A SELECT 13B NC 14A AUTOFEED 14B NC 15A PERROR 15B NC 16A INIT 16B NC 17A SELIN 17B NC 18A GND 18B NC 19A GND 19B NC 20A GND 20B DTR2 21A GND 21B NC 22A GND 22B RI2 23A GND 23B NC 24A GND 24B NC 25A GND 25B NC

CHIP4e+ Manual

Serial Port Connectors

There are two serial ports supported by the CHIP4e+ board.

COM1 Connector (COM1)

The nine-pin COM1 connector consists of two connectors (RS-232 and RS-485) attached to one logical port. Only one connector can be used at a time.

The A after the pin number in the following table indicates the lower connector (RS-

232); B indicates the upper connector (RS-485).

Pin Signal Pin Signal

1A DCD1 1B TXD2A RXD1 2B TXD+ 3A TXD1 3B TXD TERM 4A DTR1 4B TXD TERM + 5A GND 5B GND 6A DSR1 6B RXD7A RTS1 7B RXD+ 8A CTS1 8B RXD TERM + 9A RI1 9B RXD TERM -

Note

For TXD termination, a 150Ω, ½-watt resistor must be connected from pin 3B to pin 4B, with pin 1B connected to pin 3B and pin 2B connected to pin 4B.

For RXD termination, a 150Ω, ½-watt resistor must be connected from pin 8B to pin 9B with pin 6B connected to pin 9B and pin 7B connected to pin 8B.

COM2 Connector (PARCOM2)

This 25-pin DB connector sits on top of the parallel port. You can use it for three separate devices, but you can connect only one at a time: the touch screen controller, infrared (IR) interface, or RS-232 connector. The BIOS setup determines whether COM2 is used for the RS-232 connector or the IR interface. Jumpers on the touch screen controller select the COM2 or mouse ports. If a touch screen controller is jumpered for COM2, COM2 is unavailable.

In the table below, the B following the pin number indicates COM2, the upper RS232 port.

Pin Signal Pin Signal

This connector also contains the remote system reset option. A normally open push button switch can be connected to pins 11B and 7B. When the switch is pressed the PB_RESET* signal is forced to GND, which causes the CPU to reset. You must set jumper J1 to position B to enable this option.

CHIP4e+ Manual

PS/2 Keyboard and Mouse Port Connector (KBMS1)

This double-stacked connector provides an upper and lower connector for the keyboard and mouse port. The keyboard connector is the lower six-pin connector. This port uses a polyswitch to protect VCC from directly shorting to GND.

Pin Signal Pin Signal

1A KB_DATA 1B AUX_DATA 2A NC 2B NC 3A GND 3B GND 4A 5VFUSE 4B 5VFUSE 5A KB_CLK 5B AUX_CLK 6A NC 6B NC

Internal Keyboard Connector (KYBD1)

KYBD1 is a five-pin internal keyboard connector.

Note

This connector and the external connector cannot be used at the same time.

Pin Signal

1 KB_CLK 2GND 3 KB_DATA 45VFUSE 5 SPEAKER

VGA Connector (VGA2)

VGA2 is a 10-pin dual-row header. This connector is enabled when J3 is set to B.

Pin Signal

1RED 2GND 3 GREEN 4GND 5BLUE 6GND 7 VSYNC 8GND 9HSYNC 10 GND

External Floppy Drive Connector (FDD2)

FDD2 is a 26-pin external floppy connector. This port uses a polyswitch to protect VCC from directly shorting to GND.

Pin Signal Pin Signal

1 +5V_FUSED 14 FSTEP* 2IDX* 15NC 3 FDS1* 16 FWD*

4 +5V_FUSED 17 GND 5NC 18FWE* 6 DCHG* 19 GND 7NC 20FTK0* 8NC 21GND 9GND 22FWP* 10 MO1* 23 GND 11 NC 24 FRDD* 12 FDIRC* 25 GND 13 NC 26 FHS*

Internal LED Connector (LEDMSC1)

This 20-pin connector provides a way to add LEDs to touch screen units. This connector also serves as the IrDA interface port connector.

Pin Signal Pin Signal

1 5VFUSE 11 UC_CONT 2NC 12NC 35VFUSE13NC 4NC 14NC 5GND 15GND 6 IR_RXD2 16 COM_LED 7 TXD2 17 ALPHA_LED 8 IR_MODE 18 USER_LED 9 GND 19 IDEACTP_LED 10 DC_CONT 20 GND

CHIP4e+ Manual

FPGA Program Connector (J5)

This eight-pin connector is used to program the lattice FPGA.

IDE Connector (HDD2)

HDD2 is a dual-row, 44-pin 2mm box header provides an interface to an IDE hard drive.

Pin Signal Pin Signal

1 IDERESET* 23 HDIOW* 2GND 24GND 3 HDD7 25 HDIOR* 4 HDD8 26 GND 5 HDD6 27 HDIORDY 6 HDD9 28 ALE (pullup) 7 HDD5 29 NC 8 HDD10 30 GND 9 HDD4 31 IRQ14 10 HDD11 32 HDIOCS16* 11 HDD3 33 HDA1 12 HDD12 34 NC 13 HDD2 35 HDA0 14 HDD13 36 HDA2 15 HDD1 37 HDCS0* 16 HDD14 38 HDCS1* 17 HDD0 39 IDEACTP* 18 HDD15 40 GND 19 GND 41 +5V 20 NC 42 +5V 21 NC 43 GND 22 GND 44 NC

Pin Signal

1+5V 2SDO* 3SDI* 4 ISPEN* 5NC 6MODE* 7GND 8SCLK*

Power Connectors (DCPWR1)

DCPWR1 is a six-pin connector.

Pin Signal

1 +12V

2+5V

3+5V

4GND

5GND

6 -12V

Touch Control Connector (TCTRL1)

TCTRL1 is a 40-pin latching connector providing touch screen control.

Pin Signal Pin Signal

1 +5V 21 GND 2NC 22NC 3 +12V 23 GND 4NC 24NC 5NC 25GND 6 -12V 26 RESET 7NC 27NC 8NC 28TXD2 9 +5V 29 NC 10 NC 30 TCH_RXD2 11 NC 31 NC 12 NC 32 +5V 13 NC 33 NC 14 NC 34 AUX_DATA 15 NC 35 AUX_CLK 16 NC 36 UL 17 NC 37 LL 18 GND 38 SENSE 19 TCH_LED* 39 LR 20 NC 40 UR

CHIP4e+ Manual

Touch Connector (TCH1)

This five-pin connector interfaces to the touch screen.

Pin Signal

1UR 2LR 3 SENSE 4LL 5UL

STN Flat-Panel Connector (FPNL1)

The 34-pin FPNL1 connects to a STN flat-panel display. The flat-panel type and panel logic voltage are jumper selectable (refer to the Jumper Settings section earlier in this chapter).

Pin Signal Pin Signal

1 LP(15) 18 LP 2 LP(14) 19 GND 3 LP(13) 20 SHFCLK 4 LP(12) 21 GND 5 LP(7) 22 LP(11) 6 LP(6) 23 LP(10) 7 LP(5) 24 LP(9) 8 LP(4) 25 LP(8) 9 VCCSW 26 LP(3) 10 GND 27 LP(2) 11 NC 28 LP(1) 12 SW_VEE 29 LP(0) 13 SW_VEE 30 NC 14 VCONT 31 NC 15 FLM 32 +5V 16 NC 33 SWVCC 17 ENAVEE(DISP) 34 WIPER

TFT Flat-Panel Connector (FPNL2)

The 31-pin FPNL2 connects to a TFT flat-panel display. The flat-panel type and panel logic voltage are jumper selectable (refer to the Jumper Settings section earlier in this chapter).

Pin Signal Pin Signal

1 GND 17 LP(14) 2 SHFCLK 18 LP(15) 3LP 19GND 4 FLM 20 LP(2) 5 GND 21 LP(3) 6 LP(18) 22 LP(4) 7 LP(19) 23 LP(5) 8 LP(20) 24 LP(6) 9 LP(21) 25 LP(7) 10 LP(22) 26 GND 11 LP(23) 27 M 12 GND 28 VCCSW 13 LP(10) 29 VCCSW 14 LP(11) 30 R/L 15 LP(12) 31 U/D 16 LP(13)

Backlight Inverter Connector (DCINV1)

This eight-pin connector provides power for the backlight inverter.

Pin Signal

1 +12V (switched) 2 +12V (switched) 3 Undefined Voltage 4 Undefined Voltage 5 Undefined Voltage 6 Undefined Voltage 7GND 8GND

Caution

Do not use excessive force or pressure to engage the connectors.

CHIP4e+ Manual

AC Input Connector (ACIN1)

Pin AC Signal DC Signal

1L +DC 2N -DC 3 AC_GND GND

AC Supply Connector (ACOUT1)

This three-pin connector connects the power supply to the CPU.

Pin AC Signal DC Signal

1L +DC 2NC NC 3N -DC

H8 Boot Program (PROGH3)

This eight-pin connector programs the H8 for the first time.

Pin Signal

1GND

2TXD1

3RXD1

4 RES*

5+5V

6 +12V

7MD1

8GND

Ethernet Connector (ETHER1)

This eight-pin connector provides 10BASE-T and 100BASE-TX Ethernet connections.

Pin Signal

1TX+ 2TX3RX+ 4 Short to pin 5 75ohm to TERMPLANE 5 Short to pin 4 75ohm to TERMPLANE 6RX7 Short to pin 8 75ohm to TERMPLANE 8 Short to pin 7 75ohm to TERMPLANE

PC/104 Connector (P7 and P8)

This 32-pin connector allows you to connect PC/104 cards.

The PC/104 connector does not support cards that need -5V.

Pin Row A Row B Row C Row D

Note

0- - GND GND 1 IOCHCK* GND SBHE* MEMCS16* 2 SD7 RESETDRV LA23 IOCS16* 3 SD6 +5V LA22 IRQ10 4 SD5 IRQ9 LA21 IRQ11 5 SD4 NC LA20 IRQ12 6 SD3 DRQ2 LA19 IRQ15 7 SD2 -12V LA18 IRQ14 8 SD1 0WS* LA17 DACK0* 9 SD0 +12V MEMR* DRQ0 10 IOCHRDY NC MEMW* DACK5* 11 AEN SMEMW* SD8 DRQ5 12 SA19 SMEMR* SD9 DACK6* 13 SA18 IOW* SD10 DRQ6 14 SA17 IOR* SD11 DACK7* 15 SA16 DACK3* SD12 DRQ7 16 SA15 DRQ3 SD13 +5V 17 SA14 DACK1* SD14 MASTER* 18 SA13 DRQ1 SD15 GND 19 SA12 REF* NC GND 20 SA11 SYSCLK 21 SA10 IRQ7 22 SA9 IRQ6 23 SA8 IRQ5 24 SA7 IRQ4 25 SA6 IRQ3 26 SA5 DACK2* 27 SA4 TC 28 SA3 ALE 29 SA2 +5V 30 SA1 OSC 31 SA0 GND 32 GND GND

CHIP4e+ Manual

Keypad Connector (KEYPAD1)

This 20-pin connector provides the keypad interface.

Pin Signal Pin Signal

1 GND 11 KSI(7) 2 KSO(9) 12 KSO(0) 3 KSO(10) 13 KSO(1) 4 KSI(0) 14 KSO(2) 5 KSI(1) 15 KSO(3) 6 KSI(2) 16 KSO(4) 7 KSI(3) 17 KSO(5) 8 KSI(4) 18 KSO(6) 9 KSI(5) 19 KSO(7) 10 KSI(6) 20 KSO(8)

Chapter 3 – BIOS Setup Menus

The CHIP4e+ board’s customized BIOS has been designed to surpass the functionality provided for normal PC/ATs. This custom BIOS allows you to access the value-added features on the CHIP4e+ module without interfacing to the hardware directly.

Moving through the Menus

General instructions for navigating through the screens are described below:

Key Result

F1 or ALT-H F2 Enters the BIOS setup menus

ESC If you are in a submenu, it returns to its associated menu. If you are in a

← or → arrow keys ↓ or ↑

TAB Moves the cursor to the next user-configurable field in the menu. When

SHIFT+TAB

HOME and PGUP or END

and PGDN

F5 or - F6 or + or SPACE F9 F10 ENTER

ALT-R

Opens the General Help window

menu, it accesses the Exit menu. Selects a different menu Moves the cursor to the next or previous user-configurable field in the menu

you reach the last user-configurable field in the menu, it cycles to the first user-configurable field in the menu. Moves the cursor to the previous user-configurable field in the menu. When you reach the first user-configurable field in the menu, it cycles to the last user-configurable field in the menu. Moves the cursor to the first or last user-configurable field in the menu

Selects the previous value for the field Selects the next value for the field Loads the menu’s default configuration values Loads the menu’s previous configuration values Executes the selected command or opens the selected submenu (a “

indicates a submenu) Refresh screen

þ”

Note

The settings shown in the menus are the default settings.

CHIP4e+ Manual

BIOS Main Menu

Follow the instructions below to access the BIOS setup menus:

• If the setup prompt is disabled on your system–which is the default–press

F2 as

soon as the “Xycom Industrial BIOS vx.x” banner displays at the top of your screen, and before your system loads the operating system.

• If the setup prompt is enabled on your system (on the Boot Sequence submenu),

the BIOS displays the following message: “Press F2 As soon as this message appears, press

Main Advanced Security Exit

System Time: [16:19:20] System Date: [02/25/1998] If the line item you are Diskette A: [1.44 MB, 3½” ] viewing has specific help,

Diskette B: [Not Installed] it will be listed here.

þ IDE Adapter 0 Master (C: 1350 Mb) þ IDE Adapter 0 Slave (None)

Video System: [EGA / VGA]

þ Memory Shadow þ Boot sequence: [A: then C:] þ Numlock: [Auto]

F2.

to enter Setup.”

Item Specific Help

System Memory: 640 KB

Extended Memory: 3 MB

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

F10 Previous Values

Submenu

Option Description

System Time (HH/MM/SS) Sets the real-time clock for hour, minute, and seconds. The hour is calculated according to

a 24-hour military clock (i.e., 00:00:00 through 23:59:59). Use

TAB to move left. The ENTER key may be used to move from one field to the next. The

TAB to move right; SHIFT +

numeric keys, 0-9, are used to change the field values. It is not necessary to enter the seconds or type zeros in front of numbers.

Syste m Date (MM:DD:YYYY) Sets the real-time clock for the month, day, and year. Use TAB to move right; SHIFT + TAB to

move left. The

ENTER key may be used to move from one field to the next. The numeric

keys, 0-9, are used to change the field values. It is not necessary to type zeros in front of

numbers. Diskette A or B Selects the floppy-disk drive installed in your system. Video System Selects the default video device. System Memory Displays the amount of conventional memory detected during boot up. This field is not

user configurable. Extended Memory Displays the amount of extended memory detected during boot up. This field is not user

configurable.

IDE Adapter 0 M aster and Slave Submenu

Use the IDE Adapter 0 Master and Slave submenus to configure IDE hard drive information. If one drive is attached to the IDE adapter, then you need to enter Master Submenu parameters. If two drives are connected, you need to enter both Master and Slave Submenu parameters. The Master and Slave submenus contain the same information.

Main

IDE Adapter 0 Master (C: 1350 Mb) Item Specific Help

Autotype Fixed Disk: [Press Enter] If the line item you are

viewing has specific help, Type: [Auto] it will be listed here. Cylinders: Heads: Sectors/Track: Write Precomp:

Multi-Sector Transfers: Disabled LBA Mode Control: Disabled 32 Bit I/O: [Disabled] Transfer Mode: Standard

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Option Description

Autotype Fixed Disk Reads the hard disk parameters from the drive if you press ENTER. Do not attempt to manually set

the disk drive parameters unless instructed to do so by Xycom Application Engineering.

Type Options include 1 to 39, User, or Auto. The “1 to 39” option fills in all remaining fields with values

for predefined disk type. “User” prompts you to fill in remaining fields. “Auto” autotypes at each boot, displays settings in setup menus, and does not allow you to edit the remaining fields.

Cylinders Indicates the number of cylinders on the hard drive. This information is automatically entered if

the “Autotype Fixed Disk” option is set.

Heads Indicates the number of read/write heads on the hard drive. This information is automatically

entered if the “Autotype Fixed Disk” option is set.

Sectors/Track Indicates the number of sectors per track on the hard drive. This information is automatically

entered if the “Autotype Fixed Disk” option is set. Write Precomp This value is not used or required by IDE hard drives. Multi-Sector Transfers Sets the number of sectors per block. Options are Auto, 2, 4, 8, or 16 sectors. “Auto” sets the

number of sectors per block to the highest number supported by the drive. LBA Mode Control Enables Logical Block Access. The default is enabled and should work with most hard drives. 32-Bit I/O Enables 32-bit communication between the CPU and IDE interface. Transfer Mode Selects the method for transferring the data between the hard disk and system memory. Available

options are determined by the drive type and cable length.

F10 Previous Values

CHIP4e+ Manual

Memory Shadow Submenu

This screen displays the amount of shadow memory in use.

Main

Memory Shadow Item Specific Help

System shadow: Enabled If the line item you are Video shadow: [Enabled] viewing has specific help,

it will be listed here.

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Option Description

System Shadow Shadow memory is used to copy system and/or video BIOS into RAM to improve performance This

field is not user configurable.

Video shadow When enabled, video BIOS is copied to shadow RAM for increased performance. The CHIP4e+ is

shipped with video BIOS shadowed.

F10 Previous Values

Boot Sequence Submenu

Use this menu toconfigure the boot sequence.

Main

Boot Sequence Item Specific Help

Previous Boot: [Disabled] If the line item you are Boot sequence: [A: then C:] viewing has specific help, SETUP prompt: [Disabled] it will be listed here. POST Errors: [Enabled] Floppy check: [Disabled] Summary screen: [Enabled]

F1 Help ↑↓ Select

Item

ESC Exit ←→ Select

Option Description

Previous Boot Detects if a boot sequence was not completed properly when enabled. An incomplete boot may be

caused by a power failure, reset during boot up, or invalid CMOS configuration. If the BIOS detects this condition, it will display the following message: “Previous boot incomplete - default configuration used.” The system is then rebooted using the default configuration. If this option is disabled, the system BIOS will not detect an incomplete boot. As a result, the system may not boot if the CMOS settings are

wrong. Boot Sequence Attempts to load the operating system from the disk drives in the sequence selected here. Setup Prompt Displays the message, “Press <F2> for Setup,” during boot up. POST Errors Halts the system if it encounters a boot error when enabled, and will display “Press <F1> to resume,

<F2> for Setup.” Floppy Check Seeks disk drives on the system during boot up if enabled. Disabling speeds boot time. Summary Screen Displays system summary screen during boot up when enabled. The default is enabled. This screen is

a standard Phoenix BIOS screen and provides information on the following items:

Processor Type COM Ports

Coprocessor Type LPT Ports

BIOS Date Di splay Type

System ROM Address Hard Disk 0

System RAM Hard Disk 1

Extended RAM Diskette A

Shadow RAM Diskette B

Cache RAM

-/+ Change Values F9 Setup Defaults

Enter Select þ Submenu F10 Previous Values

CHIP4e+ Manual

Numlock Submenu

Main

Keyboard Features Item Specific Help

Numlock: [Auto] If the line item you are Key Click: [Disabled] viewing has specific

help,

Keyboard auto-repeat rate:

[30/sec] it will be listed here.

Keyboard auto-repeat delay:

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Option Description

Numlock Determines how the BIOS defines the numlock key at power up or soft reset. Normally,

Keyboard Click Provides audible key-press feedback by causing the BIOS to click through the system

Keyboard auto-repeat rate Defines the rate at which the keyboard repeats while a key is pressed. The higher the Keyboard auto-repeat delay Sets the delay time after a key is held down, before it begins to repeat the keystroke.

[1/2 sec]

F10 Previous Values

Submenu

the BIOS sets the numlock (numeric keys selected) if it detects a 101- or 102-key keyboard at power up. If an 84-key keyboard is detected, numlock is turned off (cursor keys selected). Select “Auto” to keep this state; “On” to select the numeric keys, regardless of keyboard; or “Off” to select the cursor keys, regardless of keyboard.

speaker every time a key is pressed, if enabled. This option is only valid for systems with a speaker connected to the speaker jack.

number, the faster the key repeats.

Advanced Menu

This menu lets you change peripheral control, advanced chipset control, and disk access mode.

Main Advanced Security Exit

Item Specific Help

Warning! Setting items on this menu to incorrect values If the line item you are may cause your system to malfunction. viewing has specific help,

it will be listed here.

þ Integrated Peripherals þ Advanced Chipset Control

Plug & Play O/S: [No]

Large Disk Access Mode: [DOS] Simultaneous Video: [Disabled] Video Screen Expansion: [Video BIOS Default]

32-Pin ROM Site Type: [SRAM]

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Feature Description

Plug & Play O/S Select “Yes” if using an operating system with Plug & Play capabilities. Large Disk Access Mode Select “DOS” if your system has DOS. Select “Other” if you have another operating system,

such as UNIX. A large disk is one that has more than 1024 cylinders, more than 16 heads, or more than 63 tracks per sector.

Simultaneous Video Select “Enabled” if you want both a video display out the CRT port and the flat-panel

display. Select “Disabled” if you want only the flat-panel display. Note: If you enable this

option, it will degrade passive STN panel performance.

Video Screen Expansion Enables video screen expansion to fill the area of the flat-panel screen. Used most for DOS,

the setting for each option depends on the type of flat panel attached to the unit. “ON” maximizes expansion as allowed for the panel, while “OFF” minimizes expansion as allowed for the panel. For non-DOS operating systems, use “Video BIOS Default.”

32-Pin ROM Site Sets the type of device installed in the 32-Pin ROM site. Select “Disk-On-Chip” if the site is

filled with a DiskOnChip 2000. Select “SRAM” if the site is unpopulated or filled with SRAM.

F10 Previous Values

CHIP4e+ Manual

Integrated Peripherals Submenu

The Integrated Peripherals Submenu is used to configure the COM ports, parallel ports, and enable/disable the diskette and enhanced IDE controllers.

Advanced

Integrated Peripherals Item Specific Help

UART1 Port: [3F8h, IRQ 4] If the line item you are UART2 Port: [2F8h, IRQ 3] viewing has specific help, Parallel Port: [378h, IRQ 7] it will be listed here. Parallel Port Mode: [Bi-directional] Diskette controller: [Enabled] Local Bus IDE adapter: [Enabled] UART 2 Mode: [Standard]

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Option Description

UART1 Port Allows the COM port address and IRQ levels to be modified or disabled. UART2 Port Allows the COM port address and IRQ levels to be modified or disabled. Parallel Port Sets a unique address and interrupt request for the LPT port. “Auto” selects the next available

combination. You can choose to disable this option. Parallel Port Mode Configures the LPT port. Choices are “Bi-directional” and “Standard Mode.” Diskette Controller Enables or disables the on-board floppy disk controller. Local Bus IDE Adapter Enables or disables the local bus IDE adapter. UART 2 Mode Sets the interface to “Standard,” “ASKIR,” or “IrDA.”

F10 Previous Values

Advanced Chipset Control Submenu

Use this menu to change the values in chipset registers and optimize your system’s performance.

Advanced

Advanced Chipset Control Item Specific Help

DRAM read timing: [Fast] If the line item you are DRAM write timing: [Fast] viewing has specific help, I/O recovery time

setting:

-PCI FeaturesCPU to PCI write

buffer: PCI to DRAM buffer: [Enabled]

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Option Description

DRAM read timing Selects the DRAM read timing speed. Choices are “Slow,” “Normal,” “Fast,” and “Fastest.” DRAM write timing Selects the DRAM write timing speed. Choices are “Slow,” “Normal,” “Fast,” and “Fastest.” I/O recovery time setting Sets the minimum time required between back-to-back I/O operations. The default is 0 µs,

which allows the system to operate at the fastest rate. CPU to PCI write buffer Enables CPU to PCI write buffer feature for improving the CPU to PCI write performance. PCI to DRAM buffer Enables PCI to DRAM buffer feature for improving performance.

[0 µs] it will be listed here.

[Enabled]

F10 Previous Values

Submenu

Note

Leave the options in this menu in their default configurations.

CHIP4e+ Manual

Security Menu

This menu prompts for the new system password and requires you to verify the password by entering it again. The password can be used to stop access to the setup menus or prevent unauthorized booting of the unit. The supervisor password can also be used to change the user password.

Main Advanced Security Exit

Item Specific Help

Supervisor Password is Disabled User Password is Disabled If the line item you are Set Supervisor Password [Press Enter] viewing has specific help, Set User Password Press Enter it will be listed here.

Password on boot: [Disabled]

Diskette access: [Supervisor] Fixed disk boot sector: [Normal] System backup reminder: [Disabled] Virus check reminder: [Disabled]

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Option Description

Supervisor Password is Indicates the supervisor password, which is set in the Set Supervisor Password field. If

no password is set, this field indicates it is disabled.

User Password is Indicates the user password, which is set in the Set User Password field. If no password

is set, this field indicates it is disabled.

Set Supervisor Password Provides full access to setup menus. You may use up to seven alphanumeric characters.

You can disable the supervisor password by setting this field to “CR” or leaving it empty.

Set User Password Provides restricted access to setup menus. It requires the prior setting of a supervisor

password. You may use up to seven alphanumeric characters. You can disable the user password by setting this field to “CR” or leaving it empty.

Password on Boot When the supervisor password is set and this option is disabled, BIOS assumes the user

is booting.

Diskette Access Restricts floppy drive access to the supervisor when set to “Supervisor.” Requires setting

the supervisor password. Fixed Disk Boot Sector Write protects the disk boot sector to help prevent viruses. System Backup Reminder/Virus Check Reminder

When enabled, displays a message during boot up asking (Y/N) if you have backed-up

the system or scanned it for any viruses. The message displays each time you boot until

you respond with “Y.” “Daily” displays the message on the first boot of the day; “Weekly”

on the first boot after Sunday; and “Monthly” on the first boot of the month.

F10 Previous Values

Exit Menu

Use this menu to exit the setup menus.

Main Advanced Security Exit

Item Specific Help

Save Changes & Exit Exit Without Saving Changes If the item you are Get Default Values viewing has specific help, Load Previous Values it will be listed here. Save Changes

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults

ESC Exit ←→ Select Menu Enter Select þ

Submenu

Option Description

Save Changes & Exit Saves the changes you have made during the current session in battery-backed CMOS

RAM, and then exits the setup menus. After you save your selections, the program displays the following message:

“ Values have been saved.” “ [Continue]”

When you press continue, the system exits the setup menus. The next time you boot your computer, the BIOS configures your system according to the setup selections stored in CMOS. If those values cause the system boot to fail, reboot and press F2 Default Values (as described below) or change the selections that caused the boot to fail.

Exit Without Saving Changes Exits the setup menus without storing any new selections you may have made. The

previous selections in effect remain in effect.

Get Default Values Loads the default values for all the Setup menus. After you select this option, the program

displays the following message:

“ Default values have been loaded.” “ [Continue]”

If, during boot up, the BIOS detects a problem with values stored in CMOS, it displays the following messages:

“ System CMOS checksum bad - run SETUP” “ Press <F1> to resume, <F2> to Setup”

This indicates that the CMOS values have been corrupted or modified incorrectly. Press F1 to resume the boot (this causes the system to be configured using the default values) or F2 menus. You can make other changes before saving the values to CMOS.

Load Previous Values Restores the values you previously saved to CMOS if you change your mind about

changes you have made and have not yet saved .

Save Changes Saves all the changes you have made during the current session to battery-backed CMOS

RAM, but does not exit the setup menus. You can return to the other menus if you want to review and change your selections.

to enter the BIOS setup menus. Once in the setup menus, you can revert to the

to run the BIOS setup menus with the ROM default values already loaded into the

F10 Previous Values

CHIP4e+ Manual

BIOS Compatibility

This BIOS is IBM PC/AT compatible with additional CMOS RAM and BIOS data areas used.

Appendix A – DRAM Installation

The CHIP4e+ has one 72-pin in-line memory module (SIMM) site in which to add memory. Due to the CPU speed, DRAM access time should be 70 ns or less, and must be 60 ns to run with the fastest memory setting.

The CHIP4e+ can accommodate 4, 8, 16, 32, or 64 Mbytes of DRAM. You may use 1M x 32, 2M x 32, 4M x 32, 8M x 32, and 16M x 32 DRAM SIMM sizes.

Tables A-1 through A-5 list recommended DRAM manufacturers, along with the respective part numbers.

Table 0-13. 1M x 32 Part Numbers (4 Mbytes)

Part Number

Manufacturer Non-EDO EDO

Micron MT8D132M-6 MT8D132M-6x

Reptron/PNY N/A ME10243208ES-60MT

Siemens N/A HYM3210055-60

Xycom 104273

Table 0-14. 2M x 32 Part Numbers (8 Mbytes)

Part Number

Manufacturer Non-EDO EDO

Hitachi N/A HB56U232SB-6C Micron MT6D232M-6 MT6D232M-6x

Reptron/PNY N/A ME20483216ES-60MT

Siemens N/A HYM322005S-60

Xycom 104258

Table 0-15. 4M x 32 Part Numbers (16 Mbytes)

Part Number

Manufacturer Non-EDO EDO

Hitachi N/A HB56V832SB-6BN Micron MT8D432M-6 MT8D432M-6x

NEC N/A MC-42800F32B-60

Xycom 104302

Table 0-16. 8M x 32 Part Numbers (32 Mbytes)

Manufacturer Part Number (EDO)

Micron MT16D832M-6x

Xycom 106054

Table 0-17. 16M x 32 Part Numbers (64 Mbytes)

Manufacturer Part Number (EDO)

Xycom 123514

Figure 0-1 shows how to install DRAM SIMMS on the CHIP4e+.

CHIP4e+ Manual

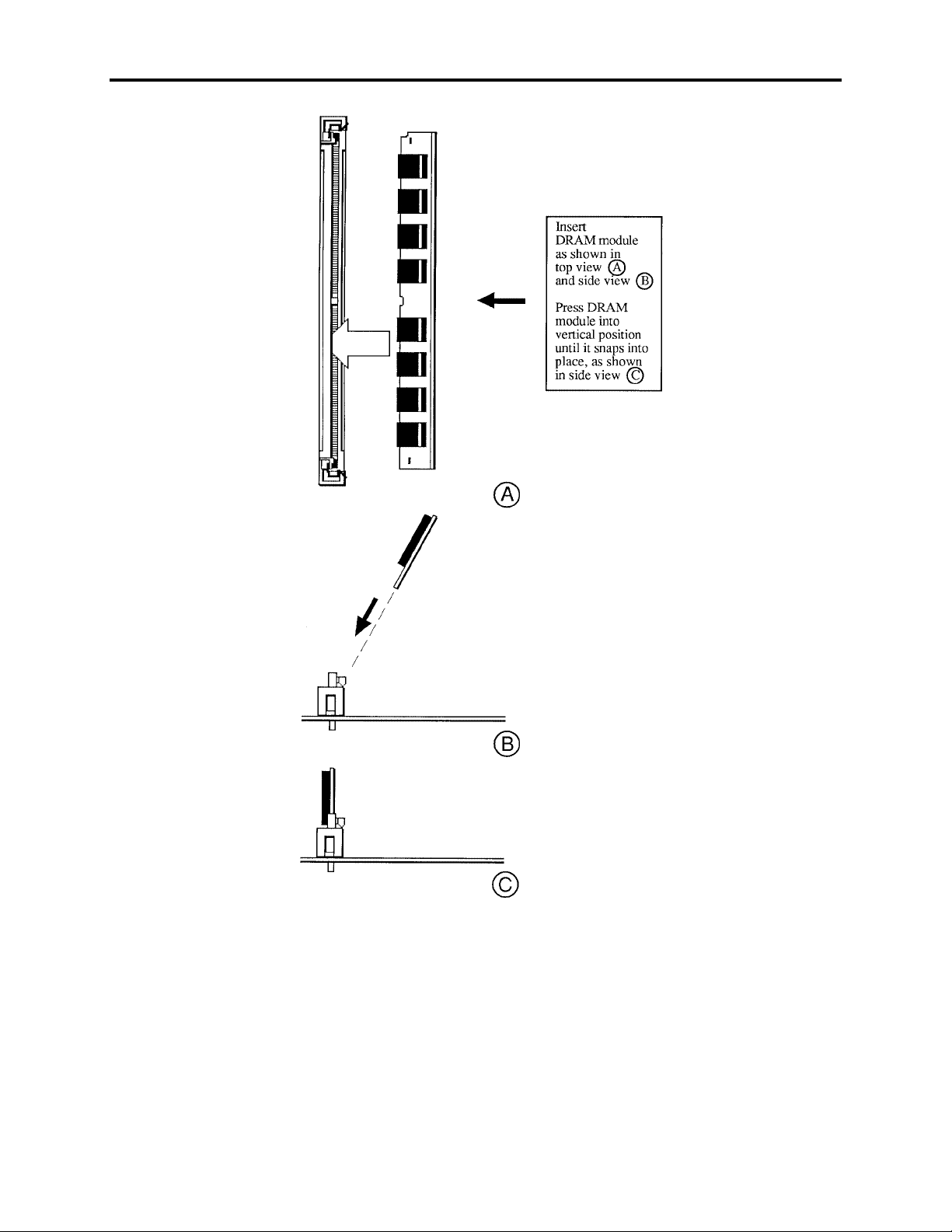

Figure 0-1. DRAM Installation

Appendix B – Video Modes

The Chips & Technologies VGA BIOS supports many standard, VESA, and extended modes. The following tables list the standard and extended video modes, and whether or not they are supported by CRT, TFT active color, and STN passive color displays.

Standard Modes

IBM Mode VESA Mode # of Colors Pixels Display

Mode

00 Not Supported 16/256 320x200 text Supported Supported Supported 01 Not Supported 16/256 320x350 text Supported Supported Supported 02 Not Supported 16/256 640x200 text Supported Supported Supported 03 Not Supported 16/256 640x200 text Supported Supported Supported 04 Not Supported 4/256 320x200 graphics Supported Supported Supported 05 Not Supported 4/256 320x200 graphics Supported Supported Supported 06 Not Supported 2/256 640x200 graphics Supported Supported Supported

07 Not Supported mono 720x350 text Supported Supported Supported 0D Not Supported 16/256 320x200 graphics Supported Supported Supported 0E Not Supported 16/256 640x200 graphics Supported Supported Supported 0F Not Supported mono 640x350 graphics Supported Supported Supported

10 Not Supported 16/256 640x350 graphics Supported Supported Supported

11,20 Not Supported 2/256 640x480 graphics Supported Supported Supported

12 Not Supported 16/256 640x480 graphics Supported Supported Supported

13 Not Supported 256/256 320x200 graphics Supported Supported Supported

CRT TFT STN

CHIP4e+ Manual

Extended Modes

C&T

Mode

30 101 256 640x480 graphics Supported Supported Supported 40 ? 32K 640x480 graphics Supported Supported Supported 41 ? 64K 640x480 graphics Supported Supported Supported 50 ? 16M 640x480 graphics Supported Supported Supported 22 102 16 800x600 graphics Supported Not Supported Not Supported 32 103 256 800x600 graphics Supported Not Supported Not Supported 42 ? 32K 800x600 graphics Supported Not Supported Not Supported 43 ? 64K 800x600 graphics Supported Not Supported Not Supported 24 104 16 1024x768 graphics Supported Not Supported Not Supported 34 ? 256 1024x768 graphics Supported Not Supported Not Supported

VESA Mode

100 256 640x400 graphics Supported Supported Supported

# of

Color

Pixels Display Mode CRT TFT STN

Windows® 3.1

Windows 3.1 Driver

(Version 1.1.1)

1024x768x16 Supported Not Supported Not Supported 1024x768x256 Supported Not Supported Not Supported 1280x1024x16 Not Supported Not Supported Not Supported 640x480x16 Supported Supported Supported 640x480x256 Supported Supported Supported 640x480x32k Supported Supported Supported 640x480x64k Supported Supported Supported 640x480x16M Supported Supported Supported 800x600x16 Supported Not Supported Not Supported 800x600x256 Supported Not Supported Not Supported 800x600x32k Supported Not Supported Not Supported 800x600x64k Supported Not Supported Not Supported

CRT TFT STN

All Windows’ drivers were tested on a NEC multisync 5FG monitor.

Windows 95

Note

Windows 95 Driver

(Version 4.0)

1024x768x256 Supported 640x480x16 Supported 640x480x256 Supported 640x480x16bit Supported 640x480x24bit Supported 800x600x16 Supported 800x600x256 Supported 800x600x16bit Supported

CRT

Windows NT® 3.5

All rates tested and passed on NEC multisync 5FG monitor except 30 Hz modes (not supported by monitor).

OS/2 Warp 3

Windows NT Driver

(Version 1.1.0)

1024x768x256 Supported 640x480x256 Supported 640x480x64k Supported 800x600x256 Supported 800x600x64k Supported

CRT

Note

OS/2 Warp Driver

(Version 1.1.0)

1024x768x256 Supported 640x480x256 Supported 640x480x64k Supported 640x480x16M Supported 800x600x256 Supported

CRT

CHIP4e+ Manual

Index

Numeric

32-pin ROM site, 8

AC supply connector, 30 Advanced Menu, BIOS setup, 39 altitude, 11

backlight inverter connector, 29 battery status, 20 BIOS compatibility, 44 BIOS menus

Advanced Menu, 39

Advanced Chipset Control Sub-menu, 41

Integrated Peripherals Sub-menu, 40 Exit Menu, 43 Main Setup Menu, 34

Boot Sequence Sub-menu, 37

IDE Adapter 0 Master and Slave Sub-menu,

35 Memory Shadow Sub-menu, 36 Numlock Sub-menu, 38

Security Menu, 42

block diagram, 6

CMOS, 14 COM1. See serial ports COM1 connector, 22 COM2. See serial ports

connector, 23 compatibility, BIOS, 44 configuration, CPU, 14 connectors

AC supply, 30

backlight inver t er, 29

COM1, 22

COM2, 23

Ethernet, 30 flat panel

STN, 28

TFT, 29 floppy drive, 24 FPGA, 26 H8 boot program, 30 IDE, 26 internal keyboard, 24 internal LED, 25 keyboard port, 24 keypad, 32 location, 13 parallel port, 21 PC/104, 30 power, 27 serial port, 22 touch, 28 touch screen, 27 VGA, 24

controllers

Ethernet, 7

CPU, 7

speed, 12

CRT

auto detect, 14

DiskOnChip 2000, 8 DMA mapping, 15 DRAM, 8

part numbers, 45

drives

floppy, 10 hard, 10

environmental specification, 11 environmental specifications

altitude, 11 humidity, 11

CHIP4e+ Manual

shock, 11 temperature, 11

vibration, 11 Ethernet connector, 30 Ethernet controller, 7 Exit Menu, BIOS setup, 43 expansion

PC/104, 11

PCI, 11

features, module, 5 Flash BIOS, 8, 19 floppy drive, 10 floppy drive connector (external), 24 FPGA connector, 26

H8 boot program connector, 30 hard drive, 10 hard drive connector. See IDE connector hardware specifications, 12

CPU speed, 12

power, 12 humidity, 11

LED

internal connector, 25

Main Setup Menu, BIOS setup, 34 memor y maps

Flash BIOS, 8 I/O, 17

module, 16 module features, 5 module memory map, 16 mouse interface, 10

offset registers, 20

battery status, 20

SRAM paging, 20 on-board memory, 12

DRAM, 8

Flash BIOS, 8

optional

DiskOnChip 2000, 8 non-volatile SRAM, 8

I/O map, 17 I/O memory map, 17 IDE connector, 26 IDE controller, 7 internal keyboard connector, 24 internal LED connector, 25 interrupts, 15 IrDA interface, 10

jumpers

location, 13 panel select, 15 settings, 14

keyboard connectors, internal, 24 keyboard interface, 10 keyboard port

connector, 24

keypad connector, 32

panel select jumpers, 15 parallel port, 9, 12

connector, 21 PC/104 connector, 30 PCI local bus interface, 7 pinouts

AC supply connector, 30

backlight inverter connector, 29

COM1, 22

COM2, 23

Ethernet connector, 30

floppy drive connector (external), 24

FPGA connector, 26

H8 boot program connector, 30

IDE connector, 26

internal keyboard connector, 24

internal LED connector, 25

keyboard port, 24

keypad connector, 32

parallel port, 21

PC/104 connector, 30

power connector, 27

touch connector, 28

touch screen, 27

VGA connector, 24

Table of Contents

ports

I/O location, 19 LED, 18 parallel, 9, 12 serial, 9, 12

Ports

flash BIOS control, 19 power connector, 27 power specifications, 12

registers

CPU/LED port, 18

Flash BIOS control, 19

I/O port location, 19

offset, 20

Security Menu, BIOS setup, 42 serial port

connectors, 22 serial ports, 9, 12 shock, 11 specifications

environmental, 11

hardware, 12 SRAM, 8 SRAM paging, 20 STN flat panel connector, 28

temperature, 11 TFT flat panel connector, 29 touch connector, 28 touch screen connector, 27

VGA connector, 24 VGA graphics controller, 7, 12 vibration, 11 video modes

extended, 48

OS/2 Warp 3, 49

standard, 47

Windows 3.1, 48

Windows 95, 48

Windows NT 3.5, 49

iii

Xycom CHIP4e+ User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
