Xycom 5015T Hardware Manual

5015T

15” FLAT PANEL INDUSTRIAL MONITOR

FLAT PANEL INDUSTRIA

Hardware Guide

Revision Description Date
A
B

Manual released 07/02
Add 24VDC option & Hazardous

02/03

Locations information

C
D

Add RS-232 Cable Pinout 03/04
Added TIR Caution 06/04

Xycom Automation Part Number 142029(D)

Trademark Information

Xycom Automation is a trademark of Xycom Automation, Inc. Brand or product names may be registered
trademarks of their respective owners. Windows is a registered trademark of Microsoft Corporation in the
United States and other countries.

Copyright Information

This document is copyrighted by Xycom Automation Incorporated (Xycom Automation) and shall not be
reproduced or copied without expressed written authorization from Xycom Automation.

The information contained within this document is subject to change without notice. Xycom Automation
does not guarantee the accuracy of the information.

United States FCC Part 15, Subpart B, Class A EMI Compliance Statement:

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.

For European Users: WARNING

This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.

INSTALLATION: Electromagnetic Compatibility WARNING

The connection of non-shielded equipment interface cables to this equipment will invalidate FCC EMI and
European Union EMC compliance and may result in electromagnetic interference and/or susceptibility
levels which are in violation of regulations which apply to the legal operation of this device. It is the
responsibility of the system integrator and/or user to apply the following directions that relate to
installation and configuration:

All interface cables must include shielded cables. Braid/foil type shields are recommended.
Communication cable connectors must be metal, ideally zinc die-cast backshell types, and provide 360­degree protection about the interface wires. The cable shield braid must be terminated directly to the
metal connector shell; ground drain wires alone are not adequate.

Protective measures for power and interface cables as described within this manual must be applied. Do
not leave cables connected to unused interfaces or disconnected at one end. Changes or modifications to
this device not expressly approved by the manufacturer could void the user's authority to operate the
equipment.

Table of Contents

Chapter 1 Product Overview ....................................................................................................................................... 1

Product Features .......................................................................................................................................................................... 1

Standard 5015T Features............................................................................................................................................................ 1

Parts List....................................................................................................................................................................................... 2

Standard 5015T Parts List ........................................................................................................................................................... 2

Manual Overview.......................................................................................................................................................................... 2

Text Conventions Used in this Manual.......................................................................................................................................... 2

Product Dimensions...................................................................................................................................................................... 3

External Features.......................................................................................................................................................................... 4

Product Specifications and Ratings............................................................................................................................................... 5

Environmental.............................................................................................................................................................................. 5

Electrical...................................................................................................................................................................................... 5

Front Panel/Enclosure ................................................................................................................................................................. 5

Regulatory Compliance................................................................................................................................................................ 5

Safety Agency Approvals............................................................................................................................................................. 5

Chapter 2 Installation................................................................................................................................................... 6

Environmental Considerations ...................................................................................................................................................... 6

Power Management..................................................................................................................................................................... 6

System Power ............................................................................................................................................................................. 6

Excessive Heat............................................................................................................................................................................ 7

Electrical Noise............................................................................................................................................................................ 7

Line Voltage Variation.................................................................................................................................................................. 8

Location and Enclosure ............................................................................................................................................................... 8

Panel Installation .......................................................................................................................................................................... 9

Panel Mounting Dimensions ........................................................................................................................................................ 9

Hazardous Locations Installations.............................................................................................................................................. 11

Definitions...................................................................................................................................................................................................... 12

Power Switch.................................................................................................................................................................................................. 13

Cable Connections.......................................................................................................................................................................................... 14

Operation and Maintenance............................................................................................................................................................................ 14

Safety Agency Approval ................................................................................................................................................................................ 15

Chapter 3 Monitor Settings .......................................................................................................................................16

Mode and Image Adjustment ...................................................................................................................................................... 16

On Screen Display Select Switch............................................................................................................................................... 16

Analog RGB Interface................................................................................................................................................................ 16

Video Modes Supported ............................................................................................................................................................ 17

Adjusting the Backlight .............................................................................................................................................................. 17

Setting Color Mode.................................................................................................................................................................... 17

Adjustment Menu Reset............................................................................................................................................................. 18

Automatic Screen Adjustment..................................................................................................................................................... 18

Adjusting.................................................................................................................................................................................... 18

Manual Screen Adjustment......................................................................................................................................................... 19

OSD Menus............................................................................................................................................................................... 19

Menu Options ............................................................................................................................................................................ 19

Adjustment Menu........................................................................................................................................................................................... 19

Gain Control Menu......................................................................................................................................................................................... 20

White Balance Menu ...................................................................................................................................................................................... 20

User ................................................................................................................................................................................................................ 20

Mode Select Menu.......................................................................................................................................................................................... 20

Chapter 4 Operator Input........................................................................................................................................... 22

Touchscreen............................................................................................................................................................................... 22

Installing the Touchscreen Driver............................................................................................................................................... 22

Calibrating the Touchscreen ...................................................................................................................................................... 22

Chapter 5 Hardware ...................................................................................................................................................23

VGA Input Connector Pin Out..................................................................................................................................................... 23

Analog Signal Input Connector Pin ............................................................................................................................................ 23

Serial Interface............................................................................................................................................................................ 23

Serial Signal Input Connector Pin .............................................................................................................................................. 23

RS-232 Cable ............................................................................................................................................................................. 24

Appendix A: Technical Support................................................................................................................................ 25

Reaching Technical Support....................................................................................................................................................... 25

i 142029 (D)

  

Xycom Automation industrial monitors meet the rigorous requirements of the plant floor
with high-resolution flat panel displays in a rugged housing with a resistive
membrane touchscreen. The 5015T flat panel monitor delivers crisp, bright text and
graphics with a low current draw, and it fits into panels that CRTs cannot.

The 5015T and the 5015T-24V units are self-contained, requiring only to be panel mounted in an
appropriate enclosure and connected to 100-240 VAC and VGA source or to a 24 VDC and VGA
source accordingly.

Product Features

Standard 5015T Features

 15" diagonal bright (300 Nit) with TFT active matrix color LCD, easy-to-read, high contrast
(400:1), color (6 bit/16.7 million colors) TFT flat panel display with XGA (1024x768) resolution
 Large viewing area: 12.13 x 9.14 in. [308.2 x 232.1mm]; dot pitch: 0.012 x

0.012in. [0.287 x 0.287 mm]

 Operator input through integrated high-performance touchscreen
 1024 x 1024 resistive film (analog) touch panel
 Front panel controls with onscreen menus (lock switch on rear of units)
 Long-lasting (50,000 hour) backlight
 Analog RGB interface and SIO interface (touch interface)
 Die-cast aluminum front bezel
 Simple mounting
 Shallow mounting depth
 Up to 50 foot cables
 NEMA 4/4x/12 front panel, when properly mounted
 UL/cUL Recognized to UL 60950 and Listed to Hazardous Location Standards
 CE marked



Units ship with all necessary I/O cables and software

Leaving your TFT LCD display on constantly can result in temporary image

retention (TIR). TIR can be avoided by using a screen saver, enabling the

idle/doze timeout feature, or by turning off the display when it is not in use.

Caution

1 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 1 Product Overview

Parts List

When you remove the 5015T from its shipping carton, verify that you have the parts
listed below. Save the box and inner wrapping in case you need to reship the unit.

Standard 5015T Parts List

 5015T unit.
 Installation Fasteners (12)
 Installation Gasket
 Analog RGB Cable (10 ft.)
 RS-232C Cable (10 ft.)
 Documentation and Support Library CD-ROM. In addition to containing this manual, the

DOC CD contains all drivers required by this unit (touchscreen drivers in the case of 5015T
and 5015T-24VDC units).

Manual Overview

The manual is divided in the following chapters:

 Chapter 1 – Product Overview
 Chapter 2 – Installation
 Chapter 3 – Monitor Settings
 Chapter 4 – Operator Input



Chapter 5 – Hardware

Text Conventions Used in this Manual

Throughout this manual, certain terms are formatted in ways that indicate what type of
object is being described. Some information is also segregated to draw attention quickly.

Titles, labels, and messages are indicated by italic text. Computer filenames and text to
be entered by the user will appear in a monospace font. Operator interfaces (such as the
Start menu button) and keyboard keys (such as Enter) appear in a narrow bold typeface.
Other text (such as the word Note) is bold to emphasize it and draw your attention to it.

2 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 1 Product Overview

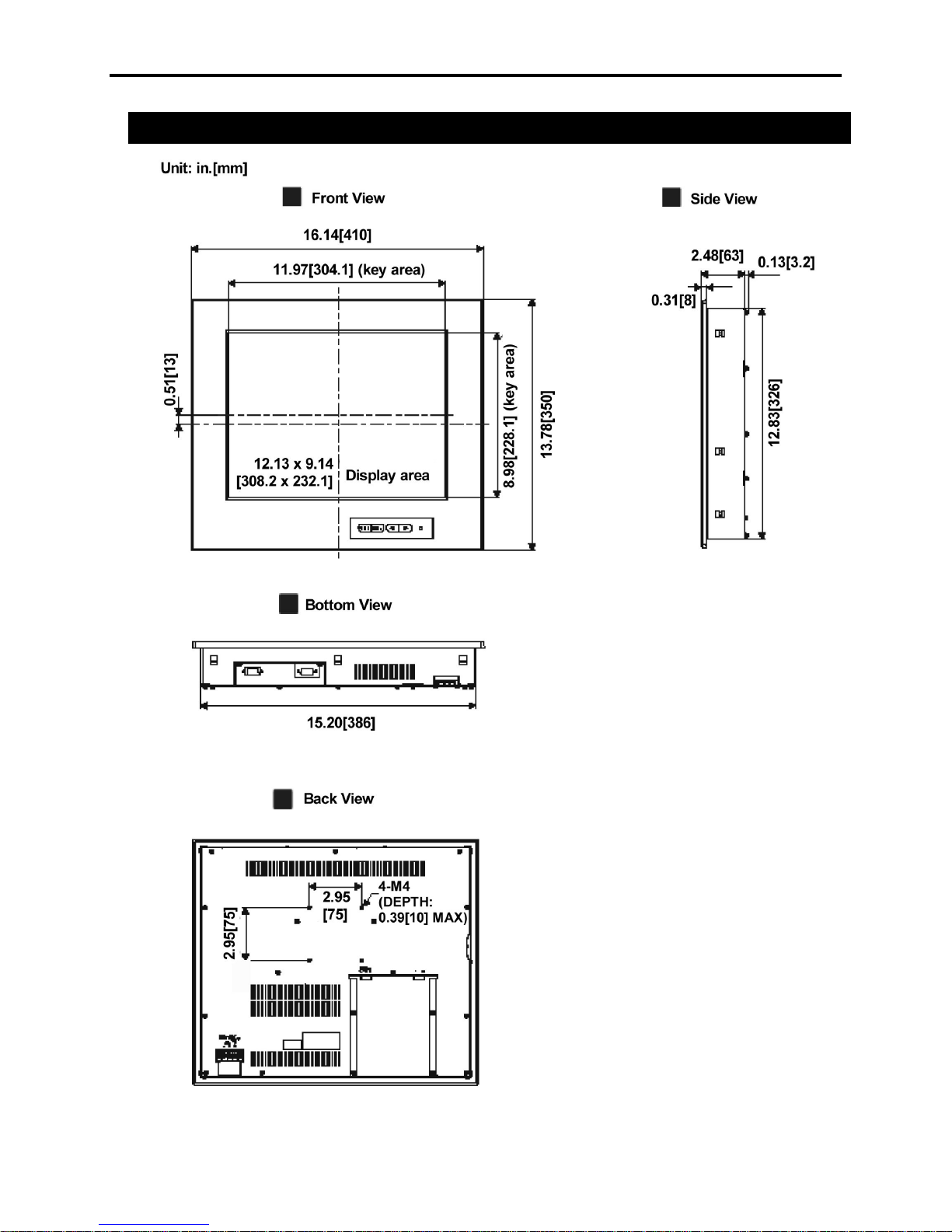

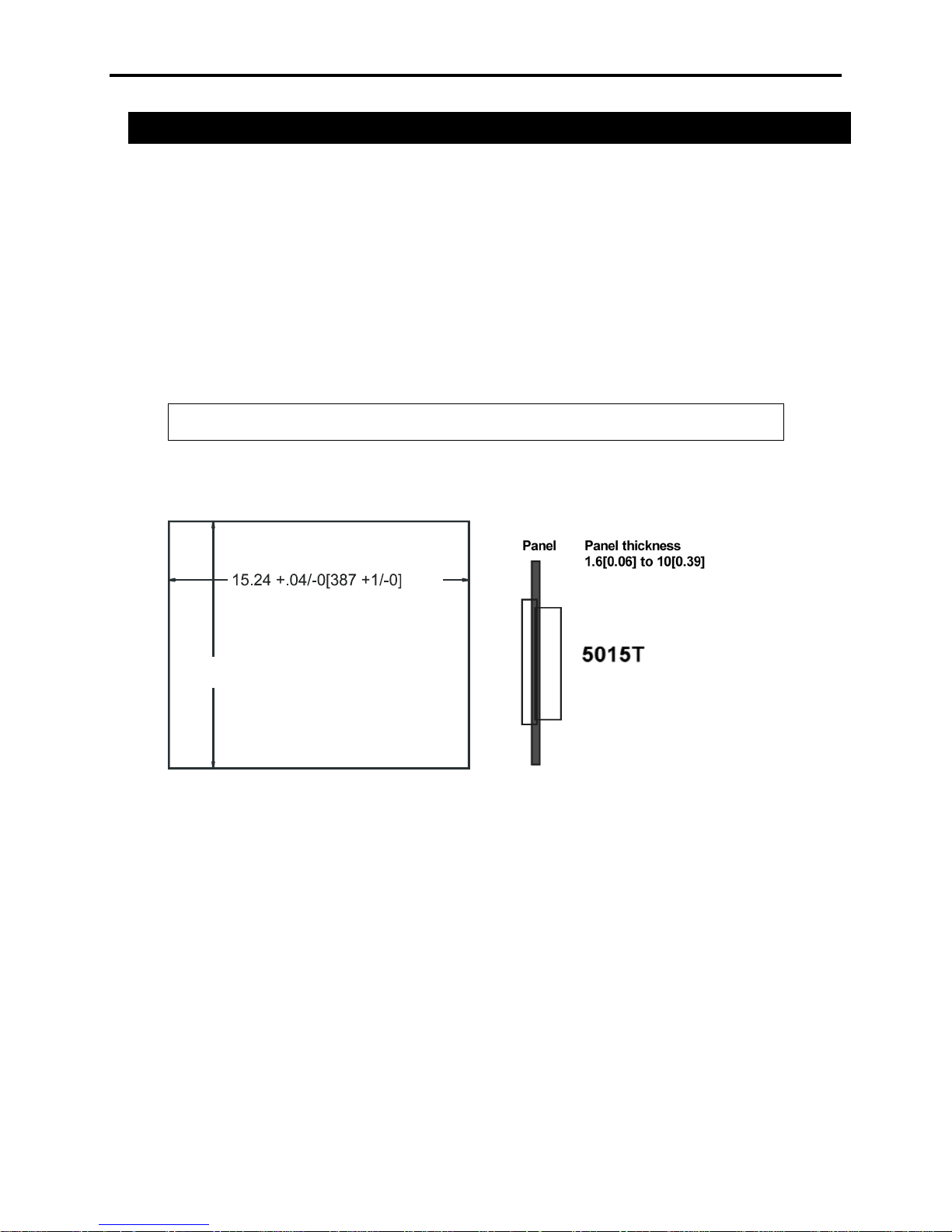

Product Dimensions

3 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 1 Product Overview

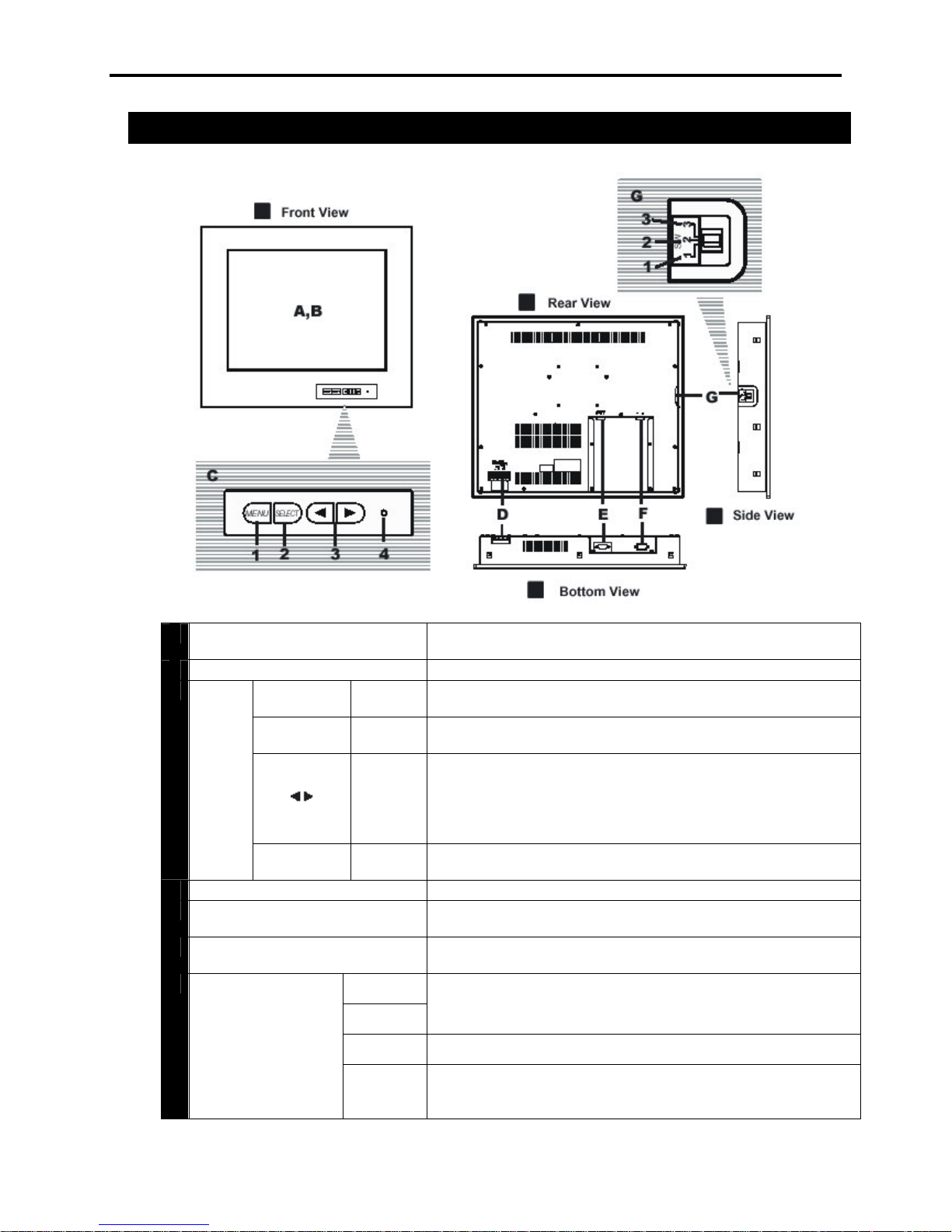

External Features

A

B
C

D
E

F

G

TFT type color LCD

Touch Panel

MENU 1

SELECT 2

Front

Key

Switch

Power input terminal block

Analog RGB I/F connector

Serial I/F Connector

OSD SELECT

Switch

This slide switch

can lock some or

all of the Front Key

Switch.

POWER

(LED)

(RS-232C)

3

4

Position

3

2

1

The 5015T unit’s LCD display. Data from the host is
displayed.

Allows you to perform touch operations.
This button is used to open, select, and close the On Screen

Display (OSD) Menu.
When the OSD Menu is displayed, this button selects the
menu option to be adjusted.
When the OSD Menu is displayed:
These buttons are used to increase or decrease the value of
a selected option.
When the OSD Menu is not displayed:
These buttons are used to adjust backlight brightness.
Indicates whether the monitor is on or off. The LED is lit
green when in use.
Used to connect the power supply cable.

Analog RGB interface connector. This receives image data
from the Host.
Serial RS-23C interface. This connects a serial cable to the
5015T, and sends the 5015T touch panel data to the host.

All Front buttons are in an operable state. OSD can be
started.

All Front buttons are locked. OSD cannot start.

Menu and Select are locked. Only backlight adjustment is
possible.

4 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 1 Product Overview

Product Specifications and Ratings

Environmental

Operating Non-operating

Thermal

Humidity

Shock

Vibration,
5-2000 Hz

Altitude

0°C to 50°C (32°F to 122°F) -20°C to 60°C (-4°F to 140F)
20% to 80% RH, non-condensing 20% to 80% RH, non-condensing

15 g peak acceleration,
11 msec duration

0.006" peak-to-peak
displacement

1.0 g maximum acceleration
Sea level to 10,000 ft. (3,000 m) Sea level to 40,000 ft. (12,000 m)

30 g peak acceleration,
11 msec duration

0.015" peak-to-peak displacement

2.5 g maximum acceleration

Electrical

AC power: 100-240 VAC, 0.8 – 0.4A, 50/60 Hz
DC power: 18 - 32 VDC, 1 A maximum

Front Panel/Enclosure

NEMA 4/4X/12

Regulatory Compliance

CE

 EN 55022: Class A
 EN 61000-6-2
 EN 60950
 EN 61000-3-2
 EN 61000-3-3

FCC

 47 CFR, Part 15, Class A

Safety Agency Approvals

UL

 UL 60950
 UL 1604*

CUL

 CSA-C22.2, #950
 CSA-C22.2, #213*

* Suitable for use in Class I, Division 2, Groups A, B, C and D and Class II, Division 2, Groups F
and G Hazardous Locations or Non-Hazardous Locations only.
Temperature Codes: T4 (5015T), T4A (5015T-24V)

5 142029 (D)



Environmental Considerations

The rugged design of the 5015T allows it to be installed in most industrial environments.
Refer to the electrical and environmental specifications and tolerances in the Product
Specifications and Ratings section for more detailed information.

Power Management

The monitor is based on the VESA DPMS and the DVI DMPM standards.
To activate the monitor's Power Management function, both the video card and the computer
must conform to the VESA DPMS standard and the DVI DMPM standard.

System Power

It is a good practice to use isolation transformers on the incoming AC power line to the
system. An isolation transformer is especially desirable in cases in which heavy
equipment is likely to introduce noise onto the AC line. The isolation transformer can
also serve as a step-down transformer to reduce the incoming line voltage to a desired
level. The transformer should have a sufficient power rating (units of volt-amperes) to
supply the load adequately.

Proper grounding is essential to all safe electrical installations. Refer to the relevant
federal, state/provincial, and local electric codes, which provide data such as the size and
types of conductors, color codes and connections necessary for safe grounding of
electrical components. The code specifies that a grounding path must be permanent (no
solder), continuous, and able to safely conduct the ground-fault current in the system with
minimal impedance (minimum wire required is 18 AWG, 1 mm).

Observe the following practices:
 Separate the power and ground (P. E., or Protective Earth) cable from signal cables at

the point of entry to the enclosure. To minimize the ground wire length within the
enclosure, locate the ground reference point near the point of entry for the plant
power supply.

 All electrical racks or chassis and machine elements should be Earth Grounded in
installations where high levels of electrical noise can be expected. The rack/chassis
should be grounded with a ground rod or attached to a nearby Earth structure such as
a steel support beam. Connect each different apparatus to a single Earth Ground point
in a "star" configuration with low impedance cable. Scrape away paint and other
nonconductive material from the area where a chassis makes contact with the
enclosure. In addition to the ground connection made through the mounting bolt or
stud, use a one-inch metal braid or size #8 AWG wire to connect between each
chassis and the enclosure at the mounting bolt or stud.

6 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

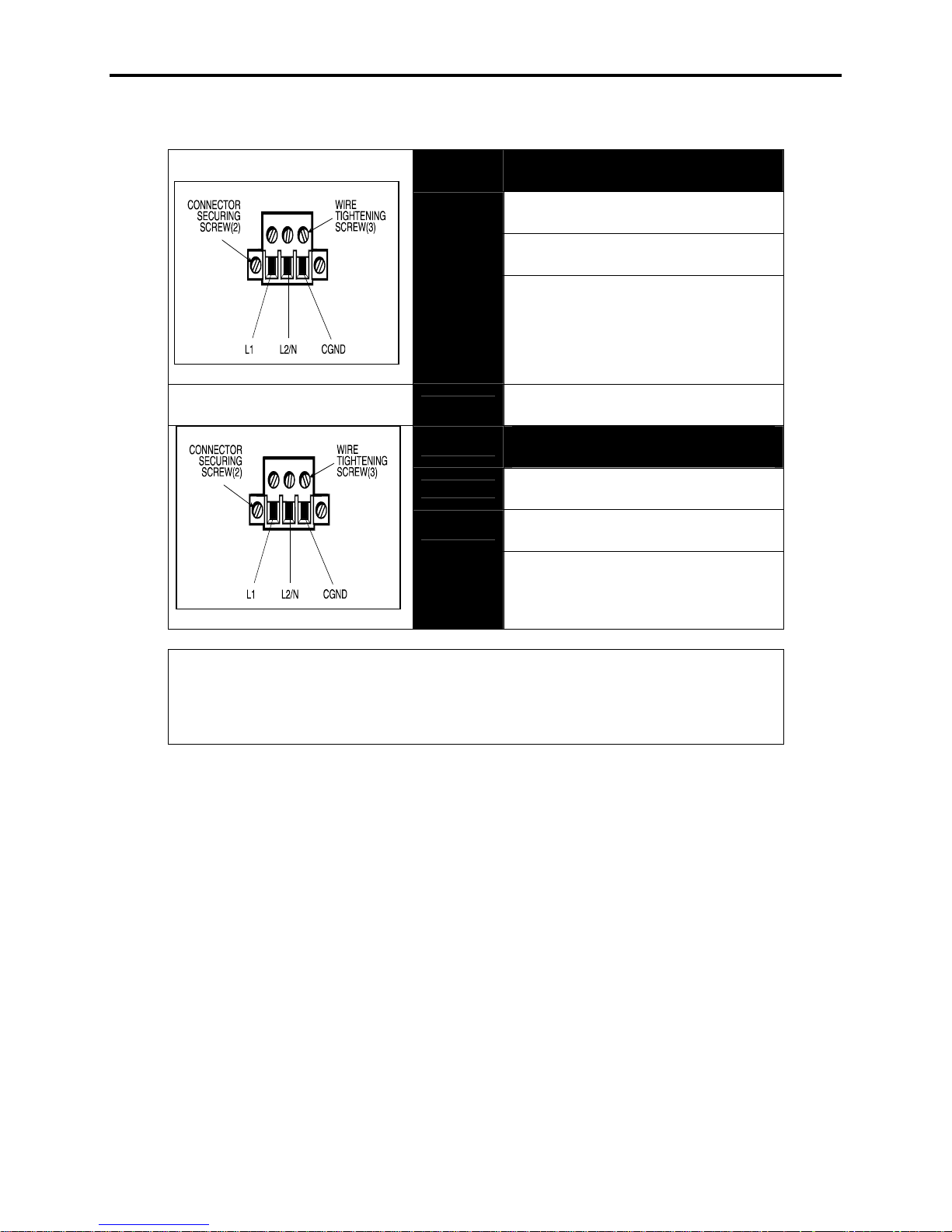

Power Terminal Block:

100-240 VAC

Number

Function

1

2

3

AC Line Input

AC Neutral Input

Protective Earth Ground

Power Input Terminal Block

18-36 VDC

Number

1

2

3

Function

DC Line Input

DC Return Input

Protective Earth Ground

Power Input Terminal Block

Caution:

Use AWG18 wire or greater for the 5015T’s power cable.

Isolate the AC main circuit line, I/O signal lines, and power cord - do not bind or group
them together.

Excessive Heat

To keep the temperature in range, the cooling air at the base of the system must not
exceed the maximum temperature specification. Allocate proper spacing between
internal components installed in the enclosure.

When the air temperature is higher than the specified maximum in the enclosure, use a fan
or air conditioner to lower the temperature.

Electrical Noise

Electrical noise is seldom responsible for damaging components, unless extremely high
energy or high voltage levels are present. However, noise can cause temporary
malfunctions that can result in hazardous machine operation in certain applications. Noise
may be present only at certain times, may appear at widely spread intervals, or in some
cases may exist continuously.

Noise commonly enters through input, output, and power supply lines and may also be
coupled through the capacitance between these lines and the noise signal carrier lines.
This usually results from the presence of high voltage or long, close-spaced conductors.
When control lines are closely spaced with lines carrying large currents, the coupling of
magnetic fields can also occur. Use shielded cables to help minimize noise. Potential

7 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

noise generators include switching components, relays, solenoids, motors, and motor
starters.

Refer to the relevant Federal, State/Provincial, and local electric codes, which provide
data such as the size and types of conductors, color codes and connections necessary for
safe grounding of electrical components. It is recommended that high- and low-voltage
cabling be separated and dressed apart. In particular, AC cables and switch wiring should
not be in the same conduit with all communication cables.

Line Voltage Variation

The power supply section of the unit is built to sustain the specified line fluctuations and
still allow the system to function in its operating margin. As long as the incoming voltage
is adequate, the power supply provides all the logic voltages necessary to support the
monitor unit.

Unusual AC line variations may cause undesirable system shutdowns. As a first step to
reduce line variations, correct any possible feed problems in the distribution system. If
this correction does not solve the problem, use a constant voltage transformer. The
constant voltage transformer stabilizes the input voltage to the systems by compensating
for voltage changes at the primary in order to maintain a steady voltage at the secondary.
When using a constant voltage transformer, check that the power rating is sufficient to
supply the unit.

Location and Enclosure

 Place the unit to allow easy access to the system ports.
 Account for the unit dimensions when selecting an installation location or enclosure.
 You can maintain the NEMA 4 seal by mounting the unit in an approved enclosure

that has a 14 gauge (0.075 in./1.9 mm thick) steel or (0.125 in./3.2 mm thick) aluminum
front face.

 Place the unit at a comfortable working level.
 Mount the unit in an upright position, if possible.
 Consider locations of accessories such as AC power outlets and lighting (interior

lighting and windows) for installation and maintenance convenience.

 Prevent condensation by installing a thermostat-controlled heater or air conditioner.
 Avoid obstructing the airflow to allow for maximum cooling.
 Place any fans or blowers close to the heat-generating devices. If using a fan, make

sure that outside air is not brought inside the enclosure unless a fabric or other
reliable filter is used. This filtration prevents conductive particles or other harmful
contaminants from entering the enclosure.

 Do not select a location near equipment that generates excessive electromagnetic

interference (EMI) or radio frequency interface (RFI) (equipment such as high-power
welding machines, induction heating equipment, and large motor starters).

 Do not place incoming power line devices (such as isolation or constant voltage

transformers, local power disconnects, and surge suppressers) near the system. The

proper location of incoming line devices keeps power wire runs as short as possible

and minimizes electrical noise transmitted to the unit.

 Make sure the location does not exceed the unit's shock, vibration, and temperature

specifications, as outlined in the Product Specifications and Ratings section.

 Install the unit so it does not cause a hazard from uneven mechanical loading.
 Incorporate a readily accessible disconnect device in the fixed wiring on permanently

connected equipment.

 Avoid overloading the supply circuit.

8 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

Panel Installation

This monitor should be mounted in and used where NEMA 4 and NEMA 12 type
enclosures are employed. When mounted properly, the monitor meets or exceeds the
sealing requirements set forth in the NEMA 4 and NEMA 12 specifications. The monitor
uses "U"-shaped clips and a special gasket to achieve the proper seal.

To install the monitor, make a cutout per the diagram below in one of the walls of your
NEMA enclosure. Enclosures made of heavier gauge metal work better in that they won't
deform or bend as easily when the monitor's sealing gasket is compressed. Next hold the
monitor in place while you install the mounting clips. Tighten the clips in a cross pattern.
This will help to develop an even pressure on the sealing gasket. Tighten the clips to the
point were the back of the monitor's front bezel just begins to contact the front of the
NEMA enclosure.

Caution: Do not over-tighten because it can cause damage to the monitor, which can
result in loss of seal integrity.

Panel Mounting Dimensions

12.87 +.04/-0[327 +1/-0]

in. [mm]

9 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

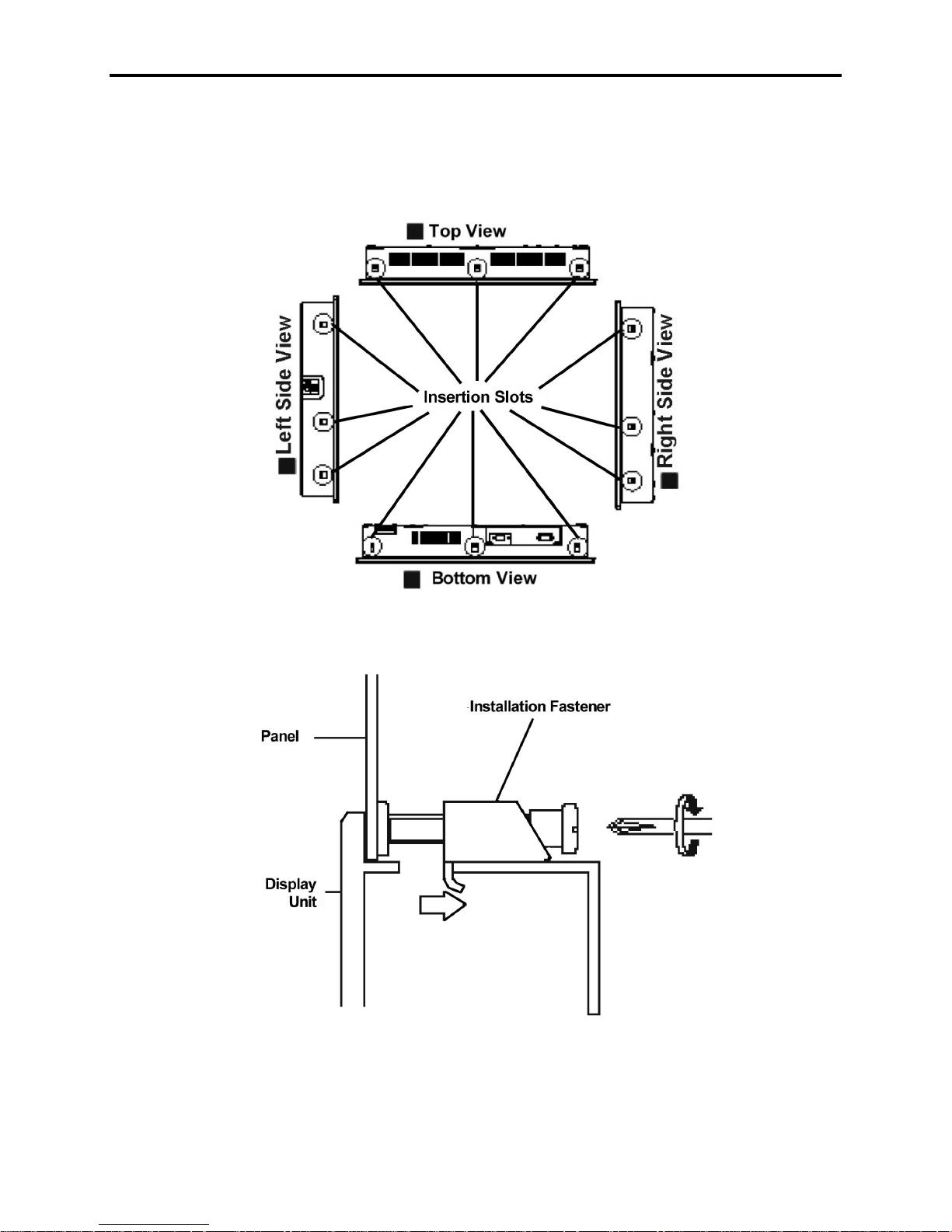

The following figures show the twelve (12) insertion slot locations of the 5015T
installation fasteners. Insert the hook section into the slot and tighten the fastener with a
screwdriver, as shown.

10 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

Hazardous Locations Installations

Xycom Automation designed the systems with the intention of meeting the requirements
of Class I, Division 2 Hazardous Locations applications. Division 2 locations are those
locations that are normally non-hazardous, but potentially hazardous should an accident
expose the area to flammable vapors, gases or combustible dusts.

These systems are non-incendiary devices. They are not intrinsically safe and should never
be operated within a Division 1 (normally hazardous) location when installed as described
here. Nor should any peripheral interface device attached to these systems be located within
Division 1 locations unless approved and/or certified diode barriers are placed in series with
each individual signal and DC power line. Any such installations are beyond the bounds of
Xycom Automation design intent. Xycom Automation accepts no responsibility for
installations of this equipment or any devices attached to this equipment in Division 1
locations.

NOTE:

It is the customer’s responsibility when adding additional cards that they met operating
conditions for Class I, Division 2 hazardous locations.

It is the responsibility of the customer to ensure that the product is properly rated for the
location. If the intended location does not presently have a Class, Division, and Group
rating, then users should consult the appropriate authorities having jurisdiction in order to
determine the correct rating for that Hazardous Location.

In accordance with Federal, State/Provincial, and Local regulations, all hazardous
location installations should be inspected by the appropriate authority having jurisdiction
prior to use. Only technically qualified personnel should install, service, and inspect these
systems.

Warning

Suitable for use in Class I, Division 2 Groups A, B, C, and D, and Class II,
Division 2, Groups F and G hazardous locations or non-hazardous locations
only. Temperature Codes: T4A (5015T-24V), T4 (5015T)

Warning - Explosion Hazard

Substitution of components may impair suitability for Class I, Class II,
Division 2.

Advertissement Risque D’ Explosion

La substitution de composants peut rendre ce materiel inacceptable pour les
emplamements de classe I, II, Division 2.

Warning - Explosion Hazard

Do not disconnect equipment unless the power has been switched off or the
area is known to be non-hazardous.

11 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

Advertissement Risque D’ Explosion

Avant de deconnecter l’equipment, coupler le courant ou s’assurer que
l’emplacement est designe non dangereux.

Warning - Explosion Hazard

When in hazardous locations, turn off power before replacing or wiring
modules.

Advertissement Risque D’ Explosion

Dans les situations hasardees, couper la courant avant de remplacer ou de
cabler les modules.

Warning

To maintain a safe condition, do not use an external keyboard or mouse or
USB port devices when the unit is operating in a hazardous environment.

Definitions

The following Class and Division explanations are derived from Article 500 (Sections 5
and 6) of the United States National Fire Protection Agency National Electric Code
(NFPA 70, 1990). They are not complete and are included here only for a general
description for those not familiar with generic hazardous locations’ requirements.

Persons responsible for the installation of this equipment in Hazardous Locations are
responsible for ensuring that all relevant codes and regulations related to location rating,
enclosure, and wiring are met.

Class I Locations

Class I locations are those in which flammable gases or vapors are or may be present in
the air in quantities sufficient to produce explosive or ignitable mixtures.

Class II Locations

Class II locations are those that are, or may become, hazardous because of the presence
of combustible dust.

Division 1 Locations

A Division 1 location is one in which flammable or ignitable gasses, vapors, or
combustible dusts and particles can exist due the following conditions:

• Normal operating conditions.

• Because of repair, maintenance conditions, leakage, or where mechanical failure or

abnormal operation of machinery or equipment might release or cause explosive or
ignitable mixtures to be released or produced.

• Combustible dusts of an electrically conductive nature may be present in hazardous
quantities.

12 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

NOTE

Xycom Automation 5015T, 5015T-24V systems are not suitable for installation
within Division 1 locations.

NOTE

Electrical equipment cannot be installed in Division 1 locations unless they are
intrinsically safe, installed inside approved explosion-proof enclosures, or installed
inside approved purged and pressurized enclosures.

Division 2 Locations

• Class I volatile flammable liquids or flammable gasses are handled, processed, or
used, but confined within closed containers or closed systems from which they can
escape only in cases of accidental rupture or breakdown of such enclosures or
systems, or in case of abnormal operation of equipment.

• Ignitable concentrations of Class I vapors or gasses are normally prevented by
positive mechanical ventilation, but which may become hazardous due to mechanical
failure of those ventilation systems.

• Location is adjacent to a Division 1 location.

• Class II combustible dust is not normally in the air in quantities sufficient to produce

explosive or ignitable mixtures. Dust accumulations are normally insufficient to
interfere with normal operation of electrical equipment or other apparatus.
Combustible dust may be in suspension in the air as a result of the following:
infrequent malfunctioning of handling or processing equipment; combustible dust
accumulations on, or in the vicinity of electrical equipment; may be ignitable by
abnormal operation or failure of electrical equipment.

Groups

All electrical equipment that is approved for use in hazardous locations must include a
group rating. Various flammable and combustible substances are divided into these
groups as a function of their individual maximum experimental safe gap (MESG),
explosion pressure, and ignition temperature.

Component temperatures and the potential for spark based upon voltage, current, and
circuit characteristics, within electrical equipment, will determine what the equipment
group rating will be. A device approved for installation within Class I, Group A locations
may also be used in Groups B, C, or D.

NOTE:

Approved Class I equipment may not be suitable for Class II installations. Class I
includes Groups A, B, C, and D. Class II includes Groups F, and G.

Power Switch

The systems do not have a power switch. The amount of input power required by these
systems classifies a power switch as an incendiary device because the voltage and current
across the make/break device are capable of creating a spark.

Hazardous locations’ regulations require that a power switch rated for ordinary locations
may be used if it is located in an area specified as non-hazardous. However, limits in

13 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

cable length between the workstation and the power switch may apply. Otherwise the
switch must be compliant with Class I, Division 1 requirements (intrinsically safe). These
switches are built in a manner that prevents the possibility of a spark when contacts are
made or broken.

Use suitable UL listed and/or CSA Certified Class I, Division 1 switches in hazardous
locations. These switches are available from a wide number of sources. It is the
responsibility of the customer to ensure that the power switch selected for their
installation has the correct hazardous locations rating for the location in which it is
installed.

Cable Connections

Division 2 hazardous locations’ regulations require that all cable connections be provided
with adequate strain relief and positive interlock. USB connections can never be used in
hazardous location installations, because USB connectors do not provide adequate strain
relief. Never connect or disconnect a cable while power is applied at either end of the
cable.

All communication cables should include a chassis ground shield. This shield should
include both copper braid and aluminum foil. The D-sub style connector housing should
be a metal conductive type (e.g., molded zinc) and the ground shield braid should be well
terminated directly to the connector housing. Do not use a shield drain wire.

The outer diameter of the cable must be suited to the inner diameter of the cable
connector strain relief in order to ensure that a reliable degree of strain relief is
maintained.

Never connect or disconnect the communication cables while power is
applied at either end of the cable. This may result in an incendiary spark.
Permanent damage to the workstation communication components may
occur.

Operation and Maintenance

The systems have been designed for compliance with relevant spark ignition tests.
However, please note that the workstation front panel contrast adjustment tactile switches
and keyboard connector are the only make/break components intended to be exercised by
the operator in the course of normal operation.

To maintain a safe condition, never use an external keyboard or mouse or USB
port devices when the unit is operating in a hazardous environment.

Always observe the following rules with respect to hazardous location installations:

Warning

Warning

1. Always install the workstations within an enclosure suitable for the specific
application. General-purpose enclosures may be acceptable for Class I applications
but are never acceptable for Class II applications. Type 4 (IP 65) enclosures are
recommended even when not required by regulations.

14 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 2 Installation

2. If present, keep enclosure doors or openings closed at all times, to avoid the
accumulation of foreign matter inside the workstation.

3. Never subject the unit to any installation or service procedures unless power is
removed and the area is known to be non-hazardous. This includes the installation or
removal of power cables, communication cables, or removal of the rear cover of the
unit.

Only technically qualified service personnel should perform all installation and service.
These workstations are designed to require no service in the course of normal operation
by an operator.

Safety Agency Approval

The Xycom Automation systems are designed to meet the following standards:

• Underwriters Laboratories Inc., UL 1604 Standard for Safety
Electrical equipment for use in Class I and Class II, Division 2, locations

• Underwriters Laboratories Inc., UL 60950, Information Technology Equipment

• Canadian Standard Association, Specification C22.2 No. 213-M1987

Non-incendiary electrical equipment for use in Class I, Division 2 hazardous
locations

• Canadian Standards Association, Specification C22.2 No. 950
Information Technology Equipment

• EN 60950, Information Technology Equipment

15 142029 (D)

 

Caution

Leaving your TFT LCD display on constantly can result in temporary image

retention (TIR). TIR can be avoided by using a screen saver, enabling the

idle/doze timeout feature, or by turning off the display when it is not in use.

Mode and Image Adjustment

Not all video controllers produce exactly the same video output levels or the same timing.
The 5015T uses onscreen programming to make setup and adjustment easy. The menus
are selected and the menu items are adjusted using the buttons located on the monitor
front panel. These buttons can be enabled or disabled by the OSD Select Switch.

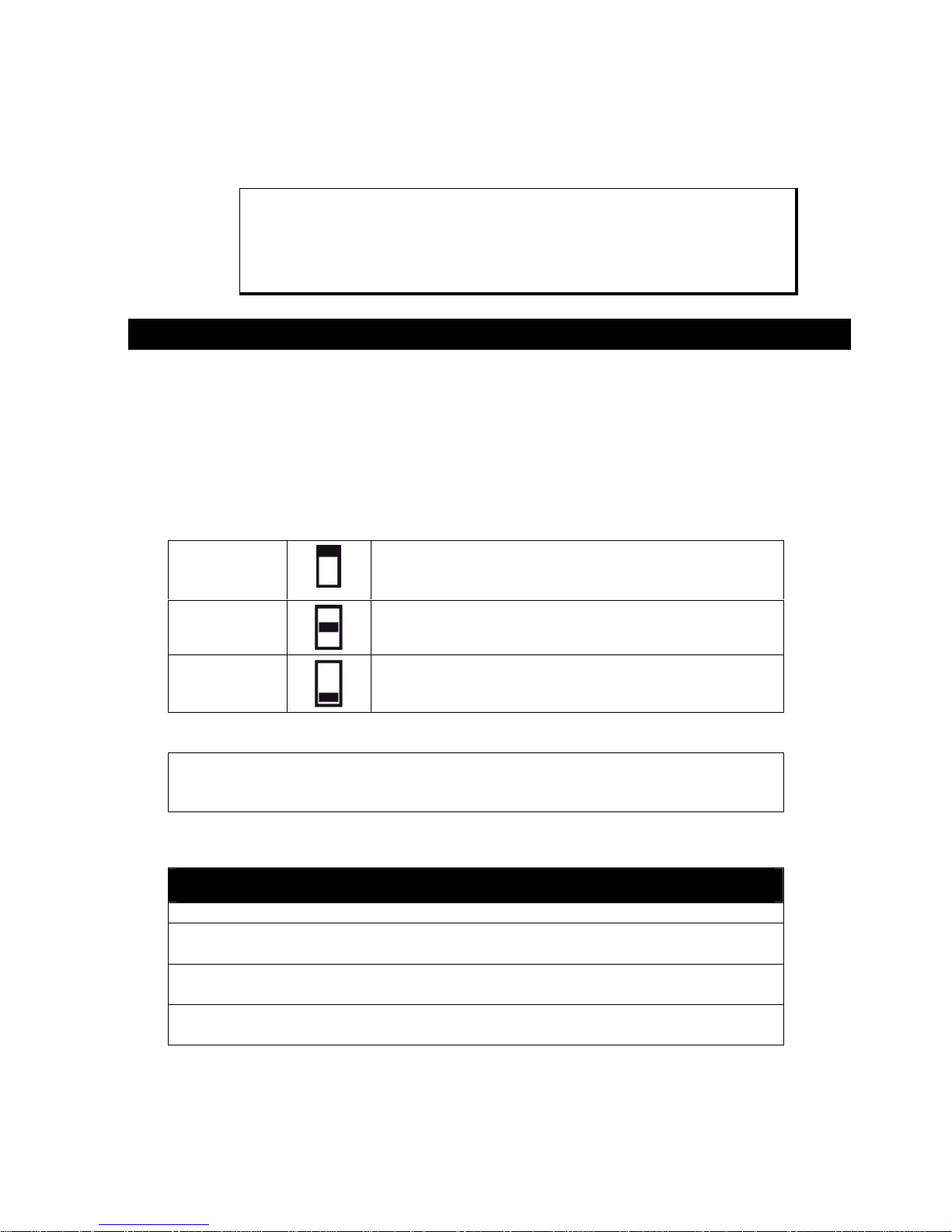

On Screen Display Select Switch

The OSD Select switch is a sliding switch on the left-hand side of the unit, towards the front.
Some or all of a front key switch is locked by the position of the OSD Select switch. Incorrect
starting of the OSD can be prevented.

All Front Key switches are in the state that can be

Position 3

operated.
OSD can always be started.

Position 2

Position 1

Caution:

Please use OSD after confirming the position of the OSD Select Switch.
Touch data is transmitted to host while OSD menu is displayed.

Analog RGB Interface

Based on VESA standard, separate analog RGB

0.7Vp-p positive true typically
Input range: 0.5 to 1.0Vp-p typical with terminal resistance of 75Ω
H sync signal input: TTL level,
negative true or positive true
V sync signal input: TTL level,
negative true or positive true

All keys are locked. OSD will not start. Incorrect starting
can be prevented.

Menu and Select are locked.
Only backlight adjustment is possible.

Specification

16 142029 (D)

5015T Flat Panel Industrial Monitor Chapter 3 Monitor Settings

Video Modes Supported

Horizontal

Mode

Sync Rate

(KHz)

(640x400)
(640x480)

(720x400)
(800x600)

(1024x768)

NOTE:

 All are compliant only with non-interlaced.
 If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will

appear. Follow your computer’s instruction manual to set the timing so that it is compatible
with the monitor.

 If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

31.469

31.469

37.500

35.000

31.469

37.879

46.875

48.363

56.476

60.023

NOTE:

All adjustment will be retained even after turning the power off. (However, please note that
adjustment may not be retained when the monitor is turned off while displaying the Adjustment
Menu.)

Vertical Sync

Rate (KHz)

70.000

59.992

75.000

66.667

70.000

60.317

75.000

60.004

70.069

75.029

Dot Frequency (MHz)

25.175

25.175

31.500

30.240

28.320

40.000

49.500

65.000

75.000

78.750

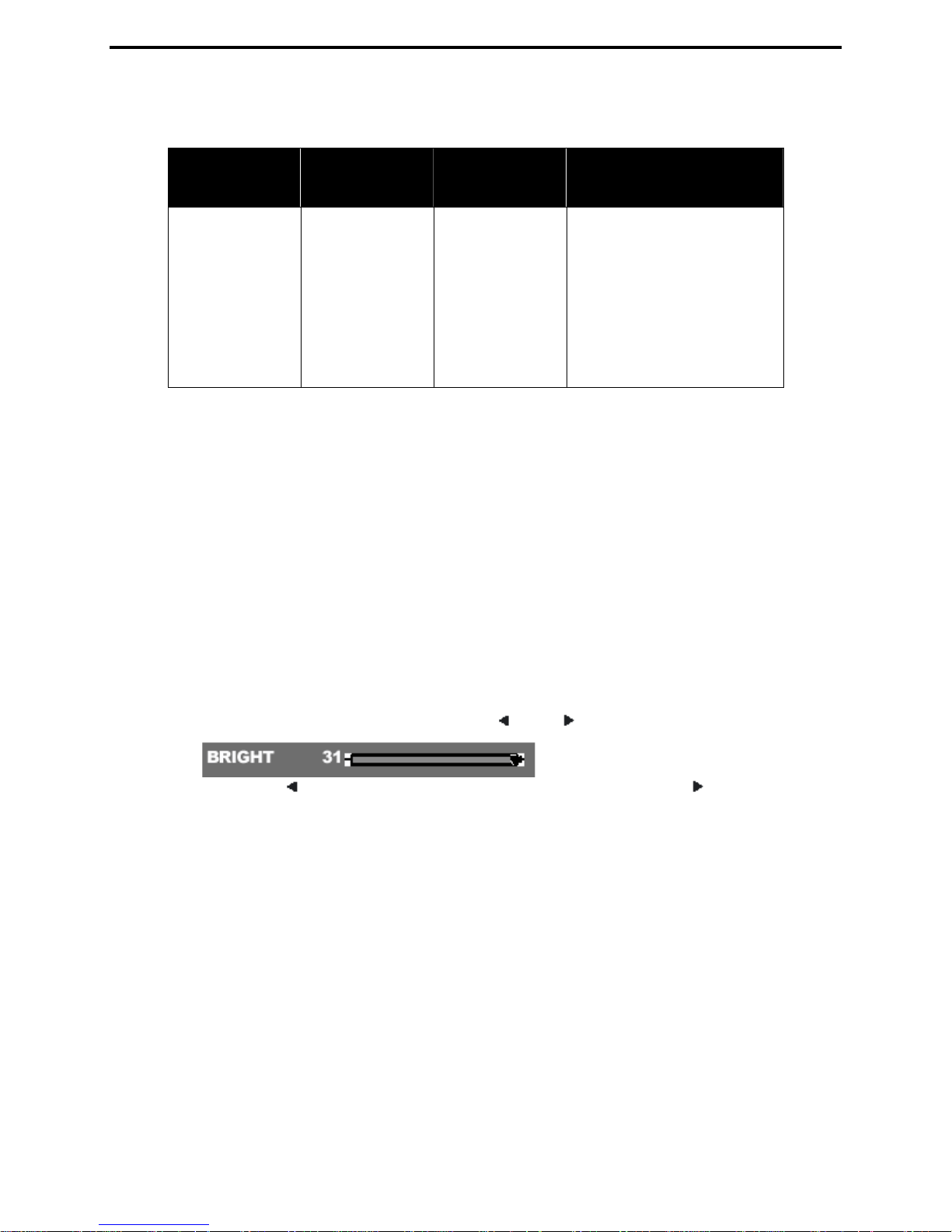

Adjusting the Backlight

The backlight brightness can be adjusted while the On Screen Display (OSD)
Menu is not being displayed. When the OSD Menu is being displayed, press Menu button
(several times may be required) to escape OSD Menu. Then proceed to make the necessary
adjustments.

1. Without the OSD Menu displayed, push the or the button.

2. Pressing the button decreases the brightness level, and pressing the button
increases the brightness level. The BRIGHT bar automatically disappears approximately 5
seconds after the last command.

Setting Color Mode

Displays image with the color tone results from original scheme of liquid crystal panel.

Color tone can be set as below. Set by using COLOR MODE.

STD

sRGB

SRGB is the international standard of color representation specified by the IEC (International
Electrotechnical Commission).
Color conversion is made by taking into account the liquid crystal’s characteristics and represents
color tone close to its original image.

NOTE:

When you use this monitor in sRGB mode, set WHITE BALANCE to STD.

17

5015T Flat Panel Industrial Monitor Chapter 3 Monitor Settings

Adjustment Menu Reset

The values in the OSD Adjustment menu can be returned to their original factory values.

When the OSD is not being displayed, press the Menu and buttons simultaneously. When
[RESET] appears on the screen, the reset is complete.

Automatic Screen Adjustment

Before connecting the 5015T to your computer, make sure your computer’s VGA card is set to
one of the supported modes listed in the “Video Mode Supported” table on page 15. It is
important not to exceed the vertical refresh rate listed in the table.

Screen adjustments can be made both automatically and manually. When setting up the monitor
for the first time or after any changes to the system, perform the Automatic Screen Adjustment
before use.

First, display an image that makes the entire screen light. If you are using Windows, you can use
the Adjustment Pattern from the Xycom Automation CD.

Opening the Adjustment Pattern (for Windows only)

The software for the adjustment pattern can be downloaded from the Xycom Automation
CD.
To install the adjustment pattern, follow these instructions:

1) Place the CD (provided) into the
computer’s CD-ROM.

2)

In order to run the Adjustment
Program, locate the Adjustment
Pattern executable file in the
following directory:
\Adjustment_Pattern\Adj_uty.zip.

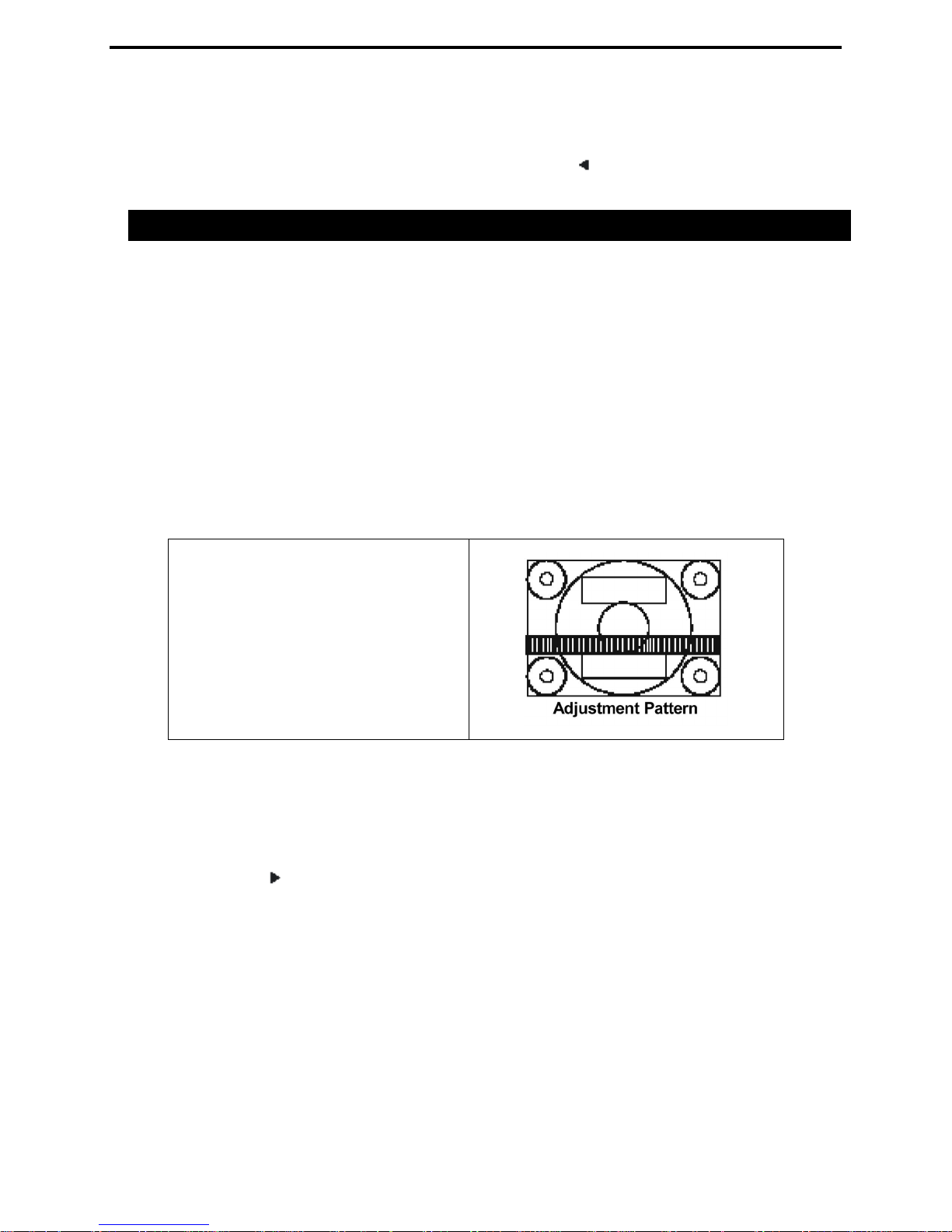

The Adjustment Pattern shown on
the right will appear.

NOTE:

After completing the adjustments, press the computer’s [Esc] key to exit the Adjustment

Program.

Adjusting

1. Press the Menu button. The Adjustment menu will be displayed.

2. Press the button. The screen will become dark and [ADJUSTING] will be displayed. After a
few seconds the screen will return to the Adjustment Menu. (The automatic adjustment is
now complete.)

3. Press the Menu button 4 times to make the OSD Menu disappear.

4. In most cases, automatic adjustment is sufficient. However, sometimes a manual adjustment
of the “Phase” setting may be required to obtain the sharpest possible image. Phase
adjustment is discussed in the following section.

18

5015T Flat Panel Industrial Monitor Chapter 3 Monitor Settings

Manual Screen Adjustment

Manual screen adjustments can be made using the On Screen Display (OSD) Menu provided.

If you are using Windows, you can use the Adjustment Pattern. This software can be downloaded
from the Xycom DOC CD. If you have a different operating system, display an image that makes
the entire screen light and adjust it through checking its actual tone.

This chapter provides the procedure for adjusting the screen using the Adjustment Pattern.

OSD Menus

These menus are opened with the Menu button. Cycle through OSD menu options by pressing
the Menu button. To choose a menu option, press the Select button.

Backlight adjustment is opened with:

Menu Item Description

Adjustment

Gain Control

White Balance

Mode Select

Menu Options

The following menu options allow both Manual and Auto adjustment. In order to adjust each
menu item manually, use the Manual setting. To have menu items adjusted automatically, press

the button to select Auto. To choose a menu option, press the Select button. To go to the
next menu, press the Menu button.

Opens the Adjustment menu; allows you to adjust clock,
phase, h-pos, and v-pos.

Opens the Gain Control menu; allows you to adjust black
level and contrast.
Opens the White Balance menu; allows you to adjust color
tone and RGB contrast.

Opens the Mode Select menu.

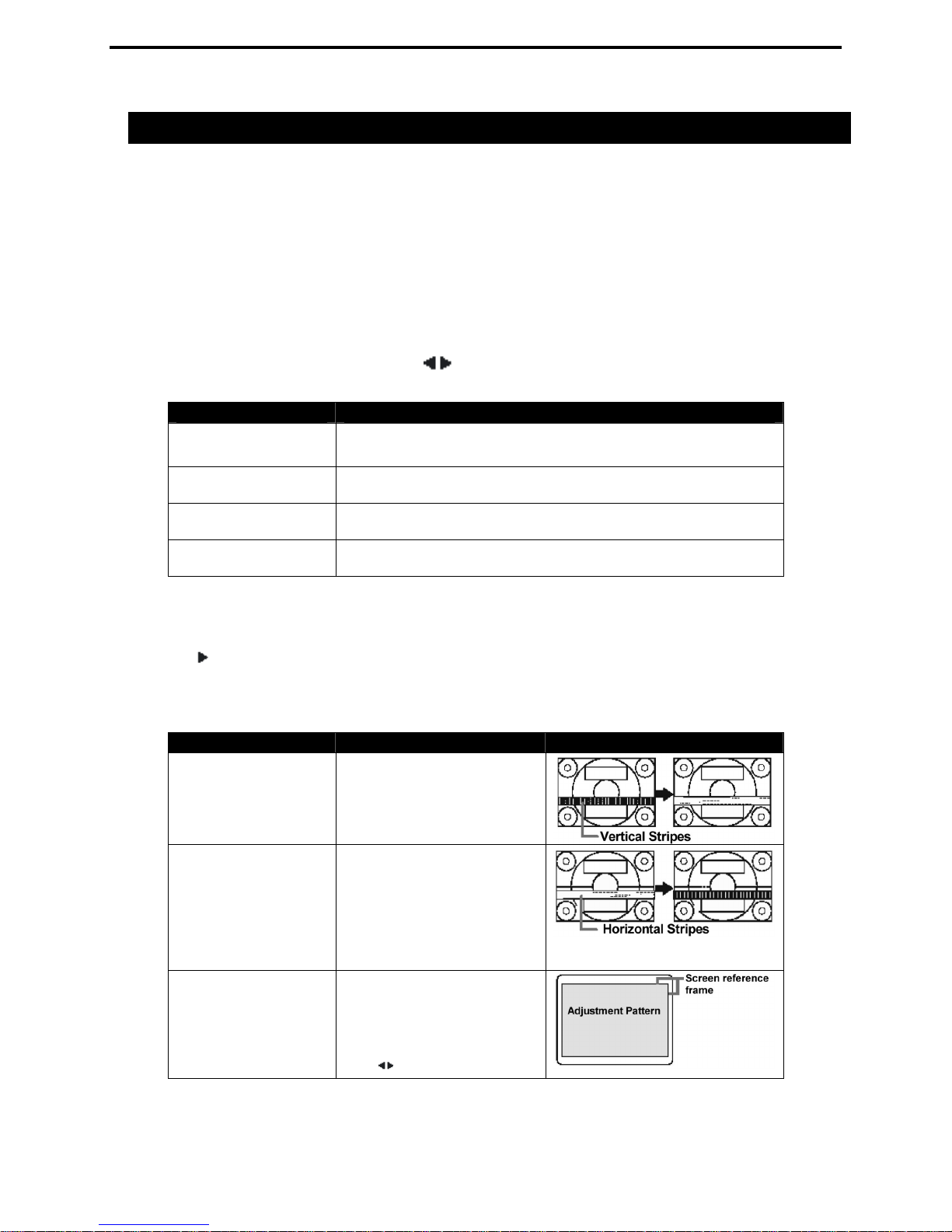

Adjustment Menu

Menu Option Description

Adjust clock to eliminate

Clock

Phase

H-Pos, V-Pos

vertical stripes. These
figures demonstrate this
process.

Adjust phase to eliminate
horizontal lines of noise and
to sharpen the image.

Adjustments to Phase
should be made only after
Clock has been properly
adjusted.

To align the entire screen­to-screen reference frame,
adjust it in left/right (H­POS) and in up/down (V­POS).
(use buttons)

19

5015T Flat Panel Industrial Monitor Chapter 3 Monitor Settings

Gain Control Menu

Menu Option Description

Black Level

Contrast

Total screen brightness can be adjusted while viewing the
color pattern using the buttons.

While viewing the color pattern, adjustments can be made
using the buttons so that all graduations appear.

White Balance Menu

COOL

Color tone

bluer than

STD.

•

Color tone

slightly bluer

than STD.

STD

Color tone

standard

setting.

•

Color tone

slightly redder

than STD.

WARM

Color tone

redder than

STD.

User

Menu Option Description

R-Contrast

G-Contrast

B-Contrast

blue-green

red

purple

green

yellow

blue

Mode Select Menu

NOTE:

Depending on the resolution of the input signal, even if menu options can be selected, the
display may not change.

Menu Option Description

OSD H-Position

OSD V-Position

400 Lines

Expand

The horizontal position of the OSD display can be adjusted
using the buttons.

The vertical position of the OSD display can be adjusted
using the buttons.

Apply the horizontal resolution at 400 line for US TEXT using
the buttons.

640: 640 x 400 dot mode
720: 720 x 400 dot mode (US TEXT)

Every input except 400 line is detected automatically,
therefore no setting is required.

For display modes of less than 1024 x 768 pixels, the screen
display size can be adjusted using the buttons.

ON1: enlarges the while maintaining aspect ratio
ON2: enlarges the screen to the full display area

If a resolution of 1024 x 768 pixels cannot be achieved even
after expansion is attempted, the screen’s perimeter will
display black. This is not a malfunction.

20

5015T Flat Panel Industrial Monitor Chapter 3 Monitor Settings

Menu Option Description

Scaling

Color Mode

Language

Adjusts the image to optimum sharpness when screen is
expanded ( buttons).

Set color tone:
STD: Displays image with the color tone results from original
scheme of liquid crystal panel.
sRGB: sRGB is international standard of color representation
specified by IEC (International Electrotechnical Commission).
Color conversion is made after taking account of liquid
crystal’s characteristics and represents color tone close to its
original image.

When you use this monitor in sRGB mode, set White
Balance to STD.

Choose the language used in the OSD menu display:

1) Press the button. Language selection menu will
appear.

2) Choose the desired language using the Select
Button.

3) Press the Menu or button to exit Language Selection
Menu.

21

 

Touchscreen

Installing the Touchscreen Driver

1. Insert the Xycom Automation CD in the CD-ROM.

2. Navigate to the UTP_touch_panel_Driver folder.

3. Run setup.exe*

4. When you get to the Select Controller window during the installation process, select
the Gunze AHL Serial driver.

5. After driver installation is complete, the computer must be restarted. After restart, the
4-point calibration will automatically run.

*It is recommended that you keep all default settings when installing the driver.

Calibrating the Touchscreen

If you need to recalibrate the touchscreen, run the Pointer Device Properties applet.
Select Help for details about calibrating. For best results, use the 25-point calibration
setting with Start In At set to 0, under the Calibration tab.

You need to calibrate the touchscreen if:

 The cursor does not follow the movement of your finger or pen.

 You adjust the size of the video image or change the video mode.

22 142029 (D)

Signal Name

15-pin D

-

Shell

Red

1

Green

2

Blue

3

4

GND

-

Digital

5

GND

-

Red return

6

GND

-

Gree

n return

7

GND

-

Blue return

8

9

GND

-

Digital

10

11

12

Hsync

13

Vsync

14

15

  

VGA Input Connector Pin Out

Analog Signal Input Connector Pin

(D-sub connector with 15 pins)

Serial Interface

Function

Data Transmission Speed: 9600 bps

RS-232C

Serial Signal Input Connector Pin

Number Signal

1
2
3
4
5
6
7
8
9

D-sub 15pin female

*NC indicates No Connection

Connector set screw: Inch type (4-40 UNC)

Data Length: 8 bits
Stop Bit: 1 bit
Parity: None

Name

CD Carrier detect
RD Receive data
SD Send data

DTR Terminal Ready
GND Signal Ground
DSR Data Set Ready

NC* NC

NC NC
NC NC

Function

23 142029 (D)

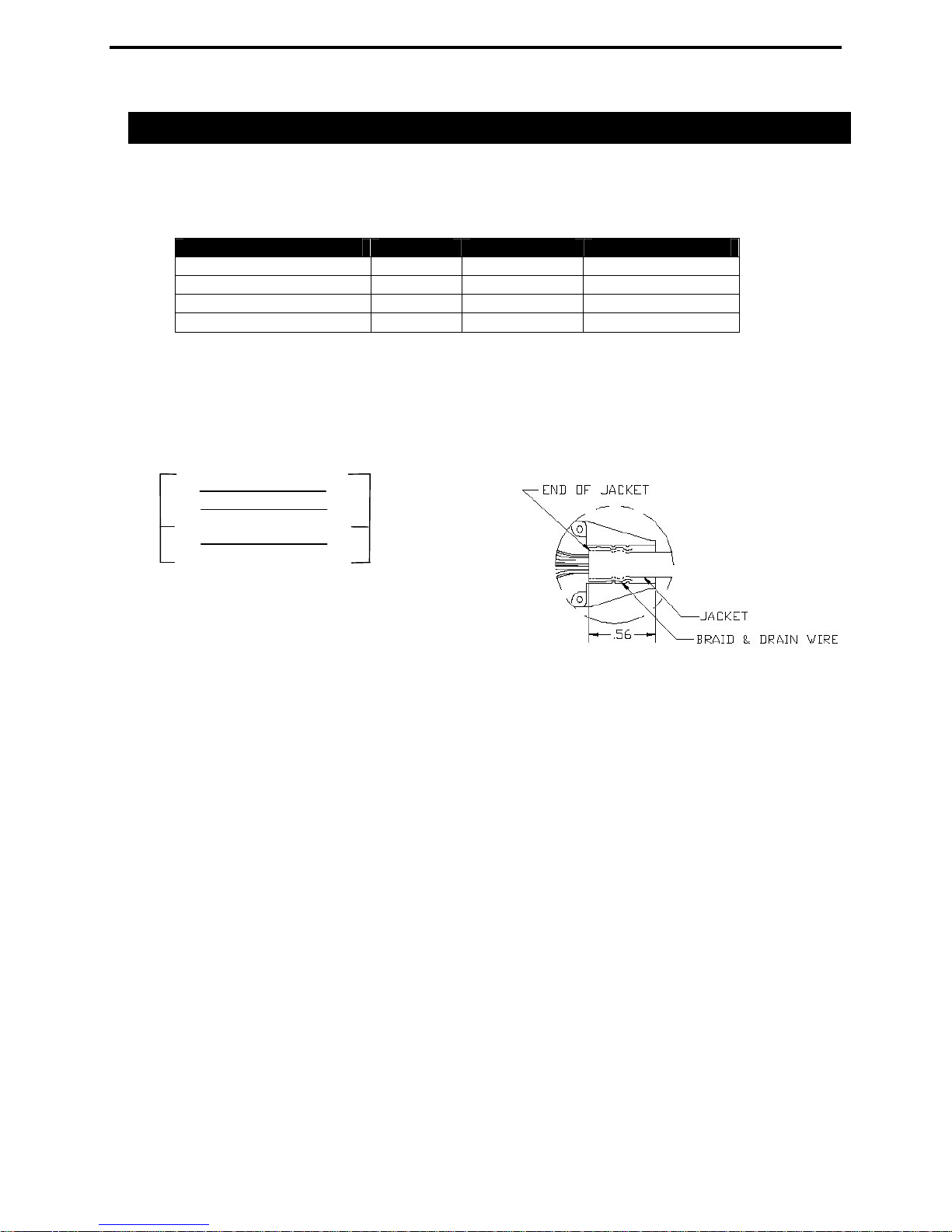

5015T Flat Panel Industrial Monitor Chapter 5 Hardware

RS-232 Cable

The RS-232 cable is shipped with both the 5015T and 5015-24V flat panel monitors. Should you
decide to assemble your own RS-232 cable, it is highly recommended that you use parts
equivalent to those listed below.

Description Quantity Vendor Part No.

9-pin female connector 2 AMP 205203-3

9-pin hood 2 AMP 745171-2

Cable 1,

Sockets 12 AMP 66504-4

Follow the diagram below when assembling the cable. Please note that the braided shield must
be folded back and pinched by the D-shell hoods on both ends of the cable.

1 1
2 2
3 3
4 4
5 5
6 6
7 7
8 8
9 9

up to 50’

Belden 9925 3-conductor

Pinout Detail showing braid

24

 !"

Reaching Technical Support

Xycom Automation Technical Support offers a variety of support options to answer any

questions on Xycom Automation products and their implementation. Refer to the relevant
chapter(s) in your documentation for a possible solution to any problem you may have with your
system. If you find it necessary to contact Technical Support for assistance, please have the
following information at your fingertips:

1. Serial number and model number.

2. The operating system type and version (i.e., Microsoft Windows NT version 4.0).

3. Exact wording of system error messages encountered.

4. Any relevant output listing from the Microsoft Diagnostic utility (MSD) or other diagnostic
applications.

5. Details of attempts made to rectify the problem(s) and results.

6. The log number assigned from Xycom Automation Technical Support if this is an ongoing
problem.

7. The name of the Technical Support Engineer with whom you last spoke, if known.

Internet Access

Xycom Automation provides both World Wide Web and e-mail access via the Internet. To
access the Xycom Automation Home Page, use http://www.xycom.com. This page contains the
newest product datasheets, references by industrial sector, and application notes.

Email

To reach Xycom Automation Technical Support via email: [email protected]

Phone

You can reach Xycom Automation Technical Support via phone: [phone].

Fax

You can fax your questions to Xycom Automation Technical Support at: 734/429-1010

25 142029 (D)

142029(C)

Xycom Automation, Inc.

750 North Maple Drive

Saline, MI 48176

734-429-4971 •••• Fax: [phone]

http://www.xycom.com
